SD-3M - Tumble dryer Infiniton - Free user manual and instructions

Product Type	Tumble Dryer
Brand	Infiniton
Model	SD-3M
Drying Type	Evacuation
Dimensions (Height x Width x Depth)	640 x 520 x 435 mm
Maximum Load Capacity	3 kg
Rated Voltage	220-240 V
Rated Frequency	50 Hz
Ambient Operating Temperature	5°C to 35°C
Net Weight	20 kg
Power Consumption	1250 W
Number of Programs	5
Energy Efficiency Class	C
Weighted Annual Energy Consumption	252 kWh/year
Sound Power Level	65 dB
Programs	Standard, Extra, Fast, Time+, Refresh

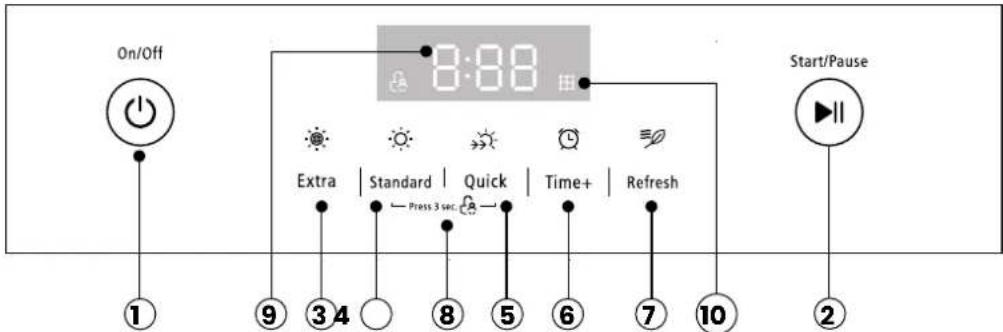

Control Panel Features	On/Off, Start/Pause, Child Lock, Digital Display, Filter Cleaning Alarm
Safety Features	Grounded plug, Child lock, Overheat protection (temperature fuse)
Filter Cleaning	Clean door lint filter after each cycle
Drum Cleaning	Wipe with damp cloth, clean humidity sensor
Installation Requirements	Ventilated area, minimum 10 cm from wall, exhaust duct to outside
Leveling	Adjustable feet, use spirit level

Frequently Asked Questions - SD-3M Infiniton

How do I install the Infiniton SD-3M tumble dryer?

Place the dryer on a rigid, dry, and level surface indoors. Ensure at least 10 cm clearance from walls and good ventilation. Connect the exhaust hose to the rear grille and route it outside. The appliance requires a grounded 220-240V outlet. Do not use an extension cord.

What is the maximum load capacity of the SD-3M?

The maximum load capacity is 3 kg. Overloading may cause poor drying performance and damage the dryer.

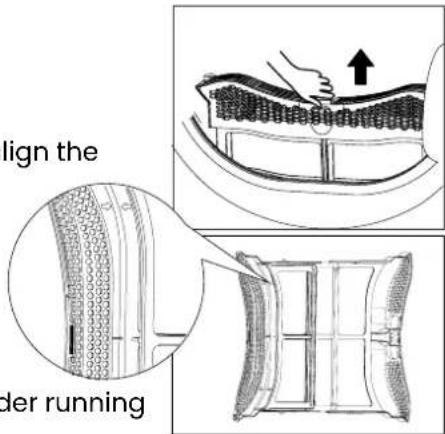

How do I clean the lint filter?

Clean the door lint filter after each drying cycle. Open the door, remove the filter, open it, remove lint by hand or rinse under water. Dry thoroughly before reinstalling. Align the arrows and slots for proper closure.

What programs are available on the SD-3M?

The dryer offers 5 programs: Standard (3 kg, 106 min), Extra (3 kg, 118 min), Fast (0.8 kg, 45 min), Time+ (1 kg, adjustable 10-120 min), and Refresh (1 kg, 10 min, adjustable to 60 min).

Why does the dryer not start?

Possible causes: power failure, plug not properly connected, laundry too hot, or temperature fuse disconnected. Check power supply and plug. Ensure laundry is spun and load is under 3 kg. If fuse is blown, call a service technician.

How do I activate the Child Lock?

Press the Normal and Fast buttons simultaneously for 3 seconds to activate the child lock. This prevents children from changing settings or starting the dryer accidentally.

What does the error code E33 mean?

Error code E33 indicates a temperature sensor error. Cancel the program, switch off the dryer, and contact customer service if the problem persists.

Can I install the dryer outdoors?

No, do not install the dryer outdoors or where it may be exposed to rain or frost. The ambient temperature must be above 5°C for proper operation. Install it in a well-ventilated indoor space.

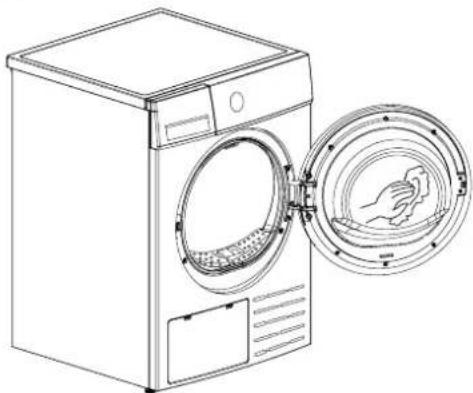

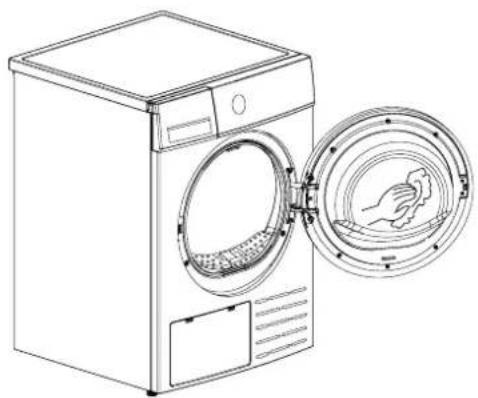

How do I clean the drum?

Disconnect the power cord. Use a soft, damp cloth with clean water only. Wipe the drum, door seal, and humidity sensor. Avoid solvents or abrasive cleaners. Dry all parts before next use.

Why is my laundry too dry or shrinking?

Overdrying can cause shrinkage. Observe care labels and remove clothes when slightly damp. Do not overload the dryer. Use the appropriate program for the fabric type.

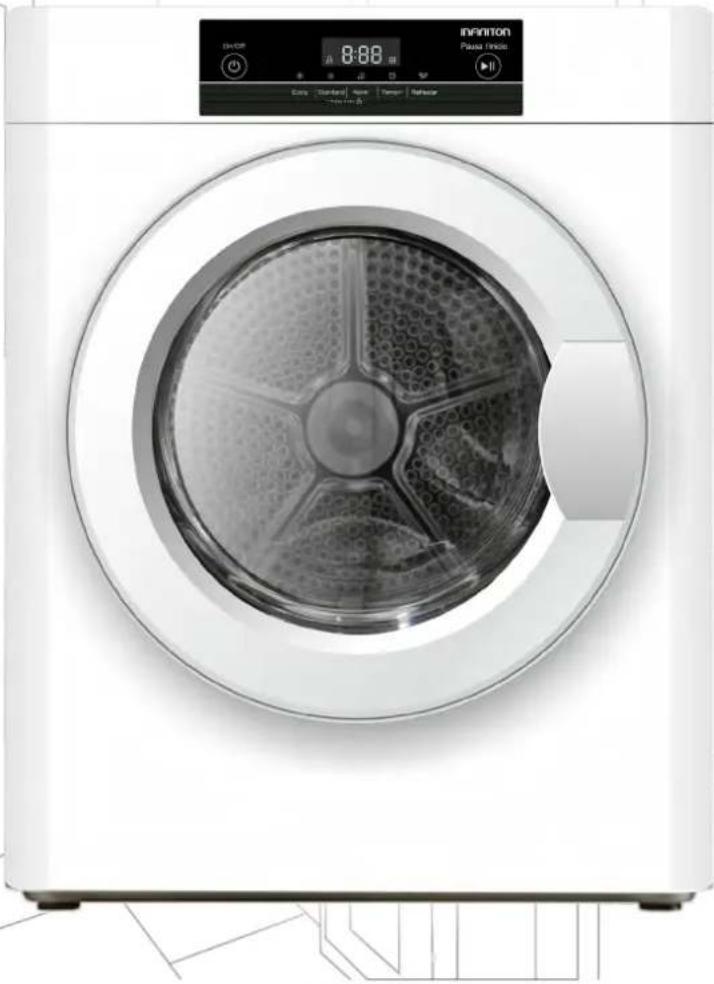

USER MANUAL SD-3M Infiniton

Front view of a white Inverter washing machine with digital display and control buttons (no visible text or symbols on the device body)

SD-3M
ean: 8436546193531

Simple line drawing of a container with a cross mark on a textured surface (no text or symbols)

Simple line drawing of a container with a circular top and cross mark, resting on a curved surface (no text or symbols)

Simple line drawing of a container with a circular inlet and cross mark, placed on a surface (no text or symbols)

¡ADVERTENCIA!

Transporte

Two stick figures pulling a large gray rectangular object (no text or symbols)

Technical line drawing of a rectangular electronic device with ventilation slots and a 10cm height dimension label (no text or symbols beyond measurement annotation)

Nivelar

Close-up of a white mechanical component with a metallic handle and a small attached part (no visible text or symbols)

Diagram of a washing machine with a screwdriver inserted, showing no text or symbols on the device itself.

Technical line drawing of a mechanical device with mounting bracket and side profile (no text or symbols)

B

Technical line drawing of a mechanical device with internal components and a side view (no text or symbols)

Conexión eléctrica

Diagram of a hand holding a circular object with an arrow indicating rotation (no text or symbols)

Cross-sectional diagram of a mechanical device with internal components and a black arrow indicating rotation (no text or symbols)

Simple line drawing of a wall socket with a bulb and cable, no text or symbols present

Illustration of a box with an arrow pointing upward, alongside a magnified inset showing a small structure labeled 'A' (no text or symbols on the diagram itself)

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Colorful play button logo with triangular design and 'easyplay' text (no additional symbols or text)

Line drawing of a front-loading washing machine with a hand inserting a circular component (no text or symbols)

Line drawing of a washing machine with an open door and a hand washing inside (no text or symbols)

Front view of a white Infiniton washing machine with digital display and control buttons (no visible text or symbols on the device itself)

SD-3M
ean: 8436546193531

Índice	English
Installation	24
Safety information	27
Before drying	29
How to use	32
Cleaning & Maintenance	34

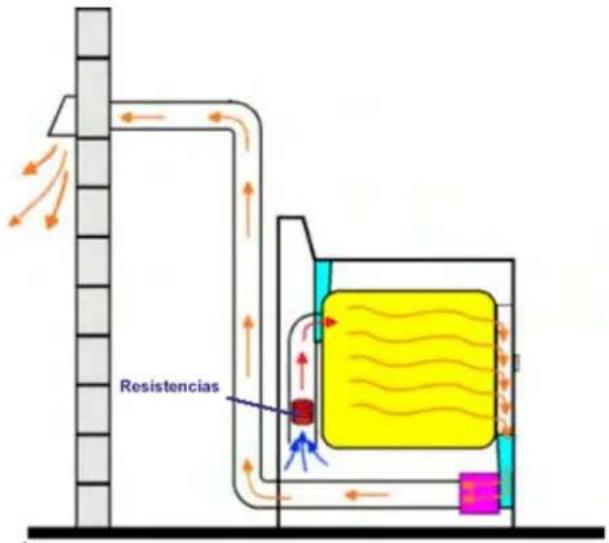

How does an evacuation dryer work?

You are probably wondering how an evacuation dryer works. It is a dryer that takes air from outside and heats it, through electrical resistances, which means that the moisture in the clothes is transferred through the air. It then passes through the drum where the damp clothes are, which means that the humidity of the clothes is transferred through the air and expelled to the outside through a tube that we will have to place in the window.

For the evacuation dryer to work correctly, it is necessary that where it is installed there is an outlet to the outside, either through a tube that comes out of the window or through a hole in the wall where the dryer is located to take the tube out.

How do you install an evacuation dryer?

First of all, the best place to install the tumble dryer is indoors, in the kitchen or bathroom, but with the washing machine nearby. This avoids having to walk around with wet clothes. Installing your tumble dryer outside the house can be harmful because there can be sudden changes in temperature outside and, in addition, if you live in a humid area or it rains a lot, we do not recommend placing it on the terrace.

It must be taken into account that for the installation of an evacuation dryer you must choose a space that faces outside because this dryer is based on the expulsion of humidity.

It is advisable that the place where the installation is carried out has a temperature of between 5^ and 35^ and that it is well ventilated so that the air can circulate without problems. Another recommendation is to place the dryer on top of the washing machine, as it weighs less and you will have twice as much space.

Location

Before installing this Infiniton appliance, you must choose a location that meets the following requirements:

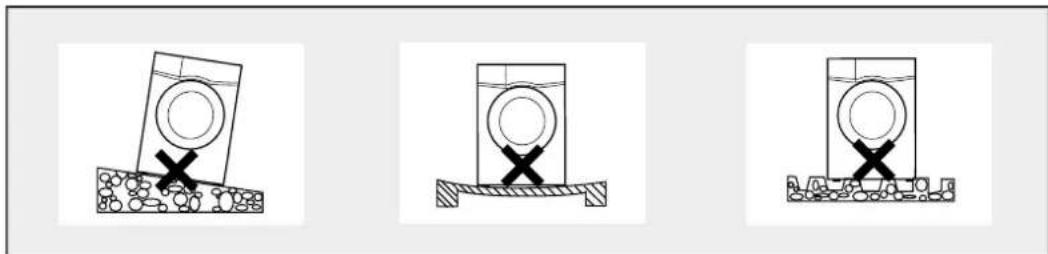

1. Rigid, dry and level surface
2. Avoid direct sunlight
3. Sufficient ventilation
4. The ambient temperature must be above 0°C
5. Keep the appliance away from any heat source (cookers, boilers, radiators, etc.).
6. Install the appliance in a clean place, where there is no accumulation of dirt. Do not obstruct the air inlets of the product.

WARNING! Stability is important to prevent the appliance from moving. Ensure that the product is level and stable. To ensure that the vibration and noise levels emitted by the appliance during operation are normal, the appliance should be placed on a firm and level surface.

Three diagrams showing a container with cross marks placed on a surface, no text or symbols present.

WARNING! Make sure the power cable is not trapped or damaged is not trapped or damaged.

WARNING! Be sure to maintain the minimum distances from the walls, as shown in the picture on the right.

Transport

Move the appliance with extreme care. Do not grip any protruding parts of the product. The door of the product must not be used as a carrying handle under any circumstances. If the appliance cannot be transported in an upright position, it can be tilted to the right less than 30^ .

Risk of damage and injury! Improper handling of the appliance may cause injury.

⚠️ Important! The appliance is very heavy, please never carry the appliance alone;

always do so with the help of another person.

Remove all obstacles from the transport route and the installation site:

- Open doors and remove objects on the floor.

Do not use the open door as a support point.

Remove all packing materials before using the appliance.

Before installing the product, check it for externally visible damage.

Do not install or use the appliance if it is damaged.

Two stick figures pulling a gray rectangular block (no text or symbols)

Do not install the appliance in a room where there is a risk of frost. At temperatures close to freezing point, the product may not operate properly. There is a risk of damage if condensed water is allowed to freeze in the pump and hoses.

Location

The tumble dryer should be placed in a ventilated area at a distance of not less than 10cm from the wall.

It is suggested that there should be no obstacles within 1.5m in front of the tumble dryer to ensure good ventilation of the appliance.

This tumble dryer should be installed in a well-ventilated place where you can easily put an exhaust duct to vent the steam out of the house.

Technical line drawing of a rectangular enclosure with ventilation slots and a 10cm height dimension label (no text or symbols beyond measurement annotation)

Levelling

Once you have positioned the appliance in its normal place of operation, make sure that it is completely level. To do this, you should use a spirit level. If the appliance is not completely level, you should adjust the legs according to the following figure:

Close-up of a white mechanical component with a metallic base and lever handle (no visible text or symbols)

1. Loosen the counter nut
2. Turn the foot until it reaches the floor
3. Adjust the feet and lock the nuts with a spanner.

It is possible that the levelling feet adjustment system may be different from the illustration above and may be more in line with the following:

Diagram of a washing machine with a red-handled tool pressing a button on the side panel (no text or symbols present)

Do not install the dryer outdoors or place it where it can be damaged by rain. Do not place the back of the dryer near curtains.

Do not place the dryer near a flammable area.

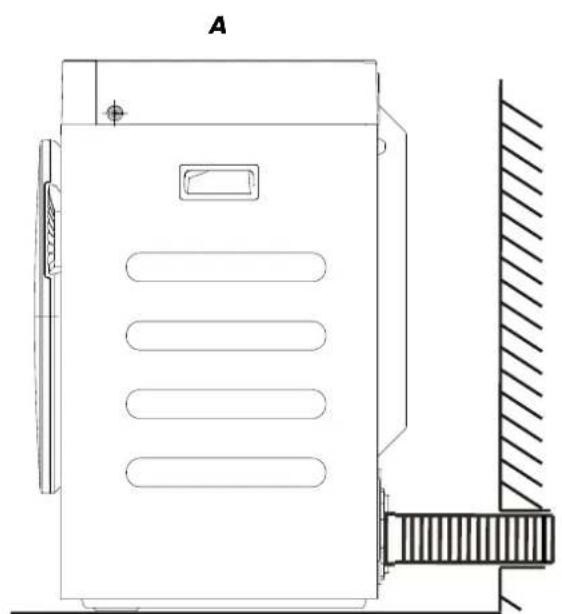

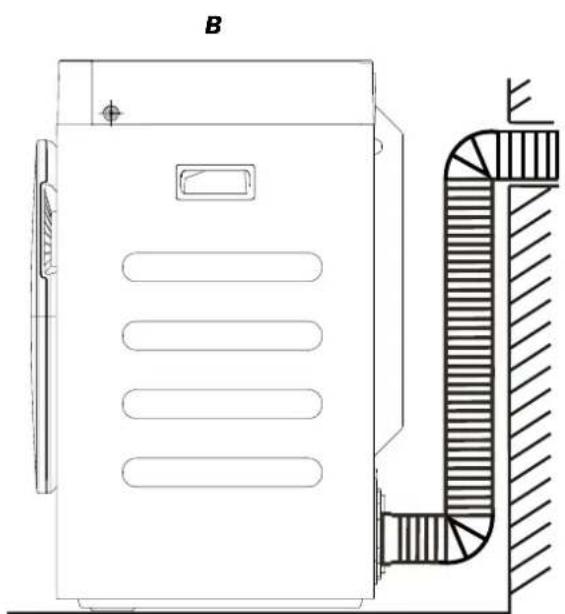

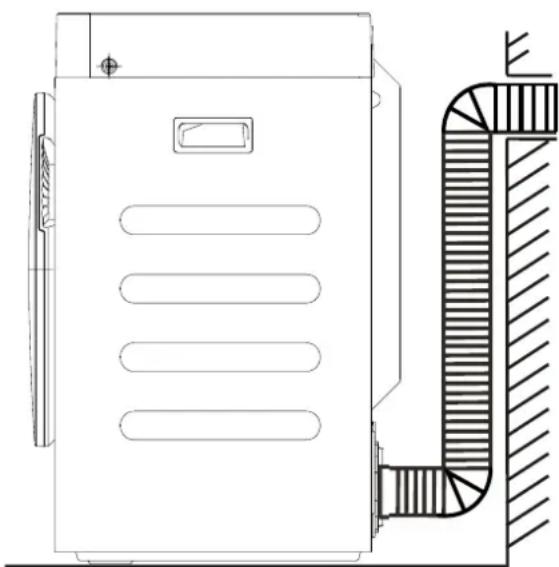

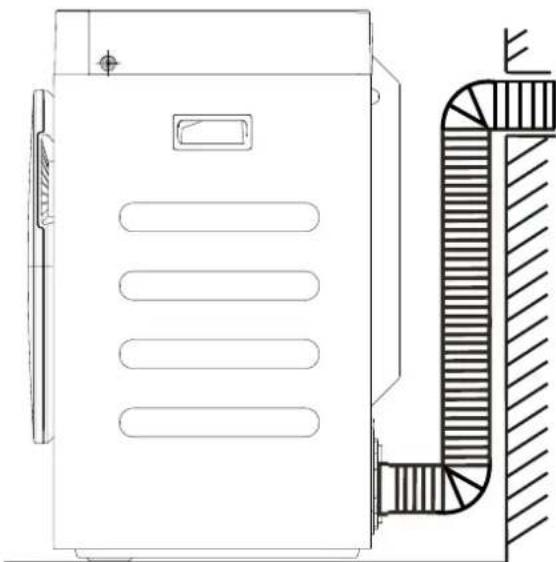

Attaching the flexible hose

Connect one end of the threaded hose to the rear ventilation grille and fix it until it is tight.

The other end of the hose will be extended outwards, see the following pictures for the correct mounting options.

Technical line drawing of a mechanical device labeled 'A', showing front panel and side profile (no text or symbols beyond label)

Technical line drawing of a mechanical device with a side profile view showing internal components (no text or symbols)

Electrical connection

This appliance must be grounded for safety. The power cord of this appliance is equipped with a three-prong plug that fits into a standard three-prong outlet to minimize the possibility of electric shock. Do not, under any circumstances, cut or remove the third grounding prong from the supplied power cord.

Do not cut or remove the third grounding prong of the supplied power cord under any circumstances.

This appliance requires a standard 220-240V-50/60Hz three-prong grounded outlet. The cord must be secured behind the appliance and must not be left unattended. appliance and should not be left exposed or dangling, thus avoiding accidents and/or injuries.

Never unplug the appliance by pulling on the power cord. Always grasp the plug firmly and pull it out. Do not use an extension cord with this appliance. If the power cord is If the power cord is too short, have a qualified electrician or serviceman install an outlet near the appliance. The use of an extension cord may adversely affect the performance of the unit.

Quick start

Before use, make sure that the dryer is installed correctly.

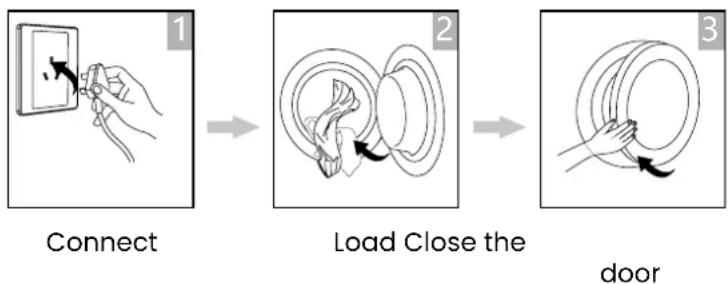

Before each drying

Drying

After drying

When the drying programme is finished, a beep will sound and the display will show "0:00".

Diagram of a hand holding a circular object with an arrow indicating rotation (no text or symbols)

Cross-sectional diagram of a mechanical device with internal components and an arrow indicating rotation (no text or symbols)

Simple line drawing of a wall socket with a bulb and cable, no text or symbols present

1. Open the door and take out the clothes.
2. Clean the door filter.
3. Switch off.

Note: If using the socket with a switch, press the switch to turn off the power directly.

General security information

For your safety and to ensure correct use, before installing and using the device for the first time, please read this user manual carefully, including its tips and warnings. To avoid unnecessary errors and accidents, it is important to ensure that all persons using the device are thoroughly familiar with its operation and safety features. Keep these instructions and ensure that they remain with the device if it is moved or sold, so that all those who use it throughout its lifetime are properly informed about the use and safety of the device.

For the safety of life and property, observe the precautions in these user instructions, as the manufacturer is not liable for damage caused by omission.

Safety of children and vulnerable people

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children up to 8 years of age can charge and discharge this appliance.
- Children should be supervised to ensure that they do not play with the appliance.
- Cleaning and user maintenance shall not be made by children unless they are 8 years of age or older and supervised.
- Keep all containers away from children. There is a risk of suffocation.
- If you are discarding the appliance, pull the plug out of the socket, cut the power cord (as close to the appliance as possible) and remove the door to prevent children from getting an electric shock if it falls or closes.

Electrical connections

• Make sure that the power cord is not trapped by the appliance, as this could damage it.
• Connect the appliance to a grounded socket outlet protected by a fuse that complies with the values in the "Technical specifications" table.
• The installation of the earth connection must be carried out by a qualified electrician.
• Ensure that the machine is installed in accordance with local regulations.
• Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.

WARNING! Do not use multiple plugs or extension cords.

WARNING! The product must not have an external switching device, such as a timer or be connected to a circuit timer or connected to a circuit that switches on and off regularly.

WARNING!

WARNING!

WARNING!

WARNING!

Do not disconnect the plug from the socket if there are flammable gases nearby.

Never pull out the plug with wet hands.

Always pull the plug, not the cable.

Always unplug the product when not in use.

Unpacking the appliance

WARNING! Packaging material (e.g. film, polystyrene foam) can be dangerous for children.

Risk of suffocation! Keep all packaging out of the reach of children.

1. Remove the cardboard box and the Styrofoam packaging.
2. Lift the washer and remove the packaging from the base.
3. Make sure to remove the small triangular foam (A) together with the bottom packaging. Otherwise, place the unit on a side surface and remove it manually.
4. Remove the tape securing the power cord and drain hose.
5. Remove the inlet hose from the drum.

Diagram of a box with an arrow pointing upward, showing a magnified view of a small structure labeled 'A' (no text or symbols present)

Service & Disposal

• Any electrical work required to service the appliance must be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorised Service Centre, and only original spare parts must be used.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

This symbol on the product or on its packaging indicates that this product must not be treated as household waste. Instead, it must be taken to the appropriate collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local authorities, your household waste disposal service or the shop where you purchased the product.

Packing materials

Materials with the symbol 🎨 are recyclable. Dispose of the packaging in a suitable collection container for recycling.

Disposal of the device

1. Disconnect the plug from the socket.
2. Cut the power cord and discard it.

Twist and go!

Normally washing machines come with dozens of programmes, and Infiniton does too, but the reality is that we only use 3 of them. Synthetic, cotton and 30/40 degrees. That's why simplifying things is thinking about the customer. We assure you that our seniors will appreciate the efficiency and simplicity. Put Easy Play in your life. Turn the wheel, press play and that's it. Your clothes will be washed to perfection depending on the time you have available.

Colorful play button logo with red triangle and white center, no text or symbols on the logo itself

What's Easy play technology?

Introducing the easiest to use Infiniton washing machines. Infiniton washing machines with Easy Play technology are essentially the solution to do the laundry quickly and optimally.

At Infiniton we have a clear philosophy; technology should be within everyone's reach to improve our lives. An accessible and non-exclusive good.

Easy Play, a child's game!

With Easy Play technology in Infiniton washing machines, doing the laundry will be easier than ever. This technology helps you to program the washing machine in an intuitive way so that you don't have any problems in your day-to-day life. Select the temperature and type of fabric depending on the clothes you are going to wash, so you can be sure that your clothes will be perfect.

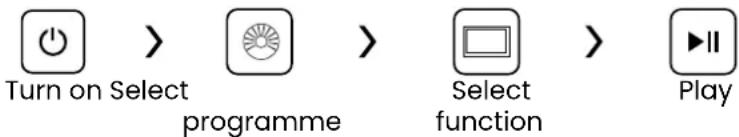

Turn on Select the

the right programme

Select the function or keep the default settings

Hand icon pointing at a play button with double and vertical lines (no text or symbols)

Press Start/Pause to start the programme

Why Easy Play is essential?

Infiniton simplifies your life with our washing machines. These washing machines develop the best technology to make your life much easier.

Doing the laundry is no longer a chore. Make Easy Play and spend your time on the things that really matter. These washers not only take care of your most delicate clothes, they also protect everyday fabrics and textures.

Allow to stand for 2 hours after transport and before the first use, use a soft cloth to clean the inside of the drum.

Place some clean cloths in the drum.

Connect it to the power supply, press On / Off.

Select a programme and press Start / Pause button.

After finishing this programme, follow the "cleaning and care" instructions to clean the filter door.

During drying, the compressor and water will generate a noise which is completely normal.

1. Before drying, spin the laundry well in the washing machine. Centrifuging the laundry at high speed shortens the drying time and saves energy.
2. To obtain an even drying result, sort the laundry according to the type of fabric and select the appropriate drying programme.
3. Before drying, close zips, hooks, buttons, fabric belts, etc.
4. Remove all items from pockets, such as lighters and matches.
5. Sew or remove rings from zips.
6. Close duvet and pillow cases to prevent small items from rolling around inside.
7. Leave jackets open and undo long zips to allow textiles to dry evenly.
8. Do not over-dry clothes, as clothes that are too dry can easily wrinkle.
9. Do not dry garments containing rubber or similar elastic materials.
10. Keep the area around the dryer clean. Coal dust or flour may cause an explosion.
11. The door should only be opened after the end of the tumble dryer programme to avoid steam burns.
12. Clean the lint filter and empty the water container after each use to avoid prolonged drying time and increased energy consumption.
13. Do not dry the laundry after the dry-cleaning process.

Jersey(mixed 800g)	Jackets(800g cotton)	Jeans(800g)	Towels(900g cotton)
Bed linen(Cotton 600g)	Daily clothing(1120g)	[DSAY]Pyjamas(200g)	Shirts(300g cotton)
T-shirts(cotton 180g)	Underwear(cotton 70g)	Socks(mixed fabric 50g)

Note: We recommend not to use more load than the recommended nominal load. Do not dry laundry that is too wet, as this may damage the dryer.

Labelling

The following icons provide care instructions for each garment. The garment label contains symbols for washing, bleaching, drying and ironing, or dry cleaning if necessary. Follow the instructions on the label to prolong the life of the garment and reduce laundry problems.

Washing

Boiling wash at 95°C

Colour wash at 60°C

Colour and delicate wash at 60°C

Colour wash at 40°C

Gentle wash at 40°C

Very gentle wash at 40°C

Delicate wash at 30°C

Gentle delicate wash at 30°C

Very gentle delicate wash at 30°C

Hand wash

Do not wash

Note: The number shown in the drawing specifies the maximum wash temperature in degrees Celsius which must not be exceeded.

Ironing

Ironing at a max. temperature of 200°C.

Ironing at a max. temperature of 150^ C.

Ironing at a max. temperature of 100^ C.

Do not iron

Note: Dots indicate ironing temperature ranges (regulator, steam, travel irons and ironing machines).

Drying

Suitable for tumble dryer

Tumble dry/ tumble dry at 80°C normal

Tumble dry/ tumble dry at 60°C mild

Do not tumble dry

Line drying

Line drip dry

Flat tumble drying

Flat drip-drying

Line drying in the shade

In-line drip-drying in the shade

Horizontal shade drying

Horizontal drip-drying in the shade

Note: The dots indicate the drying level of the tumble dryer and the lines indicate the type and position of drying.

Bleach

Any type of bleach

Oxygen bleach only

Do not use bleach

Note: Do not use more detergent than recommended by the product manufacturer.

Note: Use stain and bleach removers before the washing cycle and only when necessary.

Note: Save water and electricity by always loading the washing machine to the maximum load (the exact amount of laundry depends on the programme used).

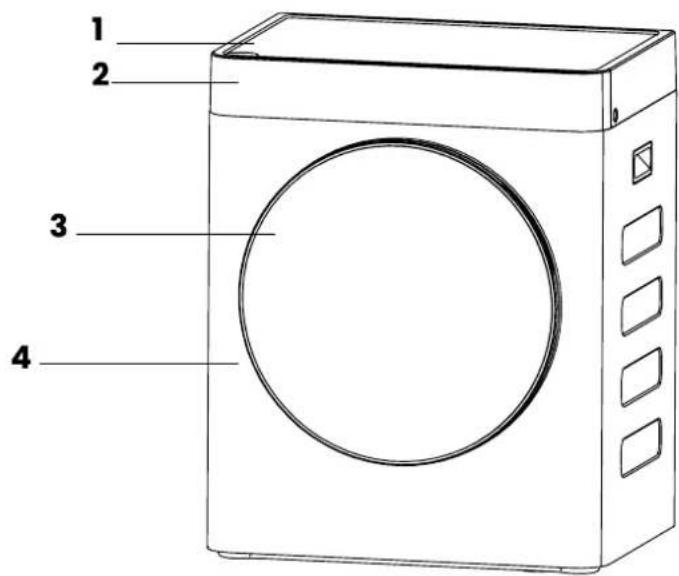

Product parts

Due to technological innovations, the product description in this manual may not completely match your appliance. More detailed information corresponds to the final product.

1 Cubierta superior

2 Panel de control

3 Puerta

4 Cubierta

Model SD-3M
Drying type Evacuation
Product dimensions (height x width x depth) 640 x 520 x	435mm
Maximum load capacity (Kg) 3
Rated voltage and frequency 220-240V ~ 50Hz
Ambient operating temperature 5°C ~ 35°C
Net weight (Kg) 20
Power 1250W
Number of programmes 5

Note

The rated capacity is the maximum capacity of laundry that can be dried at one time. Make sure that the laundry loaded in the product does not exceed the rated capacity.

Do not install the dryer in a room where there is a risk of frost. At temperatures close to freezing point, the dryer may not work properly.

There is a risk of damage if condensed water is allowed to freeze in the pump, hoses and/or condensed water container.

Control panel

1 ON / OFF

2 START / PAUSEPress the button to start or pause the drying cycle.

3 EXTRADry cotton garments. Drying level: extra dry

4 STANDARDAutomatic drying for cotton and laundry load at maximum power.

5 FASTFast drying for polyester fabrics. The load of mixed fabric shall not be more than 0.8kg.

6 TIME +Press the button continuously to set the drying time between 10-120minutes.

7 REFRESHRefreshes the laundry. The load may not exceed 1Kg.

8 CHILD LOCKThis function prevents children from causing pressure problems or incorrect operation of the dryer. To set this function: Press “Normal” and “Fast” simultaneously for 3 seconds.

9 DISPLAYThe remaining time of each programme is displayed.

10 FILTER CLEANING ALARMMilter cleaning reminder. At the end of the programme, this indicator lights up to remind the user to clean the filter.

Clean the filter, cover and inner drum.

Clean the filter when the "Filter" indicator light flashes, after the tumble dryer has stopped.

Table of drying programmes

PROGRAMS MAXIM	MUM WEIGHT (Kg)	TIME ON DISPLAY	TIME ADJUSTMENT (min)
Standard 3.0 1:46 /
Extra 3.0 1:58 /
Fast	0.8 0:45 /
Time +	1.0 0:10 10-120
Refresh	1.0 0:10 10-60

WARNING! Before cleaning, unplug the power plug first; do not connect or disconnect the power plug with wet hands, as there is a risk of electric shock and injury.

Do not spill water directly on the appliance, thus avoiding rust, electricity leakage and accidents.

Regular cleaning of this appliance helps to prolong its life.

External cleaning

Clean dust accumulated on the surface of the appliance frequently.

After using detergent, be sure to rinse it with clean water and then wipe it dry with a cloth.

Note: Never use metal scouring pads as this may damage painted, chrome and plastic surfaces.

WARNING! Do not use bristle brushes, wire brushes, detergent, soap powder, alkaline detergent, benzene, gasoline, acid, hot water and other corrosive or soluble elements to clean the surface of the appliance, door gasket, plastic decorative parts, etc. to avoid damage. Carefully dry the door gasket, clean the groove with a wooden stick wrapped with cotton thread.

Cleaning the door

Clean the glass and door gasket after each wash to remove possible lint and/or detergent/softener residues, as leaks may occur.

If any rust stains are found inside the drum, they should be removed with non-chlorine detergent.

Line drawing of a front-loading washing machine with a hand inserting a fan into the door (no text or symbols)

Cleaning the filters

This tumble dryer has a main lint filter in the door.

Be sure to clean the door filter after each cycle.

Note:

In order for the double-layer filter to close smoothly, it is necessary to align the arrows at both ends, as well as the centre slot and the side slot.

slot.

Cleaning the door filter

1. Open the door.

2. Remove the door filter.

3. Open the filter and remove the lint from the filter, you can clean it under running water.

4. Dry the door filter thoroughly before reinstalling it.

Observe the correct orientation before inserting the door filter.

Drum cleaning

- Disconnect the power cord before cleaning.

- Clean the dryer with a damp cloth that is moistened with clean water only.

- Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaners. They may damage plastic surfaces and other parts.

• Use gloves for cleaning.

Line drawing of a washing machine with an open door and a hand washing it (no text or symbols)

• Prepare a damp cloth dampened with clean water.
- Clean the door, especially the inner window.
- Clean the seal around the door opening.
- Clean the humidity sensor inside the drum.
- Remove all filters, clean the seal and air flow openings.
• Before starting the dryer, dry all parts with a soft cloth.

Troubleshooting

Whenever there is a problem with the appliance, check if you can solve it by following the tables below. If the problem persists, contact customer service.

DESCRIPTION CAUSE SOLUTION
Does not start Power failure. The plug is not properly connected.The temperature of the laundry is too high.The temperature fuse is disconnected.		Wait until the power is on.Check the socket, make sure that the plug is properly connected.The laundry in the dryer must be after spinning, and the laundry to be dried must not exceed 3 kg.Call the service technician to reset the temperature fuse.
Hot or smells burnt The lint filter is dirty.The suction or exhaust duct is dirty.		Make sure to clean the lint filter well in advance.Clean the tube.
Clothes too dry There is too much laundry in the dryer.Laundry is not taken out in time when finished.Laundry is not sorted correctly.Temperature is too high.		Make sure there is no overload of laundry.Take the laundry out immediately when finished.Respect the maintenance label on the laundry.
Clothes shrink Too dry Observe the care label on the laundry. If clothes shrink easily, examine them when they are dry. Remove clothes when they are too wet or too dry and hang them up until they are completely dry.
Lint forms on clothes It is correct that synthetic fibres and permanent press fibre cause hairballs. This is because the correct rubbing causes the formation of fluff.		Use fabric softener to lubricate the fibre, when ironing clothes, apply a little fabric softener to the cuffs and neckline, turn the iron outwards to reduce rubbing.

Note

If you cannot solve the problems yourself and need help:

• Press the button (On / Off).
• Disconnect the mains plug from the mains and call for service.

Error code

Many faults and malfunctions that can occur in daily operation can be easily remedied. You will save time and money because there is no need to call a service technician.

The following guide can help you find the reason for a malfunction and correct it.

DESCRIPTION	POSSIBLE CAUSE SOLUTION
E33	Temperature sensor error Cancel the	programme and switch off the dryer. Contact your local service centre if this problem persists.

Before calling for service, check whether you have solved the problems yourself by referring to the operating instructions.

Product sheet

Model SD-3M
Rated capacity 3kg
Dryer type Evacuation
Energy efficiency class C
Weighted annual energy consumption (AE) 252kWh/año
Automatic or non-automatic Automático
EU Ecolabel N/A
Energy consumption of standard cotton programme
Energy consumption of the standard cotton programme at full load 2.10kWh
Energy consumption of the standard cotton programme at partial load 1.10kWh
Power consumption of Off mode (Po) 0.43 W
Power consumption of left hand mode (PI) 0.43 W
Duration of left-hand mode 10 min
Duration of the "Standard cotton" programme
Weighted programme time of the standard cotton programme at full and part load 110min
Programme time of the cotton standard programme at full load 115min
Programme time of the standard cotton programme at partial load 60min
Sound power level of the full-load cotton standard programme	65dB

(*) Energy consumption per year, based on 160 drying cycles of the standard cotton programme at full and partial load and the consumption of the low energy modes. Actual energy consumption per cycle will depend on how the appliance is used.

INFINITON

Secadora

Front view of a white Inverter washing machine with digital display and control buttons (no visible text or symbols on the device itself)

SD-3M
ean: 8436546193531

Simple line drawing of a mechanical component with a cross mark, no text or symbols present

Simple line drawing of a container with a cross mark on a base, no text or symbols present.

Simple line drawing of a washing machine with a circular component and cross symbol, placed on a surface (no text or labels)

Transporte

Two stick figures pulling a gray rectangular object, no text or symbols present

Technical line drawing of a rectangular electronic device with ventilation slots and a 10cm height dimension label (no text or symbols beyond measurement annotation)

Nivelação

Line drawing of a washing machine with a screwdriver inserted, showing no text or symbols on the device itself.

Technical line drawing of a mechanical device with mounting bracket and side panel (no text or symbols)

B

Technical line drawing of a mechanical device with internal components and a side view (no text or symbols)

Conexão eléctrica

Symbol of a trash bin crossed out by two crossed lines (no text or labels)

Logo of 'easyplay' play button with red triangle and multicolored segments (no text beyond logo design)

Line drawing of a washing machine with an open door and a hand cleaning the interior (no text or symbols)

Limpeza dos filtros

Limpeza do tambor

Line drawing of a front-loading washing machine with an open door and hand washing inside (no text or symbols)

¿Necesitas ayuda?

Silhouette icon of a person wearing a headset with a crossed wrench symbol (no text or numbers)

INFINITON

TÉRMINOS Y REGISTRO DE GARANTÍA
