USER MANUAL VisionShare A40 NorthVision

Wireless Collaboration System

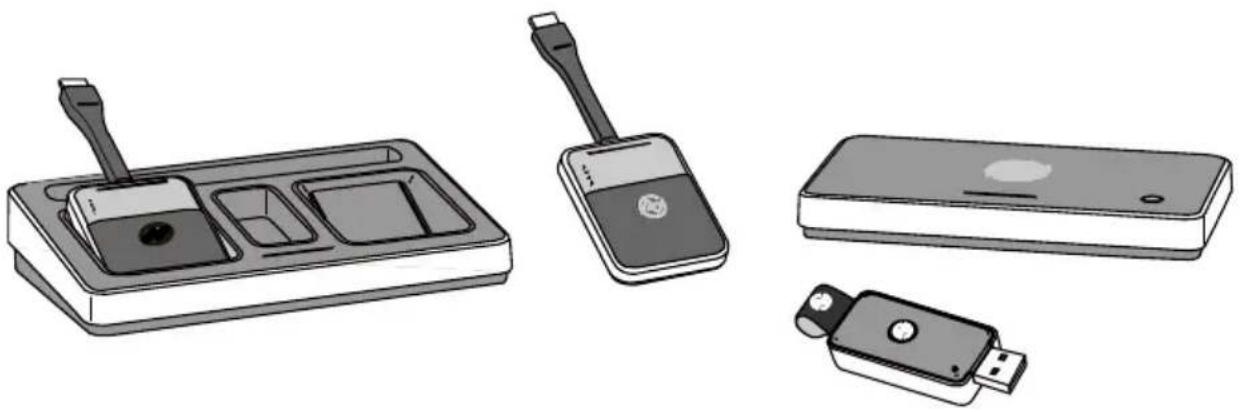

Illustration of four electronic devices: a charging tray, a handheld device, a rectangular box, and a USB flash drive (no text or symbols present)

User Manual

A20 / A30 / A40 / A45

Contents

DISCLAIMERS .... 1

WARRANTY....2

SAFETY NOTIFICATIONS....4

FEATURES 7

WHAT IS IN THE PACKAGE 8

A. PRODUCT DESCRIPTION......9

1. Transmitter 9

2. Receiver---- 10

3. Power Station 11

4. USB Wireless Touch Dongle (A30 / A45 ONLY) 12

5. Universal Power Adapter Set 13

B. ESTABLISH YOUR COLLABORATION SYSTEM......14

1. Connect the Receiver 14
2. Connect the Transmitter 15

2.1 Display Port Adapter 16
2.2 Auxiliary Power Input 16

1. Establish the Connection---- 17
2. Start Your Presentation---- 18

4.1 Start the Presentation....18
4.2 Pause the Presentation 19
4.3 Standby Mode 20
4.4 Switching Your Presentation Sources 21

1. Wireless Touch (A30 / A45 ONLY)---- 22

5.1 Connect the Receiver 23
5.2 Connect and Initiate the Wireless Touch Dongle .....24

C. APPENDIX....26

1. Charge Your Transmitter 26
2. Receiver Installation---- 27

2.1 Wall Mount installation....27
2.2 Secondary HDMI Output 28

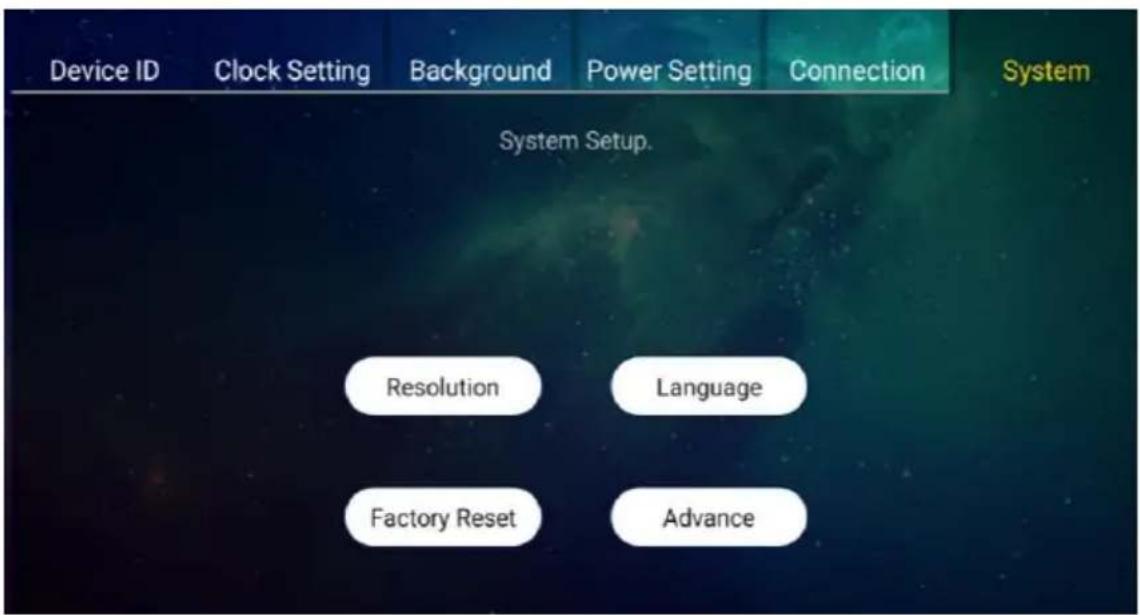

1. Configure Your Collaboration System---- 29

3.1 Device Name (Device ID) 30
3.2 Clock Setting....31

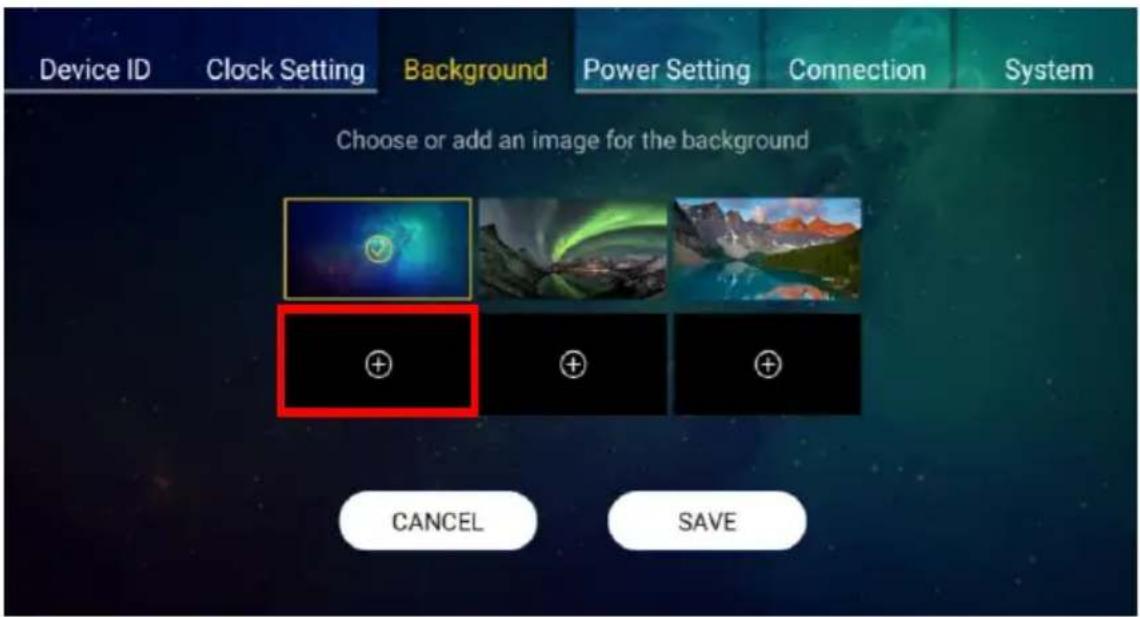

3.3 Background 32

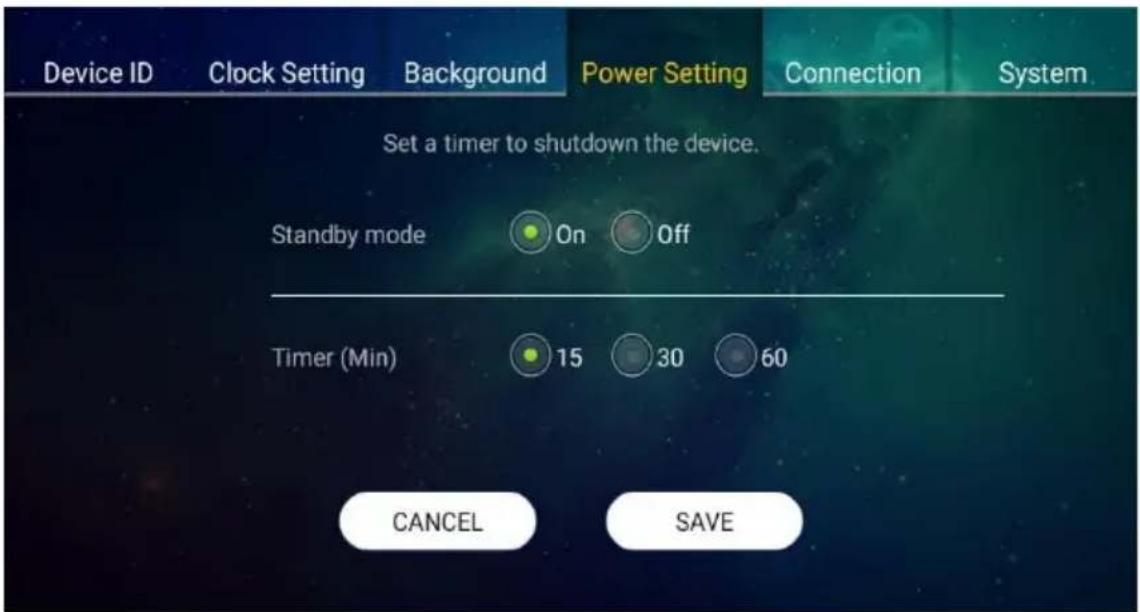

3.4 Power Setting 33
3.5 Connection 34
3.6 System....35

1. Mirroring360 & 4 Split Screens 41
2. Indicator Lights Description 43
3. Specification 47

Disclaimers

NorthVision Corporation makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose.

Further, NorthVision Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of NorthVision Corporation to notify any person of such revision or changes.

This user manual aims to provide the most updated and accurate information to customers, and thus all contents may be modified from time to time without prior notice. Please visit www.northvision.com for the latest version of this manual.

The illustrations, contents and the images in this guide are for your reference only and subject to change without prior notice.

Warranty

NorthVision warrants the equipment it manufactures to be free from defects in material and workmanship. The procedures presented in this document apply to all NorthVision's VisionShare Series products. All NorthVision brand products purchased by Distributor will receive a three (3) years parts and labor warranty, except for VisionShare transmitters, and all accessories, which hold a one (1) year parts and labor warranty.

The warranties stated above shall be effective upon delivery and remain in effect in accordance with NorthVision's then-current policy. Warranty does not include: (i)Products have been improperly installed, altered or otherwise modified. (ii)Products have been subjected to misuse, abuse, negligence, accident or natural disasters. (iii)Products have been used in a manner contrary to specification.

DOA (Dead on Arrival): The DOA period is 60 days after shipment to an end user. Products that cannot be turned on or cannot display and after testing will be considered DOA. After the DOA product has been tested, please return to the distributor with an RMA number and a replacement will be sent. Products returned that are functioning properly, will be returned to the end user, and the cost of returning the product with normal functions will be borne by the customer. Products returned by DOA should be kept in their original packaging and the accessories must be complete. Otherwise, the products will be considered as RMA (Return as received).

RMA (Returned Material Authorization): Products that fail more than 60 days from the date of shipment but within the warranty period three (3) years require an RMA. During the warranty period, RMA parts and labor costs are included. The customer is responsible for the return of RMA products to the distributor/ NorthVision. Distributor will be responsible for both the shipping method and shipping costs

of RMA products (in the warranty period) for the return. Product determined to be improperly used or damaged by the customer, will incur a maintenance and parts fee. Shipping costs for returning out-of-warranty products is at the customer's expense.

The information in this manual has been carefully checked and is believed to be accurate. However, NorthVision assumes no responsibility for any inaccuracies that may be contained in this manual. In no event will NorthVision be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. The technical information contained herein regarding the features and specifications are subject to change without notice.

Safety Notifications

• Read the instruction manual carefully before use and save it.
• Use only parts or accessories, (especially power adapters), recommended by the manufacturer. Unapproved parts may be hazardous and cause injuries to the product or users, and will void the warranty.

WARNING:

IF ANY FUNCTIONAL PROBLEMS OR DEFECTS OCCUR WHICH ARE

ATTRIBUTABLE TO

IMPROPER USE OF THE PRODUCT SHALL

VOID THE WARRANTY.

• Refer servicing to qualified personnel only.
• Do not attempt to repair or dissemble the product on your own. Opening or removing cover can expose you to dangerous voltage or other hazards.
• Before plugging the power cord into the AC inlet of the power supply unit, make sure that the voltage applied to the power outlet is within the specified range (100V\~240V). Improper power source voltage range will cause damage to the power supply unit or connected products.
• Power off the product and remove the power adapter while cleaning the product.
• Before powering on the product, make sure all the connectors, cables are firmly installed.
• Don't immerse the battery in water and seawater. Please put it in cool and dry environment if no using.

- Do not use or leave the battery at very high temperature conditions (for example, strong direct sunlight or a vehicle in extremely hot conditions). Otherwise, it can overheat or fire or its performance will be degenerated and its service life will be decreased. It is recommended that you use the battery within the ambient temperatures range of 15-30 degrees.

- First Time Battery Charge: Charge the transmitters for six hours before first-time use.

Important Safety Notifications

• Do not expose the product to liquids or moisture, such as a bathtub, a washbowl, a kitchen sink, a laundry tub, and a swimming pool.
• Do not expose the product, including the devices and accessories, under direct sunlight, and keep it away from any heat source.
• Do not bend the cables of the devices, or place them to the unstable locations.

Always install and operate the devices in flat and secure location.

• Do not place the product on an unstable location, stand or table. If the machine falls, it may injure a person or cause serious damage to the appliance.
• Do not allow anything to rest on the power cord. Do not locate the product where people may walk on the cord.
• Do not make the power outlet and extension cords overload. Overload can result in fire or electric shock.

• If any of the following situations occurs, unplug the product from the power outlet immediately and consult with a qualified service person:

• The power cord or plug is damaged or frayed.

• Liquid is spilled on the product.
• The product is dropped or damaged.

- Use a soft cloth to clean the product when it is dirty. In case of stubborn dirt, use a mild detergent and wipe the product gently. Always turn off and unplug the product before cleaning.

- Please clean and store the products and accessories with care, when the product is not use.

Features

Wireless Collaboration Solution

Perfect Combination with Touch Display For Conference Room

HDMI Plug & PLAY

Compatible with all HDMI connectivity. Intuitive True Plug & Play

Near Zero Latency

Cable-like experience by instant transmission < 0.1 ms

No WiFi Interference

Free from 2.4GHz and 5GHz WiFi signal interference.

4K Video Quality

High performance of 4K video quality without compression loss.

Easy Installation

Simple HDMI connectivity. Intuitive set up without software installation.

Power Embedded

Solves power and cabling issues.

What is in the package

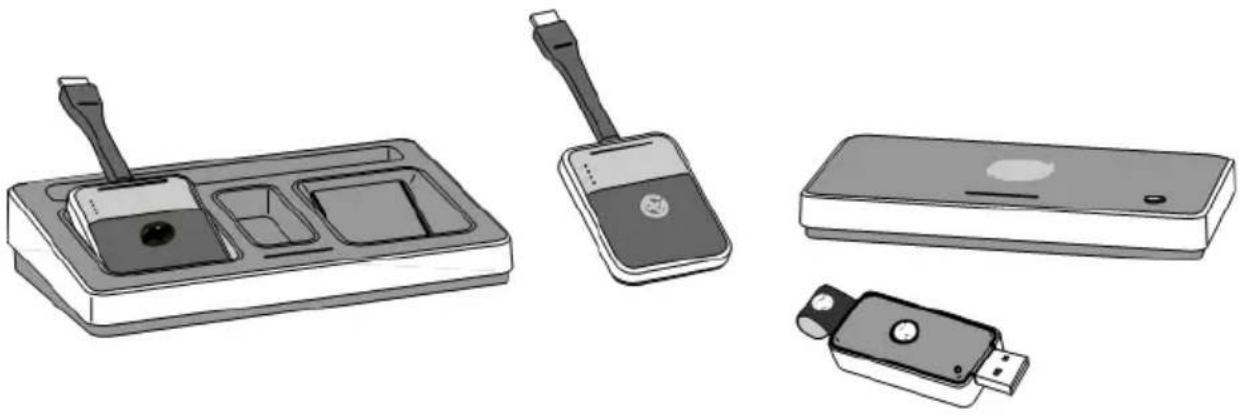

Simple line drawing of a three-panel cabinet or enclosure with no text or symbols

Power Station

Two identical gray electronic device lockers with black leads, no visible text or symbols

Transmitter X 2

Generic tablet device with a logo and control buttons (no readable text or symbols)

Receiver

Mini DP to HDMI Adapter

HDMI Cable

Micro USB Cable

Electric shock absorber with attached cable (no visible text or symbols)

Universal Power Adapter Set x 2

Vitron Share Series Vitron® Interactive space System installation name: Vitron 2014 (100%) Voltage Power Battery Battery Type: High-Pressure Battery Color: Black Battery Color: Red Battery Color: Green

Quick Installation Guide

USB Wireless Touch Dongle*

Touch USB Cable* (Type A to Type B)

* USB Wireless Touch Dongle and Touch USB Cable (Type A to Type B) are included in A30 and A45 ONLY

A. Product Description

1. Transmitter

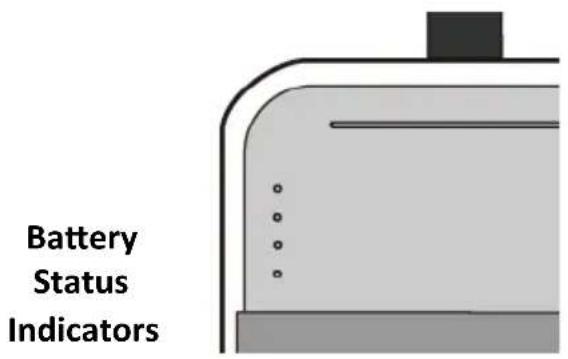

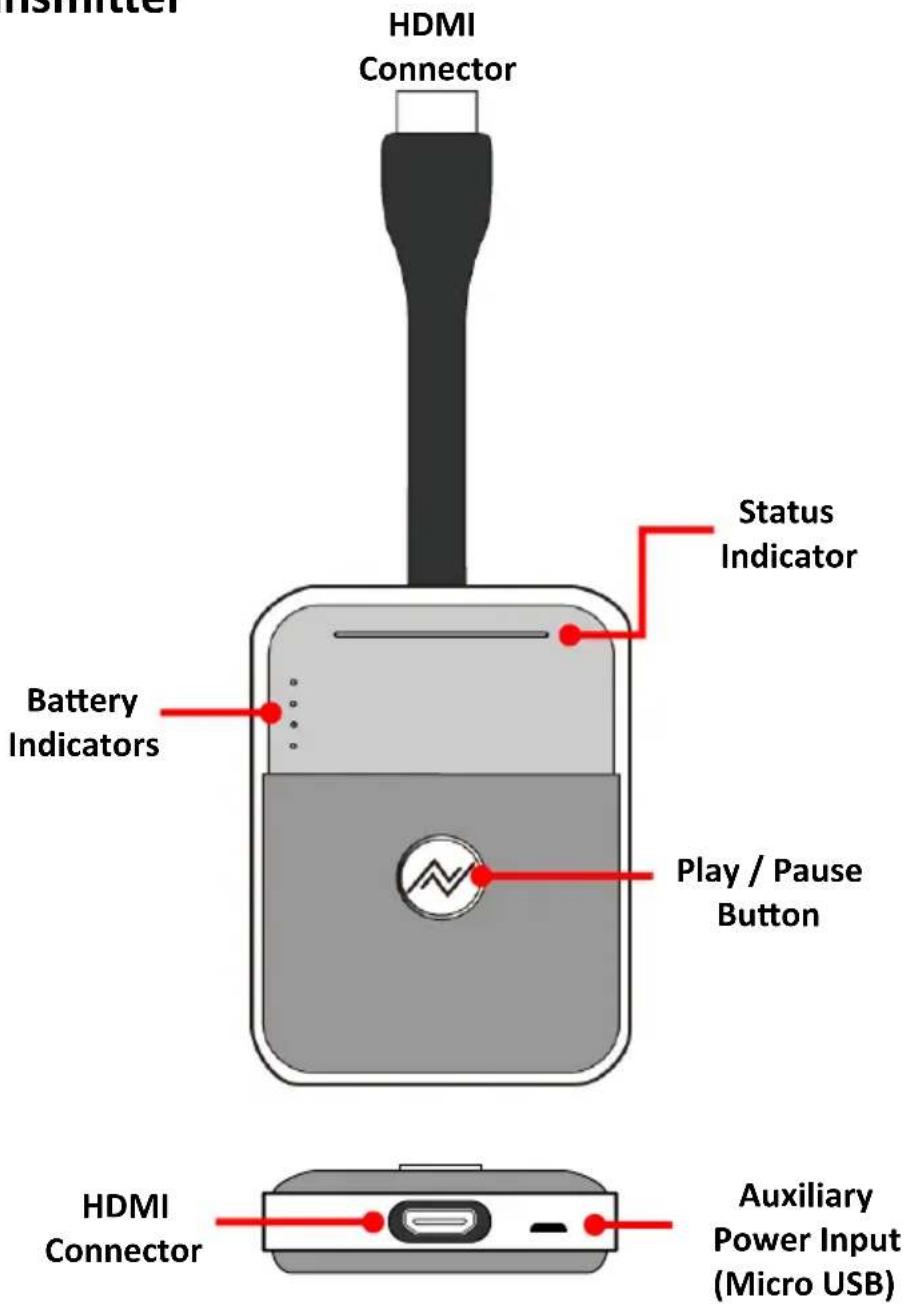

HDMI Connector Status Indicator Battery Indicators Play / Pause Button HDMI Connector Auxiliary Power Input (Micro USB)

● First Time Battery Charge:
Charge the transmitters for six (6) hours before first-time use.
● Auxiliary Power Input:
Use the supplied Micro USB cable to obtain power from laptop or PC. Please refer to Auxiliary Power Input.

2. Receiver

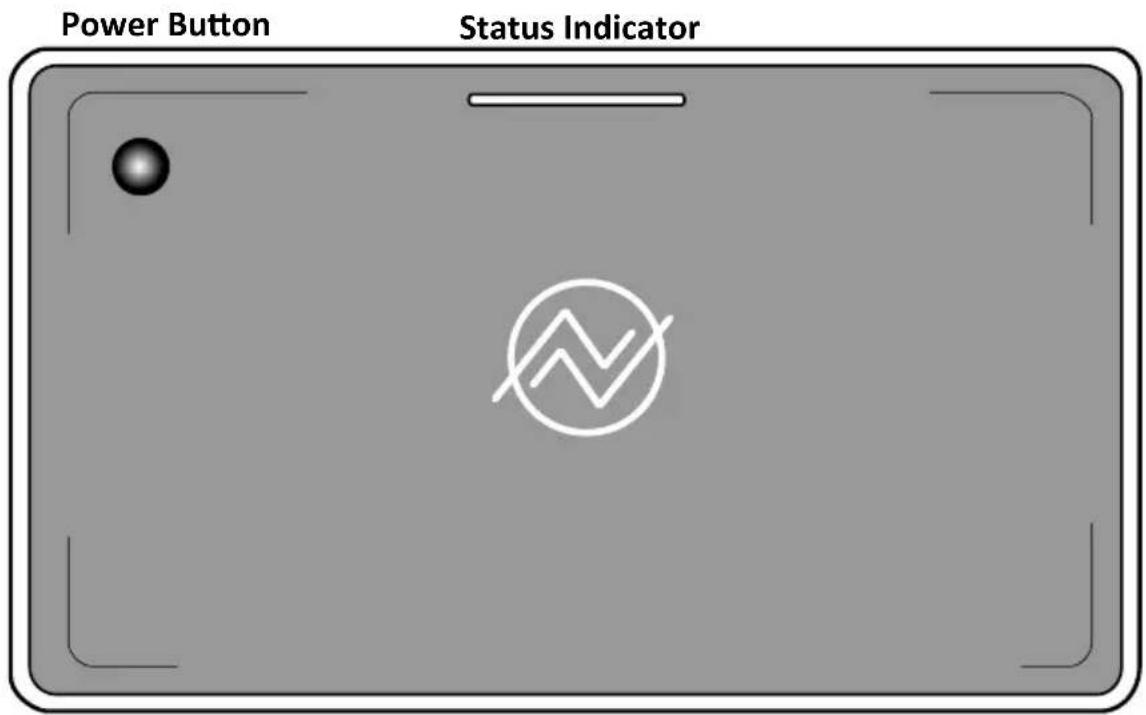

Power Button Status Indicator

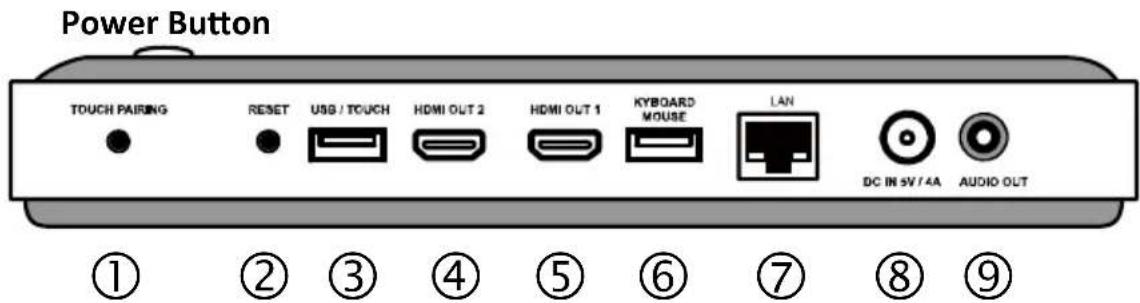

Power Button TOUCH PAIRING RESET USB / TOUCH HDMI OUT 2 HDMI OUT 1 KYBOARD MOUSE LAN DC IN 5V / 4A AUDIO OUT ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

① Touch Pairing
② Reset
③ USB / Touch
④ HDMI OUT 2
⑤ HDMI OUT 1

⑥ Keyboard / Mouse
⑦ LAN
⑧ DC IN (5V / 4A)
⑨ AUDIO OUT

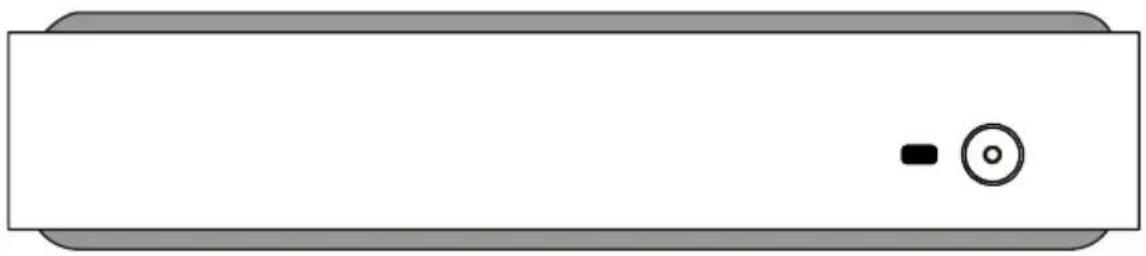

3. Power Station

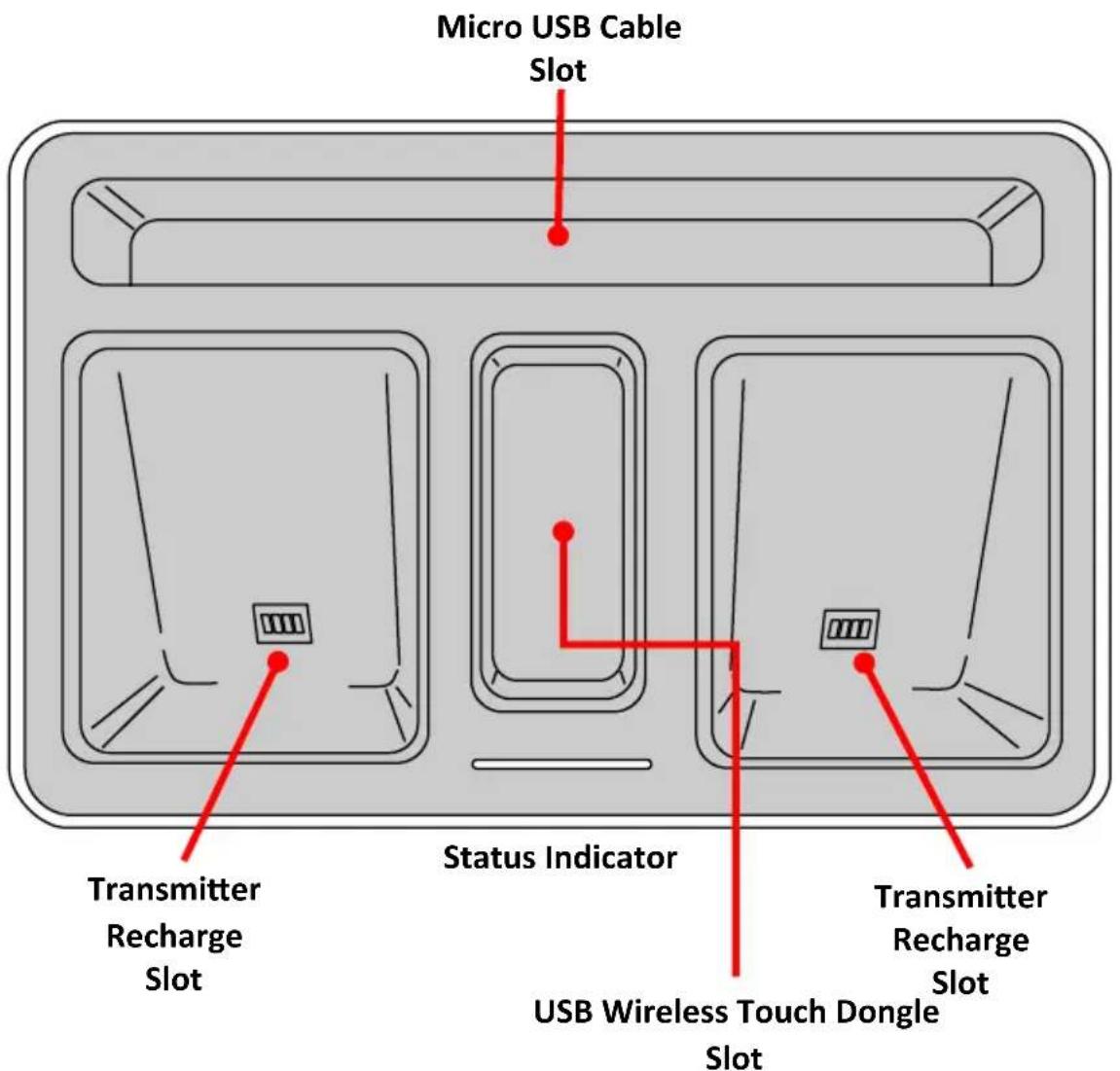

Micro USB Cable Slot Transmitter Recharge Slot Status Indicator USB Wireless Touch Dongle Slot Transmitter Recharge Slot

Simple diagram of a rectangular device with a black square and circular button on the side (no text or symbols)

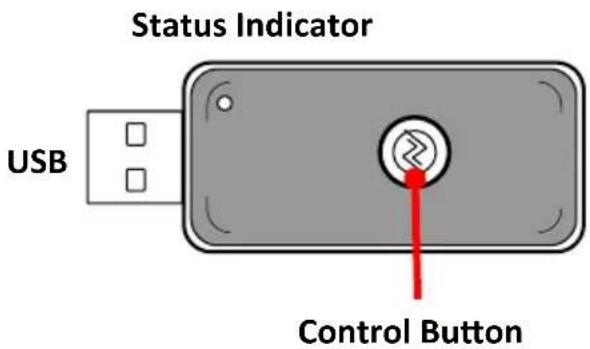

4. USB Wireless Touch Dongle (A30 / A45 ONLY)

Status Indicator USB Control Button

5. Universal Power Adapter Set

US Plug Adapter

EU Plug Adapter

Illustration of a connected electrical device with a coiled cable (no text or symbols visible)

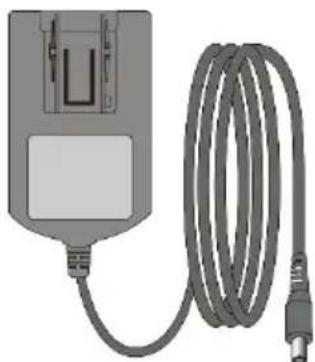

Power Adapter

◆ Change the Plug Adapter

To install the plug adapter:

Pure mechanical component diagram without any text, numbers, or symbols

Pure electrical connector diagram without any text or symbols

Click!!

To detach the plug adapter:

Pure mechanical component diagram without any text, numbers, or symbols

Snap-In Latch

Note:

1. Make sure the plug adapter is firmly installed before plugging the power adapter to the power outlet.
2. Store the unused plug adaptor securely for future use.

B. Establish Your Collaboration System

1. Connect the Receiver

1. Connect the power adapter to the power outlet and Receiver.
2. Connect the cable of HDMI to the Receiver and display device.

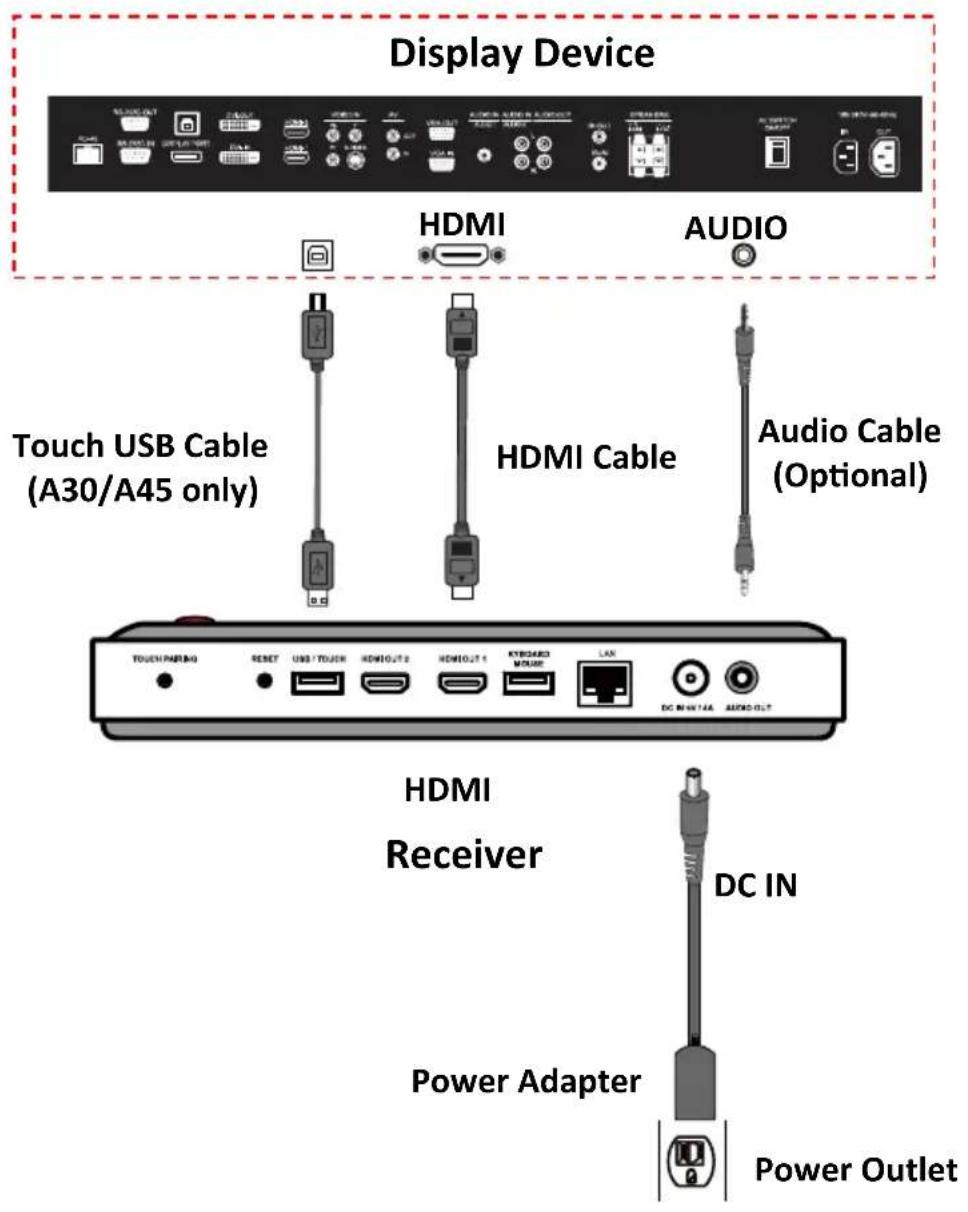

Display Device HDMI AUDIO Touch USB Cable (A30/A45 only) HDMI Cable Audio Cable (Optional) HDMI Receiver DC IN Power Adapter Power Outlet

2. Connect the Transmitter

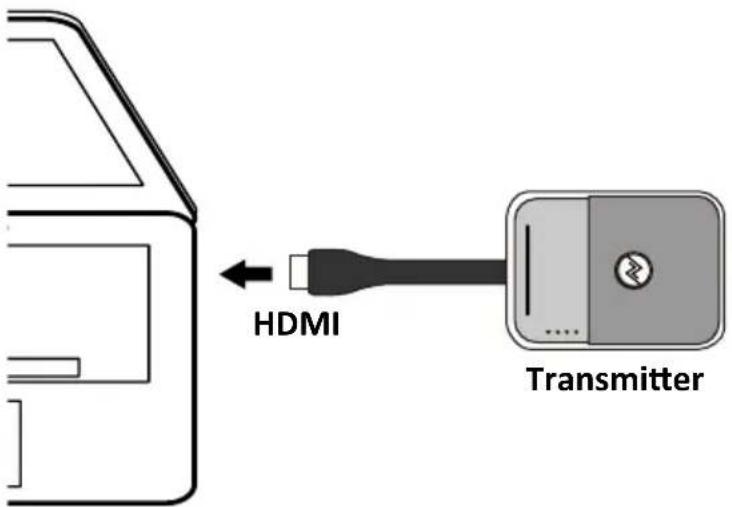

1. Connect the Transmitter to the laptop or PC.

HDMI Transmitter

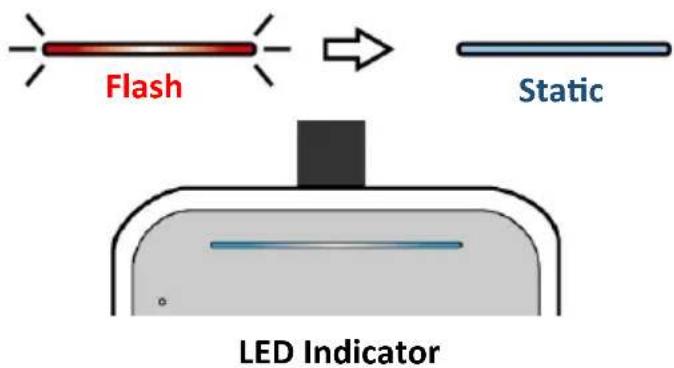

1. The Transmitter flashes RED and then turns BLUE to search for the Receiver.

Flash Static LED Indicator

2.1 Display Port Adapter

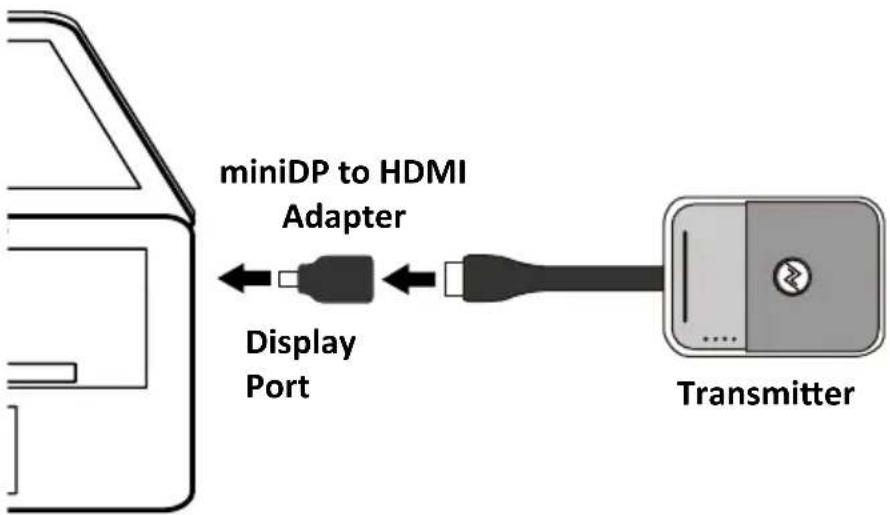

You can use the HDMI to Display Port (DP) adapter and connect to the display port. Other adapters and dongles may be used but NorthVision is unable to guarantee their performance.

miniDP to HDMI Adapter Display Port Transmitter

2.2 Auxiliary Power Input

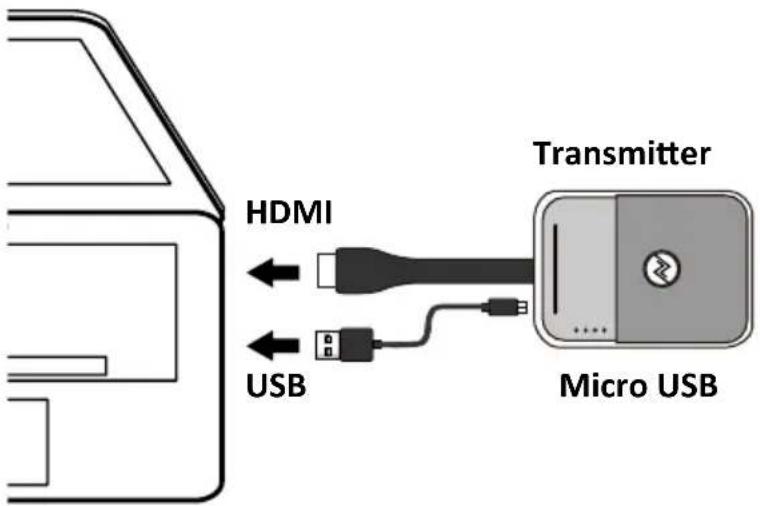

You can use the supplied micro USB cable to obtain power for presentation and battery-charging.

HDMI USB Transmitter Micro USB

3. Establish the Connection

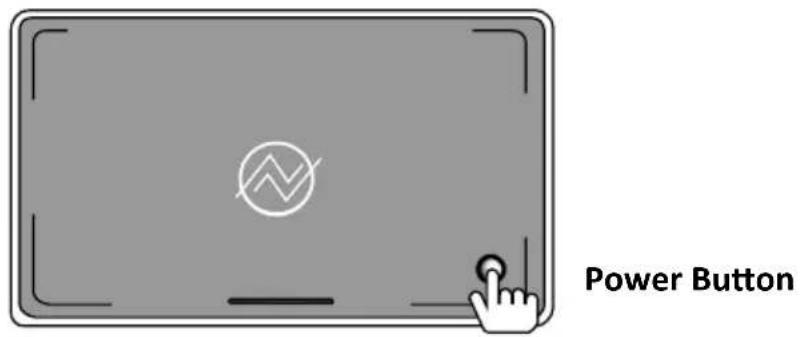

1. Press the power button on the Receiver.

Power Button

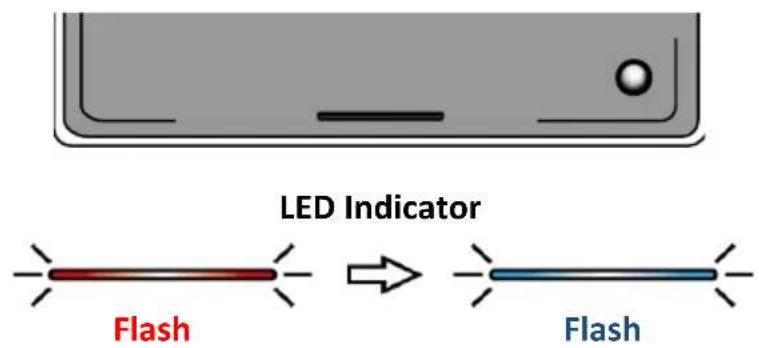

1. The Receiver flashes RED and flash BLUE to sync to the Transmitter.

LED Indicator Flash → Flash

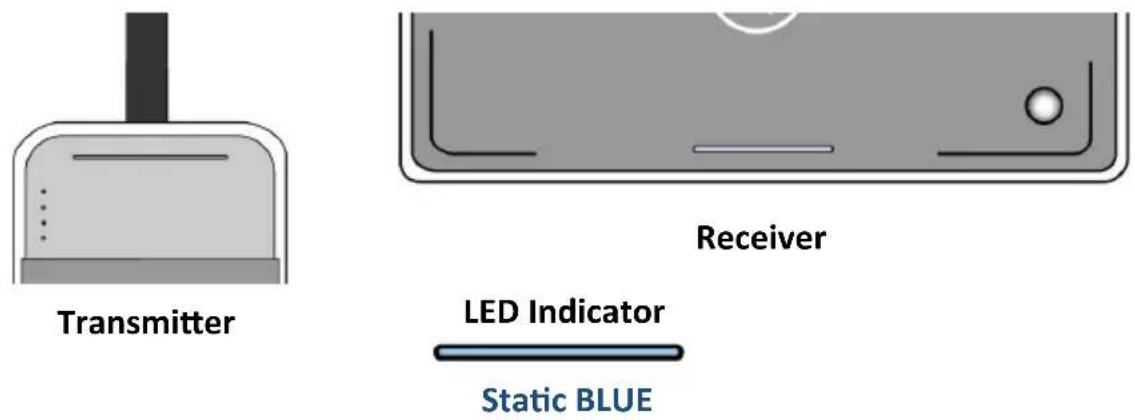

1. Once the pairing of Transmitter and Receiver is established, the indicators of the Transmitter and Receiver show static BLUE light and are ready for presentation.

Transmitter Receiver LED Indicator Static BLUE

4. Start Your Presentation

4.1 Start the Presentation

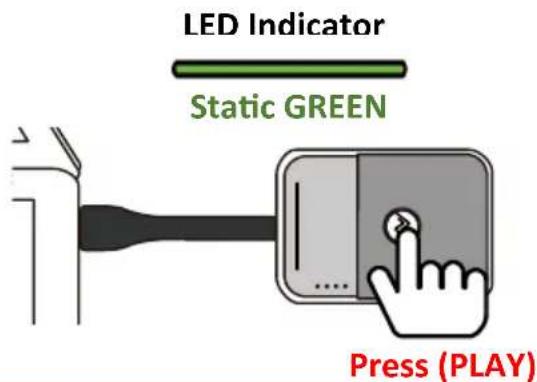

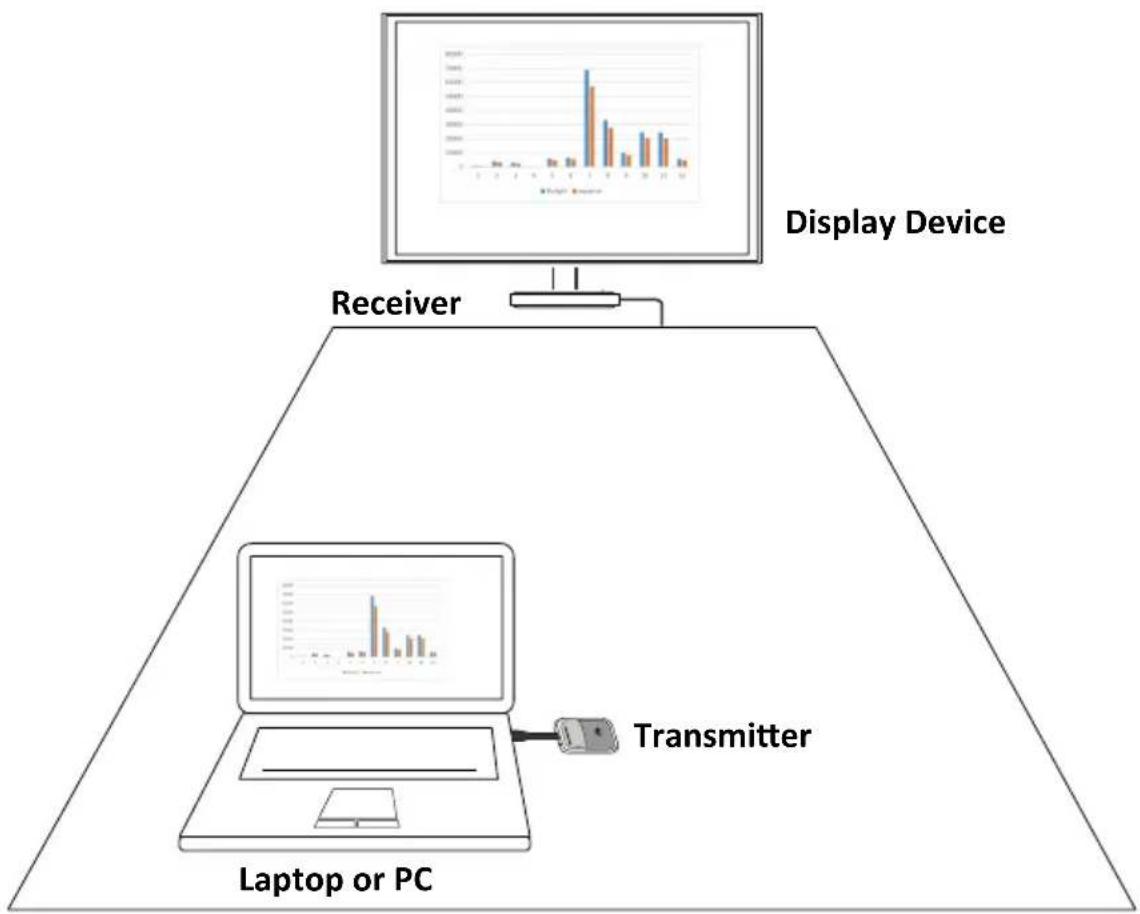

Press the PLAY button of the transmitter to start the presentation. The status LED indicator of Receiver and Transmitter show static GREEN while the presentation is in progress.

LED Indicator Static GREEN Press (PLAY)

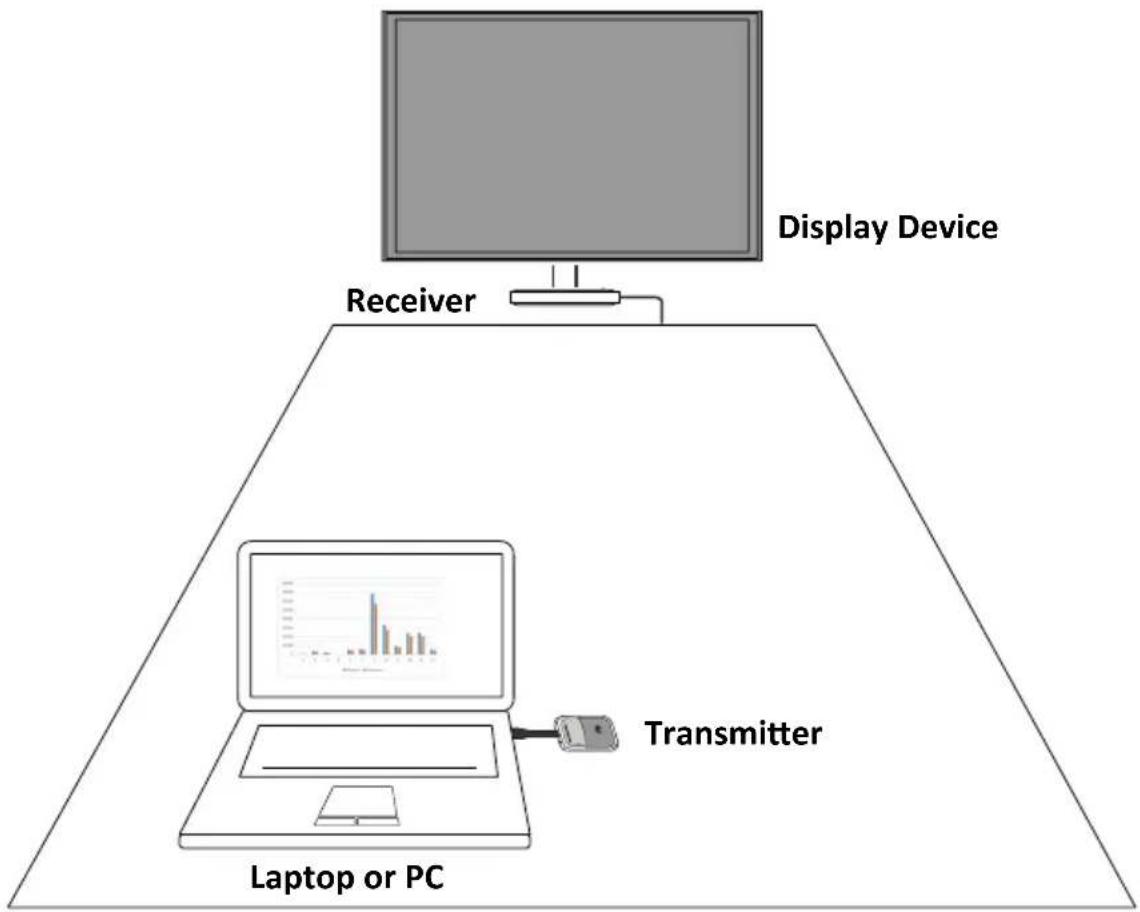

4.2 Pause the Presentation


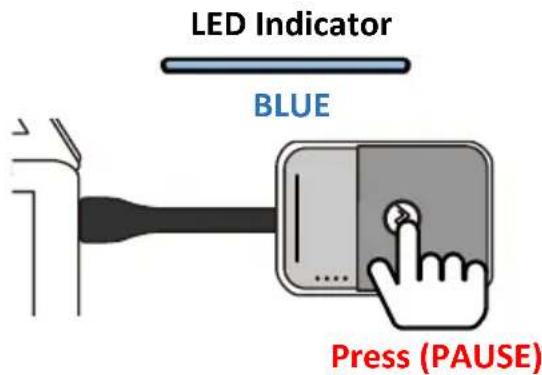

Press the PLAY/PAUSE button of the Transmitter to pause the presentation.

The LED indicator turns to BLUE as the presentation is paused.

LED Indicator BLUE Press (PAUSE)

4.3 Standby Mode

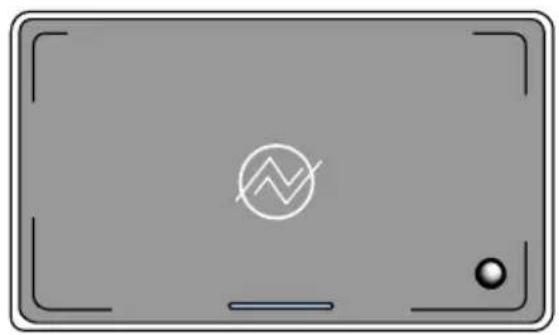

The receiver may switch to standby mode automatically. (Please refer to Power Setting at setting page for further instruction).

Gray rectangular device with a white circular symbol and a small dot at the bottom, no text or labels present.

Power Button (Flashing)
Receiver

Press the power button to wake up the receiver.

Power Button (Press and Wake-Up)

4.4 Switching Your Presentation Sources


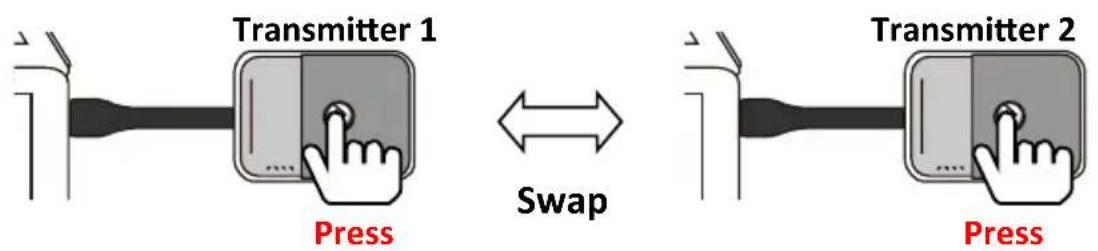

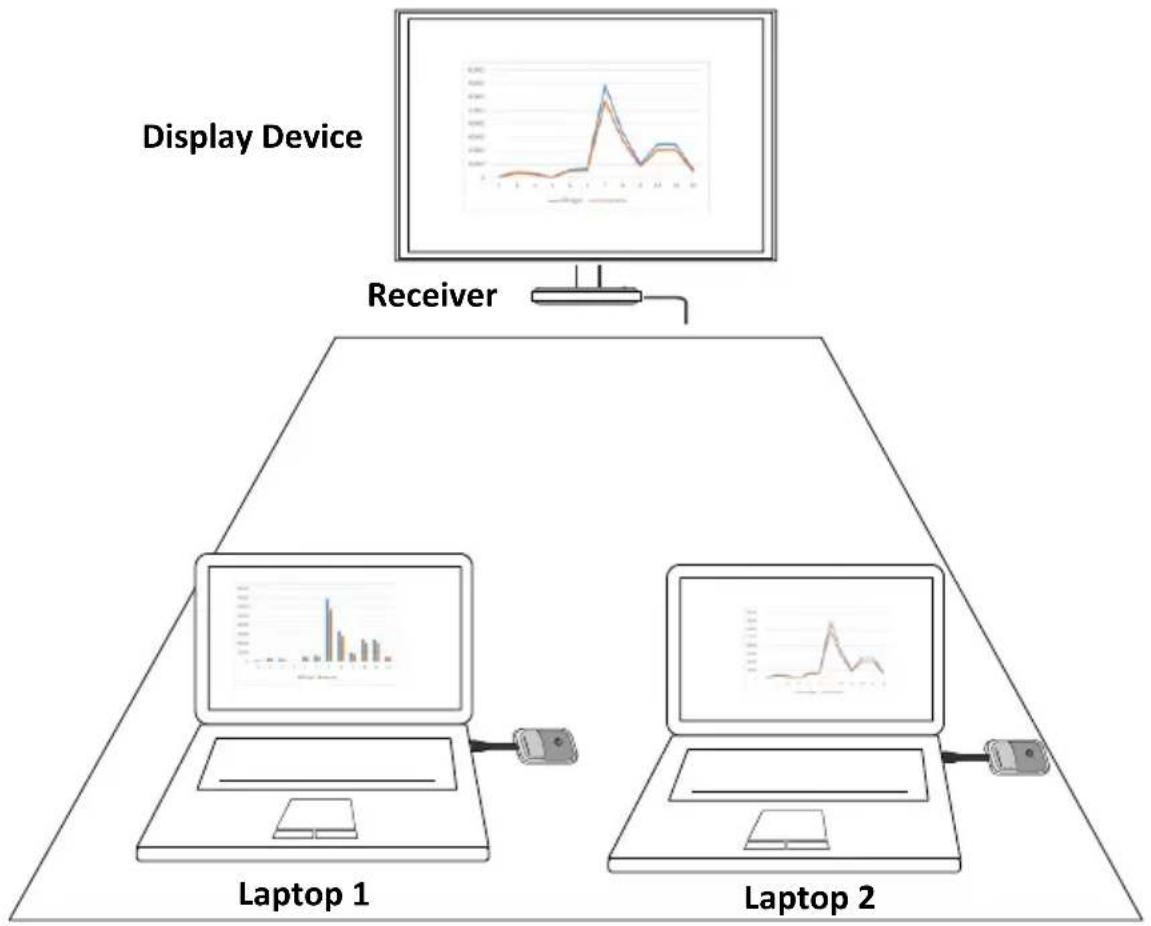

Press the PLAY button of Transmitter 1 or Transmitter 2 to switch the presentation sources (laptop 1 or laptop 2). Handshaking takes a few seconds, and then the displayed image will switch.

Transmitter 1 Press Swap Transmitter 2 Press

5. Wireless Touch (A30 / A45 ONLY)

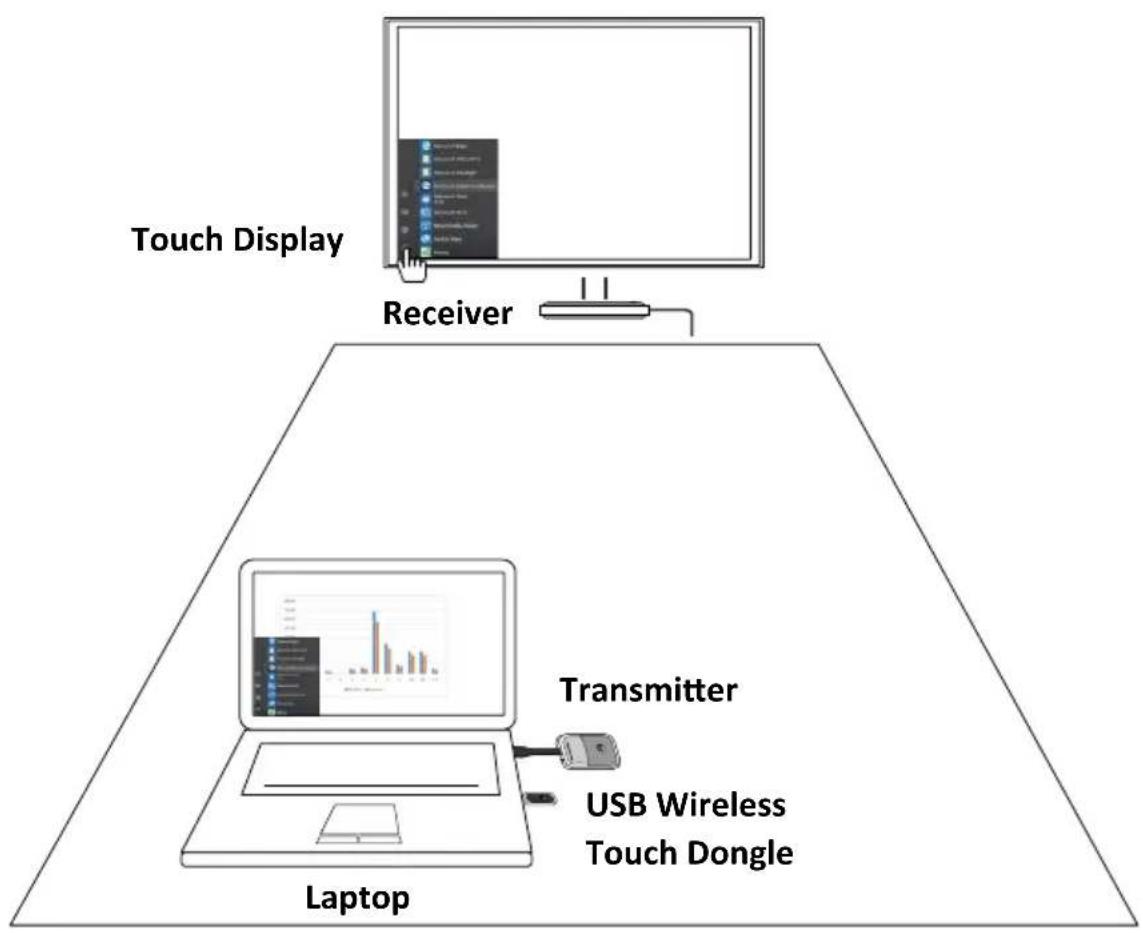

VisionShare with touch display allows bi-directional wireless touch functions, with full control back to the PC/laptop simultaneously.

* Wireless Touch function may have compatibility issue cause by different panel touch drive. Please contact your local agency or [e-mail]

5.1 Connect the Receiver

1. Make sure the Transmitter and Receiver are connected and the collaboration system is established.
2. Make sure the touch USB cable is connected to the touch display properly.

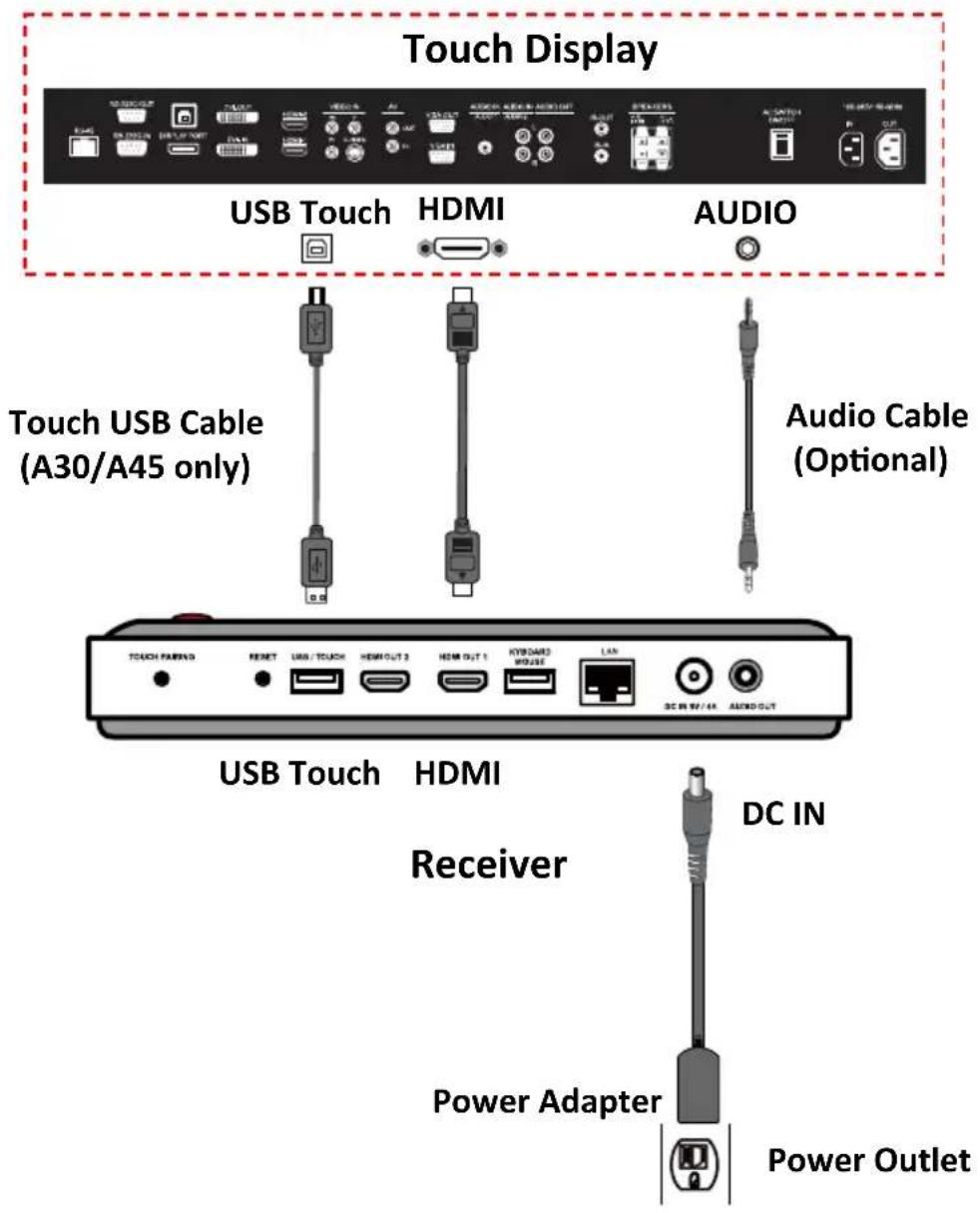

Touch Display USB Touch HDMI AUDIO Touch USB Cable (A30/A45 only) Audio Cable (Optional) USB Touch HDMI Receiver DC IN Power Adapter Power Outlet

5.2 Connect and Initiate the Wireless Touch Dongle

1. Connector the USB wireless touch dongle to the USB port of the laptop or PC.

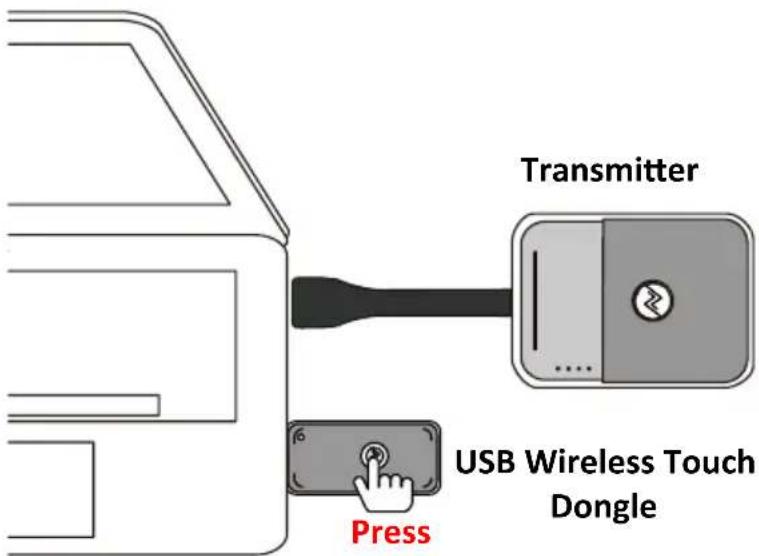

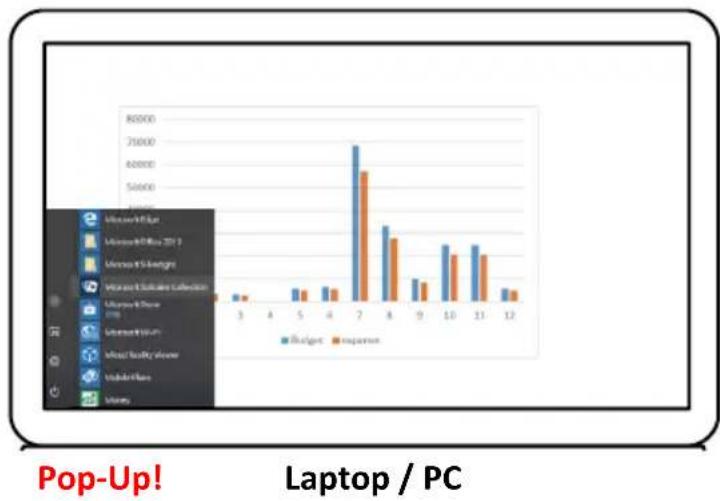

2. Press the control button on the touch dongle to activate the wireless touch function.

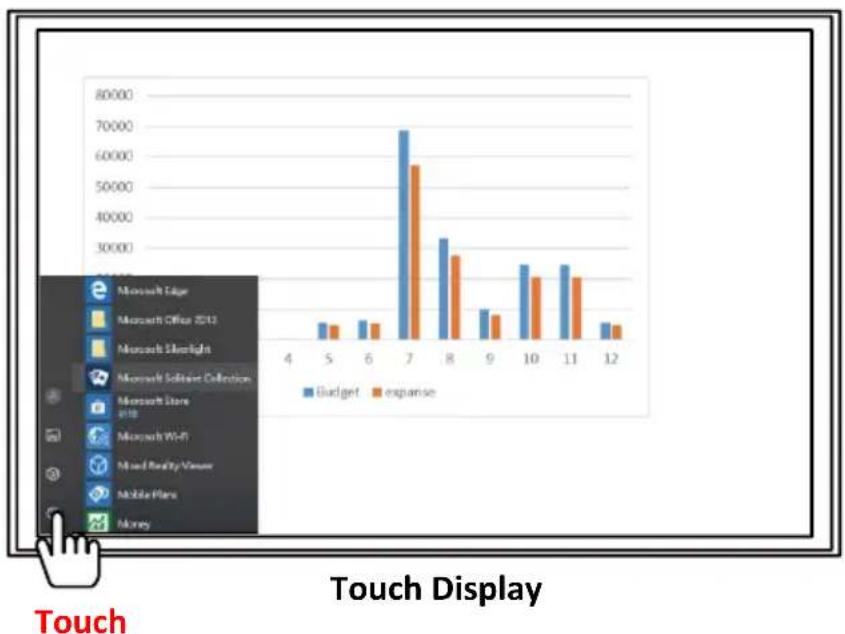

The screen of the laptop is synchronized with touch display.

Transmitter USB Wireless Touch Dongle Press

1. VisionShare touch provides bi-directional control back to the PC or laptop. Using the touch display you may open files, writing, resize the image, etc. from your PC or laptop.

C. Appendix

1. Charge Your Transmitter

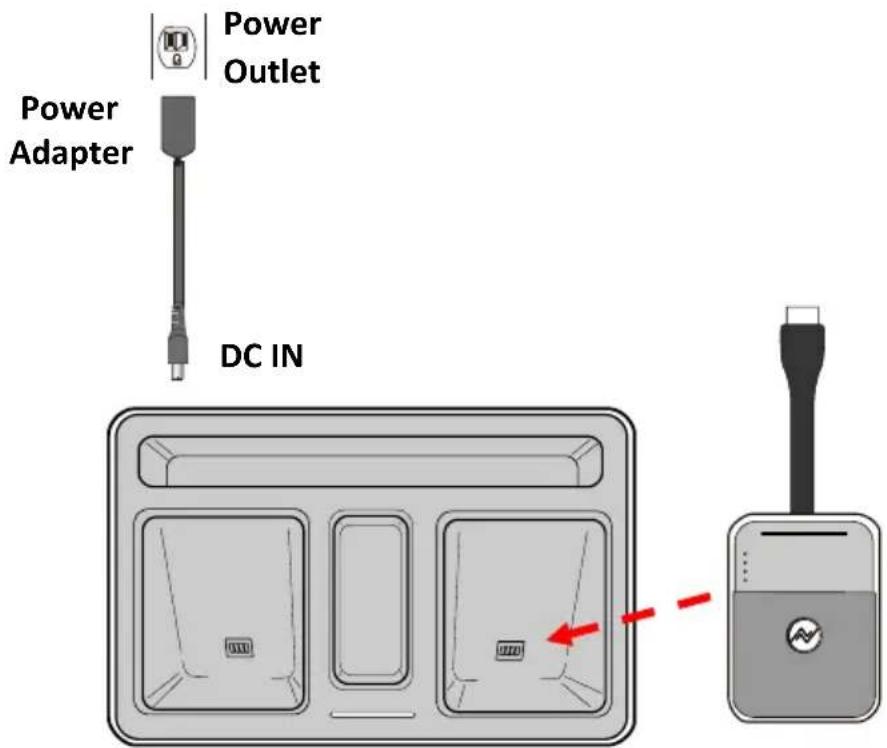

1. Place the power station on the designated location (e.g. conference table).
2. Connect the power adapter set to the charging dock and power outlet.
3. Place the transmitters in the slots of power station. A flashing light indicates that the transmitters are charging.
4. When the battery is fully charged, remove the transmitter (s) from the power station.

Power Adapter Power Outlet DC IN

Install the Transmitter to the Power Station

Important: First Time Battery Charge Charge the transmitters for six hours before first-time use.

2. Receiver Installation

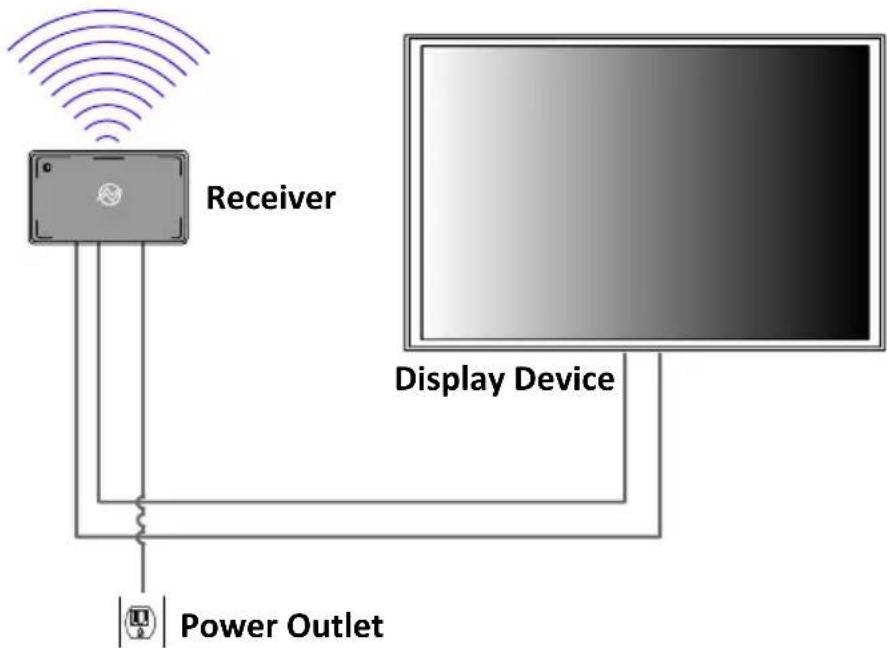

2.1 Wall Mount installation

You can install the receiver onto a wall or ceiling.

To install the Receiver on the wall:

1. Use two wall-plugs and screws and install to the location.

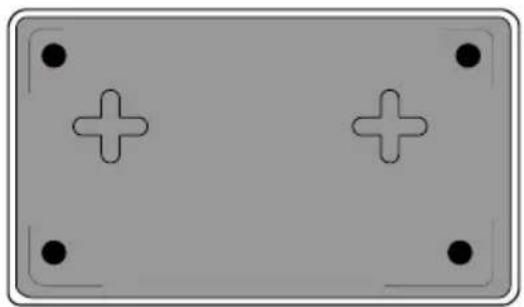

2. There are two hook slots in the bottom of receiver.
   Mount the receiver on the wall and make sure it is secured.
3. Connect the power adapter set to the receiver and power outlet.
4. Do not place the receiver in a closed cabinet.

Receiver Display Device Power Outlet

Note:

● Install the receiver to a flat and stable location.
- Select the proper plug adapter and install to the power adapter.

Pure electrical circuit lines without any symbols

Wall Mount Opening of Receiver (Bottom)

2.2 Secondary HDMI Output

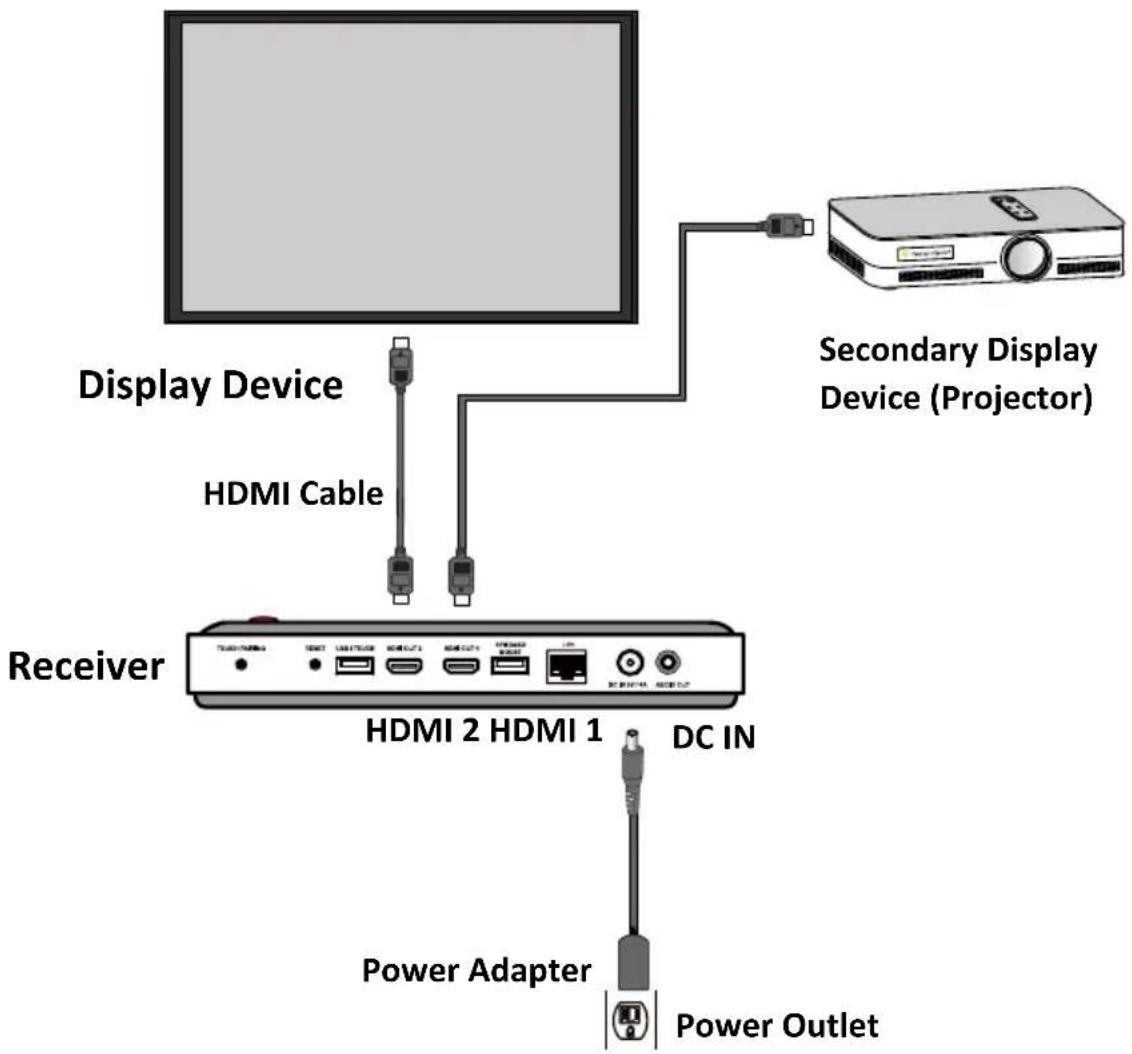

Display Device HDMI Cable Secondary Display Device (Projector) Receiver HDMI 2 HDMI 1 DC IN Power Adapter Power Outlet

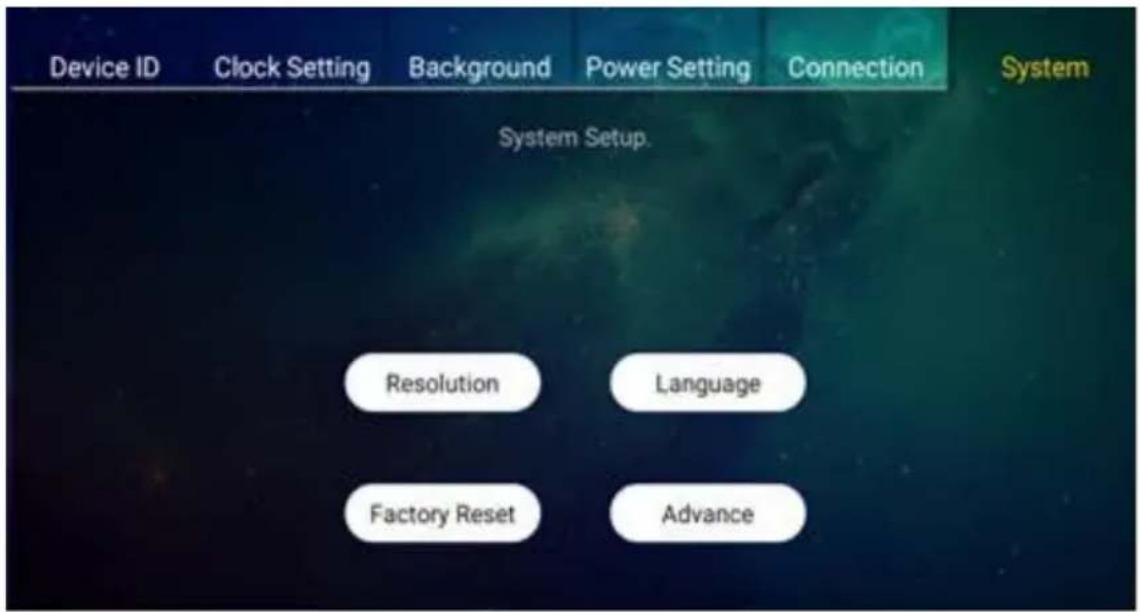

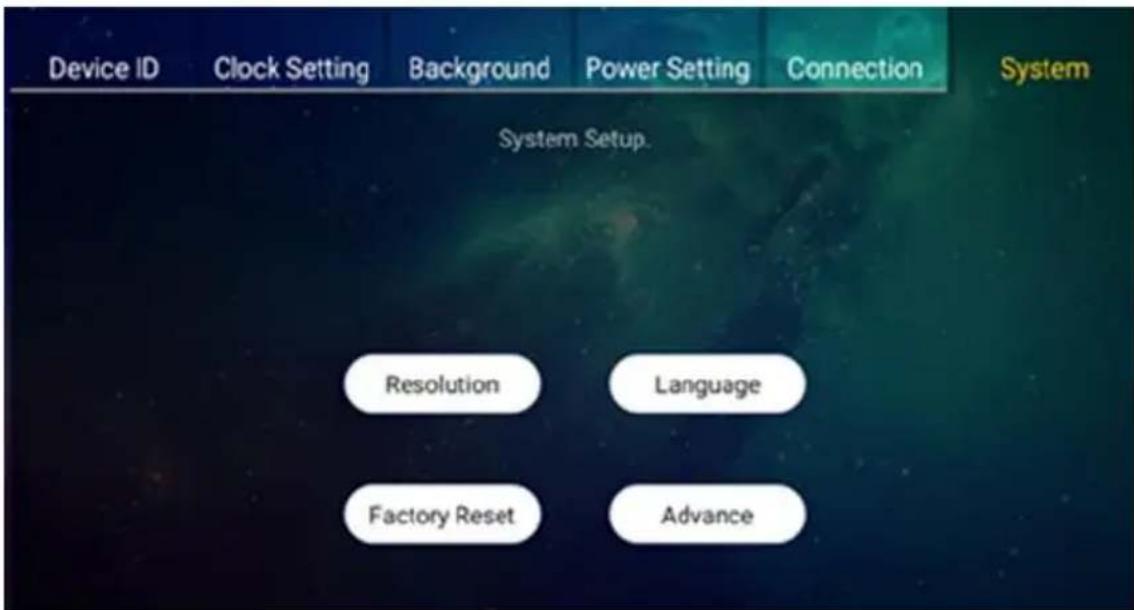

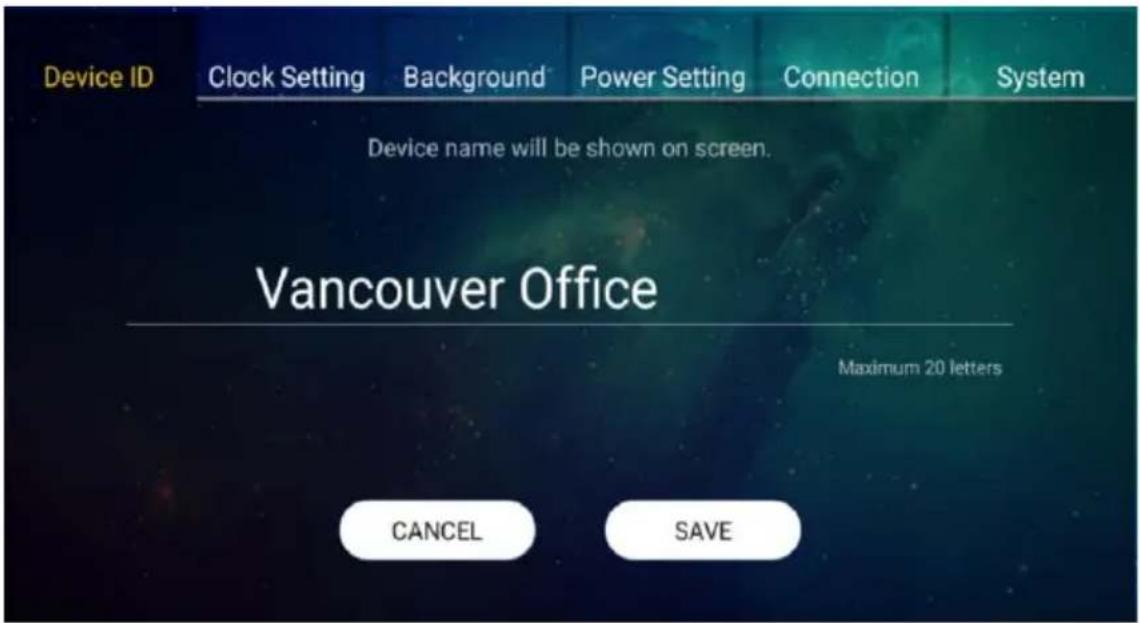

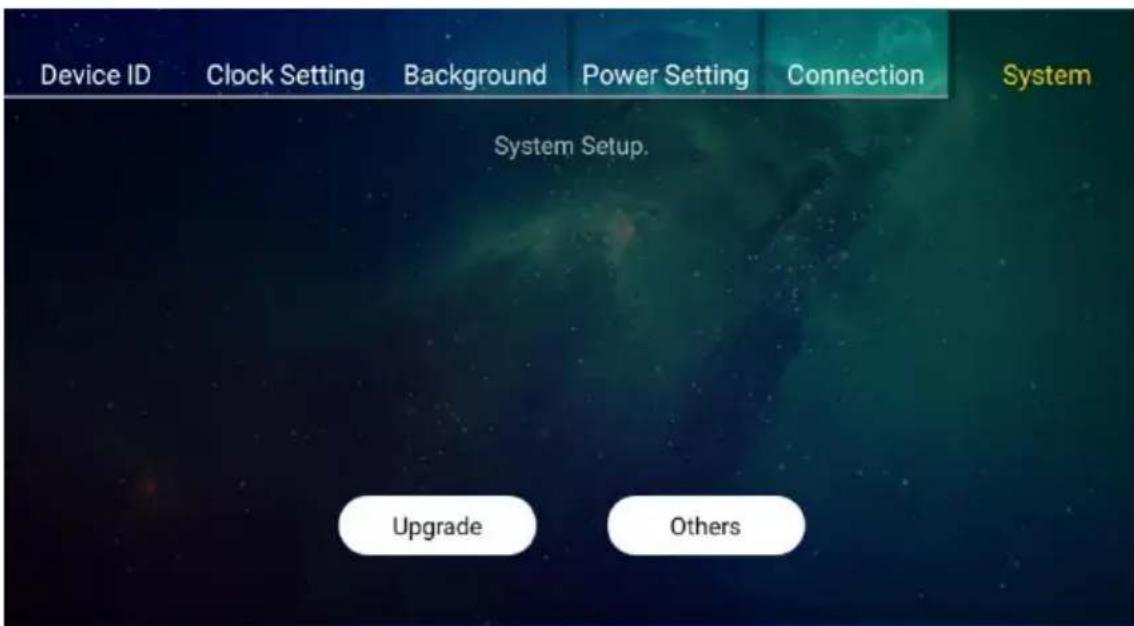

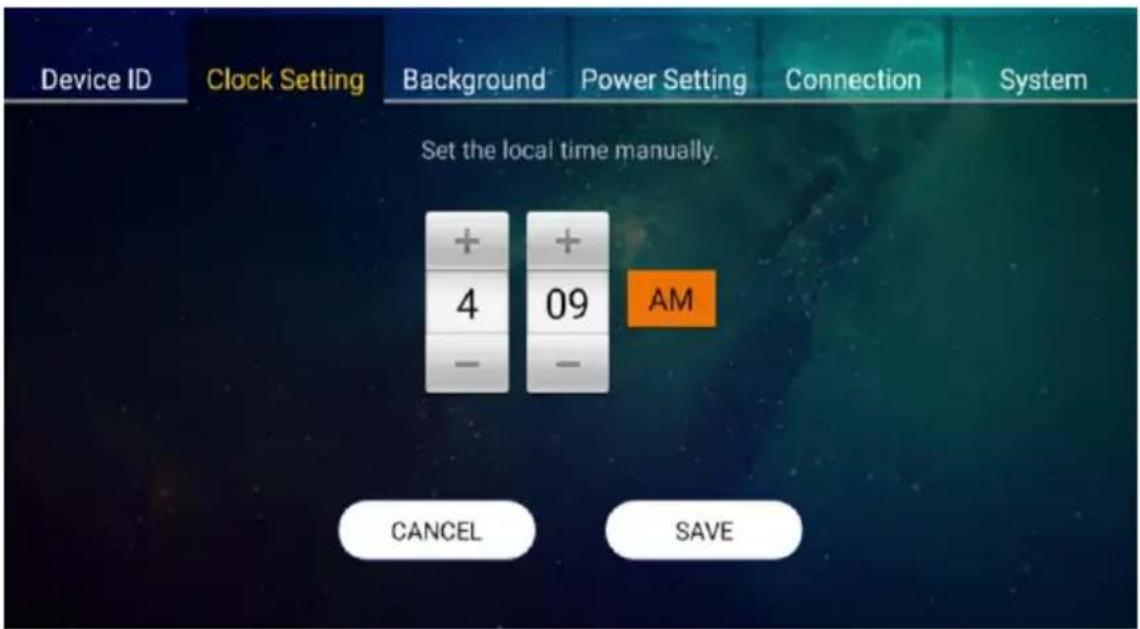

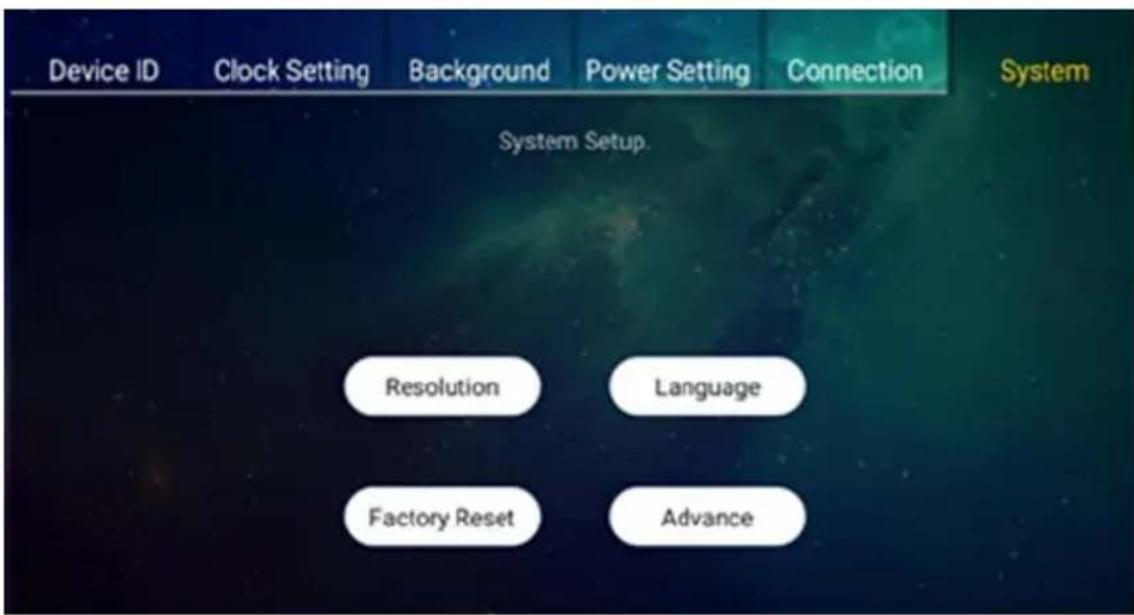

3. Configure Your Collaboration System

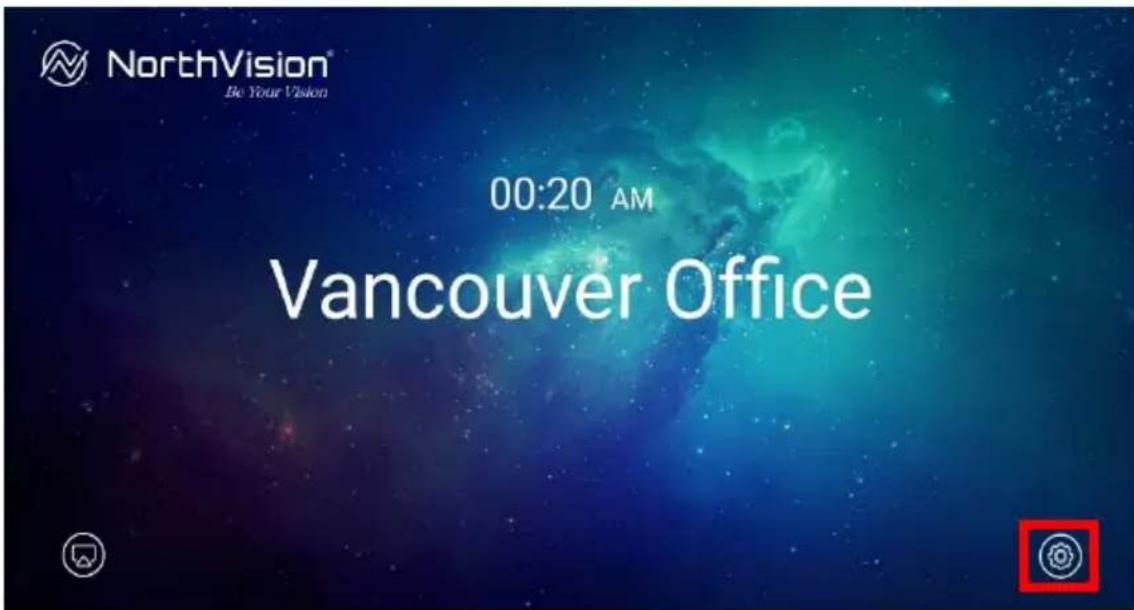

NorthVision® Be Your Vision 00:20 AM Vancouver Office

Click the setting icon (red marker) to configure the VisionShare system settings such as Device Name (Device ID), Clock Setting, Background, Power Setting, Connection and System:

3.1 Device Name (Device ID)

Device ID Clock Setting Background Power Setting Connection System Device name will be shown on screen. Vancouver Office Maximum 20 letters CANCEL SAVE

Each device is assigned an exclusive ID (name) for management.

=> Type the name of the device.

=> Click "SAVE" to confirm.

3.2 Clock Setting

Device ID Clock Setting Background Power Setting Connection System Set the local time manually. + 4 09 - - AM CANCEL SAVE

Setting the local time manually for the device.

=> Click "+", "-" and "AM/PM" to set the proper local time.

=> Click "SAVE" to confirm.

3.3 Background

Device ID Clock Setting Background Power Setting Connection System Choose or add an image for the background CANCEL SAVE

Click on the red marker to import and select the background image via USB drive for your device.

=> Select the image.

=> Click "SAVE" to confirm.

3.4 Power Setting

Device ID Clock Setting Background Power Setting Connection System Set a timer to shutdown the device. Standby mode On Off Timer (Min) 15 30 60 CANCEL SAVE

Setting a timer to standby mode if the device is not functioning during the designate time.

=> Click "On" to activate the standby mode.
=> Select the timer (countdown time).
=> Click "SAVE" to confirm.

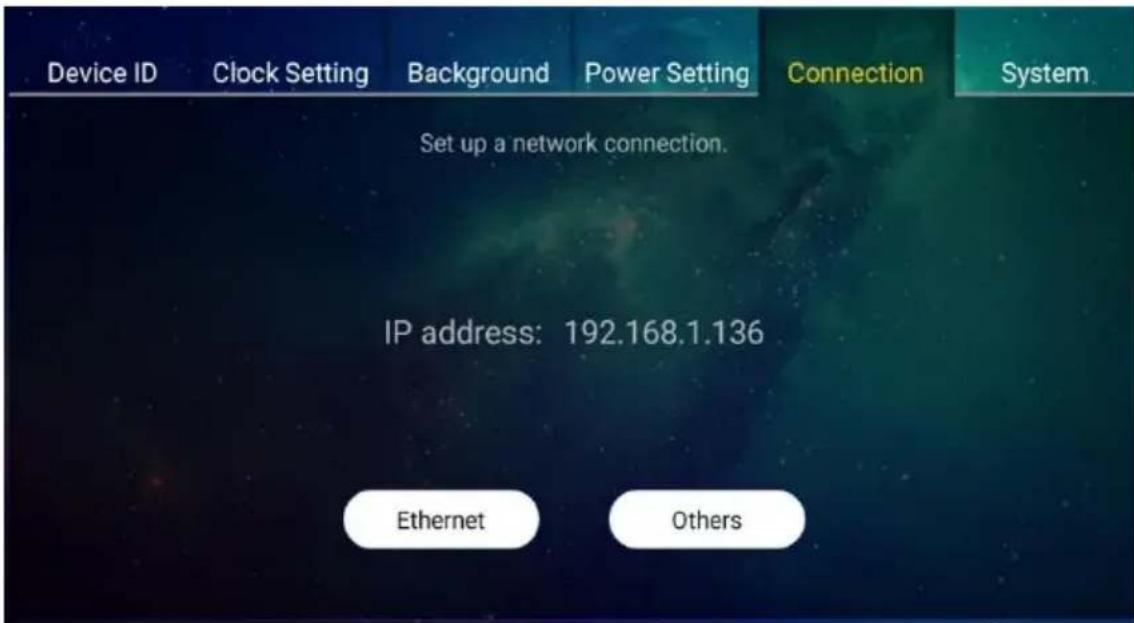

3.5 Connection

Device ID Clock Setting Background Power Setting Connection System Set up a network connection. IP address: 192.168.1.136 Ethernet Others

IP address will show on the screen automatically after plug in LAN cable.

=> Or, please click "Ethernet" button to set "DHCP" or "Static IP" manually.

=> Or, please click "Others" to set to other settings.

3.6 System

Device ID Clock Setting Background Power Setting Connection System Setup. Resolution Language Factory Reset Advance

To configure the basic function on the device, include “Resolution”; “Language”; “Factory Reset” and “Advance” function.

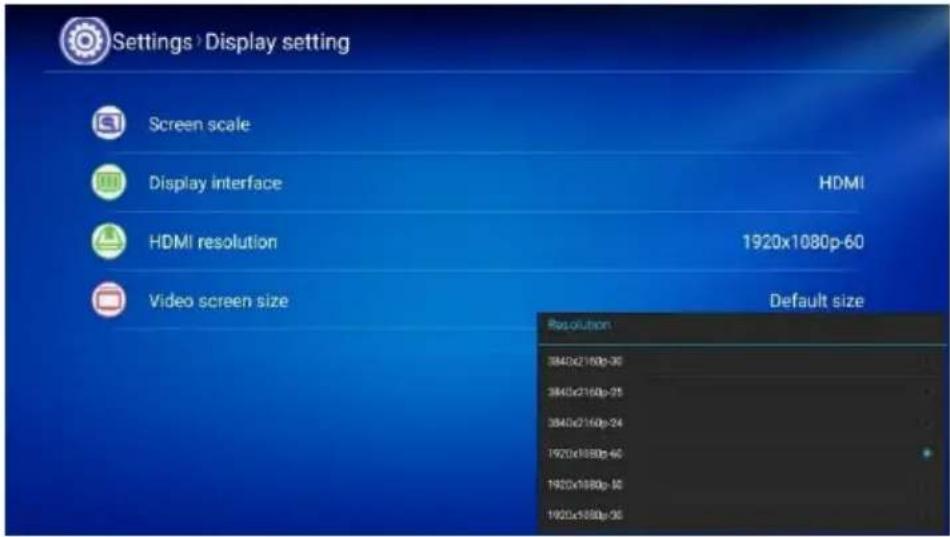

- Resolution

Settings Display setting Screen scale Display interface HDMI HDMI resolution 1920x1080p-60 Video screen size Default size Resolution 3840x2160p-30 3840x2160p-25 3840x2160p-24 1920x1080p-60 1920x1080p-50 1920x1080p-30

Resolution: adjust the aspect ratio screen scale, display interface, HDMI resolution and video screen size. Various resolutions can be selected.

- Language

Device ID Clock Setting Background Power Setting Connection System System Setup. Resolution Language Factory Reset Advance

Language: language setting of the device.

● Factory Reset

Device ID Clock Setting Background Power Setting Connection System System Setup. Resolution Language Factory Reset Advance

Factory Reset: restore the device to the default settings

- Advance

Device ID Clock Setting Background Power Setting Connection System Setup. Resolution Language Factory Reset Advance

Advance: click "Upgrade" to upgrade the system.

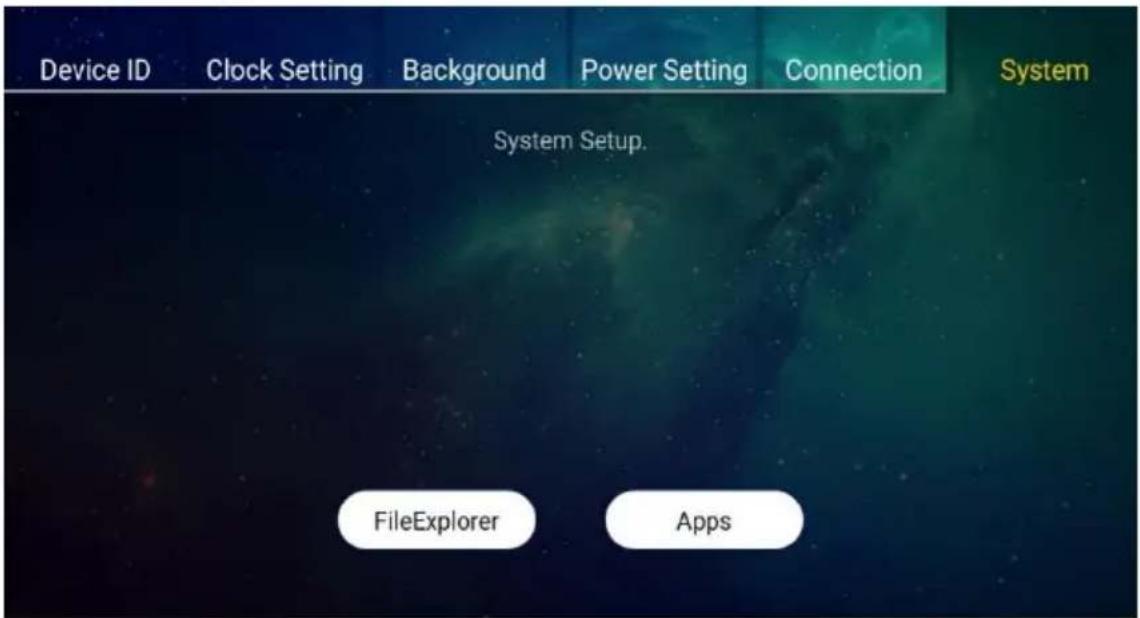

Click "Others" can see the "FileExplorer" and "Apps" on the device.

Device ID Clock Setting Background Power Setting Connection System System Setup. Upgrade Others

Device ID Clock Setting Background Power Setting Connection System System Setup. FileExplorer Apps

4. Mirroring360 & 4 Split Screens

Illustration of smart home devices with wireless connectivity icons and app interfaces, including smartphone, tablet, and mobile devices.

You can use the Receiver of the VisionShare System to mirror your device(s) to the TV.

1. Turn on the power switch of the TV.
2. Turn on the receiver of the VisionShare collaboration system.
3. Operate your device and activate the mirroring function.
4. Find the "mirror display device" and follow the instructions to connect.

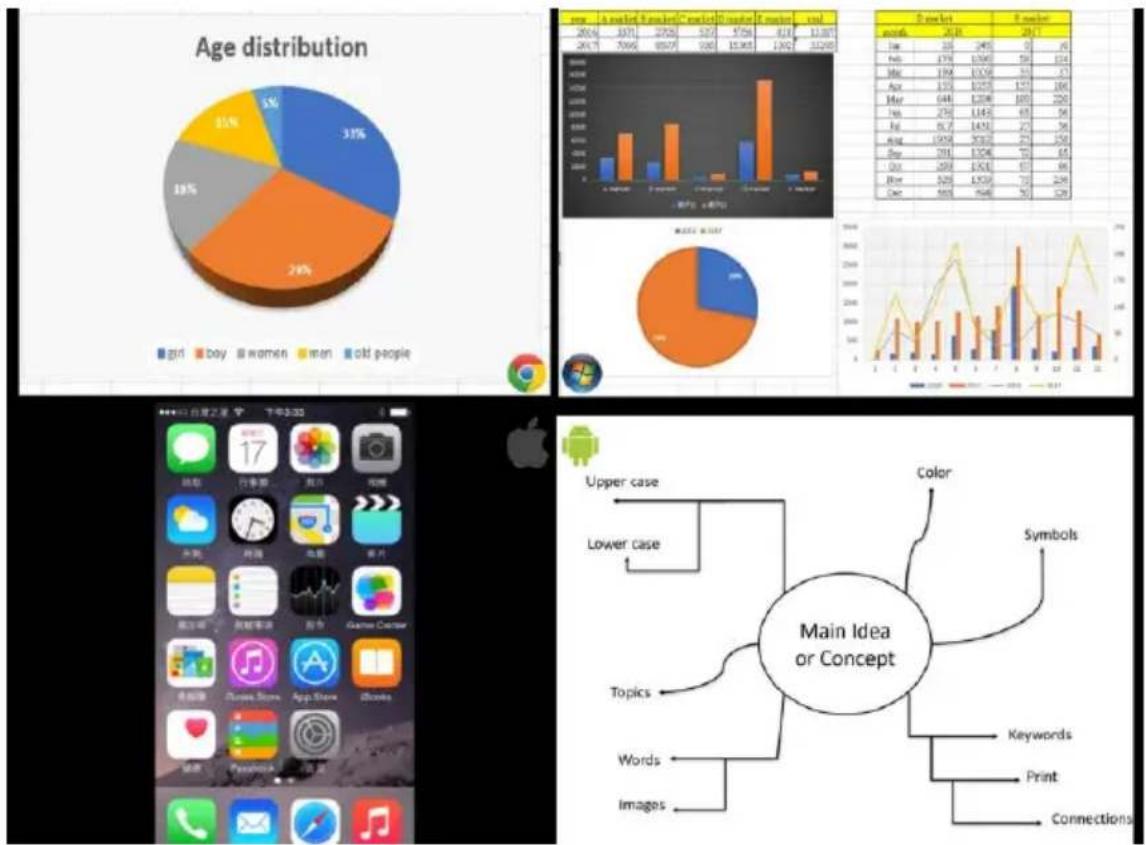

5. Multiple Split-Screen:

The VisionShare system can supply multiple device connection for up to 4 devices.

For Android:

Make sure you have installed the Mirroring360 on your Android device. You can download it from the Play Store.

Mirroring360

https://www.northvision.com/download

5. Indicator Lights Description

Transmitter

Status	LED Indicator	Description
OFF		The Transmitter is not connected.
Auto-Pairing		The Transmitter is connected and then auto-pairing to the Receiver.
Auto-Pairing Success & Stand By	Static BLUE	The connection between Transmitter and the Receiver is established.The Transmitter is ready for presentation.Press the PLAY/PAUSE button to start presentation.
Presentation		Presentation is proceeding.Press the PLAY/PAUSE button to pause presentation.
Pause	Static BLUE	Presentation is paused. No content sent to the display device.Press the PLAY/PAUSE button again to resume presentation.
ERROR		The Transmitter is in error or is not functioning properly.

Transmitter - Battery Status Indicator

Battery Status Indicators

Battery Status Indicators	Description
	The four LED indicators indicate the battery capacity of the Transmitter: Four LED: fully charged (100%). Three LED: the battery capacity is I about 75%. Two LED: the battery capacity is about 50%. One LED (LOW BATTERY): the battery capacity is about 25 % and needs charging immediately.

TIP: Check the Battery Capacity

• When the transmitter is not connected, press the PLAY/PAUSE button to check the battery capacity.
• When the transmitter or the micro USB connector for battery-charge is connected, the battery indicators light automatically to indicate the battery status.

Important: First Time Battery Charge

Charge the transmitters for six hours before first-time use.

Receiver

Status	LED Indicator	Description
OFF		The Receiver is power-off.
Auto-Pairing		The Receiver is pairing with the Receiver.
Auto-Pairing Success & Stand By	Static BLUE	The connection between Transmitter and the Receiver is established.
Presentation		Presentation is proceeding.
Pause	Static BLUE	Presentation is paused.
ERROR	Flashing RED	The Receiver is in error or is not functioning properly.

Receiver - Power Button (with White LED Indicator)

Power Button(Indicator)	Status	Description
	Power-OFF	The Receiver is power-off.
	Static White	The Receiver is powered on.
	Flashing White	The Receiver is in standby mode.Press the power button to wake up the receiver.

Power Station

Status	LED Indicator	Description
OFF		The Power Station is off.
Standby	Static BLUE	The Power Station is connected and ready for battery charge.
Battery Charge	flashing BLUE	The Power Station is in battery charge process.
Battery Charge Full		The Transmitter is fully charged.
ERROR		The Power Station is in error or is not functioning properly.

USB Wireless Touch Dongle

Status	LED Indicator	Description
Power-OFF	[ASGA]	The USB Wireless Touch Dongle is not connected to the computer.
Pairing	Flashing BLUE	The USB Wireless Touch Dongle is paring with the receiver.
Pairing Success	-Static BLUE	The USB Wireless Touch Dongle has established the connection to the receiver.
Play	Static GREEN	The USB Wireless Touch Dongle is functioning properly.
Error	Flashing GREEN and BLUE	The USB Wireless Touch Dongle is in error and not functioning.

1. Specification

Model Name	A20	A30	A40	A45
Input Resolution	up to 1920 x 1080 @ 60Hz		up to 4K x 2K (3840 x 2160 @ 30Hz)
Video Quality	Uncompressed content
Frame Rate	up to 1920 x 1080 60 fps		up to 3840 x 2160 30 fps
Support Platform	Windows, Mac, Chrome, Any OS support HDMI standard 1.4		Windows, Mac, Chrome, Any OS support HDMI standard 2.0
Data Rate Wireless	up to 28Gbps
Wireless Distance	up to 10m / 33 feet*
Video Output	HDMI 1.4 x 2		HDMI 2.0 x 2
Transmitter Battery	up to 3.5 Hours
Transmitter Connector	HDMI Input x 1, Micro USB x 1, Button x 1 (Play/Stop)
Receiver Connector	HDMI Output x 2LAN x 1,3.5 mm Audio x 1USB Type A x 1
USB Wireless Touch	N/A	X 1	N/A	X 1
Mirroring360	4-Split Screen, Air-Play, Mirroring for Android,Support MAC/Windows/iOS/Android/Chrome,Max. Output Resolution 1920 x 1080 (Compressed Video)
Customized Start-up Screen	Yes
Dual Display Output	Yes
Extended Desktop	Yes
Power Supply	AC 100~240V, 5V/4A
Package	Micro USB Cable x 1HDMI Cable x 1miniDP to HDMIAdapter x 1	Micro USB Cable x 1HDMI Cable x 1miniDP to HDMIAdapter x 1Touch USB Cable x 1USB Wireless TouchDongle x 1	Micro USB Cable x 1HDMI Cable x 1miniDP to HDMIAdapter x 1	Micro USB Cable x 1HDMI Cable x 1miniDP to HDMIAdapter x 1Touch USB Cable x 1USB Wireless TouchDongle x 1
	Power Adapter (5V/4A), Universal Plug of Power Adapter (with US, EU), QSG

* Wireless transmission distance will depend on different environments.
* Specifications subject to change without further notification.
