Grande Turbo AR4047 - Vacuum Cleaner Arzum - Free user manual and instructions

Product Type	Cylinder Vacuum Cleaner
Model	Grande Turbo AR4047
Brand	Arzum
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	700 W
Dust Collection Type	Bagless Cyclonic
Dust Reservoir Capacity	1.5 L (approx.)
Filtration System	Washable Metal Cyclone Filter + Engine Protector Filter + HEPA 13 Washable Air Outlet Filter
Filtration Efficiency	HEPA 13 (captures 99.95% of particles ≥ 0.3 µm)
Suction Power Control	Electronic (on body) & Mechanical (on handle)
Cord Length	5 m (approx.)
Cord Rewind	Automatic with foot button
Included Accessories	Telescopic Tube, Turbo Brush, Carpet/Floor Brush, Narrow Nozzle, Small Brush, Upholstery Nozzle
Telescopic Tube	Adjustable length metal tube
Turbo Brush	Air-driven rotating brush for carpets
Carpet/Floor Brush	Adjustable for hard and soft floors
Noise Level	~75 dB (estimate)
Weight	5.5 kg (approx.)
Dimensions (L x W x H)	45 x 30 x 35 cm (approx.)
Product Life	10 years
Washable Filters	Yes (metal cyclone filter, HEPA outlet filter)
Safety Features	Auto shut-off when overloaded, indicator for full dust reservoir
Color	Black (typical)
Warranty	Standard manufacturer warranty (2 years typical, check local)

Frequently Asked Questions - Grande Turbo AR4047 Arzum

How do I empty the dust reservoir?

Press the dust reservoir removal button and pull out the reservoir. Open the bottom cover by pressing the PUSH button, empty the dust, then close the cover securely before reinserting.

How often should I wash the filters?

Wash the metal cyclone filter and HEPA filter every 3-6 months or when suction drops. Let them dry completely for 24 hours before reinserting.

Why is the dust bag indicator red even after emptying?

Check for clogs in the hose, tube, or nozzles. Also ensure the motor protection filter and HEPA filter are clean. If the indicator remains red, the filters may need washing.

How do I clean the turbo brush?

Unplug the vacuum. Turn the screw under the brush clockwise to unlock, remove the brush, clean any tangled hair or debris, then replace and lock the screw counterclockwise.

Can I use the vacuum on wet surfaces?

No, this vacuum is designed for dry use only. Using it on wet surfaces can damage the appliance and void the warranty.

How do I adjust the telescopic tube?

Press the button on the telescopic tube and slide the metal tube in or out to the desired length. Release the button to lock.

What does the cord rewinding button do?

After unplugging the vacuum, press the cord rewinding button on the body to automatically retract the power cord. Hold the plug to prevent whipping.

Is the HEPA filter washable?

Yes, the HEPA 13 filter is washable. Gently wash it under running water and let it air dry thoroughly before reuse. Do not use detergent.

What should I do if the vacuum loses suction?

Check if the dust reservoir is full, filters are clogged, or there is a blockage in the hose or tube. Clean filters and remove any obstructions.

Can I use extension cords?

Avoid using extension cords that supply insufficient current. If necessary, use a heavy-duty cord rated for at least 10A and fully unwound.

USER MANUAL Grande Turbo AR4047 Arzum

AR 4047 GRANDE TURBO CYCLONE FİLTRELİ ELEKTRİKLI SÜPÜRGE

Close-up of a mechanical component with threaded tube and curved pipe, showing directional arrows (no text or symbols)

Diagram of a vacuum cleaner with attached circuit board and internal component, showing alignment and insertion (no text or symbols)

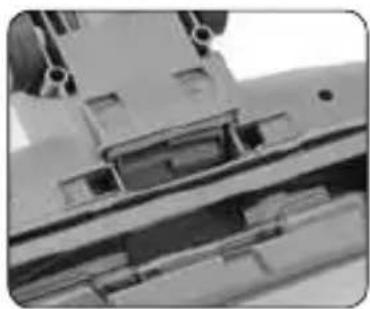

Turbo Fırça:

Close-up of a black vacuum cleaner with attached circuit board (no visible text or symbols)

Close-up of a mechanical component with a tool inserted, showing internal structure and a circular arrow indicating rotation (no text or symbols visible)

Close-up of a hand holding a mechanical component with no visible text or symbols

Close-up of hands using a computer mouse to press a keyboard (no visible text or symbols)

Close-up of hands using a tool to adjust or install electronic components (no visible text or symbols)

Close-up of a mechanical component with internal structural details (no visible text or symbols)

Black and white photo of a mechanical component with no visible text or symbols

Dar uçlu boru:

Close-up of a black mechanical component with internal grooves (no visible text or symbols)

Close-up of a black mechanical component with textured ends, possibly a tool or connector (no visible text or symbols)

Black mechanical component with a T-shaped shaft and cylindrical body (no visible text or symbols)

Döşeme Başlığı:

Close-up of a mechanical device with circular components and directional arrows indicating motion (no visible text or symbols)

Close-up of a black handheld device with a control panel and ventilation slots (no visible text or symbols)

CİHAZINIZIN KULLANIMI

Close-up of a car's front wheel and side panel showing internal components (no text or symbols visible)

Close-up of a mechanical component with a black arrow pointing to a curved section (no visible text or symbols)

Close-up of a mechanical component with a black arrow pointing to a circular feature (no text or symbols visible)

Close-up of a vacuum cleaner's head and neck (no visible text or symbols)

Close-up of a vacuum cleaner's internal components with directional arrows indicating motion (no text or symbols visible)

Close-up of a metallic connector with a circular button and a perforated socket (no text or symbols visible)

Close-up of a mechanical component with a textured base and internal structure, no visible text or symbols

Close-up of a vacuum cleaner's air vent with grid pattern and directional arrow (no text or symbols visible)

Close-up of a vacuum cleaner's hood and blade assembly (no visible text or symbols)

TR

Litanghe Road, Xiangcheng Economy

Development Zone, Xiangcheng District, Suzhou 215131, P.R.China

Tel: [phone]

ithalatçı:

AR 4047 GRANDE TURBO CYCLONE SYSTEM VACUUM CLEANER

1- On/Off switch
2- Cord rewinding button
3- Suction power regulation button
4- Dust bag indicator
5- Dust reservoir removal button
6- Mechanical suction power adjustment slide
7- Soft touch handle
8- Hose
9- Telescopic tube

10- Transparent dust collection reservoir
11- Washable, anti-engorging metal cyclone filter
12- Engine protector filter
13- Hepa13 washable air outlet filter and filter lid
14- Turbo brush
15- Carpet/floor brush adjustable according to the kind of surface
16- Narrow nozzle and small brus
17- Upholstery nozzle

In order to obtain utmost results from your appliance, please ready CAREFULLY this user's manual and save it for further use.

IMPORTANT SAFEGUARDS

• Make sure that the voltage indicated on the appliance corresponds with the main voltage in your home. Our company shall not be held liable for any failures owing to any discrepancy and such failures shall not be covered by the guarantee.
- Your appliance has been designed for household use only. Do not use for commercial or industrial purposes. Otherwise, it shall not be covered by the guarantee.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

• To prevent harming your appliance do not use extension cords that supply insufficient current.
• ALWAYS unplug your appliance from outlet when not in use and before putting in or taking off any accessories, and before cleaning and maintenance.
• Do not leave your appliance in operating state when you do not use it and unplug it.
  · NEVER USE YOUR APPLIANCE FOR CLEANING OUTER SPACE OR WET SURFACES. DO NOT LET YOUR APPLIANCE TO CONTACT WITH WATER OR OTHER LIQUIDS.
• Do not move your appliance by its cord. Be careful mains plug not to be squeezed to the corners, door thresholds, not to be cut and scraped by sharp objects. Do not move your appliance over its cord. Avoid contact of cord with hot surfaces.
• To unplug, grasp plug and pull from the power outlet. Never pull the cord.
• Do not attempt to remove the mains plug of your appliance when your hands are wet.
• Be careful not to absorb the objects preventing suction of your appliance. If there is any object preventing its suction, continue to use your appliance after cleaning it.
• Keep away your hands, hairs, fingers, clothes from operating parts of your appliance.
  · Switch off your appliance before unplugging it.

• Special care is required especially for cleaning the stairs.

• Do not use your appliance to clean any flammable materials such as cigarette, matchsticks or active cigarette ashes, any flammable liquids and organic solvents and acids.

• While rewinding the cord, hold the plug in your hand and prevent it to hit the body.
• Keep away your appliance from direct heat sources as hot stove, burner or in a heated oven.
• While connecting or changing the hose of your appliance, given accessories, unplug it.
• NEVER use your vacuum cleaner while its filters, dust filter or dust bag are not mounted on their places.
• If you are in doubt that the cord or plug is damaged, or that your device malfunctions in any manner whatsoever, including dropping down, etc., never start up your appliance, nor repair it by yourself. Take it to the nearest Arzum Authorized Service.
• Contact Arzum Authorized Service for repair, and spare parts, and use original accessories and dust bag only.
  · Use your appliance as recommended and for its intended purposes.

USE OF ACCESSORIES

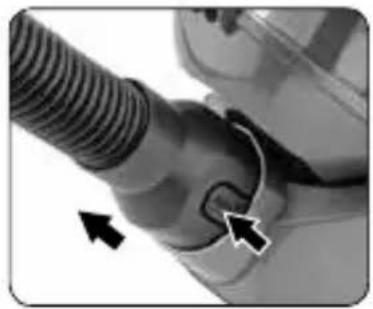

How to mount / remove the hose:

Insert the hose into its socket located in the hose inlet of the nozzle. To remove the hose, press the button on the hose nozzle and pull towards yourself.

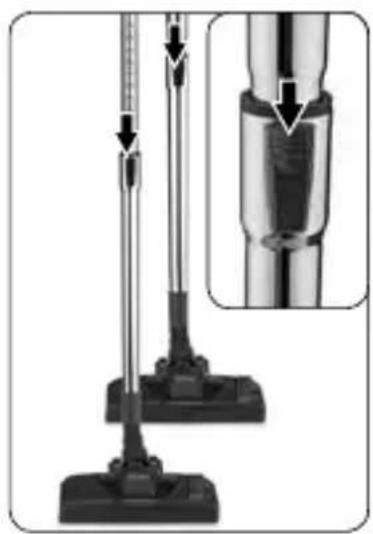

How to adjust Telescopic Tube:

Fit the telescopic tube onto the soft touch handle of hose. You can adjust the telescopic tube in such length you want, by pressing the button on the telescopic tube and by moving the metal tube inwards/outwards.

Close-up of a mechanical component with threaded tube and curved arrow indicating rotation (no text or symbols)

Diagram of a vacuum cleaner with attached circuit board and close-up view showing internal components (no text or symbols)

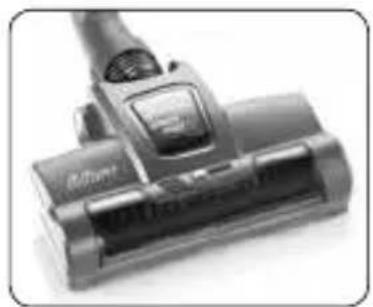

Turbo Brush

- Turbo brush has a rotary brush driven by air flowing in the nozzle casing. By the rotating brush the pieces is easily cleaned. The use of the rotary brush on the turbo head increases the effectiveness of picking up the fibre-like impurities from carpets and floor coverings.

Close-up of a black vacuum cleaner with a handle and control panel (no visible text or symbols)

• Do not keep the turbo head on the same spot for longer than necessary while vacuuming. Keep the turbo head moving across the carpet all the time otherwise you can damage the carpet.
• The brush roll or its suction canal may be blocked with small pieces of materials, if this happens turn your vacuum cleaner off and remove the impurities blocking the roll of suction canal.
• NEVER touch while the brush is rotating.
• Regularly cleaning the pieces of threads, strings, hairs etc. is increase the performance of the turbo head. For cleaning it, firstly turn your vacuum cleaner off and remove the turbo brush from telescopic tube and then clean the turbo head.

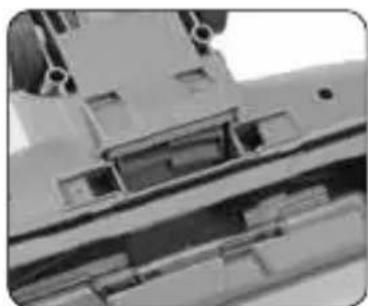

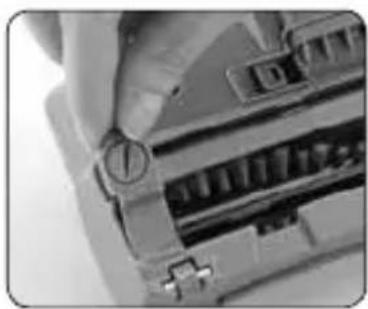

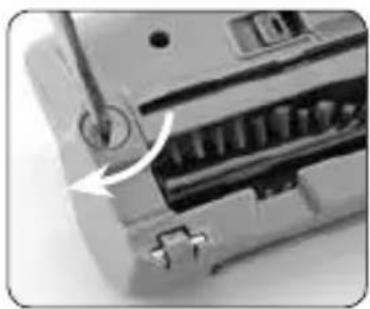

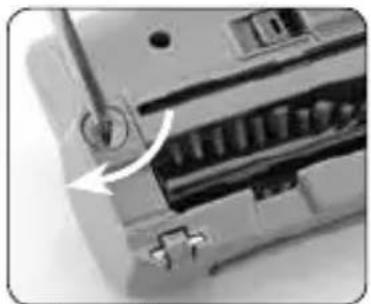

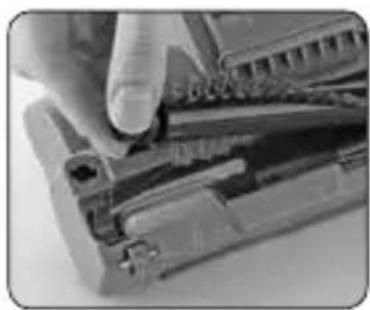

• To clean the turbo brush of Arzum Grande Turbo; unlock the screw which placed under the brush by turning it clockwise. Then remove the brush by hand and clean the hair that tangled. Than, replace the brush and lock the screw by turning it counterclockwise.

Close-up of a mechanical device with a circular arrow indicating rotation or adjustment (no visible text or symbols)

Close-up of a hand holding a computer RAM socket (no visible text or symbols)

Close-up of hands assembling electronic components (no visible text or symbols)

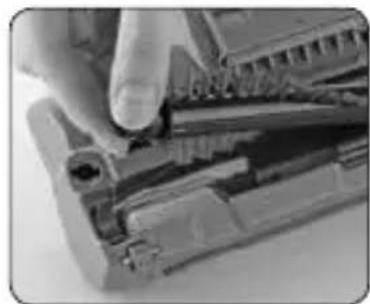

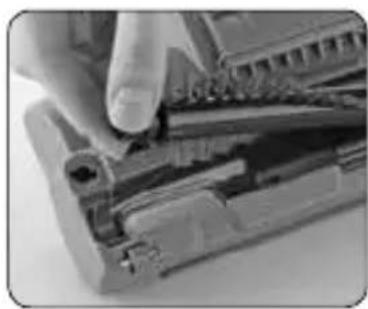

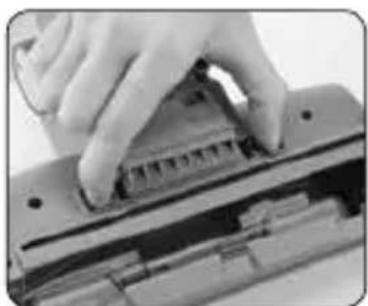

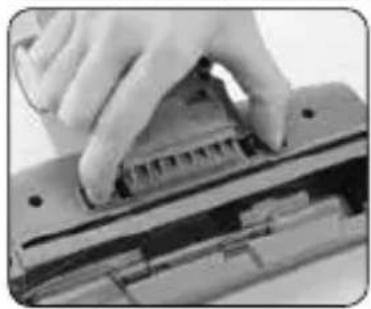

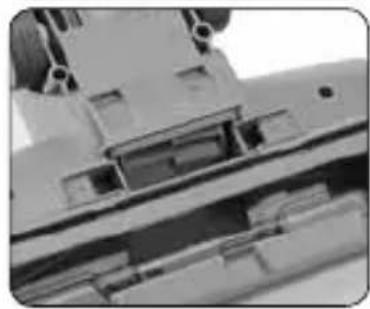

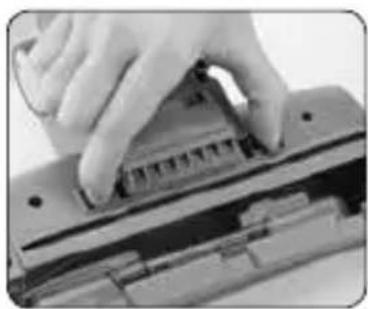

- Remove the cover by pressing from both sides of latches. Remove the hair which was wrapped around wheel. Finally attach the cover back into it's

Close-up of hands using a ruler to press or adjust a mechanical component (no visible text or symbols)

Close-up of a mechanical component with internal compartments and mounting holes (no visible text or symbols)

own place by aligning cap to the rails on the sides.

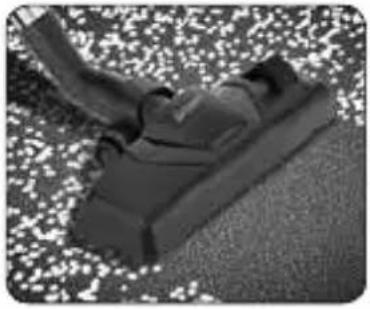

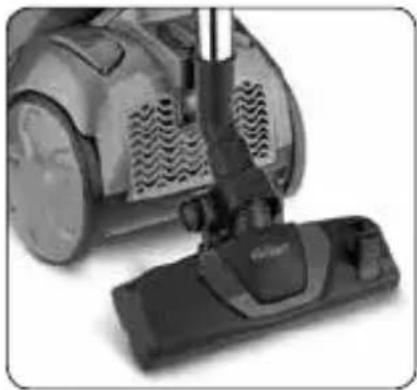

Carpet / floor brush adjustable according to the kind of surface:

It is used for dry cleaning of both hard and soft surfaces. You can clean the hard surfaces with the brush placed outside, and the soft surfaces, such as carpets, etc. with the brush placed inside. Ensure inserting or removing the brush by pressing the button on the brush.

Close-up of a black mechanical component with textured surface (no visible text or symbols)

Tube with narrow nozzle:

• It is used for cleaning of especially unapproachable areas such as armchair corners, radiator intervals, wall borders and corners etc. narrow areas.
• You can use the small brush to clean areas that narrow nozzle cannot reach, such as furnitures, lamps, shelves and books.

Close-up of a black plastic connector or cable component (no visible text or symbols)

Close-up of a black mechanical component with a protruding rod (no visible text or symbols)

Upholstery Nozzle:

In places where the narrow nozzle is not convenient to use, this part is used (for cleaning upholstery, cloths, beds, etc.)

Black plastic mechanical component with a cylindrical shaft (no text or symbols visible)

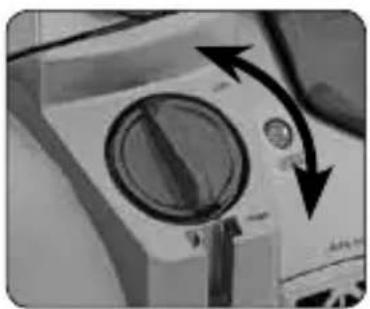

Electronic setting of suctioning power:

You can increase or decrease the power by using the suction power adjustment button which is placed on the body.

Close-up of a mechanical device with circular components and directional arrows indicating motion (no visible text or symbols)

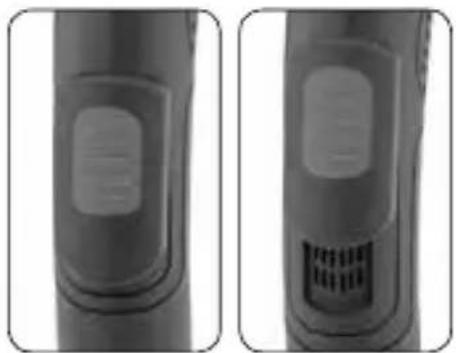

Mechanical Suctioning Power Adjustment:

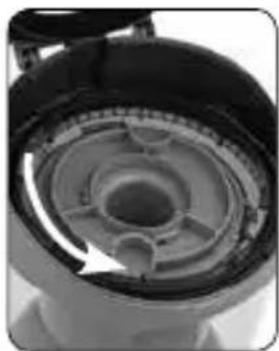

Using the air adjustment button located on the hose soft touch handle makes it easier for you to clean tulles, curtains, etc.

Close-up of a black handheld device with two side views showing internal components (no text or symbols visible)

USING YOUR APPLIANCE

CAUTION: Before using your appliance, make sure that filters and dust reservoir are attached.

- Before using your appliance extend its mains cable to the proper length and plug in the wall socket. After the yellow tape appears on the cord, the cord is in the most suitable length for use. When red tape appears, NEVER force too much to pull out the cord.

Close-up of a car's front panel showing the engine and side panel with a downward arrow (no text or symbols visible)

· Operate your appliance by pressing on/off switch on the main body.
- Press on/off switch again in order to finish the cleaning process.

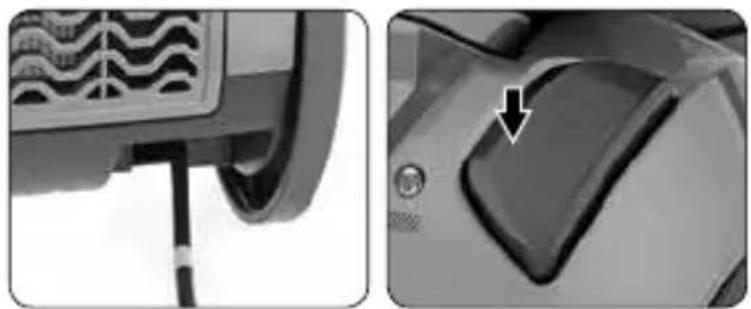

- After unplugging, press the cord rewinding button on the main body and then collect the cord.

CLEANING AND CARE

· Always turn off your appliance and unplug your mains cable from the wall socket before attempting any maintenance and care process.
- Clean body and interior section of your appliance with a wet cloth and then make sure that they are dried. Do not use abrasive substances or chemical solvents for cleaning your vacuum cleaner.

Removing and Emptying the Dust Reservoir

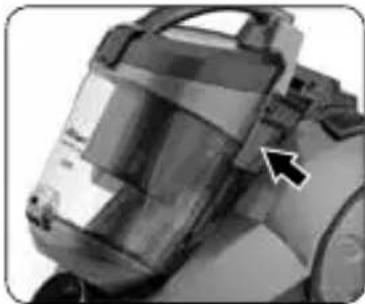

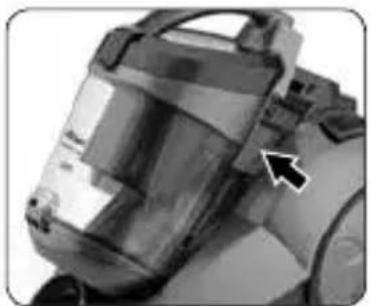

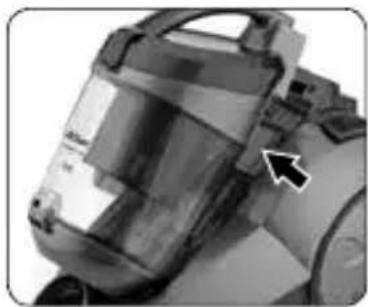

- In order to remove the dust reservoir, firstly eject the hose from hose inlet. By pushing the dust reservoir removal button, take the reservoir out.

Close-up of a mechanical component with a black arrow pointing to a circular feature (no text or symbols visible)

Close-up of a vacuum cleaner with a black arrow pointing to the handle (no visible text or symbols)

- Ensure to open the cover by pressing cover locking button (PUSH) under the dust reservoir in order to empty any dust. Empty the reservoir.

- Make sure that cover is closed completely for further use.

Mechanical component with directional arrows indicating motion, no visible text or symbols

Dust Bag Indicator

· Turning the indicator to red or decrease of suctioning power considerably indicates that the time for emptying the dust reservoir comes.

CAUTION: If the indicator light is still on even after emptying the dust reservoir, please check the following cases:

Close-up of a metallic object with a circular opening and a perforated surface (no text or symbols visible)

- Telescopic tube, hose, suctioning nozzle, or cleaning nozzles may be clogged.

- Motor protection filter or air outlet filter may get dirty.

- NEVER operate your vacuum cleaner unless indicator light turns to its normal position.

REPLACING THE FILTERS

- Before replacing the filters, be careful that your appliance is not plugged in the wall socket.

· Before attaching the filters, NEVER operate your vacuum cleaner.

Replacing HEPA Air Outlet Filter

- HEPA filter ensures better cleaning conditions for those suffering respiratory-track illness, children, and those suffering allergy. Hepa filter is a useful device with superior properties.

Close-up of a mechanical component with a textured base and a small object inside, no visible text or symbols.

Close-up of a car's air conditioner unit with grid and indicator lights (no text or symbols visible)

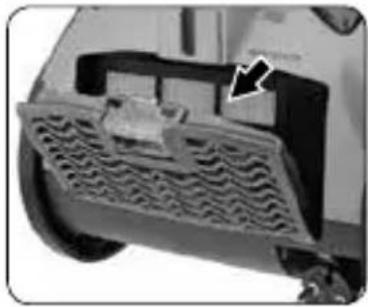

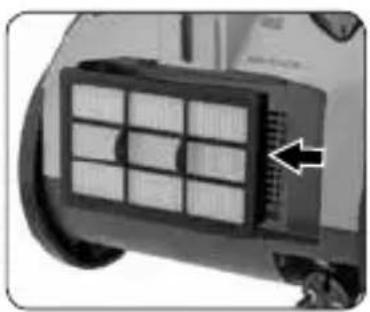

- Open Hepa filter cover. Remove the hepa filter from its socket on the body and then replace it.

Replacing Hepa Motor Protection Filter

- Remove the dust reservoir. Open the reservoir lid by pulling the latch on it. Open the lid underlying the engine protector filter. You can remove and wash the metal filter.

Close-up of a mechanical component with a white arrow pointing to a specific area (no text or symbols visible)

Close-up of a mechanical component with a central circular feature and an arrow indicating direction (no visible text or symbols)

Close-up of a mechanical device with a circular component and an arrow pointing to it (no visible text or symbols)

Close-up of a gray plastic mechanical component with a circular top and flange (no text or symbols visible)

To renew filters, you may call on Arzum Authorized Service.

EASY TO CARRY AND STORE

- You can easily carry and store your appliance by affixing the extension of the apparatus located on the carpet/floor brush adjustable according to the kind of surface onto park position socket on your appliance.

Close-up of a vacuum cleaner's hood and base, showing mechanical components and airflow (no text or symbols visible)

Product Life 10 years Technical Specifications 220-240 V \~ 50/60 Hz 700W

HANDLING AND SHIPMENT

• During handling and shipment, your appliance must be kept in original package in order to prevent damages to its parts.
• Keep at normal position during shipment.
• Do not drop the product when transporting and protect from impacts.
  • After delivery of the product, failures and damages that may occur while transporting are not covered by warranty.

The product is in compliance with the EEE Directives.

WEEE

This product contains recyclable materials that compliance with the WEEE directives. Do not dispose this product as unsorted municipal waste. Please contact your local municipality for the nearest collection point.

Manufacturer:

Jiangsu Midea Chunhua Electric Appliance Co., Ltd.

Litanghe Road, Xiangcheng Economy

Development Zone, Xiangcheng District, Suzhou 215131, P.R.China

Tel: [phone]

Importer:

AR 4047 GRANDE TURBO STAUBSAUGER MIT CYCLONE-SYSTEM FÜR BEUTELLOSEN EINSATZ

Close-up of a mechanical component with threaded shaft and curved pipe, showing directional arrows (no text or symbols)

Diagram of a vacuum cleaner with a close-up view showing internal components (no text or symbols)

Close-up of a black vacuum cleaner with control knob and lever mechanism (no visible text or symbols)

Close-up of a mechanical device with a tool inserted, showing internal components and a circular arrow indicating rotation (no text or symbols visible)

Close-up of a hand holding a battery pack with a magnified inset showing internal structure (no visible text or symbols)

Close-up of hands using a computer to press or install a physical component (no visible text or symbols)

Close-up of a hand using a tool to adjust or install electronic components (no visible text or symbols)

Close-up of a mechanical component with internal channels and mounting holes (no visible text or symbols)

Black and white photo of a mechanical component with no visible text or symbols

Schmales Rohrende:

Close-up of a black plastic electronic component with internal channels (no visible text or symbols)

Close-up of a black mechanical component with textured ends, possibly a tool or connector (no visible text or symbols)

Polsterdüse:

Close-up of a black mechanical component with a cylindrical shaft (no visible text or symbols)

Close-up of a mechanical device with circular components and directional arrows (no visible text or symbols)

Close-up of a black cylindrical device with two side views showing internal components (no text or symbols visible)

EINSATZ IHRES GERÄTES

Close-up of a car's air conditioner panel and its side view showing a button or grip (no text or symbols visible)

Close-up of a mechanical component with a downward arrow indicator (no text or symbols)

Close-up of a vacuum cleaner's head and neck (no visible text or symbols)

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

Close-up of a metallic knob and perforated surface on a textured surface (no text or symbols visible)

Close-up of a mechanical component with a textured base and a small object, no visible text or symbols

Close-up of a vacuum cleaner's air vent with grid pattern and directional arrow (no text or symbols)

Close-up of a mechanical component with a white arrow pointing to a specific area (no text or symbols visible)

Close-up of a mechanical component with concentric rings and a central hole, showing no visible text or symbols.

Close-up of a mechanical component with a highlighted circular feature and an arrow pointing to it (no text or symbols visible)

Close-up of a gray plastic mechanical component with a circular top and flanged side (no text or symbols visible)

Close-up of a vacuum cleaner's hood and base (no visible text or symbols)

Litanghe Road, Xiangcheng Economy

Development Zone, Xiangcheng District, Suzhou 215131, P.R.China

Tel: [phone]

Importeur:
