USER MANUAL HmIP-BPS Homematic IP

Installation instruction and operating manual

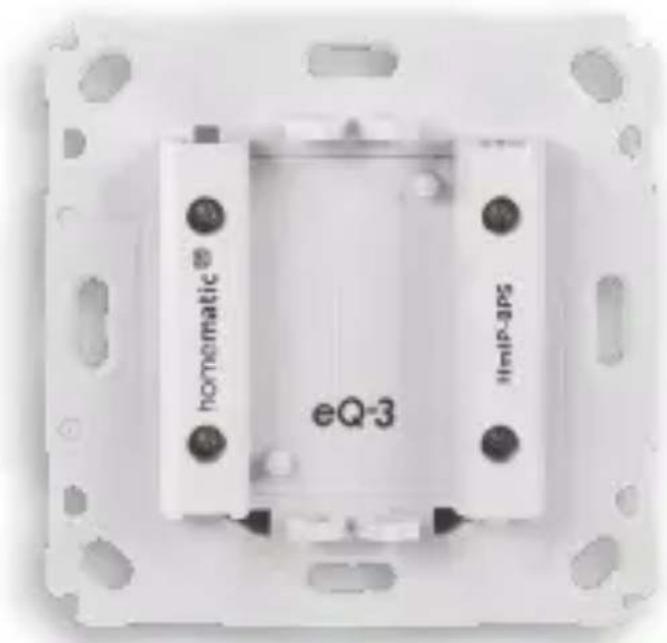

Power Supply Unit for brand switches p. 18

homomatic® eq-3 Side-up

Lieferumfang

Anzahl Bezeichnung

Printed in Hong Kong

L N PE #CrS BIMPLAT® HedPUBPS Power Supply for in series undetected 250V / 180kHz max. 1.1 W Output: +V/36 / max. 200mA B33 CE L M □ 注意电

Diagram showing two views of an open electrical switch or panel with internal components and a black arrow indicating the direction of change (no text or symbols present)

Inhaltsverzeichnis

1 Homematic IP Power Supply Unit for brand switches

1 Operating manual

Documentation © 2016 eQ-3 AG, Germany

All rights reserved. This manual may not be reproduced in any format, either in whole or in part, nor may it be duplicated or edited by electronic, mechanical or chemical means, without the written consent of the publisher.

Typographical and printing errors cannot be excluded. However, the information contained in this manual is reviewed on a regular basis and any necessary corrections will be implemented in the next edition. We accept no liability for technical or typographical errors or the consequences thereof.

All trademarks and industrial property rights are acknowledged.

Printed in Hong Kong

Changes may be made without prior notice as a result of technical advances.

143487

Version 1.0 (11/2016) (web)

Table of contents

1 Information about this manual.... 20
2 Hazard information....20
3 Function and device overview .....23
4 General information 24
5 Start-up 25
5.1 Installation instructions 25
5.2 Installation....27
6 Maintenance and cleaning....29
7 Technical specifications....30

1 Information about this manual

Please read this manual carefully before beginning operation with your Homematic IP component. Keep the manual so you can refer to it at a later date if you need to. If you hand over the device to other persons for use, please hand over the operating manual as well.

Symbols used:

Attention!

This indicates a hazard.

Notice:

This section contains important additional information.

2 Hazard information

Do not open the device. It does not contain any parts that can be maintained by the user. There is a risk of electric shock if the device is opened. If you have any doubts, have the device checked by an expert.

For safety and licensing reasons (CE), unauthorized change and/or modification of the device is not permitted.

Do not use the device if there are signs of damage to the housing, control elements or connecting sockets, for example. If you have any doubts, have the device checked by an expert.

The device may only be operated in dry and dust-free environment and must be protected from the effects of moisture, vibrations, solar or other methods of heat radiation, cold and mechanical loads.

The device is not a toy; do not allow children to play with it. Do not leave packaging material lying around, plastic films/bags, pieces of polystyrene etc., can be dangerous in the hands of a child.

We do not assume any liability for damage to property or personal injury caused by improper use or the failure to observe the hazard information. In such cases, any claim under warranty is extinguished! For consequential damages, we assume no liability!

The device may only be used for fixed installations. The device must be securely attached within a fixed installation.

The power supply unit for flush-mount installation described is part of the building installation. The relevant national standards and directives must be taken into consideration during planning and set-up. The device has been designed solely for operation on a 230 V/50 Hz AC supply. Only qualified electricians (to VDE 0100) are permitted to carry out work on the 230 V mains. Applicable accident prevention regulations must be complied with whilst such work is being carried out. To avoid electric shocks from the device, please disconnect the mains voltage (trip the miniature circuit-breaker). Non-compliance with the installation instructions can cause fire or introduce other hazards.

When connecting to the device terminals, take the permissible cables and cable cross sections into account.

Before the power supply unit is connected, remove the fuse from the fuse box.

The circuit to the which the device and the load will be connected has to be secured by a cable protection switch in accordance with EN60898-1 (tripping characteristic B or C, max. 16 A rated current, min. 6 kA interrupting rating, energy

limiting class 3). Installation regulations according to VDE 0100 and HD382 or 60364 have to be considered. Users must be able to easily access the cable protection switch. This must be marked as disconnecting device for the actuator.

Using the device for any purpose other than that described in this operating manual does not fall within the scope of intended use and shall invalidate any warranty or liability. This also applies to any conversion or modification work. The device is intended for private use only.

The device may only be operated within residential buildings.

3 Function and device overview

The Homematic IP Power Supply Unit for brand switches offers power supply for Homematic IP devices in the dimension of 55 x 55 mm. The connected devices no longer require batteries for operation.

The power supply unit for brand switches is easily integrated into an existing installation using a flush-mounted box. It is compatible with 55 mm devices of various product lines and manufacturers (e.g. Homematic IP, Home-

matic, MAX! Heating Control or FS20). The suitable devices can be mounted easily and without any tools on the power supply unit.

Device overview (see figure 1+2):

(A) Connecting terminals
(B) Spring latches
(C) Battery compartment contact

4 General information

This device is a component of the Homematic IP smart home system and can be combined with all devices in the dimension of 55 x 55 mm (see sec. "5 Start-up" on page 25). Also battery operated devices in the dimension of 55 x 55 mm of other systems (e.g. Homematic, MAX! or FS20) can be used with the power supply unit.

The available functions provided by the system in combination with other components are described in the Homematic IP User Guide. All current technical documents and updates are provided at www.eQ-3.de.

eQ-3 AG hereby declares that this device complies with the essential requirements and other relevant regulations of Directive 1999/5/EC. You can find the full declaration of conformity at www.eQ-3.de.

5 Start-up

5.1 Installation instructions

Please read this entire section before starting to install the device.

Please note! Only to be installed by persons with the relevant electro-technical knowledge and experience!*

Incorrect installation can put

• your own life at risk;
• and the lives of other users of the electrical system.

Incorrect installation also means that you are running the risk of serious damage to property, e.g. because of a fire. You may be personally liable in the event of injuries or damage to property.

Contact an electrical installer!

\*Specialist knowledge required for installation:

The following specialist knowledge is particularly important during installation:

• The "5 safety rules" to be used: Disconnect from mains; Safeguard from switching on again; Check that system is deenergised; Earth and short circuit; Cover or cordon off neighbouring live parts;
• Select suitable tool, measuring equipment and, if necessary, personal safety equipment;
• Evaluation of measuring results;
• Selection of electrical installation material for safeguarding shut-off conditions;
  • IP protection types;
  • Installation of electrical installation material;
• Type of supply network (TN system, IT system, TT system) and the resulting connecting conditions (classical zero balancing, protective earthing, required additional measures etc.).

Installation may only take place in normal commercial switch boxes (device boxes) in accordance with DIN 49073-1.

Please observe the hazard information in section "2 Hazard information" on page 20 during installation.

Permitted cable cross sections for connecting to the power supply unit for brand switches are:

rigid cable [mm2] flexible cable with/without fer-rule [mm2]

0.75 – 1.50 0.75 – 1.50

5.2 Installation

To install the power supply unit, please proceed as follows:

• Switch off the fuse of the power circuit.
• If necessary, remove the socket cover from the corresponding socket.
• Therefore, loosen the screw in the middle of the cover.
• Pull off the cover including the frame from the socket.
• Loosen the screws that are used to fix the socket to the flush-mounting box.
• Release the wiring and remove the existing socket if necessary.
• Connect the phase conductor to connecting terminal L (see fig. 2).

• Connect the neutral conductor to connecting terminal N (see fig. 2).

• Secure the power supply unit to the flush-mounted box using the provided screws. Please note that the arrow on the power supply unit has to point upwards.

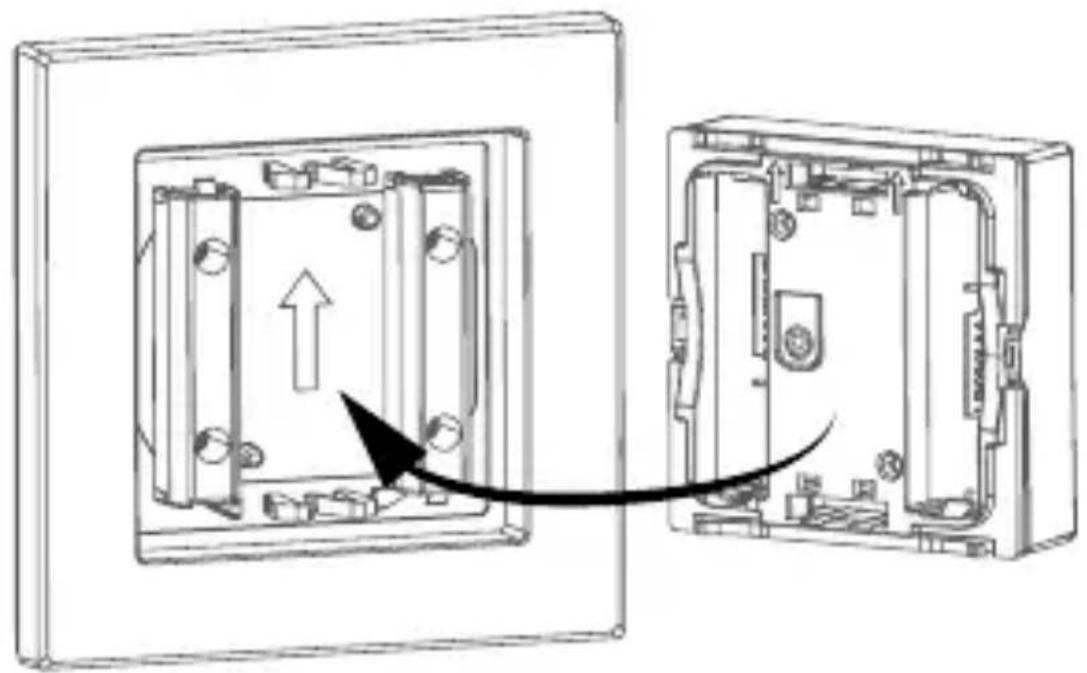

• Insert the desired device in the dimension of 55 x 55 mm (e.g. a Homematic IP Wall-mount Remote Control) into the frame of the power supply unit (see fig. 3). Make sure that the spring latches (A) snap into the openings on the device.

The arrow(s) of the fixed device should also point upwards to ensure clear assignment of channels.

- Switch the fuse of the power circuit back on again.

Please refer to the corresponding operating manual of the inserted device for further information on integration into the Homematic IP system.

6 Maintenance and cleaning

The product does not require any maintenance. Enlist the help of an expert to carry out any maintenance or repairs.

Clean the device using a soft, lint-free cloth that is clean and dry. You may dampen the cloth a little with lukewarm water in order to remove more stubborn marks. Make sure that no moisture will ingress into the housing. Do not use any detergents containing solvents, as they could corrode the plastic housing and label.

7 Technical specifications

Device short description: HmIP-BPS

Supply voltage: 230 V/50 Hz

Degree of protection: IP20

Ambient temperature: 5 to 35 °C

Power consumption: 1.1 W max.

Standby power consumption: 0.12 W

Output voltage: 3 V

DC

Max. output loading capability: 200 mA

Cable type and cross section: rigid wire,

0.75-1.5 mm²

flexible cable without fer-

rule,

0.75-1.5 mm ^2

Installation: only in normal commer-

cial switch boxes (device

boxes) in accordance

with DIN 49073-1

Dimensions (W x H x D): 71 x 71 x 43 mm

(depth for flush-mount-

ing: 31 mm)

Weight: 60 g

Subject to technical changes.

Instructions for disposal

Do not dispose of the device with regular domestic waste! Electronic equipment must be disposed of at local collection points for waste electronic equipment in compliance with the Waste Electrical and Electronic Equipment Directive.

Information about conformity

The CE sign is a free trading sign addressed exclusively to the authorities and does not include any warranty of any properties.

For technical support, please contact your retailer.

Free download of the Homematic IP app!

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

ANDROID APP ON Google play

Bevollmächtigter des Herstellers: Manufacturer's authorised representative:

eQ-3 AG Maiburger Straße 29 26789 Leer / GERMANY www.eQ-3.de
