Dell C5518QT User's Guide

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Copyright © 2017-2018 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

2018 - 07

Rev. A03

Contents

About Your Display .... 5

Package Contents ....5

Product Features 8

Identifying Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Display Specifications 13

Plug-and-Play 25

LCD Display Quality and Pixel Policy. 25

Setting Up the Display 26

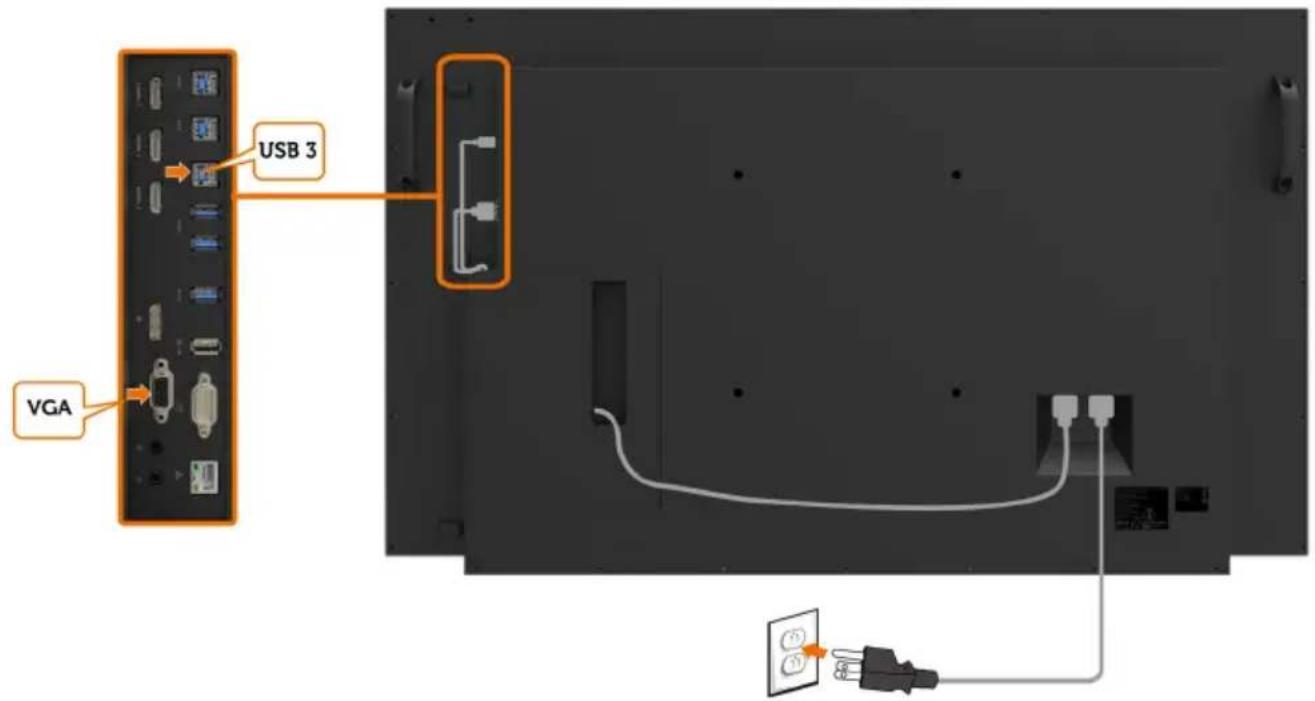

Connecting Your Display 26

Wall Mounting (Optional) 31

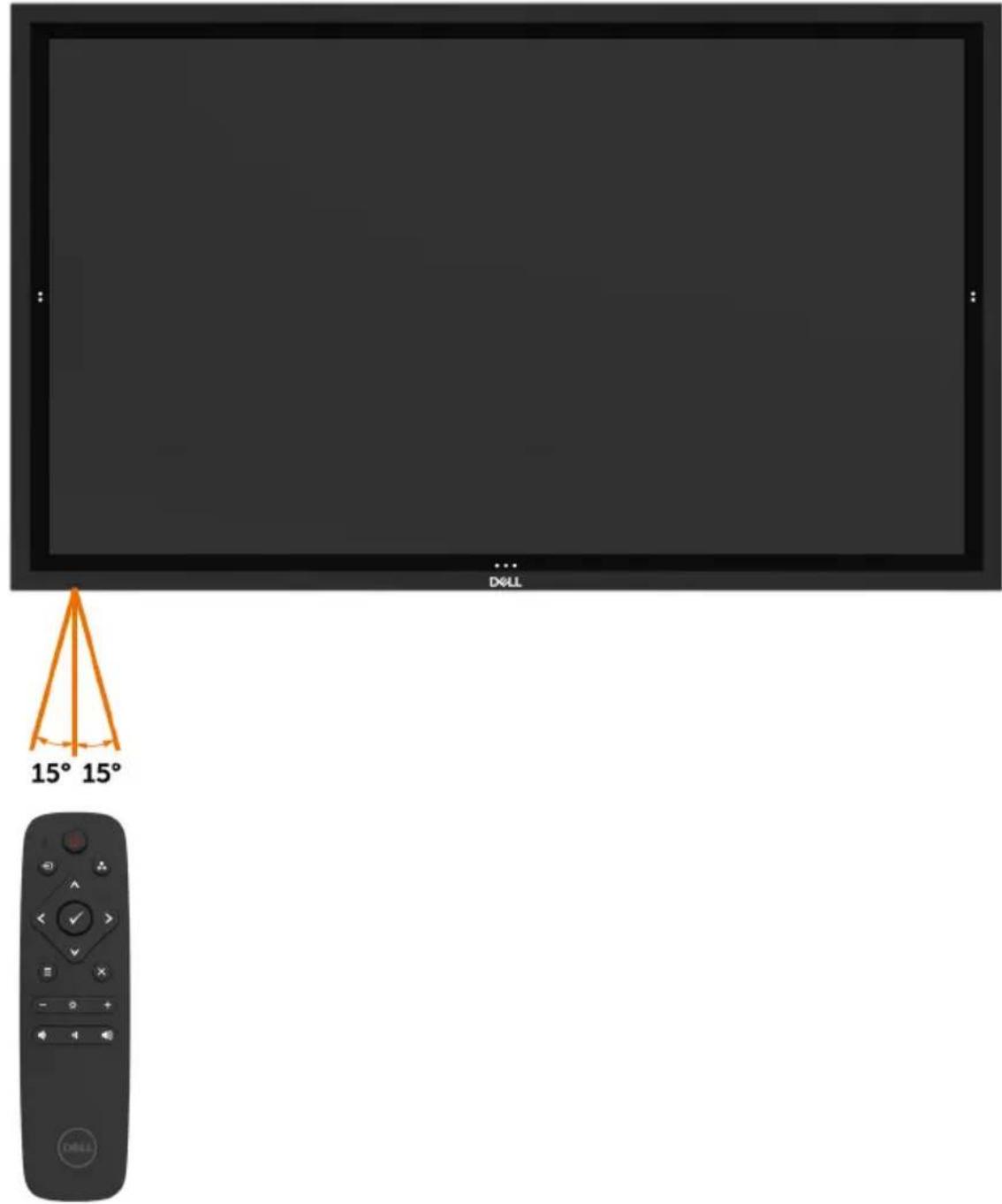

Remote Control. 32

Operating the Display....35

Turning on the Display 35

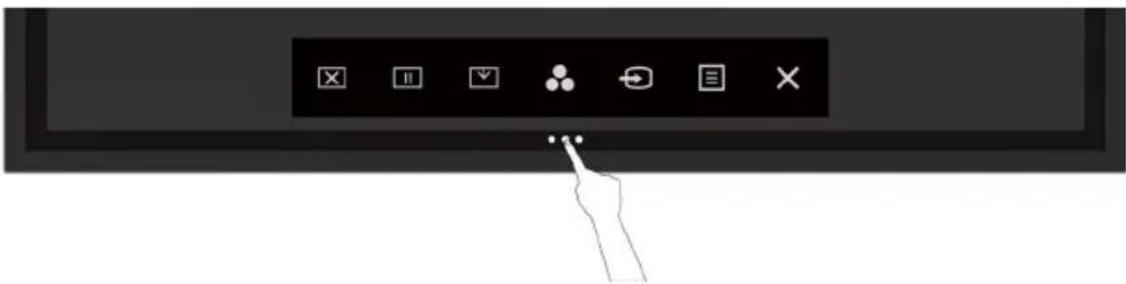

Touch OSD Launcher....35

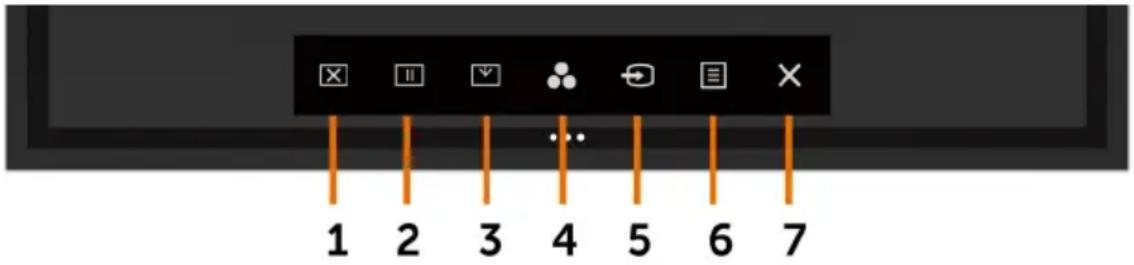

Using the Touch Control Launcher. 36

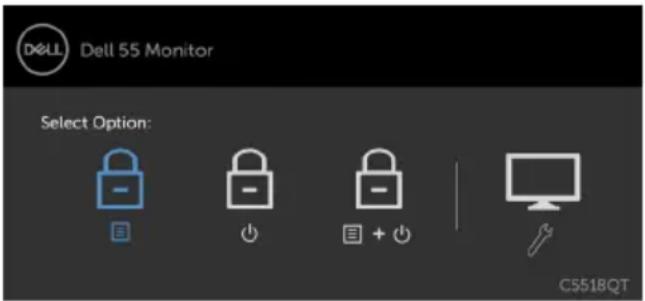

Using the OSD lock function. 37

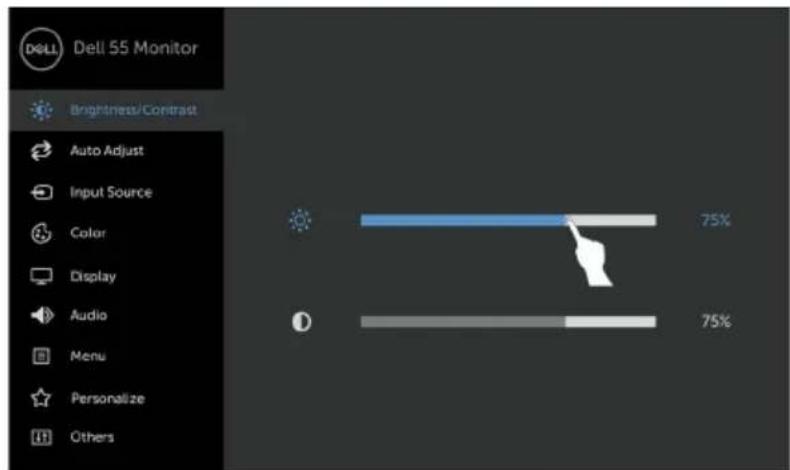

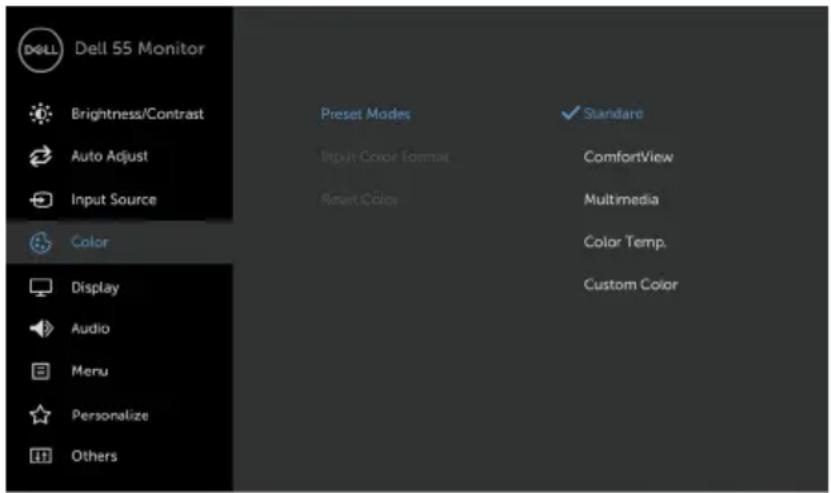

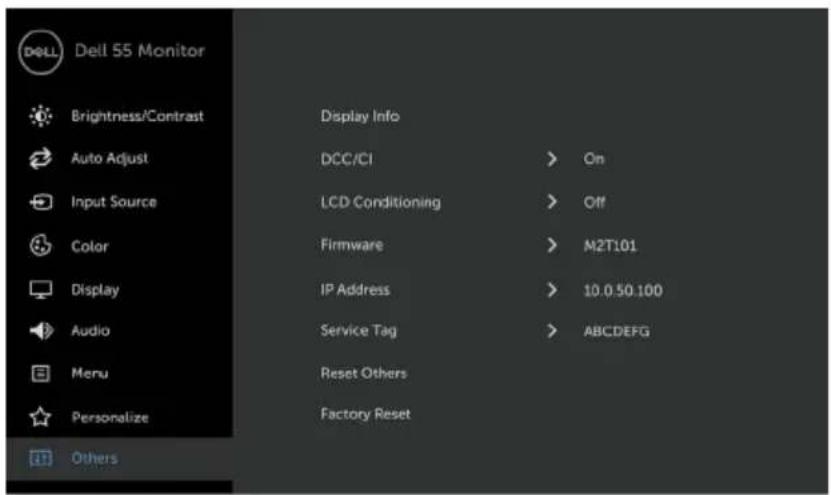

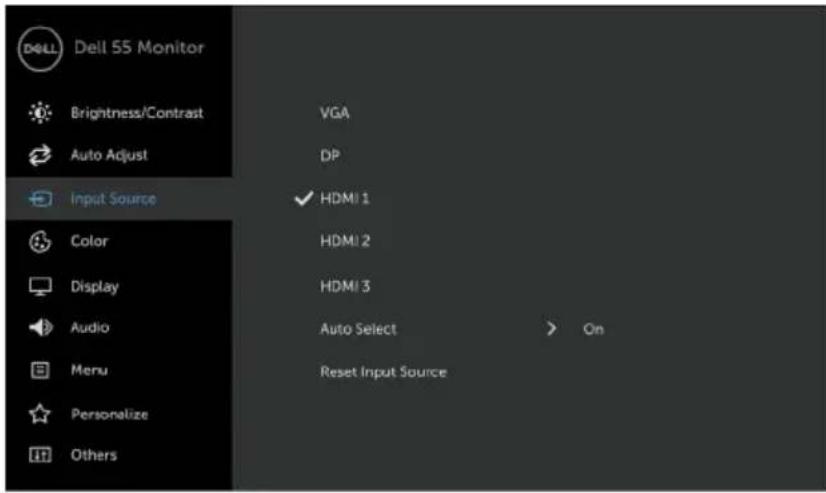

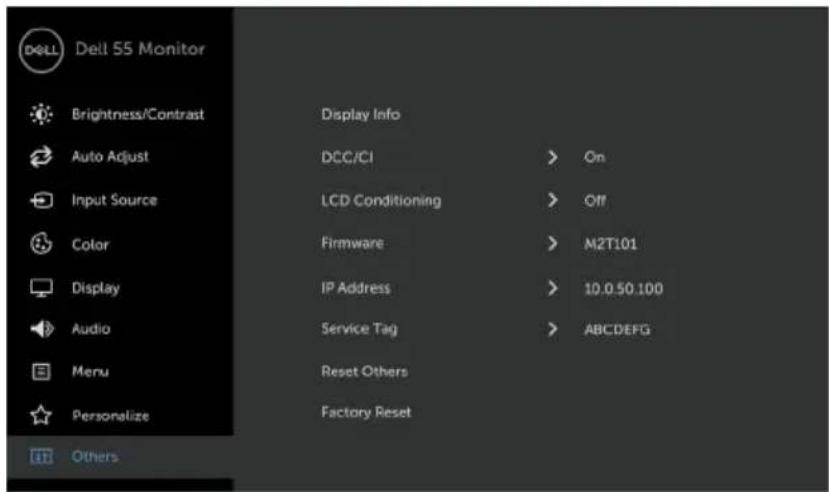

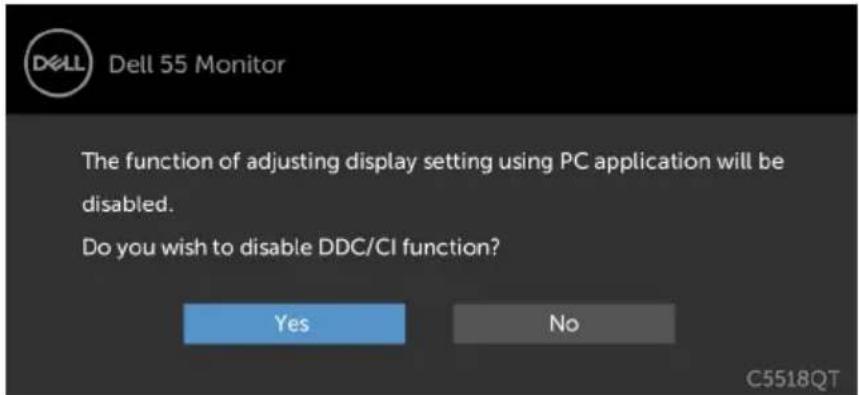

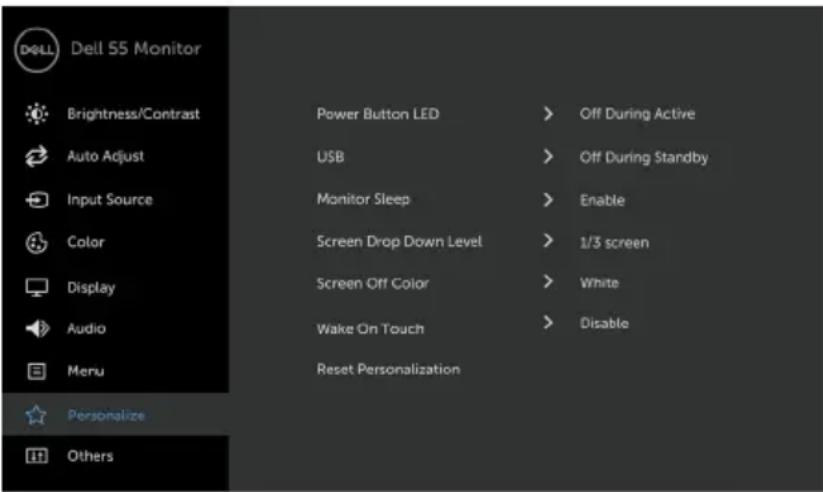

Using the On-Screen Display (OSD) Menu ..... 38

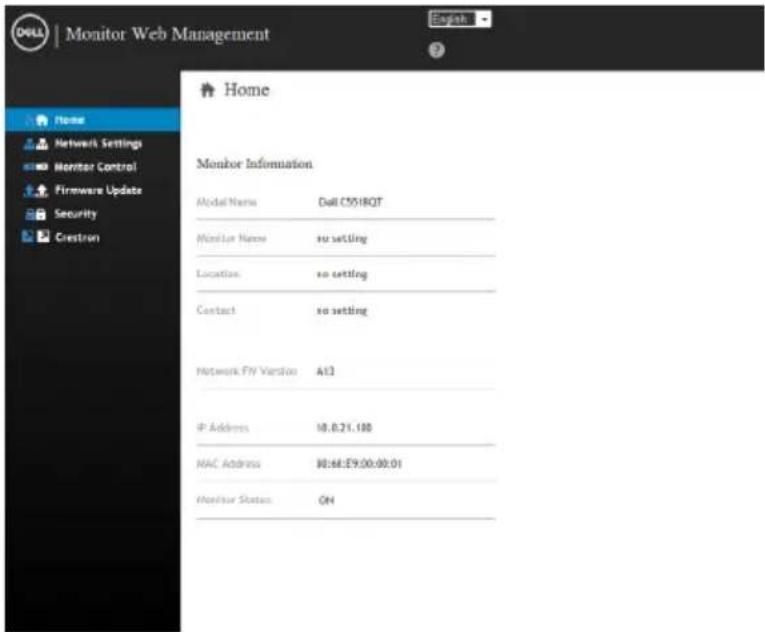

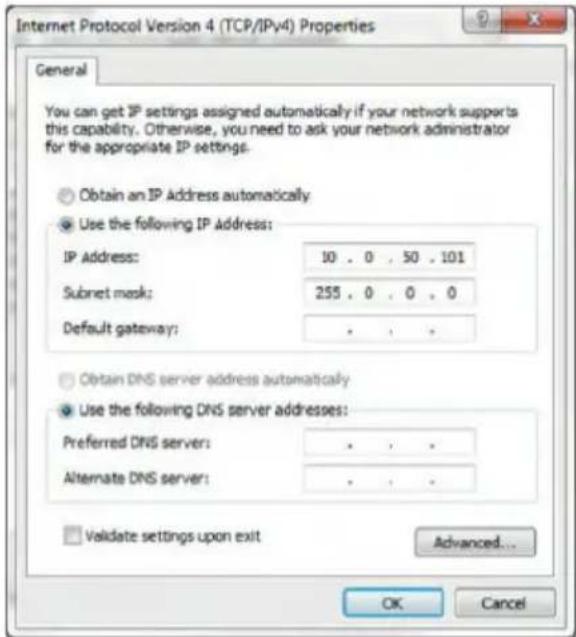

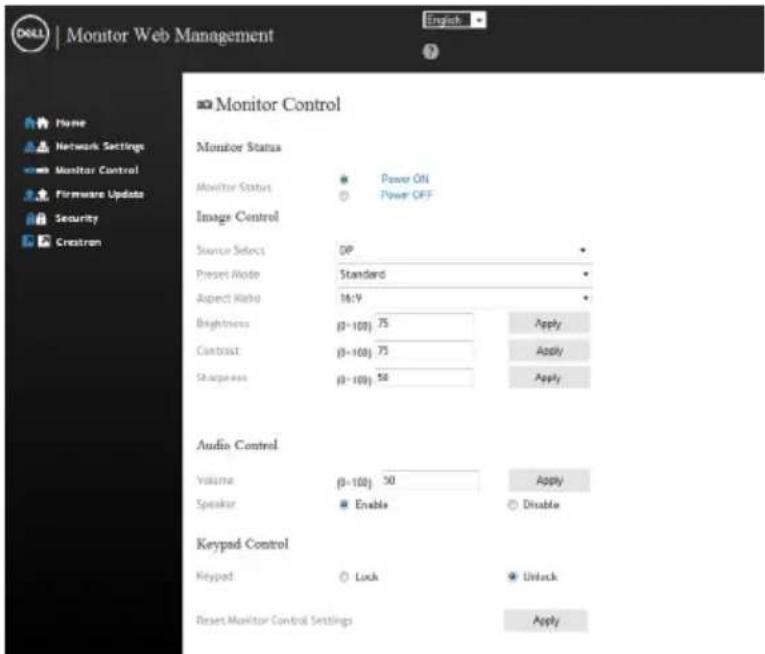

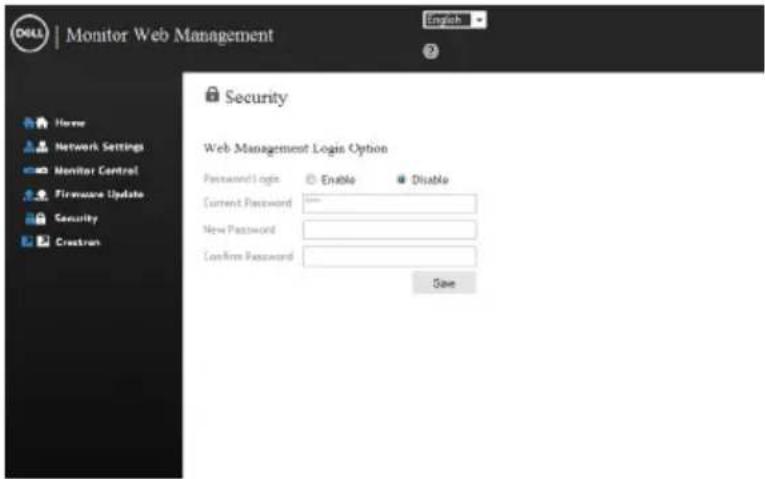

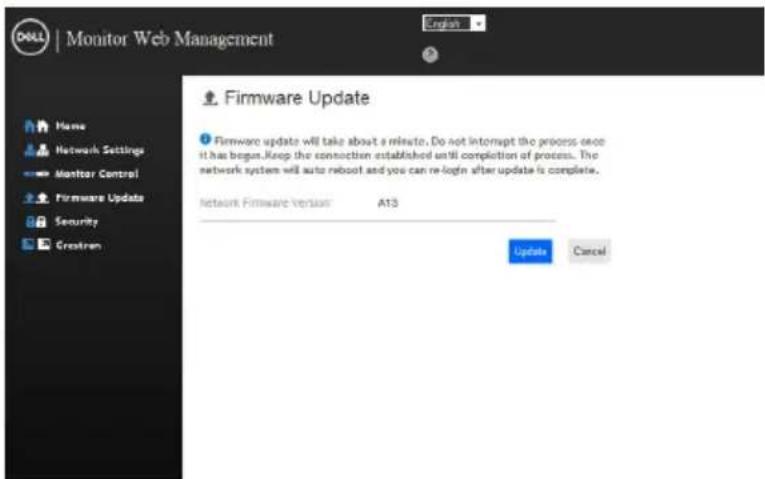

Dell Web Management for Displays 52

Troubleshooting 57

Self-Test 57

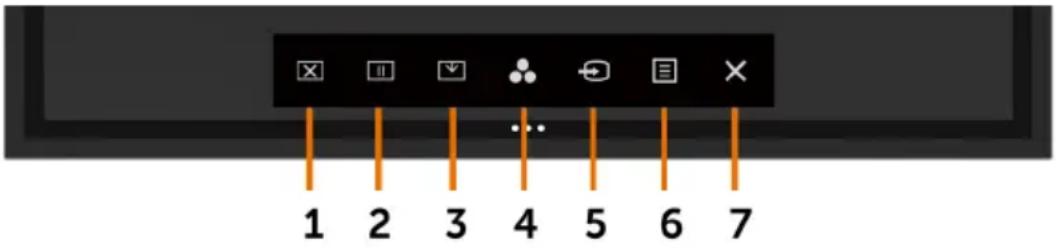

Built-in Diagnostics. 59

Common Problems 60

Product Specific Problems. 62

Touchscreen Problems 63

Universal Serial Bus (USB) Specific Problems 63

Ethernet Problems 64

Appendix. 65

Safety Instructions....65

FCC Notices (U.S. only) and Other Regulatory Information .....65

Contacting Dell 65

Setting Up Your Display 66

Maintenance Guidelines 68

Package Contents

Your display ships with the components shown below. Make sure that you have received all the components and contact Dell if something is missing.

NOTE: Some items may be optional and may not ship with your display. Some features or media may not be available in certain countries.

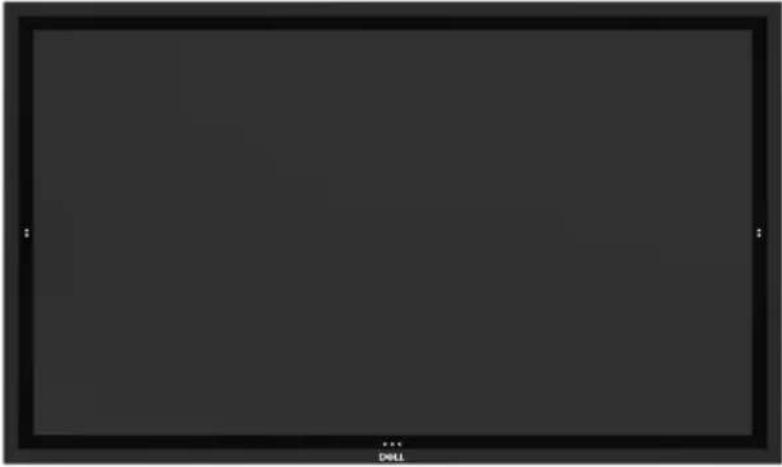

	Display
	Remote Control & Batteries (AAA x 2)
	Remote control holder
	Stylus x 2
	Stylus holder
	Wire Saddle x 3
	Power cable (varies by country)

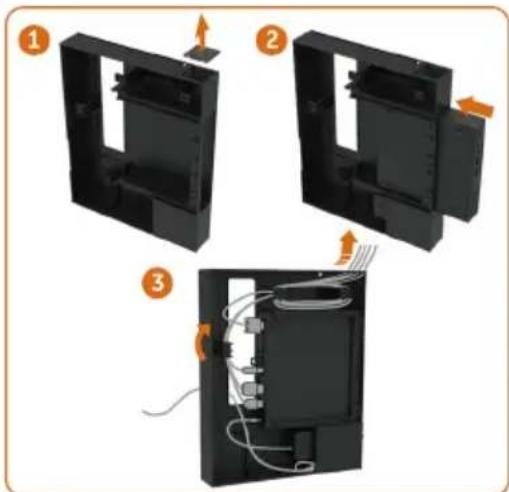

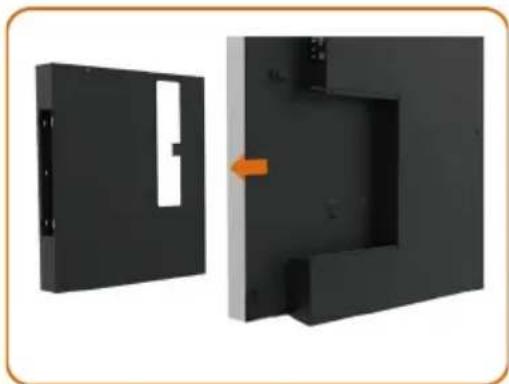

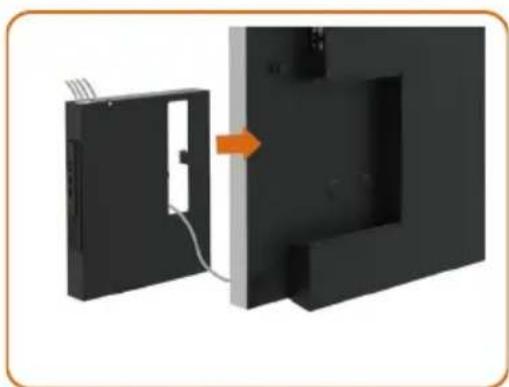

	Power cable for connecting Optiplex system to display (see Optiplex (Optional))
	USB 3.0 upstream cable (enables the USB ports on the display)
	DP cable (DP to DP)
	VGA cable

Scanned document page with multiple labeled diagrams and annotations, including boxes, charts, and a warning symbol.

HDMI cable

• Safety, Environmental and Regulatory Information
• DisplayNote License Key
- Quick Setup Guide

Product Features

The Dell C5518QT display has an active matrix, thin film transistor (TFT), liquid crystal display (LCD), and LED backlight. The display features include:

• 138.78 cm (54.64-inch) active area display (Measured diagonally) 3840 x 2160 (16:9 aspect ratio) resolution, plus full-screen support for lower resolutions.
  • Video Electronics Standards Association (VESA™) 300 x 300 mm mounting holes.
  • Plug and play capability if supported by your system.
  • On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
  • Security lock slot.
  • Supports Asset Management Capability.
  • Arsenic-Free glass and Mercury-Free for Panel only.
  • 0.5 W standby power when in the sleep mode.
  • Easily setup with Dell Optiplex Mirco PC (Mirco Form Factor).
  • Up to 20 points and 4 pens InGlass (TM) Touch technology.
• Optimize eye comfort with a flicker-free screen.
• The possible long-term effects of blue light emission from the display may cause damage to the eyes, including eye fatigue or digital eye strain. ComfortView feature is designed to reduce the amount of blue light emitted from the display to optimize eye comfort.

Identifying Parts and Controls

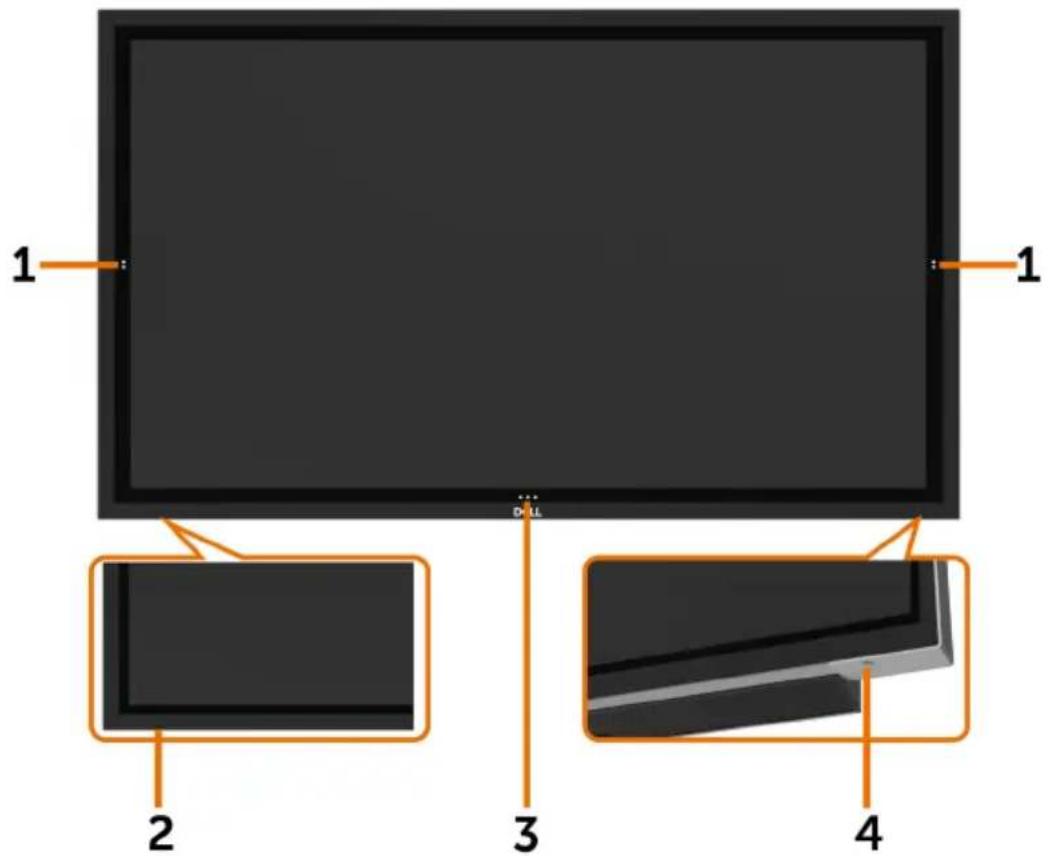

Front view

1 2 3 4 1 D

Label Description
1 Screen	drop down touch key
2 IR Lens
3	OSD Launcher touch key (For more information, see Operating the Display)
4 Power	on/off button (with LED indicator)

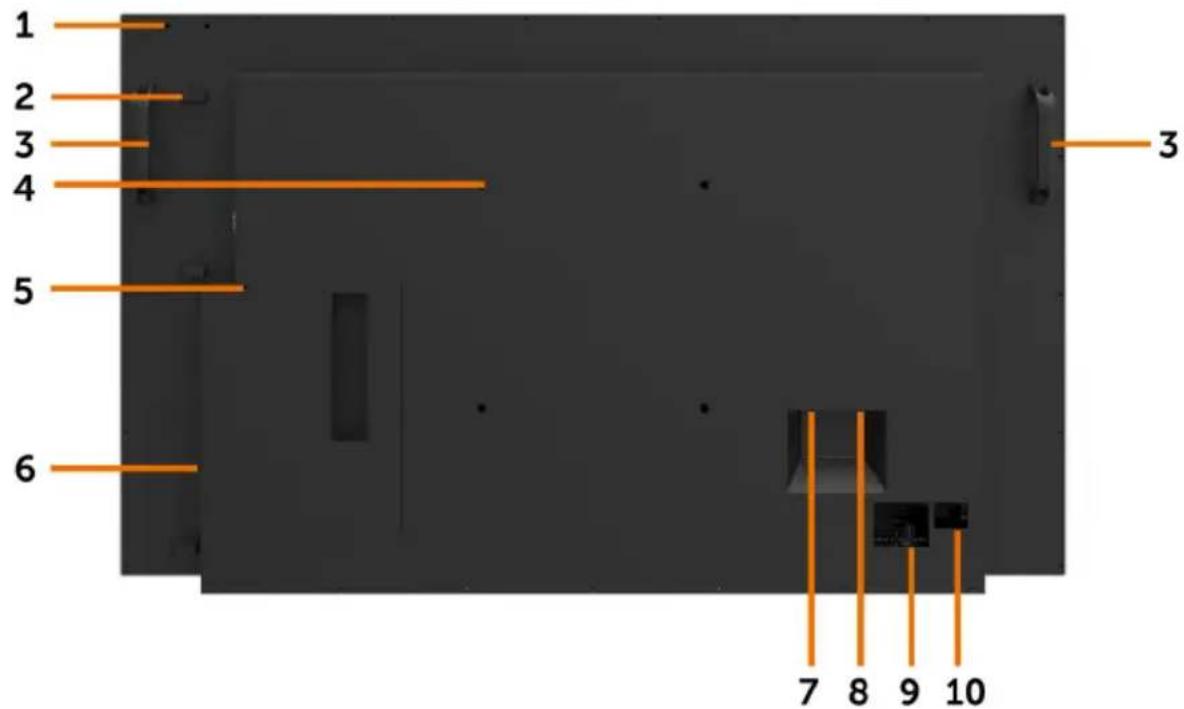

Back View

1 2 3 4 5 6 7 8 9 10 3

Label	Description Use
1	Mounting provision for WR517 (optional item)	For Dell Wireless Receiver : WR517(optional)
2	Wire Saddle Use to handle display during installation
3	Handle x 2 Use to move the display.
4	VESA mounting holes (300 x 300 mm) To mount the display.
5	Security lock slot Secures Optiplex with security	cable lock (sold separately).
6	Optiplex holder Use to hold a Micro Form Factor	Optiplex PC.
7	AC to optiplex (optional) AC power to optiplex power adapter.
8	AC power connector	To connect the display power cable.
9	Regulatory label	List of approved regulatory labels.
10	Barcode, serial number, and service tag label	Refer to this label if you need to contact Dell for technical support.

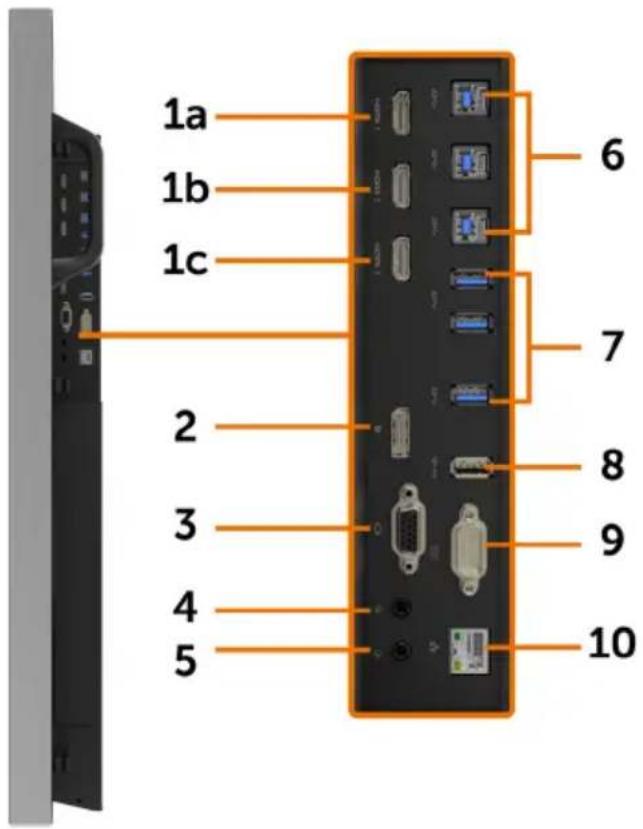

Side View

1a 1b 1c 2 3 4 5 6 7 8 9 10

Label Description Use
1a HDMI 1 connector		Connect your computer with HDMI cable.1b HDMI 2 connec
1c HDMI 3 connector
2 DP connector Connect your computer with DP cable.
3 VGA connector Connect your computer with VGA cable.
4 Audio line-in port Analog audio (two channel) input.
5 Audio line-out port Connect to external audio peripherals.Only supports 2-channel audio.NOTE: The audio line-out port does not support headphones.
6 USB 3.0 upstream ports (3)		Connect the USB cable that comes with your display to the computer. Once this cable is connected, you can use the USB downstream connectors on the display and the touch screen function on the display.
7 USB 3.0 downstream ports (3)		Connect your USB device.You can only use this connector after you have connected the USB cable to the computer and USB upstream connector on the display.
8 USB Dedicated charging port		USB 3.0 with 12.5 W - For WR517 Wireless Receiver(Optional) Power supply (5V/2.5A)

9 RS232	connector Remote management and control of display via RS232
10 RJ-45	connector Remote Network Management and control of display via RJ-45

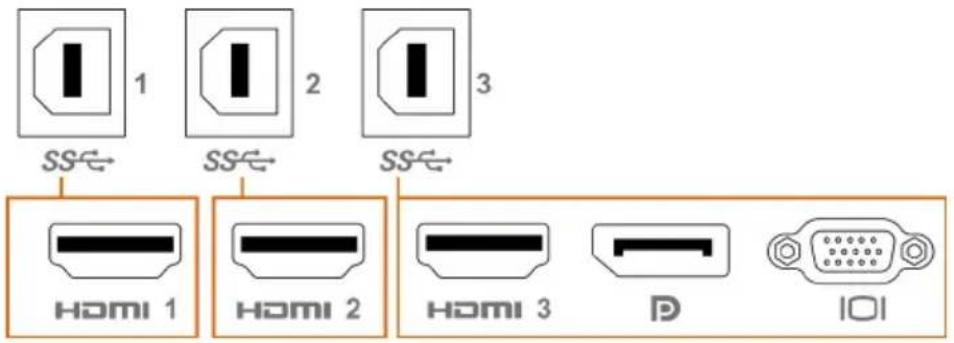

Input sources and USB pairing

1 2 3 SS← SS← SS← HOMI 1 HOMI 2 HOMI 3 D IOI

Input sources USB upstream
HDMI 1 USB 1
HDMI 2 USB 2
HDMI 3	USB 3DP
VGA

Bottom View

1 2 3

Label Description Use
1, 2	Speakers
3	Power on/off button

Display Specifications

Screen type Active matrix - TFT LCD
Panel Type In-plane switching Technology
Aspect ratio 16:9
Viewable image dimensions
Diagonal 138.78 cm (54.64 inches)
Active Area
Horizontal 1209.6 mm (47.62 inches)
Vertical 680.4 mm (26.79 inches)
Area	823011.84 mm^2 (1275.67 inches^2 )
Pixel pitch 0.315 mm x 0.315 mm
Pixel per inch (PPI) 80
Viewing angle
Horizontal 178° (typical)
Vertical 178° (typical)
Panel brightness 310 cd/m^2 (typical)
Contrast ratio 1200 to 1 (typical)
Display screen coating	7H, Anti-Smudge, Anti-Glare
Response Time	8 ms typical (G to G), 12 ms max. (G to G)
Color depth	1.07 Billion colors
Color gamut	NTSC (72%)
Connectivity	·1 x DP 1.2·1 x VGA·3 x HDMI 2.0·3 x USB 3.0 downstream port·1 x USB Dedicated charging portUSB 3.0 with 12.5W (ForWR517Wireless receiver(Optional) Power supply (5V/2.5A))·3 x USB 3.0 upstream port·1 x Analog 2.0 audio line out (3.5 mm jack)·1 x Analog 2.0 audio line in (3.5 mm jack)·1 x RJ-45·1 x RS232
Border width (edge of display to active area)	26.9 mm (Top)26.9 mm (Left/Right)26.9 mm (Bottom)
Cable management Yes

Touch

Type InGlass Touch Technology (TM)
Input Method Bare finger and stylus
Interface USB HID Compliant
Touch Driver Windows driver installation for Windows 7
Touch point	Up to 20 points touchUp to 4 pens

NOTE: Touch, Pen and Eraser differentiation ready (functionality subject to application).

Support OS

OS Version Touch Pen Eraser
Windows	7 Pro and Ultimate	20	4	1
	8, 8.1	20	4	1
	10	20	4	1
Chorme OS	Linux kernel version 3.15 (3.10) or later ^	20	4 (0)	1 (0)
Android	4.4 (KitKat) with Linux kernel 3.15 (3.10) or later	20	4 (0)	1 (0)
Other Linux based OS	Linux kernel 3.15 or later	20	4	1
macOS	10.10, 10.11	1 (mouse ^2 )		No

^1 Functionality of Linux kernel has been verified on Ubuntu 14.04 and Debian 8. Functionality of Chrome OS and Android with Linux kernel 3.15 needs confirmation.
^2 Mouse emulation in landscape mode. Full multi-touch requires additional drivers on the host system.

Touch sensor input accuracy

		Typ^1	Max^2	Unit
Touch sensor input accuracy	Center area^3	1.0	1.5	mm
	Edge area^4	1.2	2.0	mm

1 Average accuracy at the specified input area.
2 95-percentile accuracy of specified input area.
^3 >20 mm from active touch area edge
^4 >20 mm from active touch area edge

Note that touch sensor input accuracy is defined relative to the active touch area as defined in

the reference drawing (listed in 8.1). The overall system accuracy, of touch co-ordinates relative to display co-ordinates, is directly affected by integration assembly tolerances.

Resolution Specifications

Horizontal scan range 30 kHz to 140 kHz (DP/HDMI)
Vertical scan range	24 Hz to 75 Hz (DP/HDMI)
Maximum preset resolution 3840 x	2160 at 60 Hz
Video display capabilities (DP & HDMI playback)	480p, 576p, 720p, 1080i, 1080p, 2160p

NOTE: VGA input resolution supported is 1920 x 1080 only.

Preset Display Modes

Display Mode Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock (MHz)	Sync Polarity (Horizontal/ Vertical)
720 x 400 31.5 70.0 28.3 -/+
640 x 480 31.5 60.0 25.2 -/-
640 x 480	37.5	75.0	-/-
800 x 600	37.9 60.0 40.0 +/+
800 x 600	46.9	75.0	+/+
1024 x 768	48.4	60.0	-/-
1024 x 768	60.0	75.0	+/+
1152 x 864	67.5	75.0	+/+
1280 x 800	49.3	60.0	+/+
1280 x 1024	64.0	60.0	+/+
1280 x 1024	80.0	75.0	+/+
1600 x 1200	75.0	60.0	-/+
1920 x 1080	67.5	60.0	+/+
2048 x 1152	71.6	60.0	+/-
2560 x 1440	88.8	60.0	+/-
3840 x 2160	65.68	30.0	+/+
3840 x 2160	133.313	60.0	+/+

Electrical Specifications

Video input signals · Digital video signal for each differential linePer differential line at 100 ohm impedance· DP/HDMI/VGA signal input support

Input voltage/ frequency/current 100-240 VAC / 50 or 60 Hz ± 3 Hz / 4.5 A (maximum)

Output voltage/ frequency/current 100-240 VAC / 50 or 60 Hz ± 3 Hz / 2 A (maximum)

Inrush current 120 V: 60 A (Max.) at 0 °C (cold start)240 V: 120 A (Max.) at 0 °C (cold start)

Physical Characteristics

Connector type · DP connector	VGA connectorHDMI connectorAudio line-outAudio line-inUSB 3.0 connectorUSB Dedicated charging port- supplying power of up to 5 V (max 2.5A) for connected devicesRJ-45RS232 connector
Signal cable type (in-box) DP, 3 m cable	HDMI, 3 m cableVGA, 3 m cableUSB 3.0, 3 m cable
Dimensions
Height 786.45 mm (30.96 inches)
Width 1298.6 mm (51.13 inches)
Depth 91.1 mm (3.59 inches)
Weight
Weight with packaging 65 kg (143.30 lb)
Weight without packaging 53 kg (116.84 lb)

Environmental Characteristics

Compliant Standards
RoHS Compliant yes
Temperature
Operating 0 °C to 40 °C (32 °F to 104 °F)
Non-operating -20 °C to 60 °C (-4 °F to 140 °F)
Humidity
Operating	10% to 80% (non-condensing)
Non-operating 5% to 90% (non-condensing)
Altitude
Operating 5,000 m (16,404 ft) (maximum)
Non-operating 12,192 m (40,000 ft) (maximum)
Thermal dissipation 585.86 BTU/hour (maximum)

Power Management Modes

If you have VESA's DPM-compliant video card or software installed in your PC, the display can automatically reduce its power consumption when not in use. This is referred to as power save mode*. If the computer detects input from the keyboard, mouse, or other input devices, the display automatically resumes functioning. The following table shows the power consumption and signaling of this automatic power saving feature.

VESA Modes	Horizontal Sync	Vertical Sync	Video	Power Indicator Power Consumption
Normal operation	Active Active	Active White	171.7	W (maximum)**	105 W (typical)
Active-off mode	Inactive Inactive	Off White		(Glowing)	Less than 0.5 W
Switch off - -	-	Off		Less than 0.5 W

The OSD operates only in the normal operation mode. If you press any button in the active-off mode, the following message is displayed:

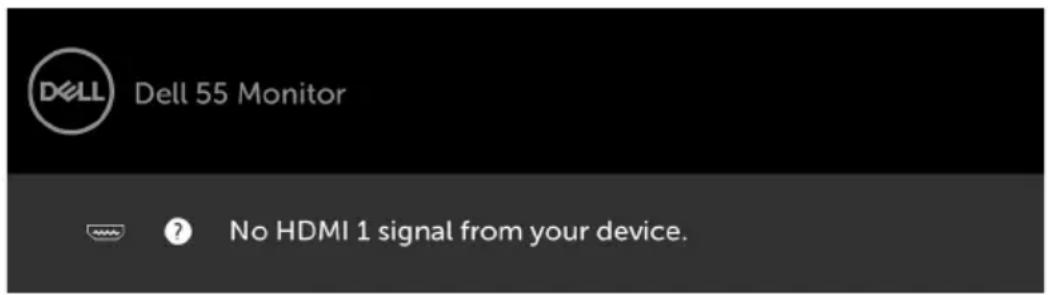

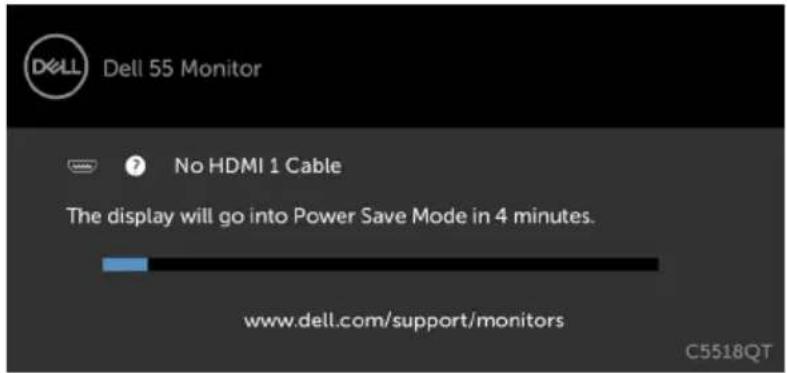

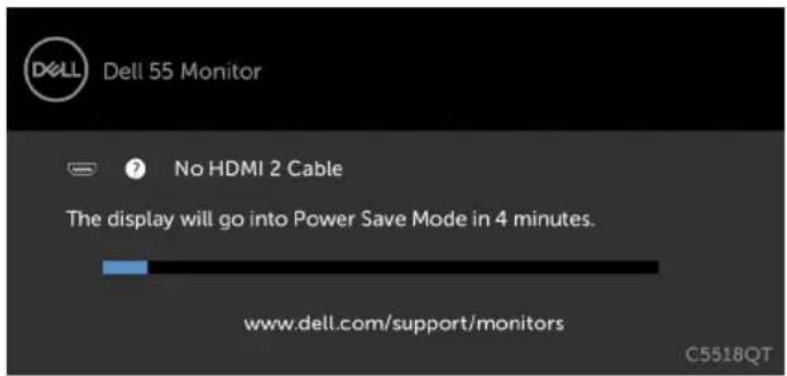

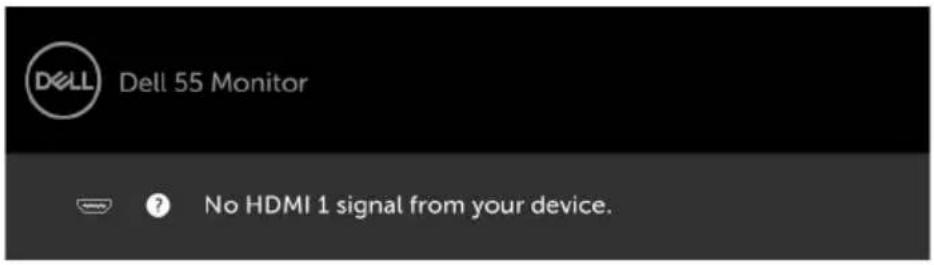

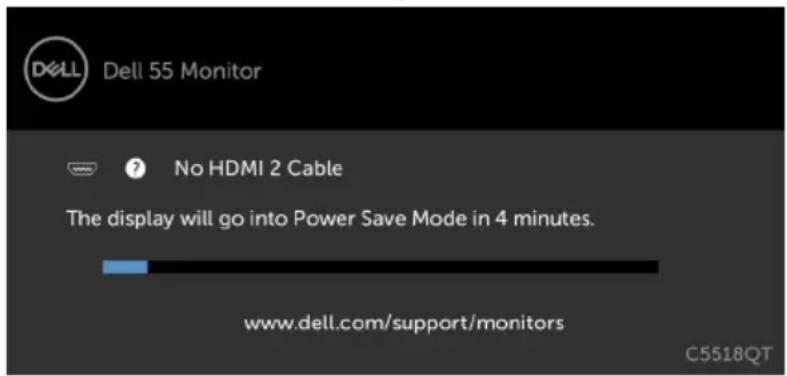

DELL Dell 55 Monitor No HDMI 1 signal from your device.

*Zero power consumption in OFF mode can only be achieved by disconnecting the AC main cable from the display.

**Maximum power consumption with maximum luminance.

Activate the computer and the display to gain access to the OSD.

Pin Assignments

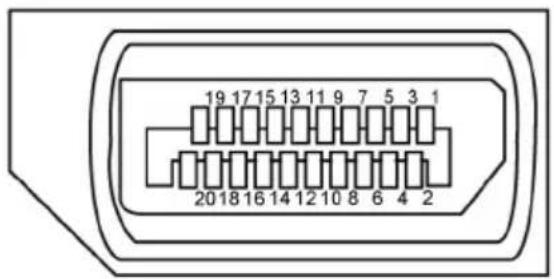

DP connector

19 17 15 13 11 9 7 5 3 1 20 18 16 14 12 10 8 6 4 2

Pin number 20-pin side of the connected signal cable
1 ML3(n)
2 GND
3 ML3(p)
4 ML2(n)
5 GND
6 ML2(p)
7 ML1(u)
8 GND
9 ML1(p)
10 ML0(n)
11 GND
12 ML0(p)
13 CONFIG1/(GND)
14 CONFIG2/(GND)
15 AUX CH (p)
16 DP_Cable Detect
17 AUX CH (n)
18 Hot Plug Detect
19 GND
20 +3.3V DP_PWR

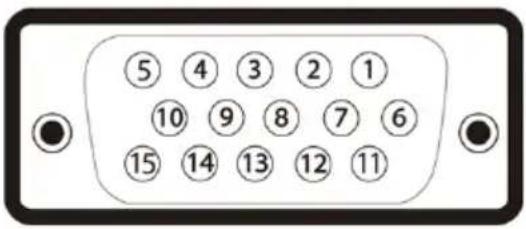

VGA connector

⑤ ④ ③ ② ① ⑩ ⑨ ⑧ ⑦ ⑥ ⑮ ⑭ ⑬ ⑭ ⑮

Pin number 15-pin side of the connected signal cable
1 Video-Red
2 Video-Green
3 Video-Blue
4 NC
5 Self-test
6 GND-R
7 GND-G
8 GND-B
9 Computer 5 V / 3.3 V
10 GND-sync
11 GND
12 DDC data
13 H-sync
14 V-sync
15 DDC clock

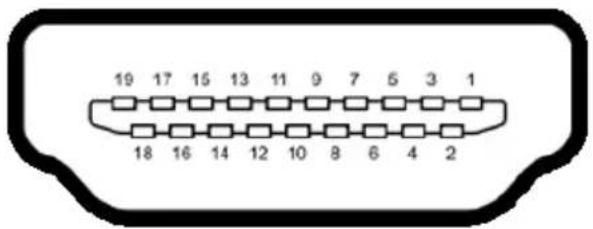

HDMI connector

19 17 15 13 11 9 7 5 3 1 18 16 14 12 10 8 6 4 2

Pin number 19-pin side of the connected signal cable

1 TMDS DATA 2+

2 TMDS DATA 2 SHIELD

3 TMDS DATA 2-

4 TMDS DATA 1+

5 TMDS DATA 1 SHIELD

6 TMDS DATA 1-

7 TMDS DATA 0+

8 TMDS DATA 0 SHIELD

9 TMDS DATA 0-

10 TMDS CLOCK+

11 TMDS CLOCK SHIELD

12 TMDS CLOCK-

13 CEC

14 Reserved (N.C. on device)

15 DDC CLOCK (SCL)

16 DDC DATA (SDA)

17 DDC/CEC Ground

18 +5 V POWER

19 HOT PLUG DETECT

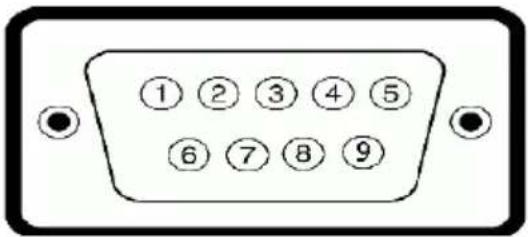

RS232 connector

①②③④⑤ ⑥⑦⑧⑨

Pin number 9-pin side of the connected signal cable
1 -
2 RX
3 TX
4 -
5 GND
6 -
7 Not Used
8 Not Used
9 -

RJ-45 connector

9 12

Pin number 12	-pin side of the connected signal cable
1 D+
2 RCT
3 D-
4 D+
5 RCT
6 D-
7 GND
8 GND
9 LED2_Y+
10 LED2_Y-
11 LED2_G+
12 LED2_G-

Universal Serial Bus (USB)

This section gives you information about the USB ports available on your display.

Your computer has the following USB ports:

• 3 USB 3.0 upstream
3 USB 3.0 downstream
• 1 USB Dedicated charging port

Power supply port - the ports only for WR517 Wireless receiver Power supply (5V/2.5A).

NOTE: The display's USB ports work only when the display is on or in the power save mode. If you turn off the display and then turn it on, the attached peripherals may take a few seconds to resume normal functionality.

Transfer speed Data rate Power consumption
SuperSpeed 5 Gbps 4.5 W (Max., each port)
Hi-Speed 480 Mbps 2.5 W (Max., each port)
Full speed 12 Mbps 2.5 W (Max., each port)

USB 3.0 upstream port

5 6 7 8 9 2 1 3 4

USB 3.0 downstream port

1 2 3 4 5 6 7 8 9

Pin number	Signal name	Pin number	Signal name
1 VBUS 1 VBUS
2 D-	2	D-
3 D+	3	D+
4 GND	4	GND
5 StdB_SSTX-	5 StdA_SSRX-
6 StdB_SSTX+	6 StdA_SSRX+
7	GND_DRAIN	7	GND_DRAIN
8 StdB_SSRX-	8 StdA_SSTX-
9 StdB_SSRX+	9 StdA_SSTX+
Shell	Shield Shell Shield

Plug-and-Play

You can install the display in any Plug-and-Play-compatible system. The display automatically provides the computer system with its extended display identification data (EDID) using display data channel (DDC) protocols so the computer can configure itself and optimize the display settings. Most display installations are automatic; you can select different settings if desired. For more information about changing the display settings, see Operating the Display.

LCD Display Quality and Pixel Policy

During the LCD display manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state which are hard to see and do not affect the display quality or usability. For more information on LCD Display Pixel Policy, see Dell support site at: http://www.dell.com/support/monitors.

Connecting Your Display

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.

To connect your display to the computer:

1. Turn off your computer.
2. Connect the HDMI/DP/VGA/USB cable from your display to the computer.
3. Switch on your display.
4. Select the correct input source at Display OSD Menu and turn on your computer.

External PC connection

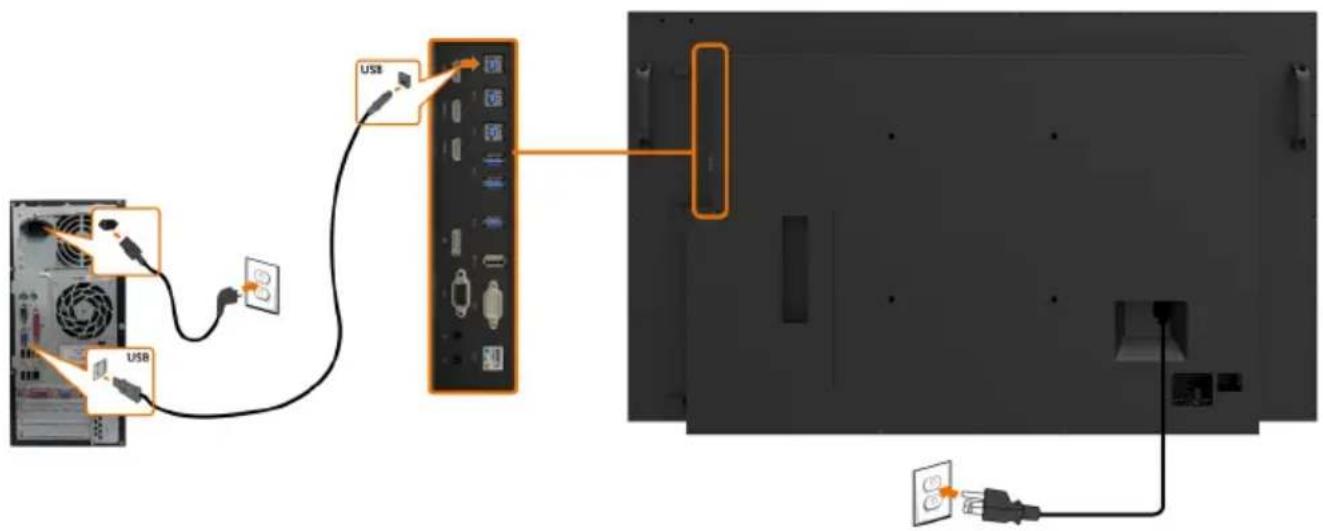

Connecting the USB cable

Diagram showing USB cable connection to a computer monitor, with labeled ports and cable routing

NOTE: Refer to section on input source and USB pairing.

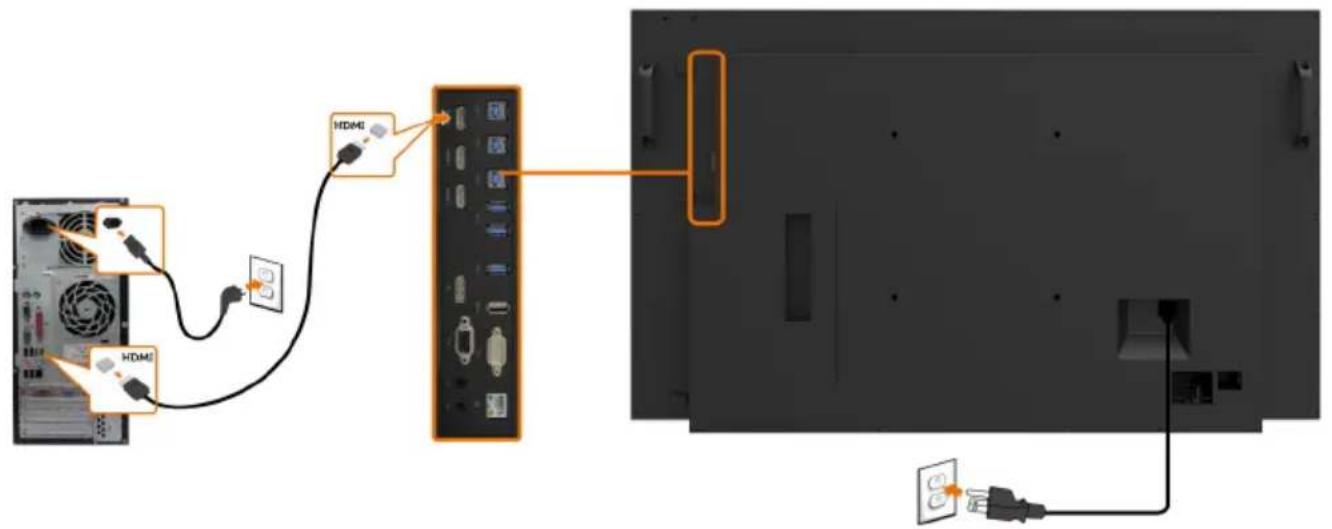

Connecting the HDMI cable

HDMI HDMI

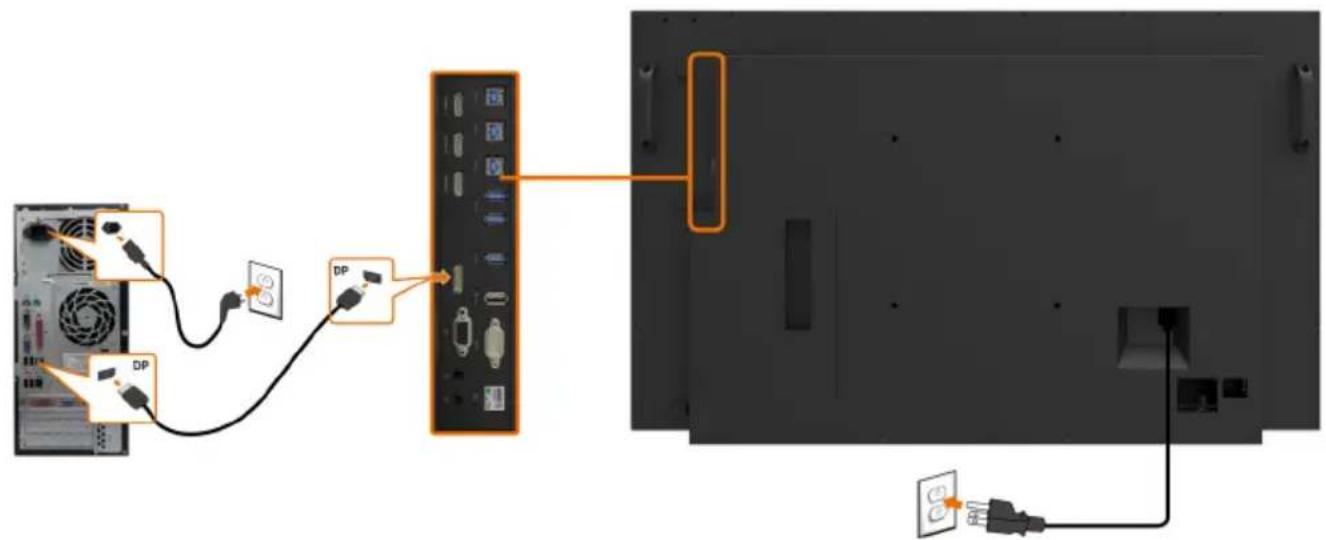

Connecting the DP cable

Diagram showing cable connection between a computer tower and a monitor, with labeled components like DP and power plug.

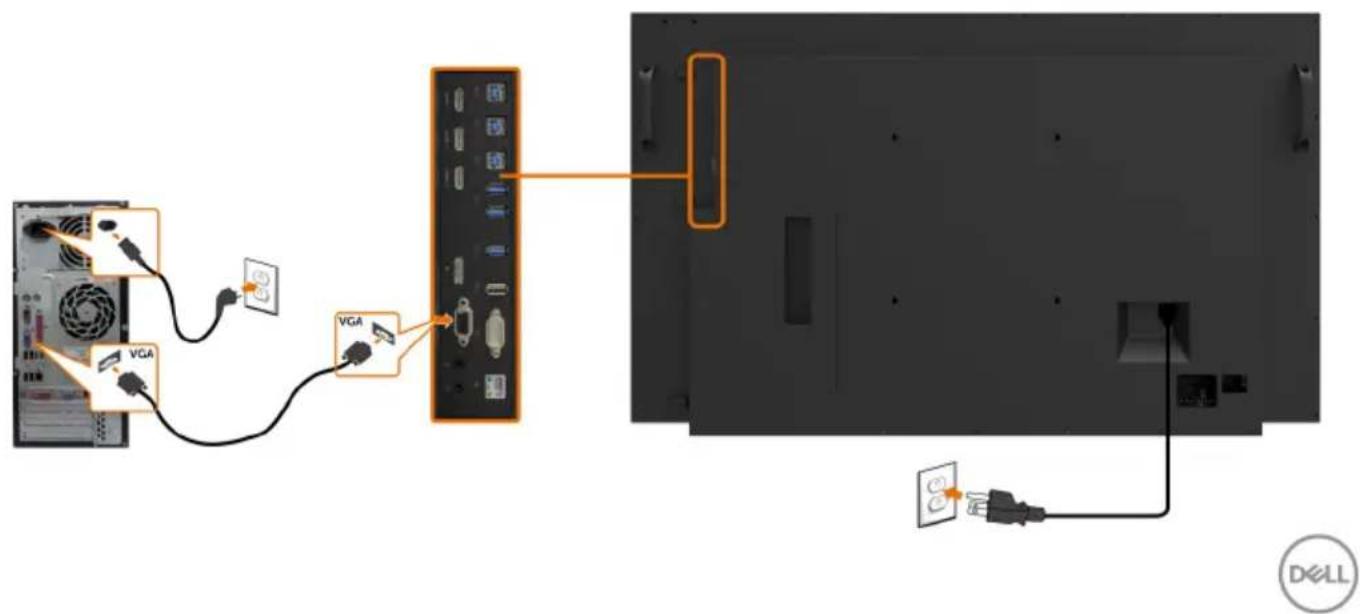

Connecting the VGA cable

Diagram showing VGA cable connection to a computer monitor, with an inset image of the main panel and a Dell logo.

Optiplex (Optional) Attaching the Optiplex

Two views of a black electronic device with a white cutout, showing internal structure and an orange arrow indicating a component (no text or symbols)

- Remove the Optiplex holder.

Diagram showing three steps of a device mounting or installation, with numbered instructions and labeled components.

1. Remove cable cover.
2. Install Optiplex PC and power adapter into respective slot.
3. Insert and organize the cables.

Diagram showing a device with an orange arrow pointing to a black panel or enclosure (no text or symbols present)

- Slide Optiplex holder back into display.

Connecting the Optiplex

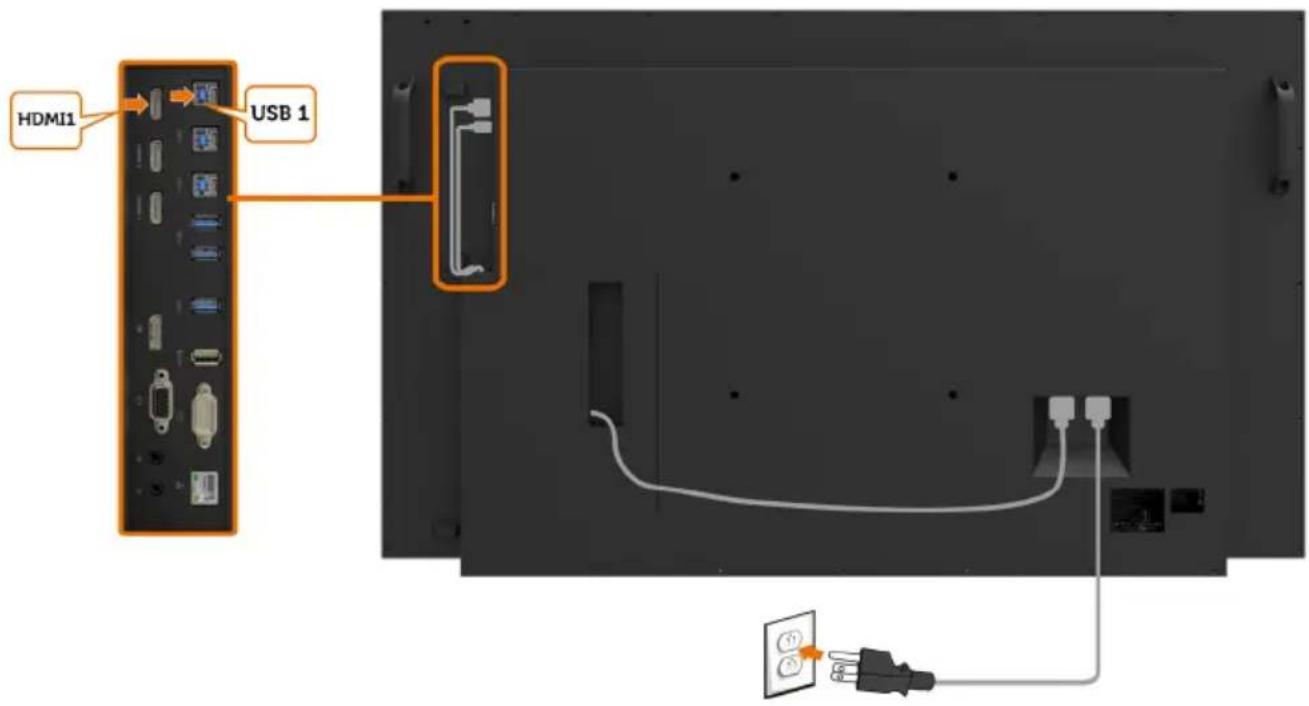

Connecting the HDMI cable

HDMI1 USB 1

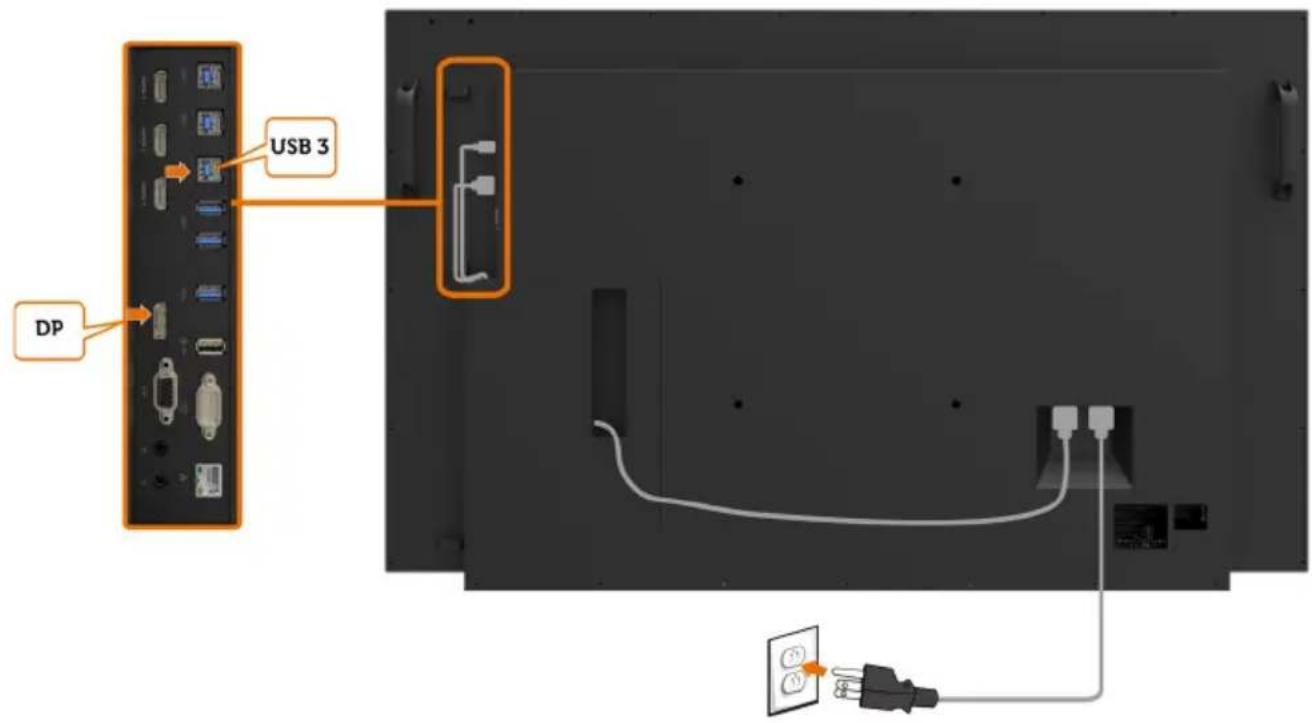

Connecting the DP cable

USB 3 DP

Connecting the VGA cable

USB 3 VGA

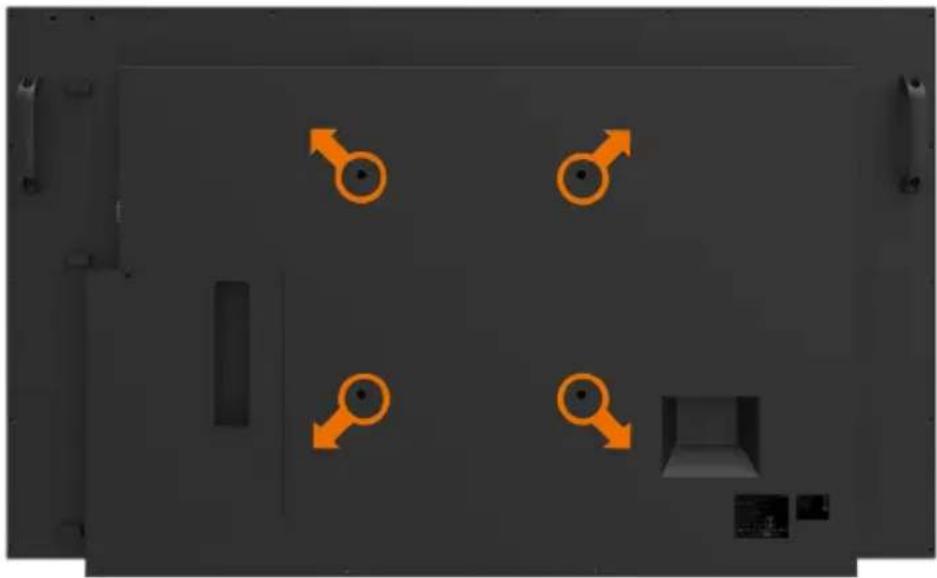

Wall Mounting (Optional)

Top-down view of a device panel with four orange male gender symbols and a small box on the right (no text or labels)

(Screw dimension: M8 x 30 mm).

Refer to installation instruction that comes with the 3rd party wall mount that customer purchases. Vesa-compatible base mounting kit (300 x 300) mm.

1. Install Wall Plate to Wall.

2. Place the display panel on a soft cloth or cushion on a stable flat table.

3. Attach the mounting brackets from the wall mounting kit to the display.

4. Install Display to Wall Plate.

5. Ensure display is mounted vertically with no tilt forward or backward and a leveler is used to assist to mount the display.

NOTE:

• Do not attempt to wall mount the Touch Display by yourself. it should be installed by qualified installers.
• Recommended Wall Mount for this Display is can be found in the Dell support website at dell.com/support.

NOTE: For use only with UL or CSA or GS-listed wall mount bracket with minimum weight/load bearing capacity of 53 kg (116.84 lb).

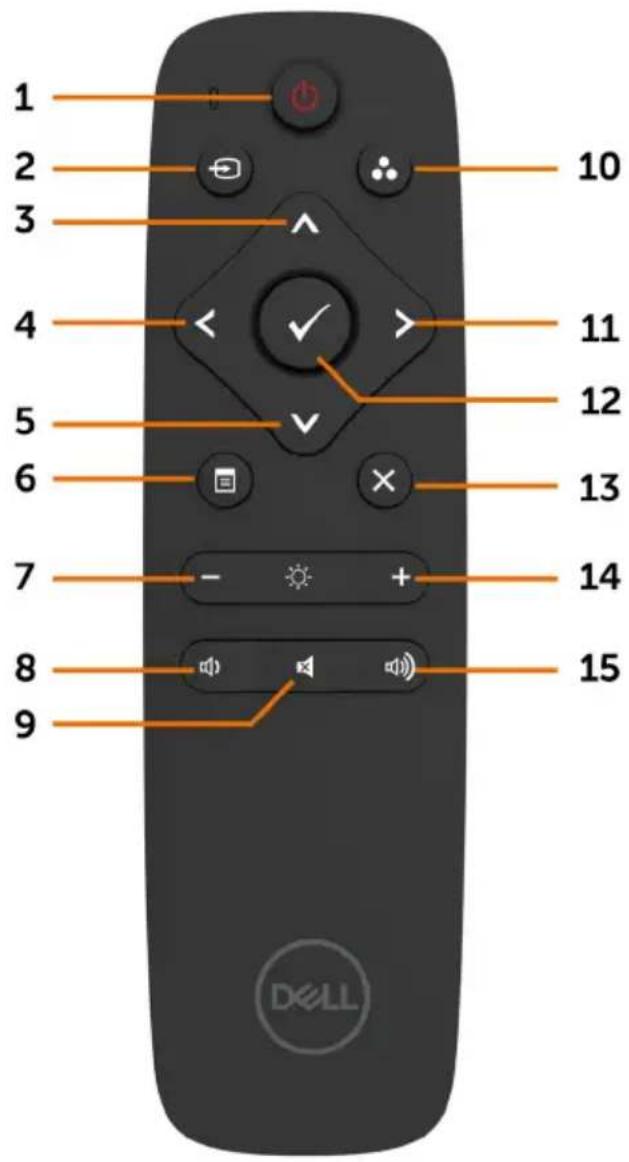

Remote Control

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 DELL

1. Power On/Off

Switch this display on or off.

2. Input Source

Select input source. Press 📄 button to select from VGA or DP or HDMI 1 or HDMI 2 or HDMI 3. Press √ button to confirm and exit.

3. Up

Press to move the selection up in OSD menu.

4. Left

Press to move the selection left in OSD menu.

5. Down

Press to move the selection down in OSD menu.

6. Menu

Press to turn on the OSD menu.

7. Brightness -

Press to decrease the Brightness.

8. Volume -

Press to decrease the Volume.

9. MUTE

Press to turn the mute function on/off.

10.Preset Modes

Display information about Preset Modes.

11. Right

Press to move the selection right in OSD menu.

12. OK

Confirm an entry or selection.

13. Exit

Press to exit the Menu.

14. Brightness +

Press to increase the Brightness.

15. Volume +

Press to increase the Volume.

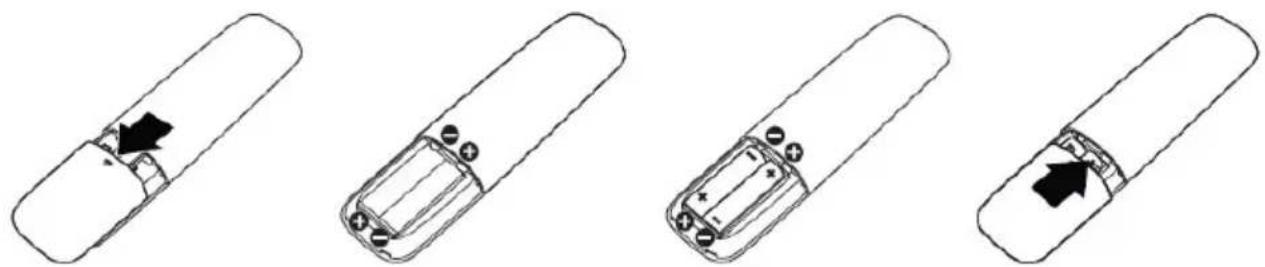

Inserting the batteries in the remote control

The remote control is powered by two 1.5V AAA batteries.

To install or replace batteries:

1. Press and then slide the cover to open it.
2. Align the batteries according to the (+) and (−) indications inside the battery compartment.
3. Replace the cover.

Four line drawings of a cylindrical battery with internal components and arrows indicating movement or change (no text or symbols)

CAUTION: The incorrect use of batteries can result in leaks or bursting. Be sure to follow these instructions:

• Place "AAA" batteries matching the (+) and (−) signs on each battery to the (+) and (−) signs of the battery compartment.
  • Do not mix battery types.
  • Do not combine new batteries with used ones. It causes shorter life or leakage of batteries.
• Remove the dead batteries immediately to prevent them from liquid leaking in the battery compartment. Don't touch exposed battery acid, as it can damage your skin.

NOTE: If you do not intend to use the remote control for a long period, remove the batteries.

Handling the remote control

• Do not subject to strong shock.
- Do not allow water or other liquids to splash on the remote control. If the remote control gets wet, wipe it dry immediately.
- Avoid exposure to heat and steam.
• Other than to install the batteries, do not open the remote control.

Operating range of the remote control

Point the top of the remote control toward the LCD display's remote sensor during button operation.

Use the remote control within a distance of about 8 m from remote control sensor or at a horizontal and vertical angle of within 15^ within a distance of about 5.6 m.

NOTE: The remote control may not function properly when the remote control sensor on the display is under direct sunlight or strong illumination, or when there is an obstacle in the path of signal transmission.

D&LL 15° 15°

Operating the Display

Turning on the Display

Press the Power button 📁 turn the display On and Off. The white LED indicates the display is On and fully functional. A glowing white LED indicates DPMS Power Save Mode.

Illustration of a hand holding a flat-screen monitor (no text or symbols visible)

Touch OSD Launcher

This display comes with a touch OSD functionalities. Press the OSD launcher touch key to access the functionalities.

Pure graphical interface element with icons and a hand pointing at it (no text or symbols)

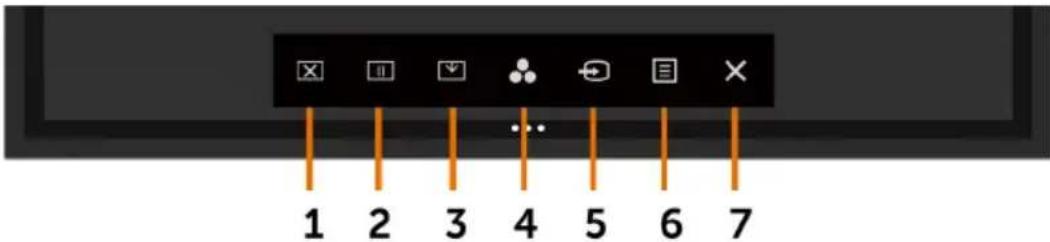

Using the Touch Control Launcher

Use the touch control icons on the front of the display to adjust the characteristics of the image being displayed. As you use these icons to adjust the controls, an OSD shows the numeric values of the characteristics as they change.

1 2 3 4 5 6 7

The following table describes the touch control icons:

Touch Control icons Description

1		Use this icon to switch screen to black or white.Go to Menu to select screen off color.
	Screen Off	Use touch key screen restore.
2		To a freeze screen when press/activate.Use touch key screen restore.
	Suspend
3		Screen Drop Down so that you can easily reach the top of the image.
	Screen Drop Down	Use touch key screen restore.
4		Use this icon to choose from a list of preset color modes.
	Preset Modes
5		Use this icon to choose from a list of Input Source.
	Input Source
6		Use this menu icon to launch the on-screen display (OSD) and select the OSD menu.
	Menu	See Accessing the Menu System.
7		Use this icon to go back to the main menu or exit the OSD main menu.
	Exit

Using the OSD lock function

1. Press the OSD launcher touch key.

1 2 3 4 5 6 7

2. Touch and hold ✗ for 5 seconds. you can see following select option:

DELL Dell 55 Monitor Select Option: C5518QT

The following table describes the touch control icons:

Options Description

1		Use this icon to lock OSD menu function.
	OSD menu lock
2		Use this icon to lock power button from powering off.
	Power-off button lock
3		Use this icon to lock OSD menu and power button from powering off.
	OSD menu and power button lock
4		Use this icon to run the built-in diagnostics, seeBuilt-in Diagnostics.
	Built-in Diagnostics

1. Touch and hold ✗ or 5 seconds, touch t ☐ nlock.

DELL Dell 55 Monitor Select Option: CSS1BQT

NOTE: This OSD lock feature is available from firmware version M2T103 or later.

Using the On-Screen Display (OSD) Menu

Accessing the Menu System

NOTE: Any changes you make using the OSD menu are automatically saved if you move to another OSD menu, exit the OSD menu, or wait for the OSD menu to disappear.

1 Press the button on the remote control or OSD Launcher touch key to launch the OSD menu.

Dell 55 Monitor Brightness/Contrast Auto Adjust Input Source Color Display Audio Menu Personalize Others 75% 75%

Use the icons to adjust the image settings.

Touch control icon Description

1			Use the Up (increase) and Down (decrease) icons to adjust items in the OSD menu.
	Up	Down
2			Use the Left (decrease) and Right (increase) icons to adjust items in the OSD menu.
	Left	Right

3

Use the OK icon to confirm your selection.

4

Use the Back icon to go back to the previous menu.

Touch OSD Control

Icon Menu and Submenus	Description
	Use this menu to activate Brightness/Contrast adjustment.
	Brightness Brightness adjusts the luminance of the backlight (minimum 0; maximum 100).Touch the icon to increase brightness.Touch the icon to decrease brightness.
	Adjust the Brightness first, and then adjust Contrast only if further adjustment is necessary.Touch the icon to increase contrast and Touch the icon to decrease contrast (between 0 and 100).Contrast adjusts the difference between darkness and lightness on the display.

Icon Menu and

Submenus

Description

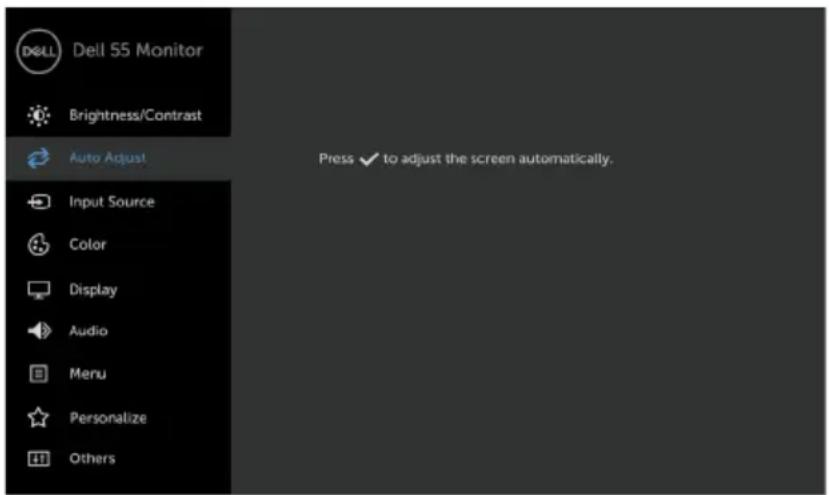

Auto Adjust Even though your computer recognizes your display on startup, the

Auto Adjustment function optimizes the display settings for use with your particular setup.

Auto Adjustment allows the display to self-adjust to the incoming video signal. After using Auto Adjustment, you can further tune your display by using the Pixel Clock (Coarse) and Phase (Fine) controls under Display menu.

Dell 55 Monitor Brightness/Contrast Auto Adjust Press ✓ to adjust the screen automatically. Input Source Color Display Audio Menu Personalize Others

The following dialog appears on a black screen as the display automatically adjusts to the current input:

Auto adjustment in progress...

NOTE: In most cases, Auto Adjust produces the best image for your configuration.

NOTE: Auto Adjust feature option is only available when your display is connected using the VGA cable.

Icon Menu and Submenus Description

Input Source

Use the Input Source menu to select between different video inputs that are be connected to your display.

Dell 55 Monitor Brightness/Contrast Auto Adjust Input Source Color Display Audio Menu Personalize Others VGA DP HDMI 1 HDMI 2 HDMI 3 Auto Select Reset Input Source On

VGA	Select VGA input when you are using the VGA connector.
DP Select DP input when you are using the DP (DisplayPort) connector.
HDMI 1	Select the HDMI 1 input when you are using the HDMI 1 connector.
HDMI 2	Select the HDMI 2 input when you are using the HDMI 2 connector.
HDMI 3	Select the HDMI 3 input when you are using the HDMI 3 connector.
Auto Select	Select Auto Select, the display scans for available input sources.
Reset Input Source	Resets your display's Input Source settings to the factory defaults.

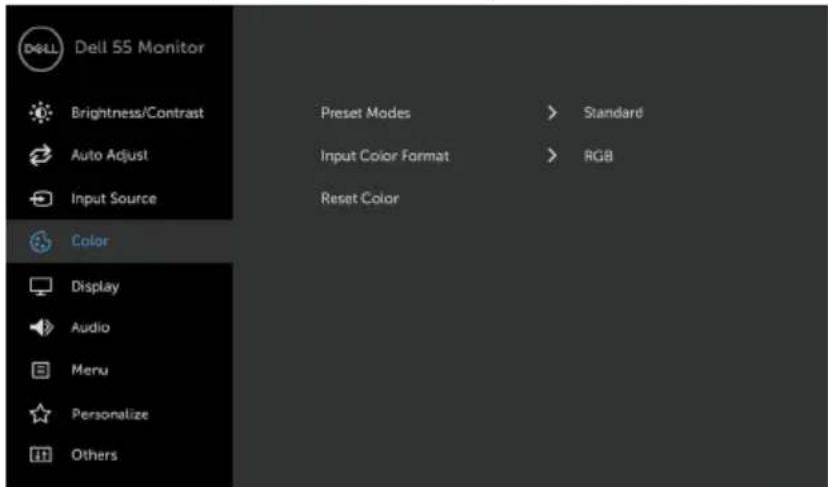

Color Use the Color menu to adjust the color setting mode.

Dell 55 Monitor Brightness/Contrast Auto Adjust Input Source Color Display Audio Menu Personalize Others Preset Modes > Standard Input Color Format > RGB Reset Color

Icon Menu and Submenus

Description

Preset Modes

When you select Preset Modes, you can choose Standard, ComfortView, Multimedia, Color Temp., or Custom Color from the list.

Dell 55 Monitor Brightness/Contrast Auto Adjust Input Source Color Display Audio Menu Personalize Others Preset Modes ✓ Standard Input Color Format ComfortView Reset Color Multimedia Color Temp. Custom Color

• Standard: Default color settings. This is the default preset mode.
• ComfortView: Decreases the level of blue light emitted from the screen to make viewing more comfortable for your eyes.

NOTE: To reduce the risk of eye strain and neck/arm/back/shoulders pain from using the display for long periods of time, we suggest you to :

• Set the screen about 20 to 28 inches (50-70 cm) from your eyes.
• Blink frequently to moisten or rewet your eyes when working with the display.
  • Take regular and frequent breaks for 20 minutes every two hours.
• Look away from your display and gaze at a distant object at 20 feet away for at least 20 seconds during the breaks.

• Perform stretches to relieve tension in the neck/arm/back/shoulders during the breaks.

• Multimedia: Ideal for multimedia applications.

• Color Temp.: The screen appears warmer with a red/yellow tint with slider set at 5,000K or cooler with blue tint with slider set at 10,000K.
• Custom Color: Allows you to manually adjust the color settings.

Touch the and icons to adjust the Red, Green, and Blue values and create your own preset color mode.

Icon Menu and Submenus	Description

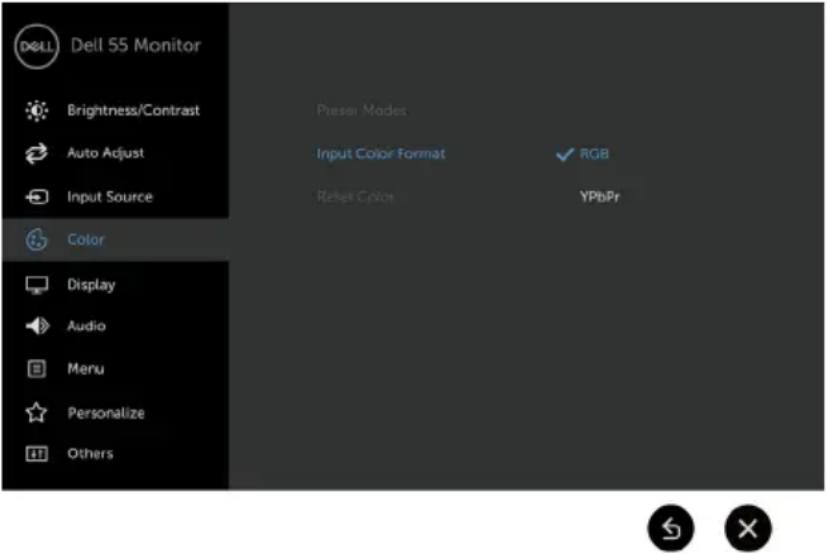

Input Color Format	Allows you to set the video input mode to:RGB: Select this option if your display is connected to a computer (or DVD player) using the HDMI, DP or VGA cable.YPbPr: Select this option if your DVD player supports only YPbPr output.

Reset Color Resets your display's color settings to the factory defaults.

Icon Menu and

Description

Submenus

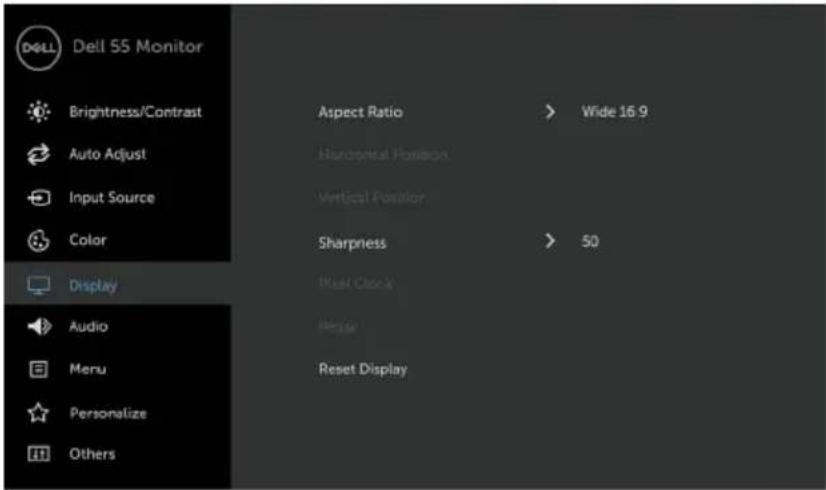

Display Use the Display menu to adjust image.

Dell 55 Monitor Brightness/Contrast Auto Adjust Input Source Color Display Audio Menu Personalize Others Aspect Ratio > Wide 16.9 Horizontal Position Vertical Position Sharpness > 50 Real Clock Reset Display

Aspect Ratio	Adjust the image ratio to Wide 16:9, Auto Resize,4:3, or 5:4.
Horizontal Position	Use 📄 to adjust the image left or right.Minimum is ‘0’ (-).Maximum is ‘100’ (+).
Vertical Position	Use 📄 to adjust the image up or down.Minimum is ‘0’ (-).Maximum is ‘100’ (+).NOTE: Horizontal Position and Vertical Position adjustments are only available for “VGA” input.
Sharpness Makes the image look sharper or softer.Use 📄 to adjust the sharpness from ‘0’ to ‘100’.
Pixel Clock	The Phase and Pixel Clock adjustments allow you to adjust your display to your preference.Use the 📄 icon to adjust for best image quality.NOTE: Pixel Clock adjustments are only available for “VGA” input.
Phase	If satisfactory results are not obtained using the Phase adjustment, use the Pixel Clock (coarse) adjustment and then use Phase (fine) again.NOTE: Phase adjustments are only available for “VGA” input.

Icon Menu and Submenus

Description

Reset Display Restores the display settings to factory defaults.

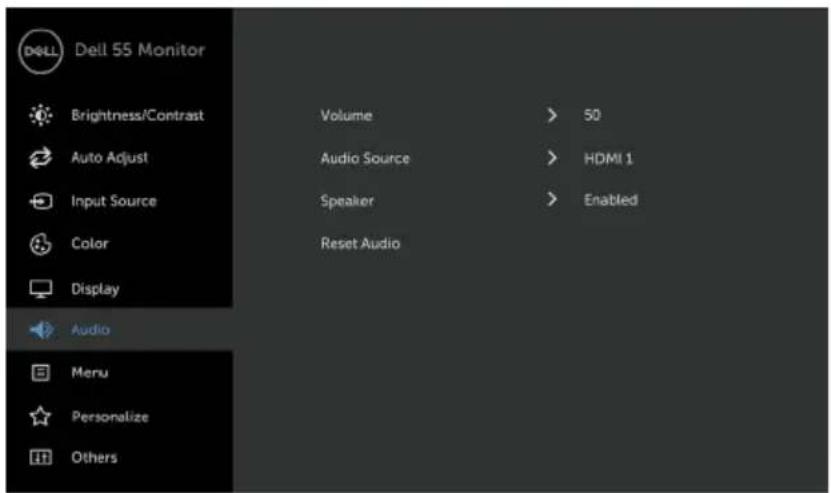

Audio

Dell 55 Monitor Brightness/Contrast Volume > 50 Auto Adjust Audio Source > HDMI 1 Input Source Speaker > Enabled Color Reset Audio Display Audio Menu Personalize Others

Volume Allows you to set the volume level of audio source.

Use 🔥 to adjust the volume level from '0' to '100'.

Audio Source Allows you to set the audio source to PC Audio or HDMI/DP.

Speaker Allows you to enable or disable Speaker function.

Reset Audio Select this option to restore default audio settings.

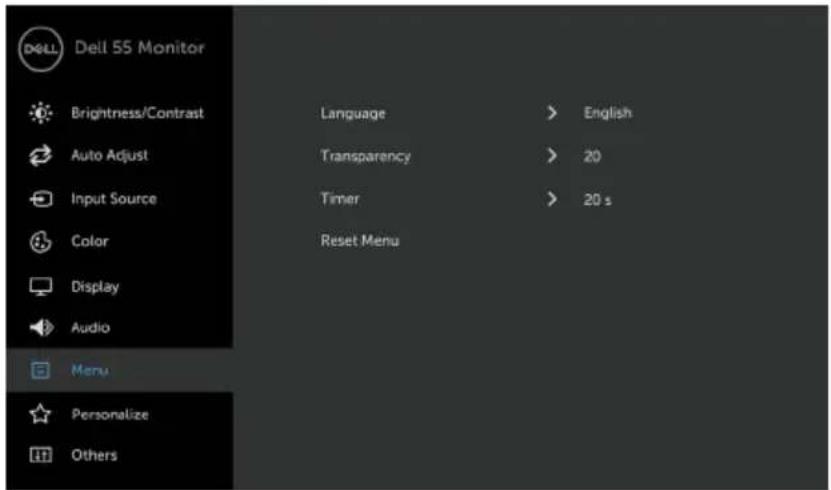

Menu Select this option to adjust the settings of the OSD, such as, the languages of the OSD, the amount of time the menu remains on screen, and so on.

Dell 55 Monitor Brightness/Contrast Auto Adjust Input Source Color Display Audio Menu Personalize Others Language > English Transparency > 20 Timer > 20 s Reset Menu

Icon Menu and Submenus	Description
Language Set the OSD display to one of eight languages.(English, Spanish, French, German, Brazilian Portuguese, Russian, Simplified Chinese, or Japanese).
Transparency Select this option to change the menu transparency by using ⚠ and 🎨ons (min. 0 / max. 100).
Timer OSD Hold Time: Sets the time the OSD remains active after you press a button.Use the 🔊 and 🎨️ to adjust the slider in 1-second increments, from 5 to 60 seconds.
Reset Menu Restore the menu settings to factory defaults.
Personalize
Power Button LED Allows you to set the state of the power light to save energy.
USB Allows you to enable or disable USB function during display standby mode.NOTE: USB ON/OFF under standby mode is only available when the USB upstream cable is unplugged. This option will be greyed out when the USB upstream cable plugs in.
Monitor Sleep Select Disable to turn off this feature.
Screen Drop Down Level Allows you to set the Screen Drop Down level so that you can reach the top of the image.Drop Down Level Options:- 1/2 Screen- 1/3 Screen- 2/3 Screen

Icon Menu and Submenus	Description
Screen Off Color	Allows you to set the Screen Off Color to White or black.
Wake On Touch	Select Enable to turn on this feature.
Reset Personalization	Restores shortcut keys to factory defaults.

Other

Dell 55 Monitor Brightness/Contrast Auto Adjust Input Source Color Display Audio Menu Personalize Others Display Info DCC/CI LCD Conditioning Firmware IP Address Service Tag Reset Others Factory Reset On Off M2T101 10.0.50.100 ABCDEFG

Select this option to adjust the OSD settings, such as the DDC/CI, LCD conditioning, and so on.

Display Info Displays the display's current settings.

DDC/CI DDC/CI (Display Data Channel/Command Interface) allows you to adjust the display settings using software on your computer. Select Disable to turn off this feature.

Enable this feature for best user experience and optimum performance of your display.

DELL Dell 55 Monitor The function of adjusting display setting using PC application will be disabled. Do you wish to disable DDC/CI function? Yes No C5518QT

Icon Menu and Submenus	Description
LCD Conditioning	Helps reduce minor cases of image retention. Depending on the degree of image retention, the program may take some time to run. Select Enable to start the process.
Firmware Current Firmware version.
IP Address Show IP Address.
Service Tag Show Service Tag.
Reset Others	Restores other settings, such as DDC/CI, to factory defaults.
Factory Reset	Restores all OSD settings to the factory defaults.

NOTE: This display has a built-in feature to automatically calibrate the brightness to compensate for LED aging.

OSD Warning Messages

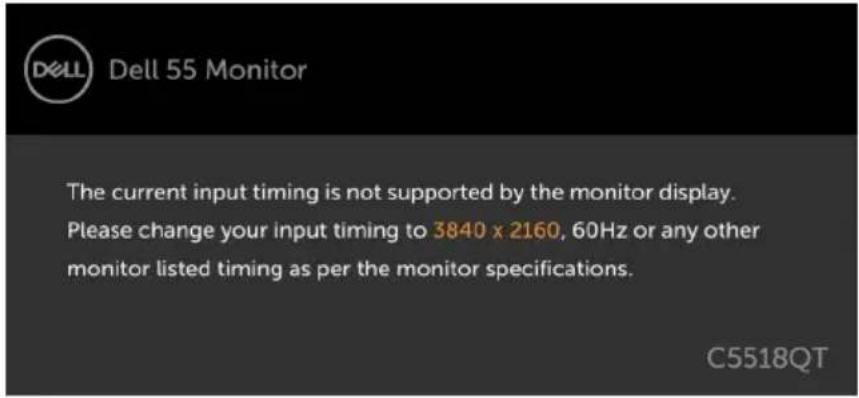

When the display does not support a particular resolution mode, you can see the following message:

DELL Dell 55 Monitor The current input timing is not supported by the monitor display. Please change your input timing to 3840 x 2160, 60Hz or any other monitor listed timing as per the monitor specifications. C5518QT

This means that the display cannot synchronize with the signal that it is receiving from the computer. See Display Specifications for the Horizontal and Vertical frequency ranges addressable by this display. Recommended mode is 3840 x 2160.

You can see the following message before the DDC/CI function is disabled:

DELL 55 Monitor The function of adjusting display setting using PC application will be disabled. Do you wish to disable DDC/CI function? Yes No C5518QT

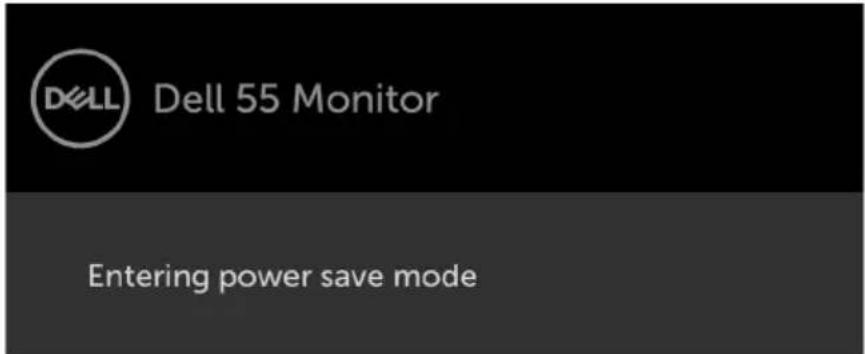

When the display enters the Power Save mode, the following message appears:

DELL Dell 55 Monitor Entering power save mode

If you press any button other than the power button, the following messages will appear depending on the selected input:

DELL Dell 55 Monitor ? No HDMI 1 signal from your device.

If either HDMI 1, HDMI 2, HDMI 3, DP or VGA input is selected and the corresponding cable is not connected, a floating dialog box as shown below appears.

DELL Dell 55 Monitor No HDMI 1 Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/support/monitors C5518QT

or

Dell 55 Monitor No HDMI 2 Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/support/monitors C5518QT

or

DELL Dell 55 Monitor No HDMI 3 Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/support/monitors C5518QT

or

DELL Dell 55 Monitor No DP Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/support/monitors C5518QT

or

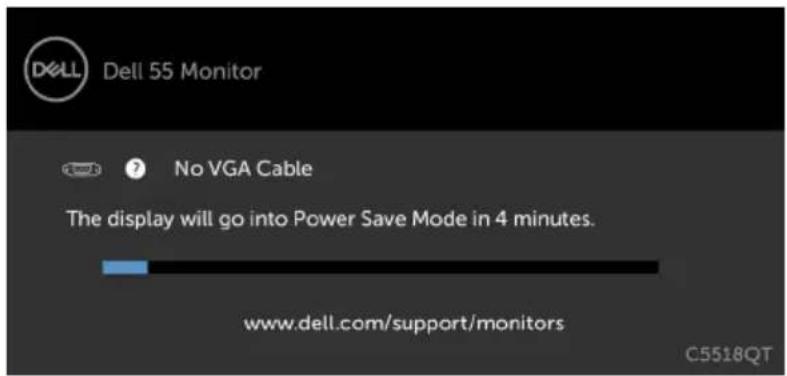

DELL Dell 55 Monitor No VGA Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/support/monitors C5518QT

See Troubleshooting for more information.

Dell Web Management for Displays

Before accessing the Dell Display Web Management feature, ensure the Ethernet is working normally.

1 2 3 4 5 6 7

- Ethernet Enable

Touch and hold the touch key 5 on the front panel for 4 seconds to turn on, A network icon appears and is shown on the center for 4 seconds.

- Ethernet Disable

Touch and hold the touch key 5 on the front panel for 4 seconds to turn off, A network icon appears and is shown on the center for 4 seconds.

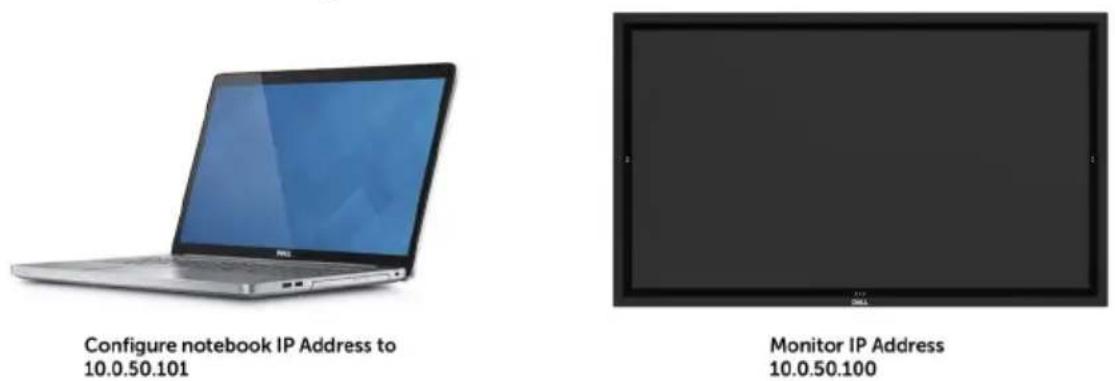

To access the Dell Display Web Management tool you need to set the IP Addresses for your computer and the display.

1. Press the Menu key on the remote control to display the IP Address of the display, or by navigating to OSD Menu > Others. By default, the IP Address is 10.0.50.100

Dell 55 Monitor Brightness/Contrast Auto Adjust Input Source Color Display Audio Menu Personalize Others Display Info DCC/CI LCD Conditioning Firmware IP Address Service Tag Reset Others Factory Reset On Off M2T101 10.0.50.100 ABCDEFG

1. In the computer's IP Properties tab, specify an IP Address by selecting Use the following IP Address and enter the following values: For IP Address: 10.0.50.101 and for Subnet Mask: 255.0.0.0 (leave all other entries as blanks).

Internet Protocol Version 4 (TCP/IPv4) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP Address automatically Use the following IP Address: IP Address: 10 . 0 . 50 . 101 Subnet mask: 255 . 0 . 0 . 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Validate settings upon exit Advanced... OK Cancel

1. The IP Address configuration would now look like this:

To access and use the web management tool, follow these steps:

1. Open a web browser and type the display's IP Address (10.0.50.100) in the address bar.

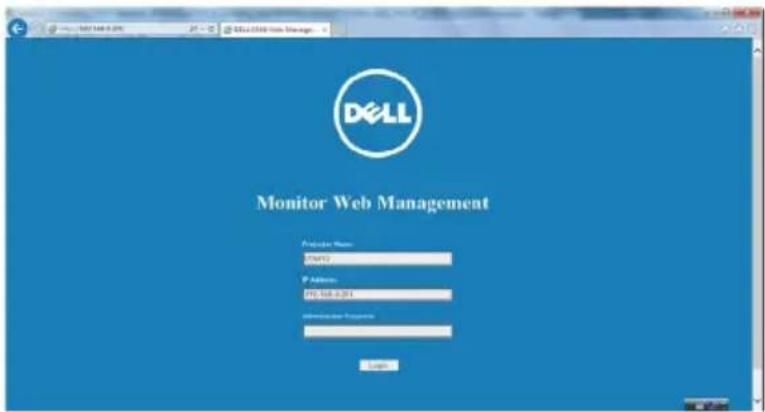

2. The log-in page opens. Enter the Administrator Password to continue.

DOLL Monitor Web Management Analyzer Name: SARCY P Address: PC 108.0204 Administrator Programs Login

1. The Home page opens:

DULL | Monitor Web Management Home Monitor Information Modal Name Dull C751RQT Monitor Name su settling Location su settling Contact su settling Network FV Version A12 IP Address 10.0.21.100 MAC Address 10:66:E9:00:00:01 Monitor Status OH

1. Click Network Settings tab to see the network settings.

DBLL | Monitor Web Management Network Settings Network Adapter Properties Model Name: Dbll C5518QT Monitor Name: Location: Contact: Apply IP Settings Obtain IP address automatically Use the following IP address IP Address: 10 9 21 100 Subtotal Mask: 255 255 0 0 Gateway: 10 0 0 254 DNS Server: 168 95 0 1 Apply Next Network Settings Apply

1. Click Display Control to see the display's status.

DOLL | Monitor Web Management English Monitor Control Monitor Status Monitor Status Power ON Power OFF Image Control Source Select DP Preset Mode Standard Aspect Ratio 16:9 Brightness (3-100) 75 Apply Contrast (3-100) 75 Apply Sharpness (3-100) 58 Apply Audio Control Volume (3-100) 50 Apply Speaker Enable Disable Keypad Control Keypad Lock Unlock Reset.Monitor Control Settings Apply

1. Update Firmware. You can download the latest drivers from the Dell Support website at www.dell.com/support.

DOLL | Monitor Web Management English Firmware Update Firmware update will take about a minute. Do not interrupt the process since it has begun. Keep the connection established until completion of process. The network system will auto reboot and you can re-login after update is complete. Network Firmware Version: A13 Update Cancel

1. Upgrade firmware page and wait for 30 seconds.

Upgrade Firmware

Please select a file (\~.bin) to upgrade : C:\Users\Administrator\De 浏览...

Upgrade Cancel

(Upgrading firmware may take 60 seconds)

Upgrade must NOT be interrupted!

1. Finished. Click on button to proceed after 8 seconds.

Please wait. Click on button to proceed after 8 seconds.

Waiting(6)

1. Click Security to set a password.

DILL | Monitor Web Management Security Web Management Login Option PasswordLogin Enable Disable Current Password — New Password — Confirm Password — Save

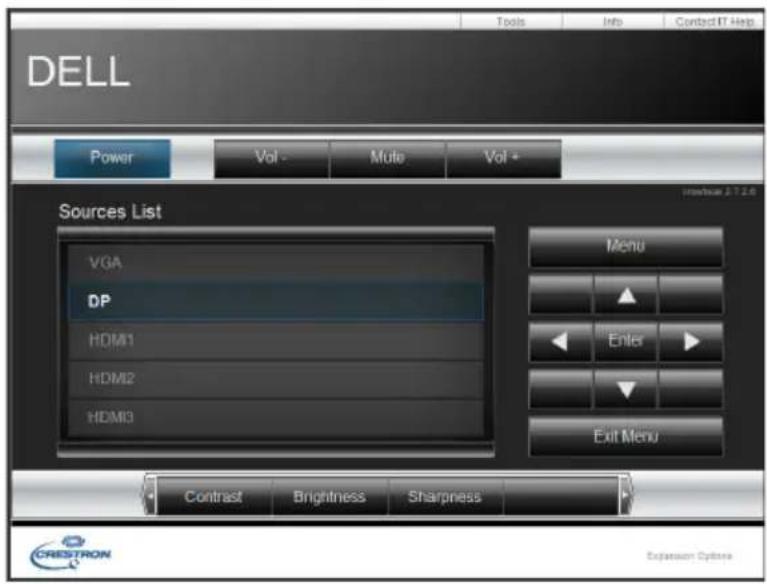

1. Click Crestron to control interface.

DELL Tools Info Contact IT Help Power Vol - Mute Vol + Sources List VGA DP HDMI1 HDMI2 HDMI3 Menu Enter Exit Menu Contrast Brightness Sharpness CRESTRON Expansion Options

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.

Self-Test

Your display provides a self-test feature that allows you to check whether your display is functioning properly. If your display and computer are properly connected but the display screen remains dark, run the display self-test by performing the following steps:

1. Turn off both your computer and the display.
2. Unplug the video cable from the back of the computer. To ensure proper Self-Test operation, remove all digital and the analog cables from the back of computer.
3. Turn on the display.

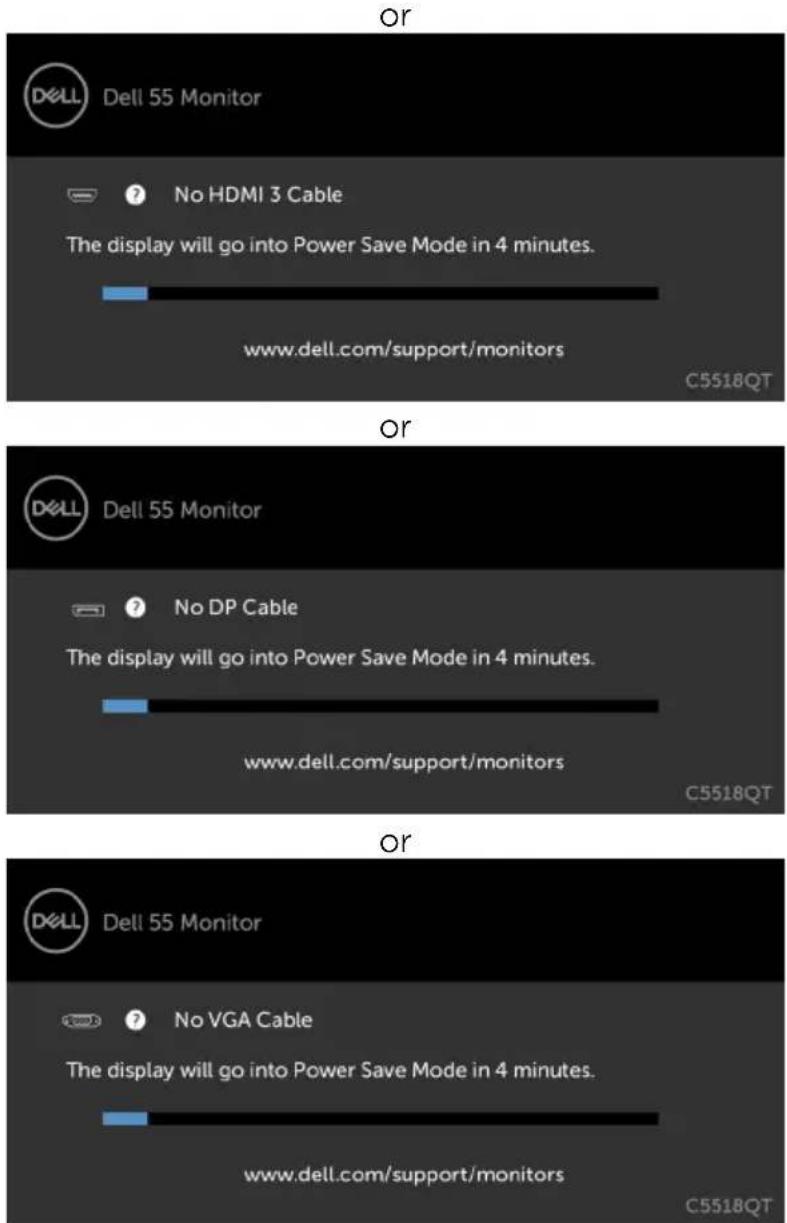

The floating dialog box should appear on-screen (against a black background), if the display cannot sense a video signal and is working correctly. While in self-test mode, the power LED remains white. Also, depending upon the selected input, one of the dialogs shown below will continuously scroll through the screen.

Dell 55 Monitor No HDMI 1 Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/support/monitors C5518QT

or

Dell 55 Monitor No HDMI 2 Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/support/monitors C5518QT

Or DELL Dell 55 Monitor No HDMI 3 Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/support/monitors C5518QT Or DELL Dell 55 Monitor No DP Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/support/monitors C5518QT Or DELL Dell 55 Monitor No VGA Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/support/monitors C5518QT

1. This box also appears during normal system operation, if the video cable becomes disconnected or damaged.
2. Turn off your display and reconnect the video cable; then turn on both your computer and the display.

If your display screen remains blank after you use the previous procedure, check your video controller and computer, because your display is functioning properly.

Built-in Diagnostics

Your display has a built-in diagnostic tool that helps you determine if the screen abnormality you are experiencing is an inherent problem with your display, or with your computer and video card.

1 2 3 4 5 6 7

To run the built-in diagnostics:

1. Make sure that the screen is clean (no dust particles on the surface of the screen).

2. Touch and hold ✗ for 5 seconds in lock Select Option. Touch the self-inspection icon 📋, A gray screen appears.

3. Carefully inspect the screen for abnormalities.

4. Touch the front panel. The color of the screen changes to red.

5. Inspect the display for any abnormalities.

6. Repeat steps 4 and 5 to inspect the display in green, blue, black, white, and text screens.

The test is complete when the text screen appears. To exit, touch panel again. If you do not detect any screen abnormalities upon using the built-in diagnostic tool, the display is functioning properly. Check the video card and computer.

Common Problems

The following table contains general information about common display problems you might encounter and the possible solutions:

NOTE: Auto Adjust function is applicable to VGA input only.

Common Symptoms	What You Experience	Possible Solutions
No Video/Power LED off	No picture · Ensure	that the video cable connecting the display and the computer is properly connected and secure.Verify that the power outlet is functioning properly using any other electrical equipment.Ensure that the power button is depressed fully.Ensure that the correct input source is selected in the Input Source menu.
No Video/Power LED on	No picture or no brightness	· Increase brightness & contrast controls via OSD.Perform display self-test feature check.Check for bent or broken pins in the video cable connector.Run the built-in diagnostics.Ensure that the correct input source is selected in the Input Source menu.
Poor Focus Picture is fuzzy, blurry, or ghosting		· Perform Auto Adjust via OSD.Adjust the Phase and Pixel Clock controls via OSD.Eliminate video extension cables.Reset the display to factory settings.Change the video resolution to the correct aspect ratio.
Shaky/Jittery Video Wavy picture or fine movement		· Perform Auto Adjust via OSD.Adjust the Phase and Pixel Clock controls via OSD.Reset the display to factory settings.Check environmental factors.Relocate the display and test in another room.
Missing Pixels LCD screen has spots		· Cycle power on-off.Pixel that is permanently off is a natural defect that can occur in LCD technology.For more information on Dell Display Quality and Pixel Policy, see Dell Support site at: http://www.dell.com/support/monitors.
Stuck-on Pixels LCD screen has bright spots		· Cycle power On-Off.Pixel that is permanently off is a natural defect that can occur in LCD technology.For more information on Dell Display Quality and PixelPolicy, see Dell Support site at: http://www.dell.com/support/monitors.

Common Symptoms	What You Experience	Possible Solutions
Brightness Problems	Picture too dim or too bright	Reset the display to factory settings.Auto Adjust via OSD.Adjust brightness & contrast controls via OSD.
Audio problem	No Audio	Check PC setting if the playback is correctly selected.Checking other video cables.Ensure that the Speaker is enabled via OSD
Geometric Distortion	Screen not centered correctly	Reset the display to factory settings.Auto Adjust via OSD.Adjust horizontal & vertical controls via OSD.
Horizontal/Vertical Lines	Screen has one or more lines	Reset the display to factory settings.Perform Auto Adjust via OSD.Adjust Phase and Pixel Clock controls via OSD.Perform display self-test feature check and determine if these lines are also in self-test mode.Check for bent or broken pins in the video cable connector.Run the built-in diagnostics.
Synchronization Problems	Screen is scrambled or appears torn	Reset the display to factory settings.Perform Auto Adjust via OSD.Adjust Phase and Pixel Clock controls via OSD.Perform display self-test feature check to determine if the scrambled screen appears in self-test mode.Check for bent or broken pins in the video cable connector.Restart the computer in safe mode.
Safety Related Issues	Visible signs of smoke or sparks	Do not perform any troubleshooting steps.Contact Dell immediately.
Intermittent Problems	Display malfunctions on & off	Ensure that the video cable connecting the display to the computer is connected properly and is secure.Reset the display to factory settings.Perform display self-test feature check to determine if the intermittent problem occurs in self-test mode.
Missing Color Picture missing color		Perform display self-test.Ensure that the video cable connecting the display to the computer is connected properly and is secure.Check for bent or broken pins in the video cable connector.
Wrong Color Picture color not good		Change the settings of the Preset Modes in the Color menu OSD depending on the application.Adjust R/G/B value under Custom. Color in Color menu OSD.Change the Input Color Format to PC RGB or YPbPr in the Color menu OSD.Run the built-in diagnostics.
Image retention from a static image left on the display for a long period of time	Faint shadow from the static image displayed appears on the screen	· Use the Power Management feature to turn off the display at all times when not in use (for more information, seePower Management Modes). · Alternatively, use a dynamically changing screensaver.
Touchscreen non-responsive	Display cannot wake on touch	· Ensure Wake On Touch is enabled via OSD. Wake On Touch is default off.

Product Specific Problems

Specific Symptoms	What You Experience	Possible Solutions
Screen image is too small	Image is centered on screen, but does not fill entire viewing area	· Check the Aspect Ratio setting in the Display menu OSD.· Reset the display to factory settings.
Cannot adjust the display with touch OSD	OSD does not appear on the screen	· Turn off the display, unplug the display power cable, plug it back, and then turn on the display.· Check whether the OSD menu is locked. If yes, touch icon for 4 seconds to unlock .
No Input Signal when user controls are pressed	No picture, the LED light is white	· Check the signal source. Ensure the computer is not in the power saving mode by moving the mouse or pressing any key on the keyboard.· Check whether the signal cable is plugged in properly. Re-plug the signal cable if necessary.· Reset the computer or video player.
The picture does not fill the entire screen	The picture cannot fill the height or width of the screen	· Due to different video formats (aspect ratio) of DVDs, the display may display in full screen.· Run the built-in diagnostics.

Touchscreen Problems

Specific Symptoms	What You Experience	Possible Solutions
Windows 7	Cursor does not accurately follow your finger when you touch the screen	• Install touch driver for Windows 7, see Dell Support site at: http://www.dell.com/support/monitors.

Universal Serial Bus (USB) Specific Problems

Specific Symptoms	What You Experience	Possible Solutions
USB interface is not working	USB peripherals are not working	·Check that your display is turned ON.·Reconnect the upstream cable to your computer.·Reconnect the USB peripherals (downstream connector).·Switch off and then turn on the display again.·Reboot the computer.·Some USB devices like external portable HDD require higher electric current; connect the device directly to the computer system.
SuperSpeed USB 3.0 interface is slow.	SuperSpeed USB 3.0 peripherals working slowly or not working at all	·Check that your computer is USB 3.0-capable.·Some computers have USB 3.0, USB 2.0, and USB 1.1 ports. Ensure that the correct USB port is used.·Reconnect the upstream cable to your computer.·Reconnect the USB peripherals (downstream connector).·Reboot the computer.
Wireless USB peripherals stop working when a USB 3.0 device is plugged in	Wireless USB peripherals responding slowly or only working as the distance between itself and its receiver decreases	·Increase the distance between the USB 3.0 peripherals and the wireless USB receiver.·Position your wireless USB receiver as close as possible to the wireless USB peripherals.·Use a USB-extender cable to position the wireless USB receiver as far away as possible from the USB 3.0 port.
USB is not working	No USB functionalities	Refer to input source and USB pairing table

Ethernet Problems

Specific Symptoms	What You Experience	Possible Solutions
Ethernet not working	Dell Web Management for Displays Webpage control is not working	· Ensure that the Network cable connecting the Display is properly secured.· Touch the icon 5 on the screen for 4 seconds to turn on, A network icon appears and is shown on the center for 4 seconds.· Touch the icon 5 on the front panel for 4 seconds to turn off, A network icon appears and is shown on the center for 4 seconds.

Safety Instructions

For displays with glossy bezels the user should consider the placement of the display as the bezel may cause disturbing reflections from surrounding light and bright surfaces.

WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards, and/or mechanical hazards.

For information on safety instructions, see the Safety, Environmental, and Regulatory Information (SERI).

FCC Notices (U.S. only) and Other Regulatory Information

For FCC notices and other regulatory information, see the regulatory compliance website located at www.dell.com/regulatory_compliance.

Contacting Dell

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area.

To get online Display support content:

See www.dell.com/support/monitors.

To contact Dell for sales, technical support, or customer service issues:

1. Go to www.dell.com/support.
2. Verify your country or region in the Choose A Country/Region drop-down menu at the top-left corner of the page.
3. Click Contact Us next to the country dropdown.
4. Select the appropriate service or support link based on your need.
5. Choose the method of contacting Dell that is convenient for you.

Setting Up Your Display

Setting Display Resolution to 3840 x 2160 (maximum)

For best performance, set the display resolution to 3840 x 2160 pixels by performing the following steps:

In Windows 7, Windows 8 or Windows 8.1:

1. For Windows 8 or Windows 8.1 only, select the Desktop tile to switch to classic desktop.
2. Right-click on the desktop and click Screen Resolution.
3. Click the Dropdown list of the Screen Resolution and select 3840 x 2160.
4. Click OK.

In Windows 10:

1. Right-click on the desktop and click Display Settings.
2. Click Advanced display settings.
3. Click the dropdown list of Resolution and select 3840 x 2160.
4. Click Apply.

If you do not see the recommended resolution as an option, you may need to update your graphics driver. Please choose the scenario below that best describes the computer system you are using, and follow the given steps.

Dell computer

1. Go to www.dell.com/support, enter your service tag, and download the latest driver for your graphics card.
2. After installing the drivers for your graphics adapter, attempt to set the resolution to 3840 x 2160 again.

NOTE: If you are unable to set the resolution to 3840 × 2160 , please contact Dell to inquire about a graphics adapter that supports these resolutions.

Non-Dell computer

In Windows 7, Windows 8 or Windows 8.1:

1. For Windows 8 or Windows 8.1 only, select the Desktop tile to switch to classic desktop.
2. Right-click on the desktop and click Personalization.
3. Click Change Display Settings.
4. Click Advanced Settings.
5. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).
6. Refer to the graphic card provider website for updated driver (for example, http://www.ATI.com or http://www.NVIDIA.com).
7. After installing the drivers for your graphics adapter, attempt to set the resolution to 3840 x 2160 again.

In Windows 10:

1. Right-click on the desktop and click Display Settings.
2. Click Advanced display settings.
3. Click Display adapter properties.
4. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).
5. Refer to the graphic card provider website for updated driver (for example, http://www.ATI.com or http://www.NVIDIA.com).
6. After installing the drivers for your graphics adapter, attempt to set the resolution to 3840 x 2160 again.

NOTE: If you are unable to set the recommended resolution, please contact the manufacturer of your computer or consider purchasing a graphics adapter that supports the video resolution.

Maintenance Guidelines

Cleaning Your Display

WARNING: Before cleaning the display, unplug the display power cable from the electrical outlet.

CAUTION: Read and follow the Safety Instructions before cleaning the display.

For best practices, follow these instructions in the list below while unpacking, cleaning, or handling your display:

• To clean your anti-static screen, lightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the anti-static coating. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.
• Use a lightly-dampened, soft cloth to clean the display. Avoid using detergent of any kind as some detergents leave a milky film on the display.
  • If you notice white powder when you unpack your display, wipe it off with a cloth.
• Handle your display with care as a darker-colored display may get scratched and show white scuff marks more than a lighter-colored display.
• To help maintain the best image quality on your display, use a dynamically changing screen saver and turn off your display when not in use.
