USER MANUAL SE2719HR DELL

Dell SE2419HR/SE2719HR

User's Guide

Notes, Cautions and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Copyright © 2019 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

2019-08

Rev. A00

Contents

About your monitor 5.

Package contents 5

Product features 6

Identifying features and controls ..... 7

Monitor specifications 10

Plug and play capability ..... 16

LCD monitor quality and pixel policy .....16

Maintenance guidelines ..... 16

Setting up the monitor 17

Connecting the stand 17

Connecting your monitor 19

Organizing cables 20

Removing the stand 20

Operating your monitor 22

Turning on the monitor 22

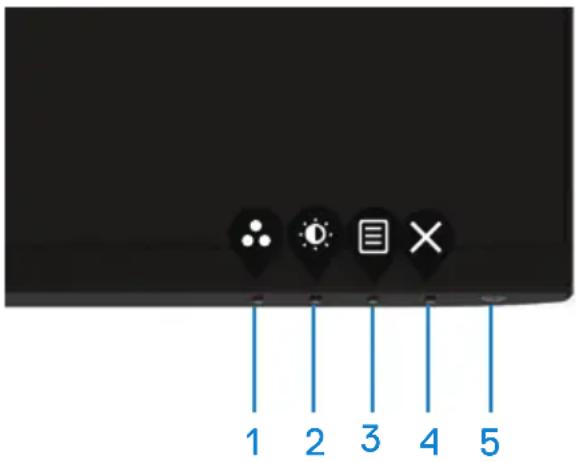

Using the front panel controls 22

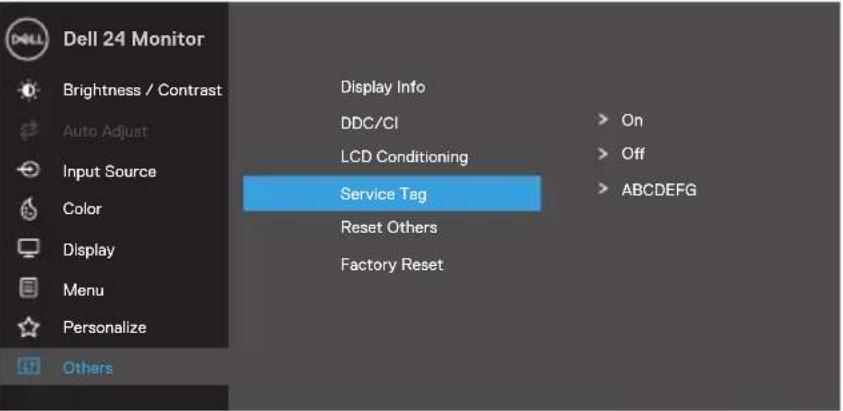

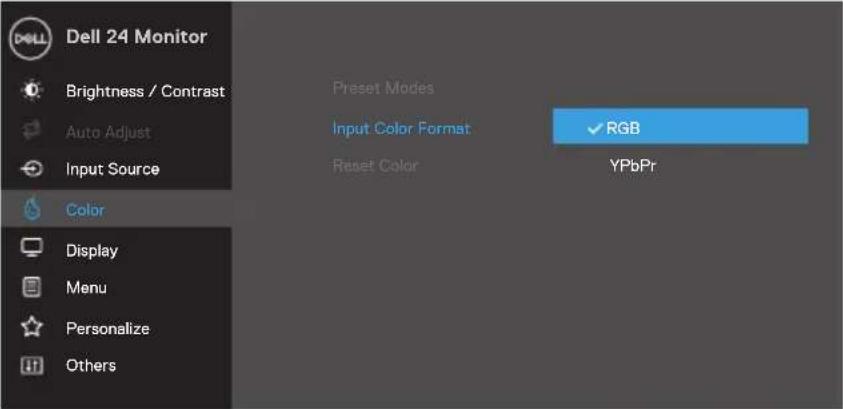

Using the On-Screen Display (OSD) menu .....24

Setting up your monitor 43

Using tilt 45

Troubleshooting.... 46

Self-test 46

Built-in diagnostics 48

Common problems 49

Product-specific problems 51

Appendix 52

FCC notices (U.S. Only) and 52

other regulatory information

Contacting Dell 52

Pin assignments 53

Package contents

Your monitor ships with the components indicated in the table. Ensure that you have received all the components and see Contacting Dell if anything is missing.

NOTE: Some components may be optional and may not ship with your monitor. Some features may not be available in certain countries.
NOTE: To set up with any other stand, see the documentation that shipped with the stand.

Component image	Component description
	Monitor
	Stand riser
	Stand base
	Power cable (varies by country)
	HDMI cable

Technical diagram illustrating 3D modeling and 2D modeling processes with labeled components and projections

- Quick Setup Guide

• Safety and Regulatory Information

Product features

The Dell SE2419HR/SE2719HR flat panel display has an active matrix, Thin-Film Transistor (TFT), Liquid Crystal Display (LCD), anti-static, and LED backlight.

The monitor features include:

- SE2419HR: 604.7 mm (23.8 in.) diagonal viewable area display (measured diagonally). 1920 x 1080 resolution, with full-screen support for lower resolutions.

- SE2719HR: 686.0 mm (27 in.) diagonal viewable area display (measured diagonally). 1920 x 1080 resolution, with full-screen support for lower resolutions.

- Wide viewing angles of 178 degrees in vertical and horizontal directions.

• High dynamic contrast ratio (8,000,000:1).

• Supports AMD Radeon FreeSync™ technology.

• Refresh rate of up to 75 Hz.

- Preset game modes include FPS (First-person shooter), RTS (Real-time strategy), and RPG (Role-playing game).

- HDMI connectivity makes it simple and easy to connect with legacy and new systems.

• Plug and play capable if supported by your computer

- On-Screen Display (OSD) adjustments for easy setup and screen optimization.

• 0.5 W standby power when in the sleep mode.

- Optimize eye comfort with a TÜV-certified flicker-free screen.

- Possible long-term effects if blue light emission from the monitor may cause damage to the eyes, including eye fatigue or digital eye strain. TÜV-certified ComfortView feature is designed to reduce the amount of blue light emitted from the monitor to help optimize eye comfort.

• Security-lock slot.

• Arsenic-free glass and mercury-free panel.

- BFR/PVC-Reduced (the circuit boards inside your monitor are made using BFR/PVC-free laminates).

- RoHS Compliant.

Identifying features and controls

Front view

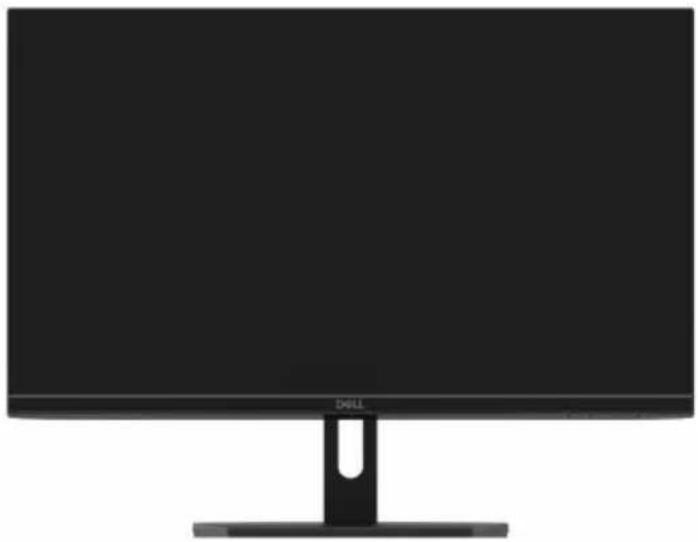

Front view of a black desktop computer monitor with a stand (no visible text or symbols)

1 2

Label	Description Use

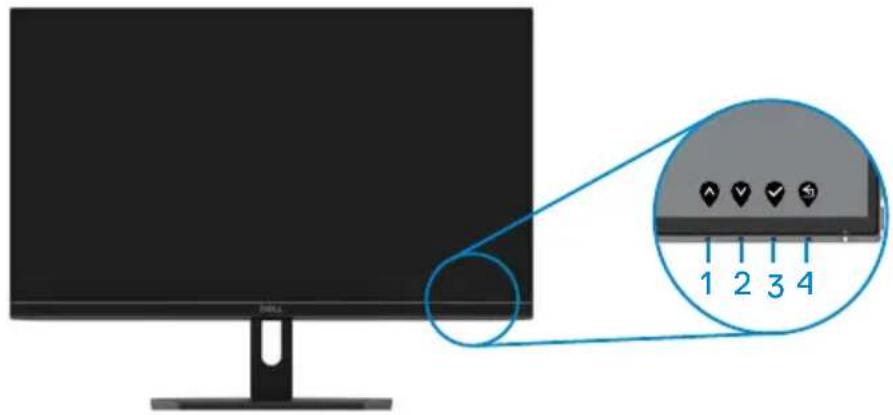

1 Function buttons		To access the On-screen Display (OSD) menu and change the settings if required. (For more information, see Using the front panel controls)
2	Power On/Off button (with LED indicator)	To turn the monitor On or Off.

Back view

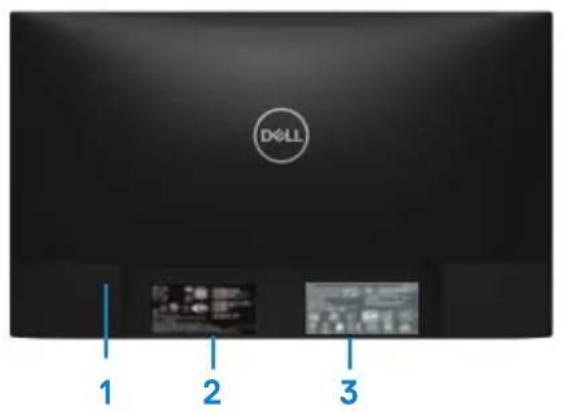

D\oLL 1 2 3

Without monitor stand

DX-LL 4 5 4

With monitor stand

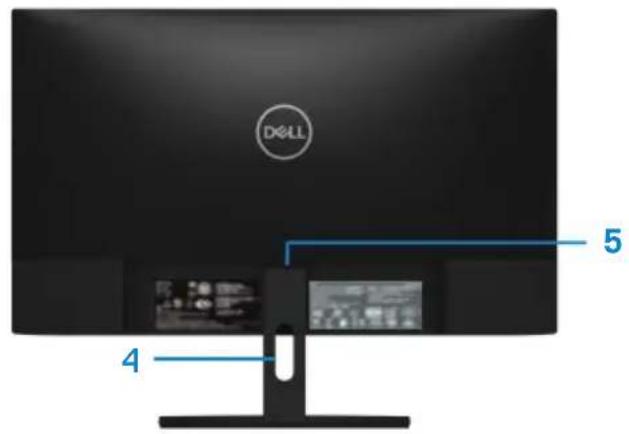

Label	Description Use
1	Security-lock slot	To secure the monitor using a security lock (purchased separately).
2	Regulatory label, barcode, serial number, and Service Tag label	List the regulatory approvals. See this label if you need to contact Dell for technical support. The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information.
3	Regulatory information (engraved)	List the regulatory approvals.
4	Cable-management slot	To organize the cables.
5	Stand release button	To release stand from monitor.

Side view

Side view of a black computer monitor with a curved screen and stand (no text or symbols visible)

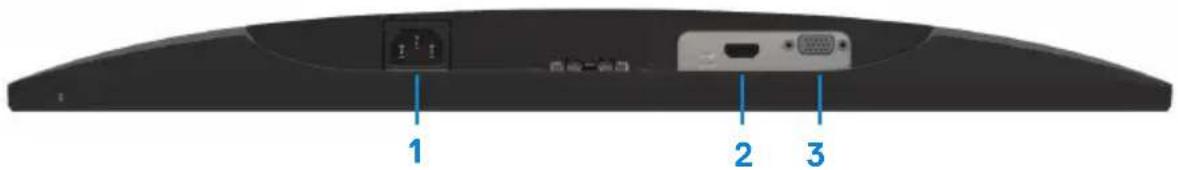

Bottom view, without monitor stand

1 2 3

Label	Description Use
1	Power port To connect the monitor power cable.
2	HDMI port	For connection to your computer using HDMI cable.
3	VGA port	For connection to your computer using VGA cable.

Monitor specifications

Model	SE2419H	SE2719H
Screen type Active matrix-TFT	LCD
Panel type In-Plane Switching
Viewable area
Diagonal	604.7 mm (23.8 in.)	686.0 mm (27 in.)
Active area: Horizontal Vertical Area	527.04 mm (20.75 in.) 296.46 mm (11.67 in.) 1562.46 cm2 (242.15 in.2)	597.89 mm (23.54 in.) 336.31 mm (13.24 in.) 2010.76 cm2 (311.67 in.2)
Pixel pitch	0.2745 mm	0.3114 mm
Pixel per inch (PPI) 92 81
Viewing angle: Vertical Horizontal	178° (typical) 178° (typical)
Brightness 250 cd/m (typical)	300 cd/m2 (typical)	2
Contrast ratio	1,000 to 1 (typical) 8,000,000 to 1 (Dynamic Contrast)
Faceplate coating Anti-glare with 3H hardness
Backlight LED edgelight system
Response time (Gray to Gray): Normal mode Fast mode Extreme mode	8 ms 5 ms 4 ms
Color depth 16.7 million colors
Color gamut	CIE 1931 (72%)
FreeSync support frame fre uency (HDMI port only)	48-75Hz
Dell display manager compatibility	Yes
Connectivity	One VGA port and one HDMI 1.4 (HDCP 1.4) port
Bezel width (edge of monitor to active area)	6.2 mm (Top) 6.2 mm (Left/Right) 20.5 mm (Bottom)	6.8 mm (Top) 6.8 mm (Left/Right) 21.1 mm (Bottom)
Security	Security-lock slot for cable lock (optional purchase)
Tilt angle	-5° to 21°

Resolution specifications

Model SE2419HR SE2719HR
Horizontal scan range	30 kHz to 84 kHz (automatic)
Vertical scan range	48 Hz to 76 Hz (automatic)
Maximum preset resolution	1920 × 1080 at 60 Hz for VGA port.1920 × 1080 at 75 Hz for HDMI port.

Preset display modes

SE2419HRSE2 19H R

Display Mode Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock (MHz)	Sync Polarity (Horizontal / Vertical)
VESA, 720 × 400 31.5	70.1 28.3 -/+
VESA, 640 × 480 31.5	60.0 25.2 -/-
VESA, 640 × 480 37.5	75.0	-/-
VESA, 800 × 600	37.9	60.3 40.0	+/+
VESA, 800 × 600	46.9	75.0 49.5	+/+
VESA, 1024 × 768	48.4	60.0 65.0	-/-
VESA, 1024 × 768	60.0	75.0 78.8	+/+
VESA, 1152 × 864	67.5 75.0	108.0	+/+
VESA, 1280 × 1024	64.0 60.0	108.0	+/+
VESA, 1280 × 1024	80.0	75.0	135.0 +/+
VESA, 1600 × 900	60.0	60.0	108.0
VESA, 1920 × 1080	67.5	60.0	148.5 +/+

Graphic cards that support Radeon FreeSync technology

For information on graphic cards that are compatible with Radeon FreeSync technology, see www.amd.com

Electrical specifications

Model SE2419H / SE2719H
Video input signals	• Analog RGB: 0.7 Volts ± 5 %,75 ohm input impedance• HDMI 1.4 (HDCP 1.4), 600mVfor each differential line, 100ohm input impedance perdifferential pair
Synchronizationinput signals	Separate horizontal and vertical synchronizations,polarity-free TTL level,SOG (Composite SYNC on green)
AC input voltage/frequency/current	100 VAC to 240 VAC/50 Hz or 60 Hz ± 3 Hz/1.5 A
Inrush current	• 30A (120V AC Input)• 60A (240V AC Input)

Physical characteristics

Model	SE2419H / SE2719H
Signal cable type: Analog Digital	D-Sub (VGA), 15 pins; HDMI, 19 pins
Dimensions (with stand):	SE2419H	SE2719H
Height	413.6 mm (16.28 in.)	454.2 mm (17.88 in.)
Width 539.4 mm (21.24 in.)		611.5 mm (24.07 in.)
Depth	152.8 mm (6.02 in.)	186.8 mm (7.35 in.)
Dimensions (without stand):	SE2419H	SE2719H
Height	323.1 mm (12.72 in.)	364.2 mm (14.34 in.)
Width	539.4 mm (21.24 in.)	611.5 mm (24.07 in.)
Depth	46.4 mm (1.83 in.)	46.4 mm (1.83 in.)
Stand dimensions:	SE2419H	SE2719H
Height	171.6 mm (6.76 in.)	176.7 mm (6.96 in.)
Width	249.0 mm (9.80 in.)	257.2 mm (10.13 in.)
Depth	152.8 mm (6.02 in.)	186.8 mm (7.35 in.)
Weight:	SE2419H	SE2719H
With packaging	5.59 kg (12.32 lb)	7.14 kg (15.74 lb)
With stand assembly and cables	3.91 kg (8.62 lb)	5.09 kg (11.22 lb)
Without stand assembly and cables	3.13 kg (6.90 lb) 4.24 kg	(9.35 lb)
Weight of stand assembly 0.59 kg	(0.52 kg) (1.15 lb)

Environmental characteristics

Model	SE2419H	SE2719H
Temperature:
Operating	0°C to 40°C (32°F to 104°F)
Non-operating:
Storage	-20°C to 60°C (-4°F to 140°F)
Shipping	-20°C to 60°C (-4°F to 140°F)
Humidity:
Operating 10% to 80% (non-condensing)
Non-operating:
Storage	5% to 90% (non-condensing)
Shipping	5% to 90% (non-condensing)
Altitude:
Operating (maximum) 5,000 m	(16,400 ft)
Non-operating (maximum)	12,192 m (40,000 ft)
Thermal dissipation	75.1 BTU/hour (maximum)58.0 BTU/hour (typical)	99.0 BTU/hour (maximum)78.5 BTU/hour (typical)

Power management modes

If you have VESA's DPM compliance graphic cards or software installed on your computer, the monitor can automatically reduce its power consumption when not in use. This is referred to as power save mode. If the computer detects input from the keyboard, mouse or other input devices, the monitor automatically resumes functioning. The following table shows the power consumption and signaling of this automatic power saving feature.

NOTE: Zero power consumption in off mode can only be achieved by disconnecting the power cable from the monitor.

SE2419H

VESA modes	Horizontal sync	Vertical sync	Video Power indicator	Power consumption
Normal operation	Active Active Active	White 22 W	(maximum)	17 W (typical)
Active-off mode	Inactive Inactive	Blanked White		Less than 0.5 W
Switch off	-	-	-	Off

SE2719H

VESA modes	Horizontal sync	Vertical sync	Video Power indicator	Power consumption
Normal operation	Active Active Active	White		29 W (maximum)23 W (typical)
Active-off mode	Inactive Inactive	Blanked White		Less than 0.5 W(Glowing)
Switch off	-	-	-	OffLess than 0.3 W

This document is informational only and reflects laboratory performance. The performance of your product may vary depending on the software, components and peripherals you ordered. Accordingly, the customer should not rely upon this information in making decisions about electrical tolerances or otherwise. No warranty as to accuracy or completeness is expressed or implied.

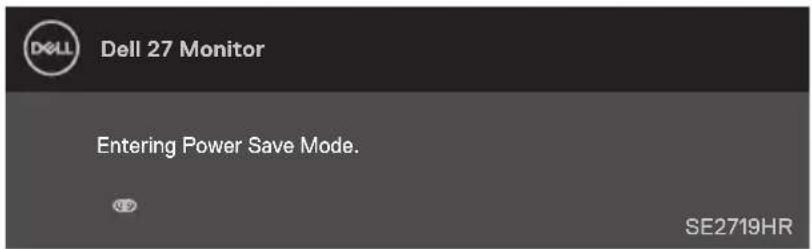

The OSD functions only in the normal operation mode. When any button is pressed in the Active-off mode, one of the following messages will be displayed:

SE2419HR

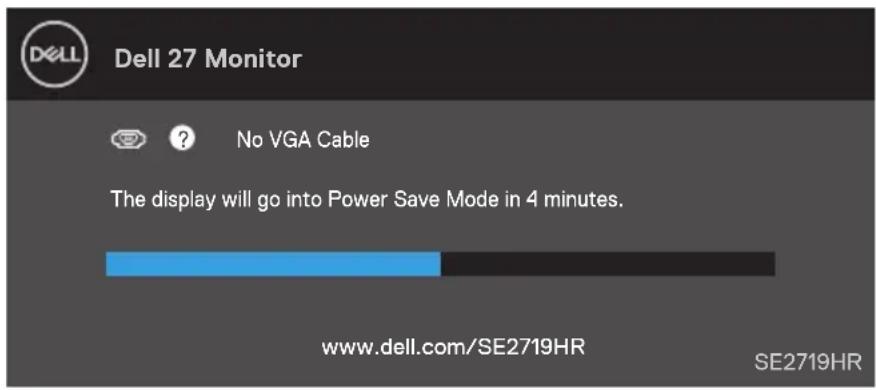

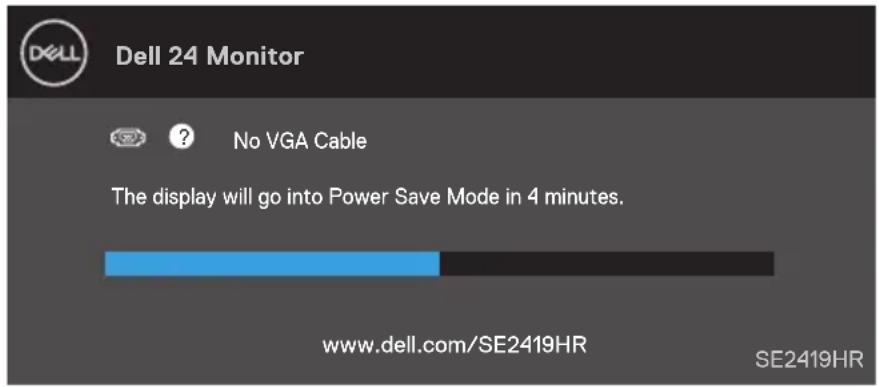

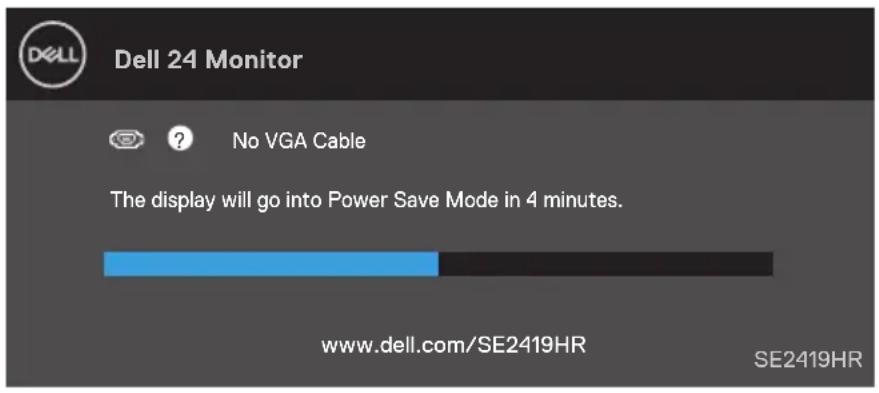

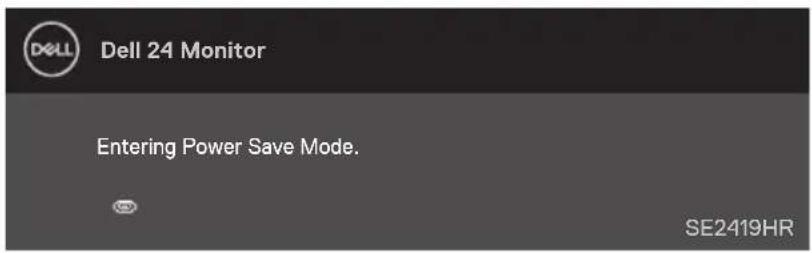

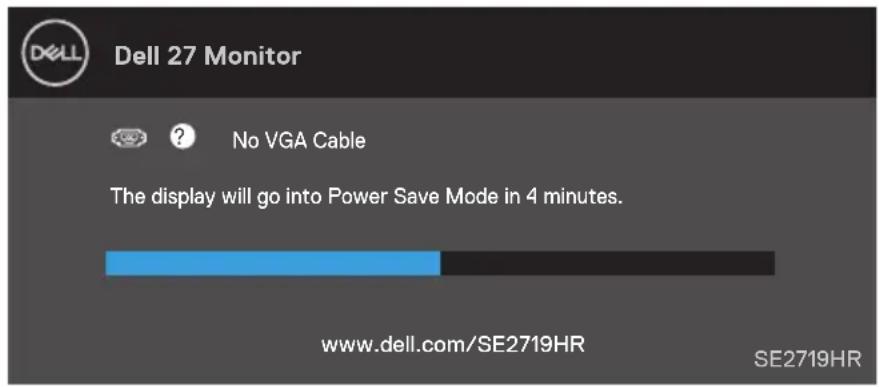

Dell 24 Monitor No VGA Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/SE2419HR SE2419HR

SE2719HR

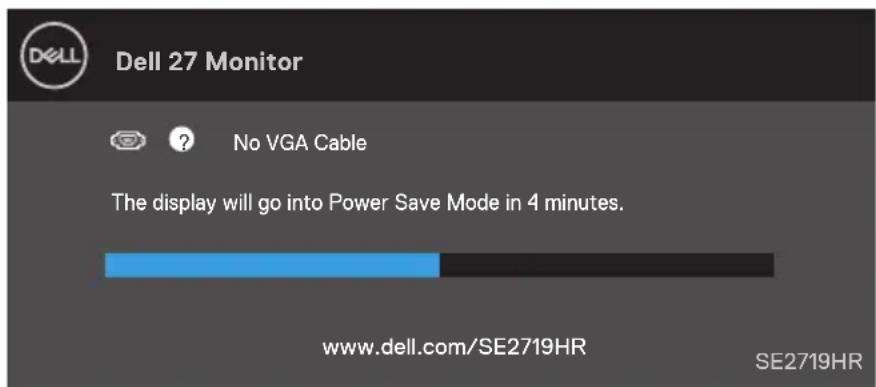

Dell 27 Monitor No VGA Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/SE2719HR SE2719HR

Activate the computer and the monitor to gain access to the OSD.

Plug and play capability

You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display Identification Data (EDID) using Display Data Channel (DDC) protocols so the system can configure itself and optimize the monitor settings. Most monitor installations are automatic, you can select different settings if desired. For more information about changing the monitor settings, see Operating your monitor.

LCD monitor quality and pixel policy

During the LCD Monitor manufacturing process, it is normal for one or more pixels to become fixed in an unchanging state which are hard to see and do not affect the display quality or usability. For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at www.dell.com/support/monitors.

Maintenance guidelines

Cleaning your monitor

WARNING: Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.

CAUTION: Read and follow the Safety Instructions before cleaning the monitor.

For best practices, follow the instructions in the list below while unpacking, cleaning or handling your monitor:

• To clean your screen, lightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the anti-static coating. Do not use benzene, thinner, ammonia, abrasive cleaners or compressed air.
• Use a lightly-dampened cloth to clean the monitor. Avoid using detergent of any kind as some detergents leave a milky film on the monitor.
  • If you notice white powder when you unpack your monitor, wipe it off with a cloth.
• Handle your monitor with care as the black-colored monitor may get scratched
• To help maintain the best image quality on your monitor, use a dynamically changing screen saver and turn off your monitor when not in use.

Connecting the stand

NOTE: The stand is not attached when the monitor is shipped from the factory.

NOTE: The following procedure is applicable for the stand that shipped with your monitor.

To attach the monitor stand:

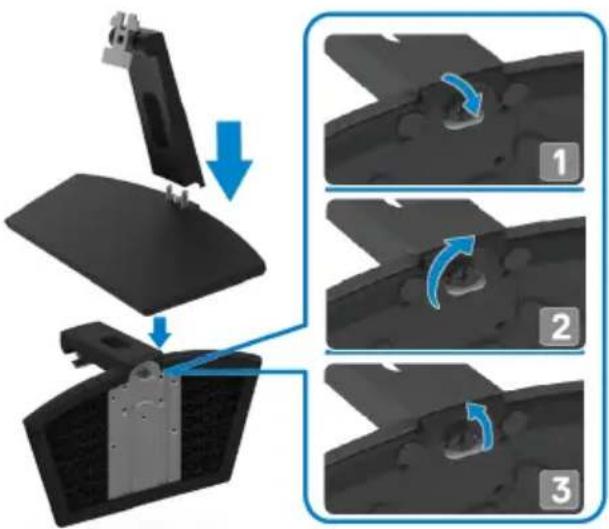

1. Connect the stand riser to the stand base, and then tighten the screw on the stand base.

Technical diagram showing mechanical assembly steps with blue arrows indicating direction of movement, labeled 1, 2, and 3.

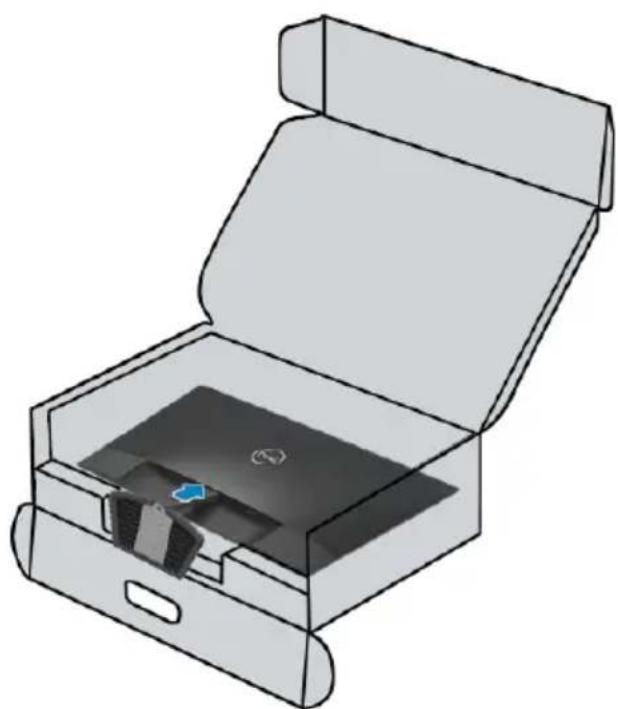

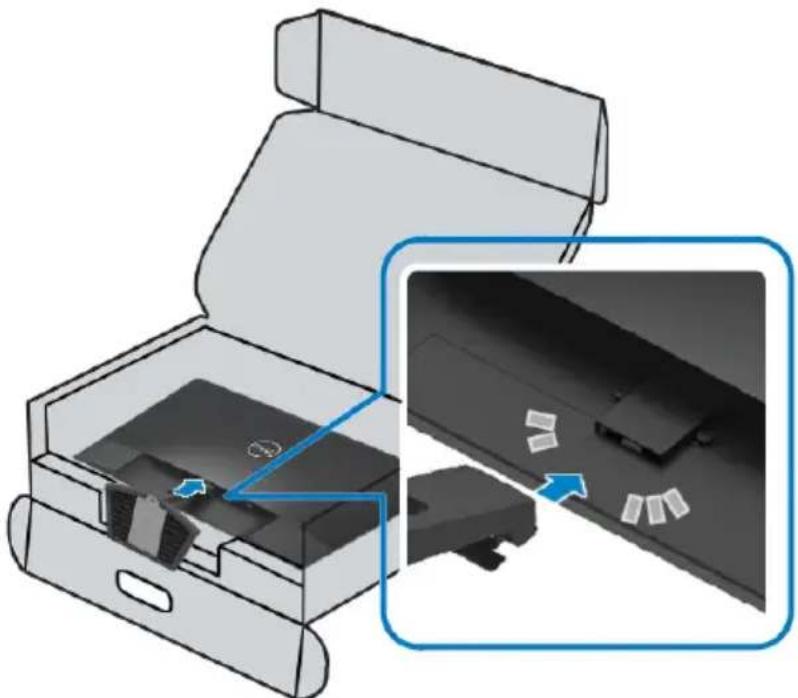

1. Align the stand-riser bracket with the grooves at the back of the monitor.

Illustration of a printer case with an open lid and internal components, showing a close-up of the lid's opening and internal structure (no text or symbols)

1. Slide the stand assembly until it snaps into place.

Illustration of an open box containing a dark object, with no visible text or symbols.

Connecting your monitor

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.

NOTE: Do not connect all cables to the computer at the same time. It is recommended to route the cables through the cable-management slot before you connect them to the monitor.

To connect your monitor to the computer:

1. Turn off your computer and disconnect the power cable.

2. Connect VGA or HDMI cable from your monitor to the computer.

Connecting VGA cable

Diagram showing connections between a computer monitor, connected to a VGA device via cable and cable connector, with an attached device labeled 'Dikell'.

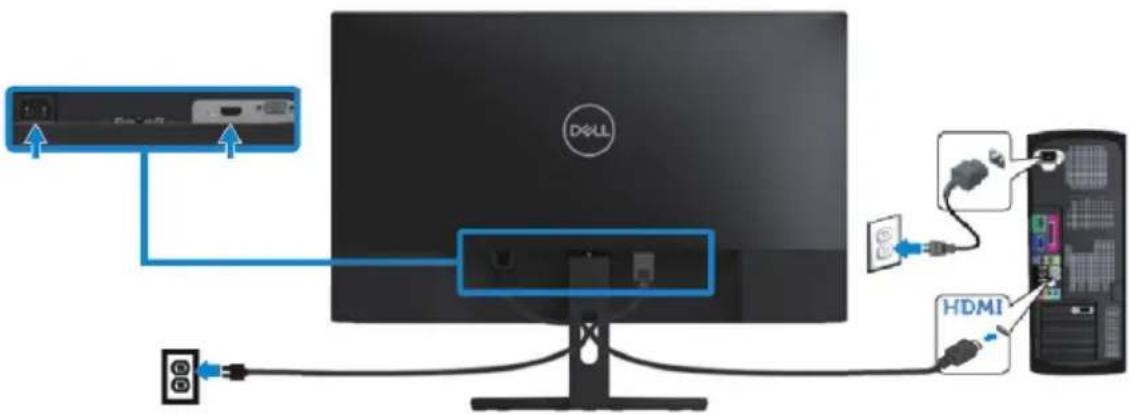

Connecting HDMI cable

Dell HDMI

Organizing cables

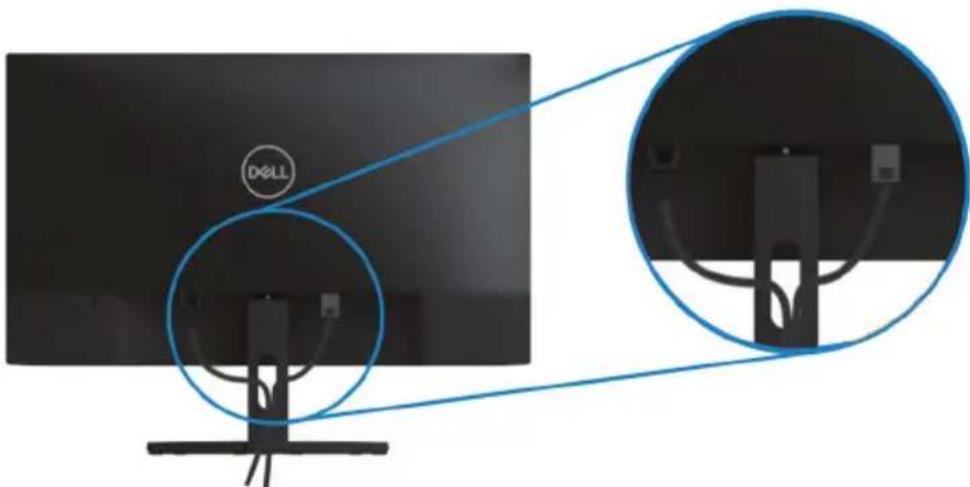

Use the cable-management slot to rablecables connected to your monitor.

Diagram showing a Dell monitor mounted on a stand with two views of the screen, one close-up and one tilted (no text or symbols)

Removing the stand

NOTE: To prevent scratches on the screen when removing the stand, ensure that the monitor is placed on a soft and clean surface.

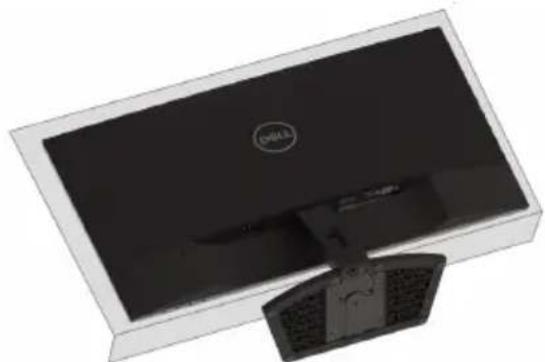

1. Place the monitor on a soft cloth along the desk.

Exterior view of a modern office desk monitor with a black screen and a small front panel (no visible text or symbols)

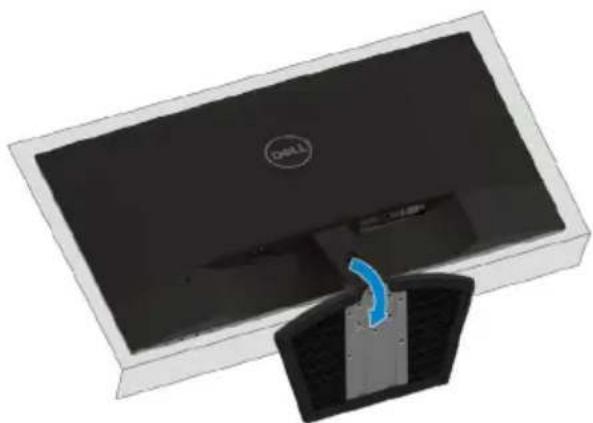

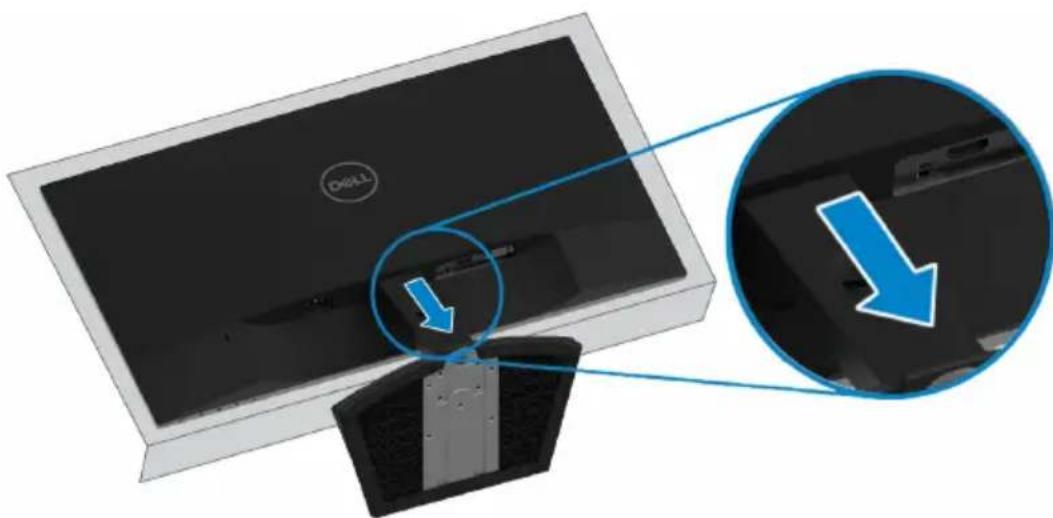

1. Tilt the stand downwards to access the release button.

3D rendering of a Dell monitor with a blue curved cable inserted into the front panel (no text or symbols visible)

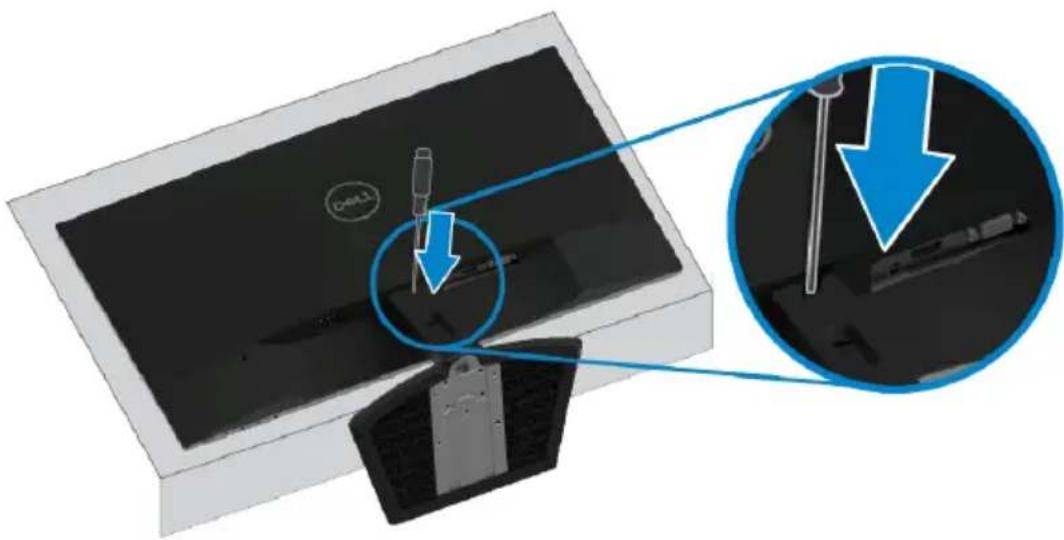

1. Using a long screwdriver press the release button.

Diagram showing a device with a screwdriver inserted into a black panel, with blue arrows indicating the process and magnified detail of the component.

1. Keeping the release button pressed, pull the stand out.

Dell ↓

Turning on the monitor

Press the ⏻ button to turn on the monitor.

Simple line drawing of a hand pointing at a black rectangular object with four small dots on the surface (no text or symbols)

Using the front panel controls

Use the control buttons at the bottom edge of the monitor to adjust the image being displayed.

1 2 3 4 5

The following table describes the control buttons:

Control Buttons Description
1	Use this button to choose from a list of preset modes.
Preset mode

2		For direct access to the Brightness and Contrast menu.
	Brightness/Contrast
3	Menu	To launch the On-Screen Display (OSD) menu, or to access the list of items / options of a menu item. For more information, see Accessing the OSD menu.
4	Exit	To exit or return to the OSD main menu.
5	Power button(with power-status light)	To turn the monitor on or off.Solid white light indicates the monitor is turned on and functioning normally. Blinking white light indicates the monitor is in power save mode.

OSD controls

Use the buttons on the bottom edge of the monitor to adjust the image settings.

Diagram showing a monitor connected to a device with four labeled buttons (1-4) and an inset highlighting the function.

Control Buttons Description
1		Use the Up button to increase values or move up in a menu.
	Up
2		Use the Down button to decrease values or move down in a menu.
	Down
3		Use the OK button to confirm your selection in a menu.
	OK
4		Use the Back button to go back to the previous menu.
	Back

Using the On-Screen Display (OSD) menu

Accessing the OSD menu

NOTE: Any changes you make are automatically saved when you move to another menu, exit the OSD menu, or wait for the OSD menu to close automatically.

1. Press the button to display the OSD main menu.

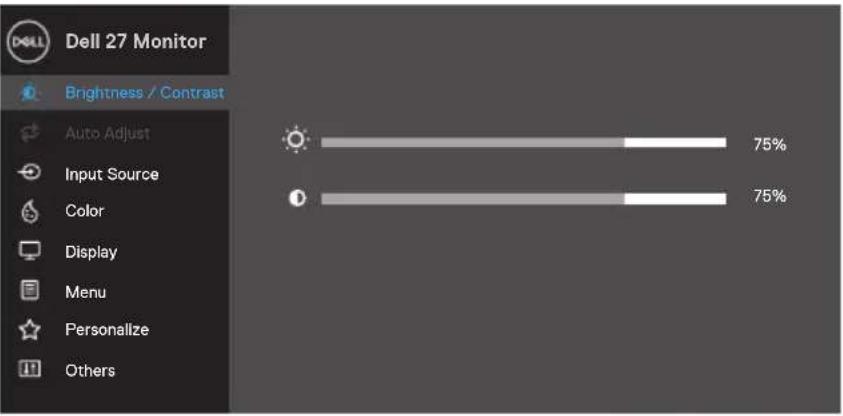

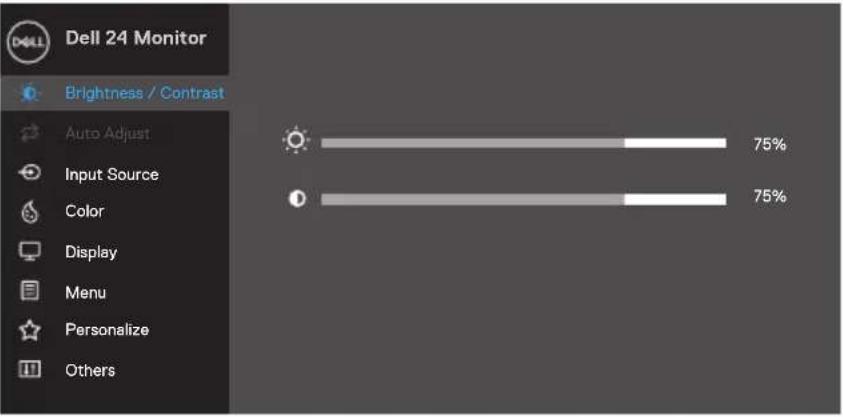

Main menu for HDMI input

Dell 24 Monitor Brightness / Contrast Auto Adjust Input Source Color Display Menu Personalize Others

Dell 27 Monitor Brightness / Contrast Auto Adjust Input Source Color Display Menu Personalize Others 75% 75%

1. Press the 🔒 and 🔥 buttons to move between the setting options. As you move from one icon to another, the option name is highlighted.
2. Press the button once to activate the highlighted option.
3. Press ⬆ and ⬇ button to select the desired parameter.
4. Press and then use the ↑ and ↓ buttons, according to the indicators on the menu, to make your changes.
5. Select the ↻ button to return to the main menu.

Icon	Menu and Submenus	Description

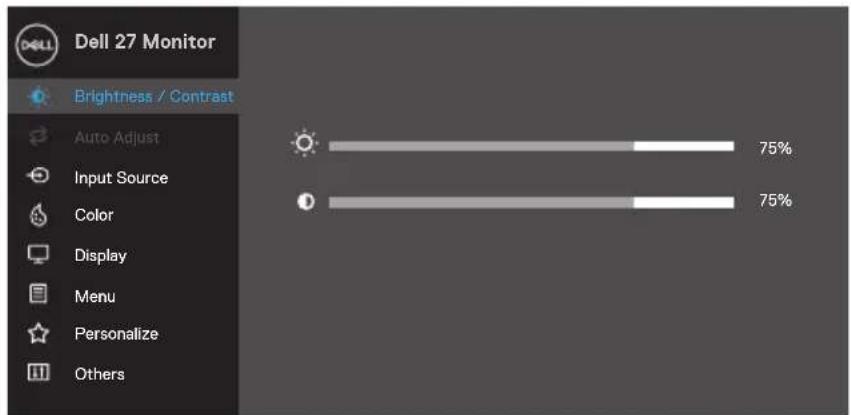

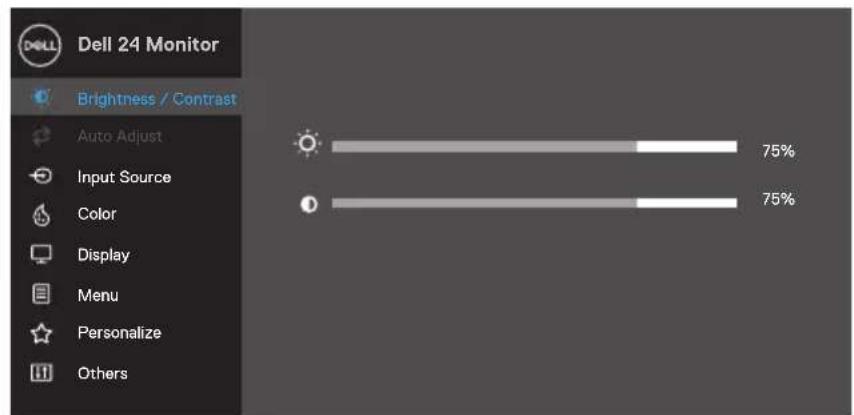

	Brightness/Contrast	Use this option to control the brightness or contrast settings.
	Brightness Brightness adjusts the luminance of the backlight.Press the ➤ button to increase the brightness and press the ➤ button to decrease the brightness (min. 0; max. 100).NOTE: Manual adjustment of brightness is disabled when dynamic contrast is switched on.
	Contrast	Adjust the brightness first, and then adjust the contrast only if further adjustment is necessary.Press the ➤ button to increase the contrast and press the ➤ button to decrease the contrast (min. 0; max. 100).The contrast function adjusts the degree of difference between darkness and lightness on the screen.

Auto Adjust

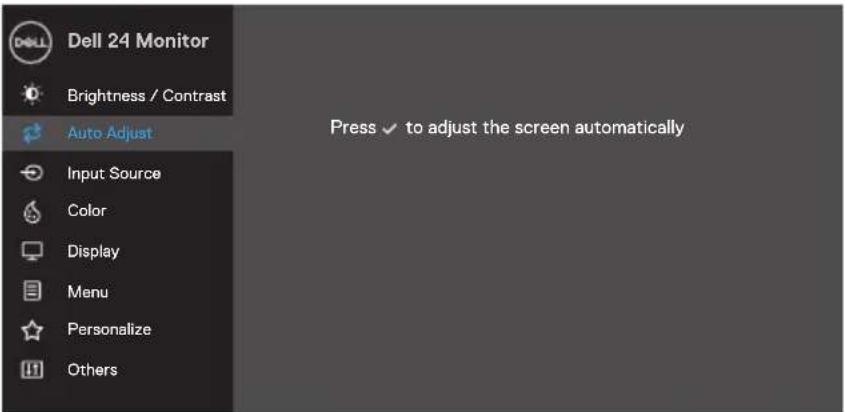

Use this option to activate automatic setup and adjust menu.

Dell 24 Monitor Brightness / Contrast Auto Adjust Input Source Color Display Menu Personalize Others Press ✓ to adjust the screen automatically

Dell 27 Monitor Brightness / Contrast Auto Adjust Input Source Color Display Menu Personalize Others Press ✓ to adjust the screen automatically

The following dialog appears on a black screen as the monitor self-adjusts to the current input:

Auto Adjustment in Progress...

Auto Adjust allows the monitor to self-adjust to the incoming video signal. After using Auto Adjustment, you can further tune your monitor by using the Pixel Clock (Coarse) and Phase (Fine) controls under Display.

NOTE: Auto Adjust does not occur if you press the button while there are no active video input signals or attached cables. This option is only available when you are using the analog (VGA) connector.

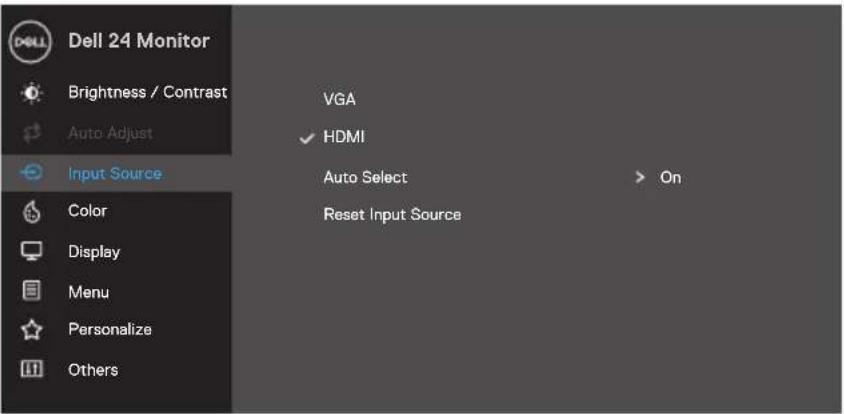

	Input Source	Use the input source menu to switch between the different video signals that may be connected to your monitor.SE2419HR: one VGA and one HDMI inputSE2719HR: one VGA and one HDMI input
	VGA	Push √ to select the VGA input source when using VGA connector.
	HDMI	PushF: to select the HDMI input source when using HDMI connector.
	Auto Select	Select Auto Select to scan for available input signals.
	Reset Input Source	Select this option to restore default input source.

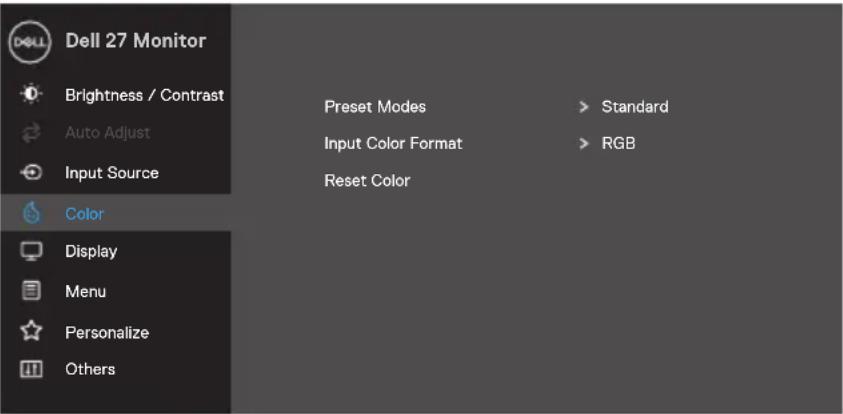

	Color	Use color to adjust the color setting mode.

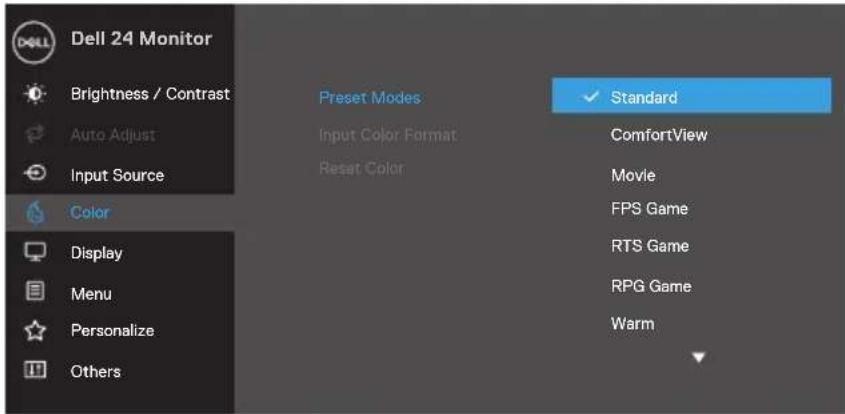

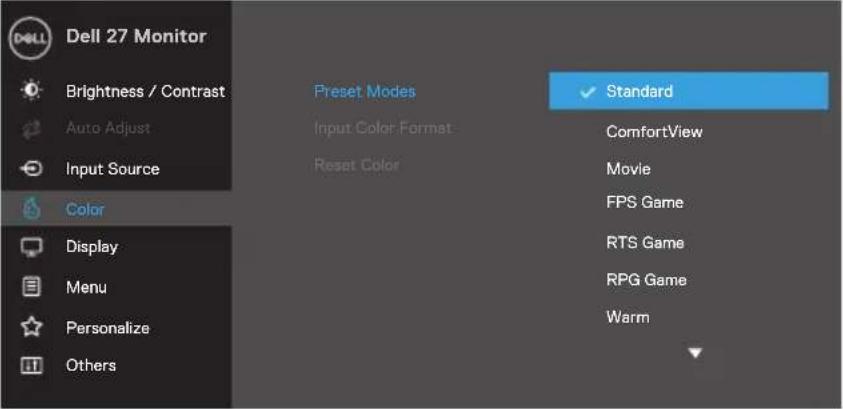

	Preset Modes	When you select Preset Modes, you can choose Standard, ComfortView, Movie, FPS Game, RTS Game, RPG Game, Warm, Cool, Custom Color from the list.Standard: Loads the monitor's default color settings. This is the default preset mode.ComfortView: Decreases the level of blue light emitted from the screen to make viewing more comfortable for your eyes.NOTE: To reduce the risk of eye strain and neck/arm/back/shoulders pain from using the monitor for long periods of time, we suggest that you:

• Set the screen about 20\~28 inches (50\~70 cm) from your eyes.
• Blink frequently to moisten or lubricate your eyes.
  • Take regular 20-minute breaks every two hours.
• Look away from your monitor and gaze at a distant object at 20 feet away for at least 20 seconds during the breaks.
• Perform stretches to relieve tension in the neck/arm/back/shoulders during the breaks.
  • Movie: Loads color settings ideal for movies.
• FPS Game: Loads color settings ideal for First-Person Shooter games.
  • RTS Game: Loads color settings ideal for Real-Time Strategy games.
• RPG Game: Loads color settings ideal for Role-Playing games.

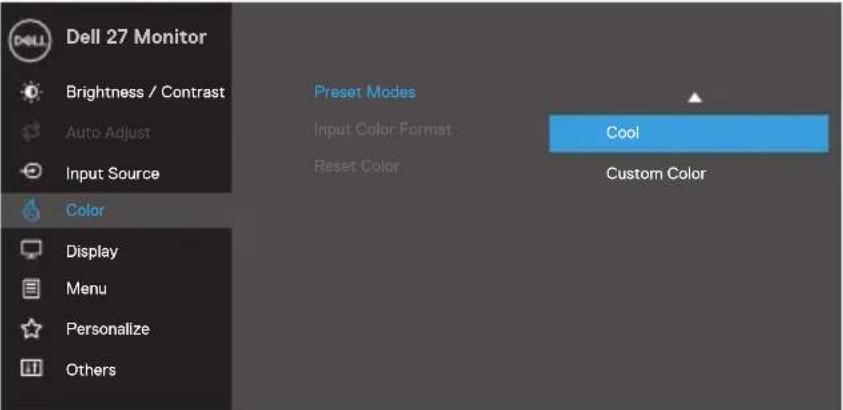

• Warm: Increases the color temperature. The screen appears warmer with a red/yellow tint.

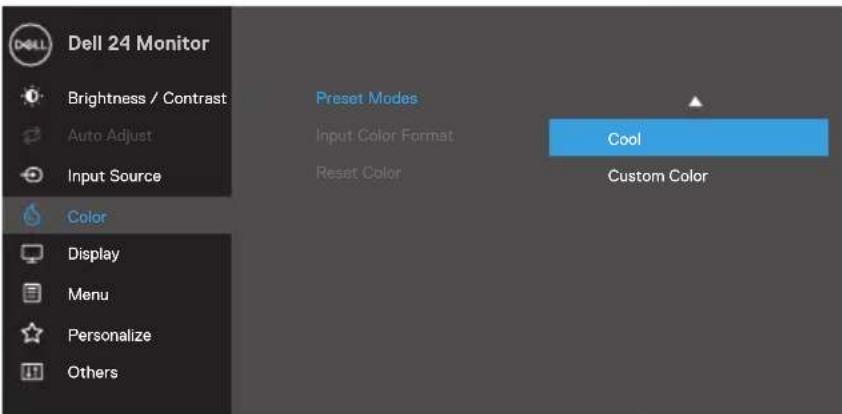

  • Cool: Decreases the color temperature. The screen appears cooler with a blue tint.
• Custom Color: Allows you to manually adjust the color settings.

Press the

and

ttons to adjust the three colors

(R, G, B) values and create your own preset color mode.

Dell 24 Monitor Brightness / Contrast Auto Adjust Input Source Color Display Menu Personalize Others Preset Modes Input Color Format Reset Color Standard ComfortView Movie FPS Game RTS Game RPG Game Warm

Dell 24 Monitor Brightness / Contrast Auto Adjust Input Source Color Display Menu Personalize Others Preset Modes Input Color Format Reset Color Cool Custom Color

	Input Color Format	Allow you to set the video input mode to:RGB: Select this option if your monitor is connected to a computer or DVD player using the HDMI cable.YPbPr: Select this option if your DVD player supports only YPbPr output.
	Display	Use the display to adjust image.

Dell 24 Monitor Brightness / Contrast Auto Adjust Input Source Color Display Menu Personalize Others Response Time Reset Display Normal

Dell 27 Monitor Brightness / Contrast Auto Adjust Input Source Color Display Menu Personalize Others Aspect Ratio > Wide 16:9 Horizontal Position Vertical Position Sharpness > 50 Pixel Clock Phase Dynamic Contrast

Dell 27 Monitor Brightness / Contrast Auto Adjust Input Source Color Display Menu Personalize Others Response Time > Normal Reset Display

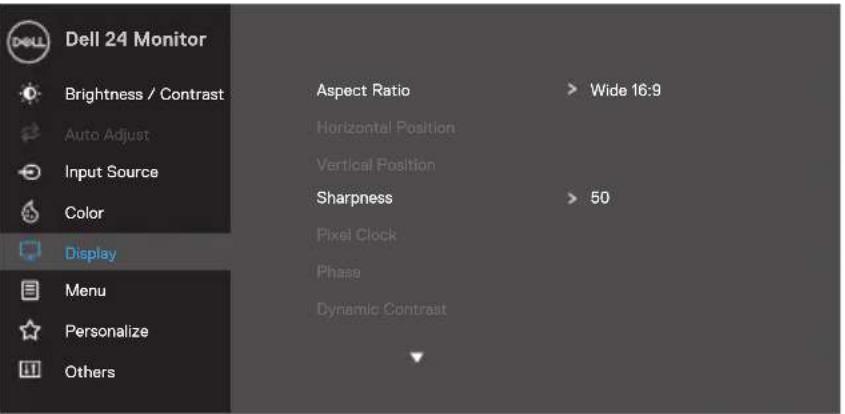

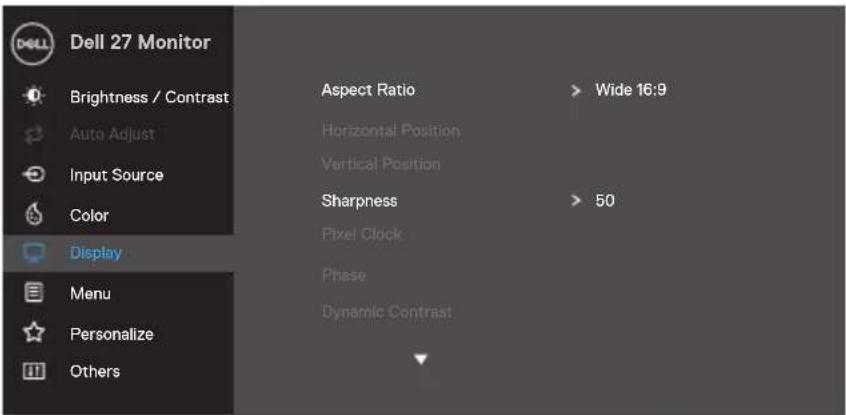

Aspect Ratio	Adjust the image ratio to Wide 16:9, 4:3 or 5:4.
Horizontal Position (VGA input only)	Use ▲ or ▼ to move image left and right. Minimum is '0' (-). Maximum is '100' (+).
Vertical Position (VGA input only)	Use the ▲ or ▼ to move image up and down. Minimum is '0' (-). Maximum is '100' (+).

	Sharpness	This feature can make the image look sharper or softer. Use [KT2G] or adj the sharpness from 0 to 100.
	Pixel Clock The Pixel (VGA input only)	Pixel Clock feature enables you to adjust image quality on your monitor to your preference.Use ∧ or √ buttons to adjust for best image quality.
	Phase (VGA input only)	If satisfactory results are not obtained using the Phase adjustment, use the Pixel Clock (coarse) adjustment and then use Phase (fine), again.
	Dynamic Contrast	Allow you to increase the level of contrast to provide sharper and more detailed image quality.Press the √ button to select the dynamic contrast On or Off.NOTE: Dynamic contrast provides higher contrast if you select Movie, FPS Game, RTS Game or RPG Game preset modes.

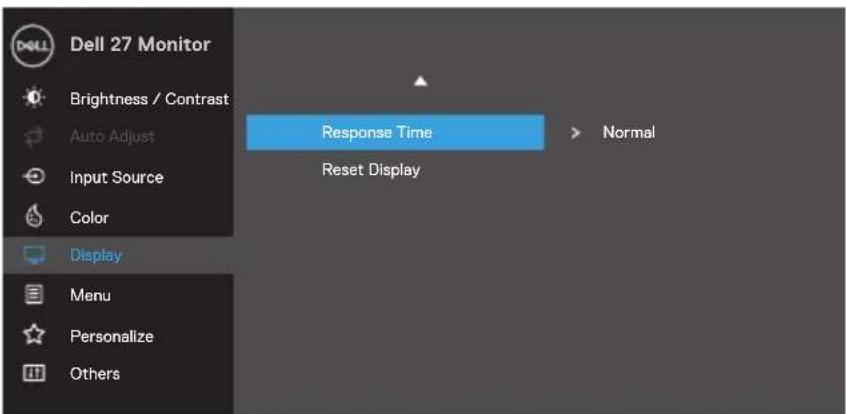

	Response Time	Allow you to select between Normal (8 ms), Fast (5 ms) or Extreme (4 ms).
	Reset Display Select this option to restore default display settings.

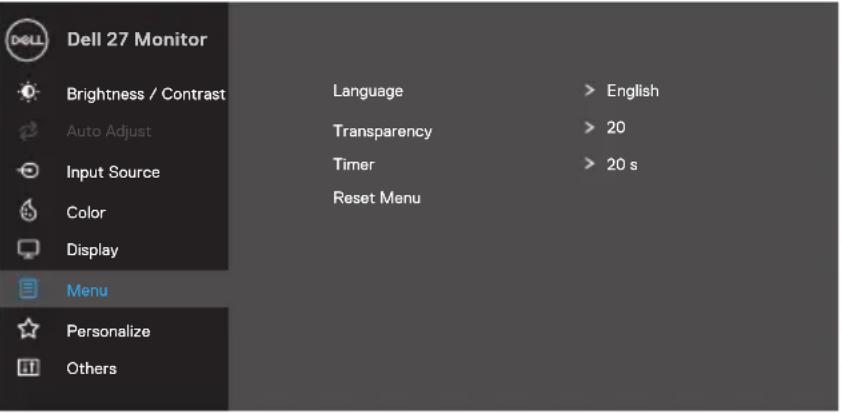

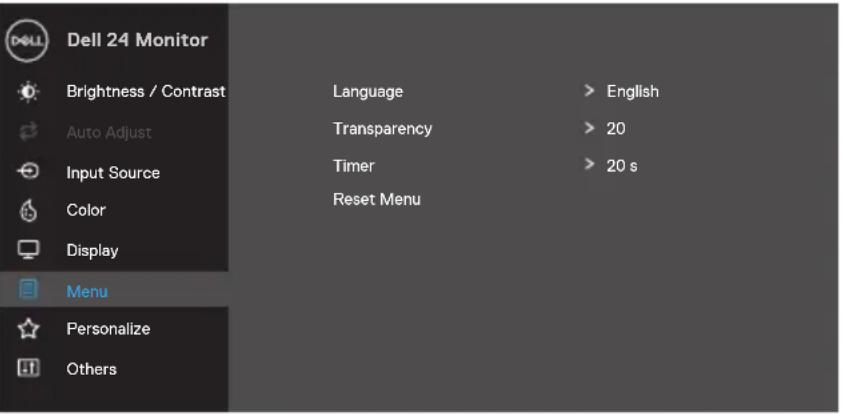

	Menu	Select this option to adjust the settings of the OSD, such as the languages of the OSD, the amount of time, the menu remains on screen and so on.[AD27] [AD27] [AD30] [AD30][AD77] [AD41] [AD726] [AD84]
	Language	Language options set the OSD display to one of the eight languages (English, Spanish, French, German, Brazilian Portuguese, Russian, Simplified Chinese, or Japanese).
	Transparency	Select this option to change the menu transparency by pressing the 🔗 or 🔖 buttons from 0 to 100.
	Timer	OSD hold time: sets the length of time, the OSD will remain active after the last time you pressed a button.Use 🔗 or 🔖 to adjust the slider in 1 second increments, from 5 to 60 seconds.
	Reset Menu Reset	all OSD settings to the factory preset values.

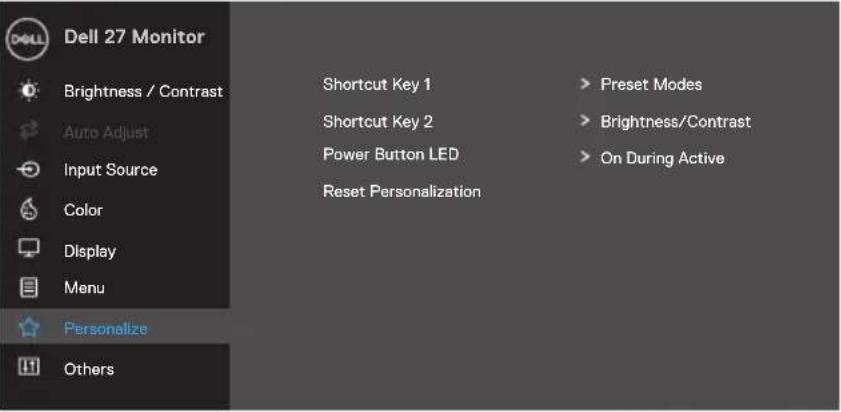

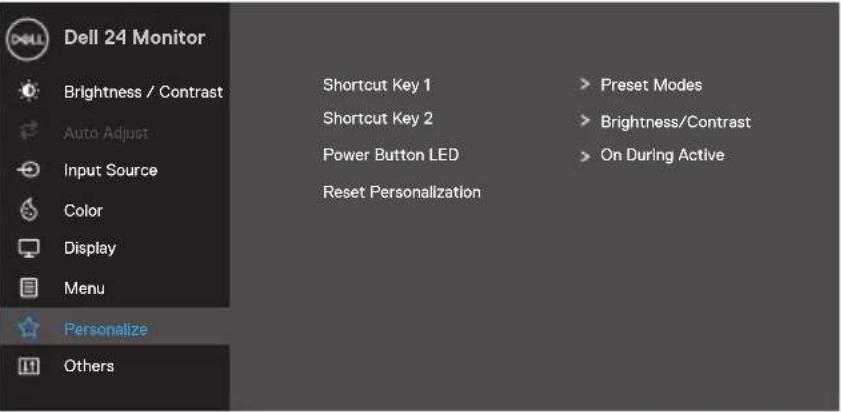

	Personalize	Allow you to choose a feature from Shortcut key 1, Shortcut key 2, Power Button LED or Reset Personalization, Preset Modes or Brightness/Contrast and set it as a shortcut key.
	Shortcut Key 1	Allow you to select one of the following: Preset Modes, Brightness/Contrast, Auto Adjust, Input Source, Aspect Ratio, to set the shortcut key 1.
	Shortcut Key 2	Allow you to select one of the following: Preset Modes, Brightness/Contrast, Auto Adjust, Input Source, Aspect Ratio, to set the shortcut key 2.
	Power Button LED	Allow you to set the power LED indicator On During Active or Off During Active to save energy.
	Reset Personalization	Allow you to restore shortcut key to the default setting.

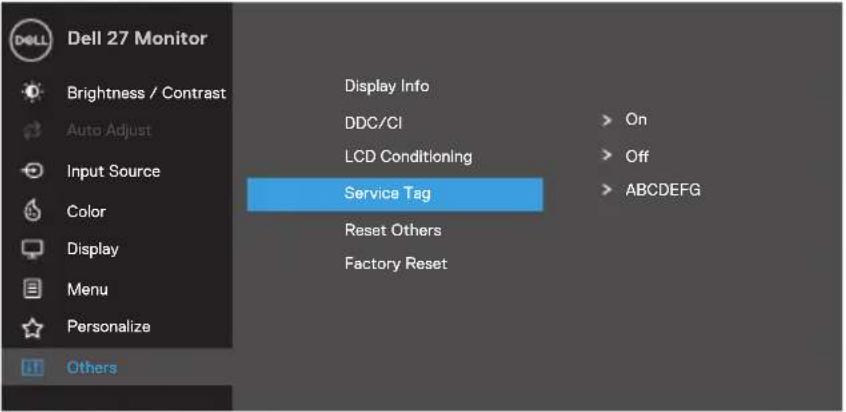

++	Others

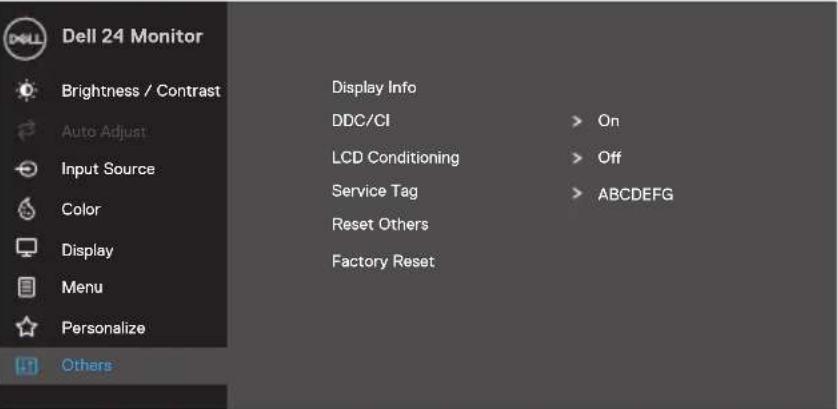

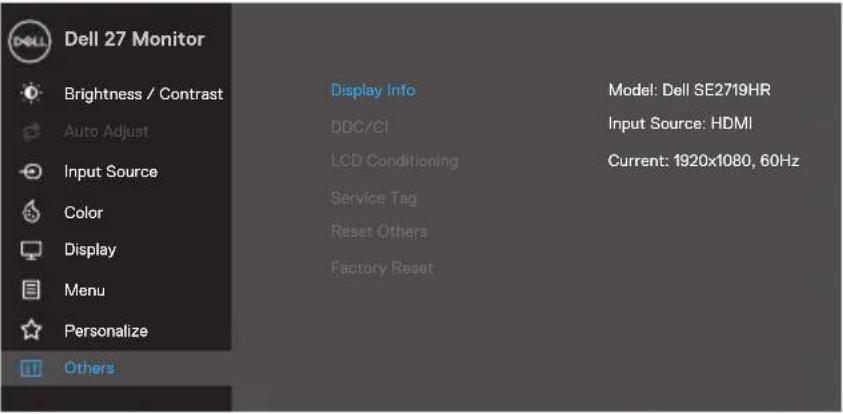

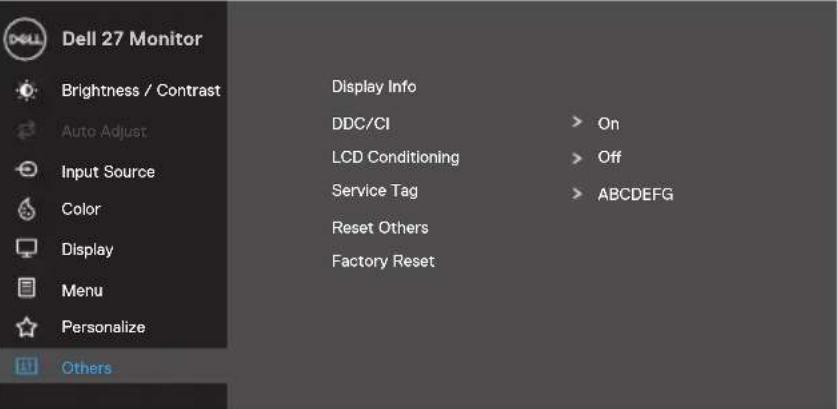

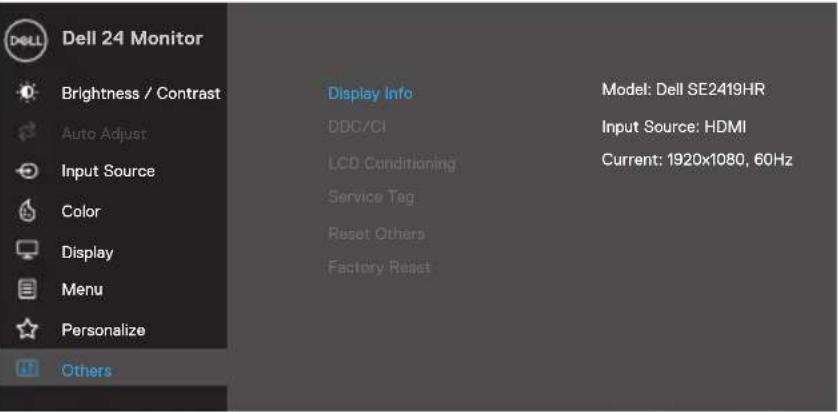

	Display Info	Press to display the information about the display.SE2419HR:SE2719HR:[IMAGE]

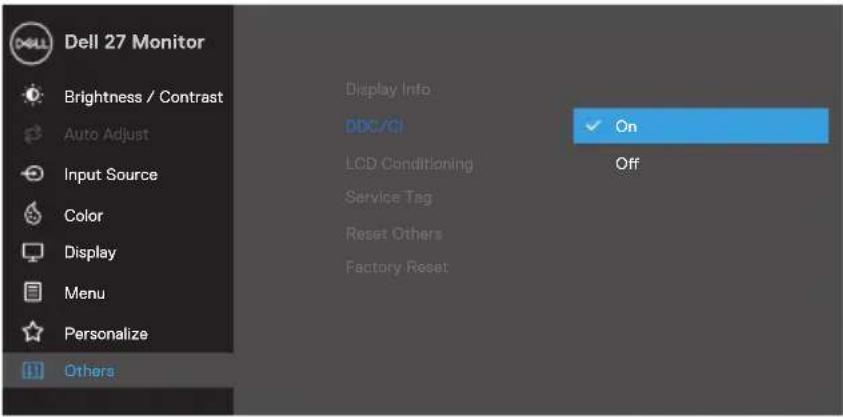

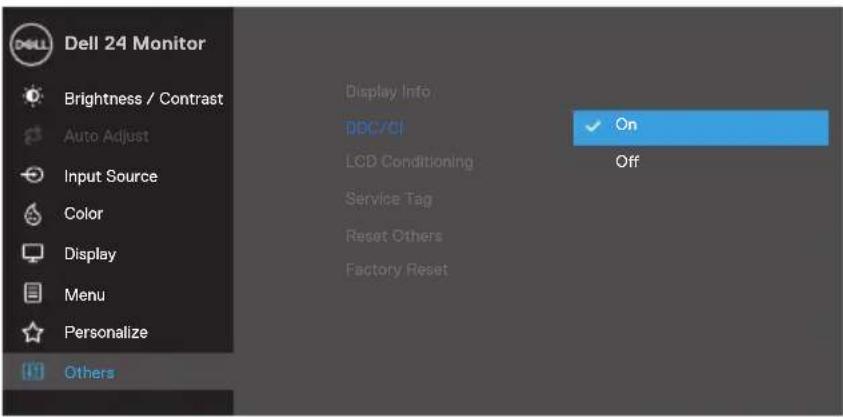

	DDC/CI	DDC/CI (Display Data Channel/Command Interface) allows you to adjust the monitor settings using software on your computer. Select Off to turn off this feature. Enable this feature for best user experience and optimum performance of your monitor.[IMAGE]

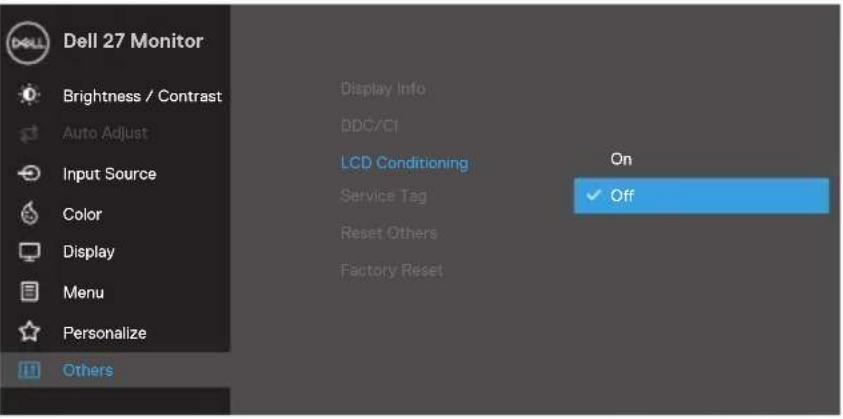

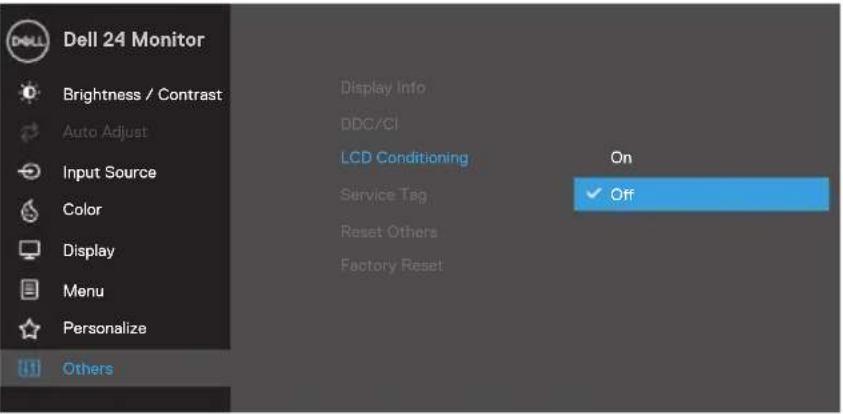

	LCD Conditioning	Help reduce minor cases of image retention. Depending on the degree of image retention, the program may take some time to run. To start LCD Conditioning, select On.
	Service Tag	Display the Service Tag number of the monitor.
	Reset Other	Reset all settings under the Others setting menu to the factory default.
	Factory Reset	Reset all settings to the factory default.

OSD warning messages

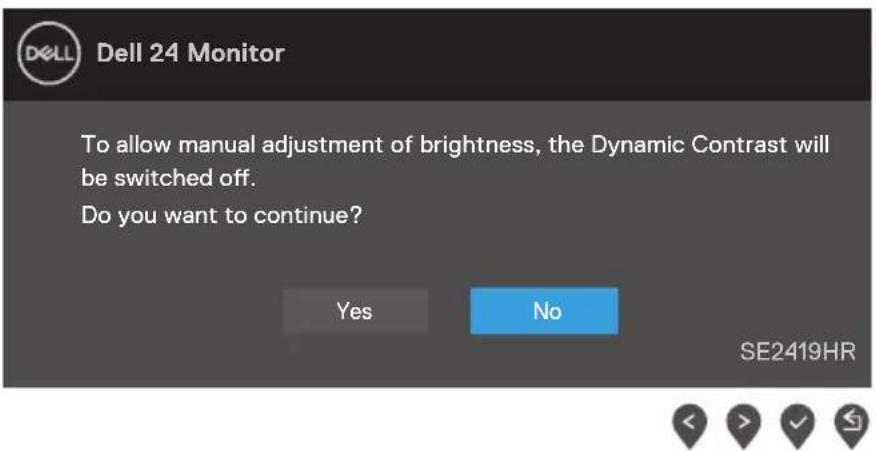

When the Dynamic Contrast feature is enabled (in Movie, FPS Game, RTS Game or RPG Game preset modes.), the manual brightness adjustment is disabled.

SE2419H

Dell 24 Monitor To allow manual adjustment of brightness, the Dynamic Contrast will be switched off. Do you want to continue? Yes No SE2419HR

SE2 719HR

Dell 27 Monitor To allow manual adjustment of brightness, the Dynamic Contrast will be switched off. Do you want to continue? Yes No SE2719HR

Before the DDC/CI function is disabled, the following message is displayed.

SE2419H

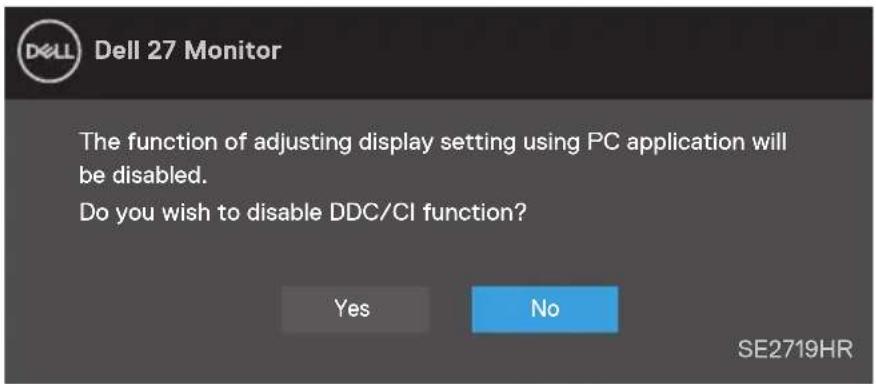

Dell 24 Monitor The function of adjusting display setting using PC application will be disabled. Do you wish to disable DDC/CI function? Yes No SE2419HR

SE2719H

DELL Dell 27 Monitor The function of adjusting display setting using PC application will be disabled. Do you wish to disable DDC/CI function? Yes No SE2719HR

When the monitor enters Power Save Mode, the following message appears.

SE2419H

Dell 24 Monitor Entering Power Save Mode. SE2419HR

SE2719H

DELL Dell 27 Monitor Entering Power Save Mode. SE2719HR

If VGA or HDMI cable is not connected, a floating dialog box as shown below appears. The monitor will enter Power Save Mode after four minutes if left in this state.

SE2419H

Dell 24 Monitor No VGA Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/SE2419HR SE2419HR

SE2719H

Dell 27 Monitor No VGA Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/SE2719HR SE2719HR

See Troubleshooting for more information.

Setting up your monitor

Setting display resolution to 1920 x 1080

For best performance, set the display resolution to 1920 × 1080 pixels by performing the following steps:

In Windows 7:

1. Right-click on the desktop and click Screen Resolution.
2. Click the drop-down menu of the Screen Resolution and select 1920 x 1080.
3. Click OK.

In Windows 8 or Windows 8.1:

1. Select the Desktop tile to switch to classic desktop.
2. Right-click on the desktop and click Screen Resolution.
3. Click the drop-down menu of the Screen Resolution and select 1920 x 1080.
4. Click OK.

In Windows 10:

1. Right-click on the desktop and click Display Settings.
2. Click Advanced Display Settings.
3. Click the drop-down menu under Resolution and select 1920 x 1080
4. Click Apply.

If you do not see the recommended resolution as an option, you may need to update your graphics driver. Use one of the following methods to update the graphics driver:

Dell computer

1. Go to www.dell.com/support, enter your service tag, and download the latest driver for your graphics card.
2. After installing the drivers for your graphics adapter, attempt to set the resolution to 1920 × 1080 again.

NOTE: If you are unable to set the resolution to 1920 x 1080 please contact Dell to inquire about a graphics adapter that supports these resolutions.

Non-Dell computer

In Windows 7:

1. Right-click on the desktop and click Personalization.
2. Click Change Display Settings.
3. Click Advanced Settings.
4. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, AMD, Intel etc.).
5. Refer to the graphic card provider website for updated driver (for example, www.AMD.com or www.NVIDIA.com).
6. After installing the drivers for your graphics adapter, attempt to set the resolution to 1920 × 1080 again.

In Windows 8 or Windows 8.1:

1. Select the Desktop tile to switch to classic desktop.
2. Right-click on the desktop and click Personalization.
3. Click Change Display Settings.
4. Click Advanced Settings.
5. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, AMD, Intel etc.).
6. Refer to the graphic card provider website for updated driver (for example, www.AMD.com or www.NVIDIA.com).
7. After installing the drivers for your graphics adapter, attempt to set the resolution to 1920 × 1080 again.

In Windows 10:

1. Right-click on the desktop and click Display Settings.
2. Click Advanced display settings.
3. Click Display adapter properties.
4. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, AMD, Intel etc.).
5. Refer to the graphic card provider website for updated driver (for example, www.AMD.com or www.NVIDIA.com).
6. After installing the drivers for your graphics adapter, attempt to set the resolution to 1920 × 1080 again.

NOTE: If you are unable to set the recommended resolution, please contact the manufacturer of your computer or consider purchasing a graphics adapter that supports the video resolution.

Using tilt

You can tilt the monitor for the most comfortable viewing angle.

NOTE: The stand is not attached when the monitor is shipped from the factory.

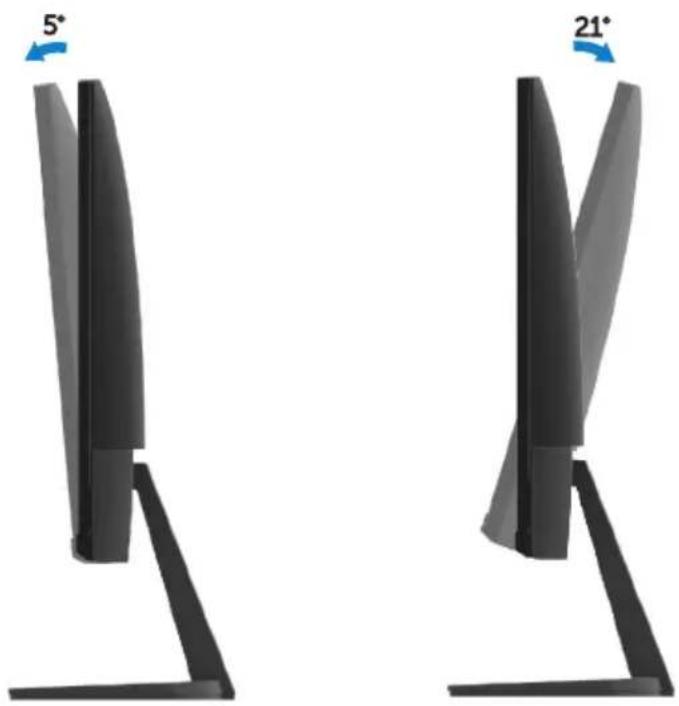

Two black computer monitors with 5° and 21° angle indicators, shown from different angles (no text or symbols on the screens themselves)

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.

Self-test

Your monitor provides a self-test feature that allows you to check if your monitor is functioning properly. If your monitor and computer are properly connected but the monitor screen remains dark, run the monitor self-test by performing the following steps:

1. Turn on both your computer and the monitor.
2. Disconnect all video cables from the monitor. This way, the computer doesn't have to be involved.
3. Turn on the monitor.

If the monitor is working correctly, it detects that there is no signal and one of the following message appears. While in self-test mode, the power LED remains white.

SE2419HR

Dell 24 Monitor No VGA Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/SE2419HR SE2419HR

SE2719H

Dell 27 Monitor No VGA Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/SE2719HR SE2719HR

NOTE: This box also appears during normal operation, when the video cable is disconnected or damaged.

1. Turn off your monitor and reconnect the video cable; then turn on your computer and the monitor.

If your monitor remains dark after you reconnect the cables, check your video controller and computer.

Built-in diagnostics

Your monitor has a built-in diagnostic tool that helps you determine if any screen abnormality you experience is an inherent problem with your monitor, or with your computer and video card.

NOTE: You can run the built-in diagnostics only when the video cable is unplugged and the monitor is in self-test mode.

Close-up of a black electronic device with a blue vertical line and number 1 pointing to the base (no text or symbols on the device itself)

Label	Description
1	Button 1

To run the built-in diagnostics:

1. Ensure that the screen is clean (no dust particles on the surface of the screen).

2. Unplug the video cable(s) from the back of the computer or monitor. The monitor then goes into the self-test mode.

3. Press and hold Button 1 for 5 seconds. A gray screen appears.

4. Carefully inspect the screen for abnormalities.

5. Press Button 1 on the bottom of the monitor again. The color of the screen changes to red.

6. Inspect the display for any abnormalities.

7. Repeat steps 5 and 6 to inspect the display in green, blue, black, white and text screens.

Common problems

The following table contains general information about common monitor problems you might encounter and the possible solutions:

Common Symptoms Possible Solutions
No Video/Power LED off	·Ensure that the video cable connecting the monitor and the computer is properly connected and secure.·Verify that the power outlet is functioning properly using any other electrical equipment.·Ensure that the power button is pressed.·Ensure that the correct input source is selected via the Input Source menu.
No Video/Power LED on	·Increase brightness and contrast controls using the OSD.·Perform monitor self-test feature check.·Check for bent or broken pins in the video cable connector.·Run the built-in diagnostics.·Ensure that the correct input source is selected via the Input Source menu.
Poor focus	·Eliminate video extension cables.·Reset the monitor to Factory Settings (Factory Reset).·Change the video resolution to the correct aspect ratio.
Shaky/Jittery video	·Reset the monitor to Factory Settings (Factory Reset).·Check environmental factors.·Relocate the monitor and test in another room.
Missing pixels	·Cycle power On-off.·Pixel that is permanently off is a natural defect that can occur in LCD technology.·For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at: www.dell.com/support/monitors.
Stuck-on pixels	·Cycle power On-off.·Pixel that is permanently off is a natural defect that can occur in LCD technology.·For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at: www.dell.com/support/monitors.
Brightness problems	·Reset the monitor to Factory Settings (Factory Reset).·Adjust brightness & contrast controls via OSD.
Geometric distortion	·Reset the monitor to Factory Settings (Factory Reset).·Adjust horizontal & vertical controls via OSD.
Horizontal/Vertical lines	Reset the monitor to Factory Settings (Factory Reset).·Perform monitor self-test feature check and determine if these lines are also in self-test mode.·Check for bent or broken pins in the video cable connector.·Run the built-in diagnostics.
Synchronization problems	Reset the monitor to factory settings (Factory Reset).Perform monitor self-test feature check to determine if the scrambled screen appears in self-test mode.Check for bent or broken pins in the video cable connector.Restart the computer in safe mode.
Safety related issues	Do not perform any troubleshooting step.Contact Dell immediately.
Intermittent problems	Ensure that the video cable connecting the monitor to the computer is connected properly and is secure.Reset the monitor to Factory Settings (Factory Reset).Perform monitor self-test feature check to determine if the intermittent problem occurs in self-test mode.
Missing color	Perform monitor self-test feature check.Ensure that the video cable connecting the monitor to the computer is connected properly and is secure.Check for bent or broken pins in the video cable connector.
Wrong color	Change theColor Setting Modein the Color Settings OSD to Graphicsor Videodepending on the application.Try differentPreset Modesin Colorsettings OSD. Adjust R/G/B value inCustom Colorin Colorsettings OSD.Change theInput Color Formatto RGBor YPbPrin the Color settings OSD.Run the built-in diagnostics.
Image retention from a static image left on the monitor for a long period of time	Use the Power Management feature to turn off the monitor at all times when not in use (for more information, seePower management modes.Alternatively, use a dynamically changing screensaver.
Video ghosting or overshooting	Change theResponse Timein the Display OSD to Extreme, Fast orNormaldepending on your application and usage.

Product-specific problems

Specific Symptoms	Possible Solutions
Screen image is too small	Check the Aspect Ratio setting in the Display settings OSD.Reset the monitor to Factory Settings (Factory Reset).
Cannot adjust the monitor with the buttons on the bottom of the panel	Turn off the monitor, unplug the power cord, plug it back, and then turn on the monitor.
No input signal when user controls are pressed	Check the signal source. Ensure the computer is not in standby or sleep mode by moving the mouse or pressing any key on the keyboard.Check if the video cable is plugged in properly. Disconnect and reconnect the video cable if necessary.Reset the computer or video player.
The picture does not fill the entire screen	Due to different video formats (aspect ratio) of DVDs, the monitor may display in full screen.Run the built-in diagnostics.

Safety instructions

WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards, and/or mechanical hazards.

For information on safety instructions, see the Product Information Guide.

FCC Notices (U.S. Only) and Other Regulatory Information

For FCC notices and other regulatory information, see the regulatory compliance website located at www.dell.com/regulatory_compliance.

Contacting Dell

For customers in the United States, call 800-WWW-DELL (800-999-3355).

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area.

To get online Monitor support content:

1. Visit www.dell.com/support/monitors.

To contact Dell for sales, technical support, or customer service issues:

1. Visit www.dell.com/support.
2. Verify your country or region in the Choose A Country/Region drop-down menu at the bottom of the page.
3. Click Contact Us on the left side of the page.
4. Select the appropriate service or support link based on your need.
5. Choose the method of contacting Dell that is convenient for you.

WARNING: For displays with glossy bezel, ensure to place it correctly to avoid disturbing reflections from surrounding light and bright surfaces.

Pin assignments

D-Sub 15-pin connector

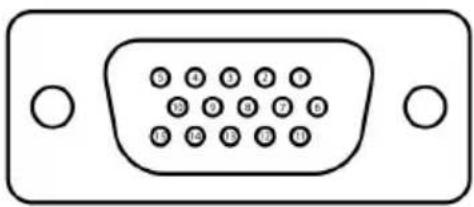

Front view of a V12D D-sub connector (no text or symbols)

Pin Number	Signal Assignment
1 Video-Red
2 Video-Green
3 Video-Blue
4 GND
5 Self-test
6 GND-R
7 GND-G
8 GND-B
9 DDC +5 V
10 GND-sync
11 GND
12 DDC data
13 H-sync
14 V-sync
15 DDC clock

Pin assignments

HDMI 19-pin connector

19 17 15 13 11 9 7 5 3 1 18 16 14 12 10 8 6 4 2

Pin Number	Signal Assignment
1 TMDS	DATA 2+
2 TMDS	DATA 2 SHIELD
3 TMDS	DATA 2-
4 TMDS	DATA 1+
5 TMDS	DATA 1 SHIELD
6 TMDS	DATA 1-
7 TMDS	DATA 0+
8 TMDS	DATA 0 SHIELD
9 TMDS	DATA 0-
10 TMDS	CLOCK+
11 TMDS	CLOCK SHIELD
12 TMDS	CLOCK-
13 CEC
14 Reserved (N.C. on device)
15 DDC CLOCK (SCL)
16 DDC DATA (SDA)
17 DDC/CEC Ground
18 +5V POWER
19 HOT PLUG DETECT
