BL 7147 - Blender COMELEC - Free user manual and instructions

Product Type	Table Blender
Model	BL 7147
Brand	Comelec
Power	1200 W
Voltage / Frequency	220-240 V ~ 50/60 Hz
Jar Capacity	1.5 L
Jar Material	Glass
Speed Control	Start knob with 3 speeds (slow, medium, fast) + function buttons
Functions	Pulse, Ice Crushing (30s), Smoothie (1 min at 95% power)
Blade Material	Stainless steel (estimated)
Safety Features	Lid lock, blade stop before removal, sharp blade warning
Maximum Continuous Operation	1 minute (with pauses)
Cleaning	Wipe motor unit with damp cloth; jar and lid washable
Dimensions (Approx.)	20 x 20 x 40 cm (estimated)
Weight (Approx.)	2.5 kg (estimated)
Class	Class II (double insulation)
Included Accessories	Measuring cup, lid, glass bowl, blade assembly, bowl holder
Intended Use	Domestic only

Frequently Asked Questions - BL 7147 COMELEC

How do I clean the blender?

Always unplug first. Wipe the motor unit with a damp sponge. Never immerse it in water. The glass jar, lid, and blade can be washed with warm soapy water. Handle the blade carefully as it is very sharp.

What is the maximum capacity of the jar?

The glass jar has a capacity of 1.5 liters. Do not exceed the maximum fill line and avoid processing very hot liquids.

Can I blend hot ingredients?

No, do not put hot ingredients into the bowl. Allow food to cool for a few minutes before blending to avoid risk of steam pressure and damage.

How long can I run the blender continuously?

Maximum continuous operation is 1 minute. For longer tasks, use pulses with 5-second pauses between cycles.

What do the function buttons do?

The three function buttons are: Pulse (press and hold for short bursts), Ice Crushing (runs for 30 seconds), and Smoothie (runs for 1 minute at 95% power). You can also use the speed knob for manual control.

How do I lock the glass bowl in place?

Place the filled bowl onto the host, then turn it clockwise until it locks. Lift slightly to verify it is secured before operating.

Is the blade removable for cleaning?

Yes, the blade assembly can be detached from the glass bowl for thorough cleaning. Always handle with care due to sharp edges.

Can I use the blender for ice crushing?

Yes, press the Ice Crushing button which operates for 30 seconds. For best results, add a little water and use ice cubes.

What should I do if the blender stops working?

Check if the appliance is properly plugged in, the bowl is correctly locked, and the unit hasn't overheated. If issues persist, contact customer service. Do not operate with a damaged cord or plug.

Can I blend baby food?

Yes, chop cooked food into small pieces, add broth or milk, and use Pulse function or low speed. Check for adequately blended consistency before serving.

USER MANUAL BL 7147 COMELEC

Exterior view of a modern kitchen blender with clear glass and black handle (no visible text or symbols)

TB-6012A TABLE BLENDER

Please read carefully and keep the instruction well

DESCRIPTION:

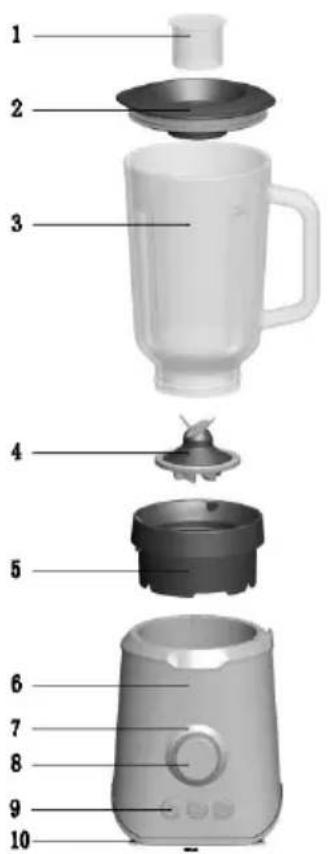

Exploded view diagram of a blender with numbered parts for identification

Line drawing of a blender with handle and lid, no text or symbols present

Line drawing of a blender with two sides, showing internal structure and top-down view (no text or symbols)

1. Measuring Cup

2. Lid

3. Glass Bowl

4. Blade

5. Glass Bowl Holder

6. Body

7. LED Indicator Light

8. Start Knob

9. Function Button

10.Rubber Feet

Line drawing of a kitchen blender with control panel and side buttons (no text or symbols)

Important Safeguards

When using electrical appliances, to reduce the risk of fire, electric shock, and/or injury to persons, basic safety precautions should always be followed, including the following:

You should respect the following safety warnings:

⚠ WARNING: The blades of the knife are extremely sharp. Handle them with caution.

1. Read all instructions carefully.
2. To protect against electric shock, do not place cord, plug or appliance in water or other liquid.
3. Close supervision is necessary when any appliance is used by or near children.

4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless instructions concerning use of the appliance by a person responsible for their safety.

5. Unplug from outlet when not in use and before cleaning.

6. Do not operate any appliance with a damaged cord or plug, in case of appliance malfunctions or if the appliance has been damaged in any manner.

7. The use of accessory attachments not recommended by manufacturer may cause malfunctions.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter, or touch hot surfaces.

10. Do not place the appliance on or near hot gas or electric burner, or in a heated oven.

11. This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the

instructions, the manufacturer accepts no responsibility and guarantee is no more valid.

1. Do not use your food processor if any part is broken.
2. Do not put the appliance, the power cord or the plug into water or any other liquid.
3. Make sure that the cover is securely locked in place before operating the appliance.
4. Never place ingredients in the container by hand and while the appliance is in use. Always use the food pusher.
5. The blade and discs are sharp. Handle carefully. Store out of reach of children.
6. If the power cord or the plug are damaged, do not use your appliance.
7. For your own safety, please use only the original accessories and spare parts which are suitable for your appliance.
8. Never remove the lid until the knife has stopped completely.
9. This appliance is designed to process small quantities. Do not exceed the quantities indicated in these instructions for use.
10. Do not use this appliance to mix glutinous food or substance.
11. Do not use appliance for other than intended use.
12. For your safety, this appliance conforms to the appliance standards, regulations and directives of Low Voltage, Electromagnetic Compatibility, Environment, etc.

SAVE THESE INSTRUCTIONS

Using Your Appliance

Before first use, clean the various parts of the appliance.

Notes:

- When plug in the appliance, three function buttons will with blue

flashing light. After the glass jar is fixed, the light will stop flashing. The start knob allows you use variety speeds from mini power to max power.

• The start knob allows you to use 3 speeds:
  * speed 1 (slow): rotate to position 1
  * speed 2 (medium): rotate to position 2
  * speed 3 (fast): rotate to position 3
• When you use start knob for your speed control, the function button cannot work in the meantime.
• Three function button for your reference
  * Pulse function. * Ice Crushing function. * Smoothie function.
• When you using function button for your food, you can change the buttons base on your need. Besides can also choose to use the start knob for speed control, after you do that, you cannot use the function button in the meantime.
  • The glass jar is 1.5 L.

Blending with speed nob

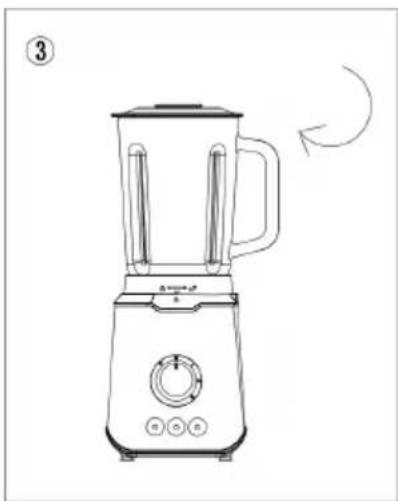

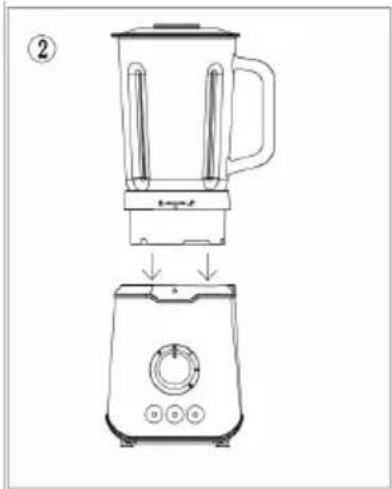

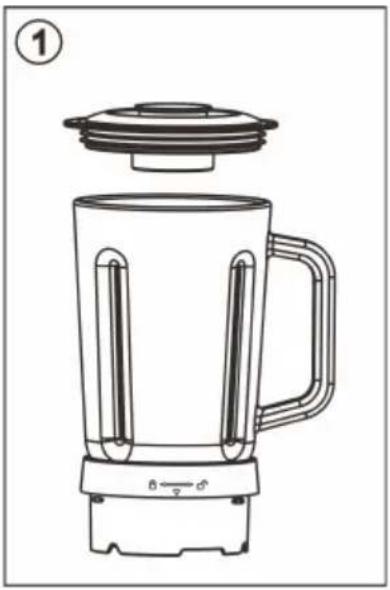

- Pour in the ingredients and cover the glass bowl (Fig. 1), and then place the bowl into the host (Fig. 2) and turn clockwise (Fig. 3). Lift the glass bowl to check it is locking whether or not.

- Plug in the appliance and rotate the start knob to which speed you need.

- At the end of preparation, rotate the start knob to position 0FF, unplug the appliance and wait until the blades come to a complete stop.

- Remove the glass bowl and take off the lid, then pour out the ingredients.

Blending with function button

•Pulse function

When you press button “Pulse”, you should press it continuously, when the foods are finished, please release it.

- Ice Crushing function

When you press this button, this will last for 30s.

- Smoothie function

When you press this button, it will work with 95% power for 1min.

Baby Food

To mix or blend cooked food:

- Chop the food into small pieces, add some broth (meat or vegetables) and mix the ingredients with pulses. To blend the mixed food, rotate the start knob till you reach the desired result.

For fruit preserves:

- Chop the fruits into small pieces, add some milk, water or juice and mix the ingredients with pulses. To blend the fruits, rotate the start knob till you reach the desired result.

CAUTION: Maximum time of processing should not exceed 1

minute continuous use. In order to achieve below processing times, use the appliance with pulses and intermediate 5 second pauses.

CAUTION: DO NOT OPERATE THE UNIT WHEN

EMPTY.

CAUTION: DO NOT PUT HOT INGREDIENTS INTO

THE BOWL. BEFORE FOOD PREPARATION, ALLOW FOOD TO COOL DOWN FOR A FEW MINUTES.

CAUTION: Before you eat or serve blended food, please

always check for ingredients that might have not been blended adequately.

GENERAL:

For better results: please make sure that the quantity of ingredients fully covers the blade while chopping solid food.

Care and Cleaning

• Always unplug the appliance first.
- Only use a damp sponge to clean the motor unit. Never place it in water, or under running water.

TECHNICAL SPECIFICATION

Voltage: 220-240V\~50/60Hz

Power: 1200W

Class II
