HO3807ICL - Oven COMELEC - Free user manual and instructions

Product type	Electric countertop oven
Brand	Comelec
Model	HO3807ICL
Power	1800 W
Voltage	220-240 V ~
Frequency	50 Hz
Approximate dimensions (W x D x H)	50 x 40 x 35 cm
Approximate weight	8 kg
Oven capacity	35 L (approx)
Material	Stainless steel and glass door
Heating modes	Top heating, bottom heating, top & bottom heating, convection, grill
Convection	Yes, with rotisserie function
Timer	Up to 60 minutes with auto shut-off and bell
Interior light	Yes, turns on when timer is set
Temperature range	Up to 250 °C (thermostat control)
Safety features	Auto shut-off, heat-resistant surfaces, warning labels
Cleaning instructions	Unplug and wipe with soft cloth and mild soap; do not immerse
Repairability	Contact qualified service center; do not repair yourself
Warranty	2 years from date of purchase
Included accessories	Bake tray, wire rack, rotisserie spit (assumed)

Frequently Asked Questions - HO3807ICL COMELEC

How do I preheat the oven?

Set the thermostat dial to the desired temperature, select the heating mode (top & bottom recommended), and turn the timer to about 10-15 minutes. The oven will heat up. The power light will turn on and the interior light will come on.

Why is there smoke coming out during first use?

A small amount of smoke is normal during the first 5-10 minutes as manufacturing residues burn off. Ensure the oven is in a well-ventilated area and run it empty for about 10-15 minutes before using it for food.

How do I clean the oven?

Always unplug the oven and let it cool completely. Wipe the exterior and interior with a soft cloth dampened with mild soapy water. Do not use abrasive cleaners or immerse the oven in water. Avoid cleaning the heating elements with metal pads.

Can I use aluminum foil in the oven?

No, do not cover any surface of the oven with aluminum foil as it can cause overheating or short circuits. Use the provided bake tray or wire rack instead.

What does the timer auto shut-off do?

When the set cooking time elapses, the timer automatically turns off the oven and a bell rings. This prevents overcooking and reduces energy consumption. You can also turn the timer to OFF manually to stop the oven earlier.

How do I use the convection function?

Turn the rotisserie/convection selector dial to the convection position (usually marked with a fan icon). Then set the temperature and timer as desired. The convection fan will run automatically to circulate hot air for even cooking.

What is the maximum temperature?

The thermostat can be set up to 250 °C, which is ideal for grilling and baking. Always use oven mitts when handling hot trays or racks.

Can I cook with both top and bottom heating at the same time?

Yes, select the 'Top & Bottom heating' mode on the heating selector dial. This is suitable for baking cakes, breads, and roasting meats.

Is the oven safe to use around children?

The oven reaches high temperatures and has hot surfaces. Supervise children closely and keep them away when in use. The oven can be used by children aged 8+ with supervision and understanding of the risks.

What should I do if the power cord is damaged?

Do not use the oven. The cord must be replaced by the manufacturer, its service agent, or a qualified technician to avoid hazard. Contact Comelec customer support or an authorized service center.

USER MANUAL HO3807ICL COMELEC

Thank you for purchasing this COMELEC product, this device has been checked in all its components meticulously, so we guarantee the correct operation, but for this to be case we need that YOU read the instruction book carefully, as this will contribute to the best performance of this article. P.G.E. S.L guarantees to the buyer of this product, a total guarantee of TWO YEARS, governed by the established conditions whose regulation is found in Royal Legislative Decree 1/2007 of 16 December, which approves the revised text the General Law for the Defense of Consumers and Users, (articles 114 to 127). P.G.E. S.L is committed to repairs are completely free, labor and spare parts, including. The Technical Assistance Service will resolve any repairs that may be required by this apparatus. Carefully review the INSTRUCTION BOOK included, on the use, maintenance and conservation of the device. Any anomaly that could occur due to non-observance of such instructions will not be protected for the guarantee. The date of sale of the device, for the purposes of warranty period, will be that which appears on the purchase invoice. Guarantee operation: As regards all those compliance defects detected by the technical assistance, which are manifested within six months of the delivery of the goods, it is assumed that they already existed on that date, the intervention will be completely free, (unless this hypothesis is incompatible with the nature or nature of the conformity defect). During the following eighteen months, it must be the user who demonstrates. That the lack of conformity it was coming at the time of delivery.

MANUFACTURED CHINA FOR COMELEC

DECLARATION OF CONFORMITY

Manufacturer: PRAGMATICA GRUPO EUROPEO, S.L Adress: Tapissers 10 Poligono Industrial Els Mollons Post Code, 46970 City: Alaquas VALENCIA We declare under our responsibility that the product: Product Description: Electric Oven Model: HO3807 ICL Brand: COMELEC It complies with the European Union legislation in compliance with the 2004/108 / EU guidelines: The standards apply: EN 55014-1: 2006+A1:+A2; EN 55014-2: 1997+A1:+A2; EN 61000-3-2:2006+A1:+A2; / EN 61000-3-3:2013 Name: Pablo Gonzalez Position: Administrator Date: 25 Agosto 2021 Signature:

INFORMATION ON RECYCLING

Disposal of the old appliance, the European Directive 2002/96 / EC on waste equipment Electrical and Electronic (WEEE), establishes that old appliances can not be thrown municipal waste without normal classification. Appliances have to be collected separately with the to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The symbol "container with wheels" crossed out on the product reminds you of obligation, that when you dispose of the device must be collected separately.

Consumers should contact the local or retail authority to obtain information about the correct disposal of your old device.

Pragmatica Grupo Europeo, S.L

Tapissers 10 Poligono Industrial Els Mollons 46970 Alaquas VALENCIA Tfno. 963 313 252

USER

DATE OF SALE

Seller's signature and stamp

IMPORTANT: To make the guarantee effective, the SELLER must fill out, sign and stamp this Certificate. To receive assistance under the conditions set forth in this certificate, please submit to the Technical Service Authorized, this document next to the Purchase Invoice.

Exterior view of a modern kitchen toaster oven with visible grilles and control knobs (no text or symbols)

CARACTERISTICAS TÉCNICAS

Modelo : HO 3806 ICL

Voltaje: 220-240V \~

Frecuencia. 50 Hz

Potencia: 1.800 W

When timer is turned on, the inside lamp is ON.

When timer is turned off, the inside lamp is OFF.

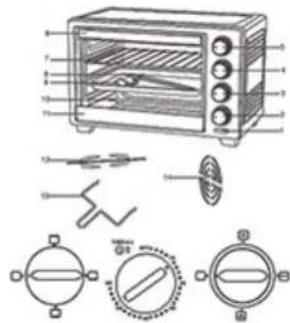

HEATING SELECTOR DIAL

1. OFF 2. Top heating 3. Bottom heating 4. Top & Bottom heating

BEFORE USE:-Ensure that there is enough ventilation around the oven.Ensure that the oven is completely dry before use.The oven should not be placed on untreated wooden surface.Place the oven on a heat resistant surface.The feet of the oven can leave some marks on the table, if this happens, remove the marks with a damp cloth. OVEN USE: Turn the thermostat dial clockwise to the desired temperature.Turn the Rotisserie/convection selector dial to the desired position.

Turn the Heating selector dial to the desired position. Turn the timer dial clockwise to the desired cooking time. The power light will light up after timer is turned on, and will go out when the timer is turned to OFF. When the cooking time is over, the timer will auto shut off and the bell will ring. If the cooking is finished earlier than the set cooking time, please turn back the timer to OFF to turn off the oven. In the first use this oven, there might be some light smoke coming out from the oven this is normal. After 5-10 minutes the smoke will disappear. In order to get better cooking performance, it is recommended to pre-heat the oven about 10-15 minutes. USE OF THE CONVEC

TION: When you have selected the desired time and the function select convection and turbo will be launched automatically. USE OF THE INTERIOR LIGHT: When you connect the oven, the interior light will be switched on automatically. COOKING WITH THE GRILL.Turn the GRILL knob (Upper resistance)Turn the temperature selector 250°.Set the timer in the desired position. When the food is done, turn the selector to the OFF position to turn off the oven.AFTER USING:*Turn off the oven to allow it to cool.*Set the selector to "OFF" position.* Unplug the oven from the electrical outlet.* Wait until the oven is completely cold for any cleaning process or maintenance.

CLEANING AND MAINTENANCE: Always unplug the appliance before cleaning it. Do not immer se the appliance in water or any other liquid. The whole oven can be cleaned with soft cloth. If any stain appears the use of soap is recommended. Do not use any abrasive product to clean the appliance. Clean the inside of the oven with a clean cloth. WARNING: TO AVOID RISK OF

INJURY OR BURNS, DO NOT TOUCH HOT SURFACES WHEN OVEN IS IN USE.ALWAYS

USE OVEN MITTS. CAUTION: Always use extreme care when removing bake tray, wire rack or a any hot container from a hot oven. Always use therack handle, or an oven mitt removing hot items from the oven.

IMPORTANT SAFETY INSTRUCTIONS: When using your toaster oven, basic safety precautions should always be observed, including the following: * Read all instructions before using or cleaning. * Do not touch hot surfaces. Use handles or gloves. * Maintain supervision when using the appliance near children or if they use it. * To prevent electrocution, do not immerse the cord, plug or any other part of the oven in water or any other liquid. * Do not allow the cable hang over edge of table or counter or touch hot surfaces. * Do not operate the appliance with a damaged cord or plug or after the appliance has run wrong or has been damaged in any way. If the appliance is damaged or broken, please do not repair it yourself, if the power cord or plug is broken or damaged, please do not repair or change it send the appliance yourself to a quali fi ed service center for repair or service. * The use of accessories not recommended by the manufacturer may cause damage or personal injury. * Do not place the appliance near sources of heat, both electric and gas, or the microwave. * When using the oven, always leave enough space, about 10 cm, both on the sides and behind so that the appliance has adequate ventilation. * Always unplug the appliance you are going to handle or clean it. * Be extremely careful when moving the appliance, especially if it contains hot oil or other liquids. * Do not cover any surface of the OVEN with aluminum foil. * Do not clean the electrical parts with any metal scouring pad, it could cause some short circuit. Never leave the appliance running unattended when grilling or toasting. * Do not insert food larger than those foreseen for the size of the oven, it could cause some electro shock. * Do not leave any flammable materials, such as curtains, carpets, etc., they could cause a fire. * Exercise extreme caution when using metal or glass containers. * Do not place none of the following materials in the oven: cardboard, plastic, paper or the like. * Do not use any accessories not recommended for this oven. * Always wear protective gloves from the heat when putting food in or taking food out of the Oven, if it is hot. * Do not use in the exterior. * Do not use this product for other than that for which it was designed. * This apparatus can be used by children 8 years of age or older and people with physical, sensory or mental disabilities or lack of experience and knowled ge, if they have been given adequate supervision or instructions on using the appliance safely and understand the dangers involved. * Children must be supervised to ensure that they do not play with the apparatus. * Cleaning and maintenance to be performed by the user. * The glass door is heavy, hold the handle until the door is fully open, do not let the door fall down. * If the power cord is damaged, it must be replaced by the manufacturer, its service agent or by quali fi ed personnel in order to avoid the hazard. * The temperature of accessible surfaces may be high when the appliance is on.

functioning. *The appliances are not designed to be operated by an external timer or a separate remote control system. * The symbol means that there are very hot surfaces, please exer cise caution. BEFORE USING YOUR OVEN. *Make sure there is sufficient ventilation around the oven. * Make sure the oven is completely dry before use. - The oven must not be placed on an untreated wooden surface. *Place the oven on a heat resistant surface. *The oven legs may leave some marks on the table, if this happens, remove the marks with a damp cloth.

Exterior view of a modern kitchen oven with control knobs and grilles (no visible text or symbols)

This oven complies with the A13 reformed regulation

SUITABLE FOR FAMILY USE.

This product is for home use only.

TECHNICAL SPECIFICATIONS

Model : HO 3807 ICL The rated power : 220-240 \~ Frequency : 50 Hz Power : 1.800 W

PLEASE READ THE INSTRUCTIONS CAREFULLY OF THIS MANUAL BEFORE STARTING. DO NOT HANDLE THIS OVEN INTERNALLY.

The texts, photos, colors, figures and data correspond to the current technical level from the moment they have been printed. We reserve the right to modifications motivated by the permanent development of the technique in our products

MANUAL DE INSTRUÇÕES

Exterior view of a modern kitchen oven with control knobs and grilles (no visible text or symbols)
