USER MANUAL RC 1200 Ottimo Rommelsbacher

Abstract geometric pattern with vertical lines inside a circular frame (no text or symbols)

ROMMELSBACHER

Black-and-white photo of a grater with various food items on its tray, including bread, mushrooms, and a knife (no visible text or labels)

RC 1200 Ottimo

Gourmet Raclette

General safety advices 12

Safety advices for using the appliance .... 12

Prior to initial use....14

How to operate your appliance....14

Cleaning and maintenance 15

Tips 15

Produktbeschreibung

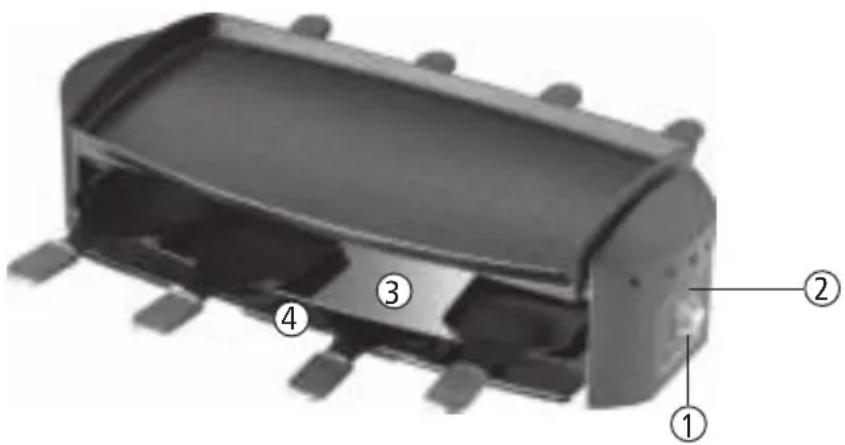

Technical diagram of a mechanical component with numbered parts labeled ① to ④

1 rotary knob for setting the temperature

2 pilot lamp

3 raclette level

4 pan storage area ('parking' level)

Introduction

We are pleased you decided in favour of this superior Gourmet Raclette Grill and would like to thank you for your confidence. Experience the multitude of possibilities provided by

its easy operation and wide range of applications will certainly fill you with enthusiasm. To make sure

observe them. Keep this instruction manual safely. Hand out all documents to third persons when passing on the appliance. Thank you.

Intended use

The appliance is designed for preparing foods (domestic use only). Other uses or modifications of the appliance are not intended and harbour considerable risks. For damage arising from not intended use, the manufacturer does not assume liability. The appliance is not designed for commercial use.

Technical data

Only connect the appliance to an isolated ground receptacle installed according to regulations.

The rated voltage must comply with the details on the rating label. Only connect to alternating current.

Nominal voltage: 230 V\~ 50 Hz

Nominal power: 1200 W

Dimensions, ca.: 51 x 23.5 x 13.5 cm

Packing material

Do not simply throw the packing material away but recycle it. Deliver paper, cardboard and corrugated cardboard packing to collecting facilities. Also put plastic packing material and foils into the intended collecting basins.

02 PE-HD 04 PE-LD 05 PP 06 PS

In the examples for the plastic marking PE stands for polyethylene,

the code figure 02 for PE-HD, 04 for PE-LD, PP for polypropylene, PS for polystyrene.

For your safety

WARNING: Read all safety advices and instructions. Non-observance of the safety advices and instructions may cause electric shock, fire and/or bad injuries!

General safety advices:

maintaining the appliance.

experience in operating the appliance or having handicaps of physical, sensorial or mental nature must not operate the appliance without supervision or instruction by a person, responsible for their safety. Never leave the appliance unattended during operation.

the appliance.

system.

it must not be operated if it has been dropped or shows visible damage. In these cases, the power supply must be disconnected and the appliance has to be checked by a specialist.

or stumble over it in order to avoid that the appliance is pulled down accidentally.

forces. Check the power cord regularly for damage and deteriorations. Damaged or entangled cords increase the risk of an electric shock.

cleaning.

case of signs of damage to the appliance or the power cord, unplug the appliance immediately. Repairs may be affected by authorised specialist shops only. Improper repairs may result in considerable dangers for the user.

claims.

Safety advices for using the appliance:

WARNING: Hazard of injury and burns!

Housing surfaces, grill plate, pans and other components are getting hot during use and firstly stay hot after switch-off!

Thus, act with caution:

it will get hot when operating the appliance! As protection against fire, do material on hot surfaces!

oils may only be prepared under supervision!

not touch the heating element! Bread toasted too long can also inflame!

have cooled completely before cleaning or moving them!

o Place the appliance on a heat-resistant, stable and even surface (no varnished surfaces, no table cloths etc.).
o Place it beyond children's reach.
o Do not operate the Raclette in the proximity of or below curtains, wall cupboards or other inflammable materials.
Leave a ventilation distance of at least 50 cm to all sides and 1 m above the appliance to avoid damage by heat or fat splatters and to grant an unobstructed work area. Unhindered air supply has to be ensured.

o Do not operate the appliance in the vicinity of sources of heat (oven, gas flame etc.) or in explosive environments, where inflammable liquids or gases are located.

Attention! Hazard of fire! This appliance is not qualified for installation.

Prior to initial use

For a start, please clean the grill plate, the pans and the small shovels in warm water with a little amount of dishwashing detergent.

Prior to initial operation, the heating elements' protective layer has to be burned in. In order to do so, please heat up the appliance without pans at maximum power for about 10 minutes. Please do not be bothered by the harmless smokes and smells that will be generated for a short while.

As with other grill plates and pans that have a non-stick coating, it is recommended for the first use to brown a little bit of bacon or to spread a small amount of oil on/in it so that the grilled food comes loose more easily.

Caution! If too much fat is spread on the grill plate, the fat might splash.

How to operate your appliance

reached.

CAUTION, HOT! When inserting the pans mind not to touch the hot edge of the grill plate! Slide in

out. You can also use other utensils made of wood or plastic. However make sure that those are not in contact with hot areas for a longer period of time. Under no circumstances must you use any cooking utensils made of metal as the non-stick coating might be damaged otherwise.

out. You can also use other utensils made of wood or plastic. However make sure that those are not in contact with hot areas for a longer period of time. Under no circumstances must you use any cooking utensils made of metal as the non-stick coating might be damaged otherwise.

area if you take a little break from eating.

might cause damage to the coating.

perfect way. This allows you to cook your dishes in a healthy manner while generating little smoke.

plates are not covered by warranty.

Cleaning and maintenance

ATTENTION: Hazard of injury and burns!

Before cleaning, always unplug the appliance and let all parts cool down.

Clean grill plate, pans and small shovels in lukewarm water with a little amount of dishwashing detergent. Soak severe soiling firstly with some oil.

Wipe the heating element with a damp cloth only.

sprays. Changes in colour of the stainless steel surfaces can be removed with a special stainless steel cleansing agent.

Never immerse appliance, cable or plug in water! Make sure no water or steam may infiltrate the appliance from below either.

The appliance must not be treated with a steam cleaner.

Tips

The grill plate has a non-stick coating, which requires a slight greasing only for the first use. Afterwards no further greasing is necessary.

Make sure the food does not get in contact with the heating element as otherwise it will burn.

Only season cheese after melting as spices burn at high temperatures and generate unpleasant smoke.

If possible, the food to be grilled should be taken out of the fridge 12 hour before you start grilling. It will roast more quickly and you avoid thicker meat staying cold inside.

Oil lean meat slightly before grilling. The best results are achieved with small and tender pieces of meat.

out is clear.

Sausages should be pierced before grilling so that they do not burst.

Spices and marinades might generate smoke when grilling. To avoid this you may use non-seasoned/non-marinated raw meat and rather offer seasoning mixtures and barbecue sauces as side dish.

Of course, you can also grill vegetables and fish.

As side dishes, we recommend fresh salads and cooked potatoes.
