Kasa Spot KC100 - Security Camera TP-LINK - Free user manual and instructions

Product Type	Indoor Security Camera
Model	Kasa Spot KC100
Brand	TP-Link
Dimensions	3.5 x 2.2 x 2.2 inches (89 x 56 x 56 mm)
Weight	3.2 oz (90 g)
Power Supply	Micro USB (5V/1A adapter included)
Video Resolution	1080p Full HD (1920 x 1080)
Field of View	130° diagonal
Night Vision	Up to 30 ft (9 m) with infrared LEDs
Audio	Two-way audio with built-in microphone and speaker
Connectivity	Wi-Fi 802.11 b/g/n (2.4 GHz)
Motion Detection	Yes, with customizable zones and alerts
Storage	Free cloud storage (last 24 hours) or local microSD card up to 128 GB (not included)
Compatibility	Amazon Alexa, Google Assistant, IFTTT
Operating Temperature	32°F to 104°F (0°C to 40°C)
Warranty	2-year limited warranty
Cleaning	Wipe with a dry, soft cloth. Do not use liquid or aerosol cleaners.
Mounting	Desk stand or wall mount (screws included)
Safety Certification	FCC, CE, RoHS

Frequently Asked Questions - Kasa Spot KC100 TP-LINK

How do I set up the Kasa Spot KC100 camera?

Download the Kasa app from the App Store or Google Play, create an account, and follow the in-app instructions to add the camera. Connect the camera to power and scan the QR code on the device.

Can I view the camera remotely?

Yes, you can view live video from anywhere using the Kasa app or compatible smart assistants like Alexa and Google Assistant.

Does the camera support night vision?

Yes, it has infrared LEDs that provide clear black-and-white images up to 30 feet in total darkness.

How does motion detection work?

The camera uses passive infrared (PIR) sensor to detect movement. You can customize motion zones and receive instant alerts on your phone.

Can I record video clips?

Yes, you can record manually or set up motion-triggered recordings. Recordings are stored in the cloud for up to 24 hours free, or on a microSD card (not included) for continuous recording.

Is two-way audio available?

Yes, the camera has a built-in microphone and speaker, allowing you to listen and talk through the app.

What are the system requirements?

Requires a stable 2.4 GHz Wi-Fi connection and the Kasa app on iOS 9.0+ or Android 4.4+.

How do I reset the camera to factory settings?

Press and hold the reset button on the bottom for 5 seconds until the LED flashes amber. The camera will reboot and be ready for setup.

Is there a monthly subscription?

No, the basic cloud storage for 24-hour motion alerts is free. You can opt for a paid subscription (Kasa Care) for extended cloud storage and advanced features.

Can I mount the camera on the wall?

Yes, a wall mount bracket and screws are included in the box. The camera also has a built-in stand for tabletop placement.

USER MANUAL Kasa Spot KC100 TP-LINK

Front view of a black square digital camera with white base and stand against cyan background (no text or symbols)

User Guide

Kasa Spot

Contents

About This Guide 1

Introduction 2

Appearance 3

Set Up Your Camera 4

Use Your Camera 6

Authentication 8

About This Guide

This guide provides a brief introduction to the Kasa Spot and the Kasa Smart app, as well as regulatory information.

Please note that features of the product may vary slightly depending on the model and software version you have, and on your location, language and internet service provider. All images, parameters and descriptions documented in this guide are used for demonstration only.

Conventions

In this guide, the following convention is used:

Convention	Description
Teal	Key information appears in teal, including management page text such as menus, items, buttons and so on.
Underline	Hyperlinks are in teal and underlined. You can click to redirect to a website.

More Info

• Specifications can be found on the product page at https://www.tp-link.com.
  • Our Technical Support and troubleshooting information can be found at https://www.tp-link.com/support.
  • Frequently Asked Questions (FAQs) can be found at https://www.tp-link.com/support/faq.

Introduction

With the Kasa Spot connected to your home network, you can see what happens in your home even when you're away. This keeps your home safe and give yourself a little peace of mind — all while seeing every detail on your phone.

You can set up and use your Kasa Spot alone, or use it together with other smart home devices including plugs, bulbs, switches and more. All these can be achieved on the Kasa app, which provides:

• Simple Setup - Easily connects your camera to your home network and place it almost anywhere.
  • Crystal Clear Video – 1080p HD, 130° wide-angle video and night vision, make sure you never miss a thing day or night.
  • Live View – keep an eye on what's important to you real-time from anywhere with the Kasa Smart app.
• Instant Activity Alerts – Kasa Spot will immediately send you an alert whenever it detects motion or sound, and save the activity as a snapshot for up to 3 hours*.
• Cloud Storage Plans* – Add cloud storage for video recording and other features with a Kasa Care subscription plan.
  *Upgrade to a Kasa Care subscription plan and enjoy full video recordings up to 30 days.
• Activity Zones – Create multiple activity zones around areas that are important and receive alerts you care about.
• Two-Way Talk – Communicate with others with the built-in microphone and speaker.
• Compatible Displays - Stream live to your Kasa app or to any Google or Alexa supported displays.

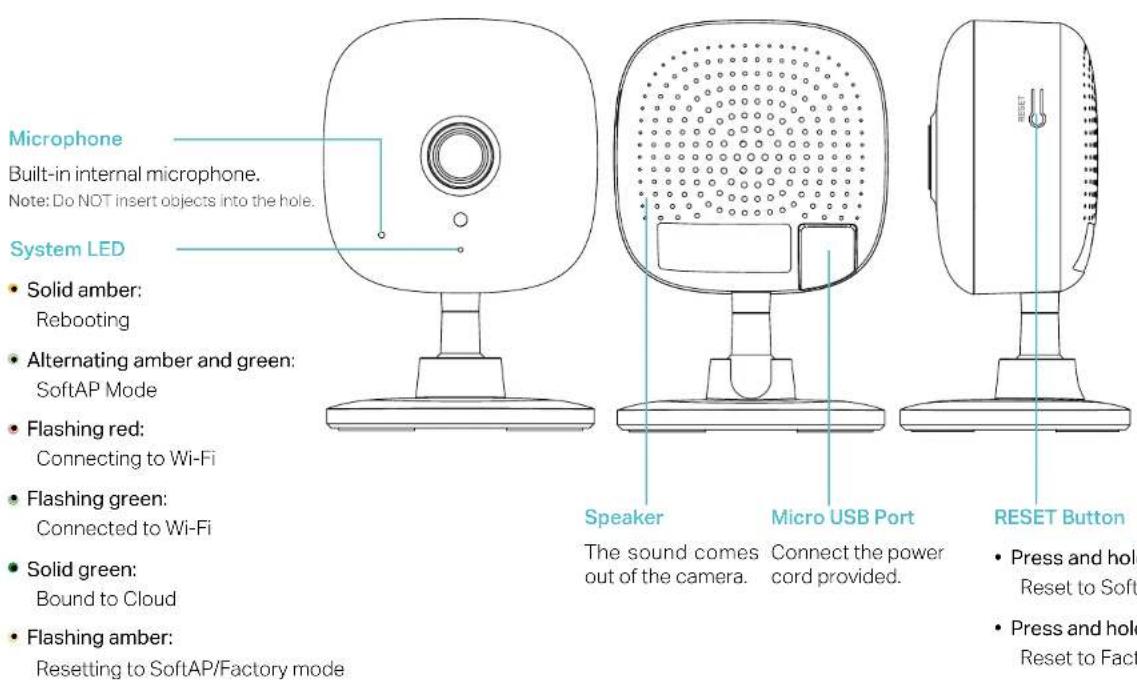

Appearance

Kasa Spot has a system LED that changes color according to its status, a microphone, a speaker, a micro USB port, and a RESET button. Refer below for details.

Set Up Your Camera

Follow the steps below to get started with your new camera.

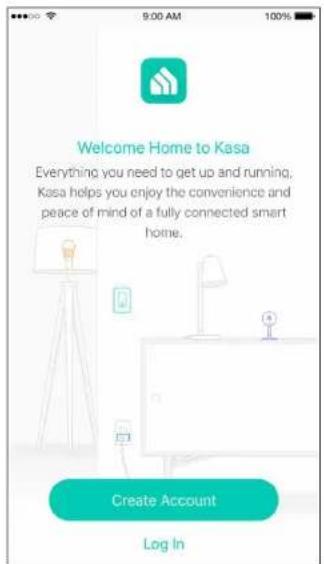

Step 1. Download Kasa

Get the Kasa Smart app from the Apple App Store or Google Play, or by scanning the QR code below.

Step 2. Log In

Open the app, and log in with your TP-Link ID. If you don't have an account, create one first.

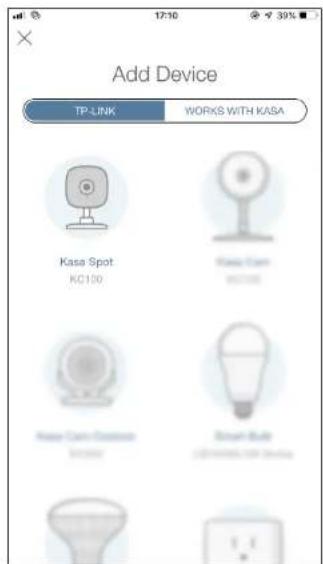

Step 3. Start Setup

Tap the ⊕ button in the Kasa app and select Kasa Spot.

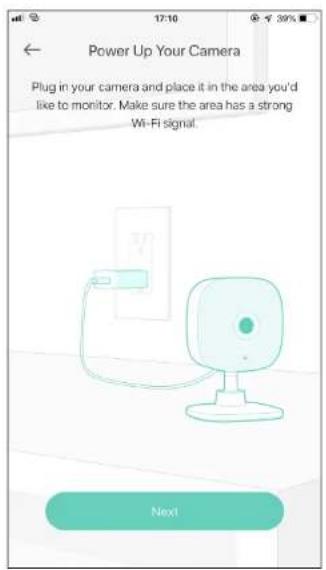

Step 4. Configure Camera

Follow app instructions to configure your camera and add it to your home network.

Step 5. Place Camera

Place your camera on a flat surface, or install it on a wall or ceiling with the provided indicator label and mounting screws.

- For cement wall: Drill two 6mm holes with the help of indicator label, insert the plastic expansion tubes into holes and srew the mounting screws into the expansion tubes.

- For soft surface: Directly screw the screws in.

Two simple line drawings: top shows a webcam on a wall, bottom shows a camera with a green lens (no text or symbols)

Use Your Camera

After initial setup is complete, you can view and manage your camera with the Kasa app.

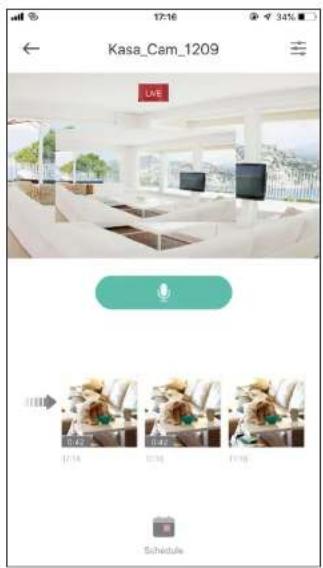

View the Live Video

You can view your camera from anywhere at any time with your phone.

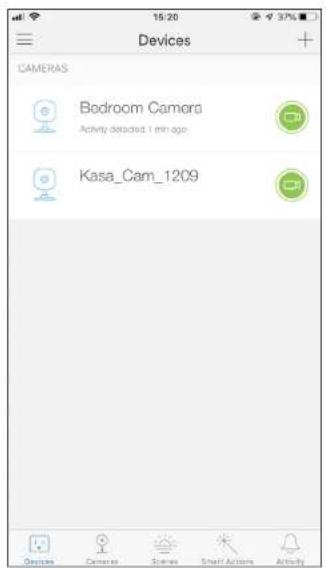

Go to the Devices page, then tap a camera to view the live video.

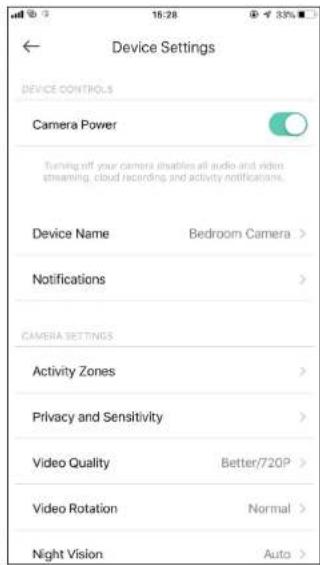

Change Camera Settings

You can change the settings of your camera to meet various needs.

Go to the Devices page, tap a camera, then tap ≡ to view and change camera settings.

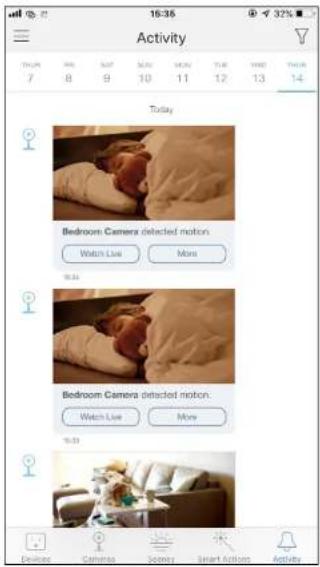

Check Activity Notifications

When you recieve an instant alert you can view live video immediately or check recordings anytime.

Go to the Activity page to view activity notifications on each date. You can tap 📍 for notification settings.

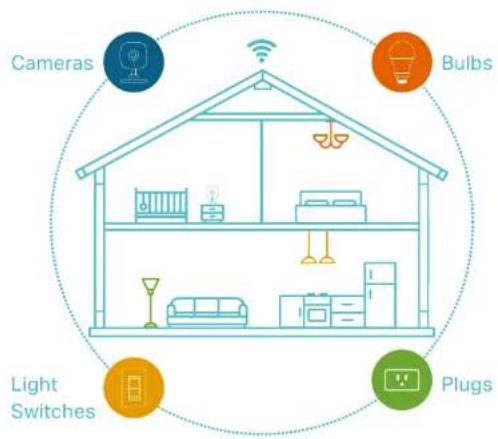

Control Your Camera Smartly

You can easily control your camera together with other smart home devices. With Kasa Smart, your home is never more than a few taps away.

For more information, go to the Kasa Smart app.

Authentication

COPYRIGHT & TRADEMARKS

Specifications are subject to change without notice. ^3 tp-link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd. Copyright © 2019 TP-Link Technologies Co., Ltd. All rights reserved.

FCC compliance information statement

Product Name: Kasa Spot

Model Number: KC100

Component Name	Model FCC Identifier number
AC ADAPTER NBS05	B050100VUU NA

Responsible Party:

TP-Link USA Corporation, d/b/a TP-Link North America, Inc.

Address: 145 South State College Blvd. Suite 400, Brea, CA 92821

Website: http://www.tp-link.com/us/

Tel: [phone]

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
   Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

FCC RF Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

"To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter."

We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.

Issue Date: 2019-03-11

FCC compliance information statement

Product Name: AC ADAPTER

Model Number: NBS05B050100VUU

Responsible Party:

TP-Link USA Corporation, d/b/a TP-Link North America, Inc.

Address: 145 South State College Blvd. Suite 400, Brea, CA 92821

Website: http://www.tp-link.com/us/

Tel: [phone]

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.

Issue Date: 2019-03-11

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

OPERATING FREQUENCY (the maximum transmitted power)

2412MHz—2472MHz (20dBm)

EU Declaration of Conformity

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce

RF Exposure Information

This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection.

The device complies with RF specifications when the device used at 20 cm from your body.

Restricted to indoor use.

Canadian Compliance Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Industry Canada Statement

CAN ICES-3 (B)/NMB-3(B)

Korea Warning Statements:

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended
• Do not use the device where wireless devices are not allowed.
• Adapter shall be installed near the equipment and shall be easily accessible.

• Use only power supplies which are provided by manufacturer and in the original packing of this product. If you have any questions, please don't hesitate to contact us.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

Explanation of the symbols on the product label

Symbol Explanation
	DC voltage
	Indoor use only
	RECYCLINGThis product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.
