Examine your microwave oven

Unpack the oven, remove all packing material, and examine the oven for any damage such as dents, broken door latches or cracks in the door. If you find any damage, notify your dealer immediately. Do not install a damaged microwave oven.

Earthing instructions

IMPORTANT: THIS UNIT HAS TO BE PROPERLY EARTHED FOR PERSONAL SAFETY.

If your AC outlet is not grounded, it is the personal responsibility of the customer to have it replaced with a properly grounded wall socket.

Operation voltage

The voltage has to be the same as specified on the label on the oven. If a higher voltage than specified is used, it may cause a fire or other damages.

Placement of the Oven

This oven is intended for counter-top use only. It is not intended for built-in use or for use inside a cupboard.

1. Place the oven on a flat and stable surface, more than 85 cm above the floor.
2. When this oven is installed, it should be easy to isolate the appliance from the electricity supply by pulling out the plug or operating a circuit breaker.
3. For proper operation, ensure a sufficient air circulation for the oven.

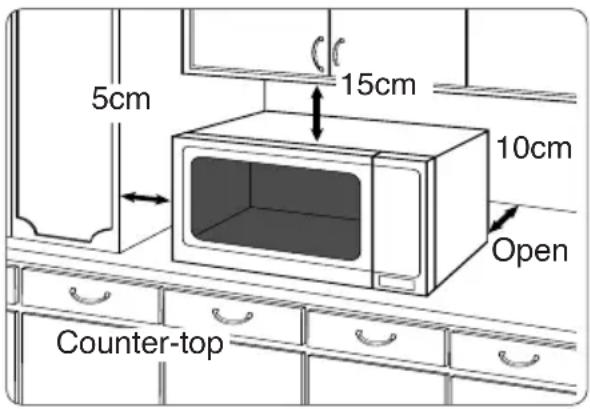

Counter-top use:

a. Allow 15 cm of space on the top of the oven, 10 cm at the back, 5 cm on one side, and the other side must be opened more than 40 cm.
b. If one side of the oven is placed flush to a wall, the other side or top must not be blocked.

5cm 15cm 10cm Open Counter-top

1. Do not place this oven near an electric or gas cooker range.
2. The feet should not be removed.
3. This oven is only for household usage. Do not use outdoors.
4. Avoid using the microwave oven in high humidity.
5. The power cord should not touch the outside of the oven. Keep the cord away from hot surfaces. Do not let the cord hang over the edge of a table or work top. Do not immerse the cord, plug or oven in water.
6. Do not block the air vents on the top and back of the oven. If these openings are blocked during operation the oven may overheat. In this case the oven is protected by a thermal safety device and resumes operation only after cooling down.
7. This appliance is not intended to be operated by means of an external timer or separate remote control system.

Attention: Hot Surfaces

Safety Instructions

WARNING

1. The door seals and door seal areas should be cleaned with a damp cloth. The appliance should be inspected for damage to the door seals and door seal areas and if these areas are damaged the appliance should not be operated until it has been repaired by a service technician trained by the manufacturer.

2. Do not attempt to tamper with or make any adjustments or repairs to the door, control panel housing, safety interlock switches or any other part of the oven. Do not remove the outer panel from the oven which gives protection against exposure to microwave energy.

Repairs should only be done by a qualified service person.

1. Do not operate this appliance if it has a damaged CORD OR PLUG, if it is not working properly, or if it has been damaged or dropped. It is dangerous for anyone other than a service technician trained by the manufacturer to perform repair service.

2. If the supply cord of this appliance is damaged, it must be replaced with the special cord available from the manufacturer.

3. Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

4. Liquids and other foods must not be heated in sealed containers since they are liable to explode.

Use of your oven

1. Do not use the oven for any reason other than the preparation of food. This oven is specifically designed to heat or cook food. Do not use this oven to heat chemicals or other non-food products.

2. Before use, check that utensils/containers are suitable for use in microwave ovens.

3. Do not attempt to use this microwave oven to dry newspaper, clothing or any other materials. They may catch on fire.

4. When the oven is not being used, do not store any objects other than oven accessories inside the oven in case it is accidentally turned on.

5. The appliance shall not be operated by MICROWAVE or COMBINATION WITHOUT FOOD IN THE OVEN. Operation in this manner may damage the appliance. Exception to this is point 1 under heater operation.

6. If smoke or a fire occurs in the oven, press Stop/Cancel Pad and leave the door closed in order to stifle any flames. Disconnect the power cord, or shut off power at the fuse or the circuit breaker panel.

7. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Safety Instructions

Heater Operation

1. Before using COMBINATION or GRILL function for the first time, wipe excessive oil off in the oven cavity and operate the oven without food and accessories on Grill, for 10 minutes. This will allow the oil that is used for rust protection to be burned off. This is the only time the oven is used empty.
2. Exterior oven surfaces, including air vents on the cabinet and the oven door will get hot during COMBINATION and GRILLING, take care when opening or closing the door and when inserting or removing food and accessories.
3. The oven has two heaters situated in the top of the oven. After using the COMBINATION and GRILL function, these surfaces will be very hot.
   N.B. After cooking by these modes, the oven accessories will be very hot.
4. The accessible parts may become hot in combination use. Young children should be kept away, and children should only use the oven under adult supervision due to the temperatures generated.

Fan Motor Operation

If the oven gets hot after use, the fan may rotate for a few minutes to cool the electric components. This is perfectly normal, and you can take out the food from the oven while the fan is still in operation.

Oven Light

When it becomes necessary to replace the oven light, please consult your dealer.

Accessories

The oven comes equipped with a variety of accessories. Always follow the directions given for use of the accessories.

Glass Tray

1. Do not operate the oven without the roller ring and the glass tray in place.
2. Never use another type of glass tray than the one specially designed for this oven.
3. If the glass tray is hot, let it cool before cleaning or placing in water.
4. The glass tray can turn in either direction.
5. If the food or cooking vessel on the glass tray touches the oven walls and stops the tray rotating, the tray will automatically rotate in the opposite direction. This is normal.
6. Do not cook foods directly on the glass tray.

Roller Ring

1. The roller ring and the oven floor should be cleaned frequently to prevent noise and build-up of remaining food.
2. The roller ring must always be used for cooking together with the glass tray.

Wire Rack

1. The wire rack is used to facilitate browning of small dishes and help with the good circulation of the heat.
2. Do not use any metal container directly on the wire rack in COMBINATION with MICROWAVE.
3. Do not use the wire rack in MICROWAVE mode only.

Important Information

1) Cooking Times

• Cooking times given in the cookbook are approximate. The cooking time depends on the condition, temperature, amount of food and on the type of cookware.
• Begin with the minimum cooking time to help prevent overcooking. If the food is not sufficiently cooked you can always cook it for a little longer.

N.B.: If the recommended cooking times are exceeded the food will be spoiled and in extreme circumstances could catch fire and possibly damage the interior of the oven.

2) Small Quantities of Foods

- Small quantities of food or foods with low moisture content can burn, dry out or catch on fire if cooked too long. If materials inside the oven should ignite, keep the oven door closed, turn the oven off and remove the plug from the socket.

3) Eggs

- Do not cook eggs in their shells and whole hard-boiled eggs by MICROWAVE. Pressure may build up and the eggs will explode, even after microwave heating has ended.

4) Piercing Skin

- Food with non porous skins, such as potatoes, egg yolks and sausages must be pierced before cooking by MICROWAVE to prevent bursting.

5) Meat Thermometer

- Use a meat thermometer to check the degree of cooking of roasts and poultry only when the meat has been removed from the oven. Do not use a conventional meat thermometer when using MICROWAVE or COMBINATION because it may cause sparking.

6) Liquids

- When heating liquids, e.g. soup, sauces and beverages in your microwave oven, overheating the liquid beyond boiling point can occur without evidence of bubbling.

This could result in a sudden boil over of the hot liquid. To prevent this possibility the following steps should be taken:

a) Avoid using straight-sided containers with narrow necks.
b) Do not overheat.
c) Stir the liquid before placing the container in the oven and again halfway through the cooking time.
d) After heating, allow it to stand in the oven for a short time, stir again before carefully removing the container.

7) Paper/Plastic

• When heating food in plastic or paper containers, check the oven frequently as these types of containers ignite if overheated.
• Do not use recycled paper products (e.g. Kitchen Roll) unless the paper product is labelled as safe for microwave oven use. Recycled paper products may contain impurities which may cause sparks and/or fires during use.
• Remove wire twist-ties from roasting bags before placing the bags in the oven.

8) Utensils/Foil

• Do not heat any closed cans or bottles because they might explode.
• Metal containers or dishes with metallic trim should not be used during Microwave cooking. Sparking will occur.
• If you use any aluminium foil, meat spikes or metalware the distance between them and the oven walls and door should be at least 2 cm to prevent sparking.

9) Feeding Bottles/Baby Food Jars

• The top and teat or lid must be removed from feeding bottles or baby food jars before placing in the oven.
• The contents of feeding bottles and baby food jars are to be stirred or shaken.
• The temperature has to be checked before consumption to avoid burns.

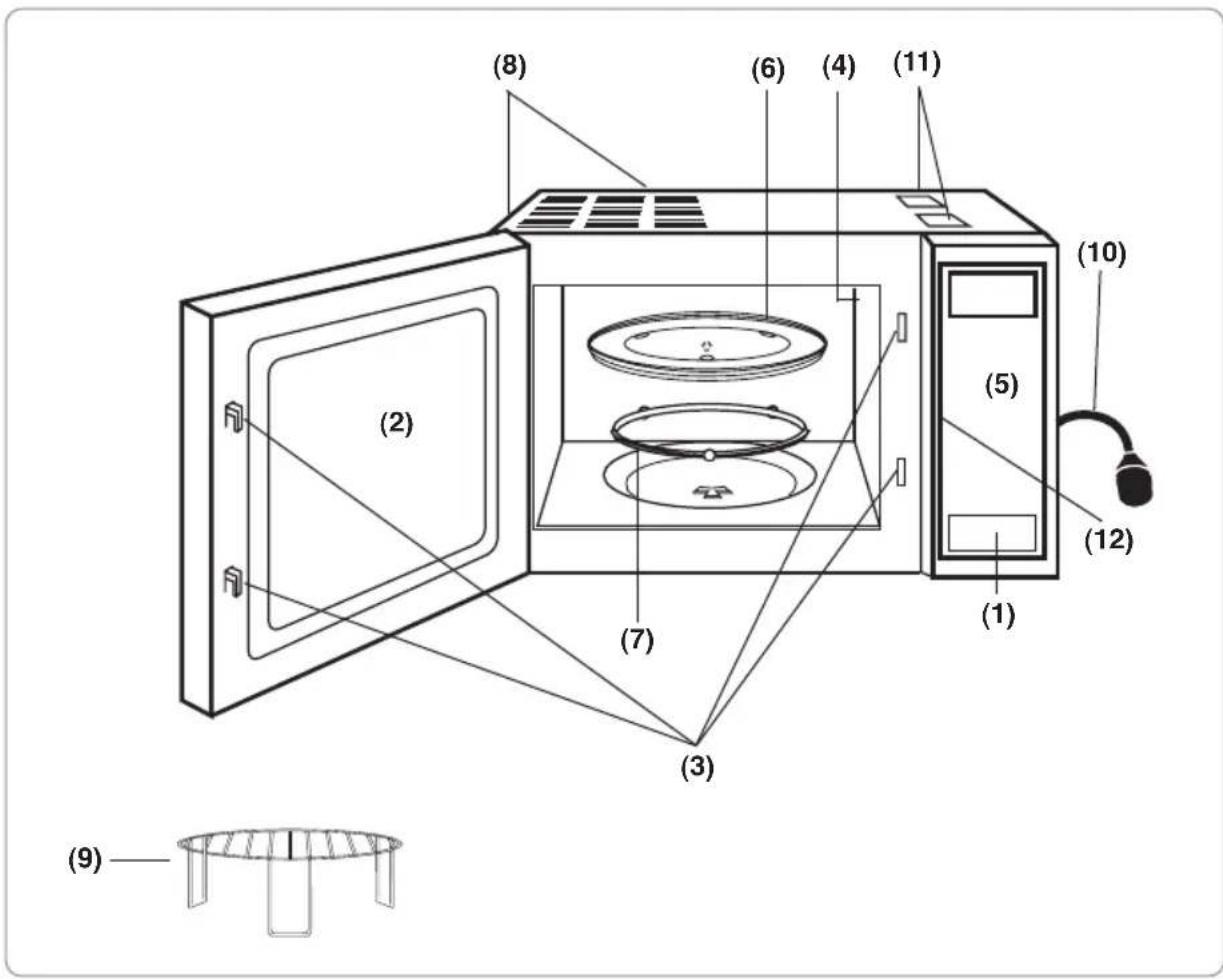

Outline Diagram

(1) Door release button

Press to open the door. When you open the oven door during cooking, the cooking is stopped temporarily without clearing earlier made settings. The cooking is resumed as soon as the door is closed and the Start Button pressed. The oven lamp lights as soon as the oven door is opened.

(2) Oven Window
(3) Door Safety Lock System
(4) Oven Air Vent
(5) Control Panel
(6) Glass Tray
(7) Roller Ring
(8) External Oven Air Vents
(9) Wire Rack
(10) Power Cord
(11) Caution Label
(12) Identification label

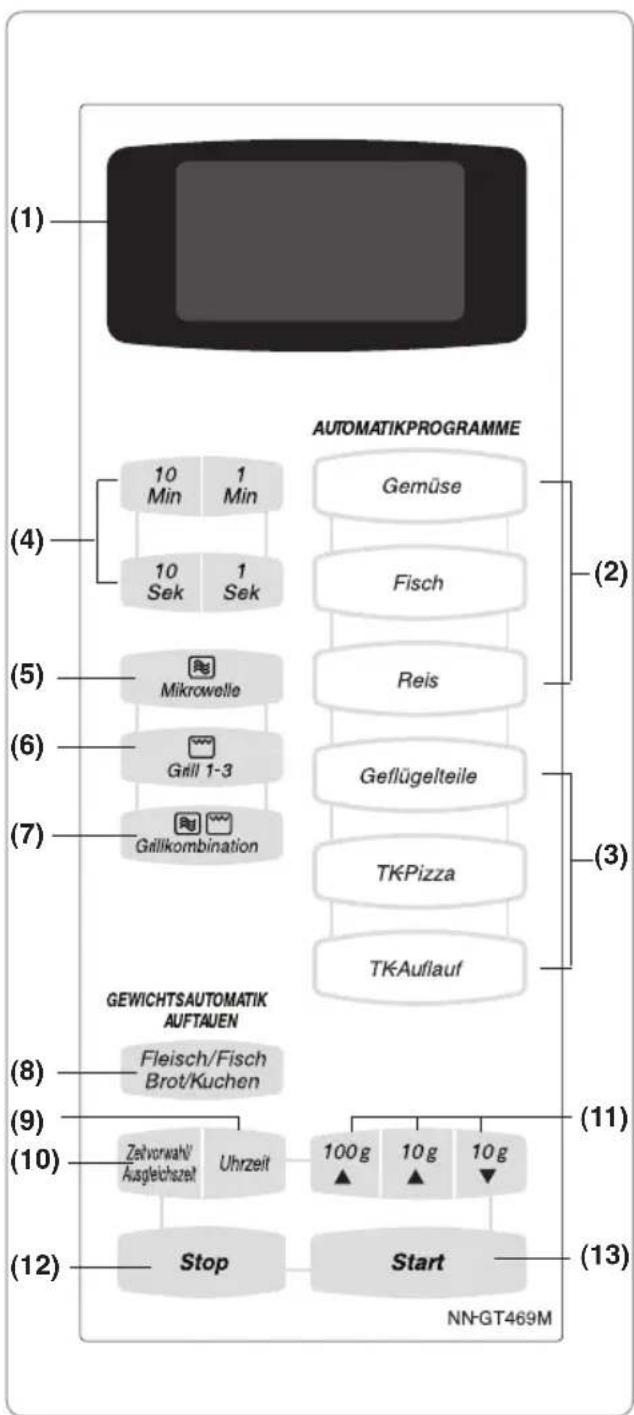

Control Panel

NN-GT469M

(1) Display Window

(2) Auto Weight Microwave Programs Pad

(3) Auto Weight Combination Program Pad

(4) Time Pads

(5) Microwave Power Pad

(6) Grill Power Pad

(7) Combination power pad

(8) Auto Weight Defrost Programs Pad

(9) Clock Pad

10) Delay/Stand Pad

(11) Weight selection pads

(12) Stop/Cancel Pad:

Before cooking: one press clears your instructions.

During cooking: one press temporarily stops the cooking program. Another press cancels all your instructions and the time of day will appear in the display.

(13) Start Pad:

Press to start operating the oven. If during cooking the door is opened or Stop/Cancel Pad is pressed once, Start Pad has to be pressed again to continue cooking.

NOTE:

If an operation is set and Start Pad is not pressed, after 6 minutes, the oven will automatically cancel the operation. This display will revert back to clock mode.

Beep Sound:

A beep sounds when a Pad is pressed. If this beep does not sound, the setting is incorrect. When the oven changes from one function to another, two beeps sound. After completion of cooking, five beeps sound.

This oven is equipped with an energy saving function.

NOTE:

1. When in stand-by mode the brightness of the display will be reduced.
2. The oven will enter stand-by mode, when first plugged in and immediately after the last operation has completed.

Controls and Operation Procedure

Operation guide

If the delay/stand pad is pressed 4 times, this will turn off the operation guide. To turn the operation guide back on, press the delay/stand pad 4 times.

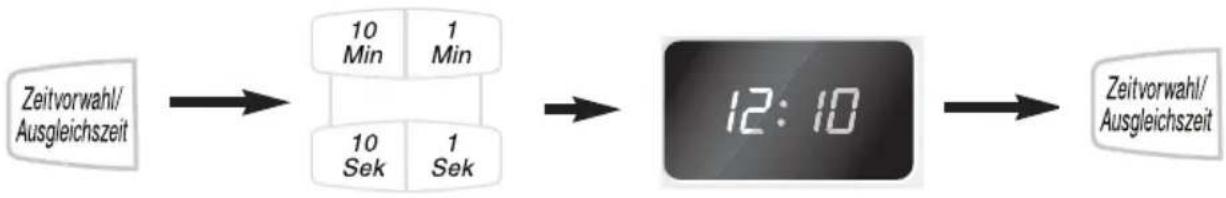

Clock Setting: Example: To set 12:10

• Press Clock Pad once. The colon starts to blink.
• Enter the time by using the Time Pads. The time appears in the display and the colon blinks.
• Press Clock Pad. The colon stops blinking and the time of day is entered.

NOTE:

1. To reset the time of day repeat all the above steps.
2. The time of day is displayed, unless the power supply is interrupted.
3. This clock has a 24 hour display.

Controls and Operation Procedure

Child Safety Lock:

Using this system will make the oven controls inoperable; however, the door can be opened. Child Lock can be set when the display shows a colon or the time.

To Set:

Start

To Cancel:

Stop

- Press Start Pad three times.

The time of day will disappear. Actual time will not be lost. A “*” is indicated in the display.

- Press Stop/Cancel Pad three times.

The time of day will reappear in the display.

NOTE:

To activate child lock, start pad must be pressed 3 times within a 10 second period.

Microwave Cooking and Defrost

There are 6 different microwave power levels available. The chart below shows the approximate wattage for each power level.

Use of accessory:

Simple line drawing of a circular object with concentric rings and a small central symbol (no text or labels)

Glass Tray

Press	Power Level	Wattage
Once Max (High) 1000 W
Twice Min (Defrost) 270 W
3 Times Medium 600 W
4 Times Low 440 W
5 Times Simmer 250 W
6 Times Warm 100 W


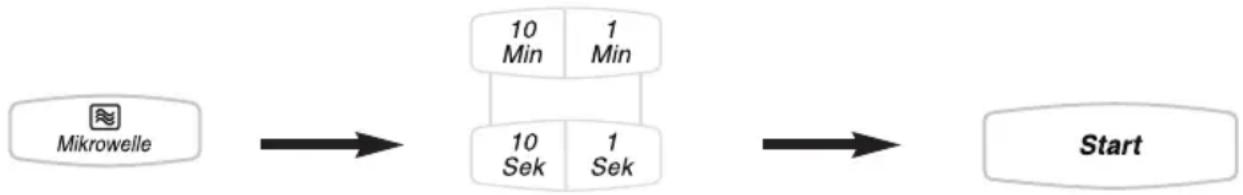

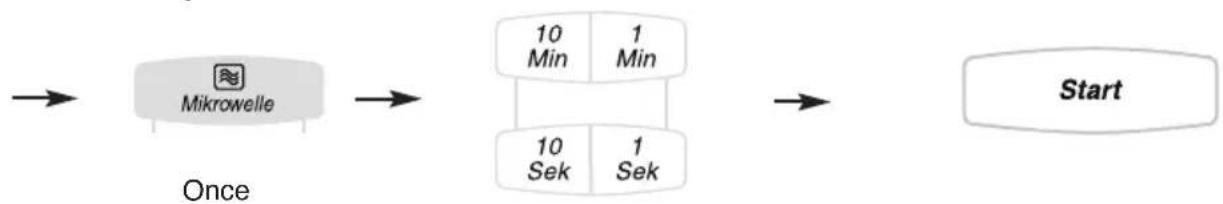

- Press this pad until the power you require appears in the display window. Select the desired microwave power level.

- Set the cooking time using the Time Pads (HIGH power: up to 30 minutes Other powers: up to 90 minutes).

- Press Start Pad.

Microwave Cooking and Defrost

NOTE:

1. For 2 or 3 stage cooking, before pressing Start Pad, repeat setting the Microwave power level and cooking time.

e.g. Casserole — High 10 minutes to bring the casserole to boil. Simmer 60 minutes to cook. Warm 10 minutes to allow flavours to develop.

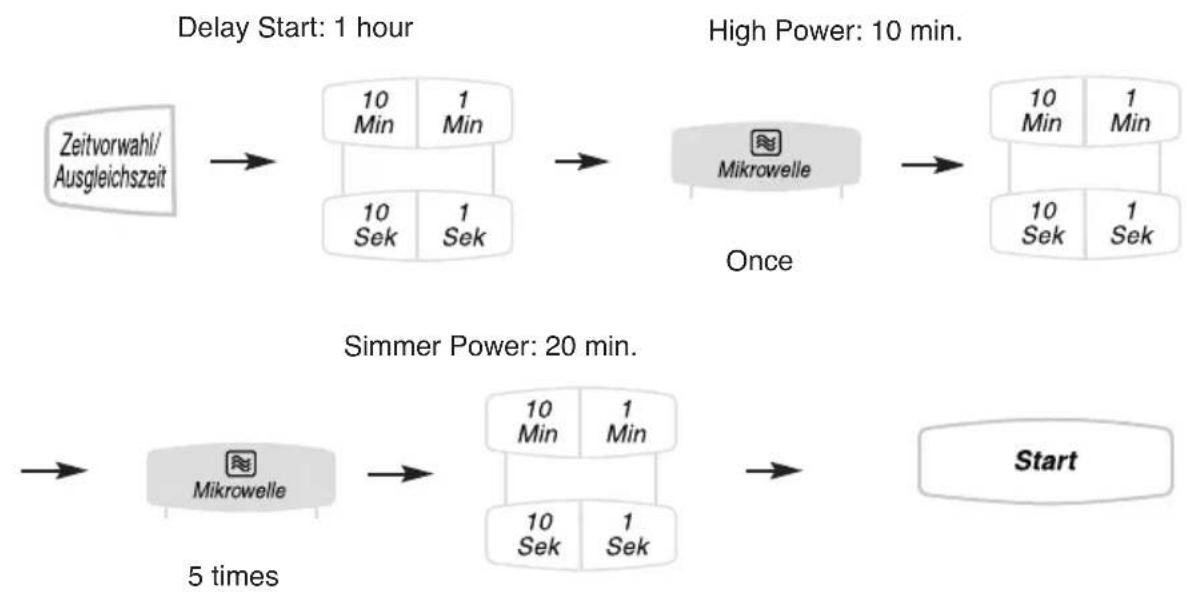

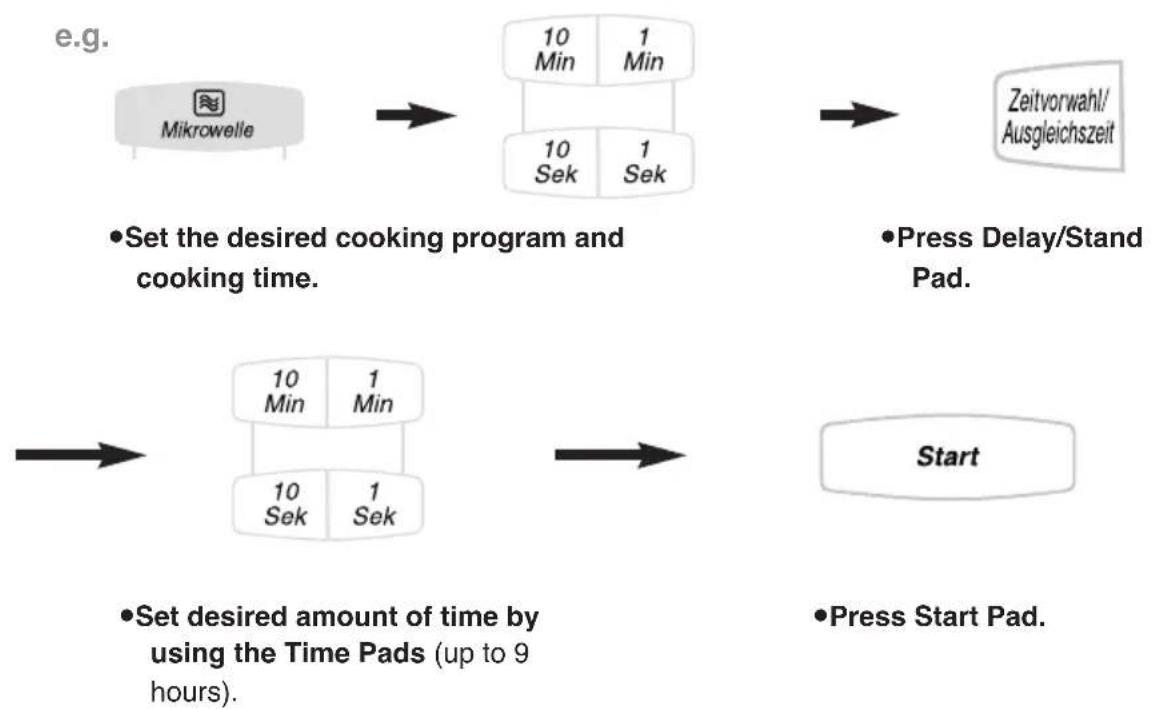

1. Stand time can be programmed after the Microwave power and time setting.
2. You can increase the cooking time during cooking, if required. Time can be increased by using the 1 minute time pad up to 10 minutes.
3. The oven will automatically work on High microwave power if a cooking time is entered without the power level previously being selected.

Grilling

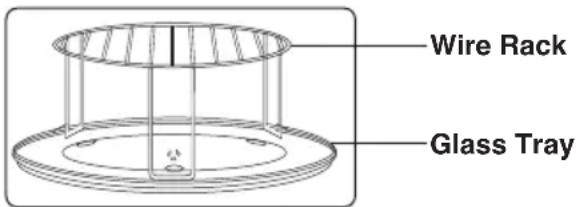

Use of accessory:

Wire Rack Glass Tray

The Grill provides 3 Grill settings.

1 Press GRILL 1 1100 W
2 Presses GRILL 2 800 W
3 Presses GRILL 3 600 W


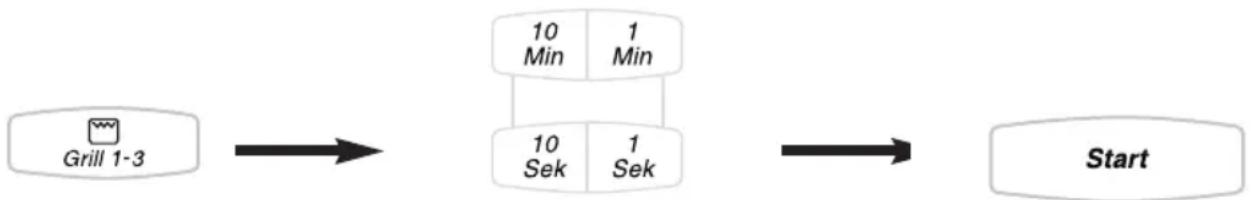

- Select Grill Power. Press once for Grill 1 (High), twice for Grill 2 (Medium) or 3 times for Grill 3 (Low).

- Set the cooking time using the Time pad (up to 90 minutes).

- Press Start Pad.

NOTE:

1. The Grill will only operate with the oven door closed.
2. You can increase the cooking time during cooking, if required. Time can be increased by using the 1 minute time pad, up to 10 minutes.

Combination Cooking

Use of accessory:

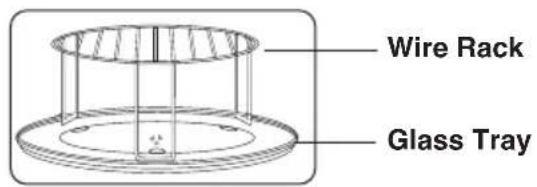

Wire Rack Glass Tray

Glass Tray


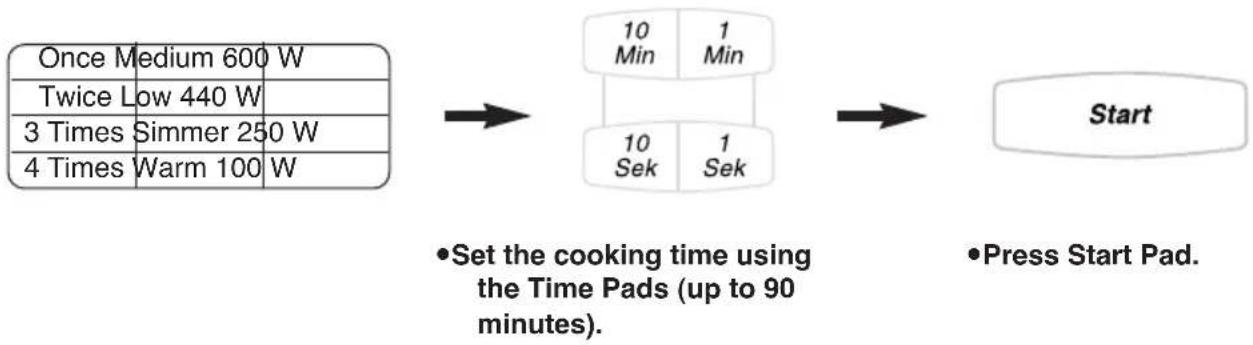

- Press combination pad

- Select Grill Power. Press once for Grill 1 (High), twice for Grill 2 (Medium) or 3 times for Grill 3 (Low).

- Press this pad until the power you require appears in the display window.

N.B. It is not possible to set 1000W / 270W in combination mode.

NOTE:

1. The Combination mode will only operate with the oven door closed.
2. You can increase the cooking time during cooking, if required.
   Time can be increased by using the 1 minute time pad, up to 10 minutes.

Auto Weight Defrosting

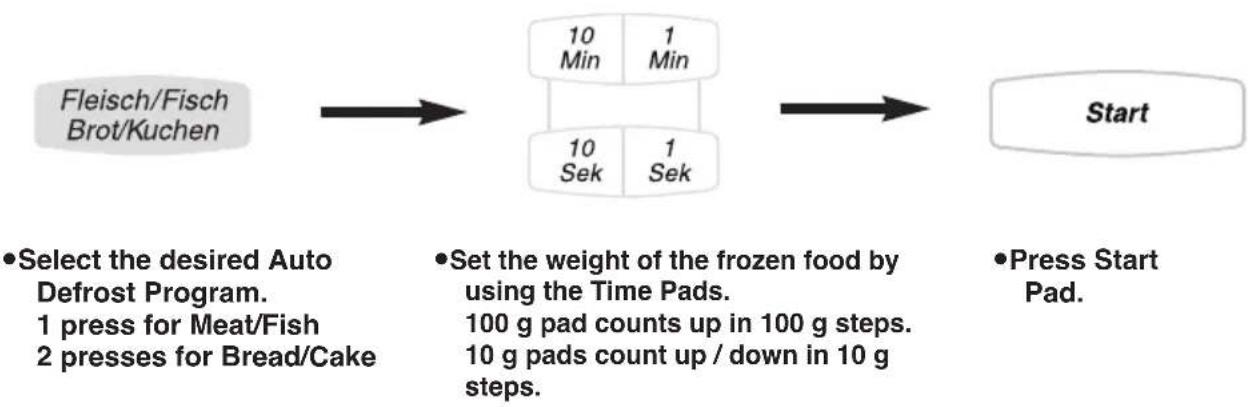

With this feature you can defrost frozen foods according to the weight. Select the category and set the weight of the food. The weight is programmed in grams. For quick selection, the weight starts from the most commonly used weight for each category.

The food should ideally be frozen and stored flat and evenly arranged at a minimum of -18C. Pay attention to freezing in suitable portions and shapes, so that the food fits into the appliance for defrosting. Generally, remove all packaging material. If it is difficult to remove the food from the packing, start defrosting it at 1000W for 1-2 minutes. Place the food onto a plate to defrost.

With the program meat/fish put food on an up turned saucer, so that the meat juices can drip off. Under no circumstance must this meat juice be re-used or come into contact with other foods. When defrosting with the auto-weight programs standing times are necessary, until the food is defrosted completely or can be processed further. Depending upon weight and kind of the food up to 90 minutes have to be allowed.

Program Food		Min/max weight	Accessories	Notes/Tips
Meat/Fish Start weight 800g	Flat pieces of meat, eg steak roulade, goulash, mince	200-1000 g	up turned saucer on a flat plate	Wrap the ends of the legs of whole chicken and duck in aluminium foil before you thaw these out. Turn food above 500 g at beep. Break up small meat pieces after defrosting; in case of minced meat break up the remaining ice core apart.
	Poultry and game	200-2500 g
	Roast 500-2500 g
	Fish 200-1000 g
Bread/Cake Start weight: 500g	Bread, whole or sliced	100-1000 g Flat plate		Turn Bread above 310 g at beep Shortcrust pastry with fruit needs a longer standing time to complete defrosting. Cream cakes and cakes with chocolate icing are not suitable on this program.
	Yeast cake, biscuit, pastry Shortcrust pastry with fruit	100-1500 g

NOTE:

1. When defrosting time is over 60 minutes the time will appear as Hours and Minutes.
2. The shape and size of the food will determine the maximum weight the oven can accommodate.
3. For further information see defrosting guidelines in cook book.

Auto Weight Programs

This feature allows you to cook most of your favourite foods by setting the weight only. The oven determines Microwave power level, Grill power and cooking time automatically. Select the category and set the weight of the food. The weight is programmed in grams. For quick selection, the weight starts from the most commonly used weight for each category.

e.g.

- Select the desired Auto weight program by pressing the Auto Weight program pads.

- Set the weight of the food by using the Time Pads.

100 g pad counts up in 100 g steps. 10 g pads count up / down in 10 g steps.

- Press Start Pad.

NOTE:

1. When cooking time is over 60 minutes, the time will appear as Hours and Minutes.
2. Follow the charts overleaf for the recommended weight and accessories to be used.

Auto Weight Programs

There are three programs for cooking different foods. Use the programs vegetables and fish only for fresh food. Prepare the food as usual, i.e. deseed vegetables and cut into small pieces, clean fish etc. Cook the food only in a microwave-suitable dish with cover. Take note of the recommendation for adding liquid and stir or turn when necessary. Allow a standing time of 5-10 minutes, to ensure even temperatures. This is particularly important for fish.

Program Food Min/max weight Accessories				Instructions
Vegetables (fresh) start weight 500g	Cauliflower, Broccoli, Chicorée, China Kohl, peas, Fennel, cabbage turnip, carrots, peppers, leek, brussel sprouts, celery, white cabbage, savoy cabbage and Zucchini.	200 – 1000 g (net, cleaned)		Cook Vegetables in a dish with cover.Add 1 table spoon of water and some salt per 100 g. Stir Vegetables during the cooking time at beep and before the standing time.
Fish (fresh) Start weight 500g	Fish filet, e.g. plaice, cod, sea-salmon, redfish, wolf fish. No salmon filet	200 – 1000 g Cook filet in a dish	with lid. Add 1 – 3 table spoons of liquid (water, lemon or wine) After cooking allow to stand covered for 5-10 minutes.
Rice Start weight 200g	Par-boiled long grain rice, whole grain and natural rice, wild rice mixture, Ketan or Jasmin rice	100 – 300 g Add water	according to manufacturers' information on the back of pack usually two to three times the amount of water to rice) and cover. Stir at beep approximately 18 minutes before end of the cooking time and before the end of the standing time.

Notes:

1. The liquid additions are not included when inputting the weight.
2. During the Vegetables auto program a beep sounds after half the time; stir the food at this time. With rice approximately 18 minutes before end of the cooking time a beep sound indicates that the food could be stirred.
3. Absolutely adhere to the minimum and maximum weight for the programs for suitable food. Weights outside of this range should not be cooked with the above auto weight programs.
4. Please note that the results depend on the food quality, their condition or the ingredients and therefore can vary.

Auto Weight Programs

For cooking food with simultaneous browning three different programs are available. Use the program Geflugelteile only for fresh food. Season the food before cooking as usual. In order to achieve browning on both sides it is necessary to turn the food. Cook poultry first with the skin or breast side down before turning the food and continue cooking. Please rest meat before serving for approx. 10 minutes to ensure even temperatures. Frozen (TK) products are industrially prepared frozen goods, which can be bought in a food store. Always remove the food from the packaging before preparation. Please adhere to the recommended accessories and use only microwave-suitable and heatproof dishes if required.

Under no circumstances cover the food for the following programs.

Program Food		Min/max weight	Accessories	Instructions
Poultry piecesStart weight800g	Fresh poultry pieces,eg, drum sticks,wings, quarters	200 – 1000 g	wire rack Place	chicken pieceswith the skin sidedown into amicrowave-suitable,heatproof dish andplace it on the wirerack. Turn poultryduring cooking at thebeep.
Frozen pizza(-18 °C )Start weight200 g	Frozen pizza,industrially prepared,eg from Dr Oetker	200- 500 g wire rack For heating up andbrowning ofindustrially preparedfrozen Pizza. Removethe packing and heatup the Pizza directlyon the wire rack.
Frozen gratin(-18 °C )Start weight350 g	Frozen gratin ( pastagratin, vegetablegratin, )	300 – 600 g Microwavesuitable andheat resistantcasserole dish	Microwavesuitable andheat resistantcasserole dish	Remove frompackaging and placein a dish suitable forthe size/shape of thefood.

Notes:

1. With the program Geflugelteile a beep sounds after approximately 2/3 during cooking time. At this time turn the food.
2. Please note that the results depend on the food quality, their condition or the ingredients and therefore can vary, especially for ready prepared frozen (TK) products.
3. Adhere to the minimum and maximum weight for the programs for suitable food. Weights outside of this range should not be cooked with the above auto weight programs.

Delay Start Cooking

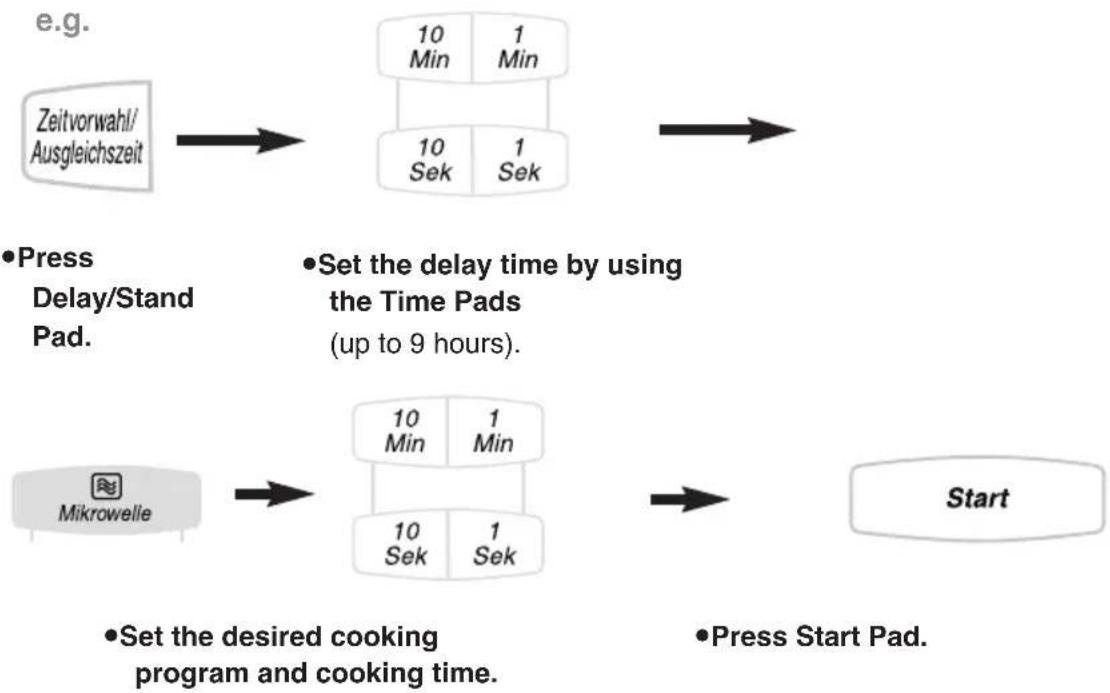

By using Delay/Stand Pad, you are able to program Delay Start cooking.

    E["Mikrowelle"] --> F["10 Min 1 Min"]
    F --> G["10 Sek 1 Sek"]
    G --> H["Press Start Pad."]

    style A fill:#f9f,stroke:#333
    style B fill:#ccf,stroke:#333
    style C fill:#cfc,stroke:#333
    style D fill:#fcc,stroke:#333
    style E fill:#cff,stroke:#333
    style F fill:#ffc,stroke:#333
    style G fill:#cfc,stroke:#333
    style H fill:#fcc,stroke:#333

NOTE:

1. Three stage cooking can be programmed including Delay Start cooking.

e.g.

1. If the programmed delay time exceeds one hour, the time will count down in units of minutes. If less than one hour, the time will count down in units of seconds.
2. Delay Start cannot be programmed before any Auto Programs.

Stand Time

By using Delay/Stand Pad, you can program Stand Time after cooking is completed or use to program the oven as a minute timer.

NOTE:

1. Three stage cooking can be programmed including Stand Time.

e.g.

High Power: 4 min. Stand Time: 5 min.

High Power: 2 min.

1. If the oven door is opened during the Stand Time or Minute Timer, the time in the display window will continue to count down.
2. This feature may also be used as a timer. In this case press Delay/Stand Pad, set time and press Start Pad.

Questions and Answers

Q: Why won't my oven turn on?

A: When the oven does not turn on, check the following:

1. Is the oven plugged in securely? Remove the plug from the outlet, wait 10 seconds and reinsert.
2. Check the circuit breaker and the fuse. Reset the circuit breaker or replace the fuse if it is tripped or blown.
3. If the circuit breaker or fuse is all right, plug another appliance into the outlet. If the other appliance works, there probably is a problem with the oven. If the other appliance does not work, there probably is a problem with the outlet. If it seems that there is a problem with the oven, contact an authorized Service Centre.

Q: My microwave oven causes interference with my TV. Is this normal?

A: Some radio and TV interference might occur when you cook with the microwave oven. This interference is similar to the interference caused by small appliances such as mixers, vacuums, blow dryers, etc. It does not indicate a problem with your oven.

Q: The oven won't accept my program. Why?

A: The oven is designed not to accept an incorrect program. For example, the oven will not accept a fourth stage, and will not accept an Auto Weight Program after Delay Start

Q: Sometimes warm air comes from the oven vents. Why?

A: The heat given off from the cooking food warms the air in the oven cavity. This warmed air is carried out of the oven by the air flow pattern in the oven. There are no microwaves in the air. The oven vents should never be blocked during cooking.

Q: "D" appears in the display and the oven does not cook. Why?
A: The oven has programmed DEMO MODE. This mode is designed for retail store display. Deactivate this mode by pressing Micro Power once, and stop/cancel pad 4 times.
Q: Can I use a conventional oven thermometer in the oven?
A: Only when you are using GRILL cooking mode. The metal in some thermometers may cause arcing in your oven and should not be used on MICROWAVE and COMBINATION cooking modes.
Q: There are humming and clicking noises from my oven when I cook by COMBINATION. What is causing these noises?
A: The noises occur as the oven automatically switches from MICROWAVE power to GRILL to create the combination setting. This is normal.
Q: My oven has an odour and generates smoke when using the COMBINATION and GRILL function. Why?
A: After repeated use, it is recommended to clean the oven and then run the oven without food, glass tray, and roller ring on Grill for 5 minutes. This will burn off any food, residue or oil which may cause an odour and/or smoking.
Q: The oven stops cooking by microwave and 'H97' or 'H98' appears in the display. Why?
A: This display indicates a problem with the microwave generation system. Please contact an authorised Service Centre.

Care of Your Oven

1. Turn the oven off before cleaning.
2. Keep the inside of the oven, door seals and door seal areas clean. When food splatters or spilled liquids adhere to the oven walls, door seals and door seal areas wipe off with a damp cloth. Mild detergent may be used if they get very dirty. The use of harsh detergent or abrasive is not recommended. DO NOT USE COMMERCIAL OVEN CLEANERS. Do not use harsh, abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering the glass.
3. The outside oven surface should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. If the Control Panel becomes dirty, clean it with a soft, dry cloth. Do not use harsh detergents or abrasives on the Control Panel. When cleaning the Control Panel, leave the oven door open to prevent the oven from accidentally turning on. After cleaning touch STOP/CANCEL Pad to clear the display window.
5. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates a malfunction of the unit.

6. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm soapy water or in a dishwasher.

7. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent and hot water then dry with a clean cloth. The roller ring may be washed in mild soapy water. Cooking vapours collect during repeated use but in no way affects the bottom surface or roller ring wheels. After removing the roller ring from the cavity floor for cleaning, be sure to replace it in the proper position.

8. When using the GRILL or COMBINATION mode, some foods may inevitably splatter grease on to the oven walls. If the oven is not cleaned occasionally, it may start to "smoke" during use.
9. A steam cleaner is not to be used for cleaning.
10. This oven should only be serviced by qualified personnel. For maintenance and repair of the oven contact the nearest authorized dealer.
11. Keep air vents clear at all times. Check that no dust or other material is blocking any of the air vents on the top, bottom or rear of the oven. If air vents become blocked this could cause overheating which would affect the operation of the oven and possibly result in a hazardous situation.
12. Failure to maintain the oven in a clean condition could lead to deterioration of surfaces that could affect the life of the appliance and possibly result in a hazardous situation.

Technical Specifications

Power Source: 230 V, 50 Hz

Power Consumption: Maximum; 2150 W

Microwave; 1200 W

Grill; 1100 W

Output: Microwave; 1000 W (IEC-60705)

Grill Heater; 1100 W

Outside Dimensions: 510 (W) x 380 (D) x 304 (H) mm

Oven Cavity Dimensions: 359 (W) x 352 (D) x 217 (H) mm

Uncrated Weight: 13.5 kg

Noise: 50 dB

Specifications subject to change without notice.

This product is an equipment that fulfills the European standard for EMC disturbances (EMC = Electromagnetic Compatibility) EN 55011. According to this standard this product is an equipment of group 2, class B and is within required limits. Group 2 means that radio-frequency energy is intentionally generated in the form of electromagnetic radiation for warming up of foods. Class B means that this product may be used in normal household areas.

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Pursuant to the directive 2004/108/EC, article 9(2), Panasonic Testing Centre Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH Winsbergring 15,22525 Hamburg, F.R.Germany.

Manufactured by Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd, 898 Longdong Road, Pudong, Shanghai, 201203, China.

Panasonic Testing Centre
