Product Type	Built-in Dishwasher
Model	SPV43E00EU
Manufacturer	Bosch
Appliance Height	81.5 cm
Weight	max. 45 kg
Voltage	220–240 V, 50 Hz or 60 Hz
Connected Load	2.0–2.4 kW
Fuse	10/16 A (UK 13 A)
Water Pressure	0.05 – 1 MPa (0.5–10 bar)
Inlet Rate	min. 10 litres/minute
Water Temperature	Cold water; hot water max. 60 °C
Water Softening System	Yes, with 4-stage setting
Rinse Aid Dispenser	Yes, 4-stage setting
Detergent Dispenser	Yes, with lock, capacity 50 ml
Programmes	Intensive 70°C, Auto 45-65°C, Eco 50°C, Gentle 40°C, Quick 45°C, Prerinse
Additional Options	Express Wash (VarioSpeed), Intensive Zone, Hygiene, Half Load, Extra Drying
Timer Programming	3, 6, or 9 hours delay
Aqua Sensor	Yes (optical measuring device)
Childproof Lock	Yes (door lock, on selected models)
Safety Features	Water damage protection system, child lock, door lock

Frequently Asked Questions - SPV43E00EU BOSCH

How do I adjust the water softening system?

Open the door, switch on the appliance, hold down button > and press START until the End display and salt refill indicator flash. Then press < or > to select the setting corresponding to your water hardness (see water hardness table), and press START to save.

What type of salt should I use?

Use only dishwasher salt (not table salt). Fill the salt dispenser with water (only on first use) and then add salt until the salt refill indicator goes out.

How do I adjust the rinse aid amount?

Open the door, switch on the appliance, hold down button > and press START until indicators flash, then press > again until the rinse aid indicator flashes. Use < or > to set the amount (1-4) and press START.

What should I do if the dishwasher does not start?

Check if the appliance is plugged in, the door is closed properly, and the water tap is on. Also ensure the mains fuse has not tripped.

How do I clean the filters?

Turn off the appliance and unplug. Remove the bottom basket, unscrew the filter cylinder, and separate the filters. Clean them under running water, then reassemble and reinstall.

How do I activate the childproof lock?

The childproof lock is activated by a mechanism described in the envelope at the back of the manual. Refer to the diagrams (40-42) for steps to activate, open, and deactivate the lock.

Why are there water stains on my glasses?

Increase the rinse aid setting if you see water stains. If streaks appear, lower the setting. Also ensure the water softener is correctly set for your water hardness.

How do I cancel a running programme?

Open the door, press the START button for approx. 3 seconds until the cleaning display goes out. Close the door. The programme resets and ends after about 1 minute.

What is the maximum height of dishes in the top basket?

For appliance height 81.5 cm, the top basket height can be adjusted: setting 1 max. diameter 22 cm, setting 2 max. 24 cm, setting 3 max. 27 cm.

Can I use combination detergents?

Yes, but for water hardness above 21° dH (37° fH, 26° Clarke, 3.7 mmol/l), you must add salt and rinse aid separately. For best results, use solo detergents with salt and rinse aid.

USER MANUAL SPV43E00EU BOSCH

Interior view of a modern kitchen appliance with visible dish, control panel, and rack structure (no text or symbols)

BOSCH

3 CBA 12 11 10 Reset 3 sec. Start 1 2 3 4 5 6 7 8 9

20 21 22 23 24 25 26 27 28 29 30 31 32

en Table of contents

Safety instructions .... 4

Before you switch ON the appliance . . 4

Delivery 4

Installation 4

In daily use 4

Children in the household ..... 4

Door lock 5

Damage 5

Disposal 5

Getting to know your appliance ..... 5

Control panel 5

Appliance interior 5

Water softening system....6

Setting 6

Water hardness table 6

Special salt S....7

Using special salt 7

Detergents with salt component ..... 7

Switching off water softening system . 7

Rinse aid \* 8

Setting amount of rinse aid ..... 8

Switching off rinse-aid refill indicator . . 8

Utensils 9

Not suitable 9

Glass and utensil damage ..... 9

Loading the dishwasher 9

Unloading the dishwasher ..... 9

Cups and glasses 9

Pans 10

Cutlery basket 10

Folding spikes 10

Small accessories holder ..... 10

Knife shelf 10

Adjusting the height of the basket .. 11

Detergent 12

Adding detergent 12

Combination detergent ..... 13

Overview of programmes ..... 14

Programme selection 14

Information for test institutes ..... 14

Additional options 15

Express Wash/ Speed Perfect (VarioSpeed) 15

Intensive zone 15

Hygiene 15

Half load 15

Extra drying 15

Washing the dishes 15

Programme data 15

Aqua sensor 15

Switching on the appliance ..... 15

Timer programming 16

End of programme 16

Switching off the appliance ..... 16

Interrupting the programme ..... 16

Terminating the programme ..... 17

Changing the programme ..... 17

Intensive drying 17

Maintenance and care 17

Overall condition of the machine .... 17

Special salt and rinse aid ..... 17

Filters 18

Spray arms 18

Troubleshooting 19

Waste water pump 19

... when the appliance is switched on 20

... on the appliance ..... 20

... during the wash cycle ..... 20

... on the utensils ..... 21

Customer service 22

Installation 22

Safety instructions ..... 22

Delivery 23

Technical specifications ..... 23

Installation 23

Waste-water connection ..... 23

Fresh water connection ..... 23

Electrical connection ..... 24

Removing the appliance 24

Transportation 24

Protection against frost

(Emptying the appliance)....24

Waste disposal 25

Packaging 25

Old appliances 25

Safety instructions

Before you switch ON the appliance

Please read the operating and installation instructions carefully. They contain important information on how to install, use and maintain the appliance.

Retain all documents for subsequent use or for the next owner.

Delivery

• Check the packaging and dishwasher immediately for damage caused in transit. Do not switch on a damaged appliance, but contact your supplier.
• Please dispose of the packaging material in an environmentally friendly manner.
• Do not let children play with packaging and its parts. There is a risk of suffocation from collapsible boxes and film.

Installation

Read the “Installation” chapter to learn how to install and connect the appliance correctly.

In daily use

• This appliance is intended for use in the home and the home environment.
• Use the dish was only in the household and only for its designed purpose: for washing domestic dishes.
• Children or people whose physical, sensory or mental abilities prevent them from using the appliance safely must not use this appliance without supervision or instruction by a responsible person.
• Do not lean or sit on the open door. The appliance could tip.

• Please note that free-standing appliances may tip over if the baskets are overloaded.

• Do not add any solvents to the washing chamber. Danger of explosion!

• Open the door carefully when the programme is still running. There is a risk of hot water spraying out of the appliance.
• To prevent injuries, e.g. caused by stumbling, open the dishwasher only briefly in order to load and unload the dishwasher.
• Read and observe the safety information and instructions for use on the packaging for cleaning and rinsing agents.

Warning

Knives and other utensils with sharp points must be placed in the cutlery basket with the points downwards or horizontally on the knife shelf *.

* depending on model

Children in the household

• If fitted, use the childproof lock. An exact description can be found in the back of the envelope.
• Do not allow children to play with or operate the appliance.
• Keep children away from detergents and rinse aid. These may cause chemical burns in the mouth, throat and eyes or asphyxiation.
• Keep children away from open dishwasher. The water in the rinsing compartment is not drinking water and could contain detergent residue. Ensure that children do not place fingers in the tablet collecting tray [22]. Small fingers could become caught in the slots.
• If the appliance is installed at eye-level, ensure when opening and closing the door that children are not caught or crushed between the appliance door and the cupboard door situated below.

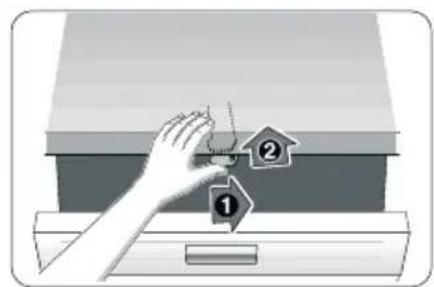

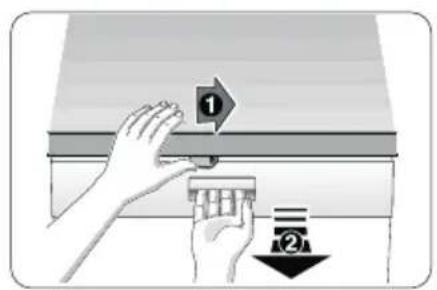

Childproof lock (door lock) \*

The description of the childproof lock is at the back in the envelope.

* depending on model

Damage

- The appliance may be repaired and opened up by a technician only. To do this, disconnect the appliance from the power supply. Pull out the mains plug or switch off the fuse. Turn off the tap.

Disposal

• Make redundant appliances unusable to prevent subsequent accidents.
• Dispose of the appliance in an environmentally friendly manner.

Warning

Children could become locked in the appliance (risk of suffocation) or find themselves in other dangerous situations.

Therefore: Pull out the mains plug, sever and dispose of the power cord. Destroy the door lock so that the door can no longer be closed.

Getting to know your appliance

Diagrams of the control panel and the interior of the appliance can be found in the envelope at the front.

Individual positions are referred to in the text.

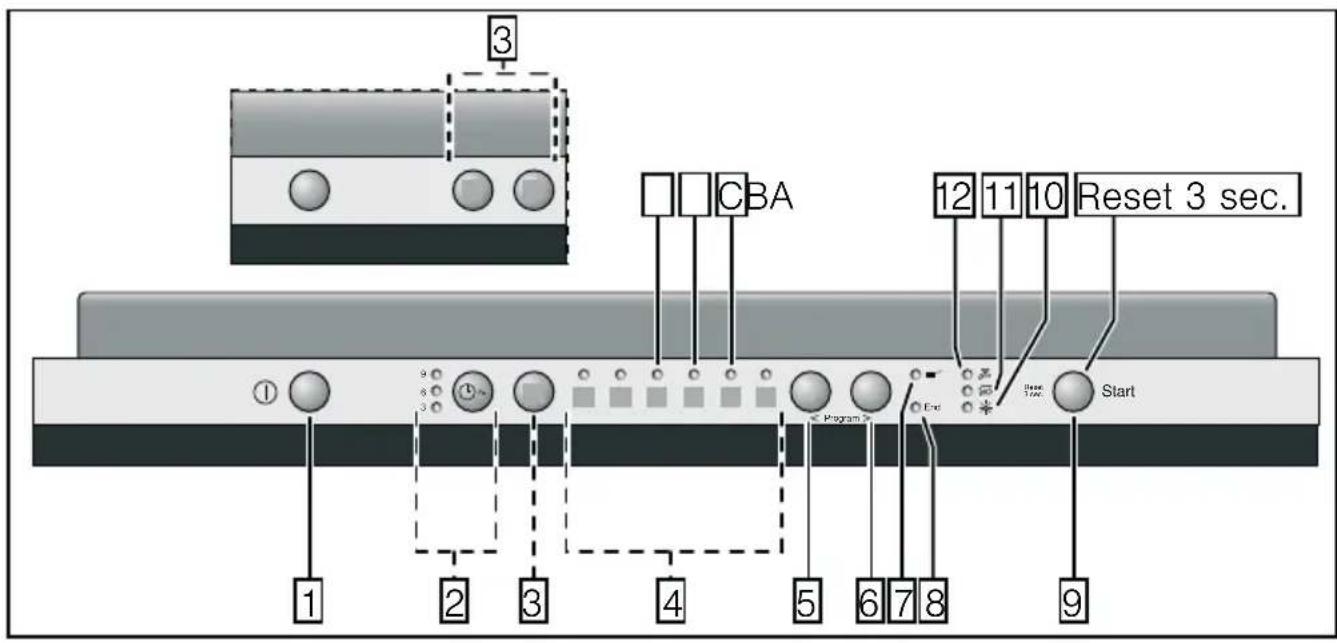

Control panel

1 ON/OFF switch
2 Timer programming *
3 Additional options **
4 Programme **
5 Button <
6 Button >
7 Cleaning display
8 End display
9 START button
10 Rinse aid refill indicator
11 Salt refill indicator

12 Display "Check water supply"

* depending on model
** Number depending on model

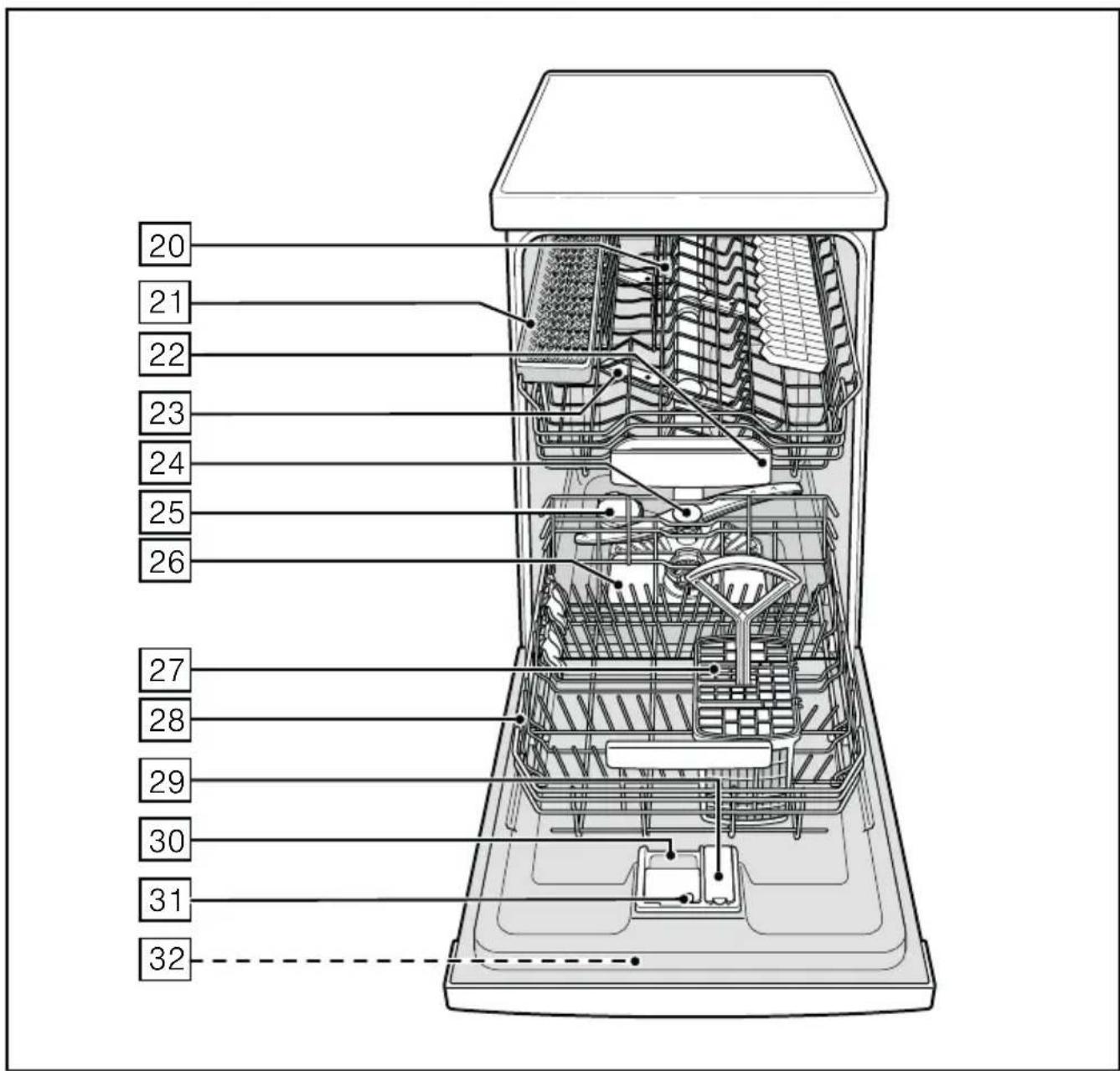

Appliance interior

20 Top basket

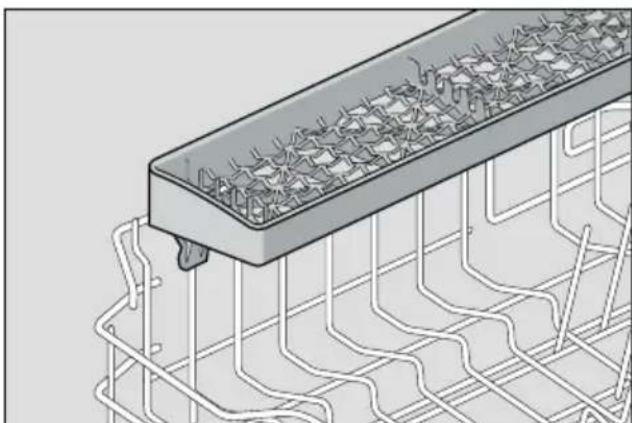

21 Knife shelf *
22 Tablet collecting tray
23 Upper spray arms
24 Bottom spray arm
25 Dispenser for special salt
26 Filters
27 Cutlery basket
28 Bottom basket
29 Dispenser for rinse aid
30 Detergent dispenser
31 Lock for detergent dispenser
32 Rating plate

* depending on model

en

Water softening system

To ensure good washing results, the dishwasher requires soft water, i.e. containing low amounts of lime, otherwise white limescale will be deposited on the utensils and inner container.

Tap water above a specific degree of water hardness must be softened, i.e. descaled, for use in a dishwasher. Water is softened with special salt in the water softening system of the dishwasher. The setting and therefore the required amount of salt depends on the degree of hardness of your tap water (see table).

Setting

The amount of salt dispensed can be set in 4 stages depending on the hardness of your water. Accordingly 0, 1, 2 or 3 displays are lit (see table). Factory setting: 1.

- Find out about the hardness value of your tap water. Your water utility company will help you with this.

- Setting can be found in the water hardness table.

- Open the door.

- Switch on ON/OFF

- Hold down button > 6 and press START button 9 until the End display 8 and salt refill indicator 11 flash.

- Release buttons.

The salt refill indicator 11 flashes and the display A is lit (= Setting 1).

To change the setting,

- Press the button < 5 until the required setting has been selected.

- Press START button 9. The displays 8 and 11 go out. The selected setting is saved.

- Close the door.

Water hardness table

° Clarke	Hardness range	mmol/l	Setting	○A	○B	○C
0-8	soft	0-1,1	0	○	○	○
9-20	medium	1,2-2,9	1	○	○	○
21-26	hard	3,0-3,7	2	○	○	○
27-44	hard	3,8-6,2	3	○	○	○

Special salt S

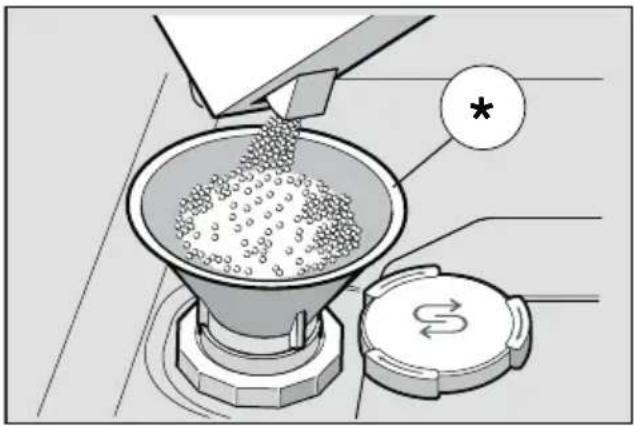

Using special salt

Always refill with special salt immediately before switching on the appliance. This ensures that overrun special salt solution is immediately washed out and does not corrode the rinsing tank.

• Open the screw-type cap of the compartment 25.
• Fill the tank with water (only required when switching on the appliance for the first time).
• Then add dishwasher salt (not table salt or tablets).

The water is displaced and runs out. As soon as the salt refill indicator 11 on the fascia is lit, top up the salt.

Illustration of a conveyor belt system with particles being inserted into a funnel, emitting powder from a slotted container (no text or symbols)

* depending on model

Using detergents with salt component

If combined detergents with a salt component are used, salt can usually be omitted up to a water hardness of 21^ dH ( 37^ fH, 26^ Clarke, 3.7 mmol/l). If the water hardness is over 21^ dH, special salt must be used.

Switching off salt refill indicator/ water softening system

If the salt refill indicator 11 is impaired (e.g. when using combined detergents containing salt component), it can be switched off.

- Proceed as described under "Adjusting the water softening system" and select setting 0. The water softening system and salt refill indicator are now switched off.

Warning

Never fill the salt dispenser with detergent. You will destroy the water softening system.

en

Rinse aid

As soon as the rinse-aid refill indicator 10 is lit on the fascia, there is still a rinse-aid reserve of 1 - 2 rinsing processes. Refill with rinse aid.

The rinse aid is required for stain-free utensils and clear glasses. Use only rinse aid for domestic dishwashers.

Combined detergents with rinse-aid component may be used up to a water hardness of 21^ dH ( 37^ fH, 26^ Clarke, 3.7 mmol/l) only. If the water hardness is over 21^ dH, rinse aid must be used.

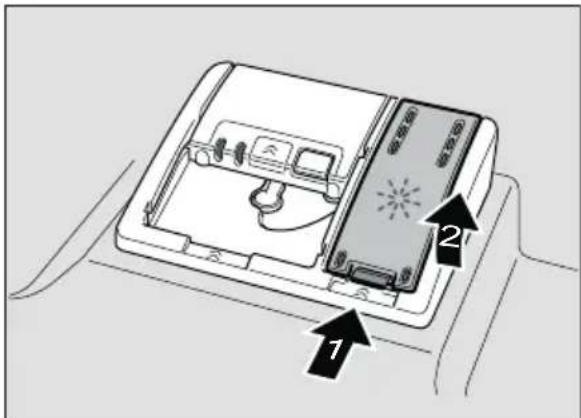

- Open the dispenser 29 by pressing and lifting the plate on the cover.

Diagram of a device interior with labeled parts, showing components like '管理器' (Management) and numbered annotations 1, 2.

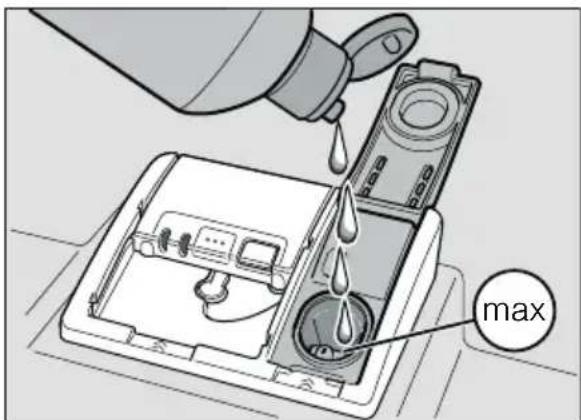

- Carefully pour rinse aid up to the max. mark in the filler opening.

max

• Close cover until it clicks shut.
• To prevent excessive foam formation during the next rinse cycle, remove any rinse aid which has run over with a cloth.

Setting amount of rinse aid

The amount of rinse aid dispensed can be set in 4 stages. Accordingly 0, 1, 2 or 3 displays are lit (see water hardness table).

Factory setting: 1.

Do not change the amount of rinse aid unless streaks (select lower setting) or water stains (select higher setting) are left on the utensils.

• Open the door.
• Switch on ON/OFF
• Hold down button > 6 and press START button 9 until the End display 8 and salt refill indicator 11 flash.
• Release buttons.
• Keep pressing button > 6 until the rinse aid refill indicator 10 flashes. The rinse aid refill indicator 10 flashes and the display A is lit (= Setting 1).

To change the setting:

• Press the button < 5 until the required setting has been selected.
• Press START button 9. The displays 8 and 10 go out. The selected setting is saved.
• Close the door.

Switching off rinse-aid refill indicator

If the rinse-aid refill indicator 10 is impaired (e.g. when using combined detergents containing rinse-aid component), it can be switched off.

- Proceed as described under "Setting amount of rinse aid" and select setting 0.

The rinse aid refill indicator 10 is now switched off.

Utensils

Not suitable

• Cutlery and utensils made of wood.
• Delicate decorative glasses, craft and antique utensils. These decors are not dishwasher-proof.
• Plastic parts not resistant to heat.
• Copper and tin
• Utensils which are soiled with ash, wax, lubricating grease or ink.

Aluminium and silver parts have a tendency to discolour and fade during the wash cycle. Even some types of glass (e.g. crystal glass objects) may turn cloudy after many wash cycles.

Glass and utensil damage

Causes:

• Glass type and glass production process.
• Chemical composition of the detergent.
• Water temperature of the wash programme.

Recommendation:

• Use only glasses and porcelain which the manufacturer designates as dishwasher-proof.
• Use a detergent which protects utensils.
• Take glass and cutlery out of the dishwasher as soon as possible after the programme ends.

Loading the dishwasher

• Remove large food remnants. It is not necessary to prerinse utensils under running water.
• Place the utensils so that

– they are secure and cannot tip over.

- all utensils with their openings face down.

u t e parts with curves or indentations are at an angle, thereby allowing water to drain. - they do not obstruct rotation of the spray arms [23] and [24].

Very small utensils should not be washed in the machine, as they may fall out of the baskets.

Unloading the dishwasher

To prevent water from dripping off the upper basket onto the utensils in the lower basket, it is recommended to empty the appliance from the bottom up.

Hot utensils are sensitive to shock! Therefore, when the programme ends, leave the utensils to cool down in the dishwasher until they can be handled.

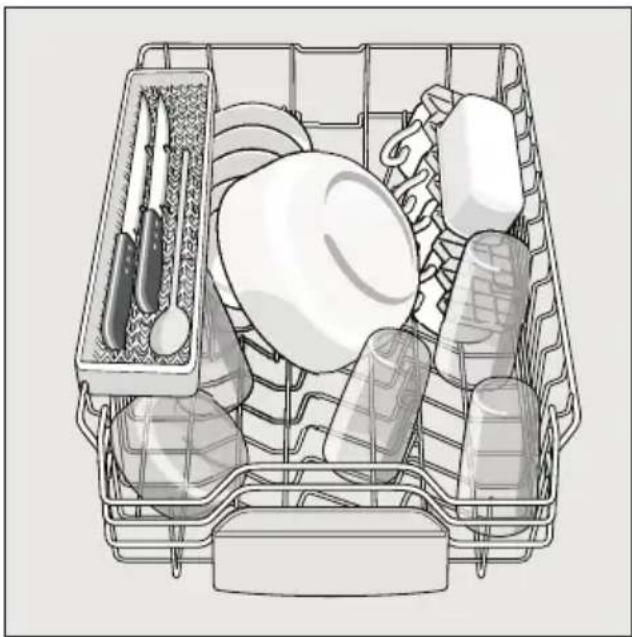

Cups and glasses

Top basket 20

Illustration of a cleaning board with cutlery and household items (no text or symbols)

en

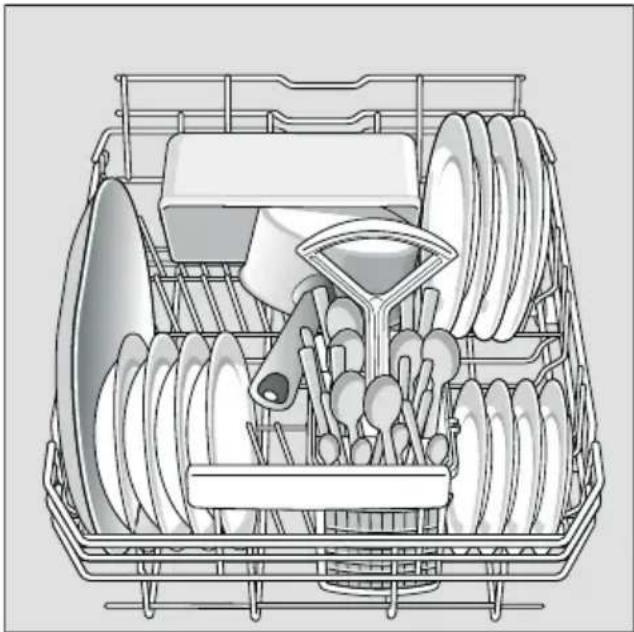

Pans

Bottom basket 28

Cross-sectional illustration of a kitchen appliance with multiple kitchen utensils and a plate (no text or symbols)

Tip

Heavily soiled utensils (pans) should be placed in the bottom basket. The more powerful spray jet provides a better dishwashing result.

Tip

Other examples, such as the best way of loading your dishwasher, can be found on our homepage as a free download. The corresponding Internet address can be found on the back page of these instructions for use.

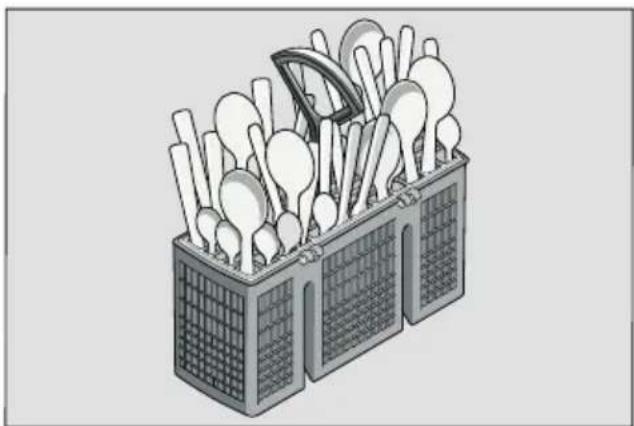

Cutlery basket

You should always place cutlery unsorted with the points downwards.

To prevent injuries, place long, pointed implements and knives on the knife shelf.

Illustration of a plastic crate filled with various kitchen utensils (no text or symbols)

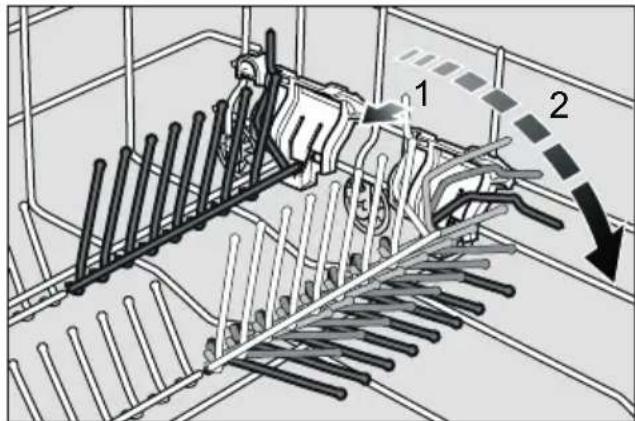

Folding spikes \*

* depending on model

The spikes can be folded down to improve arrangement of pans, bowls and glasses.

Technical diagram showing mechanical assembly with labeled components and directional arrows

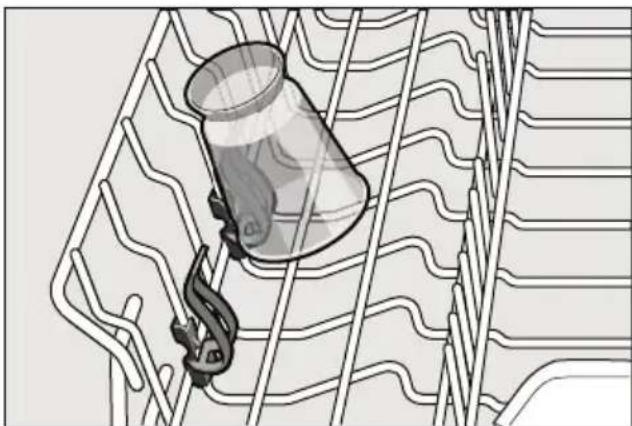

Small accessories holder \*

* depending on model

Light-weight plastic accessories, e.g. cups, lids, etc. can be held securely in the small accessories holder.

Illustration of a fire hydrant inside a grid structure with no visible text or symbols

Knife shelf \*

* depending on model

Long knives and other utensils can be arranged horizontally.

Technical illustration of a multi-pin electronic component with grid lines and wiring (no text or symbols)

Adjusting the height of the basket \*

* depending on model If required, the height of the upper utensils basket 20 can be adjusted to provide more space for tall utensils either in the upper or lower basket.

Appliance height 81.5 cm

	Top basket	Bottombasket
Setting 1 max. ø 22 cm 30 cm
Setting 2 max. ø 24 cm 28 cm
Setting 3 max. ø 27 cm 25 cm

Select one of the two following procedures according to the design of the top basket for your appliance model:

Top basket with side levers

• Pull out the top basket 20 out.

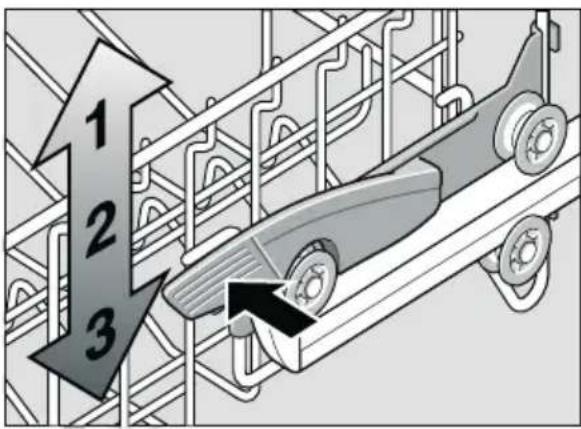

• T o lower the basket, press in the left and then the right lever on the outside of the basket. In doing so, hold the sides of the basket along the upper edge to prevent it from suddenly dropping.

1 2 3

• T o raise the basket, hold the basket on the sides of the upper edge and lift it up.
• Before re-inserting the basket again, ensure that it is at the same height on both sides. Otherwise, the appliance door cannot be closed and the upper spray arm will not be connected to the water circuit.

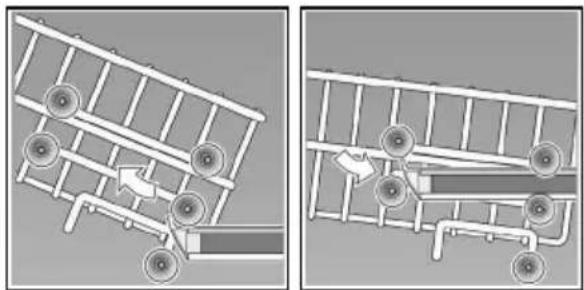

Top basket with upper and lower roller pairs

• Pull out the top basket 20 out.
• Remove the upper basket and re-attach it to the upper (stage 3) or lower (stage 1) rollers.

Two schematic diagrams of parking spaces with wheels and pathways, no text or symbols present

en

Detergent

You can use tablets as well as powder or liquid detergents for dishwashers, but never use washing up liquid. The dosage can be individually adjusted with powder or a liquid detergent according to the degree of soiling. Tablets contain an adequately large amount of active ingredients for all cleaning tasks. Modern, powerful detergents predominantly use a low-alkaline formulation with phosphate and enzymes. Phosphates bond the lime in the water. Enzymes break down starch and remove protein. Phosphate-free detergents are less frequent. These have a slightly weaker lime bonding capacity and require a higher dosage. To remove coloured stains (e.g. tea, tomato sauce), oxygen-based bleaching agents are usually used.

Note

To ensure a good washing result, always follow the instructions on the detergent packaging!

If you have further questions, we recommend that you contact the detergent manufacturers' helpline.

Warning

Read and observe the safety information and instructions for use on the packaging for cleaning and rinsing agents.

Adding detergent

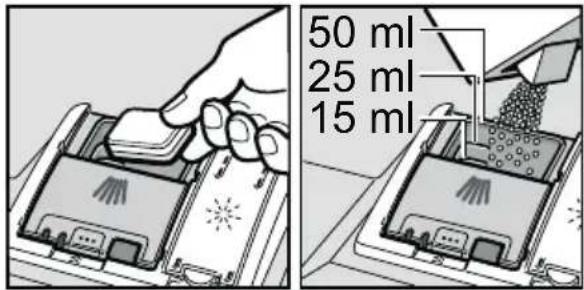

- If the detergent dispenser 30 is still closed, press the lock 31 to open the detergent dispenser.

Pour detergent into the dry detergent dispenser 30 only (insert tablet flat, not on its edge).

Dosage: see manufacturer's instructions on the packaging.

The graduated detergent dispenser 30 helps you add the correct amount of powder or liquid detergent.

Usually 20 ml–25 ml are adequate for normal soiling. If using tablets, one tablet is adequate.

50 ml 25 ml 15 ml

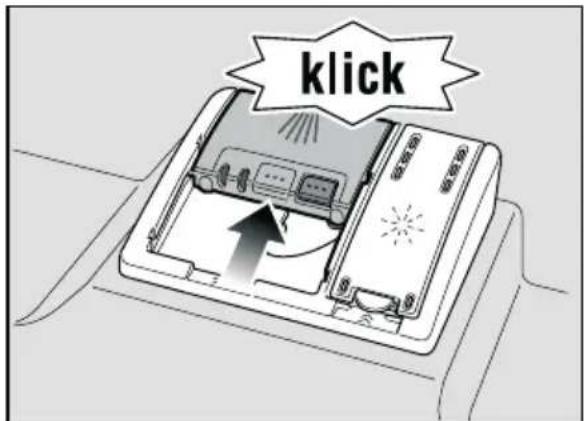

- Close the cover on the detergent dispenser by sliding it up until the lock engages without difficulty.

klick

The detergent dispenser opens automatically at the optimum time depending on the programme.

The powder or liquid detergent is distributed in the appliance and is dissolved, the tablet falls into the tablet collecting tray where it dissolves in doses.

Tip

If the utensils are only lightly soiled, slightly less than the indicated amount of detergent is usually adequate.

Suitable detergents and care products can be purchased online via our website or via customer service (see back page).

Combination detergent

Apart from conventional detergents (Solo), a number of products are offered with additional functions. These products contain not only the detergent but also rinse-aid and salt replacement substances (3in1) and, depending on the combination (4in1, 5in1, etc.), additional components such as glass protection or stainless steel cleaner. Combination detergents function only up to a specific degree of hardness (usually 26° Clarke). Over this limit salt and rinse-aid must be added.

As soon as combined detergents - I are used, therinse programme is automatically to ensure the best possible rinsing and drying result.

Warnings

- D o not place small parts for washing in the tablet collecting tray [22]; this prevents the tablet from dissolving evenly.

- If you want to add more utensils after the programme has started, do not use the tablet collecting tray 22 as a handle for the upper basket. The tablet could already be there and you will touch the partially dissolved tablet.

Notes

• You will obtain optimum rinsing and drying results by using solo detergents and applying salt and rinse aid separately.
• If programmes are short, tablets may not have full cleaning effect due to different dissolving properties and there may even be undissolved detergent residue. It is recommended to use washing powder for these programmes.
• The Intensive programme (on some models) requires one tab only. When using washing powder, you can apply some of this cleaning agent to the inside of the appliance's door.
• Even if the rinse-aid and/or salt refill indicator is lit, the rinse programme will run correctly with combined detergents.
• If using detergents in a water-soluble is a protective cover: Take hold of the cover with dry hands only and put the detergent into an absolutely dry detergent dispenser only, otherwise the detergent may stick.
  In If you switch from combined detergents to solo detergents, ensure that the water softening system and amount of rinse aid have been set to the correct value.

Overview of programmes

The max. possible number of programmes is illustrated in this overview. The corresponding programmes for your appliance can be found on the fascia.

Type of utensils	Type of soiling Programme Possible additional options			Programme sequence
pots and pans, non-sensitive utensils and cutlery	very adhesive burned-in or dried-on food remnants containing starch or protein	Intensive 70°	all	PrerinseClean 70°Intermediate rinseFinal rinse 65°Dry
		Auto 45° - 65°		Is optimised according to the soiling with the aid of sensors.
mixed utensils and cutlery	part dried, common household food remnants	Eco 50°		PrerinseClean 50°Intermediate rinseFinal rinse 65°Dry
sensitive utensils, cutlery, temperature-sensitive plastic and glasses	slightly adhesive, fresh food remnants	Gentle 40°	Intensive zoneExpress Wash/Speed Perfect (VarioSpeed)Half loadExtra drying	PrerinseClean 40°Intermediate rinseFinal rinse 55°Dry
		Quick 45°	Extra drying	Clean 45°Intermediate rinseFinal rinse 55°
all types of utensils	cold rinsing, intermediate cleaning	Prerinse	none Prerinse

Programme selection

You can select a suitable programme according to the type of utensils and degree of soiling.

Information for test institutes

Test institutes can request the conditions for running comparison tests by sending an e-mail to

[e-mail].

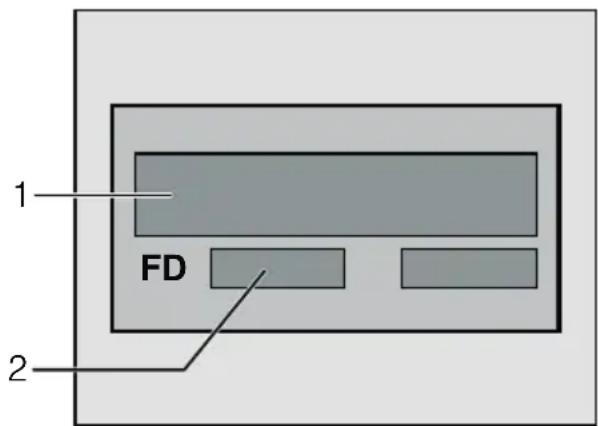

and the production date (FD) which you can find on the rating

plate 32 on the appliance door.

Additional options Washing the dishes

* depending on model

Additional options can be set with the buttons 3.

Express Wash/ Speed Perfect/ MarioSpeed) \*

This function can reduce the running time by approx. 20% to 50% depending on the selected rinse programme. To obtain optimum cleaning and drying results at a reduced running time, water and energy consumption are increased.

Intensive zone \*

Perfect for a mixed load. You can wash very soiled pots and pans in the lower basket together with normally soiled utensils in the upper basket. The spray pressure in the lower basket is intensified, the rinsing temperature is increased slightly.

Hygiene \*

The temperature is increased during the cleaning process. This increases the hygiene status. This additional option is ideal for cleaning e.g. chopping boards and baby bottles.

Half load \*

If you have only a few items to wash (e.g. glasses, cups, plates), you can switch to "half load". This will save water, energy and time. It is recommended to put a little less detergent in the detergent dispenser than for a full load.

Extra drying \*

An increased temperature during the final rinse and an extended drying phase ensure that even plastic parts dry better. There is a slight increase in the energy consumption.

Programme data

The programme data (consumption values) can be found in the summary of instructions. This data refers to normal conditions and the water hardness set value 2. Different influencing factors such as water temperature or mains pressure may result in deviations.

Aqua sensor \*

* depending on model

The Aqua sensor is an optical measuring device (light barrier) which measures the turbidity of the rinsing water.

The Aqua sensor is used according to the programme. If the Aqua sensor is active, "clean" rinsing water can be transferred to the next rinse bath and water consumption can be reduced by 3–6 litres. If the turbidity is greater, the water is drained and is replaced with fresh water. In the automatic programmes the temperature and running time can also be adjusted to the degree of soiling.

Switching on the appliance

• Turn on the tap fully.
• Switch on ON/OFF The display of the last selected programme flashes. This programme remains selected unless another programme is selected with the button <5 or button >6.
• Press the START button 9.
• Close the door. The programme starts running.

en

Timer programming \*

* depending on model

You can delay the start of the programme by 3, 6 or 9 hours.

• Switch on ON / O
• Keep pressing the Preselected starting time button 2 until the appropriate display 3h, 6h or 9h is lit.
• Press START button 9, timer programming is activated.
• To delete the preselected starting time, keep pressing the Preselected starting time button 2 until none of the displays 3h, 6h or 9h is lit.

You can change your programme selection at any time until the programme starts.

End of programme

The programme has ended when the End display 8 is lit.

The end of the programme is also indicated by an acoustic signal. The buzzer volume can be set in 4 stages. Accordingly 0, 1, 2 or 3 displays are lit (see water hardness table). Factory setting: 2. This function can be changed as follows:

• Open the door.
• Switch on ON / O
• Hold down button > 6 and press START button 9 until the End display 8 and salt refill indicator 11 flash.
• Release buttons.
• Keep pressing button > 6 until the salt refill indicator 11 and rinse aid refill indicator 10 flash.
• Release buttons.

The refill indicators 11 and 10 flash and the displays A and B are lit (= Setting 2). The set buzzer volume can be heard.

To change the setting,

• Press the button < 5 until the required setting has been selected.
• Press START button 9. The displays go out. The selected setting is saved.
• Close the door.

Note

To save energy, the dishwasher automatically switches off after 2 minutes after the end of the programme.

F Switching off the appliance

Short time after the end of the programme:

• Open the door.
• Switch off ON/OFF switch 1.
• Turn off the tap (not applicable if Aqua-Stop fitted).
• Remove the utensils when they have cooled down.

Warning

At the end of the programme please open the door fully and not partially when emptying the dishwasher. Any escaping water vapour could damage sensitive worktops.

Interrupting the programme

• Open the door.
• Switch off ON/OFF switch 1.

The LEDs go out. The programme is saved.

If the door was opened on an

appliance which has a warm water

F F connection or is heated, first leave the door ajar for several minutes and then close. Otherwise, expansion (pressure) may cause the appliance door to spring open or water to run out of the appliance.

• To continue the programme, switch on the ON/OFF switch 1 again.
• Close the door.

Terminating the programme (Reset)

• Open the door.
• Press START button 9 for approx. 3 sec.
  The Cleaning display 7 goes out.

- Close the door.

The remaining programme sequence lasts approx. 1 minute more. (Buzzer sounds.)

• Open the door.
• Switch off ON/OFF switch 1.
• Close the door.

Changing the programme

When the START button 9 has been pressed, the programme cannot be changed.

The only way a programme can be changed is by Cancel programme (Reset).

Intensive drying

The final rinse uses a higher temperature which improves the drying result. The running time may increase slightly. (Caution if utensils are delicate!)

• Open the door.
• Switch on ON / O
• Hold down button > 6 and press START button 9 until the End display 8 and salt refill indicator 11 flash.
• Release buttons.
• Keep pressing button > 6 until the salt refill indicator 11 and "Check water supply" 12 flash.
• Release buttons. The displays 11 and 12 flash.

To change the setting,

• Press button < 5 until the display A is lit (Intensive drying on).
• Press START button [9]. The displays go out. The setting is saved.
• Close the door.

Maintenance and care

A regular inspection and maintenance of your machine will help to prevent faults. This saves time and prevents problems.

Overall condition of the machine

- Check spray arm for grease and limescale deposits.

If you find such deposits:

- Fill detergent dispenser with detergent. Start the appliance without utensils in the programme with the highest rinsing temperature.

Clean the appliance with detergents/appliance cleaners which are particularly suitable for use with dishwashers.

- Regularly clean door seal with a damp cloth.

Never use a steam cleaner to clean your dishwasher. The manufacturer is not liable for any consequential damage.

Regularly wipe the front of the appliance and fascia with a damp cloth; water and a little washing up liquid are adequate. Do not use sponges with a rough surface or abrasive detergents, as these could scratch the surfaces.

F. Stainless steel appliances: To prevent corrosion, avoid using sponge cloths or wash them out thoroughly several times before using for the first time.

Warning

Never use other chlorinated household detergents! Health hazard!

Special salt and rinse aid

- Check the refill indicators 11 and 10. If required, refill salt and/or rinse aid.

en

Filters

The filters 26 keep large foreign objects in the rinsing water away from the pump. These foreign objects may occasionally block the filters.

The filter system consists of a coarse filter, a flat fine filter and a microfilter.

- After each washing cycle check the filters for residue.

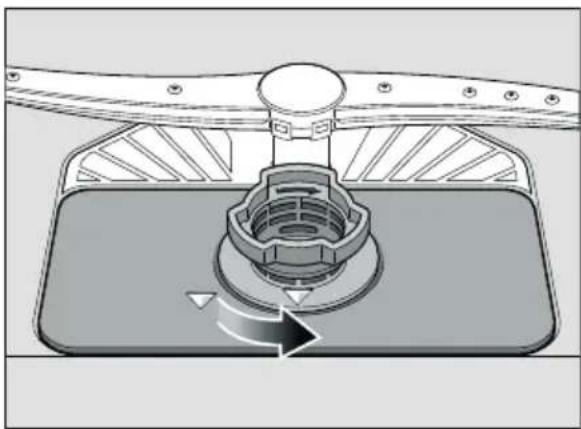

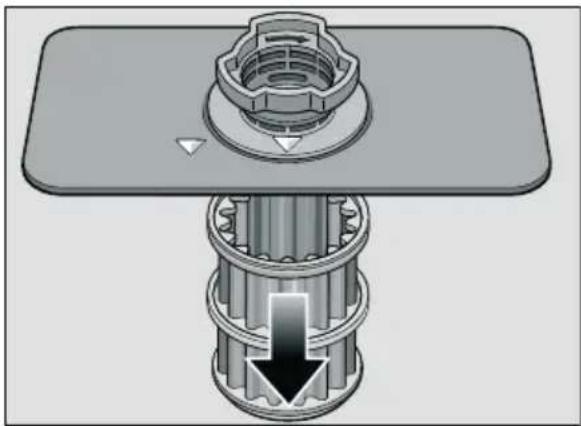

- Unscrew filter cylinder as illustrated and take out filter system.

Mechanical component diagram showing a rotating assembly with a central hub and fan base (no text or symbols)

Mechanical assembly diagram showing a bolted joint inserted into a gear-like component with a downward arrow indicating force or motion (no text or symbols present)

- Remove any residue and clean filters under running water.

- Re-install filter system in reverse sequence and ensure that the arrow marks are opposite each other after closing the filter system.

Spray arms

Limescale and contaminants in the rinsing water may block nozzles and bearings on the spray arms 23 and 24.

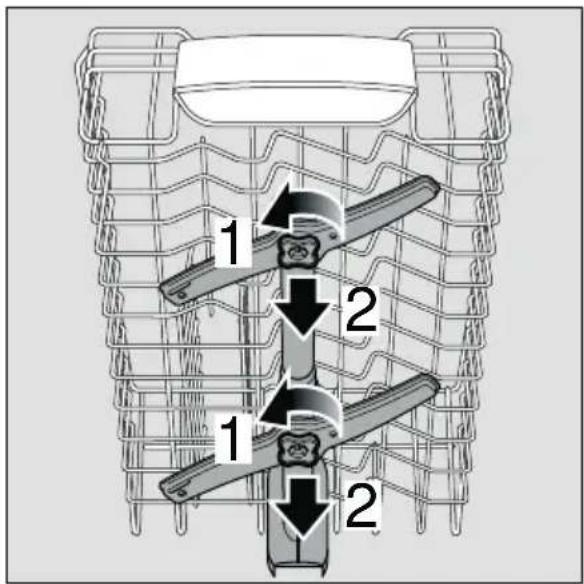

- Check outlet nozzles on the spray arms for blockages. - Unscrew the upper spray arms 23 (1/4 revolution).

1 2 1 2

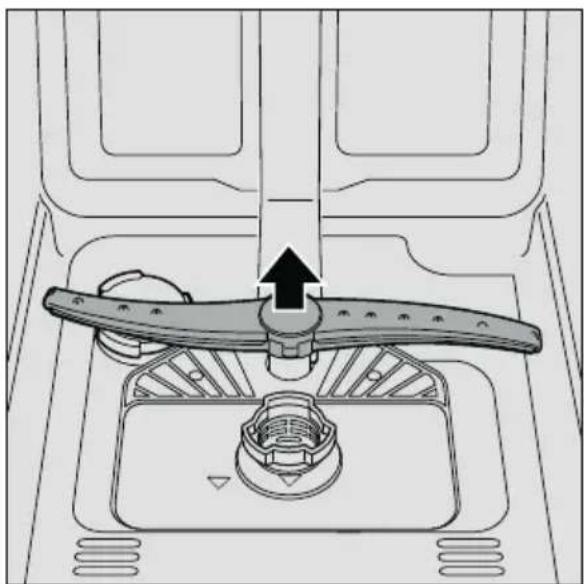

- Remove the lower spray arm 24 upwards.

Technical line drawing of a mechanical component with an arrow indicating upward motion (no text or symbols)

- Clean spray arms under running water.

- Re-engage or screw on spray arms.

Troubleshooting

The majority of faults which could occur in daily operation can be rectified by the user. This ensures that the appliance is quickly available for use again. The following overview will help you locating the causes and gives helpful advise to eliminate them.

Note

If the appliance stops during dishwashing or does not start for no obvious reason, first run the Abort programme function (Reset).

(See chapter entitled "Dishwashing")

Warning

Don't forget: Repairs may be carried out by technicians only. If a component has to be replaced, ensure that only original spare parts are used. Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk.

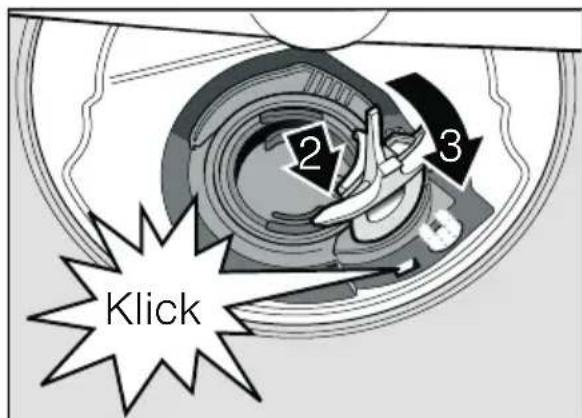

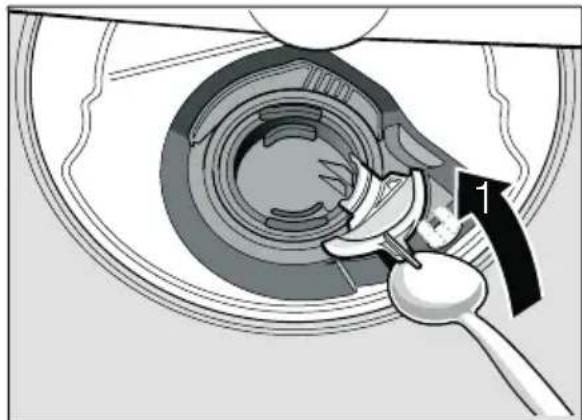

Waste water pump

Large food remnants or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter.

In this case:

• First always disconnect the appliance from the power supply.
• Take out top basket 20 and bottom basket 28.
• Remove the filters 26.
• Scoop out water, use a sponge if required.
• Prise out the white pump cover (as illustrated) using a spoon. Grip the cover on the crosspiece and lift diagonally inwards. Remove cover completely.

Mechanical assembly diagram showing a tool interacting with a circular component (no text or symbols visible)

• Check impeller wheel and remove any foreign objects.
• Place cover in the original position and press down until it engages (click).

2 3 Klick

• install filters.
• Re-insert baskets.

en

... when the appliance is switched on

The appliance does not start.

• The mains fuse has tripped.
• The appliance plug has not been inserted.
• The appliance door has not been shut properly.

... on the appliance

Lower spray arm rotates sluggishly.

- Spray arm blocked.

The door is difficult to open. \*

• Child-proof lock is activated. The deactivation instructions are at the back in the envelope.
  * depending on model

Door cannot be closed.

- Door lock has been activated. To reset, close the door with greater force.

Cover on the detergent dispenser cannot be closed.

- Detergent dispenser overfilled or mechanism blocked by sticky detergent residue.

Detergent residue in the detergent dispenser.

- Dispenser was damp when filled.

"Check water supply" display 12 lights up.

• Tap turned off.
• Water supply interrupted.
• Supply hose kinked.

- Filter in the wait

- Switch off the appliance and pull out the mains plug.

- Turn off the tap

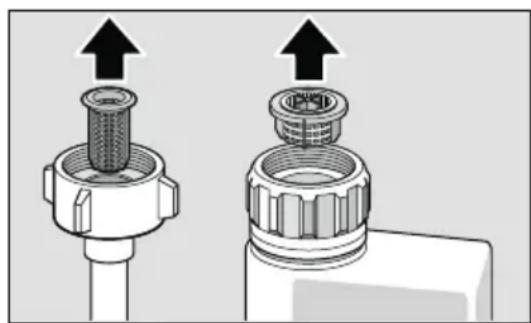

- Clean filter in the supply hose.

Two mechanical components with upward arrows indicating assembly or installation (no text or symbols present)

• Reconnect power supply.
• Turn on the tap.

- Switch on the ap

- Water is left in the appliance at the end of the programme.

- Waste water hose is blocked or kinked.

- Waste water pump blocked, cover on the waste water pump is not locked in position (see Waste water pump).

- Filters blocked

- The programme has not yet ended. Wait until programme ends or implement "Reset" function.

The "Check water supply" display 12 flashes rapidly.

• Water in the safety system.
• Switch off the appliance and pull out the mains plug.
• Turn off the tap.
• Call customer service.

Refill indicator for salt 11 and/or rinse-aid 10 is not lit.

• Refill indicator/s switched off.
• Adequate salt/rinse-aid available.

Refill indicator for special salt 11 is lit.

- N o s a l t .

Refill with special salt.

- Sensor does not detect salt tablets. Use different special salt.

... during the wash cycle

Unusual foam formation.

Handwash liquid in the rinse aid dispenser. Spilled rinse aid causes excessive frothing, therefore please remove with a cloth.

Appliance stops during the wash cycle.

• Power supply interrupted.
• Water supply interrupted.

Filling valves making striking noises

- Caused by the installation of the water line and has no effect on the function of the machine. Remedial action is not possible.

Knocking/rattling noise during rinsing

• Spray arm is striking utensils.
• Utensils not arranged correctly.

... on the utensils

Food residue on the utensils.

• Utensils placed too closely together, utensils basket overfilled.
• Too little detergent.
• Rinse programme too weak.
• Spray arm rotation obstructed.
• Spray arm nozzles blocked.
• Filters blocked
• Filters incorrectly inserted.
• Waste water pump blocked.
• Top basket on right and left not set to same height.

Tea or lipstick residue is not completely removed.

• The detergent has an inadequate bleaching effect.
• Too low rinsing temperature.
• Too little/unsuitable detergent.

White stains on the utensils/glasses remain milky.

If phosphate-free detergents are used with hard tap water, white deposits may be deposited more easily on utensils and the container walls.

• Too little/unsuitable detergent.
• Too weak programme selected.
• No/too little rinse aid.
• No/too little special salt.
• Water softening system set to the wrong value.
• Salt dispenser lock not fastened.

Contact the detergent manufacturer, in particular if:

- the utensils are very wet at the end of the programme.

- l i m e s c a l e f o r m s .

Dull, discoloured glasses, film cannot be washed off.

• Unsuitable detergent.
• Glasses not dishwasher-proof.

Streaks on glasses and cutlery, glasses have metallic appearance.

- Too much rinse aid.

Plastic parts discoloured.

• Too little/unsuitable detergent.
• Too weak programme selected.

Rust spots on the cutlery.

• Cutlery not rust-resistant.
• Salt content in the rinsing water too high, as salt dispenser lock not fastened firmly or salt was spilled while being refilled.

Utensils not dry.

• Appliance door opened too early and utensils taken out too early.
• Programme selected without drying.
• Too little/unsuitable rinse aid.
• Activate intensive drying.
• The combined detergent used has a poor drying performance. Use rinse aid (see Rinse aid chapter for setting).

Customer service

If the advice given does not resolve your problem, please contact your customer service. Contact details can be found on the back cover of this instruction manual or in the enclosed customer service list. When calling, please quote the appliance number (1) and the production date (FD = 2) which can be found on the rating plate [32] on the appliance door.

1 FD 2

Rely on the expertise of the

manufacturer. Call us to ensure that the repair will be carried out by fully-trained service engineers, who are equipped with original spare parts for your appliance.

Installation

The dishwasher must be connected correctly, otherwise it will not function properly. The specifications for the inlet and outlet as well as the electrical connected loads must correspond with the required criteria as specified in the following paragraphs or in the installation instructions.

Install the appliance in the correct sequence:

• Checking appliance on delivery
• Installing the appliance
• Waste water connection
• Fresh water connection
• Electrical connection

Safety instructions

• Install and connect the appliance according to the installation and assembly instructions.
  – Prior to installation, disconnect the dishwasher from the power supply.
• Ensure that the protective conductor system of the domestic supply has been correctly installed.
• The electrical connection conditions must correspond with the specifications on the dishwasher rating plate 32.
• If the power cord of this appliance is damaged, it must be replaced with a particular power cord.
  To prevent injury, the power cord may be replaced by customer service only.
• If the dishwasher is installed in a high-sided unit, the unit must be secured properly.
• Install built-under or integratable appliances only under continuous worktops which have been screwed to adjacent cupboards to ensure stability.

• Do not install the appliance near heat sources (radiators, heat storage tanks, cookers or other appliances which generate heat) and do not install under a h o b.

• After installing the appliance, ensure that the plug is easily accessible. (see Electrical connection)

• Some models: The plastic housing on the water connection contains an electric valve, the connecting cables are in the supply hose. Do not cut through this hose, do not immerse the plastic housing in water.

Warning

If the appliance is not in a cavity and a side panel is accessible, the door hinge area must be covered at the side for reasons of safety (risk of injury). The covers are available as optional accessories from customer service or specialist outlets.

Delivery

Your dishwasher has been checked thoroughly in the factory to ensure that it is in working order. This may cause small water stains. These will disappear after the first wash cycle.

Technical specifications

Weight:

max. 45 kg

Voltage:

220–240 V, 50 Hz or 60 Hz

Connected load:

2.0–2.4 kW

Fuse:

10/16 A (UK 13A)

Water pressure:

at least 0.05 MPa (0.5 bar), maximum 1 MPa (10 bar). At a higher w a pressure: connect pressure-reducing valve ahead.

Inlet rate:

minimum 10 litres/minute

Water temperature:

cold water; hot water max. temperature 60^ C.

Installation

The required installation dimensions can be found in the installation instructions. Level the appliance with the aid of the height-adjustable feet. Ensure that the appliance is situated securely on the floor.

• A built-under or integrated appliance which is installed subsequently as a free-standing appliance must be secured to prevent it from overturning, e.g. by screwing it to the wall or by installing it under a continuous worktop which is screwed to adjacent cupboards.
• The appliance can easily be installed in a fitted kitchen between wooden and plastic walls.

Waste-water connection

• The required work sequence can be found in the installation instructions. If required, fit a siphon with an drainage connection.
• Connect the waste-water hose to the drainage connection of the siphon with the enclosed parts.

Ensure that the drainage hose is not kinked, crushed or twisted and that there is no cover plate in the drainage to prevent the waste water from flowing out!

Fresh water connection

• Connect the fresh-water connection to the tap according to the installation instructions with the enclosed parts. Ensure that the fresh-water connection is not kinked, crushed or twisted.
• When replacing the appliance, always use a new water supply hose.

Water pressure:

at least 0.05 MPa (0.5 bar), maximum 1 MPa (10 bar). At a higher water pressure: connect pressure-reducing valve ahead.

Inlet rate:

minimum 10 litres/minute

Water temperature:

cold water preferred; hot water max. temperature 60 °C.

en

Electrical connection

• Connect the appliance to an alternating current only, ranging from 220 V to 240 V and 50 Hz or 60 Hz via a correctly installed socket with protective earth conductor. See rating plate for required fusing [32].
• The socket must be near the appliance and freely accessible following installation. If the plug is not freely accessible, an allpole disconnector with a contact opening of at least 3 mm must be fitted on the installation side to satisfy the relevant safety instructions.
• The connection may be modified by technicians only.
• A power cord extension may be purchased from customer service only.
• Use only a residual current operated circuit-breaker which features the symbol 📄. Only this extension guarantees compliance with the currently valid regulations.
• The appliance features a water damage protection system. Please note the system will not function unless the power supply is connected.

Removing the appliance

Also observe the sequence of worksteps here.

• Disconnect the appliance from the power supply.
• Turnoffthewate
• Disconnect the waste water and fresh water connections.
• Loosen fastening screws for the furniture parts.
• If fitted, remove the base panel.
• Pull out the appliance, carefully pulling the hose behind.

Transportation

Empty the dishwasher and secure loose parts.

Drain the appliance according to the following steps:

• Turn on the tap.
• Open the door.

- Switch on ON/OFF

The displays of the last selected programme light up.

• Select programme 4 with the highest temperature button < 5.
• Press START button 9.
• Close the door.

Programme sequence starts.

• Open door after approx. 4 minutes.
• Press START button 9 for approx. 3 sec.

The Cleaning display 7 goes out.

• Close the door.
  The remaining programme sequence lasts approx. 1 minute more. (Buzzer sounds.)
• Switch the appliance off 1 and turn the tap off.

Transport appliance upright only.

(This prevents residual water from running into the machine control and damaging the programme sequence.)

Protection against frost

If the appliance is in a room where there is a risk of frost (e.g. holiday home), empty the appliance completely (see Transportation).

- Turn off the tap, disconnect supply hose and drain water.

Waste disposal

Both the packaging of new appliances and the old appliances themselves contain valuable raw materials and recyclable materials.

Please dispose of the individual parts separated according to type.

Please ask your dealer or inquire at your local authority about current means of disposal.

Packaging

All plastic parts of the appliance are identified with internationally standardised abbreviations (e.g. >PS< polystyrene).

Therefore, plastic waste can be sorted out when the appliance is being disposed of.

Please follow the safety instructions under "Delivery".

Old appliances

Please follow the safety instructions under "Disposal of your appliance".

This appliance is identified according to the European guideline 2002/96/EC on waste electrical and electronic equipment – WEEE. The guideline specifies the framework for an EU-wide valid return and re-use of old appliances.

Childproof lock (door lock) \*

Diagram showing two labeled components (① and ②) with arrows indicating movement or force, likely illustrating a mechanical or electrical setup.

40

Diagram showing hand positioning a component with numbered arrows and directional indicators, likely illustrating a process or assembly step.

41

Diagram showing a hand placing a small object into a box with labeled parts ① and ②, likely illustrating a process or inventory step.

42

40 Activate the childproof lock.
41 Open the door with activated childproof lock.
42 Deactivate childproof lock.

Always close the appliance door completely when you leave the appliance.

This is the only way you can protect your children from potential dangers.

Baking sheet spray head \*

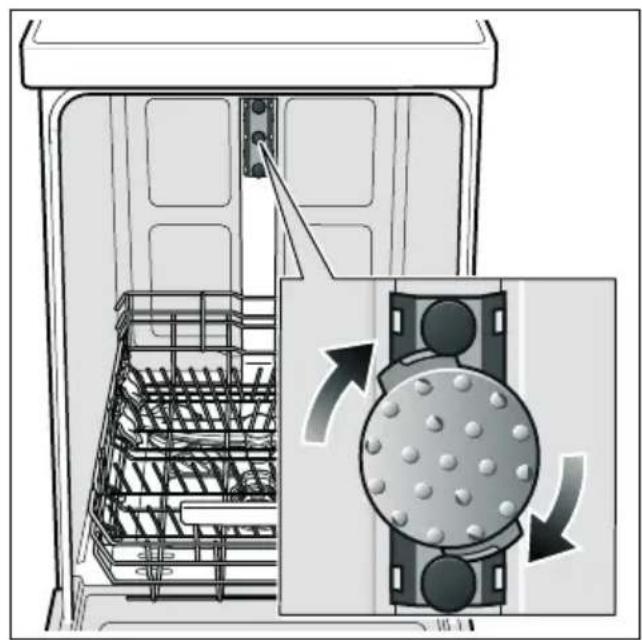

Diagram of a refrigerator interior with a close-up view showing the exterior wall and side panel (no text or symbols)

Technical line drawing of a mechanical device with internal compartments and structural supports (no text or symbols)

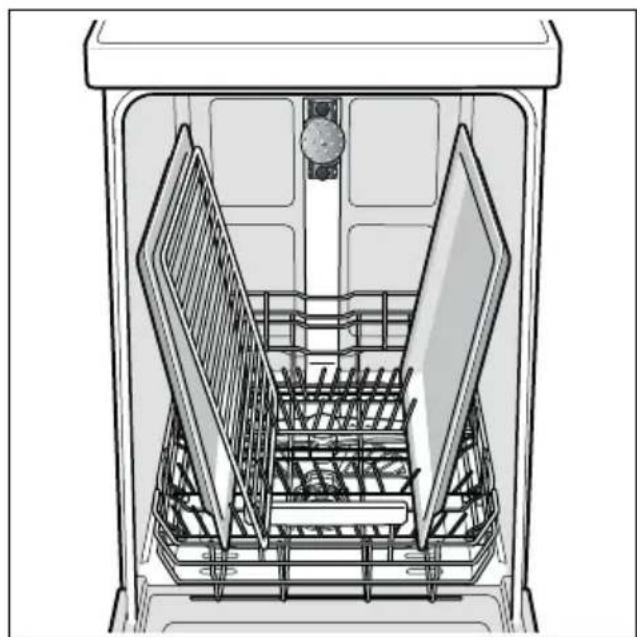

Large sheets or grilles and plates which have a diameter greater than 30 cm (gourmet plates, pasta plates, dinner plates) can be cleaned with the aid of the spray head. To do this, remove the top basket and insert the spray head as illustrated in the diagram.

To ensure that the spray jet can reach all parts, arrange the baking sheets as illustrated (max. 2 baking sheets and 2 grilles).

Never operate the dishwasher without the top basket or baking sheet spray head!

AquaStop guarantee

Repair order and advice on faults.
