en Table of contents

Safety instructions .... 4

Before you switch ON the appliance . . 4

Delivery 4

Installation 4

In daily use 4

Children in the household . . . . . . . . 4

Door lock 4

Button lock 5

Damage 5

Disposal 5

Getting to know your appliance ..... 5

Control panel 5

Appliance interior 5

Water softening system 6

Setting 6

Water hardness table 6

Special salt S....7

Using special salt 7

Detergents with salt component ..... 7

Switching off water softening system . 7

Rinse aid \* 8

Setting amount of rinse aid ..... 8

Switching off rinse aid refill indicator . . 8

Utensils 9

Not suitable 9

Glass and utensil damage ..... 9

Loading the dishwasher 9

Unloading the dishwasher ..... 9

Cups and glasses 9

Pans 10

Cutlery basket 10

Etagere 10

Folding spikes 10

Small accessories holder ..... 11

Knife shelf 11

Adjusting the height of the basket . . 11

Detergent 12

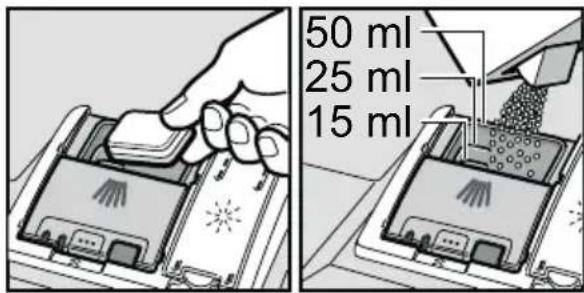

Adding detergent 13

Combination detergent ..... 13

Overview of programmes ..... 15

Programme selection 15

Information for test institutes ..... 15

Additional options 16

Express Wash/ Speed Perfect (VarioSpeed) 16

Half load 16

Hygiene 16

Intensive zone 16

Extra drying 16

Washing the dishes 16

Programme data 16

Aqua sensor 16

Switching on the appliance ..... 16

Remaining running time display .... 16

Timer programming 17

End of programme 17

Switching off automatically after the end of the programme ..... 17

Switching off the appliance ..... 17

Interrupting the programme ..... 17

Terminating the programme ..... 18

Changing the programme ..... 18

Intensive drying 18

Maintenance and care 18

Overall condition of the machine .... 18

Special salt and rinse aid ..... 18

Filters 19

Spray arms 19

Troubleshooting 20

Waste water pump 20

... when the appliance is switched on 20

... changing settings ..... 21

... on the appliance ..... 21

... during the wash cycle ..... 21

... on the utensils ..... 22

Customer service 23

Installation 23

Safety instructions ..... 23

Delivery 24

Technical specifications ..... 24

Installation 24

Waste-water connection ..... 24

Fresh water connection ..... 24

Warm water connection ..... 25

Electrical connection ..... 25

Removing the appliance ..... 25

Transportation 26

Protection against frost (Emptying the appliance) ..... 26

Waste disposal 26

Packaging 26

Old appliances 26

Safety instructions

Before you switch ON the appliance

Please read the operating and installation instructions carefully. They contain important information on how to install, use and maintain the appliance.

Retain all documents for subsequent use or for the next owner.

Delivery

• Check the packaging and dishwasher immediately for damage caused in transit. Do not switch on a damaged appliance, but contact your supplier.
• Please dispose of the packaging material in an environmentally friendly manner.
• Do not let children play with packaging and its parts. There is a risk of suffocation from collapsible boxes and film.

Installation

Read the “Installation” chapter to learn how to install and connect the appliance correctly.

In daily use

• This appliance is intended for use in the home and the home environment.
• U set the dish was only in the household and only for its designed purpose: for washing domestic dishes.
• Children or people whose physical, sensory or mental abilities prevent them from using the appliance safely must not use this appliance without supervision or instruction by a responsible person.
• Do not lean or sit on the open door. The appliance could tip.
• Please note that free-standing appliances may tip over if the baskets are overloaded.

• Do not add any solvents to the washing chamber. Danger of explosion!

• Open the door carefully when the programme is still running. There is a risk of hot water spraying out of the appliance.

• To prevent injuries, e.g. caused by stumbling, open the dishwasher only briefly in order to load and unload the dishwasher.
• Read and observe the safety information and instructions for use on the packaging for cleaning and rinsing agents.

Warning

Knives and other utensils with sharp points must be placed in the cutlery basket with the points downwards or horizontally on the knife shelf *.

* depending on model

Children in the household

• If fitted, use the childproof lock. An exact description can be found in the back of the envelope.
• Do not allow children to play with or operate the appliance.
• Keep children away from detergents and rinse aid. These may cause chemical burns in the mouth, throat and eyes or asphyxiation.
• Keep children away from open dishwasher. The water in the rinsing compartment is not drinking water and could contain detergent residue. Ensure that children do not place fingers in the tablet collecting tray [22]. Small fingers could become caught in the slots.
• If the appliance is installed at eye-level, ensure when opening and closing the door that children are not caught or crushed between the appliance door and the cupboard door situated below.

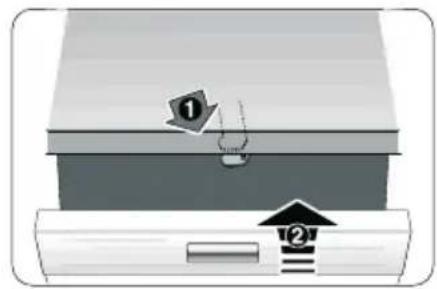

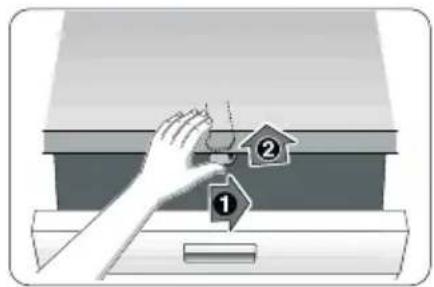

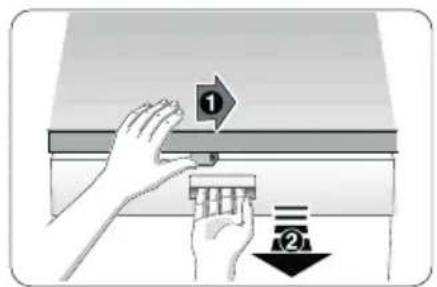

Childproof lock (door lock) \*

The description of the childproof lock is at the back in the envelope.

* depending on model

Childproof lock (button lock)

You can secure your appliance from being unintentionally the programme terminated (e.g. improper operation by children).

Activating the button lock:

• Start the required programme.
• Hold down the button B for approx. 4 sec. until this LL is indicated on the digital display.

If any button is pressed while the programme is running, this is indicated on the digital display. It is not possible to end (Reset) the programme.

Deactivating the button lock:

- Hold down the button B for approx. 4 sec. until the display LL goes out.

When the programme ends (0:00 on the digital display), the button lock is cancelled. If there is a power failure, the button lock is retained. Whenever a programme is restarted, the button lock must be reactivated.

Damage

- The appliance may be repaired and opened up by a technician only. To do this, disconnect the appliance from the power supply. Pull out the mains plug or switch off the fuse. Turn off the tap.

Disposal

• Make redundant appliances unusable to prevent subsequent accidents.
• Dispose of the appliance in an environmentally friendly manner.

Warning

Children could become locked in the appliance (risk of suffocation) or find themselves in other dangerous situations. Therefore: Pull out the mains plug, sever and dispose of the power cord. Destroy the door lock so that the door can no longer be closed.

Getting to know your appliance

Diagrams of the control panel and the interior of the appliance can be found in the envelope at the front.

Individual positions are referred to in the text.

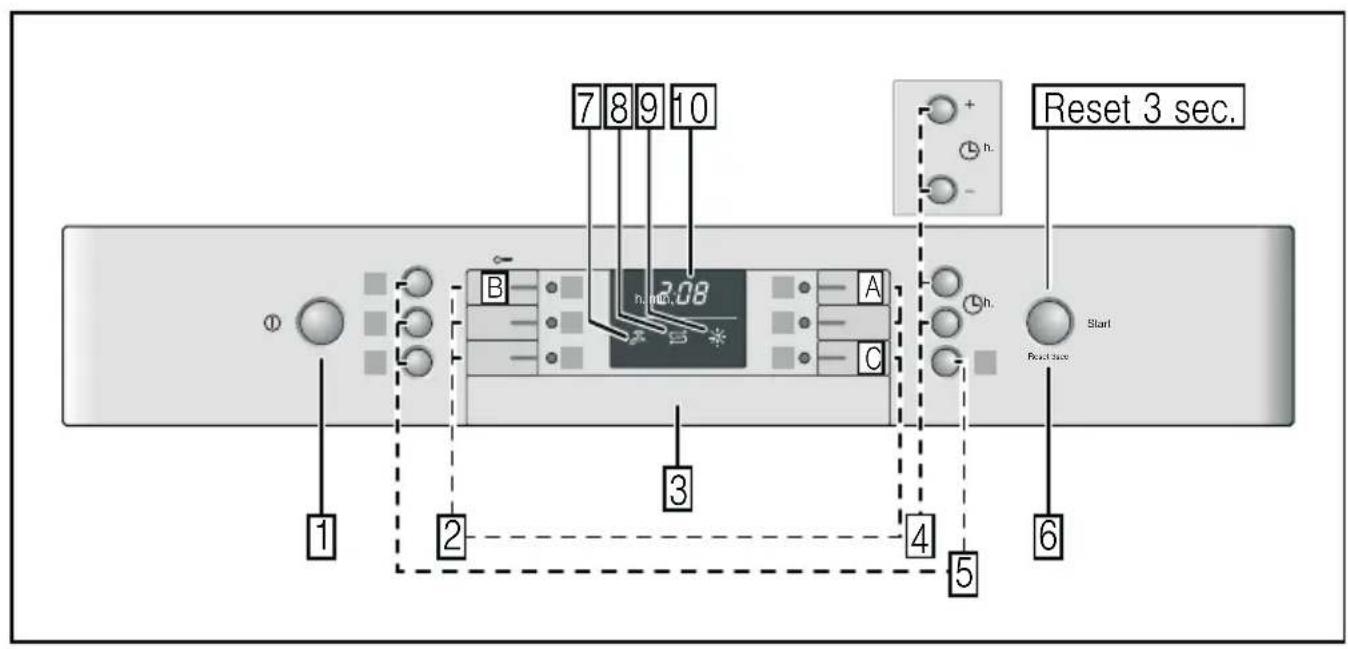

Control panel

1 ON/OFF switch
2 Programme buttons **
3 Door opener
4 Timer programming *
5 Additional options **
6 START button
7 Display "Check water supply"
8 Salt refill indicator
9 Rinse aid refill indicator
10 Digital display

* depending on model
** Number depending on model

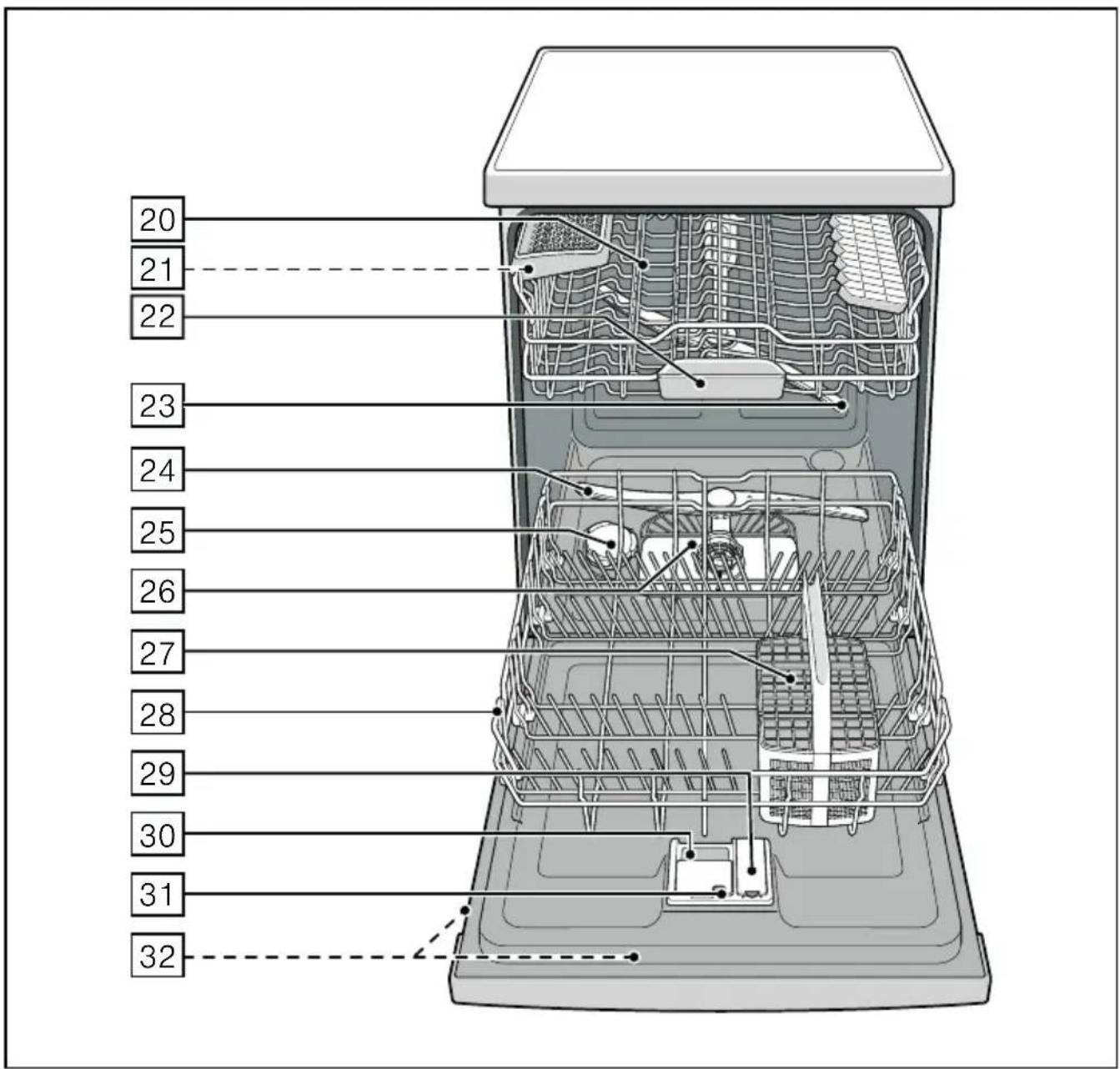

Appliance interior

20 Top basket
21 Knife shelf *
22 Tablet collecting tray
23 Top spray arm
24 Bottom spray arm
25 Dispenser for special salt
26 Filters
27 Cutlery basket
28 Bottom basket
29 Dispenser for rinse aid
30 Detergent dispenser
31 Lock for detergent dispenser
32 Rating plate

* depending on model

Water softening system

To ensure good washing results, the dishwasher requires soft water, i.e. containing low amounts of lime, otherwise white limescale will be deposited on the utensils and inner container.

Tap water above 9° Clarke must be softened. The water is softened with salt (regeneration salt) in the water softening system of the dishwasher.

The setting and therefore the required amount of salt depends on the degree of hardness of your tap water (see table).

Setting

The amount of salt dispensed can be set from H:00 to H:07.

Salt is not required at the set value H:00.

• Find out about the hardness value of your tap water. Your water utility company will help you with this.
• Set value can be found in the water hardness table.
• Close the door.
• Switch on ON/OFF switch 1.
• Hold down programme button A and press START button 6 until H:0.... is indicated on the digital display.
• Release both buttons.

The LED for button A flashes and the digital display 10 displays the factory setting H:04.

To change the setting:

- Press programme button C.

Each time the button is pressed, the set value increases by one level; when the value of H:07 has been reached, the display jumps back to H:00 (off).

- Press START button 6.

The chosen setting has now been stored.

Water hardness table

Water hardness value °Clarke	Hardness range	mmol/l	Set value on the machine
0-8	soft	0-1.1	H:00
9-10	soft	1.2-1.4	H:01
11-12	medium	1.5-1.8	H:02
13-15	medium	1.9-2.1	H:03
16-20	medium	2.2-2.9	H:04
21-26	hard	3.0-3.7	H:05
27-38	hard	3.8-5.4	H:06
39-62	hard	5.5-8.9	H:07

Special salt ↻

Using special salt

Always refill with special salt immediately before switching on the appliance. This ensures that overrun special salt solution is immediately washed out and does not corrode the rinsing tank.

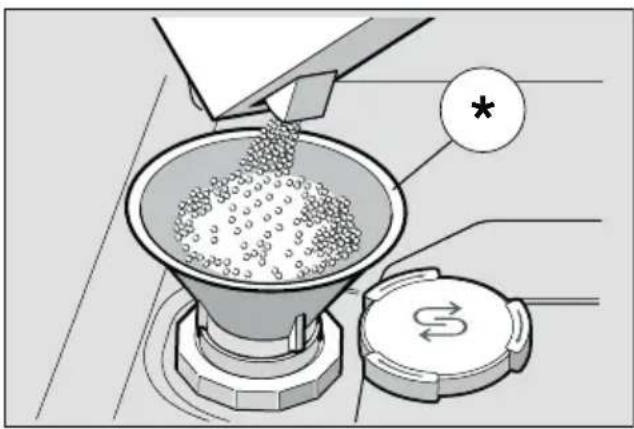

• Open the screw-type cap of the compartment 25.
• Fill the tank with water (only required when switching on the appliance for the first time).
• Then add dishwasher salt (not table salt or tablets).

The water is displaced and runs out. As soon as the salt refill indicator 8 on the fascia is lit, top up the salt.

Illustration of a conveyor belt pouring granular material into a conical hopper, with a close-up of the lid and a warning symbol (no text or labels)

* depending on model

Using detergents with salt component

If combined detergents with a salt component are used, salt can usually be omitted up to a water hardness of 21^ dH ( 37^ fH, 26^ Clarke, 3.7 mmol/l). If the water hardness is over 21^ dH, special salt must be used.

Switching off salt refill indicator/ water softening system

If the salt refill indicator 8 is impaired (e.g. when using combined detergents containing salt component), it can be switched off.

- Proceed as described under "Adjusting the water softening system" and set the value to H:00.

The water softening system and salt refill indicator are now switched off.

Warning

Never fill the salt dispenser with detergent. You will destroy the water softening system.

Rinse aid

As soon as the rinse-aid refill indicator 9 is lit on the fascia, there is still a rinse-aid reserve of 1 - 2 rinsing processes. Refill with rinse aid.

The rinse aid is required for stain-free utensils and clear glasses. Use only rinse aid for domestic dishwashers.

Combined detergents with rinse-aid component may be used up to a water hardness of 21^ dH ( 37^ fH, 26^ Clarke, 3.7 mmol/l) only. If the water hardness is over 21^ dH, rinse aid must be used.

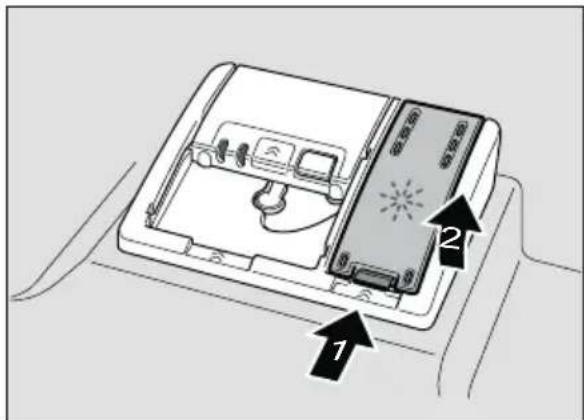

- Open the dispenser 29 by pressing and lifting the plate on the cover.

Diagram of a device with labeled parts, showing internal components and directional arrows indicating flow or movement.

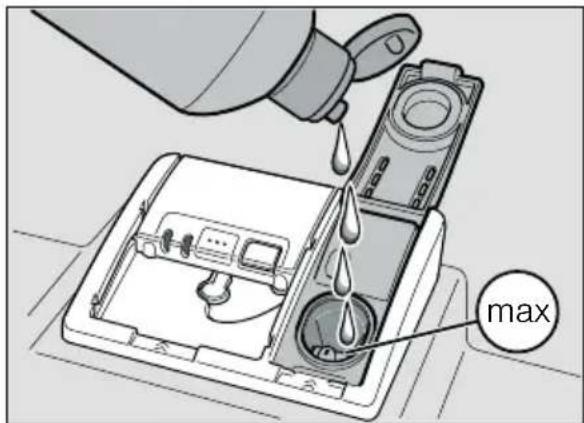

- Carefully pour rinse aid up to the max. mark in the filler opening.

max

• Close cover until it clicks shut.
• To prevent excessive foam formation during the next rinse cycle, remove any rinse aid which has run over with a cloth.

Setting amount of rinse aid

The amount of rinse aid can be set from r:00 to r:06. Please set rinse aid on r:05 to obtain very good drying results (r:05 is already set in factory).

Change this setting, only if streaks (select lower setting) or water stains (select higher setting) are left on the utensils.

• Close the door.
• Switch on ON / OFI
• Hold down programme button A and press START button 6 until H:0.... is indicated on the digital display.
• Release both buttons.

The LED for button A flashes and the digital display 10 displays the factory setting H:04.

- Press programme button A until the factory set value r:05 is indicated on the digital display 10.

To change the setting:

- Press programme button C.

Each time the button is pressed, the set value increases by one level; when the value of r:06 has been reached, the display jumps back to r:00 (off).

- Press START button 6.

The set value is saved.

Switching off rinse aid refill indicator

If the rinse-aid refill indicator 9 is impaired (e.g. when using combined detergents containing rinse aid component), it can be switched off.

- Proceed as described under "Setting amount of rinse aid" and set the value to r:00.

The rinse aid refill indicator 9 is now switched off.

Utensils

Not suitable

• Cutlery and utensils made of wood.
• Delicate decorative glasses, craft and antique utensils. These decors are not dishwasher-proof.
• Plastic parts not resistant to heat.
• Copper and tin
• Utensils which are soiled with ash, wax, lubricating grease or ink.

Aluminium and silver parts have a tendency to discolour and fade during the wash cycle. Even some types of glass (e.g. crystal glass objects) may turn cloudy after many wash cycles.

Glass and utensil damage

Causes:

• Glass type and glass production process.
• Chemical composition of the detergent.
• Water temperature of the wash programme.

Recommendation:

• Use only glasses and porcelain which the manufacturer designates as dishwasher-proof.
• Use a detergent which protects utensils.
• Take glass and cutlery out of the dishwasher as soon as possible after the programme ends.

Loading the dishwasher

• Remove large food remnants. It is not necessary to prerinse utensils under running water.
• Place the utensils so that
  – they are secure and cannot tip over.
• all utensils with their openings face down.
  u t parts with curves or indentations are at an angle; thereby allowing water to drain.
• does not obstruct rotation of the two spray arms 23 and 24.

Very small utensils should not be washed in the machine, as they may fall out of the baskets.

Unloading the dishwasher

To prevent water from dripping off the upper basket onto the utensils in the lower basket, it is recommended to empty the appliance from the bottom up.

Hot utensils are sensitive to shock! Therefore, when the programme ends, leave the utensils to cool down in the dishwasher until they can be handled.

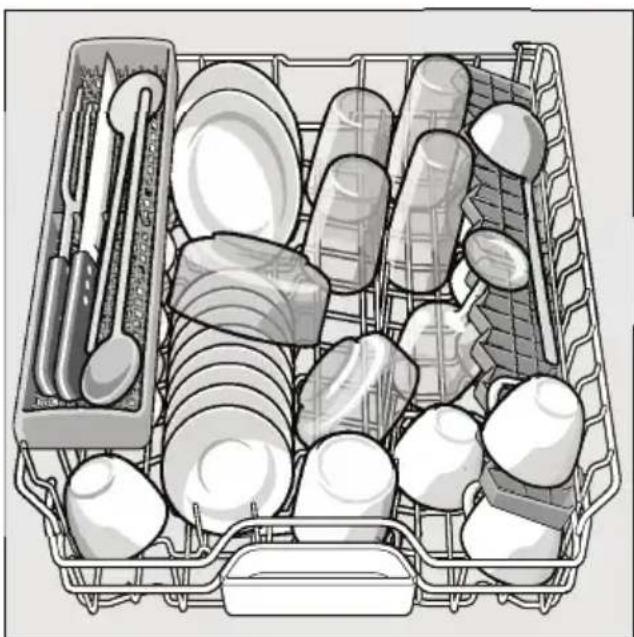

Cups and glasses

Top basket 20

Illustration of a multi-tiered kitchen appliance with cutlery and utensils (no text or symbols)

en

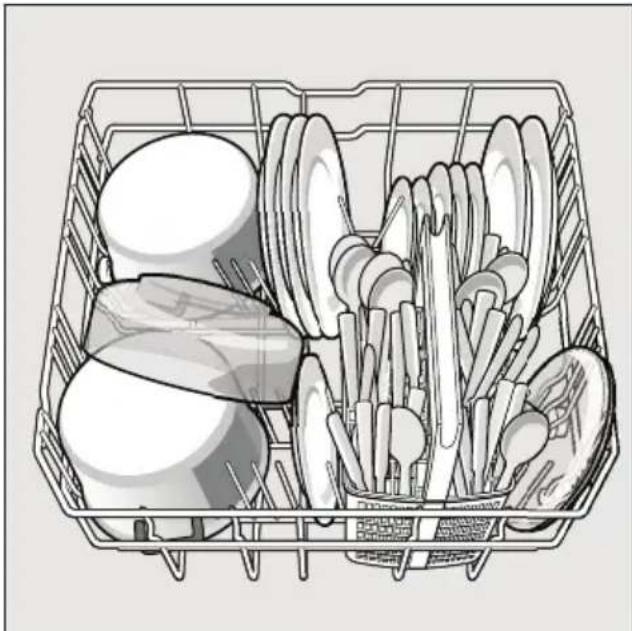

Pans

Bottom basket 28

Illustration of a grocery basket containing various kitchen utensils and cutlery (no text or labels)

Tip

Heavily soiled utensils (pans) should be placed in the bottom basket. The more powerful spray jet provides a better dishwashing result.

Tip

Other examples, such as the best way of loading your dishwasher, can be found on our homepage as a free download. The corresponding Internet address can be found on the back page of these instructions for use.

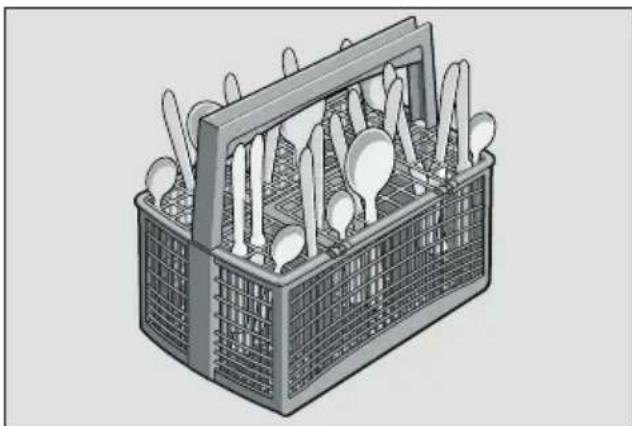

Cutlery basket

You should always place cutlery unsorted with the points downwards.

To prevent injuries, place long, pointed implements and knives on the knife shelf.

Illustration of a plastic crate containing various kitchen utensils (spoon, spoon, fork) arranged in a tray (no text or symbols)

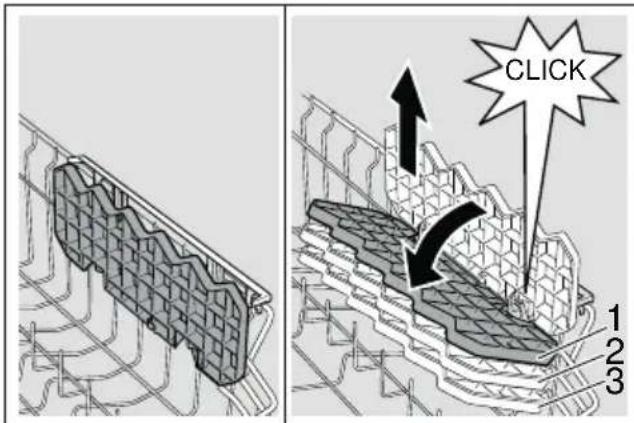

Etagere \*

The etagere and the space underneath can be used for small cups and glasses or for larger items of cutlery, such as wooden spoons or serving cutlery. The etagere can be folded up if not required.

CLICK 1 2 3

* Depending on the model, a 3-fold height adjustment is possible. To do this, first place the etagere vertically and pull up, then place at a slight angle, push down to the required height (1, 2, or 3) and snap into place.

Folding spikes \*

* depending on model

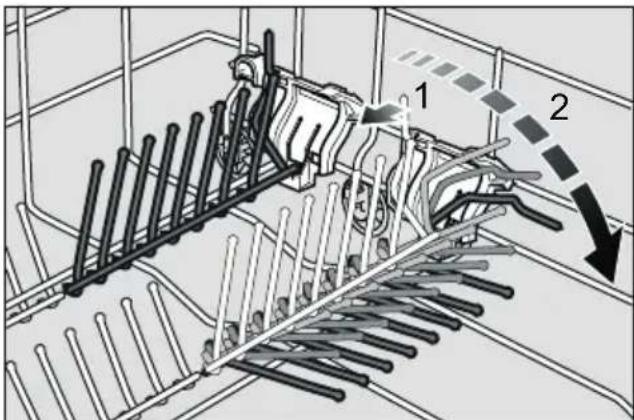

The spikes can be folded down to improve arrangement of pans, bowls and glasses.

Technical diagram showing mechanical assembly with labeled components and directional arrows

Small accessories holder \*

* depending on model

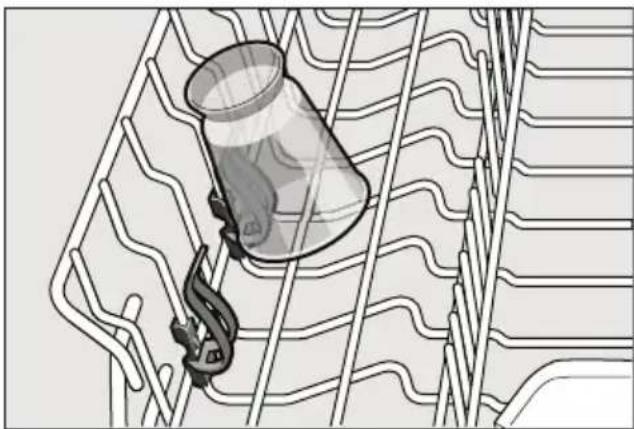

Light-weight plastic accessories, e.g. cups, lids, etc. can be held securely in the small accessories holder.

Illustration of a container being lifted by a hook, surrounded by wavy lines (no text or symbols)

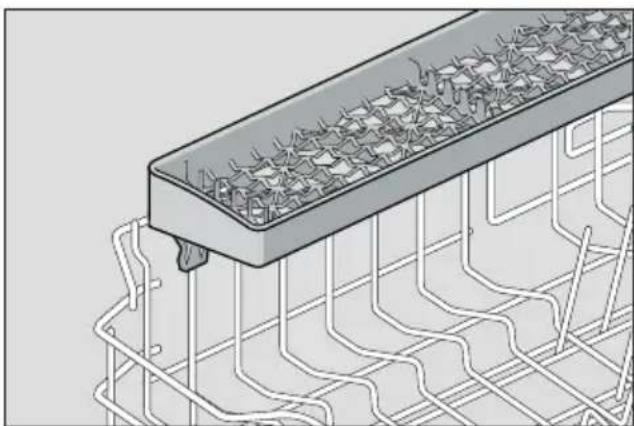

Knife shelf \*

* depending on model

Long knives and other utensils can be arranged horizontally.

Technical illustration of a multi-layer electronic component with internal wiring and mounting holes (no text or symbols)

Adjusting the height of the basket \*

* depending on model

If required, the height of the upper utensils basket 20 can be adjusted to provide more space for tall utensils either in the upper or lower basket.

Appliance height 81.5 cm

	Top basket	Bottombasket
Setting 1 max. ø 22 cm 30 cm
Setting 2 max. ø 24.5 cm 27.5 cm
Setting 3 max. ø 27 cm 25 cm

Appliance height 86.5 cm

	Top basket	Bottombasket
Setting 1 max. ø 24 cm 33 cm
Setting 2 max. ø 26.5 cm 30.5 cm
Setting 3 max. ø 29 cm 28 cm

Select one of the two following procedures according to the design of the top basket for your appliance model:

en

Top basket with side levers

- Pull out the top basket 20 out.

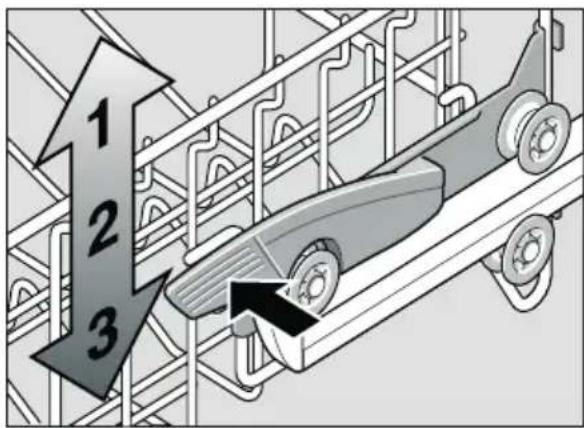

- T o lower the basket, press in the left and then the right lever on the outside of the basket. In doing so, hold the sides of the basket along the upper edge to prevent it from suddenly dropping.

1 2 3

- T o raise the basket, hold the basket on the sides of the upper edge and lift it up.

- Before re-inserting the basket again, ensure that it is at the same height on both sides. Otherwise, the appliance door cannot be closed and the upper spray arm will not be connected to the water circuit.

Top basket with upper and lower roller pairs

- Pull out the top basket 20 out.

- Remove the upper basket and re-attach it to the upper (stage 3) or lower (stage 1) rollers.

Diagram of a parking lot with lanes and circular wheels, no text or symbols present

Diagram of a parking lot with lanes and wheels, no text or symbols present

Detergent

You can use tablets as well as powder or liquid detergents for dishwashers, but never use washing up liquid. The dosage can be individually adjusted with powder or a liquid detergent according to the degree of soiling. Tablets contain an adequately large amount of active ingredients for all cleaning tasks. Modern, powerful detergents predominantly use a low-alkaline formulation with phosphate and enzymes. Phosphates bond the lime in the water. Enzymes break down starch and remove protein. Phosphate-free detergents are less frequent. These have a slightly weaker lime bonding capacity and require a higher dosage. To remove coloured stains (e.g. tea, tomato sauce), oxygen-based bleaching agents are usually used.

Note

To ensure a good washing result, always follow the instructions on the detergent packaging!

If you have further questions, we recommend that you contact the detergent manufacturers' helpline.

Warning

Read and observe the safety information and instructions for use on the packaging for cleaning and rinsing agents.

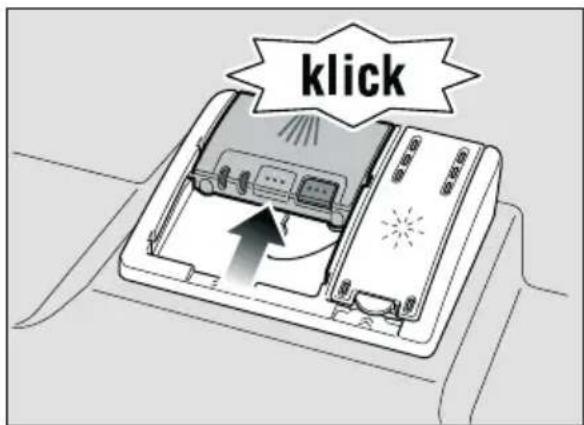

Adding detergent

- If the detergent dispenser 30 is still closed, press the lock 31 to open the detergent dispenser.

Pour detergent into the dry detergent dispenser 30 only (insert tablet flat, not on its edge).

Dosage: see manufacturer's instructions on the packaging.

The graduated detergent dispenser 30 helps you add the correct amount of powder or liquid detergent.

Usually 20 ml–25 ml are adequate for normal soiling. If using tablets, one tablet is adequate.

50 ml 25 ml 15 ml

- Close the cover on the detergent dispenser by sliding it up until the lock engages without difficulty.

klick

The detergent dispenser opens automatically at the optimum time depending on the programme. The powder or liquid detergent is distributed in the appliance and is dissolved, the tablet falls into the tablet collecting tray where it dissolves in doses.

Tip

If the utensils are only lightly soiled, slightly less than the indicated amount of detergent is usually adequate.

Suitable detergents and care products can be purchased online via our website or via customer service (see back page).

Combination detergent

Apart from conventional detergents (Solo), a number of products are offered with additional functions. These products contain not only the detergent but also rinse-aid and salt replacement substances (3in1) and, depending on the combination (4in1, 5in1, etc.), additional components such as glass protection or stainless steel cleaner. Combination detergents function only up to a specific degree of hardness (usually 26° Clarke). Over this limit salt and rinse-aid must be added.

As soon as combined detergents are used, the rinse programme is adjusted automatically to ensure the best possible rinsing and drying result.

Warnings

- D o not place small parts for washing in the tablet collecting tray 22; this prevents the tablet from dissolving evenly.

- If you want to add more utensils after the programme has started, do not use the tablet collecting tray 22 as a handle for the upper basket. The tablet could already be there and you will touch the partially dissolved tablet.

en

Notes

- You will obtain optimum rinsing and drying results by using solo detergents and applying salt and rinse aid separately.

- If programmes are short, tablets may not have full cleaning effect due to different dissolving properties and there may even be undissolved detergent residue. It is recommended to use washing powder for these programmes.

- The Intensive programme (on some models) requires one tab only. When using washing powder, you can apply some of this cleaning agent to the inside of the appliance's door.

- Even if the rinse-aid and/or salt refill indicator is lit, the rinse programme will run correctly with combined detergents.

- If using detergents in a water-soluble protective cover: Take hold of the cover with dry hands only and put the detergent into an absolutely dry detergent dispenser only, otherwise the detergent may stick.

- If you switch from combined detergents to solo detergents, ensure that the water softening system and amount of rinse aid have been set to the correct value.

Overview of programmes

The max. possible number of programmes is illustrated in this overview. The corresponding programmes and their arrangement can be found on the fascia.

Type of utensils	Type of soiling Programme	Possible additional options	Prerinse sequence
pots and pans, non-sensitive utensils and cutlery	very adhesive burned-in or dried-on food remnants containing starch or protein	Intensive 70°	PrerinseClean 70°Intermediate rinseFinal rinse 69°Dry
		* Intensive Eco 45°	PrerinseClean 45°Intermediate rinseFinal rinse 69°Dry
		Auto 45°–65°	Is optimised according to the soiling with the aid of sensors.
mixed utensils and cutlery	part dried, common household food remnants	Eco 50°	PrerinseClean 50°Intermediate rinseFinal rinse 65°Dry
sensitive utensils, cutlery, temperature-sensitive plastic and glasses	slightly adhesive, fresh food remnants	Quick 45°	Extra dryingClean 45°Intermediate rinseFinal rinse 55°
all types of utensils	cold rinsing, intermediate cleaning	Prerinse	none Prerinse

* The Intensive Eco 45° programme offers outstanding cleaning results even if utensils are heavily soiled. And this with an energy saving of up to 25% compared with the Intensive 70° programme. To benefit from these advantages, please use modern detergents which deploy their full cleaning power from 45°C. These detergents are identified by the manufacturers accordingly.

Programme selection

You can select a suitable programme according to the type of utensils and degree of soiling.

Information for test institutes

Test institutes can request the conditions for running comparison tests by sending an e-mail to

[e-mail].

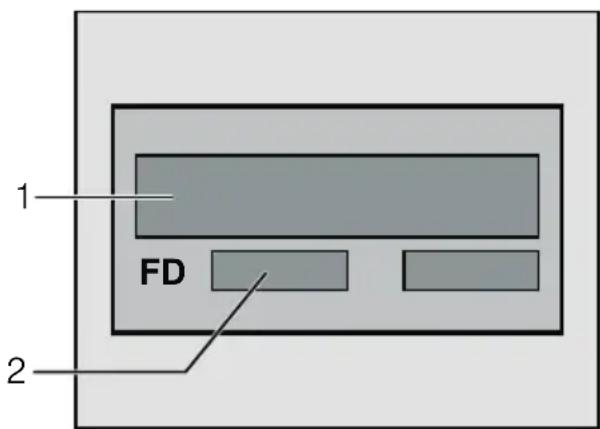

Quote the appliance number (E-Nr.) and the production date (FD) which you can find on the rating

plate 32 on the appliance door.

Additional options Washing the dishes

* depending on model

Additional options can be set with the buttons 5.

Express Wash/ Speed Perfect/ MarioSpeed) \*

This function can reduce the running time by approx. 20% to 50% depending on the selected rinse programme. The change in the running time is indicated on the digital display 10. To obtain optimum cleaning results at a reduced running time, water and energy consumption are increased.

Half load \*

If you have only a few items to wash (e.g. glasses, cups, plates), you can switch to "half load". This will save water, energy and time. It is recommended to put a little less detergent in the detergent dispenser than for a full load.

Hygiene \*

The temperature is increased during the cleaning process. This increases the hygiene status. This additional option is ideal for cleaning e.g. chopping boards and baby bottles.

Intensive zone \*

Perfect for a mixed load. You can wash very soiled pots and pans in the lower basket together with normally soiled utensils in the upper basket. The spray pressure in the lower basket is intensified, the rinsing temperature is increased slightly.

Extra drying \*

An increased temperature during the final rinse and an extended drying phase ensure that even plastic parts dry better. There is a slight increase in the energy consumption.

Programme data

The programme data (consumption values) can be found in the summary of instructions. They refer to normal conditions and the water hardness set value H:04. Different influencing factors such as e.g. water temperature or line pressure may result in deviations.

Aqua sensor \*

* depending on model

The Aqua sensor is an optical measuring device (light barrier) which measures the turbidity of the rinsing water.

The Aqua sensor is used according to the programme. If the Aqua sensor is active, "clean" rinsing water can be transferred to the next rinse bath and water consumption can be reduced by 3–6 litres. If the turbidity is greater, the water is drained and is replaced with fresh water. In the automatic programmes the temperature and running time can also be adjusted to the degree of soiling.

Switching on the appliance

- Turn on the tap fully.

- Switch on ON / OFI

The display of the last selected programme flashes. This programme remains selected if no other programme button 2 is pressed. The expected programme duration flashes on the digital display 10.

- Press the START button 6.

The programme starts running.

Remaining running time display

When the programme is selected, the remaining running time of the programme is indicated on the digital display 10.

The running time is determined during the programme by the water temperature, the number of utensils as well as the degree of soiling and may vary (depending on the selected programme).

Timer programming \*

* depending on model

You can delay the start of the programme in 1-hour steps up to 24 hours.

- Close the door.

- Switch on ON / O

- Press button 4 + until the digital display 10 jumps to h:01.

- Press 4 + or - button until the displayed time corresponds with your requirements.

- Press START button 6, timer programming is activated.

- To delete timer programming, press the 4 + or - button until 10 h:00 is indicated on the digital display. You can change your programme selection at any time until the programme starts.

End of programme

The programme has ended when the value 0:00 is indicated on the numerical display 10.

Switching off automatically after the end of the programme \*

* depending on model

To save energy, the dishwasher is switched off 1 minute after the programme ends (factory setting).

Automatic disconnection can be adjusted from P:00 to P:02.

P:00 Appliance does not switch off automatically

P:01 Off after 1 min

P:02 Off after 120 min

- Close the door.

- Switch on ON/OFF switch 1.

- Hold down programme button A and press START button 6 until H:0... is indicated on the digital display.

- Release both buttons.

The LED for button A flashes and the digital display 10 displays the factory setting H:04.

- Press programme button A until the factory set value P:01 is indicated on the digital display 10.

To change the setting:

- Press programme button C.

Each time the button is pressed, the set value increases by one level; when the value of P:02 has been reached, the display jumps back to P:00 (off).

- 'Press START button' 6.

The set value is saved.

Switching off the appliance

Short time after the end of the programme:

- Switch off ON/OFF switch 1.

- Turn off the tap (not applicable if Aqua-Stop fitted).

- Remove the utensils when they have cooled down.

Warning

At the end of the programme please open the door fully and not partially when emptying the dishwasher. Any escaping water vapour could damage sensitive worktops.

Interrupting the programme

- Switch off ON/OFF switch 1.

The LEDs go out. The programme is saved.

If the door was opened on an appliance which has a warm water connection or is heated, first leave the door ajar for several minutes and then close. Otherwise, expansion (pressure) may cause the appliance door to spring open or water to run out of the appliance.

- To continue the programme, switch on the ON/OFF switch 1 again.

en

Terminating the programme (Reset)

• Press START button 6 for approx. 3 sec.
  The numerical display 10 indicates 0:0 1.
• The programme sequence lasts approx. 1 min. On the digital display 10 is indicated 0:00.
• Switch off ON/OFF switch 1.

Changing the programme

When the START button 6 has been pressed, the programme cannot be changed.

The only way a programme can be changed is by Cancel programme (Reset).

Intensive drying

The final rinse uses a higher temperature which improves the drying result. The running time may increase slightly. (Caution if utensils are delicate!)

• Close the door.
• Switch on ON / O
• Hold down programme button A and press START button 6 until the digital display 10 H:0... is indicated.
• Release both b The LED for button A flashes and the digital display 10 displays the factory setting H:04.
• Press programme button A until the factory set value d:00 is indicated on the digital display 10.

To change the setting,

- Press the button C to switch the Intensive drying on d:01 or off d:00.

- Press START button 6. The set value is saved.

Maintenance and care

A regular inspection and maintenance of your machine will help to prevent faults.

This saves time and prevents problems.

Overall condition of the machine

- Check spray arm for grease and limescale deposits.

If you find such deposits:

- Fill detergent dispenser with detergent. Start the appliance without utensils in the programme with the highest rinsing temperature.

Clean the appliance with detergents/appliance cleaners which are particularly suitable for use with dishwashers.

- Regularly clean door seal with a damp cloth.

Never use a steam cleaner to clean your dishwasher. The manufacturer is not liable for any consequential damage.

Regularly wipe the front of the appliance and fascia with a damp cloth; water and a F little washing up liquid are adequate. Do not use sponges with a rough surface or abrasive detergents, as these could scratch the surfaces.

u Stainless steel appliances: To prevent corrosion, avoid using sponge cloths or wash them out thoroughly several times before using for the first time.

Warning

Never use other chlorinated household detergents! Health hazard!

Special salt and rinse aid

- Check the refill indicators 8 and 9. If required, refill salt and/or rinse aid.

Filters

The filters 26 keep large foreign objects in the rinsing water away from the pump. These foreign objects may occasionally block the filters.

The filter system consists of a coarse filter, a flat fine filter and a microfilter.

- After each washing cycle check the filters for residue.

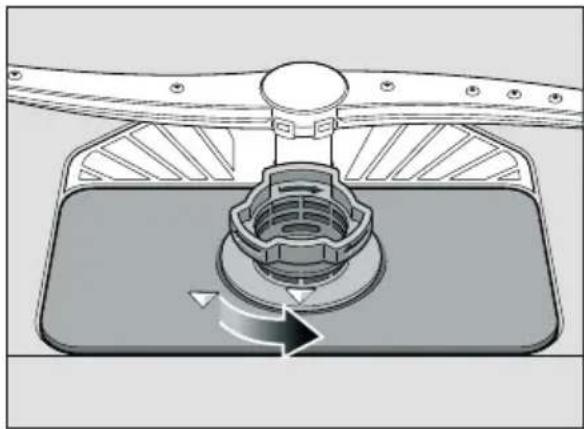

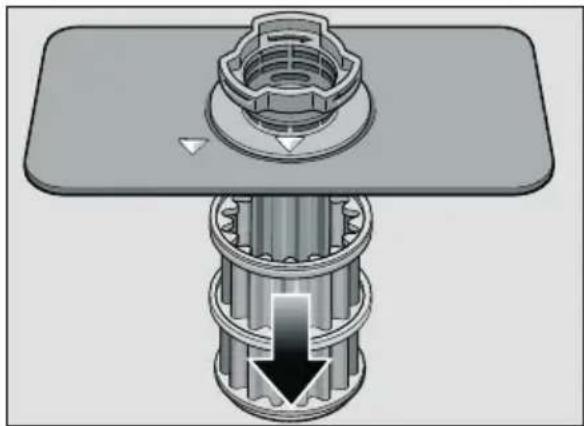

- Unscrew filter cylinder as illustrated and take out filter system.

Mechanical component diagram showing a rotating assembly with a central hub and fan base (no text or symbols)

Mechanical assembly diagram showing a bolted joint inserted into a cylindrical shaft with a downward arrow indicating force or motion (no text or symbols present)

- Remove any residue and clean filters under running water.

- Re-install filter system in reverse sequence and ensure that the arrow marks are opposite each other after closing the filter system.

Spray arms

Limescale and contaminants in the rinsing water may block nozzles and bearings on the spray arms 23 and 24.

- Check outlet nozzles on the spray arms for blockages.

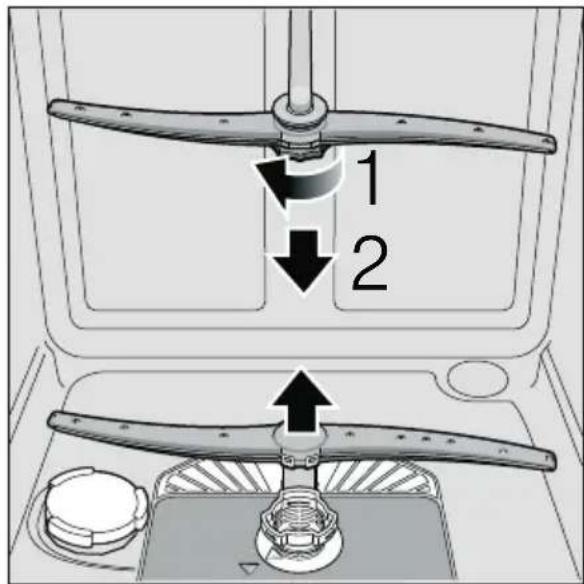

- Unscrew the upper spray arm 23.

- Remove the lower spray arm 24 upwards.

1 2

- Clean spray arms under running water.

- Re-engage or screw on spray arms.

en

Troubleshooting

The majority of faults which could occur in daily operation can be rectified by the user. This ensures that the appliance is quickly available for use again. The following overview will help you locating the causes and gives helpful advise to eliminate them.

Note

If the appliance stops during dishwashing or does not start for no obvious reason, first run the Abort programme function (Reset).

(See chapter entitled "Dishwashing")

Warning

If on the digital display 10 an error code (E:01 to E:30), always disconnect the appliance from the power supply and then turn off the tap.

You can rectify certain faults yourself (see following fault description), for all other faults please contact customer service and state the indicated fault E:XX.

Warning

Don't forget: Repairs may be carried out by technicians only. If a component has to be replaced, ensure that only original spare parts are used. Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk.

Waste water pump

Large food remnants or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter.

In this case:

- First always disconnect the appliance from the power supply.

- Take out top basket 20 and bottom basket 28 .

• Remove the filters 26.
• Scoop out water, use a sponge if required.

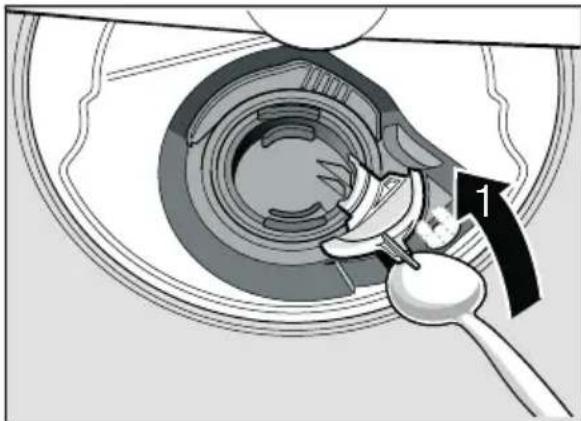

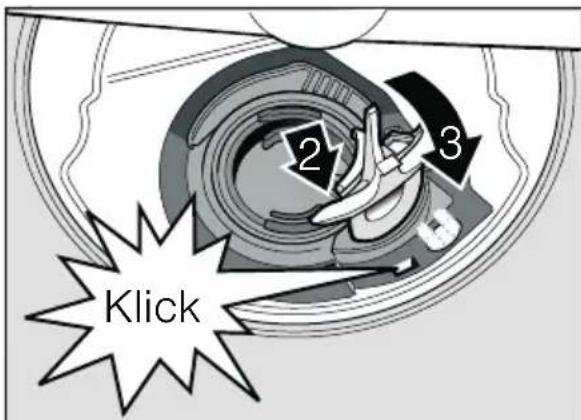

• Prise out the white pump cover (as illustrated) using a spoon. Grip the cover on the crosspiece and lift diagonally inwards. Remove cover completely.

Mechanical assembly diagram showing a tool interacting with a circular component (no text or symbols visible)

• Check impeller wheel and remove any foreign objects.
• Place cover in the original position and press down until it engages (click).

2 3 Klick

• install filters.
• Re-insert baskets.

... when the appliance is switched on

The appliance does not start.

• The mains fuse has tripped.
• The appliance plug has not been inserted.
• The appliance door has not been shut properly.

... changing settings

A setting cannot be changed, a programme starts.

- Wrong programme button pressed. Terminate the programme (see chapter entitled “Terminating the programme (Reset)”) and start all over again.

- You did not wait until programme ended.

... on the appliance

Lower spray arm rotates sluggishly.

- Spray arm blocked.

The door is difficult to open. \*

- Child-proof lock is activated. The deactivation instructions are at the back in the envelope.

* depending on model

Door cannot be closed.

- Door lock has been activated. To reset, close the door with greater force.

Cover on the detergent dispenser cannot be closed.

- Detergent dispenser overfilled or mechanism blocked by sticky detergent residue.

Detergent residue in the detergent dispenser.

- Dispenser was damp when filled.

"Check water supply" display 7 lights up.

• Tap turned off.
• Water supply interrupted.
• Supply hose kinked.

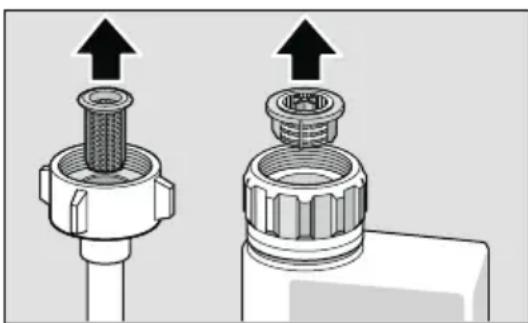

• Filter in the water supply blocked.

• Switch off the appliance and pull out the mains plug.

• Turnofftheta
• Clean filter in the supply hose.

Diagram showing two mechanical components with upward arrows indicating assembly or force direction (no text or symbols present)

- Reconnect power supply.

• Turn on the tap .
• Switch on the ap

Water is left in the appliance at the end of the programme.

• (E:24) Waste water hose is blocked or kinked. Filters blocked.
• (E:25) Waste water pump blocked, cover on the waste water pump is not locked in position (see Waste water pump).
• Filters blocked
• The programme has not yet ended. Wait until programme ends (digital display indicates 0:00) or implement the "Reset" function.

Error code E:22

- Filters 26 are soiled or blocked.

Refill indicator for salt 8 and/or rinse-aid 9 is not lit.

• Refill indicator/s switched off.
• Adequate salt/rinse-aid available.

Refill indicator for special salt 8 is lit.

- N o s a l t .

Refill with special salt.

- Sensor does not detect salt tablets.

Use different special salt.

... during the wash cycle

Unusual foam formation.

- Handwash liquid in the rinse aid dispenser.

Spilled rinse aid causes excessive frothing, therefore please remove with a cloth.

Appliance stops during the wash cycle.

• Power supply interrupted.
• Water supply interrupted.

Filling valves making striking noises

- Caused by the installation of the water line and has no effect on the function of the machine. Remedial action is not possible.

Knocking/rattling noise during rinsing

• Spray arm is striking utensils.
• Utensils not arranged correctly.

en

... on the utensils

Food residue on the utensils.

• Utensils placed too closely together, utensils basket overfilled.
• Too little detergent.
• Rinse programme too weak.
• Spray arm rotation obstructed.
• Spray arm nozzles blocked.
• Filters blocked
• Filters incorrectly inserted.
• Waste water pump blocked.
• Top basket on right and left not set to same height.

Tea or lipstick residue is not completely removed.

• The detergent has an inadequate bleaching effect.
• Too low rinsing temperature.
• Too little/unsuitable detergent.

White stains on the utensils/glasses remain milky.

If phosphate-free detergents are used with hard tap water, white deposits may be deposited more easily on utensils and the container walls.

• Too little/unsuitable detergent.
• Too weak programme selected.
• No/too little rinse aid.
• No/too little special salt.
• Water softening system set to the wrong value.
• Salt dispenser lock not fastened.

Contact the detergent manufacturer, in particular if:

- the utensils are very wet at the end of the programme.

- l i m e s c a l e f o r m s .

Dull, discoloured glasses, film cannot be washed off.

• Unsuitable detergent.
• Glasses not dishwasher-proof.

Streaks on glasses and cutlery, glasses have metallic appearance.

- Too much rinse aid.

Plastic parts discoloured.

• Too little/unsuitable detergent.
• Too weak programme selected.

Rust spots on the cutlery.

• Cutlery not rust-resistant.
• Salt content in the rinsing water too high, as salt dispenser lock not fastened firmly or salt was spilled while being refilled.

Utensils not dry.

• Appliance door opened too early and utensils taken out too early.
• Programme selected without drying.
• Too little/unsuitable rinse aid.
• Activate intensive drying.
• The combined detergent used has a poor drying performance. Use rinse aid (see Rinse aid chapter for setting).

Customer service

If the advice given does not resolve your problem, please contact your customer service. Contact details can be found on the back cover of this instruction manual or in the enclosed customer service list. When calling, please quote the appliance number (1) and the production date (FD = 2) which can be found on the rating plate [32] on the appliance door.

1 FD 2

Rely on the expertise of the

manufacturer. Call us to ensure that the repair will be carried out by fully-trained service engineers, who are equipped with original spare parts for your appliance.

Installation

The dishwasher must be connected correctly, otherwise it will not function properly. The specifications for the inlet and outlet as well as the electrical connected loads must correspond with the required criteria as specified in the following paragraphs or in the installation instructions.

Install the appliance in the correct sequence:

• Checking appliance on delivery
• Installing the appliance
• Waste water connection
• Fresh water connection
• Electrical connection

Safety instructions

• Install and connect the appliance according to the installation and assembly instructions.
• Prior to installation, disconnect the dishwasher from the power supply.
• Ensure that the protective conductor system of the domestic supply has been correctly installed.
• The electrical connection conditions must correspond with the specifications on the dishwasher rating plate 32.
• If the power cord of this appliance is damaged, it must be replaced with a particular power cord. To prevent injury, the power cord may be replaced by customer service only.
• If the dishwasher is installed in a high-sided unit, the unit must be secured properly.
• Install built-under or integratable appliances only under continuous worktops which have been screwed to adjacent cupboards to ensure stability.
• Do not install the appliance near heat sources (radiators, heat storage tanks, cookers or other appliances which generate heat) and do not install under a h o b.

en

• After installing the appliance, ensure that the plug is easily accessible. (see Electrical connection)
• Some models: The plastic housing on the water connection contains an electric valve, the connecting cables are in the supply hose. Do not cut through this hose, do not immerse the plastic housing in water.

Warning

If the appliance is not in a cavity and a side panel is accessible, the door hinge area must be covered at the side for reasons of safety (risk of injury). The covers are available as optional accessories from customer service or specialist outlets.

Delivery

Your dishwasher has been checked thoroughly in the factory to ensure that it is in working order. This may cause small water stains. These will disappear after the first wash cycle.

Technical specifications

Weight:

max. 60 kg

Voltage:

220–240 V, 50 Hz or 60 Hz

Connected load:

2.0-2.4 kW

Fuse:

10/16 A (UK 13A)

Water pressure:

at least 0.05 MPa (0.5 bar), maximum 1 MPa (10 bar). At a higher w a pressure: connect pressure-reducing valve ahead.

Inlet rate:

minimum 10 litres/minute

Water temperature:

cold water; hot water max. temperature 60^ C.

Installation

The required installation dimensions can be found in the installation instructions. Level the appliance with the aid of the height-adjustable feet. Ensure that the appliance is situated securely on the floor.

• A built-under or integrated appliance which is installed subsequently as a free-standing appliance must be secured to prevent it from overturning, e.g. by screwing it to the wall or by installing it under a continuous worktop which is screwed to adjacent cupboards.
• The appliance can easily be installed in a fitted kitchen between wooden and plastic walls.

Waste-water connection

• The required work sequence can be found in the installation instructions. If required, fit a siphon with an drainage connection.
• Connect the waste-water hose to the drainage connection of the siphon with the enclosed parts.

Ensure that the drainage hose is not kinked, crushed or twisted and that there is no cover plate in the drainage to prevent the waste water from flowing out!

Fresh water connection

• Connect the fresh-water connection to the tap according to the installation instructions with the enclosed parts. Ensure that the fresh-water connection is not kinked, crushed or twisted.
• When replacing the appliance, always use a new water supply hose.

Water pressure:

at least 0.05 MPa (0.5 bar), maximum 1 MPa (10 bar). At a higher water pressure: connect pressure-reducing valve ahead.

Inlet rate:

minimum 10 litres/minute

Water temperature:

cold water; hot water max. temperature 60 °C.

Warm water connection \*

* depending on model

The dishwasher can be connected to cold or hot water up to max. 60 °C.

Connection to hot water is recommended if the hot water can be supplied by energetically favourable means and from a suitable installation, e.g. solar heating system with circulation line.

This will save energy and time.

The hot water setting R:01 allows you to adjust your appliance optimally to operation with hot water.

It is recommended to have a water temperature (temperature of the incoming water) of at least 40 °C and no more than 60 °C .

It is not recommended to connect the appliance to hot water if the water is supplied from an electric boiler.

Setting hot water:

• Close the door.
• Switch on ON / O
• Hold down programme button A and press START button 6 until H:0... is indicated on the digital display.
• Release both b The LED for button A flashes and the digital display 10 displays the factory setting H:04.
• Press programme button A until the factory set value R:00 is indicated on the digital display 10.

To change the setting:

• By pressing the switch the hot water setting off R:00 or on R:01.
• Press START button 6. The set value is saved.

Electrical connection

• Connect the appliance to an alternating current only, ranging from 220 V to 240 V and 50 Hz or 60 Hz via a correctly installed socket with protective earth conductor. See rating plate for required fusing [32].
• The socket must be near the appliance and freely accessible following installation. If the plug is not freely accessible, an allpole disconnector with a contact opening of at least 3 mm must be fitted on the installation side to satisfy the relevant safety instructions.
• The connection may be modified by technicians only.
• A power cord extension may be purchased from customer service only.
• Use only a residual current operated circuit-breaker which features the symbol 📄. Only this extension guarantees compliance with F is currently valid regulations.
• The appliance features a water damage protection system. Please note the system will not function t undess the power supply is connected.

Removing the appliance

Also observe the sequence of worksteps here.

• Disconnect the appliance from the power supply.
• Turnoffthewater

-CD isotope, but the waste water and fresh water connections.

• Loosen fastening screws for the furniture parts.
• If fitted, remove the base panel.
  – Pull out the appliance, carefully pulling the hose behind.

en

Transportation

Empty the dishwasher and secure loose parts.

Drain the appliance according to the following steps:

• Turn on the tap.
• Close the door.
• Switch on ON / O displays of the last selected programme light up.
• Select programme with the highest temperature.
  The expected programme duration is indicated on the numerical display 10.
• Press START button 6.
  Programme sequence starts.
• After approx. 4 minutes press the START button 6 until 0:01 is indicated on the digital display.
  After approx. 1 min 0:00 is indicated on the digital display.
• Switch the appliance off 1 and turn the tap off.

Transport appliance upright only.

(This prevents residual water from running into the machine control and damaging the programme sequence.)

Protection against frost

If the appliance is in a room where there is a risk of frost (e.g. holiday home), empty the appliance completely (see Transportation).

- Turn off the tap, disconnect supply hose and drain water.

Waste disposal

Both the packaging of new appliances and the old appliances themselves contain valuable raw materials and recyclable materials.

Please dispose of the individual parts separated according to type. The

Please ask your dealer or inquire at your local authority about current means of disposal.

Packaging

All plastic parts of the appliance are identified with internationally standardised abbreviations (e.g. >PS< polystyrene).

Therefore, plastic waste can be sorted out when the appliance is being disposed of.

Please follow the safety instructions under "Delivery".

Old appliances

Please follow the safety instructions under "Disposal of your appliance".

This appliance is identified according to the European guideline 2002/96/EC on waste electrical and electronic equipment – WEEE. The guideline specifies the framework for an EU-wide valid return and re-use of old appliances.

Childproof lock (door lock) \*

Diagram showing two labeled components (① and ②) with arrows indicating movement or flow, likely illustrating a mechanical or electrical assembly.

40

Diagram showing a hand pressing a component labeled '①' and '②' with directional arrows, likely illustrating a process or assembly step.

41

Diagram showing a hand pressing a component labeled with numbers 1 and 2 on a device or machine panel.

42

40 Activate the childproof lock.
41 Open the door with activated childproof lock.
42 Deactivate childproof lock.

Always close the appliance door completely when you leave the appliance.

This is the only way you can protect your children from potential dangers.

Baking sheet spray head \*

Diagram illustrating a food delivery or storage system with labeled components and directional arrows indicating flow or movement.

Interior view of a kitchen appliance with a grid rack and metal fixtures (no text or symbols visible)

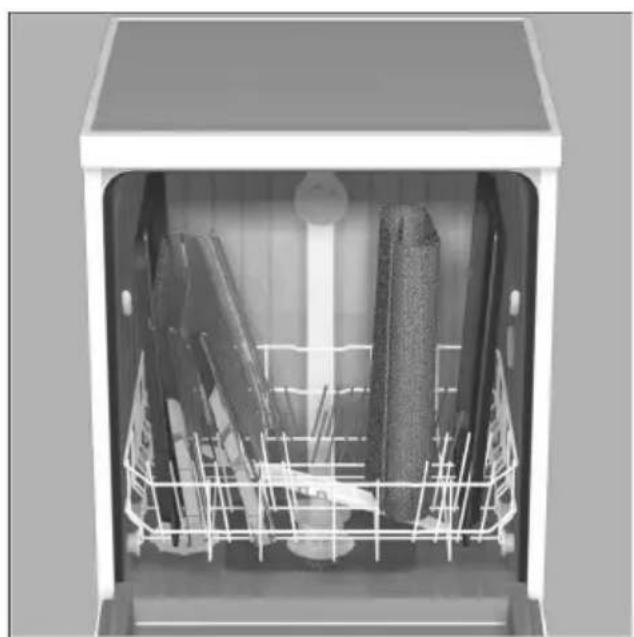

Large sheets or grilles and plates which have a diameter greater than 30 cm (gourmet plates, pasta plates, dinner plates) can be cleaned with the aid of the spray head. To do this, remove the top basket and insert the spray head as illustrated in the diagram.

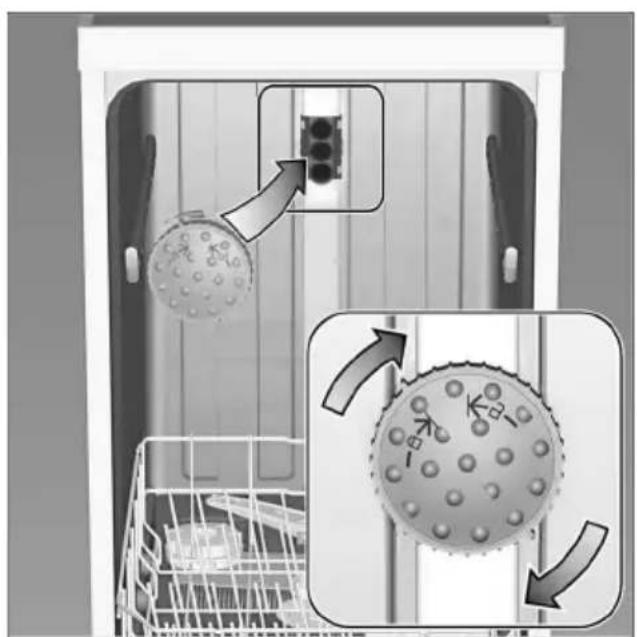

To ensure that the spray jet can reach all parts, arrange the baking sheets as illustrated (max. 4 baking sheets and 2 grilles).

Never operate the dishwasher without the top basket or baking sheet spray head!

AquaStop guarantee

Repair order and advice on faults.
