S Series SE2219H - Screen DELL - Free user manual and instructions

Product Type	Monitor / Display
Model	Dell S Series SE2219H
Screen Size	21.5 inches (546.1 mm diagonal)
Panel Type	In-Plane Switching (IPS)
Resolution	1920 x 1080 (Full HD) at 60 Hz
Aspect Ratio	16:9
Brightness	250 cd/m² (typical)
Contrast Ratio	1000:1 (typical), 8,000,000:1 (dynamic)
Response Time	8 ms (normal), 5 ms (fast)
Viewing Angle	178° vertical and horizontal (typical)
Color Depth	16.7 million colors
Color Gamut	72% CIE 1931
Connectivity	1 x VGA, 1 x HDMI 1.4 (HDCP 1.4)
Dimensions (with stand)	488.9 x 385.2 x 152.8 mm (19.25 x 15.17 x 6.02 in)
Dimensions (without stand)	488.9 x 294.7 x 46.4 mm (19.25 x 11.60 x 1.83 in)
Weight (with stand)	3.45 kg (7.61 lb)
Weight (without stand)	2.67 kg (5.89 lb)
Power Consumption (typical)	17 W (normal), < 0.5 W (standby)
Tilt Angle	-5° to 21°
Security	Kensington security lock slot
Features	Flicker-free, ComfortView low blue light, Energy Star certified, Plug and Play
Cleaning Instructions	Use a soft, dry cloth. For stubborn dirt, lightly dampen with water. Avoid benzene, thinner, ammonia, or abrasive cleaners.
Compliance	RoHS, BFR/PVC-reduced, Arsenic-free glass, Mercury-free panel

Frequently Asked Questions - S Series SE2219H DELL

How do I clean the Dell SE2219H monitor screen without damaging it?

For cleaning, use a soft, dry cloth. If needed, lightly dampen the cloth with water. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air. Always unplug the monitor before cleaning.

What is ComfortView and how do I enable it?

ComfortView is a low blue light mode designed to reduce eye strain. To enable it, press the Menu button, go to Color > Preset Modes, and select ComfortView.

How do I connect the Dell SE2219H monitor to my computer?

Connect using a VGA or HDMI cable (supplied). For VGA, use the monitor's VGA port; for HDMI, use the HDMI port. Ensure both devices are powered off before connecting. Then turn them on and select the correct input source via the OSD menu (Input Source).

What is the maximum resolution supported?

The maximum preset resolution is 1920 x 1080 at 60 Hz. For best performance, set your computer to this resolution.

Can I mount this monitor on a VESA arm?

The monitor does not have a standard VESA mount. It uses a proprietary stand that can be removed, but no VESA holes are documented. For wall mounting, consider using a third-party adapter or check with Dell support.

How do I perform a self-test on the monitor?

Disconnect all video cables from the monitor, then turn it on. If working correctly, a floating dialog box will appear (e.g., 'No VGA Cable'). This confirms the monitor is functional.

What should I do if the screen remains black but the power LED is on?

Check the following: ensure the correct input source is selected via the OSD, increase Brightness and Contrast in the OSD, perform the self-test, and check for bent pins in the video cable. Also run the built-in diagnostics.

How can I reset the monitor settings to factory defaults?

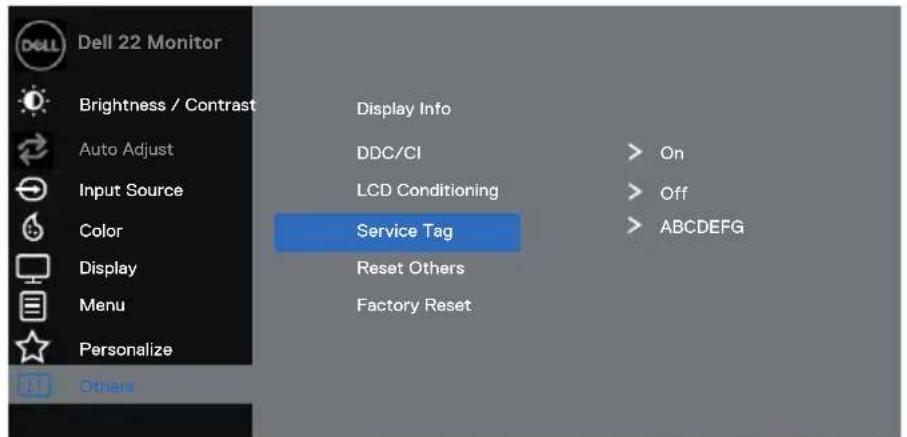

Press the Menu button, navigate to Others > Factory Reset, and confirm. This resets all OSD settings to original values.

Does the monitor have built-in speakers?

No, the Dell SE2219H does not have built-in speakers. You need external speakers or headphones connected to your computer.

What is the energy consumption and does it support power saving?

Typical power consumption is 17 W (maximum 20 W). In Active-off mode (standby), it consumes less than 0.5 W. The monitor is ENERGY STAR certified and automatically enters power saving mode when no signal is detected.

USER MANUAL S Series SE2219H DELL

Notes, Cautions and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Copyright © 2018 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

2018 - 09

Rev. A01

Contents

About your monitor5.

Package contents 5

Product features 6

Identifying features and controls 7

Monitor sepcifiactions .....10

Plug and play capability ..... 16

LCD monitor quality and pixel policy .....16

Maintenance guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Setting up the monitor 17

Connecting the stand17.

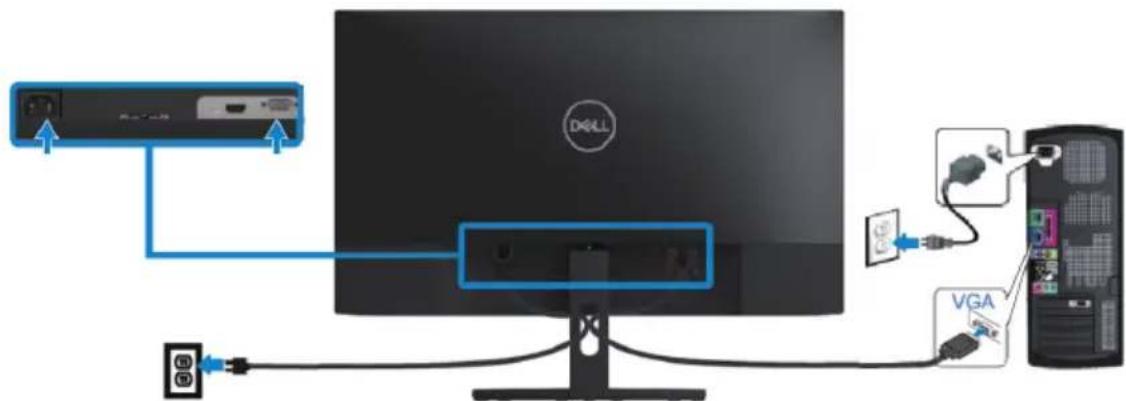

Connecting your monitor 19

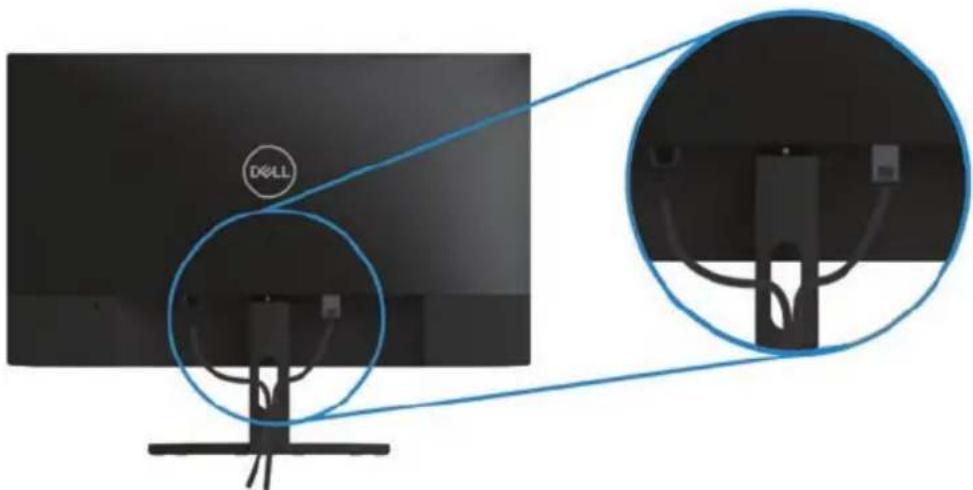

Organizing cables 20

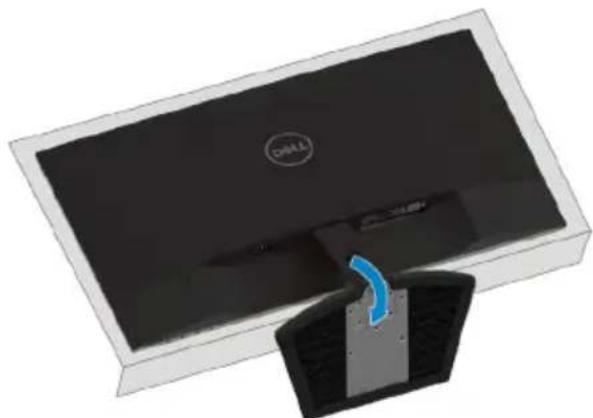

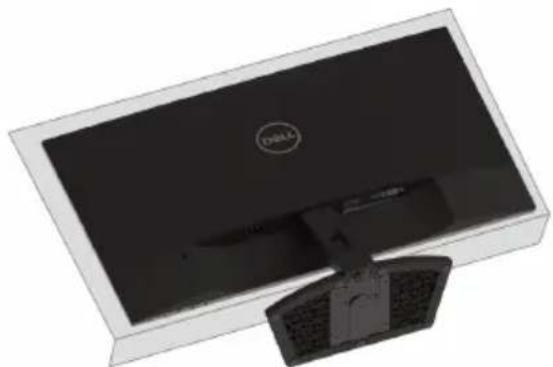

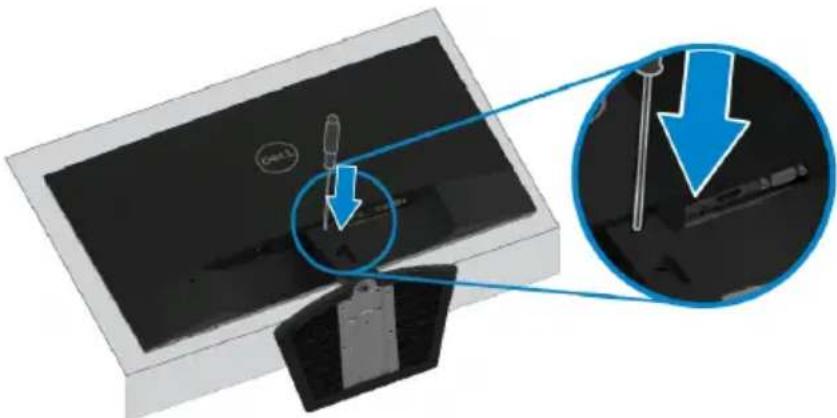

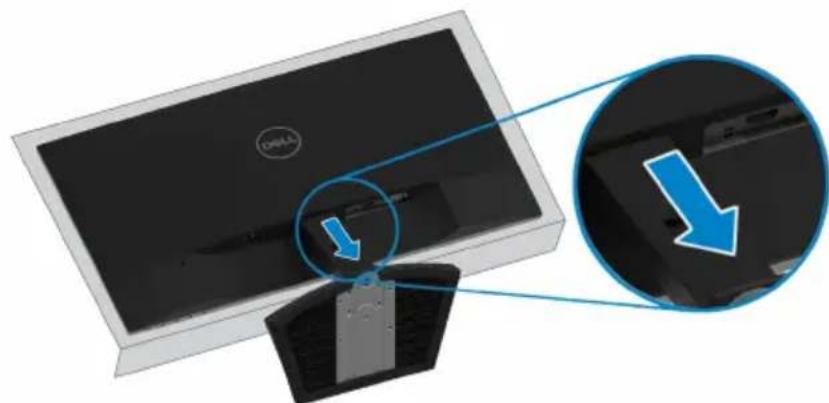

Removing the stand 20

Operating your monitor 22

Turning on the monitor22.

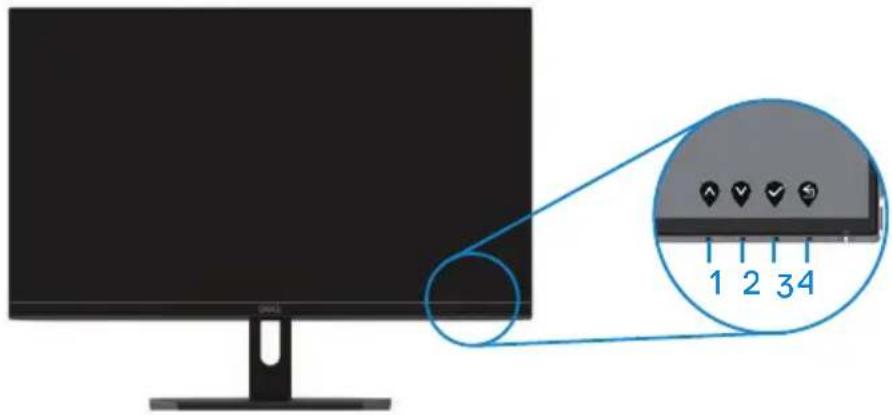

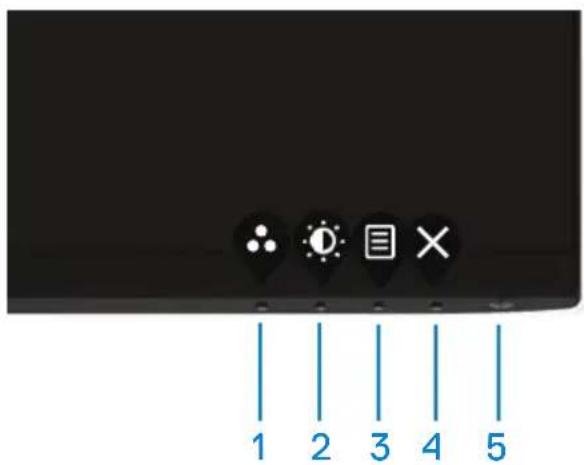

Using the front panel controls 22

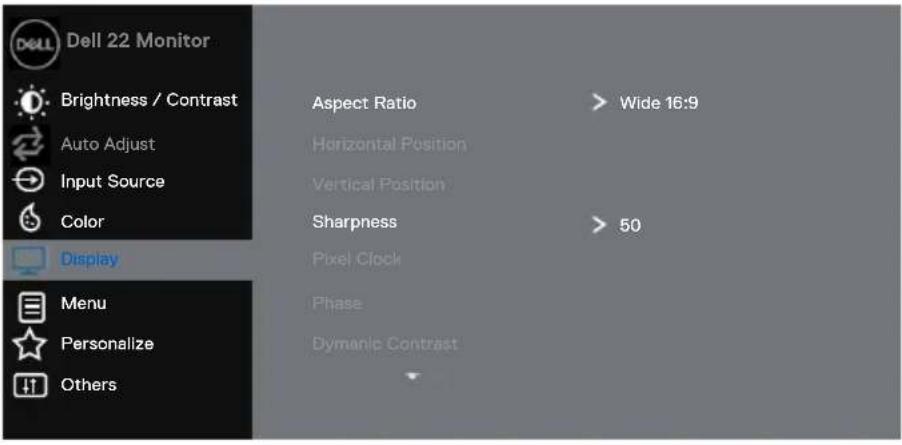

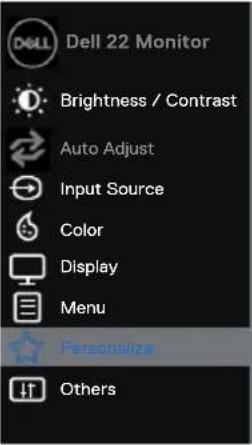

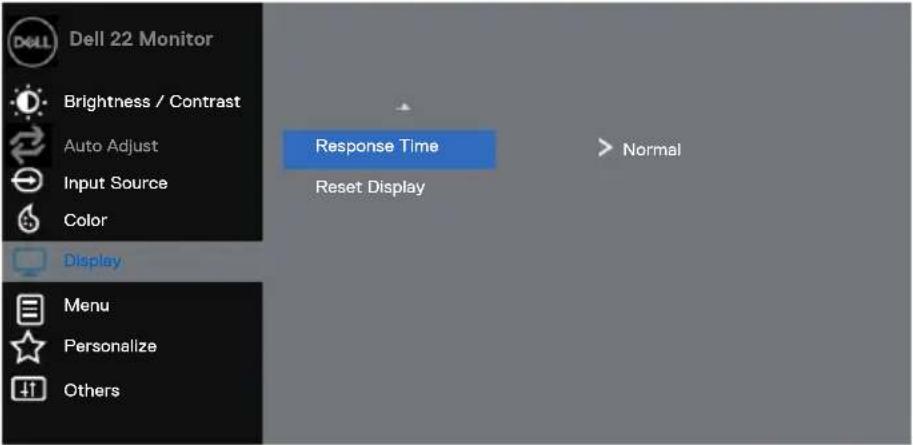

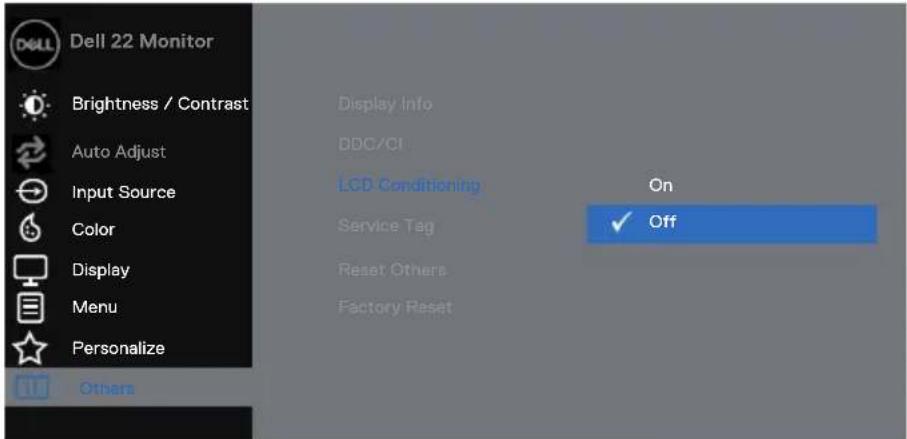

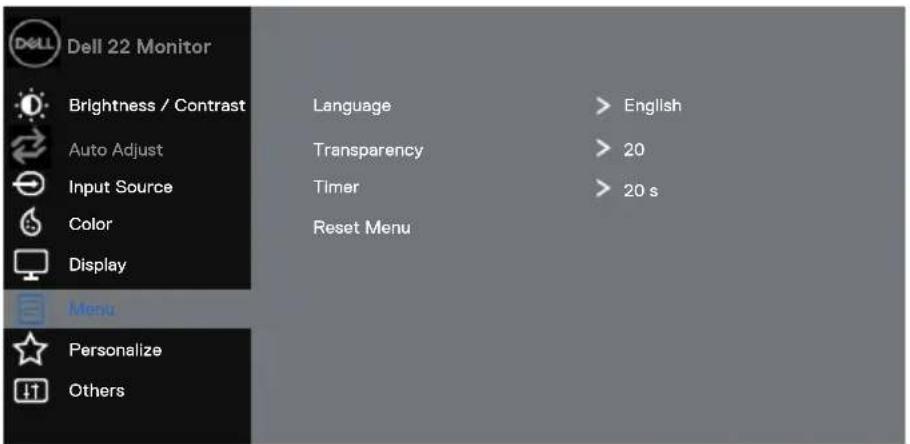

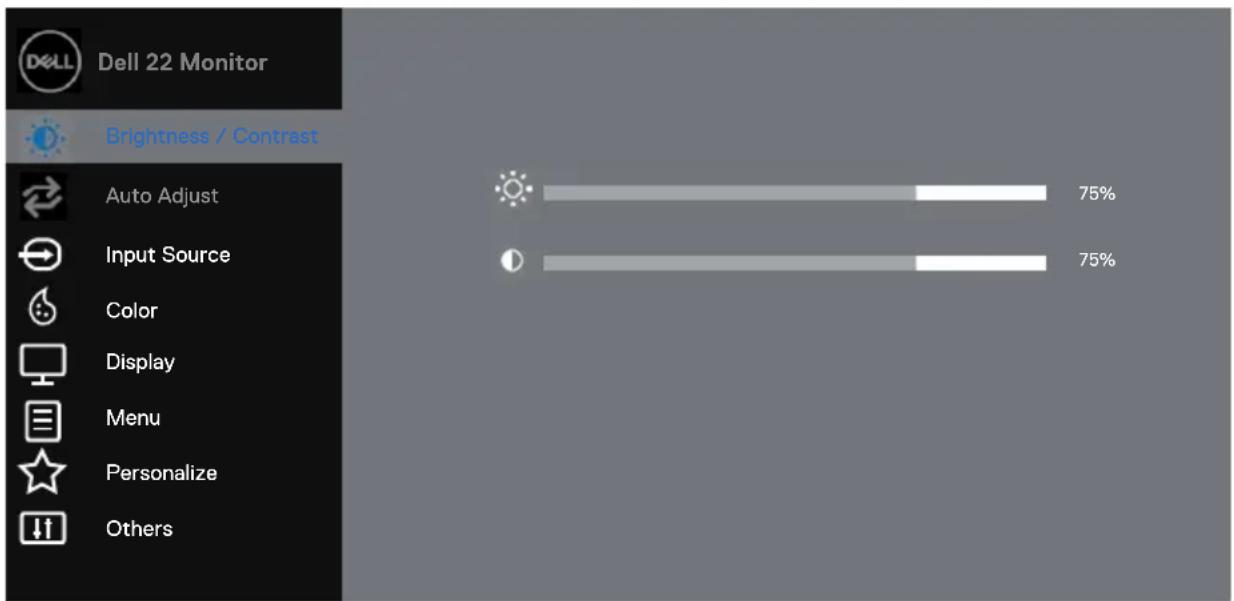

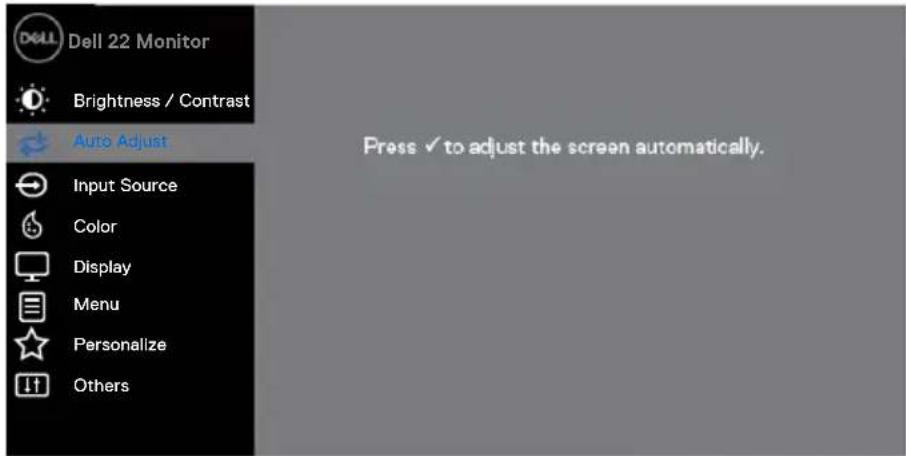

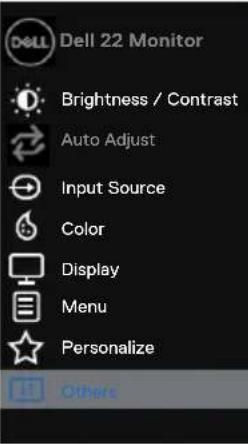

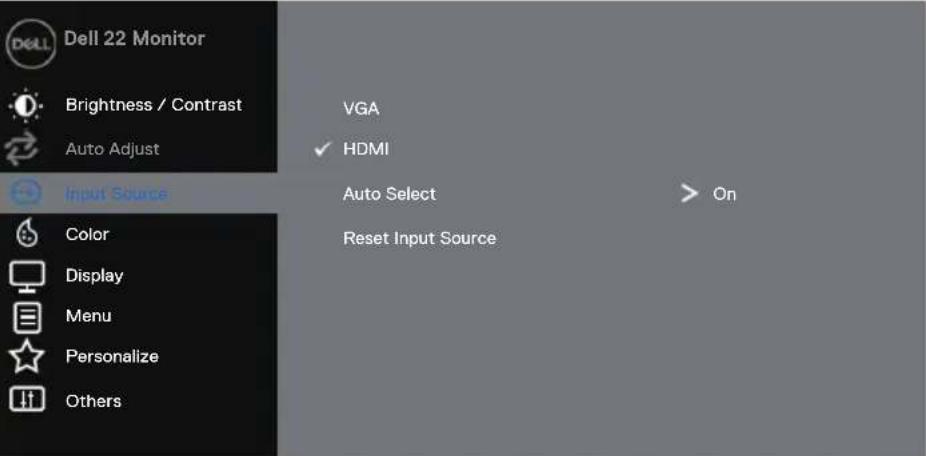

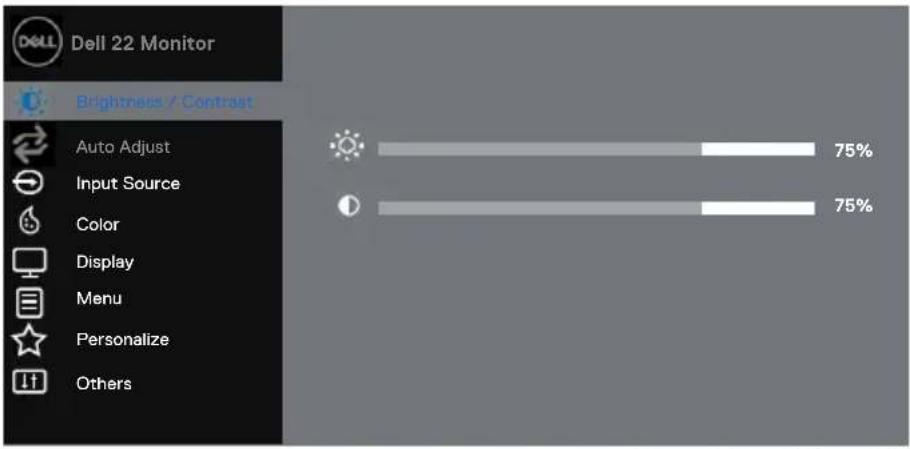

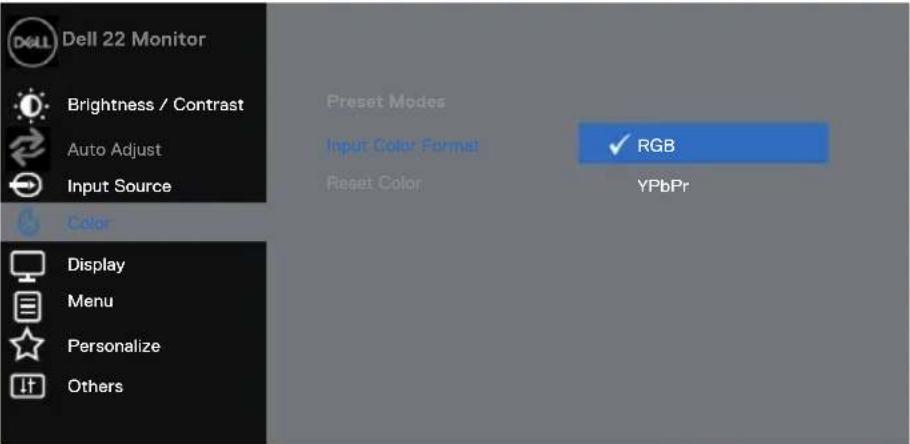

Using the On-Screen Display (OSD) menu .....24

Setting up your monitor. 40

Using tilt 42

Troubleshooting.... 43

Self-test 43

Built-in diagnostics 45

Common problems 46

Product-specific problems 48

Appendix 49

FCC notices (U.S. Only) and 49

other regulatory information

Contacting Dell 49

Pin assignments 50

Package contents

Your monitor ships with the components indicated in the table. Ensure that you have received all the components and see Contacting Dell if anything is missing.

NOTE: Some items may be optional and may not ship with your monitor. Some features may not be available in certain countries.

NOTE: To set up with any other stand, see the documentation that shipped with the stand.

	Monitor
	Stand riser
	Stand base
	Power cable (varies by country)
	VGA cable (SE2219H)
	HDMI cable (SE2219HX)

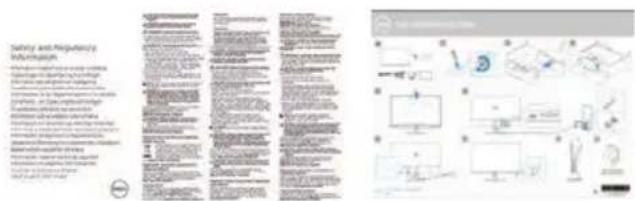

	·Quick Setup Guide ·Safety and Regulatory Information

Product features

The Dell SE2219H/SE2219HX flat panel display has an active matrix, Thin-Film Transistor (TFT), Liquid Crystal Display (LCD), anti-static, and LED backlight. The monitor features include:

- SE2219H/SE2219HX: 54.61 cm (21.5 inch) diagonal viewable area display(measured diagonally). 1920 × 1080 resolution, with full-screen support for lower resolutions.

- Wide viewing angles of 178 degrees in vertical and horizontal directions.

• High dynamic contrast ratio (8,000,000:1).

- HDMI connectivity makes it simple and easy to connect with legacy and new systems.

- Plug and play capable if supported by your computer

- On-Screen Display (OSD) adjustments is to easy setup and optimize screen.

• 0.5 W standby power when in the sleep mode.

- Optimize eye comfort with a flicker-free screen.

- Possible long-term effects if blue light emission from the monitor may cause damage to the eyes, including eye fatigue or digital eye strain. ComfortView feature is designed to reduce the amount of blue light emitted from the monitor to help optimize eye comfort.

• Security-lock slot.

- Arsenic-free glass and mercury-free panel.

- BFR/PVC-Reduced (the circuit boards inside your monitor are made using BFR/PVC-free laminates).

- RoHS Compliant.

• Energy Saver feature for Energy Star compliance.

Identifying features and controls

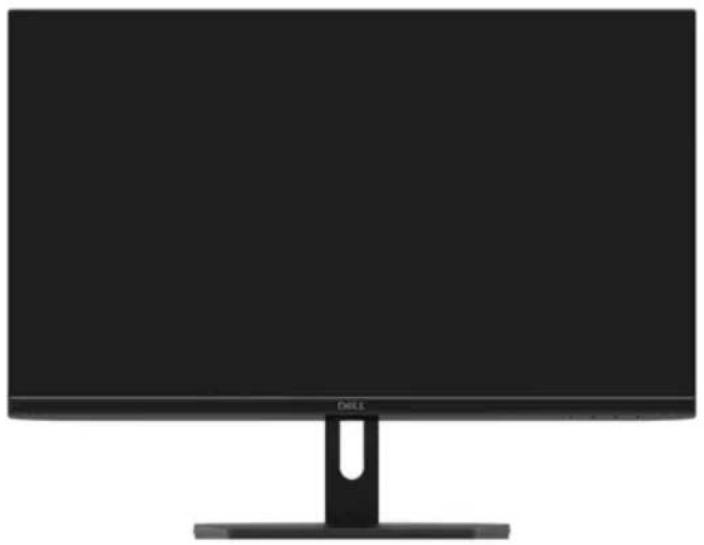

Front view

Front view of a black desktop computer monitor with a stand (no visible text or symbols)

1 2

Label	Description Use
1	Function buttons	To access the OSD menu and change the settings if required. (For more information, see Using the front panel controls)
2	Power On/Off button (with LED indicator)	To turn the monitor On or Off.

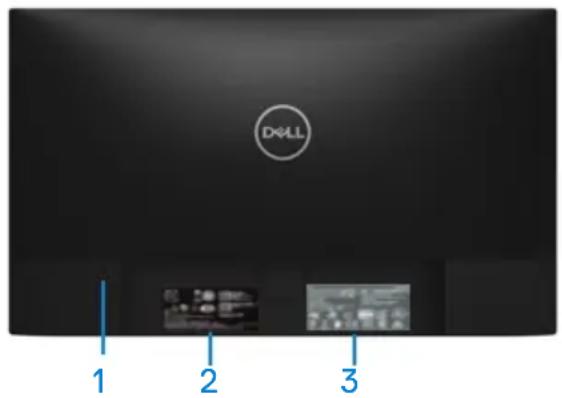

Back view

DOLL 1 2 3

Without monitor stand

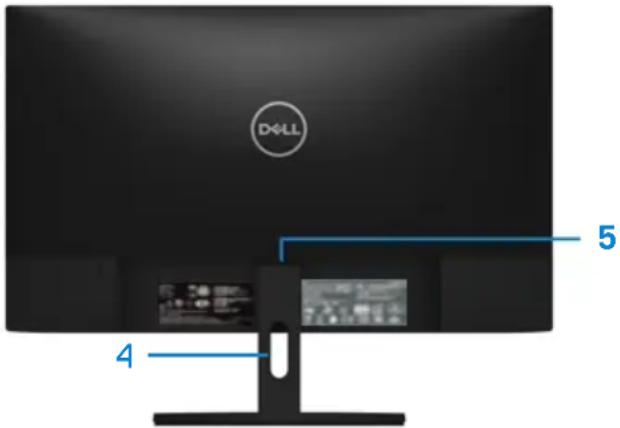

DOLL 4 5

With monitor stand

Label	Description Use
1	Security-lock slot To secure the monitor using a security lock (purchased separately).
2	Regulatory label, barcode, serial number, and Service Tag label	List the regulatory approvals. See this label if you need to contact Dell for technical support. The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information.
3	Regulatory information (engraved) List the regulatory approvals.
4	Cable-management slot	To organize cables.
5	Stand release button	Release stand from monitor.

Side view

Side view of a black computer monitor with a curved screen and stand (no text or symbols visible)

Bottom view, without monitor stand

1 2 3

SE2219H/SE2219HX

Label	Description Use
1	Power port To connect the monitor power cable.
2	HDMI port	For connection to your computer using HDMI cable.
3	VGA port	For connection to your computer using VGA cable.

Monitor specifications

Model	SE2219H/SE2219HX
Screen type Active matrix-TFT	LCD
Panel type In-Plane Switching
Viewable area
Diagonal	546.1 mm (21.5 in.)
Active area: Horizontal Vertical Area	476.06 mm (18.74 in.) 267.79 mm (10.54 in.) 1274.84 cm^2 (197.52 in. ^2 )
Pixel pitch	0.24795 mm
Pixel per inch (PPI) 102
Viewing angle: Vertical Horizontal	178^ (typical) 178^ (typical)
Brightness 250 cd/m	^2 (typical)
Contrast ratio	1,000 to 1 (typical) 8,000,000 to 1 (Dynamic Contrast)
Faceplate coating Anti-glare with 3H hardness
Backlight LED edgelight system
Response time (Gray to Gray): Normal mode Fast mode	8 ms 5 ms
Color depth 16.7 million colors
Color gamut CIE 1931 (72%)
Dell display manager compatibility	Yes
Connectivity	• One VGA port and one HDMI 1.4 (HDCP 1.4) port with SE2219H/SE2219HX monitors.
Bezel width (edge of monitor to active area)	6.4 mm (Top) 6.4 mm (Left/Right) 20.5 mm (Bottom)
Security	Security-lock slot for cable lock (optional purchase)
Tilt angle	-5° to 21°

Resolution specifications

Model	SE2219H/SE2219HX
Horizontal scan range	30 kHz to 83 kHz (automatic)
Vertical scan range 56 Hz to 76	Hz (automatic)
Maximum preset resolution 192	0 x 1080 at 60 Hz

Preset display modes
SE2219H/SE2219HX

Display Mode Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock (MHz)	Sync Polarity (Horizontal / Vertical)
VESA, 720 × 400 31.5	70.1 28.3 -/+
VESA, 640 × 480 31.5	60.0 25.2 -/-
VESA, 640 × 480 37.5	75.0 31.5 -/-
VESA, 800 × 600	37.9	60.3 40.0	+/+
VESA, 800 × 600	46.9	75.0 49.5	+/+
VESA, 1024 × 768	48.4	60.0 65.0	-/-
VESA, 1024 × 768	60.0	75.0 78.8	+/+
VESA, 1152 × 864 67.5	75.0	108.0 +/+
VESA, 1280 × 1024	64.0	60.0	108.0
VESA, 1280 × 1024	80.0	75.0	135.0 +/+
VESA, 1600 × 900	60.0	60.0	108.0
VESA, 1920 × 1080	67.5	60.0	148.5 +/+

Electrical specifications

Model	SE2219H/SE2219HX
Video input signals	Analog RGB: 0.7 Volts ± 5 %,75 ohm input impedanceHDMI 1.4 (HDCP 1.4), 600 mVfor each differential line, 100ohm input impedance perdifferential pair
Synchronizationinput signals	Separate horizontal and vertical synchronizations,polarity-free TTL level,SOG (Composite SYNC on green)
AC input voltage/frequency/current	100 VAC to 240 VAC/50 Hz or 60 Hz ± 3 Hz/1.5 A
Inrush current	30A (120V AC Input)60A (240V AC Input)

Physical characteristics

Model	SE2219H/SE2219HX
Signal cable type:AnalogDigital	D-Sub (VGA), 15 pins;HDMI, 19 pins
Dimensions (with stand):	SE2219H/SE2219HX
Height	385.2 mm (15.17 in.)
Width 488.9 mm (19.25 in.)
Depth 152.8 mm (6.02 in.)
Dimensions (without stand):	SE2219H/SE2219HX
Height	294.7 mm (11.60 in.)
Width	488.9 mm (19.25 in.)
Depth	46.4 mm (1.83 in.)
Stand dimensions:	SE2219H /SE2219HX
Height	171.6 mm (6.76 in.)
Width	249.0 mm (9.80 in.)
Depth	152.8 mm (6.02 in.)
Weight:	SE2219H/SE2219HX
With packaging	4.80 kg (10.58 lb)
With stand assembly and cables	3.45 kg (7.61 lb)
Without stand assembly and cables	2.67 kg (5.89 lb)
Weight of stand assembly 0.52	kg (1.15 lb)

Environmental characteristics

Model	SE2219H/SE2219HX
Temperature:
Operating	0°C to 40°C (32°F to 104°F)
Non-operating:StorageShipping	-20°C to 60°C (-4°F to 140°F)-20°C to 60°C (-4°F to 140°F)
Humidity:
Operating 10% to 80% (non-condensing)
Non-operating:StorageShipping	5% to 90% (non-condensing)5% to 90% (non-condensing)
Altitude:
Operating (maximum)	5,000 m (16,400 ft)
Non-operating (maximum)	12,192 m (40,000 ft)
Thermal dissipation	68.2 BTU/hour (maximum)58.0 BTU/hour (typical)

Power management modes

If you have VESA's DPM compliance graphic cards or software installed on your computer, the monitor can automatically reduce its power consumption when not in use. This is referred to as power save mode*. If the computer detects input from the keyboard, mouse or other input devices, the monitor automatically resumes functioning. The following table shows the power consumption and signaling of this automatic power saving feature.

*Zero power consumption in off mode can only be achieved by disconnecting the power cable from the monitor.

SE2219H/SE2219HX

VESA modes	Horizontal sync	Vertical sync	Video Power indicator	Power consumption
Normal operation	Active Active Active	White 20 W	(maximum)	17 W (typical)
Active-off mode	Inactive Inactive	Blanked White		Less than 0.5 W
Switch off	---			Off

Energy star Power consumption
P_ON	15.95 W
E_TEC	50.59 kWh

NOTE:

P_ON : Power consumption of on mode as defined in Energy Star.

E_TEC : Total energy consumption in kWh as defined in Energy Star.

This document is informational only and reflects laboratory performance. Your product may perform differently, depending on the software, components and peripherals you ordered and shall have no obligation to update such information. Accordingly, the customer should not rely upon this information in making decisions about electrical tolerances or otherwise. No warranty as to accuracy or completeness is expressed or implied.

The OSD functions only in the normal operation mode. When any button is pressed in the Active-off mode, one of the following messages will be displayed:

SE2219H

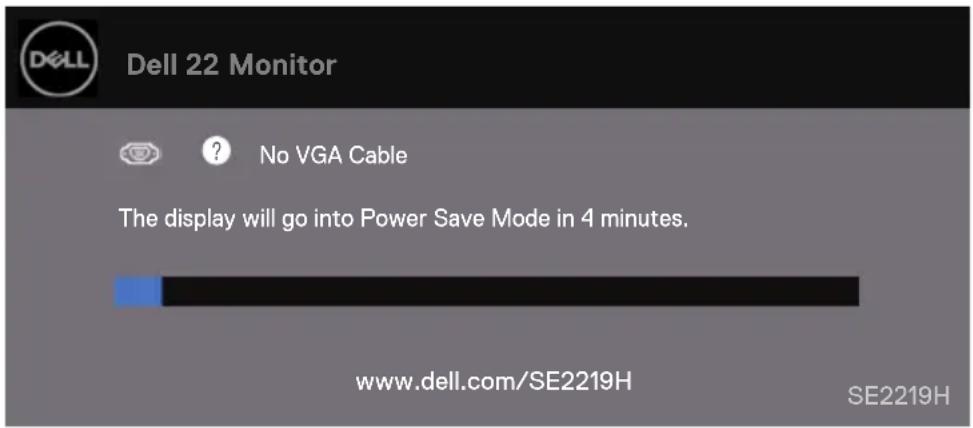

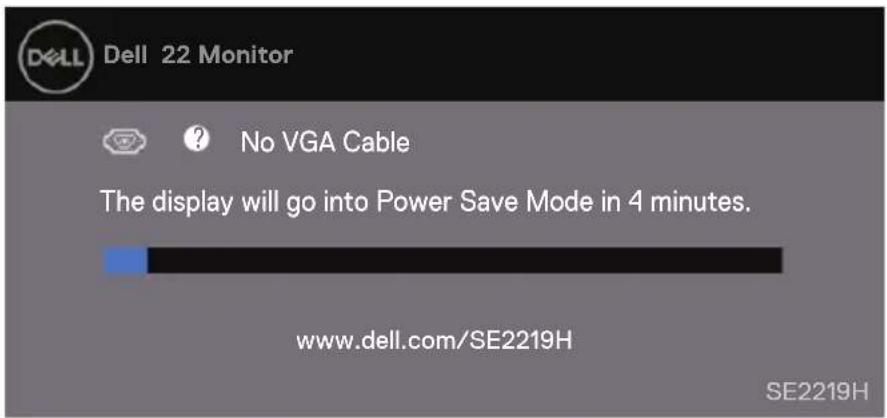

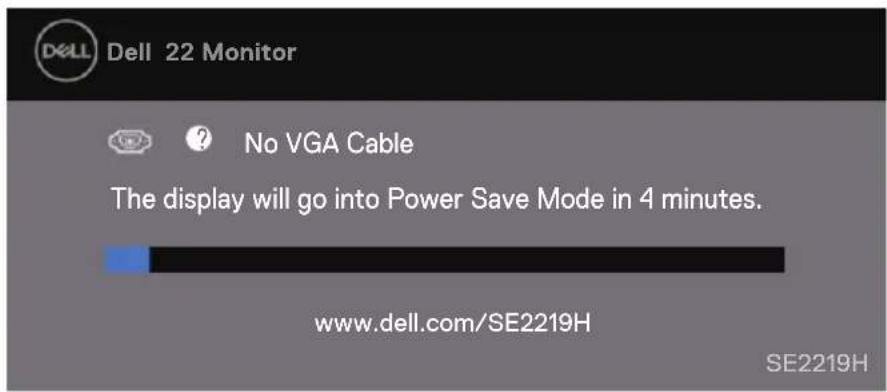

Dell 22 Monitor No VGA Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/SE2219H SE2219H

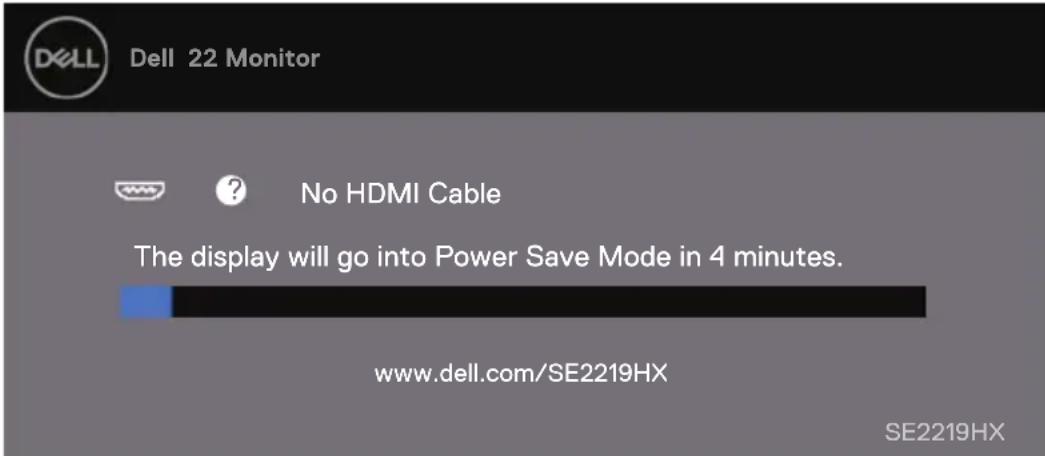

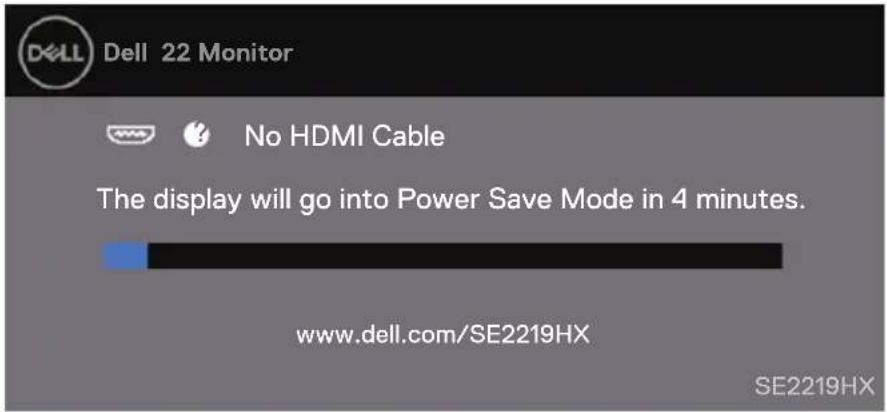

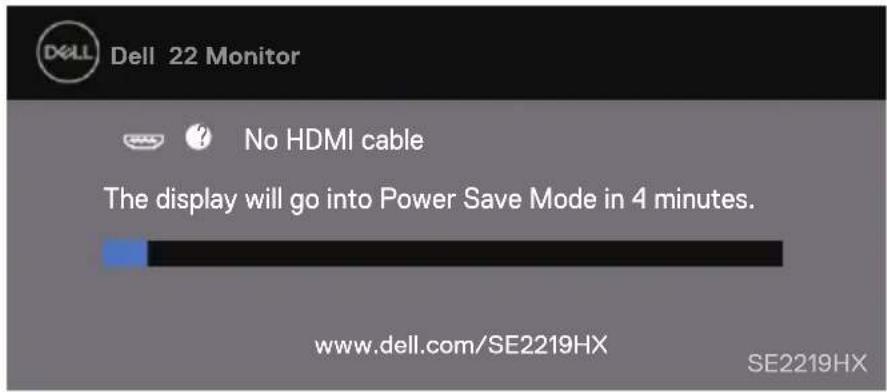

SE2219HX

Dell 22 Monitor No HDMI cable The display will go into Power Save Mode in 4 minutes. www.dell.com/SE2219HX SE2219HX

Activate the computer and the monitor to gain access to the OSD.

NOTE: This monitor is ENERGY STAR-certified

Plug and play capability

You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display Identification Data (EDID) using Display Data Channel (DDC) protocols so the system can configure itself and optimize the monitor settings. Most monitor installations are automatic, you can select different settings if desired. For more information about changing the monitor settings, see Operating your monitor.

LCD monitor quality and pixel policy

During the LCD Monitor manufacturing process, it is normal for one or more pixels to become fixed in an unchanging state which are hard to see and do not affect the display quality or usability. For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at www.dell.com/support/monitors.

Maintenance guidelines

Cleaning your monitor

WARNING: Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.

CAUTION: Read and follow the Safety Instructions before cleaning the monitor.

For best practices, follow the instructions in the list below while unpacking, cleaning or handling your monitor:

• To clean your screen, lightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the anti-static coating. Do not use benzene, thinner, ammonia, abrasive cleaners or compressed air.
• Use a lightly-dampened cloth to clean the monitor. Avoid using detergent of any kind as some detergents leave a milky film on the monitor.
• If you notice white powder when you unpack your monitor, wipe it off with a cloth.
• Handle your monitor with care as the black-colored monitor may get scratched
• To help maintain the best image quality on your monitor, use a dynamically changing screen saver and turn off your monitor when not in use.

Connecting the stand

NOTE: The stand is not attached when the monitor is shipped from the factory.
NOTE: The following procedure is applicable for the stand that shipped with your monitor.

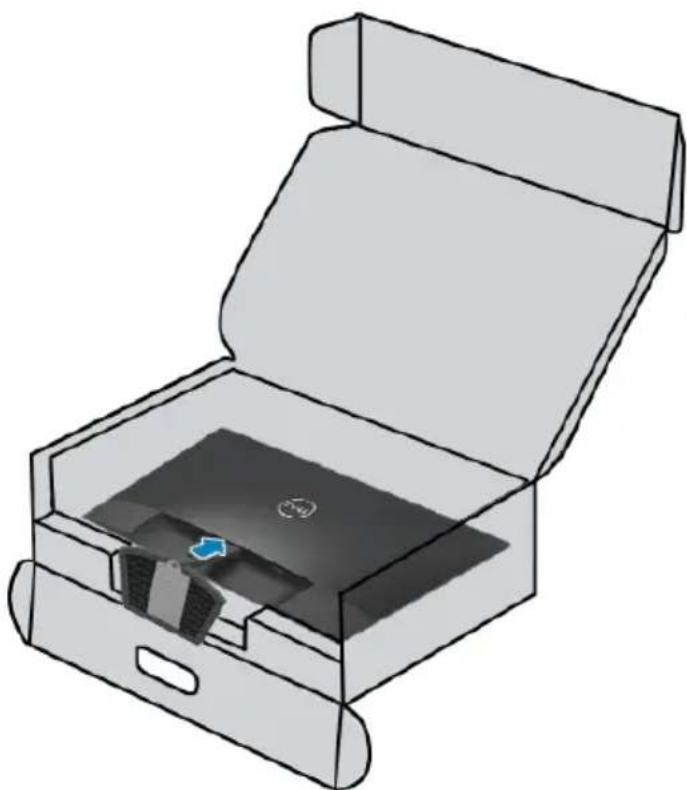

To attach the monitor stand:

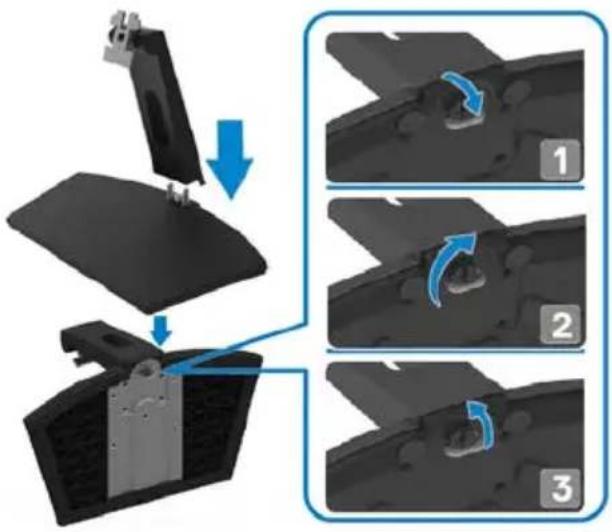

1. Connect the stand riser to the stand base, and then tighten the screw on the stand base.

Technical diagram showing mechanical assembly steps with labeled components and directional arrows indicating motion

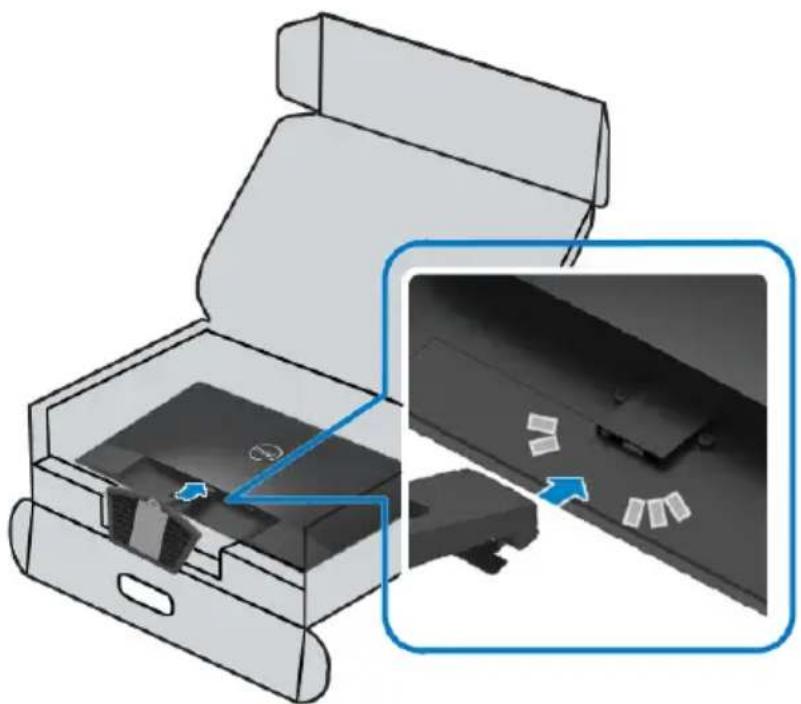

1. Align the stand-riser bracket with the grooves at the back of the monitor.

Illustration of a box open with internal components and a close-up view showing a close-up of a device's internal structure (no text or symbols visible)

1. Slide the standassembly until it snaps into place.

Illustration of an open box containing a closed lid with a small inset image (no text or symbols)

Connecting your monitor

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.

NOTE: Do not connect all cables to the computer at the same time. It is recommended to route the cables through the cable-management slot before you connect them to the monitor.

To connect your monitor to the computer:

1. Turn off your computer and disconnect the power cable.
2. Connect VGA or HDMI cable from your monitor to the computer.

Connecting VGA cable

Diagram showing connections between a Dell monitor, connected to a VGA and a server via cable, with labeled ports and connectors.

Connecting HDMI cable

Diagram showing connection between a Dell monitor and a HDMI drive, with labeled ports and cable connections.

Organizing cables

Use the cable-management slot to route the cables connected to your monitor.

Diagram showing a Dell monitor mounted on a stand with two views of the screen, one close-up and one tilted (no text or symbols)

Removing the stand

NOTE: To prevent scratches on the screen when removing the stand, ensure that the monitor is placed on a soft and clean surface.

NOTE: The following procedure is applicable for the stand that shipped with your monitor.

1. Place the monitor on a soft cloth or cushion along the desk.

Exterior view of a modern office building (no signage)

1. Tilt the stand downwards to access to the release button.

Exterior view of a black Dell monitor with a blue scroll wheel (no text or symbols visible)

1. Using a long screwdriver to press the release button.

Diagram showing a screwdriver inserted into a black electronic device, with magnified views highlighting the component (no text or symbols present)

1. While keeping the release button pressed, pull the stand out.

Diagram showing a device with a 'DOLI' logo and a magnified view of its internal structure, no text or symbols present.

Turning on the monitor

Press the ⚪ button to turn on the monitor.

Simple line drawing of a hand pointing at a blank screen (no text or symbols)

Using the front panel controls

Use the control buttons at the bottom edge of the monitor to adjust the image being displayed.

1 2 3 4 5

The following table describes the control buttons:

Control Buttons Description

1

Preset mode

Use this button to choose from a list of preset modes.

2		For direct access to the Brightness and Contrast menu.
	Brightness/Contrast
3	Menu	To launch the On-Screen Display (OSD) menu, or to access the list of items/options of a menu item. For more information, see Accessing the OSD menu.
4	Exit	To exit or return to the OSD main menu.
5	Power button(with power-status light)	To turn the monitor on or off.Solid white light indicates the monitor is turned on and functioning normally. Blinking white light indicates the monitor is in power save mode.

OSD controls

Use the buttons on the bottom edge of the monitor to adjust the image settings.

1 2 3 4

Control Buttons Description
1		Use the Up button to increase values or move up in a menu.
	Up
2		Use the Down button to decrease values or move down in a menu.
	Down
3		Use the OK button to confirm your selection in a menu.
	OK
4		Use the Back button to go back to the previous menu.
	Back

Using the On-Screen Display (OSD) menu

Accessing the OSD menu

NOTE: Any changes you make are automatically saved when you move to another menu, exit the OSD menu, or wait for the OSD menu to close automatically.

1. Press the 📄 button to display the OSD main menu.

Main menu for HDMI input

1. Press the 🔒 and Buttons to move between the setting options. As you move from one icon to another, the option name is highlighted.
2. Press the button once to activate the highlighted option.
3. Press 🔒 and 🔕 button to select the desired parameter.
4. Press > and then use the ▲ and buttons, according to the indicators on the menu, to make your changes.
5. Select the ⏻ button to return to the main menu.

Icon	Menu and Submenus	Description
	Brightness/Contrast	Use this option to activate brightness/contrast adjustment.
	Brightness Brightness	Press the ➤ button to increase the brightness and press the ➤ button to decrease the brightness (min. 0; max. 100).NOTE: Manual adjustment of brightness is disabled when dynamic contrast is switched on.
	Contrast	Adjust the brightness first, and then adjust the contrast only if further adjustment is necessary.Press the ➤ button to increase the contrast and press the ➤ button to decrease the contrast (min. 0; max. 100).The contrast function adjusts the degree of difference between darkness and lightness on the screen.

Auto Adjust

Use this option to activate automatic setup and adjust menu.

Dell 22 Monitor Brightness / Contrast Auto Adjust Input Source Color Display Menu Personalize Others Press ✓ to adjust the screen automatically.

The following dialog appears on a black screen as the monitor self-adjusts to the current input:

Auto Adjustment in Progress...

Auto Adjust allows the monitor to self-adjust to the incoming video signal. After using Auto Adjustment, you can further tune your monitor by using the Pixel Clock (Coarse) and Phase (Fine) controls under Display.

NOTE: Auto Adjust does not occur if you press the button while there are no active video input signals or attached cables. This option is only available when you are using the analog (VGA) connector.

	Input Source	Use the input source menu to switch between the different video signals that may be connected to your monitor.SE2219H/SE2219HX: one VGA and one HDMI input
	VGA	Push √ to select the VGA input source when using VGA connector.
	HDMI	Push √ to select the HDMI input source when using HDMI connector.
	Auto Select	Select Auto Select to scan for available input signals.
	Reset Input Source	Select this option to restore default input source.

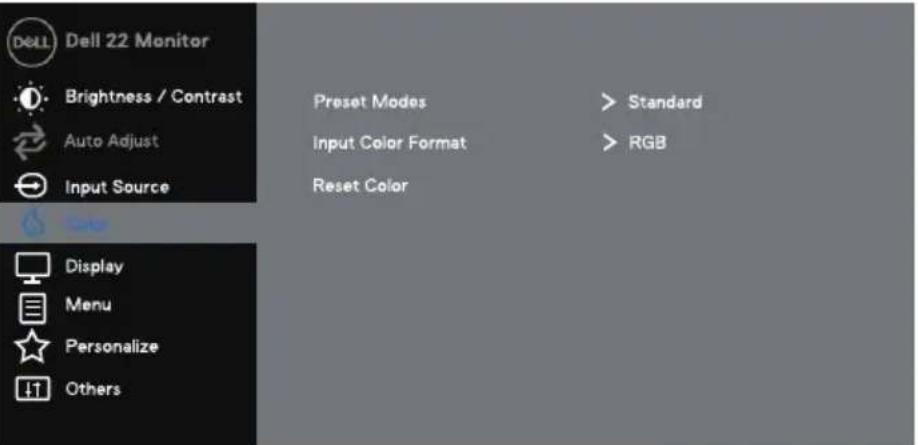

	Color	Use color to adjust the color setting mode.

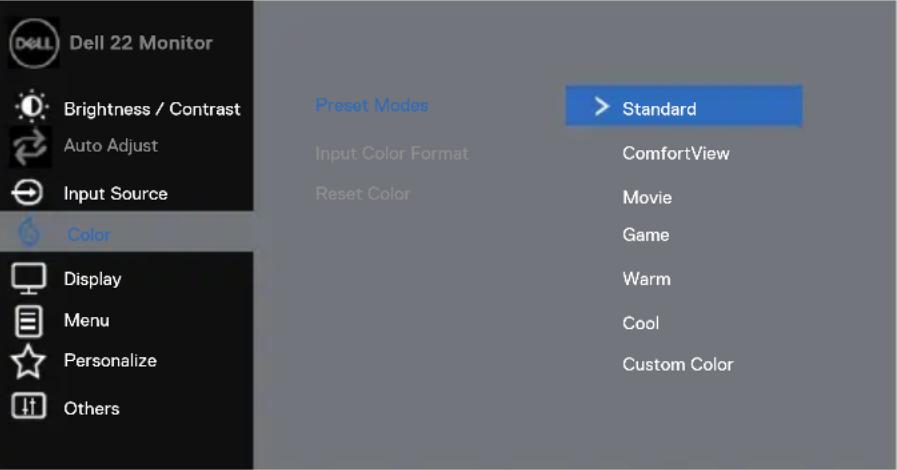

	Preset ModesInput Color Format	When you select Preset Modes, you can choose Standard, ComfortView, Movie, Game, Warm, Cool or Custom Color from the list.Standard: Load the monitor's default color settings. This is the default preset mode.ComfortView: Decrease the level of blue light emitted from the screen to make viewing more comfortable for your eyes.NOTE: To reduce the risk of eye strain and neck/arm/back/shoulders pain from using the monitor for long periods of time, we suggest that you :Set the screen about 20 ~ 28 inches (50~70 cm) from your eyes.Blink frequently to moisten or lubricate your eyes.Take regular 20-minute breaks every two hours.Look away from your monitor and gaze at a distant object at 20 feet away for at least 20 seconds during the breaks.Perform stretches to relieve tension in the neck/arm/back/shoulders during the breaks.Movie: Load color settings ideal for movies.Game: Load color settings ideal for most gaming applications.Warm: Increase the color temperature. The screen appears warmer with a red/yellow tint.Cool: Decrease the color temperature. The screen appears cooler with a blue tint.Custom Color: Allow you to manually adjust the color settings.Press the 🔒 and 🔒 buttons to adjust the three colors (R, G, B) values and create your own preset color mode.Allow you to set the video input mode to:RGB: Select this option if your monitor is connected to a computer or DVD player using the HDMI cable.YPbPr: Select this option if your DVD player supports only YPbPr output.
	Hue	This feature can shift the color of the video image to green or purple. This is used to adjust the desired skin tone color. Useoradjust the hue from 0 to 100.Pressto increase the green shade of the video image.Pressto decrease the purple shade of the video image.NOTE: Hue adjustment is available only when you select Movie or Game preset mode.
	Saturation	This feature can adjust the color saturation of the video image. Useoradjust the saturation from 0 to 100.Pressto increase the monochrome appearance of the video image.Pressto decrease the colorful appearance of the video image.NOTE: Saturation adjustment is available only when you select Movie or Game preset mode.
	Reset Color	Reset your monitor color settings to the factory settings.
	Display	Use the display to adjust image.
	Aspect Ratio	Adjust the image ratio to Wide 16:9, 4:3 or 5:4.
	Horizontal Position (VGA input only)	Use ∧ or √ to move image left and right. Minimum is '0' (-). Maximum is '100' (+).
	Vertical Position (VGA input only)	Use the ∧ or √ to move image up and down. Minimum is '0' (-). Maximum is '100' (+).
	Sharpness	This feature can make the image look sharper or softer. Use ∧ or √ adjust the sharpness from 0 to 100.
	Pixel Clock (VGA input only)	The Pixel Clock feature enables you to adjust image quality on your monitor to your preference. Use ∧ or √ buttons to adjust for best image quality.
	Phase (VGA input only)	If satisfactory results are not obtained using the Phase adjustment, use the Pixel Clock (coarse) adjustment and then use Phase (fine), again.
	Dynamic Contrast	Allow you to increase the level of contrast to provide sharper and more detailed image quality.Press thebutton to select the dynamic contrast On or Off.NOTE: Dynamic contrast provides higher contrast if you select game or movie preset mode.
	Response Time	Allow you to select between Normal (8 ms), Fast(5 ms).
	Reset Display	Select this option to restore default display settings.
≡	Menu	Select this option to adjust the settings of the OSD, such as the languages of the OSD, the amount of time, the menu remains on screen and so on.
	Language	Language options set the OSD display to one of the eight languages (English, Spanish, French, German, Brazilian Portuguese, Russian, Simplified Chinese, or Japanese).
	Transparency	Select this option to change the menu transparency by pressing theorbuttons from 0 to 100.
	Timer	OSD hold time: sets the length of time the OSD will remain active after the last time you pressed a button.Useorto adjust the slider in 1 second increments, from 5 to 60 seconds.
	Reset Menu	Reset all OSD settings to the factory preset values.
☆	Personalize	Allow you to choose a feature from Shortcut key 1, Shortcut key 2, Power Button LED or Reset Personalization, Preset Modes or Brightness/Contrast and set it as a shortcut key.
			Shortcut Key 1 > Preset ModesShortcut Key 2 > Brightness/ContrastPower Button LED > On During ActiveReset Personalization
	Shortcut Key 1	Allow you to select one of the following: Preset Modes, Brightness/Contrast, Auto Adjust, Input Source, Aspect Ratio, to set the shortcut key 1.
	Shortcut Key 2	Allow you to select one of the following: Preset Modes, Brightness/Contrast, Auto Adjust, Input Source, Aspect Ratio, to set the shortcut key 2.
	Power Button LED	Allow you to set the power LED indicator On During Active or Off During Active to save energy.
	Reset Personalization	Allow you to restore shortcut key to the default setting.
++	Others		Display InfoDDC/CL > OnLCD Conditioning > OffService Tag > ABCDEFGReset OthersFactory Reset
			[GABH] [DTXT]

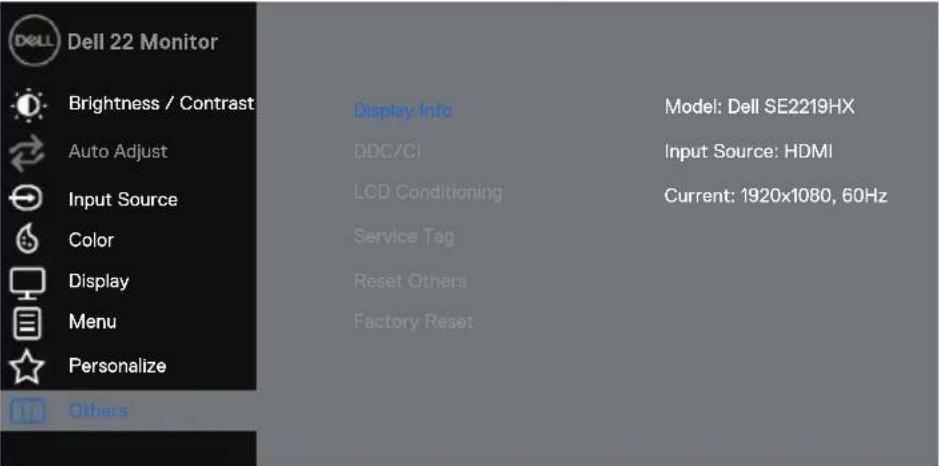

	Display Info	Press to display the information about the display.SE2219H:SE2219HX:

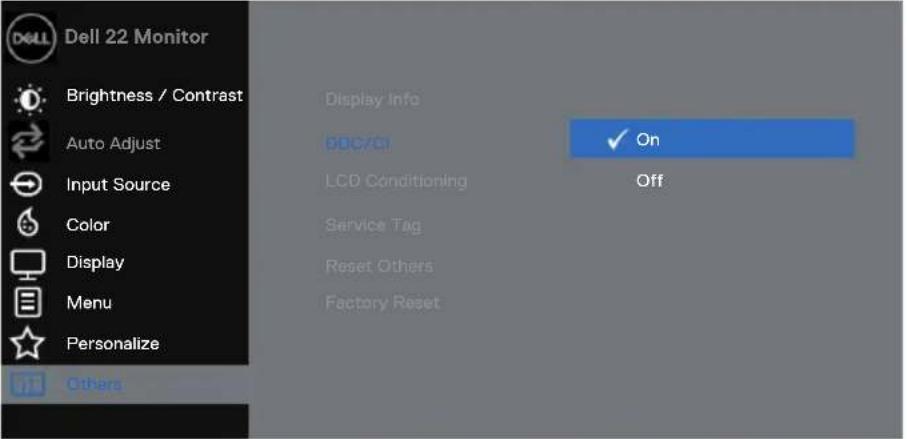

	DDC/CI	DDC/CI (Display Data Channel/Command Interface) allows you to adjust the monitor settings using software on your computer. Select Off to turn off this feature. Enable this feature for best user experience and optimum performance of your monitor.
	LCD Conditioning	Help reduce minor cases of image retention. Depending on the degree of image retention, the program may take some time to run. To start LCD Conditioning,select On.
	Service Tag	Display the Service Tag number of the monitor.
	Reset Others	Reset all settings under the Others setting menu to the factory default.
	Factory Reset	Reset all settings to the factory default.

NOTE: Your monitor has a built-in feature to automatically

calibrate the brightness to compensate for LED aging.

OSD warning messages

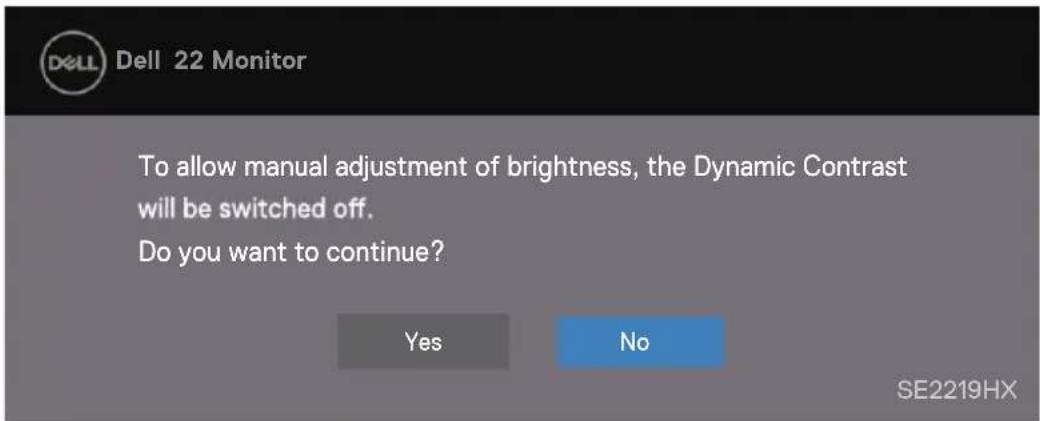

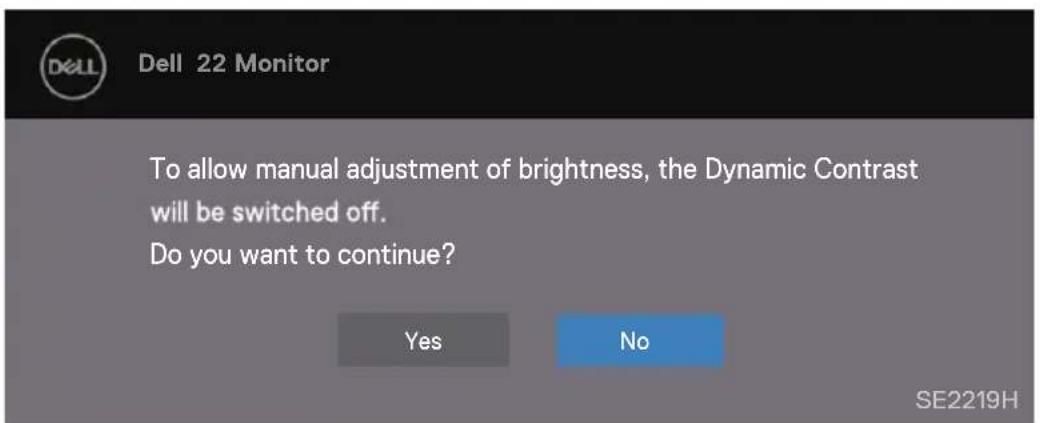

When the Dynamic Contrast feature is enabled (in Movie or Game preset modes), the manual brightness adjustment is disabled.

SE2219H

Dell 22 Monitor To allow manual adjustment of brightness, the Dynamic Contrast will be switched off. Do you want to continue? Yes No SE2219H

SE2219HX

DELL Dell 22 Monitor To allow manual adjustment of brightness, the Dynamic Contrast will be switched off. Do you want to continue? Yes No SE2219HX

Before the DDC/CI function is disabled, the following message is displayed.

SE2219H

Dell 22 Monitor

The function of adjusting display setting using PC application will be disabled. Do you wish to disable DDC/CI function?

Yes

No

SE2219H

SE2219HX

Dell 22 Monitor

The function of adjusting display setting using PC application will be disabled. Do you wish to disable DDC/CI function?

Yes

No

SE2219HX

When the monitor enters Power Save Mode, the following message appears.

SE2219H

Dell 22 Monitor

Entering Power Save Mode.

SE2219H

SE2219HX

Dell 22 Monitor

Entering Power Save Mode.

SE2219HX

If VGA or HDMI cable is not connected, a floating dialog box as shown below appears. The monitor will enter Power Save Mode after 4 minutes if left at this state.

SE2219H

Dell 22 Monitor No VGA Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/SE2219H SE2219H

SE2219HX

DELL Dell 22 Monitor No HDMI Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/SE2219HX SE2219HX

See Troubleshooting for more information.

Setting up your monitor

Setting Display Resolution to 1920 x 1080

For best performance, set the display resolution to 1920 × 1080 pixels by performing the following steps:

In Windows 7:

1. Right-click on the desktop and click Screen Resolution.
2. Click the Drop-down menu of the Screen Resolution and select 1920 x 1080.
3. Click OK.

In Windows 8 or Windows 8.1:

1. Select the Desktop tile to switch to classic desktop.
2. Right-click on the desktop and click Screen Resolution.
3. Click the Drop-down menu of the Screen Resolution and select 1920 x 1080.
4. Click OK.

In Windows 10:

1. Right-click on the desktop and click Display Settings.
2. Click Advanced display settings.
3. Click the drop-down menu under Resolution and select 1920 x 1080.
4. Click Apply.

If you do not see the recommended resolution as an option, you may need to update your graphics driver. Use one of the following methods to update the graphics driver:

Dell computer

1. Go to www.dell.com/support, enter your service tag, and download the latest driver for your graphics card.
2. After installing the drivers for your graphics adapter, attempt to set the resolution to 1920 × 1080 again.

NOTE: If you are unable to set the resolution to 1920 x 1080, please contact Dell to inquire about a graphics adapter that supports these resolutions.

Non-Dell computer

In Windows 7:

1. Right-click on the desktop and click Personalization.
2. Click Change Display Settings.
3. Click Advanced Settings.
4. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, AMD, Intel etc.).
5. Refer to the graphic card provider website for updated driver (for example, www.AMD.com or www.NVIDIA.com).
6. After installing the drivers for your graphics adapter, attempt to set the resolution to 1920 × 1080 again.

In Windows 8 or Windows 8.1:

1. Select the Desktop tile to switch to classic desktop.
2. Right-click on the desktop and click Personalization.
3. Click Change Display Settings.
4. Click Advanced Settings.
5. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, AMD, Intel etc.).
6. Refer to the graphic card provider website for updated driver (for example, www.AMD.com or www.NVIDIA.com).
7. After installing the drivers for your graphics adapter, attempt to set the resolution to 1920 × 1080 again.

In Windows 10:

1. Right-click on the desktop and click Display Settings.
2. Click Advanced display settings.
3. Click Display adapter properties.
4. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, AMD, Intel etc.).
5. Refer to the graphic card provider website for updated driver (for example, www.AMD.com or www.NVIDIA.com).
6. After installing the drivers for your graphics adapter, attempt to set the resolution to 1920 × 1080 again.

NOTE: If you are unable to set the recommended resolution, please contact the manufacturer of your computer or consider purchasing a graphics adapter that supports the video resolution.

Using tilt

You can tilt the monitor for the most comfortable viewing angle.

NOTE: The stand is not attached when the monitor is shipped from the factory.

3D model of a computer monitor with a 5° angle indicator (no text or symbols on the device itself)

3D model of a computer monitor with a 21° angle indicator (no text or symbols on the device itself)

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.

Self-test

Your monitor provides a self-test feature that allows you to check if your monitor is functioning properly. If your monitor and computer are properly connected but the monitor screen remains dark, run the monitor self-test by performing the following steps:

1. Turn on both your computer and the monitor.
2. Disconnect all video cables from the monitor. This way, the computer doesn't have to be involved.
3. Turn on the monitor.

If the monitor is working correctly, it detects that there is no signal and one of the following message appears. While in self-test mode, the power LED remains white.

SE2219H

Dell 22 Monitor No VGA Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/SE2219H SE2219H

DELL Dell 22 Monitor No HDMI Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/SE2219HX SE2219HX

NOTE: This box also appears during normal operation, when the video cable is disconnected or damaged.

1. Turn off your monitor and reconnect the video cable; then turn on your computer and the monitor.

If your monitor remains dark after you reconnect the cables, check your video controller and computer.

Built-in diagnostics

Your monitor has a built-in diagnostic tool that helps you determine if any screen abnormality you experience is an inherent problem with your monitor, or with your computer and video card.

NOTE: You can run the built-in diagnostics only when the video cable is unplugged and the monitor is in self-test mode.

Front view of a black electronic device with three ports and a blue arrow pointing to port 1 (no text or symbols on the device itself)

Label	Description
1	Button 1

To run the built-in diagnostics:

1. Ensure that the screen is clean (no dust particles on the surface of the screen).
2. Unplug the video cable(s) from the back of the computer or monitor. The monitor then goes into the self-test mode.
3. Press and hold Button 1 for 5 seconds. A gray screen appears.
4. Carefully inspect the screen for abnormalities.
5. Press Button 1 on the bottom of the monitor again. The color of the screen changes to red.
6. Inspect the display for any abnormalities.
7. Repeat steps 5 and 6 to inspect the display in green, blue, black, white and text screens.

Common problems

The following table contains general information about common monitor problems you might encounter and the possible solutions:

Common Symptoms Possible Solutions
No Video/Power LED off	·Ensure that the video cable connecting the monitor and the computer is properly connected and secure.·Verify that the power outlet is functioning properly using any other electrical equipment.·Ensure that the power button is pressed.·Ensure that the correct input source is selected via the Input Source menu.
No Video/Power LED on	·Increase brightness and contrast controls using the OSD.·Perform monitor self-test feature check.·Check for bent or broken pins in the video cable connector.·Run the built-in diagnostics.·Ensure that the correct input source is selected via the Input Source menu.
Poor focus	·Eliminate video extension cables.·Reset the monitor to Factory Settings (Factory Reset).·Change the video resolution to the correct aspect ratio.
Shaky/Jittery video	·Reset the monitor to Factory Settings (Factory Reset).·Check environmental factors.·Relocate the monitor and test in another room.
Missing pixels	·Cycle power On-off.·Pixel that is permanently off is a natural defect that can occur in LCD technology.·For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at: www.dell.com/support/monitors.
Stuck-on pixels	·Cycle power On-off.·Pixel that is permanently off is a natural defect that can occur in LCD technology.·For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at: www.dell.com/support/monitors.
Brightness problems	·Reset the monitor to Factory Settings (Factory Reset).·Adjust brightness & contrast controls via OSD.
Geometric distortion	·Reset the monitor to Factory Settings (Factory Reset).·Adjust horizontal & vertical controls via OSD.
Horizontal/Vertical lines	·Reset the monitor to Factory Settings (Factory Reset).·Perform monitor self-test feature check and determine if these lines are also in self-test mode.·Check for bent or broken pins in the video cable connector.·Run the built-in diagnostics.
Synchronization problems	Reset the monitor to factory settings (Factory Reset).∞Perform monitor self-test feature check to determine if the scrambled screen appears in self-test mode.Check for bent or broken pins in the video cable connector.∞Restart the computer in safe mode.
Safety related issues	Do not perform any troubleshooting step.Contact Dell immediately.
Intermittent problems	Ensure that the video cable connecting the monitor to the computer is connected properly and is secure.Reset the monitor to Factory Settings (Factory Reset).Perform monitor self-test feature check to determine if the intermittent problem occurs in self-test mode.
Missing color	Perform monitor self-test feature check.Ensure that the video cable connecting the monitor to the computer is connected properly and is secure.Check for bent or broken pins in the video cable connector.
Wrong color	Change the Color Setting Mode in the Color Settings OSD to Graphics or Video depending on the application.Try different Preset Modes in Color settings OSD. Adjust R/G/B value in Custom Color in Color settings OSD.Change the Input Color Format to RGB or YPbPr in the Color settings OSD.Run the built-in diagnostics.
Image retention from a static image left on the monitor for a long period of time	Use the Power Management feature to turn off the monitor at all times when not in use (for more information, see Power management modes.Alternatively, use a dynamically changing screensaver.
Video ghosting or overshooting	Change the Response Time in the Display OSD to Fast or Normal depending on your application and usage.

Product-specific problems

Specific Symptoms	Possible Solutions
Screen image is too small	Check the Aspect Ratio setting in the Display settings OSD.Reset the monitor to Factory Settings (Factory Reset).
Cannot adjust the monitor with the buttons on the bottom of the panel	Turn off the monitor, unplug the power cord, plug it back, and then turn on the monitor.
No input signal when user controls are pressed	Check the signal source. Ensure the computer is not in standby or sleep mode by moving the mouse or pressing any key on the keyboard.Check if the video cable is plugged in properly. Disconnect and reconnect the video cable if necessary.Reset the computer or video player.
The picture does not fill the entire screen	Due to different video formats (aspect ratio) of DVDs, the monitor may display in full screen.Run the built-in diagnostics.

Safety instructions

WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards, and/or mechanical hazards.

For information on safety instructions, see the Product Information Guide.

FCC Notices (U.S. Only) and Other Regulatory Information

For FCC notices and other regulatory information, see the regulatory compliance website located at www.dell.com/regulatory_compliance.

Contacting Dell

For customers in the United States, call 800-WWW-DELL (800-999-3355).

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area.

To get online Monitor support content:

1. Visit www.dell.com/support/monitors.

To contact Dell for sales, technical support, or customer service issues:

1. Visit www.dell.com/support.
2. Verify your country or region in the Choose A Country/Region drop-down menu at the bottom of the page.
3. Click Contact Us on the left side of the page.
4. Select the appropriate service or support link based on your need.
5. Choose the method of contacting Dell that is convenient for you.

WARNING: For displays with glossy bezels the user should consider the placement of the display as the bezel may cause disturbing reflections from surrounding light and bright surfaces.

Pin assignments

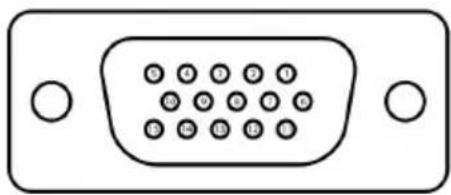

D-Sub 15-pin connector

Front view of a D-sub connector with 12 pins (no text or symbols)

Pin Number	Signal Assignment
1 Video-Red
2 Video-Green
3 Video-Blue
4 GND
5 Self-test
6 GND-R
7 GND-G
8 GND-B
9 DDC +5 V
10 GND-sync
11 GND
12 DDC data
13 H-sync
14 V-sync
15 DDC clock

Pin assignments

HDMI 19-pin connector

19 17 15 13 11 9 7 5 3 1 18 16 14 12 10 8 6 4 2

Pin Number	Signal Assignment
1 TMDS	DATA 2+
2 TMDS	DATA 2 SHIELD
3 TMDS	DATA 2-
4 TMDS	DATA 1+
5 TMDS	DATA 1 SHIELD
6 TMDS	DATA 1-
7 TMDS	DATA 0+
8 TMDS	DATA 0 SHIELD
9 TMDS	DATA 0-
10 TMDS	CLOCK+
11 TMDS	CLOCK SHIELD
12 TMDS	CLOCK-
13 CEC
14 Reserved (N.C. on device)
15 DDC CLOCK (SCL)
16 DDC DATA (SDA)
17 DDC/CEC Ground
18 +5V POWER
19 HOT PLUG DETECT
