Product Type	Beverage Refrigerator
Model	KSG 7280
Brand	Bomann
Dimensions (H x W x D)	84.5 x 47.5 x 47.0 cm
Weight	Approx. 26 kg
Power Supply	220-240 V ~ 50 Hz
Energy Consumption	Approx. 100 kWh/year
Energy Class	E (EU)
Capacity	Approx. 77 liters (holds up to 66 cans of 0.33 L)
Temperature Range	+5°C to +12°C
Thermostat Type	Mechanical rotary knob
Defrost Type	Manual
Number of Shelves	5 wire shelves (adjustable)
Door Type	Glass door (reversible hinge, user-reversible)
Interior Light	LED
Lock	Key lock included
Noise Level	39 dB(A)
Refrigerant	R600a
Climate Class	N/ST (16°C to 38°C)
Cleaning	Unplug and clean interior with mild detergent; avoid abrasive cleaners
Safety Features	Stable base, proper ventilation required; keep away from heat sources
Spare Parts Availability	Contact Bomann service center or authorized dealers
Repair Information	Check for error codes; ensure door seals are intact; if not cooling, verify thermostat setting and ventilation

Frequently Asked Questions - KSG 7280 BOMANN

How do I set the temperature on my Bomann KSG 7280 beverage refrigerator?

Use the mechanical rotary knob inside the refrigerator. Turn it to a higher number (e.g., 5) for colder temperature, or a lower number (e.g., 1) for warmer. Allow 24 hours to stabilize.

What is the recommended temperature for storing beverages?

For most beverages, a temperature between +5°C and +10°C is ideal. The KSG 7280 can be adjusted within this range using the thermostat.

How do I clean the interior of the refrigerator?

Unplug the unit. Remove all items and shelves. Wipe interior with a soft cloth dampened with a mixture of mild detergent and warm water. Rinse and dry thoroughly. Do not use abrasive cleaners.

The refrigerator is making unusual noise. Is this normal?

Some noise is normal due to the compressor and refrigerant flow. However, if you hear loud rattling or knocking, ensure the unit is level and not touching other objects. If noise persists, contact support.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual: remove the hinge covers, unscrew hinges, reposition the door, and reassemble. It is recommended to have two people.

How many cans can I store in the KSG 7280?

The unit holds approximately 66 cans of 0.33 L each, or a mix of bottles and cans up to a total capacity of 77 liters.

Does the refrigerator have an interior light?

Yes, it has an LED interior light that turns on when the door is opened.

What should I do if the refrigerator is not cooling?

Check if the thermostat is set correctly and the door is fully closed. Ensure there is adequate ventilation around the unit (at least 10 cm from walls). If still not cooling, the compressor may need service.

How can I save energy with this beverage cooler?

Place the refrigerator away from heat sources and direct sunlight. Do not set the temperature colder than necessary. Avoid frequent door openings and ensure door seals are clean and tight.

Where can I find replacement parts for the KSG 7280?

Contact Bomann customer service or visit their website for authorized spare parts distributors. Provide the model number KSG 7280 for accurate parts.

USER MANUAL KSG 7280 BOMANN

Front view of a white refrigerator with empty shelves (no visible text or symbols)

Special safety Information for this Unit......Page 14

Transport and Packaging......Page 15

Appliance Equipment......Page 15

Installation......Page 15

Startup / Operation......Page 17

Cleaning and Maintenance......Page 18

Troubleshooting......Page 19

Technical Data......Page 19

Product Data Sheet......Page 20

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Usee Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNINGING

This warns you of dangers to your health and indicates possible injury risks.

CAUTIONCAUTION

This refers to possible hazards to the machine or other objects.

NOTENO highlights tips and information.

General Notes General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this appliance to other people, please also pass on the operating instructions.

NOTENOTE

Illustrations can deviate from the original appliance.

• The appliance is designed exclusively for commercial use and for the envisaged purpose. This appliance is not fit for private use.
• The appliance is only to be used as described in the user manual. Do not use the appliance for any other purpose. Any other use is not intended and can result in damages or personal injuries.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance

and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.

• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• To ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING

Do not allow small children to play with the foil.

There is a danger of suffocation!danger of suffocation!

Special safety Information for this Unitpecial safety Informa

- This appliance is intended for commercial use only.

WARNING: WARNING:

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process (if necessary), except those described in this manual (depending on the model included the scope of delivery).
• Do not damage the refrigerant circuit.
• Do not operate any electrical devices inside the appliance.

• Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.

• When positioning the appliance, ensure the supply cord is not trapped or damaged.

• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.
• Use the provided collection points of electrical equipment for the disposal of the appliance.

CoolantCoolant

WARNING: Risk of fire / flammable WAR

materialsmaterials

The coolant circuit of this unit contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the appliance.

If the coolant circuit is damaged: If the coolant circuit is damaged:

• avoid any open flames or ignition source,
• disconnect the plug,
• thoroughly air the room in which the appliance is installed and
• contact an authorized technician.

i NOTENOTE

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance RNING: Risk of fire / flammable according to chapter "Cleaning and Maintenance".

Appliance Equipment

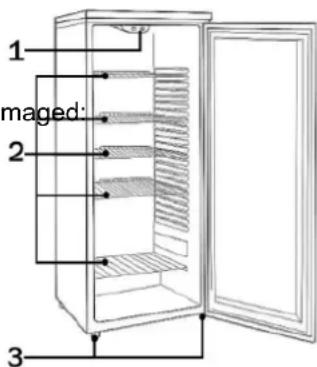

Appliance overview

1 Temperature control / Interior light + light switch
2 Grid shelves (max. loading 35 kg/shelf)
3 Feet

Transport Track Packaging and Packaging

Transport the appliance Transport the appliance

Transport the appliance, if possible, only in vertical position. Otherwise, it is absolutely necessary to allow the appliance standing upright for a few hours before installation "Prior to first use". Protect the appliance during transport against weather influences.

i NOTENOTE

The appliance has wheels which facilitate the transport and installation of the appliance. Tilt the appliance back slightly and move it gently.

Unpackling appliance the appliance

• Remove the appliance from its packaging.
• Remove all packaging material, such as foils, filler and cardboard packaging.
• To prevent hazards, check the appliance for any transport damage.
• In case of damage, do not put the appliance into operation. Contact your distributor.

Delivery scope

5x Grid shelf, 1x door stopper (for reversing the door opening)

Installation

Conditions for the installation location

- Good ventilation is required around the appliance to dissipate the heat properly and to guarantee efficient cooling operation at low power consumption. Enough clearance is necessary.

• Gap to the back approx. 5 cm and to the side walls each approx. 10 cm;
• Place the appliance so that the appliance door can open without being impeded.

- Only install at a location with an ambient temperature suitable for the climate class of the appliance. For information on the climate class, please refer to the “EU Product Data Sheet” or to the rating label located in the interior or on the appliance rear.

• Place the appliance on a steady and safe surface. If the appliance is not horizontally leveled, adjust the feet accordingly.

• Avoid the installation: Avoid the installation:

• near heaters, next to a stove, direct sunlight or any other heat sources;

• at locations with high humidity (e.g. outdoors, bathroom), as metal parts would be susceptible to corrosion under such circumstances;
• near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.), in rooms which may have poor air circulation (e.g. garages).
• Do not expose the appliance any weather.

Electrical connection Electrical connection

WARNING: WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric electric shockshock
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.
• The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.

- Make sure that the voltage supply matches the specifications on the rating label before connecting.

- Connect the mains cable to a properly installed and earthed wall outlet.

- If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

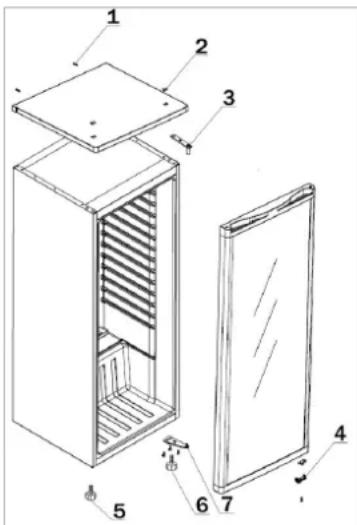

Reversing the door opening Reversing the door opening If required, the door opening can be moved from the right (supplied condition) to the left side.

WARNING: WARNING:

When replacing the door stop, the appliance must be disconnected from the power supply first.

IOTENOTE

• Ask another person to assist.
• You possibly need: screw wrench, Phillips screw-driver as well as a thin-blade screwdriver.

• Loosen the screws (1) on the appliance back. Remove the cover caps (2), loosen the screws underneath and remove the appliance cover.
• Dismount the upper door hinge (3) and lift the appliance door.
• Dismount the door stopper (4) on the underside of the door and attach the enclosed door stopper on the opposite side. Set the appliance door safely aside.

NOTENOTE

Keep the removed door stopper for a further possible change of the door opening.

- Tilt the appliance slightly backwards and block it in this position. Unscrew the feet (5) and (6). Disassemble the lower door hinge (7).

• Transfer and attach the lower door hinge (7) to the opposite appliance side. Screw in the feet (6) and (5) accordingly.
• Put the appliance back in the upright position. Put on the appliance door and fix it in the intended position.
• Transfer and attach the upper door hinge (3) to the opposite appliance side.
• Fasten the appliance cover and replace the cover caps (2).

Check that the door is optimally aligned both vertically and horizontally to ensure a smooth opening and closing of the door.

Note that the temperature will change depending on the ambient temperature, frequency of door opening and the amount of food in the appliance.

During initial operation, turn the temperature control to the highest setting first, until the appliance has reached the desired operating temperature. Afterwards it is recommended to turn the control back to a medium setting; correcting the temperature at a later point would then be easier.

Interior light Interior light

The light is switched on or off via the on/off switch.

StoringStoring

Startup / OperationStartup / Operat

Prior to first use Prior to first use

CAUTIONCAUTION

After transport, the appliance should be left standing upright for about four hours before connecting to the power supply. Nonobservance could lead to malfunction of the cooling system and causes an appliance breakdown.

Clean the appliance interior including all accessory parts. Consider the instructions which we provide in the chapter "Cleaning and Maintenance".

Starting the application

• Connect the appliance to the power supply.
• Operate the temperature control. See also the section "Settings".

SettingsSettings

The power levels [MIN - MAX] regulate the different values of the internal temperature.

Setting MINSETtingSetNoRMADMALSSetNoRMAXMgAX

lowest setting(warmest inside temp.)

middle setting(optimal operating temperature)

highest setting (coldest inside temp.)

The appliance is exclusively suitable for cooling and ation storing drinks.

Several storage levels for inserting the grid shelves, allows individual storage. Note the maximum loading of each shelf is 35 kg.

Store large bottles horizontally, with the opening facing forward on the grid shelves.

Operating noise

Type of sound	Cause
Mumbling	Compressor during its operation
Liquid sounds	Circulation of the refrigerant
Click sounds	The temperature control turns the compressor on or off
Disturbing noises	Vibration of the shelves or cooling coils

Switching off

To switch off the appliance disconnect it from the power supply

If the appliance is out of use for long periods:

• Remove the appliance content.
• Defrost (model dependent) and clean the device thoroughly (see "Cleaning and Maintenance").

- Leave open the appliance door to avoid formation of mold and unpleased odors.

Tips for Energy Saving Emerging

• Disconnect the appliance from the power supply, if it isn't in use.
• Do not install the appliance near stoves, heaters or other heat sources. In case of higher ambient temperatures, the compressor will run more frequently and longer.
• Ensure enough ventilation at the bottom and rear side. Never block ventilation openings.
• Adjust the temperature not colder than necessary.
• Open the unit door only as necessary.
• Defrost the unit regularly (model dependent).
• Switch on the indoor light only if necessary.
• The seal of the appliance door must be completely intact, so that the door closes properly.

Cleaning the appliance including interiorCleaning the appliance inc

• Clean the appliance interior, the exterior surfaces, the accessories and the door seal regularly with warm water and mild detergent; or with a clean, damp microfiber cloth without cleaning agent.
• Remove the appliance content and storage it at a cool location.
• Clean the thaw water discharge channel / opening carefully e.g. with a pipe cleaner.
• After everything was thoroughly dried, you can restart the operation.
• Wipe at least once a year the dust that has accumulated on the appliance back and condenser (metal grille). To do this, use a soft brush or a vacuum cleaner.

DefrostingDefrosting

The appliance has an automatic defrosting system. During defrosting water drops drains off at the back

Cleaning and Maintenance Cleaning and Maintenance of the cooling chamber. The thaw water running

WARNING: WARNING:

• Always disconnect the appliance from the power supply before cleaning and user maintenance.
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components.
  Risk of electric shock! Risk steel should damage the plastic parts.
• The unit must be dry before restarting operation.

CAUTION:CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive detergents.
• Do not damage the refrigerant circuit.

through a channel, is collected in a drip tray located on the compressor, where it will evaporate. Make sure the water discharge opening does not get clogged. A light formation of ice on the interior back during operation is normal.

Changing the bulbChanging the bulb

CAUTION:CAUTION:

Do NOT Remove the cover of the interior light.

The LED light may be replaced / repaired in case of failure / defect only by an authorized specialist.

ProblemP	ActionCause / Action
Unit is not working properly or at all	Check the power supply / temperature setting / ambient temperature.Unblock the ventilation openings, install the appliance freely.
Loading is too warm	Check the temperature setting / ambient temperature. Open the door only as long as necessary.
Loud noise during operation	Check the appliance position.See the section “Operating noise”.
Water on the unit bottom	Check the temperature setting / water discharge channel or opening.
Light does not work	Check the power supply.See “Changing the bulb”.

i NOTE:NOTE:

If a problem persists after following the steps above, contact your trader or an authorized technician.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where these can be disposed of can be obtained from your local authority.

WARNING:

Remove or disable any existing snap and bolt locks, if you take the unit out of operation or dispose it.

Technical Data Technical Data

Electrical connection

Power voltage: 220-240 V\~ / 50 Hz

Connection power: 150 W

Dimension H x W x D / Weight....

Appliance size: 143.0 x 55.0 x 58.0 cm

Net weight: ....approx. 46.0 kg

The right to make technical and design modifications during continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Product Data Sheet Product Data Sheet

BrandBOMANN	BOMANNBOMANN
ModelM601 7280	KSG 7280KSG 7280
Appliance catAppliye Beverage cooler	Beverage coolerBeverage cooler
Estimated annual Energy consumption
- with light on	602 kWh/year
- with light off	548 kWh/year
Gross/net capacity	258/256 liter
Climate class*	0,1,2,3,4,6
Max. loading per shelf	35 kg
Noise emission	42 dB (Noise level is below 70 dB)

* Climate class according ISO 23953-2

Climate class	Temperature °C	Relative humidity (%)
0	20	50
1	16	80
2	22	65
3	25	60
4	30	55
5	40	40
6	27	70

BOMANN®

C. Bomann GmbH, Reinrich-Hortech-Strtch 7 S47906 Kempen 47906 Kempen

www.bomannvgermany.de Germany.de

Made in P.R.C.

Stand 37/19
