RadioRA® 2 C·L® Hybrid Keypads

RadioRA® 2 C·L® Hybrid Keypads function as a dimmer and keypad combined into a single device. C·L® Hybrid Keypads are great for retro-fit applications since they eliminate the need to install two separate devices.

C·L® Hybrid Keypads are neutral-wire controls that can be used with small loads, such as screw-in CFL/LED lamps. Normal keypad operation will be available even if the attached load is not installed or the lamp is burned out.

C·L® Hybrid Keypads can be controlled as part of a lighting control system and incorporate advanced features such as fade on / fade off and rapid full on.

C•L® Hybrid Keypads feature large, easy-to-use buttons, plus a unique backlit engraving option that makes them readable any time of the day or night. The C•L® Hybrid Keypad buttons are rounded, allowing engraving to be displayed at an upward angle, increasing readability. C•L® Hybrid Keypads include a Front Accessible Service Switch (FASS™) for safe lamp replacement.

Use only Lutron® Designer (Claro® or Satin Colors®) wallplates. The mechanical design of the keypad is compatible with Lutron® wallplates ONLY and is NOT compatible with any other manufacturer's wallplate. Wallplates are sold separately. Lutron® Claro® and Satin Colors® wallplates snap on with no visible means of attachment. Replacement Button Kits are available in a variety of colors and with custom engraving to identify clearly each button's function.

C·L® Hybrid Keypads are designed for use with permanently installed incandescent, tungsten halogen, CFL/LED, magnetic low-voltage, or Lutron® Hi-lume® A-Series LTE LED drivers only.

C•L® Hybrid Keypads

RadioRA® 2 C•L® Hybrid Keypads

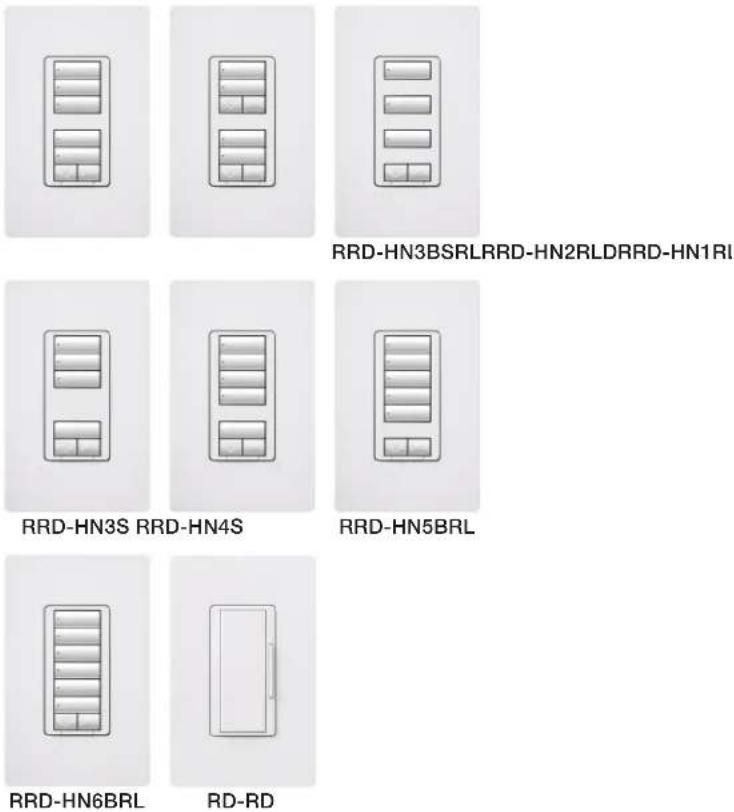

Model Numbers

RRD-HN1RLD-XX*	Dual-Group with Raise/Lower Keypad Neutral-Wire Dimmer. 450 W/450 VA (Incandescent/Halogen/Magnetic Low Voltage) or 100 W (approved CFL/LED) 120 V~
RKD-H1RLD-XX*-E Engraved Replacement Button Kit
RRD-HN2RLD-XX*	Dual-Group with Dual Raise/Lower Keypad Neutral-Wire Dimmer. 450 W/450 VA (Incandescent/Halogen/Magnetic Low Voltage) or 100 W (approved CFL/LED) 120 V~
RKD-H2RLD-XX*-E Engraved Replacement Button Kit
RRD-HN3BSRL-XX*	3-Button with Raise/Lower Keypad Neutral-Wire Dimmer. 450 W/450 VA (Incandescent/Halogen/Magnetic Low Voltage) or 100 W (approved CFL/LED) 120 V~
RKD-H3BSRL-XX*-E Engraved Replacement Button Kit
RRD-HN3S-XX*	3-Scene with Raise/Lower Keypad Neutral-Wire Dimmer. 450 W/450 VA (Incandescent/Halogen/Magnetic Low Voltage) or 100 W (approved CFL/LED) 120 V~
RKD-H3S-XX*-E Engraved Replacement Button Kit
RRD-HN4S-XX*	4-Scene with Raise/Lower Keypad Neutral Wire Dimmer. 450 W/450 VA (Incandescent/Halogen/Magnetic Low Voltage) or 100 W (approved CFL/LED) 120 V~
RKD-H4S-XX*-E Engraved Replacement Button Kit
RRD-HN5BRL-XX*	5-Button with Raise/Lower Keypad Neutral Wire Dimmer. 450 W/450 VA (Incandescent/Halogen/Magnetic Low Voltage) or 100 W (approved CFL/LED) 120 V~
RKD-H5BRL-XX*-E Engraved Replacement Button Kit
RRD-HN6BRL-XX*	6-Button with Raise/Lower Keypad Neutral Wire Dimmer. 450 W/450 VA (Incandescent/Halogen/Magnetic Low Voltage) or 100 W (approved CFL/LED) 120 V~
RKD-H6BRL-XX*-E Engraved Replacement Button Kit
RD-RD-XX* Remote Dimmer for multiple-location installations

* "XX" in the model number represents color/finish code. See Colors and Finishes at end of document.

RadioRA® 2 C•L® Hybrid Keypads

Specifications

Model Numbers	Keypads: RRD-HN1RLD-XX, RRD-HN2RLD-XX, RRD-HN3BSRL-XX,RRD-HN3S-XX, RRD-HN4S-XX, RRD-HN5BRL-XX, RRD-HN6BRL-XXEngraved Replacement Button Kit: RKD-H1RLD-XX-E, RKD-H2RLD-XX-E,RKD-H3BSRL-XX-E, RKD-H3S-XX-E, RKD-H4S-XX-E, RKD-H5BRL-XX-E,RKD-H6BRL-XX-ERemote Dimmer: RD-RD-XX
Power 120 V~ 50 / 60 Hz
Typical Power Consumption	0.75 WTest conditions: load is off, all backlights on medium intensity, two LEDs on(two presets active), keypad powered at 120 V~
Regulatory Approvals UL, cUL, NOM, FCC, IC, COFETEL
Environment	Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90%humidity, non-condensing. Indoor use only.
Communications	C•L® Hybrid Keypads communicate with the system through RadioFrequency (RF) and must be located within 30 ft (9 m) of a repeater.Remote dimmers are not required to be within a specific range of arepeater. System devices operate on frequencies between 431.0 MHz and437.0 MHz.
ESD Protection	Tested to withstand electrostatic discharge without damage or memoryloss, in accordance with IEC 61000-4-2.
Surge Protection	Tested to withstand surge voltages without damage or loss of operation, inaccordance with IEEE C62.41-1991 Recommended Practice on SurgeVoltages in Low-Voltage AC Power Circuits.
Power Failure	Power failure memory: should power be interrupted, the control will returnto its previous state when power is restored.
Mounting	Requires a U.S. wallbox. 312 in (89 mm) deep recommended, 214 in(57 mm) deep minimum. If mounting one control above another, leave atleast 412 in (114 mm) vertical space between them.
Multiple-Location Wiring	Uses conventional 3-way and 4-way wiring. RD-RD dimmer needs to beinstalled to control from another location.
Warranty	www.lutron.com/TechnicalDocumentLibrary/Warranty.pdf

Design Features

• Keypad buttons are programmable to select scene or room preset levels or positions.
• At the press of a keypad button, lights fade ON or OFF to desired levels and shades/draperies open or close to desired positions.
• Adjustable backlight intensity.
• Prepaid engraving included. Redeemable for one engraved Replacement Button Kit.
• Internal dimmer is assigned to top button by default. Tap top button to toggle load ON/OFF.

• Internal dimmer can be assigned to any button on the C·L® Hybrid Keypad and can be programmed to be controlled by any keypad.

• Designed for use with a wide variety of approved LEDs. Refer to the LED Product Selection Tool at www.lutron.com/ledtool

• Can be installed in either single location or multiple-location (with Remote Dimmer) installations.

RadioRA® 2 C·L® Hybrid Keypads

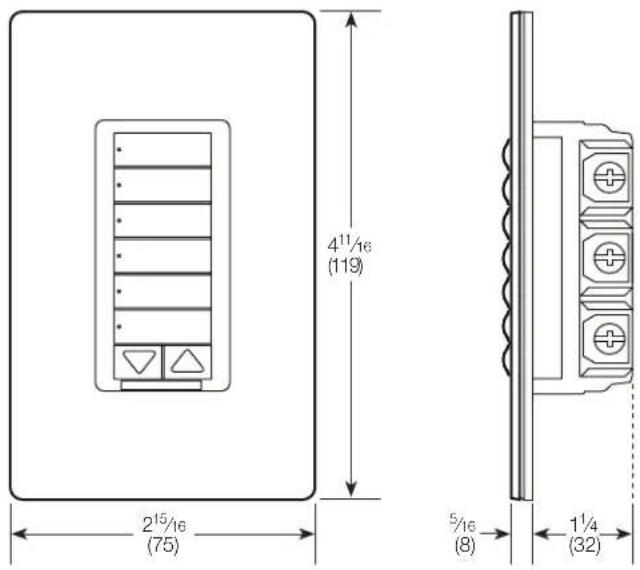

Dimensions

All dimensions are shown as: in (mm)

411/16 (119) 215/16 (75) 5/16 (8) 1/4 (32)

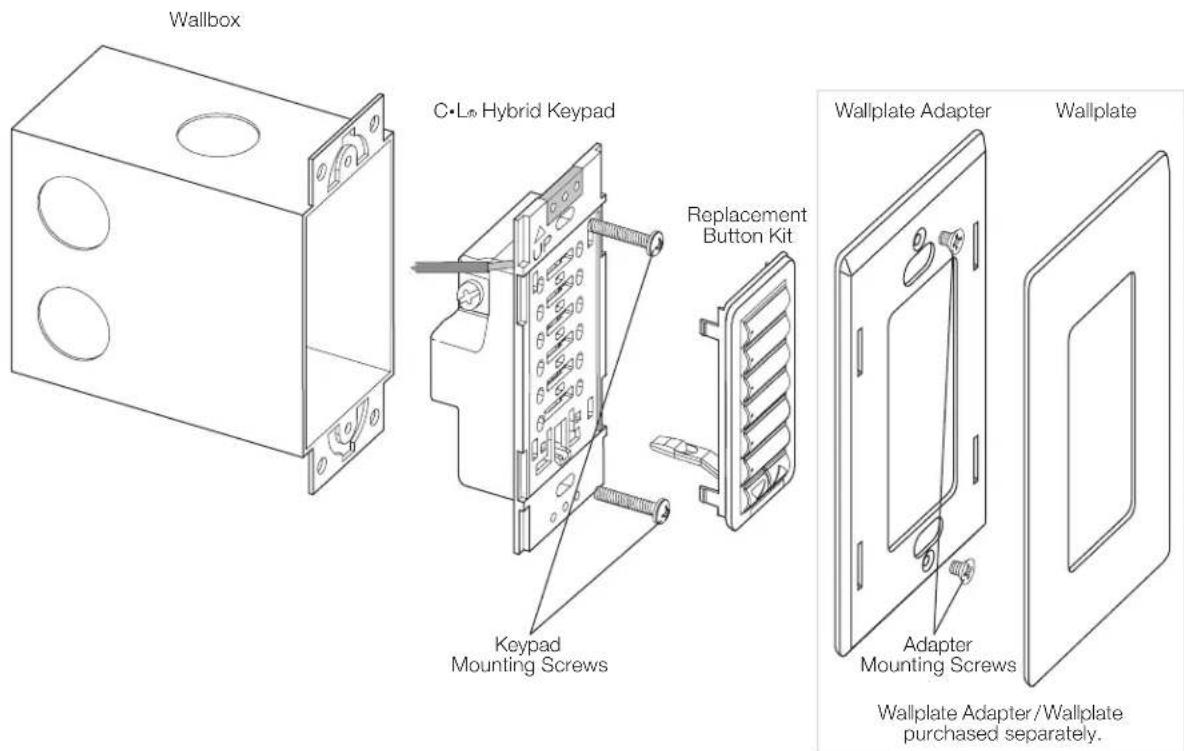

Mounting

Wallbox C·L® Hybrid Keypad Replacement Button Kit Keypad Mounting Screws Wallplate Adapter Wallplate Adapter Mounting Screws Wallplate Adapter/Wallplate purchased separately.

RadioRA® 2 C·L® Hybrid Keypads

Load Type and Capacity

A Not Ganged

B End of Gang

C Middle of Gang

Load Type ^1	Minimum Load Maximum Load
Incandescent/Halogen	15 W	450 W	350 W	250 W
CFL/LED See compatible list	^4	100 W 100 W 100 W
MLV ^2	15 W/VA	350 W/450 VA	250 W/350 VA	200 W/250 VA
Hi-lume _® A-Series LTE LED Driver ^3	1 driver	150 W	100 W	100 W

Load Type: C•L® Hybrid Keypads are designed for use with permanently installed incandescent, tungsten halogen, CFL/LED, magnetic low-voltage, or Lutron® Hi-lume® A-Series LTE LED drivers only. To reduce the risk of overheating and possible damage to other equipment, do not install C•L® Hybrid Keypads to control receptacles, ELV loads, or motor-operated appliances.
^2 Low-Voltage Applications: Use GLs Hybrid Keypads with magnetic (core and coil) low-voltage transformers only. Not for use with electronic (solid-state) low-voltage transformers. Operation of a low-voltage circuit with lamps inoperative or removed may result in transformer overheating and premature failure. Lutron strongly recommends the following:

• Do not operate low-voltage circuits without operative lamps in place.
• Replace burned-out lamps as quickly as possible.
• Use transformers that incorporate thermal protection or fused transformer primary windings to prevent transformer failure due to overcurrent.

3 Each C•L® Hybrid Keypad may have a maximum of 10 Lutron® 150 W Hi-lume® A-series LTE LED drivers.

For a complete list of compatible Dimmable CFLs and LEDs, please visit www.lutron.com/ledtool

Mixed-Load Derating Chart

Total CFL/LED Wattage		Total Incandescent/Halogen Wattage
		A: Not Ganged	B: End of Gang	C: Middle of Gang
0 W	+	15 W–450 W	Or	15 W–350 W	Or
1 W–25 W	+	0 W–350 W	Or	0 W–250 W	Or
26 W–50 W	+	0 W–250 W	Or	0 W–150 W	Or
51 W–75 W	+	0 W–150 W	Or	0 W–50 W	Or
76 W–100 W	+	0 W	Or	0 W	Or

Compatible Power Boosters and Load Interfaces

Some local controls can be used to control power boosters or load interfaces. Up to three power boosters or load interfaces can be used with one control. See table below for a list of compatible power boosters and load interfaces.

Control	Phase Adaptive Power Modules: PHPM-PA-120-WH, PHPM-PA-DV-WH	3-wire Fluorescent Power Modules: PHPM-3F-120-WH, PHPM-3F-DV-WH	Switched Power Module: PHPM-SW-DV-WH	0 -10 V Interface and Switching Module: GRX-TVI
RRD-HN1RLD	√	√	√	√
RRD-HN2RLD
RRD-HN3BSRL
RRD-HN3S
RRD-HN4S
RRD-HN5BRL
RRD-HN6BRL

RadioRA® 2 C·L® Hybrid Keypads

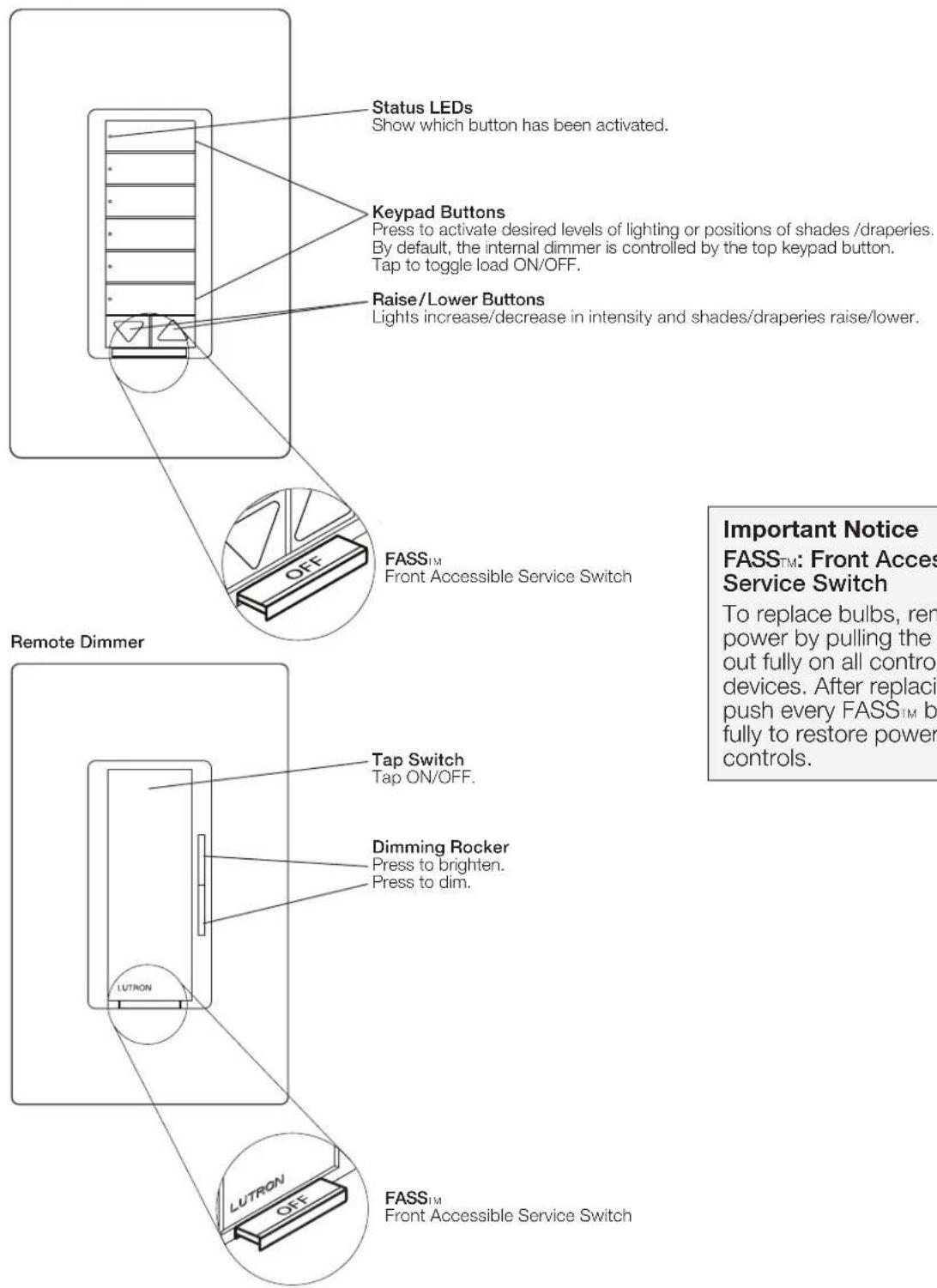

Operation

C·L® Hybrid Keypad

Status LEDs Show which button has been activated. Keypad Buttons Press to activate desired levels of lighting or positions of shades /draperies. By default, the internal dimmer is controlled by the top keypad button. Tap to toggle load ON/OFF. Raise/Lower Buttons Lights increase/decrease in intensity and shades/draperies raise/lower. FASS™ Front Accessible Service Switch Remote Dimmer Tap Switch Tap ON/OFF. Dimming Rocker Press to brighten. Press to dim. LUTRON FASS™ Front Accessible Service Switch Important Notice FASS™: Front Access Service Switch To replace bulbs, ren power by pulling the out fully on all control devices. After replaci push every FASS™ be fully to restore power controls.

Important Notice

FASS™: Front Accessible Service Switch

To replace bulbs, remove power by pulling the FASS ^™ out fully on all controlling devices. After replacing bulbs, push every FASS ^™ back in fully to restore power to the controls.

RadioRA® 2 C·L® Hybrid Keypads

Wiring

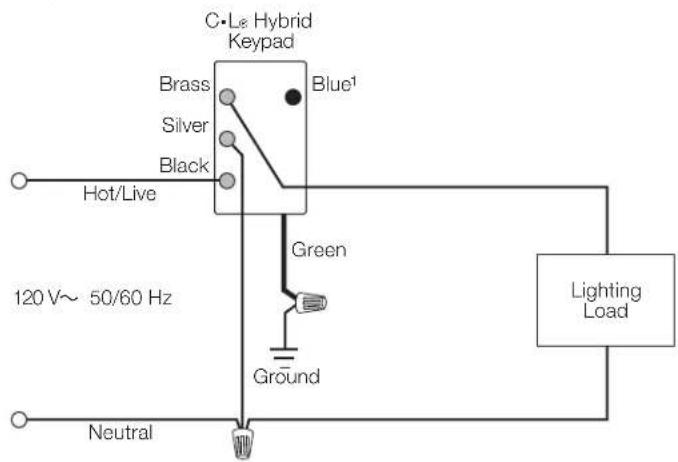

Single-Location Installation with Neutral ^1

C·Le Hybrid Keypad Brass Blue1 Silver Black Hot/Live Green 120 V~ 50/60 Hz Ground Lighting Load Neutral

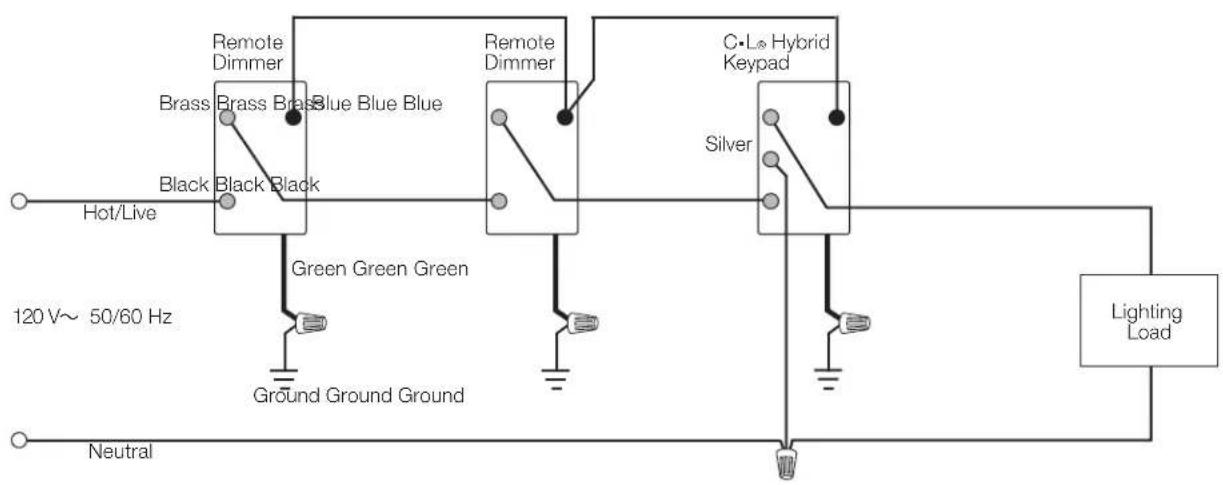

Multiple-Location Installation with Neutral ^2,3

Hot/Live 120 V～ 50/60 Hz Neutral Remote Dimmer Brass Brass Bras Blue Blue Black Black Green Green Green Ground Ground Ground Remote Dimmer C·L® Hybrid Keypad Silver Lighting Load

RadioRA® 2 C·L® Hybrid Keypads

Colors and Finishes

Gloss Finishes Satin Finishes

Metal Finish (wallplate only)

Stainless Steel SS

When using Stainless Steel wallplates, it is recommended to order the controls in Black (BL) or Midnight (MN).

• Due to printing limitations, colors and finishes shown cannot be guaranteed to perfectly match actual product colors.
  • Color chip keychains are available for more precise color matching:

• Gloss Finishes: DG-CK-1

• Satin Finishes: SC-CK-1
