Product Type	Additional Digital Cordless Handset
Brand	Panasonic
Model	KX-TGA850FX
Compatible Base Units	KX-TG8511, KX-TG8521
Power Supply (Charger)	AC Adaptor PQLV219CE (Input: 220-240 V AC, 50/60 Hz)
Battery Type	2 x Ni-MH AAA (R03) rechargeable batteries (HHR-55AAAB or N4DHYYY00005)
Charging Time (Initial)	Approximately 7 hours
Display Languages	16 languages (English, Polish, Czech, etc.)
Registration Required	Yes, to base unit before use
Supplied Accessories	Charger, AC adaptor, rechargeable batteries (2), belt clip, handset cover
Belt Clip	Included
Handset Cover	Included (pre-attached)
Frequency Band	DECT (1.88-1.90 GHz)
Range	Up to 50 m indoors, up to 300 m outdoors (typical)
Answering System	Available only when registered to KX-TG8521 (base unit with answering system)
Safety Precautions	Use only Ni-MH batteries; do not mix old/new; avoid short circuits; unplug if smoke/odd smell
Cleaning Instructions	Wipe with soft moist cloth; do not use benzine, thinner, or abrasive powder
Disposal	Dispose of old equipment and batteries per local regulations; EU WEEE and battery directives
Country of Origin	China
Dimensions (Handset)	Approximately 17 x 5 x 3 cm (estimated typical)
Weight (Handset with batteries)	Approximately 130 g (estimated typical)

Frequently Asked Questions - KX-TGA850FX PANASONIC

How do I register the handset to the base unit?

Ensure the handset is on. On the handset, lift and press [→]. On the base unit (KX-TG8511 or KX-TG8521), press and hold [•••] for about 5 seconds until the registration tone sounds (KX-TG8521) or handsets ring (KX-TG8511). Then place the handset on the base unit and wait for a confirmation tone and the display of Y.

What type of batteries does this handset use?

It uses two rechargeable Ni-MH AAA (R03) batteries. The supplied batteries are HHR-55AAAB or N4DHYYY00005. Do not use alkaline, manganese, or Ni-Cd batteries.

How long does it take to charge the batteries for the first time?

Approximately 7 hours. After that, the handset is ready for use.

Can I use this handset with any Panasonic base unit?

No, it is compatible only with Panasonic base units of the series KX-TG8511 and KX-TG8521. It cannot be used with other models.

How do I change the display language?

After installing batteries for the first time, you will be prompted to select a language. Use [▼]/[▲] to choose and press [OK]. You can also change it later via the handset menu (see base unit manual). There are 16 languages available.

Why does the handset display 'Please wait for 1 minute' when placed on the charger?

This indicates that the handset is not yet registered to the base unit. Follow the registration procedure to register it.

What should I do if the registration fails or an error tone sounds?

If an error tone sounds or Y is not displayed, refer to the base unit's operating instructions for detailed registration steps. Make sure the handset is on the base unit during the process.

Does this handset include an answering machine?

No, this additional handset does not have an answering system. Answering system features are available only when the handset is registered to the KX-TG8521 base unit, which includes an answering machine.

How should I clean the handset?

Wipe the outer surface with a soft moist cloth. Do not use benzine, thinner, or abrasive powders. Also, regularly clean the battery and charge contacts with a dry cloth.

What precautions should I take with the batteries?

Use only Ni-MH AAA rechargeable batteries. Do not mix old and new batteries. Avoid touching the battery ends or causing short circuits. Do not dispose of batteries in fire; recycle according to local regulations.

USER MANUAL KX-TGA850FX PANASONIC

TGA850FX(fx).book Page 1 Monday, August 2, 2010 4:54 PM

Panasonic®

Installation Manual

Line drawing of a mobile phone with a stand (no text or symbols)

Additional Digital Cordless Handset

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 2 Monday, August 2, 2010 4:54 PM

TGA850FX(fx).book Page 3 Monday, August 2, 2010 4:54 PM

Contents/Spis treści/Obsah/Sadržaj/Vsebina/Cuprins/ Съдържание/Содржина/Përmbajtja

English 4

Polski....9

Slovenčina 14

Čeština 19

Hrvatski 24

Slovenščina 29

Română 34

Български 39

Srpski 44

Македонски.... 49

Shqip 54

Bosanski 59

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

3

TGA850FX(fx).book Page 4 Monday, August 2, 2010 4:54 PM

English

PLEASE READ BEFORE USE AND SAVE

This unit is an additional handset compatible with the following series of Panasonic Digital Cordless Phone: KX-TG8511/KX-TG8521

You must register this handset with your base unit before it can be used. This installation manual describes only the steps needed to register and begin using the handset. Please read the base unit's operating instructions for further details.

Supplied accessories

Charger....1AC adaptor (PQLV219CE)....1	Rechargeable batteries*1....2(HHR-55AAAB or N4DHYYY00005)
Belt clip....1 Handset cover *2....1

*1 Please read the base unit's operating instructions for replacement battery information.
*2 The handset cover comes attached to the handset.

Note:

• Please read the base unit's operating instructions for additional/replacement accessories.
  • This equipment is designed for use in Czech, Slovakia, and Poland.
• In the event of problems, you should contact your equipment supplier in the first instance.
• For use in other countries, please contact your equipment supplier.

Connection (page 2: 1)

• Use only the supplied Panasonic AC adaptor PQLV219CE.
• The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.)
• Make sure that the wall is strong enough to support the weight of the unit.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

4

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 5 Monday, August 2, 2010 4:54 PM

Battery installation/Battery charge (page 2: 2)

When the language selection is displayed after installing the batteries for the first time, you can select your desired language.

[▼]/[▲]: Select your desired language. → OK → [✗○]

Important:

• Use the supplied rechargeable batteries. For replacement, we recommend using the Panasonic rechargeable batteries noted in the base unit's operating instructions.
• Wipe the battery ends (⊕, ⊖) with a dry cloth.
• Avoid touching the battery ends (⊕, ⊖) or the unit contacts.
• Confirm correct polarities (⊕, ⊖).
  • USE ONLY Ni-MH batteries AAA (R03) size.
• Do NOT use Alkaline/Manganese/Ni-Cd batteries.

Place the handset on the charger for about 7 hours before initial use.

Note:

• The handset display may show "Please wait for 1 minute." when the handset is placed on the charger if it is not registered to the base unit.
• If the batteries are fully charged, but the operating time seems to be shorter, clean the battery ends (⊕, ⊖) and the charge contacts with a dry cloth and charge again.

Display language

16 display languages are available.

2 [▼]/[▲]: Select your desired language. → OK → [×○]

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

5

TGA850FX(fx).book Page 6 Monday, August 2, 2010 4:54 PM

Registering the handset to the base unit

Ensure that the handset is switched on. If it is not on, press and hold [×] for few seconds to turn the handset on.

1 Handset:

Lift the handset and press [→].

2 Base unit:

Proceed with the operation for your model.

KX-TG8511

Press and hold [•••] for about 5 seconds. (No registration tone)

KX-TG8521

Press and hold [•••] for about 5 seconds, until the registration tone sounds.

- If all registered handsets start ringing, press the same button to stop. Then repeat this step.

3 Handset:

Place the handset on the base unit.

Continue the operation even when the handset display shows

"Please wait for 1 minute."

4 With the handset still on the base unit, wait until a confirmation tone sounds and Y is displayed.

Note:

• If an error tone sounds, or if Y is displayed, register the handset according to the base unit's operating instructions.
  • The KX-TG8511 does not feature an answering system.
• Answering system features are available only when this handset is registered to the KX-TG8521.

For your safety

To prevent severe injury and loss of life/property, read this section carefully before using the product to ensure proper and safe operation of your product.

WARNING

Power connection

• Completely insert the AC adaptor/power plug into the power outlet. Failure to do so may cause electric shock and/or excessive heat resulting in a fire.
• Regularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation defect from moisture, etc. resulting in a fire.
• Unplug the product from power outlets if it emits smoke, an abnormal smell, or makes an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped emitting and contact an authorised service centre.

6

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 7 Monday, August 2, 2010 4:54 PM

Installation

- To prevent the risk of fire or electrical shock, do not expose the product to rain or any type of moisture.

- Do not place or use this product near automatically controlled devices such as automatic doors and fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident.

Operating safeguards

- The use of excessive sound volume through earphones, headphones, or headsets may cause hearing loss.

CAUTION

Installation and location

- The AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the product and is easily accessible.

Battery

• We recommend using the supplied batteries or additional/replacement batteries noted in the base unit's operating instructions for replacement battery information. USE ONLY rechargeable Ni-MH batteries AAA (R03) size
• Do not mix old and new batteries.
• Do not open or mutilate the batteries. Released electrolyte from the batteries is corrosive and may cause burns or injury to the eyes or skin. The electrolyte is toxic and may be harmful if swallowed.
• Exercise care when handling the batteries. Do not allow conductive materials such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit may cause the batteries and/or the conductive material to overheat and cause burns.
• Charge the batteries provided with or identified for use with this product only, in accordance with the instructions and limitations specified in this manual.
• Only use a compatible base unit (or charger) to charge the batteries. Do not tamper with the base unit (or charger). Failure to follow these instructions may cause the batteries to swell or explode.

Other information

• Operating the product near electrical appliances may cause interference. Move away from the electrical appliances.
• Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.

Routine care

• Wipe the outer surface of the product with a soft moist cloth.
• Do not use benzine, thinner, or any abrasive powder.

Notice for product disposal, transfer, or return

- This product can store your private/confidential information. To protect your privacy/confidentiality, we recommend that you erase information such as phonebook or caller list entries from the memory before you dispose of, transfer, or return the product.

7

TGA850FX(fx).book Page 8 Monday, August 2, 2010 4:54 PM

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols (①, ②, ③) on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national

legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

These symbols (①, ②, ③) are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol

This symbol (②) might be used in combination with a chemical symbol (③). In this case it complies with the requirement set by the Directive for the chemical involved.

8

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 9 Monday, August 2, 2010 4:54 PM

Polski

PRZECZYTAJ PRZED ROZPOCZĘCIEM UŻYTKOWANIA I ZACHOWAJ NA PRŻYSZŁOŚĆ

Pure geometric lines and crosshair symbols without any text or labels

Pure electrical circuit lines without any symbols

TGA850FX(fx).book Page 10 Monday, August 2, 2010 4:54 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 11 Monday, August 2, 2010 4:54 PM

Pure electrical circuit lines without any symbols

TGA850FX(fx).book Page 12 Monday, August 2, 2010 4:54 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 13 Monday, August 2, 2010 4:54 PM

Pure geometric lines and crosshair symbols without any text or labels

13

TGA850FX(fx).book Page 14 Monday, August 2, 2010 4:54 PM

Slovenčina

PRED POUŽÍVANÍM SI PREČÍTAJTE TIETO INFORMÁCIE A USCHOVAJTE SI ICH

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 15 Monday, August 2, 2010 4:54 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 17 Monday, August 2, 2010 4:54 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 19 Monday, August 2, 2010 4:54 PM

Čeština

PŘED POUŽITÍM SI PŘEČTĚTE A ULOŽTE

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

19

TGA850FX(fx).book Page 20 Monday, August 2, 2010 4:54 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 21 Monday, August 2, 2010 4:54 PM

2 Základna:

Pure geometric lines and crosshair symbols without any text or labels

21

TGA850FX(fx).book Page 22 Monday, August 2, 2010 4:54 PM

Instalace

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 23 Monday, August 2, 2010 4:54 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

23

TGA850FX(fx).book Page 24 Monday, August 2, 2010 4:54 PM

Hrvatski

MOLIMO PROČITAJTE PRIJE UPOTREBE I SPREMITE

Ovaj uređaj je dodatna slušalica kompatibilna sa sljedećom serijom Panasonic digitalnih bežičnih telefona: KX-TG8511/KX-TG8521 Prije upotrebe ovu slušalicu potrebno je registrirati na baznu stanicu. Ove upute za instalaciju opisuju samo korake potrebne za registraciju i početak korištenja slušalice. Za više pojedlnosti molimo pročitajte upute za rukovanje baznom stanicom.

Priložena dodatna oprema

Punjač......1AC adapter (PQLV219CE) ...... 1	Punjive baterije*1......2(HHR-55AAAB ili N4DHYYY00005)
Kopča za remen ...... 1	Poklopac slušalice*2......1

*1 Informacije o zamjeni baterija pronadite u uputama za rukovanje baznom stanicom.
*2 Poklopac slušalice pričvršćen je na slušalicu.

Napomena:

• Informacije o zamjenskoj i dodatnoj opremi pronađite u uputama za rukovanje baznom stanicom.
• Ovaj uređaj je namijenjen za korištenje u Češkoj, Slovačkoj i Poljskoj.
• U slučaju problema najprije se obratite Vašem dobavljaču opreme.
• Za korištenje u drugim zemljama, obratite se Vašem dobavljaču opreme.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 25 Monday, August 2, 2010 4:54 PM

Umetanje baterija/punjenje baterija (stranica 2: 2)

Kad se prilikom prvog umetanja baterija prikaže odabir jezika, možete odabrati željeni jezik.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

25

TGA850FX(fx).book Page 26 Monday, August 2, 2010 4:54 PM

Registriranje slušalice na baznu stanicu

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 27 Monday, August 2, 2010 4:54 PM

- Izvucite uređaj iz utičnice ako se pojavi dim, neuobičajen miris ili neobičan zvuk. Ovi uvjeti mogu izazvati požar ili strujni udar. Potvrdite da više nema dima i obratite se ovlaštenom servisnom centru.

Instalacija

• Kako biste spriječili požar ili strujni udar, ne izlažite proizvod kiši ili vlazi.
• Ne postavljajte ni ne koristite ovaj proizvod u blizini uređaja s automatskim upravljanjem, poput automatskih vratiju i protupožarnih alarma. Radijski valovi koje odašilje ovaj proizvod mogu prouzročiti kvarove na takvim uređajima, što može dovesti do nesreće.

Mjere zaštite

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 28 Monday, August 2, 2010 4:54 PM

Informacije za korisnike o odlaganju starih uređaja i baterija

Ovi simboli (①, ②, ③) na proizvodima, pakiranju i/ili pratećoj dokumentaciji ukazuju na to da se rabljeni električni i elektronički proizvodi i baterije ne smiju miješati s drugim kućanskim otpadom. Za ispravno tretiranje, obnovu i recikliranje starih proizvoda i baterija, odnesite ih na odgovarajuća sakupljališta, u sukladnosti s državnim zakonima i Direktivama 2002/96/

EC i 2006/66/EC.

Ispravnim odlaganjem ovih proizvoda pomažete u štednji vrijednih resursa i sprečavanju mogućih negativnih učinaka na ljudsko zdravlje i okoliš, koji mogu proizaći iz nepravilnog odlaganja otpada.

Za više informacija o sakupljanju i recikliranju rabljenih proizvoda i baterija, obratite se lokalnoj zajednici, službi za odlaganje otpada ili trgovini u kojoj ste kupili proizvode. Za nepravilno odlaganje ovog otpada mogu se naplatiti kazne u sukladnosti s državnim zakonima.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 29 Monday, August 2, 2010 4:54 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Slovenščina

PRED UPORABO NAVODILA PREBERITE IN JIH SHRANITE

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 30 Monday, August 2, 2010 4:54 PM

Namestitev baterije/Polnjenje baterije (stran 2: 2)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 31 Monday, August 2, 2010 4:54 PM

Registriranje slušalke na osnovno enoto

Pure geometric diagram with intersecting lines and circles, no text or symbols present

32

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 33 Monday, August 2, 2010 4:54 PM

Informacije za uporabnike glede zbiranja in odstranjevanja starih naprav in rabljenih baterij

Pure geometric diagram with intersecting lines and circles, no text or symbols present

33

TGA850FX(fx).book Page 34 Monday, August 2, 2010 4:54 PM

Română

VĂ RUGĂM SĂ CITIȚI ÎNAINTE DE A UTILIZA ȘI SALVA

Pure geometric diagram with intersecting lines and circles, no text or symbols present

34

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 35 Monday, August 2, 2010 4:54 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

35

TGA850FX(fx).book Page 36 Monday, August 2, 2010 4:54 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 37 Monday, August 2, 2010 4:54 PM

Pure geometric lines and crosshair symbols without any text or labels

TGA850FX(fx).book Page 38 Monday, August 2, 2010 4:54 PM

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

TGA850FX(fx).book Page 39 Monday, August 2, 2010 4:54 PM

Български

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 40 Monday, August 2, 2010 4:54 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

40

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 41 Monday, August 2, 2010 4:54 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 43 Monday, August 2, 2010 4:54 PM

Pure geometric lines and shapes without any text, numbers, or symbols

43

TGA850FX(fx).book Page 44 Monday, August 2, 2010 4:54 PM

Srpski

MOLIMO VAS DA PRE UPOTREBE PROČITATE I SAČUVATE OVAJ PRIRUČNIK

Pure geometric diagram with intersecting lines and circles, no text or symbols present

45

TGA850FX(fx).book Page 46 Monday, August 2, 2010 4:54 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 47 Monday, August 2, 2010 4:54 PM

- Isključite uređaj iz izvora napajanja ako iz njega počne da izbija dim ili neuobičajen miris, ili ako se iz njega začuju neobični zvukovi. Pod ovakvim uslovima može doći do požara ili električnog udara. Kada se uverite da uređaj više ne emituje dim, obratite se ovlašćenom servisnom centru.

Instalacija

• Da biste sprečili rizik od požara ili električnog udara, ovaj proizvod nemojte izlagati kiši ili bilo kojoj vrsti vlage.
• Ovaj proizvod nemojte postavljati, niti ga koristiti u blizini automatski kontrolisanih uređaja, kao što su automatska vrata ili protivpožarni alarmi. Radio talasi koje ovaj proizvod emituje mogu prouzrokovati kvar pomenutih uređaja i dovesti do nezgode.

Radni štitnici

- Upotreba prekomerne jačine zvuka u ušnim, standardnim ili naglavnim slušalicama može dovesti do gubitka sluha.

PAŽNJA

Mesto ugradnje

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 49 Monday, August 2, 2010 4:54 PM

Македонски

ПРОЧИТАЈТЕ ГО ПРЕД УПОТРЕБА И ЧУВАЈТЕ ГО

Pure electrical circuit lines without any symbols

TGA850FX(fx).book Page 50 Monday, August 2, 2010 4:54 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 51 Monday, August 2, 2010 4:54 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 53 Monday, August 2, 2010 4:54 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

53

TGA850FX(fx).book Page 54 Monday, August 2, 2010 4:54 PM

Shqip

JU LUTEMI LEXOJENI PËRPARA PËRDORIMIT DHE RUAJENI

Pure geometric diagram with intersecting lines and circles, no text or symbols present

54

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 55 Monday, August 2, 2010 4:54 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

55

TGA850FX(fx).book Page 56 Monday, August 2, 2010 4:54 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 57 Monday, August 2, 2010 4:54 PM

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 58 Monday, August 2, 2010 4:54 PM

Kujdesi | zakontë

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 59 Monday, August 2, 2010 4:54 PM

Bosanski

PROČITAJTE PRIJE UPOTREBE I SAČUVAJTE

Ovaj uređaj je dodatna slušalica kompatibilna sa slijedećim serijama digitalnih bežičnih telefona marke Panasonic: KX-TG8511/KX-TG8521 Prije nego je počnete koristiti, slušalicu morate registrirati u baznoj jedinici. Ovaj priručnik za instalaciju opisuje samo postupke vezane za registriranje i početak korištenja slušalice. Za detaljnije informacije pročitajte uputstvo za upotrebu bazne jedinice.

Priložena dodatna oprema

Punjač......1Ispravljač naizmjenične struje(PQLV219CE)......1	Punjive baterije*1(HHR-55AAAB ili N4DHYYY00005)
Kopča za kaiš......1	Poklopac slušalice*2......1

*1 Za informacije o zamjeni baterija, pročitajte uputstvo za upotrebu bazne jedinice.
*2 Poklopac slušalice pričvršćen je na slušalicu.

Napomena:

• Za informacije o dodatnoj ili zamjenskoj pomoćnoj opremi, pročitajte uputstvo za upotrebu bazne jedinice.
• Ova oprema je namijenjena za upotrebu u Češkoj, Slovačkoj i Poljskoj.
  • U slučaju problema, prvo biste trebali kontaktirati dobavljača opreme.
• Za informacije o upotrebi u drugim zemljama, obratite se dobavljaču opreme.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 60 Monday, August 2, 2010 4:54 PM

Umetanje baterija/Punjenje baterija (strana 2: 2)

Kada se prikaz za odabir jezika prikaže nakon prvog umetanja baterija, možete odabrati željeni jezik.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 61 Monday, August 2, 2010 4:54 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure electrical circuit lines without any symbols

TGA850FX(fx).book Page 62 Monday, August 2, 2010 4:54 PM

Ugradnja

- Da biste spriječili opasnost od požara ili električnog udara, ne izlažite proizvod kiši ili nekoj drugoj vrsti vlage.

- Ne postavljajte i ne koristite ovaj proizvod u blizini uređaja s automatskim upravljanjem, na primjer automatiziranih vrata ili požarnog alarma. Radio valovi koje emitira ovaj proizvod mogu prouzrokovati greške u radu takvih uređaja i dovesti do nezgode.

Mjere zaštite pri rukovanju

- Slušanje previše glasnog zvuka preko ušnih, normalnih ili naglavnih slušalica može dovesti do gubitka sluha.

OPREZ

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 64 Monday, August 2, 2010 4:54 PM

Declaration of Conformity:

• Panasonic System Networks Co., Ltd. declares that this equipment is in compliance with the essential requirements and other relevant provisions of Radio & Telecommunications Terminal Equipment (R&TTE) Directive 1999/5/EC.
  Declarations of Conformity for the relevant Panasonic products described in this manual are available for download by visiting: http://www.doc.panasonic.de

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 65 Monday, August 2, 2010 4:54 PM

Izjava o skladnosti:

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and circles, no text or symbols present

65

TGA850FX(fx).book Page 66 Monday, August 2, 2010 4:54 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

66

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 67 Monday, August 2, 2010 4:54 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure electrical circuit lines without any symbols

TGA850FX(fx).book Page 68 Monday, August 2, 2010 4:54 PM

Sales department/Dział sprzedaży/Obchodné zastúpenie/ Obchodní zastoupení/Odjel prodaje/Prodajní oddelek/Departamentul de vânzáři/Отдел „Продажби“/Odeljenje prodaje/Oддел за продажба/Departamenti i shitjeve/Prodajní odjel

■ Polska

Produkt Panasonic

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA850FX(fx).book Page 69 Monday, August 2, 2010 4:54 PM

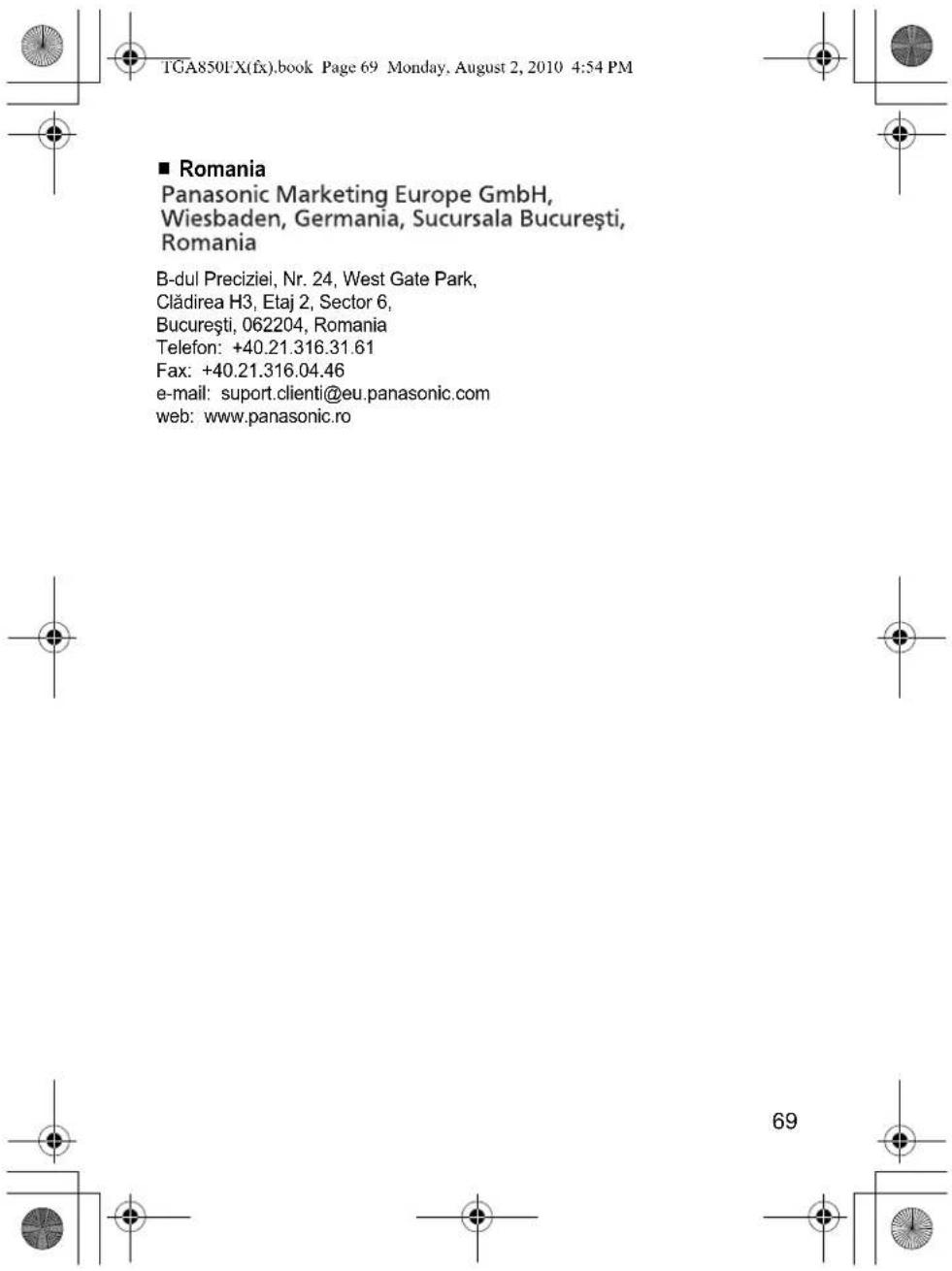

■ Romania

Panasonic Marketing Europe GmbH, Wiesbaden, Germania, Sucursala Bucureşti, Romania

B-dul Preciziei, Nr. 24, West Gate Park,

Bucureşti, 062204, Romania

Telefon: [phone]

Fax: [phone]

e-mail: [e-mail]

web: www.panasonic.ro

TGA850FX(fx).book Page 70 Monday, August 2, 2010 4:54 PM

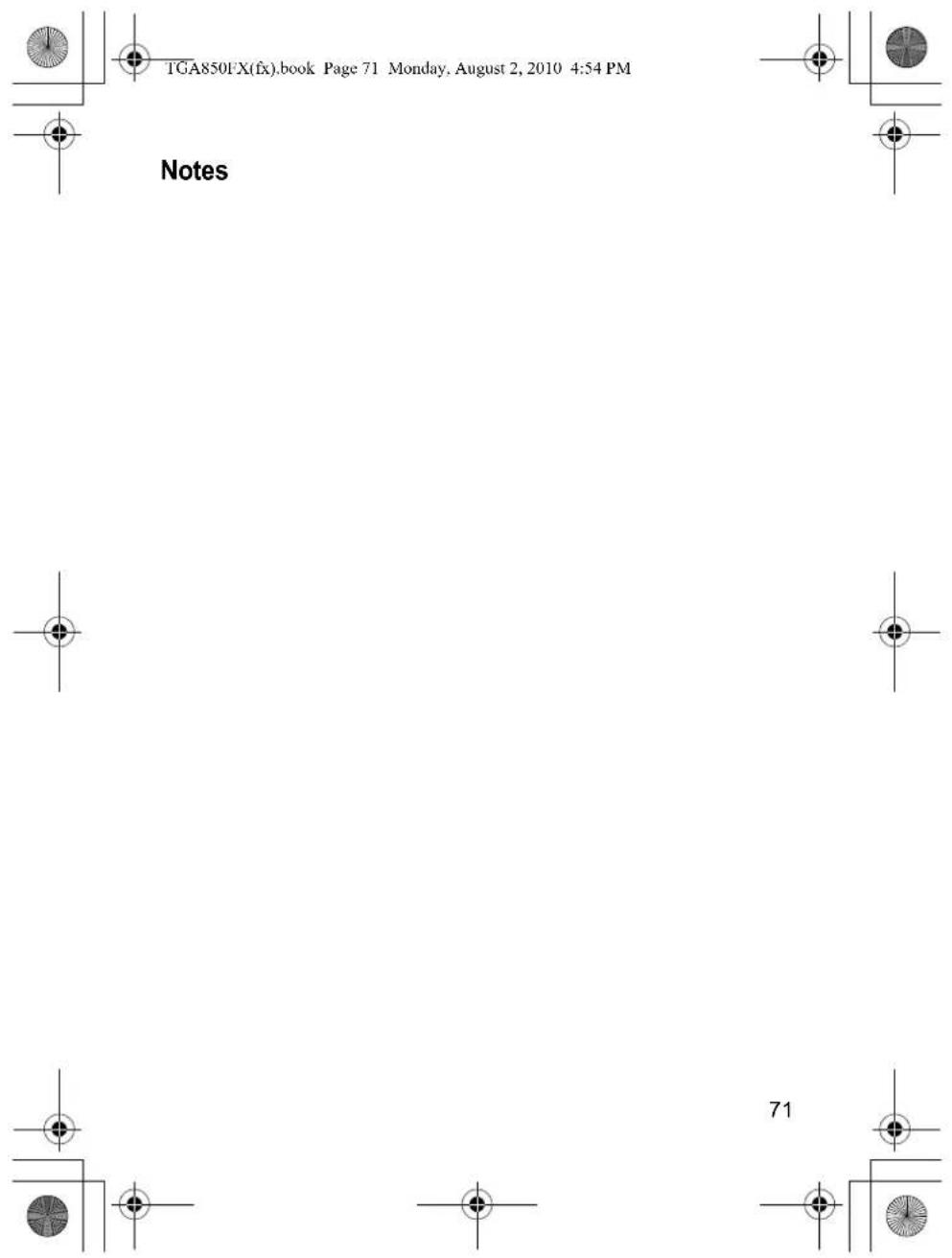

TGA850FX(fx).book Page 71 Monday, August 2, 2010 4:54 PM

TGA850FX(fx).book Page 72 Monday, August 2, 2010 4:54 PM

(For Czech and Slovakia)

This cordless telephone is possible to use according to General licence No.: VO-R/8/08.2005-23 (for Czech), VPR-7/2001 (for Slovakia).

(Pro Českou republiku a Slovensko)

1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

© Panasonic System Networks Co., Ltd. 2010

*TGA850FX*

Pure geometric diagram with intersecting lines and circles, no text or symbols present

PNQX2579YA

CC0410DR1080 (A)

FX-2/2
