Product Type	Grill and Sandwich Maker
Brand	Arzum
Model	AR2024
Voltage	220-240 V ~50/60 Hz
Power Consumption	1450-1750 W
Temperature Control	Variable temperature button with pilot light
Cooking Plates Material	Non-stick granite
Removable Plates	Yes
Plate Removal	By depressing clips
Rotating Top Body	180° for party grill mode
Cooking Functions	Sandwich Maker, Double-Sided Grill, One-Sided Grill, Party Grill (Barbecue)
Oil Drip Channel	Yes
Handle	Ergonomic handle
Safety Features	Thermostatic control, automatic security latch, cool-touch handle
Cleaning - Plates	Dishwasher safe or wash with warm water and soap
Cleaning - Unit	Wipe with damp cloth; never immerse in water
Storage	Upright position with automatic security latch
Product Life	7 years
Compliance	WEEE, EEE Directives
Material	Plastic and metal housing

Frequently Asked Questions - AR2024 Arzum

How do I use the sandwich maker function?

Plug in the appliance, set the variable temperature button to the appropriate position, and preheat until the pilot light goes off. Butter the outside of the bread if desired, place the sandwich on the lower plate, and gently close the lid. The cooking time depends on the filling and personal taste. The sandwich maker cooks both sides at once.

Can I use metal utensils on the cooking plates?

No, never use metal tongs, forks, or knives as they can damage the non-stick coating. Always use plastic or wooden utensils to remove food.

How do I clean the removable plates?

After unplugging and cooling, remove the plates by slightly twisting the clips outward. Rinse them with a soft cloth or plastic brush, or wash with warm water and soap. They are also dishwasher safe. Do not use abrasive materials like metal brushes or steel wool.

Is the appliance dishwasher safe?

Only the cooking plates are dishwasher safe. The main unit and other parts must never be immersed in water. Wipe them with a damp cloth.

What should I do if smoke comes out during first use?

It is normal to notice a slight smoke or odor when using the appliance for the first time. Set the variable temperature to the maximum level and let it run. The smoke will stop after a short while and not recur.

Can I use the grill outdoors?

No, the appliance is for household use only. Do not use outdoors for commercial or industrial purposes.

How do I adjust the temperature?

Turn the variable temperature button so that the desired setting aligns with the temperature indication. The pilot light is thermostatically controlled and will cycle on and off to maintain the selected temperature.

What is the party grill mode?

To increase cooking area, open the upper cover 180° backward until the leg pins lock. Both cooking surfaces can then be used simultaneously, effectively providing a wide barbecue surface. Set the temperature and preheat before placing food on both plates.

How should I store the appliance?

After cooling down, you can store the appliance in the upright position using its automatic security latch. This keeps it compact and safe.

What if the cord is damaged?

Do not operate the appliance with a damaged cord or plug. Do not attempt to repair it yourself. Immediately contact an Arzum Authorized Service for assistance.

USER MANUAL AR2024 Arzum

Aerial view of a rural agricultural field with a white arrow pointing to a small structure, no visible text or symbols.

Aerial grayscale image showing a road with a white arrow pointing upward, indicating direction or focus (no text or symbols present)

Two dark textured rectangular objects with horizontal grooves, possibly woven or mesh material (no text or symbols visible)

NOT:

Close-up of a mechanical component with rotational arrows indicating motion (no text or symbols)

Grilled sandwich on a griddle board with side cuts (no text or symbols visible)

Izgara

Çift Taraflı Izgara

Close-up of a white and black electronic device with a partially open lid (no visible text or symbols)

Grilled sandwich grater on a griddle, showing three pieces of meat (no text or symbols visible)

Parti Izgara (Barbekü)

Close-up of a grating tray with multiple square cutouts and a small handle (no visible text or symbols)

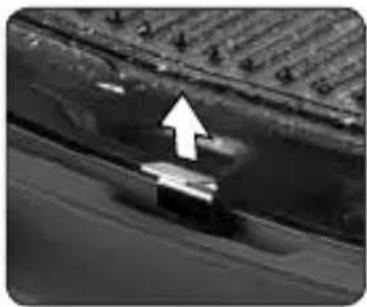

NOT:

Close-up of a textured surface with a white arrow pointing to a small rectangular object, possibly a component or feature (no text or symbols visible)

Aerial view of a rural landscape with a white arrow pointing upward, showing agricultural fields and a small settlement (no text or symbols visible)

Two dark textured rectangular objects with horizontal lines, possibly woven or mesh material (no visible text or symbols)

1- 180° rotational top body (for party grill position)
2- Bottom body
3-Variabletemperaturebutton
4- Temperature and pilot light

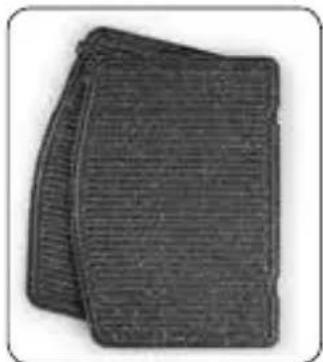

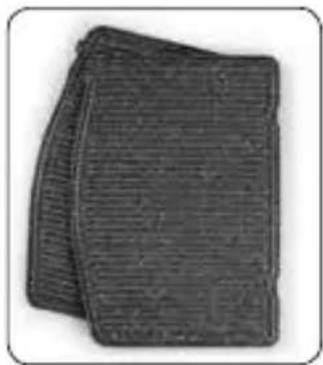

5-Non-stick granite cooking plates
6- Oil dripping channel
7- Ergonomic handle
8- Cooking plates holding clips

Thank you for purchasing Arzum brand Grill and Sandwich Maker. We wish this product to make life easier for you, as with other Arzum products offered to you.

In order to obtain utmost output from your appliance, please read carefully this user's manual and save it for further use.

IMPORTANT SAFEGUARDS

• Make sure that the voltage indicated on the Arzum Paninaro Grill and Sandwich Maker corresponds with the mains voltage in your home. Our company shall not be held liable for any failures owing to any discrepancy and such failures shall not be covered by the guarantee.

- Your device is for household use only. Do not use outdoors for commercial or industrial purposes.

- To prevent harming your appliance do not use extension cords that supply insufficient current. - Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 8 years and above and person with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been givensupervision of instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Keep the appliance and its cord out of reach of the children less than 8 years.

Do not place the Arzum Paninaro Grill and Sandwich Maker over or near direct heat sources such as a stove or heating oven.

Do not let cord hang over edge of a table or counter, or touch any other appliances or hot surfaces.

- Place the unit on a flat and fixed surface, which would be resistant to heat.

• After having used, remove the mains plug from the wall socket and allow it to cool down; move only after it has completely cooled down.

- When not in use and before cleaning, disconnect the mains plug from power outlet.

- Never operate the appliance without cooking plate(s) attached.

- NEVER immerse the appliance into water for cleaning or any other purposes; do not let any water / water steam leak into the unit.

Do not touch metal parts when in use.

- Avoid actions that may harm or damage the cord or plug of your device. To unplug the appliance, first hold the plug and NEVER pull by the cord.

Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner, such as by dropping down, etc. Do not attempt to repair it by yourself. Immediately contact an Arzum Authorized Service.

• Use your appliance as recommended.

SUGGESTIONS OF USE

• You can use your Arzum Paninaro Grill and Sandwich Maker for various purposes such as warming and cooking foods, grilling, making sandwiches, and toasting.
• Owing to its adjustable temperature setting button and pilot light, this unit operates safely, prevents overheating, and keeps the cooking

surface at constant temperature selected, ensuring the proper cooking on time.

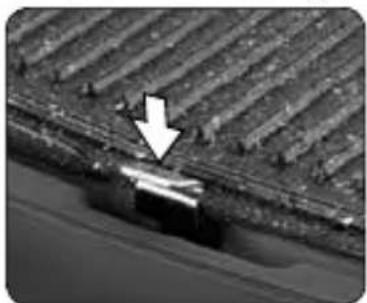

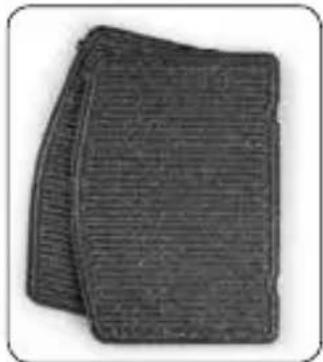

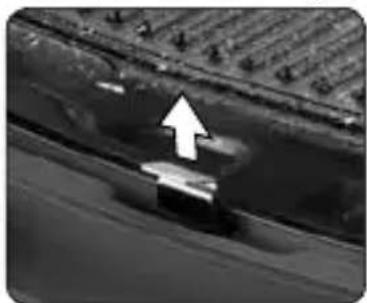

- You can remove the single-sided non-stick granite cooking plates of your appliance by depressing the clips slightly.

Aerial view of a rural agricultural area with a white arrow pointing to a small rectangular structure (no visible text or symbols)

Aerial grayscale view of a rural landscape with a white arrow pointing upward, showing agricultural fields and a small building (no text or symbols visible)

Before using for the first time rinse the cooking plates with tepid water and a little dishwashing detergent. Then, attach the cooking plates to their place. A click sound will indicate that the edges have been fitted well onto the cooking surface.
• We recommend you to oil the surfaces slightly, before using for the first time.
- Connect the mains plug to the power outlet and set the variable temperature button to the maximum level. You may notice a slight smoke or odor. This is normal and will not recur after a while.

Two dark textured rectangular objects with horizontal lines, possibly woven or mesh material (no text or symbols visible)

Note:

Ensure that the cord is kept away from the cooking plates when in use.

SETTING TEMPERATURE

- Your turning the temperature setting stages so that they will stand against the temperature indication, according to the process to be

made, would be sufficient for you to set the temperature range.

Close-up of a mechanical knob with rotational arrows indicating motion (no text or symbols)

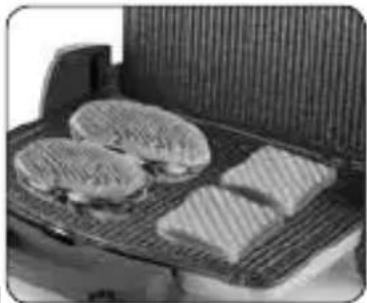

COOKING FUNCTIONS Use as a Sandwich Maker

- Plug your appliance to the socket, set the variable temperature button to a proper position for cooking settings indicated on your appliance, and preheat the unit. When the thermostat / pilot light go off, your appliance

reaches the necessary temperature.

- Butter the outside of the toast or sandwich breads and gently close the lid.

The length of cooking time depends on the case, filling and personal taste. Your sandwich maker cooks on both sides at a time.

It is not necessary to butter the outsides of all breads as the sandwich maker/grill has non-stick granite cooking plates.

Grilled grill with meat slices and grating on a grater (no text or symbols visible)

Use as a Grill Double-Sided Grill

- Set the variable temperature control to the appropriate position, and preheat the unit.

- Place the foods to the lower cooking surface and close the upper cover onto the foods.

- You are not required to turn the foods in the double-sided grill.

• After the desired amount of time the food should be done.

- Carefully open the lid and collect and take the foods in the plate using a wooden spatula.

Close-up of a white and black electronic device with a partially visible internal component (no text or symbols)

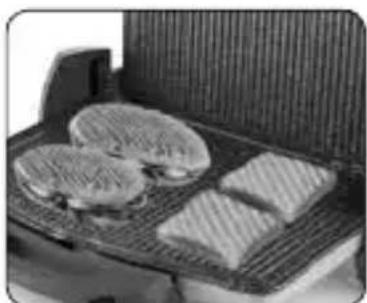

One-Sided Grill

- Set the variable temperature control to the appropriate position, and preheat the unit.

- Place the foods to be cooked in the lower cooking surface.

• Pull the upper cover in the upright position, and open by 90°.

- Grilling may be done with your appliance's upper cover opened and not touching the upper cover.

• Turn and collect the foods in the plate using a wooden spatula.

Grilled grill with three cutlery pieces on a griddle (no text or symbols visible)

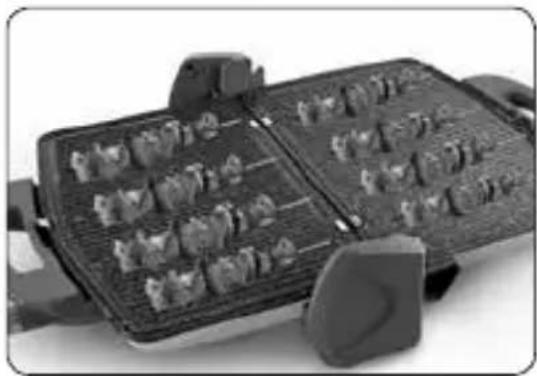

Party Grill (Barbecue)

In order to increase the cooking area in picnics and parties open the upper cover towards back by 180^ , so you can provide a wide surface for cooking.
• Pull the upper cover in the upright position, and adjust the upper leg pins to the top point of the lower leg pins. In this case you can open the upper cover by 180°.

- Set the variable temperature control to the appropriate position, and preheat the unit.

- You can place the foods in both surfaces, use both of them at the same time, and make your grills easily.

Close-up of a black waffle grater with multiple square cavities arranged in rows (no text or symbols visible)

• Turn and collect the foods in the plate using a wooden spatula.

NOTE:

The light is thermostatically controlled and will cycle during cooking to ensure that the correct temperature is maintained.

WARNING:

1- NEVER touch the outer surfaces of the unit as they heat up during operation. Use the handle to open the upper cover. Vapor may come out from between the heating plates of your equipment when the upper cover is opened or during the cooking process. Be careful when taking out the foods.
2- Carefully open the lid and remove the foods using plastic or wooden utensils to avoid damaging the non-stick coating. Never use metal tongs, forks or a knife as these can damage the coating.

CLEANING & CARE

Before cleaning and care, unplug the appliance from the wall socket and allow it to cool down.
• After each use, wipe cooking plates to protect the cooking surfaces coated with the non-stick material.

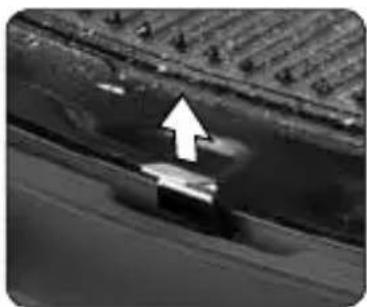

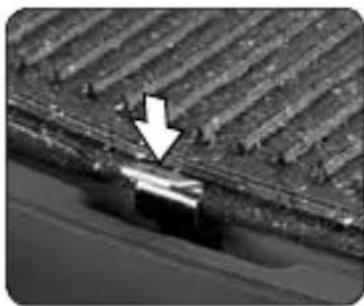

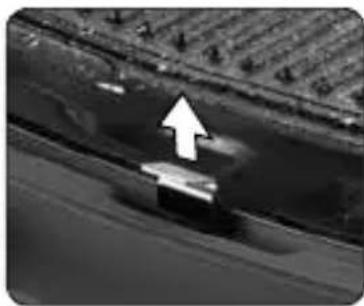

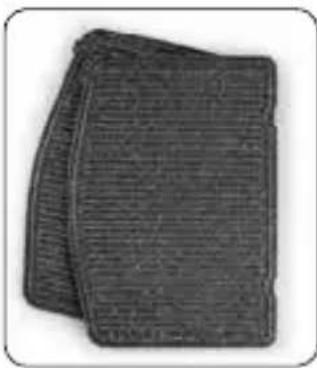

• Remove the cooking plates by slightly twisting outwards the clips holding the surfaces.
• Rinse cooking plates with a soft cloth or

plastic brush, or wash using warm water and soap, or wash in a dishwasher.

• Some resistance trays may occur due to the temperature on the cooking plates. To prevent this it is sufficient for you to wash the plates.
Do not use abrasive materials such as metal brush or steel wool as this will scratch the non-stick coating.
• After having removed the cooking plates, you can wipe the resistance and heat-reflector trays with a slightly damp cloth.
- You can wipe the plastic compounds and outer metal parts with a soaped cloth and then dry it completely.
- You can store your appliance in the upright position, by using its automatic security latch.
NEVER immerse into water, except for the cooking plates.

Close-up of a textured surface with a white arrow pointing to a small rectangular object, possibly a component or feature (no visible text or symbols)

Aerial grayscale image showing a road with a white arrow pointing upward, surrounded by grid-patterned terrain (no text or symbols visible)

Two dark textured rectangular objects with horizontal lines, possibly woven or mesh material (no visible text or symbols)

Product life 7 years Technical Specifications 220-240 V \~ 50/60 Hz 1450 - 1750 W

The product is in compliance with the EEE Directives. WEEE

This product contains recyclable materials that compliance with the WEEE directives. Do not dispose this product as unsorted municipal waste. Please contact your local municipality for the nearest collection point.

Manufacturer / Importer:
