USER MANUAL UltraSharp U2419H DELL

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Copyright © 2018 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

2018 - 08

Rev. A00

Contents

About Your Monitor .... 5

Package Contents 5

Product Features 6

Identifying Parts and Controls 7

Monitor Specifications. 10

Plug-and-Play 22

LCD Monitor Quality and Pixel Policy. 22

Setting Up the Monitor 23

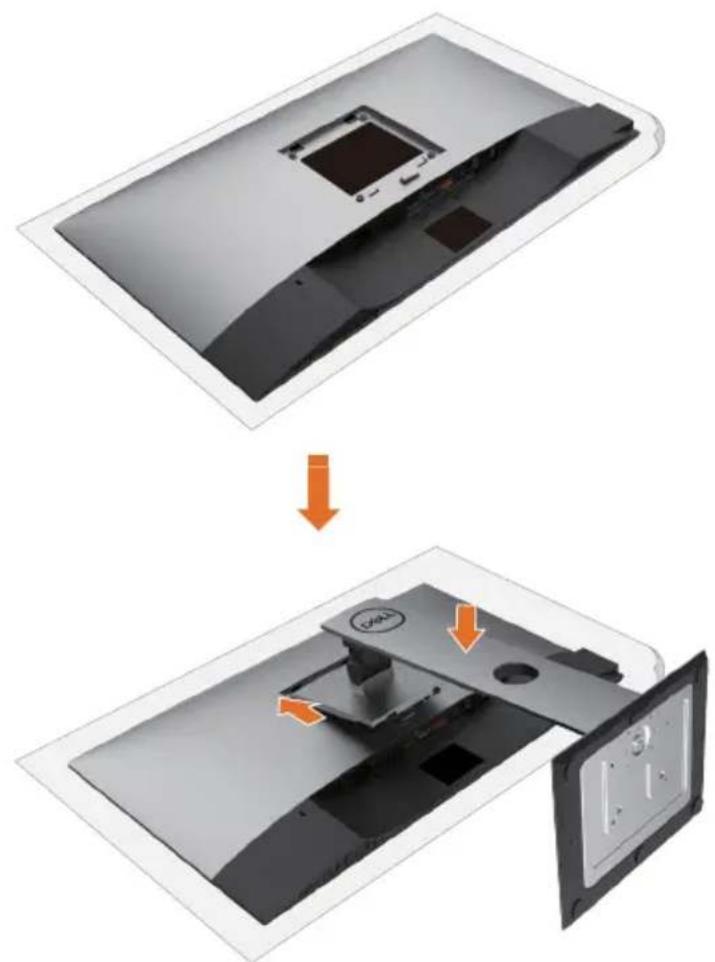

Attaching the Stand 23

Using the Tilt, Swivel, and Vertical Extension ..... 25

Adjusting the Rotation Display Settings of Your System 26

Connecting Your Monitor. 26

Organizing Your Cables 29

Removing the Monitor Stand. 29

Wall Mounting (Optional) 30

Operating the Monitor 31

Turning on the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Using the Front Panel Controls .....31

Using the On-Screen Display (OSD) Menu 34

Troubleshooting 45

Self-Test 45

Built-in Diagnostics 46

Common Problems. 47

Product Specific Problems 49

Appendix. 50

Safety Instructions 50

FCC Notices (U.S. only) and Other Regulatory Information ..... 50

Contacting Dell 50

Setting Up Your Monitor .51

Maintenance Guidelines. 53

Package Contents

Your monitor ships with the components shown below. Make sure that you have received all the components and Contact Dell if something is missing.

NOTE: Some items may be optional and may not ship with your monitor.

Some features or media may not be available in certain countries.

			Monitor
			Stand riser
			Stand base
			Power cable (varies by country)
			USB 3.0 upstream cable (enables the USB ports on the monitor)
			DP cable (DP to DP, U2419H/U2719D only)
			HDMI cable (U2419HX/U2719DX only)
			·Quick Setup Guide·Safety,Environmental,and Regulatory Information·Factory Calibration Report

Product Features

The Dell UltraSharp U2419H/U2419HX/U2719D/U2719DX monitor has an active matrix, thinfilm transistor (TFT), liquid crystal display (LCD), and LED backlight. The monitor features include:

• U2419H/U2419HX: 60.47 cm (23.8-inch) active area display (Measured diagonally) 1920 x 1080 (16:9) resolution, plus full-screen support for lower resolutions.
• U2719D/U2719DX: 68.47 cm (27-inch) active area display (Measured diagonally) 2560 x 1440 (16:9) resolution, plus full-screen support for lower resolutions.
• Wide viewing angles with 99% sRGB color with an average Delta E<2.
• Tilt, swivel, pivot and vertical extension adjustment capabilities.
• Removable pedestal and Video Electronics Standards Association (VESA™) 100 mm mounting holes for flexible mounting solutions.
• Ultra-thin bezel minimizes the bezel gap in multi-monitor usage, enabling easier set up with an elegant viewing experience.
• Extensive digital connectivity with DP, HDMI and USB 3.0 helps future-proof your monitor.
  • Plug and play capability if supported by your system.
• On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
  • Security lock slot.
  • 0.3 W standby power when in the sleep mode (without USB upstream cable).
• Optimize eye comfort with a flicker-free screen.

NOTE: The possible long-term effects of blue light emission from the monitor may cause damage to the eyes, including eye fatigue or digital eye strain. ComfortView feature is designed to reduce the amount of blue light emitted from the monitor to optimize eye comfort.

Identifying Parts and Controls

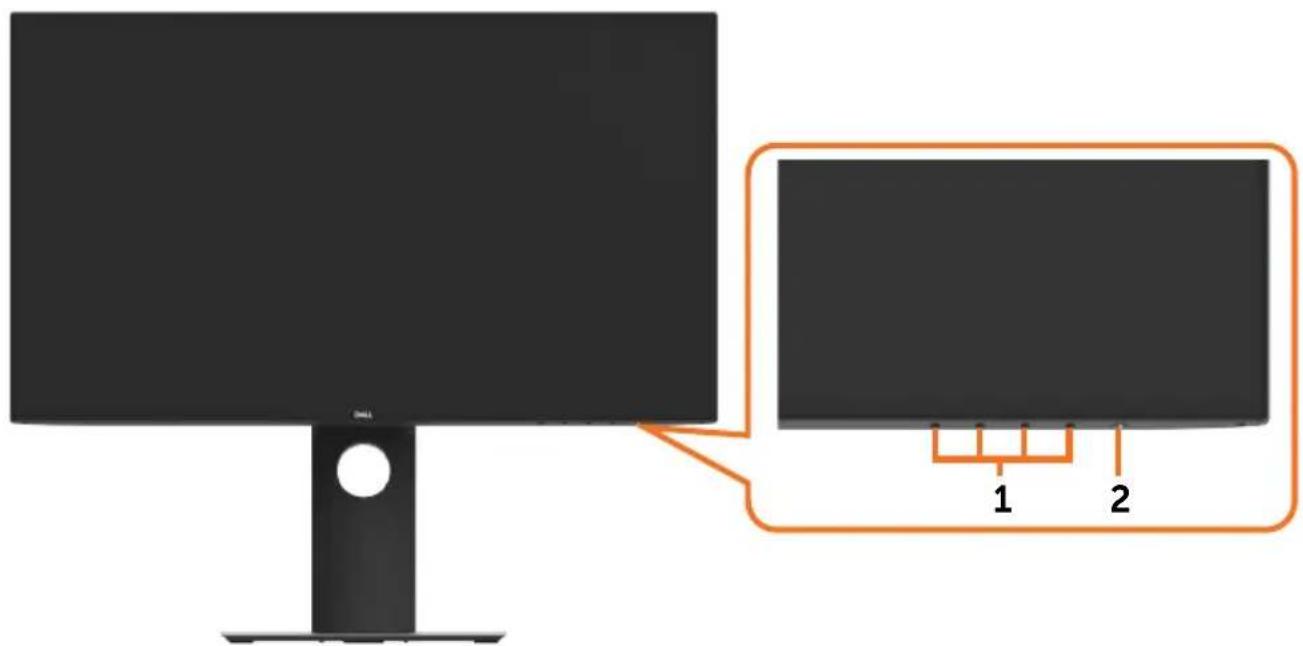

Front view

Diagram showing a desktop monitor with an orange annotation pointing to its screen, labeled with pins 1 and 2.

Label Description
1	Function buttons (For more information, see Operating the Monitor)
2 Power	on/off button (with LED indicator)

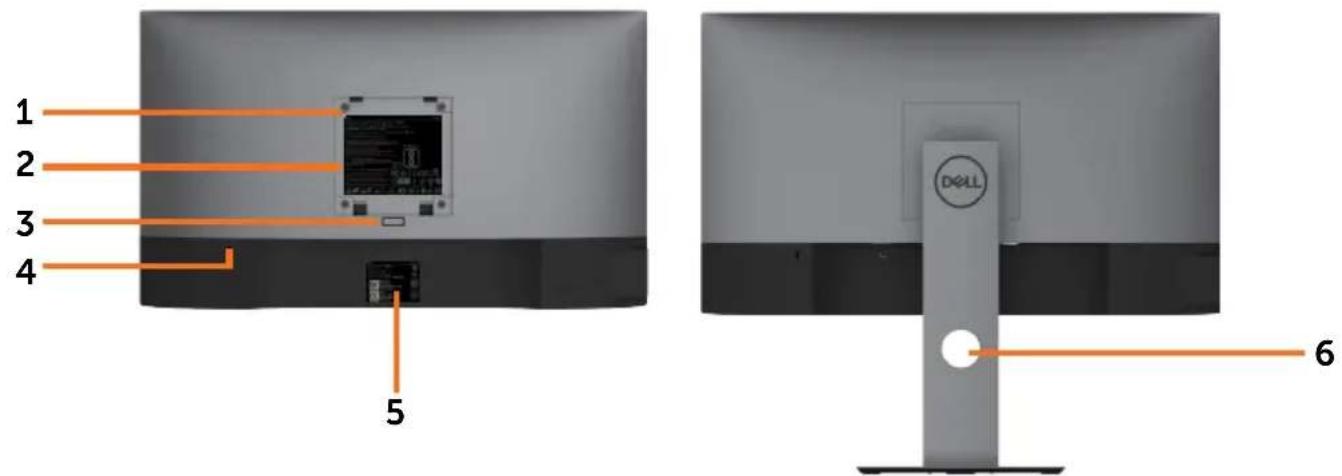

Back View

1 2 3 4 5 6 DELL

Label Description Use

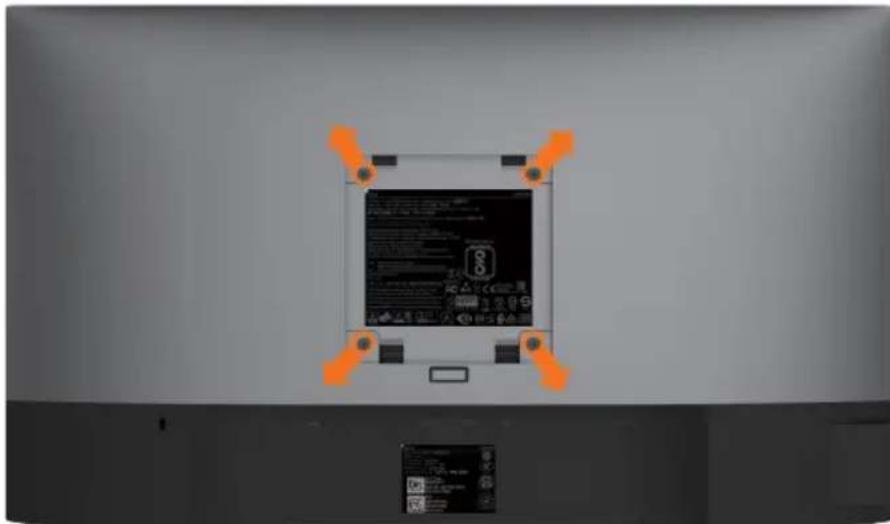

1 VESA	mounting holes (100 mm x 100 mm-behind attached VESA cover)	Wall mount monitor using VESA-compatible wall mount kit (100 mm x 100 mm).
2 Regulatory label Lists the regulatory approvals.
3 Stand	release button Release stand from monitor.
4 Security lock slot	Secures monitor with security cable lock (sold separately).
5 Barcode, serial number, and Service Tag label		Refer to this label if you need to contact Dell for technical support.
6 Cable	management slot Use to organize cables by placing them through the slot.

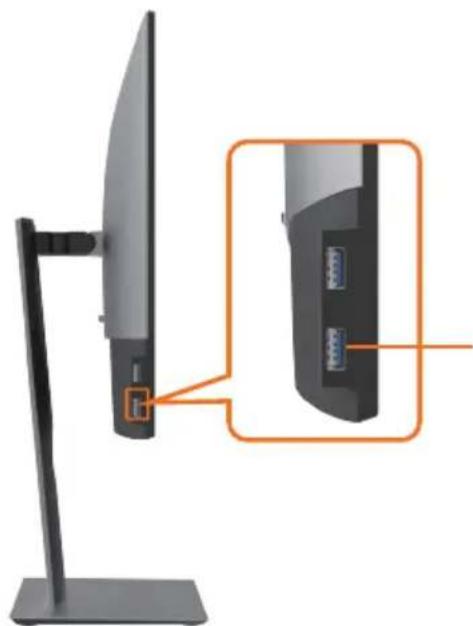

Side View

Side view of a computer monitor with an orange annotation highlighting the front panel (no text or symbols present)

USB downstream port

Port with battery icon supports BC 1.2.

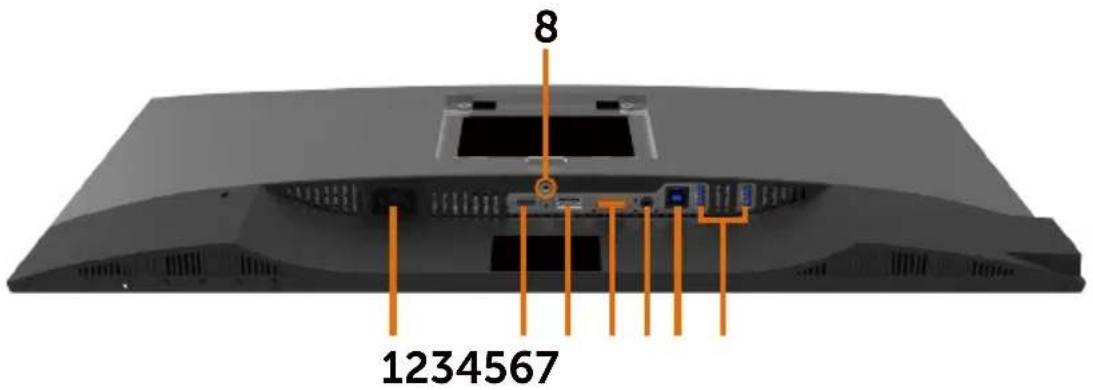

Bottom View

8 1234567

Label Description Use
1 AC power connector To connect the monitor power cable.
2 HDMI connector Connect your computer with HDMI cable.
3 DP connector (in) Connect your computer with DP cable.
4 DP connector (out) DP output for	MST (multi-stream transport) capable monitor. To enable MST, refer to instruction on section “Connecting the Monitor for DP MST Function”.NOTE: Remove the rubber plug when using DP out connector.
5	Audio line-out portConnect speakers to playback audio coming through HDMI or DP audio channels.Only supports 2-channel audio.NOTE: The audio line-out port does not support headphones.
6	USB upstream portConnect the USB cable that comes with your monitor to the computer. Once this cable is connected, you can use the USB downstream connectors on the monitor.
7	USB downstream ports (2)*Connect your USB device. You can only use this connector after you have connected the USB cable to the computer and USB upstream connector on the monitor.NOTE: Port with battery icon supports BC 1.2.
8	Stand lockLock the stand to the monitor using a M3 x 6 mm (U2719D/U2719DX)/ M3 x 8 mm (U2419H/U2419HX) screw (screw not included).

*To avoid signal interference, when a wireless USB device has been connected to a USB downstreamport, it is NOT recommended to connect any other USB devices to the adjacent port(s).

Monitor Specifications

Model U2419H/U2419	HX U2719D/U2719DX
Screen type Active matrix - TFT LCD Active matrix - TFT		LCD
Panel Type In-plane switching Technology In-plane switching Technology
Aspect ratio 16:9 16:9
Viewable image dimensions
Diagonal 60.47 cm (23.8 inches)		68.47 cm (27 inches)
Active Area
Horizontal	527.04 mm (20.75 inches)	596.74 mm (23.49 inches)
Vertical	296.46 mm (11.67 inches) 335.66 mm (13.21 inches)
Area	156246.3 mm^2 (242.15 inches^2 )	200301.7 mm^2 (310.30 inches^2 )
Pixel pitch	0.2745 mm x 0.2745 mm 0.233 mm x 0.233 mm
Pixel per inch (PPI)	92.5	109
Viewing angle
Horizontal 178° (typical)	178° (typical)
Vertical	178° (typical)	178° (typical)
Brightness	250 cd/m^2 (typical)	350 cd/m^2 (typical)
Contrast ratio 1000 to 1 (typical)	1000 to 1 (typical)
Display screen coating	Anti-glare treatment of the front polarizer (3H) hard coating	Anti-glare treatment of the front polarizer (3H) hard coating
Backlight	LED LED
Response Time (Gray to Gray)	5 ms (FAST mode)8 ms (NORMAL mode)	5 ms (FAST mode)8 ms (NORMAL mode)
Color depth	16.7 million colors	16.7 million colors
Color gamut*	99% sRGB99% REC70985% DCI-P3	99% sRGB99% REC70985% DCI-P3
Calibration accuracy	Delta E < 2 (average)	Delta E < 2 (average)
Connectivity · 1 x DP 1.4 (HDCP 1.4) · 1 x DP (out) with MST (HDCP 1.4) · 1 x HDMI 1.4 (HDCP 1.4) · 2 x USB 3.0 downstream port · 2 x USB 3.0 with BC1.2 charging capability at 2A (max) · 1 x USB 3.0 upstream port · 1 x Analog 2.0 audio line out (3.5mm jack)	· 1 x DP 1.4 (HDCP 1.4) · 1 x DP (out) with MST (HDCP 1.4) · 1 x HDMI 1.4 (HDCP 1.4) · 2 x USB 3.0 downstream port · 2 x USB 3.0 with BC1.2 charging capability at 2A (max) · 1 x USB 3.0 upstream port· 1 x Analog 2.0 audio line out (3.5mm jack)
Border width (edge of monitor to active area)	5.0 mm (Top)5.1 mm (Left/Right)8.0 mm (Bottom)	6.90 mm (Top)6.90 mm (Left/Right)8.1 mm (Bottom)
Adjustability
Height adjustable stand	130 mm 130 mm
Tilt -5° to 21° -5° to 21°
Swivel -40° to 40° -40° to 40°
Cable management Yes	Yes
Dell Display Manager (DDM)Compatibility	Easy Arrange and other key features	Easy Arrange and other key features
Security Security lock	slot (cable lock sold separately) Anti-theft stand lock slot (to panel)	Security lock slot (cable lock sold separately) Anti-theft stand lock slot (to panel)

* At panel native only, under Custom Mode preset.

Resolution Specifications

Model U2419H/U2419HX U2719D/U2719DX
Horizontal scan range 30 khz to 83khz 30 khz to 90khz
Vertical scan range	56 Hz to 76 Hz	56 Hz to 76 Hz
Maximum preset resolution	1920 x 1080 at 60 Hz	2560 x 1440 at 60 Hz
Video display capabilities (DP & HDMI playback)	480i, 480p, 576i, 576p, 720p, 1080i, 1080p	480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Preset Display Modes

U2419H/U2419HX

Display Mode Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock (MHz)	Sync Polarity (Horizontal/ Vertical)
720 × 400 31.5 70.0	28.3 -/+
VESA, 640 × 480	31.5	60.0	-/-
VESA, 640 × 480	37.5	75.0	-/-
VESA, 800 × 600	37.9	60.3	+/+
VESA, 800 × 600	46.9	75.0	+/+
VESA, 1024 × 768	48.4	60.0	-/-
VESA, 1024 × 768	60.0	75.0	+/+
VESA, 1152 × 864	67.5	75.0	+/+
VESA, 1280 × 1024	64.0	60.0	+/+
VESA, 1280 × 1024	80.0	75.0	+/+
VESA, 1600 × 900	60.0	60.0	-/+
VESA, 1920 × 1080	67.5	60.0	+/+

U2719D/U2719DX

Display Mode	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock (MHz)	Sync Polarity (Horizontal/ Vertical)
720 × 400 31.5 70.0	28.3 -/+
VESA, 640 × 480	31.5	60.0	25.2	-/-
VESA, 640 × 480	37.5	75.0	31.5	-/-
VESA, 800 × 600	37.9	60.3	40.0	+/+
VESA, 800 × 600	46.9	75.0	49.5	+/+
VESA, 1024 × 768	48.4	60.0	65.0	-/-
VESA, 1024 × 768	60.0	75.0	78.8	+/+
VESA, 1152 × 864	67.5	75.0	108.0	+/+
VESA, 1280 × 1024	64.0	60.0	108.0	+/+
VESA, 1280 × 1024	80.0	75.0	135.0	+/+
VESA, 1600 × 1200	75.0	60.0	162.0	+/+
VESA, 1920 × 1080	67.5	60.0	148.5	+/+
VESA, 2048 × 1080	66.58	60.0	147.16	+/-
CVR, 2560 × 1440	88.8	60.0	241.5	+/-

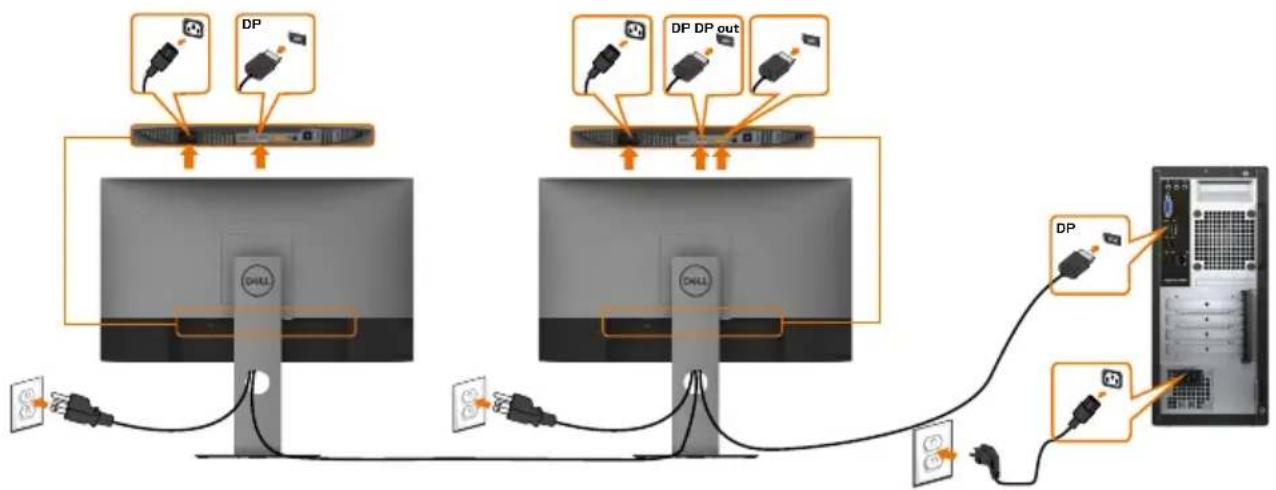

MST Multi-Stream Transport (MST) Modes

U2419H/U2419HX

MST Source Monitor Maximum number of external monitors that can be supported.
1920 × 1080/60 Hz
1920 × 1080/60 Hz 3

NOTE: Maximum external monitor resolution supported is 1920 x 1080 60Hz only.

U2719D/U2719DX

MST Source Monitor Maximum number of external monitors that can be supported.
2560 × 1440/60 Hz

NOTE: Maximum external monitor resolution supported is 2560 x 1440 60Hz only.

Electrical Specifications

Model U2419H/U2419HX/U2719D/U2719DX
Video input signals • Digital video signal for each differential linePer differential line at 100 ohm impedance• DP/HDMI signal input support
Input voltage/ frequency/current 100-240 VAC / 50 or 60 Hz ± 3 Hz / 1.6 A (maximum)
Inrush current 120 V: 30 A (Max.)	240 V: 60 A (Max.)

Physical Characteristics

Model U2419H/U2419HX U2719D/U2719DX
Connector type • DP connector	(include DP in and DP out)HDMI connectorAudio line-outUSB 3.0 upstream port connectorUSB 3.0 downstream port connector x 4(Port with battery icon supports BC 1.2.)	• DP connector (include DP in and DP out)HDMI connectorAudio line-outUSB 3.0 upstream port connectorUSB 3.0 downstream port connector x 4(Port with battery icon supports BC 1.2.)
Signal cable type DP to DP 1.8	M cable(U2419H/U2719D)HDMI 1.8 M cable(U2419HX/U2719DX)USB 3.0 1.8 M cable	DP to DP 1.8 M cable(U2419H/U2719D)HDMI 1.8 M cable(U2419HX/U2719DX)USB 3.0 1.8 M cable
Dimensions (with stand)
Height (extended)	478.4 mm (18.84 inches) 520	2 mm (20.48 inches)
Height (compressed)	348.4 mm (13.72 inches) 390	2 mm (15.36 inches)
Width	538.5 mm (21.20 inches) 612	2 mm (24.10 inches)
Depth	165.0 mm (6.50 inches) 180.0	mm (7.09 inches)
Dimensions (without stand)
Height	313.7 mm (12.35 inches) 355.0	mm (13.98 inches)
Width	538.5 mm (21.20 inches) 612	2 mm (24.10 inches)
Depth	39.0 mm (1.54 inches) 39.0 mm (1.54 inches)
Stand dimensions
Height (extended)	393.5 mm (15.49 inches) 413	6 mm (16.28 inches)
Height (compressed)	347.0 mm (13.66 inches) 367	1 mm (14.45 inches)
Width	218.0 mm (8.58 inches) 230.0	mm (9.06 inches)
Depth	165.0 mm (6.50 inches) 180.0	mm (7.09 inches)
Weight
Weight with packaging	7.32 kg (16.14 lb) 8.52 kg (18.78 lb)
Weight with stand assembly and cables	5.09 kg (11.22 lb) 5.96 kg (13.14 lb)
Weight without stand assembly (For wall mount or VESA mount considerations - no cables)	3.14 kg (6.92 lb) 3.92 kg (8.64 lb)
Weight of stand assembly 1.59 kg (3.50 lb) 1.72 kg (3.79 lb)

Environmental Characteristics

Model U2419H/U2419HX/U2719D/U2719DX

Compliant Standards

·ENERGY STAR certified Monitor·EPEAT Gold registered in the U.S. EPEAT registration varies by country.See www.epeat.net for registration status by country.·TCO Certified Display·RoHS Compliant·BFR/PVC Free monitor (excluding external cables)·Meets NFPA 99 leakage current requirements·Arsenic-Free glass and Mercury-Free for the panel only

Temperature

Operating 0°C to 40°C (32°F to 104°F)

Non-operating -20°C to 60°C (-4°F to 140°F)

Humidity

Operating 10% to 80% (non-condensing)

Non-operating 5% to 90% (non-condensing)

Altitude

Operating 5,000 m (16,404 ft) (maximum)

Non-operating 12,192 m (40,000 ft) (maximum)

Thermal dissipation

U2419H/U2419HX 232.03 BTU/hour (maximum)58.02 BTU/hour (typical)

U2719D/U2719DX 252.5 BTU/hour (maximum)102.4 BTU/hour (typical)

Power Management Modes

If you have VESA's DPM-compliant video card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. This is referred to as power save mode*. If the computer detects input from the keyboard, mouse, or other input devices, the monitor automatically resumes functioning. The following table shows the power consumption and signaling of this automatic power saving feature.

U2419H/U2419HX

VESA Modes	Horizontal Sync	Vertical Sync	Video	Power Indicator Power Consumption
Normal operation	Active Active	Active W	White 68	W (maximum)**17 W (typical)
Active-off mode	Inactive Inactive	Active Off White		(Glowing)Less than 0.3 W
Switch off - -	- Off			Less than 0.3 W

Energy Star	Power Consumption
P_ON	13.08 W***
E_TEC	42.21 kWh****

U2719D/U2719DX

VESA Modes	Horizontal Sync	Vertical Sync	Video	Power Indicator Power Consumption
Normal operation	Active Active	Active White	74	W (maximum)**30 W (typical)
Active-off mode	Inactive Inactive	Off White		(Glowing)Less than 0.3 W
Switch off - -	- Off

Energy Star	Power Consumption
P_ON	19.40 W***
E_TEC	61.61 kWh****

The OSD operates only in the normal operation mode. If you press any button in the active-off mode, one of the following message is displayed:

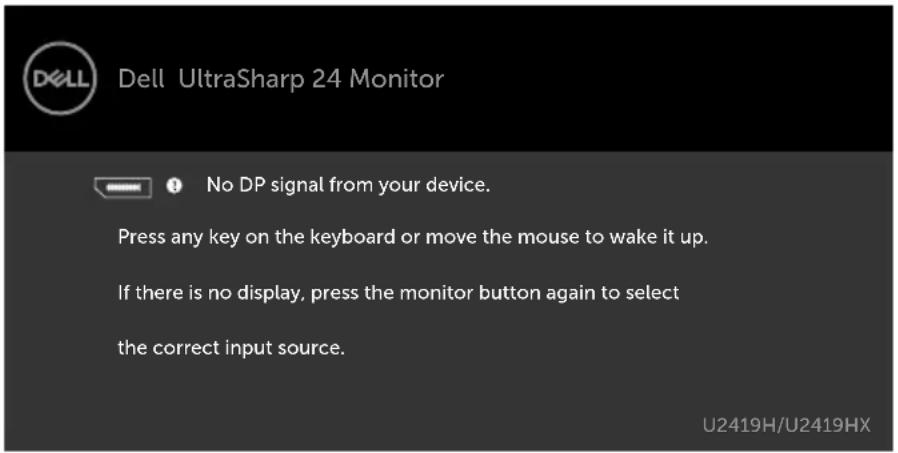

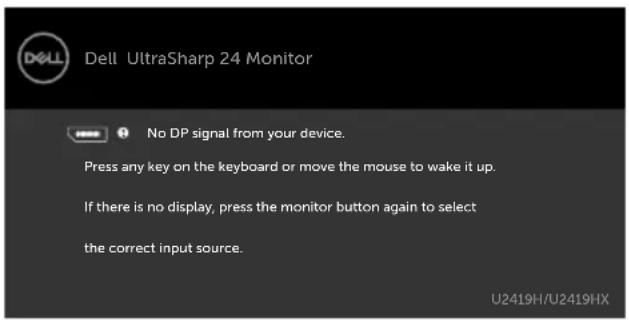

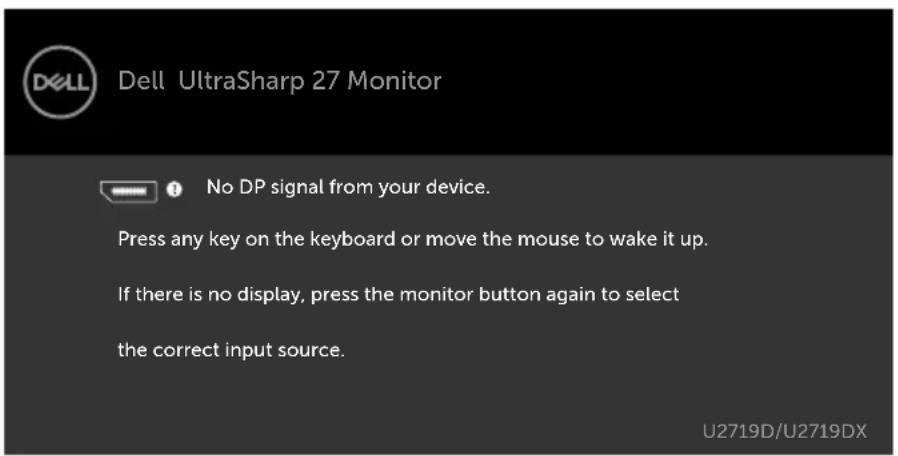

Dell UltraSharp 24 Monitor No DP signal from your device. Press any key on the keyboard or move the mouse to wake it up. If there is no display, press the monitor button again to select the correct input source. U2419H/U2419HX

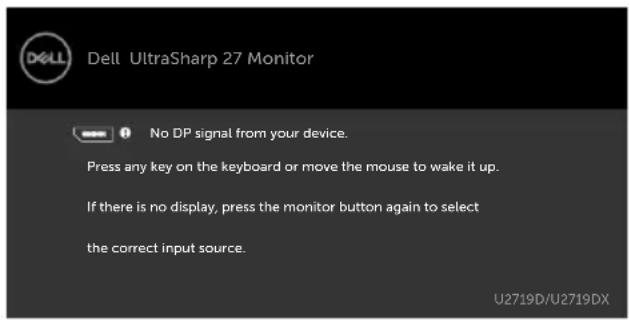

Dell UltraSharp 27 Monitor No DP signal from your device. Press any key on the keyboard or move the mouse to wake it up. If there is no display, press the monitor button again to select the correct input source. U2719D/U2719DX

*Zero power consumption in OFF mode can only be achieved by disconnecting the AC mains cable from the monitor.

**Maximum power consumption with maximum luminance.
***Power consumption of on mode as defined in Energy Star 7.0 version.
****Total energy consumption in kWh as defined in Energy Star 7.0 version.

This document is informational only and reflects laboratory performance. Your product may perform differently, depending on the software, components and peripherals you ordered and shall have no obligation to update such information. Accordingly, the customer should not rely upon this information in making decisions about electrical tolerances or otherwise. No warranty as to accuracy or completeness is expressed or implied.

Activate the computer and the monitor to gain access to the OSD.

NOTE: This monitor is ENERGY STAR - compliant.

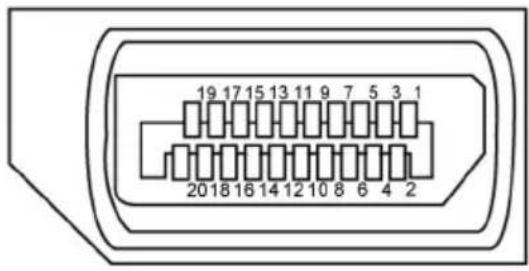

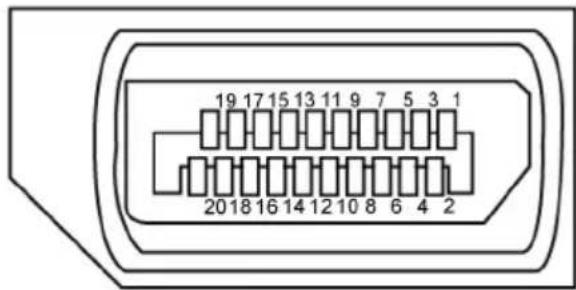

Pin Assignments

DP connector (in)

19 17 15 13 11 9 7 5 3 1 20 18 16 14 12 10 8 6 4 2

Pin number 20-pin	side of the connected signal cable
1 ML3(n)
2 GND
3 ML3(p)
4 ML2(n)
5 GND
6 ML2(p)
7 ML1(n)
8 GND
9 ML1(p)
10 ML0(n)
11 GND
12 ML0(p)
13 CONFIG1
14 CONFIG2
15 AUX CH (p)
16 GND
17 AUX CH (n)
18 Hot Plug Detect
19 Return
20 DP_PWR

DP connector (out)

19 17 15 13 11 9 7 5 3 1 20 18 16 14 12 10 8 6 4 2

Pin number 20-pin side of the connected signal cable
1 ML0(p)
2 GND
3 ML0(n)
4 ML1(p)
5 GND
6 ML1(n)
7 ML2(p)
8 GND
9 ML2(n)
10 ML3(p)
11 GND
12 ML3(n)
13 CONFIG1
14 CONFIG2
15 AUX CH(p)
16 GND
17 AUX CH(n)
18 Hot Plug Detect
19 Return
20 DP_PWR

HDMI connector

19 17 15 13 11 9 7 5 3 1 18 16 14 12 10 8 6 4 2

Pin number 19-pin side of the connected signal cable
1 TMDS DATA	2+
2 TMDS DATA	2 SHIELD
3 TMDS DATA	2-
4 TMDS DATA	1+
5 TMDS DATA	1 SHIELD
6 TMDS DATA	1-
7 TMDS DATA	0+
8 TMDS DATA	0 SHIELD
9 TMDS DATA	0-
10 TMDS CLOCK+
11 TMDS CLOCK SHIELD
12 TMDS CLOCK-
13 CEC
14 Reserved (N.C. on device)
15 DDC CLOCK (SCL)
16 DDC DATA (SDA)
17 DDC/CEC Ground
18 +5 V POWER
19 HOT PLUG	DETECT

Universal Serial Bus (USB)

This section gives you information about the USB ports available on your monitor.

NOTE: Up to 2 A on USB downstream port (port with battery icon) with BC 1.2 compliance devices; up to 0.9 A on the other 2 USB downstream ports.

Your computer has the following USB ports:

• 1 upstream - bottom
• 4 downstream - 2 at left side, 2 at bottom

Power Charging Port - the ports with Battery icon supports fast current charging capability if the device is BC 1.2 compatible.

NOTE: The monitor's USB ports work only when the monitor is on or in the power save mode. If you turn off the monitor and then turn it on, the attached peripherals may take a few seconds to resume normal functionality.

Transfer speed Data rate Power consumption
SuperSpeed 5 Gbps 4.5 W (Max., each port)
Hi-Speed 480 Mbps 4.5 W (Max., each port)
Full speed 12 Mbps 4.5 W (Max., each port)

USB upstream port USB downstream port

56789 2 1 3 4

Pin number	Signal name
1	VBUS
2	D-
3	D+
4	GND
5	StdB_SSTX-
6	StdB_SSTX+
7	GND_DRAIN
8	StdB_SSRX-
9	StdB_SSRX+
Shell	Shield

Pin number	Signal name
1	VBUS
2	D-
3	D+
4	GND
5	StdA_SSRX-
6	StdA_SSRX+
7	GND_DRAIN
8	StdA_SSTX-
9	StdA_SSTX+
Shell	Shield

Plug-and-Play

You can install the monitor in any Plug-and-Play-compatible system. The monitor automatically provides the computer system with its extended display identification data (EDID) using display data channel (DDC) protocols so the computer can configure itself and optimize the monitor settings. Most monitor installations are automatic; you can select different settings if desired. For more information about changing the monitor settings, see Operating the Monitor.

LCD Monitor Quality and Pixel Policy

During the LCD monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state which are hard to see and do not affect the display quality or usability. For more information on LCD Monitor Pixel Policy, see Dell support site at: http://www.dell.com/support/monitors.

Attaching the Stand

NOTE: The stand riser and stand base are detached when the monitor is shipped from the factory.

NOTE: The procedure below is applicable for the default stand. If you purchased any other stand, see the documentation shipped with the stand to set it up.

CAUTION: Place monitor of a flat, clean, and soft surface to avoid scratching the display panel.

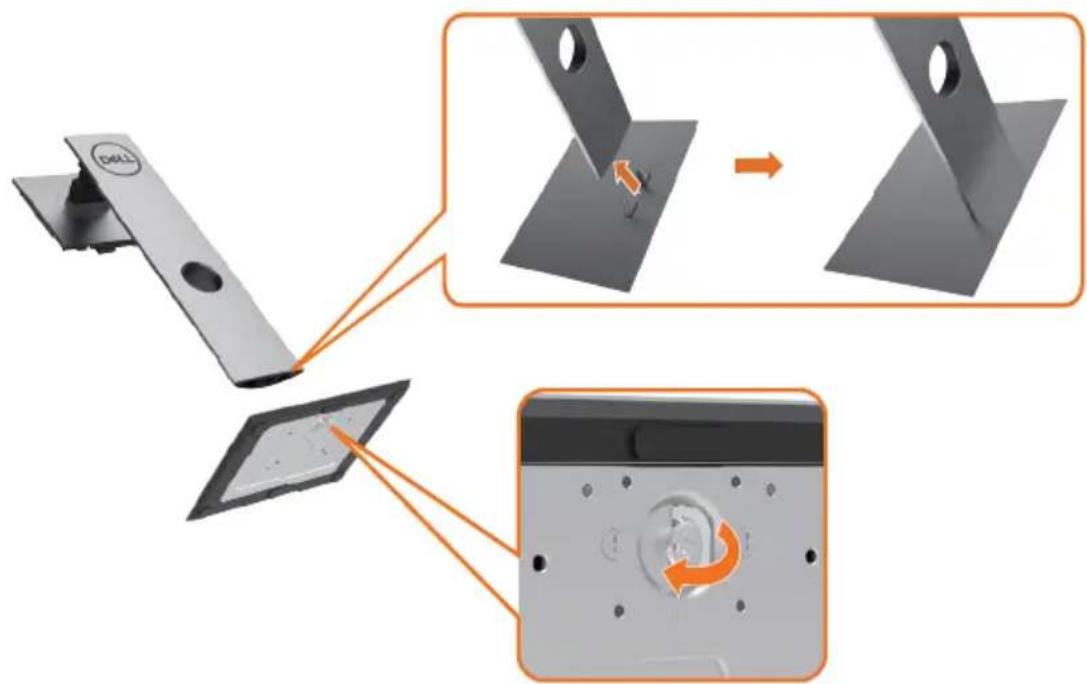

Diagram illustrating the assembly of a device's internal components, showing step-by-step assembly and rotation mechanism.

To attach the monitor stand:

1 Align the stand base protruded blocks to the matching slot on the stand.
2 Insert the stand base blocks fully into the stand slot.
3 Lift the screw handle and turn the screw clockwise.
4 After fully tightening the screw, fold the screw handle flat within the recess.

Diagram showing a device's open lid and internal components being processed, with arrows indicating motion (no text or symbols present)

1 Remove the monitor protective cover and place the monitor with its front facing downward on it.

2 Insert the two tabs on the upper part of the stand to the groove on the back of the monitor.

3 Press the stand down till it snaps into its place.

Using the Tilt, Swivel, and Vertical Extension

NOTE: This is applicable for a monitor with a stand. If you purchased any other stand, refer to the respective stand setup guide for set up instructions.

Tilt, Swivel and Vertical Extension

With the stand attached to the monitor, you can tilt the monitor for the most comfortable viewing angle.

5° 40° 130 mm 40° 21°

NOTE: The stand is detached when the monitor is shipped from the factory.

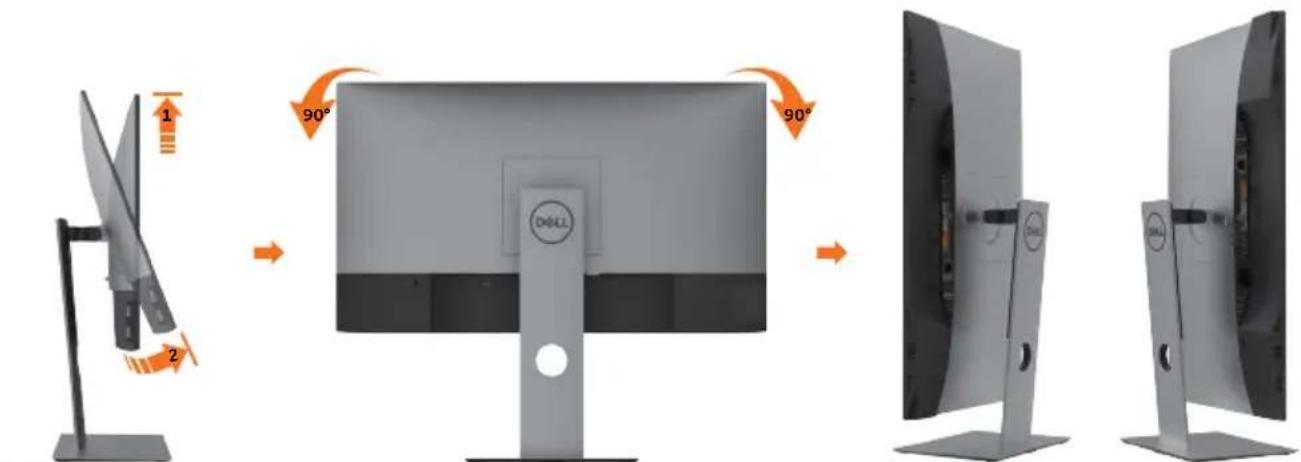

Rotating the Monitor

Before you rotate the monitor, your monitor should be fully vertically extended and fully tilted up to avoid hitting the bottom edge of the monitor.

1 2 90° 90° DOLL

NOTE: To use the Display Rotation function (Landscape versus Portrait view) with your Dell computer, you require an updated graphics driver that is not included with this monitor. To download the graphics driver, go to www.dell.com/support and see the Download section for Video Drivers for latest driver updates.

NOTE: When in the Portrait View Mode, you may experience performance degradation in graphic-intensive applications (3D Gaming and etc.).

Adjusting the Rotation Display Settings of Your System

After you have rotated your monitor, you need to complete the procedure below to adjust the Rotation Display Settings of your System.

NOTE: If you are using the monitor with a non-Dell computer, you need to go the graphics driver website or your computer manufacturer website for information on rotating the 'contents' on your display.

To adjust the Rotation Display Settings:

1 Right-click on the desktop and click Properties.
2 Select the Settings tab and click Advanced.
3 If you have an AMD graphics card, select the Rotation tab and set the preferred rotation.
4 If you have an nVidia graphics card, click the nVidia tab, in the left-hand column select NVRotate, and then select the preferred rotation.
5 If you have an Intel® graphics card, select the Intel graphics tab, click Graphic Properties, select the Rotation tab, and then set the preferred rotation.

OTE: If you do not see the rotation option or it is not working correctly, go to www.dell.com/support and download the latest driver for your graphics card.

Connecting Your Monitor

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.

To connect your monitor to the computer:

1 Turn off your computer.
2 Connect the HDMI/DP-DP/USB cable from your monitor to the computer.
3 Switch on your monitor.
4 Select the correct input source at monitor OSD Menu and turn on your computer.

NOTE: U2419H/U2419HX/U2719D/U2719DX default setting is DP 1.4. A DP 1.1 Graphic card may not display normally. Please refer to “product specific problems – No image when using DP connection to the PC” to change default setting.

Connecting the HDMI cable

HDMI HDMI

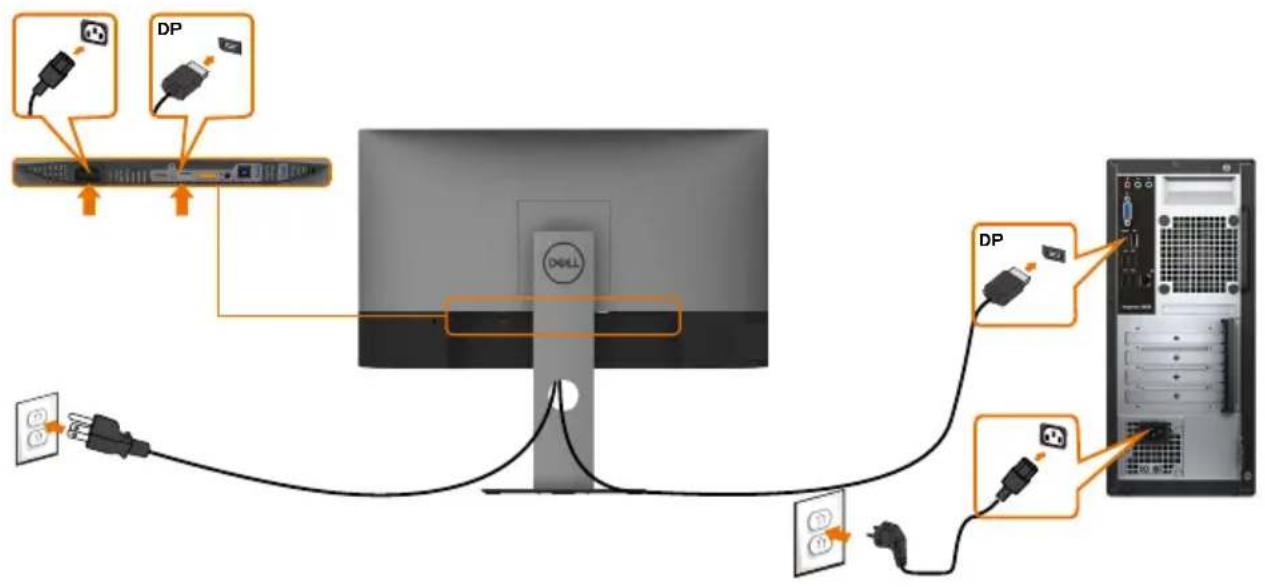

Connecting the DP cable

Diagram showing connections between a desktop computer and a server, with labeled components including power, socket, and DP connectors.

Connecting the monitor for DP Multi-Stream Transport (MST) function

Diagram showing connections between a Dell computer monitor and an external desktop with DP components, labeled in English.

NOTE: Supports the DP MST feature. To make use of this feature, your PC Graphics Card must be certified to DP1.2 with MST option.

NOTE: Remove the rubber plug when using DP out connector.

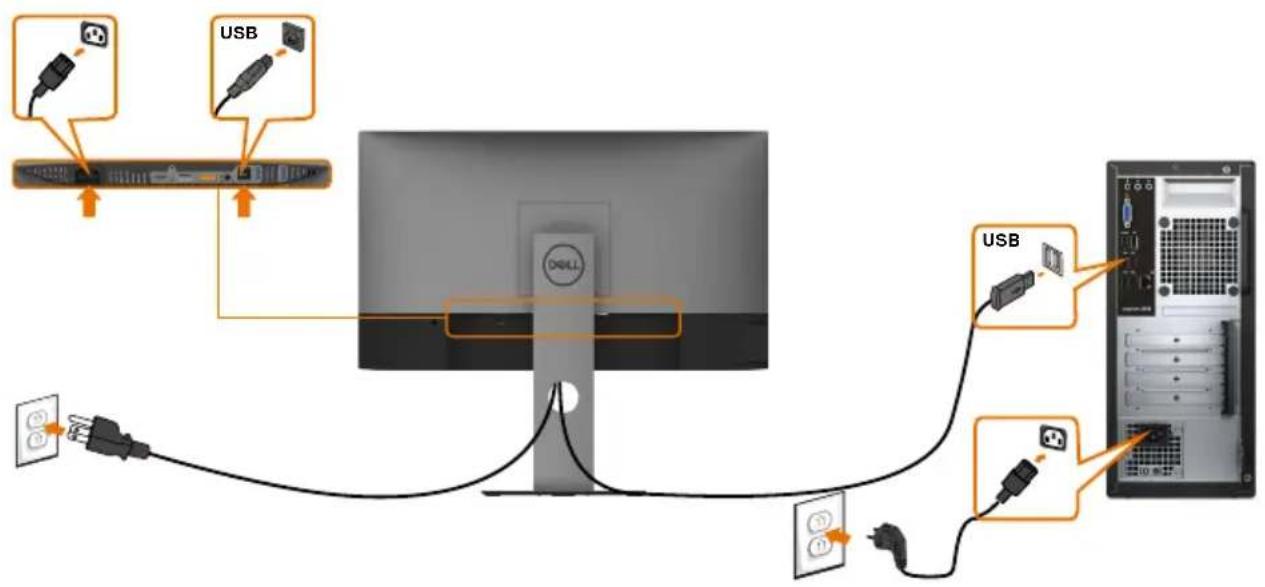

Connecting the USB cable

Diagram showing connection between a computer monitor and an Ethernet device, with labeled USB ports and power connections.

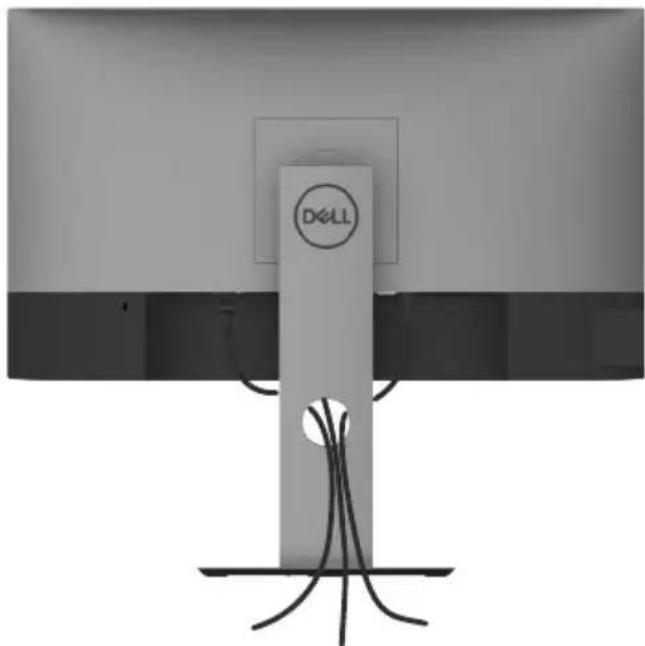

Organizing Your Cables

Exterior view of a Dell electric vehicle charging station with cables (no text or symbols visible)

After attaching all necessary cables to your monitor and computer, (see Connecting Your Monitor for cable attachment) organize all cables as shown above.

Removing the Monitor Stand

CAUTION: To prevent scratches on the LCD screen while removing the stand, make sure that the monitor is placed on a soft, clean surface.

NOTE: The procedure below is applicable for the default stand. If you purchased any other stand, see the documentation shipped with the stand to set it up.

1 Place the monitor on a soft cloth or cushion.
2 Press and hold the stand-release button.
3 Lift the stand up and away from the monitor.

Diagram of a computer monitor with labeled parts, showing front and side views and numbered annotations.

Wall Mounting (Optional)

Computer monitor screen displaying a 3D graphics interface with orange arrows pointing to it, showing menu bar and control buttons.

NOTE: Use M4 x 10 mm screws to connect the monitor to the wall-mounting kit.

Refer to the instructions that come with the VESA-compatible wall mounting kit.

1 Place the monitor on a soft cloth or cushion on a stable, flat table.
2 Remove the stand.
3 Use a Phillips crosshead screwdriver to remove the four screws securing the plastic cover.
4 Attach the mounting bracket from the wall mounting kit to the monitor.
5 Mount the monitor on the wall by following the instructions that comes with the wall mounting kit.

NOTE: For use only with UL or CSA or GS-listed wall mount bracket with minimum weight/load bearing capacity of 3.14 kg (U2419H/U2419HX)/3.92 kg (U2719D/U2719DX).

Turning on the Monitor

Press the 🎨 button to turn on the monitor.

Illustration of a hand pointing at the front edge of a flat-screen monitor (no text or symbols visible)

Using the Front Panel Controls

Use the control buttons on the front of the monitor to adjust the characteristics of the image being displayed. As you use these buttons to adjust the controls, an OSD shows the numeric values of the characteristics as they change.

34512

Front-Panel Button Description
1		Use this button to choose from a list of preset color modes.
	Shortcut key: Preset Modes
2		Use this button to choose from a list of Input Source.
	Shortcut key: Input Source
3		Use this menu button to launch the on-screen display (OSD) and select the OSD menu.See Accessing the Menu System.
	Menu
4		Use this button to go back to the main menu or exit the OSD main menu.
	Exit
5		Use the Power button to turn the monitor On and Off.The white LED indicates the monitor is On and fully functional.
	Power (with power light indicator)	A glowing white LED indicates DPMS Power Save Mode.

Front-Panel Button

Use the buttons on the front of the monitor to adjust the image settings.

1 2 3

Front Panel Button Description

1			Use the Up (increase) and Down (decrease) keys to adjust items in the OSD menu.
	Up	Down
2			Use the OK button to confirm your selection.
	OK
3			Use the Back button to go back to the previous menu.
	Back

Using the On-Screen Display (OSD) Menu

Accessing the Menu System

NOTE: Any changes you make using the OSD menu are automatically saved if you move to another OSD menu, exit the OSD menu, or wait for the OSD menu to disappear.

1 Press the button to launch the OSD menu and display the main menu.

2 Press the 📆 and buttons to move between options. As you move from one icon to another, the option name is highlighted.
3 Press the ➕ or butter once to activate the highlighted option.
4 Press the and buttons to select the desired parameter.
5 Press ➤ enter the slide bar and then use the button, according to the indicators on the menu, to make your changes.
6 Select the 5 return to previous menu or to accept and return to previous menu.

Icon Menu and Submenus		Description

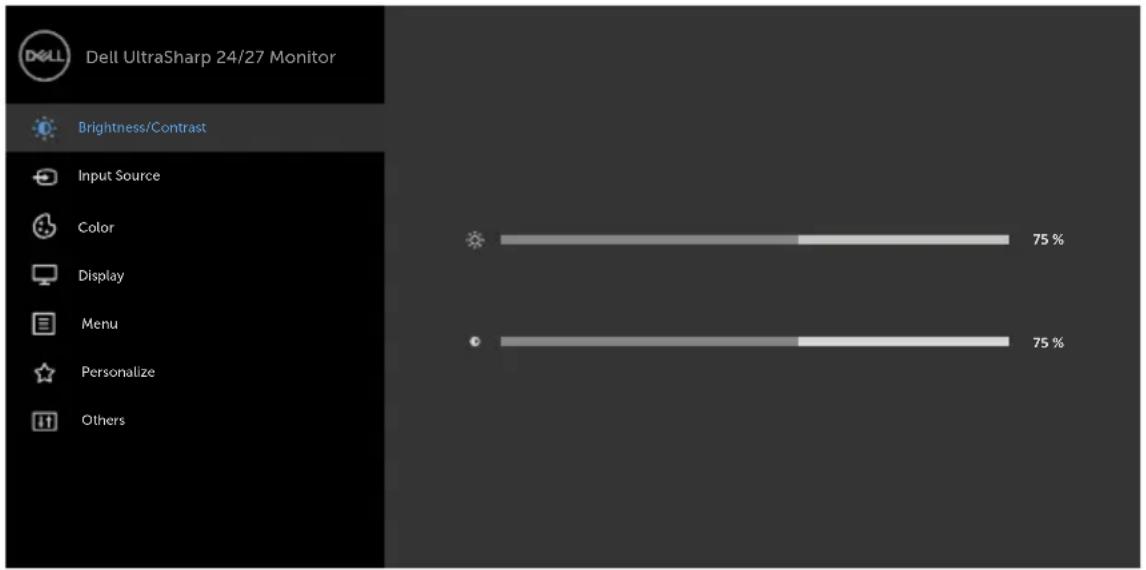

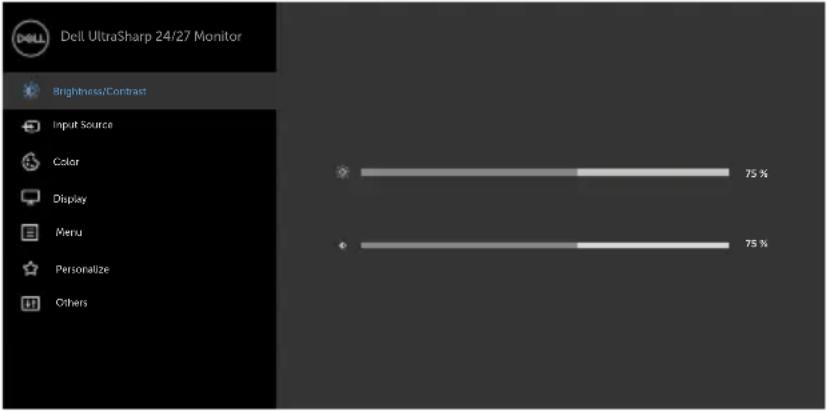

	Brightness/ Contrast	Use this menu to activate Brightness/Contrast adjustment.
	Brightness Brightness adjusts the luminance of the backlight (minimum 0; maximum 100).Press the ➤ button to increase brightness.Press the ➤ button to decrease brightness.
	Contrast	Adjust the Brightness first, and then adjust Contrast only if further adjustment is necessary.Press the ➤ button to increase contrast and press the ➤ button to decrease contrast (between 0 and 100).Contrast adjusts the difference between darkness and lightness on the monitor.

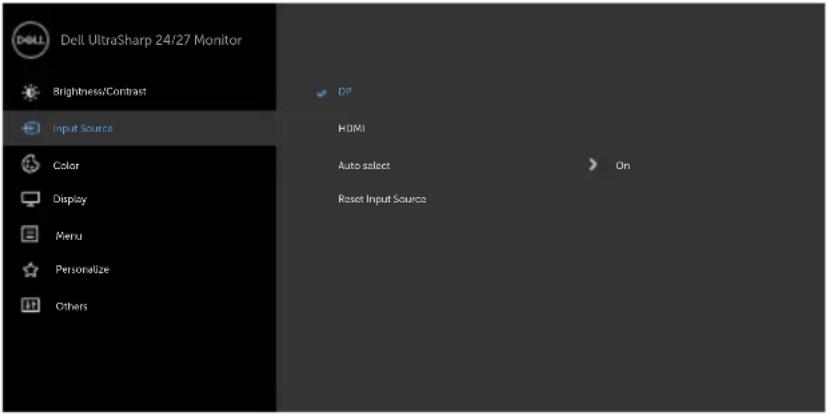

	Input Source	Use the Input Source menu to select between different video inputs that are be connected to your monitor.

Icon Menu and Submenus	Description
DP Select DP input when you are using the DP (DisplayPort) connector.Use to select the DP input source.
HDMI	Select the HDMI input when you are using the HDMI connector.Use to select the HDMI input source.
Auto Select	Use to select Auto Select, the monitor scans for available input sources.
Reset Input Source	Resets your monitor's Input Source settings to the factory defaults.

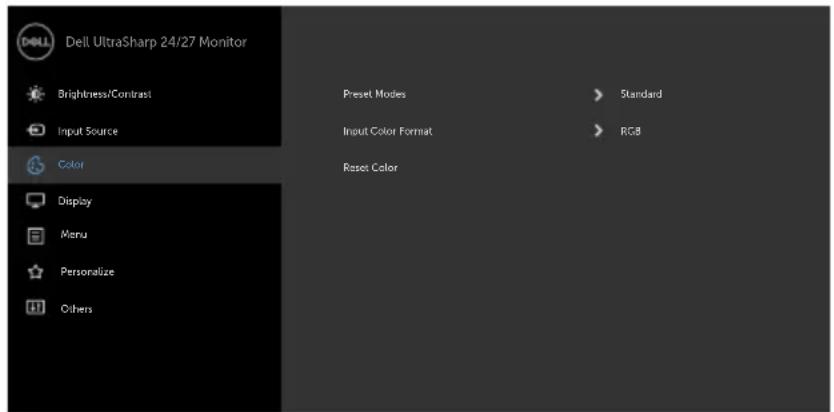

Color Use the Color menu to adjust the color setting mode.

Dell UltraSharp 24/27 Monitor Brightness/Contrast Input Source Color Display Menu Personalize Others Preset Modes Standard Input Color Format RGB Reset Color

Icon Menu and Submenus

Description

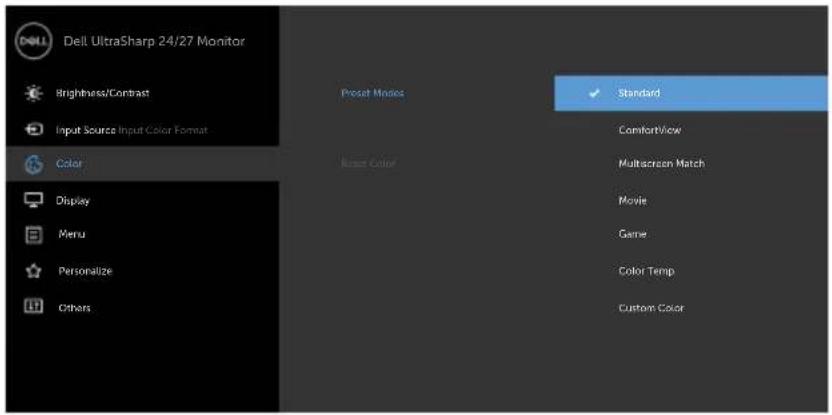

Preset Modes

When you select Preset Modes, you can choose Standard, ComfortView, Multiscreen Match, Movie, Game, Color Temp. or Custom Color from the list.

Dell UltraSharp 24/27 Monitor Brightness/Contrast Input Source Input Color Format Color Display Menu Personalize Others Reset Mode Standard ComfortView Multiscreen Match Movie Game Color Temp Custom Color

• Standard: Default color settings. This is the default preset mode.
• ComfortView: Decreases the level of blue light emitted from the screen to make viewing more comfortable for your eyes.

NOTE: To reduce the risk of eye strain and neck/arm/back/shoulders pain from using the monitor for long periods of time, we suggest you to :

• Set the screen about 20 to 28 inches (50-70 cm) from your eyes.
• Blink frequently to moisten or rewet your eyes when working with the monitor.
  • Take regular and frequent breaks for 20 minutes every two hours.
• Look away from your monitor and gaze at a distant object at 20 feet away for at least 20 seconds during the breaks.

• Perform stretches to relieve tension in the neck/arm/back/shoulders during the breaks.

• Multiscreen Match: Option to allow matching of the white backgrounds on multiple monitors.
  • Movie: Ideal for movies.
  • Game: Ideal for most gaming applications.

• Color Temp.: The screen appears warmer with a red/yellow tint with slider set at 5,000K or cooler with blue tint with slider set at 10,000K.
• Custom Color: Allows you to manually adjust the color settings. Press the <nd buttons to adjust the Red, Green, and Blue values and create your own preset color mode.

Icon Menu and Submenus	Description

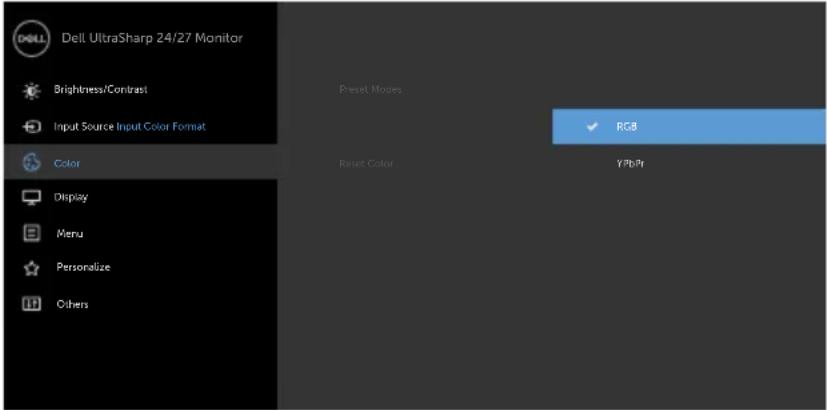

Input Color Format	Allows you to set the video input mode to:RGB: Select this option if your monitor is connected to a computer (or DVD player) using the HDMI, DP cable.YPbPr: Select this option if your DVD player supports only YPbPr output.
Hue	Use ▲ to ▼ adjust the hue from 0 to 100.NOTE: Hue adjustment is available only for Movie and Game mode.
Saturation	Use ▲ to ▼ adjust the saturation from 0 to 100.NOTE: Saturation adjustment is available only for Movie and Game mode.
Reset Color	Resets your monitor's color settings to the factory defaults.

Icon Menu and

Description

Submenus

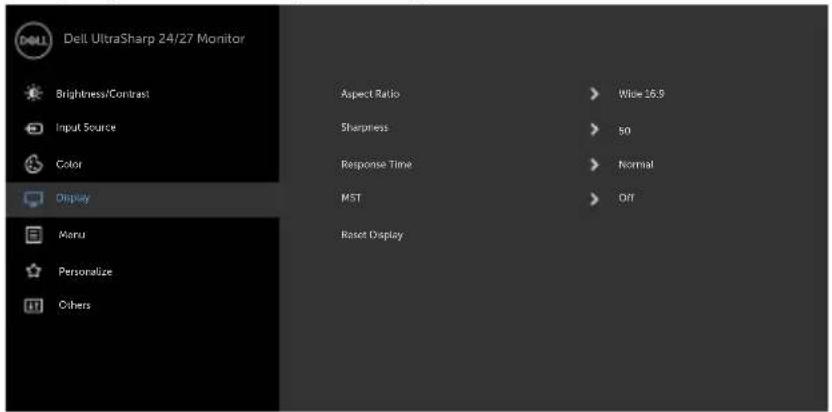

Display Use the Display menu to adjust image.

Dell UltraSharp 24/27 Monitor Brightness/Contrast Input Source Color Display Manu Personalize Others Aspect Ratio Sharpness Response Time MST Raset Display Wide 16.9 50 Normal Off

Aspect Ratio Adjust the image ratio to Wide 16:9, Auto Resize, 4:3, 1:1.

Sharpness Makes the image look sharper or softer.

Use 🖱️ to adjust the sharpness from '0' to '100'.

Response Allows you to set the Response Time to Normal or Fast.

Time

MST DP Multi Stream Transport, Set to ON enables MST(DP out), Set to OFF disables MST function.

Reset Display Restores the display settings to factory defaults.

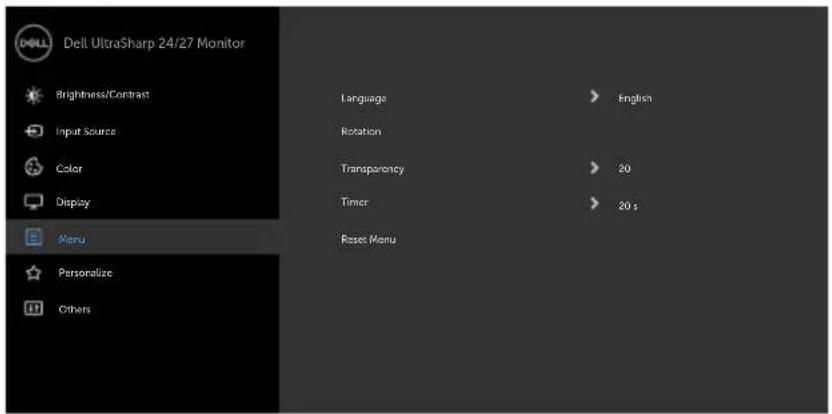

Menu Select this option to adjust the settings of the OSD, such as, the languages of the OSD, the amount of time the menu remains on screen, and so on.

Dell UltraSharp 24/27 Monitor Brightness/Contrast Input Source Color Display Menu Personalize Others Language Rotation Transparency Timer Reset Menu English 20 20 s

Language Set the OSD display to one of eight languages.

(English, Spanish, French, German, Brazilian Portuguese, Russian, Simplified Chinese, or Japanese).

Icon Menu and Submenus	Description
	Rotation Rotates the OSD by 0/90/180/270 degrees.You can adjust the menu according to your display rotation.
	Transparency Select this option to change the menu transparency by using ⚠️ and ⏻ (min. 0 / max. 100).
	Timer OSD Hold Time: Sets the length of time the OSD remains active after you press a button.Use the ⏊️ and ⏻ buttons to adjust the slider in 1-second increments, from 5 to 60 seconds.
	Reset Menu Restore the menu settings to factory defaults.
	Personalize Select from Preset Modes, Brightness/Contrast, Input Source, Aspect Ratio, Rotation set as shortcut key.[IMAGE]
	Power Button LED Allows you to set the state of the power light to save energy.
	USB Allows you to enable or disable USB function during monitor standby mode.NOTE: USB ON/OFF under standby mode is only available when the USB upstream cable is unplugged. This option will be greyed out when the USB upstream cable plugs in.
	Reset Personalization Restores shortcut keys to factory defaults.

Icon Menu and Submenus

Other

Description

Dell UltraSharp 24/27 Monitor Brightness/Contrast Input Source Color Display Menu Personalize Others Display Info DDC/GI LCD Conditioning Firmware Service Tag Reset Others Factory Reset On Off £51101 CN073K0

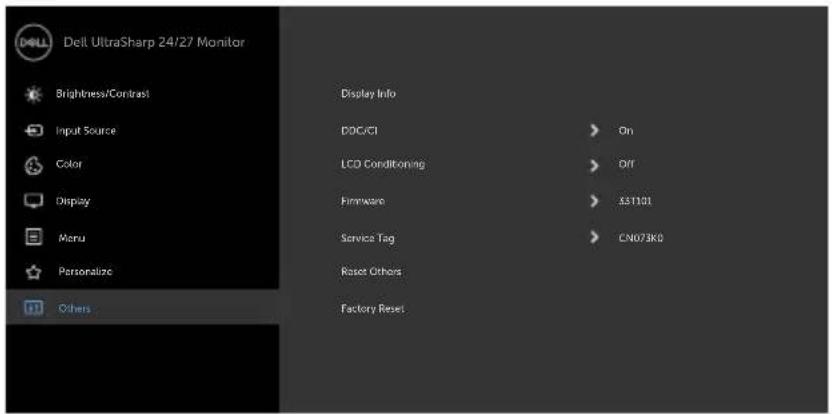

Select this option to adjust the OSD settings, such as the DDC/CI, LCD conditioning, and so on.

Display Info Displays the monitor's current settings.

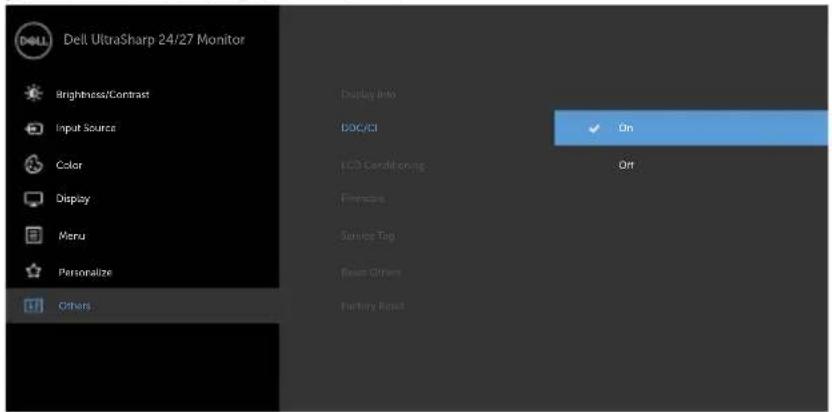

DDC/CI DDC/CI (Display Data Channel/Command Interface) allows you to adjust the monitor settings using software on your computer. Select Off to turn off this feature.

Enable this feature for best user experience and optimum performance of your monitor.

Dell UltraSharp 24/27 Monitor Brightness/Contrast Input Source Color Display Menu Personalize Others Display Info ISO/CI On LCD Conditioning Forecasts Service Tag Reset Others Factory Reset

Icon Menu and Submenus	Description

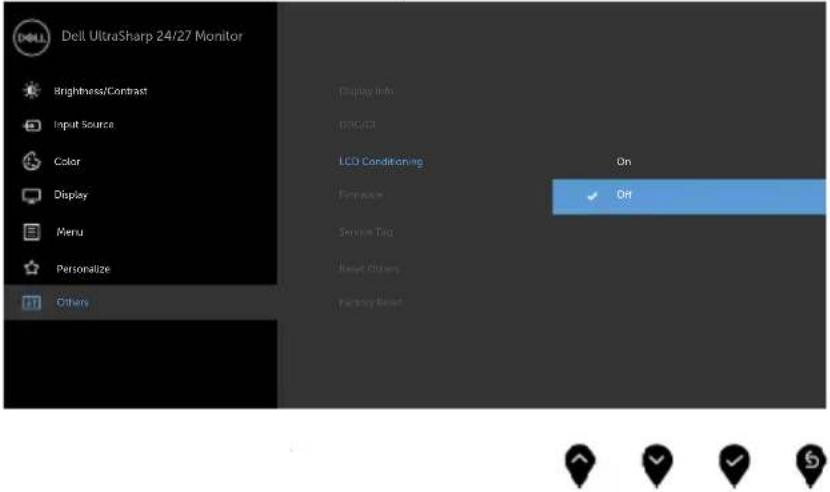

LCD Conditioning	Helps reduce minor cases of image retention. Depending on the degree of image retention, the program may take some time to run. Select On to start the process.
Firmware Firmware version.
Service Tag Show Service Tag.
Reset Others	Restores other settings, such as DDC/CI, to factory defaults.
Factory Reset	Restores all OSD settings to the factory defaults.

NOTE: This monitor has a built-in feature to automatically calibrate the brightness to compensate for LED aging.

OSD Warning Messages

When the monitor does not support a particular resolution mode, you can see the following message:

U2419H/U2419HX U2719D/U2719DX

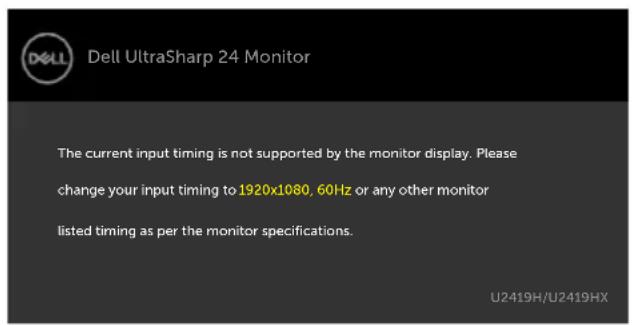

Dell UltraSharp 24 Monitor The current input timing is not supported by the monitor display. Please change your input timing to 1920x1080, 60Hz or any other monitor listed timing as per the monitor specifications. U2419H/U2419HX

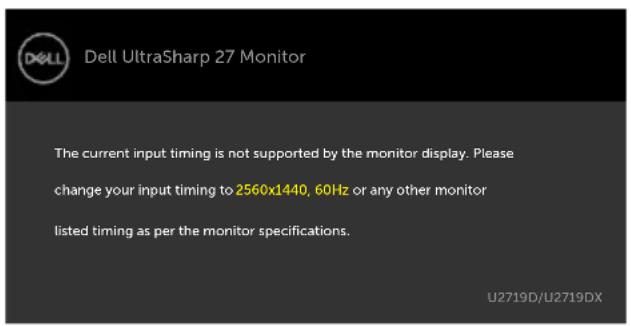

Dell UltraSharp 27 Monitor The current input timing is not supported by the monitor display. Please change your input timing to 2560x1440, 60Hz or any other monitor listed timing as per the monitor specifications. U2719D/U2719DX

This means that the monitor cannot synchronize with the signal that it is receiving from the computer. See Monitor Specifications for the Horizontal and Vertical frequency ranges addressable by this monitor. Recommended mode is 1920 × 1080 (U2419H/U2419HX) / 2560 × 1440 (U2719D/U2719DX).

You can see the following message before the DDC/CI function is disabled:

U2419H/U2419HX U2719D/U2719DX

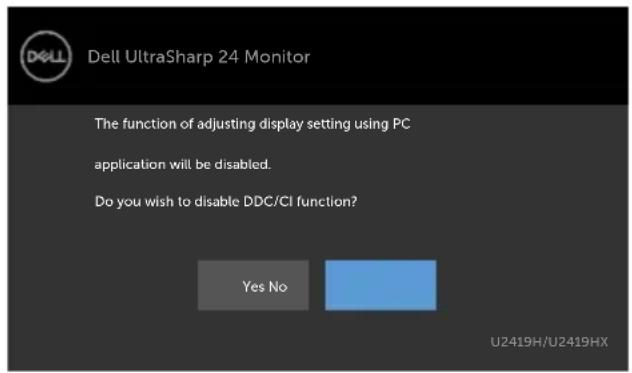

Dell UltraSharp 24 Monitor The function of adjusting display setting using PC application will be disabled. Do you wish to disable DDC/CI function? Yes No U2419H/U2419HX

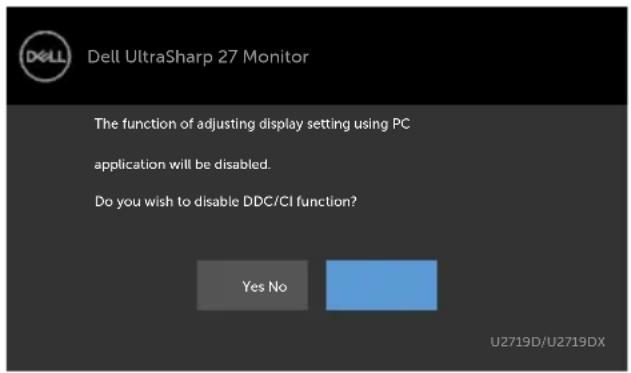

Dell UltraSharp 27 Monitor The function of adjusting display setting using PC application will be disabled. Do you wish to disable DDC/CI function? Yes No U2719D/U2719DX

When the monitor enters the Power Save mode, the following message appears:

U2419H/U2419HX U2719D/U2719DX

DELL Dell UltraSharp 24 Monitor Entering Power Save Mode. U2419H/U2419HX

DELL UltraSharp 27 Monitor Entering Power Save Mode. U2719D/U2719DX

Activate the computer and wake up the monitor to gain access to the OSD.

If you press any button other than the power button, the following messages will appear depending on the selected input:

U2419H/U2419HX U2719D/U2719DX

Dell UltraSharp 24 Monitor No DP signal from your device. Press any key on the keyboard or move the mouse to wake it up. If there is no display, press the monitor button again to select the correct input source.

Dell UltraSharp 27 Monitor No DP signal from your device. Press any key on the keyboard or move the mouse to wake it up. If there is no display, press the monitor button again to select the correct input source.

If either DP, HDMI input is selected and the corresponding cable is not connected, a floating dialog box as shown below appears.

U2419H/U2419HX U2719D/U2719DX

Dell UltraSharp 24 Monitor No DP Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/support/U2419H www.dell.com/support/U2419HX U2419H/U2419HX or

DELL UltraSharp 27 Monitor No DP Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/support/U2719D www.dell.com/support/U2719DX U2719D/U2719DX or

Dell UltraSharp 24 Monitor No HDMI Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/support/U2419H www.dell.com/support/U2419HX U2419H/U2419HX

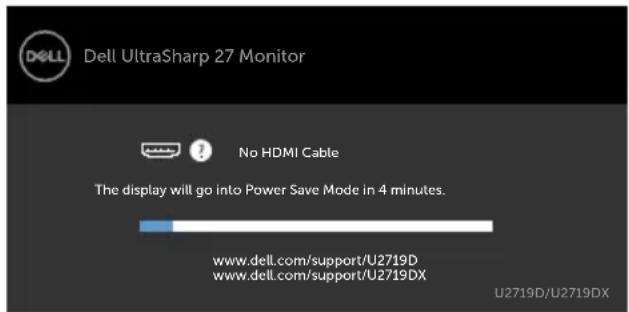

Dell UltraSharp 27 Monitor No HDMI Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/support/U2719D www.dell.com/support/U2719DX U2719D/U2719DX

See Troubleshooting for more information.

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.

Self-Test

Your monitor provides a self-test feature that allows you to check whether your monitor is functioning properly. If your monitor and computer are properly connected but the monitor screen remains dark, run the monitor self-test by performing the following steps:

1 Turn off both your computer and the monitor.
2 Unplug the video cable from the back of the computer. To ensure proper Self-Test operation, remove all video cables from the back of computer.
3 Turn on the monitor.

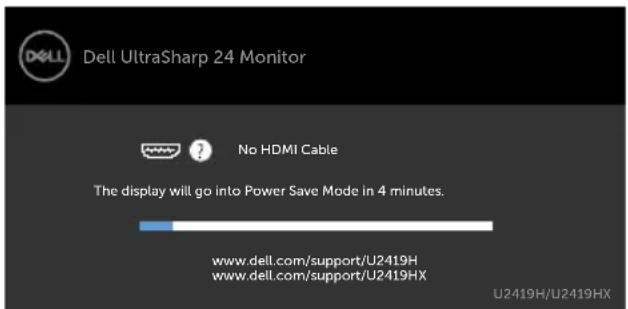

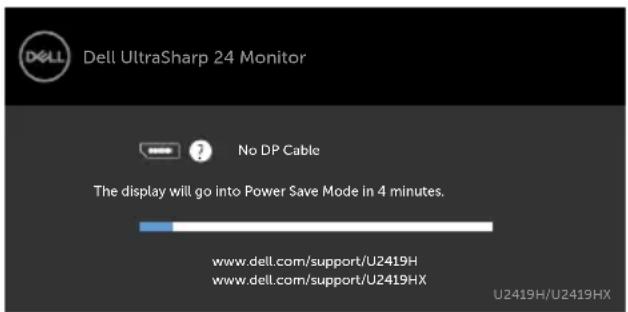

The floating dialog box should appear on-screen (against a black background), if the monitor cannot sense a video signal and is working correctly. While in self-test mode, the power LED remains white. Also, depending upon the selected input, one of the dialogs shown below will continuously scroll through the screen.

U2419H/U2419HX U2719D/U2719DX

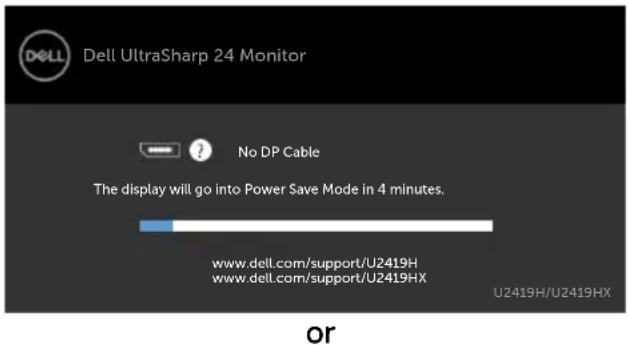

Dell UltraSharp 24 Monitor No DP Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/support/U2419H www.dell.com/support/U2419HX U2419H/U2419HX

or

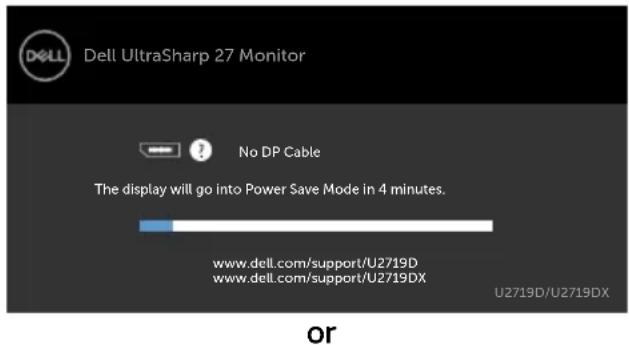

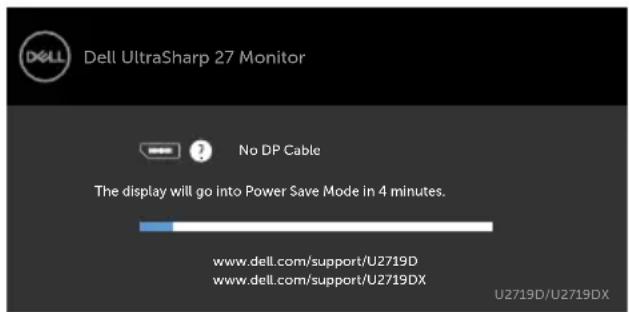

Dell UltraSharp 27 Monitor No DP Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/support/U2719D www.dell.com/support/U2719DX U2719D/U2719DX

or

Dell UltraSharp 24 Monitor No HDMI Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/support/U2419H www.dell.com/support/U2419HX U2419H/U2419HX

4 This box also appears during normal system operation, if the video cable becomes disconnected or damaged.

5 Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor.

If your monitor screen remains blank after you use the previous procedure, check your video controller and computer, because your monitor is functioning properly.

Built-in Diagnostics

Your monitor has a built-in diagnostic tool that helps you determine if the screen abnormality you are experiencing is an inherent problem with your monitor, or with your computer and video card.

NOTE: You can run the built-in diagnostics only when the video cable is unplugged and the monitor is in self-test mode.

34512

To run the built-in diagnostics:

1 Make sure that the screen is clean (no dust particles on the surface of the screen).
2 Unplug the video cable(s) from the back of the computer or monitor. The monitor then goes into the self-test mode.
3 Press and hold Button 1 for 5 seconds. A gray screen appears.
4 Carefully inspect the screen for abnormalities.
5 Press Button 1 on the front panel again. The color of the screen changes to red.
6 Inspect the display for any abnormalities.
7 Repeat steps 5 and 6 to inspect the display in green, blue, black, white, and text screens.

The test is complete when the text screen appears. To exit, press Button 1 again. If you do not detect any screen abnormalities upon using the built-in diagnostic tool, the monitor is functioning properly. Check the video card and computer.

Common Problems

The following table contains general information about common monitor problems you might encounter and the possible solutions:

Common Symptoms	What You Experience	Possible Solutions
No Video/Power LED off	No picture · Ensure that the video cable connecting the monitor and the computer is properly connected and secure.· Verify that the power outlet is functioning properly using any other electrical equipment.· Ensure that the power button is depressed fully.· Ensure that the correct input source is selected in the Input Source menu.
No Video/Power LED on	No picture or no brightness	· Increase brightness & contrast controls via OSD.· Perform monitor self-test feature check.· Check for bent or broken pins in the video cable connector.· Run the built-in diagnostics.· Ensure that the correct input source is selected in the Input Source menu.
Missing Pixels LCD screen has spots		· Cycle power on-off.· Pixel that is permanently off is a natural defect that canoccur in LCD technology.· For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at: http://www.dell.com/support/monitors.
Stuck-on Pixels LCD screen has bright spots		· Cycle power On-Off.· Pixel that is permanently off is a natural defect that canoccur in LCD technology.· For more information on Dell Monitor Quality and PixelPolicy, see Dell Support site at: http://www.dell.com/support/monitors.
Brightness Problems	Picture too dim or too bright	· Reset the monitor to factory settings.· Adjust brightness & contrast controls via OSD.
Safety Related Issues	Visible signs of smoke or sparks	· Do not perform any troubleshooting steps.· Contact Dell immediately.
Intermittent Problems	Monitor malfunctions on & off	· Ensure that the video cable connecting the monitor to the computer is connected properly and is secure.· Reset the monitor to factory settings.· Perform monitor self-test feature check to determine if the intermittent problem occurs in self-test mode.
Missing Color Picture missing color		Perform monitor self-test.Ensure that the video cable connecting the monitor to the computer is connected properly and is secure.Check for bent or broken pins in the video cable connector.
Wrong Color Picture color not good		Change the settings of the Preset Modes in the Color menu OSD depending on the application.Adjust R/G/B value under Custom. Color in Color menu OSD.Change the Input Color Format to PC RGB or YPbPr in the Color menu OSD.Run the built-in diagnostics.
Image retention from a static image left on the monitor for a long period of time	Faint shadow from the static image displayed appears on the screen	Use the Power Management feature to turn off the monitor at all times when not in use (for more information, see Power Management Modes).Alternatively, use a dynamically changing screensaver.

Product Specific Problems

Specific Symptoms	What You Experience	Possible Solutions
Screen image is too small	Image is centered on screen, but does not fill entire viewing area	·Check the Aspect Ratio setting in the Display menu OSD.·Reset the monitor to factory settings.
No Input Signal when user controls are pressed	No picture, the LED light is white	·Check the signal source. Ensure the computer is not in the power saving mode by moving the mouse or pressing any key on the keyboard.·Check whether the signal cable is plugged in properly. Re-plug the signal cable if necessary.·Reset the computer or video player.
The picture does not fill the entire screen	The picture cannot fill the height or width of the screen	·Due to different video formats (aspect ratio) of DVDs, the monitor may display in full screen.·Run the built-in diagnostics.
No image when using DP connection to the PC	Black screen · Verify which DP standard (DP 1.1a or DP 1.4) is your Graphics Card certified to. Download and install the latest graphics card driver.·Some DP 1.1a graphics card cannot support DP 1.4 monitors. Go to OSD menu, under Input Source selection, press and hold DP select√key for 8 sec to change the monitor setting from DP 1.4 to DP 1.1a.

Safety Instructions

For displays with glossy bezels the user should consider the placement of the display as the bezel may cause disturbing reflections from surrounding light and bright surfaces.

WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards, and/or mechanical hazards.

For information on safety instructions, see the Safety, Environmental, and Regulatory Information (SERI).

FCC Notices (U.S. only) and Other Regulatory Information

For FCC notices and other regulatory information, see the regulatory compliance website located at www.dell.com/regulatory_compliance.

Contacting Dell

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area.

To get online Monitor support content:

See www.dell.com/support/monitors.

To contact Dell for sales, technical support, or customer service issues:

1 Go to www.dell.com/support.
2 Verify your country or region in the Choose A Country/Region drop-down menu at the top-left corner of the page.
3 Click Contact Us next to the country dropdown.
4 Select the appropriate service or support link based on your need.
5 Choose the method of contacting Dell that is convenient for you.

Setting Up Your Monitor

Setting Display Resolution to 1920 x 1080 (U2419H/U2419HX)/2560 x 1440 (U2719D/U2719DX) (maximum)

For best performance, set the display resolution to 1920 × 1080 (U2419H/ U2419HX)/ 2560 × 1440 (U2719D/U2719DX) pixels by performing the following steps:

In Windows Vista, Windows 7, Windows 8 or Windows 8.1:

1 For Windows 8 or Windows 8.1 only, select the Desktop tile to switch to classic desktop.
2 Right-click on the desktop and click Screen Resolution.
3 Click the Dropdown list of the Screen Resolution and select 1920 x 1080 (U2419H/U2419HX)/2560 x 1440 (U2719D/U2719DX).
4 Click OK.

In Windows 10:

1 Right-click on the desktop and click Display Settings.
2 Click Advanced display settings.
3 Click the dropdown list of Resolution and select 1920 x 1080 (U2419H/U2419HX)/2560 x 1440 (U2719D/U2719DX).
4 Click Apply.

If you do not see the recommended resolution as an option, you may need to update your graphics driver. Please choose the scenario below that best describes the computer system you are using, and follow the given steps.

Dell computer

1 Go to www.dell.com/support, enter your service tag, and download the latest driver for your graphics card.
2 After installing the drivers for your graphics adapter, attempt to set the resolution to 1920 × 1080 (U2419H/U2419HX)/2560 × 1440 (U2719D/U2719DX) again.

NOTE: If you are unable to set the resolution to 1920 × 1080 (U2419H/U2419HX) /2560 × 1440 (U2719D/U2719DX), please contact Dell to inquire about a graphics adapter that supports these resolutions.

Non-Dell computer

In Windows Vista, Windows 7, Windows 8 or Windows 8.1:

1 For Windows 8 or Windows 8.1 only, select the Desktop tile to switch to classic desktop.
2 Right-click on the desktop and click Personalization.
3 Click Change Display Settings.
4 Click Advanced Settings.
5 Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, AMD, Intel etc.).
6 Refer to the graphic card provider website for updated driver (for example, http://www.AMD.com or http://www.NVIDIA.com).
7 After installing the drivers for your graphics adapter, attempt to set the resolution to 1920 x 1080 (U2419H/U2419HX)/2560 x 1440 (U2719D/U2719DX) again.

In Windows 10:

1 Right-click on the desktop and click Display Settings.
2 Click Advanced display settings.
3 Click Display adapter properties.
4 Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, AMD, Intel etc.).
5 Refer to the graphic card provider website for updated driver (for example, http://www.AMD.com or http://www.NVIDIA.com).
6 After installing the drivers for your graphics adapter, attempt to set the resolution to 1920 x 1080 (U2419H/U2419HX)/2560 x 1440 (U2719D/U2719DX) again.

NOTE: If you are unable to set the recommended resolution, please contact the manufacturer of your computer or consider purchasing a graphics adapter that supports the video resolution.

Maintenance Guidelines

Cleaning Your Monitor

WARNING: Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.

CAUTION: Read and follow the Safety Instructions before cleaning the monitor.

For best practices, follow these instructions in the list below while unpacking, cleaning, or handling your monitor:

• To clean your anti-static screen, lightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the anti-static coating. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.
• Use a lightly-dampened, soft cloth to clean the monitor. Avoid using detergent of any kind as some detergents leave a milky film on the monitor.
  • If you notice white powder when you unpack your monitor, wipe it off with a cloth.
• Handle your monitor with care as a darker-colored monitor may get scratched and show white scuff marks more than a lighter-colored monitor.
• To help maintain the best image quality on your monitor, use a dynamically changing screen saver and turn off your monitor when not in use.
