AR3036 - Coffee maker Arzum - Free user manual and instructions

Product Type	Turkish Coffee Maker
Brand	Arzum
Model	AR3036
Capacity	300 ml (up to 4 cups)
Power	800 W
Voltage	220-240 V, 50/60 Hz
Heating Plate Material	Stainless steel
Pouring Spout	Double-sided (right and left-handed)
Base Rotation	360° rotation on power base
Safety Features	Automatic shut-off, dry-run protection
Cleaning	Wipe with damp cloth; do not immerse; use descaling agents
Weight	Approximately 0.8 kg
Dimensions (H x W x D)	Approximately 20 x 15 x 15 cm
Number of Cups	Up to 4 cups (Turkish coffee)
Power Cord Length	Approximately 80 cm
Included Accessories	Power base, bowl, folding holder
Intended Use	Household and similar applications (kitchen, office, farm, hotel)
Certifications	CE, WEEE compliant

Frequently Asked Questions - AR3036 Arzum

How many cups of Turkish coffee can I make at once?

You can make up to 4 cups (300 ml) of Turkish coffee at once.

Can I use this coffee maker for regular filter coffee?

No, this coffee maker is designed specifically for Turkish coffee. Do not use it for other beverages.

How do I clean the Arzum AR3036 coffee maker?

After use, turn off and unplug. Let it cool, then wipe the exterior with a dry or damp cloth. Do not immerse the base or body in water or a dishwasher.

Is it safe to immerse the coffee maker in water for cleaning?

No, the appliance must not be immersed. Only wipe the outer surface with a damp cloth. The power base and electrical parts must stay dry.

What is the maximum water level?

The maximum water level is 300 ml (marked as MAX). Do not overfill to avoid boiling over.

How do I remove limescale from the coffee maker?

Use a commercial descaling agent or white vinegar. Fill with descaling solution, boil, let sit, then rinse thoroughly with clean water 2-3 times.

Can I use the coffee maker with my left hand?

Yes, the double-sided pouring spout allows easy use with either right or left hand.

What does the safety cut-off do?

The safety cut-off automatically turns off the appliance if it runs dry, preventing damage and hazards.

What is the power consumption of the AR3036?

It has a power rating of 800 W at 220-240 V.

How long does it take to brew Turkish coffee?

Brewing time is typically a few minutes; wait until the coffee begins to foam and rise, then turn off and serve.

USER MANUAL AR3036 Arzum

Exterior view of a modern electric stove with a handle and control panel (no text or symbols visible)

Turkey

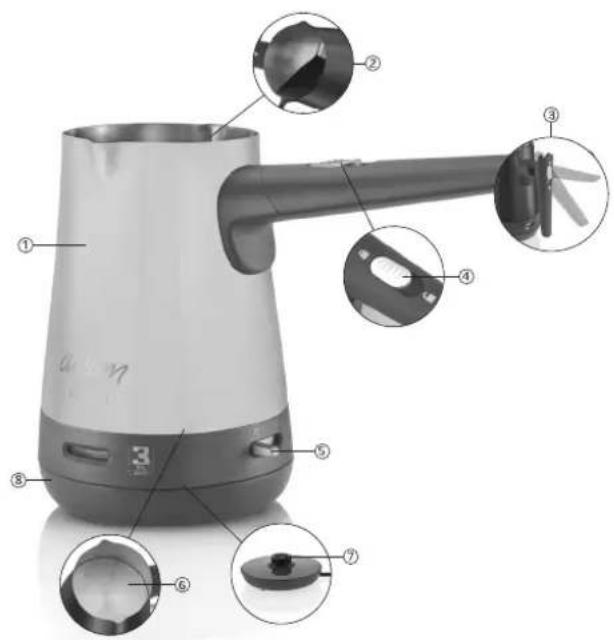

CEZVELİ PAPATYA AR 3036 TÜRK KAHVESİ MAKİNESİ

1-4-6 cups capacity of reservoir (300 ml)
2- Double-sided pouring point (Right and left-handed usage)
3 Folding holder
4- Holder folding button
5 On/Off switch (1/0) and indicator light

6 Stainless heating plate and hidden resistance
7- Connector for 360° rotation of the bowl
8- Power base unit

We thank you for having selected the Arzum brand Turkish Coffee Maker. This product as well is one of the Arzum product offered to you to make it easier for you

In order to obtain ultimate output from your appliance, please read carefully this user's manual and save it for further use

IMPORTANT SAFEGUARDS

• Make sure that the voltage indicated on the Arzum Cezveli Papatya Turkish Coffee Maker corresponds with the mains voltage in your home. Our company shall not be held liable for any failures owing to any discrepancy and such failures shall not be covered by the guarantee.

• This appliance is intended to be used in household and similar applications such as:
• Staff kitchen areas in shops, offices and other working environments;
• Farm houses;
• By clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

· Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

- The instructions for appliances normally cleaned after use, and not intended to be immersed in water for cleaning, shall state that the appliance must not be immersed.

- Use your appliance for its intended purpose as recommended.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The appliance must not be immersed.
• Keep the appliance and its cord out of reach of children aged less than 8 years.

Warning: Avoid spillage on the connector.

• The heating element surface is subject to residual heat after use.

• Since hot beverages such as coffee or milk may be boiled over, do not fill coffe machine with liquid more than maximum limit.

• Plug your appliance to a grounded socket. To prevent harming your appliance do not use extension cords that supply insufficient current.
  Do not place your appliance over or near direct heat sources such as a stove, heating oven, etc.

• Ensure that the appliance is placed on a firm and flat surface. Do not put it on the edge of a table or bench. The east blow or knock may overturn it. Do not forget that I may be full of hot coffee.
  Do not let cord hang over edge of table or counter or touch any other appliances.
• Avoid actions that may harm or damage the cord or plug of your appliance. Do not carry your appliance by holding from the cord. To unplug the robot, hold the plug and NEVER pull by the cord.

- Never interfere with your appliance except for the purposes of cleaning and maintenance. Do not operate any appliance with a damaged cone or plug or after the appliance may function or has been damaged in any manner, such as by dropping down, etc. Do not attempt to repair it by yourself. Refer immediately to an Arzum Authorized Service. Care that, for using the only original spare parts.

- Always hold your appliance by its handle. Its outer surface may be ho.

- Unplug from outlet when not in use and before cleaning. Allow it to cool down completely before cleaning the appliance.

- Use your appliance with its own power base unit only. Do not place on it those units belonging to any other appliance.

- When you have prepared your coffee, press on/off switch to turn the appliance off.

- Avoid contact with steam to be ejected from spout when the coffee is boiling, and do not let children to use the appliance.

- Do not fill above MAX level

- Do not use your appliance in bathroom or any other places with a high rate of moisture.

- NEVER leave the power base unit and electrical connection ends of your appliance in a demo state. If they get wet, unplug before drying and no not operate the appliance before having it dried completely.

- When filling with water remove your appliance from its power base unit.

SUGGESTIONS OF USE

Before using for the first time, clean the appliance and then fill water up to the MAX level. Turn off your appliance when the water starts being.

CAUTION:

When in use, the outer surface of your Arzum Cezveli Papatya Turkish Coffee Maker becomes heated; therefore you should not touch the hot surfaces. When preparing coffee, keep your hands away from the spout.

- The appliance must be switched off automatically or manually before attempting to lift the kettle from the power base unit.

- Do not use your coffee maker for any other purposes. Do not use any other liquids or solutions for the purpose of boiling.

Thanks to double sided pouring point, you can easily use your coffee maker with your left hand.

PREPARING TURKISH COFFEE

• By using your Arzum Cezveli Papatya Turkish Coffee Maker you can prepare coffee for up to 4 persons
• According to the number of cup of coffee (for 4 persons, max 300 ml), put sufficient quantity of cold water. Turkish coffee and sugar into your Turkish Coffee Maker.
• Place the appliance onto the power base unit and switch on
• At operation time mix your coffee continuously for mixing well
• When the coffee starts bloating out, turn off the appliance and pour a little coffee into the cups (for foam).
• Replace your appliance onto the power base unit and restart the coffee maker, then pour the coffee to the cups.

SAFETY CUT-OFF DEVICE

- Protection against running dry if your coffee maker ever runs dry while operating, a protection against running dry will cut off the power automatically.

CLEANING AND CARE

- Before cleaning turn off the on/off switch "0" located on your coffee maker, unplug from cute, and allow it to cool down

- Discharge the water and remaining coffee from the appliance, and wipe the outside of it thoroughly with a dry or damp cloth.

- NEVER immerse the power base unit and the body into water, nor wash them in a dishwasher.

- Avoid using abrasive and chemical cleaning agents (liquid bleach, hydrochloric acid, etc.) in cleaning any accessories of the appliance excepting of special cleaners

Calcification Removal

It is important to remove the calcification formed inside our water heater periodically in terms of both hygiene and energy saying
- The calc float on within the water used in the course of time accumulates on the heater base and burns out and forms a brown layer and then reduces the output of your heater
- The slight calcification can be cleaned easily with a brush. (Before doing this process, do no, forge, to disconnect the plug from the cute, first.)

• You can clean the hard calcification with sediments by means of the calcification removers which are sold for the household appliances that can be purchased from the market or vinegar
• To clean with the calcification remover after boiling some water in your appliance, mix the calcification remover with the boiled water. After waiting for a while, bol your heater 2–3 min, more and discharge its inside and wash with clean water for 2–3 times.
• To clean with white vinegar, fill half-liter of white vinegar in your appliance and wait for 1 hour, and after that, empty the vinegar and wash your appliance with clean water for 2-3 times.

Product life / years

Technical Specifications

220-2/0V AC 50/60 Hz

800 W

The product is in compliance with the EEE Directives.

WEEE

This product contains recyclable materials that compliance with the WLLE directives. Do not dispose this product as unsorted municipal waste. Please contact your local municipality for the nearest collection point.

Manufacturer / Importer:
