AR3046 - Coffee maker Arzum - Free user manual and instructions

Product Type	Drip Coffee Maker
Brand	Arzum
Model	AR3046
Dimensions (approx.)	30 cm x 20 cm x 35 cm
Weight (approx.)	1.5 kg
Power Supply	AC 220-240V, 50/60Hz
Power Consumption	1000 W
Capacity	12 cups (1.5 L)
Water Tank	Removable, transparent
Filter Type	Permanent mesh filter or paper filter (size #4)
Carafe	Glass carafe with lid
Keep Warm Function	Automatic keep warm plate
Auto Shut-Off	Yes, after 2 hours
Anti-Drip System	Yes, allows removing carafe mid-brew
Water Level Indicator	Yes, on water tank
Indicator Lights	Power and keep warm
Cleaning and Maintenance	Descaling recommended every 1-2 months
Safety Features	Overheat protection, automatic shut-off
Spare Parts Available	Carafe, filter basket, water tank
Repairability	User-serviceable parts: filter, carafe; professional repair for electronics
General Information	Designed for home use, easy to operate

Frequently Asked Questions - AR3046 Arzum

How do I clean the Arzum AR3046 coffee maker?

Unplug the unit and let it cool. Wash the carafe, lid, and filter basket with warm soapy water. Wipe the exterior with a damp cloth. Do not immerse the base in water.

How often should I descale the coffee maker?

Descale every 1-2 months using a vinegar-water solution or a commercial descaling agent. Run a brew cycle with the solution, then rinse with fresh water.

Can I use paper filters with this model?

Yes, you can use standard #4 paper cone filters or the included permanent mesh filter.

What is the maximum capacity of the water tank?

The water tank holds up to 1.5 liters, enough for 12 cups of coffee.

Does the coffee maker have an automatic shut-off?

Yes, the AR3046 automatically shuts off after 2 hours for safety and energy saving.

Why is my coffee maker not brewing?

Check if the unit is plugged in, the water tank is filled, and the filter basket is properly inserted. Descale if mineral buildup is suspected.

Can I brew less than 12 cups?

Yes, you can brew any amount up to 12 cups. Use the water level markings on the tank as a guide.

Is the carafe dishwasher safe?

The glass carafe is top-rack dishwasher safe. The lid and filter basket should be hand washed to prevent warping.

What should I do if the coffee tastes bitter?

Bitter coffee may result from over-extraction. Use a coarser grind, reduce the amount of coffee grounds, or descale the machine.

Where can I find replacement parts?

Replacement carafes, filter baskets, and water tanks are available at authorized Arzum service centers or online retailers.

USER MANUAL AR3046 Arzum

Black and white photo of a Arizum coffee maker with clear glass lid and side handle (no visible text or symbols on the device itself)

BREWTIME

AR 3046 FILTRE KAHVE MAKINESI

AR 3046 FILTER COFFEE MACHINE

AR 3046 FILTERKAFFEEMASCHINE

KULLANMA KILAVUZU

INSTRUCTION MANUAL

GEBRAUCHSANWEISUNG

750 W

3

YIL

YEARS

JAHRE

GARANTI

WARRANTY

GARANTIE

1.25

LITRE

CAM SÜRAHİ

Turkey

BREWTIME AR 3046 FILTRE KAHVE MAKİNESİ

Close-up of a black cylindrical container with an open lid and an arrow indicating rotation (no text or symbols)

Illustration of a hand pouring liquid into a container using a filter, with no visible text or symbols.

Two black-and-white photos showing a glass coffee maker and a digital coffee maker with a lid, connected by an arrow indicating transformation (no text or symbols visible)

Close-up of a black electronic device's button with a power symbol (no text or labels visible)

Guang Dong Xinbao Electrical Aappliances Holdings Co., Ltd

South Zhenghe Road, Leliu Town, Shunde District, Foshan City, Guangdong, China

Tel: [phone] Fax: [phone]

İthalatçı:

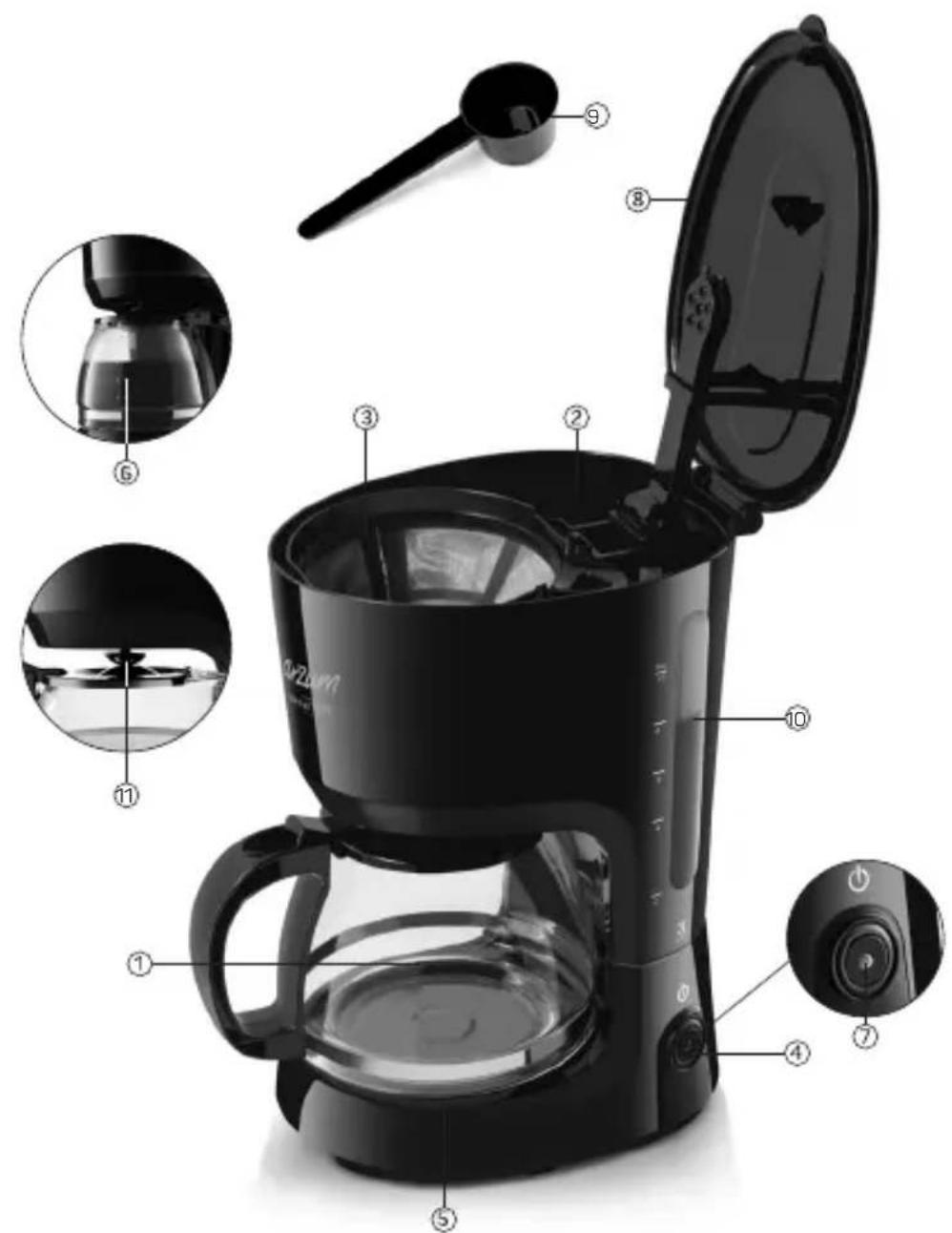

1- 1,25 Lt. capacity glass jug

7- Power-on light

2- Water tank

8- Water tank and filter cap

3- Filters and filter housing

9- Measuring spoon

4- On / Off switch

10- Water level indicator

5- Heating surface

11- Anti-drip system

6- Jug water level indicator

We thank you for having selected the Arzum brand Filter coffee machine. This product as well is one of the Arzum product offered to you to make life easier for you. In order to obtain ultimate output from your appliance, please read carefully this user's manual and save it for further use.

IMPORTANT SAFEGUARDS

- Make sure that the voltage indicated on the Arzum Brewtime Filter Coffee Machine corresponds with the mains voltage in your home. Our company shall not be held liable

- This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments;

- Farm houses;

- By clients in hotels, motels and other residential type environments;

- Bed and breakfast type environments.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of

the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

- The instructions for appliances normally cleaned after use, and not intended to be immersed in water for cleaning, shall state that the appliance must not be immersed.

- Use your appliance for its intended purpose as recommended.

· If the supply cord is damaged, it must

be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

· The appliance must not be immersed.
- Keep the appliance and its cord out of reach of children aged less than 8 years.

Warning: Avoid spillage on the connector.

- The heating element surface is subject to residual heat after use.

- Do not fill coffee machine with liquid more than maximum limit.

This appliance is intended to be used in household environment. Do not use the appliance for commercial or industrial purpose. Otherwise it will not be covered by warranty.

Keep your appliance away from and out of reach of the children.

• Plug your appliance to a grounded socket. Do not use extension cords that supply improper current in order to prevent damage to your machine.
• Do not place the Arzum Filter Coffee Maker over or near direct heat sources such as stove, heating oven etc.
• Ensure that the appliance is placed on a firm and flat surface. Do not put it on the edge of a table or bench. Even a small impact may fall down your appliance. Do not forget that your Filter Coffee Maker is full of water.

Do not let cord hang over edge of table or countertop or to contact other devices.

Avoid actions that may harm or damage the cord or plug of your appliance. Do not carry your appliance by holding from the cord. To

unplug the filter coffee maker, hold the plug and NEVER pull by the cord.

Never interfere with your appliance except for the purposes of cleaning and maintenance. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner, such as falling down, etc. Do not attempt to repair it by yourself. Call immediately an Arzum Authorized Service. Use original spare parts in your appliance.

Please, unplug from outlet your appliance when your appliance not in use and before cleaning. Allow it to cool down before cleaning the appliance.

Avoid contact with steam to be ejected from spout when the water is boiling, and do not let children to use the appliance.

• Ensure that water tank and filter cap of your Arzum Filter Coffe Maker is closed before operating your appliance.
• NEVER immerse your appliance in water or any liquid; do not wash your appliance in dishwasher and do not use your appliance in bathroom or any other places with high humidity rate.
• You can put water and ground coffee in your appliance while it is in off position.
• NEVER put anything into the water tank other than water.

Never leave the power base unit and electrical connection ends of your appliance in a damp state. If wetted, unplug before drying and no not operate your appliance before having it dried completely.

• NEVER put anything into the filter housing other than ground coffee.
• Be careful not to burn yourself due to the water or steam from the machine or inappropriate use of the machine.
• Heating level remains hot due to heat after use the appliance; NEVER touch it.

USE OF YOUR APPLIANCE

FIRST USE

Before first use, operate your appliance 3 times with water only before putting coffee in it.

OPERATION

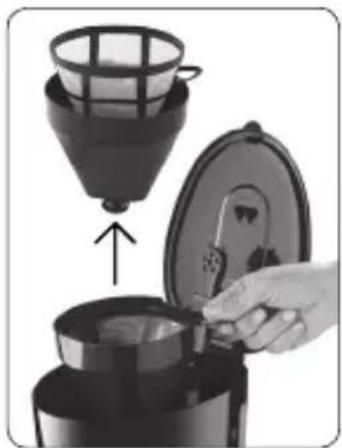

1. Open water tank and filter cap and fill the housing with water. Fill water tank with fresh and clean water to the level line indicating the

Close-up of a black cylindrical container with an open lid and an arrow indicating rotation (no text or symbols)

EN

number of coffee you would like to prepare.

* Do not exceed the specified maximum amount of water onto the water level in the tank.
2. Add ground coffee into the filter and generally use brimful coffee for each cup. (For example, 10 scales for preparing 10 cups of coffee).
3. Close the cap.

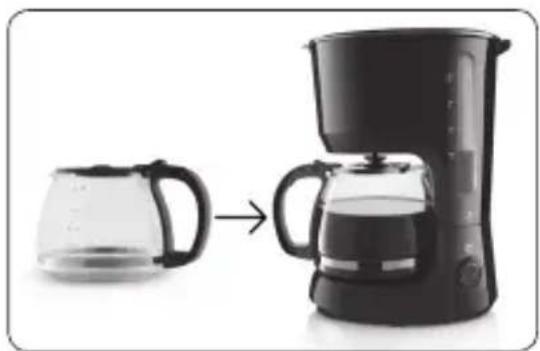

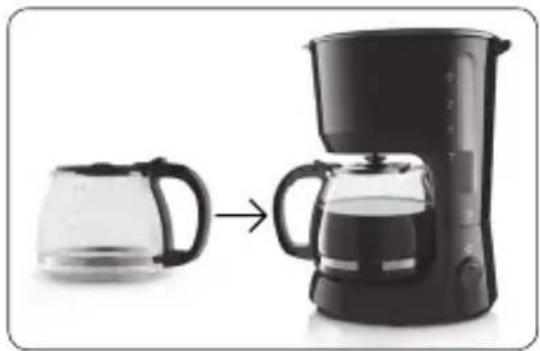

4. Place the glass jug on the heating surface.
5. Plug in your appliance.
6. Press On/off button and then brewing operation will be started.
7. Once coffee brewing operation is completed, you can serve your coffee in glass jug however you wish.
8. Unless you turn off your appliance, your glass jug on heat holding surface will continue to be hot.
9. Switch off the appliance from on/off button.
10. Plug out your appliance.

* Resulting baked coffee will be 10% less than coffee filled water. Reason for this is that coffee grains absorb some amount of water.

** Luminous indicator on button shows that filter coffee machine is working. It is normal that steam comes out from the device during the coffee brewing process.

*** Wait for a few minutes before preparing your second coffee.

Illustration of a hand pouring liquid into a container using a filter, with no visible text or symbols.

Two black-and-white photos showing a glass coffee maker and a digital coffee maker with a lid, both being processed from the other (no text or symbols visible)

Close-up of a black electronic device's power button with a circular dial (no text or symbols visible)

CLEANING

• Shut down the main switch (i/o) of your appliance and disconnect the plug from the outlet and wait for your appliance to cool down before cleaning.
• You can manually wash glass jug, filter and filter housing of your Arzum Filter Coffee Machine. NEVER wash the other parts by means of plunging them into water or in the dishwasher.
• Discharge the water in water tank. It is recommended to use fresh water after each use.

Do not clean any of the appliance accessories with harsh and chemical cleaners (bleach, hydrochloric acid, etc.)

- Do not switch on the device while it is hot.

CALCIFICATION REMOVAL

If the water in your area is harsh, calcification in your machine will build up over time and calcification build-up will prevent proper operation of your appliance. Regular calcification removal procedure prolongs the life of your appliance and ensures optimal brewing results for a long time. It is recommended to remove calcification of your coffee machine in each 50 use. For removing calcification of your appliance, apply the following steps:

While cleaning your appliance from calcification;

• You can use 2 cups of white vinegar,
• Use appropriate calcification removal solution for your coffee machine.
• Pour the mixture into the housing and operate your coffee machine (with no coffee).
• Wait until one cup of mixture is poured into jug and then stop your coffee machine.
• Wait for two hours to take effect.
  · For preventing its flowing, operate coffee machine again.
• Operate and rinse your filter coffee machine with water 2 or 3 times before putting coffee.
  ** Appliances not working due to calcification or appliances not properly working are out of warranty.

EN

Usage life of 7 years

Technical Specifications

220-240V \~50/60Hz 750 W

HANDLING AND SHIPMENT

• During handling and shipment, your appliance must be kept in original package in order to prevent damages to its parts.
• Keep at normal position during shipment.
• Do not drop the product when transporting and protect from impacts.
  • After delivery of the product, failures and damages that may occur while transporting are not covered by warranty.

The Product is in compliance with the EEE Directives.

WEEE

This product contains recyclable materials that compliance with the WEEE directives. Do not dispose this product as unsorted municipal waste. Please contact your local municipality for the nearest collection point.

Manufacturer:

Guang Dong Xinbao Electrical Aappliances Holdings Co., Ltd

South Zhenghe Road, Leliu Town, Shunde District, Foshan City, Guangdong, China

Tel: [phone] Fax: [phone]

importer:

Black cylindrical container with open lid and arrow indicating rotation (no text or symbols)

Illustration of a hand placing food into a container using a filter, with no visible text or symbols.

Two black-and-white photos showing a glass coffee maker and a digital coffee maker with a lid, both being processed (no text or symbols visible)

Close-up of a black electronic device's button with a power symbol (no text or labels visible)

Guang Dong Xinbao Electrical Aappliances Holdings Co., Ltd

South Zhenghe Road, Leliu Town, Shunde District, Foshan City, Guangdong, China

Tel: [phone] Fax: [phone]

Importeur:

• Capacity vary on cup sizes.
