USER MANUAL 955.05 Paulmann

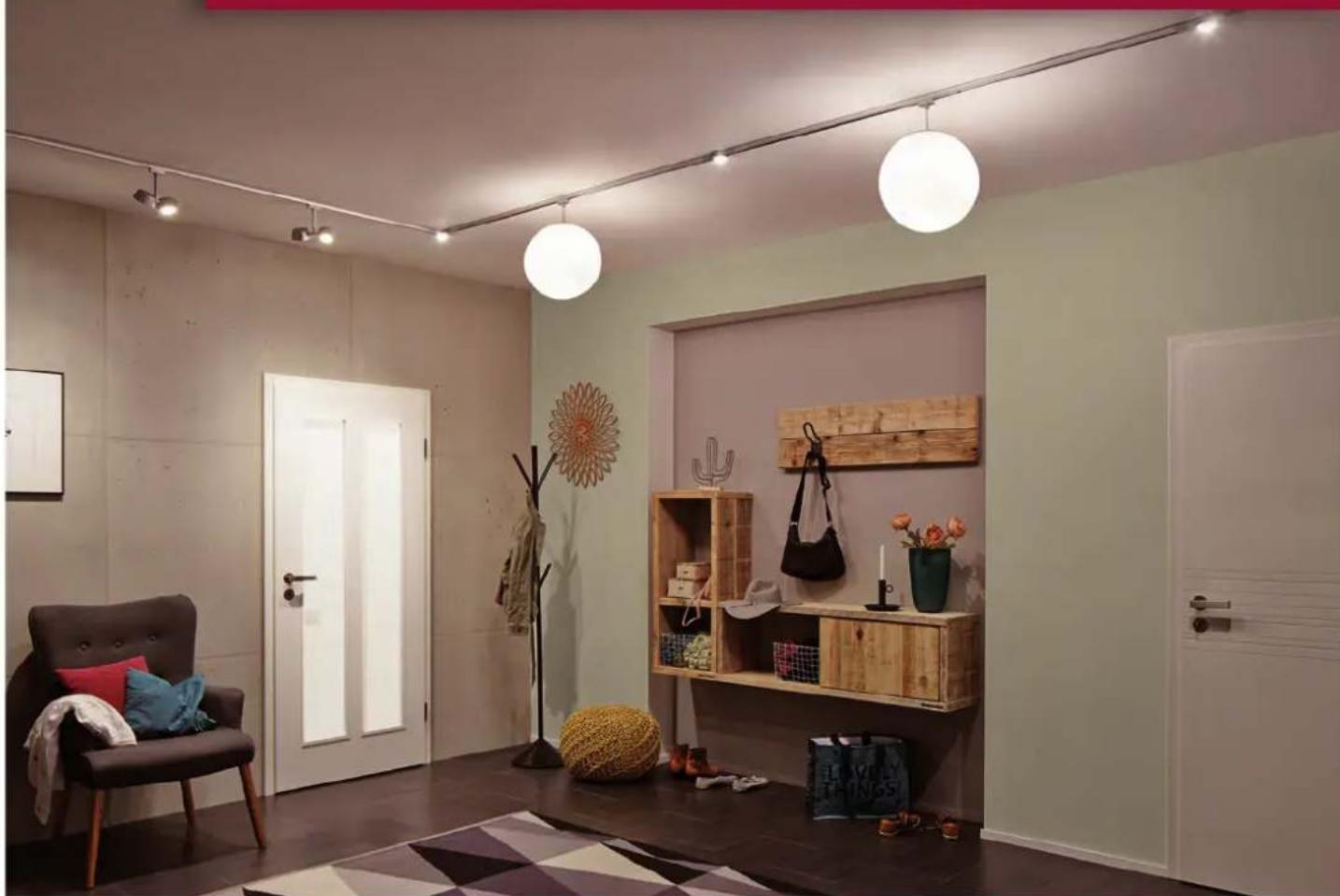

URail light rail system

for LED spotlights and pendant luminaires

Interior view of a modern minimalist room with white walls, wooden crates, and hanging pendant lights (no visible text or symbols)

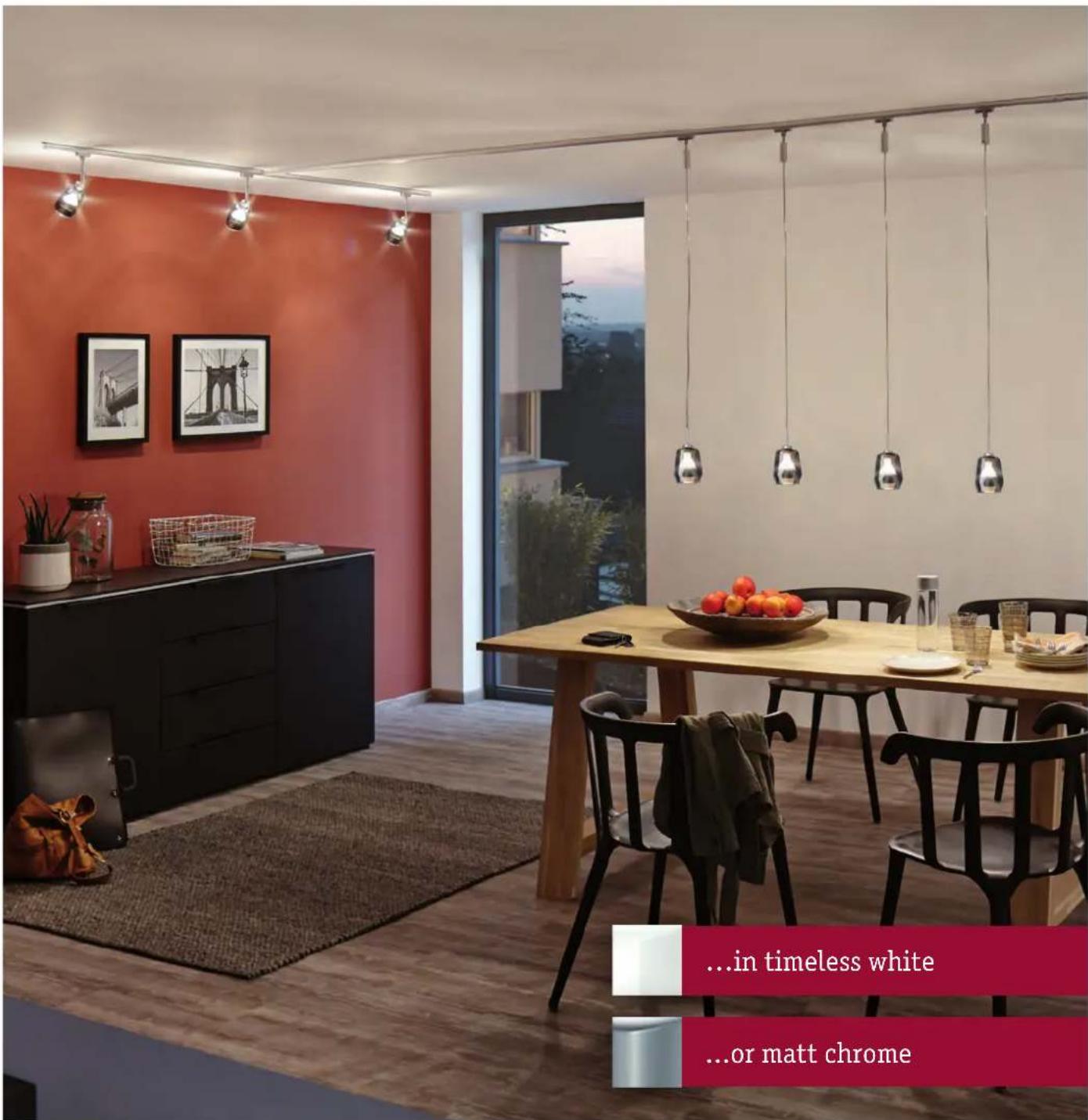

...in timeless white ...or matt chrome

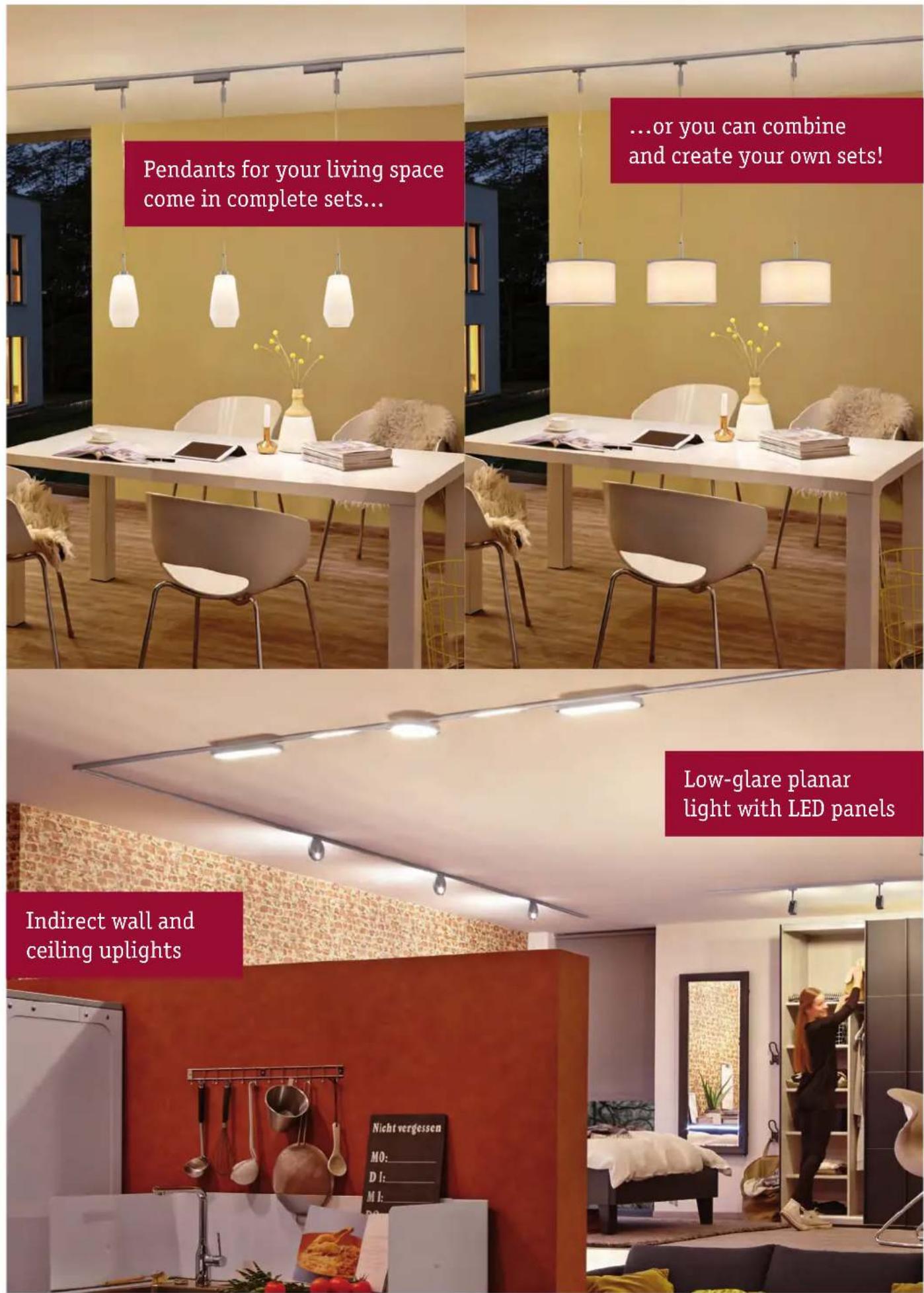

Rail light for the entire home

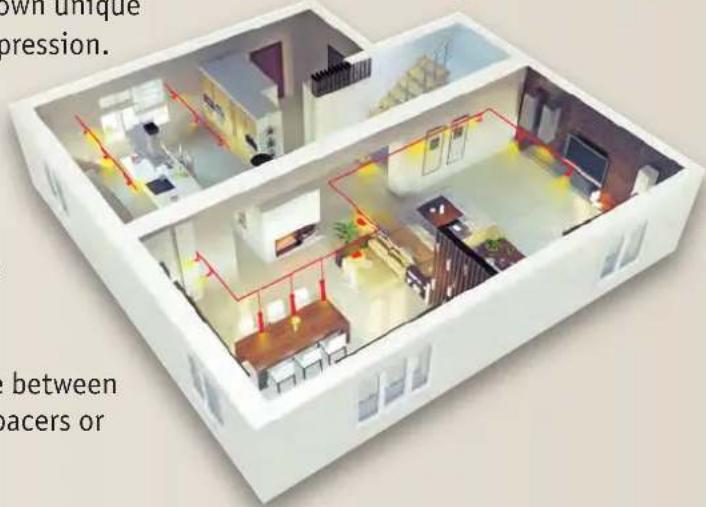

URail – install spotlights and pendants throughout your home with a light rail

Lighting is more than just physics. Well planned and cleverly used, it can brighten your entire home. It not only improves the feeling of wellbeing in your own home, it also makes everyday life that little bit easier. Take the URail system by Paulmann for example. Whether it be pendant luminaires for your dining table, spots for pictures and shelves or floodlights for entire rooms: The flexible rail system offers a selection of over 100 different high-quality spotlights, floodlights and pendants in a range of designs, materials and colours. You are guaranteed to find the right luminaire for your living space.

Pendants for your living space come in complete sets... ...or you can combine and create your own sets! Indirect wall and ceiling uplifts Low-glare planar light with LED panels Nicht vergessen MO: DI: MI:

Interior scene with ceiling-mounted lighting fixtures and a framed picture on a wooden table (no visible text or symbols)

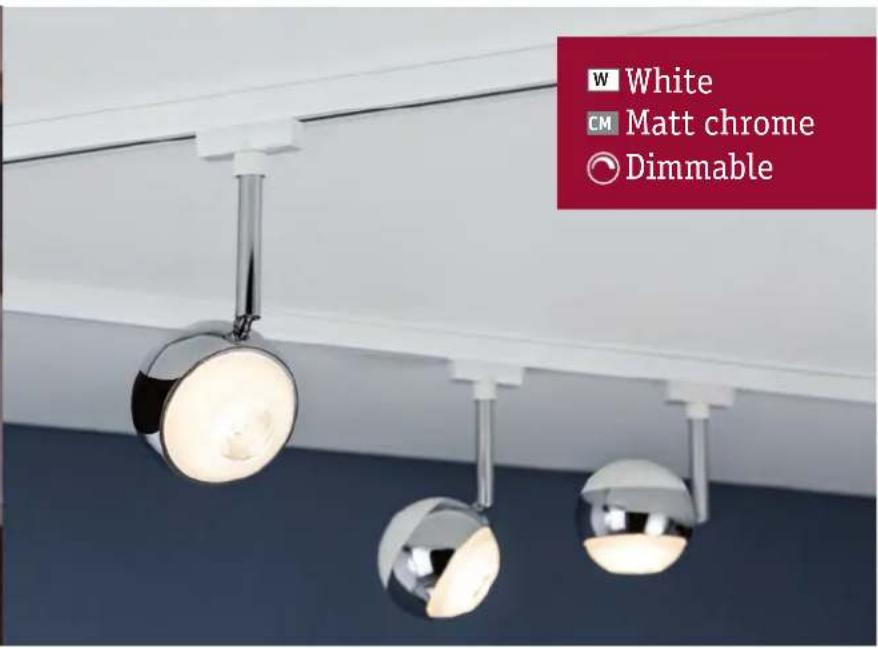

W White CM Matt chrome Dimmable

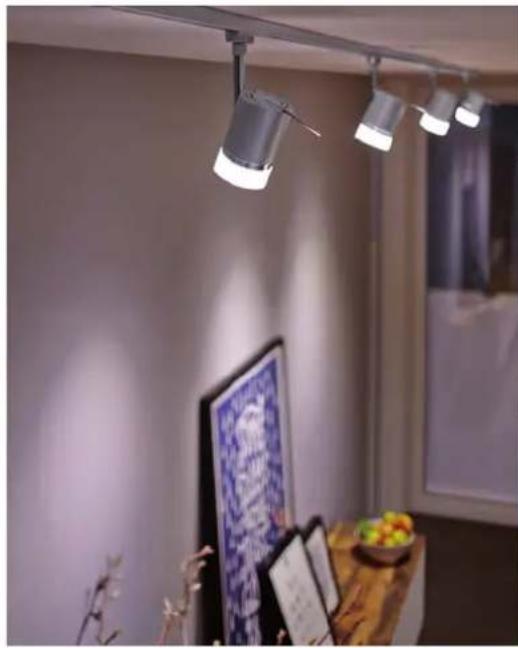

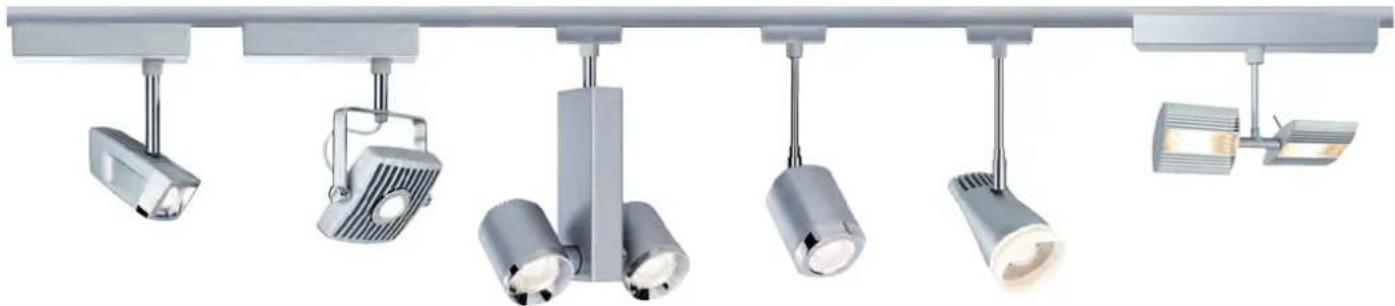

URail spotlights

Including energy-saving LED lamp

Row of modern LED streetlights with adjustable lighting fixtures (no text or symbols visible)

Spot Scene Spot Linear II

incl. 1×10W

818lm,2700K

60°.724cd

230V.11VA

158 ⇔ 200 ↗ 58 mm

951.80

incl. 1×10 W

725 lm, 2700 K

60° 601 cd

230V 11VA

198 ⇔ 180 ↗ 119 mm

951.78

incl. 2×6,5 W

2×480lm, 2700K
35°
230V
240 60 178mm
CM 952.07
W 952.09 952.05

(五) 2017年1月1日

Modern adjustable light fixture with a spherical head and vertical rod (no text or symbols visible)

Modern adjustable light fixture with a spherical head and vertical rod (no text or symbols visible)

Modern adjustable light fixture with a spherical head and vertical rod (no text or symbols visible)

Modern adjustable light fixture with a spherical head and vertical rod (no text or symbols visible)

Modern adjustable light fixture with a spherical head and vertical rod (no text or symbols visible)

Spot Pedal		A→A
incl. 1×5 W
395 lm, 2700 K
< 100°
230 V
$175 ⇔ 50 ↗48 mm
CM	952.69
W	952.70	952.72 952.

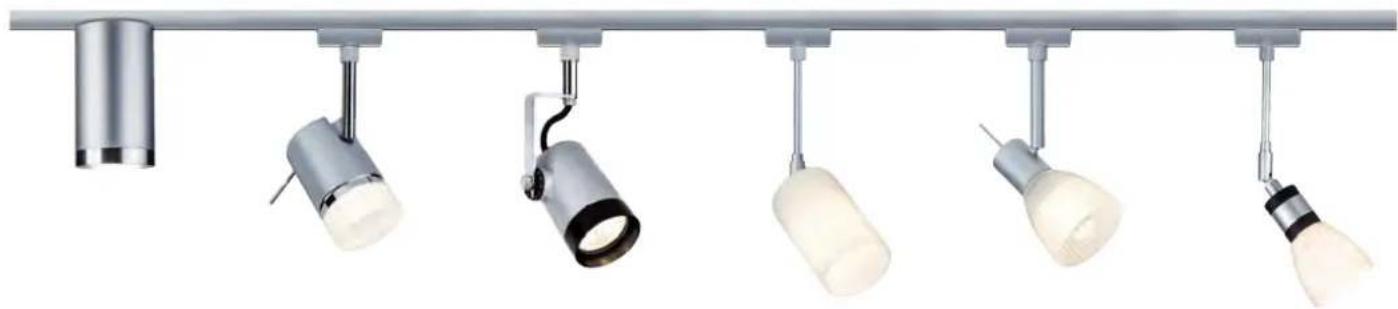

Spot Circle Spot Capsule

incl. 1×5W

308lm, 2700K

90^

230V

147 98 50 mm

952.71

incl. 1×4,5 W

241 lm, 2700 K

30^

230V

210 80 80 mm

CM 952.78

Row of five adjustable lighting fixtures with three circular lights and a central bulb, shown against a plain white background (no text or symbols)

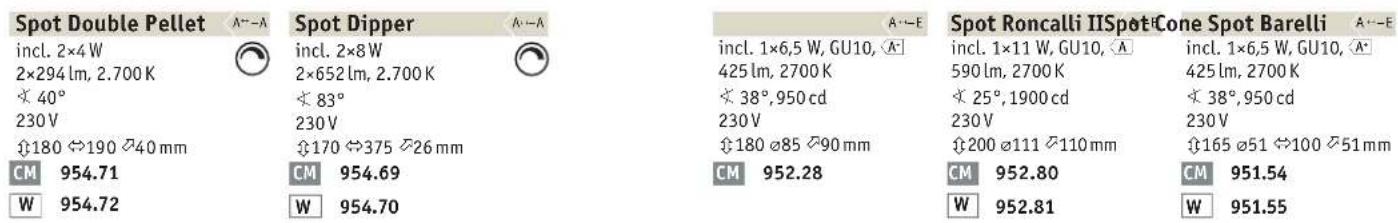

Spot Double Pellet incl. 2×4 W 2×294 lm, 2.700 K 40° 230 V 180 ⇌190 ⇌40 mm CM 954.71 W 954.72 Spot Dipper incl. 2×8 W 2×652 lm, 2.700 K 83° 230 V 170 ⇌375 ⇌26 mm CM 954.69 W 954.70 Spot Roncalli IISpot Cone Spot Barelli incl. 1×6,5 W, GU10, A 425 lm, 2700 K 38°, 950 cd 230 V 180 Ø85 Ø90 mm CM 952.28 incl. 1×11 W, GU10, A 590 lm, 2700 K 25°, 1900 cd 230 V 200 Ø111 Ø110 mm CM 952.80 W 952.81 Cone Spot Barelli incl. 1×6,5 W, GU10, A 425 lm, 2700 K 38°, 950 cd 230 V 165 Ø51 ⇌100 Ø51 mm CM 951.54 W 951.55

Five adjustable lighting fixtures with metallic and white lighting bulbs, suspended from a horizontal bar (no text or symbols visible)

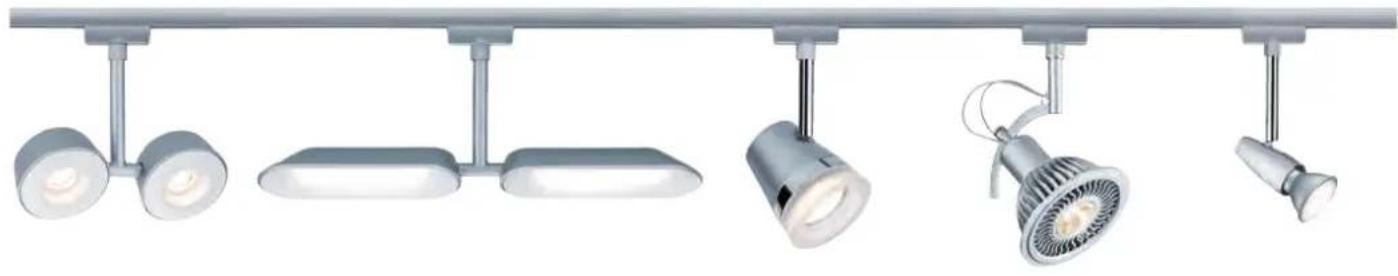

Spot Tube Spot PipeE		A…E	Spot Scale Spot Kumdry		A**-E	Spot Phara Spot Titurel II		A**-E
incl. 1×6,5 W, GU10, A'		incl. 1×3,5 W, GU10, A'	incl. 1×3,5 W, GU10, A'	incl. 1×3 W, GU10, A'		incl. 1×3 W, GU10, A'	incl. 1×2,2 W, G9
425 lm, 2700 K		230 lm, 2700 K	230 lm, 2700 K	250 lm, 2700 K		250 lm, 2700 K	200 lm, 2700 K
38°,950 cd		38°,550 cd	38°,550 cd	230 V		230 V	230 V
230 V		230 V	230 V	175 60 140 mm		180 75 145 mm	225 60 150 mm
112 65 mm		150 65 100 mm	160 60 95 mm	CM 951.17		CM 951.19	CM 953.07
CM	952.85	CM 952.27	CM 952.29				W 953.08
W	952.86

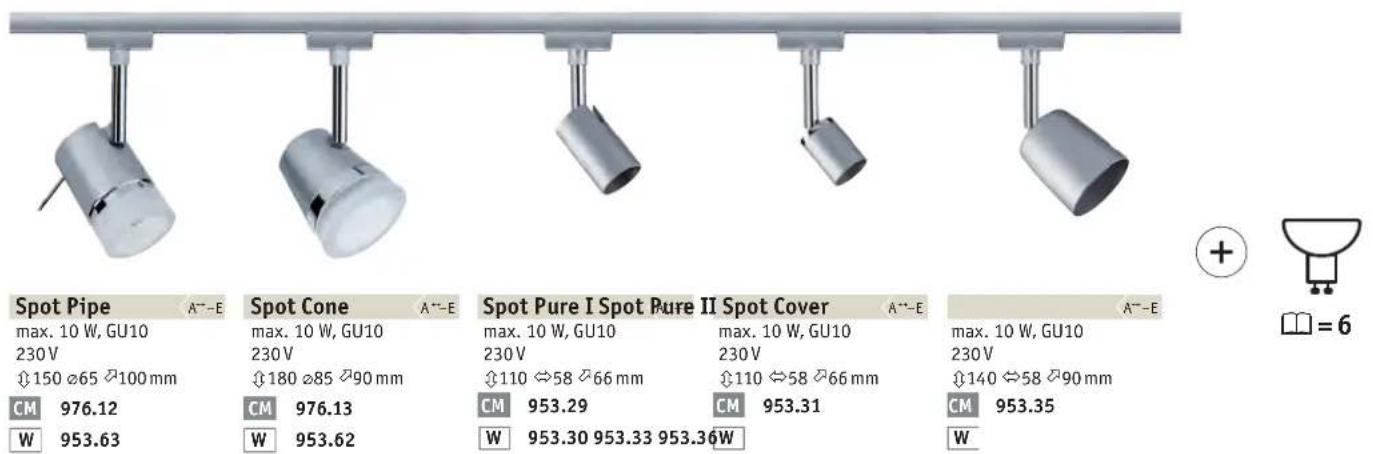

URail spotlights

Here you can select your own lamps!

Spot Pipe max. 10 W, GU10 230 V ∅150 Ø65 Ø100 mm CM 976.12 W 953.63 Spot Cone max. 10 W, GU10 230 V ∅180 Ø85 Ø90 mm CM 976.13 W 953.62 Spot Pure I Spot Pure II Spot Cover max. 10 W, GU10 230 V ∅110 ⇔58 ⇔66 mm CM 953.29 W 953.30 953.33 953.36 W Spot Pure I Spot Pure II Spot Cover max. 10 W, GU10 230 V ∅110 ⇔58 ⇔66 mm CM 953.31 W 953.35 A---E max. 10 W, GU10 230 V ∅140 ⇔58 ⇔90 mm CM 953.35 W

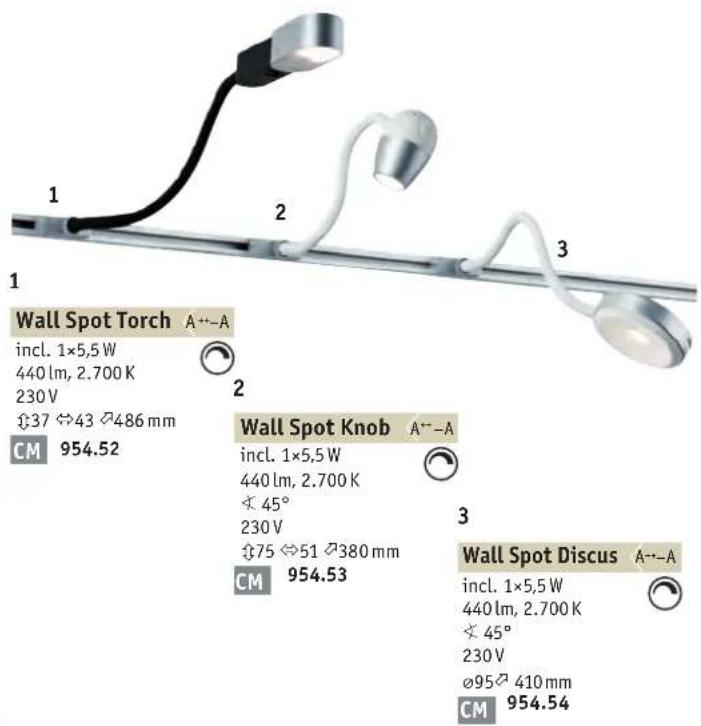

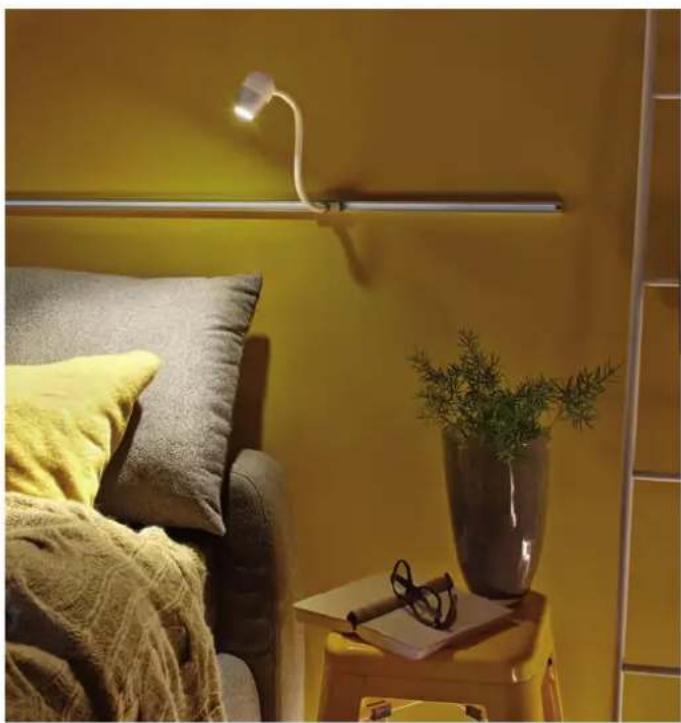

Wall reading lights

The ideal reading light - individually adjustable thanks to a flexible arm

Interior bedroom scene with a yellow bed, cream pillow, and lamp (no visible text or symbols)

1 2 3 Wall Spot Torch A++-A incl. 1×5,5 W 440 lm, 2.700 K 230 V 37 ⇔43 486 mm CM 954.52 Wall Spot Knob A++-A incl. 1×5,5 W 440 lm, 2.700 K 45° 230 V 75 ⇔51 380 mm CM 954.53 Wall Spot Discus A++-A incl. 1×5,5 W 440 lm, 2.700 K 45° 230 V Ø95 410 mm CM 954.54

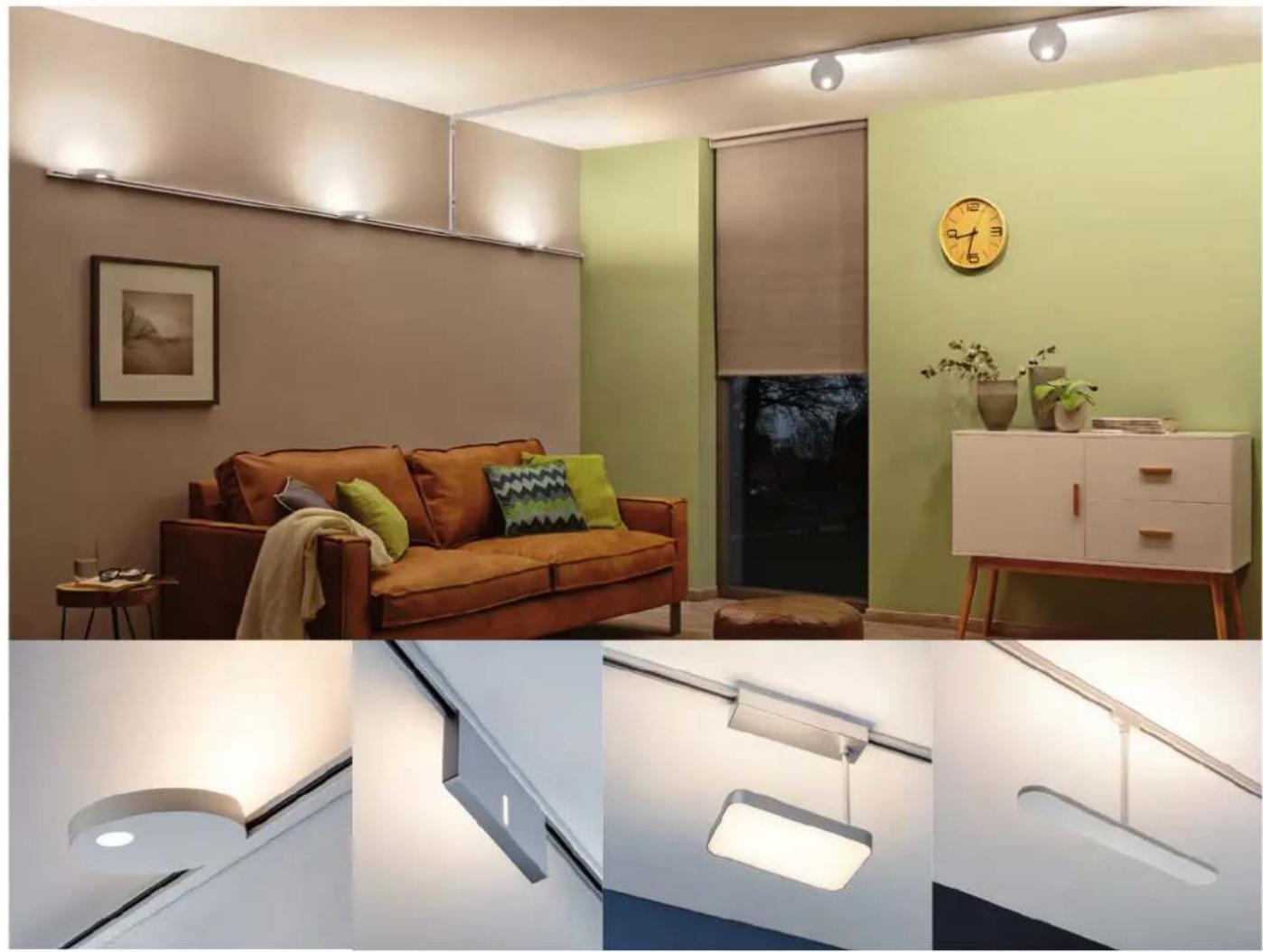

Modern living room interior with orange sofa, green accent wall, and wall clock (no visible text or symbols)

LED floodlight

Subtle design to compliment any interior furnishing style

The URail LED floodlights can not only be used as ceiling lights, they can also be wall-mounted. They produce planar accent light for indirect lighting of the room. Using a clever attachment you can easily fix them to the rail.

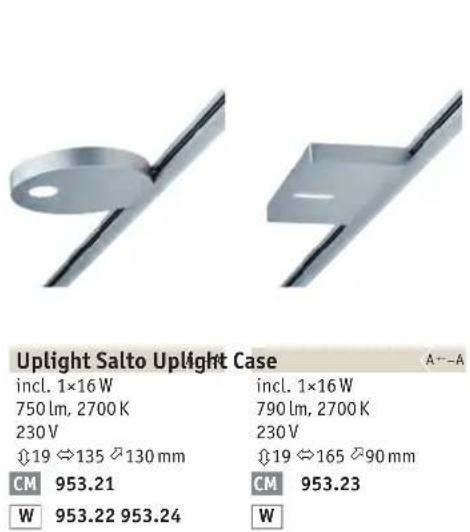

Uplight Salto Uplight Case incl. 1×16 W 750 lm, 2700 K 230 V 19 ⇌ 135 ↗ 130 mm CM 953.21 W 953.22 953.24 incl. 1×16 W 790 lm, 2700 K 230 V 19 ⇌ 165 ↗ 90 mm CM 953.23 W

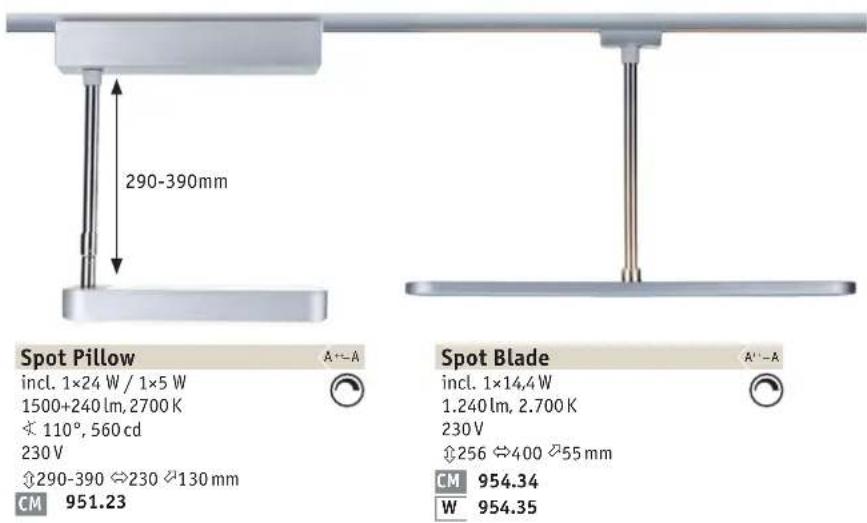

Spot Pillow incl. 1×24 W / 1×5 W 1500+240 lm, 2700 K ← 110°, 560 cd 230 V ←290-390 ⇌230 ⇌130 mm CM 951.23 Spot Blade incl. 1×14,4 W 1.240 lm, 2.700 K 230 V ←256 ⇌400 ⇌55 mm CM 954.34 W 954.35

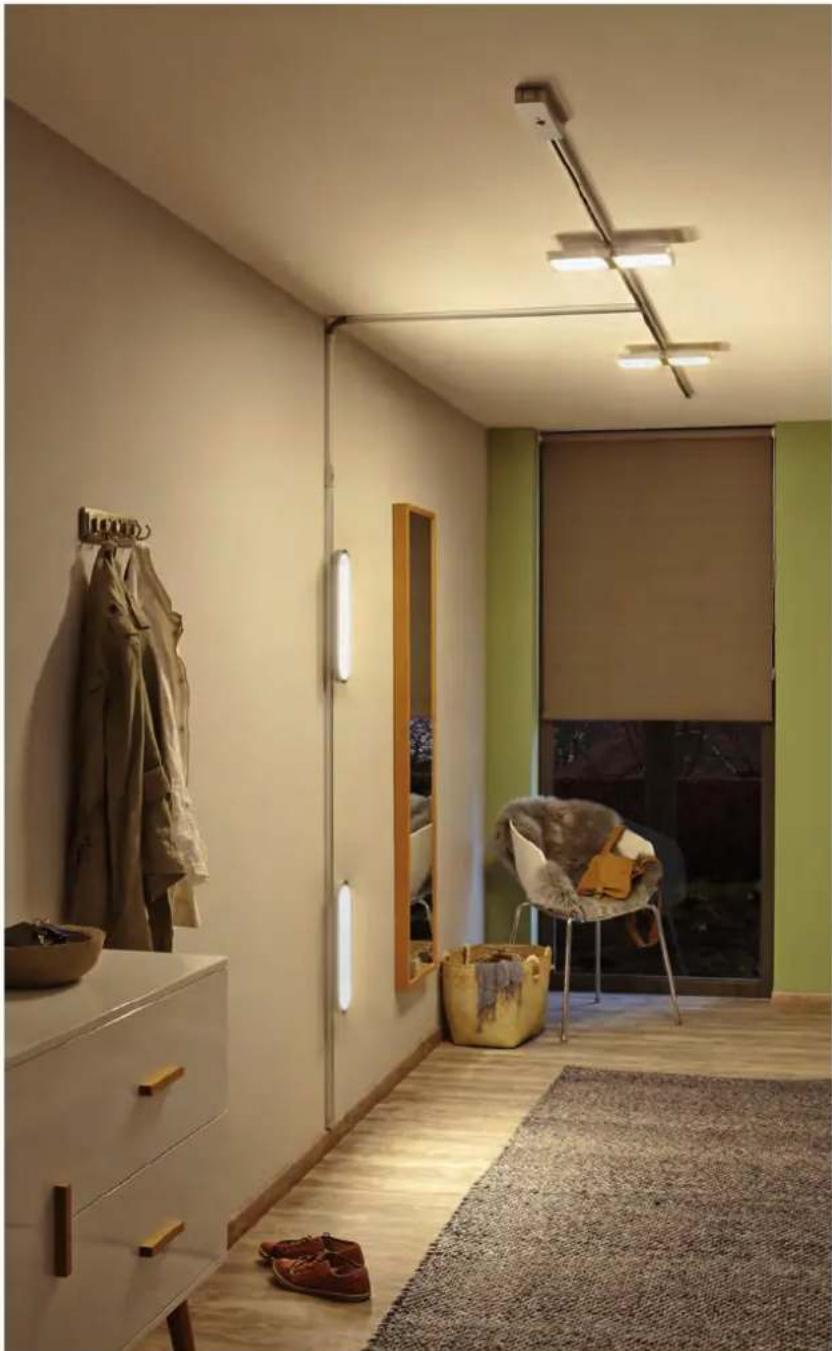

LED panel

Planar light – right where you need it!

The innovative URail LED panels provide low-glare planar light, which is all the rage right now. They can be installed both on the wall and on the ceiling and they provide the same sort of light as you would expect from a small window.

Close-up of a metallic cylindrical component with a circular recessed top, mounted on a horizontal gray bar (no text or symbols visible)

Panel Ring

A+-A

incl. 1×7 W

480 lm, 2700 K, 230 V

∅220 ↗30mm

953.15

953.16

Pure diagram of a horizontal pipe with a rectangular component, no text or symbols present

Panel Double

A'-A

incl. 1×8W

Close-up of a metallic cylindrical object with a white base and rounded top, resembling a ceiling or lamp (no text or symbols visible)

Panel Loop

A---A

incl. 1×7 W

480lm,2700K,230V

110 ↗35 ⇔380 mm

953.19

953.20

Interior view of a modern bedroom with a coat rack, armchair, and large window (no visible text or symbols)

Interior view of a modern retail store with ceiling lighting and a circular inset showing a product display (no visible text or symbols)

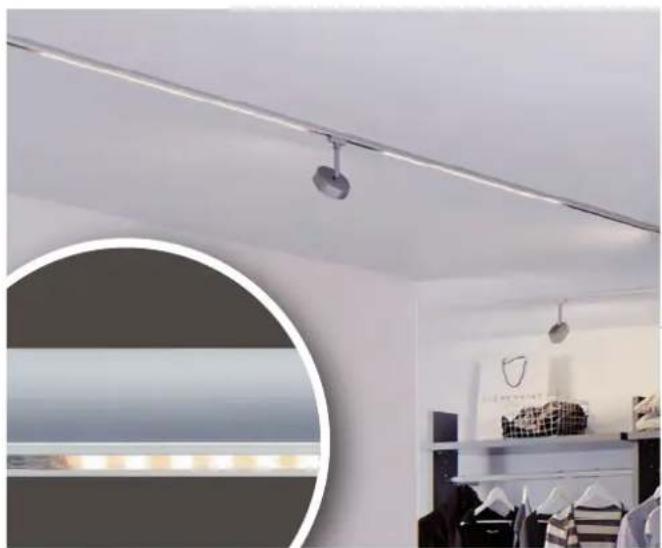

LED Inline

Make your rail shine!

The URail LED Inline inserts illuminate rail sections between the spotlights. Choose from three different sizes.

Scanned document with faint Chinese text and horizontal lines, likely a form or template

Inline Twenty Inline ^A Fourty Inline Ninety A ^** -A

incl. 1×2 W

108lm,2700K

230V

16 ⇔ 200 ↗8,5 mm

952.91

incl. 1×3,3 W

222lm, 2700K

230V

16 400 8.5 mm

952.92

incl. 1×5,2W

501lm,2700K

230V

16 900 8,5 mm

952.93

A++-A

The ideal lighting for everything from your small coffee table to your large dining table

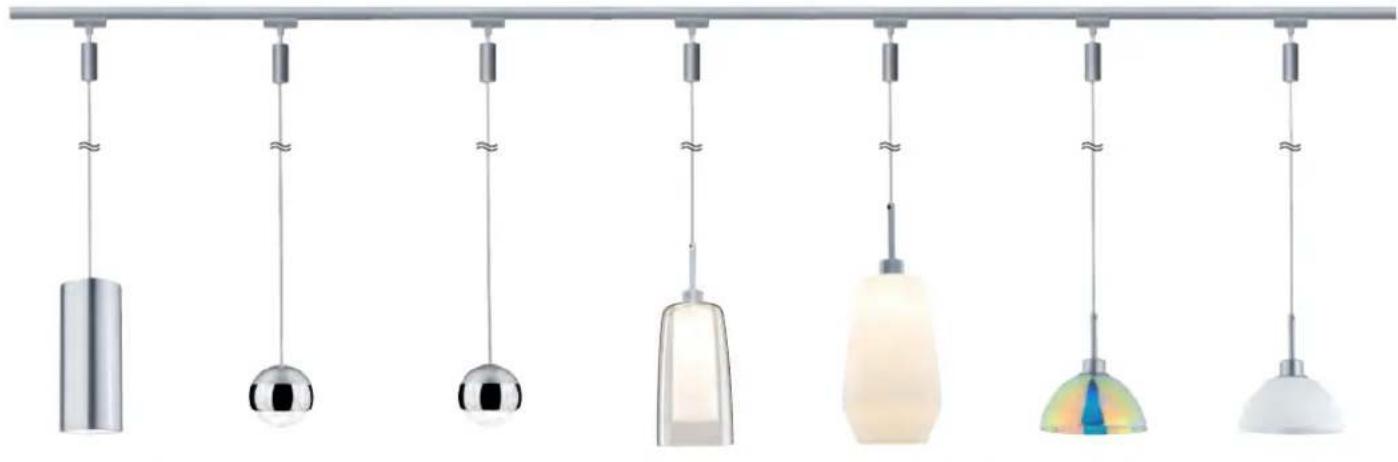

Row of seven hanging pendant lights with metallic and white shades, no text or symbols visible

Barrel	A++-A
incl. 1×6 W
370 lm, 2700 K
× 106°, 139 cd
230 V
↑ 135 cm ø85 mm
CM	951.77

Capsule		A+-A
incl. 1×4,5 W
238 lm, 2700 K
230 V
134 cm 87 mm
CM	952.74
W	952.75

Capsule II		A''-A
incl. 1×6W420 lm, 2700 K230 V
↑ 130 cm ø 87 mm
CM	954.57
W	954.58

Arido		A- - A
incl. 1×3 W, GZ10, A+
250 lm, 2700 K
230 V
∅200 mm	∅158 cm
∅110 mm
CM	953.60

Remo	A++-A
incl. 1×3 W, GZ10, A*
250 lm, 2700 K
230 V
∅200 mm ∅158 cm
∅125 mm
CM	953.61

Sarrasani A++-E
max. 10 W, GU10230V
135 cm 140 mm
CM 954.51

Sarrasani		A**-E
max.	10 W, GU10
230 V
135 cm 140 mm
CM	954.50
W	954.90

Interior scene showing a woman and a child engaged in a craft activity at a dining table, with no visible text or symbols.

Pendant accessories

Flex Pendant Adapter

230V 154ø22mm

CM 951.98

W 951.99

The pendant can be placed next to the rail

max. 3 kg max. 3 kg max. 1,5 kg

Pendant adapter, can be shortened

135 26 mm

CM 974.74

The URail pendant can be shortened without the use of tools

max. ↩ 1m ∅6mm

Universal Pendant Adapter

230V

106ø62mm

CM 954.94

W 954.95

Simply connect pendants without a URail connector to the rail.

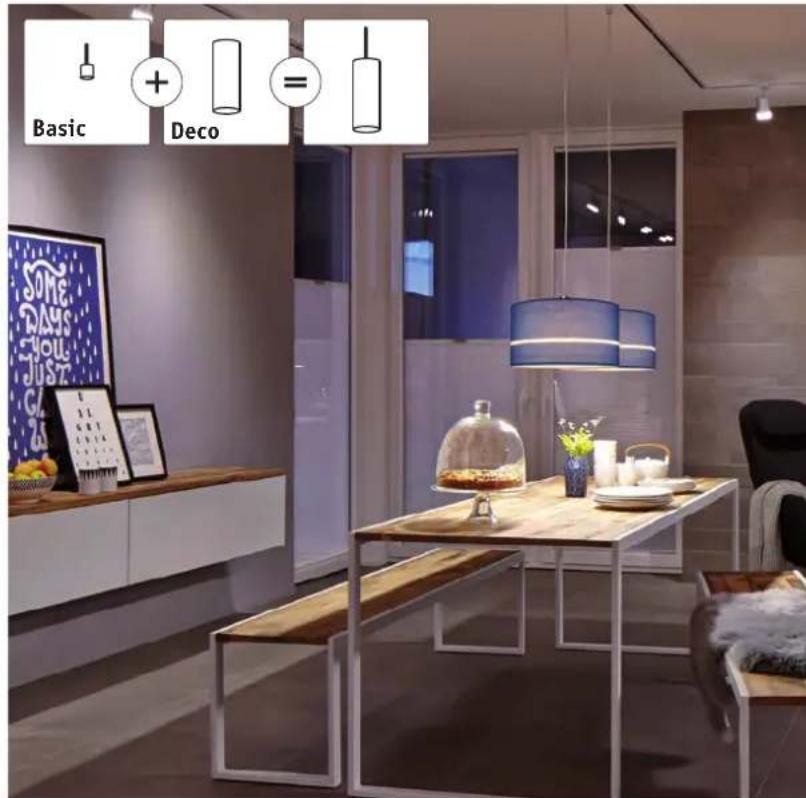

2Easy LED Pendant

Make your own combinations!

Pure mechanical diagram showing a suspended component with a vertical bar and a separate vertical bar, no text or symbols present.

•
  = 11
  Basic-Pendulum A++-E

max. 20 W, E27

230V

150cm 1,5m

954.36

954.37

Basic + Deco = SOME DAYS JUST GO

Blue cylindrical pendant light with horizontal stripes (no text or symbols)

Tessa

max. 50 W

260ø454mm

953.64

Blue Fabric

Simple light green cylindrical lamp with a white horizontal stripe at the bottom (no text or symbols)

Tessa

max. 50 W

260ø454mm

953.65

Yellow Fabric

Simple gray cylindrical lamp with a thin neck and top, no text or symbols visible.

Tessa

max. 50W

260 454 mm

953.66

White Fabric

Pink cylindrical pendant light with a thin wire above it (no text or symbols)

Tessa

max. 50 W

260ø454mm

953.67

Apricot Fabric

Simple gray cylindrical lamp with a thin neck and pointed tip (no text or symbols)

Tessa

max. 50 W

260ø454mm

954.65

Light grey Fabric

Simple gray cylindrical lamp with a thin neck and silver rim (no text or symbols)

Tessa

max. 50 W

260ø454mm

954.66

Cream Fabric

Simple illustration of a brown cylindrical pendant light with a horizontal white stripe (no text or symbols)

Tessa

max. 50 W

260∅454mm

954.67

Caramel Fabric

Simple gray cylindrical pendant light with horizontal stripes (no text or symbols)

Tessa

max. 50 W

260ø454mm

954.68

Dark brown Fabric

Two modern pendant lights with curved and horizontal light patterns, one holding a hand near the ceiling (no text or symbols visible)

2Easy Diffusor

max. 20V

∅454mm

954.92

satin plastic

Interior view of a modern minimalist living room with a large fire extinguisher, wooden table, and wall-mounted framed photographs (no visible text or symbols)

Minimalist white pendant light with a curved, dome-shaped top and a thin vertical line at the top (no text or symbols)

Simple black geometric object with a vertical line above it, resembling a lampshade or abstract shape (no text or symbols)

Shade Pom Shade Pirm Shade Pien

max. 20W

240∅350mm

954.38 954.40 954.43

Matt white Metal

max. 20 W

230∅280mm

Grey matt Metal

max. 20 W

230ø250mm

Pink matt Metal

Shade Pien

max. 20W

230∅250mm

954.42

Beige matt Metal

Minimalist white cylindrical pendant light against a dark gray background (no text or symbols)

Livo

280 75 mm

998.42

Opal Glass

Close-up of a modern glass pendant light with a metallic handle and white interior (no text or symbols visible)

Modern minimalist pendant light with a translucent, curved glass design against a dark background (no text or symbols)

280 170 mm

953.54

Opal Glass

Close-up of a metallic cylindrical lamp with a glowing interior (no text or symbols visible)

280ø152mm

953.52

Smoke glass 📄 Glass

Modern minimalist pendant light with a translucent cylindrical shade against a dark background (no text or symbols)

280∅150mm

953.53

Satin Glass

LED Rustika (ST64)

7,5 W E27 A-

∅64 ↘145 mm

550 lm

2500 K

283.91

Gold

LED Deco Pipe

6W E27 A

∅38 ↘150mm

470 lm

2700 K

284.36

LED AGL

13 W E27 A

∅60 ↘117mm

1521 lm

2700 K

283.98

LED AGL

10W E27 A

∅62 ↘116mm

806 lm

2700 K

283.49

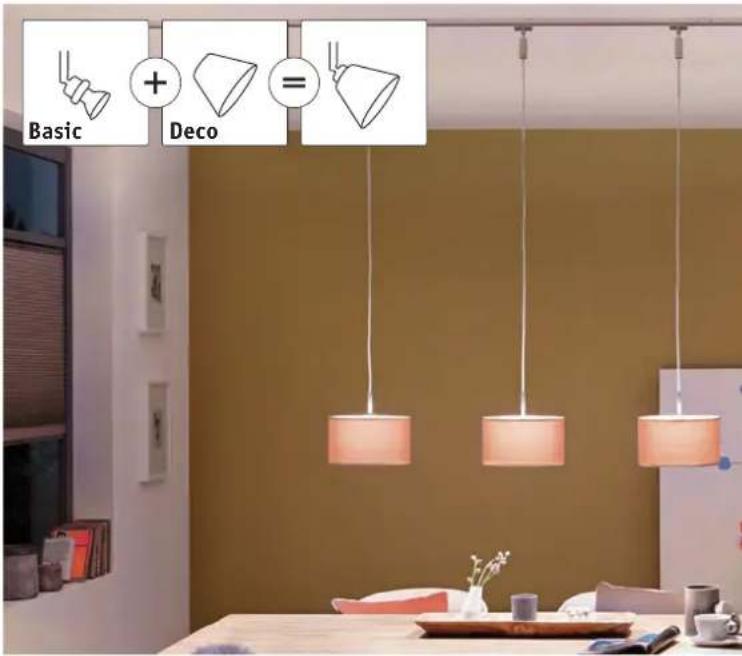

DecoSystems LED Spotlights/Pendants

Make your own combinations!

Two lighting fixtures with adjustable lighting fixtures, one mounted on a beam and the other suspended in a hanging lamp (no text or symbols visible)

Basic-Spot Basic-Pendulum

incl. 1×3,5 W, GZ10, A

incl. 1×3,5 W, GZ10, A+

250 lm, 2700 K, 230 V

250lm, 2700K, 230V

125ø5150mm

135cm

951.82

951.83

951.86

951.85

Basic + Deco =

Blue cylindrical pendant light with a vertical line above it (no text or symbols)

Tessa

max. 50 W

152 255 mm

603.24

Blue Fabric

Simple illustration of a light green cylindrical lamp with a vertical pole (no text or symbols)

Tessa Tessa Tessa

max. 50 W

152ø255mm

603.25

Yellow Fabric

Simple white cylindrical lamp with a vertical pole, no text or symbols visible

max. 50 W

152ø255mm

603.26

White Fabric

Pink cylindrical object with a vertical line above it (no text or symbols)

max. 50 W

152 255 mm

603.27

Apricot Fabric

Simple gray cylindrical object with a vertical line on top (no text or symbols)

Tessa Tessa

max. 50 W

152∅255mm

603.52 603.51

Light grey Fabric

Simple gray cylindrical object with a vertical line on top (no text or symbols)

max. 50W

152ø255mm

Cream Fabric

Close-up of a transparent glass pendant light with a white foam inside, suspended by a metal rod (no text or symbols visible)

Rado

max. 50 W

95 070 mm

953.55

Clear Glass

Close-up of a minimalist ceiling lamp with a beige shade and metal handle against a dark gray background (no text or symbols visible)

Turno

max. 50 W

90 80 mm

953.56

Satin Glass

Close-up of a transparent glass pendant light with a glowing interior (no text or symbols visible)

Vico

max. 50W

95 80 mm

953.57

Clear Glass

Close-up of a white, bulbous pendant light with a metallic handle against a dark background (no text or symbols visible)

Vento

max. 50W

95 80 mm

953.58

Satin Glass

Close-up of a dark, reflective glass pendant with a metallic handle (no text or symbols visible)

Vento

max. 50W

95 80 mm

953.59

Smoke glass Glass

Close-up of a pink cylindrical pendant light with a metal rod (no text or symbols visible)

Zyli

max. 50W

80 70 mm

600.04

White Glass

Close-up of a pale, conical lamp with a metallic handle against a dark background (no text or symbols visible)

Wolbi Wolbi

max. 50 W

80 ¢90 mm

600.07

White Glass

Close-up of a colorful, translucent, conical lamp with a metallic handle (no text or symbols visible)

max. 50 W

80ø90mm

600.11

Dichroic Glass

Close-up of a minimalist ceiling lamp with a beige conical shade and silver handle (no text or symbols visible)

Kegi

max. 50W

80ø110mm

600.12

Opal Glass

Close-up of a beige cylindrical pendant light with a metallic handle against a dark gray background (no text or symbols visible)

Quad Wolbi

max. 50 W

80ø75mm

600.15

White Glass

Close-up of a minimalist ceiling lamp with a light bulb and metallic shade (no text or symbols visible)

max. 50W

70∅90mm

600.55

Opal Glass

Close-up of a metallic pendant light with a glowing square frame (no text or symbols visible)

Twice

max. 50W

70ø100mm

701.74

Clear/Opaque □Glass

Interior scene with a wall mural, a framed artwork, and a potted plant (no visible text or symbols)

Two hanging pendant lights with a hand adjusting one, against a plain background (no text or symbols visible)

DecoSystems Diffusor

max. 20 W

152ø255mm

954.93

satin plastic

Simple illustration of a brown cylindrical pendant light with a vertical line above it (no text or symbols)

Simple illustration of a cylindrical lamp with a horizontal stripe (no text or symbols)

Tessa Tessa

max. 50 W

152ø255mm

603.50 603.49

Caramel Fabric

max. 50 W

152ø255mm

Dark brown Fabric

Close-up of a spiral-shaped lampshade with metallic handle and striped pattern (no text or symbols)

Close-up of a wooden pendant light with a metal rod (no text or symbols visible)

Zyli

max. 50W

80ø70mm

600.53

Opal/Black

Glass

Zyli

max. 50 W

80ø70mm

600.06

Brown Glass

White adjustable lamp with a metallic handle and bulb, against a plain gray background (no text or symbols visible)

Modern desk lamp with silver shade and white interior (no text or symbols visible)

Wolbi Wolbi

max. 50W

80 90 mm

600.08

White Metal

max. 50 W

80 90 mm

600.09

White/Aluminium

Metal

Starter sets including 3 spots

Unpack and get started!

Pure diagram of a horizontal bar with four vertical tick marks, no text or symbols present

max. 3×10 W, GU10

230V

↔ 1,2 m

CM 954.63

Pure diagram of a horizontal beam with four vertical supports, no text or symbols present

max. 3×10 W, GU10

230V

1,2m

CM 954.59

Pure diagram of a horizontal bar with four vertical bars, no text or symbols present

max. 3×10 W, GU10

230V

↔ 1,2 m

CM 954.62

Spot Pure II Starter Set Pure II

max. 10 W, GU10

230V

110 58 66mm

CM 953.31

Spot Barelli A ^11 -E

max. 10 W, GU10

230V

138 ⇔ 68 ↗ 35 mm

CM 954.61

Spot Cover A++-E

max. 10 W, GU10

230V

140↔58 ↗90mm

CM 953.35

Starter sets

Choose from a wide range of pendants and spots

Pure electrical circuit lines without any symbols

URail Basissystem A++-E

max. 1.000 W

230V

⇔ 3,1m

CM 950.16
W 950.17

Simple diagram of a hanging device with a curved base and connecting rod (no text or symbols)

Starter Set Allround Pendant Basic A'-E

max. 20W

230V

1,2m

CM 954.64

max. 3 kg max. 1,5 kg

URail Planning Aid

The easy way to your personal rail system

Feeling inspired? Then use this planning aid. You can add your chosen URail products to the easy-to-use shopping list on page 14. On page 15 you will find a grid where you can plan your individual rail sections.

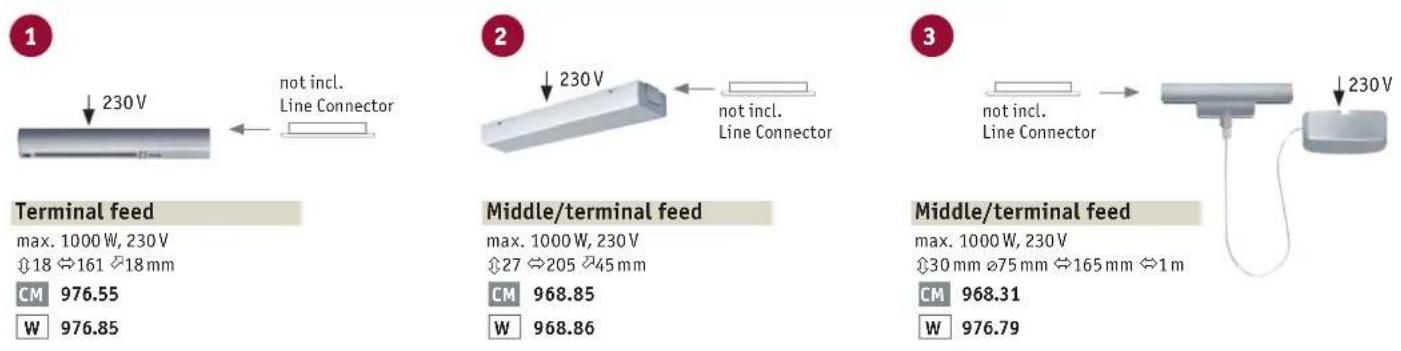

Step 1: Select power input or motion sensor

max. 1000W, 230V
18 161 18 mm
CM 976.55
W 976.85
max. 1000W, 230V
27 205 45mm
CM 968.85
W 968.86
CM 968.31
W 976.79

4

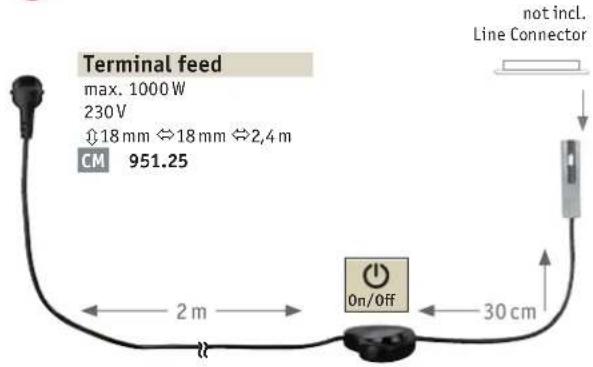

Terminal feed max. 1000 W 230 V 18 mm ⇌ 18 mm ⇌ 2,4 m CM 951.25 not incl. Line Connector 2 m On/Off 30 cm

Terminal power connection can be shortened
max. 1000 W, 230 V
50 mm 0,61 m
CM 951.24

Pure mechanical component diagram with arrows indicating direction (no text or symbols)

Can be shortened

5

Motion Sensor
max. 500 W
230V
34 235 56 mm
CM 953.17
W 953.18

■ Input with motion sensor for URail rail for installing at the ceiling or wall outlet
■ Dusk sensor with infinitely adjustable brightness and on-time of 1-30 minutes
■ Detects even the smallest of movements and keeps the light on permanently

Silhouette of a person sitting in a chair facing a framed picture with a sun symbol (no text or symbols present)

Dusk sensor – the light only comes on once it is dark outside.

Simple geometric shapes including a 3D cube, a framed picture with a crescent moon, and a circular emblem (no text or symbols)

Energy-saving – if no one is in the room, the light stays off

Diagram illustrating light reflection and shadow formation with labeled components: light source, sky, 5m shadow, and visual intensity.

Even small movements are detected and keep the light on.

Step 2: Select rail (with radio control unit option)

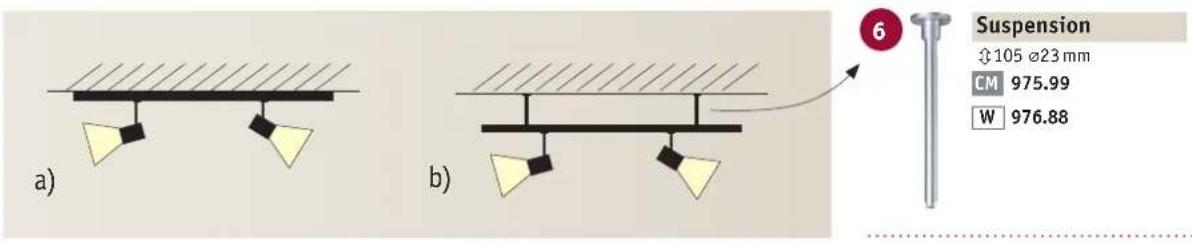

6 Suspension Ø105 Ø23 mm CM 975.99 W 976.88

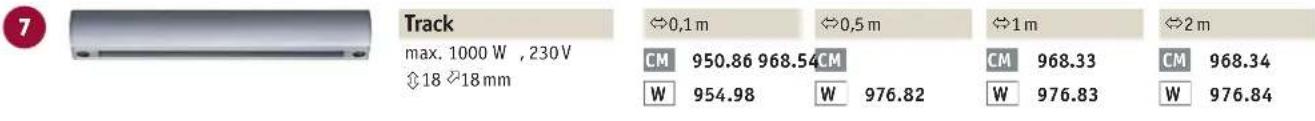

Track max. 1000 W , 230V 18 18 mm ↔0,1 m CM 950.86 968.54 CM W 954.98 W 976.82 ↔0,5 m CM 968.33 CM 968.34 W 976.83 W 976.84 ↔1 m ↔2 m

Close-up of a hand holding a thin metallic strip against a plain background (no text or symbols visible)

Safety Cover strip
10 mm ⇔ 0,68 m
951.26

Close-up of a hand pressing a button on a wall-mounted door panel (no text or symbols visible)

Rail Switch
max. 500 W
230V
18 ⇔ 135 ↗ 18 mm
CM 952.82
W 953.11

The rail switch allows you to switch downstream wall sections on or off directly.

IR Rail-Switch
max. 500 W
230V
18 ⇔ 240 ↗ 18 mm

976.53

976.54

■ Minimum load 3W - suitable for LEDs and halogen
■ Switches and dims the downstream sections

10

IR Remote Control
7 40 85 mm
950.73

■ Remote control for conveniently switching or dimming URail systems.
■ The receiver, integrated into a connector, controls all downstream system sections.
■ The 4 function buttons on the remote control can be used to control 2 separate circuits or 2 dimming processes.

Wireless Adapter
max. 50 W
230V
50 166 19 mm

952.94

952.95

■ Allows single heads and group switching functions to be controlled to switch between different lighting scenarios (as with a 2-phase rail system)
■ All groups can be switched by remote control
■ Max. 50W per adapter, also suitable for halogen lamps

Technical line drawing of a ceiling-mounted fixture with a conical lamp (no text or symbols)

Step 3: Select connector

Flex Connector II

max. 1000 W

18 ⇔ 127 ↗ 18 mm

CM 953.25

W 953.26

12 370 mm Maxiflex Co max. 1000 W ↑18 ↔440 ↑ CM 953.27 W 953.28

Maxiflex Connector

max. 1000 W

18 ⇔ 440 ↗ 18 mm

CM 953.27

W 953.28

Close-up of a metallic pipe or duct with a red circular marker labeled '13' in the top-left corner (no other text or symbols visible)

Line Connector

15 ⇔ 70 ⇔ 11 mm

951.36

X-Connector

18 104 104mm

CM 976.57

W 976.87

T-Connector

18 104 62 mm

CM 976.56

W 976.86

L-Connector

18 62 62 mm

CM 976.48

W 976.49

Power isolating link

18 70 18 mm

951.40

Universal Endcap

18 ⇔ 13 ↗ 21 mm

CM 954.96

W 954.97

LED End Cap

incl. 1×5,8 W

501lm,2.700K

80^

230V

27 141 57 mm

CM 954.79

W 954.80

A+-A

LED Line Connector LED-L-Connector LED T-Connector

incl. 1×5,8W

501lm,2.700K

≤slant 80^

230V

27 225 57 mm

CM 954.77

W 954.78

incl. 1×5,8W

501lm,2.700K

求 80^

230V

27 141 141 mm

CM 954.85

W 954.86 954.82

A++-A

LED Y-Connector

incl. 1×5,8W

501lm,2.700K

80^

230V

27 223 195 mm

CM 954.81

W

A-A

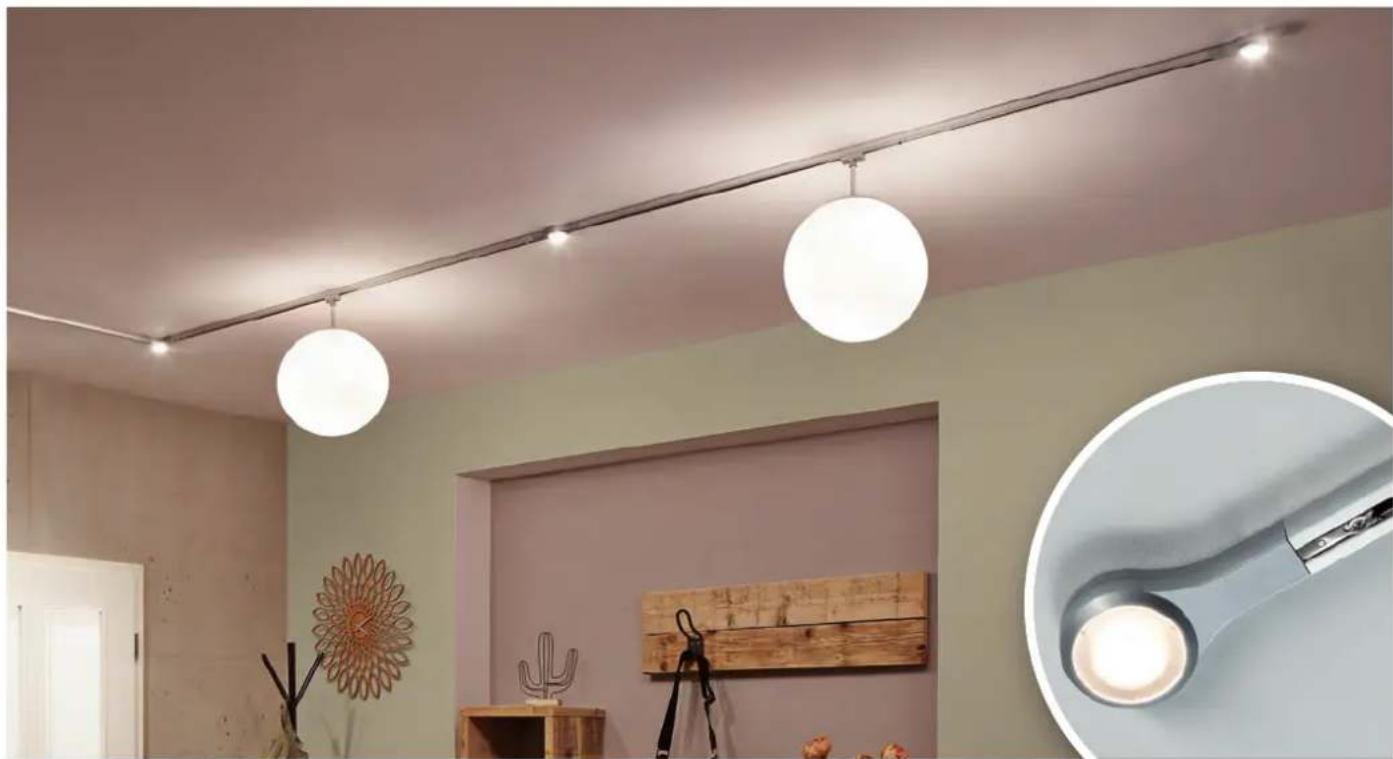

Interior view of a minimalist room with ceiling lights and hanging white circular lamps, featuring a close-up inset of a lamp on a wooden beam (no text or symbols visible)

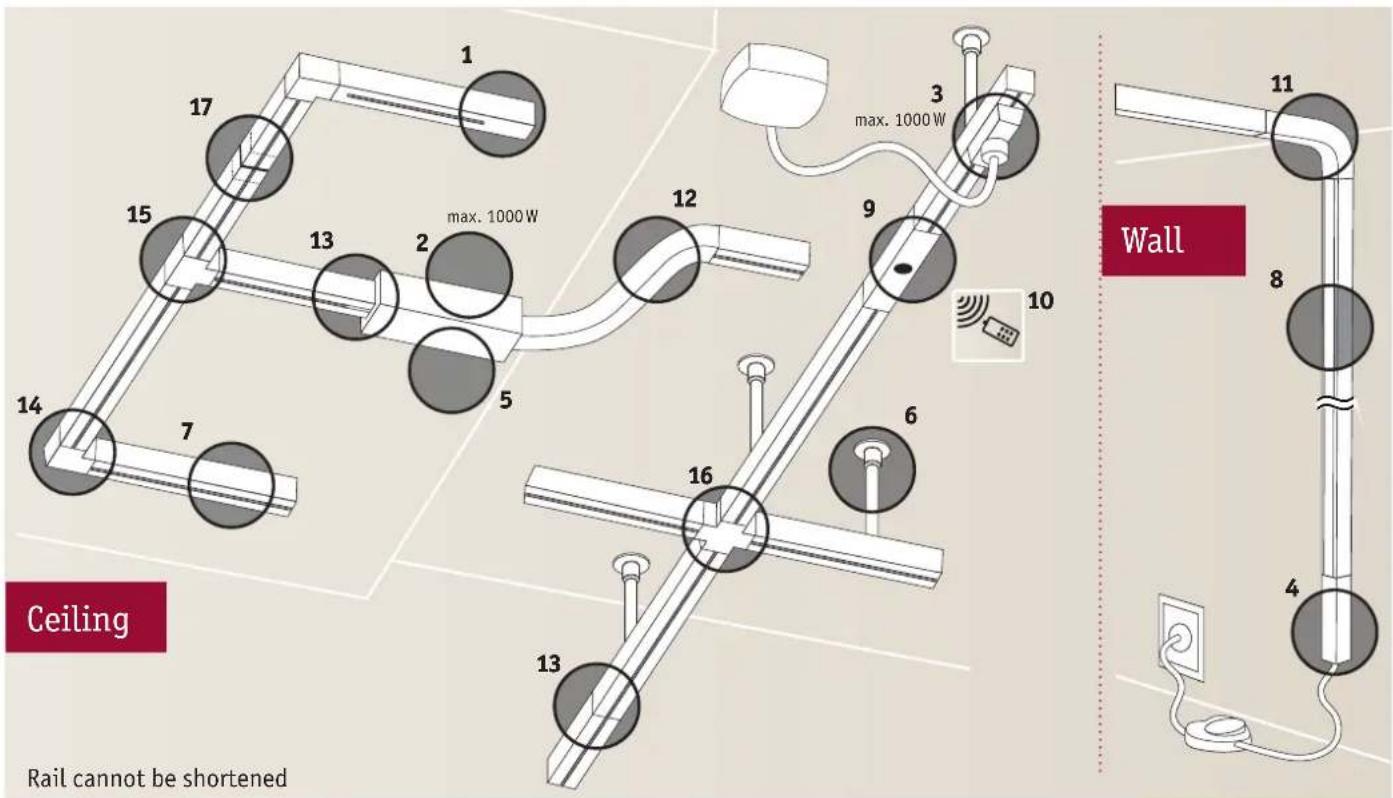

1 17 max. 1000 W 15 2 13 5 14 7 12 9 3 max. 1000 W 10 6 16 13 11 Wall 8 4 Ceiling Rail cannot be shortened

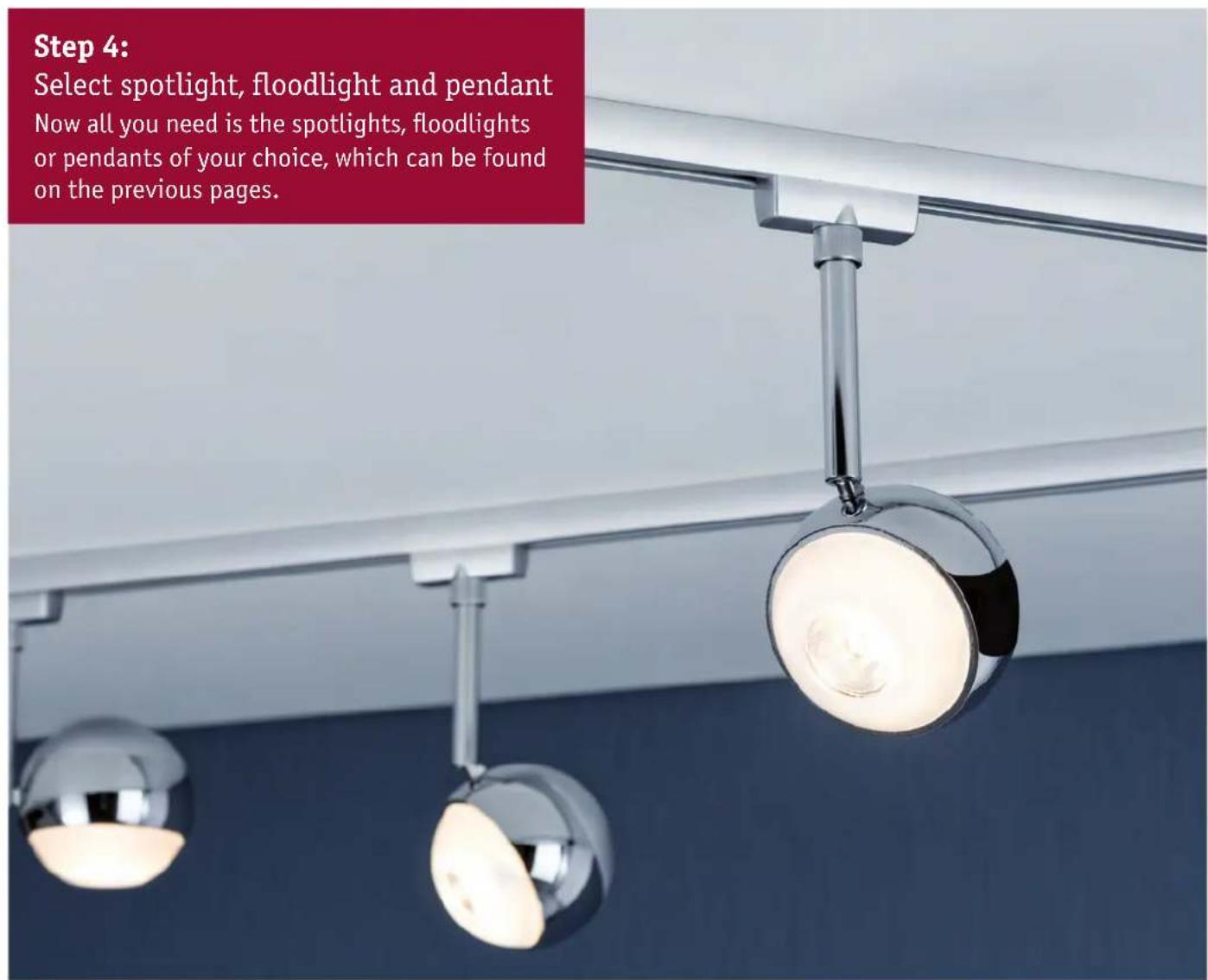

Step 4: Select spotlight, floodlight and pendant Now all you need is the spotlights, floodlights or pendants of your choice, which can be found on the previous pages.

Your personal shopping list

1 Terminal feed Terminal feed

CM 976.55 ____ x W 976.85 ____ x

2 Middle/terminal feed

CM 968.85 ____ x W 968.86 ____ x

3 Middle/terminal feed

CM 968.31 ____ x W 976.79 ____ x

4

CM 951.25 ____ x

5 Motion Sensor

CM 953.17 ____ x W 953.18 ____ x

Terminal power connection

CM 951.24 ____ x

6 Suspension

CM 975.99 ____ x W 976.88 ____ x

7 Track 0,1m

CM 950.86 ____ x

Track 0,5 m

CM 968.54 ____ x W 976.82 ____ x

Track 1,0 m Track 2,0 m

CM 968.33 ____ x W 976.83 ____ x

CM 968.34 ____ x W 976.84 ____ x

IR Rail-Switch

CM 976.53 ____ x W 976.54 ____ x

10 IR Rail switch remote control

950.73 ____ x

Rail-Switch

CM 952.82 ____ x W 953.11 ____ x

Wireless Adapter

CM 952.94 ____ x W 952.95 ____ x

Remote for Wireless Adapter

952.96 ____ x

8 Safety Cover strip

951.26 ____ x

111 Flex Connector II T-Connector

CM 953.25 ____ x W 953.26 ____ x

12 Maxiflex Connector X-Connector

CM 953.27 ____ x W 953.28 ____ x

131 Line Connector

CM 951.36 x W

14

CM 976.48 ____ x W 976.49 ____ x

●

CM 976.56 ____ x W 976.86 ____ x

[Non-Text]

CM 976.57 ____ x W 976.87 ____ x

The image is too blurry to recognize any text content.

Power isolating link

CM 951.40 x W

Universal EndcapL-Connector

CM 954.96 ____ x W 954.97 ____ x

URail

Install LED spotlights and pendants throughout your home

Introduce various forms of lighting to your home using just a single power supply. Provide the different areas of a room with their own unique atmosphere whilst maintaining a harmonious overall impression.

You can connect up to ten rail elements to the power supply at a capacity of up to 1,000 watts. URail is a high-voltage system (230 V) and therefore does not require a transformer as it is connected directly to the mains. Spotlights and pendant are easy to install on the rails - ideal for setting dinner parties in the right light.

Depending on the height of your ceiling, you can choose between two types of installation: the rails can be mounted on spacers or directly on the ceiling.

5 Jahre Year Ans Jaar Años Annos Garantie

own unique pression. be between pacers or

WORLD OF LIGHT

with

Anita & Jens

Light planning with URail

Visit us at YouTube!

In Paulmann's World of Light, we use short videos to show you how to light up your home.

www.youtube.com/PaulmannLicht

Two smiling people posing together, one holding a small object and the other holding a camera (no visible text or symbols)

URail assembly

www.paulmann.com

Paulmann Licht GmbH | Quezinger Feld 2 | 31832 Springe / Germany

The energy efficiency class label appears as follows:

Professioni F86.45 ① A B C D E 07/2012

① This luminaire is suitable for lamps with energy classes A ^++ -E.

Example Example Example Example

Arctus A ^++ -E

max. 60 W, E27

230V

80∅275mm

EAN 4000870 703458

703.45

① This luminaire is suitable for lamps with energy classes A ^+ -E.
② □ This luminaire comes with a class A lamp.

Futura A ^+ -E

incl.2×3,5W,GU10,A

230V

150 275 80 mm

EAN 4000870 601792

601.79

Podek screen 2012.03 ① ② LED ③ ④ 874/2012

① This luminaire contains built-in LED lamps.
② The lamps in the luminaire cannot be replaced.

Orbit A++-A

incl. 1×18,5 W

1100lm,3000K

230V∅360∅57mm

EAN 4000870 703908

703.90

③ □ Lamp energy efficiency class: A

LED

2,2W G9(A)

∅15 ↩ 50 mm

200 lm

2700 K

284.38
