Product Type	Bagless Canister Vacuum Cleaner with Cyclone System
Model	AR4007
Brand	Arzum
Power Consumption	700 W
Voltage	220-240 V ~ 50/60 Hz
Filtration System	HEPA 13 washable air outlet filter, washable metal cyclone filter, engine protector filter
Dust Collection	Bagless, transparent cyclone dust reservoir
Suction Control	Electronic button on main body + mechanical slider on handle
Cord Rewind	Automatic with yellow/red tape indicators
Telescopic Tube	Adjustable metal tube
Turbo Brush	Air-driven rotating brush for carpets
Carpet/Floor Brush	Adjustable for hard and soft surfaces
Accessories Included	Narrow nozzle, small brush, upholstery nozzle
Hose	Flexible hose with soft touch handle
Handle	Soft touch
Motor Protection	Engine protector filter
Air Outlet Filter	HEPA 13 washable
Cyclone Filter	Washable metal anti-engorging
Maintenance	Washable filters, easy-empty dust reservoir
Storage	Park position on carpet/floor brush
Safety	Unplug before maintenance; do not use without filters; keep away from heat sources
Country of Origin	China
Manufacturer	Jiangsu Midea Chunhua Electric Appliance Co., Ltd.
Importer	Arzum Elektrikli Ev Aletleri San. ve Tic. A.Ş.

Frequently Asked Questions - AR4007 Arzum

How do I empty the dust reservoir?

To empty the dust reservoir, first unplug the vacuum cleaner. Remove the hose from the hose inlet. Press the dust reservoir removal button and take out the reservoir. Open the cover by pressing the cover locking button (PUSH) located under the reservoir and empty the contents. Ensure the cover is closed completely before reattaching.

How often should I clean the filters?

Clean the filters regularly to maintain performance. The washable metal cyclone filter and HEPA 13 filter should be cleaned when the dust bag indicator turns red or suction power decreases. Rinse them under running water and allow to dry completely before reinserting. The engine protector filter can also be washed.

What does the dust bag indicator light mean?

The dust bag indicator turns red or suction power decreases significantly when it's time to empty the dust reservoir. If the indicator remains red after emptying, check for clogs in the telescopic tube, hose, or nozzles, and ensure the motor protection filter or air outlet filter is not dirty.

Can I use the vacuum cleaner to pick up liquids?

No, never use the vacuum cleaner for cleaning outer space or wet surfaces. Do not let the appliance contact water or other liquids. It is designed for dry cleaning only.

How do I adjust the suction power?

Suction power can be adjusted electronically using the suction power adjustment button on the main body. Additionally, you can use the mechanical suction power adjustment slide on the soft touch handle for quick control while cleaning.

How do I use the turbo brush?

Attach the turbo brush to the telescopic tube. It has a rotating brush driven by airflow that effectively picks up fiber-like impurities from carpets and floor coverings. Do not keep the brush stationary on one spot for too long to avoid damaging the carpet. Clean the brush regularly from threads and hairs.

How do I rewind the power cord?

After use, unplug the vacuum cleaner, then press the cord rewinding button on the main body. Hold the plug to prevent it from hitting the body while the cord retracts automatically.

What accessories are included?

The vacuum cleaner comes with a turbo brush, carpet/floor brush adjustable for surfaces, narrow nozzle, small brush, and upholstery nozzle. These allow cleaning of various surfaces and hard-to-reach areas.

How do I replace the HEPA filter?

First, unplug the vacuum cleaner. Open the HEPA filter cover on the body, remove the old HEPA filter, and replace it with a new one. It is recommended to use original Arzum filters. The HEPA filter is washable, but if damaged or worn, replace it via an authorized service.

What should I do if suction power drops?

Check the dust reservoir and empty it if full. Clean the filters (metal cyclone, engine protector, HEPA). Inspect the telescopic tube, hose, and nozzles for blockages. If the indicator light remains red after cleaning, contact Arzum Authorized Service for assistance.

USER MANUAL AR4007 Arzum

AR 4007 GRANDE ENERGY CYCLONE FİLTRELİ ELEKTRİKLI SÜPÜRGE

Close-up of a mechanical component with threaded tube and curved pipe, showing directional arrows (no text or symbols)

Diagram of a vacuum cleaner with attached stand and internal component, showing mechanical assembly (no text or symbols)

Close-up of a black vacuum cleaner on a textured surface (no visible text or symbols)

Close-up of a black electronic device with a 350-pin connector (no visible text or symbols)

Close-up of a dark mechanical component with textured surface (no visible text or symbols)

Dar uçlu boru:

Close-up of a black mechanical component with internal grooves (no visible text or symbols)

Close-up of a black mechanical component with a protruding rod (no visible text or symbols)

Close-up of a black mechanical component with a T-shaped protrusion (no visible text or symbols)

Döşeme Başlığı:

Close-up of a mechanical component with directional arrows indicating motion or movement (no visible text or symbols)

Close-up of a black handheld device with two side-by-side views showing internal components (no text or symbols visible)

CİHAZINIZIN KULLANIMI

Close-up of a mechanical component with a downward arrow indicator (no text or symbols)

Close-up of a vacuum cleaner's airbag with an arrow pointing to the component (no visible text or symbols)

Close-up of a transparent cylindrical device with internal components and directional arrows indicating motion (no text or symbols visible)

Close-up of a mechanical component with a circular knob and a perforated square feature (no text or symbols visible)

Close-up of a vehicle's rear wheel and side panel showing a mesh grille and a small object, with no visible text or symbols.

Close-up of a vacuum cleaner's air vent with grid pattern and directional arrow (no text or symbols visible)

Close-up of a black mechanical component with a white arrow pointing to a specific area (no text or symbols visible)

Close-up of a mechanical component with a central bore and a curved arrow indicating rotation (no text or symbols visible)

Close-up of a mechanical component with a circular housing and an arrow pointing to a feature (no visible text or symbols)

Close-up of a gray plastic mechanical component with a flanged top and side port (no text or symbols visible)

Close-up of a vacuum cleaner with attached brush and fan (no visible text or symbols)

Litanghe Road, Xiangcheng Economy

Development Zone, Xiangcheng District, Suzhou 215131, P.R.China

Tel: [phone]

İthalatçı:

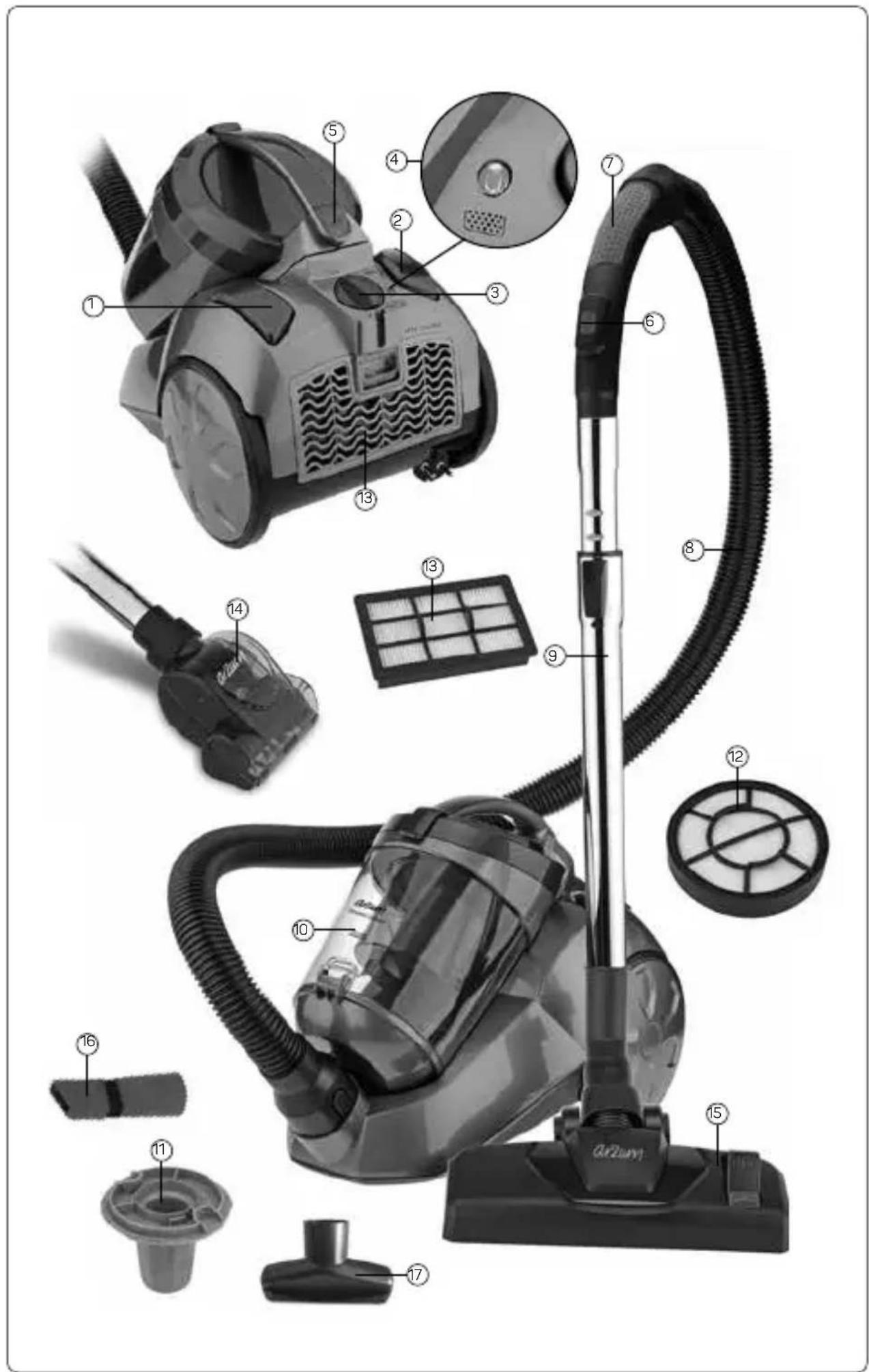

AR 4007 GRANDE ENERGY CYCLONE SYSTEM VACUUM CLEANER

1- On/Off switch
2- Cord rewinding button
3- Suction power regulation button
4- Dust bag indicator
5- Dust reservoir removal button
6- Mechanical suction power adjustment slide
7- Soft touch handle
8- Hose
9- Telescopic tube

10- Transparent dust collection reservoir
11- Washable, anti-engorging metal cyclone filter
12- Engine protector filter
13- Hepa13 washable air outlet filter and filter lid
14- Turbo brush
15- Carpet/floor brush adjustable according to the kind of surface
16- Narrow nozzle and small brus
17- Upholstery nozzle

In order to obtain utmost results from your appliance, please ready CAREFULLY this user's manual and save it for further use.

IMPORTANT SAFEGUARDS

• Make sure that the voltage indicated on the appliance corresponds with the main voltage in your home. Our company shall not be held liable for any failures owing to any discrepancy and such failures shall not be covered by the guarantee.

- Your appliance has been designed for household use only. Do not use for commercial or industrial purposes. Otherwise, it shall not be covered by the guarantee.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

• To prevent harming your appliance do not use extension cords that supply insufficient current.
• ALWAYS unplug your appliance from outlet when not in use and before putting in or taking off any accessories, and before cleaning and maintenance.
  · Do not leave your appliance in operating state when you do not use it and unplug it.
  · NEVER USE YOUR APPLIANCE FOR CLEANING OUTER SPACE OR WET SURFACES. DO NOT LET YOUR APPLIANCE TO CONTACT WITH WATER OR OTHER LIQUIDS.
• Do not move your appliance by its cord. Be careful mains plug not to be squeezed to the corners, door thresholds, not to be cut and scraped by sharp objects. Do not move your appliance over its cord. Avoid contact of cord with hot surfaces.
• To unplug, grasp plug and pull from the power outlet. Never pull the cord.
• Do not attempt to remove the mains plug of your appliance when your hands are wet.
• Be careful not to absorb the objects preventing suction of your appliance. If there is any object preventing its suction, continue to use your appliance after cleaning it.
• Keep away your hands, hairs, fingers, clothes from operating parts of your appliance.
  · Switch off your appliance before unplugging it.

• Special care is required especially for cleaning the stairs.

• Do not use your appliance to clean any flammable materials such as cigarette, matchsticks or active cigarette ashes, any flammable liquids and organic solvents and acids.

• While rewinding the cord, hold the plug in your hand and prevent it to hit the body.
• Keep away your appliance from direct heat sources as hot stove, burner or in a heated oven.
• While connecting or changing the hose of your appliance, given accessories, unplug it.
• NEVER use your vacuum cleaner while its filters, dust filter or dust bag are not mounted on their places.
• If you are in doubt that the cord or plug is damaged, or that your device malfunctions in any manner whatsoever, including dropping down, etc., never start up your appliance, nor repair it by yourself. Take it to the nearest Arzum Authorized Service.
• Contact Arzum Authorized Service for repair, and spare parts, and use original accessories and dust bag only.
  · Use your appliance as recommended and for its intended purposes.

USE OF ACCESSORIES

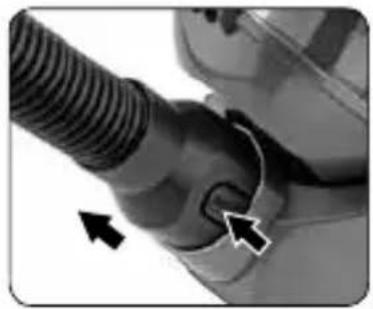

How to mount / remove the hose:

Insert the hose into its socket located in the hose inlet of the nozzle. To remove the hose, press the button on the hose nozzle and pull towards yourself.

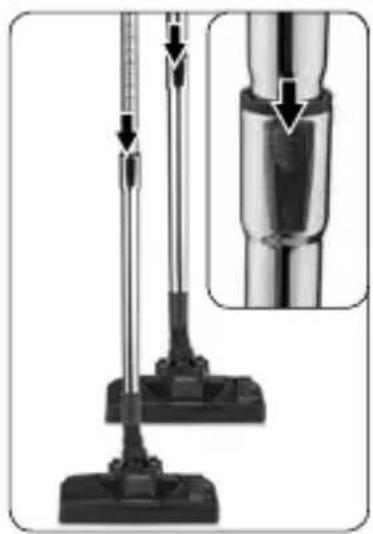

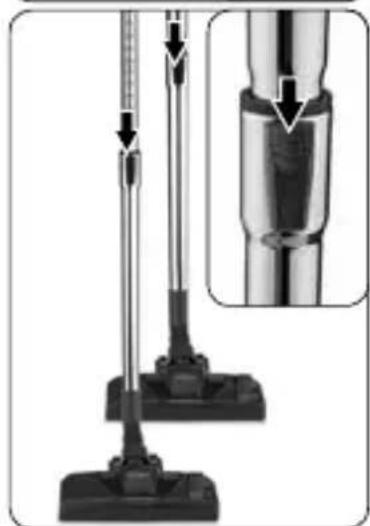

How to adjust Telescopic Tube:

Fit the telescopic tube onto the soft touch handle of hose. You can adjust the telescopic tube in such length you want, by pressing the button on the telescopic tube and by moving the metal tube inwards/outwards.

Close-up of a mechanical component with threaded tube and curved arrow indicating rotation (no text or symbols)

Diagram of a vacuum cleaner with a close-up view showing internal components (no text or symbols)

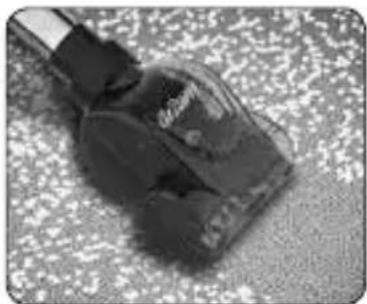

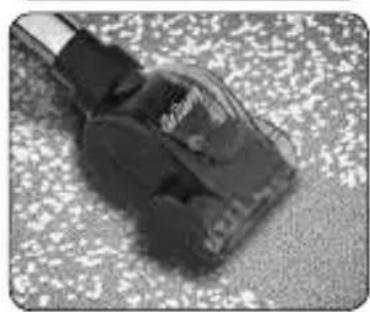

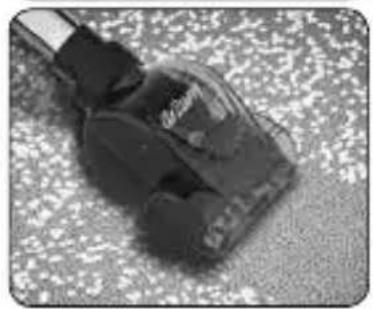

Turbo Brush

- Turbo brush has a rotary brush driven by air flowing in the nozzle casing. By the rotating brush the pieces is easily cleaned. The use of the rotary brush on the turbo head increases the effectiveness of picking up the fibre-like impurities from carpets and floor coverings.

Close-up of a black vacuum cleaner on a textured surface (no visible text or symbols)

- Do not keep the turbo head on the same spot for longer than necessary while vacuuming. Keep the turbo head moving across the carpet all the time otherwise you can damage the carpet.

- The brush roll or its suction canal may be blocked with small pieces of materials, if this happens turn your vacuum cleaner off and remove the impurities blocking the roll of suction canal.

- NEVER touch while the brush is rotating.

- Regularly cleaning the pieces of threads, strings, hairs etc. is increase the performance of the turbo head. For cleaning it, firstly turn your vacuum cleaner off and remove the turbo

Close-up of a black connector with four ports and a cable (no visible text or symbols)

brush from telescopic tube and then clean the turbo head.

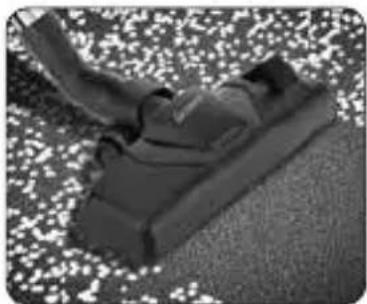

Carpet / floor brush adjustable according to the kind of surface:

It is used for dry cleaning of both hard and soft surfaces. You can clean the hard surfaces with the brush placed outside, and the soft surfaces, such as carpets, etc. with the brush placed inside. Ensure inserting or removing the brush by pressing the button on the brush.

Close-up of a mechanical component with textured surface (no visible text or symbols)

Tube with narrow nozzle:

- It is used for cleaning of especially unapproachable areas such as armchair corners, radiator intervals, wall borders and corners etc. narrow areas.

Close-up of a black mechanical component with ribbed texture (no visible text or symbols)

- You can use the small brush to clean areas that narrow nozzle cannot reach, such as furnitures, lamps, shelves and books.

Close-up of a black mechanical component with a protruding rod (no visible text or symbols)

Upholstery Nozzle:

In places where the narrow nozzle is not convenient to use, this part is used (for cleaning upholstery, cloths, beds, etc.)

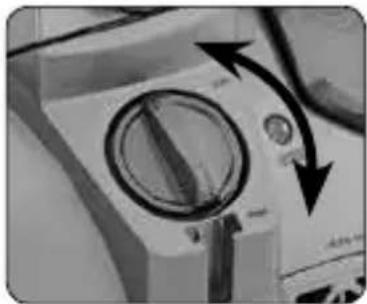

Electronic setting of suctioning power:

You can increase or decrease the power by using the suction power adjustment button which is placed on the body.

Close-up of a black plastic mechanical component with a T-shaped protrusion (no visible text or symbols)

Close-up of a mechanical device with circular components and directional arrows (no visible text or symbols)

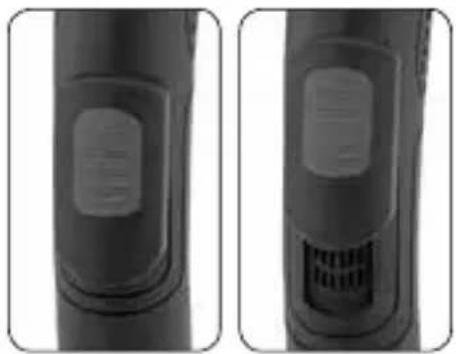

Mechanical Suctioning Power Adjustment:

Using the air adjustment button located on the hose soft touch handle makes it easier for you to clean tulles, curtains, etc.

Close-up of a black handheld device with two side views showing internal components (no text or symbols visible)

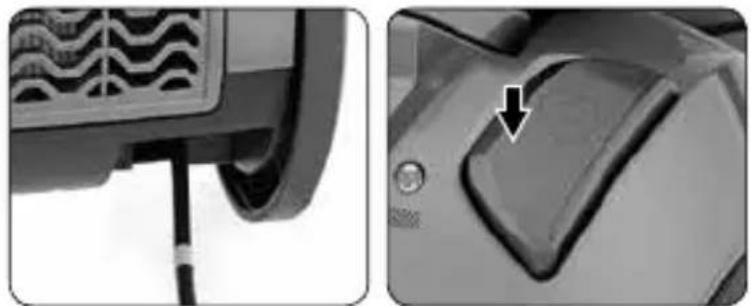

USING YOUR APPLIANCE

CAUTION: Before using your appliance, make sure that filters and dust reservoir are attached.

- Before using your appliance extend its mains cable to the proper length and plug in the wall socket. After the yellow tape

Close-up of a car's air conditioner panel and its side panel, showing airflow patterns and a handle (no text or symbols)

appears on the cord, the cord is in the most suitable length for use.

When red tape appears, NEVER force too much to pull out the cord.

· Operate your appliance by pressing on/off switch on the main body.
- Press on/off switch again in order to finish the cleaning process.
- After unplugging, press the cord rewinding button on the main body and then collect the cord.

CLEANING AND CARE

· Always turn off your appliance and unplug your mains cable from the wall socket before attempting any maintenance and care process.
- Clean body and interior section of your appliance with a wet cloth and then make sure that they are dried. Do not use abrasive substances or chemical solvents for cleaning your vacuum cleaner.

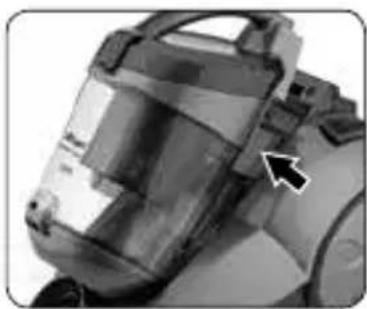

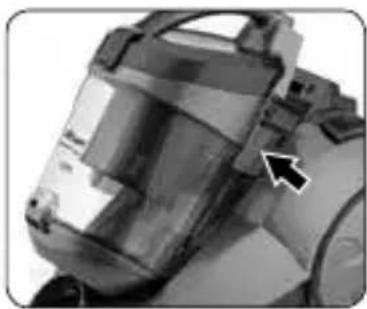

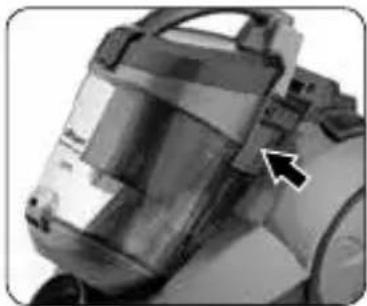

Removing and Emptying the Dust Reservoir

· In order to remove the dust reservoir, firstly eject the hose from hose inlet. By pushing the dust reservoir removal button, take the reservoir out.

• Ensure to open the cover by pressing cover locking button (PUSH) under the dust reservoir in order to empty any dust. Empty the reservoir.
• Make sure that cover is closed completely for further use.

Close-up of a mechanical component with a black arrow pointing to a circular feature (no text or symbols visible)

Close-up of a mechanical device with a black arrow pointing to a component (no visible text or symbols)

Diagram of a device with internal components and directional arrows indicating motion (no text or symbols)

Dust Bag Indicator

- Turning the indicator to red or decrease of suctioning power considerably indicates that the time for emptying the dust reservoir comes.

CAUTION: If the indicator light is still on even after emptying the dust reservoir, please check the following cases:

Close-up of a car's front panel showing the circular head and a perforated grille (no text or symbols visible)

• Telescopic tube, hose, suctioning nozzle, or cleaning nozzles may be clogged.
• Motor protection filter or air outlet filter may get dirty.
• NEVER operate your vacuum cleaner unless indicator light turns to its normal position.

REPLACING THE FILTERS

• Before replacing the filters, be careful that your appliance is not plugged in the wall socket.
• Before attaching the filters, NEVER operate your vacuum cleaner.

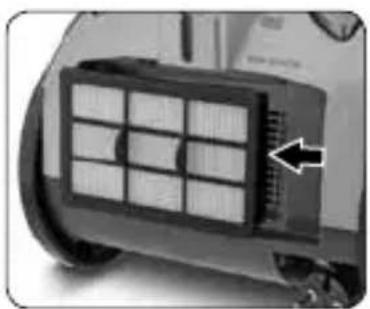

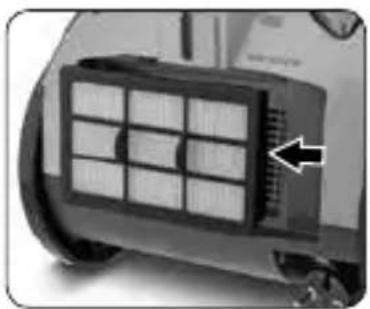

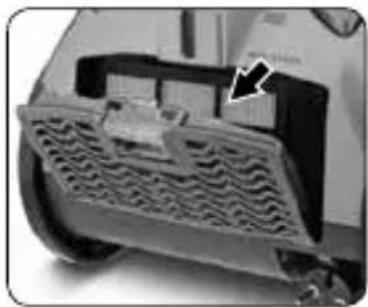

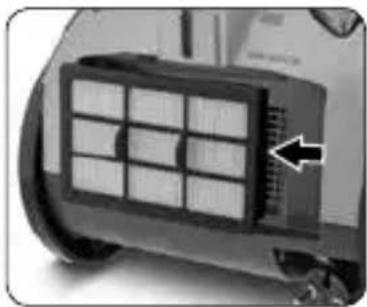

Replacing HEPA Air Outlet Filter

- HEPA filter ensures better cleaning conditions for those suffering respiratory-track illness, children, and those suffering allergy. Hepa filter is a useful device with superior properties.

Close-up of a mechanical component with a textured base and internal structure, no visible text or symbols

Close-up of a vacuum cleaner's air conditioner unit with grid and airflow indicators (no text or symbols visible)

- Open Hepa filter cover. Remove the hepa filter from its socket on the body and then replace it.

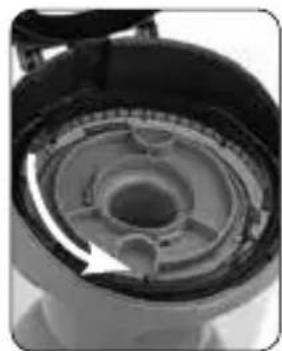

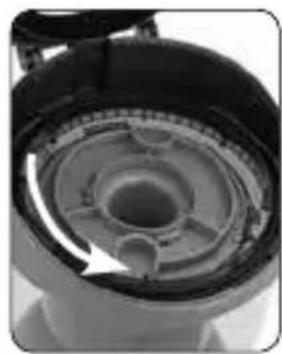

Replacing Hepa Motor Protection Filter

- Remove the dust reservoir. Open the reservoir lid by pulling the latch on it. Open the lid underlying the engine protector filter. You can remove and wash the metal filter.

Close-up of a mechanical component with a white arrow pointing to a specific area (no text or symbols visible)

Close-up of a mechanical component with concentric rings and a highlighted section (no visible text or symbols)

Close-up of a mechanical component with a circular top and arrow indicator (no visible text or symbols)

Close-up of a gray plastic mechanical component with a flanged top and central hole (no text or symbols visible)

To renew filters, you may call on Arzum Authorized Service.

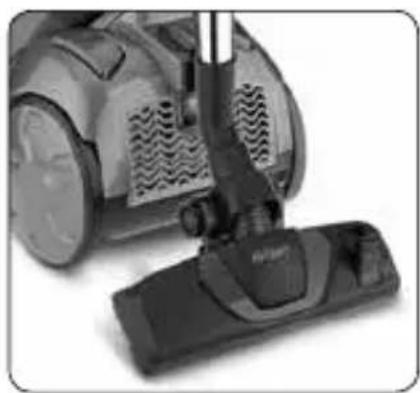

EASY TO CARRY AND STORE

- You can easily carry and store your appliance by affixing the extension of the apparatus located on the carpet/floor brush adjustable according to the kind of surface onto park position socket on your appliance.

Close-up of a vacuum cleaner's hood and base (no visible text or symbols)

Product Life 10 years Technical Specifications 220-240 V \~ 50/60 Hz 700 W

HANDLING AND SHIPMENT

• During handling and shipment, your appliance must be kept in original package in order to prevent damages to its parts.
• Keep at normal position during shipment.
• Do not drop the product when transporting and protect from impacts.
  • After delivery of the product, failures and damages that may occur while transporting are not covered by warranty.

The product is in compliance with the EEE Directives. WEEE

This product contains recyclable materials that compliance with the WEEE directives. Do not dispose this product as unsorted municipal waste. Please contact your local municipality for the nearest collection point.

Manufacturer: Jiangsu Midea Chunhua Electric Appliance Co., Ltd.

Litanghe Road, Xiangcheng Economy Development Zone, Xiangcheng District, Suzhou 215131, P.R.China Tel: [phone]

Importer:

Arzum Elektrikli Ev Aletleri San. ve Tic. A.Ş. Otakçılar Caddesi No: 78 Kat: 1 B Blok No: B1b Eyüp 34050 İstanbul Türkiye Made in China Tel: [phone] Fax: [phone]

www.arzum.com

AR 4007 GRANDE ENERGY STAUBSAUGER MIT CYCLONE-SYSTEM FÜR BEUTELLOSEN EINSATZ

Close-up of a mechanical component with threaded shaft and connector, showing directional arrows (no text or symbols)

Diagram of a vacuum cleaner with attached circuit board and internal component, showing alignment and insertion (no text or symbols)

Close-up of a vacuum cleaner on a textured surface (no visible text or symbols)

Close-up of a black electronic device with ports and cables (no visible text or symbols)

Black-and-white photo of a dark mechanical component lying on a textured surface (no visible text or symbols)

Schmales Rohrende:

Close-up of a black mechanical component with internal grooves (no visible text or symbols)

Close-up of a black mechanical connector or fitting (no visible text or symbols)

Polsterdüse:

Close-up of a black mechanical component with a cylindrical shaft (no visible text or symbols)

Close-up of a mechanical component with circular features and directional arrows (no visible text or symbols)

Close-up of a black handheld device with two side views showing internal components (no text or symbols visible)

EINSATZ IHRES GERÄTES

Close-up of a car's front wheel and side arm, showing grille and cable (no text or symbols visible)

Close-up of a mechanical component with a black arrow pointing to a specific area (no visible text or symbols)

Close-up of a mechanical component with a downward arrow indicator (no text or symbols)

Close-up of a vacuum cleaner's airbag with a black arrow pointing to the side (no visible text or symbols)

Mechanical device with rotating components and a close-up inset showing a component (no visible text or symbols)

Close-up of a car's front panel showing the circular head and perforated grille (no text or symbols)

Close-up of a mechanical component with a textured base and arrow indicating direction (no visible text or symbols)

Close-up of a vacuum cleaner's air vent with grid pattern and directional arrow (no text or symbols visible)

Close-up of a vacuum cleaner's hood and base, showing mechanical components and airflow path (no text or symbols visible)
