illusION effect - Styler FAKIR - Free user manual and instructions

Product Type	Hair Styler
Model	illusION effect
Brand	Fakir
Power Consumption	1200 W
Voltage	220-240 V, 50/60 Hz
Temperature Settings	5 levels (140°C - 220°C)
Plate Material	Ceramic with Ionic Technology
Heating Time	Up to 230°C in 30 seconds
Automatic Shut-Off	Yes, after 60 minutes
Swivel Cord	Yes, 360° swivel cord (2.5 m)
Dimensions	30 x 4 x 6 cm
Weight	320 g
Functions	Straightening, curling, waving
Safety Features	Overheat protection, auto shut-off, cool tip
Maintenance	Wipe plates with damp cloth after each use
Spare Parts	Replaceable ceramic plates (ref. 123456)
Warranty	2 years

Frequently Asked Questions - illusION effect FAKIR

How long does it take to heat up?

The illusION effect heats up to 230°C in approximately 30 seconds.

What is the maximum temperature?

The maximum temperature is 220°C, with 5 adjustable settings from 140°C to 220°C.

Can I use it on wet hair?

No, always use on dry hair to avoid damage and ensure safety.

Does it have an automatic shut-off?

Yes, it automatically turns off after 60 minutes of inactivity.

How do I clean the plates?

Unplug the device, let it cool, then wipe the plates with a damp cloth. Do not use abrasive cleaners.

Can I replace the plates?

Yes, replacement ceramic plates are available under reference 123456.

Is the cord swivel?

Yes, the cord has a 360° swivel for easy maneuvering.

What is the power consumption?

The device consumes 1200 W of power.

Does it have ionic technology?

Yes, the ceramic plates feature ionic technology to reduce frizz and add shine.

What is the voltage?

It operates on 220-240 V and 50/60 Hz. Check your local voltage before use.

USER MANUAL illusION effect FAKIR

Black hair brater with needle-like bristles and a circular handle, no visible text or symbols on the body.

Simple line drawing of an open box with an upward arrow on the lid (no text or symbols)

HINWEIS!

Information About the Operating Instructions.... 11

Liability....11

Notices in the Operating Instructions 11

CE Declaration of Conformity.... 12

Intended Use 12

Unauthorized Use....12

Safety is Important....12

Important Safeguards....12

Unpacking....13

Product specification 13

Safety Precautions 14

Product Features....15

Usage Instructions....15

Notice 16

Storage instructions....16

Waste Disposal....17

Dispatch....17

Thank you for purchasing Fakir illusION effect Electrical Hair Straightening Brush. It was developed and manufactured to work reliably for many years.

Information About the Operating Instructions

These operating instructions are intended to enable the safe and proper handling and operation of the appliance.

Read these operating instructions carefully before using the appliance for the first time.

Keep the operating instructions in a safe place. Include these operating instructions when passing the appliance on to another user.

Liability

Fakir will accept no liability for damages resulting from failure to comply with the operating instructions.

Fakir cannot assume any liability in case the appliance is used for other purposes than its intended use or handled, repaired or serviced improperly.

Notices in the Operating Instructions

WARNING!

Indicates notices which, if ignored, can result in risk of in jury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

NOTICE!

Emphasizes tips and other useful information in the operating instructions.

CE Declaration of Conformity

This appliance fulfills the requirements of the Appliance and Product Safety Law (GPSG) and the EU Directives. 2004/108/EC “Electromagnetic Compatibility” and 2006/95/EC “Low-Voltage Directive”. The appliance bears the CE mark on the rating plate.

Intended Use

This product designed for just household use. It is not suitable for Business and industry type. Otherwise it will be accepted as “out of warranty conditions” by our Authorized Services.

Unauthorized Use

• This appliance is not designed to be used by persons (including children) with limited physical, sensory or mental capacities or by persons lacking in experience and/or knowledge, unless they are supervised by someone who is responsible for their safety or have received instructions on how to use the appliance.
• Children should be supervised to ensure that they do not play with the appliance. Electric appliances are not toys for children! Therefore, use and store the appliance away from the reach of children. Children do not recognize the danger involved with handling an electric appliance. Do not let the power cord dangle from the appliance...
• Keep packaging films away from children - danger of suf-location!

Safety is Important

WARNING!

For yours and other safety please read the instructions before using the appliance. Please keep this instruction in a safe place for the further use. If you pass the appliance on, pass on the instructions too.

Important Safeguards

NOTICE!

Repairs and maintenance may by performed only by trained technicians (e.g. Fakir customer service). Only original Fakir replacement parts may be used. Improperly repaired or serviced appliances may pose a danger to the user. Fakir Elektrikli Ev Aletleri DIŞ Tic A.Ş. will Not be responsible of any problem if any repair or maintenance made by other than Fakir Services.

Unpacking

Unpack the device and check the content of the packaging for completeness (see scope of supply). Should you note any damage incurred during transit, please contact your dealer immediately.

WARNING!

Never use a defective appliance.

Simple line drawing of an open box with an upward arrow inside (no text or symbols)

NOTICE!

Keep the packaging for storage and future transports (e.g. for moves, service).

Technical Specifications

Power consumption : 50 Watt

Voltage : 100-240V AC 50/60 Hz

Protection class : II

Maximum temperature : 220°C

Usage life : 7 years

Safety Precautions

WARNING!

The polyethylene bags over the product or its packaging may be dangerous.

Keep these bags out of the reach of babies and children. Never use them in cribs, children's beds, pushchairs or playpens.

The thin film may cling to the nose and mouth and prevent breathing. A bag is not a toy.

WARNING!

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

1. If you are using the unit in a bathroom, unplug it after you have finished using it.

2. Never immerse the unit in water or any other liquid.

3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

4. Do not use the unit if it has fallen or if it appears to be damaged.

5. Do not leave the unit unattended when it is plugged in or switched on.

6. Unplug the unit immediately if you have problems when using it.

7. Do not use any accessories other than those recommended by manufacturer.

8. Unplug the unit after each use and before cleaning it.

9. Avoid any contact between the unit's hot surfaces and your skin, in particular, your ears, eyes, face and neck.

10. This unit is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or by persons who lack experience or knowledge, unless they are supervised or have been given instructions before hand on the use of the unit by a person responsible for their safety. Children should be supervised to make sure they do not treat the unit like a toy.

11. Allow the unit to cool before storing.

12. To prevent damage to the cord, do not wrap it around the unit and ensure it is stored without twisting or folding it.

13. Burn hazard. Keep appliance out of reach from young children, particularly during use and cool down.

14. Always place the appliance with the stand if any, on a heat resistant, stable flat surface.

SAVE THESE INSTRUCTIONS

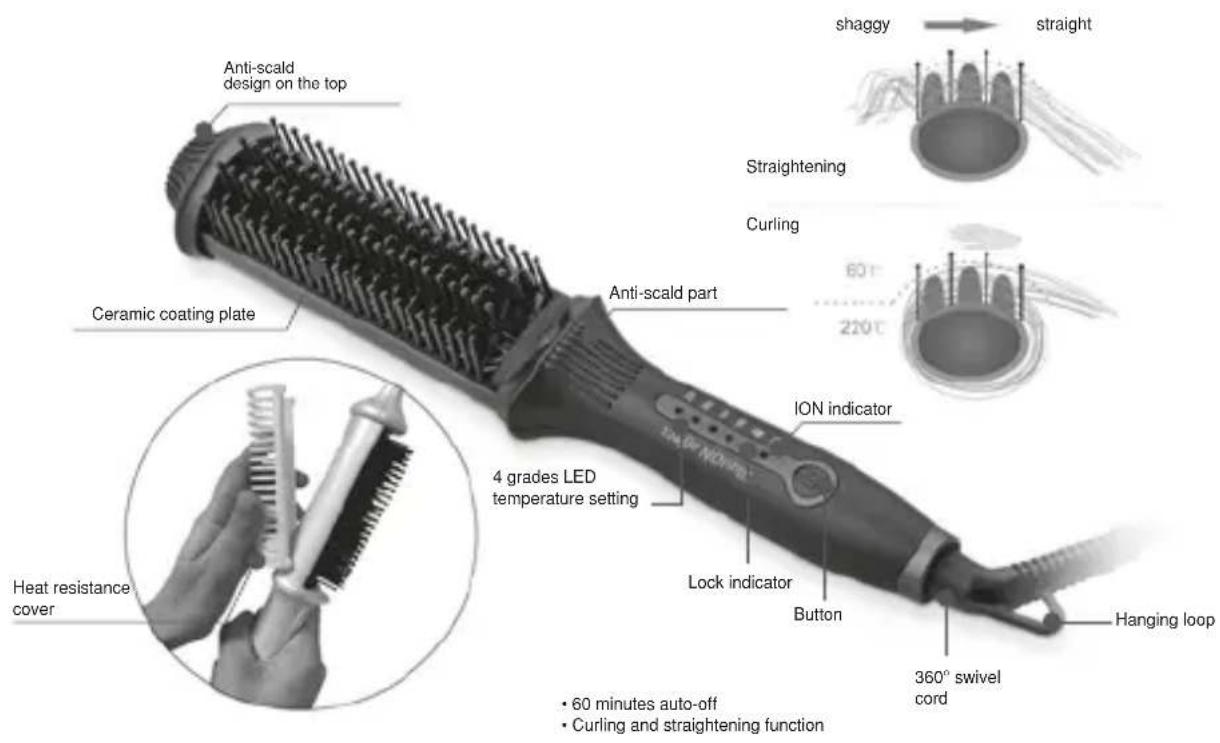

Product Features :

1. 4 grades LED temperature setting:

LED1-ION,

LED2-LOCK,

LED3-160 °C,

LED4-180 °C,

LED5-200 °C,

LED6-220 °C

1. 60 minutes auto-off: under the working state of heating, the brush will turn off automatically after 60mins which is timed from when you stop operation.
2. 360°swivel cord: when do the modeling, will never entangled and easy follow your any inclinations to create a perfect hairstyle
3. A movable Heat resistance cover: To prevent burns while making hair style
4. Over throw the design of traditional hair straightener, and curly, using the comb technology, protect hair smooth and bright to avoid hair damage
5. Can make all kinds of model for straight and curly hair.
6. ION function

Usage Instructions:

1. Connect the plug with the power switch. The default state of the lock is unlocking.
2. Push the button. The LED1-ION light turns on, and the LED3-160°C light turns on at same time, the brush starts heat to 160°C.
3. Push the button again. The LED4 light turns on, the brush starts heat to 180^ C.
4. Push the button again. The LED5 light turns on, the brush starts heat to 200 °C.
5. Push the button again. The LED6 light turns on, the brush starts heat to 220 °C.
6. The light will keep flashing during the heating and stop to keep bright when it reaches the set temperature.
7. Push the button again to power off. The brush stops heating.
8. Put the movable Heat resistance cover on bottom of the brush.
9. There is buzzer sound when start up. Tow short tones mean start up and one long tone means power off.
10. Under the working state of heating, keeping pushing the button for 3 seconds, LED2 light turns on, which mean the button is locked and can not control the temperature and power off. Then keeping pushing the button for 3 seconds to unlock and LED2 light turns off.
11. Before heating, use the brush to comb the hair. Don't comb the hair after long time heating to avoid burns.
12. When make hair modelling, don't heat hair in same area over 5 seconds to avoid hair damage.
13. After long time usage, the handle near heating part of the comb will be hot and please be careful.
14. After using and power off, pull out the power plug, store the brush after it completely cool.

Notice!

1. When finish Electric brush usage. Please note don't place it near flammable goods when it is still in high temperature, otherwise may cause a fire.
2. Non-specialists should note when operating, don't touch the item by skin. Suggest to be familiar with the operation before plug and heating.
3. This electric brush should be far away from the water, otherwise may cause electric shock or malfunction.

Storage instructions:

1. Turn off switch and disconnect the plug.
2. Clean the hair and dirty of the item after it cool.
3. The item should be put on a place where is safe, dry and clean.
4. Do not jerk or strain cord at plug connections. Do not wrap the line cord around the brush.

Waste Disposal

Dispose of the device according to the environmental regulations applicable in your country.

Electrical waste must not be disposed of together with household waste. Bring the worn-out device to a collection center.

The packaging of the device consists of recycling-capable materials. Place these, sorted out according to material, in the collectors provided, so that recycling can be carried out on them.

For advice on recycling, refer to your local authority or your dealer.

This appliance is compatible with 2002/96/EC WEEE directive.

Dispatch

Carry the appliance in the original package or a similar, well-padded package to prevent damage to the appliance.

Simple line drawing of an open box with an upward arrow on the lid (no text or symbols)

Simple line drawing of an open box with an upward arrow inside (no text or symbols)

ПРИМЕЧАНИЕ!

Simple line drawing of an open box with an upward arrow on the lid (no text or symbols)

تنبيه!

Fakir customer service/

Kundenservice:

Rights to make changes are reserved.

Subject to revision

91 92 994 - 9911
