USER MANUAL SBC-604 SisiBaby

Copyright 2016 by Violin Co.

1. ELEMENTY ZESTAWU

Labeled diagram of a medical device with numbered parts for identification

Simple line drawing of a hand holding a tool near a circular component (no text or symbols)

Simple line drawing of a mechanical assembly with no text or symbols

Illustration of a hand holding a megaphone and a small object (no text or symbols visible)

Sisi loves your Baby

baby Before first read to the

1. INTRODUCTION

Thank you for using SisiBaby® products. Please be sure that you have already read the instructions before operation in proper way, meanwhile, put the instructions in accessible place. Please assign the manual together with the product when you transfer it to another.

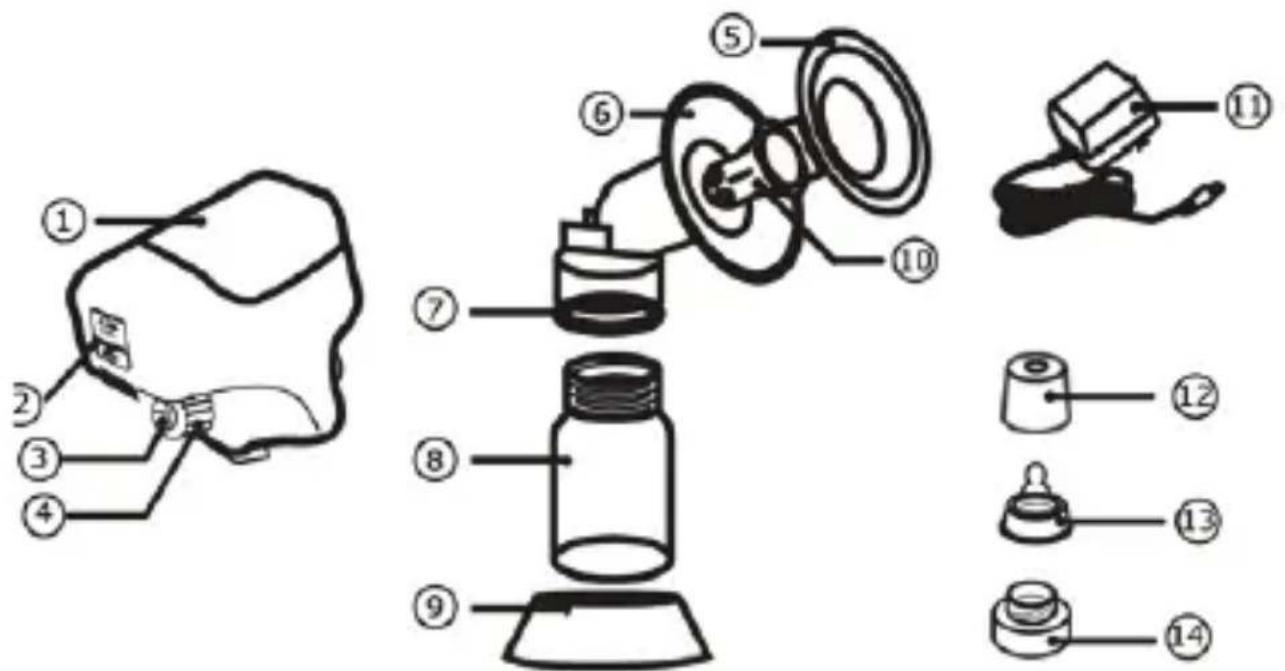

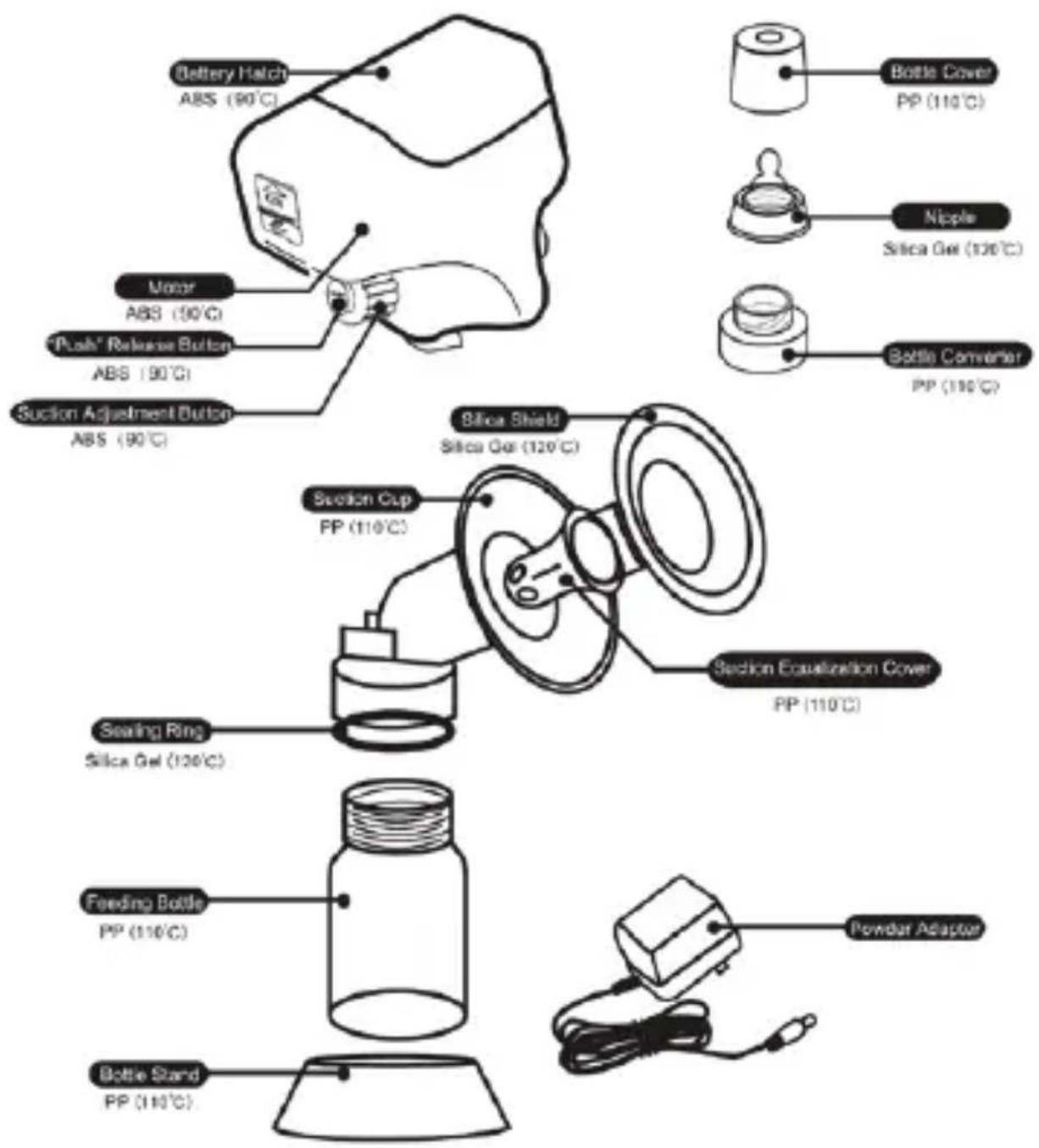

2. LIST OF COMPONENT

Battery Hatch ABS (90°C) Motor ABS (90°C) "Flush" Release Button ABS (90°C) Suction Adjustment Button ABS (90°C) Silica Shield Silica Gel (120°C) Suction Cup PP (110°C) Section Equalization Cover PP (110°C) Searing Ring Silica Gel (100°C) Feeding Bottle PP (110°C) Bottle Stand PP (110°C) Powder Adaptor Bottle Cover PP (110°C) Nipple Silica Gel (100°C) Bottle Converter PP (110°C)

3. HOW TO USE

• Please wash your hands before using.
• Please install the breast pump correctly after demolition, cleaning and sterilization. (Reference to demolition, cleaning, disinfection and installation instructions)

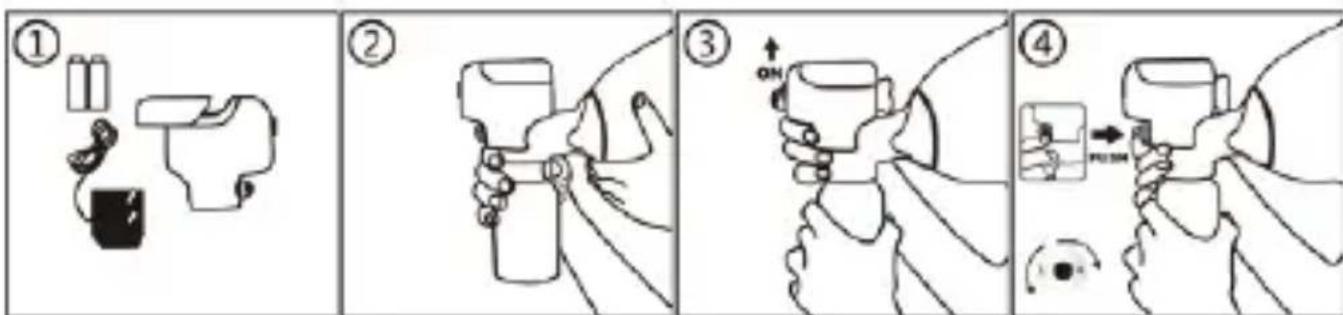

• Put batteries in Battery hatch or connect power adapter before using. (Figure 1)
• Please sit comfortably and open the dustproof cover for breast sucking.
• Please make your mammilla center aligned and let breast close to the breast shield to prevent air leakage. It will be close to breast more proper with one hand below your breast. (Figure .2)
• Connect the power supply, tum on the switch. (Figure 3.)
• Adjust suction by turn the switch and release suction by press release button with proper rhythm. (Figure 4.)

Four-step sequence showing a hand holding a device, demonstrating step-by-step usage: adding a battery, adjusting the device, and adding a mouse.

4. ELIMINATING METHODS OF LACKING SUCTION

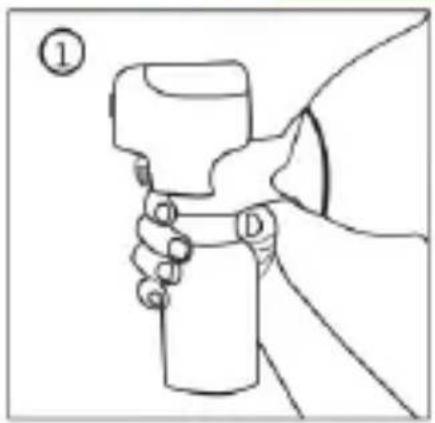

• Confirm whether the suction cup is surrounding the breast or not. (Figure 1.)

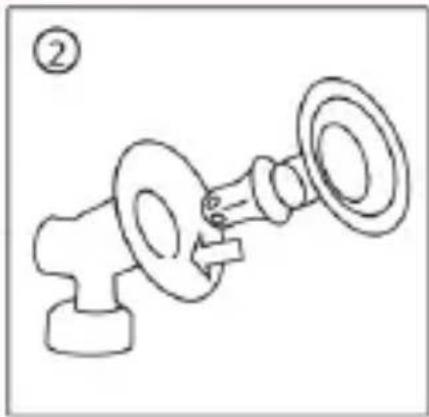

• Check the suction cup is be fixed with suction equalization cover, silica shield and suction tegument well or not. (Figure 2.)
• Check sealing ring is in proper position or not. (Figure 3.)
• Inspect the power adapter is connected smoothly or not.
• Make sure that the power line d es not be damaged or battery has enough quantity of electricity.
• Please let motor working for 30 seconds when the temperature is under 15t.

Line drawing of a hand holding a cylindrical object with a label (①), no text or symbols present.

Line drawing of a mechanical device with two circular components and a handle, labeled with number ② (no text or symbols on the diagram itself)

Simple line drawing of a device with an arrow pointing to it, no text or symbols present.

5. ATTENTION

• Please stop using when feeling uncomfortable or painful.
• Do not sucking by force if the breast milk still can not be out by using breast pump.
• led breast pump may cause liquid leakage when there is breast milk in feeding bottle.
• Do not apply to other purpose.
• Do not close to fire.
  • Install every component correctly, any improper or loose installation can make breast sucking abnormal.
• Please stop sucking immediately and consult doctor when you feel unusual of mammilla or breast.
• It may cause pain by continuous sucking or overuse.
• Please stop using when feeling mammilla or breast painful.
• Wash your hands before sucking.
• Do not put breast pump or disassembled component in the place where the children can easily reach it to avoid baby's hurting or eating.
• Do not drop and impact it strongly to avoid deformation or damage.
• Do not take out the breast pump after sterilization to avoid scald.
• Do not over-boil to prevent it aging premature.

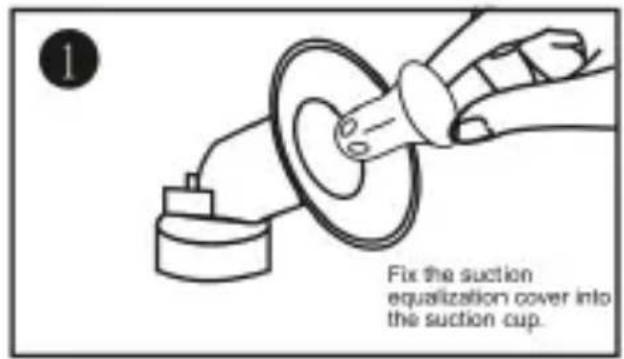

Fix the suction equalization cover into the suction cup.

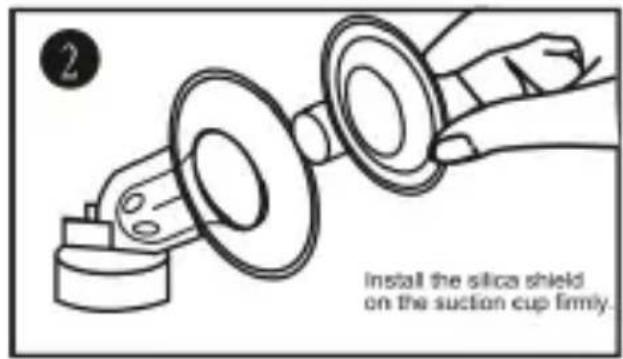

2 Install the silica shield on the suction cup firmly.

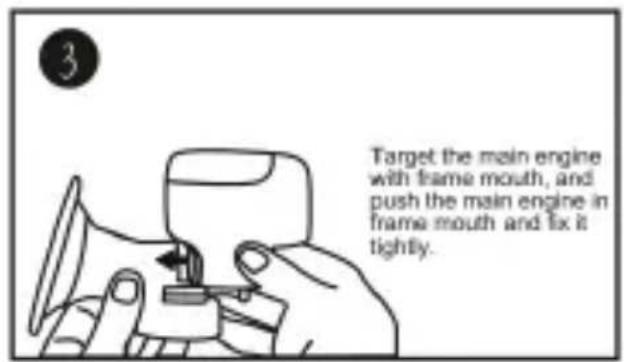

3 Target the main engine with frame mouth, and push the main engine in frame mouth and fix it tightly.

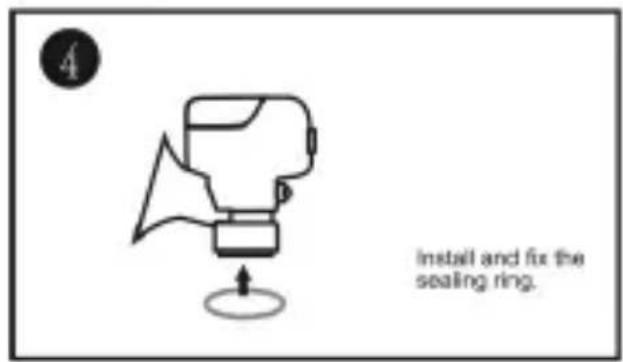

4 Install and fix the sealing ring.

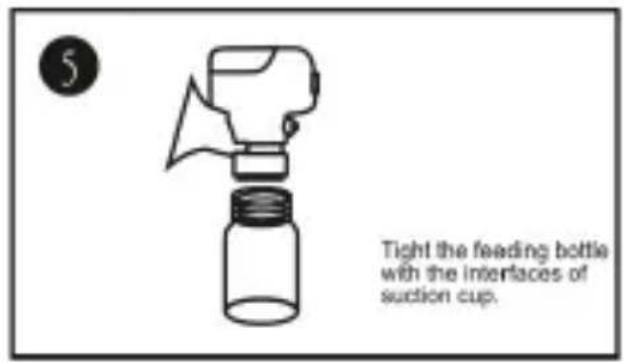

5 Tight the feeding bottle with the interfaces of suction cup.

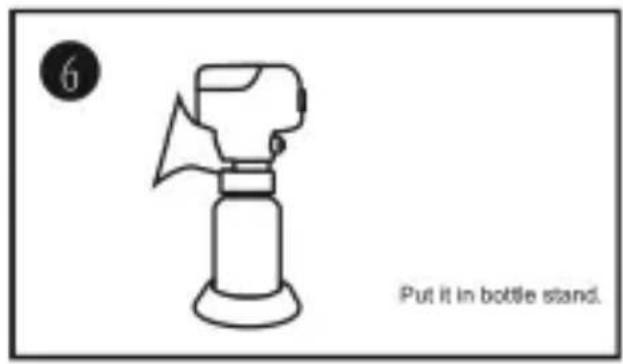

6 Put it in bottle stand.

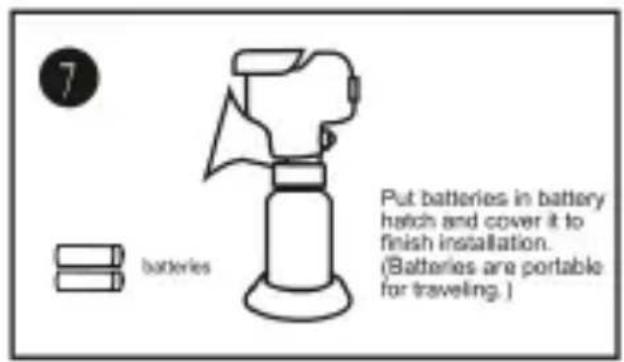

7 batteries Put batteries in battery hatch and cover it to finish installation. (Batteries are portable for traveling.)

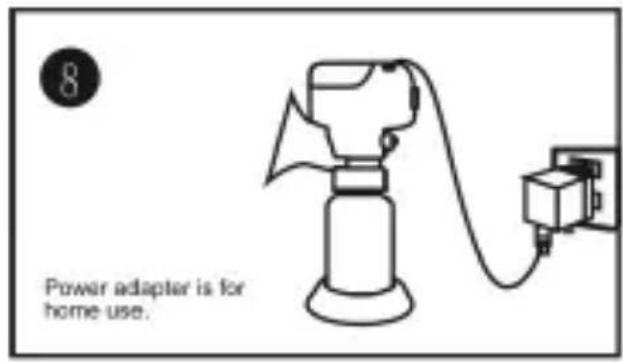

8 Power adapter is for home use.

6. CLEANING

• Please be sure to clean and sterilize before using
• Please wash it in warm water after using to prevent infections which caused by bacteria.
• Please clean it with soft sponge and special munificent. Do not wipe with decontamination powder brush and other hard objects which can easily produce scratches, white turbid and make the product dirty.
• Please wash all silica gel components (silica shield, sucking silica, vacuum film, silicon seal) with soft sponge.
• Do not wash, sterilize and breach motor, or breast pump will be damaged.
• Please wipe the breast pump with a damp cloth.

7. STERILIZATION

[Boiling Sterilization]

• Please avoid scalding when sterilization. Please sterilize it in a large pot with a large number of water to avoid touching to the bottom of pan.
• Please control the sterilization time in 2-3 minutes, or it will be injured earlier.
• Please remove the product after cooling. You may scald and hurt under high temperature and deformation by overheating. It is better to Sterilize with our sterilizer [Microwave Sterilization]
  • Take apart component and sterilize according to instruction of microwave oven & electronic microwave sterilizer. Do not put breast pump into electronic microwave sterilizer directly for sterilization [ Bleaching]. Please bleaching with kitchen vinegar bleacher and follow its instructions. • Please control the bleaching time in 30-40 minutes, or it will be injured earlier.

8. MISUNDERSTANDING

Breast pump is not the device for milk opening. The most important thing is that it can help Moms to relieve distress of swelling milk and prolonged breast-feeding time. The premise of usage is the adequate breast milk and unimpeded breast. Blocked breast (some is caused by dent mammilla) or milk shortage is often existed among some new Moms, so you are proposed to have a professional examination for unimpeded breast before buying breast pump rather than make breast pump as milk opening device blindly. In fact, its suction is normal; most returned goods are caused by knowing products too little.

9. WARRANTY

1. We give 12 months warranty from date of purchase of equipment (this Warranty Certificate along with the signature of the seller and the proof of purchase is required for equipment claims), provided that it was used as intended and was not physically damaged and the warranty seals remain intact.
2. Before submitting a complaint, please let us know by e-mail to the address located on the stamp dealer.
3. After receiving information from the seller for shipping method, please must secure the heater and all its accessories and send to the seller.

COD shipment will not be accepted.

1. Buyer must provide / send their own equipment in the original packaging additionally protected from damage which may occur during shipping.

Damage due to inadequate protection of equipment shall not be repaired guarantee or to replace.

1. Warranty does not cover the activities provided in the instructions, to comply with the buyer is obliged to own and at their own expense.

2. The warranty does not cover:

a) mechanical damage caused during the use or operation of the equipment for repair;

b) damage and defects caused by:

- use of equipment for purposes other than for the intended use;

- inappropriate or inconsistent with the instructions for use, maintenance, storage or installation, improper use of consumables;

- Repairs carried out by unauthorized persons, a statement of fact of such repairs or willfully open hardware will void the warranty;

- rework, design changes, or use for repair of spare parts;

- over-exploitation (the device is not designed to operate 24 hours a day);

c) supplies and accessories;

1. Without a stamp dealer and proof of purchase, this warranty is void.
2. By law, the consumer may be refunded only if the device can not be repaired or if there is no equipment on the exchange.
3. In the case of a refund for the goods, cancel the purchase, send in the complaint, we do not pay shipping costs.
4. This warranty is valid in the Polish Republic.
5. This warranty does not cover damage caused by improper use, storage or use of improper parts, as well as non-manual and accessories, misuse or damage caused by normal wear.
6. The user of this product assumes full responsibility and risk for use of this product.
7. The device may be returned within 14 days of purchase.
   It can not be used, each element must be complete (with the original bags), in an unchanged.
8. Shop makes a detailed verification of the actual condition of the goods.
9. Right to withdraw from a distance contract is not entitled to a client who is an entrepreneur (Journal of Laws No. 22, item. 271).

BEDIENUNGSANLEITUNG

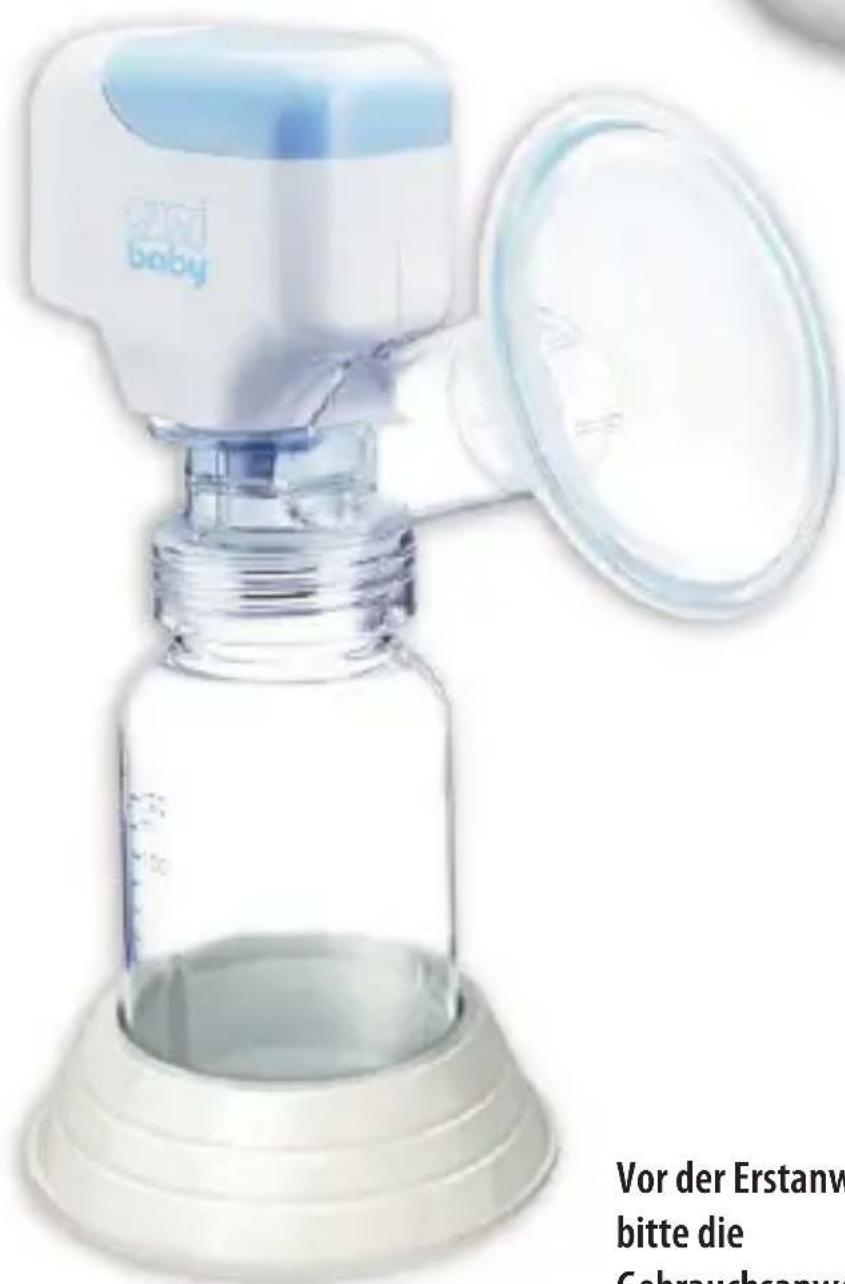

ELEKTRISCHE MILCHPUMPE
