1 Getting Started
2 Using the Computer
3 Settings and Upgrade
4 Backup / Restore
5 Appendix

Contents

Black laptop with open screen and keyboard, no visible text or symbols on the device itself

Start

Contents

Chapter 1. Getting Started

3 Product Features
4 Tips
5 Before You Start
8 Safety Precautions
23 Proper Posture During Computer Use
26 Overview
35 Turning the Computer On and Off

Chapter 2. Using the Computer

40 Keyboard
44 Touchpad
51 Pointing Stick (Optional)
56 CD Drive (ODD, Optional)
58 ExpressCard Slot (Optional)
59 Multi Card Slot (Optional)
62 Connecting an External Display Device
71 Connecting an External Digital Device
72 Adjusting the Volume
76 Wired Network
80 Wireless Network (Optional)

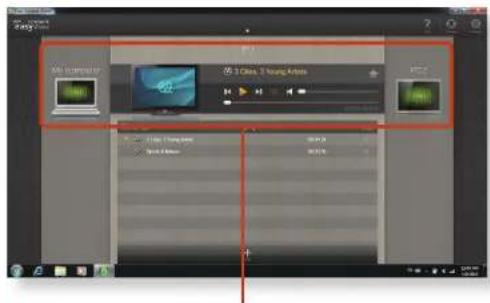

85 Sharing Content in a Home Network (Easy Content Share) (Optional)
91 HDD Protection Function (Optional)
92 Using the Security Device (Optional)

Chapter 3. Settings and Upgrade

101 LCD Brightness Control
103 BIOS Setup
105 Setting a Boot Password
108 Changing the Boot Priority
109 Upgrading Memory
112 Battery
119 Using the Security Slot

Chapter 4. Backup / Restore

121 Samsung Recovery Solution (Optional)

Chapter 5. Appendix

134 Important Safety Information
136 Replacement Parts and Accessories
138 Regulatory Compliance Statements
154 WEEE Symbol Information
155 TCO Certifi ed
156 Product Specifications
158 Glossary
162 Index

Orange icon of a laptop inside a white circle on orange background (no text or symbols)

Chapter 1. Getting Started

Product Features 3

Tips 4

Before You Start 5

Safety Precautions 8

Proper Posture During Computer Use 23

Overview 26

Turning the Computer On and Off 35

Product Features

Chapter 1. Getting Started

Optimized Performance and Usability

By adopting the latest processor, you can process tasks quickly and reinforce the security level using smart cards, TPM and fingerprint recognition devices. (Optional)

NVIDIA Optimus technology not only provides • powerful graphics performance but also extends the battery life. (Optional)

Various interfaces

You can charge your mobile phone, MP3 player, etc. any time through the chargeable USB connection (without the charger), if you have a USB chargeable cable. (Optional)

You can easily and quickly read and write data through USB 3.0. (Optional)

Environmentally-Friendly Eco Design

This is an environmentally friendly system • designed in accordance with international environmental specifications regarding the use of environmentally friendly materials and the reduction of hazardous materials.

The system ensures minimal noise by verifying the noise level on the basis of the noise levels of everyday life.

Samsung's Proprietary Software

You do not need to wait for a long time to boot the computer up, because it boots up quickly once you press the Power button. (Samsung Fast Start, Optional)

You can resolve problems easily and quickly by using Samsung Recovery Solution program to restore the PC to the state when it was purchased. (Optional)

Optional items may be changed or may not be provided depending on the computer model.

Tips

Chapter 1. Getting Started

The computer is not turning on or does not respond and displays a blank screen.

Restore the computer using Samsung Recovery Solution.

1. Turn the computer on and press the F4 key when the booting screen (SAMSUNG logo) appears.

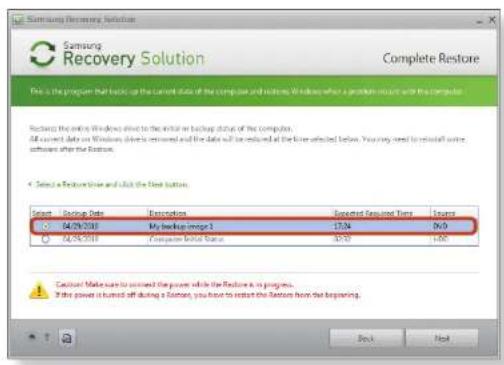

2. The computer will boot up in restore mode after a short while and Samsung Recovery Solution appears.

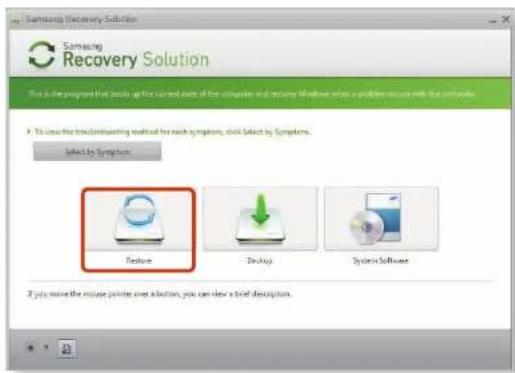

3. When the start menu screen appears, click Restore.

The keyboard Fn keys (shortcut keys) do not work. Install Easy Display Manager.

I want to restore the computer to the state when it was purchased.

If you use the Samsung Recovery Solution function, you can easily and quickly restore the computer to a previous state even if you do not have a separate OS recovery DVD or recovery CD.

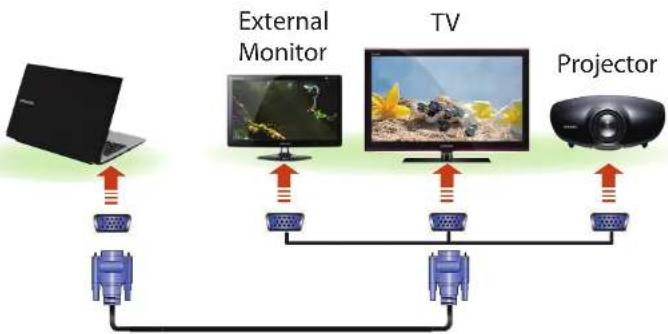

I want to connect an external monitor, TV or projector.

Connect the display device and the computer with the monitor and repeatedly press the F4 key while holding down the Fn key.

The internet connection has slowed down or error messages appear continuously while using the Internet.

Restore Internet Explorer to its initial state.

1. Launch Internet Explorer, click Tools > Internet Options > Advanced > Load defaults.
2. If the Internet Explorer setting again window appears, select Set again.
3. In the Internet default setting restoration window, select Close.

This is a compatibility problem between the Hancom Offi ce software and Internet Explorer. To resolve this problem, reinstall Internet Explorer 8 or install Internet Explorer 7 or earlier.

How can I extend the battery usage time?

The battery usage time may be shortened if you recharge the battery before it is completely discharged.

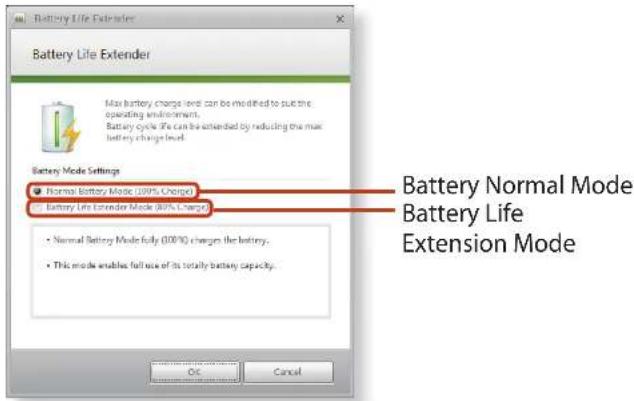

To resolve this problem, enter the BIOS Setup and select Smart Battery Calibration to discharge the battery completely and then recharge the battery.

For detailed information on a function, refer to the corresponding section of the User Manual.

Before reading the User Guide, first check the following information.

Optional items, some devices and software referred to in the User Guide may not be provided and/or changed by upgrade.

Note that the computer environment referred in the User Guide may not be the same as your own environment.

The pictures used for the cover and the main body in the • User Manual are those of the representative model of each series and may differ from the actual appearance of the product.

This guide decribes procedures for using both the mouse • and the touchpad.

This manual has been written for the Windows operating system. The descriptions and figures may differ depending on the installed operating system.

The User guide supplied with this computer may vary • depending on your model.

Using the software

The software described in the main text can be launched using the following menu path.

- Start > All Programs

- Start > All Programs > Samsung

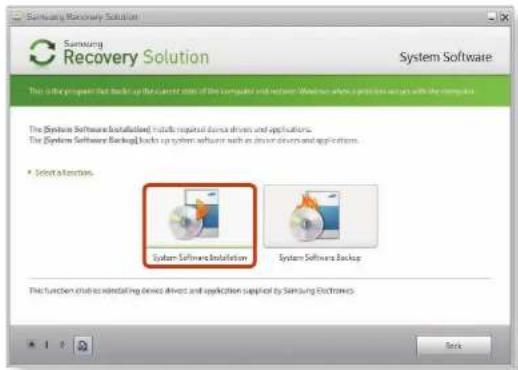

- When the programs are not installed, select Samsung Recovery Solution > System Software to install the programs. (Only for models supplied with Samsung Recovery Solution)

Safety Precaution Notations

Icon	Notation	Description
	Warning	Failing to follow instructions marked with this symbol, may cause personal injury and or fatality.
	Caution	Failing to follow instructions marked with this symbol, may cause slight injury to yourself or damage your property.

Text Notations

Icon	Notation	Description
	Caution	Content included in this section includes information required about the function.
	Note	Content included in this section includes helpful information to use the function.

Copyright

© 2013 Samsung Electronics Co., Ltd.

Samsung Electronics Co., Ltd. owns the copyright of this manual.

No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, without the consent of Samsung Electronics Co., Ltd.

The information in this document is subject to change without notice due to improving the performance of the product.

Samsung Electronics shall not be liable for any data loss. Please take care to avoid losing any important data and backup your data to prevent any such data loss.

Precautions for Operating System Support

If a problem occurs because of the reinstallation of other operating systems(OS) or a previous version of a OS pre-installed on this computer, or a software that does not support the OS, the company will not provide technical support, a replacement or refund, and if our service engineer visits you due to this problem, a service charge will be applied.

About the Product Capacity Representation Standard

About HDD Capacity Representation

The capacity of the storage device (HDD, SSD) of the manufacturer is calculated assuming that 1KB=1,000 Bytes.

However, the operating system (Windows) calculates the storage device capacity assuming that 1KB=1,024 Bytes, and therefore the capacity representation of the HDD in Windows is smaller than the actual capacity due to the difference in capacity calculation.

(E.g. For a 80GB HDD, Windows represents the capacity as 74.5GB, 80x1,000x1,000x1,000 byte/(1,024x1,024x1,024)byte = 74.505GB)

In addition, the capacity representation in Windows may be even smaller because some programs such as Recovery Solution may reside in a hidden area of the HDD.

Before You Start

Chapter 1. Getting Started

About Memory Capacity Representation

The memory capacity reported in Windows is less than the actual capacity of memory.

This is because BIOS or a video adapter uses a portion of memory or claims it for further use.

(E.g. For 1GB(=1,024MB) memory installed, Windows may report the capacity as 1,022MB or less)

For more information, refer to the Samsung Recovery Solution section.

Safety Precautions

Chapter 1. Getting Started

For your security and to prevent damage, please read the following safety instructions carefully.

Since this is commonly applied to Samsung Computers, some pictures may differ from actual products.

Warning

Failing to follow instructions marked with this symbol may cause personal injury and even fatality.

Installation Related

Do not install the product in places exposed to humidity such as a bathrooms.

There is a danger of electric shock. Use the product within the operating conditions specified in the Manufacturers User Guide.

Keep the plastic bags out of the reach of children.

There is a danger of suffocation.

Keep a distance of 15cm or more between the computer and the wall and do not place any objects between them.

This may increase the internal temperature of the computer and may cause an injury.

Do not install the computer on a slant or a place prone to vibrations, or avoid using the computer in that location for a long time.

This increases the risk that a malfunction or damage to the product will occur.

Avoid exposing any part of your body to the heat from the computer vent or AC adapter for a long time when the computer is on.

Exposing a part of your body close to the heat from the vent or AC adapter for long periods of time may cause a burn.

Avoid blocking the vent at the bottom or side of the computer when using it on a bed or cushion.

If the vent is blocked, there is a danger of damaging the computer or overheating the inside of the computer.

Warning

Failing to follow instructions marked with this symbol may cause personal injury and even fatality.

Power Related

The power plug and wall outlet figures may differ depending on the country specifications and the product model.

Do not touch the main plug or power cord with wet hands.

There is a danger of electric shock.

Do not exceed the standard capacity (voltage/current) of a multiplug or power outlet extension when using it for the product.

There is a danger of electric shock or fire hazard.

If the power cord or power outlet makes a noise, disconnect the power cord from the wall outlet and contact a service center.

There is a danger of electric shock or fire hazard.

Do not use a damaged or loose main plug or power cord or power outlet.

There is a danger of electric shock or fire hazard.

Plug the power cord firmly into the power outlet and AC adapter.

Failure to do so may cause fire hazard.

Do not unplug the power cord by pulling the cable only.

If the cord is damaged, it may cause electric shock.

Do not bend the power cord excessively or do not place a heavy object over the power cord. It is especially important to keep the power cord out of reach of infants and pets.

If the cord is damaged, it may cause electric shock or fire.

Warning

Failing to follow instructions marked with this symbol may cause personal injury and even fatality.

Connect the power cord to an outlet or multiple power plug (extended cable) with a ground terminal.

Failure to do so may result in electric shock.

If water or another substance enters the power input jack, AC adapter or the computer, disconnect the power cord and contact the service center.

If the notebook computer has an external type (removable) battery, separate the battery also.

Damage to the device within the computer may cause electric shock or fire hazard.

Keep the power cord or outlet clean so that they are not covered with dust.

Failure to do so may result in fire.

AC Adapter Usage Precautions

Connect the power cord to the AC adapter firmly.

Otherwise, there is a danger of fire due to an incomplete contact.

Use only the AC adapter supplied with the product.

Using another adapter may cause the screen to flicker.

Do not place heavy objects or step onto the power cord or AC adapter to avoid damaging the power cord or AC adapter.

If the cord is damaged, there is a danger of electric shock or fire.

Warning

Failing to follow instructions marked with this symbol may cause personal injury and even fatality.

Battery Usage Related

Please charge the battery fully before using the computer for the first time.

Keep the battery out of the reach of infants and pets, as they could put the battery into their mouths.

There is a danger of electric shock or choking.

Use an authorized battery and AC adapter only.

Please use an authorized battery and adapter approved by Samsung Electronics.

Unauthorized batteries and adapters may not meet the proper safety requirements and may cause problems or malfunctions and result in an explosion or fire.

Do not use the computer in a badly ventilated location such as on bedding, on a pillow or cushion, etc, and do not use it in a location such as room with floor heating as it may cause the computer to overheat.

Take care that the computer vents (on the side or the bottom) are not blocked especially in these environments. If the vents are blocked, the computer may overheat and it may cause a computer problem, or even an explosion.

Do not use the computer in a humid location such as a bathroom or sauna.

Please use the computer within the recommended temperature and humidity range (10\~35°C, 20\~80% RH).

Do not close the LCD panel and put the computer into your bag to move it when it is still turned on.

If you put the computer into your bag without turning it off, the computer may overheat and there is a danger of fire. Shut the computer down properly before moving it.

Safety Precautions

Chapter 1. Getting Started

Warning

Failing to follow instructions marked with this symbol may cause personal injury and even fatality.

Never heat the product(or battery) or put the product(or battery) into a fire. Do not put or use the product(or battery) in a hot location such as a sauna, inside a vehicle exposed to the heat, and so on.

There is a danger of an explosion or fire.

Take care not to allow metal objects such as a key or clip to touch the battery terminal (metal parts).

If a metal object touches the battery terminals, it may cause excessive current flow and it may damage the battery, or result in a fire.

If liquid leaks out of the product(or battery) or there is a funny smell coming from the product(or battery), remove the the product(or battery) the computer and contact a service center.

There is a danger of an explosion or fire.

To use the computer safely, replace a dead battery with a new, authorized battery.

Cutting the power to the internal battery (for corresponding models only.)

Hand holding a cable with arrows indicating cable movement, no text or symbols present

For products with built-in batteries, customers cannot remove the battery.

In the case of flooding, lightning or explosions, you can cut the battery power by inserting an object such as a paper clip into the [Emergency Hole] at the bottom of the computer.

Disconnect the AC adapter and insert an object such as a paper clip into the hole at the bottom of the computer to cut the battery power.

In the case of flooding, lightning or explosions, cut the battery power, do not reconnect the AC adapter, and immediately contact Samsung Electronics so that the appropriate countermeasures can be taken.

Safety Precautions

Chapter 1. Getting Started

Warning

Failing to follow instructions marked with this symbol may cause personal injury and even fatality.

Thereafter, if you connect the AC adapter, the battery power will be supplied again.

Do not cut the battery power under normal conditions.

This may result in data loss or a product · malfunction.

The location of the Emergency Hole may differ depending on the model.

Usage Related

Disconnect all cables connected to the computer before cleaning it. If your notebook is external & removable battery type, remove the external battery.

There is a danger of electric shock or damage to the product.

Do not connect a phone line connected to a digital phone to the modem.

There is a danger of a electric shock, fire or damage to the product.

Do not place any container filled with water or chemicals over or near the computer.

If water or chemicals enter the computer, this may cause fire or electric shock.

Warning

Failing to follow instructions marked with this symbol may cause personal injury and even fatality.

If the computer is broken or dropped, disconnect the power cord and contact a service center for a safety check.

If the notebook computer has an external type (removable) battery, separate the battery also.

Using a broken computer may cause electric shock or fire hazard.

Avoid direct sunlight when the computer is in an air-tight location such as inside a vehicle.

There is a danger of a fire hazard. The computer may overheat and also present opportunity to thieves.

Do not use your notebook PC for long periods of time while any part of your body is making direct contact with it. The temperature of the product may increase during normal operation.

This may result in harming or burning your skin.

Upgrade Related

Never disassemble the power supply or AC adapter.

There is a danger of electric shock.

When removing the RTC (Real Time Clock) battery, keep it out of the reach of children as they could touch and/or swallow it.

There is a danger of choking. If a child has swallowed it, contact a doctor immediately.

Use only authorized parts (multi-plug, battery and memory) and never disassemble parts.

There is a danger of damaging the product, electric shock or fire hazard.

Before disassembling the computer, shut down the computer and disconnect all cables on the flat place. If there is a modem, disconnect the phone line. If your notebook is external & removable battery type, remove the external battery.

Failure to do so, may cause electric shock.

Warning

Failing to follow instructions marked with this symbol may cause personal injury and even fatality.

Security and Movement Related

Follow the instructions for the relevant location (e.g. airplane, hospital, etc.) when using a wireless communication device (wireless LAN, Bluetooth, etc.).

Avoid exposing a drive to magnetic fields. Security devices with magnetic fields include airport walk-through devices and security wands.

The airport security devices that check carry-on luggage, such as conveyor belts, use x-rays instead of magnetism and will not damage a drive.

When carrying the notebook computer with other items, such as the adapter, mouse, books etc, take care not to press anything against the notebook computer.

If a heavy object is pressed against the notebook computer, a white spot or stain may appear on the LCD. Therefore, take care not to apply any pressure to the notebook.

In this case, place the notebook computer in a separate compartment away from the other objects.

Caution

Failing to follow instructions marked with this symbol may cause slight injury or damage to the product.

Installation Related

Do not block the ports (holes), vents, etc. of the product and do not insert objects.

Damage to a component within the computer may cause electric shock or fire.

When using the computer with it lying on its side, place it so that the vents face upwards.

Failure to do so, may cause the internal temperature of the computer to rise and the computer to malfunction or halt.

Do not place a heavy object over the product.

This may cause a problem with the computer. In addition, the object may fall and cause injury, or damage the computer.

Battery Usage Related

Dispose of worn-out batteries properly.

There is a danger of fire or explosion.

The battery disposal method may differ depending on your country and region. Dispose of the used battery in an appropriate way.

Do not throw or disassemble the battery and do not put it into water.

This may cause an injury, fire or explosion.

Use only a battery authorized by Samsung Electronics.

Failure to do so may cause an explosion.

Avoid contact with metal objects such as car keys or clips when keeping or carrying a battery.

Contact with a metal may cause excessive current and a high temperature and may damage the battery or cause a fire.

Charge the battery according to the instructions in the manual.

Failure to do so, may cause an explosion or fire from damage to the product.

Do not heat the product(or battery) or expose it to heat (e.g. inside a vehicle during the summer).

There is a danger of explosion or fire.

Caution

Failing to follow instructions marked with this symbol may cause slight injury or damage to the product.

Usage Related

Do not place a candle, light cigar, etc. over or on the product.

There is a danger of fire.

Use a wall outlet or multi-plug with a grounding part.

Failure to do so may cause electric shock hazard.

Make sure to have the product tested by a safety service engineer after repairing the product.

Authorized Samsung Repair Centers will carry out safety checks after a repair. Using a repaired product without testing it for safety may cause an electric shock or fire.

In case of lightning, immediately turn the system off, disconnect the power cord from the wall outlet and phone line from modem. Do not use a modem or phone.

There is a danger of electric shock or fire.

Do not use your computer and AC-Adapter on your lap or soft surfaces.

If the computer temperature increases, there is a danger of burning yourself.

Connect only permitted devices to the connectors or ports of the computer.

Failure to do so, may cause electric shock and fire.

Close the LCD panel only after checking if the notebook computer is turned off.

The temperature may rise and it may cause overheating and deformation of the product.

Do not press the Eject Button while the Floppy Disk/CD-ROM drive is in operation.

You might lose data and the disk might be suddenly ejected and could cause an injury.

Take care not to drop the product while using it.

This may cause personal injury or loss of data.

Do not touch the antenna with electricity facility such as the power outlet.

There is a danger of electric shock.

When handling computer parts, follow the instructions on the manual supplied with the parts.

Failure to do so, may cause damage to the product.

Safety Precautions

Chapter 1. Getting Started

Caution

Failing to follow instructions marked with this symbol may cause slight injury or damage to the product.

If the computer emits smoke, or there is a burning smell, disconnect the power plug from the wall outlet and contact a service center immediately. If your notebook is external & removable battery type, remove the external battery.

There is a danger of fire.

Do not use a damaged or modified CD/Floppy Disk.

There is a danger of damaging the product or personal injury.

Do not insert your fingers into the PC Card Slot.

There is a danger of injury or electric shock.

Use recommended computer cleansing solution when cleaning the product and only use the computer when it is completely dried.

Failure to do so may cause electric shock or fire.

Emergency disk eject method using paperclip should not be used while the disk is in motion. Make sure to use the emergency disk eject method only when the Optical Disk Drive has stopped.

There is a danger of injury.

Do not place your face close to the Optical Disk Drive tray when it is operating.

There is a danger of injury due to an abrupt ejection.

Check CDs for cracks and damage prior to use.

It may damage the disc and cause disorder of device and injury of user.

Caution

Failing to follow instructions marked with this symbol may cause slight injury or damage to the product.

Upgrade Related

Take care when touching the product or parts.

The device may be damaged or you may be injured.

Take care not to throw or drop a computer part or device.

This may cause injury or damage to the product.

Make sure to close the computer cover before connecting the power after a reassembly.

There is a danger of electric shock if your body touches an internal part.

Use parts authorized by Samsung Electronics only.

Failure to do so, may cause fire or damage the product.

Never disassemble or repair the product by yourself.

There is a danger of electric shock or fire.

To connect a device that is not manufactured or authorized by Samsung Electronics, enquire at your service center before connecting the device.

There is a danger of damaging the product.

Security and Movement Related

When moving the product, turn the power off and separate all connected cables first.

The product might be damaged or users may trip over the cables.

For long periods of not using the notebook computer, discharge the battery and preserve as it is detached. (For external & removable battery type)

The battery will be preserved at its best condition.

Do not operate or watch the computer while driving a vehicle.

There is a danger of a traffic accident. Please concentrate on driving.

Caution

Failing to follow instructions marked with this symbol may cause slight injury or damage to the product.

Cautions on Preventing Data Loss (Hard Disk Management)

Take care not to damage the data on a hard disk drive.

A hard disk drive is so sensitive to external impact that an external impact may cause loss of data on the surface of the disk.

Take extra care, because moving the computer or an impact • on the computer when it is turned on may damage the data of the hard disk drive.

The company is not liable for any loss of data on the hard disk drive.

Causes that may damage the data of a hard disk drive and the hard disk drive itself.

The data may be lost when an external impact is applied to the disk while disassembling or assembling the computer.

The data may be lost when the computer is turned off or reset by a power failure while the hard disk drive is operating.

The data may be lost and irrecoverable due to a computer virus infection.

The data may be lost if the power is turned off while running a program.

Sudden impact or movement to the computer while the hard disk drive is operating, may cause files to be corrupted or bad sectors on the hard disk.

To prevent data loss due to damage to the hard disk drive, please backup your data frequently.

Using the power supply in an airplane

Since the power outlet type differs depending on the type of airplane, connect the power appropriately.

Since the representative figures of the power plug and the auto adapter are used, they may differ from the actual parts.

When using the AC power plug

Connect the power plug pins perpendicular into the center of the power outlet.

If the plug pins are not inserted into the center of the holes, the plug pins are only inserted up to half their length. In this case, reconnect the power plug.

You have to insert the power plug into the outlet when the power indicator (LED) of the power outlet is lit green. If the power is connected properly, the power indicator (LED) remains green.

Otherwise, the power indicator (LED) is turned off. In this case, unplug the power, check if the power indicator (LED) is green, and then reconnect the power plug.

Power Indicator (LED) Center Holes 220V Power Plug 110V Power Plug

Good Example

Two identical diagrams showing a hand inserting a plug into a socket, with no text or symbols present.

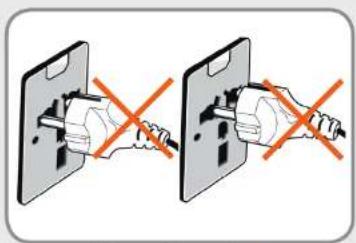

Wrong Example×

Safety Precautions

Chapter 1. Getting Started

When using the auto adapter

When the cigar socket is provided, you have to use the auto adapter (optional). Insert the cigar plug of the auto adapter into the cigar socket and connect the DC plug of the auto adapter to the power input port of the computer.

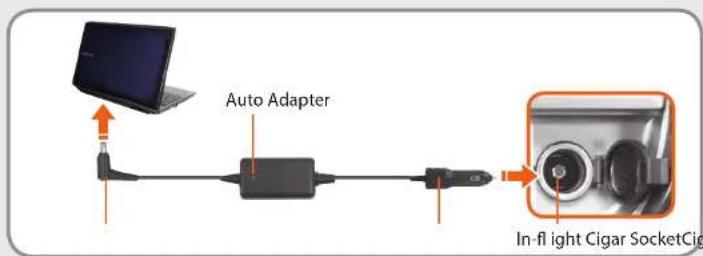

Auto Adapter In-flight Cigar SocketCig

When using the Airplane Charging Converter

Depending on the airplane, you have to use the auto adapter and charging converter. Connect the airplane charging converter (optional) to the auto adapter (optional) and then insert the airplane power input jack into the power outlet.

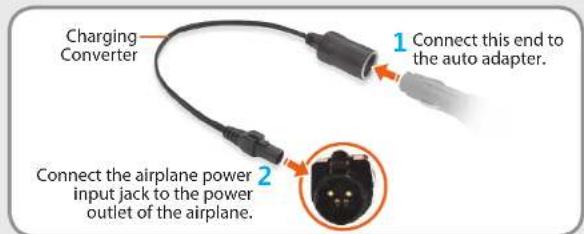

Charging Converter 1 Connect this end to the auto adapter. 2 Connect the airplane power input jack to the power outlet of the airplane.

Proper Posture During Computer Use

Chapter 1. Getting Started

Maintaining a proper posture during computer use is very important to prevent physical harm.

The following instructions are about maintaining a proper posture during computer use developed through human engineering. Please read and follow them carefully when using the computer.

Otherwise, the probability of (RSI: Repetitive Strain Injury) from repeated operations may increase and serious physical harm may be caused.

The instructions in this manual have been prepared so that they can be applied within the coverage of general users. If the user is not included in the coverage, the recommendation is to be applied according to the user's needs.

Proper Posture

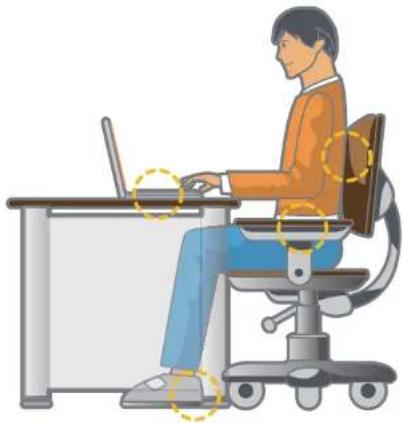

Adjust the heights of desks and chairs appropriate to your height.

The heights are to be adjusted so that your arm forms a right angle when you place your hand over the keyboard while sitting down on a chair.

Adjust the height of chair so that your heel is comfortably placed on the floor.

Do not use the computer while you are lying down, but only • while you are sitting down.

Do not use the computer on your lap. If the computer • temperature increases, there is a danger of burning yourself.

Work while keeping your waist straight.

Use a chair with a comfortable back.

Keep the center of your leg weight not on the chair but on your feet when you are sitting on a chair.

To use the computer while talking over the telephone, use a headset. Using the computer with the phone on your shoulder is bad for posture.

Keep frequently used items within a comfortable work range • (where you can reach them with your hands).

Illustration of a person sitting at a desk using a laptop, with no visible text or symbols

Proper Posture During Computer Use

Chapter 1. Getting Started

Eye Position

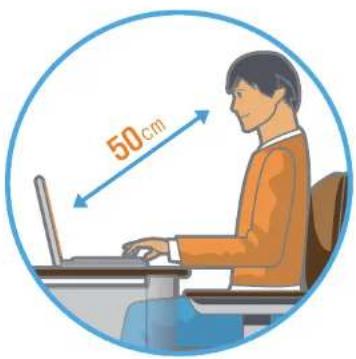

Keep the monitor or LCD away from your eyes by at least 50cm.

50cm

Adjust the height of the monitor and the LCD screen so that its top height is equal to or lower than your eyes.

Avoid setting the monitor and LCD excessively bright.

Keep the monitor and LCD screen clean.

If you wear glasses, clean them before using the computer.

When entering contents printed on a paper into the computer, use a static paper holder so that the height of the paper is almost equal to that of the monitor.

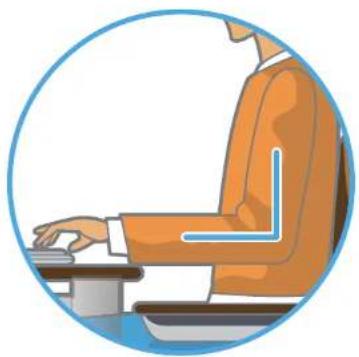

Hand Position

Keep your arm at a right angle as shown by the figure.

Illustration of a person in an orange jacket using a computer (no text or symbols visible)

Keep the line from your elbow to your hand straight.

Do not place your palm over the keyboard while typing.

Do not hold the mouse with excessive force.

Do not press the keyboard, touchpad or mouse with excessive force.

It is recommended connecting an external keyboard and mouse when using the computer for long periods of time.

Proper Posture During Computer Use

Chapter 1. Getting Started

Volume Control (Headphones and Speakers)

Check your volume first to listen to music.

Check your volume!

Check if the volume is too loud before using headphones.

It is not recommended using headphones for long periods of time.

Any deviation from the equalizer default setting could cause hearing impairment.

The default setting can be changed through software and driver updates without your intervention. Please check the equalizer default setting before first usage.

Use Time (Break Time)

Take a break for 10 minutes or more after a 50-minute period • when working for more than one hour.

Illumination

Do not use the computer in dark locations. The illumination • level for computer use must be as bright so for reading a book. Indirect illumination is recommended. Use a curtain to prevent • reflection on the LCD screen.

Operation Condition

Do not use the computer in hot and humid locations. • Use the computer within the allowed temperature and humidity range specified in the User Guide.

Front View

The pictures used for the cover and the main body in the • User Manual are those of the representative model of each series. Therefore the colors and appearance of the pictures may differ from the actual appearance of the product depending on the model.

The actual color and appearance of the computer may differ from the pictures used in this guide.

This may not be supported for some devices.

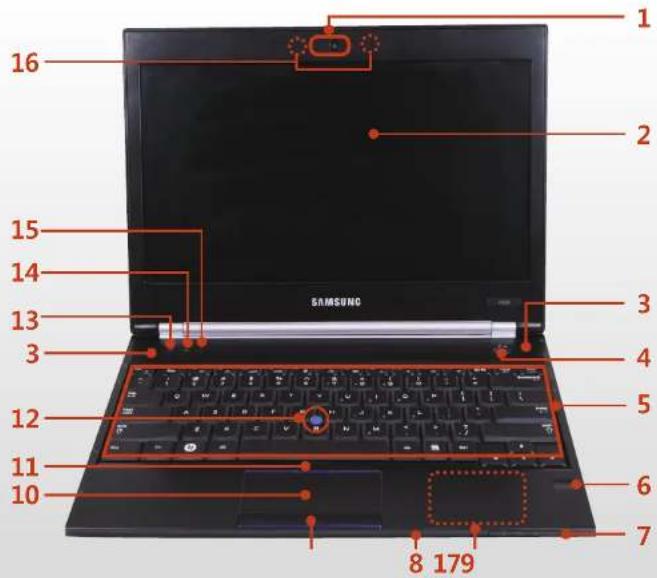

1 2 3 4 5 6 7 8 179 9 10 10 11 12 13 14 15 16 SAMSUNG

1	Camera/Camera LED(Optional)	Using this camera, you can take still pictures and record video.If you use this, the LED will turn on.
2	LCD The screen images are displayed here.
3	Speaker A device used to generate sound.
4	Power Button ⏻/l	Turns the computer on and off .
5	Keyboard	A device to enter data by pressing the keys.
6	Fingerprint Sensor(Optional)	This is the device that recognizes fingerprints. Use the device with the security program.
7	Status Indicators	Shows the operating status of the computer. The corresponding operating LED is lit when the corresponding function operates.
8	Multi Card Slot(Optional)	A card slot supports multi cards.
9	Touchpad buttons

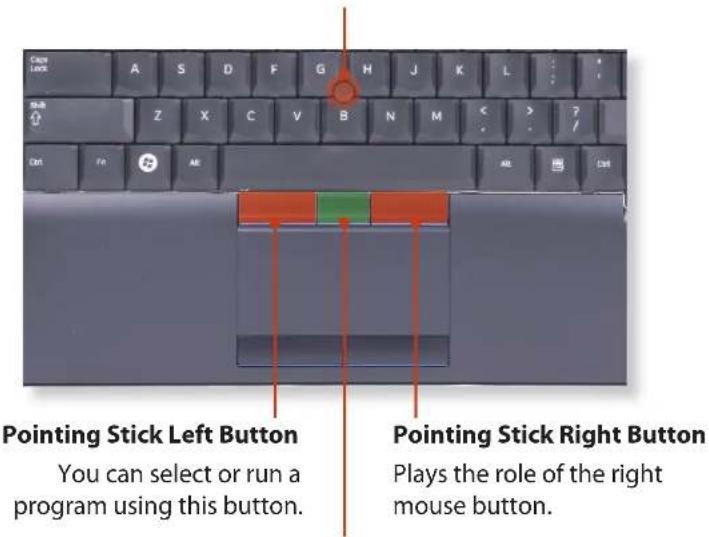

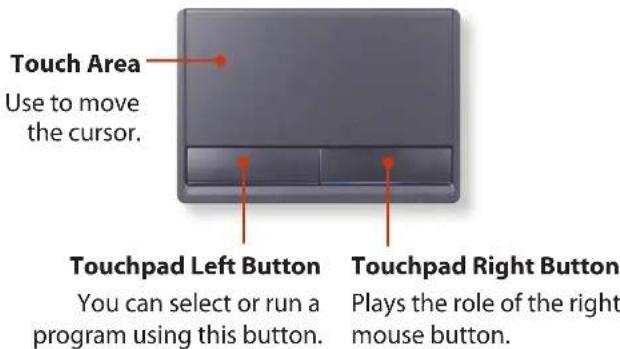

10	Touchpad	These devices provide functions similar to the mouse ball and buttons.
11	Pointing Stick Buttons(Optional)
12	Pointing Stick(Optional)
13	Computer Lock Button	You can lock Windows or switch users.
14	Webcam/Internal MIC Button	Press this button to turn the webcam and the internal microphone on or off .

Overview

Chapter 1. Getting Started

Front View

The pictures used for the cover and the main body in the • User Manual are those of the representative model of each series. Therefore the colors and appearance of the pictures may differ from the actual appearance of the product depending on the model.

The actual color and appearance of the computer may differ from the pictures used in this guide.

This may not be supported for some devices.

1 2 3 4 5 6 7 8 179 10 11 12 13 14 15 16 SAMSUNG

15	Wireless Button	Easily turns on or off the several wireless network settings at the same time.- This button is useful on the airplane to turn off every wireless network device.- You also can set up a specific wireless network device with the Fn + F12 key combination.On: Shows that any wireless network devices are turned on.of: Shows that no wireless network device is turned on.
16	Microphone	You can use the built-in microphone.
17	Contactless Smart Card Reader (Optional)	A device supports smart cards.Either contactless reader or insertable reader is provided depending on the model.

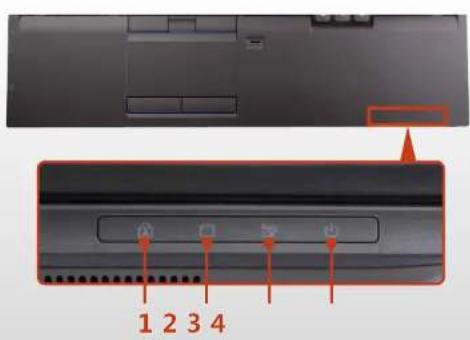

Using the camera, web cam

Using the Cyberlink YouCam program (optional), you can take pictures or record video by using the computer's built-in camera by adding the balloon talk or frame effect.

Status Indicators

1 2 3 4

1 Caps Lock	This turns on when the Caps Lock key ispressed allowing capital letters to be typedwithout holding the Shift button down.On: Upper-case alphabetic inputOff: Lower-case alphabetic input
2 HDD/ODD	This turns when either the HDD or ODD isbeing accessed.
3 Charge Status	This shows the power source and thebattery charge status.Green: When the battery is fullycharged or the battery is not installed.Orange: When the battery is beingcharged.Off: When the computer is running onbattery power without being connectedto AC adapter.
4 Power	This shows the computer operating status.On: When the computer is operating.Blinks: When the computer is in Sleepmode.

Right View

▶ For 12.5 inch models

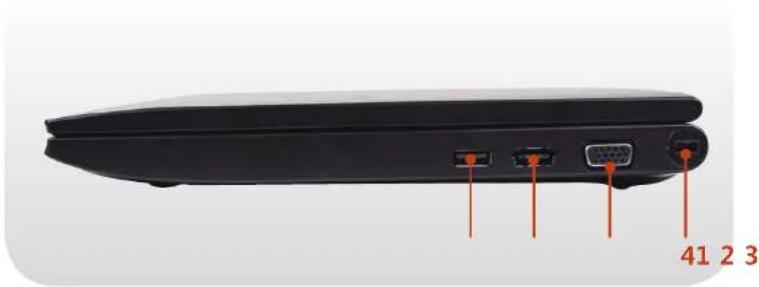

Back view of a black electronic device with three labeled ports (no text or symbols visible)

1 USB Port ⇌	You can connect USB devices to the USB port such as a keyboard/mouse, digital camera, etc.
2 eSATA/USB Common Port (Optional)	This port can be used to connect a USB or eSATA device.Windows XP does not support eSATA.
3 Monitor Port ☐	A port used to connect a monitor, TV or projector supporting a 15pin D-SUB interface.

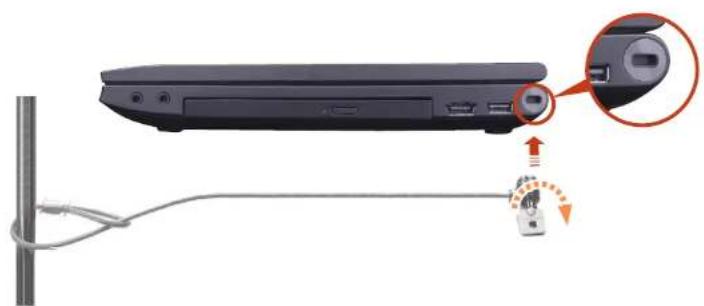

4 Security Slot ➡	You can secure the computer by connecting a lock and cable to the Security Slot.

What is an e-SATA port?

This is a new type of connection between a PC and peripheral devices. It is generally used to connect a PC and an external-type hard disk drive.

Right View

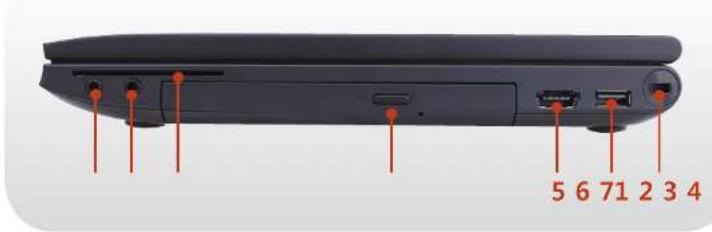

▶ For 14 inch models

5 6 71 2 3 4

▶ For 15.6 inch models

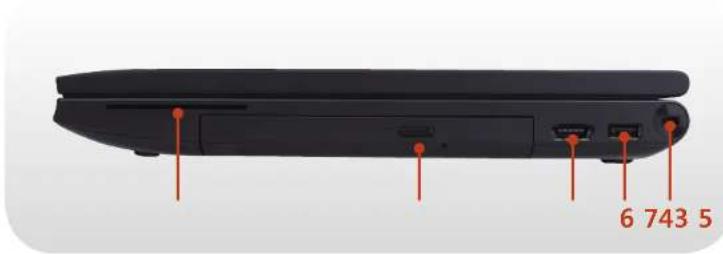

6 743 5

1	Headphone Jack	A jack used to connect the headphones.
2	Microphone Jack	A jack used to connect the microphone.
3	Insertable Smart Card Reader (Optional)	A card slot supports smart cards.Either contactless reader or insertable reader is provided depending on the model.

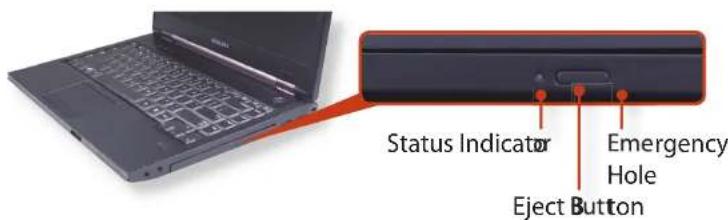

4	CD Drive (ODD) (Optional)	Plays CD or DVD titles.Since an ODD(Optical Disk Drive) is optional, the installed drive depends on the computer model.
5	eSATA/USB Common Port (Optional)	This port can be used to connect a USB or eSATA device.Windows XP does not support eSATA.
6	USB Port	You can connect USB devices to the USB port such as a keyboard/mouse, digital camera, etc.
7	Security Slot	You can secure the computer by connecting a lock and cable to the Security Slot.

What is an e-SATA port?

This is a new type of connection between a PC and peripheral devices. It is generally used to connect a PC and an external-type hard disk drive.

Overview

Chapter 1. Getting Started

Left View

▶ For 12.5 inch models

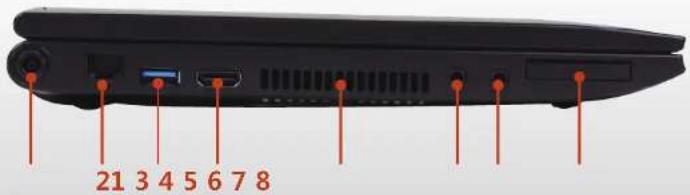

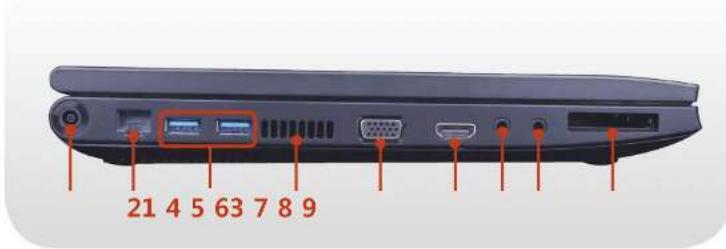

21 3 4 5 6 7 8

What is a Chargeable USB port?

USB device accessing and charging functions are • supported.

The USB charging function is supported regardless of whether the power is turned on or off.

Charging a device through a Chargeable USB port may take longer than general charging.

• Using the Chargeable USB function when the computer is running on battery power reduces the battery usage time.
• The user cannot evaluate the charging status of the USB device from the computer.
  • This may not be supported for some USB devices.

1

DC Jack ◇-◇

A jack to connect the AC adapter that supplies power to the computer.

2	Wired LAN Port	Connect the Ethernet cable to this port.
3	USB Port or Chargeable USB Port (Optional)	USB ports to which you can connect USB devices as well as a Chargeable USB port are provided.Using a Chargeable USB port, you can access or charge a USB device.The port can be distinguished by the figure printed on the port of the product.↔ USB 2.0 port↔↓ Chargeable USB 2.0 port↔ ↔ USB 3.0 port↔ ↔ Chargeable USB 3.0 port
4	Digital Video/ Audio Port (HDMI) (Optional)	You can connect an HDMI cable to this port. Using this port, you can enjoy digital video and audio on the TV.
5	Fan Vents	The internal heat of the computer is emitted through these holes.!! If the vents are blocked the computer may overheat.Avoid blocking the vents as this may be dangerous.
6	Microphone Jack	A jack used to connect the microphone.
7	Headphone Jack	A jack used to connect the headphones.
8	ExpressCard Slot(Optional)	Install the Express card into this slot.

Left View

▶ For 14 inch models

21 3 4 5 6 7

What is a Chargeable USB port?

USB device accessing and charging functions are • supported.

The USB charging function is supported regardless of whether the power is turned on or off.

Charging a device through a Chargeable USB port may take longer than general charging.

Using the Chargeable USB function when the computer is running on battery power reduces the battery usage time.

• The user cannot evaluate the charging status of the USB device from the computer.
  • This may not be supported for some USB devices.

1

DC Jack ◇-◇

A jack to connect the AC adapter that supplies power to the computer.

2	Wired LAN Port	Connect the Ethernet cable to this port.
3	Fan Vents	The internal heat of the computer is emitted through these holes.⚠️ If the vents are blocked the computer may overheat.Avoid blocking the vents as this may be dangerous.
4	Monitor Port	A port used to connect a monitor, TV or projector supporting a 15pin D-SUB interface.
5	Digital Video/Audio Port (HDMI)(Optional)	You can connect an HDMI cable to this port. Using this port, you can enjoy digital video and audio on the TV.
6	USB Port or Chargeable USB Port (Optional)	USB ports to which you can connect USB devices as well as a Chargeable USB port are provided.Using a Chargeable USB port, you can access or charge a USB device.💡 The port can be distinguished by the figure printed on the port of the product.⇨ USB 2.0 port⇨ Chargeable USB 2.0 port⇨ USB 3.0 port⇨ Chargeable USB 3.0 port
7	ExpressCard Slot(Optional)	Install the Express card into this slot.

2	Wired LAN Port	Connect the Ethernet cable to this port.
3	Fan Vents	The internal heat of the computer is emitted through these holes.⚠️ If the vents are blocked the computer may overheat.Avoid blocking the vents as this may be dangerous.
4	Monitor Port	A port used to connect a monitor, TV or projector supporting a 15pin D-SUB interface.
5	Digital Video/Audio Port (HDMI)(Optional)	You can connect an HDMI cable to this port. Using this port, you can enjoy digital video and audio on the TV.
6	USB Port or Chargeable USB Port (Optional)	USB ports to which you can connect USB devices as well as a Chargeable USB port are provided.Using a Chargeable USB port, you can access or charge a USB device.💡 The port can be distinguished by the figure printed on the port of the product.⇨ USB 2.0 port⇨ Chargeable USB 2.0 port⇨ USB 3.0 port⇨ Chargeable USB 3.0 port
7	ExpressCard Slot(Optional)	Install the Express card into this slot.

Overview

Chapter 1. Getting Started

Left View

▶ For 15.6 inch models

21 4 5 63 7 8 9

What is a Chargeable USB port?

USB device accessing and charging functions are supported.

The USB charging function is supported regardless of whether the power is turned on or off.

Charging a device through a Chargeable USB port may take longer than general charging.

Using the Chargeable USB function when the computer is running on battery power reduces the battery usage time.

• The user cannot evaluate the charging status of the USB device from the computer.
  • This may not be supported for some USB devices.

1	DC Jack ◇◇◇	A jack to connect the AC adapter that supplies power to the computer.
2	Wired LAN Port ☐	Connect the Ethernet cable to this port.

3	USB Port or Chargeable USB Port (Optional)	USB ports to which you can connect USB devices as well as a Chargeable USB port are provided.Using a Chargeable USB port, you can access or charge a USB device.The port can be distinguished by the figure printed on the port of the product.↔ USB 2.0 port↔↓ Chargeable USB 2.0 port↔↔ USB 3.0 port↔↔↓ Chargeable USB 3.0 port
4	Fan Vents	The internal heat of the computer is emitted through these holes.⚠ If the vents are blocked the computer may overheat.Avoid blocking the vents as this may be dangerous.
5	Monitor Port☐	A port used to connect a monitor, TV or projector supporting a 15pin D-SUB interface.
6	Digital Video/ Audio Port (HDMI) (Optional)	You can connect an HDMI cable to this port. Using this port, you can enjoy digital video and audio on the TV.
7	Microphone Jack	A jack used to connect the microphone.
8	Headphone Jack	A jack used to connect the headphones.
9	ExpressCard Slot ☐ (Optional)	Install the Express card into this slot.

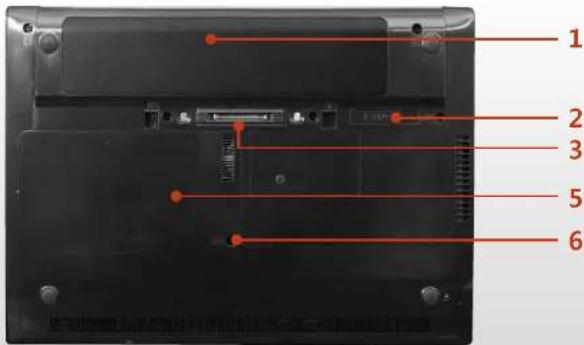

Bottom View

▶ For 12.5 inch models

1 2 3 5 6

▶ For 14, 15.6 inch models

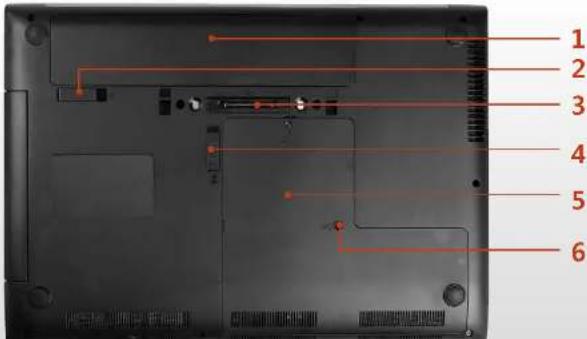

1 2 3 4 5 6

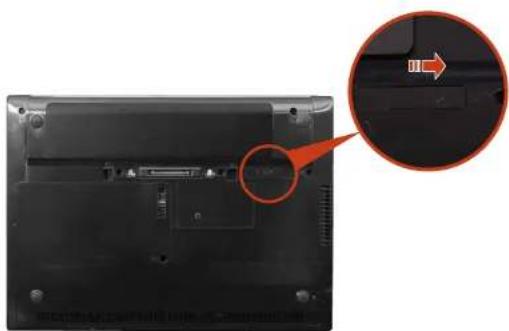

1	Battery	This is a Lithium-Ion rechargeable battery that supplies power to the computer.
2	Battery Latches	The latch used to remove or install the battery.
3	Docking Port(Optional)	This is the port to connect the Business Docking Station to (sold separately).
4	CD drive (ODD) separation latch(Optional)	This latch is to separate the CD or DVD drive from the computer.

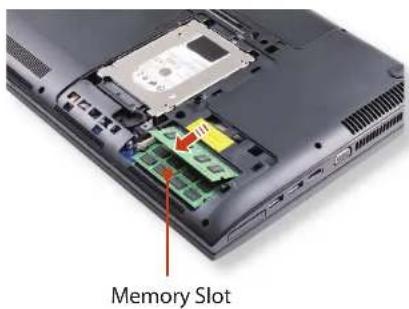

5	Memory Compartment Cover/ Hard Disk Drive Compartment Cover	The main memory and hard disk drive is installed inside the cover.
6	Keyboard draining hole	When a small amount of liquid is spilt over the keyboard, the liquid can be drained through this hole.Since completely water proofing the product is not guaranteed, in the case of inundation, immediately separate the power cord and battery and call the service center.

Turning the Computer On and Off

Chapter 1. Getting Started

Turning the computer on

1 Install the battery and connect the AC adapter.
2 Lift the LCD panel up.

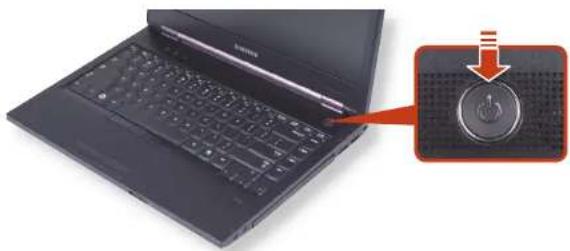

3 Press the Power button to turn the computer on.

Laptop keyboard with a red button icon pointing to the right side of the screen (no text or symbols visible)

4 Power button LED is lit while the computer is turned on.

About Windows Activation

When you turn the computer on for the first time, the Windows activation screen appears.

Follow the activation procedures according to the instructions on the screen to use the computer.

Entering Sleep mode

When the computer is turned on, press the computer's power button once briefly.

Adjusting the screen brightness

When the computer runs on battery power, the LCD brightness is automatically set to low.

Press the Fn + key combination to increase the screen brightness.

Turning the Computer On and Off

Chapter 1. Getting Started

Turning the computer off

Since the procedures to turn the computer off may differ depending on the installed operating system, please turn the computer off according to the procedures for the purchased operating system.

• Save all your data before clicking on Shut down.
• If Samsung Fast Start is installed, the system shutdown location may differ.

▶ For Windows 7

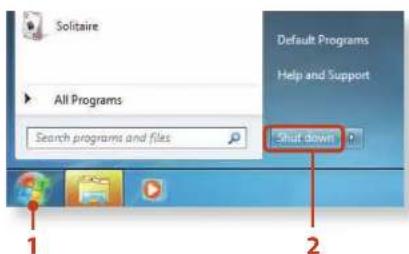

Click Start > Shut down mode Shut down to shutdown the computer.

Solitaire All Programs Search programs and files Default Programs Help and Support Shut down

▶ For Windows Vista

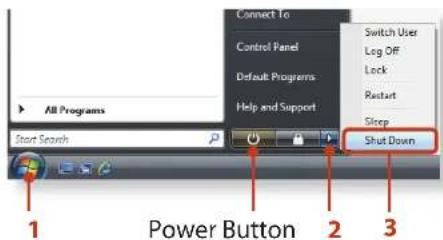

Click on Start > and then click on Shut Down as shown in the figure below to shut the computer down.

All Programs Start Search Connect To Control Panel Default Programs Help and Support Switch User Log Off Lock Restart Sleep Shut Down Power Button 1 2 3

Using the Power button in Windows Vista

For Windows Vista, the Power button is set to power saving mode. Therefore, if you click Start > Power button, the computer enters power saving mode.

To shut down the computer by clicking this icon, refer to the descriptions for Setting up Start menu power button of the Control Panel.

Turning the Computer On and Off

Chapter 1. Getting Started

▶ For Windows XP

1 Click the Start Button on the taskbar. Click Turn Off Computer.

Start 1 Log Off Turn Off Computer 2

2 Click Turn Off.

Turn off computer Stand by Turn Off Restart Cancel

If the system cannot be shut down due to a system error, turn it off by pressing and holding the Power Button for a minimum of 4 seconds.

Please note that turning the computer off by this method may cause a system problem. Thereafter, when turning the computer back on, the disk checking program may launch to check for and correct any disk errors.

Turning the Computer On and Off

Chapter 1. Getting Started

Samsung Fast Start (Optional)

These descriptions are for Windows 7 and for supported models only.

If you are using the system very often while on the move, use Fast Start to reduce the booting time.

When the Samsung Fast Start function is being used, the computer runs in hybrid power-saving mode when the computer enters standby mode or hibernation mode.

Using Fast Start

1 Runs Samsung Fast Start.

2 Select ON or OFF depending on your requirements, and click OK.

Samsung Fast Start Fast Start enables system to enter "Sleep mode" regardless of your current system power settings, and lets you access your diskier faster. Fast Start function ON OFF OK CANCEL ANY

3 The Fast Start function will be turned on or off according to your selection.

While the Fast Start function is enabled

You cannot change some power options in the Control • Panel. To change these, first disable the Fast Start function.

The existing power saving mode and maximum power saving mode functions have been replaced by this function.

Battery and AC power should be removed before you open memory door to change or add memory.

The LCD may flicker once if the Fast Start function is turned ON or OFF.

What is hybrid power-saving mode?

In hybrid saving mode, the data you are working on will be saved to memory and the HDD, in the event of a sudden power failure, ensuring the safety of your data.

However, as unexpected accidents can always occur, it is recommended backing up any important data beforehand.

Green computer mouse icon with white circular background (no text or symbols)

Chapter 2. Using the computer

Keyboard 40

Touchpad 44

Pointing Stick (Optional) 51

CD Drive (ODD, Optional) 56

ExpressCard Slot (Optional) 58

Multi Card Slot (Optional) 59

Connecting an External Display Device 62

Connecting an External Digital Device 71

Adjusting the Volume 72

Wired Network 76

Wireless Network (Optional) 80

Sharing Content in a Home Network

(Easy Content Share) (Optional) 85

HDD Protection Function (Optional) 91

Using the Security Device (Optional) 92

Shortcut key functions and procedures are discussed in the following sections.

The keyboard image may differ from the actual keyboard.

- The keyboard may differ depending on your country. The following mainly describes the shortcut keys.

Shortcut Keys

You can use the following functions by pressing the keys below with the Fn key.

Fn + Esc F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12

Keyboard

Chapter 2. Using the computer

Fn Name Function
Fn +		REST(Sleep Mode)	Switches to Sleep mode. To wake the computer up, press the Power button.
		ScreenBrightnessControl	Controls the screen brightness.
		CRT/LCD	Switches the screen output to the LCD or external monitor when an external monitor (or TV) is connected to the computer.
		Touchpad/Pointing Stick	Turns the touchpad function or pointing stick function on or off.
		Omnipass The Omnipass security program is executed.
Fn+		Samsung Support Center	System diagnosis, recovery and Internet consultation program,Samsung Support Center, will be launched. (Optional)
			For some models,Samsung Magic Doctor is launched.
		Battery mode	To use the battery efficiently, you can change the battery mode according to your usage environment.
		Mute Mutes or cancels mute.
	[SY3K]	Volume Control	Controls the volume.
	[DK0X]	Wireless network	You can turn the wireless network device on or off . (Only for models with a wireless network device.)

Numeric Key (For 12.5 inch models)

Press the Fn + NumLock key to use some of the keys as numeric keys.

Numeric Key For 14, 15.6 inch models)

For 14-inch models, press the NumLock key to use some of the keys as numeric keys.

For 15.6-inch models, once the NumLock is on, the numeric keypad in the right side of the keyboard is enabled.

Other Function Keys

Performs the right-click mouse function (touchpad).

If the hot keys do not work properly, you have to install the Easy Display Manager.

Touchpad

Chapter 2. Using the computer

The touchpad provides the same function as a mouse and the left and right buttons of the touchpad plays the role of the left and right buttons of a mouse.

To use the touchpad, the touchpad driver is required.

A built-in Windows driver and a driver provided by the manufacturer are provided. For a better performance, using the driver provided by the touchpad manufacturer is recommended.

The driver provided by the touchpad manufacturer is already installed in this product by default when you purchase this product. When you reinstall Windows or change the operating system, using the driver provided by the corresponding manufacturer is recommended.

Use the Touchpad with your fingers. Using a sharp object may damage the Touchpad.

If you touch the Touchpad or press the Touchpad buttons • while booting up, the Windows boot time may be extended.

- Checking the touchpad manufacturer Click the Start > Control Panel > Hardware and Sound > Mouse > Hardware tab and check the device (E.g. Elan, Synaptics, etc.).

The Windows driver provides basic touchpad functions • (moving the pointer, clicking, etc.) but the gesture function is not supported.

Touchpad

Chapter 2. Using the computer

Touch Area Use to move the cursor. Touchpad Left Button You can select or run a program using this button. Touchpad Right Button Plays the role of the right mouse button.

Basic Touchpad Functions

Moving the cursor on the screen

Place your finger on the touchpad slightly and move your finger. The mouse cursor will move accordingly. Move your finger in the direction you wish to move the cursor.

Hand interacting with a laptop keyboard, showing four directional arrows (no text or symbols)

Click Function

Place a finger on the touchpad and click on an item once. Alternatively, press the left button once quickly and release it.

Tap or Click

Touchpad

Chapter 2. Using the computer

Double-Click Function

Put your finger on the touchpad and quickly tap twice with your finger on an item you want.

Alternatively, press the left touchpad button twice quickly.

TapTap or ClickClick

Right Button Function

This corresponds to clicking the right mouse button.

Press the right touchpad button once. The corresponding pop-up menu appears.

Click

Drag Function

Dragging refers to moving an item to another place after selecting it.

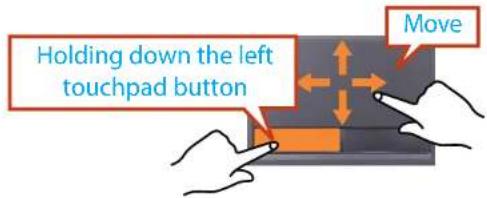

Press and hold down the left touchpad button over an item you want to drag and move the item to the new location.

Holding down the left touchpad button Move

The Gesture Function of the Touchpad (Optional)

The Touchpad Gesture function may not be provided and the version of the function may differ depending on the model. Some usage procedures may differ depending on the version.

For detailed usage procedures, refer to the description in the Touchpad Settings window.

Since these descriptions are written on the basis of the latest operating system, Windows 7, some of the content and the figures of the descriptions may differ depending on the operating system. Since the procedures for other Windows operating systems are similar, use the computer referring to these descriptions.

Using the Touchpad, you can use the following additional Gesture functions.

Scroll function•

Zoom functions.

Page Move Function·

Configuring the Gesture Function

If the Gesture function is not activated, you can activate it according to the following procedures.

1 ▶ When using the Elan driver

Click the Start > Control Panel > Hardware and Sound > Mouse > ELAN > Options button.

▶ When using the Synaptics driver

Click the Start > Control Panel > Hardware and Sound > Mouse > Device Settings tab > Settings button.

2 The Touchpad Settings window appears. Click over the corresponding item to select the item in the Select an item and click OK.

To cancel the Gesture function, unselect the corresponding item in the Touchpad Settings window and click OK.

Touchpad

Chapter 2. Using the computer

The Scroll Function

This function is the same as the scroll area of the Touchpad.

If you place two fingers over the Touchpad and move them up, down, left or right, the screen is scrolled up, down, left or right accordingly.

Hand gesture showing two double-headed arrows pointing at a screen (no text or symbols)

or

Hand gesture pointing at a screen with double-headed arrows on the top (no text or symbols)

Zoom Functions

If you place two fingers over the Touchpad together or apart, the current image or text is zoomed in or out.

Zoom-in Zoom-out or

Page Move Function

You can move to the previous or next page when you are looking at a photo or surfing the Internet.

For example, if you lightly brush three fingers to the left while you are looking at a web site, you will return to the previous page.

Illustration of a hand pressing down on a screen with double-headed arrows indicating bidirectional data (no text or symbols)

Touchpad

Chapter 2. Using the computer

Setting the Touchpad Sensitivity

If the touchpad reacts too sensitively or the pointer moves unintentionally, please adjust the touchpad pointer speed and sensitivity.

Adjusting the Pointer Speed

Click Start > Control Panel > Hardware and Sound > Mouse > Pointer Options and then adjust the pointer speed.

Adjusting the Touchpad Palm Detection Function

The palm detection function is to avoid malfunctions when the palm touches the touchpad by mistake.

This function is provided by the touchpad driver provided by the manufacturer.

▶ When using the Elan driver

Click Start > Control Panel > Hardware and Sound > Mouse > ELAN > Options > PalmTracking and then adjust the sensitivity.

▶ When using the Synaptics driver

Click Start > Control Panel > Hardware and Sound > Mouse > Device Settings > Settings > Pointing > Sensitivity > PalmCheck and then adjust the sensitivity.

When the touchpad pointer does not move smoothly: Slide the bar appropriately in the direction of Minimum.

When the touchpad pointer moves unintentionally (excessively): Slide the bar appropriately in the direction of Maximum.

Touchpad On/Off Function

Locking with shortcut keys

If you don't want to use the touchpad, you can turn the touchpad off.

Press the Fn + key combination once. Then the screen appears where you can select a device mode.

Since pressing the F5 key while holding down the key changes the selection, select a device mode.

• Touchpad ON / Pointing Stick ON
• Touchpad ON / Pointing Stick OFF
• Touchpad OFF / Pointing Stick ON

You can set the touchpad and touchpad button settings in the tabs that appear when clicking Start > Control Panel > Hardware and Sound > Mouse.

Auto-locking when connecting USB mouse

▶ When using the Elan driver

Click Start > Control Panel > Hardware and Sound > Mouse > ELAN, and check the Disable When external USB mouse plug in option. This will turn the touchpad and the pointing stick off when a USB mouse is connected.

▶ When using the Synaptics driver

Click Start > Control Panel > Hardware and Sound > Mouse > Device Settings, and check the Disable internal pointing device when external USB pointing device is attached in option. This will turn the touchpad and the pointing stick off when a USB mouse is connected.

In case of some touch-screen model, checking option locks the touchpad and the pointing stick even though you did not connect a USB mouse.

This auto-locking function is not provided for some models.

Pointing Stick (Optional)

Chapter 2. Using the computer

The pointing stick provides the same function as a mouse.

The buttons of the pointing stick plays the role of the left and right buttons and wheel button of a mouse.

To use the pointing stick, the pointing stick driver is required.

The driver provided by the pointing stick manufacturer is already installed in this product by default when you purchase this product. When you reinstall Windows or change the operating system, using the driver provided by the corresponding manufacturer is recommended.

Use the pointing stick with your fingers. Using a sharp object may damage the pointing stick.

If you touch the pointing stick or press the pointing stick · buttons while booting up, the Windows boot time may be extended.

Checking the pointing stick manufacturer.

Click the Start > Control Panel > Hardware and Sound

Mouse > Hardware tab and check the device (E.g. Elan, Synaptics, etc.).

Pointing Stick

Use to move the cursor.

You can select or run a program using this button.

Plays the role of the right mouse button.

Scroll Button

This corresponds to the wheel of the mouse.

Pointing Stick (Optional)

Chapter 2. Using the computer

Basic Pointing Stick Functions

Moving the cursor on the screen

Place your finger on the pointing stick slightly and move your finger. The mouse cursor will move accordingly. Move your finger in the direction you wish to move the cursor.

R T Y U F G H J V N

Click Function

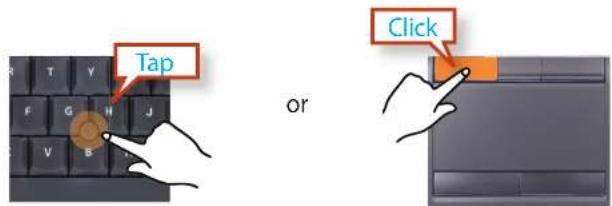

Place a finger on the pointing stick and click on an item once.

Alternatively, press the pointing stick left button once quickly and release it.

Tap or Click

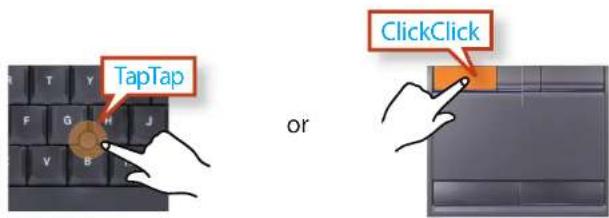

Double-Click Function

Put your finger on the pointing stick and quickly tap twice with your finger on an item you want.

Alternatively, press the pointing stick left button twice quickly.

TapTap or ClickClick

Right Button Function

This corresponds to clicking the right mouse button.

Press the pointing stick right button once. The corresponding pop-up menu appears.

Click

Pointing Stick (Optional)

Chapter 2. Using the computer

Drag Function

Dragging refers to moving an item to another place after selecting it.

Press and hold down the pointing stick left button over an item you want to drag and move the item to the new location.

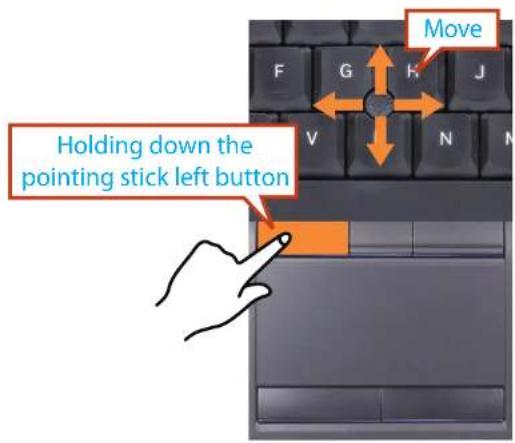

Scroll Function

This function is the same as the scroll area of the Touchpad.

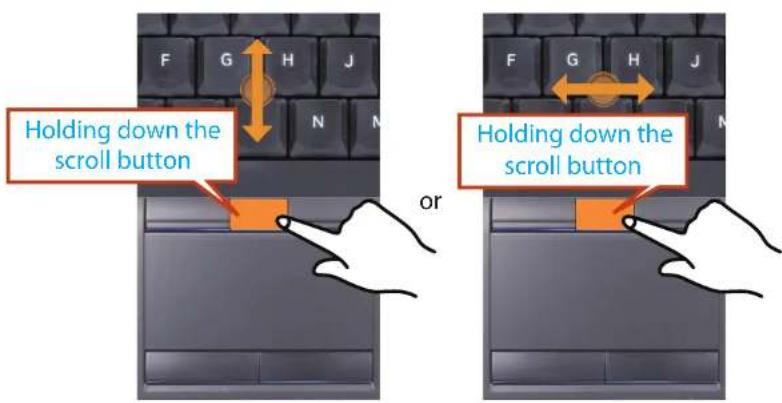

Press and hold down the scroll button and move the pointing stick up, down, left or right.

Then, the screen is scrolled up, down, left or right accordingly.

Move Holding down the pointing stick left button

Holding down the scroll button or Holding down the scroll button

Adjusting the Pointing Stick Sensitivity

If the pointing stick reacts too sensitively or the pointer moves unintentionally, please adjust the pointing stick pointer speed and sensitivity.

Adjusting the Pointer Speed

Click Start > Control Panel > Hardware and Sound > Mouse > Pointer Options and then adjust the pointer speed.

Adjusting the Pointing Stick Touch Sensitivity

You can control how much finger pressure is required to move the pointer.

▶ When using the Synaptics driver

Click Start > Control Panel > Hardware and Sound > Mouse > Device Settings > Settings > Touch Sensitivity and then adjust the sensitivity.

Pointing Stick On/Off Function

Locking with short keys

If you don't want to use the pointing stick, you can turn the pointing stick off.

Press the Fn + key combination once. Then the screen appears where you can select a device mode.

Since pressing the F5 key while holding down the key changes the selection, select a device mode.

• Touchpad ON / Pointing Stick ON
• Touchpad ON / Pointing Stick OFF
• Touchpad OFF / Pointing Stick ON

You can set the pointing stick and pointing stick button settings in the tabs that appear when clicking Start > Control Panel > Hardware and Sound > Mouse.

Pointing Stick (Optional)

Chapter 2. Using the computer

Auto-locking when connecting USB mouse

▶ When using the Synaptics driver

Click Start > Control Panel > Hardware and Sound > Mouse > Device Settings, and check the Disable internal pointing device when external USB pointing device is attached in option. This will turn the touchpad and the pointing stick off when a USB mouse is connected.

In case of some touch-screen model, checking option locks the touchpad and the pointing stick even though you did not connect a USB mouse.

This auto-locking function is not provided for some models.

CD Drive(ODD, Optional)

Chapter 2. Using the computer

An optical disk drive is optional and may differ depending on your computer model. For detailed specifications, refer to the catalogue.

!

Do not insert a cracked or scratched CD.

Otherwise, the CD may break and damage the optical disk drive when the CD rotates at a high speed.

When you clean a CD or DVD title, wipe with a soft cloth • from inside to outside.

Insert a Mini CD into the center of the CD drive.

The figures used for the description are of a representative model. Therefore the figures may differ from the real ones.

Using a CD that is not in the shape of a circle is not recommended.

Inserting and Ejecting a CD

1 Press the Eject button of the optical disk drive at the side of the computer.

Status Indicator Emergency Hole Eject Button

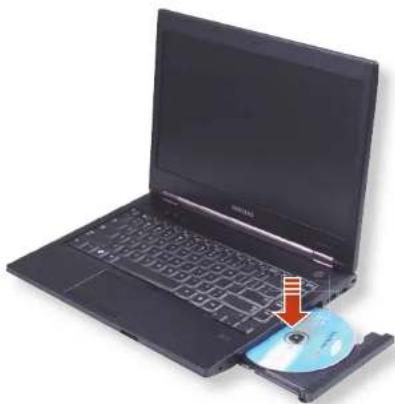

2 When the CD tray opens, insert a CD or DVD and push the tray in until it clicks.

Laptop with CD inside and a disc removed from the front panel (no visible text or symbols)

3 Push the CD tray inward until it clicks.

The CD drive status indicator is turned on.

A CD drive's reading and writing speed may differ depending on the condition and type of the media.

- To eject a CD when the CD drive does not work or the computer is off, place the end of a paper clip ( ) into the Emergency Hole until the CD tray is ejected.

CD Drive(ODD, Optional)

Chapter 2. Using the computer

Installing/Removing the CD drive

1 Shutdown the system, close the LCD panel and place the computer upside down on a fl at surface.

2 Pull the CD drive separation latch outward, then remove the CD drive.

Laptop screen with attached drive module and a hand holding the card (no visible text or symbols)

3 To install the CD drive again, slide the CD drive separation latch into the system. The CD drive separation latch move inward and fix the CD drive automatically.

Check if the CD drive separation latch has been moved inward.

ExpressCard SlotOptional)

Chapter 2.

Using the computer

The ExpressCard slot can be regarded as the next generation PCMCIA card specification and supports LAN, TV Tuner and Sound cards.

This computer's slot supports the Express Card/34 specification.

If a slot protection dummy card is inserted into your computer, remove the dummy card before using the computer.

This slot is a ExpressCard slot. You cannot connect a • PCMCIA card here.

Since these descriptions are written on the basis of the latest operating system, Windows 7, some of the content and the figures of the descriptions may differ depending on the operating system. Since the procedures for other Windows operating systems are similar, use the computer referring to these descriptions.

To insert a card

1 Insert a card into the slot on the side of the computer.

Black laptop computer with visible keyboard, keyboard, and mouse (no text or symbols)

ExpressCard slot

2 If you insert a card into the slot, Windows recognizes the card automatically or a message telling you to install a driver appears. If the card is not automatically recognized, install the device driver supplied with the card.

If a window asking whether you want to scan and change appears, click on Continue Without Scan.

This will proceed to Step 2 above.

To remove a card

1 Click the Safely Remove Hardware icon on the task bar.
2 Click Remove ExpressCard.
3 You can remove the express card when the Safely Remove Hardware message appears.
4 Push the card in the slot lightly. Then the card pops up.
5 Eject the card.

Multi Card Slot(Optional)

Chapter 2. Using the computer

Using the multi card slot, you can read and write data to cards.

You can use a card as a removable disk and conveniently exchange data with digital devices such as a digital camera, digital camcorder, MP3, etc..

Depending on the model, up to 7 types of cards can be supported: MS, MS Pro, SD, SDHC, SDXC, or xD.

You have to additionally purchase a multi card with the necessary capacity depending on your requirements.

You can use a multi card just like any data storage device. • A copyright protection function is not supported.

Since you can lose or damage a card when moving the computer, keep the card separately.

The figures used for the description are of a representative model. Therefore the figures may differ from the real ones.

If a slot protection dummy card is inserted into your computer, remove the dummy card before using the computer.

- These descriptions are written based on Windows 7, the latest operating system. Therefore, some descriptions and figures may differ from your operating system. But as the usage is similar to other Windows operating systems, you can use these descriptions for reference.

Using the card

1 Insert the card into the multi card slot in the indicated direction.

Example) SD Card

2 The card drive appears. Click Open folder and view files. If the window does not appear, click Start > Computer.

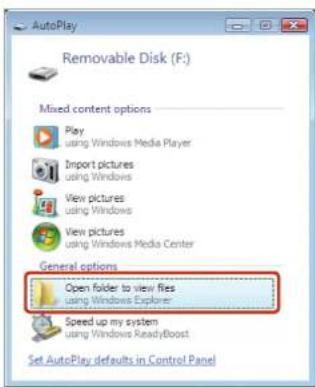

Removable Disk (F:) Mixed content options Play using Windows Media Player Import pictures using Windows View pictures using Windows View pictures using Windows Media Center General options Open folder to view files using Windows Explorer Speed up my system using Windows ReadyBoost Set AutoPlay defaults in Control Panel

Multi Card Slot (Optional)

Chapter 2. Using the computer

If a window asking to scan and change appears, click Continue Without Scanning. This will proceed to Step 2 above.

3 You can save, move and delete data by double-clicking the corresponding drive. You can only use the card after formatting it.

Screenshot of a device list showing 'Removable Storage' and 'Removable Disk' with icons and labels

The device name of the card drive may differ depending on your computer model.

Using a Mini SD

Since the above cards are too small, you cannot insert the cards into the slot directly.

Insert the card into the dedicated adapter (available from most electronic retailers) and then insert the adapter into the multi card slot.

To remove a memory card

Take hold of the end of the card and remove the card.

Multi Card Slot (Optional)

Chapter 2. Using the computer

To format a memory card

When using the memory card for the first time, you must format the card before using it.

! Formatting a card deletes all data saved on the card. If the card includes data, backup the data before formatting it.

1 Click Start > Computer.
2 Right-click over a card drive with the touchpad and select Format.
3 Click Start to the formatting.

To use a card to exchange data with a digital device such as a digital camera, formatting the data using the digital device is recommended.

When you try to use a card, which is formatted in the computer, in another digital device, you may have to format the card again in the device.

You cannot format, write or delete data from a SD, or SDHC card with a write protection tab when it is in the Lock position.

Inserting and removing a memory card repeatedly may damage the memory card.

Connecting an External Display Device

Chapter 2. Using the computer

If you connect an external display device such as a monitor, TV, projector, etc., you can view the picture on the wider screen of the external device when you give a presentation or watch a video or movie.

The computer provides an analog monitor port (RGB) and a digital video/audio port (HDMI).

The visual quality is sharper when a display device is connected through the HDMI port rather than the analog monitor port (RGB) port. Therefore, when multiple ports are supported, connect a display device to a port that provides the better visual quality.

Before you start, check the port and cable of the external display device and then connect the display device to the computer.

Due to restrictions of the operating system the DualView function is not supported for Windows 7 Starter.

About the connection cable

Users should additionally purchase the necessary connection cables.

Illustration of a blue and white USB cable with two connectors (no text or symbols)

Analog Monitor (RGB) Cable

Coiled black cable with two USB connectors against a light green background (no text or symbols)

HDMI Cable

Connecting an External Display Device

Chapter 2. Using the computer

Connecting to the monitor port

You can experience a wider screen by connecting the computer to a monitor, TV or projector with a monitor port.

You can give better presentations by connecting the computer to a projector.

1 Connect the RGB port of the computer and the port of the monitor or TV with the monitor cable (15 pin).

2 Connect the power cord of the connected monitor, TV or projector and turn the power on.

3 Press the Fn + F4 key combination once. Then the Easy Display Manager screen appears where you can select a display device.

Since pressing the F4 key while holding down the Fn key changes the selection, select a display device.

- If the screen is not switched even if you press the Fn + F4 key combination, you have to install the Easy Display Manager program.

External Monitor / TV is not supported in the DOS Command Prompt window.

Connecting an External Display Device

Chapter 2. Using the computer

LCD
CRT
LCD+CRT Clone
LCD+CRT Dual View

Simultaneous output to the notebook LCD+RGB+HDMI is not allowed.

Alternatively, to set up Dual View:

Open the Display Settings window in the Control Panel, select Monitor 2 and select the Expand to fit to this monitor checkbox to set dual view. For more detailed information, refer to the Windows online help.

▶ When Multi View is supported (Optional)

LCD Only
External Display Only
Multi View

What is Multi View?

This refers to the mode that outputs the screen to the notebook LCD and the additionally connected monitors (RGB+HDMI) at the same time.

To confi gure Multi View.

Select NVIDIA Control Panel > Multi Display Setting, select the additionally connected monitor and select the Extend the Desktop to this display option.

Connecting an External Display Device

Chapter 2. Using the computer

Connecting through the HDMI port (Optional)

By connecting the computer to a TV with a HDMI port, you can enjoy both a high visual quality and a high sound quality.

After connecting a TV through HDMI, you have to configure the screen and sound.

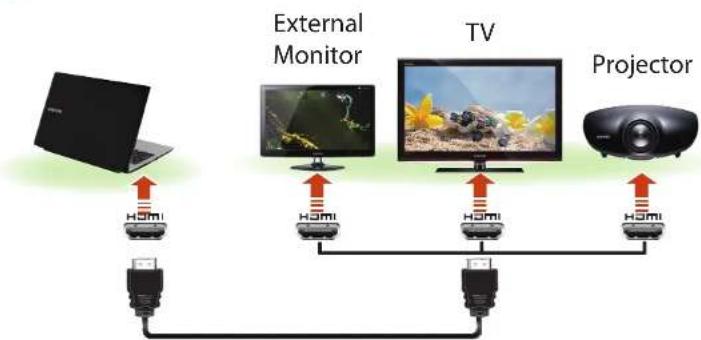

1 Connect the HDMI cable to the HDMI port of the TV.

This is only supported for models that support a TV output • port (HDMI).

When a TV provides more than one HDMI port, connect the computer to the DVI IN port.

When connecting the computer to a TV, switch the external input mode of the TV to HDMI.

2 Press the Fn + F4 key combination once. Then the Easy Display Manager screen appears where you can select a display device.

Since pressing the F4 key while holding down the Fn key changes the selection, select a display device.

- If the screen is not switched even if you press the Fn + F4 key combination, you have to install the Easy Display Manager program.

External Monitor / TV is not supported in the DOS Command Prompt window.

Connecting an External Display Device

Chapter 2. Using the computer

HDMI
LCD+HDMI Clone
LCD+HDMI Dual View

Simultaneous output to the notebook LCD+RGB+HDMI is not allowed.

Alternatively, to set up Dual View:-

Open the Display Settings window in the Control Panel, select Monitor 2 and select the Expand to fit to this monitor checkbox to set dual view. For more detailed information, refer to the Windows online help.

▶ When Multi View is supported (Optional)

LCD Only
External Display Only
Multi View

What is Multi View?

This refers to the mode that outputs the screen to the notebook LCD and the additionally connected monitors (RGB+HDMI) at the same time.

To confi gure Multi View.

Select NVIDIA Control Panel > Multi Display Setting, select the additionally connected monitor and select the Extend the Desktop to this display option.

Connecting an External Display Device

Chapter 2. Using the computer

Setting up HDMI TV video (Optional)

If the Desktop screen displayed on the TV does not fit to the TV screen, configure it as follows depending on the graphics card.

- You can view the graphics card type by selecting Device Manager > Display adapters and then clicking the + symbol.

The screen images and terms may differ from actual product depending on the computer model and driver version.

▶ For Intel graphics cards

1 Right-click over the Desktop and select Graphics Properties.

If a window appears where you can select the mode, select Basic Mode and click OK.

2 Click Display > General Settings, select Customize Aspect Ratio in the Scaling fi eld, fi t the Desktop to the TV screen and click OK.

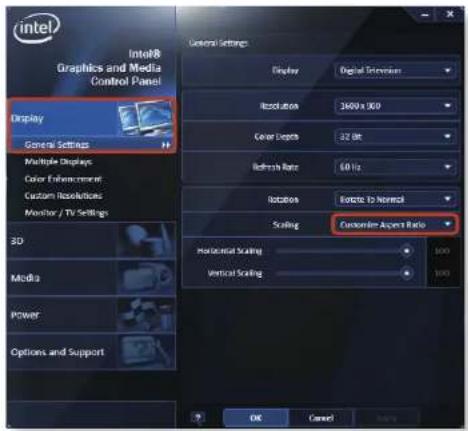

intel Intel® Graphics and Media Control Panel Display General Settings Multiple Displays Color Enhancement Custom Resolutions Monitor / TV Settings 3D Media Power Options and Support General Settings Display Digital Television Resolution 3400 x 300 Color Labels 22 Hz Refresh Rate 60 Hz Rotation Rotate to Normal Scaling Customer-Agent Ratio Horizontal Scaling 100 Vertical Scaling 100 OK Cancel OK

Connecting an External Display Device

Chapter 2. Using the computer

▶ For NVIDIA graphics cards

This function is not provided in the Optimus specifications.

1 Right-click over the Desktop and select NVIDIA Control Panel.
2 In the Select a Task window in the left panel, select the Dispaly > Adjust Desktop Size and Positon item and then click Resize Desktop.

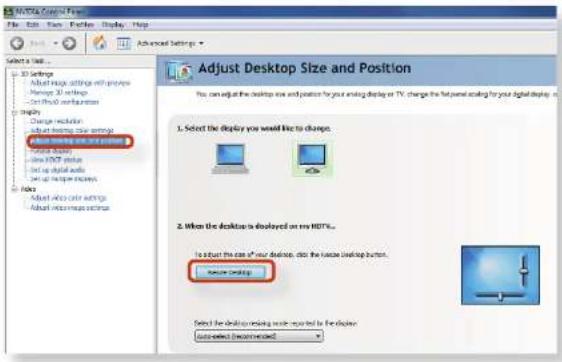

VMware Control Panel File Edit View Edit View Display Help Select a Web... 3D Settings Adjust help access with progress Manage 3D Settings Set the Web configuration Display Change settings Adjust testing your session Microsoft Windows 2007 Windows 2007 Show HKEY status Set up digital audio Set up desktop resources Video Add also other settings Adjust internal settings Adjust desktop size and position Adjust desktop size and position to change. 1. Select the display you would like to change. 2. When the desktop is displayed on my HKEY... To adjust this case in your device, click the local desktop button. Software desktop Select the desktop working mode supported to the display Use available (Recommended)

3 Resize the Desktop using the resize bars so that the four arrows at the corners of the Desktop are placed in the corners of the TV and then click OK.

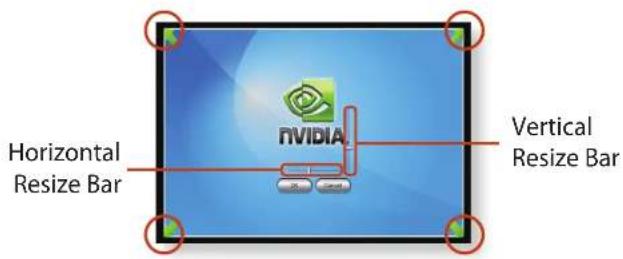

Horizontal Resize Bar NVIDIA Vertical Resize Bar

Connecting an External Display Device

Chapter 2. Using the computer

Setting up HDMI TV audio (Optional)

You can configure the sound of the computer to be played through the HDMI TV.

You have to configure the sound device in the Control Panel whenever you connect the HDMI TV in order to hear sound from the computer on the TV.

The screen images and terms may differ from actual product depending on the computer model.

1 Right-click over the Volume Control icon in the notification area at the bottom right of the Desktop and select Playback Devices.

(Alternatively, click the Control Panel > Hardware and Sound > Sound.)

2 Change the setting to Digital Audio (HDMI), HDMI Device or Digital Output Device, click Set Default and click OK.

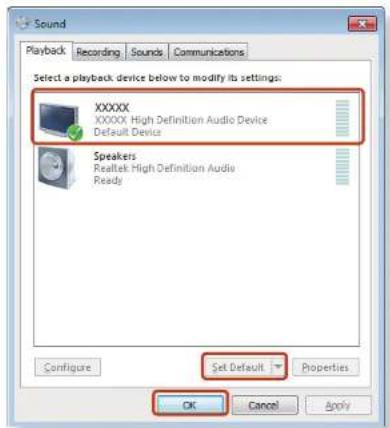

Sound Playback Recording Sounds Communications Select a playback device below to modify its settings: XXXXXX XXXXX High Definition Audio Device Default Device Speakers Realtek High Definition Audio Ready Set Default Properties Configure OK Cancel Apply

HDMI Output Device may not appear on the playback device list depending on the computer model.

In this case, turn on the TV, connect the TV to the computer using a HDMI cable and then switch to HDMI or LCD+HDMI Clone or LCD+HDMI DualView mode using the Shortcut Key (Fn + F4).

To listen to sound on the computer after disconnecting the HDMI TV, you have to set the Playback Device to Speakers.

Connecting an External Display Device

Chapter 2. Using the computer

Using NVIDIA Graphics Effectively (optional)

NVIDIA Optimus is technology that enables the graphics driver to select the (internal or external) graphics GPU to run a program.

For example, the internal graphics chipset can be used for Internet surf i ng or word processing to minimize battery power consumption and the high-performance external graphics graphic chipset can be used for gaming or video processing to deliver a more realistic experience.

The NVIDIA Optimus model supports Windows 7 only. This function is only available in models that support the NVIDIA Optimus technology.

Adding programs that will only run with the external graphics GPU

To run a program using the external graphics GPU, you have to register the program in the NVIDIA Control Panel.

Some programs are pre-registered. To register more programs, complete the following steps.

1 Right-click over the Desktop and select NVIDIA Panel.

2 Select 3D Settings > Manage 3D settings in the left pane and select the Program Settings tab.

3 In the Select a program to customize(S) field, click the Add button to register the program.

You can register executable files (EXE) only.

4 In the Select the preferred graphics processor for this program (O) fi eld, select High-performance NVIDIA processor and click the Apply button.

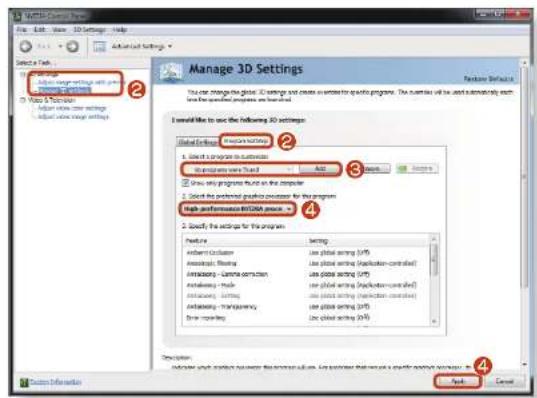

Manage 3D Settings This case changes the global 3D settings and creates a version to expand program. This number will be used simultaneously each to ensure the program is ready. Level 1: Use the following 3D settings: Global Settings: Design setting 1. Select a program in Subtotaling 2. Use only programs found on the computer 3. Select the preferred portfolio provider for the program 4. High performance BIDNA process 5. Select the setup for the program Feature: system selection system selection (option control) system selection - system selection system selection (option control) system selection - system selection system selection (option control) system selection - system selection system selection (option control) system selection (option control) system selection (option control) system selection (option control) system selection (option control) system selection (option control) system selection (option control) system selection (option control) system selection (option control) system selection (option control) system selection (option control) system selection (option control) system selection (option control) system selection (option control) system selection (option control) system selection (option control) system selection (option control) system selection (ion)... System selection (ion)... System selection (ion)... System selection (ion)... System selection (ion)... System selection (ion)... System selection (ion)... System selection (ion)... System selection (ion)... System selection (ion)... System selection (ion)... System selection (ion)... System selection (ion)... System selection (ion)... System selection (ion)... System selection (ion)... System selection (ion)... System selection (ion) System selection (ion) System selection (ion) System selection (ion) System selection (ion) System selection (ion) System selection (ion) System selection (ion) System selection (ion) System selection (ion) System selection (ion) System selection (ion) System selection (ion) System selection (ion) System selection (ion) System selection (ion) System selection (ion) System selection (ion) System selection (ion) System selection (ion) System selection (ion)

5 The program to be executed using either the internal or external graphics GPU has now been registered. The registered program runs using only the internal or the external graphics GPU.

Connecting an External Digital Device

Chapter 2. Using the computer

You can save a file stored on a device onto the computer by connecting a digital device such as a camera, camcorder or mobile phone to the computer and using the file management functions.

Connecting and using a camera or camcorder

If a digital device such as a camera or camcorder is connected with the computer, it is recognized as a removable disk so that you can copy or move the files on the device.

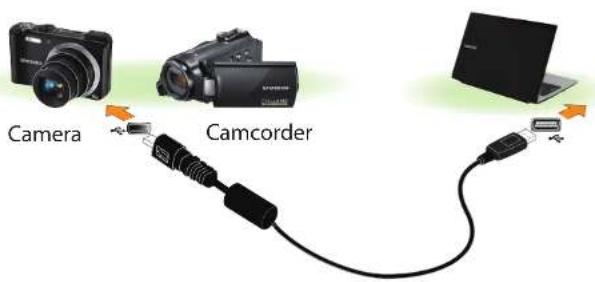

1 Connect the USB port of the notebook computer and the USB port of the digital device such as a camera using the USB cable.

Both the computer and the digital device must be turned • on.

You have to additionally purchase the USB cable necessary to connect the computer and the device.

Camera Camcorder

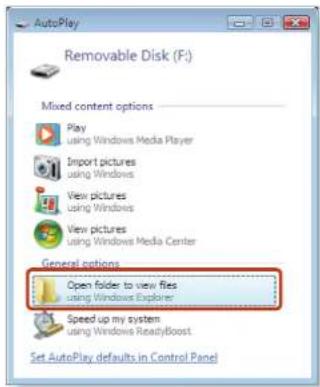

2 The Auto run window appears. Click Open folder and view 6 If the window does not appear, click Start > Computer.

Removable Disk (F:) Mixed content options Play using Windows Media Player Import pictures using Windows View pictures using Windows View pictures using Windows Media Center General options Open folder to view files using Windows Explorer Speed up my system using Windows ReadyBoost Set AutoPlay defaults in Control Panel

3 Double-click the corresponding drive. You can then save, move or delete data.

Devices with Removable Storage (2) DVD DVD Drive (E:) Removable Disk (F:)

The device name of the card drive may differ depending on the model.

Adjusting the Volume

Chapter 2. Using the computer

You can adjust the volume using the keyboard and the volume control program.

Adjusting the Volume using the Keyboard

Alternatively, press the + Key combination to turn the volume on or off.

Adjusting the Volume using the Volume Adjustment Program

Click the Volume icon on the taskbar and slide the volume control bar to adjust the volume.

Mute Volume Mute

Windows XPWindows 7/Vista

Using the Sound Recorder

The procedures to record sound using the Windows Recorder are described below.

▶ For Windows 7/Vista

1 Connect a microphone to the microphone jack.

You can also use the internal MIC.

2 Right-click over the Volume icon 📋 on the taskbar and select Recording Device.

3 Check if the microphone is set as the default recording device.

If this is the case, it is already set as the default device. If not, right-click over the microphone and select Set default.

4 Click Start > All Programs > Accessories > Sound Recorder and click Start recording to start a recording.

Sound Recorder Start Recording 0:00:00 ?

Adjusting the Volume

Chapter 2. Using the computer

▶ For Windows XP

1 Connect a microphone to the microphone jack. You can also use the internal MIC.
2 Click Start > Control Panel > Sounds, Speech, and Audio Devices > Sounds and Audio Devices.
3 Click Advanced from Volume and then, click Options > Properties.

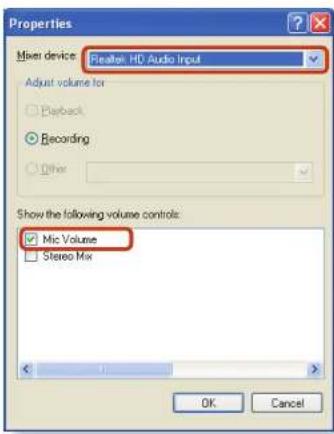

4 Select Realtek HD Audio input from the mixer device to select Recording from Adjust Volume for.

Properties Mixer device: Realtek HD Audio Input Adjust volume for ○ Playback ● Recording ○ Other Show the following volume controls: ● Mic Volume □ Stereo Mix OK Cancel

5 Select Mic Volume from Show the following volume controls and click OK.
6 When Recording Control window appears, check the Select checkbox. Increase the recording volume to increase the recording sensitivity and close the window.
7 Click Start > All Programs > Accessories > Entertainment > Sound Recorder.
8 Click the Record button to perform recording.

Sound - Sound Recorder File Edit Effects Help Position: 0.00 sec. Length: 0.00 sec.

The default recording duration of Windows is 60 seconds. Download a dedicated recording program from the Internet to record audio data for a long time.

Adjusting the Volume

Chapter 2. Using the computer

Using SoundAlive

The SoundAlive function enables you to experience more stereophonic sound using stereo speakers.

SoundAlive is only supported in Windows 7.

The software programs provider may vary, depending on your computer model.

In addition, some pictures may differ from actual product depending on the computer model and software version.

1 Right-click over the Volume Control icon in the notification area at the bottom right of the Desktop and select Playback Devices. (Alternatively, click the Control Panel > Hardware and Sound > Sound.)

2 Right-click over the Speakers and select Properties.

3 Select the SoundAlive tab and select one of the modes.

▶ Basic Mode

Music Select this mode to listen to music.
Movie Select this mode to watch a movie.
Speech	Emphasizes voice over other sounds.
Silver	Silver mode is for people who have difficulty in hearing.

▶ Advanced Mode

Finely tuned 25 presets are arranged on a square according to their relative sound characteristics.

▶ User Mode

You can control a variety of sound effects.

Adjusting the Volume

Chapter 2. Using the computer

Connecting and using a headphone or microphone

Using the headphone jack

1 Right-click over the Volume Control icon in the notification area at the bottom right of the Desktop and select Playback Devices. (Alternatively, click the Control Panel > Hardware and Sound > Sound > Playback tab.)
2 Select the Speakers, click Set Default and click OK.

Using the microphone jack

1 Right-click over the Volume Control icon in the notification area at the bottom right of the Desktop and select Recording Devices. (Alternatively, click the Control Panel > Hardware and Sound > Sound > Recording tab.)
2 Select the Microphone, click Set Default and click OK.

Wired Network

Chapter 2. Using the computer

A wired network is a network environment used for a company network or broadband internet connection at home.

Since these descriptions are written on the basis of the latest operating system, Windows 7, some of the content and the figures of the descriptions may differ depending on the operating system. Since the procedures for other Windows operating systems are similar, use the computer referring to these descriptions.

The figures used for the description are of a representative model. Therefore the figures may differ from the real ones.

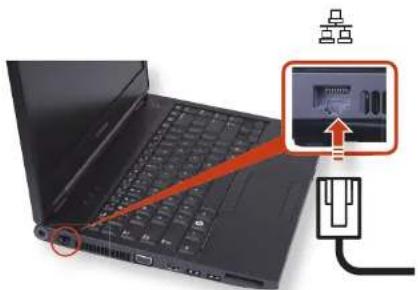

1 Connect a LAN cable to the computer's LAN port.

Laptop screen with a red arrow pointing to a device screen, showing Chinese text labels and an icon of a USB cable.

2 ▶ For Windows 7

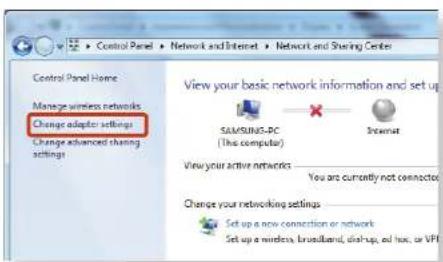

Click Start > Control Panel > Network and Internet > Network and Sharing Center and click on Change adapter settings in the left menu pane.

Control Panel Home Manage wireless networks Change adapter settings Change advanced sharing settings View your basic network information and set up SAMSUNG-PC (The computer) Internet View your active networks You are currently not connected Change your networking settings Set up a new connection or network Set up a wireless, broadband, disk-up, ad hoc, or VPI

▶ For Windows Vista

Click Start > Control Panel > Network and Internet > Network and Sharing Center and click Manage Network Connections in the left menu pane.

▶ For Windows XP

Click Start > Control Panel > Network and Internet Connections > Network Connection.

Wired Network

Chapter 2. Using the computer

3 Select Local Area Connection and click the right button of the touch pad and select Properties.

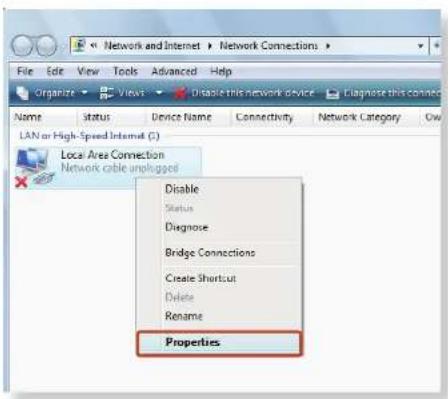

Network and Internet > Network Connections > File Edit View Tools Advanced Help Organize > Views Disable this network device Diagnose this connection Name Status Device Name Connectivity Network Category Ow LAN or High-Speed Internet (C) Local Area Connection Network cable unplugged Disable Status Diagnose Bridge Connections Create Shortcut Delete Rename Properties

The LAN Device name may differ depending on your computer's Network Device.

4 ▶ For Windows 7/Vista

Select Internet Protocol Version 4(TCP/IPv4) from the list of Network Components and click Properties.

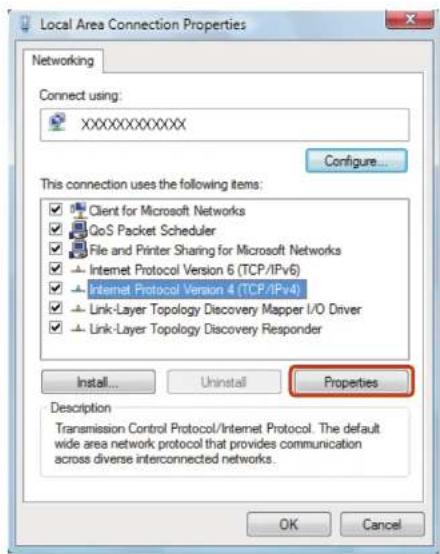

Local Area Connection Properties Networking Connect using: XXXXXXXXXXXXX Configure... This connection uses the following items: ✓ Client for Microsoft Networks ✓ QoS Packet Scheduler ✓ File and Printer Sharing for Microsoft Networks ✓ Internet Protocol Version 6 (TCP/IPv6) ✓ Internet Protocol Version 4 (TCP/IPv4) ✓ Link-Layer Topology Discovery Mapper I/O Driver ✓ Link-Layer Topology Discovery Responder Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. OK Cancel

▶ For Windows XP

Click General tab and select a LAN driver from Connect using:. Select Internet Protocol(TCP/IP) and click Properties.

The Network Component name may differ depending on the Operating System Installed.

To add a network component, click Install in the screen shown in the figure above. You can add clients, services, and protocols.

Wired Network

Chapter 2. Using the computer

5 Configure the IP settings.

When using DHCP, select Obtain an IP address automatically. To use a static IP address, select Use the following IP address, and set the IP address manually.

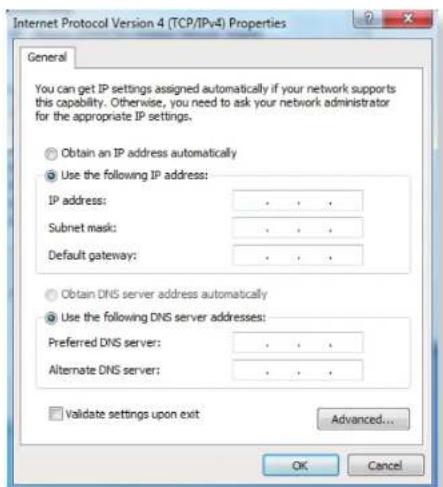

Internet Protocol Version 4 (TCP/IPv4) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: . . Subnet mask: . . Default gateway: . . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . . Alternate DNS server: . . Validate settings upon exit Advanced... OK Cancel

When not using DHCP, ask your network administrator for the IP address.

6 When you have completed the settings, click the OK button. The network settings have been completed.

Using the WOL (Wake On LAN) function

is a function that activates the system from Sleep mode when a signal (such as a ping or magic packet command) arrives over the network (wired LAN).

1 ▶ For Windows 7

Click Start > Control Panel > Network and Internet > Network and Sharing Center and click on Change adapter settings in the left menu pane.

▶ For Windows Vista

Click Start > Control Panel > Network and Internet > Network and Sharing Center and click Manage Network Connections in the left menu pane.

▶ For Windows XP

Click Start > Control Panel > Network and Internet Connections > Network Connection.

2 Right-click on the Local Area Connection and select Properties.

3 Click Configure > Power Management tab. Select Allow this device to bring the computer out of standby, then click OK. Restart the system.

• If the system wakes up from Sleep mode even though there is no received signal, use the system after disabling the function.
• The LAN LED may not be turned off if System is shutdown without disabling the WOL (Wake on LAN) option.
• Connecting a wired LAN while using a wireless LAN may not activate the function. Set the Wireless LAN to Disable to use the function.
• feature may not work while using Hybrid power saving feature.

When system is running on battery, some time it takes about 20sec after inserting LAN cable to be able to connect to internet. This symptom happen as a result of power saving feature to reduce battery consumption.
When system is running on battery, the Wired LAN speed is decreased automatically to reduce battery consumption. In such case, a 1Gbps /100Mbps LAN would function at 100Mbps/10Mbps speed.

For Win7, Wake On LAN is not supported by Ping.

When connected to a 100Mbps/1Gbps wired LAN and the computer exits Sleep/hibernation mode, a message appears informing you of a connection to a 10Mbps/100Mbps wired LAN. This happens because when the computer exits standby/hibernate mode, restoring the network takes about 3 seconds. When the network is restored, it operates at 100Mbps/1Gbps.

Wireless Network(Optional)

Chapter 2. Using the computer

A wireless network (Wireless LAN) environment is a network environment that enables communicating between multiple computers at home or a small-size offi ce through wireless LAN devices.

The descriptions below are for computer models with a Wireless LAN card or device. A Wireless LAN device is optional.

The pictures in this manual may differ from the actual product depending on your wireless LAN device model.

If the wireless LAN is turned off, press the fn + F12 key combination to turn it on.

What is an Access Point (AP)?

An AP is a network device that bridges wired and wireless LANs, and corresponds to a wireless hub in a wired network. Connect the computer with the wireless LAN function to the AP to use to the network connection.

Connecting to a Wireless LAN

If there is an AP, you can connect to the Internet via the AP using the Wireless LAN connection method provided by Windows.

▶ For Windows 7

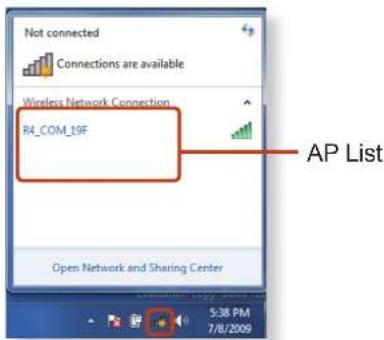

1 If you click the Network Connections icon in the system tray, a list of available APs appears. If you select an AP to connect to, the Connect button appears.

Not connected Connections are available Wireless Network Connection RL_COM_19F AP List Open Network and Sharing Center 5:38 PM 7/6/2009

Wireless Network (Optional)

Chapter 2. Using the computer

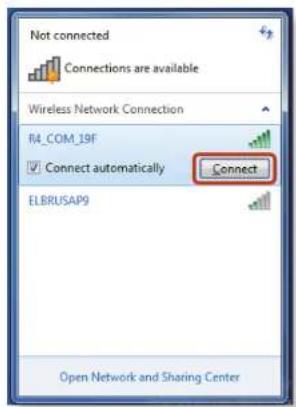

2 Click Connect.

If a network key is set for the AP, enter the network key and then click Connect.

For the network key, please ask your network administrator.

Not connected Connections are available Wireless Network Connection R4_COM_19F Connect automatically Connect ELBRUSAP9 Open Network and Sharing Center

3 When Connected to the AP is displayed, click the Close button.

You can access the network.

▶ For Windows Vista

1 Right-click over the Network Connections icon on the taskbar and click Connect to the Network.

Connect to a network Turn on activity animation Turn off notification of new networks Diagnose and repair Network and Sharing Center

2 Select an AP to connect to and click Connect. If there is a configured network key for the AP to connect to, enter the network key and then click the Connect button.

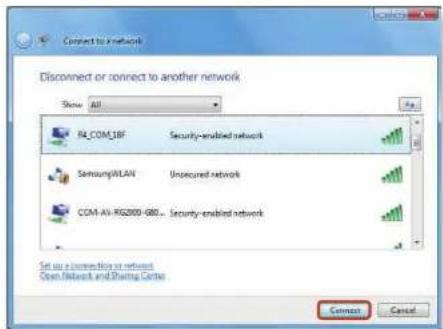

Connect to a network Disconnect or connect to another network Show: All R4_COM_3BF Security-enabled network Samsung/ALAN Unsecured network COM-AV-RG2000-GB0... Security-enabled network Set us a connection or network Open Network and Sharing Grids Connect Cancel

3 When Connected to the AP is displayed, click the Close button. You can access the network.

Wireless Network (Optional)

Chapter 2. Using the computer

▶ For Windows XP

1 Click the Wireless Network Connection icon from the Taskbar using the right button of the touch pad. Then, click View Available Wireless Networks.

Change Windows Firewall settings Open Network Connections Repair View Available Wireless Networks

2 Select an AP to be connected and click Connect.

If a network key is set in the AP, the network key input window will appear. Enter the network key in the input window and click OK.

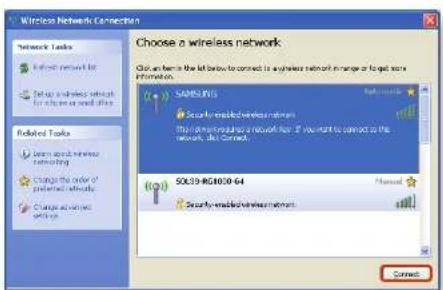

Choose a wireless network Click an extra in the list below to connect to a wireless network manager or to get more information. SAMSUNG Scan for wireless network This will be installed at a network layer. If you want to connect to this network, then Connect. SOLD-10-RG100-64 Scan for wireless network.

For a network key, contact the network administrator.

3 Once Connected to AP is displayed, you can use a wireless network.

Wireless Network (Optional)

Chapter 2. Using the computer

Connecting to a wireless network through Wi-Fi Manager (Optional)

These descriptions are for Windows 7 and for supported models only.

You can access a wireless network using Wi-Fi Manager.

1 Press the Fn + F12 key combination. Then the Wi-Fi Manager window appears.

2 Select Wi-Fi and check if it is set to ON. If this option is set to ON, the Wi-Fi function will run.

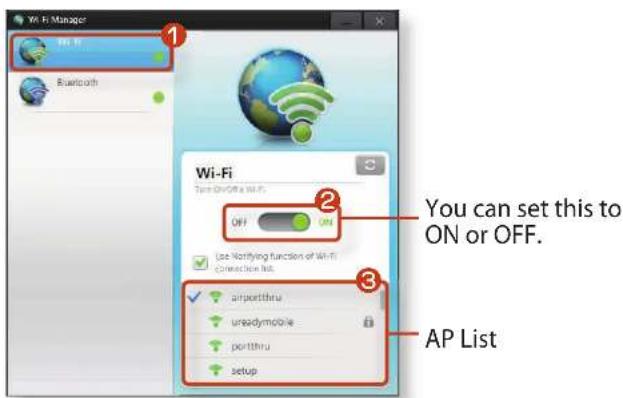

Wi-Fi Manager Bluetooth Wi-Fi Take network with OFF ON Use Notifying function of Wi-Fi Connection list airporttru ureadymobile porttru setup You can set this to ON or OFF. AP List

Normal Wireless Network Status

If the wireless LAN icon is displayed in the system tray of the Taskbar, it indicates that the computer is connected to the Internet properly (see below).

[Windows 7] [Windows Vista] [Windows XP]

Abnormal Wireless Network Status

When the wireless LAN is not connected

If the wireless LAN icon is displayed with an "X" in the system tray of the Taskbar, it indicates that the wireless LAN device is turned off or that there are no available APs. Or the wireless LAN is disconnected.

[Windows 7] [Windows Vista] [Windows XP]

If the wireless LAN is turned off, press the F+ key ^2 combination to turn it on.

When you are not connected to the Internet

This is indicated by the wireless LAN icon in the system tray of the Taskbar. In this case, you have to check the IP address settings.

Please contact your network administrator and reconfigure the IP address.

[Windows 7] [Vista] [Windows XP]

When APs are found but your computer is not connected to the Internet

This is the case when an AP with a weak signal has been set to a high priority. Connect to an AP with a strong signal by clicking it.

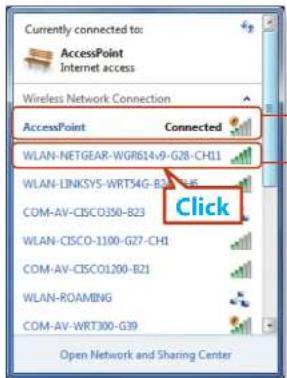

Currently connected to: AccessPoint Internet access Wireless Network Connection AccessPoint Connected WLAN-NETGEAR-WGR614-9-G28-CH11 WLAN-LINKSYS-WRT54G-B23 COM-AV-CISCO350-B23 CLO WLAN-CISCO-1100-G27-CH1 COM-AV-CISCO1200-B21 WLAN-ROAMING COM-AV-WRT300-G39 Open Network and Sharing Center

The currently connected AP. The signal strength is low.

An AP with a strong signal strength

[Windows 7]

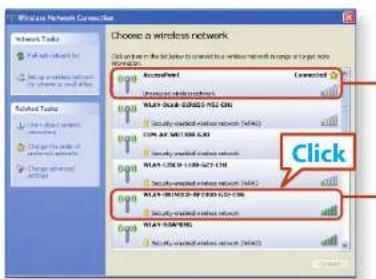

Choose a wireless network Click to find the next button to create a wireless network that is not being Definition. Accessed Connected Network Tools Network Tools Connect to the next button Connect to the next button Network Tools Connect to the next button Network Tools Connect to the next button Network Tools Connect to the next button Network Tools Connect to the next button Network Tools Connect to the next button Network Tools Connect to the next button Network Tools Connect to the next button Network Tools Connect to the next button Network Tools Connect to the next button Network Tools Connect to the next button Network Tools Connect to the next button Network Tools

The currently connected AP. The signal strength is low.

An AP with a strong signal strength

[Windows XP]

Sharing Content in a Home Network(Easy Content Share) (Optional)

Chapter 2. Using the computer

Easy Content Share is a DLNA application that allows you to play photos, videos and music fi les on your TV.

These descriptions are for Windows 7 and for supported models only.

The Digital Living Network Alliance (DLNA) aligns industry • leaders in the CE, mobile, and PC industries through digital interoperability, and DLNA-certified devices allow users to play videos, photos and music files stored on a computer on a TV.

To play content using DLNA technology, both your computer and TV must be DLNA certified.

For information on whether a product supports DLNA, refer to the respective user manuals.

To play videos, photos and music files stored on a computer, configure the settings in the order as shown below.

1. Confi guring the network settings for your computer and TV
2. Adding shared content on your computer
3. Playing content on your TV using your computer

Confi guring the network settings for your computer and TV

To share content, all shared devices must be connected to the same access point.

Configure the network settings by following the steps below.

1 Connect your computer and TV to an access point through a wired or wireless LAN connection, as shown in the figure below.

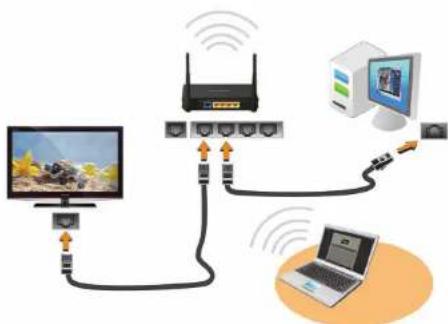

[Network connection diagram]

2 Configure the IP address settings for your computer and TV. You must check the Obtain an IP address automatically (DHCP) checkbox.

Sharing Content in a Home Network(Easy Content Share) (Optional)

Chapter 2. Using the computer

For more information on how to configure the IP address • for your computer, refer to Chapter 2. Using the Computer > Network.

For more information on how to configure the IP address • for your TV, refer to the user manual of your TV.

3 To check if the network environment has been configured, run Easy Content Share.

If the connected computer and TV are shown in the program window, the network settings have been configured successfully.

100% 100% Young Kids 100% 100% Young Kids 100% 100% Young Kids

Devices that can share content

If connected devices are not displayed, refer to the Easy Content Share item in the Troubleshooting Guide.

Adding shared content on your computer

Add the videos, photos and music files that you want to play on your TV as shared items.

You can only play shared items on your TV.

1 Click Settings 🔒 at the top right of Easy Content Share.
2 Click My computer > Add Folder + . The Browse For Folder window appears. Select a folder to share and click OK.

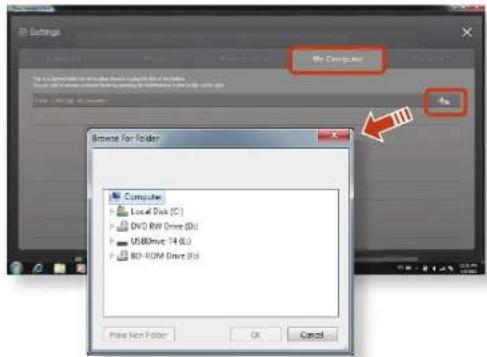

Settings My Computer Browse For Folder Computer Local Disk (C) DVD RW Drive (DS) USBDrive: 14 (L) BD-ROM Drive (DS) Make New Folder OK Cancel

Sharing Content in a Home Network(Easy Content Share) (Optional)

Chapter 2. Using the computer

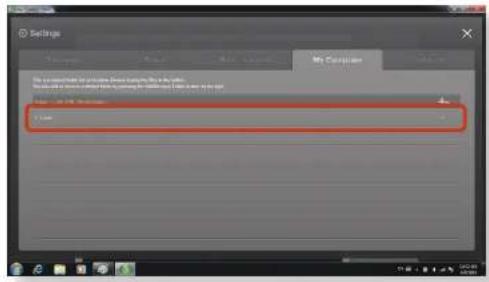

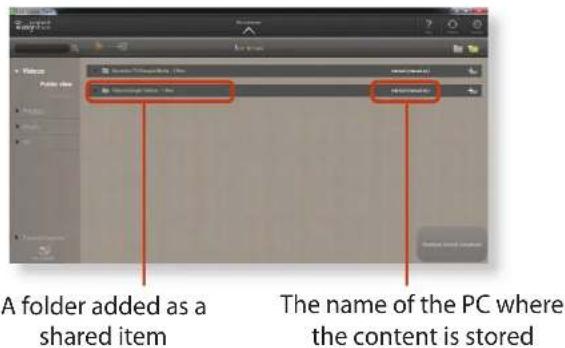

3 The selected folder is added to the shared list.

Settings My Computer File Path: 1.00 (12.00) 1.00

Playing content on your TV using your computer

After you have set photos, videos and music files as shared items, you can play them on your TV using your computer.

1 In Easy Content Share, select the TV you want to use to play content.

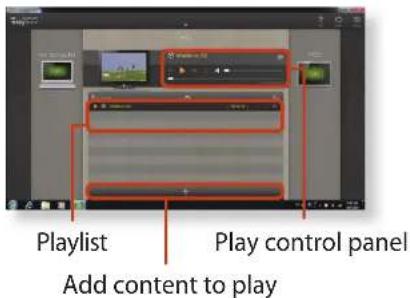

Playlist Add content to play Play control panel

2 Select the item you want to play in the playlist, and then click Play ▶.

3 The selected file is played on the TV. Using the Play Control panel, you can control the item being played on the TV.

4 To stop playing, click Stop

Easy Content Share does not support subtitles due to DLNA constraints. To use the caption function, refer to the Easy Content Share item in the Troubleshooting Guide.

Sharing Content in a Home Network(Easy Content Share) (Optional)

Chapter 2. Using the computer

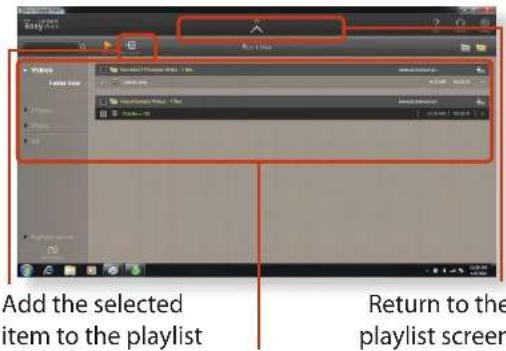

Adding a video, photo or music file to the playlist

1 Click Add Content 📋 the Playlist screen. The shared content list is displayed.

2 In the shared content list, check the checkbox in front of the item you want to add to the playlist, and then click Add to playlist.

Add the selected item to the playlist Return to the playlist screen

Shared content list

3 Click Return to playlist screen In the playlist screen, you can find that the selected item has been added to the playlist.

Playing the content stored on a computer when Easy Content Share is not installed

You can also play the videos, photos and music files stored on a computer when Easy Content Share is not installed on your TV by using Windows Media Player.

As described in the steps below, configure the content sharing settings to play content on your TV.

The computer containing the shared content (when Easy Content Share is not installed) must be connected to the same access point to which the computer where Easy Content Share is installed and the TV is connected to.

▶ For Windows Media Player 12

1 Run Windows Media Player.

2 Click Stream and check the Automatically allow devices to play my media... menu item.

Windows Media Player Library Music All music Organize Stream Create playlist Allow Internet access to home media... Allow remote control of My Phys... Automatically allow devices to play my music... More streaming options...

Sharing Content in a Home Network(Easy Content Share) (Optional)

Chapter 2. Using the computer

3 Run Windows Explorer.

4 Right-click the folder to share. From the menu displayed, point to Include in library.

Click Videos, Photos or Music in the displayed sub menu, according to the type of content contained in the selected folder.

If the selected folder contains two or more types of content, you must click each corresponding menu item (Videos, Photos or Music) to register each type of content.

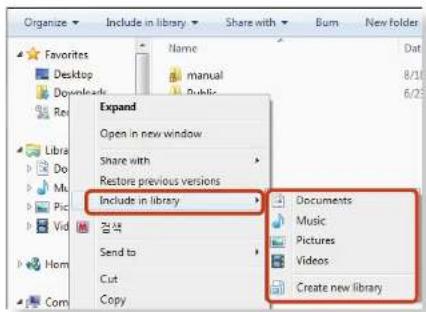

Organize Include in library Share with Burn New folder Favorites Desktop Downloads Rev Open in new window Share with Restore previous versions Include in library Documents Music Pictures Videos Create new library

▶ For Windows Media Player 11

1 Run Windows Media Player.

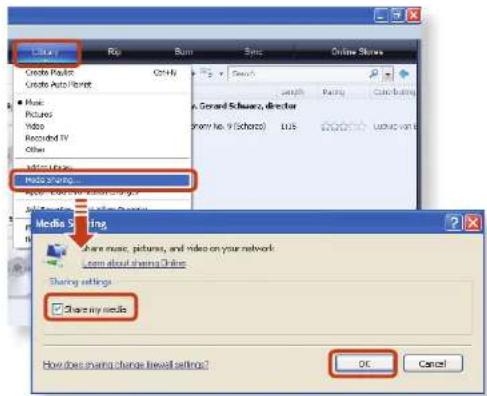

2 Click Library > Media Sharing. The Media Sharing window is displayed. Check the Share my media checkbox and then click OK.

Media Create Product Create Auto Web Music Pictures Video Recorded TV Other Media sharing... Media sharing Share music, pictures, and video on your network Learn about sharing Online Sharing settings Share my media How does sharing change below settings? OK Cancel

3 In the Media Sharing window, click Settings.... The Media Sharing - Default Settings window is displayed. Check the Allow new devices and computers automatically (not recommended) checkbox.

Sharing Content in a Home Network(Easy Content Share) (Optional)

Chapter 2. Using the computer

A popup window is displayed. Click Yes. Then click OK in the Media Sharing-Default Settings window and in the Media Sharing window.

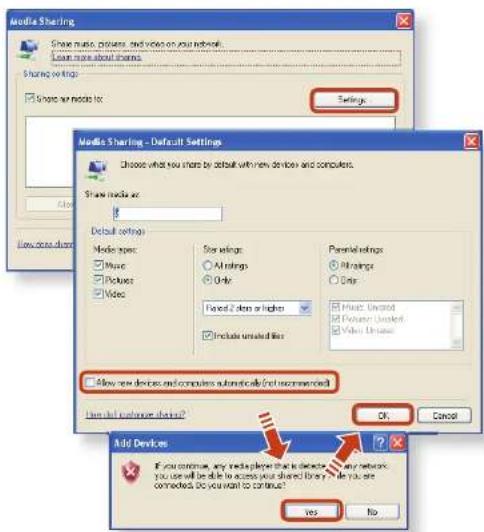

Media Sharing Show music, voice, and video on your network. Learn more about shares Share settings: Share or mode to: Settings Media Sharing - Default Settings Choose what you share by default with new devices and computers. Share mode to: Default settings Mode spec: Music Pictures Video Star settings All ratings Only Period 2 days or higher Include installed files Parental ratings All ratings Other Music Unlocked Picture Unlocked Video Unlocked Allow new devices and computers automatically (not recommended) Can do customer starts? OK Cancel Add Devices If you continue, any media player that is detected, any network you can be able to access your shared library? If you are connected, do you want to continue? Yes No

After the registration has been fi nished, you can find the added folder is listed in the shared content list of Easy Content Share.

For a shared content item, the name of the computer where the item is stored is displayed next to it, allowing you to identify the computer. This is useful when multiple computers are providing content.

A folder added as a shared item The name of the PC where the content is stored

Content sharing is only available with Windows Media Player 11 or later.

If your Windows Media Player is earlier than Windows Media Player 11, download and install Windows Media Player 11 or later from the Microsoft website.

HDD Protection Function (Optional)

Chapter 2. Using the computer

This function protects the HDD from external impacts while operating by using the 3-axis sensor that detects inclinations, movement and vibrations.

Through the icon colors, the HDD protection status can be identified. You can activate or deactivate the function by right-clicking over the icon in the taskbar.

Icon Color Operating Status
	The HDD protection function is activated.
	The HDD protection function is deactivated.
	The HDD has received an impact and the HDD protection function is currently running.

To set the sensitivity of the protection function, right-click the icon, and select Open Control Panel.

Sensitivity Operating Status
High	Select this option for operating environments with no possibility of shocks (default).
Medium	Select this option for operating environments with the possibility of slight shocks (e.g. in a vehicle or on a lap).
Low	Select this option for operating environments with a possibility of severe shocks (not recommended).

If external movement (e.g. if a user moves or the vehicle carrying the computer moves) is detected while the HDD is in operation such as watching a video or copying data, the current operation and the HDD are stopped accordingly. If the external movement stops, the paused operation resumes after approximately 3 seconds. Can't be guaranteed the prevention of damage to hard disk and protection data under all circumstances.

Using the Security Device (Optional)

Chapter 2. Using the computer

You can protect your computer using the security device and program installed on the computer.

The OmniPass security program is installed on this computer.

This is a powerful security program that enables you to set a password for the Windows user's account information and provides TPM, Smart Card and fingerprint recognition functions.

To use the OmniPass program, you have to complete the following procedures.

Step 1 : Registering a User

Step 2 : Registering Authentication Device

Step 3 : Using the Security Device

This function is only supported for models with Smart Card reader, TPM chip and fingerprint recognition devices. The type of authentication device may differ depending on the model.

The Omnipass security program may not be provided or a different version may be provided depending on the model.

The screen image, terms and usage are subject to change • depending on the version.

For more information, refer to the help of the program.

Step 1 : Registering a User

You have to register a user after logging in with a registered Windows user account.

1 Click Start > All Programs > Omnipass > OmniPass Enrollment Wizard and then Start.
2 Enter the Windows user account and password and click Next.
3 Select an authentication device to be registered for the entered user account. You cannot register more than one authentication device.

The type of device may differ depending on the model.

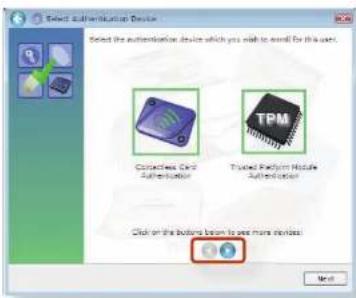

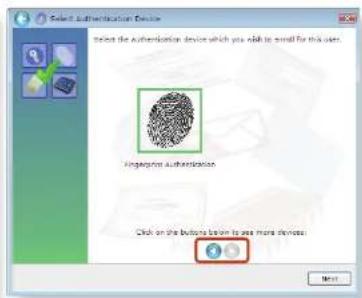

Select Authentication Device Select the authentication device which you want to email for this user. Connected Grid Authentication Trusted RF/CM Middle Authentication Click on the bottom button to use more devices Next

Select Authentication Device Select the Authentication device which you add to smell for this user. Fingerprint Authentication Click on the bottom button to use more devices Next

Using the Security Device(Optional)

Chapter 2.

Using the computer

Step 2 : Registering Authentication Device

Registering as a TPM Device (Optional)

The TPM (Trusted Platform Module) saves the user authentication information on the TPM chip installed on the computer.

Before registering a device as a TPM device, check if the TPM program has been installed, initialize the TPM chip and register the user.

1. Initializing the Chip

When you use the TPM function for the first time or you want to delete the user information saved on the TPM chip, complete the following.

If the TPM chip is initialized, all the authentication • information saved on the TPM chip is deleted. Therefore, please be careful.

After initializing the TPM chip, you cannot use the fi les and • folders encrypted by the TPM function. Therefore, decrypt them before initializing the chip.

Either type A or B is provided depending on the model.

1 Turn the computer on, and if the booting screen (SAMSUNG logo) appears, press the F2 key.

2 ▶ Type A Model If the BIOS screen appears, select Security > TPM Configuration, set the TPM Support item to Enabled and set the Change TPM State item to Clear.

▶ Type B Model

If the BIOS screen appears, select Advanced > Trusted Computing, and set the TPM Support item to Enable, the TPM State to Enabled and the Pending TPM operation to TPM Clear.

3 Press the F10 key to save the settings.

4 When the booting screen (SAMSUNG logo) appears, press the F2 key.

If the message window appears, press the F12 key.

When the computer restarts automatically, press the F2 key.

Using the Security Device (Optional)

Chapter 2.

Using the computer

5

▶ Type A Model

When the BIOS screen appears, select Security > TPM Configuration and set the Change TPM State item to Enable & Activate.

▶ Type B Model

If the BIOS screen appears, select Advanced > Trusted Computing, and set the TPM Support item to Enable, the TPM State to Enabled and the Pending TPM operation to Enable Take Ownership.

6

Press the F10 key to save the settings.

If the message window appears, press the F10 key.

7

Now that the TPM chip initialization has been completed, you can register a user.

2. Registering a User

Complete the following only when you want to register a user to the TPM chip.

1 Click Start > All Programs > Infi neon Security Platform Solution > Manage Security Platform and select the User Settings tab.
2 The security authentication configuration begins with the instructions of the Initialization Wizard. Select a drive to save the authentication information to and click Next.
3 Select a Security Platform function to use and set the password. If you click Next, the Security Platform configuration begins.
4 When the Initialization Wizard completion window appears, click Finish to finish the user registration. You can now use the TPM device of the OmniPass program.

Using the Security Device (Optional)

Chapter 2. Using the computer

3. Registering the TPM

1 In the OmniPass program screen, select Trusted Platform Module Chip and click Next.
2 Enter the password for the user who is registered to the TPM chip and click OK.
3 The TPM chip registration has been completed. Check whether to finish the registration or register more security authentication devices and click Next.

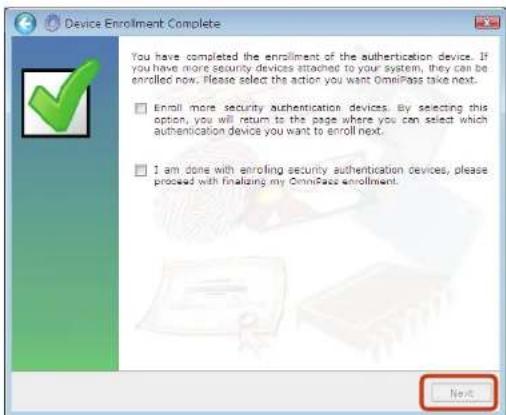

Device Enrollment Complete You have completed the enrollment of the authentication device. If you have more security devices attached to your system, they can be enrolled now. Please select the action you want OmniPass take next. □ Email more security authentication devices. By selecting this option, you will return to the page where you can select which authentication device you want to enroll next. □ I am done with enrolling security authentication devices, please proceed with finalizing my OmniPass enrollment. Next

Registering the Smart Card (Optional)

Read the Smart Card information and register it to the Windows user account.

A smart card is a type of RFID device. This product only supports smart cards from among RFID devices. Either contactless reader or insertable reader is provided depending on the model.

1 In the OmniPass program screen, select Contactless Card Authentication and click Next.
Contactless Smart Card Reader

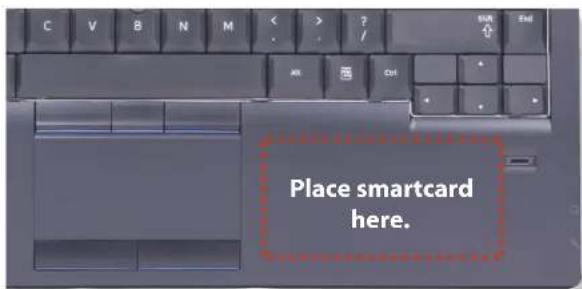

If you place the smart card to be registered in the reader (the right space of the touchpad), the smart card information is automatically read.

Place smartcard here.

Using the Security Device (Optional)

Chapter 2. Using the computer

▶ Insertable Smart Card Reader

If you insert the smart card to be registered into the slot in the indicated direction, the smart card information is automatically read.

Example) Smart Card

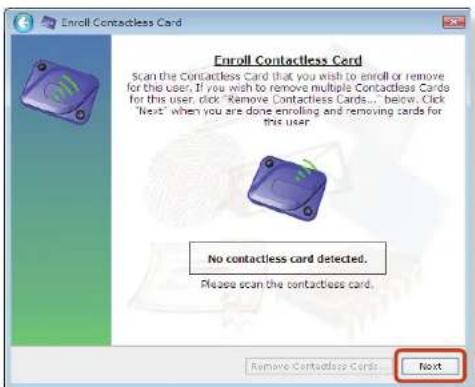

Enroll Contactless Card Scan the Contactless Card that you wish to enroll or remove for the user. If you wish to remove multiple Contactless Cards for this user, click 'Remove Contactless Cards' below. Click 'Next' when you are done enrolling and removing cards for the user. No contactless card detected. Please scan the contactless card. Remove Contactless Cards Next

3 The authentication device has been registered. Check whether to finish the registration or register more security authentication devices and click Next.

Supported cards:

▶ Contactless Smart Card Reader

- ISO 14443 A/C Card

- MiFare Card

- Jewel Card

- Felica Card

▶ Insertable Smart Card Reader

- ISO 7816 Spec. Card

Using the Security Device (Optional)

Chapter 2. Using the computer

Registering Fingerprints (Optional)

You can register fi ingerprints and register them to a Windows user account. You can register the fi ingerprint of a particular fi nger and register up to 10 fi ngerprints.

1 In the OmniPass program screen, select Fingerprint Authentication and click Next.
2 Select the fingers to be registered and click Next.
3 Move your fingers on the fingerprint recognition device according to the instructions displayed on the screen. At least 3 finger prints are captured.

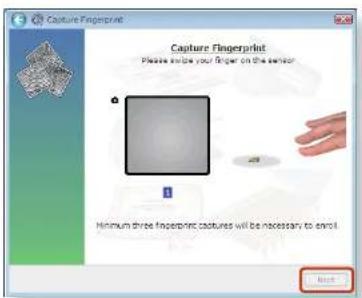

Capture Fingerprint Please invoke your finger on the server Minimum three fingerprinting captures will be necessary to enroll Back

Close-up of a computer keyboard with a red arrow pointing to a specific component, likely indicating a key or button.

Fingerprint Sensor

The location of fingerprint sensor may differ from actual product depending on the computer model.

4 Finally, confirm that the captured fi ingerprints are your fi ingers. If a green fi ingerprint is displayed on the screen, it indicates that the selected fi inger has been properly registered. Click Next. (If a red fi ingerprint is displayed on the screen, register the fi inger again.)

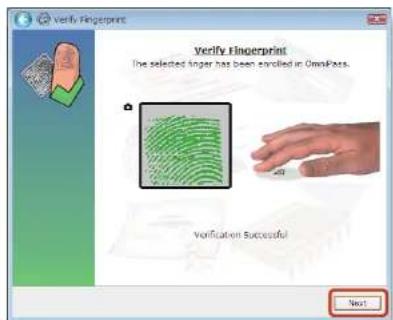

Verify Fingerprint The selected finger has been enrolled in OmniPass. Verification Successful Next

5 If the message window appears, determine whether to register more fingers.
6 The fingerprint registration has been completed. Check whether to finish the registration or register more security authentication devices and click Next.

Using the Security Device (Optional)

Chapter 2. Using the computer

Step 3 : Using the Security Device

Logging into Windows

1 If you turn the computer on, the authentication window appears in the login screen. If there is more than one authentication device, you can select one of them by pressing the right arrow.

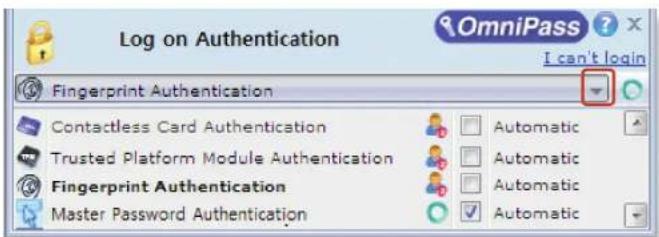

Log on Authentication Fingerprint Authentication Contactless Card Authentication Trusted Platform Module Authentication Fingerprint Authentication Master Password Authentication OmniPass ? I can't login Automatic Automatic Automatic Automatic

2 If the authentication process is complete, you will be logged into Windows.

Encrypting Folder

You cannot encrypt a file or folder that is stored directly under the C drive. ex) C:\Samsung

1 Place the pointer over a folder to be encrypted and select OmniPass Encrypt File(s). 2 Encrypt the folder through the authentication device registered to the Windows account that is logged in. If there is more than one authentication device registered to the user account, you can select one of them by pressing the right arrow.

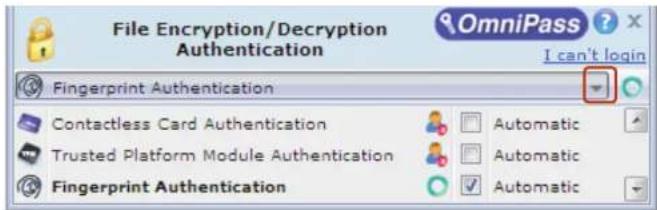

File Encryption/Decryption Authentication OmniPass ? I can't login Fingerprint Authentication Contactless Card Authentication Trusted Platform Module Authentication Fingerprint Authentication Automatic Automatic Automatic

3 When the folder is encrypted, you will be able to view the lock icon in the folder icon.

Using the Security Device (Optional)

Chapter 2. Using the computer

Opening an Encrypted Folder

1 Double-click an encrypted folder.
2 If the authentication screen appears, select an authentication device and enter the registered password.
3 The folder opens.

Decrypting an Encrypted Folder

1 Place the pointer over an encrypted folder and select OmniPass Decrypt File(s).
2 If the authentication screen appears, select an authentication device and enter the registered password.
3 The folder is decrypted.

Blue gear icon inside a white circle on a blue background (no text or symbols)

Chapter 3. Settings and Upgrade

LCD Brightness Control 101

BIOS Setup 103

Setting a Boot Password 105

Changing the Boot Priority 108

Upgrading Memory 109

Battery 112

Using the Security Slot 119

LCD Brightness Control

Chapter 3. Settings and Upgrade

You can adjust the LCD brightness in 8 levels.

The screen brightness is automatically set to the brightest level (brightness level 8) when AC power is connected and the brightness is automatically set dimmer when the computer runs on battery power to extend the battery use time.

Controlling the Brightness Using the Keyboard

Adjust the LCD brightness by pressing the Ph key ^2 or the Fn + key

The LCD brightness can change up to 8 levels and the brightness increases by 1 level when pressing the Fn + Key once.

Maintaining the changed LCD brightness even after turning the computer on again

To maintain the LCD brightness set by using the brightness control keys or through the Power Options, follow the procedures below.

▶ For Windows 7/Vista

1. Click Control Panel > Hardware and Sound > Power Options.

2. Click Change the settings of the currently configured mode.

3. Adjust the display brightness adjustment menu bar and click the Save the changes button.

Saving battery power consumption

Decreases the LCD brightness when the computer is running on battery power to save battery power consumption.

LCD Brightness Control

Chapter 3. Settings and Upgrade

LCD bad pixels principle of computer.

Samsung observes the specifications regarding strict quality and reliability of LCD. But in spite of that, it is inevitable that there might be a small number of bad pixels. A large number of bad pixels can cause problems in appearance, but a small number of pixels doesn't affect the computer performance.

Therefore Samsung observes and manages the following dot principles:

- Bright dot: 2 or less

- Black dot : 4 or less

- Combination of Bright and Dark : 4 or less

Instructions for Cleaning the LCD

Clean the LCD panel with a soft cloth lightly moistened with computer cleansing detergent moving in one direction.

Cleaning the LCD panel with excessive force can damage the LCD.

BIOS Setup

Chapter 3. Settings and Upgrade

The BIOS Setup enables you to configure your computer hardware according to your needs.

Use the BIOS setup to define a boot password, change the • booting priority, or add a new device.

Since incorrect settings may cause your system to • malfunction or crash, take care when confi guring the BIOS.

The functions of the BIOS setup are subject to change for product function enhancement purposes.

The BIOS Setup menus and items may differ depending on your computer model.

2 When the booting screen (SAMSUNG logo) appears, press the F2 key to enter the BIOS Setup.

SAMSUNG

Entering the BIOS Setup

1 Turn the computer on.

The screen images in this document may differ from actual product.

3 After a moment, the BIOS setup screen appears.

The items in the BIOS setup may differ depending on the product.

The BIOS Setup Screen

The BIOS Setup menus and items may differ depending on your computer model.

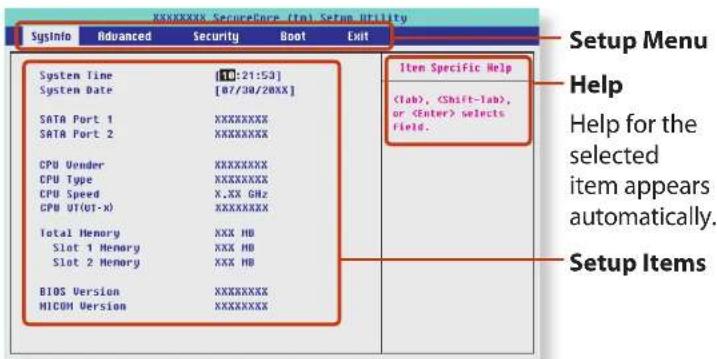

XXXXXXX SecurePage (tm) Setup Utility SysInfo Advanced Security Boot Exit System Time [10:21:53] System Date [07/30/20XX] SATA Port 1 XXXXXXXXX SATA Port 2 XXXXXXXXX CPU Vender XXXXXXXXX CPU Type XXXXXXXXX CPU Speed X,XX GHz CPU UT(UT-x) XXXXXXXXX Total Memory XXX HB Slot 1 Memory XXX HB Slot 2 Memory XXX HB BIOS Version XXXXXXXXX MICOM Version XXXXXXXXX Item Specific Help (lab), selects field. Setup Menu Help Help for the selected item appears automatically. Setup Items

Setup Menu Description
SysInfo	This is a description about the basic specifications of the computer.
Advanced	Using this menu, you can confi gure the major chipsets and additional functions.
Security	Used to confi gure security functions, including passwords.
Boot	This menu enables you to confi gure peripherals and booting related settings such as the boot priority.
Exit	Used to exit the Setup either saving the changes or not.

System Setup Keys

In the Setup, you have to use the keyboard.

F1 Press to view the Setup Help.
Up & Down Keys		to move up and down.
F5/F6		to change the item value.
F9		Press to load the default Setup settings.
F3		Press to restore the previous value.
ESC		Press to return to a higher level menu or to move to the Exit menu.
Left & Right Keys		to move to another menu.
Enter		Press to select an item or to enter a sub menu.
F10		Press to save the changes and exit Setup.

The keyboard image may differ from the actual keyboard.

Setting a Boot Password

Chapter 3. Settings and Upgrade

When setting a password, you have to enter a password to use the computer or enter the BIOS Setup.

By confi guring a password, you can restrict system access to authorized users only and protect data and fi les saved on the computer.

Do not lose or forget your password.

If you have forgotten your password, contact a Samsung service center. In this case, a service fee will be charged.

The screen images and terms may differ from actual product depending on the computer model and driver version.

Setting a Supervisor Password

A Supervisor Password is required to turn the computer on or to start the System Setup.

When setting a Supervisor Password, users other than a supervisor cannot use the computer.

1 Select the Security menu in the BIOS Setup.

2 In the Set Supervisor Password item, press .

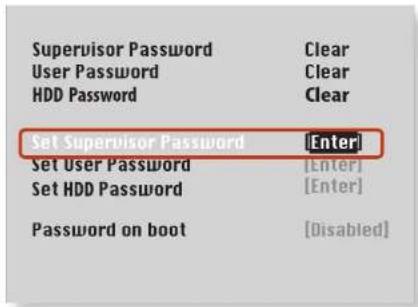

Supervisor Password Clear User Password Clear HDD Password Clear Set Supervisor Password [Enter] Set User Password [Enter] Set HDD Password [Enter] Password on boot [Disabled]

3 Enter a password, press , re-enter the password for confirmation, and press again.

The password can be up to 8 alphanumeric characters. Special characters are not allowed.

4 The supervisor password has been set.

The supervisor password is required to turn the computer on or to enter the BIOS Setup.

For some models, if the password entered message appears in the Setup Notice window, the settings are not complete until the key is pressed.

Setting a Boot Password

Chapter 3. Settings and Upgrade

Setting a User Password

Users can start the system with a user password, but cannot enter the System Setup. By doing this, you can prevent other users from entering Setup.

Before configuring a user password, a supervisor password must have been configured. Deactivating the supervisor password also deactivates the user password.

In the Set User Password item, press and complete the procedures from Step 3 of Setting a Supervisor Password.

Setting Up a Boot Password

To setup a boot password, the administrator password (Set Supervisor Password) should be set in advance.

Set the Password on boot item to Enabled.

Once a boot password is set, you have to enter a password to boot up the computer.

Setting up a Hard Disk Drive Password (Optional)

If you set a password for a hard disk drive, it cannot be accessed from another computer.

Press in the Set HDD Password item and define a password as described in Step 3 of the Setting up the Supervisor Password.

The hard disk drive password setting function is not provided for some models.

Changing the hard disk drive password.

For security purposes, you can only change a hard disk drive password after restarting the computer by pressing the computer Power button.

If you cannot change the hard disk drive password or the HDD Password Frozen message appears when entering the BIOS Setup and then selecting Security > HDD Password, press the Power button to turn the computer on again.

Setting a Boot Password

Chapter 3.

Settings and Upgrade

Deactivating the Password

1 Press on the password to be deactivated. For example, to deactivate a supervisor password in the Set Supervisor Password item, press .
2 In the Enter Current Password item, enter the currently configured password and press .
3 Leave the Enter New Password item fi eld empty, and press .
4 Leave the Confirm New Password fi eld empty, and press .
The password is deactivated.

For some models the password is only canceled if the key is pressed in the Setup Notice window.

Changing the Boot Priority

Chapter 3. Settings and Upgrade

By default, the highest boot priority device is set to the CD-ROM/DVD drive. As an example, the procedures to change the highest boot priority device to the hard disk drive are described below.

The screen images and terms may differ from actual product depending on the computer model and driver version.

1 Select the Boot menu in the BIOS Setup.

2 Press on the Boot Device Priority item.

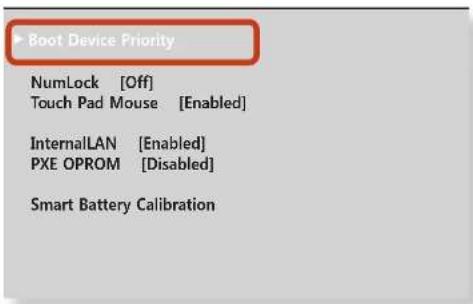

Boot Device Priority NumLock [Off] Touch Pad Mouse [Enabled] InternalLAN [Enabled] PXE OPROM [Disabled] Smart Battery Calibration

3 Press the down key (↓) to move to the SATA HDD item and press the F6 key to move up to the top item.

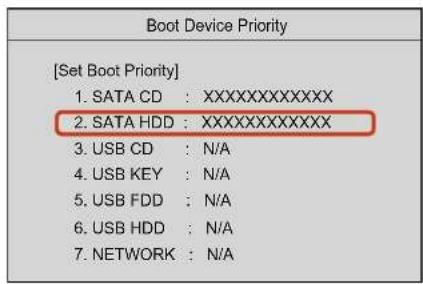

Boot Device Priority [Set Boot Priority] 1. SATA CD : XXXXXXXXXXXXXXX 2. SATA HDD : XXXXXXXXXXXXXXX 3. USB CD : N/A 4. USB KEY : N/A 5. USB FDD : N/A 6. USB HDD : N/A 7. NETWORK : N/A

4 Press the F10 key to save the settings and exit Setup. The highest boot priority device is now set to the Hard Drive.

Upgrading Memory

Chapter 3. Settings and Upgrade

One or more memory modules are installed on the computer.

There are 2 memory slots and users can replace the installed memory or add new memory.

Replace or install new memory only after shutting the computer down completely. Do not replace or install memory when the computer is in Sleep mode.

Disconnect main power plug and remove the battery before continuing.

To utilize the dual channel feature, using memory modules with the same specifications (of the same capacity and from the same manufacturer) is recommended.

The images used for the illustration are of a representative model, therefore the images may differ from the actual product.

Adding or Replacing Memory Modules

1 Remove the screw on the memory compartment cover at the bottom of the computer using a screw driver.

▶ For 12.5 inch models

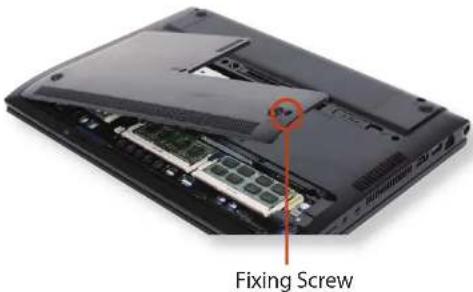

Fixing Screw

▶ For 14, 15.6 inch models

Fixing Screw

Upgrading Memory

Chapter 3. Settings and Upgrade

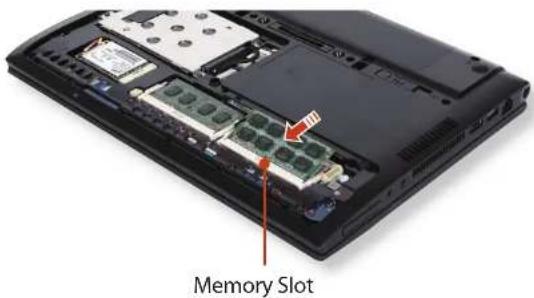

2 Insert a new memory module into the memory slot at an angle of approximately 30 degrees aligning it to the angle of the memory slot.

▶ For 12.5 inch models

Memory Slot

▶ For 14, 15.6 inch models

Memory Slot

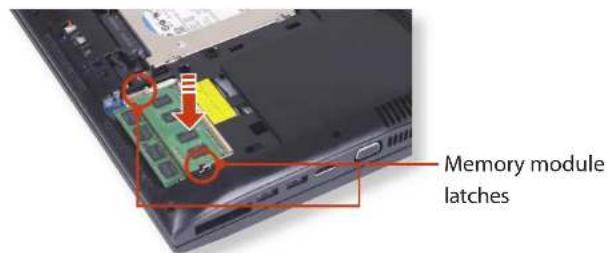

3 Push the memory module down so that it is completely fixed. If the memory does not fit easily, push the memory module down while pulling the memory module latches outward.

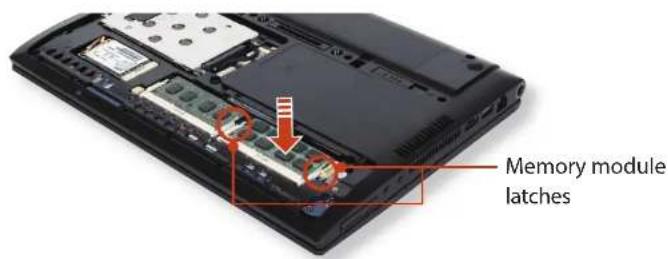

▶ For 12.5 inch models

Memory module latches

▶ For 14, 15.6 inch models

Memory module latches

Upgrading Memory

Chapter 3. Settings and Upgrade

4 Close the memory compartment cover and fasten the screw.

Removing a memory module

Pull the memory module latches outward.

The memory module will pop up.

Remove the memory module out at an angle of 30 degrees.

▶ For 12.5 inch models

Close-up of a computer motherboard showing multiple chips and memory slots (no text or symbols visible)

▶ For 14, 15.6 inch models

Close-up of a green computer motherboard with red arrows indicating directional movement (no text or symbols visible)

Battery

Chapter 3. Settings and Upgrade

Please refer to the following instructions when running the computer on battery power without connecting the AC power.

A Lithium-Ion smart battery is supplied with this computer.

Carefully read and follow the precautions printed on the battery before using the battery.

Before using your computer for the first time after purchasing it, charge the battery completely.

The images used for the illustration are of a representative model, therefore the images may differ from the actual product.

Precautions

Use only chargers specified in the User Manual.

Never heat the battery pack, put it near or in a fire or use at a temperature higher than 60^ C, as this may cause fire.

Never cause a short circuit between the battery pack terminals or disassemble the battery pack.

Carefully read and follow the precautions printed on the battery and the safety instructions in the User Manual before using the battery.

- Please refer to the system operation environment of this manual and operate and store the battery at room temperature.

Charging the Battery

1 Attach the battery and connect the AC adapter to the DC-in jack of the computer.

The battery will then start charging.

Laptop back panel with a red arrow pointing to the front panel (no text or symbols visible)

2 When charging is complete, the Charge LED turns green.

Status	Charge LED
Charging		Red or Orange
Charging complete		Green or Blue
AC adapter not connected		Off

Measuring the Remaining Battery Charge

You can view the battery charge status by completing the following procedures.

Confirming the battery charge in the Taskbar

Disconnect the AC adapter and move the mouse cursor over the battery icon in the system tray of the Taskbar to confirm the remaining battery charge.

Battery Usage Time Information

A battery is an expendable supply, so when using it over a long time, the capacity/battery life is shortened. If the battery life is reduced to under half of its initial time, we recommend purchasing a new battery.

When not using the battery for a long time, store the battery after charging it to 30-40% of its capacity. This extends the battery life time.

Battery

Chapter 3. Settings and Upgrade

Extending the Battery Usage Time

Decreasing the LCD Brightness

Press the #n keys on the keyboard to decrease the LCD brightness to extend the battery usage time.

Using the battery mode (Optional)

Press the Fn + F8 key combination. The battery mode window will appear that helps you to use the battery efficiently. The battery modes optimized for the operating environment are supported.

These descriptions are for Windows 7 and for supported models only.

Using the battery modes

To use the power options of the Easy Display Manager program after reinstalling Windows, you can install the Easy Display Manager program using the system software media. Since the battery mode is optimized to extend the battery use time, programs that require high performance may slow down when the computer is running on battery power. In this case, it is recommended connecting the AC adapter or selecting high-performance mode.

▶ For Windows 7/Vista

1 Click Start > Control Panel > Hardware and Sound > Power Options.

Alternatively, right-click the power measuring device icon in the notification area of the taskbar and select Power Options.

2 If the following screen appears, select one of the modes.

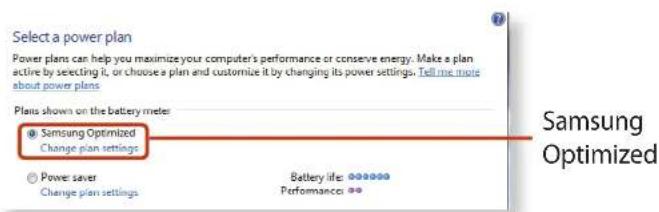

Select a power plan Power plans can help you maximize your computer's performance or conserve energy. Make a plan active by selecting it, or choose a plan and customize it by changing its power settings. Tell me more about power plans Plans shown on the battery meter ● Samsung Optimized Change plan settings ○ Power saver Change plan settings Battery life: ○○○○○○○ Performance: ○○ Samsung Optimized

Samsung Optimized

This mode is appropriate for normal conditions. It maximizes the system performance when the computer is running on AC power while maximizing the battery usage time when the computer is running on battery power.

Battery

Chapter 3. Settings and Upgrade

▶ For Windows XP

Click Samsung Battery Manager.

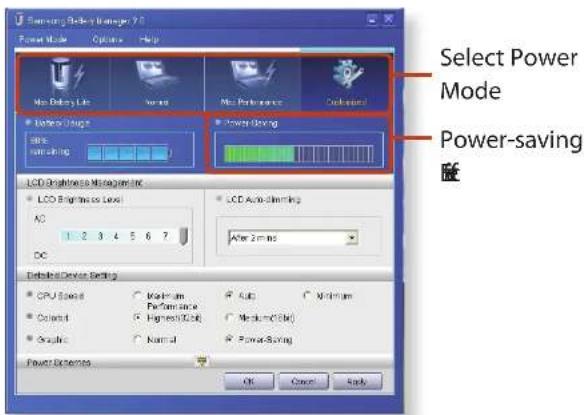

Samsung Flash Manager 7.0 Power Mode Options Help Multi-Delivery Mode Multi-Prememers Couching Battery Angle Power Saving LCD Brightness Manager (NC) LCD Brightness Level AC DC After 2 mins LCD Auto-Shining CPU Speed Max-1 min Performance High speed (3x) Max-1 min (3x) Selected Normal Power-Saving Power > 50000000 OK Cancel Back Select Power Mode Power-saving

Maximum Battery Mode

This mode is appropriate for the environment that requires maximum battery lifetime. The system performance may be degraded in this mode.

What is the Power-saving Effect?

This product displays the battery life in each power mode. The higher the power saving effect increases, the longer the graph bar is displayed.

When Using Games or Multimedia-

The system may not operate properly in maximum battery mode. It is recommended to connect the AC adapter to the system or to use the system in general mode.

• Usage Mode of Samsung Battery Manager

- The maximum battery mode optimizes the system operation speed to increase the battery run time, so the program execution time may get longer.

- If you change the power settings, the properties in Power Options window will also be changed.

Battery

Chapter 3. Settings and Upgrade

Extending the Battery Life (Optional)

The Battery Life Extender is a battery power management program that enables extending the battery life. Users can change the settings depending on their requirements.

The Battery Life Extender is optional and may not be supplied depending on the model.

The screen images and terms may differ from actual product depending on the computer model.

1 Run Battery Life Extender.

2 When the following screen appears, select a mode and click the OK button. You can use the battery in the selected mode.

Battery Life Extender Battery Life Extender Max battery charge level can be modified to suit the operating environment. Battery cycle life can be extended by reducing the max battery charge level. Battery Mode Settings ● Normal Battery Mode (000% Charge) Battery Life Extender Mode (80% Charge) ● Normal Battery Mode fully (00/10) charges the battery. ● This mode enables full use of its totally battery capacity. Battery Normal Mode Battery Life Extension Mode OK Cancel

Battery Normal Mode	This mode maintains 100% of the battery charge when using the computer on AC power. In this case, although the battery use time increases, the battery life is reduced.
Battery Life Extension Mode	This mode maintains 80% of the battery charge when using the computer on AC power. In this case, although the battery use time decreases, the battery life is extended.

Press the F2 key when the Samsung logo appears in the booting sequence to enter the BIOS Setup, select Advanced > Battery Life Cycle Extension, and set it to Enable. Then you can use the battery life cycle extension mode.

Battery

Chapter 3.

Settings and Upgrade

Using the Battery Calibration Function

When charging/discharging the battery repeatedly for a short time only, the battery usage time may be reduced by the difference between the actual battery charge and the remaining charge display.

In this case, the actual battery charge and the remaining charge display will be the same by discharging the battery completely using the Battery Calibration function, and then recharging it again.

The screen images and terms may differ from actual product depending on the computer model and driver version.

1 Disconnect the AC power adapter after turning off the computer.
2 Restart your computer and press the F2 button when the Samsung logo appears, to start the BIOS Setup.

3 Move to the Boot > Smart Battery Calibration item using the direction keys and press .

Boot Device Priority NumLock [Off] Touch Pad Mouse [Enabled] InternalLAN [Enabled] PXE OPROM [Disabled] Smart Battery Calibration

4 Highlight Yes in the Battery Calibration Confirmation window and press .

The Battery Calibration function is activated and the battery is forcefully discharged. To stop the operation, press the button.

This operation requires 3\~5 hours depending on the battery capacity and the remaining battery charge.

Battery

Chapter 3. Settings and Upgrade

Installing/Removing the Battery

1 Shutdown the system, close the LCD panel and place the computer upside down on a flat surface.
2 ▶ For 12.5 inch models Pull the battery latch—outward, then remove the battery.

Back view of a laptop computer with an inset close-up highlighting a component (no text or symbols visible)

▶ For 14, 15.6 inch models Lift the battery latch □ forward to remove the battery.

Laptop back view showing a close-up of the internal components with an arrow pointing to a specific area (no text or symbols visible)

3 To install the battery again, slide the battery into the system. The battery latches move inwards and fix the battery automatically.

Using the Security Slot

Chapter 3. Settings and Upgrade

You can secure the computer by connecting a lock and cable to the Security Slot.

To use this feature, you have to purchase the lock and cable additionally.

To use the lock and cable, refer to the product manual.

Tie the lock and cable to a fixed object and install the other end of the cable to the security slot.

Diagram of a laptop cable with a connector and cable attachment, showing a close-up of the screen (no text or symbols present)

Orange icon depicting a first aid kit with a cross and syringe, enclosed in a white circle (no text or symbols)

Chapter 4. Backup / Restore

Samsung Recovery Solution (Optional) 121

Samsung Recovery Solution(Optional)

Chapter 4. Backup / Restore

Samsung Recovery Solution is a program that enables restoring or backing up the hard disk drive for when a problem occurs with the computer.

If the computer fails to boot up, you can restore the computer by pressing the F4 key in the booting screen.

Samsung Recovery Solution may not be provided or the version may differ depending on the model. In addition, some functions may not be provided or may differ depending on the version.

For more information on using Samsung Recovery Solution, please refer to the online help of the program.

The screen images in this document may differ from actual product.

If your computer does not have an internal ODD, you need an external ODD connected to your computer to use the Backup Function or Restore Function using DVDs.

The System Software function may not be provided • depending on the program version.

Samsung Recovery Solution Functions

Backup/Restore Functions

Backup Function Backs up drive C or required folders and files.

Complete Backup·

Backs up drive C.

Data Backup·

Backs up important folders and files.

A problem occurs

Restore Function

Restores major Windows fi les, drive C, or folders and fi les to the previous state.

Basic Restore·

Restores only major Windows files in a short time.

- Complete Restore

Restores drive C to the previous, normal state.

- Data Restore

Restores important fi les or folders to the previously backed up state.

Samsung Recovery Solution(Optional)

Chapter 4. Backup / Restore

System Software Functions

Samsung Recovery Solution provides system software so that you can reinstall or copy the device drivers and system software necessary for normal operations onto a separate storage device.

Restore Function

Not only can you use Samsung Recovery Solution when Windows is running, but also when you are unable to boot up into Windows. Let's learn how to use Samsung Recovery Solution.

Optional functions such as Initial State Image, Initial Status Backup, and Partitioning are only available in some models.

If the image of the initial state is saved on a DVD or removable storage device, connect the DVD drive or removable storage device to the computer before using the function.

Partition Setup & Initial Status Backup

If you turn your computer on for the first time, the Initial Status Backup function is performed after registering Windows. This function saves an image of the Initial Status of the C drive to a secure location so that users can restore the computer to the Initial Status using the Complete Restore function. An Initial Status Backup is only performed once immediately after the computer is purchased.

1 If you turn the power on for the first time, the Register Windows screen appears. If you register Windows according to the instructions on the screen, the computer will be restarted.
2 After the computer has been restarted, the Partition Setup screen appears.

To resize the C and D drives, adjust the partition size using the slide bar and the click Next.

The Partition Setup function is only available when the computer is turned on for the first time and will not be available afterwards. Once you have completed the partitioning, it cannot be resized. Partition the disk carefully.

3 The Initial Status Backup screen appears.
To continue the Initial Status Backup, click Restart Now. The computer will restart.
4 The Initial Status Backup is performed to backup the initial status of the C drive to a secure location. This backup image is used for the Complete Restore function that restores your computer to the initial status.
5 When the Initial Status Backup is complete, restart Windows.

Samsung Recovery Solution(Optional)

Chapter 4. Backup / Restore

Restoring the computer

Restore is a function that enables restoring the computer to a saved point when the computer was purchased or a user-saved point.

The Restore function provides the Basic Restore and Complete Restore options.

1 - When Windows is running:

Click Samsung Recovery Solution.

- When Windows does not start:

Turn the computer on and press the F4 key when the boot screen (SAMSUNG logo) appears. After a moment, the computer boots up in Restoration mode and the Samsung Recovery Solution screen appears.

For computers supporting the touch screen function, the touch screen function does not work during Restore Mode. In this case, please use the touchpad or mouse.

2 If the initial menu screen appears, click Restore.

Samsung Recovery Solution This is the program that adds up the current data of the computer, or it contains additional data in a problem area with the computer. To use the boost-inverting method for each symptom, click Select by Symptoms. Select to Symptom Fixture Backup System Software If you move the mouse point on solution, you can see a brief description.

If you click Select by Symptom, the Select by Symptom menu appears. If you select a symptom, a recommended restoration option will blink. Click the restoration option to continue.

Samsung Recovery Solution(Optional)

Chapter 4. Backup / Restore

3 Select either Basic Restore or Complete Restore from the Restore menu.

To restore the computer to the initial state, click Computer Initial State and perform the restoration process according to the instructions that appear on the screen.

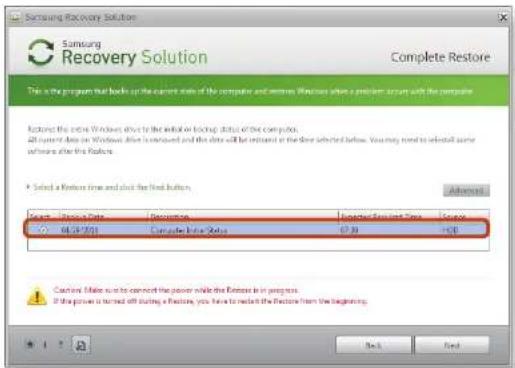

Samsung Recovery Solution Complete Restore This is the program that backs the current mini of the computer and removes Windows when a problem exists with the computer. Restore the entire Windows drive to the initial locking status of the computer. All current mini on Windows drive is announced and then will be returned to the first selected below. We may need to select some software after the Restore. Select a Windows time and click the Next button. Advanced Search Service Date Revision Reported Version Date Storage 04/07/2011 Comulative Update 07:30 +16 <|vision_start|> Auto Tools are to connect the power while the Restore is in progress. If the power is turned off starting a Restore, you have to restart the Restore from the beginning. Next Next

Run Complete Restore if the computer does not work even after Basic Restore has been completed.

In the Advanced menu, you can change the size of the hard drive partitions (e.g. C: and D:).

Make sure to backup your data in advance, as all data will be deleted after the partition size is changed.

- The Advanced menu is only activated when the computer boots up in the restoration area.

(by pressing the F4 key during the booting sequence.)

Since a Complete Restore deletes all user data as well as additionally installed programs, please backup your important data fi rst using the Data Backup function, before running Complete Restore.

4 The computer boots up into restoration mode and the restoration progress message appears. If you click OK, the restoration begins. The restoration may take some time, please wait for a moment.

5 When the 'Restart the System' message appears after the restoration is complete, click OK to restart the system.

Make sure that the power cord is connected while the restoration is in process. The first time the computer boots up after a Complete Restore has been performed, the speed of the boot process may be slowed down due to the system optimization process. At this time, do not shut the computer down by force.

Samsung Recovery Solution(Optional)

Chapter 4. Backup / Restore

Complete Backup/Restore

A Complete Backup saves the complete image of the C drive onto another drive or DVD. A Complete Restore restores the image fi le saved by the Complete Backup onto the C drive.

Complete Backup

If you perform the Complete Backup function onto a DVD or removable storage device, you can restore your computer even when a problem occurs with the hard disk or when the restoration area is removed.

To create a backup, a removable storage device with at least 15 GB of free space is required.

1 Click Backup in the start screen of the Samsung Recovery Solution.

2 Enter a description of the current status of the computer and click Next.

After connecting a DVD drive or removable storage device, you can specify the DVD drive or removable storage device as the Save Path.

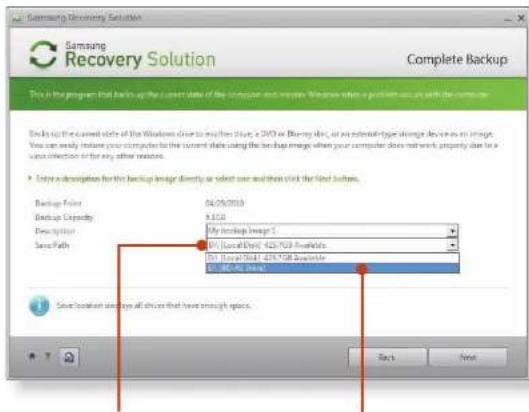

Samsung Recovery Solution Complete Backup This is the program that files up the current file of the computer and version Windows when a problem you can with the name. Backup to the current file of the Windows drive to multiple files, or a DVO or DSBV drive, or an external-type adapter device as an image. You can easily ensure your computer to the current file using the backup image when your computer does not work properly due to a virus infection or for any other resources. • Use a description for the backup image directly to select one and then click the final buttons. Backup Folder 04/06/2010 Backup Capacity X:120 Description: My backup image 1 Save Path: DVI (Local/Local) 425 X708 Profilelets DVI (Local/Local) 425 X708 Profilelets DVI (Local/Local) 425 X708 Profilelets Save Location details all shown that have enough space. Back Next

Select Drive D. Select the DVD drive.

3 When the option selection item appears, select an option and click Next.

The LiveImaging and System Software Backup functions are supported as options for the Complete Backup operation.

Livelmaging: Performs the Complete Backup operation while Windows is running. The backup operation using Livelmaging may slow down if the hard disk drive is accessed frequently by other applications.

System Software Backup: • This function backs up the system software on to the DVD after the completion of the Complete Backup operation.

Samsung Recovery Solution(Optional)

Chapter 4. Backup / Restore

4 When the system restarts in Restoration Mode, the Complete Backup operation begins. Continue with the backup by following the instructions.

Samsung Recovery Solution supports the DVD+R, DVD-R, • DVD+RW and DVD-RW formats.

If the LiveImaging option has been selected, the Complete Backup operation begins without the computer being restarted.

5 Continue with the Complete Backup operation by following the instructions.

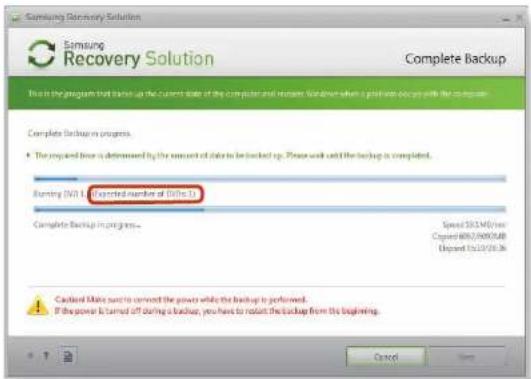

Samsung Recovery Solution Complete Backup This is the program that starts up the current state of the computer and maintains Windows when a platform exists with the majority. Complete Backup in progress. • The required time is determined by the amount of data to be locked up. Please work until the backup is completed. Starting (S1.1) [Expected number of (S1.2)] Complete Backup in progress... Speed: 50.1 MB/min Expired: 68.3 GB/2024 Expired: 15.1 GB/2024 Password: None Password: None Password: None Password: None Password: None Password: None Password: None Password: None Password: None Password: None Password: None Password: None Password: None Password: None Password: None Password: None Password: None Password: None Password: None Password: None Password: None Password: None Password: None Password: None Password: None Password:None

6 When the 'Restart the System' message appears after the backup is complete, click OK to restart the system.

If the LiveImaging option has been selected, the computer is not restarted.

Samsung Recovery Solution(Optional)

Chapter 4. Backup / Restore

Complete Restore

1 - When backing up onto DVD

Turn the computer on and insert the backup DVD into the DVD drive. If there are multiple backup DVDs, insert the first DVD.

- When backing up to a removable storage device

Connect the removable storage device.

- When backing up to another drive

Proceed to Step 2.

2 When the Samsung Recovery Solution start screen appears, click Restore and then click Complete Restore.

3 Select a Complete Backup restoration point in the restoration point selection screen and click the Next button. The system is restarted.

Samsung Recovery Solution Complete Restore This is the program that looks at the Current data of the computer and resources. It allows when a problem occurs with the computer. Restore the entire Windows drive to the initial or backup status of the computer. All current data on Windows drive is removed and the data will be returned at the first instance before. You may need to install your software after the system. Select a Restore line and click the Next button. Sort: Date Range: My backup image 1 04/29/2018 04/26/2018 Description: Component Status Target: 27.0% Target: 30.0% Target: 30.0% Target: 1.0% Cancel: Make sure to switch the progress while the Restore is in progress. If the power is turned off during a Store, you have to return the Store from the beginning. Next Next

4 The restoration progress message appears after the computer boots up in restoration mode. If you click OK, the restoration begins.

If multiple DVDs have been used for a Complete Backup, whenever burning a DVD is completed, the "Insert the next DVD" message will appear.

5 When the 'Restart the System' message appears after the restoration is complete, click OK to restart the system. The Complete Restore has been completed.

Samsung Recovery Solution(Optional)

Chapter 4. Backup / Restore

Data Backup/Restore

The Data Backup function enables you to backup specifi c fi les and folders to another drive, DVD or removable storage device.

Data Restore enables you to restore data using the data saved by a Data Backup when data is lost. This guide describes the Backup and Restore procedures on the basis of backing up and restoring by using DVD.

Data Backup

1 When the Samsung Recovery Solution start screen appears, click Backup and then click Data Backup.
2 In the data selection screen, select either Basic Selection or Select from all, select a folder or file to be backed up, and then click the Next button.
3 Enter a description for the backup in the Description field so that you can easily recognize it later and specify the Save Path.

If your computer has a DVD-Writer, you can specify the DVD drive as the Save Path.

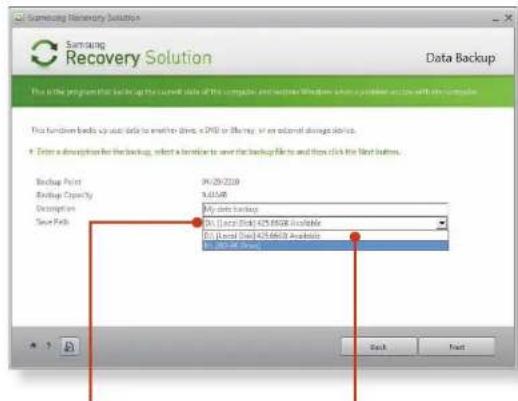

Samsung Recovery Solution Data Backup This is the program that backed up the current data of this computer and better Windows when any other access with this computer. This function leads to your data to another drive, a PDF or BNER, or an external storage device. Enter a description for the backup, select a terminator to save the backup file and then click the next button. Backup Print Backup Capacity Description Save Path 04/29/2019 3.615MB My data backup 01 [Local Disk] 425.856KB Available 01 [Local Disk] 425.856KB Available My Data Backup Back Next

Select Drive D. Select the DVD drive.

If you have specified a hard disk drive or a removable disk as the Save Path, the SamsungRecovery\SamsungData folder is created on the corresponding drive (e.g. D:) and the data is saved to the folder. Take care to not delete the folder by mistake or on purpose.
4 If you click the Next button, the Data Backup begins. If you have selected the DVD drive as the Save Path, the "Insert a blank DVD" message appears. Insert a blank DVD and click the OK button.
5 The "Backup is completed" message appears.

Samsung Recovery Solution(Optional)

Chapter 4. Backup / Restore

Data Restore

1 – When backing up onto DVD

Turn the computer on and insert the backup DVD into the DVD drive.

- When backing up to a removable storage device

Connect the removable storage device.

- When backing up to another drive

Proceed to Step 2.

2 When the initial menu screen appears, click Restore and then click Data Restore.
3 Select a backup item to be restored in the backup list and click the Next button.
4 Select a folder for the restoration and click the Next button. Data Restore begins.
5 When Data Restore is completed, check if the data has been restored to the specified folder.

Samsung Recovery Solution(Optional)

Chapter 4. Backup / Restore

System Software Function

The System Software function is a function that enables you to reinstall device drivers and System Software Programs or back up those programs.

The system software function is supported by Samsung Recovery Solution version 4 or later. Therefore, the function may not be supported depending on the version.

The System Software Installation Function only works in Microsoft Windows.

Installing System Software

1 When the initial menu screen appears, click System Software > System Software Installation.

System Software Recovery Solution Samsung Recovery Solution System Software This is the program that backed up the current site of the computer and receiver. Windows will provide a suitable access to the computer. The System Software Installation includes request device drives and applications. The System Software Backup backs up system software with an arrow driven and application. Select functions System Software Installation System Software Backup This function clubs to reinstall devices directly and application supplied by Samsung Electronics. Back

2 When the Samsung System Software screen appears, check all the device drivers and application programs you want to install and then click Install Now.
3 After the installation is complete, the computer will restart.

Samsung Recovery Solution(Optional)

Chapter 4. Backup / Restore

System Software Backup

1 When the initial menu screen appears, click System Software > System Software Backup.
2 Specify the Save Path.

If your computer has a DVD-Writer, you can specify the DVD drive as the Save Path.

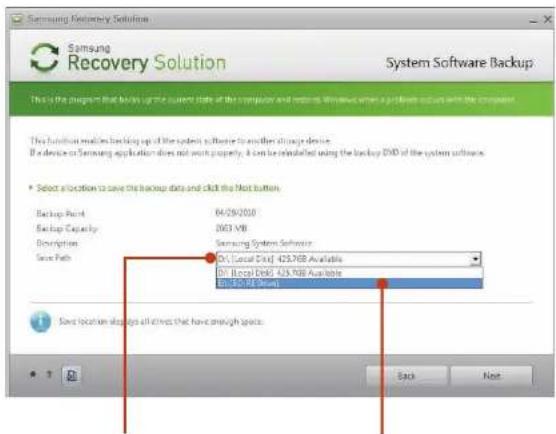

Samsung Recovery Solution System Software Backup This is the program that looks up the current state of the computer and restores Windows when a solution exists with the computer. This function enables backup up of the system software to another switch device. If a device or Samsung application does not want properly, it can be installed using the backup DVD of the system software. Select a location to save the backup data and click the Next button. Backup Point 04/29/2010 Backup Capacity 2003 KB Description Samsung System Software Oil [ Local Disk ] 425.76B Available Oil [ Local Disk ] 425.76B Available Oil [ Local Disk ] 425.76B Available Save Path Save location displays all sites that have enough space.

Select Drive D. Select the DVD drive.

If you have specified a hard disk drive or a removable disk as the Save Path, the SamsungSoftware folder is created on the corresponding drive (e.g. D:) and the system software programs are saved to that folder. Take care to not delete the folder.
3 If you click the Next button, the Software Backup begins. If you have selected the DVD drive as the Save Path, the "Insert a blank DVD" message appears. Insert a blank DVD and click the OK button.
4 After the backup, the System Software Backup is completed message appears.

If you want to install the System Software Programs backed up on the drive, run the SoftwareMediaXX.exe file in the SystemSoftware folder.

When installing System Software Programs from the • backed-up DVD, insert the DVD and follow the System Software Installation directions.

To delete Samsung Recovery Solution, refer to the Help section of the program.

Samsung Recovery Solution(Optional)

Chapter 4. Backup / Restore

Recovery Solution Representation (Optional)

What is a Recovery Area?

Samsung computers have an additional partition to recover • computers or save backup files.

(Only for models with the Samsung Recovery Solution.)

This partition is called a Recovery Area and it includes a recovery image that comprises of the OS and application programs.

You can either double-click the Samsung Recovery Solution icon on the desktop or press F4 while booting the computer to enter the Recovery Area. Then you can back up the present computer state or recover the computer from backed up images.

For deleting the Recovery Area, you need to use an additional • Recovery Area Removal Tool. After deleting the recovery area, you can use the newly created partition for other uses, such as for saving personal data. Be careful that once the recovery area is deleted, the Samsung Recovery Solutions will not work anymore.

The capacity representation of the hard disk drive(HDD) in Windows is different from the product specifications.

The capacity of the storage device (HDD) of the manufacturer is calculated assuming that 1KB=1,000 Bytes. However, the operating system (Windows) calculates the storage device capacity assuming that 1KB=1,024 Bytes, and therefore the capacity representation of the HDD in Windows is smaller than the actual capacity.

This is due to the difference in capacity calculation and does not mean the installed HDD is different from the product specifications.

The capacity representation in Windows may be smaller than the actual capacity because some programs occupy a certain area of the HDD outside of Windows.

For models with Samsung Recovery Solution, the HDD capacity • representation in Windows may be smaller than the actual capacity because Samsung Recovery Solution uses a hidden area of about 5\~20GB of the HDD to save the recovery image, and that hidden area is not counted towards the total size available to Windows.

The size of Samsung Recovery Solution varies by models because of the different size of applied programs.

Green icon of a spiral-bound notebook inside a white circle on a solid green background (no text or symbols)

Chapter 5. Appendix

Important Safety Information 134

Replacement Parts and Accessories 136

Regulatory Compliance Statements 138

WEEE Symbol Information 154

TCO Certified 155

Product Specifications 156

Glossary 158

Index 162

Important Safety Information

Chapter 5. Appendix

Safety Instructions

Your system is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are followed.

Always follow these instructions to help guard against personal injury and damage to your system.

Setting Up your System

Read and follow all instructions marked on the product and in the documentation before you operate your system. Retain all safety and operating instructions for future use.

Do not use this product near water or a heat source such as a radiator.

Set up the system on a stable work surface.

The product should be operated only with the type of power • source indicated on the rating label.

Ensure that the electrical outlet you are using to power your equipment is easily accessible in case of fire or short circuit.

If your computer has a voltage selector switch, make sure that the switch is in the proper position for your area.

Openings in the computer case are provided for ventilation. Do not block or cover these openings. Make sure you provide adequate space, at least 6 inches (15 cm), around the system for ventilation when you set up your work area. Never insert objects of any kind into the computer ventilation openings.

Ensure that the fan vents on the bottom of the casing are clear at all times. Do not place the computer on a soft surface, doing so will block the bottom vents.

If you use an extension cord with this system, make sure that the total power rating on the products plugged into the extension cord does not exceed the extension cord power rating.

For Notebooks with glossy display bezels the user should consider the placement of the Notebook as the bezel may cause disturbing reflections from surrounding light and bright surfaces.

Important Safety Information

Chapter 5. Appendix

Care During Use

Do not walk on the power cord or allow anything to rest on it. Do not spill anything on the system. The best way to avoid • spills is to not eat or drink near your system.

Some products have a replaceable CMOS battery on the system board. There is a danger of explosion if the CMOS battery is replaced incorrectly. Replace the battery with the same or equivalent type recommended by the manufacturer.

Dispose of batteries according to the manufacturers instructions. If the CMOS battery requires replacement insure that a qualified technician performs the task.

When the computer is turned off, a small amount of electrical current still flows through the computer.

To avoid electrical shock, always unplug all power cables, remove the battery and modem cables from the wall outlets before cleaning the system.

Unplug the system from the wall outlet and refer servicing to • qualified personnel if:

– The power cord or plug is damaged.
– Liquid has been spilled into the system.
- The system does not operate properly when the operating instructions are followed.
– The system was dropped or the casing is damaged.
– The system performance changes.

The Instruction On Safety Operation of NotePC

1. When installing and operating devices please refer to safety requirements in the user guide.
2. Devices can be used only with the equipment specified in the technical specifications of the devices.
3. If any smell of burning or smoke is detected from the computer the unit should be switched off and battery removed. The unit should be checked by a qualified technician before reuse.
4. Service and repair of devices should be carried out by authorized service centers.
5. Do not allow your portable computer to operate with the base resting directly on exposed skin for extended periods of time. The surface temperature of the base will rise during normal operation (particularly when AC Power is present). Allowing sustained contact with exposed skin can cause discomfort or eventually a burn.

Replacement Parts and Accessories

Chapter 5. Appendix

Use only replacement parts and accessories recommended by manufacturer.

To reduce the risk of fire, use only No. 26 AWG or larger telecommunications line cord.

Do not use this product in areas classified as hazardous. Such areas include patient care areas of medical and dental facilities, oxygen rich environments, or industrial areas.

Battery Disposal

Do not put rechargeable batteries or products powered by non-removable rechargeable batteries in the garbage.

Contact the Samsung Helpline for information on how to dispose of batteries that you cannot use or recharge any longer.

Follow all local regulations when disposing of old batteries.

! THERE IS A RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Laser Safety

All systems equipped with CD or DVD drives comply with the appropriate safety standards, including IEC 60825-1. The laser devices in these components are classified as "Class 1 Laser Products" under a US Department of Health and Human Services (DHHS) Radiation Performance Standard. Should the unit ever need servicing, contact an authorized service location.

! Laser Safety Note:

Use of controls or adjustments or performance of procedures other than those specified in this manual may result in hazardous radiation exposure. To prevent exposure to laser beams, do not try to open the enclosure of a CD or DVD drive.

Class 1M laser radiation when operating part is open. Do not view directly with optical instruments.

Class 3B invisible laser radiation when open. Avoid exposure to the beam.

Replacement Parts and Accessories

Chapter 5. Appendix

Connecting and Disconnecting the AC adapter

The socket-outlet should be installed near the equipment and should be easily accessible.

Do not unplug the power cord by only pulling the cable.

Power Cord Requirements

The power cord set (wall plug, cable and AC adapter plug) you received with your computer meets the requirements for use in the country where you purchased your equipment.

Power cord sets for use in other countries must meet the requirements of the country where you use the computer. For more information on power cord set requirements, contact your authorized dealer, reseller, or service provider.

General Requirements

The requirements listed below are applicable to all countries:

All power cord sets must be approved by an acceptable • accredited agency responsible for evaluation in the country where the power cord set will be used.

The power cord set must have a minimum current capacity of 7 A and a nominal voltage rating of 125 or 250 volts AC, as required by each country's power system. (USA ONLY)

The appliance coupler must meet the mechanical configuration of an EN 60 320/IEC 320 Standard Sheet C7 (or C5) connector, for mating with appliance inlet on the computer.

Regulatory Compliance Statements

Chapter 5. Appendix

Wireless Guidance

(If fitted with 2.4G band or 5G band)

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz Band, may be present (embedded) in your notebook system. The following section is a general overview of considerations while operating a wireless device.

Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, please contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.

The RF field strength of the wireless device or devices that may be embedded in your notebook are well below all international RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your notebook) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation.

As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on and transmitting.

Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed on the next page:

Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane.

802.11ABGN (also known as wireless Ethernet or Wifi) and Bluetooth communication devices are examples of devices that provide wireless communication.

In environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to use or turning on the wireless device.

Regulatory Compliance Statements

Chapter 5. Appendix

!

Every country has different restrictions on the use of • wireless devices. Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country.

If your system came equipped with an internal embedded wireless device, do not operate the wireless device unless all covers and shields are in place and the system is fully assembled.

Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Please contact manufacturer for service.

Only use drivers approved for the country in which the device will be used. See the manufacturer System Restoration Kit, or contact manufacturer Technical Support for additional information.

United States of America

USA and Canada Safety Requirements and Notices

Do not touch or move antenna while the unit is transmitting or receiving.

Do not hold any component containing the radio such that the antenna is very close or touching any exposed parts of the body, especially the face or eyes, while transmitting.

Do not operate the radio or attempt to transmit data unless the antenna is connected; if not, the radio may be damaged.

Use in specific environments:

The use of wireless devices in hazardous locations is limited by the constraints posed by the safety directors of such environments.

The use of wireless devices on airplanes is governed by the Federal Aviation Administration (FAA).

The use of wireless devices in hospitals is restricted to the limits set forth by each hospital.

!

Explosive Device Proximity Warning

Do not operate a portable transmitter (such as a wireless network device) near unshielded blasting caps or in an explosive environment unless the device has been modified to be qualified for such use.

Regulatory Compliance Statements

Chapter 5. Appendix

Use On Aircraft Caution

Regulations of the FCC and FAA prohibit airborne operation of radio-frequency wireless devices because their signals could interfere with critical aircraft instruments.

Other Wireless Devices

Safety Notices for Other Devices in the Wireless Network: Refer to the documentation supplied with wireless Ethernet adapters or other devices in the wireless network.

The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Intel could void the user's authority to operate this device.

Unintentional Emitter per FCC Part 15

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician • for help.

Regulatory Compliance Statements

Chapter 5. Appendix

If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet helpful: "Something About Interference."

This is available at FCC local regional offices. Our company is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by our company. The correction will be the responsibility of the user. Use only shielded data cables with this system.

Intentional emitter per FCC Part 15

(If fitted with 2.4G band or 5G band)

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz Band, may be present (embedded) in your notebook system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system label.

This device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device.

The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your notebook, is well below the RF exposure limits as set by the FCC.

This transmitter must not be collocated or operate in conjunction with any other antenna or transmitter except the installed Bluetooth transmitter.

Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

Regulatory Compliance Statements

Chapter 5. Appendix

Wireless devices are not user serviceable. Do not modify them in any way.

Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.

! FCC Statement for Wireless LAN use:

While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1mW/cm2 may be exceeded at distances close to the antenna installed. Therefore, the user must maintain a minimum distance of 20cm from the antenna at all times.

This device can not be colocated with another transmitter and transmitting antenna.

FCC Part 68 (If fitted with a modem device.)

This equipment compiles with part of the FCC rules. On the back of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company.

This equipment uses the following USOC jacks : RJ11C

An FCC compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to be connected to the telephone network or promises wiring using a compatible modular jack which is Part 68 compliant. See Installation Instructions for details.

Regulatory Compliance Statements

Chapter 5. Appendix

The REN is used to determine the quantity of devices which may be connected to telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by total RENs, contact the local telephone company to determine the maximum REN for the calling area.

If the terminal equipment causes harm to the telephone network, the Telephone Company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of the equipment. If this happens, the telephone company will provide advanced notice in order for you to make necessary modifications to maintain uninterrupted service.

If trouble is experienced with this equipment (Modem) for repair or warranty information, please contact your local distributor. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.

The user must use the accessories and cables supplied by the manufacturer to get optimum performance from the product.

No repairs may be done by the customer.

This equipment cannot be used on public coin phone service provided by the telephone company. Connection to party line service is subject to state tariffs.

The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device, including fax machines, to send any message unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of the business or other entity, or other individual sending the message and the telephone number of the sending machine or such business, other entity, or individual. (The telephone number provided may not be any number for which charges exceed local or long-distance transmission charges.)

In order to program this information into your fax machine, refer to your communications software user manual.

Regulatory Compliance Statements

Chapter 5. Appendix

Canada

Unintentional Emitter per ICES-003

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of Industry Canada.

This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device."

The term "IC" before the equipment certification number only signifies that the Industry Canada technical specifications were met. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

(If fitted with 2.4G band or 5G band)

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz Band, may be present (embedded) in your notebook system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Regulatory Compliance Statements

Chapter 5. Appendix

Wireless devices that may be in your system are only qualified for use in Canada if an Industry Canada ID number is on the system label.

When using IEEE 802.11a wireless LAN, this product is restricted to indoor use due to its operation in the 5.15- to 5.25-GHz frequency range. Industry Canada requires this product to be used indoors for the frequency range of 5.15 GHz to 5.25 GHz to reduce the potential for harmful interference to co-channel mobile satellite systems. High power radar is allocated as the primary user of the 5.25- to 5.35-GHz and 5.65 to 5.85-GHz bands. These radar stations can cause interference with and/or damage to this device.

The maximum allowed antenna gain for use with this device is 6dBi in order to comply with the E.I.R.P limit for the 5.25- to 5.35 and 5.725 to 5.85 GHz frequency range in point-to-point operation.

As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on.

The power output of the wireless device (or devices), which may be embedded in your notebook, is well below the RF exposure limits as set by Industry Canada.

This transmitter must not be collocated or operate in conjunction with any other antenna or transmitter except the installed Bluetooth transmitter.

Regulatory Compliance Statements

Chapter 5. Appendix

Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

To prevent radio interference to licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.

Regulatory Compliance Statements

Chapter 5. Appendix

Telecommunications per DOC notice (for products fitted with an IC-compliant modem)

The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operation, and safety requirements. The Department does not guarantee the equipment will operate to the users' satisfaction.

Before installing this equipment, users should make sure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the inside wiring associated with a single-line individual service may be extended by means of a certified connector assembly. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Users should make sure, for their own protection, that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

To avoid electrical shock or equipment malfunction do not attempt to make electrical ground connections by yourself. Contact the appropriate inspection authority or an electrician, as appropriate.

The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.

Regulatory Compliance Statements

Chapter 5. Appendix

Brazil

European Union CE Marking and Compliance Notices

Products intended for sale within the European Union are marked with the Conformité Européenne (CE) Marking, which indicates compliance with the applicable Directives and European standards and amendments identified below. This equipment also carries the Class 2 identifier.

The following information is only applicable to systems labeled with the CE markCE.

European Directives (€)

This Information Technology Equipment has been tested and found to comply with the following European directives:

EMC Directive 2004/108/EC•

Low Voltage Directive 2006/95/EC•

R&TTE Directive 1999/5/EC•

Manufacturer Information

Samsung Electronics Co., Ltd.

416, Maetan-3Dong, Yeongtong-Gu, Suwon-City, Gyeonggi-Do, 443-742, Korea

Samsung Electronics Suzhou Computer Co., Ltd.

No. 198, Fangzhou Road, Suzhou Industrial Park, Jiangsu Province, 215021, China

Tel: [phone]

For the web or the phone number of Samsung Service Centre, see the Warranty or contact the retailer where you purchased your product.

Regulatory Compliance Statements

Chapter 5. Appendix

European Radio Approval Information (for products fitted with EU-approved radio devices)

This Product is a Notebook computer; low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz band, may be present (embedded) in your notebook system which is intended for home or offi ce use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

CE!

Wireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark with a Notified Body Registration Number and the Alert Symbol is on the system label.

The power output of the wireless device or devices that may be embedded in you notebook is well below the RF exposure limits as set by the European Commission through the R&TTE directive.

The low band 5.15 - 5.35 GHz is for indoor use only.

See 802.11b and 802.11g restrictions for specific countries or regions within countries under the heading "European Economic Area Restrictions" below.

EU R&TTE Compliance Statements

	Česky [Czech]	Samsung tímto prohlašuje, že tento Notebook PC je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
	Dansk [Danish]	Undertegnede Samsung erklærer herved, at følgende udstyr Notebook PC overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
	Deutsch [German]	Hiermit erklärt Samsung, dass sich das Gerät Notebook PC in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befí ndet.
	Eesti [Estonian]	Käesolevaga kinnitab Samsung seadme Notebook PC vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
	English	Hereby, Samsung, declares that this Notebook PC is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
	Español [Spanish]	Por medio de la presente Samsung declara que el Notebook PC cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.

Regulatory Compliance Statements

Chapter 5. Appendix

el	Ελληνική [Greek]	ME THN ΠΑΡΟΥΣΑ Samsung ΔΗΛΩΝΕΙ OTI Notebook PC ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
fr	Français [French]	Par la présente Samsung déclare que l'appareil Notebook PC est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
it	Italiano [Italian]	Con la presente Samsung dichiara che questo Notebook PC è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
lv	Latviski [Latvian]	Ar šo Samsung deklarē, ka Notebook PC atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
lt	Lietuvių [Lithuanian]	Šiuo Samsung deklaruoja, kad šis Notebook PC atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
nl	Nederlands [Dutch]	Hierbij verklaart Samsung dat het toestel Notebook PC in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
mt	Malti [Maltese]	Hawnhekk, Samsung, jiddikjara li dan Notebook PC jikkonforma mal-ħtiāijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fi d-Dirrettiva 1999/5/EC.

hu	Magyar [Hungarian]	Alulírott, Samsung nyilatkozom, hogy a Notebook PC megfelel a vonatkozó alapvető követelményeknek és az 1999/5/EC irányelv egyéb előírásainak.
pl	Polski [Polish]	Niniejszym Samsung oświadcza, Še Notebook PC jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
pt	Português [Portuguese]	Samsung declara que este Notebook PC está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.
sl	Slovensko [Slovenian]	Samsung izjavlja, da je ta Notebook PC v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.
sk	Slovensky [Slovak]	Samsung týmto vyhlasuje, že Notebook PC spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
fi	Suomi [Finnish]	Samsung vakuuttaa täten että Notebook PC tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
sy	Svenska [Swedish]	Härmed intygar Samsung att denna Notebook PC står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.

Regulatory Compliance Statements

Chapter 5. Appendix

To view the EU Declaration of Conformity for this product (in English only), go to: http://www.samsung.com/uk/support/download/supportDownMain.do then search the model number of the product.

If the Declaration of Conformity for the model you are interested in is not available on our web-site, please contact your distributor.

European Economic Area Restrictions

Local Restriction of 802.11b/802.11g Radio Usage

[Note to integrator: The following statements on local restrictions must be published in all end-user documentation provided with the system or product incorporating the wireless product.]

Due to the fact that the frequencies used by 802.11b/802.11g wireless LAN devices may not yet be harmonized in all countries, 802.11b/802.11g products are designed for use only in specific countries or regions, and are not allowed to be operated in countries or regions other than those of designated use.

As a user of these products, you are responsible for ensuring that the products are used only in the countries or regions for which they were intended and for verifying that they are configured with the correct selection of frequency and channel for the country or region of use. Any deviation from permissible settings and restrictions in the country or region of use could be an infringement of local law and may be punished as such.

Regulatory Compliance Statements

Chapter 5. Appendix

The European variant is intended for use throughout the European Economic Area. However, authorization for use is further restricted in particular countries or regions within countries, as follows:

General

European standards dictate maximum radiated transmit power of 100 mW effective isotropic radiated power (EIRP) and the frequency range 2400 – 2483.5 MHz.

The low band 5.15 - 5.35 GHz is for indoor use only.

Belgium

The product may be used outdoors, but for outdoor transmissions over a distance of 300m or more, a license from the BIPT is required.

This restriction should be indicated in the manual as follows:

For Metropolitan departments:

2.400 - 2.4835 GHz for indoor use.

2.400 - 2.454 GHz (channels 1 to 7) for outdoor use.

For Guadeloupe, Martinique, St Pierre et Miquelon, Mayotte:

2.400 - 2.4835 GHz for indoor and outdoor use.

For Reunion, Guyane:

2.400 - 2.4835 GHz for indoor use.

2.420 - 2.4835 GHz for outdoor use (channels 5 to 13)

The low band 5.15 - 5.35 GHz is for indoor use only.

Regulatory Compliance Statements

Chapter 5. Appendix

European Telecommunication Information (for products fitted with EU-approved modems)

Marking by the symbol C indicates compliance of this equipment to the Radio and Telecom Terminal Equipment Directive 1999/5/EC. Such marking is indicative that this equipment meets or exceeds the following technical standards:

CTR 21 - Attachment requirements for pan-European approval for connection to the analogue Public Switched Telephone Networks (PSTNs) of TE (excluding TE supporting voice telephony services) in which network addressing, if provided, is by means of Dual Tone Multi-Frequency (DTMF) signaling.

Although this equipment can use either loop disconnect (pulse) or DTMF (tone) signaling, only the performance of the DTMF signaling is subject to regulatory requirements for correct operation.

It is therefore strongly recommended that the equipment is set to use DTMF signaling for access to public or private emergency services. DTMF signaling also provides faster call setup.

This equipment has been approved to Council Decision 98/482/EEC - "CTR 21" for Pan-European single terminal connection to the Public Switched Telephone Network (PSTN).

However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN termination point. In the event of problems, you should contact manufacturer Technical Support.

WEEE Symbol Information

Chapter 5. Appendix

Correct disposal of this product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material re-use, please separate batteries from other types of waste and recycle them through your local, free battery return system.

USA ONLY

This Perchlorate warning applies only to primary CR (Maganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA.

"Perchlorate Material- special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate."

Dispose unwanted electronics through an approved recycler.

To find the nearest recycling location, go to our website:

www.samsung.com/recyclingdirect Or call, [phone]

TCO Certified (for corresponding models only)

Chapter 5. Appendix

Congratulations!

This product is TCO Certified for Usability and the Environment.

The product you have just purchased carries the TCO Certified label. This means that your computer is designed, manufactured and tested according to some of the strictest performance

and environmental criteria in the world. That makes for a high performance product designed with the user in focus and one that also minimizes the impact on the climate and our natural environment.

TCO Certified is a third party verified program, where every product model is tested by an accredited impartial test laboratory. All criteria have been developed by TCO Development in collaboration with scientists, product experts, users as well as manufacturers all over the world.

Here are some of the features offered with this product:

Usability – Designed for You

Good visual ergonomics and image quality, ensuring • top performance and reduced risk of eye strain. Several requirements within the area of luminance, contrast, resolution and color

Designed with the option to connect an external display, • keyboard and mouse (recommended when working with a notebook or netbook for longer periods)

Ergonomic keyboard design – for ease of use and good • readability

Fully tested according to rigorous safety standards.

Low Electric and Magnetic field emissions. Low acoustic noise levels

Environment– Designed for the Planet

Brand demonstrates corporate social responsibility and has a certified environmental management system (EMAS or ISO 14001)

Very low energy consumption both in idle- and standby mode, reducing climate impact

Restrictions on hazardous materials: chlorinated and brominated flame retardants, plasticizers, plastics and heavy metals such as cadmium, mercury, lead and hexavalent chromium (mercury ban and limits on hazardous flame retardants go beyond RoHS compliance)

• Both product and product packaging are designed for recycling
  • The brand company offers take-back options

For more information, please visit

www.tcodevelopment.com

TCO Certified – Technology for You and the Planet

TCOF1190 TCO Document Version 2.0

Product Specifications

Chapter 5. Appendix

The system specifications may differ depending on the derived models.

For detailed system specifications, refer to the product catalogue.

CPU (Optional)	Intel Celeron ProcessorIntel Pentium ProcessorIntel CoreTM i7/i5/i3 Processor
Main Memory Memory type: DDR3 SODIMM
Main Chipset(Optional)	Intel HM55/HM65/QM67
Hard Disk Drive(Optional)	9.5mmH SATA HDD7.0mmH SATA SSD
Graphics(Optional)	Intel HD Graphics (Internal)NVIDIA GeForce 315M (External)NVIDIA GeForce 315M (Optimus)NVIDIA NVS 4200M (External)NVIDIA NVS 4200M (Optimus)
OperatingEnvironment	Temperature: -5~40°C for storage,10~35°C when operatingHumidity: 5~90% for storage,20~80% when operating
Operating Voltage	100 - 240VAC

Frequency 50 / 60Hz
Output Power (Optional)	60W/90W
Output Voltage (Optional)	19VDC 3.16A (60W) / 19VDC 4.74A (90W)

Optional components may not be provided or different • components may be provided depending on the computer model.

The system specifications are subject to change without notice.

The hard disk drive capacity of a computer in which • Samsung Recovery Solution is installed, is represented as smaller than the product specification.

The amount of memory that Windows can use may be smaller than the actual amount of memory available.

Product Specifications

Chapter 5. Appendix

Registered Trademarks

Samsung is a registered trademark of Samsung Co., Ltd.

Intel, Core™ i7/i5/i3, Celeron are registered trademarks of the Intel Corporation.

Microsoft, MS-DOS, and Windows are registered trademarks of the Microsoft Corporation.

All other product or company names mentioned herein are registered trademarks of their respective companies.

ENERGY STAR® Partner

As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

The Glossary lists the terminologies used in this User Guide. For terminologies other than these, look in Windows Help.

Backup

A way to save the current data to restore it later if necessary. A backup is a way to restore computer data when the data or computer is damaged.

Chargeable USB

This program enables supplying power to a specific USB port when the system is in power saving mode, hibernation mode or off.

Client

This refers to a computer that uses a shared network resource provided by a server.

DDR SDRAM

(Double Data Rate Synchronous Dynamic Random Access Memory)

DRAM is a memory type whose cells consist of a capacitor and transistor manufactured at a low price. SDRAM is a memory type whose performance has been improved by synchronizing the clock with the external CPU clock. DDR SDRAM is a memory type whose performance has been improved by doubling the operating speed of the SDRAM and is widely used nowadays. This computer uses DDR SDRAM.

Device Manager

An administrative tool used to manage computer devices. You can add or remove hardware or update a device driver using the Device Manager.

DHCP (Dynamic Host Configuration Protocol)

This refers to automatically allocating IP addresses to the users on the network by the network administrators.

Direct X

An application interface developed to enable Windows application programs to access hardware devices at a very high speed. Since the operating speed of graphics, memory and sound cards must be very fast to provide high quality video and sound for games, Direct X enables faster control and interaction between applications and hardware devices. By using Direct X, the multimedia performance of Windows has been hugely improved.

Driver

Software that interacts between the hardware and the operating system. An operating system knows the hardware information and controls the hardware. In general, a driver is supplied with the corresponding hardware device.

D-sub (D-subminiature)

This is the cable connecting a general CRT monitor and the computer. Analog video is output through this cable.

DVD (Digital Versatile Disk)

DVD was developed to replace CD (compact disk). Although the shape and size of the disc are the same as that of a CD, the capacity of a DVD is at least 4.7GB while the capacity of a CD is 600MB. DVD video is digital unlike VHS (analog) video and supports MPEG2 compression and digital audio. To play a DVD, a DVD drive is required.

Firewall

A security system used to protect an internal network or intranet from external networks through an authentication procedure.

HDMI

This is a digital video / audio interface specification that transmits video and audio signals over a single cable.

Hibernation Mode

A power mode that saves all data in memory to the hard disk and turns the CPU and hard disk off. When canceling Hibernation Mode, all application programs that were running are restored to their last state.

Icon

This refers to a small image that represents a file that users can use.

IEEE802.XX

This is a set fo specifications developed by the 802 committee of IEEE for the LAN connection method called XX.

LAN (Local Area Network)

A communications network connecting computers, printers and other devices within a local area such as within a building. A LAN enables all connected devices to interact with other devices on the network. The current LAN uses the Ethernet media access control method developed in the early 1980s. To connect to an Ethernet, a network card called a LAN card, Ethernet card or network interface card is required. To exchange data between computers, a protocol is required besides the hardware equipment. Windows Vista uses TCP/IP as the default protocol.

LCD (Liquid Crystal Display)

There are Passive Matrix and Active Matrix LCD types. This computer uses the Active Matrix type LCD called a TFT LCD. Since an LCD is implemented by transistors instead of a cathode-ray tube unlike a CRT, its size can be slim. And because it does not blink, it reduces eye strain.

Network

A group of computers and devices, such as printers and scanners, connected by a communications link. A network can be either small or large and can be connected permanently through cables or temporarily through telephone lines or wireless links. The biggest network is the Internet, a worldwide network.

Network Administrator

A user who plans, configures and manages network operations. Sometimes, a network administrator is called a system administrator.

Notification Area

This refers to the right area of the Taskbar including program icons such as the volume control, the power options and the time.

Partition

This refers to the act or practice of dividing the storage space of a hard disk drive into separate data areas known as partitions. If a 100GB hard disk drive is partitioned into 2 x 50GB partitions, the hard disk drive can be used as if there are 2 hard disk drives.

PCMCIA( Personal Computer Memory Card International Association) card

This is an extended card slot specification for mobile computers such as a notebook computer. Not only a memory, device but also most peripherals such as hard disk drives, LAN cards, etc. can be connected to this card slot.

Protocol

A protocol is a set of rules used by computers to communicate with each other across a network. A protocol is a convention or standard that controls or enables the connection, communication, and data transfer between computing endpoints. It defines the data transmission procedures and the transmission medium for more efficient network functions.

Quick Launch

This refers to a toolbar that can be configured so that you can launch a program such as Internet Explorer or display the Windows Desktop with one click. You can add any icon to the quick launch area of the Taskbar and launch frequently used program by clicking that icon.

SDHC (Secure Digital High Capacity) card

This is the extension of the SD card that supports over 2GB bytes.

Server

In general, a server refers to a computer that provides shared resources for network users.

Share

This refers to setting a resource of a computer such as a folder or printer so that other users can also use it.

Shared Folder

A folder that can be used by other users on the network.

Sleep Mode

A power mode that enables computers to save power consumption when they are not being used. When a computer is in Sleep Mode, the data on the computer memory is not saved to the hard disk. If the power is turned off, the data in memory will be lost.

System File

System Files refer to files that are read and used by the Windows operating system. In general, system files must not be deleted or moved.

TCP/IPv4

This is a 4 byte (32 bit) address system separated into each byte (8 bits) by a dot and each byte is represented as a decimal number.

USB (Universal Serial Bus)

This refers to a serial interface standard developed to replace the conventional interface standards such as Serial and PS/2.

The data transmission specifications are one of the interface standards used to connect a computer to peripheral devices. These specifications include USB 1.0, 1.1, 2.0 and 3.0.

It is appropriate to support peripheral devices that require high data rates such as an AV device, secondary HDD or CD-RW. The higher the version (e.g. USB 3.0), the higher the data rate provided.

Virtual XP Mode

This is a virtual operating system that enables running Windows XP programs on the Windows 7 operating system. Using this mode, you can run programs that do not run on Windows 7.

Windows Media Player

A multimedia program included with Windows. Using this program, you can play a media file, create an audio CD, listen to a radio broadcast, search and manage media files, and copy files to a portable device, etc.

Index

Chapter 5. Appendix

A

AP 80

B

Battery 112

BIOS Setup 103

Booting Priority 108

C

CD Drive 56

Charge 112

Click 45

D

Double-Click 46

Drag 46

Dual View 63

L

LCD Brightness

101

M

Memory 109

Monitor Connection / Output 62

Multi Card Slot 59

0

Overview 26

P

Password 105

Product Specifications 156

R

Recorder 72

S

Safety Precautions 8

Samsung Recovery Solution 121

Scroll 48

Security Slot 119

Shortcut Key 40

SoundAlive 74

Status Indicators 28

Supervisor Password 105

T

Touchpad 44

U

User Password 106

V

Volume Control 72

W

Wired Network 76

Wireless Network 80
