BL3326B - Blender Clas Ohlson - Free user manual and instructions

Brand	Clas Ohlson
Model	BL3326B
Product Type	Personal Blender (Blender 2 Go)
Power Consumption	300 W
Power Supply	220–240 V AC, 50 Hz
Beaker Capacity	0.6 L (600 ml)
Max Continuous Operating Time	1 minute
Motor Cool Down Time	1 minute
Speed Settings	Low (1), High (2), Pulse (P), Off (0)
Blade Material	Stainless steel (removable)
Beaker Material	Plastic
Lid Type	Non-spill travel lid included
Additional Features	Pulse function, portable design
Safety Features	Automatic shutdown after 1 min; cool down required
Dishwasher Safe Parts	Beaker and lid (not blade)
Cleaning Instructions	Motor unit: wipe with damp cloth; blade: hand wash only
Max Liquid Temperature	80 °C
Intended Use	Mixing smoothies, protein drinks, and similar beverages

Frequently Asked Questions - BL3326B Clas Ohlson

How do I use the blender?

Can I blend hot liquids?

How should I clean the blade?

Why does the blender stop after a minute?

Can I put the beaker in the dishwasher?

What is the maximum capacity of the beaker?

Can I blend ice or frozen fruit?

How do I assemble the blender?

What does the P mode do?

Is this blender suitable for smoothies?

USER MANUAL BL3326B Clas Ohlson

Mix smoothies or protein drinks directly in the beaker

0.6 L plastic mixing beaker with lid

Perfect for taking on the go

Removable, stainless steel blades

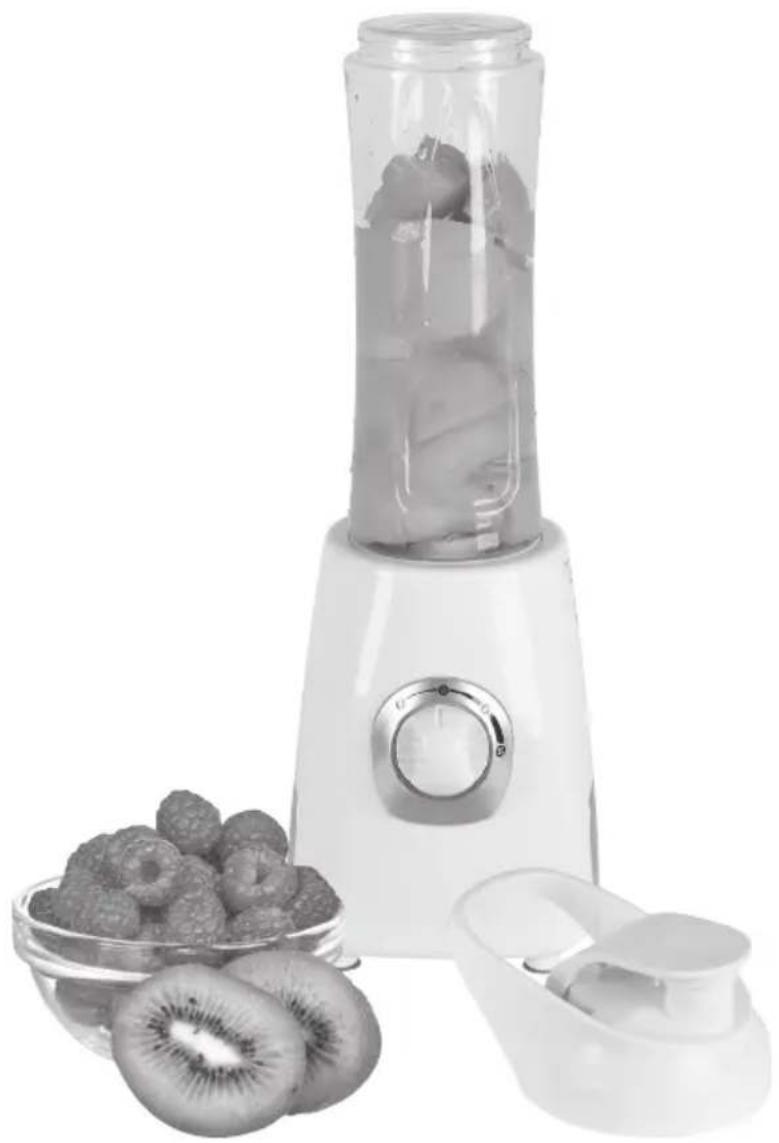

Black-and-white photo of a small kitchen blender with kiwiflow and fresh fruits, no visible text or symbols.

Art.no

18-4719

44-1994

Blender 2 Go

Art.no 18-4719 Model BL3326B

44-1994

BL3326B

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

• Never use the blender for longer than 1 minute at a time. Switch the product off and let the motor cool down for a minute before using it again.
• Incorrect handling of this blender could result in personal injury.
• Great care should be exercised when handling and cleaning the blade and the beaker. The blade is very sharp.
• The blender should always be disconnected from the mains when it is not in use, when it is to be assembled/disassembled and when it is to be cleaned.
• The blender must not be used by children. Ensure that the blender and its mains lead are kept out of children's reach.
• The blender must only be used with the included motor unit.
• Note: Ensure that the blender is switched off before the beaker is removed from the motor unit.
• Wash the beaker, cutter blade, other chopping attachments and lid with warm soapy water.
• Switch the blender off and disconnect it from the mains before removing the blade or any of the moving parts.
• The blender may be used by persons with reduced physical, sensory or mental capability, lack of experience or knowledge which could jeopardise their safety, provided they have been instructed in the safe use of the product and understand the hazards involved.

• Never let children play with the blender.

• Ensure that the product is used with the correct voltage. Refer to the rating plate on the blender.

• Always remove the jug from the motor unit before cleaning. The blade is extremely sharp and could cause serious personal injury if the blender were to start accidentally.
• To prevent electric shocks, the blender and its mains lead should always be kept dry.
• Never lay the mains lead over hot surfaces, sharp edges or corners.
• Always disconnect the blender from the power supply by holding and pulling the plug. Do not pull the mains lead.
• Make sure that all parts are correctly assembled and that the blender is switched off before it is connected to the power supply.
• Never operate the blender without food in the beaker.
• Never use the blender close to heat sources.
• Only use the included accessories.
• Never use the blender for anything other than its intended use.
• The mains lead should be checked regularly. Never use the blender if the mains lead or plug is damaged.
• The mains lead must be changed if damaged. This is to prevent the risk of electric shock or fire and should only be carried out by the manufacturer, qualified service facility or qualified technician.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner.

When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

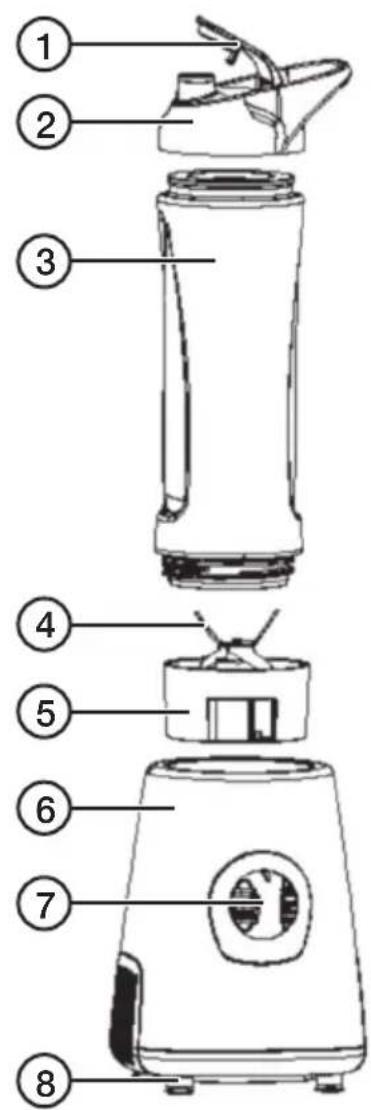

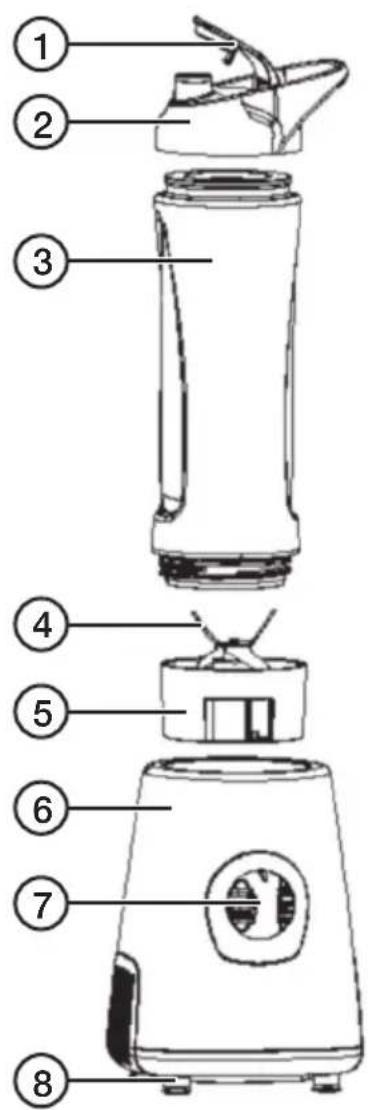

Product description

1. Lid
2. Mixer beaker lid
3. Mixer beaker
4. Blade
5. Blade holder
6. Motor unit
7. Mode selector: P = pulse, 0 = off, 1 = low speed, 2 = high speed
8. Rubber feet

Getting started

Thoroughly clean all parts before using the blender for the first time. Refer to the Care and maintenance section.

Operating instructions

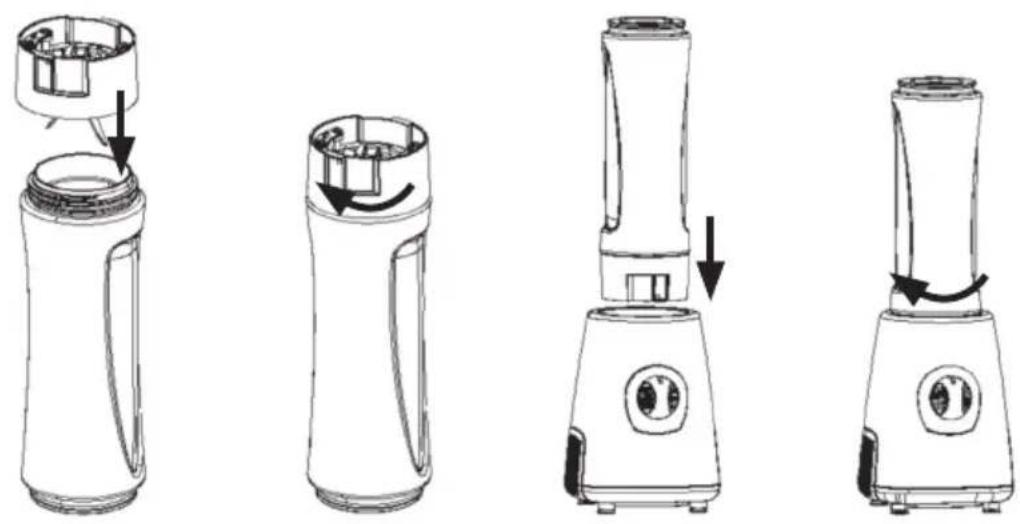

1. Place the beaker on a level surface and fill with ingredients. Do not fill the beaker above the maximum level (600 ml).
2. Screw the blade onto the top of the beaker. Turn the beaker upside down and screw it onto the motor unit (clockwise).

Line drawing of a thermos flask with an arrow indicating a drop or adjustment (no text or symbols present)

Line drawing of a flashlight with a handle and internal mechanism (no text or symbols)

Line drawing of a blender with a downward arrow indicating compression (no text or symbols)

Line drawing of a blender with a handle and control knob, showing a curved arrow indicating rotation (no text or symbols)

1. Plug the mains lead into a wall socket.

2. Start the blender by selecting a mode with the mode selector switch.

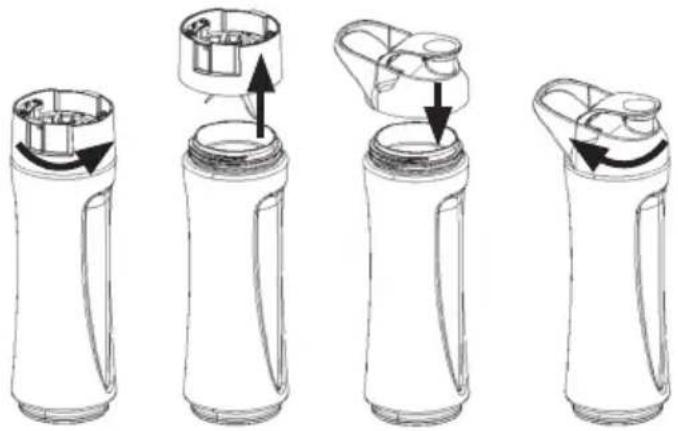

3. When you have finished blending, unscrew the beaker and turn it the right way up. Unscrew the blade holder and fit the non-spill lid onto the beaker.

Note: Never use the blender for longer than 1 minute at a time.

Note: Never fill the beaker with ingredients hotter than 80 °C.

Line drawings of a four-step mechanical device with arrows indicating assembly or transformation (no text or symbols)

Tips

Never blend the following types of ingredients:

• Large frozen items.
- Potato and other ingredients that are difficult to mix.

Care and maintenance

1. Always unplug the blender before cleaning it.
2. Never immerse the motor unit in water. Clean it by wiping it with a soft damp cloth.
3. Empty the beaker, fill it with water, place it onto the motor unit and operate the blender briefly several times.
4. Empty the beaker, wash it and dry it.

Note: The mixer beaker and its lid may be washed in a dishwasher. Never wash the blade in a dishwasher.

Specifications

Mains supply 220–240 V AC, 50 Hz

Wattage 300 W

Mixer beaker 0.61

Max operating time 1 minute continuously, then the motor should be allowed to cool.

Blender 2 go

Art.nr 18-4719 Modell BL3326B

44-1994

BL3326B

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Produktbeskrivning

Line drawing of a thermos flask with an arrow indicating a drop or insertion point (no text or symbols present)

Line drawing of a cylindrical device with a handle and internal mechanism (no text or symbols)

Line drawing of a blender with a downward arrow indicating compression (no text or symbols)

Line drawing of a blender with a circular button and arrow indicating rotation (no text or symbols)

Line drawings of four different thermosmotic devices with arrows indicating internal components (no text or symbols)

Tips

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Produktbeskrivelse

Four-step diagram of a thermos flask with internal components, showing step-by-step assembly (no text or symbols)

Tips

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Laitteen kuvaus

Line drawing of a thermos flask with an arrow indicating a component (no text or symbols present)

Line drawing of a flashlight with a handle and internal mechanism (no text or symbols)

Line drawing of a blender with a downward arrow indicating compression (no text or symbols)

Line drawing of a blender with a circular button and arrow indicating rotation (no text or symbols)

Four-step diagram showing a bottle being opened into a plastic container, with arrows indicating the process (no text or symbols present)

Vinkki

Symbol of a trash bin crossed with no visible text or labels

Produktbeschreibung

Line drawing of a thermos flask with an arrow indicating a component (no text or symbols present)

Line drawing of a flashlight with a handle and internal mechanism (no text or symbols)

Line drawing of a blender with a downward arrow indicating compression (no text or symbols)

Line drawing of a blender with a handle and control knob, showing a curved arrow indicating rotation (no text or symbols)

Four-step diagram of a thermos flask with internal components, showing step-by-step assembly (no text or symbols)

Tipp
