YD-2318S - Blender Clas Ohlson - Free user manual and instructions

Product Type	Blender
Brand	Clas Ohlson
Model	YD-2318S
Power Supply	220-240 V, 50/60 Hz
Power Consumption	1400 W
Capacity	1.5 L
Jug Material	Glass
Number of Speeds	5 speeds + pulse
Blade Material	Stainless steel
Safety Features	Safety lock, overload protection
Dimensions (W x H x D)	20 x 40 x 18 cm
Weight	3.2 kg
Cord Length	1.2 m
Cleaning	Removable jug, dishwasher safe parts
Functions	Blending, crushing ice, pureeing, mixing
Spare Parts Available	Jug, blade assembly, lid
Repairability Index	8.5/10
Color	Silver and black
Included Accessories	Recipe book, tamper

Frequently Asked Questions - YD-2318S Clas Ohlson

How do I clean the blender?

Fill the jug halfway with warm water and a drop of dish soap. Run the blender on pulse for a few seconds, then rinse thoroughly. The jug and lid are also dishwasher safe.

Can I crush ice with this blender?

Yes, the YD-2318S has a powerful 1400W motor and stainless steel blades designed for crushing ice. Use the pulse function in short bursts.

What is the maximum capacity?

The glass jug has a 1.5 liter capacity. Do not fill beyond the maximum marking, especially when blending hot liquids.

Is the blender safe to use?

Yes, it includes a safety lock that prevents operation unless the jug is properly assembled, and overload protection that shuts off the motor if it overheats.

What can I do if the blender stops working?

First, check the safety lock and ensure the jug is correctly placed. If overload protection is triggered, unplug and let it cool for 15 minutes before using again.

Can I blend hot liquids?

It is not recommended to blend hot liquids above 60°C as the pressure can cause the lid to pop off. Allow liquids to cool first.

Are spare parts available?

Yes, Clas Ohlson offers spare parts such as the glass jug, blade assembly, and lid. Contact customer service or check the website.

How many speeds does the blender have?

The blender offers 5 speeds and a pulse function for precise control over blending consistency.

What is the repairability index?

The YD-2318S has a repairability index of 8.5 out of 10, meaning it is easy to repair with available spare parts and documentation.

Does it come with a recipe book?

Yes, the blender includes a recipe book with ideas for smoothies, soups, and sauces to get you started.

USER MANUAL YD-2318S Clas Ohlson

Line drawing of a modern kitchen blender with handle and control knob (no text or symbols)

Art.no

18-4513, 18-4513-1 YD-2318S

34-1279, 34-1279-1 YD-2318S

Model

Ver. 20170310

Blender

Art.no 18-4513, 18-4513-1 Model YD-2318S

34-1279, 34-1279-1 YD-2318S

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions regarding technical problems please contact our Customer Services.

Safety

• Incorrect handling of this product could result in personal injury.
• Great care should be exercised when handling and cleaning the blade and jug.
  The chopping blade is very sharp.
• The product should always be disconnected from the mains when it is not in use, is assembled/disassembled and when being cleaned.
• The product must not be used by children. Ensure that the product and its mains lead are kept out of children's reach.
• The product must only be used with the included motor unit.
• Note: Ensure that the product is switched off before the jug is removed from the motor unit.
• Wash the jug, cutter blade, other chopping attachments and lid with warm soapy water.
• Switch the product off and disconnect it from the mains before removing the blade or any of the moving parts.
• The product may be used by persons with reduced physical, sensory or mental capability, lack of experience or knowledge which would otherwise jeopardize their safety, provided they have been given supervision or instruction concerning the safe use of the product and understand the hazards involved.

• Never let children play with the product.

• Ensure that the product is used with the correct voltage. Refer to the product's rating plate.

• Always remove the jug from the motor unit before cleaning. The blade is extremely sharp and could cause serious personal injury if the product were to start accidentally.
• To prevent electric shocks, the product and its mains lead should be kept dry.
• Never lay the mains lead over hot surfaces, sharp edges or corners.
• Always disconnect the product from the power supply by holding and pulling the plug. Do not pull the mains lead.
• Make sure that all parts are correctly assembled and that the product is switched off before it is connected to the power supply.
• Never operate the product without food in the jug.
• Never use the product close to heat sources.
• Only use the provided accessories.
• Never use the product for anything other than its intended use.
• The mains lead should be checked regularly. Never use the product if the mains lead or plug is damaged.
• The mains lead must be changed if damaged. This is to prevent the risk of electric shock or fire and should only be carried out by the manufacturer, qualified service facility or qualified technician.

Parts

Line drawing of a blender with handle and base (no text or symbols)

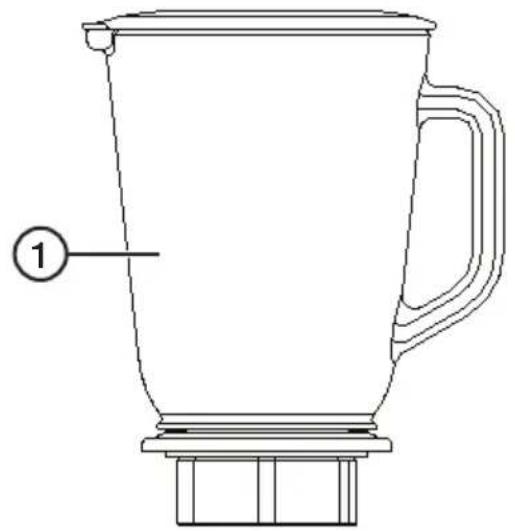

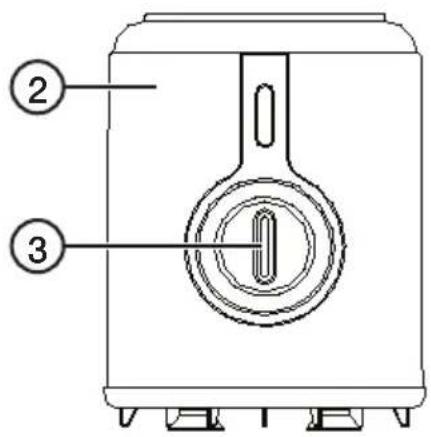

1. Assembled glass jug

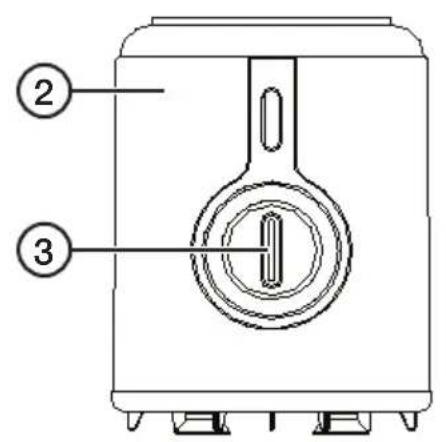

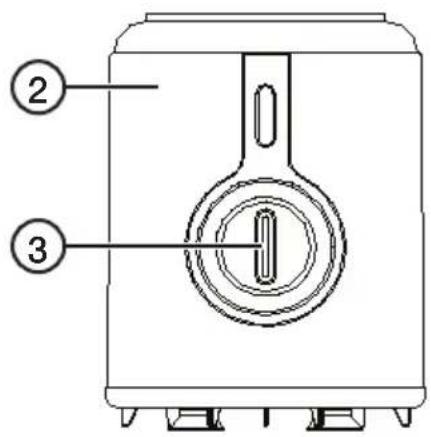

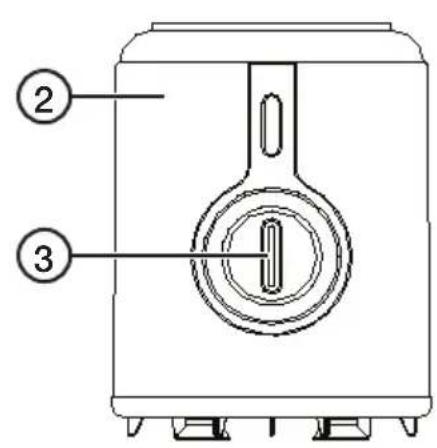

2. Motor unit
3. Function selector P (pulse) - 0 (off) - 1 (low speed) - 2 (high speed)
4. Lid

Pure electrical circuit lines without any symbols

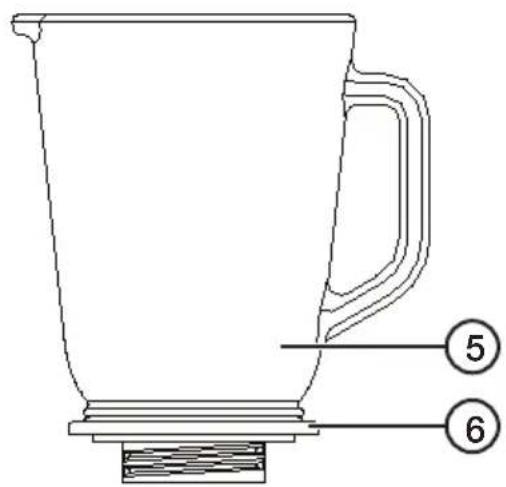

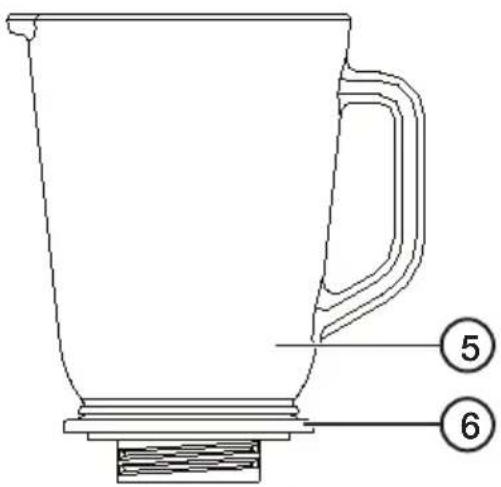

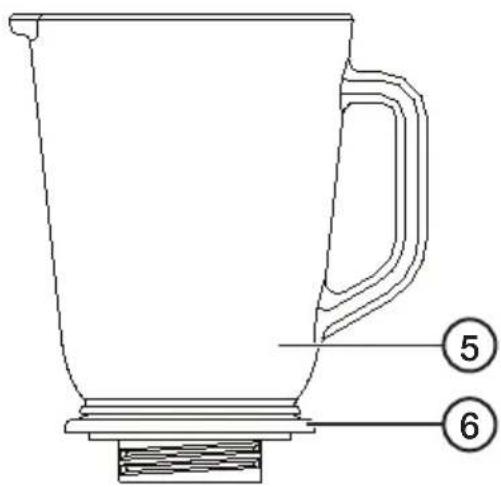

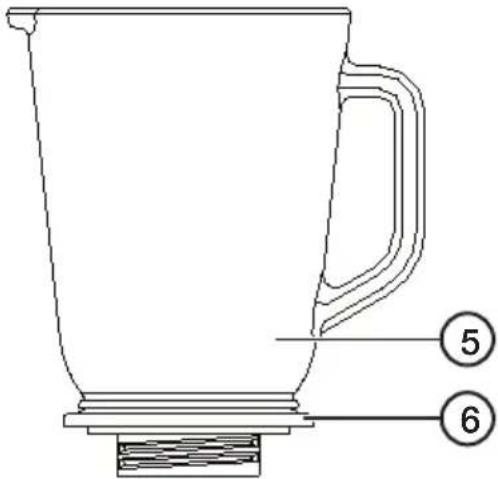

1. Glass jug
2. Support ring
3. Rubber seal
4. Blade assembly
5. Locking ring

Before initial use

Thoroughly clean all parts before using the product for the first time. Refer to the Care and maintenance section.

Assembly

1. Prevent unintended starts by pulling out the plug from the mains before attaching the blade assembly and glass jug to the motor unit. Check that the function selector is in the 0 position.
2. Turn the glass jug upside down.
3. Place the rubber seal (7) on the bottom of the glass jug.
4. Place the blade assembly (8) onto the rubber seal. Be careful, the blades are sharp.
5. Screw on the locking ring (9) by turning it clockwise. Make sure that it is tight.
6. Place the glass jug onto the motor unit (2).

Things to consider before using the blender

Important: Read this before using the product.

• Before the glass jug is placed on or removed from the motor unit, make sure the blender is turned off and that no parts are rotating.
• Never shake the glass jug while using the blender. If ingredients get stuck on the sides of the jug, shut off the blender and use a spatula, etc.
• Do not start the blender again before you have properly replaced the lid.
• The glass jug can withstand contents with temperatures up to 60 °C.
• Do not subject the glass jug to sudden changes in temperature as this might cause the glass to crack.

Operating instructions

1. Place the assembled glass jug (1) onto the motor unit (2) and place the blender on a flat surface.
2. Pour your ingredients into the glass jug.
3. Push the lid (4) firmly onto the glass jug.
4. Plug the mains lead into an electrical socket and switch the blender on by turning the function selector (3) to an appropriate setting for the contents of the jug:

- P – The pulse setting only runs as long as the selector is held on the P mark. Adapt the length of pulse to the consistency of the jug's contents. This setting can be used for crushing ice or items requiring a lot of power.

• 0 - Off
• 1 – For light, liquid ingredients.

• 2 – For blending solid foodstuffs and thicker liquids.

• Turn the function selector to 0 and unplug the blender after use.

Important:

• Never run the blender for more than 3 minutes at a time. Let the motor cool down a little before using it again.
• If frozen ingredients are to be blended, they must be blended immediately after they have been placed in the jug. Otherwise there is a risk that the ingredients will freeze together and jam the blades.
• Never run the blender empty.
• Do not fill the jug with hot liquid as the pressure build-up in the blender can be too high.

Useful tips

General advice

• Always keep one hand on the lid when running the blender.
- Use extra caution when blending hot liquids.
- Use the P function for mixing solid or very viscous ingredients to prevent the blades from struggling and stopping.

Mixing solid foodstuffs into purée

Add the food a little at a time. This will work better than adding everything at once.

Mixing solid foodstuffs

• Cut the food up into small pieces (2–3 cm) and feed them into the jug continually.
• Always add a little liquid to solid foodstuffs before starting to mix them. More liquid can then gradually be poured into the jug through the hole in the lid.

Care and maintenance

• Always unplug the blender and make sure that the function selector is set to 0 before cleaning.
- Never immerse the motor unit into water. Wipe it with a soft damp cloth.
- Empty the glass jug and fill it with water, place it onto the motor unit and turn the function selector to P several times.
• Empty the glass jug, wash it and dry it.
- The glass jug (5) and the locking ring (9) are both dishwasher safe.
- The blade assembly (8) and the rubber seal (7) must be removed before the jug is washed, follow the instructions under Assembly (in reverse order). The blade assembly and rubber seal should only be washed in running water.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Specifications

Voltage 220–240 V AC, 50 Hz, Class I

Power 300 W

Capacity 0.8 litres

Max operating time 3 minutes, then the motor should be allowed to cool.

Blender

Art.nr 18-4513, 18-4513-1 Modell YD-2318S

34-1279, 34-1279-1 YD-2318S

Line drawing of a blender with handle and base (no text or symbols)

Pure technical diagram of a mechanical component with no text or symbols

Symbol of a trash bin crossed with two crossed lines, no text or labels present

Specifikationer

Nätspänning 220–240 V AC, 50 Hz, Klass I

Effekt 300 W

Glaskanna 0.8 liter

Line drawing of a blender with handle and base (no text or symbols)

Pure electrical circuit lines without any symbols

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangle below (no readable text or symbols)

Spesifikasjoner

Spenning 220–240 V AC, 50 Hz, Klasse I

Effekt 300 W

Glassbeholder 0,8 liter

Line drawing of a blender with handle and base (no text or symbols)

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Tekniset tiedot

Line drawing of a blender with handle and base (no text or symbols)

Pure technical diagram of a mechanical or electrical component with no text, numbers, or symbols

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Technische Daten
