Product Type	Microwave
Brand	Elvita
Model	CMU4251V
Capacity	25 L
Dimensions (HxWxD)	280 x 485 x 415 mm
Weight	12.5 kg
Power Consumption	1200 W
Microwave Power	900 W
Frequency	2450 MHz
Door Type	Side-opening
Control Type	Touch + Knob
Display	LED
Internal Light	Yes
Turntable	Yes, 315 mm diameter
Functions	Defrost, Auto Cook, Timer
Child Lock	Yes
Material	Stainless steel
Voltage	230 V, 50 Hz
Accessories Included	Glass turntable, user manual
Cleaning Instructions	Wipe with damp cloth, avoid abrasives
Safety Features	Overheat protection, door safety switch

Frequently Asked Questions - CMU4251V Elvita

How do I set the clock on the Elvita CMU4251V microwave?

Press the Clock button. Use the number pad to enter the current time. Press Clock again to confirm. The clock will display in 24-hour format.

How do I use the defrost function?

Press the Defrost button. Enter the weight of the food in grams using the number pad. Press Start to begin. The microwave will automatically adjust time and power.

What should I do if the microwave does not start?

Ensure the door is fully closed. Check that the child lock is not activated. Make sure the power cord is plugged in and the circuit breaker is not tripped.

How do I clean the microwave interior?

Wipe the interior with a damp cloth and mild detergent. Avoid abrasive cleaners. For odors, place a bowl of water with lemon slices and microwave for 3 minutes.

Can I use metal containers in this microwave?

No, metal containers can cause sparks and damage the microwave. Use microwave-safe glass, ceramic, or plastic containers only.

How do I activate the child lock?

Press and hold the Stop/Clear button for 3 seconds until a beep sounds and the lock icon appears on the display. Repeat to deactivate.

What does the 'Auto Cook' function do?

Select Auto Cook and choose a food category (e.g., pizza, beverage). The microwave automatically sets cooking time and power based on the category and weight.

Why is the turntable not rotating?

Check that the turntable glass plate is properly seated on the coupling. Ensure nothing obstructs the turntable motor. If still not rotating, contact service.

How do I adjust the cooking time during operation?

Press the Time button and enter the new desired time using the number pad. The microwave will continue with the adjusted time.

What is the maximum power level and how do I set it?

The maximum power is 900W. Press the Power button repeatedly to cycle through levels (100% to 10%), then press Start to confirm.

USER MANUAL CMU4251V Elvita

ANVÄNDNINGSANVISNINGAR

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

GRATULERER MED DIN NYE ELVITA MIKROBÖLGEOVN!

FORKLARING

BRUKSANVISNING

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.

CONGRATULATIONS ON YOUR NEW ELVITA MICROWAVE OVEN!

You have just become the owner of an efficient, easy-care product.

• Versatile and effective
• Capacity: 25 litres
• 5 power levels
• Turntable
• 900 watt

Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

CONTENTS

Technical data 35

Safety rules 36

Cleaning 39

Installing the microwave oven 42

The microwave oven's parts 42

Worktop placement 43

Use 45

Troubleshooting.... 48

Recycling 49

Warranty 50

SAFETY RULES TO AVOID EXPOSURE TO MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

TECHNICAL DATA

Model: CMU4251V
Voltage: 230 V~ 50 Hz
Input power (microwave): 1450 W
Output power (microwave): 900 W
Oven capacity: 25 litres
Turntable diameter: 270 mm
External dimensions (L x D x H): 485 x 383 x 292,5 mm
Net weight: 13 kg

CE

IMPORTANT SAFETY INSTRUCTIONS

To avoid risk of fires, electric shocks, accidents or overexposure to microwave energy, the important safety instructions must be followed when using the appliance.

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of reach of children less than 8 years.

5. Only use utensils that are suitable for use in microwave ovens.

6. The oven should be cleaned regularly and any food deposits should be removed.

7. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE ENERGY".

1. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

2. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

3. Do not overcook food.

4. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

5. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

6. Install or locate this oven only in accordance with the installation instructions provided.

7. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

8. This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -by clients in hotels, motels and other residential type environments; -farm houses; -bed and breakfast type environments.

9. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

10. Do not store or use this appliance outdoors.

11. Do not use this oven near water, in a wet basement or near a swimming pool.

12. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.
13. Do not let cord hang over edge of table or counter.
14. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
15. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
16. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
17. Children should be supervised to ensure that they do not play with the appliance.
18. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
19. Accessible parts may become hot during use. Young children should be kept away.
20. Steam cleaner is not to be used.

21. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

22. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)

23. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

24. The rear surface of appliance shall be placed against a wall.

25. The microwave oven must not be placed in a cabinet.

26. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

27. Metallic containers for food and beverages are not allowed during microwave cooking.

28. DO NOT use the cavity for storage purposes.

29. Be careful when heating alcohol-containing food, as a combustible mixture of alcohol and air may form inside the oven. Open the door carefully.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION

DANGER

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a grounding-type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply. 1. Clean the cavity of the oven after using with a slightly damp cloth.

1. Clean the accessories in the usual way in soapy water.
2. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
3. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
4. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

PERSONAL INJURY HAZARD

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

UTENSILS CAUTION

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

MATERIALS YOU CAN USE IN MICROWAVE OVEN

Materials that can be used/placed in a microwave oven:

Aluminium foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

MATERIALS TO BE AVOIDED IN MICROWAVE OVEN

Materials that must not be used/placed in a microwave oven:

Aluminium trays Can cause sparks. Transfer the food to a microwave safe vessel.
Food boxes with metal handles	Can cause sparks. Transfer the food to a microwave safe vessel.
Metal vessels or vessels with metal parts	Metal shields the food from microwave energy. Metal decorations/ parts can cause sparks.
Metal bag closers Can cause sparks and fires in the oven.
Paper bags Can cause fires in the oven.
Plastic foam When exposed to high temperatures, plastic foam can melt or can poison the liquid it contains.
Wood If used in a microwave oven, wood dries out and may crack.

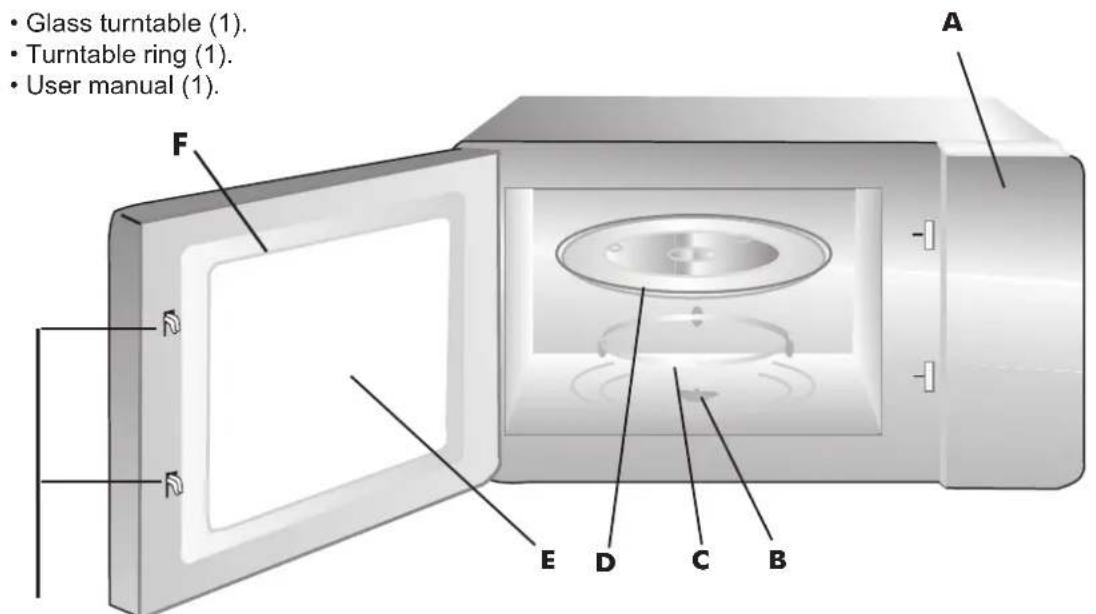

Refer to the names of the oven's parts and accessories. Remove the oven and everything else from the box. Empty the oven. The following accessories come with the oven:

G

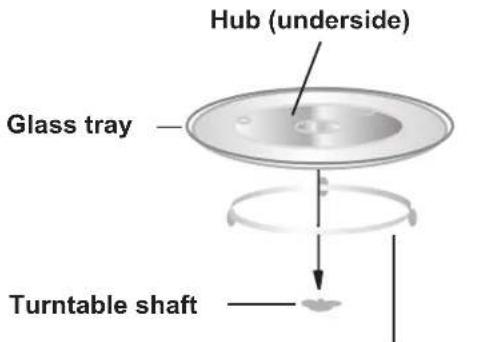

1. Never place the glass tray upside down. The glass tray should never be restricted.
2. Both glass tray and turntable ring assembly must always be used during cooking.
3. All food and containers of food are always placed on the glass tray for cooking.
4. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Turntable ring assembly

COUNTERTOP INSTALLATION

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

INSTALLATION

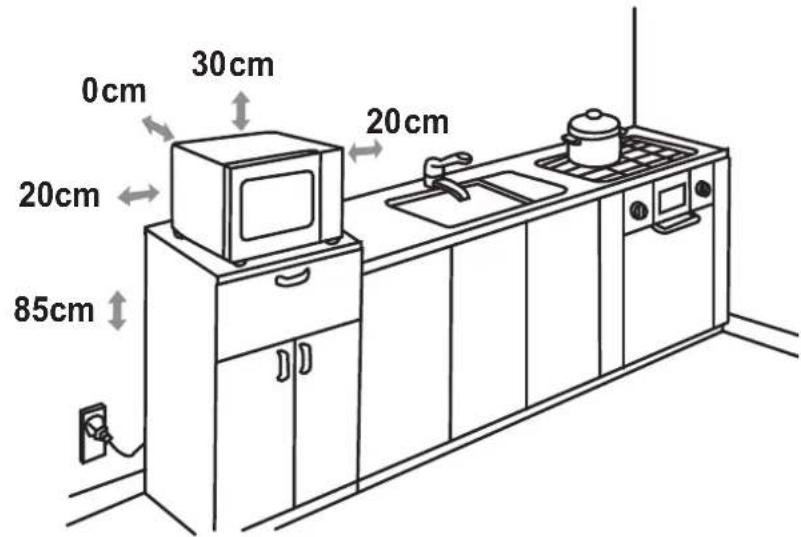

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

• The minimum installation height is 85cm.
- The rear surface of appliance shall be placed against a wall.
- Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.
- Do not remove the legs from the bottom of the oven.
- Blocking the intake and/or outlet openings can damage the oven.
- Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

1. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING:

Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

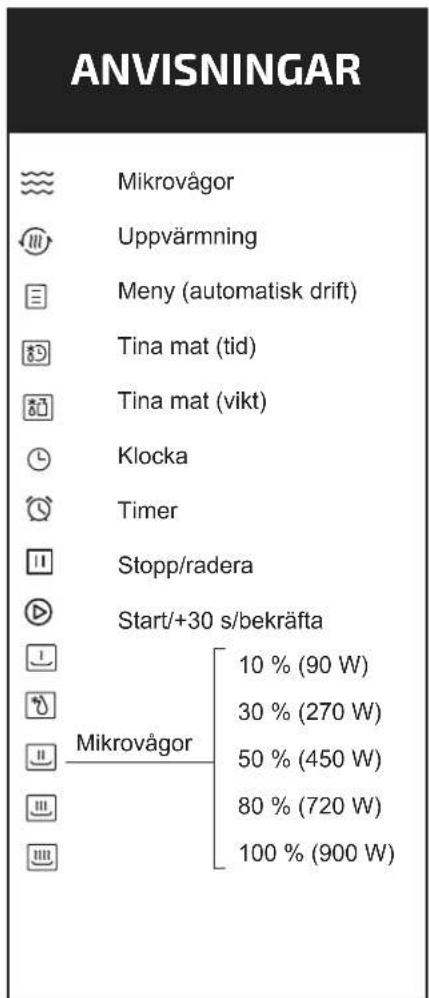

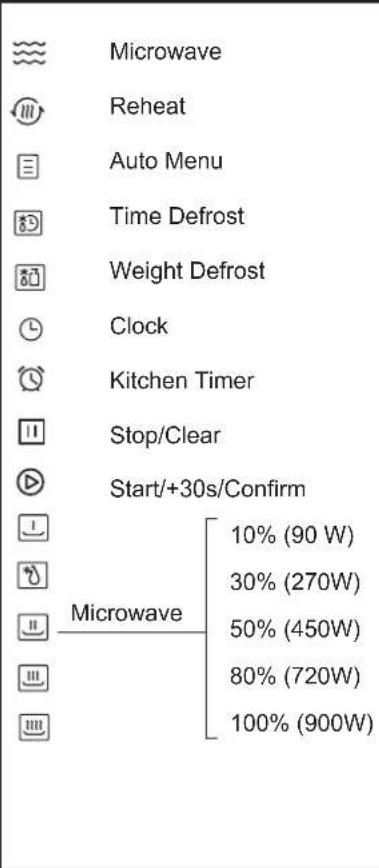

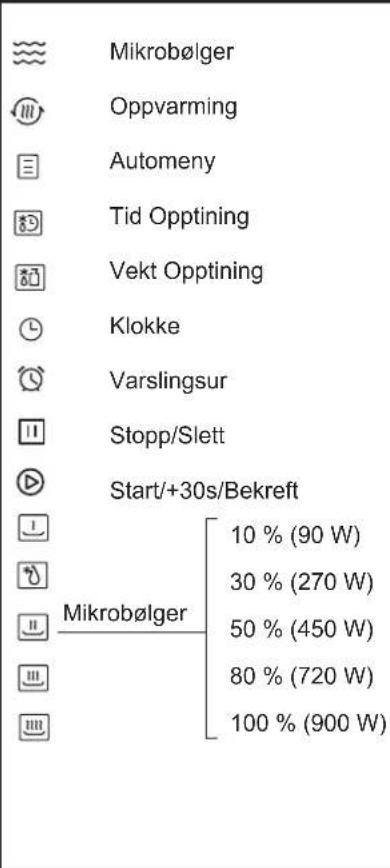

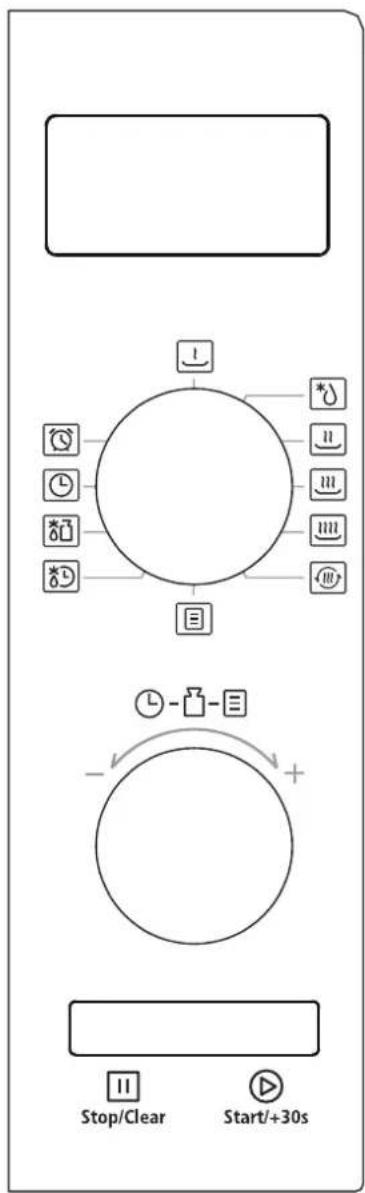

CONTROL PANEL

INSTRUCTION

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

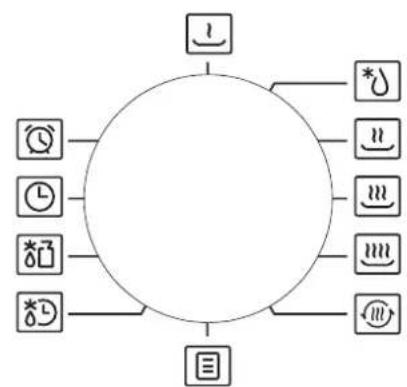

KNOB INSTRUCTIONS

There are two knobs on the panel. For better operations, the manual call the left knob for parameter knob, the right knob for function knob.

CLOCK SETTING

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once. Then the unit enters waiting states.

1) Turn function knob to "Clock", the hour figures flash.
2) Turn parameter knob to adjust the hour figures, the input time should be within 0--23.
3) Press "Start/+30s/Confirm" to confirm, the minute figures will flash.
4) Turn parameter knob to adjust the minute figures, the input time should be within 0--59.
5) Press "Start/+30s/Confirm" to finish clock setting. ":" will flash.

Note:

• If the clock is not set, it would not function when powered.
• During the process of clock setting, if you do not press "Start/+30s/Confirm" to confirm in 1 minutes, the oven will go back to the previous status automatically.

KITCHEN TIMER

1) Turn function knob to "Kitchen Timer", the screen will display "00:00".
2) Turn parameter knob to enter the correct time. (The maximum time is 95 minutes)
3) Press "Start/+30s/Confirm" to confirm setting.
4) When the kitchen time is reached, clock indicator will go out. The buzzer will ring 5 times. If the clock has been set (24-hour system), screen will display the current time.

Note:

- The kitchen Time is different from 24-hour system. Kitchen Timer is a timer.

MICROWAVE COOKING

1) Turn the function knob to " 10% ", " 30% "....." 100% ". It refers to microwave power. And "P10", "P30" .... "P100" dispalys.
2) Turn the parameter knob to adjust the cooking time. (The maximum time is 95 minutes)
3) Press "Start/+30s/Confirm" to start cooking. Buzzer sounds once.

Note:

The step quantities for the adjustment time are as follow:

0–1 min: 5 seconds
1–5 min: 10 seconds
5–10 min: 30 seconds
10–30 min: 1 minute
30–95 min: 5 minutes

MICROWAVE POWER CHART

Microwave Power High M.High Med. M.Low Low
Display P100 P80 P50 P30 P10
Watt 900 W 720 W 450 W 270 W 90 W

REHEAT

1) In waiting state, turn the function knob to "Reheat", "200" will display.
2) Turn parameter knob to set the food weight, and "200", "400" or "600" will display in turn.
3) Press "Start/+30s/Confirm" to start cooking.

SPEEDY COOKING

1) In waiting state, Press "Start/+30s/Confirm" to start cooking with P100 power, each added press will increase 30 seconds cooking time up to 95 minutes.
2) In microwave cooking or time defrost state, each press of
"Start/+30s/Confirm" can increase 30 seconds of cooking time.
3) In waiting state, turn parameter knob left to set cooking time with P100 microwave power, then press "Start/+30s/Confirm" to start cooking.

DEFROST BY WEIGHT

1) When function knob poiting at "Weight Defrost", "dEF1" displays.
2) Turn to select the food weight. The range of weight is 100-2000g.
3) Press "Start/+30s/Confirm" to start defrosting.

AUTO MENU

1) Turn function knob to "Auto Menu" to choose auto cooking. "A-1" flash.
2) Turn parameter knob to choose the menu you need. "A-1", "A-2"..."A-8" will display.
3) Press "Start/+30s/Confirm" to confirm the menu you choose.
4) Turn parameter knob to choose the food weight.
5) Press "Start/+30s/Confirm" to start cooking.

LOCK-OUT FUNCTION FOR CHILDREN

Lock: In waiting state, press "Stop/Clear" for 3 seconds, there will be a long beep denoting entering the children-lock state and current time will display if the time has been set, otherwise, the screen will display "☐."

Lock quitting: In locked state, press "Stop/Clear" for 3 seconds, there will be a long "beep" denoting that the lock is released.

ECO FUNCTION

Enter ECO mode: In waiting state, press "Stop/Clear" twice within 1 second, the screen will display "ECO" for 3 seconds. After 3 seconds, the oven will enter to waiting state. If there is no operation, the screen will off after 1 minute. And any operation can light the screen agian; If the door is opened, the oven lamp will be turned off automatically after 1 minute.

Exit ECO mode: In waiting state, press "Stop/Clear" twice within 1 second, the screen will display "OFF" for 3 seconds. After 3 seconds, the oven will enter to waiting state. If there is no operation, the screen is always light; If the door is opened, the oven lamp is always light.

Note:

Unplug the power, the setting of ECO will be invalid.

SPECIFICATION

1) The buzzer will sound once when turning the multi-function knob at the beginning.
2) "Start/+30s/Confirm" must be pressed to continue cooking if the door is opened during cooking.
3) Once the cooking programme has been set, "Start/+30s/Confirm" is not pressed in 1 minute.
The current time will be displayed. The setting will be cancelled.
4) Buzzer sounds five times to remind you the cooking is finished.

MENU CHART

Meny Weight Display
A-1 Pizza	200 g 200
	400 g 400
A-2 Meat	250 g 250
	350 g 350
	450 g 450
A-3 Vegetables	200 g 200
	300 g 300
	400 g 400
A-4 Pasta	50 g (with 450 ml of cold water) 50
	100 g (with 800 ml of cold water) 100
A-5 Potato	200 g 200
	400 g 400
	600 g 600
A-6 Fish	250 g 250
	350 g 350
	450 g 450
A-7 Drinks	1 cup (120 ml) 1
	2 cups (240 ml) 2
	3 cups (360 ml) 3
A-8 Popcorn	50 g 50
	85 g 85
	100 g 100

TROUBLESHOOTING

Normal
The microwave oven interferes with TV reception.	Radio and TV reception can be impaired when the microwave oven is running. This is reminiscent of the interference that small electrical appliances (e.g. mixers, vacuum cleaners and fans) can cause.This is normal.
Weak oven lighting When cooking at low power, oven lighting can be weak.This is normal.
Condensation on the door, warm air from the ventilation openings.	Food can give off steam during cooking. Most of the steam escapes through the ventilation openings. However, some can collect on cool surfaces such as the oven door. This is normal.

TROUBLESHOOTING

Problem Possible cause Measure
The oven cannot be started.	(1) The power cable is connected incorrectly.	Pull out the power cable's plug.Plug it back in after 10 seconds.
	(2) A fuse has blown or a residual current device has tripped the power supply.	Replace the fuse or reset the power switch (repaired by a qualified person from our company).
	(3) Faulty power outlet. Use another electrical appliance to test the power outlet.
The glass turntable makes abnormal noise when the microwave oven is being used.	(5) Dirt on the turntable ring and the oven's bottom.	Clean the rotating ring, the rotating glass bowl and the bottom of the oven.

RECYCLING

Under the Waste Electrical and Electronic Equipment (WEEE) Directive, electrical and electronic products have to be recycled. If, at any time in the future, you need to dispose of this product, you must NOT throw it away with ordinary household waste.

Instead, get the product to a recycling centre.

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.

Gray circular icon with three white gears, no text or symbols present

GARANTI WARRANTY

Quality warranty applies to consumer
