Product Type	Dash cam (DVR)
Processor	Ambarella
Image Sensor	Sony Exmor R CMOS
Viewing Angle	135 degrees
Lens	6 glass lenses with anti-glare CPL filter (37mm)
Video Resolution	Full HD 1920x1080 @ 30 fps
Display	2.8 inch IPS touch screen
GPS	Built-in GPS/GLONASS with database of 45 countries
WiFi	Built-in module for smartphone control
Memory Card	Micro SD up to 128 GB, class 10
Loop Recording	Yes
G-Sensor	Yes
Power Supply	DC 12-24V
Battery	220 mAh
Operating Temperature	-10°C to +60°C
Parking Mode	Yes
Lane Departure Warning (LDWS)	Yes
Speed Alert	Yes (adjustable max speed)
Mobile App	X-COP for Android and iOS
Package Contents	Hybrid unit, 32GB Micro SD card, holder with active charger, anti-glare shield, power cord, cable fasteners, storage case, manual, warranty
Made In	South Korea

Frequently Asked Questions - X-Cop R700 Neoline

How do I update the GPS database?

Update via the X-COP app on your smartphone or by copying the latest database to a Micro SD card and inserting it into the device. Always download updates from www.neoline.com.

Can I control the dash cam with my smartphone?

Yes, connect via WiFi using the X-COP app for Android or iOS. You can view live video, download recordings, change settings, and update firmware.

What memory card is recommended?

Use a Micro SD card up to 128 GB, Class 10 or higher. A 32 GB card is included and provides about 5 hours of Full HD recording.

How does the anti-glare CPL filter work?

The CPL filter reduces glare and reflections from the windshield and car interior, especially during sunny conditions. It also improves image contrast.

What is the 'Trip Track' camera feature?

It intelligently handles average speed check zones. The device notifies you of the first camera, shows distance to the second, and warns if your average speed exceeds the limit. It resets after passing both cameras.

How do I install the dash cam?

Attach the 3M holder to the windshield, connect the power cord to the cigarette lighter socket, and mount the device. The holder includes active charging for simple one-step installation.

Does it have a parking mode?

Yes, the device supports parking mode with motion and G-sensor detection. It requires a constant power source (hardwiring recommended) and automatically starts recording when impact or movement is detected.

What radar types does it detect?

It covers 45 radar types including Strelka, Robot, Cordon, Kris, Krechet, and 'Trip track'. Voice notifications indicate the type and distance.

Can I connect an external radar unit?

Yes, the dash cam can wirelessly connect to the optional Neoline X-COP Radar unit placed under the hood for enhanced detection of mobile radars.

How do I reset or restore factory settings?

Factory reset can be done through the device menu under 'Settings'. Alternatively, you can reinstall the latest firmware via the app or SD card to restore default settings.

USER MANUAL X-Cop R700 Neoline

Exterior view of a NEOLINE digital camera with visible lens and control buttons (no text-heavy elements)

WiFi

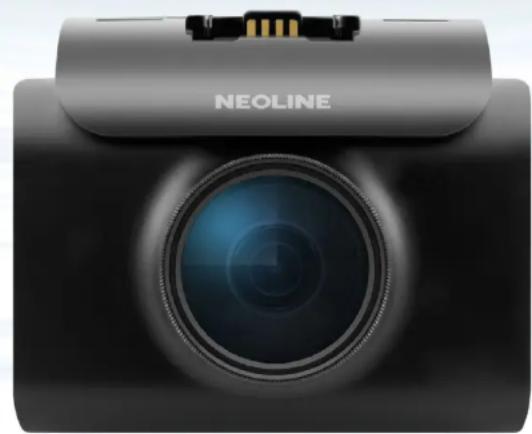

Black NEOLINE camera with lens and external connector (no visible text or symbols beyond branding)

NEOLINE X-COP R700

Neoline X-COP R700 – the new generation of DVR with GPS base of police radars and cameras. Touch-screen display, manage from smartphone with WiFi connection, perfect video quality, full assembly, the ability to connect a radar unit distinguishes this DVR from all DVRs on the market

SONY Exmor R CMOS Sensor

PERFECT QUALITY VIDEO

The Neoline X-COP R700 Hybrid has the most powerful Ambarella processor as of today, and a high-tech sensor from Sony. The viewing angle of 135 degrees and the optical system of 6 glass lenses create perfect shooting quality, also at night.

32 Gb memory card allows a nonstop recording in full-HD during 5 hours

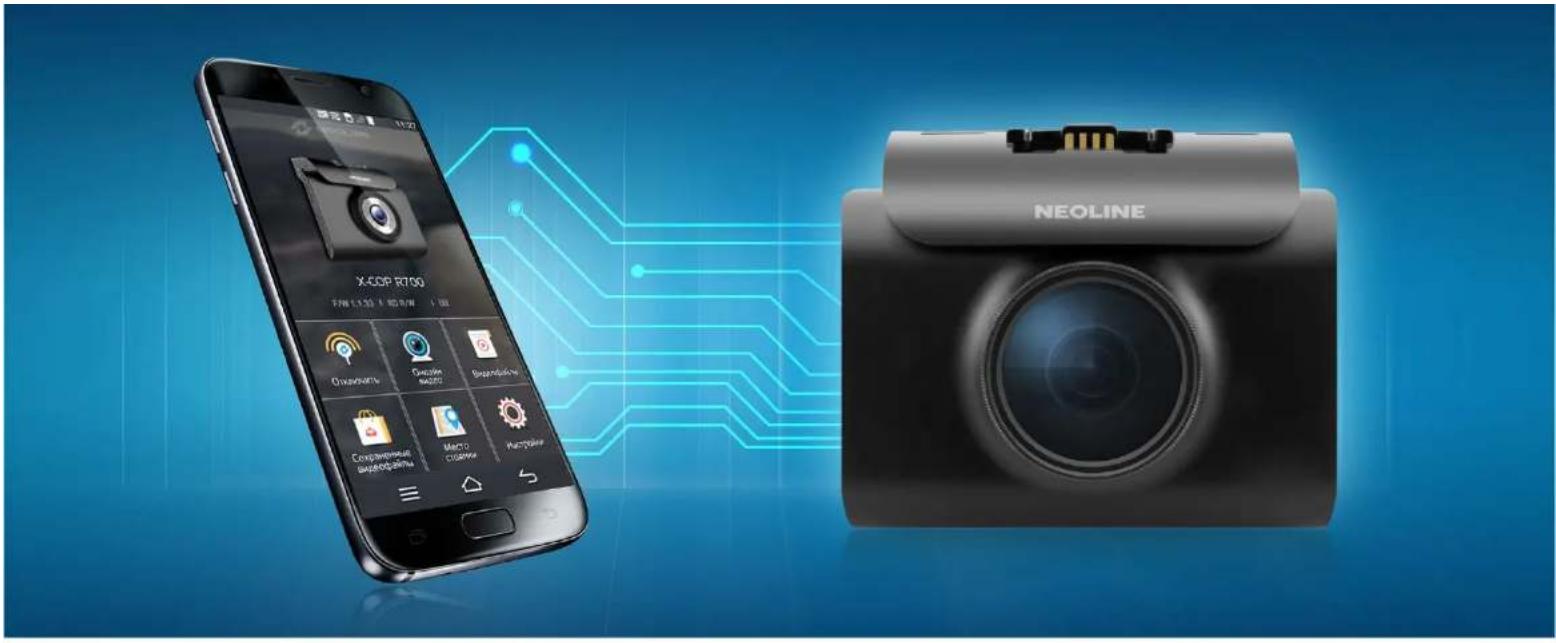

After installation of X-COP for Android or iOS you can completely control a Neoline X-COP R700 hybrid:

• software and GPS base update via internet
• view of online videos
• view of stored videos
• download of videos to a smartphone
• change of video and detecting settings
• finding a car parking place

Nighttime cityscape with illuminated skyscrapers and a multi-lane elevated highway, no visible text or signage

NIGHT MODE

Device has a Night recording mode which switches on depending on time settings in menu and allows to show much more details on a video especially in unlit road segments and roadsides.

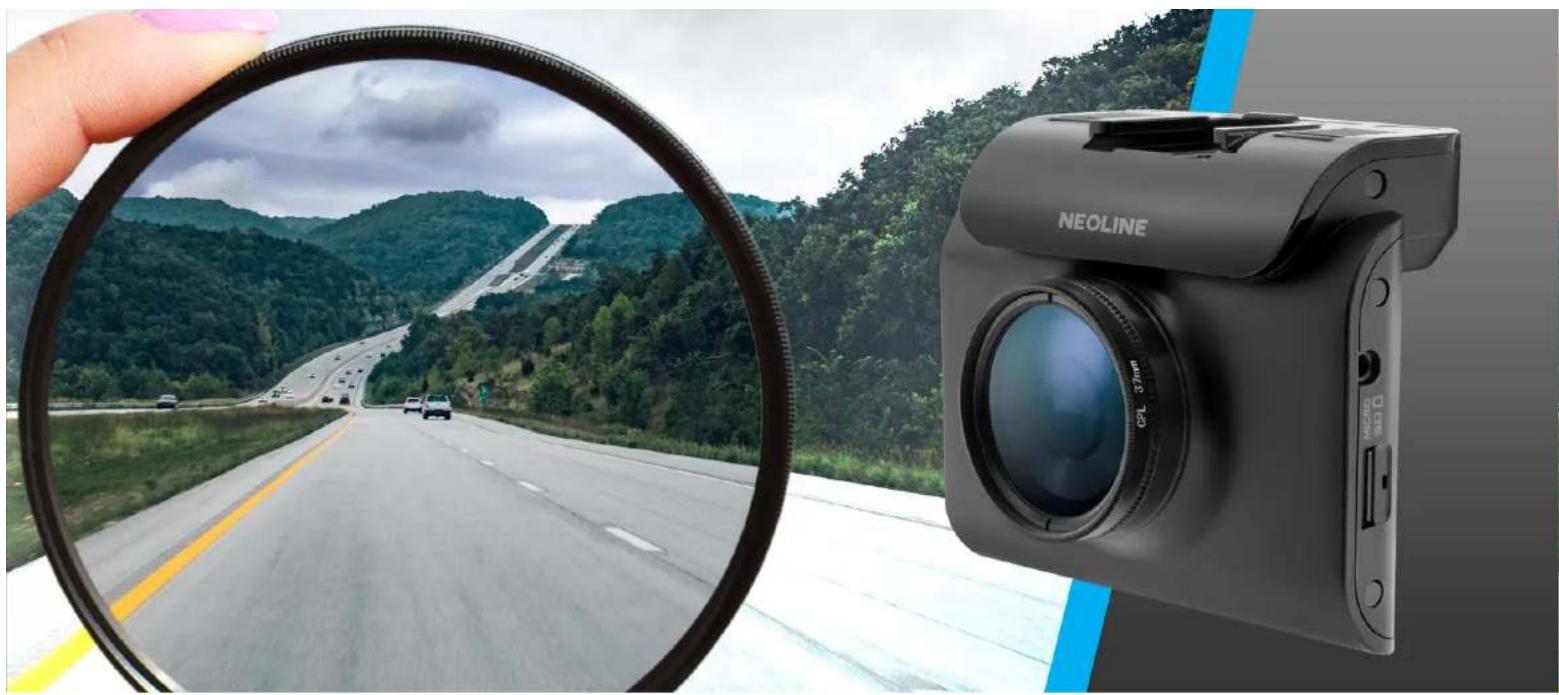

Neoline camera lensing a scenic mountain road through a circular frame, with no visible text or symbols on the camera itself.

ANTI-GLARE CPL FILTER

Anti-glare filter is mounted on a Neoline X-COP R700 lens. It is designed to decrease sun glints on a video. Glints are also very often re-reflected to the windscreen from car cladding elements. Besides that, anti-glare filter considerably improves image contrast.

Hand pointing at a digital camera display showing wind turbines on a highway under a clear blue sky (no text or symbols visible)

Hybrid includes an improved version of EASY TOUCH PLUS interface. Display shows not only information about the police radar head but also brief information about next police radar or GPS point.

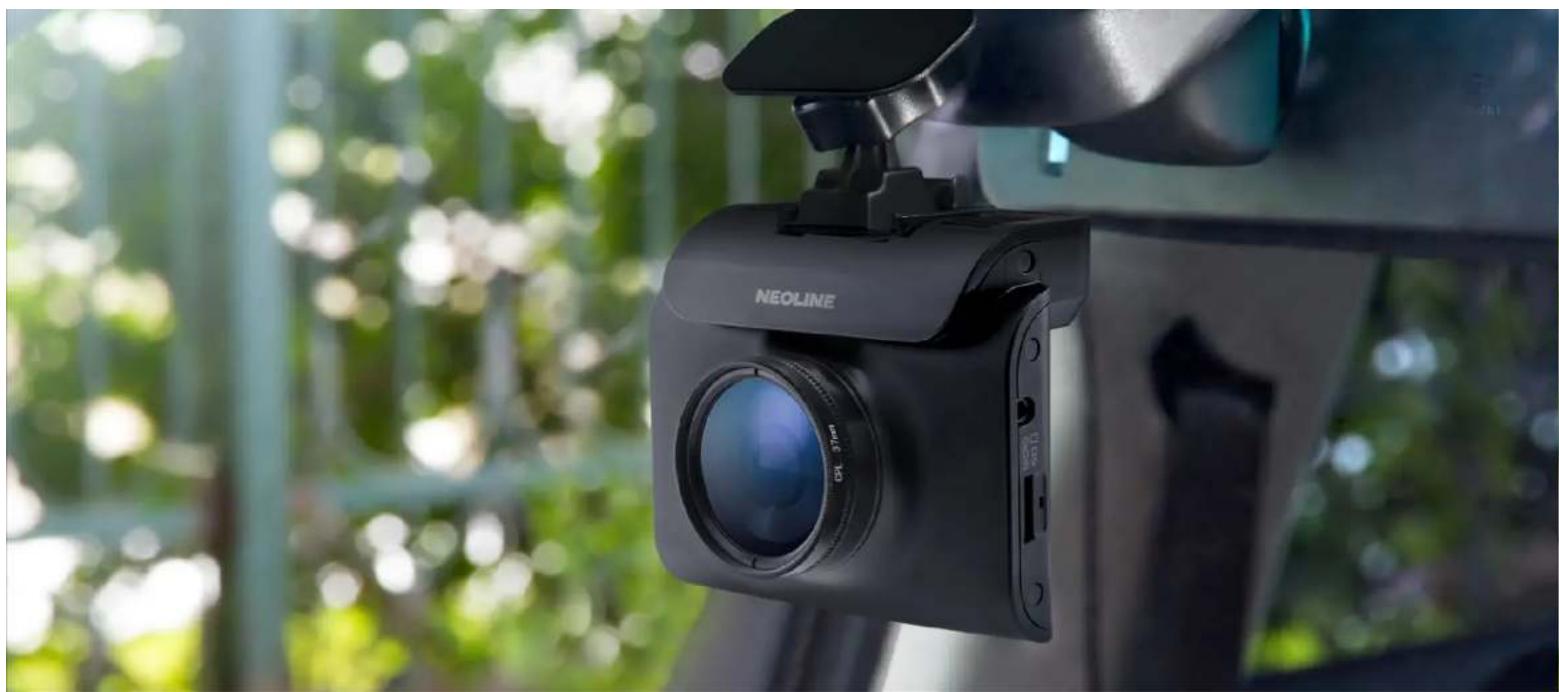

Close-up of a NEOLINE digital camera mounted on a vehicle, showing lens and control panel (no text or symbols visible)

INSTALLATION IN THE CAR

Neoline X-COP R700 is fastened to windshield using 3M holder with active charging. The installation of the holder is combined with the power circuit. One action is enough to start the device.

GPS

BASE

Map of Europe highlighting countries in blue and gray, with no text or labels visible.

GPS BASE OF 45 COUNTRIES

The DVR is equipped with GPS and GLONASS for the fastest search of satellites and the base of police radars and cameras of 45 countries (EU, Baltics, Russia, Uzbekistan, Kazakhstan, Azerbaijan, Armenia, Georgia etc.). GPS base is constantly updated with new POI. All updates are possible in neoline.com

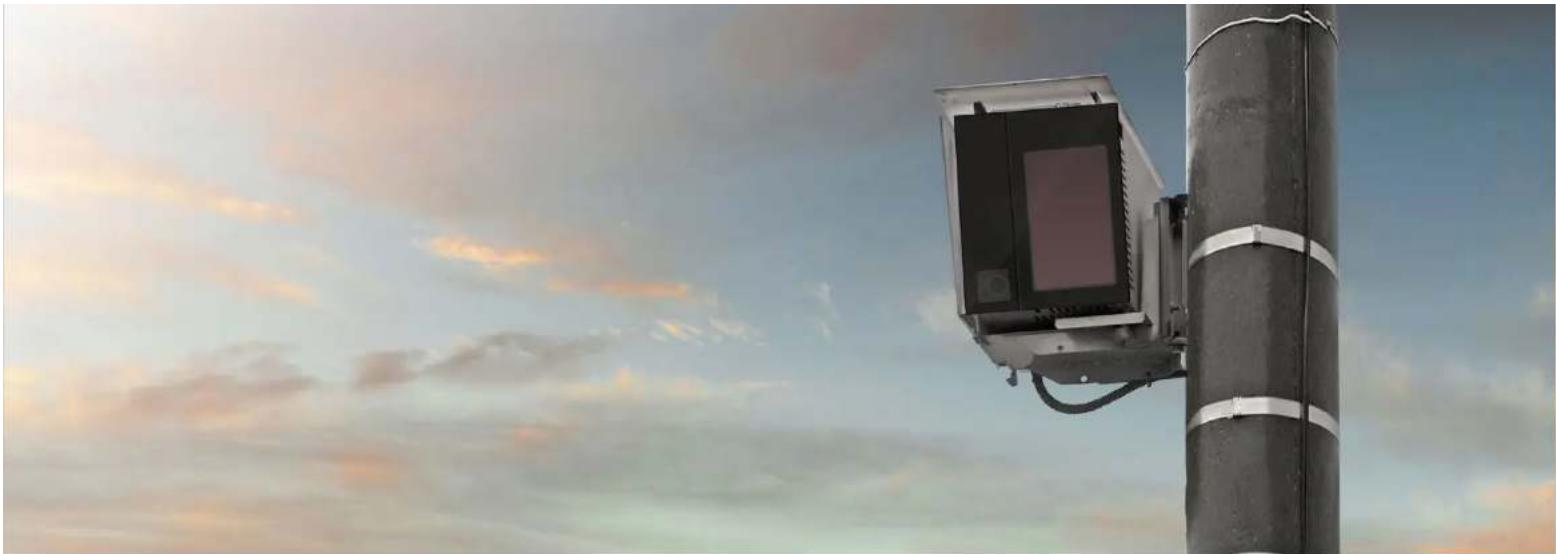

Exterior view of a surveillance camera mounted on a pole against a cloudy sky (no text or symbols visible)

INTELLECTUAL PROCESSING OF "TRIP TRACK" CAMERAS

The distinctive feature of Neoline X-COP R700 is smart processing of "Trip track" cameras that happens as follows:

• Voice notification and depiction of distance to the 1st camera on display
• After passing the 1st camera distance to the 2nd camera will be depicted
• Information on display about current average speed will intersperse with distance to the 2nd "Trip track" camera
• If current average speed exceeds the allowed one you will receive acoustic notification.
• After passing the 2nd camera you will receive notification on end of video control.
• At the exit from the road segment between two cameras X-COP R700 will reset the notification about «Trip track»
• If you stop between two cameras average speed will still be depicted on display.
• If between two cameras there is a mobile ambush with police radar X-COP R700 will properly inform about the ambush and after the passage will switch to a notification about «Trip track»

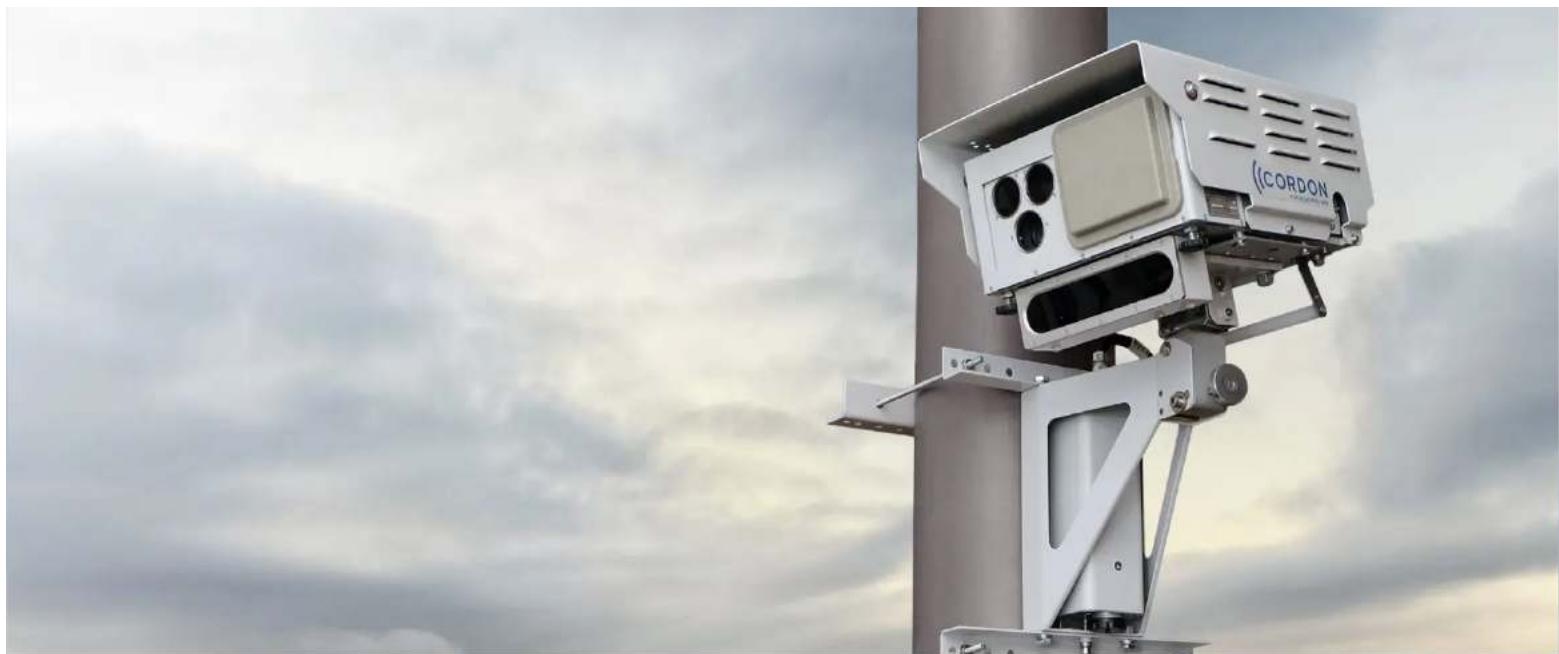

Exterior view of a Cordon surveillance camera mounted on a pole against a cloudy sky (no text or symbols visible)

ROAD TRAFFIC RULES CONTROL CAMERAS

Neoline X-COP R700 hybrid notifies about all traffic rules control cameras and promptly warns about such control types as:

• Control of the public transport lane
• Photo-fixation of a car movement "in the back"
• Roadside control
• Traffic lights and intersection control
• Pedestrian crossing control

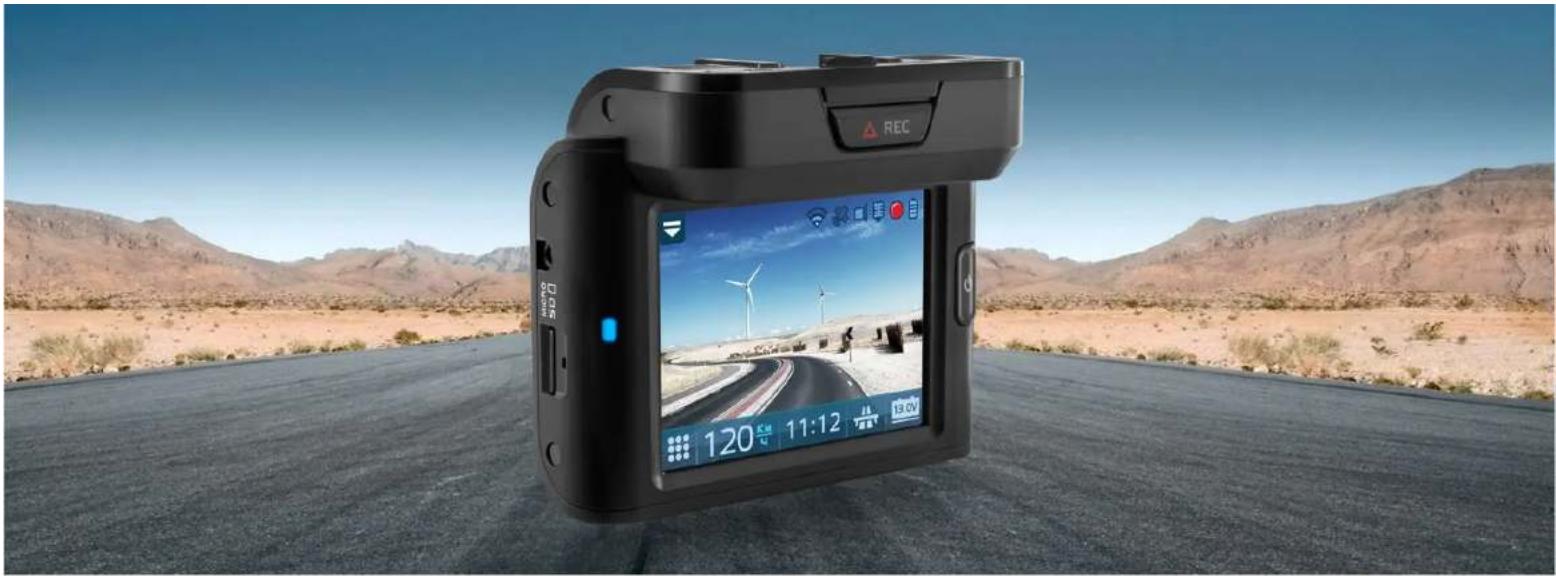

Digital camera displaying a highway navigation screen with wind turbines on a desert road, set against a backdrop of arid hills (no text or symbols visible)

CONTRAST IPS DISPLAY

Hybrid is equipped with 2.8-inch display with IPS sensor. Information on display is clearly seen in any weather conditions and almost in any view angle:

• schematic image of a police radar type
• allowed speed for the road segment
• type of an incoming signal
• signal strength
• current car speed
• average car speed
• distance to GPS point
• current time
• false and dangerous zones

Abstract digital sound wave visualization against a dark blue background, no text or symbols present

VOICE NOTIFICATION ABOUT 45 POLICE RADAR TYPES

Neoline X-COP R700 will notify about a police radar type, allowed speed for the road segment, provide information about distance to a radar and average speed (in case of detection of «Trip track»).

Database includes 45 different radar types such as Strelka, Robot, Kordon, Kris, Krechet, "Trip track" and so on. Every new radar is promptly added to the database and is available in new updates.

Top-down view of a car on a road with colored trajectory lines and a camera lens icon (no text or symbols)

CONTROL OF MOVEMENT IN THE LANE LDWS

Neoline X-COP R700 constantly monitors the position of the car relative to road marking. If the car unintentionally moves from the current lane, an acoustic warning is triggered and information is displayed. You can set a speed limit in settings, in which this system will not work to avoid overloading the driver with unnecessary sounds.

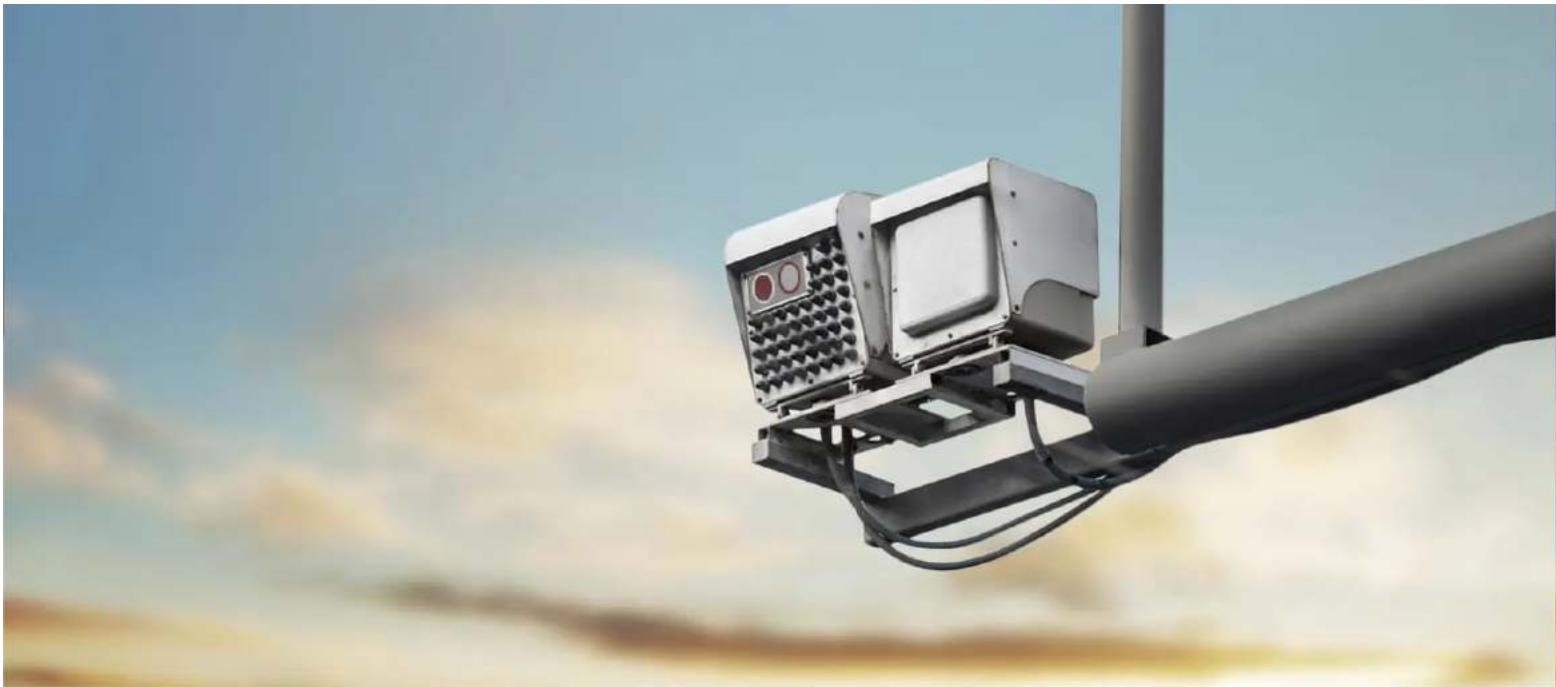

Close-up of a security camera mounted on a long pipe against a cloudy sky (no text or symbols visible)

SWITCHING ON OF SPECIFIC GPS POINTS

Settings flexibility allows to switch on and off specific GPS points like traffic control posts, "Trip track" system cameras, standard Strelka radars, dummy radar complexes and so on.

Warning sign with exclamation mark in red and white triangle, set against blue sky with clouds

DANGEROUS ZONE

You can add dangerous zone to your GPs base which includes location of police radars (if they are not stored in current database), busy intersection, speed bumps, etc. The next time in this place a hybrid will promptly notify you with an alert signal.

Radius of a dangerous zone can be set in a device menu.

Zones are stored in a device memory and are not deleted during firmware replacing or installation of a new GPS base.

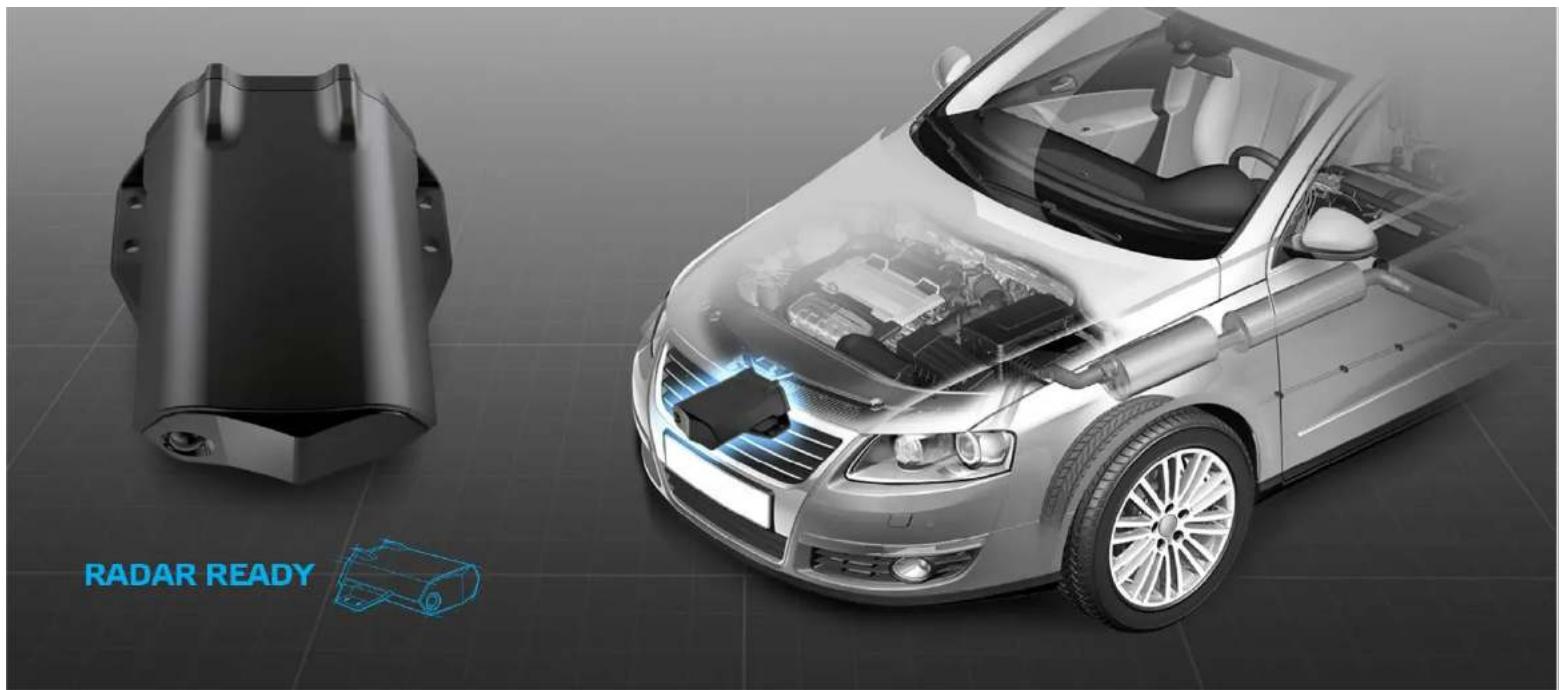

Illustration of a car with internal engine bay and radar system, no text or symbols present

RADAR READY

Neoline X-COP R700 can be connected wireless to the radar unit (Neoline X-COP Radar) under the car's hood. Neoline X-COP Radar is supplied separately. Connecting the DVR to the radar unit will help to detect all fixed and mobile police radars.

320 340 360 380 400 km/h

MAXIMUM SPEED

This perfect function helps not to exceed speed limit you set. You set the speed and when you exceed it, you get the audio warning on overspeeding. This function isn't connected with GPS base and works without any police radar detection.

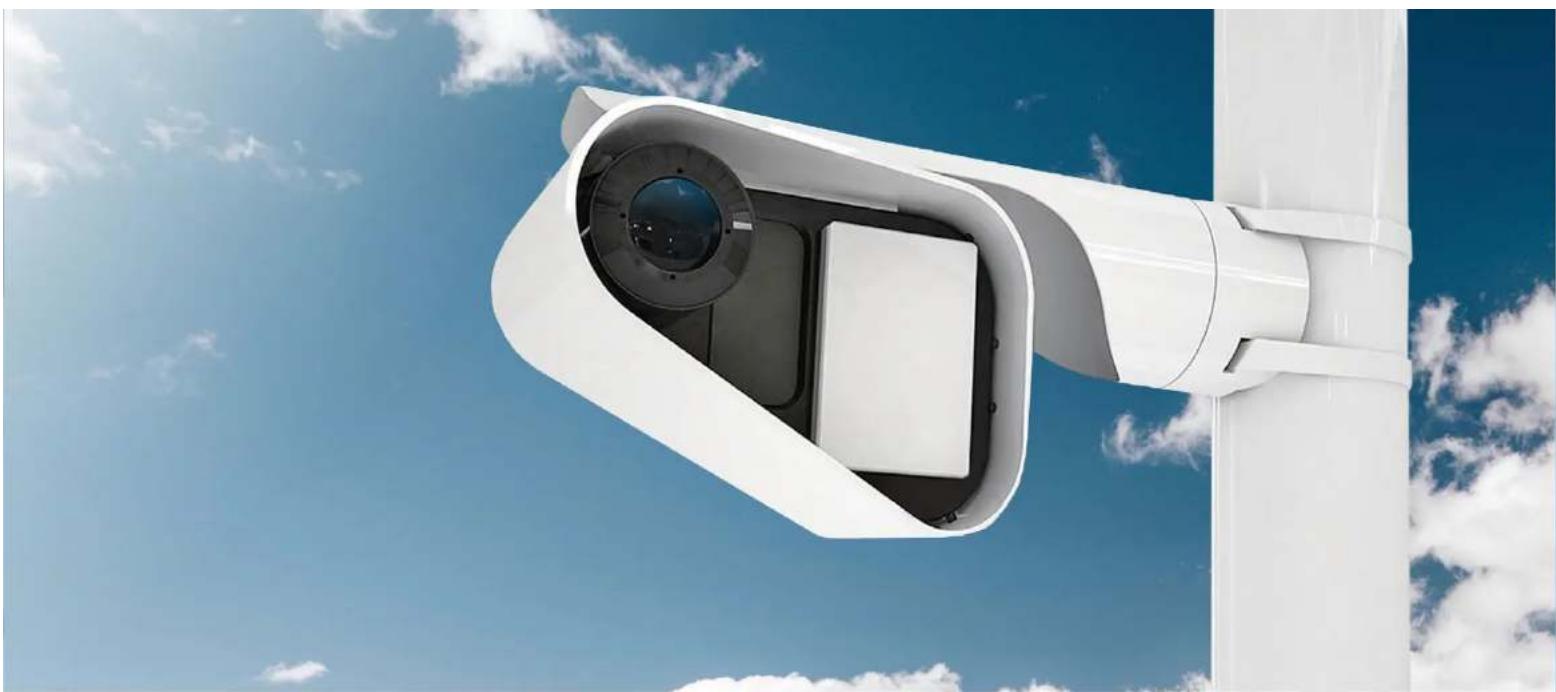

Exterior view of a modern security camera mounted on a vertical pole against a blue sky with clouds (no text or symbols visible)

GPS ALERT MESSAGE DISTANCE

Alert Message Distance to police radars in GPS base may be set due to your preferences:

1) According to the database value – the manufacturer assigns a due value in meters to each cam in GPS base responsible for the alert.
2) According to this value set in the settings each cam in GPS base will be assigned an optional value: 300 m – 900 m. Per a motor car current velocity – the more your velocity is, the more distance you're aware about police radar.

DEMO

DEMO MODE

For the user's convenience, the DEMO mode will show the Hybrid work (sound & voice guide, the display indication).

The hybrid moves out of DEMO mode after the whole guide & indication cycle is completed.

White flag with South Korean and Japanese flag design waving against a clear blue sky (no text or symbols visible)

MADE IN KOREA

Neoline X-COP R700 is the development of the leading Korean specialists in the field of in-car electronics targeted to enhance security for the driver.

Neoline X-COP R700 is a perfect combination of Korean quality and safety.

Digital illustration of a glowing microchip on a circuit board, rendered in blue tones with no text or symbols.

WIFI FIRMWARE & GPS BASE UPGRADE

While issuing new firmware and GPS bases, it is necessary to upgrade it with the help of «X-COP» app or Micro SD card. Actual firmware and GPS base help you not to skip the police radars and cams set not long ago.

Follow the official firmware upgrades at www.neoline.com.

Striped gift box with a blue ribbon on top (no text or symbols visible)

ENHANCED PACKAGE CONTENTS

Neoline X-COP R700 owns the newest techs and software, but its assembly is high line also and may satisfy any user:

1) Neoline X-COP R700 hybrid and radar unit under the motor hood
2) Micro SD 32GB 10 Class card and the memory card adapter.
3) The holder with active charger on 3M Smart Click Plus Scotch tape
4) Antiglare shield (CPL) 37 mm
5) Storage case
6) The power code to the cigar lighter
7) Any cable fastenings & fasteners

SPECIFICATIONS NEOLINE X-COP R700

• Ambarella CPU
• SONY sensor
• 135° visibility, 6 glass lenses
  • Full HD 1920x1080 extension (30 fps)
  • Realist and clear video with high day and night specification
  • Smart mode of glints and sun rays' suppression
  • Built-in GPS and GLONASS modules and GPS base of police radars and cams in 45 countries (RF, EU, Baltics, Uzbekistan, Kazakhstan, Azerbaijan, Armenia, Georgia etc.)
• Touch-screen 2,8' IPS display
  • Built-in WiFi module
  • Smart processing of "Trip track" system cam
• Quick menu of global settings and functions at home screen
• Intuitive operation with touch-screen
  • DVR control with smartphone
  • Video clips preview/locking/rwd/storage on the device and smartphone
  • Neoline Easy Touch Plus Sensor Interface
• Parking mode
  • Dangerous and zone addition

• Dangerous zone radius adjustment
• GPS POI turn on/off
• Voice guide about 45 fixed radars
- Legal overspeed
- Max speed
- Automute
• Speedometer screen saver
• G-sensor, motion sensor
• Memory card slot: Micro SD to 128 Gb, class 10
- Loop recording
- Demo mode
- Update of Software and GPS database with the help of mobile app and Micro SD card
- Voltage input DC 12-24 V
- Battery: 220 mA h
- Operating temperature from -10^ to +60^

X-COP R700 X-COP R700

PACKAGE CONTENTS:

• Neoline X-COP R700
• Micro SD 32GB 10 Class
  • The holder with active charger on 3M Smart Click Plus Scotch tape
  • Antiglare shield (CPL) 37 mm
  • The power cord to 12V socket (DC 12-24 V)
• SD card adapter
  • The fastener for power cord (8 pcs)
  • Cable joint element (3 pcs)
• Storage case
• Manual
• Warranty certificate

NEOLINE

Black NEOLINE camera with lens and external sensor (no visible text or symbols on body)

NEOLINE

X-COP R700

Official site: www.neoline.ru. Support: [e-mail]
