USER MANUAL 10 inch Faytech

Exploded view diagram of a device showing internal components and a display screen with 'faytech' logo (no text or symbols on main diagram)

7 inch 8 inch 10 inch 12 inch Touch Monitor

Trouble-shooting: 34

Ongoing changes: 34

Components: 35

Display Connection 37

To connect the signal source, 37

Connect TO power 38

Display Operation....39

The remote control 39

OSD-Menu-Operation 39

Installation of the Touch-Driver under Windows 41

Setting up the faytech Touch software 44

Troubleshooting....51

Physical Setup: 51

Startup: 52

Technical Data 54

Timing-Parameter and supported VGA-resolution.... 54

7 INCH TOUCH MONITOR V2 55

8 INCH TOUCH MONITOR V2 56

10 INCH TOUCH MONITOR V2 57

Pin assignment....58

Kontakt / Contact....59

DEUTSCH

GARANTIE

Technical diagram of a mechanical assembly with numbered parts and cross-sectional views

Technical line drawing of a mechanical assembly with mounting brackets and housing (no text or symbols)

Technical line drawing of a mechanical device casing with internal components and labeled parts (no readable text or symbols)

PIN 4, Pin 8: GND 11 PIN 6: Car Control

USB PORT

Extra PS/2 interface driver for TouchKit controller. Please check the check box for PS/2 touch controller.

Install PS/2 interface driver

Every system boot up
Next system boot up
None

TouchKit - InstallShield Wizard If you are trying to install the USB touch device, please make sure that your touch monitor or touch controller's USB cable is plugged into the computer now. Please close the "Found New Hardware Wizard" dialog when it pop-up. OK

If you want to use Multi-Monitor, please check the box. ✓ Support Multi-Monitor System

faytech Location Reaction

8-36V DC-IN (5.5mm/2.5mm) INNENPOL +

1: AUDIO_IN_R 3:AV1 5: AV2 7: Pr+ 9: Y+ 2: AUDIO_IN_L 4:GND 6: CarControl 8: GND 10: Pb+

1 3

SERIELL:

1: +5V 3: RX

2: GND 4: XT

faytech touch displays are produced following the most modern production and test processes. Carefully selected components and accurate production ensure reliable operation and long life. faytech warrants to the original purchaser that each faytech touch display delivered shall be free from defects in material or workmanship at time of shipment, and that each such module delivered will meet the published specifications for a period of 24 months as measured from the date of original shipment. faytech's obligation under the Warranty contained herein is limited to the repair or replacement of any faytech touch monitor that does not meet the specifications, provided that said product is returned to faytech, transportation charges pre-paid, and provided that upon faytech's examination, the product, when tested within the specified ratings and in accordance with good engineering practice, does not meet the specifications as defined. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMITATION THE WARRANTY OF MERCHANTABILITY AND THE WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

All claims under warranty must be made promptly after occurrence of circumstances giving rise thereto and must be received within the applicable warranty period by faytech or its authorized representative. Such claims should include the Product type and serial numbers and a full description of the circumstances giving rise to the claim. Before any Products are returned for repair and/or adjustment, written authorization from faytech or its authorized representative for the return and instructions as to how and where these Products should be shipped must be obtained. Any product returned to faytech for examination shall be sent prepaid via the means of transportation indicated as acceptable by faytech. faytech reserves the right to reject any warranty claim not promptly reported and any warranty claim on any item that has been altered or has been shipped by non-acceptable means of transportation. When any Product is returned for examination and inspection, or for any other reason, Customer will be responsible for all damage resulting from improper packing or handling and for loss in transit, notwithstanding any defect or nonconformity in the Product. In all cases faytech has sole responsibility for determining the cause and nature of failure, and faytech's determination with regard thereto shall be final. If it is found that faytech's Product has been returned without cause and is still serviceable, Customer will be notified and the Product returned at Customer's expense. In addition, a charge for testing and examination may, in faytech's sole discretion, be made on Products so returned.

SELLER'S LIABILITY FOR DAMAGES SHALL NOT EXCEED THE PAYMENT, IF ANY, RECEIVED BY SELLER FOR THE UNIT OF PRODUCT OR SERVICE FURNISHED OR TO BE FURNISHED AS THE CASE MAY BE WHICH IS THE SUBJECT OF CLAIM OR

DISPUTE. IN NO EVENT SHALL SELLER BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. LIABILITY TO THIRD PARTIES, FOR BODILY INJURY INCLUDING DEATH, RESULTING FROM SELLER'S PERFORMANCE SHALL BE DETERMINED IN ACCORDANCE WITH APPLICABLE LAW AND THE TOTAL LIABILITY LIMITATION STATED ABOVE SHALL NOT BE CONSTRUED AS A LIMITATION ON SELLER FOR DAMAGES FOR ANY SUCH BODILY INJURY, INCLUDING DEATH.

WARRANTY FOR ITEMS REPLACED UNDER WARRANTY Whenever a failed module is replaced under Warranty, the greater of the balance of the original Warranty Period or 90 days will constitute the remaining warranty period. The replaced unit does not carry a new Warranty.

LIFE SUPPORT POLICY "WARNING: DO NOT USE IN LIFE SUPPORT" SELLER'S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS PRIOR WRITTEN APPROVAL OF THE PRESIDENT OF FAYTECH. As used herein, "Life Support Devices or Systems" are devices which support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the labeling can be reasonably expected to result in a significant injury to the user. A "Critical Component" is any component in a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system or to affect its safety or effectiveness.

If your device does have a defect within the warranty period, please contact faytech directly. The warranty period is 24 months from the date of purchase under the following conditions:

• All warranties are void if the unit has been opened or disassembled without faytech's prior approval.
• Damage caused by improper handling or operation, by incorrect installation or storage, through improper connections, as well as due to force majeure or other external influences are not covered by the warranty.
• For warranty claim, we reserve the right to replace the defective components or to exchange the device.
  ● Exchanged components or devices become the property of faytech.
• Claims for damages are excluded in so far as they are not based on intent or gross negligence of the manufacturer.
  ● After expiration of the warranty period, warranty claims can no longer be pursued.
  ● Any warranty claim must be accompanied by proof of purchase (receipt or invoice).

GENERAL WARNING:

Avoid all contact with dirt, oil, dust or water. Never open the unit. Do not drop the unit. If you notice a burning smell or hear the device making unusual sounds, please disconnect it from the power source immediately. To clean the unit, please turn off the device first, then clean it very gently with a dry, soft cloth. For your own safety, please do not use the device during driving.

TROUBLE-SHOOTING:

Please follow all instructions carefully. At the end of this guide there is an overview of possible connection or other types of operation errors.

ONGOING CHANGES:

faytech produces its displays in China with German know-how and quality management. Your feedback is the most valuable information for the improvement of our products. Continuous production and product improvement is our primary goal. For this reason, there may be

improvements in our products which are not yet included in this user's guide. Differences between your product and this user's guide are generally related to specification changes and product

improvements. If you have any questions or suggestions, please contact our support team or visit our website at

www.faytech.com.

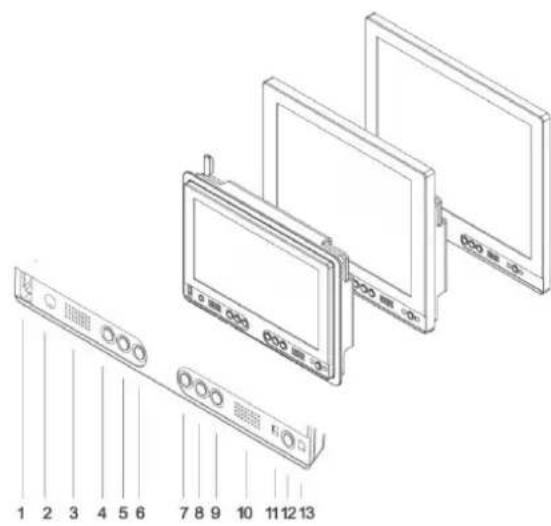

COMPONENTS:

Technical diagram showing exploded view of a mechanical component with numbered parts and assembly details

1 2 3 4 5 6 7 8 9 10 11 12 13

1. USB-Port
2. Ear-out
3. Loudspeaker
4. (+): flips picture horizontally, once OSD opened increases volume or values, navigates through OSD menu to the RIGHT.
5. (-): opens volume-menu, decreases volume and marked values in OSD menu, navigates through OSD menu to the LEFT.
6. (c): VGA: Auto calibration to the VGA signal, in OSD menu navigates DOWN
7. (S): opens Menu to choose the right Input Source, in OSD menu navigation SELECT values/menus
8. (M): opens OSD menu, selects Source in Input Source menu, STEP BACK in OSD menu navigation
9. (B): changes backlight LED brightness, in OSD menu navigates UP
10. Loudspeaker
11. Status-LED: red LED: standby/go off after 30s no signal; green LED: On with signal; no LED: no power
12. POWER: Display On/Off
13. Infrared receiver

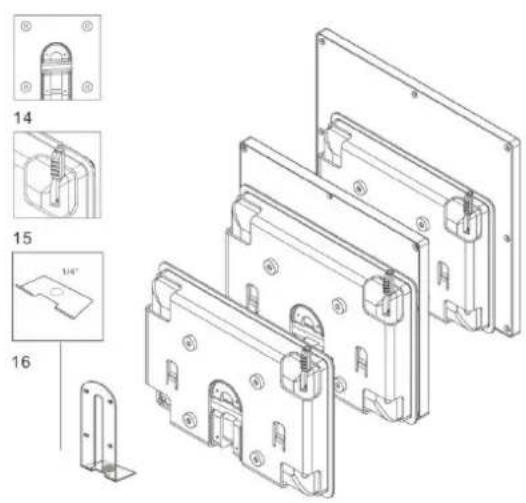

14. VESA-75 M4 fixation holes, metal mounting rail for fixation
15. Touch Pen
16. Fixation hole

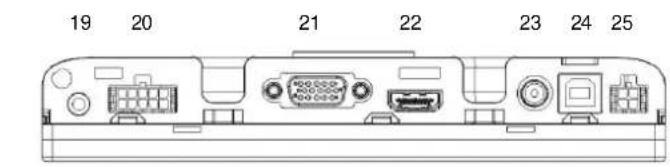

19 20 21 22 23 24 25

Technical line drawings of three electronic components with pin layouts and connectors, labeled 27 and 28 (no text or symbols on the diagrams themselves)

Technical line drawing of a mechanical device with multiple connectors and a housing (no text or symbols)

18

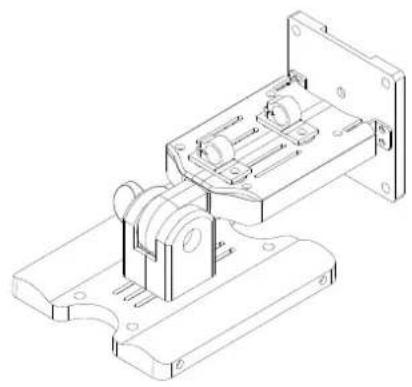

Technical line drawing of a mechanical assembly with mounting brackets and housing (no text or symbols)

29

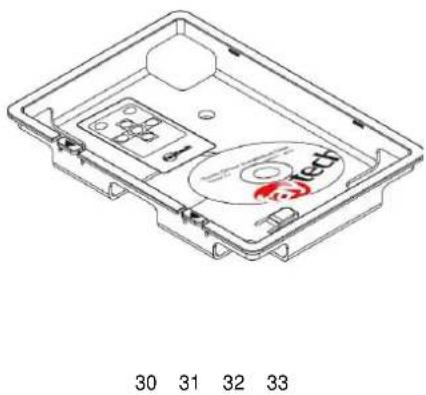

Isometric line drawing of a device casing with internal components and a CD inside (no text or symbols)

30 31 32 33

1. Power Supply
2. 12 V Adaptor
3. VGA-Audio-In
4. Video- and Audio-In adaptor
5. VGA-In
6. HDMI-In
7. 8-36V DC-I, 5.5mm/2.5mm (+)
8. USB-B In for Touch- and USB HUB Function
9. Serial-In for Serial Touch function
10. USB cable for Touch- and USB HUB function
11. VGA cable
12. Connector for self-video configuration with YpbPr, Video2/Camera for backview; Video-Audio, 5-12V automatic switching to Vide o2 (CarControl) (prefabricated cable available as accessory, see last chapter Pin Assignment)
13. Pedestal
14. Mounting Frame
15. Backcase Cover
16. Driver-DVD, detailed manual included
17. Remote Control

Revision history:

V1.0: produced from 2011 to July 2013
v1.1: produced since August 2013, change: VGA-connector, product name (add V1.1)
V2: produced since July 2014, changes: new backcase with mounting frame for all sizes, standardized connectors, new more powerful chipset for Audio- and Video-playback, improved panels

DISPLAY CONNECTION

Each cable is labeled for easy connection. To operate your faytech display properly, there must be at least one signal source and a power source connected. To use the touch function please connect the USB cable to your PC.

TO CONNECT THE SIGNAL SOURCE,

you have the following options:

• On a PC: Connect the VGA cable from the faytech monitor to the VGA output of your PC graphics card. Please select SOURCE VGA, so you have an image on the display.
• On a PC: If you have a DisplayPort/HDMI/DVI output on your PC please use the HDMI-port of the faytech touch-monitor, with DVI/DisplayPort you need a DVI respectively. DisplayPort to HDMI connector. Please change SOURCE to HDMI.
• To DVD-Player/camera/Video source: Connect one, two or three video inputs (labeled Video1, Video2, YPbPr) to a corresponding video source. Please be sure to switch off the video source before you connect the cables. Switch SOURCE to the respective channel input. ATTENTION – Video2 is not reachable via Menu, faytech's display switches automatically to Video2 when there is a voltage on the SignalPIN (carcontrol).

In addition, the display has two analogue stereo audio inputs, one for the PC (3.5mm Audio-In) and one for the three video inputs (sound is carried on all video channels), a white and red RCA connector, white AUDIO-Left and red AUDIO-Right. Additionally, via HDMI is another digital Audio-In. Audio comes through the speakers only if there is an image signal. Audio is also available from the earphone output on the front side of the display. If earphones are connected, the built-in speakers will not be active.

Tip: You can use the display simultaneously with all five video signal sources. Use the SOURCE button on the display or remote control to switch between the various signal inputs.

CONNECT TO POWER

You can connect the faytech display with the included 100V/240V plug or the 12V power adapter. Insert one of these power sources into the 8-36V DC-IN.

Another alternative is to connect another 8-36V source to the DC-IN. Please pay attention not to mix the polarity (+ is inside)! Please make secure that the power source has enough current, at 12V it is max. 1.5A.

Connect the USB cable to the USB port on your PC (after you have been asked within the software installation process). With actual operation systems (Win7, Win8) there is no more need to do a driver installation.

The touch-screen series also supports the use of touch through the serial port. Please order the faytech special cable or connect the serial port according to the connection definition in the connections chapter.

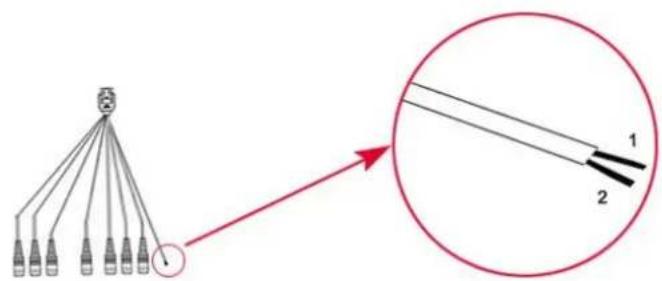

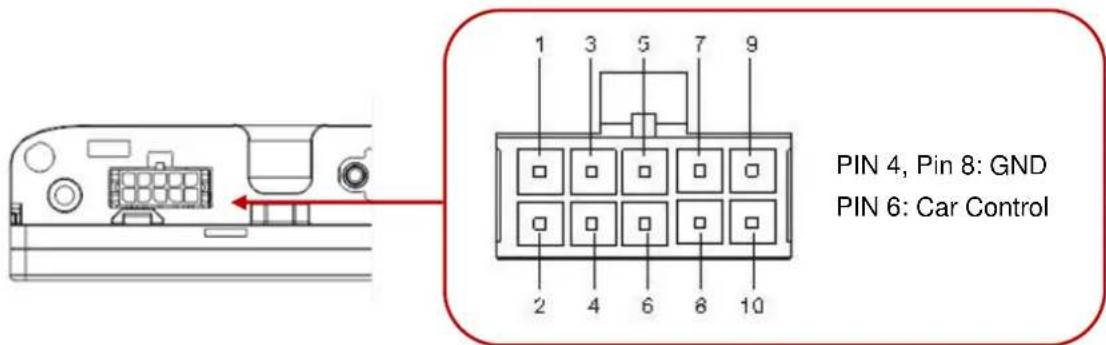

USING BACKVIEW CAMERA / VIDEO CAMERA.

The touch monitor automatically switches to Video 2 when there is a 5 to 12V signal on the white blank cable of the Video-All-In-One-cable.

The black blank cable must be grounded at the same time.

PIN 4, Pin 8: GND PIN 6: Car Control

USB PORT

On the front of the touch monitor is a USB port. For usage the USB cable must be connected to the PC. You can use the USB port as any other PC-USB port.

THE REMOTE CONTROL

The remote control functions are similar to the buttons on the display. Before using the remote for the first time, please remove the thin plastic on the back side to make the batteries connect and supply the remote control with power.

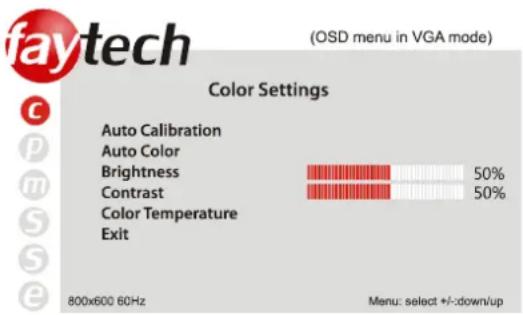

OSD-MENU-OPERATION

The Menu operation of the faytech display is simple and logical. You have six control buttons. MENU, +/-right, -/left, down(c), up(b), confirm(S).

Pressing MENU brings up the OSD menu and closes it again with another press, in sub menus you go back one step by pressing MENU.

You navigate with right, left, up, down through the menu. The sub menu is reached by using the confirm button (S). A value is changed by using +/-

When a menu option is grey that means it is not available for the actual chosen signal source. The HDMI, VGA and AV-menu have slightly different picture setting options.

The OSD menu consists of four main menus. You can switch between the main menus with +/-. In the sub menus (selected by S) you can switch between further sub menus and changing values by using right(+), left(-) and up(b) and down(c). The menus in the following:

- Color Settings

1. Auto calibration:

The display is automatically adjusted to the current resolution of your graphics card. If you are not satisfied with the auto setting, you can optimize it manually.

2. Auto color:

This function will optimize the color of the faytech displays. You can always change the color of the display manually.

6. Brightness:

This allows you to increase or decrease the brightness of the faytech display.

7. Contrast:

This allows you to increase or decrease the contrast of your display.

8. Color temperature:

You can choose predefined color settings (cool, warm, medium, SRGB) or make your own color setting (User).

9. Exit:

Return to the main menu or submenu

• Picture Settings

• Horizontal position:

Move the position of the image on the display to the left (-) or the right (+).

1. Vertical position:

Move the position of the image on the display down (+) or up (-).

1. Phase:

Change visual distortion when viewing the screen from different angles. Use +/- to find the best display effect.

1. Horizontal size:

To reduce (-) or enlarge (+) the horizontal size of the image on the faytech display.

1. Exit:

Return to the main menu or submenu.

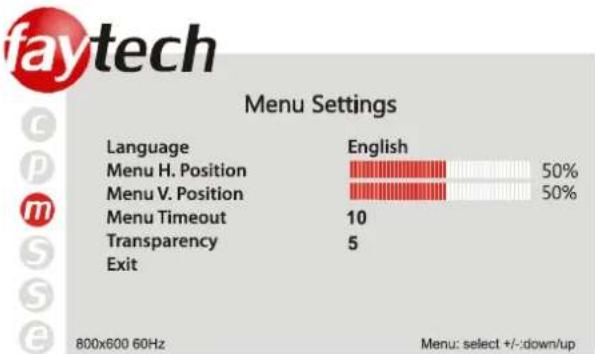

• Menu Settings

• Language:

To change the language of the menu.

1. Menu H. Position:

To move the position of the menu to the left (-) or the right (+).

1. Menu V. Position:

To move the position of the menu up (-) or down (+).

1. Menu Timeout:

Determines how many seconds the OSD menu is displayed before it is automatically switched off, if

there are no more operations. You can also select "off" to remove the OSD menu from the screen.

1. Transparency:

You can choose various levels of transparency for the OSD-Menu.

1. Exit:

Return to the main menu or submenu.

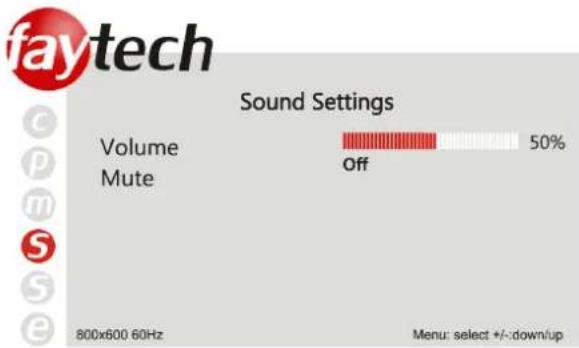

faytech Sound Settings Volume Mute Off 50% 800x600 60Hz Menu: select +/-down/up

• Sound Settings

• Volume:

To adjust the volume of the built-in speakers. Use - to reduce the volume and use + to increase it.

1. Mute:

Turn the speakers on /off.

1. Exit:

Return to the main menu or submenu.

- Settings

1. Reset:

This option will return the display back to the factory settings. All changes you have made are deleted.

1. Exit:

Return to the main menu or submenu.

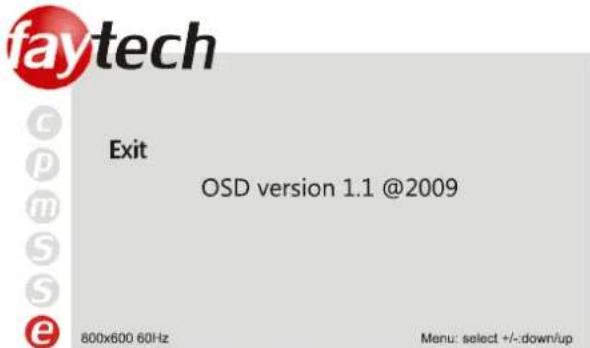

faytech Exit OSD version 1.1 @2009 800x600 60Hz Menu: select +/-down/up

• Exit

To quit the OSD-Menu.

faytech's own 4/5-wire USB/serial TouchController series based on EETIs MER4485 chipset supports the gesture control of Win7 and Win8 as well as the use of the touch already within the LogIn window without further driver installation. We suggest to not install any additional drivers under Win7 or Win8 operation system.

With first connection of the USB-cable Win7/Win8 installs automatically the right drivers. With successful installation you see the following Windows information window. This first time installation may take a little bit time. Afterwards, the touch function is usable.

Please use Win7/Win8 own settings for the touch panel to set it up to your system. The Windows menus are under System, Hardware and Sound, Tablet PC-settings. More settings are available under Pen- and Handsetting-menu, also located in the Hardware and Sound menu.

For calibration purpose we suggest to install the calibration tool

„Win7,Win8_calibration_TOOL“ which is available on faytech's Driver DVD or at

www.faytech.com, Service, Driver.

For Win7, Win8 please just install the available drivers when you want to use Touch without the gestures support as sole mouse alternative.

In the following, a Windows XP installation is described.

1. Put the DVD into your DVD-ROM.
2. Use the Explorer on the DVD and select the appropriate subdirectory (Touch Driver, then the right operation system) to open the installation file setup.exe directly. Now you will see the following window:

Select the Windows driver 2000/XP/Vista/Windows7 in the upper right. If a security warning pops up, click "Run", "Continue" or "Execute". Under Vista you must confirm the UserAccount Control with "Continue". Some further warnings may be given depending on installed security programs. Always click the button to continue the operation.

To complete the installation with all default options, click "Next" on each of the following dialog boxes. You can cancel at any time. To switch back to a previous step, click the "<back" button. Please note! The installation process is in English. Later on you can choose the language for the OSD.

3."Welcome to the InstallShield Wizard for TouchKit":Press "Next" if you to continue the installation.It's advisable to close all other programs before beginning this installation.

4."Setup Type":

Extra PS/2 interface driver for TouchKit controller. Please check the check box for PS/2 touch controller.

Install PS/2 interface driver

Check the box (see the picture on the next page upper left) only if you want to install the PS/2-Driver. Usually for a USB-touch display, you should NOT select this option. The PS/2-Driver works smoothly with a PS / 2 mouse but if you do not have a PS / 2 mouse you should leave this box unchecked to avoid compatibility problems.

5."Setup Type"

Do 4 point calibration

Every system boot up

Next system boot up

None

We recommend "None" (see the picture upper right) for the calibration setting. A calibration will be performed every time your PC starts up if you choose "Every system boot up". If you choose "Next system boot up" a calibration will be performed on the next system reboot. You can carry out a calibration at any time after the TouchKit program is installed. (See "Setting up the faytech Touch software".) After making your selection on this screen, click "Next".

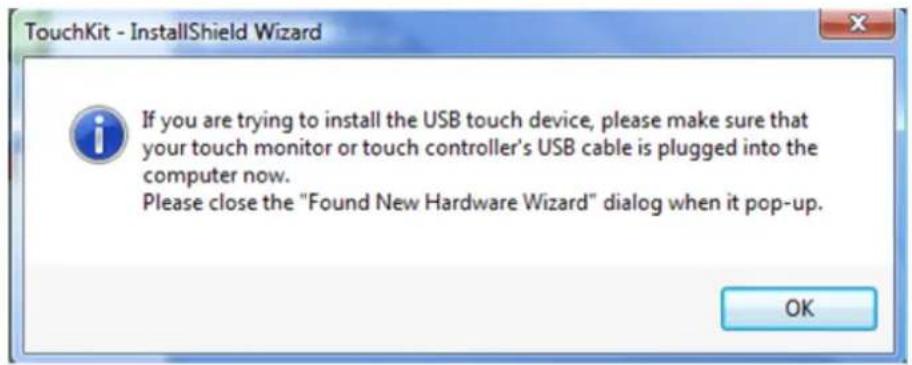

6."TouchKit - InstallShield Wizard":

TouchKit - InstallShield Wizard If you are trying to install the USB touch device, please make sure that your touch monitor or touch controller's USB cable is plugged into the computer now. Please close the "Found New Hardware Wizard" dialog when it pop-up. OK

Connect the USB cable now and press "OK". If the "New Hardware Found" dialog of Windows opens, please cancel it.

1. "Setup Type":

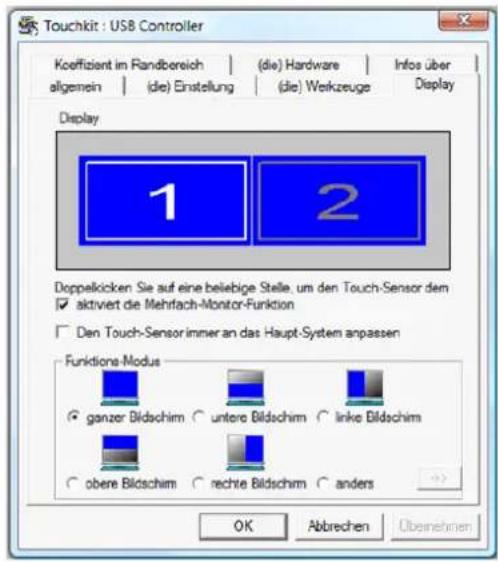

If you want to use Multi-Monitor, please check the box.

Support Mult-Monitor System

If you plan to use multiple monitors, please choose this box. (See "Setting up the faytech Touch software".)

8."Choose Destination Location": Accept the default destination or choose your own then press "Next".

1. "Select Program Folder": Give the program a name or use the default setting and press "Next".

10."Setup Status":

The installation will be started automatically with the selected settings.

1. The installation is successfully completed when the above window appears.

If the USB controller icon is not showing, please disconnect the USB cable from your PC and connect it again. For more help, Please go to the "Troubleshooting" section.

SETTING UP THE FAYTECH TOUCH SOFTWARE

Start the administration program by going to "Start - Programs - TouchKit - Configure Utility". (If you accepted all the defaults the program may be at "Start - Programs - Accessories - Touchkit - Configure Utility".) Or you can find this program in the system tray section of your task bar.

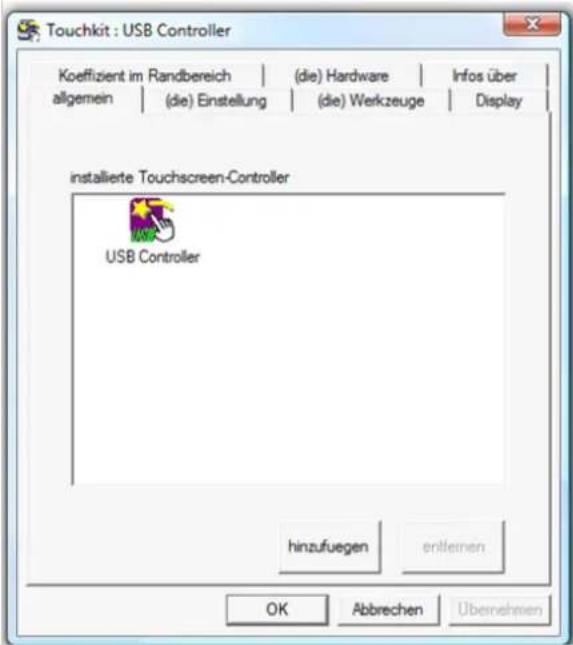

6. General tab

Gives information on whether one or more touch controllers are found and installed.

After the initial installation, if no touch controller shows up on this tab, please pull out the USB connector on your PC and connect the device again.

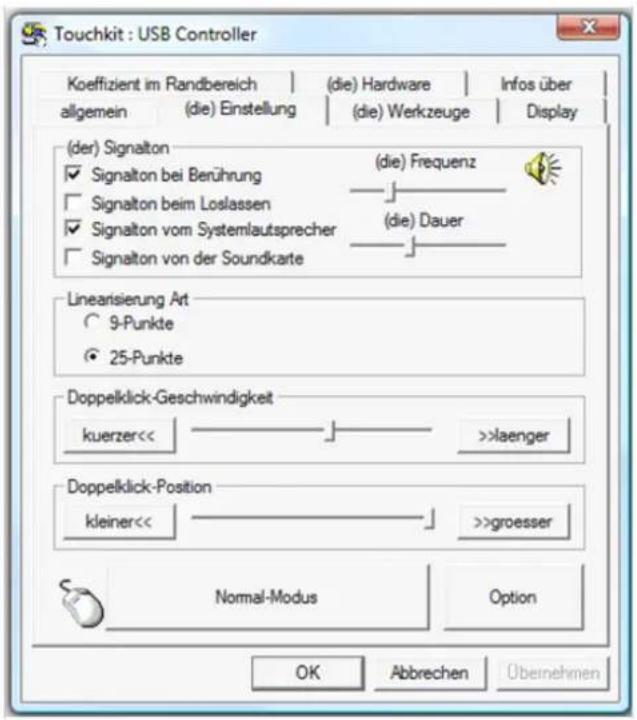

7. Setting tab

When you touch the touch panel you should hear a beep if you select the first checkbox. You can change the frequency and duration of the beep. The changes will be saved after you click on "OK".

Under linearization, you can choose the number of linearization points under the Tools - linearization setting. On a 25-point linearization the deviation of a touched point will be less than on a 9-point linearization. In general, the faytech displays have been set correctly and should not be linearized.

Double Click Time. You can set how fast you need to click on the same object to make a double click. If you choose Shorter <<, then you need to tap faster. If you choose >> Longer, then you can tap the screen more slowly.

The same applies to Double Click Area. If you choose Smaller <<, your taps must be in a relatively small area in order for a double click to be recognized. >> Larger enables you to make a successful double- click within a larger area.

To the right of the mouse icon are options to set different mouse-like modes. Normal mode offers the most intuitive touch-operation.

Normal-Mode: Allows the user to select an object or drag an object with the touch pen or a finger. This is the best mode to use for most applications.

Click on touch: The "click" is recognized when the screen is touched. To initiate a new mouse-click, the display must be released and re-pressed.

Click on release: Contrary to the click function in touch, it is generated a click when the display is released.

Click on touch without moving cursor: The first touch point generates a click. The cursor follows the finger / pen movement. For a better understanding of this setting, try it with the Draw Test application under the Tools tab.

Click on release without moving cursor: The cursor does not move to the touch position except at the lift-off point. For a better understanding of this setting, try it with the Draw Test application under the Tools tab.

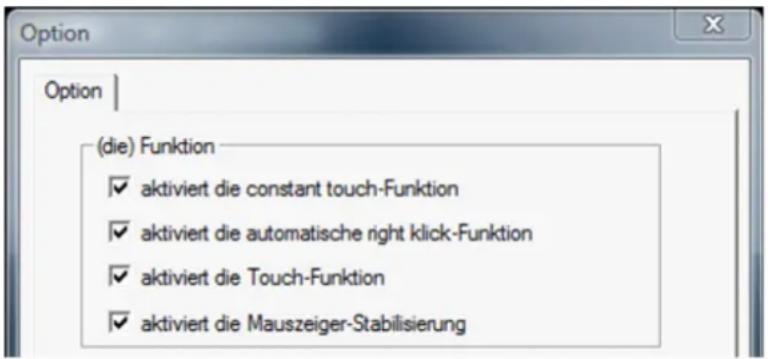

On the far right of the mouse icon, there is an Option button. The following options are available for the faytech display in this submenu:

Enable Constant Touch: is the function to check to enable the driver to determine if the most recent touched position is the same as the previously touched point. If the difference is smaller than the defined area, the driver does not generate any mouse movement which helps reduce system load.

Enable Auto Right Click: If the touch screen is touched for a specified time, the driver will generate a mouse right button click if this function is enabled.

Enable Touch: Be careful! If you don't check this box, the touch function will not work!

Enable Cursor Stabilization: A software filter exists inside the driver to filter some noise to stabilize and smooth the touch points. When activated, the user will experience a more stable cursor.

You can adjust the parameter for the Constant Touch Area function. This is a criterion to judge if the most recent touched point is the same as the previously touched point. If the difference between the two points is within this area, it will be recognized as the same touch point and the driver does not generate a new mouse event for this touch point.

You can adjust the Auto Right Click Time function. If the touch screen is touched and held for this period of time, the driver generates a right mouse click.

8. Tools tab:

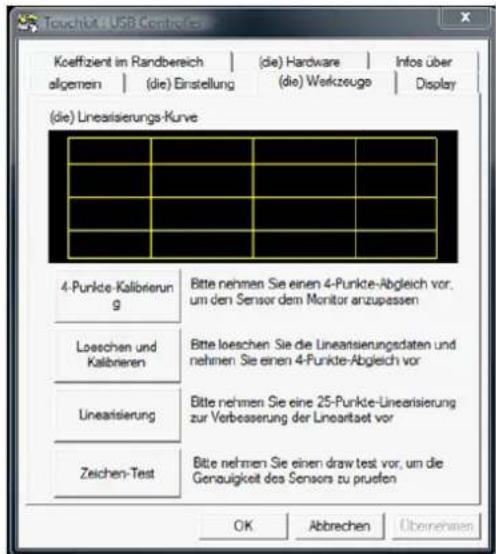

You can adjust the faytech touch panel calibration with the functions called 4 Points Calibration, Clear and Calibrate, Linearization and Draw Test. Start by performing the 4 points calibration. By using the application drawing test, you can test the touch panel to determine if further setting changes are desirable.

When you press the 4 Points Calibration button, the surface of the monitor shows the following image:

Press blinking X symbol until stop blinking Touch and hold each of the blinking X symbols in the calibration window until it stops blinking to make sure that the utility can gather enough data for computation. In addition, a progress bar is shown at the bottom of the window to indicate time elapsed. If the touch screen is not touched before the progress bar gets to the far right, the calibration task will be terminated automatically.

Simple diagram with a red crosshair symbol and a blue horizontal line, no text or labels present.

Translation: „Touch the blinking symbol until it stops blinking“

The Clear and Calibrate button will clear all calibration and linearization settings. It will then automatically take you through a 4 Point Calibration.

The Linearization (25 or 9 point calibration) function is used to compensate the touch screen linearity. It will require you to press and hold on 9 or 25 targets on the screen so it can compensate for the curvature (if any) of the display. After linearization is completed, the linearity of the touch screen will be shown in the Linearity curve window.

The Draw Test function is used for accuracy and performance checking. Press this button and a new pop up window will be popped up on the monitor (see below). Touch or drag your touch pen or finger on this grid to gauge the effectiveness of the settings and calibrations that you have made. If you are using your finger, you may have to press firmly to draw continuous lines. Press the Clear button to clear the window. Press the Quit button to terminate this draw test.

faytech ondate ondate

9. Display-Multi-Monitor Setting tab:

If you selected "Support Multi-Monitor System" when you installed the Touch driver, you will see a Display tab when you run the Touchkit Configure utility. If you did not select this option, you will not see a Display tab.

You can have up to four faytech touch-screens connected simultaneously. You can also use a (non-touch) display and a touch screen. In the example below, the touch-screen is display "1", while the second display "2" is a normal monitor. Both have the same resolution, but the touch screen is the primary monitor.

Enable multiple-monitors: When this function is disabled, the touch screen will be mapped to the primary monitor automatically. When this function is enabled, you can double click on the monitor area in the monitor geometry window to assign the monitor area where the touch screen will be mapped. Double-tap on the desired monitor and answer the question in the pop-up window with Yes.

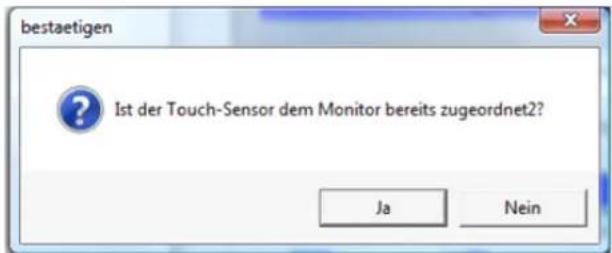

After confirmation, your touches on the selected touch monitor will be simulated as mouse clicks.

If the function "The touch sensor is automatically connected to the main system" is activated, the program automatically puts the touch function on the primary monitor, if only one monitor is connected.

The Operation mode settings allow you to set the size of the touch area on your faytech touch-screen. E.g. if you select the "right screen", after a new calibration only the right side of the monitor will work as a touch area. If you select "other" and then click on the -> button, you can set more modes or set an individually touch-defined area.

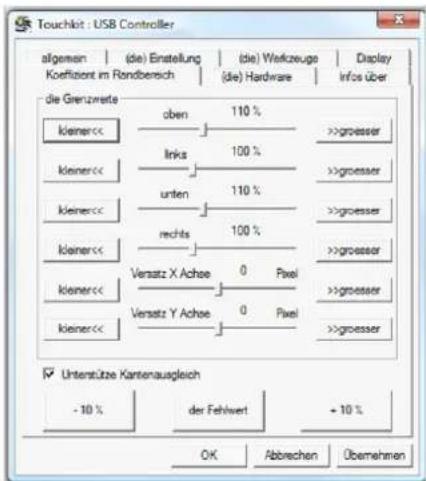

1. Edge Compensation tab: fine adjustment of the touch area

On this tab you can finely adjust the touch area. This is very useful when you have problems touching at the edges of the touch screen. In the following image you can see that the limits for all edges of the screen were corrected (to 110%). E.g. if you have problems in the upper right area, just increase the upper and right limit (>> Bigger ). Confirm the change and try the new settings with the Draw Test. You can also use the X-axis and Y-axis displacement options to compensate if your touch always seems to be off the same amount in the X and/or Y directions.

The "Support Edge Compensation" option optimizes the touch detection in the corners of your faytech touch panels. This option should always be enabled.

11. Hardware and About tabs:

The last two tabs are for information only - there are no options to select on these tabs.

The Hardware tab gives information about the design of the faytech touch display and the firmware used.

The About tab gives information about the touch driver version as well as information about the developer of the software.

12. Touchkit program in the taskbar

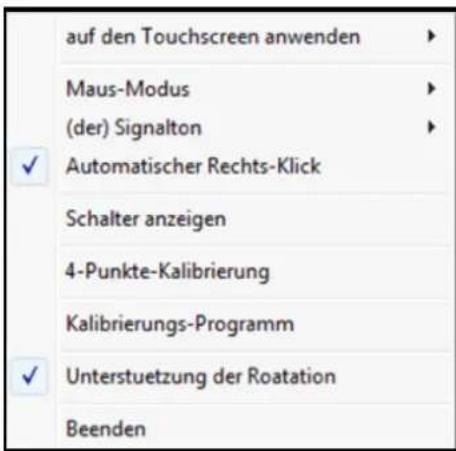

With the Touch Kit icon in the taskbar, you can use a right mouse click to make quick changes in many of the Touch Kit settings. The individual functions have already been described in this chapter.

On the context menu, if you select the option Display Button, you will see a mouse animation displayed in the lower right half of the screen. The red mark indicates which mouse button will be simulated the next time you touch the screen. By clicking on the left or right pointer of the animation you change the behavior of the touch panel accordingly.

TROUBLESHOOTING

If you are having trouble getting your touch monitor to work correctly, please look through this list of common problems:

PHYSICAL SETUP:

- Cable connections. Care should be taken when connecting the cables. Make sure the cables are connected to the right connectors at each end and make sure the cables are attached firmly to their respective connectors. Lack of an image or poor quality images are often caused by the wrong connection. Turn off the display and check each pin of the cable separately. If you think you have a defective cable, we are happy to exchange it for you - you do not have to send the display back.

• Avoid short circuits! Please be careful before connecting power to the display that there are no cables that have not yet been connected at both ends. If the monitor does not power up, try another outlet or another power source.
• Provide the display with a 8-36V DC power supply only. Higher or lower voltage and wrong polarity/doing a short circuit permanently damages the display and is not covered under warranty.

STARTUP:

Please note: After you switch the display on, you may have to change the input mode (HDMI/AV/YPbPr/VGA) in order to receive a signal. If there is no signal source connected, the display will show "no signal" and go off after 30s.

Display remains black

• Black LED: no power, please check power supply. When the power supply is ok (e.g. has green LED) then open a RMA case
  ● Green LED: wrong source or wrong signal source (see resolution/activation errors)
• Connection error:

Please check again to make sure that all cables are properly connected.

● Resolution / activation errors:

Using the right resolution and activating the display is a common problem that is often not the fault of the display itself. The monitor supports the resolutions given in the technical data. Sometimes during simultaneous operation of two displays on a PC or the connection of an additional display to a notebook complications can arise. Usually these problems need to be resolved in the hardware and software of the PC. It is always best to use the display initially as a single display with a resolution of 1024x768 at 60Hz. Try to start with this resolution then experiment with other resolutions and other combinations of displays to see which work best for you.

Please note that extended desktops often are black in the beginning. In this situation your display may be black at first if you configure it as an extended desktop.

Tip: It is often best to use the display at the following resolutions: 7" 1024x600, 8" and 10" 10" 1024x768, all at 60Hz. If the display is used as a second display with a PC, which is already connected to a display with a much higher resolution, configure resolution profiles. With an ATI graphic card, you can set up profiles in the advanced catalyst control center under profiles. Activate a hotkey, so that you can change the profiles of each display (one is the touch display, the other is the higher resolution display). Also you can configure the profiles using a software tool such as powerstrip.

● Power supply error:

If the display has no signal input, there might be an error with the power supply. First please check the connection with another power supply before you return the display. We're happy to exchange the defective power supply if necessary.

- Panel shows “unsupported format”: That means that the monitor receives a signal source which cannot be displayed. This e.g. may happen when frequencies are set up over 75Hz. When you think the signal should be possible to be displayed please contact the faytech service with detailed signal information.

Stripes / errors in the image

- Pixel error: Each faytech display has been thoroughly tested and sold with no pixel defects. If there is a pixel error at your display, please contact us for Support.

- Text is hard to read, picture looks fuzzy: The display image is in the original resolution (see specifications) clear. At higher resolutions the display interpolates. This leads to inaccuracies and picture distortions.

- Stripes / errors in the image: when connecting the display using power from a PC's power supply, the power supply can cause a light flickering. This is because of the interference created by the PC's power supply. In order to improve the picture, please try an alternative power supply.

- Image is upside down: Press (when there is a signal) the + button. This switches through the two different modes (the original, top / bottom mirrored)

TECHNICAL DATA

Changes in the sense of technical progress reserved.

TIMING-PARAMETER AND SUPPORTED VGA-RESOLUTION

Timing-Parameter:

7": Dot Clock: 170MHZ

Analog / Digital Scanning Frequency (H, V) 30\~83KHZ, 50\~76HZ

8": Dot Clock: 170MHZ

Analog / Digital Scanning Frequency (H, V) 30\~83KHZ, 50\~76HZ

10": Dot Clock: 170MHZ

Analog / Digital Scanning Frequency (H, V) 30\~83KHZ, 50\~76HZ

12": Dot Clock: 170MHZ

Analog / Digital Scanning Frequency (H, V) 30\~83KHZ, 50\~76HZ

Supported VGA-resolution:

640x480, 60Hz, 75Hz,	1440x900, 60Hz
800x480, 60Hz, 75Hz,	1680x1050, 60Hz
800x600, 60Hz, 75Hz,	1600x1200, 60Hz
1024x768, 60Hz, 75Hz,	1920x1080, 60Hz
1280x720, 60Hz	720x576, 50Hz
1280x768, 60Hz	1280x720, 50Hz
1280x1024, 60Hz	1920x1080, 50Hz
1360x768, 60Hz

7 INCH TOUCH MONITOR V2

Display case (cm):	17.90 x 12.30 x3.0
Screen diagonal (Inch/cm):	7/17.78
Display active screen size (cm):	15.36 x 9.00
Mounting (cm):	mounting rail, additional VESA-75 on the back
Gross weight (inclusive cartonage, kg):	1.80
Net weight (kg):	0.40
Aspect ratio:	16:9
Physical resolution:	1024 x 600
Maximum showable resolution:	1920 x 1200
Colours displayed:	16.7M
Brightness (cd/m2):	500
Contrast:	700:1
Typical reaction time Tr/ Tf (ms):	10;15
Visual Angle horizontal; vertical (° ):	150;145
Working power (V):	8~36
Power consumption (W):	4
Stand-By-Consumption (W):	<0.5
Operating temperature (° C):	-25~+75
Touch Panel:	4-wire resistive
Touch Connectors:	1 x USB port, 1 x serial port
Touch Panel-driver:	Windows, Linux, Mac
Touch life (contacts):	1 million touch in 1 location without failure
Response time Touch Panel (ms):	<10
Surface hardness:	3H
Input force (g) / vandalism secure:	20~150
Connectors, Video-In:	2 x Video(1 x back cam view), 1 x YPbPr, 1 x VGA, 1 x HDMI 1.1 (incl. HDCP)
Connectors, audio:	3 x Audio-In, 1 x Earphone-Out
Connectors: USB-Port / DC-IN	USB Port / 8-36V DC-IN
Additional features	OSD-Menu, speaker, remote controller, touch pen, car adapter, driver-DVD, short installation manual

8 INCH TOUCH MONITOR V2

Display case (cm):	19.80 x 16.80 x 3.20
Screen diagonal (Inch/cm):	8/20.32
Display active screen size (cm):	16.20 x 12.2
Mounting (cm):	mounting rail, additional VESA-75 on the back
Gross weight (inclusive cartonage, kg):	2.05
Net weight (kg):	0.60
Aspect ratio:	4:3
Physical resolution:	1024 x 768
Maximum showable resolution:	1920 x 1200
Colours displayed:	16.7M
Brightness (cd/m2):	250
Contrast:	700:1
Typical reaction time Tr/ Tf (ms):	6;14
Visual Angle horizontal; vertical (° ):	150;150
Working power (V):	8~36
Power consumption (W):	5
Stand-By-Consumption (W):	<0.5
Operating temperature (° C):	-25~+75
Touch Panel:	4-wire resistive
Touch Connectors:	1 x USB port, 1 x serial port
Touch Panel-driver:	Windows, Linux, Mac
Touch life (contacts):	1 million touch in 1 location without failure
Response time Touch Panel (ms):	<10
Surface hardness:	3H
Input force (g) / vandalism secure:	20~150
Connectors, Video-In:	2 x Video(1x back cam view), 1 x YPbPr, 1 x VGA, 1 x HDMI 1.1 (incl. HDCP)
Connectors, audio:	3 x Audio-In, 1 x Earphone-Out
Connectors: USB-Port / DC-IN	USB Port / 8-36V DC-IN
Additional features	OSD-Menu, speaker, remote controller, touch pen, car adapter, driver-DVD, short installation manual

10 INCH TOUCH MONITOR V2

Display case (cm):	23.50 x 20.20 x 3.20
Screen diagonal (Inch/cm):	9.7/24.64
Display active screen size (cm):	19.7 x 14.7
Mounting (cm):	mounting rail, additional VESA-75 on the back
Gross weight (inclusive cartonage, kg):	2.20
Net weight (kg):	0.75
Aspect ratio:	4:3
Physical resolution:	1024 x 768
Maximum showable resolution:	1920 x 1200
Colours displayed:	16.7M
Brightness (cd/m2):	300
Contrast:	500:1
Typical reaction time Tr/ Tf (ms):	10;10
Visual Angle horizontal; vertical (° ):	150;160
Working power (V):	8~36
Power consumption (W):	7
Stand-By-Consumption (W):	<0,5
Operating temperature (° C):	-25~+75
Touch Panel:	4-wire resistive
Touch Connectors:	1 x USB port, 1 x serial port
Touch Panel-driver:	Windows, Linux, Mac
Touch life (contacts):	1 million touch in 1 location without failure
Response time Touch Panel (ms):	<10
Surface hardness:	3H
Input force (g) / vandalism secure:	20~150
Connectors, Video-In:	2 x Video(1 x back cam view), 1 x YPbPr, 1 x VGA, 1 x HDMI 1.1 (incl. HDCP)
Connectors, audio:	3 x Audio-In, 1 x Earphone-Out
Connectors: USB-Port / DC-IN	USB Port / 8-36V DC-IN
Additional features	OSD-Menu, speaker, remote controller, touch pen, car adapter, driverDVD, short installation manual

PIN ASSIGNMENT

Preface: Please observe the correct pin assignment. PIN1, PIN2, ..., according following graphs. Please keep in mind: this is the side of the mainboard, NOT the cable PIN assignment

POWER:

8-36V DC-IN (5.5mm/2.5mm) INSIDE POLARIZATION +

Outer Dimension Screwable Lock:

1 3 5 7 9 2 4 6 8 10

VIDEO:

1: AUDIO_IN_R 3: AV1 5: AV2 7: Pr+ 9: Y+

2: AUDIO_IN_L 4: GND 6: CarControl 8: GND 10: Pb+

SERIAL:

1: +5V 3: RX

2: GND 4: XT

VGA, HDMI, USB-B, EAR-In: Standard connectors

Diagram showing a connector pin arrangement and its magnified view with labeled parts 1 and 2

VIDEO:

1: GND

2: CarControl

KONTAKT / CONTACT

Support-E-Mail: [e-mail]

Contact, RMA service (in English):

Support Europe: [phone]

Global Support: [phone]

Support North America: [phone]

Support E-Mail: [e-mail]

Homepage: www.faytech.com Webpage of RMA: http://rma.faytech.com

RMA service:

If you think your faytech product has a defect please always contact us directly. Our trained after sales service specialists can help you resolve your problems. Please check the manual and our frequently asked questions before contacting us – you will usually find an answer to your question. If there is a defect you can request an RMA number (Return Merchandise Authorization) at [e-mail] or via fax at [phone] (Chinese fax-number). Please attach in the contact e-mail/fax your invoice and what problems you are experiencing. In reply, you will receive an e-mail/fax with your RMA number and additional information. For accessories like cables, adapters or power supplies which are not working, we can usually send you a replacement before receiving the damaged goods. For a defective product, we try to check and solve the problem within 3 days after receipt. Make sure that shipping has been paid before sending goods back to us. We do not accept postage due packages at our service centers. Anything received with postage due will be returned to you without any testing or resolution. Within the first 30 days after you buy a new faytech product, we will refund your shipping costs for returned products. For the rest of the warranty period, we will pay the shipping costs for any repaired or replaced items that we ship back to you.

For support outside of China, we work with local representatives / local service partners together who may work on our behalf in our name. On request, more information can be obtained at the above contact information.
