USER MANUAL Kappa 100 Dugena

Abstract black star-like geometric symbol on white background (no text or symbols)

DUGENA

MECHANIK

English Instruction Manuals

3 Hands Day-Date

Pages

24 - 26

Full Calendar

Pages

28 - 31

Manual Winding

Pages

32 - 34

General Information

Pages

36 - 41

Warranty

Page

42

Warranty Card

Page

43

Simple line drawing of a clock face with hour and minute hands (no numbers or text)

Kleine Sekunde

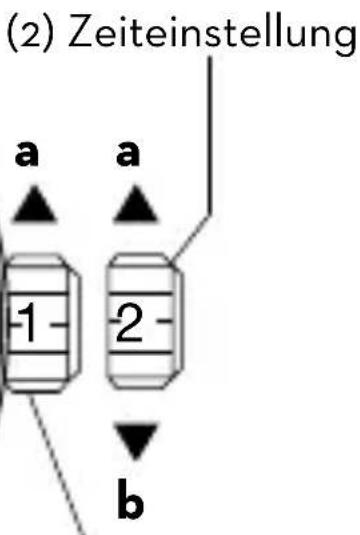

(2) Zeiteinstellung a a 1 2 b

(1) Normalstellung

Thank you for choosing a DUGENA PREMIUM watch.

You have chosen a high class product with acute attention on details and quality during creation. Each DUGENA watch from the PREMIUM MECHANIK Collection is equipped with scratch-proof sapphire crystal. The bolted housing bottom particularly protects the high-quality mechanical watch movement against environmental influences such as dust and water. DUGENA Premium watches are waterproof up to 10 ATM. High-quality leather straps, screwed solid high-grade steel straps and bracelets are further quality criteria.

We ask you to read the instruction manual carefully and make yourself familiar with the warranty terms. Please keep the instruction manual, because the instruction manual encloses the letter of warranty.

Instruction manual „3 - Hands Day Date“

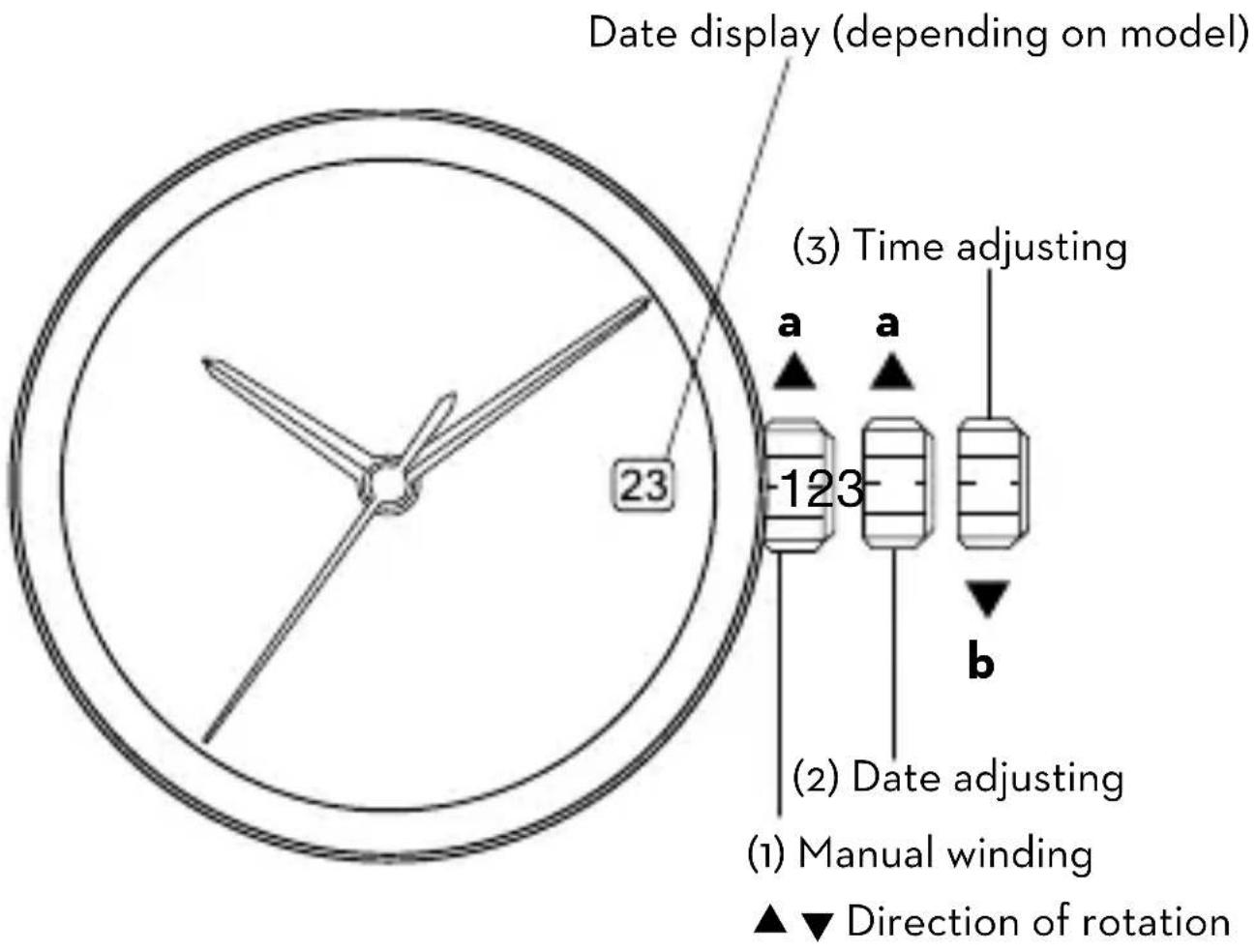

Date display (depending on model) (3) Time adjusting a a 123 b (2) Date adjusting (1) Manual winding ▲▼ Direction of rotation

Models: KAPPA 1 / KAPPA Airtrip / FESTA Klassik FESTA Quadra / FESTA Roma / EPSILON Automatik

Watch adjust

The automatic lift works only by the movement of the bearer of the watch. For the introduction the hand lift is to be operated. 30 rotations of the freely swivelling crown are optimum.

1. The watch can be wound up manually: Crown position (1). A few turns of the crown suffice to set the movement in motion. We recommend to wind the watch completely (about 30 times), as this guarantees maximum accuracy and power reserve (including after removal of the watch). The watch should be worn after winding in order for the automatic winding mechanism to maintain a fully-wound state (via the rotor movement).

2. Quick setting of the date

Pull the crown (2). When putting the watch into operation the date of the previous day should be adjusted.

Attention!

Date alteration should not be performed between 11:00 p.m. and 3:00 a.m., in this period the date is switched automatically by the movement and damage may be caused to the switching mechanism. If the month has less than 31 days, the date must be set to the 1st of the following month by hand.

3. Time adjust

Pull the crown (3) the second hand stops and the exact time can be set. Pass the hour hand clockwise over the cipher 12 until the date shifts to the present day (correspondent to 12 am). According to the respective half of day time can be set. The watch will start as soon as the crown is pushed back in.

Attention!

To avoid movement defects, generally, hands should be moved only clockwise while setting the time (direction of movement „b“).

Instruction manual „Full Calendar“

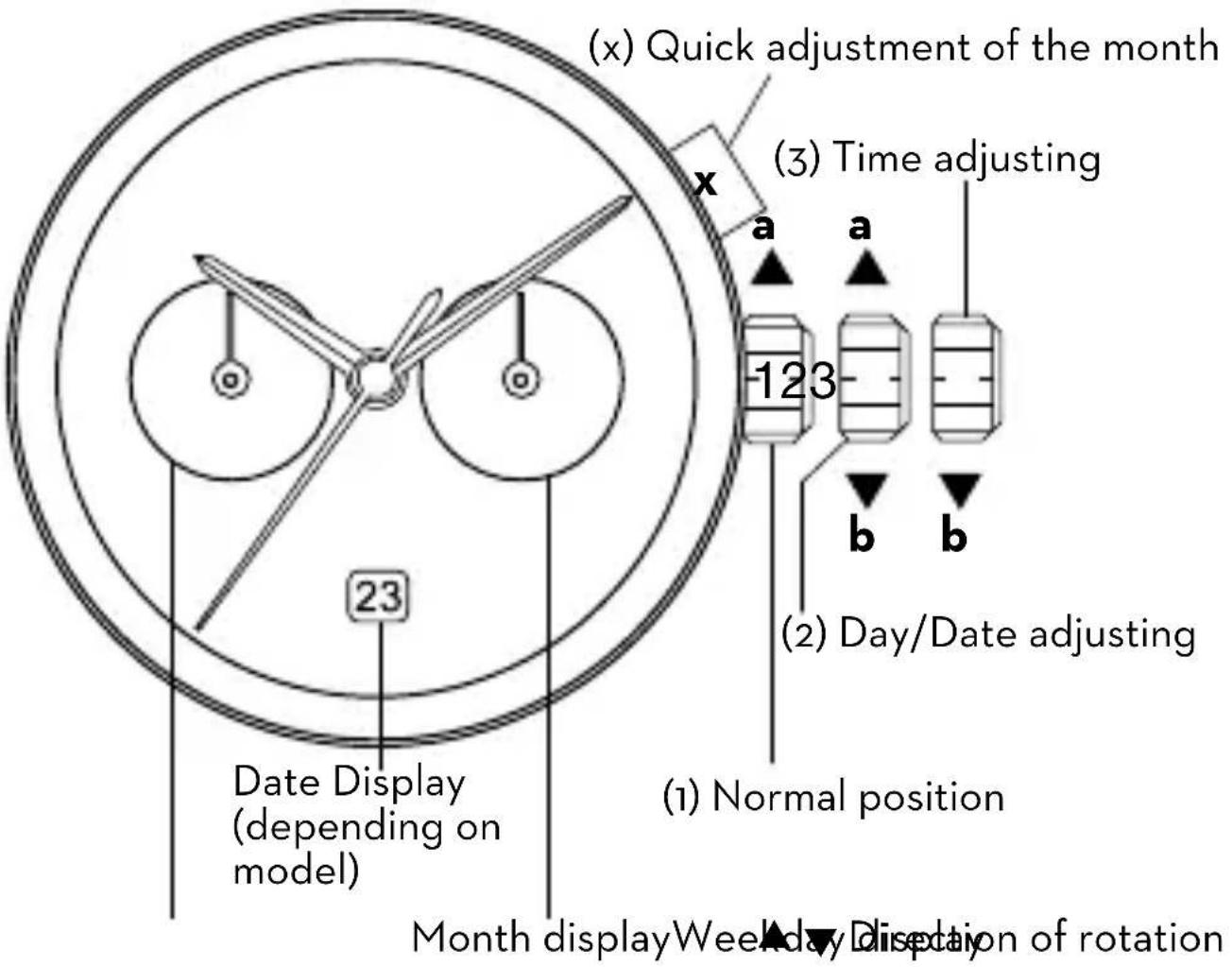

(x) Quick adjustment of the month (3) Time adjusting a a -123 b b (2) Day/Date adjusting (1) Normal position Date Display (depending on model) Month display Weekday Dissection of rotation

Models: KAPPA Kalender / FESTA Kalender

Setting time

The automatic lift works only by the movement of the bearer of the watch. For the introduction the hand lift is to be operated. 30 rotations of the freely swivelling crown are optimum.

1. The watch can be wound up manually: The crown stays in normal position (1). A few turns of the crown suffice to set the movement in motion. We recommend to wind the watch completely (about 30 times), as this guarantees maximum accuracy and power reserve (including after removal of the watch). The watch should be worn after winding in order for the automatic winding mechanism to maintain a fully-wound state (via the rotor movement).

2. Quick setting of the date respectively the weekday display

Pull the crown (2). To set the date rotate counter clock-wise (a), for setting the day rotate clock-wise (b). When putting the watch into operation the date of the previous day should be adjusted.

Attention!

Date alteration should not be performed between 11:00 p.m. and 3:00 a.m., in this period the date is switched automatically by the movement and damage may be caused to the switching mechanism. If the month has less than 31 days, the date must be set to the 1st of the following month by hand.

3. Time adjust

Pull the crown (3), the second hand stops and the exact time can be set. Pass the hour hand clockwise (b) over the cipher 12 until the date shifts to the present day (correspondent to 12 am). According to the respective half of day time can be set. The watch will start as soon as the crown is pushed back in.

Attention!

To avoid movement defects, generally, hands should be moved only clockwise (b) while setting the time.

4. Setting the month

Press X until the month is shown correctly.

Attention!

For the right setting the pusher must be operated completely.

5. Setting the weekday

Pull the crown (2) and rotate clock-wise (b) until the correct day is shown.

Instruction manual „Manual Winding“

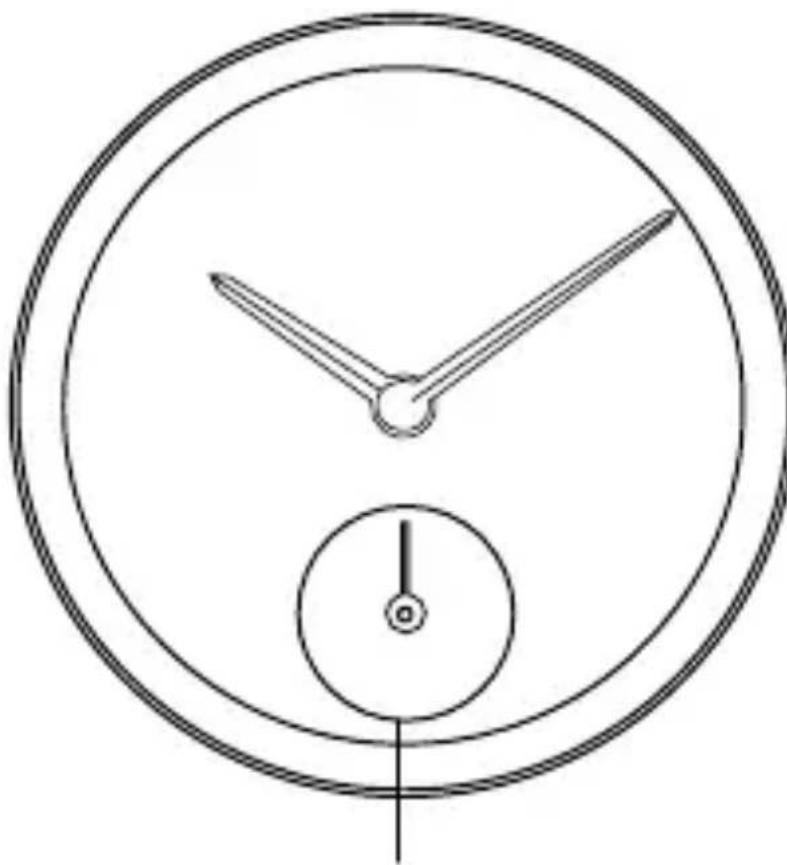

Simple line drawing of a clock face with hour and minute hands (no numbers or text)

Small second

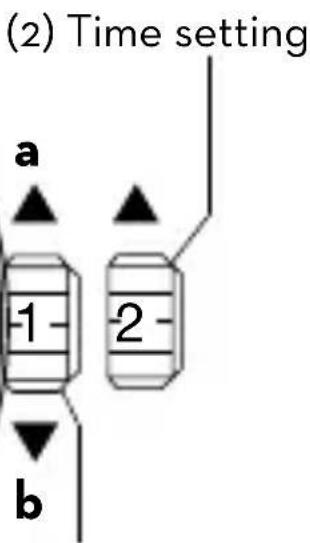

(2) Time setting a 1 2 b

(1) Normal position

▲▼ Direction of rotation

Model: EPSILON

Winding the watch

Your watch has a manual winding movement. If, after being fully wound, the watch is not wound again for a period of max. 48 hours the watch will stop and you will have to wind it by hand once again to restart it.

1. To do this, simply turn the crown in normal position (1) clockwise (b) and counter-clockwise (a). The movement will restart after only a few turns. Now continue turning the crown carefully back and forth until you can distinctly feel resist once. The crown cannot be turned any further as the movement spring is fully tensioned.

Attention!

Turning by force leads inevitably to damage!

From this point the movement spring will keep the watch running for another max. 48 hours. For everyday use we recommend winding your watch every morning before putting it on. This provides the movement spring with sufficient energy reserves to keep your watch running until the next morning and beyond.

2. Setting the time

Pull the crown into the time setting position (2), then turn it clockwise (b) until you have reached the correct time. Push the crown back into the normal position (1).

GENERAL INFORMATION

Water resistance 1.

Marking on the backside of the case	Washing, rain, splashes
none no
water resistant 3 ATM	yes
water resistant 5 ATM	yes
water resistant 10 ATM	yes
water resistant 20 ATM	yes

	Shower Bath Swimming Diving
	no no no no
	no no no no
	no yes no no
	yes yes yes v
	yes yes yes yes

2. Avoid temperature fluctuations

Please avoid leaving your watch in direct sunlight, at very warm or cold locations for long periods. This could cause the watch to go faster or slower.

3. Avoid damp environments

Do not use the buttons if the watch is wet or damp.

4. Avoid heavy impacts

This watch is able to withstand all impacts in normally occurring. However, you should avoid dropping your watch on the ground or exposing it to excessive shocks in other ways. Unproper treatment of your watch can suspend the waterresistance.

5. Avoid strong magnetic fields

Keep your watch out of the direct area of strong magnetic fields. In general however, the function of your watch is not impaired by the magnetic fields emitted by domestic appliances, TV sets or stereo equipment.

6. Avoid strong chemicals, solvents and gases

Do not wear your watch in the vicinity of strong chemicals, solvents or noxious gases. If your watch comes into contact with substances containing petrols, paint thinners, alcohols, cosmetic sprays, nail varnishes, nail varnish removers, adhesives, paints or paint strippers, this could impair the quality of or damage the case, strap, bracelet or other components of the watch.

7. Keep your watch clean

Use a soft, clean cloth to wipe off all traces of water and moisture on the case, glass, strap or bracelet. Dirt of any type on the case, strap or bracelet could result in slight skin rashes. A watch bracelet or strap accumulates slight dirt as the result of de posited perspiration and dust since it is constantly in contact with the skin.

Even a stainless steel or gold-plated bracelet could start to corrode if it is not cleaned for long periods.

Woven straps may loose their special flexibility and become less attractive if they are soiled. They should therefore be washed from time to time. Metal bracelets should normally be washed with a brush in mild, soapy water and dried with a soft, absorbent cloth. After doing this, ensure that all water has been removed.

Please ensure that no water penetrates the inside of the watch when you wash the strap or bracelet.

8. Periodic inspection

We advise you to have the watch inspected every 2 to 3 years in order to maintain it in perfect working order for many years.

1. Be sure to keep parts out of reach of infants and small children. Should accidental ingestion occur, consult a doctor at once.

WARRANTY

Your DUGENA watch is warranted by NOVA TEMPORA Uhren und Schmuck GmbH for a period of 36 months since the date of purchase. During the warranty period all defects in material or workmanship will be removed without charge. To the extent that we, NOVA TEMPORA Uhren und Schmuck GmbH, at our sole discretion, consider that repair is not practicable or inefficient, our obligation and options under this warranty are limited solely to replacing the watch with the same style or a style of comparable value. Defects caused by improper handling, incorrect use or natural wear are excluded from the warranty. This warranty does not comprise bracelet/strap, crown and glass. NOVA TEMPORA Uhren und Schmuck GmbH is not liable for incidental or consequential damages resulting from malfunction of the watch. Failure to observe special instructions for operating or care are deemed to be improper handling. In case of warranty please contact an authorized DUGENA dealer, preferably the retailer shop from which your watch has been purchased, by submission of the watch together with the invoice and the properly filled in warranty-card. Nothing in this warranty is intended to diminish in any way specific legal rights under any jurisdiction which may vary from state to state (in the USA) or the purchaser's right under the United Nations Convention on Contracts for the International Sale of Goods.

