USER MANUAL UltraSharp U3419w DELL

Dell UltraSharp U3419W Monitor

User's Guide

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use of your computer.
△ CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.
⚠ WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Copyright © 2018 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell™ and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies.

2018 - 11

Rev. A01

Contents

About Your Monitor....6

Package Contents 6

Product Features 8

Identifying Parts and Controls 9

Front View....9

Back View 10

Side View 11

Bottom View 12

Monitor Specifications 14

Flat Panel Specifications 14

Resolution Specifications ....15

Supported Video Modes....16

Preset Display Modes....16

Electrical Specifications 17

Speaker Specifications 17

Physical Characteristics 18

Environmental Characteristics....19

Power Management Modes 19

Pin Assignments 21

Plug and Play Capability 23

Universal Serial Bus (USB) Interface 23

USB Upstream Connector.... 24

USB Downstream Connector 24

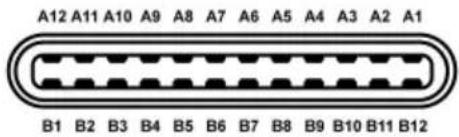

USB Type-C Connector.... 25

USB Ports 25

LCD Monitor Quality and Pixel Policy 26

Maintenance Guidelines 26

Cleaning Your Monitor 26

Setting Up the Monitor .....27

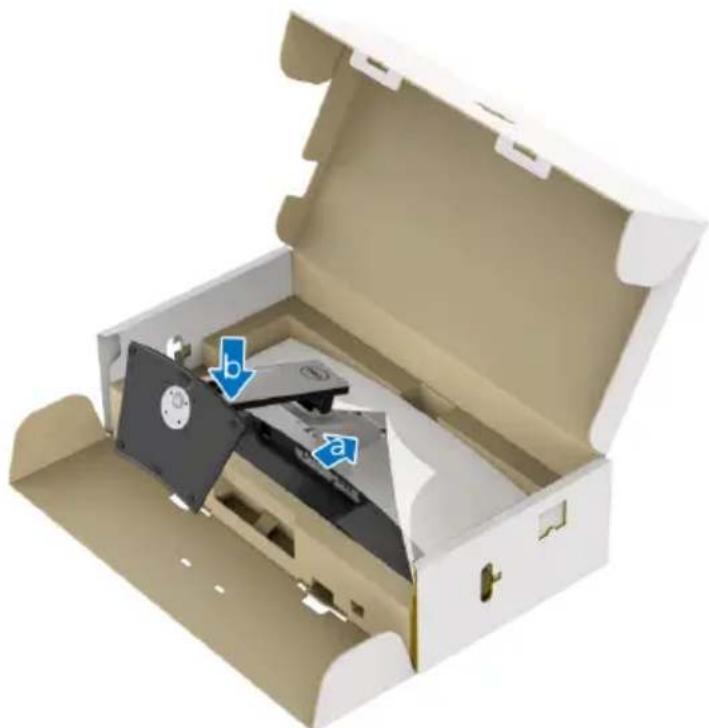

Attaching the Stand 27

Connecting Your Monitor 30

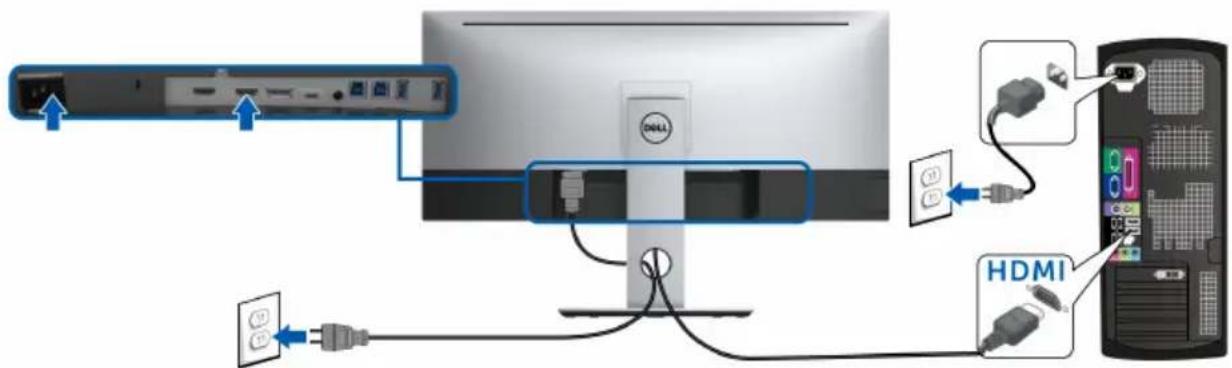

Connecting the HDMI cable 30

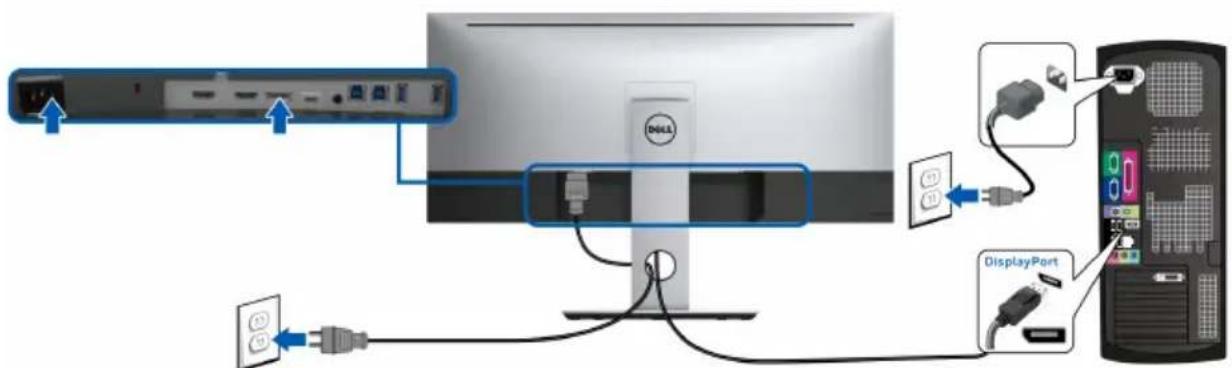

Connecting the DisplayPort (DP to DP) cable.... 31

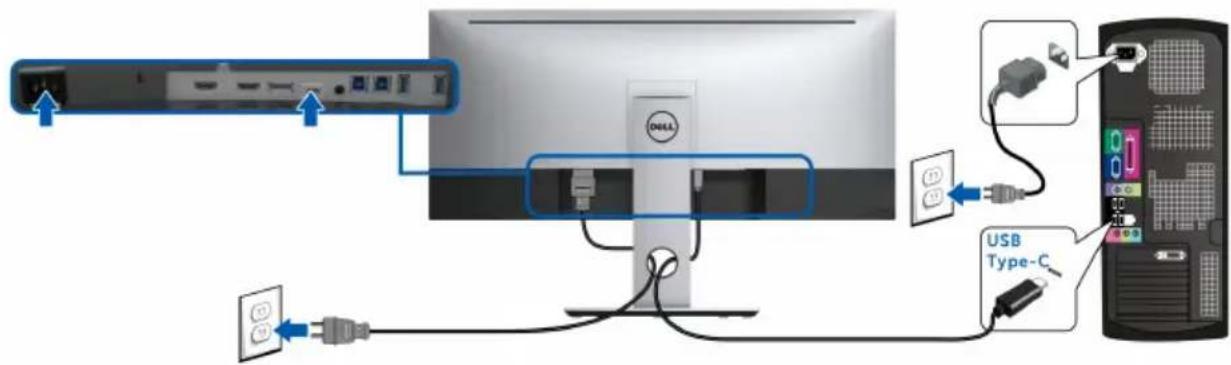

Connecting the USB Type-C cable 32

Connecting the USB 3.0 cable .... 33

Organizing Your Cables 34

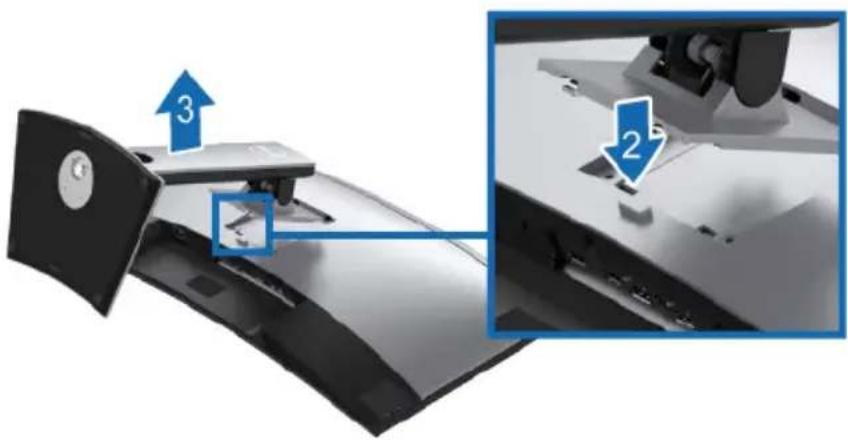

Removing the Monitor Stand 35

Wall Mounting (Optional).... 35

Operating the Monitor ....37

Power On the Monitor 37

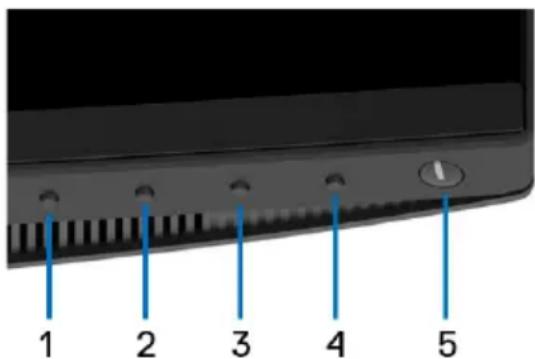

Using the Front Panel Controls 37

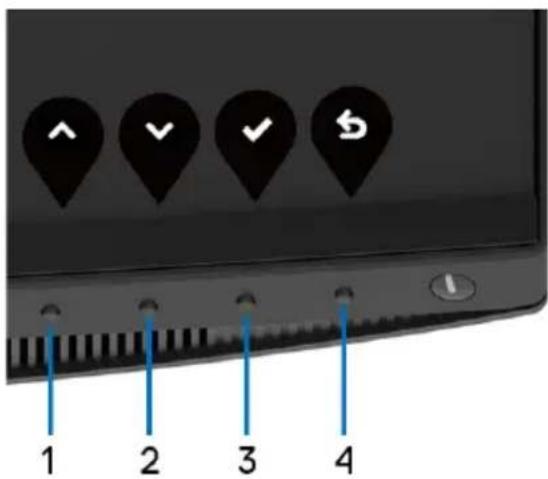

Front Panel Button 38

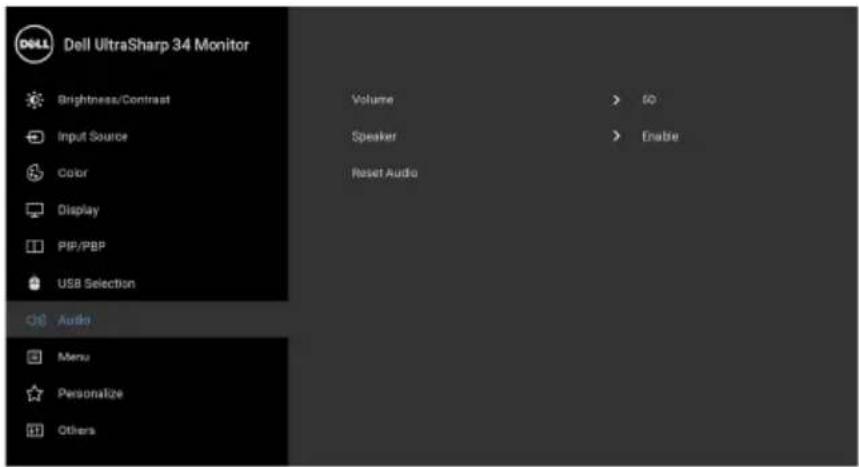

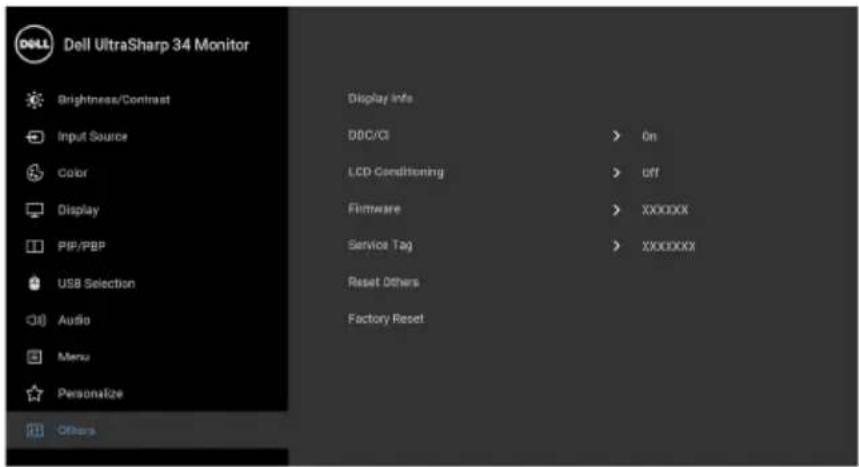

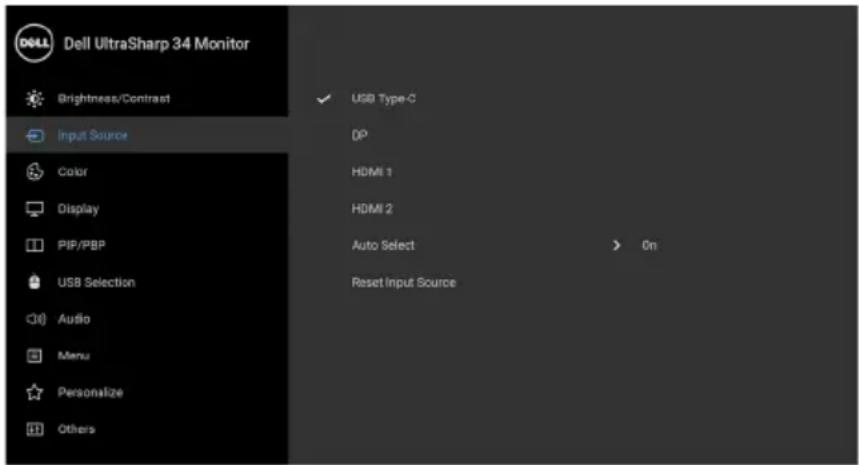

Using the On-Screen Display (OSD) Menu ..... 39

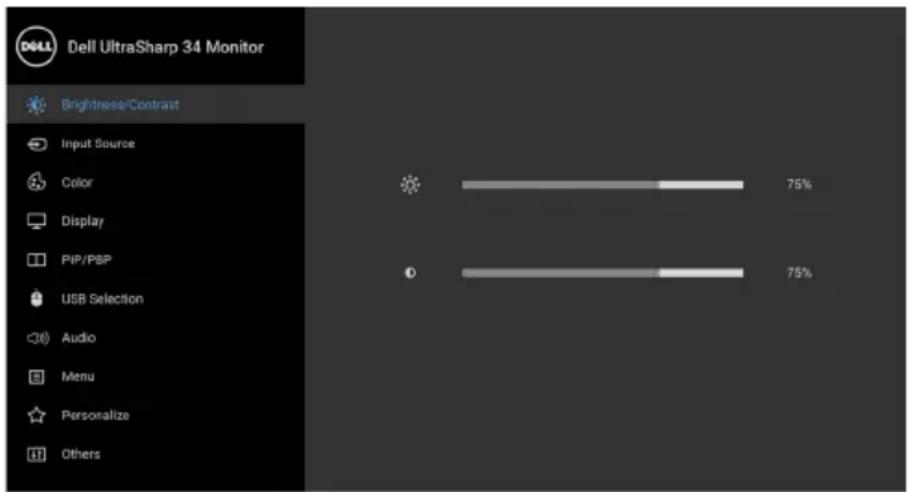

Accessing the Menu System 39

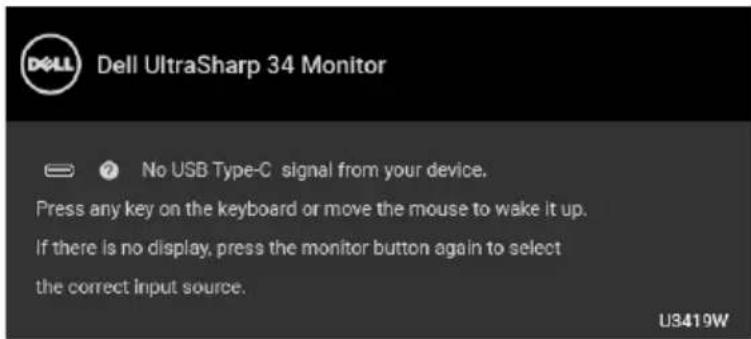

OSD Warning Messages....52

Setting the Maximum Resolution.... 54

Tilt, Swivel....59

Troubleshooting....61

Self-Test.... 61

Built-in Diagnostics 62

Common Problems....63

Product Specific Problems 66

Universal Serial Bus (USB) Specific Problems ..... 67

Speakers Specific Problems 68

Appendix 69

FCC Notices (U.S. Only) and Other Regulatory

Information.... 69

Contact Dell 69

About Your Monitor

Package Contents

Your monitor ships with the components shown below. Ensure that you have received all the components and Contact Dell if something is missing.

NOTE: Some items may be optional and may not ship with your monitor. Some features or media may not be available in certain countries.

NOTE: To set up with any other stand, please refer to the respective stand setup guide for setup instructions.

			Monitor
			Stand Riser
			Stand Base
			Power Cable (Varies by Country)
			HDMI Cable
			DP Cable (DP to DP)
			USB 3.0 Upstream Cable(Enables the USB Ports on the Monitor)
			USB Type-C Cable
			· Quick Set· Factory Calibration Report· Safety, Environmental, and Regulatory Information

Product Features

The Dell U3419W flat panel display has an active matrix, Thin-Film Transistor (TFT), Liquid Crystal Display (LCD) and LED backlight. The monitor features include:

• 86.7 cm (34-inch) viewable area display (measured diagonally). 3440 x 1440 resolution, plus full-screen support for lower resolutions.
• Wide viewing angle to allow viewing from a sitting or standing position.
• Tilt, swivel, and vertical extension adjustment capabilities.
• Ultra-thin bezel minimizes the bezel gap in multi-monitor usage, enabling easier setup with an elegant viewing experience.
• Removable stand and Video Electronics Standards Association (VESA™) 100 mm mounting holes for flexible mounting solutions.
• Plug and play capability if supported by your system.

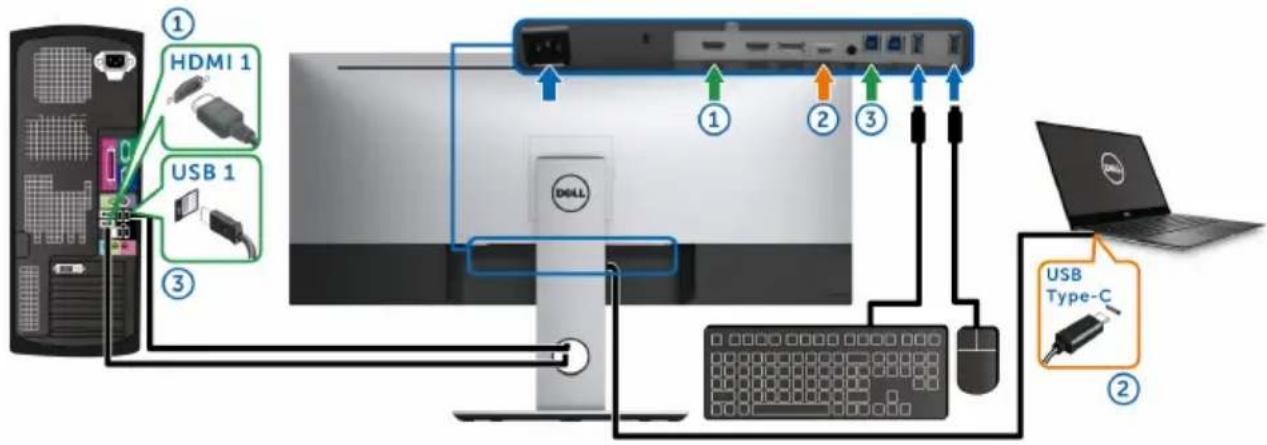

• The build t-in KVM switch allows you to control up to 2 computers from a single set of keyboard and mouse connected to the monitor.
  • Color gamut of 99% sRGB with an average Delta E <_ 3.
• On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
  • Supports HDMI, USB Type-C, DisplayPort sources.
• Single USB Type-C to supply power to a compatible notebook while receiving video & data signal.
• Security lock slot.
• Stand lock.
• Capability to switch from wide aspect to standard aspect ratio while maintaining the image quality.
• 0.5 W standby power when in the sleep mode.
• Energy Gauge shows the energy level being consumed by the monitor in real time.
• Optimize eye comfort with a flicker-free screen and ComfortView feature which minimizes blue light emission.

NOTE: The possible long-term effects of blue light emission from the monitor may cause damage to the eyes, including eye fatigue or digital eye strain. ComfortView feature is designed to reduce the amount of blue light emitted from the monitor to optimize eye comfort.

• Supports Picture by Picture (PBP) and Picture in Picture (PIP) Select mode.

Identifying Parts and Controls

Front View

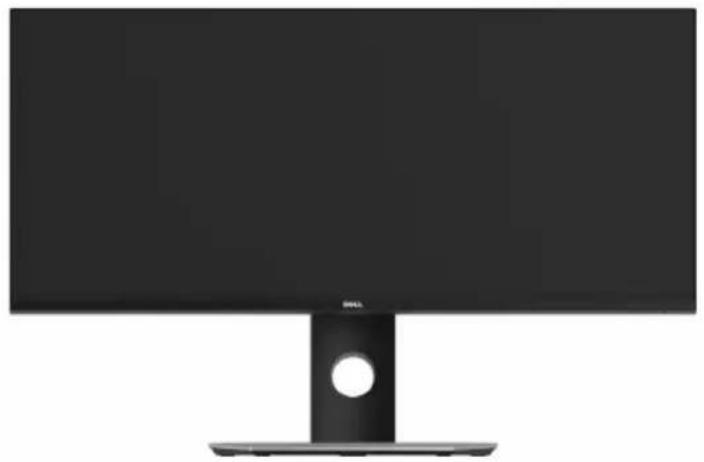

Front view of a black desktop computer monitor with a circular logo on the top (no visible text or symbols)

1 2

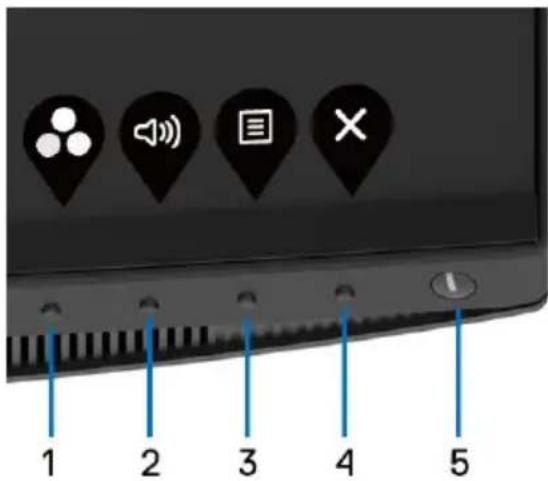

Front panel controls

Label Description
1	Function buttons (For more information, see Operating the Monitor)
2	Power On/Off button (with LED indicator)

Back View

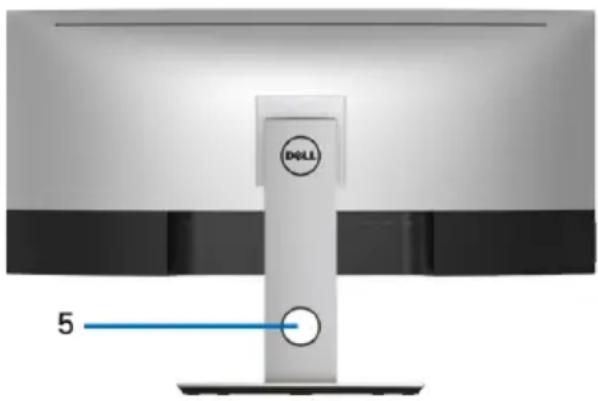

1 2 3 4

DOLLI 5

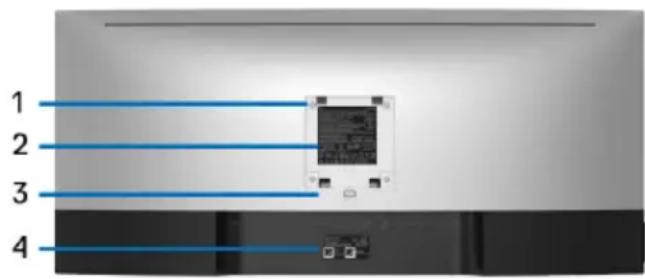

Back view with monitor stand

Label Description Use

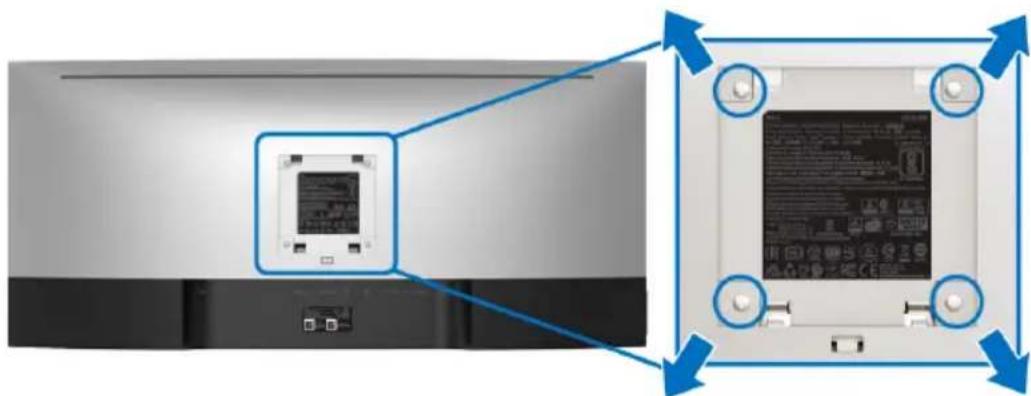

1 VESA mounting holes (100 mm x 100 mm - behind attached VESA Cover)	Wall mount monitor using VESA-compatible wall mount kit (100 mm x 100 mm).
2 Regulatory label Lists the regulatory approvals.
3 Stand release button Releases stand from monitor.
4 Barcode serial number label Refer to this label if you need to contact Dell for technical support.

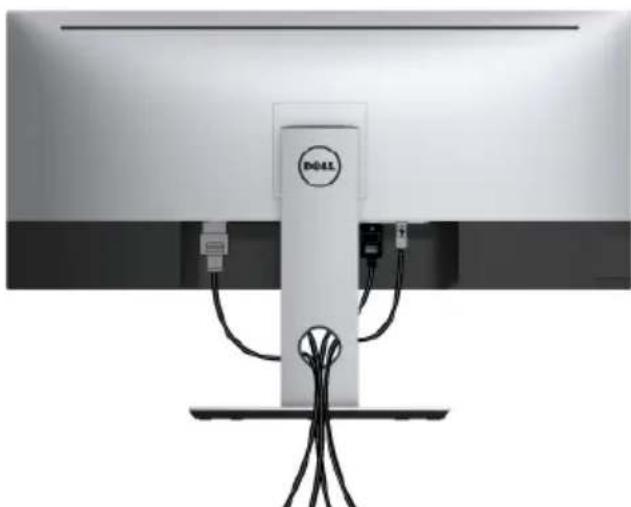

5 Cable management slot Use to organize cables by placing them through the slot.

Side View

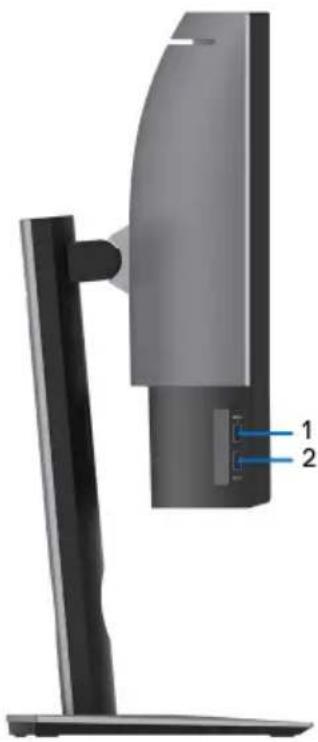

Side view of a computer monitor with labeled ports (no text or symbols on the device itself)

Label Description Use
1 USB downstream port Connect your USB device. You can only use this connector after you have connected the USB cable to the computer and USB upstream connector on the monitor.*
2 USB downstream port with Power Charging	Connect to charge your device.

* To avoid signal interference, when a wireless USB device has been connected to a USB downstream port, it is NOT recommended to connect any other USB devices to the adjacent port(s).

Bottom View

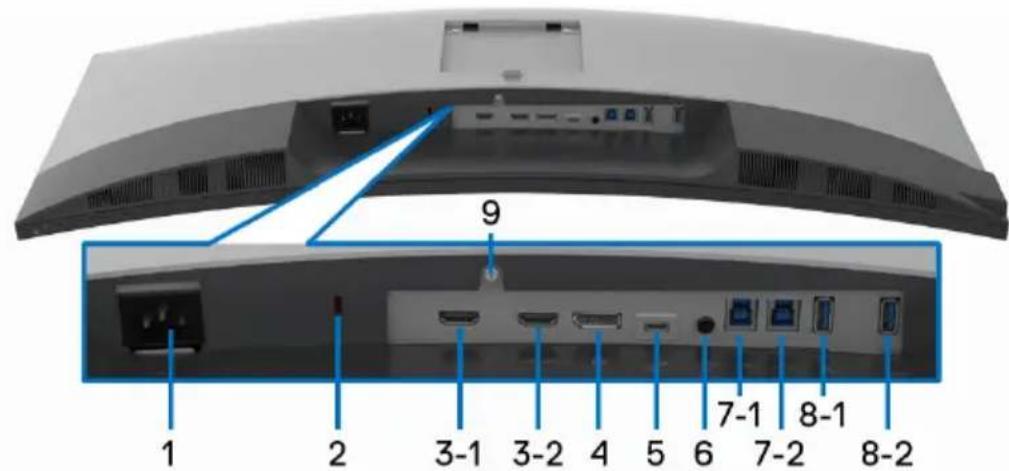

1 2 3-1 3-2 4 5 6 7-1 7-2 8-1 8-2 9

Bottom view without monitor stand

Label Description Use
1 AC	power connector Connect the power cable.
2 Security lock slot Secures monitor with security lock (security lock not included).
3 (1, 2)	HDMI port connector Connect your computer with HDMI cable.
4 DisplayPort in connector Connect your computer with DP cable.
5 USB Type-C port Connect the USB Type-C cable that came with your monitor to the computer or mobile device. This port supports USB Power Delivery, Data, and DisplayPort video signal. The USB 3.1 Type-C port offers the fastest transfer rate and the alternate mode with DP1.2 supports a maximum resolution of 3440 x 1440 at 60Hz, PD 20V/4.5A, 15V/3A, 9V/3A, and 5V/3A.NOTE: USB Type-C is not supported on versions of Windows prior to Windows 10.
6 Audio-Line out Connect your speakers.*

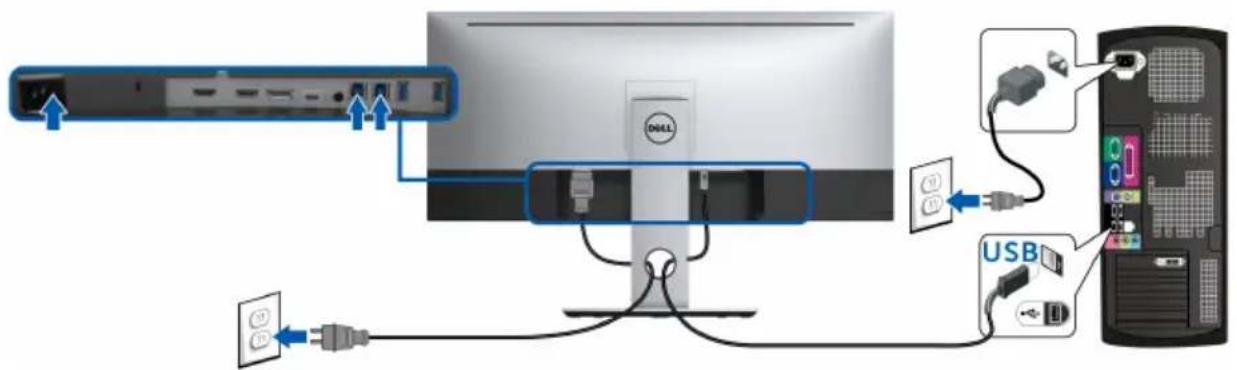

7 (1, 2) USB upstream port Connect the USB cable that came with your monitor to the computer. Once this cable is connected, you can use the USB connectors on the monitor.
8-1 USB downstream port Connect your USB device. You can only use this connector after you have connected the USB cable to the computer and USB upstream connector on the monitor.**
8-2 USB downstream port with Power Charging	Connect to charge your device.
9 Stand lock feature To lock the stand to the monitor using a M3 x 6 mm screw (screws not included).

* Headphone usage is not supported for the audio line out connector.

** To avoid signal interference, when a wireless USB device has been connected to a USB downstream port, it is NOT recommended to connect any other USB devices to the adjacent port(s).

Monitor Specifications

Flat Panel Specifications

Model U3419W
Screen type Active matrix	- TFT LCD
Panel technology In-Plane	Switching Type
Viewable image
Diagonal Horizontal, Active Area Vertical, Active Area Area	867.2 mm (34.14 inches) 799.80 mm (31.49 inches) 334.80 mm (13.18 inches) 267773.04 mm^2 (415.01 inch ^2 )
Pixel pitch 0.233 mm x 0.233 mm
Pixel per inch 109
Viewing angle 178° (vertical) typical 178° (horizontal) typical
Luminance output 300 cd/ m^2 (typical)
Contrast ratio 1000 to 1 (typical)
Faceplate coating Antiglare with hard-coating 3H
Backlight LED edgelight system
Response time	8 ms for NORMAL mode 5 ms for FAST mode
Color depth 1.074 billion colors
Color gamut* sRGB 99%	CIE1976 (90%), and CIE 1931 (75%)
Built-in devices	· USB 3.0 super-speed hub (with 2 x USB 3.0 upstream port) · 4 x USB 3.0 downstream ports
Connectivity · 2 x HDMI 2.0 (HDCP 2.2) · 1 x DP 1.2 (HDCP 2.2) · 2 x USB 3.0 Upstream · 2 x USB 3.0 Downstream · 2 x USB 3.0 Downstream · 1x USB Type-C (DisplayPort DP1.2 Alternate Mode, Power Delivery, and USB2.0)
Border width (edge of monitor to active area)	10.55 mm (Top) 10.05 mm (Left/Right)
Adjustability

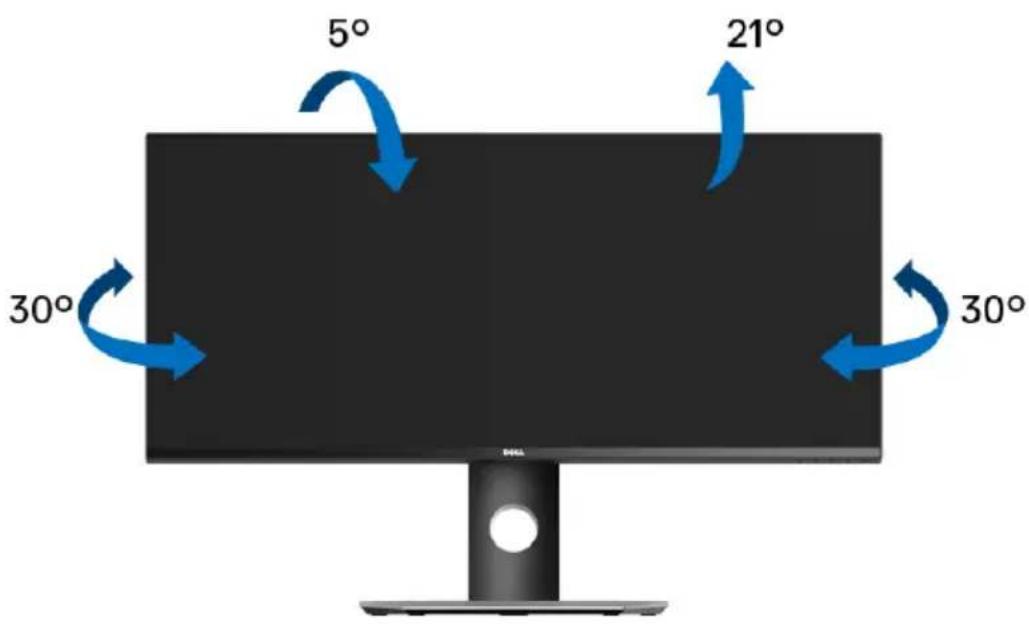

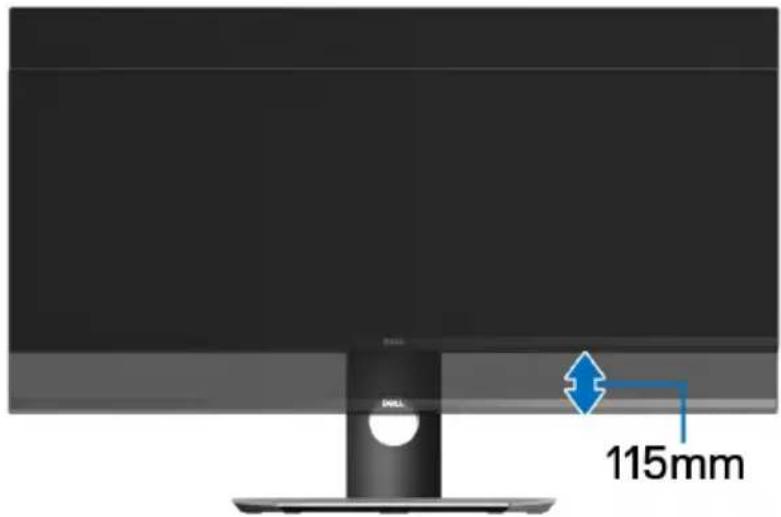

Height adjustable stand Tilt Swivel Pivot	0 to 115 mm -5° to 21° -30° to 30° N/A
NOTE: Do not mount or use this monitor in portrait (vertical) orientation or inverse (180°) landscape mount as it may damage the monitor.
Dell Display Manager (DDM) Compatibility	Yes
Security · Security lock slot (cable lock sold separately) · Anti-theft stand lock slot (to panel)

* At panel native only, under Custom Mode preset.

Resolution Specifications

Model U3419W
Horizontal scan range(HDMI & DP & USB Type-C alternate mode)	30 kHz to 134 kHz (automatic)
Vertical scan range(HDMI & DP & USB Type-C alternate mode)	48 Hz to 76 Hz (automatic)
Maximum preset resolution 3440 x 1440 at 60Hz

Supported Video Modes

Model U3419W
Video display capabilities (HDMI & DP & USB Type-C alternate mode)	480p, 480i, 576p, 720p, 1080p, 576i, 1080i

Preset Display Modes

Display Mode Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock (MHz)	Sync Polarity (Horizontal/ Vertical)
VESA, 640 x 400 31.47	70.09 25.18 -/+
VESA, 640 x 480 31.47	59.94 25.17	-/-
VESA, 640 x 480 37.50	75.00	31.5	-/-
VESA, 720 x 400 31.47	70.08	28.32	-/+
VESA, 800 x 600	37.88	60.32	40
VESA, 800 x 600	46.88	75.00	49.5
VESA, 1024 x 768	48.36	60.00	65
VESA, 1024 x 768	60.02	75.03 78.75	+/+
VESA, 1152 x 864 67.50	75.00	108	+/+
VESA, 1280 x 800 - R	49.31 59.91	71	+/-
VESA, 1280 x 1024	63.98	60.02	108
VESA, 1280 x 1024	79.98	75.03	135
VESA, 1600 x 1200	75.00	60.00	162
VESA, 1920 x 1080	67.50	60.00	148.5
VESA, 2560 x 1440	88.79	59.95 241	5 +/-
VESA, 3440 x 1440*	88.82	60.00	319.75

* Requires a graphics card that supports HDMI 2.0.

Electrical Specifications

Model U3419W
Video input signals HDMI 2.0	*/DP 1.2, 600 mV for each differential line,100 ohm input impedance per differential pair.
AC input voltage/frequency/current	100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 3 A(typical)
Inrush current · 120 V: 40 A	(Max.) at 0 °C (cold start)· 220 V: 80 A (Max.) at 0 °C (cold start)

* Not Support HDMI 2.0 optional specification, include HDMI Ethernet Channel (HEC), Audio Return Channel (ARC), standard for 3D format and resolutions, and standard for 4K digital cinema resolution.

Speaker Specifications

Model U3419W
Speaker 2 x 9.0 W
Frequency Response 100 Hz - 20 kHz
Impedance 8 ohm

Physical Characteristics

Model U3419W
Signal cable type · Digital: HDMI, 19	pinsDigital: DisplayPort, 20 pinsUniversal Serial Bus: USB, 4 pinsUniversal Serial Bus: Type-C, 24 pins
Dimensions (with stand)
Height (extended) 532.0 mm (20.94 inches)
Height (compressed) 417.0 mm (16.42 inches)
Width 813.6 mm (32.03 inches)
Depth 226.4 mm (8.91 inches)
Dimensions (without stand)
Height 363.7 mm (14.32 inches)
Width 813.6 mm (32.03 inches)
Depth 58.4 mm (2.30 inches)
Stand dimensions
Height (extended) 419.1 mm (16.50 inches)
Height (compressed) 382.6 mm (15.06 inches)
Width 342.2 mm (13.47 inches)
Depth 226.4 mm (8.91 inches)
Weight
Weight with packaging 16.0 kg (35.27 lb)
Weight with stand assembly and cables	11.1 kg (24.47 lb)
Weight without stand assembly(For wall mount or VESA mount considerations - no cables)	8.2 kg (18.07 lb)
Weight of stand assembly 2.4 kg (5.29 lb)
Front frame gloss	37%-57% gloss unit

Environmental Characteristics

Model U3419W
Compliant Standards
· BFR/PVC-free (Halogen-free) excluding external cables· Meets NFPA 99 leakage current requirements· Arsenic-Free glass and Mercury-Free for the panel only
Temperature
Operating 0 °C to 40 °C (32 °F to 104 °F)
Non-operating -20 °C to 60 °C (-4 °F to 140 °F)
Humidity
Operating 10% to 80% (non-condensing)
Non-operating 5% to 90% (non-condensing)
Altitude
Operating 5,000 m (16,404 ft) (maximum)
Non-operating 12,192 m (40,000 ft) (maximum)
Thermal dissipation · 853.00 BTU/hour (maximum)· 1 8 4 . 2 5 BTU / hour (ty

Power Management Modes

If you have VESA's DPM™ compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. This is referred to as Power Save Mode*. If the computer detects input from the keyboard, mouse, or other input devices, the monitor automatically resumes functioning. The following table shows the power consumption and signaling of this automatic power saving feature.

VESA Modes	Horizontal Sync	Vertical Sync	Video P	Power Indicator	Power Consumption
Normal operation	Active	Active	Active	White	250 W (maximum) ** 54 W (typical)
Active-off mode	Inactive	Inactive	Blanked	White (blinking)	Less than 0.5 W

Switch off -

- - Off Less than 0.5 W

The OSD functions only in the normal operation mode. When any button is pressed in the Active-off mode, the following message will be displayed:

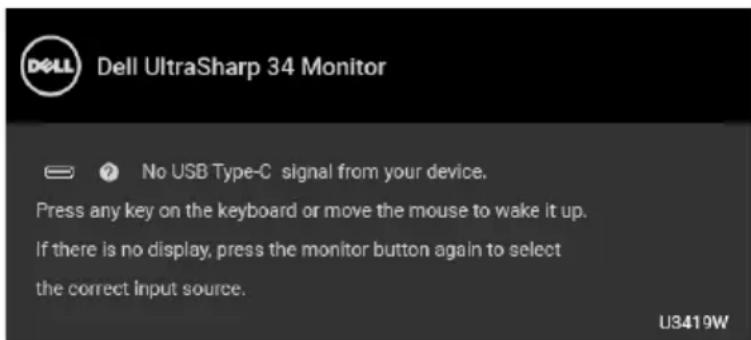

Dell UltraSharp 34 Monitor No USB Type-C signal from your device. Press any key on the keyboard or move the mouse to wake it up. If there is no display, press the monitor button again to select the correct input source. U3419W

Activate the computer and the monitor to gain access to the OSD.

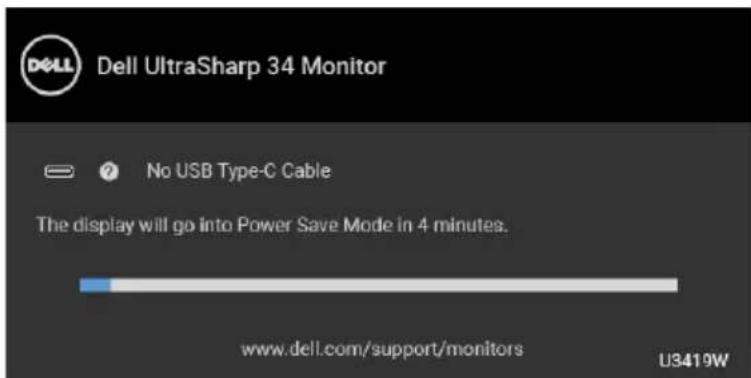

NOTE: The message may be slightly different according to the connected input signal.

* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.
** Maximum power consumption with max luminance, and USB active.

This document is informational only and reflects laboratory performance. Your product may perform differently, depending on the software, components and peripherals you ordered and shall have no obligation to update such information. Accordingly, the customer should not rely upon this information in making decisions about electrical tolerances or otherwise. No warranty as to accuracy or completeness is expressed or implied.

Pin Assignments

DisplayPort Connector

19 17 15 13 11 9 7 5 3 1 20 18 16 14 12 10 8 6 4 2

Pin Number	20-pin Side of the Connected Signal Cable
1 ML3	(n)
2 GND
3 ML3	(p)
4 ML2	(n)
5 GND
6 ML2	(p)
7 ML1	(n)
8 GND
9 ML1	(p)
10 ML0	(n)
11 GND
12 ML0	(p)
13 GND
14 GND
15 AUX	(p)
16 GND
17 AUX	(n)
18 Hot	Plug Detect
19 Re-P	WR
20 +3.3	V DP_PWR

HDMI Connector

19 17 15 13 11 9 7 5 3 1 18 16 14 12 10 8 6 4 2

Pin Number	19-pin Side of the Connected Signal Cable
1 TMDS DATA 2+
2 TMDS DATA 2 SHIELD
3 TMDS DATA 2-
4 TMDS DATA 1+
5 TMDS DATA 1 SHIELD
6 TMDS DATA 1-
7 TMDS DATA 0+
8 TMDS DATA 0 SHIELD
9 TMDS DATA 0-
10 TMDS CLOCK+
11 TMDS CLOCK SHIELD
12 TMDS CLOCK-
13 CEO
14 Reserved (N.C. on device)
15 DDC CLOCK (SCL)
16 DDC DATA (SDA)
17 DDC/CEC Ground
18 +5V POWER
19 HOT PLUG DETECT

Plug and Play Capability

You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display Identification Data (EDID) using Display Data Channel (DDC) protocols so the system can configure itself and optimize the monitor settings. Most monitor installations are automatic; you can select different settings if desired. For more information about changing the monitor settings, see Operating the Monitor.

Universal Serial Bus (USB) Interface

This section gives you information about the USB ports that are available on the monitor.

NOTE: This monitor is Super-Speed USB 3.0 compatible.

Transfer Speed	Data Rate Power	Consumption*
Super-speed 5 Gbps	4.5 W (Max, each port)
High speed 480 Mbps	4.5 W (Max, each port)
Full speed 12 Mbps	4.5 W (Max, each port)

* Up to 2A on USB downstream port (port with 📄️ 📋️ 📁️ 📁️ icon) with BC1.2 compliance devices or normal USB devices.

USB 3.0 Type-C	Description
Video	DP1.2
Data	USB 2.0
Power Delivery (PD)	Up to 90 W (typical)

USB Upstream Connector

5 2 9 1 3 4

Pin Number 9-pin Side of the Connector

1 VCC
2 D-
3 D+
4 GND
7 GND

5 SSTX-

6 SSTX+

8 SSRX-

9 SSRX+

USB Downstream Connector

Pin Number 9-pin Side of the Connector

1 VCC
2 D-
3 D+
4 GND

5 SSRX-

6 SSRX+

7 GND

8 SSTX-

9 SSTX+

USB Type-C Connector

A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12

Pin Number Signal Name Pin Number Signal Name
A1 GND B1 GND
A2 TX1+	B2 TX2+
A3 TX1-	B3 TX2-
A4 VBUS	B4 VBUS
A5 CC	B5 VCONN
A6 D+	B6
A7	D-	B7
A8 SBU1	B8 SBU2
A9 VBUS	B9	VBUS
A10	RX2-	B10	RX1-
A11	RX2+	B11	RX1+
A12	GND B12	GND

USB Ports

• 1 x USB Type-C - bottom
• 2 x USB 3.0 upstream - bottom
• 2 x USB 3.0 downstream - bottom
• 2 x USB 3.0 downstream - side
• Power Charging Port- the port with 📋️ emoji icon; supports up to 2A fast current charging capability if the device is BC1.2 compatible.

NOTE: USB 3.0 functionality requires a USB 3.0-capable computer.
NOTE: The monitor's USB interface works only when the monitor is On or in the power save mode. If you turn Off the monitor and then turn it On, the attached peripherals may take a few seconds to resume normal functionality.

LCD Monitor Quality and Pixel Policy

During the LCD Monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state which are hard to see and do not affect the display quality or usability. For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at: http://www.dell.com/support/monitors.

Maintenance Guidelines

Cleaning Your Monitor

△ CAUTION: Read and follow the Safety Instructions before cleaning the monitor.
⚠ WARNING: Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.

For best practices, follow the instructions in the list below while unpacking, cleaning, or handling your monitor:

• To clean your anti-static screen, lightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the anti-static coating. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.
• Use a lightly-dampened, warm cloth to clean the monitor. Avoid using detergent of any kind as some detergents leave a milky film on the monitor.
• If you notice white powder when you unpack your monitor, wipe it off with a cloth.
• Handle your monitor with care as a darker-colored monitor may get scratched and show white scuff marks more than a lighter-colored monitor.
• To help maintain the best image quality on your monitor, use a dynamically changing screen saver and turn Off your monitor when not in use.

Setting Up the Monitor

Attaching the Stand

NOTE: The stand is detached when the monitor is shipped from the factory.
NOTE: This is applicable for a monitor with a stand. When any other stand is bought, please refer to the respective stand setup guide for the set up instructions.
△ CAUTION: Do not remove the monitor from the packaging box before attaching the stand.

To attach the monitor stand:

1. Follow the instructions on the flaps of carton to remove the stand from the top cushion that secures it.
2. Insert the stand base blocks fully into the stand slot.
3. Lift the screw handle and turn the screw clockwise.
4. After fully tightening the screw, fold the screw handle flat within the recess.

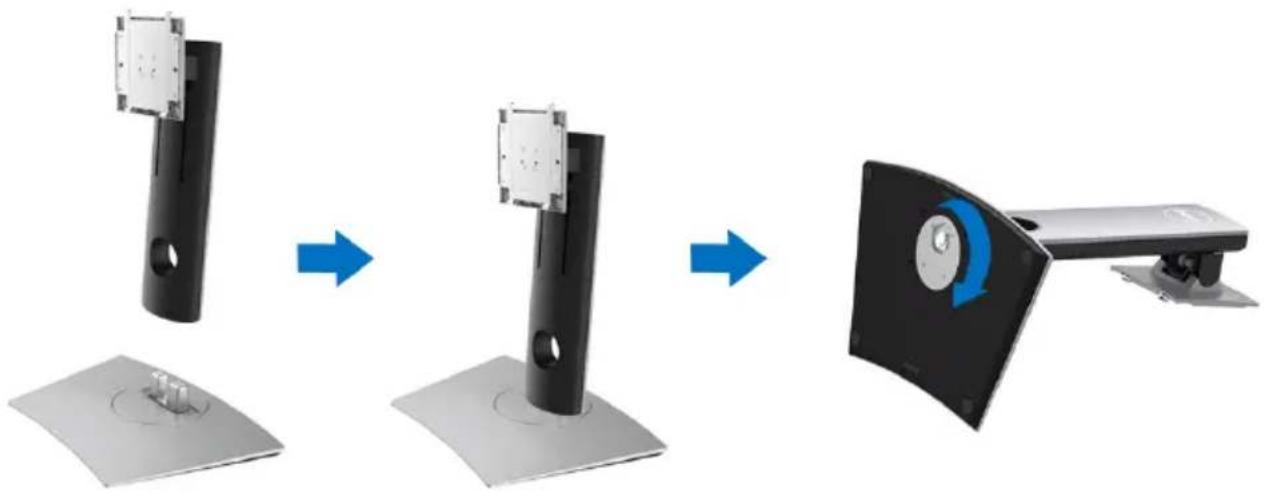

Three-step diagram showing a computer monitor with mounting base, before and after assembly, no text or symbols present.

1. Lift the cover, as shown, to expose the VESA area for stand assembly.

3D cutaway view of an open beige box with internal compartments and blue directional arrows indicating flow or movement (no text or symbols)

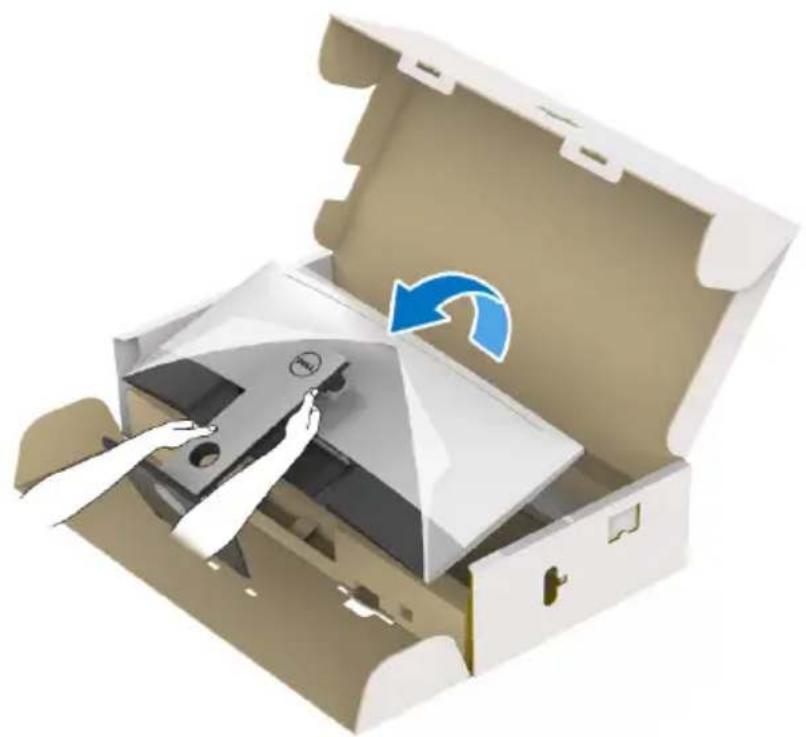

1. Attach the stand assembly to the monitor.

a. Fit the two tabs on the upper part of the stand to the groove on the back of the monitor.
b. Press the stand down till it snaps into place.

Open beige cardboard box containing multiple internal discs with blue arrows pointing to disc labels (a and b), no visible text or symbols on the discs.

1. Place the monitor upright.

a. Hold the monitor stand firmly with both hands.
b. Lift the monitor carefully to prevent it from slipping or falling.

CAUTION: Do not press on the panel screen when lifting the monitor.

3D illustration of a white open box with internal components and a blue arrow indicating rotation (no text or symbols)

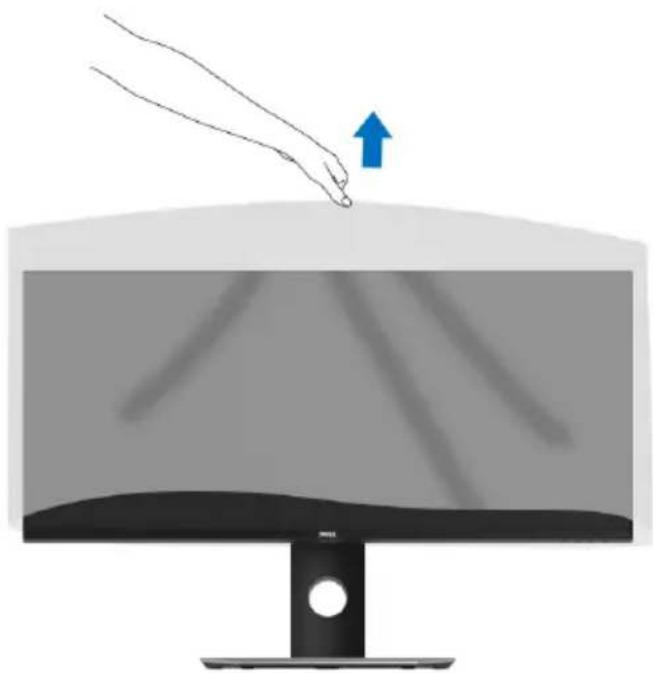

1. Remove the cover from the monitor.

Illustration of a hand pressing down on a computer monitor with a blue upward arrow indicating motion (no text or symbols)

Connecting Your Monitor

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.

NOTE: Do not connect all cables to the computer at the same time.

To connect your monitor to the computer:

1. Turn Off your computer and disconnect the power cable.

2. Connect the HDMI/DP/USB Type-C cable from the monitor to your computer or USB Type-C device.

Connecting the HDMI cable

Diagram showing connection between a computer monitor and a HDMI via cable, with labeled ports and cable connectors.

NOTE: The default out of factory setting in the U3419W is HDMI 2.0. If the monitor fails to show any content after the HDMI cable is connected, follow the procedures below to change the settings from HDMI 2.0 to HDMI 1.4:

- Press second button next to the button to activate the OSD menu.

• Use the 🔗 and ⏰ buttons to highlight Input Source, then use the 🔗 button enter the submenu.

- Use the and buttons to highlight HDMI.

- Press and hold the button for approximately 10 seconds, and the HDMI configuration message appears.

• Use the √ button to select Disable and change the settings.

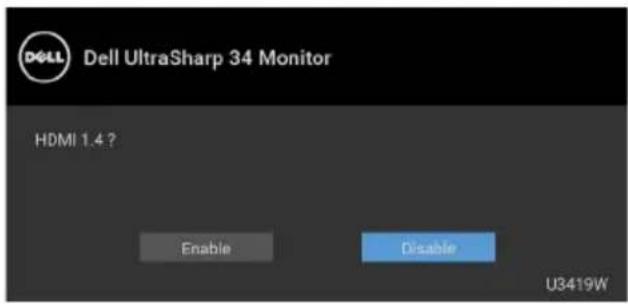

Dell UltraSharp 34 Monitor HDMI 1.4 ? Enable Disable U3419W

Repeat the above steps to change the HDMI format settings if necessary.

Connecting the DisplayPort (DP to DP) cable

Diagram showing computer monitor connected to a display port via cable, with labeled ports and connectors

NOTE: The default out of factory setting in the U3419W is DP1.2. If the monitor fails to show any content after the DP cable is connected, follow the procedures below to change the settings from DP1.2 to DP1.1:

- Press second button next to the button to activate the OSD menu.

- Use the 🔗 and ⏰ buttons to highlight Input Source, then use the 🔗 button enter the submenu.

- Use the and buttons to highlight DP.

- Press and hold the button for approximately 10 seconds, and the DP configuration message appears.

• Use the √ button to select Disable and change the settings.

Dell UltraSharp 34 Monitor DP 1.2 ? Enable Disable U3419W

Repeat the above steps to change the DP format settings if necessary.

Connecting the USB Type-C cable

Diagram showing connection between a computer monitor and USB Type-C device via USB cable, with labeled ports and cables.

NOTE: Use the USB Type-C cable shipped with monitor only.

• This port supports DisplayPort Alternate Mode (DP 1.2 standard only).
• The USB Type-C power delivery compliant port (PD Version 2.0) delivers up to 90 W of power.
• If your notebook requires more than 90 W to operate and the battery is drained, it may not be powered up or charged with the USB PD port of U3419W.

CAUTION: The graphics are used for the purpose of illustration only. Appearance of the computer may vary.

Connecting the USB 3.0 cable

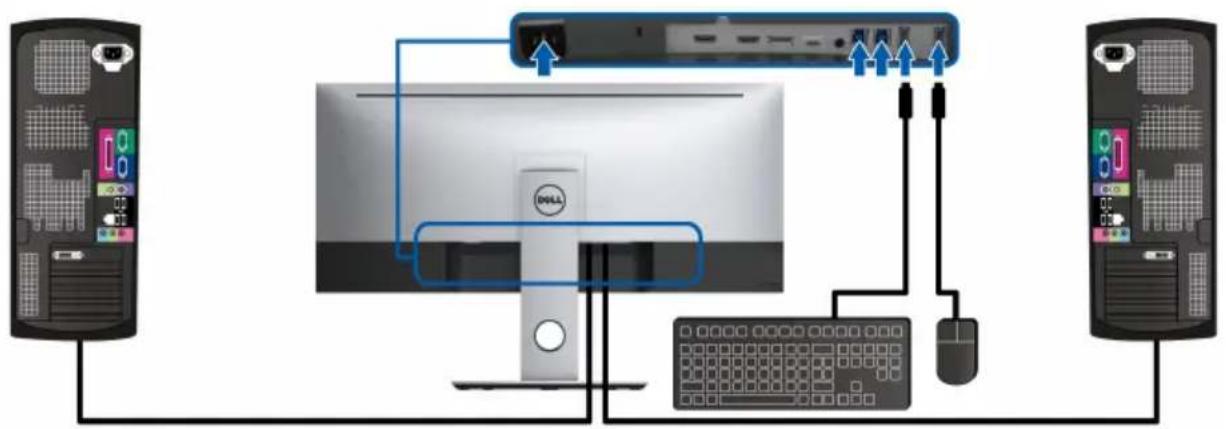

NOTE: To prevent data damage or loss, before changing USB upstream ports, make sure that NO USB storage devices are in use by the computer connected to the monitor's USB upstream port.

After you have completed connecting the HDMI/DP/USB Type-C cable, follow the procedures below to connect the USB 3.0 cable to the computer and complete your monitor setup:

1. a. Connect one computer: connect the upstream USB 3.0 port (cable supplied) to an appropriate USB 3.0 port on your computer. b. Connect two computers*: connect the upstream USB 3.0 ports to appropriate USB 3.0 ports on the two computers. Then use the OSD menu to select between the two USB upstream sources and input sources. See USB Select Switch.

2. Connect the USB 3.0 peripherals to the downstream USB 3.0 ports on the monitor.

3. Plug the power cables for your computer(s) and monitor into a nearby outlet.

Diagram showing connections between a computer monitor, USB port, and cable with labeled ports and connectors

a. Connect one computer
    note right of B
        D
        E
    end

b. Connect two computers

* When connecting two computers to the monitor, the monitor's USB downstream ports for the keyboard and mouse can be assigned to different input signals from the two computers by changing the USB Selection settings from the OSD menu. (See USB Selection and Setting the KVM Switch for details).

1. Turn On the monitor and the computer(s). If your monitor displays an image, installation is complete. If it does not display an image, see Universal Serial Bus (USB) Specific Problems.

2. Use the cable slot on the monitor stand to organize the cables.

Organizing Your Cables

Front view of a white D44L charging station with cables and connectors, mounted on a black wall (no visible text or symbols)

After attaching all necessary cables to your monitor and computer, (See Connecting Your Monitor for cable attachment,) organize all cables as shown above.

Removing the Monitor Stand

NOTE: To prevent the curved LCD screen from being scratched and damaged while removing the stand, ensure that the monitor is placed on a soft, clean foam. Direct contact with hard objects might cause damage to the curved monitor.

NOTE: This is applicable for a monitor with a stand. When any other stand is bought, please refer to the respective stand setup guide for the set-up instructions.

Technical diagram showing a device component with labeled parts and directional arrows indicating assembly or alignment.

1. Place the monitor on a soft cloth or cushion.
2. Press and hold the stand release button.
3. Lift the stand up and away from the monitor.

Wall Mounting (Optional)

Diagram showing front and back views of a device with a central display unit, no text or symbols present

(Screw dimension: M4 x 10 mm).

Refer to the instructions that come with the VESA-compatible wall mounting kit.

1. Place the monitor panel on a soft cloth or cushion on a stable, flat table.
2. Remove the stand.
3. Use a Phillips crosshead screwdriver to remove the four screws securing the plastic cover.
4. Attach the mounting bracket from the wall mounting kit to the monitor.
5. Mount the monitor on the wall by following the instructions that comes with the wall mounting kit.

NOTE: For use only with UL-listed wall mount bracket with minimum weight/load bearing capacity of 36.4 kg.

Operating the Monitor

Power On the Monitor

Press the 🎯 button to turn On the monitor.

Hand pointing at a smartphone screen with a finger icon (no text or symbols visible)

Using the Front Panel Controls

Use the control buttons on the front of the monitor to adjust settings.

1 2 3 4 5

The following table describes the front panel buttons:

Front Panel Button Description

1

Shortcut key/Preset Modes

Use this button to choose from a list of preset color modes.

2		Use this button to adjust the volume. Minimum is ‘0’ (-). Maximum is ‘100’ (+).
	Shortcut key/Volume
3		Use the MENU button to launch the On-Screen Display (OSD). See Accessing the Menu System.
	Menu
4		Use this button to exit the OSD main menu.
	Exit
5		Use the Power button to turn the monitor On and Off.
	Power(with power light indicator)	The white light indicates the monitor is On and fully functional. A glowing white light indicates the power save mode.

Front Panel Button

Use the buttons on the front of the monitor to adjust the image settings.

1 2 3 4

Front Panel Button Description

1

Up

Use the Up button to adjust (increase ranges) items in the OSD menu.

2	[KBYA]Down	Use the Down button to adjust (decrease ranges) items in the OSD menu.
3	OK	Use the OK button to confirm your selection.
4	Back	Use the Back button to go back to the previous menu.

Using the On-Screen Display (OSD) Menu

Accessing the Menu System

NOTE: If you change the settings and then either proceed to another menu or exit the OSD menu, the monitor automatically saves those changes. The changes are also saved if you change the settings and then wait for the OSD menu to disappear.

1. Press the Button to launch the OSD menu and display the main menu.

1. Press the and buttons to move between the setting options. As you move from one icon to another, the option name is highlighted. See the following table for a complete list of all the options available for the monitor.
2. Press the button once to activate the highlighted option.
3. Press and button to select the desired parameter.

1. Press to enter the submenu and then use the directional buttons, according to the indicators on the menu, to make your changes.
2. Select the button to return to the main menu.

Icon Menu and Submenus

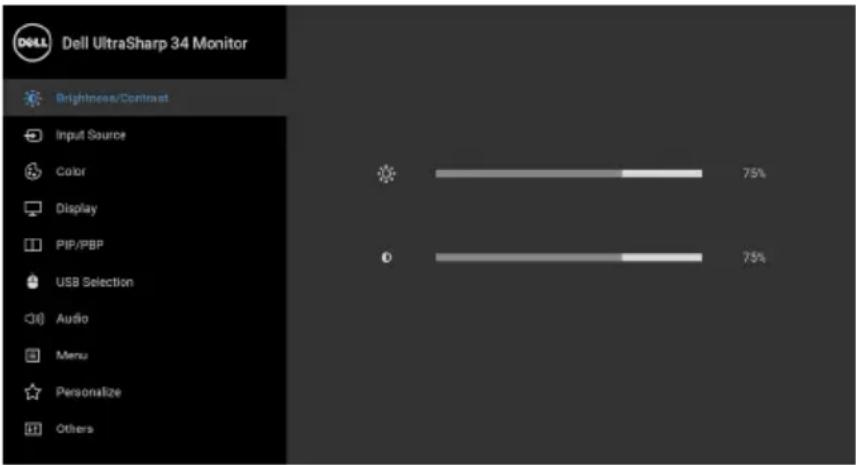

Brightness/Contrast

Use this menu to activate Brightness/Contrast adjustment.

Brightness Brightness adjusts the luminance of the backlight.

Press the button to increase the brightness and press the button to decrease the brightness (min. 0 / max. 100).

Contrast	Adjust the Brightness first, and then adjust the Contrast only if further adjustment is necessary.
	Press the button to increase the contrast and press the button to decrease the contrast (min. 0 / max. 100).
	The Contrast function adjusts the degree of difference between darkness and lightness on the monitor screen.

Input Source

Use the Input Source menu to select between the different video signals that may be connected to your monitor.

Dell UltraSharp 34 Monitor Brightness/Contrast Input Source Color Display PIP/PBP USB Selection Audio Menu Personalize Others USB Type-C DP HDMI 1 HDMI 2 Auto Select Reset Input Source On

USB Type-C	Select the USB Type-C input when you are using the USB Type-C connector.
DP	Select the DP input when you are using the DisplayPort (DP) connector.
HDMI 1	Select the HDMI 1 input when you are using the HDMI 1 connector.
HDMI 2	Select the HDMI 2 input when you are using the HDMI 2 connector.
Auto Select Turning on the function allows you to scan for available input sources.
Reset Input Source	Reset your monitor input settings to the factory settings.

Dell UltraSharp 34 Monitor Brightness/Contrast Input Source Color Display PIP/PBP USB Selection Audio Menu Personalize Others Preset Modes > Standard Input Color Format > RGB Reset Color

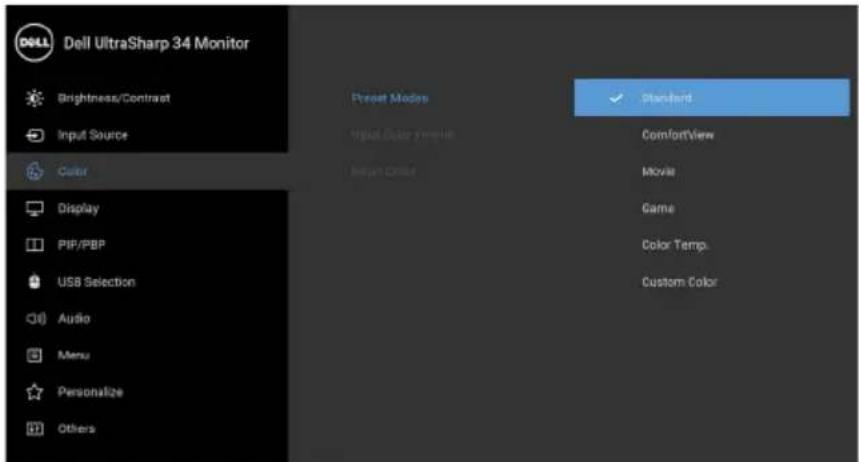

Preset Modes

When you select Preset Modes, you can choose Standard, ComfortView, Movie, Game, Color Temp., or Custom Color from the list.

• Standard: Loads the monitor's default color settings. This is the default preset mode.
• ComfortView: Decreases the level of the blue light emitted from the screen to make viewing more comfortable for your eyes.

WARNING: The possible long-term effects of blue light emission from the monitor may cause personal injury such as digital eye strain, eye fatigue and damage to the eyes. Using monitor for extended periods of time may also cause pain in parts of body such as neck, arm, back and shoulder.

To reduce the risk of eye strain and neck/arm/back/shoulder pain from using the monitor for long periods of time, we suggest you to:

1. Set the distance of the screen between 20 inches to 28 inches (50cm-70cm) from your eyes.
2. Blink frequently to moisten your eyes or wet your eyes with water after prolonged usage of the monitor.

3. Take regular and frequent breaks for 20 minutes every two hours.

4. Look away from your monitor and gaze at a distant object at 20 feet away for at least 20 seconds during the breaks.

5. Perform stretches to relieve tension in the neck, arm, back, and shoulders during the breaks.

- Movie: Loads color settings ideal for movies.

• Game: Loads color settings ideal for most gaming applications.

- Color Temp.: Allows users to select the color temperature: 5000K, 5700K, 6500K, 7500K, 9300K, and 10000K.

- Custom Color: Allows you to manually adjust the

color settings. Press the and buttons to adjust the 6-axis color values and create your own preset color mode.

Dell UltraSharp 34 Monitor Brightness/Contrast Input Source Color Display PIP/PBP USB Selection Audio Menu Personalize Others Preview Moders Visual Color Preview Return Direct Standard ComfortView Movie Game Color Temp. Custom Color

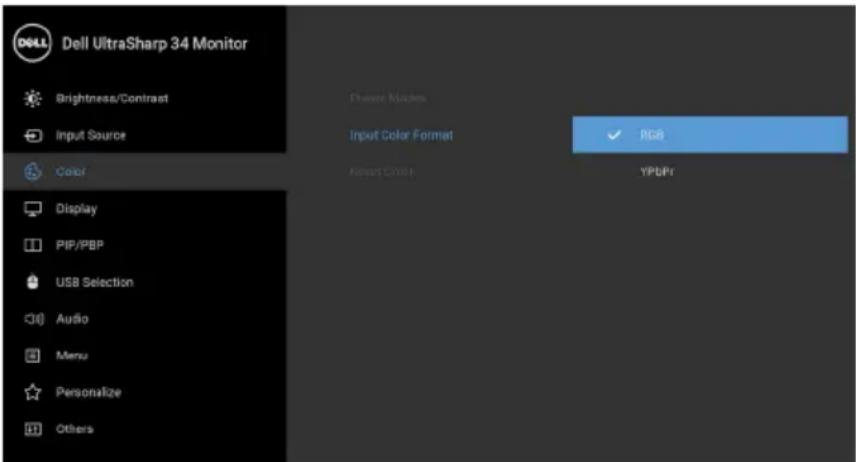

Input Color Format

Allows you to set the video input mode to:

RGB: Select this option if your monitor is connected to a computer (or DVD player) using the DP or HDMI or USB Type-C cable.

YPbPr: Select this option if your DVD player supports only YPbPr output.

Dell UltraSharp 34 Monitor Brightness/Contrast Input Source Color Display PIP/PBP USB Selection Audio Menu Personalize Others Distant Modes Input Color Format RGB Report Color YPBPr

Hue This feature can shift the color of the video image to green or purple. This is used to adjust the desired flesh

tone color. Use for to adjust the hue from '0' to '100'.

Use to increase the green shade of the video image.

Use to increase the purple shade of the video image.

NOTE: Hue adjustment is available only when you select Movie or Game preset mode.

Saturation This feature can adjust the color saturation of the video

image. Use or to adjust the saturation from '0' to '100'.

Use to increase the colorful appearance of the video image.

Use to increase the monochrome appearance of the video image.

NOTE: Saturation adjustment is available only when you select Movie or Game preset mode.

Reset Color Reset your monitor color settings to the factory settings.

Display

Use Display to adjust images.

Dell UltraSharp 34 Monitor Brightness/Contrast Input Source Color Display PIP/PBP USB Selection Audio Menu Personalize Others Aspect Ratio > Wide 21.9 Sharpness > 50 Response Time > normal Uniformity Compensation > Off Reset Display

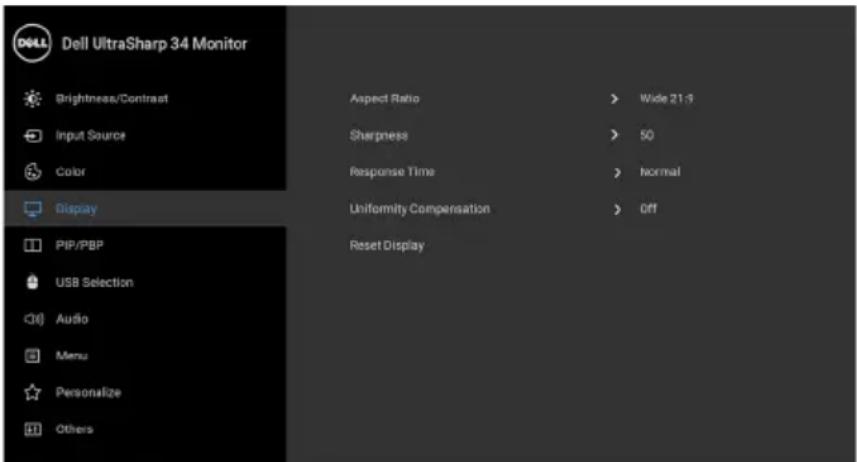

Aspect Ratio Adjusts the image ratio to Wide 21:9, Auto Resize, 4:3, or 1:1.

Sharpness This feature can make the image look sharper or softer.

Use or to adjust the sharpness from '0' to '100'.

Response Time Allows you to set the Response Time to Normal or Fast.

Uniformity Compensation

Select screen uniformity compensation settings.

Calibrated is factory calibrated setting by default.

Uniformity Compensation adjusts different areas of the screen with respect to the center to achieve uniform brightness and color over the entire screen. For optimal screen performance, Brightness and Contrast for some preset modes (Standard, Color Temp.) will be disabled when Uniformity Compensation is turned On.

NOTE: User is advised to use factory default brightness setting when Uniformity Compensation is turned on. For other brightness level setting, the uniformity performance may deviate from the data shown on the Factory Calibration Report.

Reset Display Select this option to restore default display settings.

PIP/PBP

This function brings up a window displaying image from another input source.

Dell UltraSharp 34 Monitor Brightness/Contrast Input Source Color Display PIP/PBP USB Selection Audio Menu Personalize Others PIP/PBP Mode > Off

Main Window	Sub-Window
	USB Type-C	DP	HDMI 1	HDMI 2
USB Type-C	X X	√	√	√
DP	√	X X	√	√
HDMI 1	√	√	X X	√
HDMI 2	√	√	√	X X

NOTE: The images under PBP will be displayed at the center of the screen, not full screen.

PIP/PBP Mode

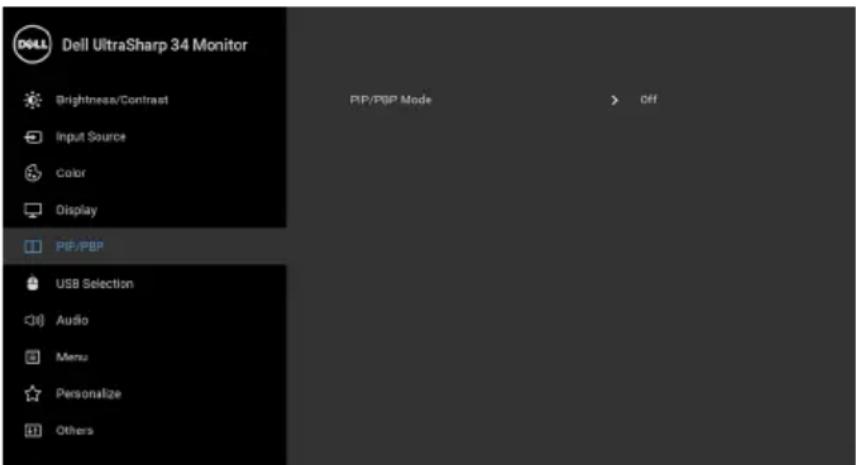

Adjusts the PIP/PBP (Picture in Picture/Picture by Picture) mode to PIP Small, PIP Large, or PBP. You can disable this feature by selecting Off.

PIP Small
I II
PIP Large
I II
PBP
I	II

PIP/PBP (Sub)

Select between the different video signals that may be connected to your monitor for the PIP/PBP sub-window.

PIP Location Select PIP sub-window position.

Use ↗ or ↙ to browse and ↗ to select Top-Left, Top-Right, Bottom-Right, or Bottom-Left.

USB Select Switch

Select to switch between the USB upstream sources in PIP/PBP mode.

Audio Allows you to set the audio source from the main window or the sub-window.

Video Swap Select to swap videos between main window and sub-window in PIP/PBP mode.

Contrast (Sub) Adjust the contrast level of the picture in PIP/PBP Mode.

Press the button to increase the contrast and press the button to decrease the contrast.

USB Selection Allows you to set the USB upstream port for the input signals (DP, HDMI 1, and HDMI 2), thus the monitor's USB downstream port (eg. keyboard and mouse) can be used by the current input signals when you connect a computer to either one of the upstream ports. See also Setting the KVM Switch for details.

When you use only one upstream port, the connected upstream port is active.

Dell UltraSharp 34 Monitor Brightness/Contrast Input Source Color Display PIP/PBP USB Selection Audio Menu Personalize Others

NOTE: To prevent data damage or loss, before changing USB upstream ports, make sure that NO USB storage devices are in use by the computer connected to the monitor's USB upstream port.

Audio

Dell UltraSharp 34 Monitor Brightness/Contrast Input Source Color Display PIP/PBP USB Selection Audio Menu Personalize Others Volume Speaker Reset Audio > 50 > Enable

Volume Allows you to set the volume level of speakers.

Use or to adjust the volume level from '0' to '100'.

Speaker Allows you to enable or disable the speaker function.

Reset Audio Select this option to restore default audio settings.

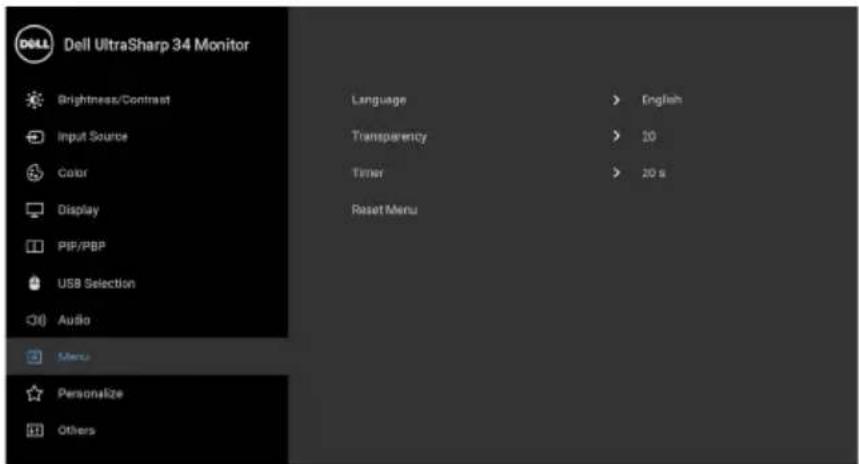

Menu Select this option to adjust the settings of the OSD, such as, the languages of the OSD, the amount of time the menu remains on screen, and so on.

Dell UltraSharp 34 Monitor Brightness/Contrast Input Source Color Display PIP/PBP USB Selection Audio Menu Personalize Others Language > English Transparency > 20 Timer > 20 s Reset Menu

Language Language options set the OSD display to one of the eight languages (English, Spanish, French, German, Brazilian Portuguese, Russian, Simplified Chinese or Japanese).

Transparency Select this option to change the menu transparency by

pressing the and buttons (Minimum: 0 \~ Maximum: 100).

Timer OSD Hold Time: sets the length of time the OSD will remain active after the last time you pressed a button.

Use for to adjust the slider in 1 second increments, from 5 to 60 seconds.

Reset Menu Reset all OSD settings to the factory preset values.

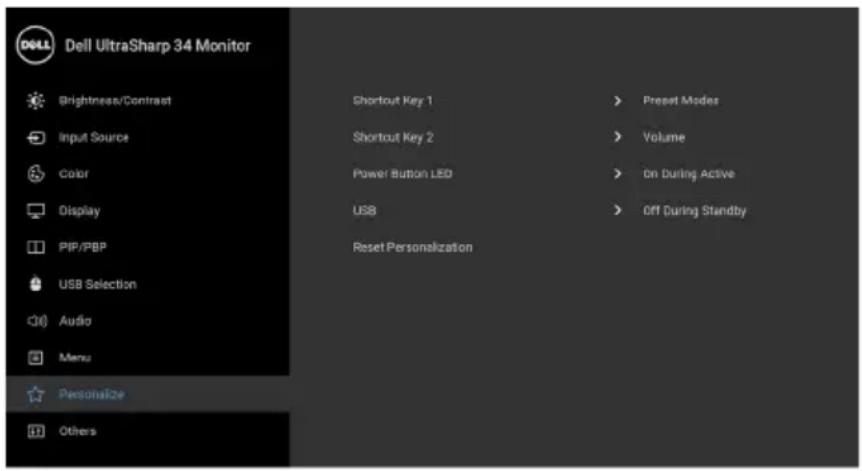

Personalize

Dell UltraSharp 34 Monitor Brightness/Contrast Input Source Color Display PIP/PBP USB Selection Audio Menu Personalize Others Shortcut Key 1 Shortcut Key 2 Power Button LED USB Reset Personalization > Preset Modes > Volume > On During Active > Off During Standby

Shortcut Key 1	Allows you to choose a feature from Preset Modes, Brightness/Contrast, Input Source, Aspect Ratio, Volume, PIP/PBP Mode, USB Select Switch, or Video Swap and set it as a shortcut key.
Shortcut Key 2
Power Button LED	Allows you to set the power LED indicator On or Off to save energy.
USB Allows you to enable or disable USB function during monitor standby mode.NOTE: USB ON/OFF under standby mode is only available when the USB upstream cable is unplugged. This option will be greyed out when the USB upstream cable plugs in.
Reset Personalization	Reset all settings under the Personalize menu to the factory preset values

Others

Dell UltraSharp 34 Monitor Brightness/Contrast Input Source Color Display PIP/PBP USB Selection Audio Menu Personalize Others Display Info DOC/GI LCD Conditioning Firmware Service Tag Reset Others Factory Reset On off XXXXXX XXXXXXX

Display Info Displays the monitor's current settings.

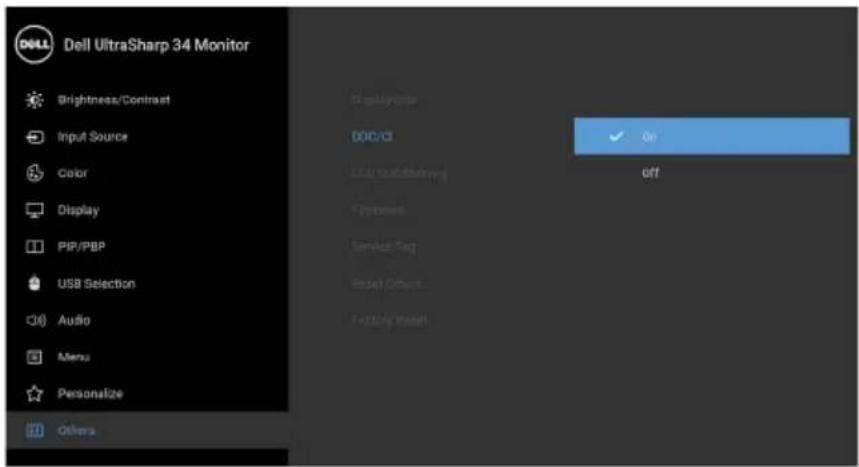

DDC/CI DDC/CI (Display Data Channel/Command Interface) allows your monitor parameters (brightness, color balance, and etc.) to be adjustable via the software on your computer.

You can disable this feature by selecting Off. Enable this feature for best user experience and optimum performance of your monitor.

Dell UltraSharp 34 Monitor Brightness/Contrast Input Source Color Display PIP/PBP USB Selection Audio Menu Personalize Others Display Options DOC/CI Use Software Preview Service Tag Reset Object... Folding Board ✓ On off

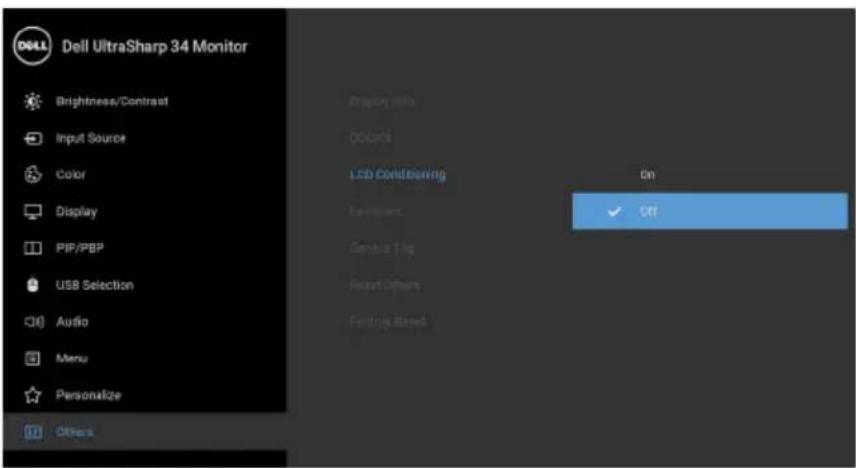

LCD Conditioning

Helps reduce minor cases of image retention. Depending on the degree of image retention, the program may take some time to run. You can enable this feature by selecting On.

Dell UltraSharp 34 Monitor Brightness/Contrast Input Source Color Display PIP/PBP USB Selection Audio Menu Personalize Others Display Info DOODs LCD Condorsing Features Device Ting Reset Others Fentanyl Alated On ✓ Off

Firmware Displays the firmware version of your monitor.

Service Tag Displays the service tag serial number of your monitor.

Reset Others Reset all settings under the Others menu to the factory preset values.

Factory Reset Reset all settings to the factory preset values.

OSD Warning Messages

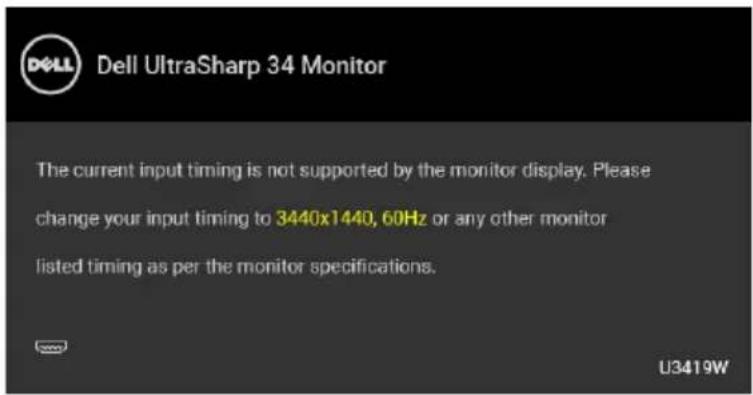

When the monitor does not support a particular resolution mode, you will see the following message:

Dell UltraSharp 34 Monitor The current input timing is not supported by the monitor display. Please change your input timing to 3440x1440, 60Hz or any other monitor listed timing as per the monitor specifications. U3419W

NOTE: The message may be slightly different according to the connected input signal.

This means that the monitor cannot synchronize with the signal that it is receiving from the computer. See Monitor Specifications for the Horizontal and Vertical frequency ranges addressable by this monitor. Recommended mode is 3440 x 1440. You will see the following message before the DDC/CI function is disabled:

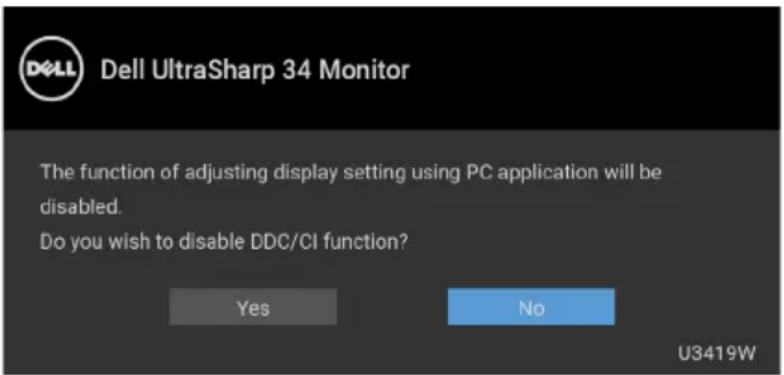

Dell UltraSharp 34 Monitor The function of adjusting display setting using PC application will be disabled. Do you wish to disable DDC/CI function? Yes No U3419W

When the monitor enters the Power Save mode, the following message appears:

DELL Dell UltraSharp 34 Monitor Entering Power Save Mode. U3419W

Activate the computer and wake up the monitor to gain access to the OSD.

NOTE: The message may be slightly different according to the connected input signal.

If you press any button other than the power button, the following message will appear depending on the selected input:

Dell UltraSharp 34 Monitor No USB Type-C signal from your device. Press any key on the keyboard or move the mouse to wake it up. If there is no display, press the monitor button again to select the correct input source. U3419W

NOTE: The message may be slightly different according to the connected input signal.

If either USB Type-C, HDMI, or DP input is selected and the corresponding cable is not connected, a floating dialog box as shown below appears.

Dell UltraSharp 34 Monitor No USB Type-C Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/support/monitors U3419W

NOTE: The message may be slightly different according to the connected input signal.

See Troubleshooting for more information.

Setting the Maximum Resolution

To set the maximum resolution for the monitor:

In Windows ^® 7, Windows ^® 8, Windows ^® 8.1, and Windows ^® 10:

1. For Windows ^® 8 and Windows ^® 8.1 only, select the Desktop tile to switch to classic desktop.
2. Right-click on the desktop and click Screen Resolution.
3. Click the Dropdown list of the Screen Resolution and select 3440 x 1440.
4. Click OK.

In Windows ^® 10:

1. Right-click on the desktop and click Display settings.
2. Click Advanced display settings.
3. Click the dropdown list of Resolution and select 3440 x 1440.
4. Click Apply.

If you do not see 3440 x 1440 as an option, you may need to update your graphics driver. Depending on your computer, complete one of the following procedures:

If you have a Dell desktop or portable computer:

- Go to http://www.dell.com/support, enter your service tag, and download the latest driver for your graphics card.

If you are using a non-Dell computer (portable or desktop):

• Go to the support site for your computer and download the latest graphic drivers.
• Go to your graphics card website and download the latest graphic drivers.

Setting the KVM Switch

The built-in KVM switch allows you to control up to 2 computers from a single set of keyboard and mouse connected to the monitor.

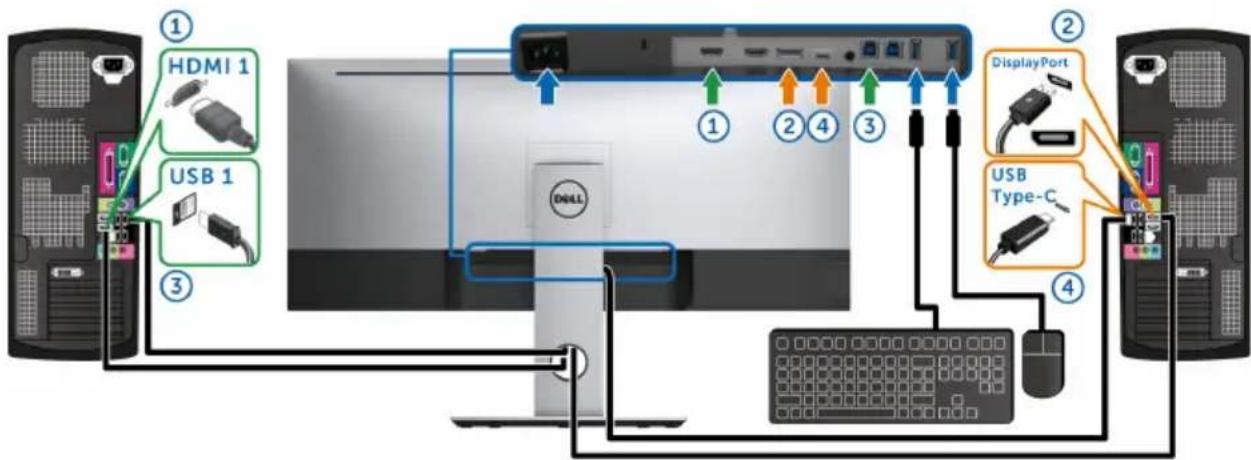

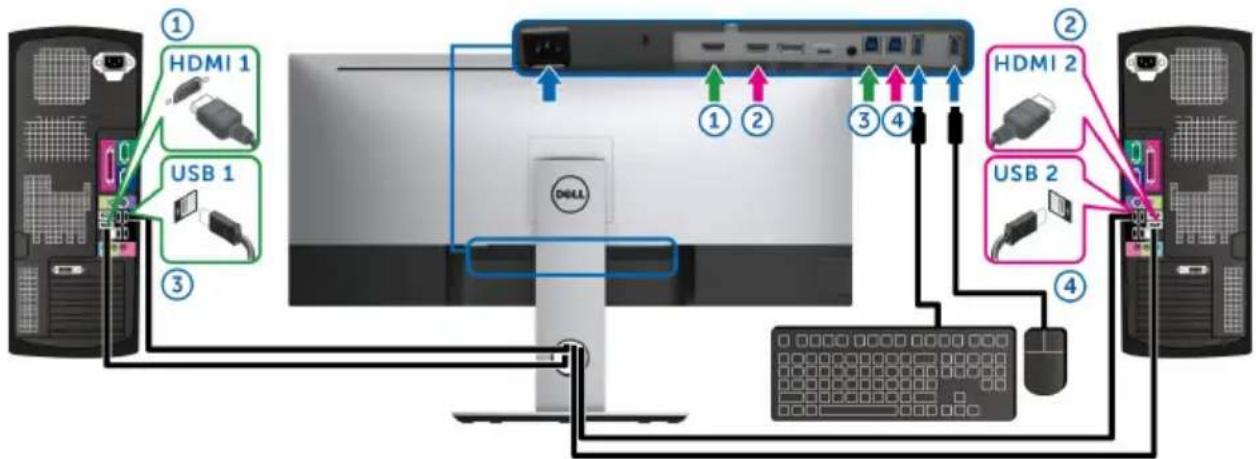

a. When connecting HDMI 1 + USB 1 to computer 1 and DP + USB Type-C to computer 2:

① HDMI 1 USB 1 ③ ① ② ④ ③ ② DisplayPort USB Type-C ④

NOTE: The USB Type-C connection currently supports only data transfer.

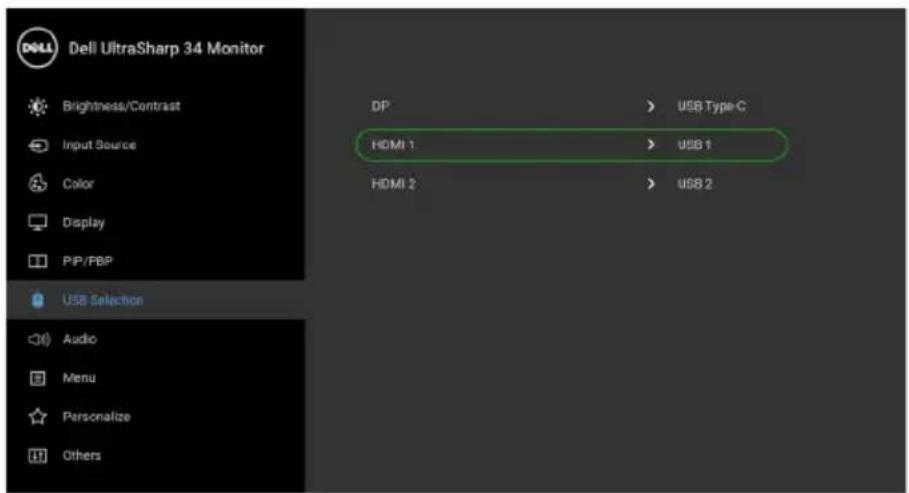

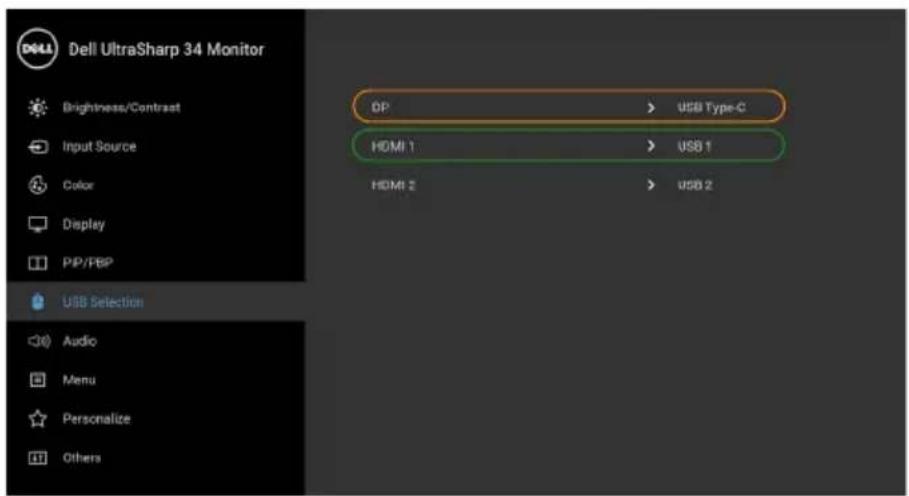

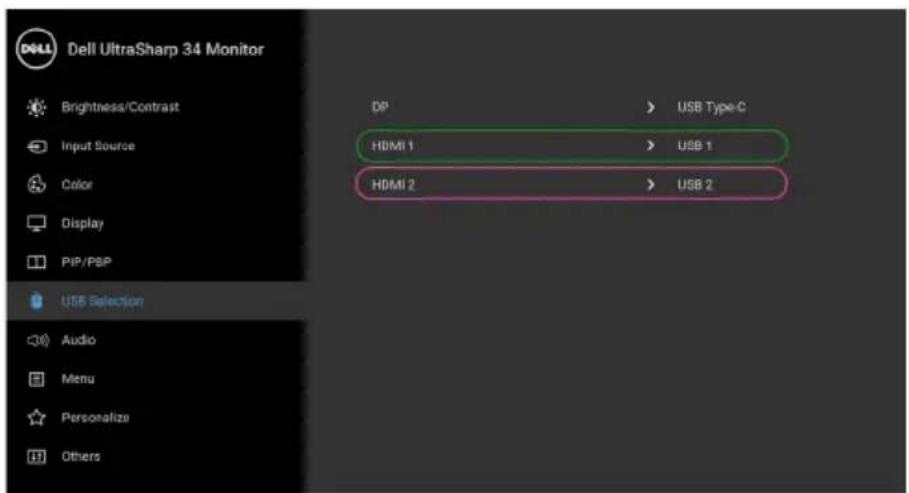

Make sure USB Selection for HDMI 1 is set to USB 1 and DP is set to USB Type-C.

Dell UltraSharp 34 Monitor Brightness/Contrast Input Source Color Display P/P/FBP USB Selection Audio Menu Personalize Others DP > USB Type-C HDMI 1 > USB 1 HDMI 2 > USB 2

b. When connecting HDMI 1 + USB 1 to computer 1 and HDMI 2 + USB 2 to computer 2:

Make sure USB Selection for HDMI 1 is set to USB 1 and HDMI 2 is set to USB 2.

Dell UltraSharp 34 Monitor Brightness/Contrast Input Source Color Display PIP/PBP USB Selection Audio Menu Personalize Others DP > USB Type C HDMI 1 > USB 1 HDMI 2 > USB 2

c. When connecting HDMI 1 + USB 1 to computer 1 and USB Type-C to computer 2:

① HDMI 1 USB 1 ③ ① ② ③ USB Type-C ②

NOTE: The USB Type-C connection currently supports video and data transfer.

Make sure USB Selection for HDMI 1 is set to USB 1.

Dell UltraSharp 34 Monitor Brightness/Contrast Input Source Color Display P/P/PBP USB Selection Audio Menu Personalize Others DP > USB Type C HDMI 1 > USB 1 HDMI 2 > USB 2

NOTE: As the USB Type-C port supports the DisplayPort Alternate Mode, there is no need to set USB Selection for USB Type-C.

NOTE: When connecting to different video input sources not shown above, follow the same method to make correct settings for USB Selection to pair the ports.

Using the Tilt, Swivel, and Vertical Extension

NOTE: This is applicable for a monitor with a stand. When any other stand is bought, please refer to the respective stand setup guide for set up instructions.

Tilt, Swive I

With the stand attached to the monitor, you can tilt and swivel the monitor for the most comfortable viewing angle.

5° 21° 30° 30°

NOTE: The stand is detached when the monitor is shipped from the factory.

Vertical Extension

NOTE: The stand extends vertically up to 115 mm. The figure below illustrates how to extend the stand vertically.

115mm

Troubleshooting

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.

Self-Test

Your monitor provides a self-test feature that allows you to check whether your monitor is functioning properly. If your monitor and computer are properly connected but the monitor screen remains dark, run the monitor self-test by performing the following steps:

1. Turn off both your computer and the monitor.
2. Unplug the video cable from the back of the computer.
3. Turn on the monitor.

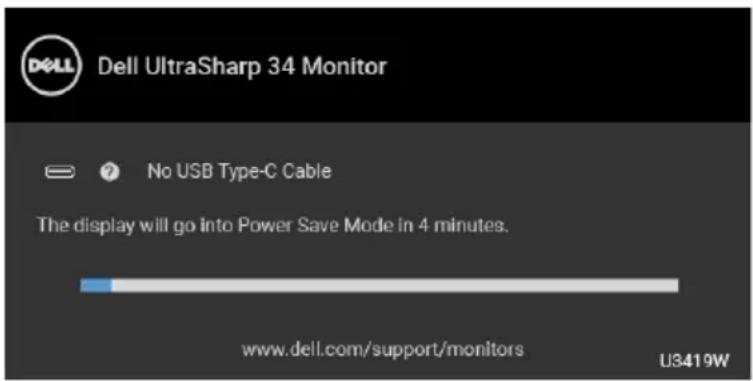

The floating dialog box should appear on-screen (against a black background), if the monitor cannot sense a video signal and is working correctly. While in self-test mode, the power LED remains white. Also, depending upon the selected input, the dialog shown below will continuously scroll through the screen.

Dell UltraSharp 34 Monitor No USB Type-C Cable The display will go into Power Save Mode in 4 minutes. www.dell.com/support/monitors U3419W

NOTE: The message may be slightly different according to the connected input signal.

1. This box also appears during normal system operation, if the video cable becomes disconnected or damaged.
2. Turn Off your monitor and reconnect the video cable; then turn On both your computer and the monitor.

If your monitor screen remains blank after you use the previous procedure, check your video controller and computer, because your monitor is functioning properly.

Built-in Diagnostics

Your monitor has a built-in diagnostic tool that helps you determine if the screen abnormality you are experiencing is an inherent problem with your monitor, or with your computer and video card.

NOTE: You can run the built-in diagnostics only when the video cable is unplugged and the monitor is in self-test mode.

1 2 3 4 5

To run the built-in diagnostics:

1. Ensure that the screen is clean (no dust particles on the surface of the screen).
2. Unplug the video cable(s) from the back of the computer or monitor. The monitor then goes into the self-test mode.
3. Press and hold Button 1 on the front panel for 5 seconds. A gray screen appears.
4. Carefully inspect the screen for abnormalities.
5. Press Button 1 on the front panel again. The color of the screen changes to red.
6. Inspect the display for any abnormalities.
7. Repeat steps 5 and 6 to inspect the display in green, blue, black, white and text screens.

The test is complete when the text screen appears. To exit, press Button 1 again. If you do not detect any screen abnormalities upon using the built-in diagnostic tool, the monitor is functioning properly. Check the video card and computer.

Common Problems

The following table contains general information about common monitor problems you might encounter and the possible solutions:

Common Symptoms	What You Experience	Possible Solutions
No Video/Power LED off	No picture · Ensure that the video cable connecting the monitor and the computer is properly connected and secure.· Verify that the power outlet is functioning properly using any other electrical equipment.· Ensure that the power button is pressed fully.· Ensure that the correct input source is selected in the Input Source menu.
No Video/Power LED on	No picture or no brightness	· Increase brightness & contrast controls via OSD.· Perform monitor self-test feature check.· Check for bent or broken pins in the video cable connector.· Run the built-in diagnostics.· Ensure that the correct input source is selected in the Input Source menu.
Poor Focus Picture is fuzzy, blurry, or ghosting		· Eliminate video extension cables.· Reset the monitor to factory settings.· Change the video resolution to the correct aspect ratio.
Shaky/Jittery Video	Wavy picture or fine movement	· Reset the monitor to factory settings.· Check environmental factors.· Relocate the monitor and test in another room.

Missing Pixels LCD screen has spots		·Cycle power On - Off.·Pixel that is permanently Off is a natural defect that can occur in LCD technology.·For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at: http://www.dell.com/support/monitors.
Stuck-on Pixels	LCD screen has bright spots	·Cycle power On - Off.·Pixel that is permanently off is a natural defect that can occur in LCD technology.·For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at: http://www.dell.com/support/monitors.
Brightness Problems	Picture too dim or too bright	·Reset the monitor to factory settings.·Adjust brightness & contrast controls via OSD.
Geometric Distortion	Screen not centered correctly	·Reset the monitor to factory settings.·Adjust horizontal & vertical controls via OSD.
Horizontal/ Vertical Lines	Screen has one or more lines	·Reset the monitor to factory settings.·Perform monitor self-test feature check and determine if these lines are also in self-test mode.·Check for bent or broken pins in the video cable connector.·Run the built-in diagnostics.
Synchronization Problems	Screen is scrambled or appears torn	·Reset the monitor to factory settings.·Perform monitor self-test feature check to determine if the scrambled screen appears in self-test mode.·Check for bent or broken pins in the video cable connector.·Restart the computer in the safe mode.
Safety Related Issues	Visible signs of smoke or sparks	·Do not perform any troubleshooting steps.·Contact Dell immediate
Intermittent Problems	Monitor malfunctions on & off	·Ensure that the video cable connecting the monitor to the computer is connected properly and is secure. ·Reset the monitor to factory settings. ·Perform monitor self-test feature check to determine if the intermittent problem occurs in self-test mode.
Missing Color Picture missing color		·Perform monitor self-test feature check. ·Ensure that the video cable connecting the monitor to the computer is connected properly and is secure. ·Check for bent or broken pins in the video cable connector.
Wrong Color Picture color not good		·Change the settings of the Preset Modes in the Color menu OSD depending on the application. ·Adjust R/G/B value under Custom Color in Color menu OSD. · Change the Input Color Format to or YPbPr in the Color menu OSD. ·Run the built-in diagnostics.
Image retention from a static image left on the monitor for a long period of time	Faint shadow from the static image displayed appears on the screen	·Use the Power Management feature to turn off the monitor at all times when not in use (for more information, see Power Management Modes). ·Alternatively, use a dynamically changing screensaver.

Product Specific Problems

Specific Symptoms	What You Experience	Possible Solutions
Screen image is too small	Image is centered on screen, but does not fill entire viewing area	·Check the Aspect Ratio setting in the Display menu OSD.·Reset the monitor to factory settings.
No Input Signal when user controls are pressed	No picture, the LED light is white	·Check the signal source. Ensure the computer is not in the power saving mode by moving the mouse or pressing any key on the keyboard.·Check whether the signal cable is plugged in properly. Re-plug the signal cable if necessary.·Reset the computer or video player.
The picture does not fill the entire screen	The picture cannot fill the height or width of the screen	·Due to different video formats (aspect ratio) of DVDs, the monitor may display in full screen.·Run the built-in diagnostics.

Universal Serial Bus (USB) Specific Problems

Specific Symptoms	What You Experience	Possible Solutions
USB interface is not working	USB peripherals are not working	·Check that your monitor is turned On.·Reconnect the upstream cable to your computer.·Reconnect the USB peripherals (downstream connector).·Switch Off and then turn On the monitor again.·Reboot the computer.·Some USB devices like external portable HDD require higher electric current; connect the device directly to the computer system.·Disconnect one upstream USB cable when using two upstream connections.
USB Type-C port does not supply power	USB peripherals can not be charged	·Check that the connected device is compliant with the USB-C specification. The USB Type-C port supports USB 3.1 with speeds up to 10 Gbps and an output of 90 W.·Check that you use the USB Type-C cable shipped with your monitor.
High SpeedUSB 3.0interface is slow	High SpeedUSB 3.0peripherals working slowly or not working at all	·Check that your computer is USB 3.0-capable.·Some computers have USB 3.0, USB 2.0, and USB 1.1 ports. Ensure that the correct USB port is used.·Reconnect the upstream cable to your computer.·Reconnect the USB peripherals (downstream connector).·Reboot the computer.
Wireless mouse is not working or lagging	Do not respond or responds slowly	·Increase the distance between the USB 3.0 peripherals and the wireless USB receiver.·Position your wireless USB receiver as close as possible to the wireless mouse.·Use a USB-extender cable to position the wireless USB receiver as far away as possible from the USB 3.0 port.

Speakers Specific Problems

Specific Symptoms	What You Experience	Possible Solutions
No sound coming from the speakers	Cannot hear any sound	Turn Off the monitor, unplug the monitor power cord, replug it, and then turn On the monitor.Check the audio cable connection is connected correctly to the computer Audio Line Out port.Unplug the audio cable from the Audio Line Out port.Reset the monitor to factory settings.

Appendix

WARNING: Safety Instructions

WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards, and/or mechanical hazards.

For information on safety instructions, see the Safety, Environmental, and Regulatory Information (SERI).

FCC Notices (U.S. Only) and Other Regulatory Information

For FCC notices and other regulatory information, see the regulatory compliance website located at www.dell.com/regulatory_compliance.

Contact Dell

For customers in the United States, call 800-WWW-DELL (800-999-3355).

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area.

• Online technical assistance — www.dell.com/support/monitors
- Contacting Dell — www.dell.com/contactdell
