Product Type	Video Projector
Brand	3M
Model	X80
Display Technology	LCD
Brightness	3000 ANSI lumens
Native Resolution	1024 x 768 (XGA)
Contrast Ratio	2000:1
Lamp Life	Up to 5000 hours (eco mode)
Dimensions (W x D x H)	295 x 230 x 90 mm
Weight	2.5 kg
Power Consumption	250 W (max)
Inputs	HDMI, VGA, Composite, USB, Audio
Outputs	Audio out, RS-232
Built-in Speaker	1 x 10 W
Zoom	Manual, 1.2x
Keystone Correction	Vertical ±30°
Projection Distance	1.2 - 12 m
Screen Size	0.76 - 7.62 m (30 - 300 inches)
Maintenance	Clean air filter every 100 hours; replace lamp when needed
Safety	Automatic shutdown after 30 minutes idle; laser class 1
Spare Parts	Lamp model: 3M X80 Lamp; filter kit available

Frequently Asked Questions - X80 3M

How do I connect my laptop to the 3M X80 projector?

Use an HDMI or VGA cable. Connect one end to your laptop and the other to the corresponding input on the projector. Select the correct source using the Source button on the remote or control panel.

What is the lamp life of the 3M X80?

The lamp life is up to 5000 hours in eco mode and 3000 hours in standard mode. Replace the lamp when the Lamp indicator turns red.

Can I use the projector without a remote?

Yes, the projector has a control panel on top with buttons for power, menu, navigation, and source selection. You can operate it fully without the remote.

How do I clean the air filter?

Turn off the projector and unplug it. Remove the filter cover, take out the filter, and clean it with a soft brush or vacuum. Reinstall the filter and cover. Clean every 100 hours of use.

What does the 'Temp' warning light mean?

The Temp light indicates the projector is overheating. Check if the air filter is clogged, ensure proper ventilation, and reduce ambient temperature. If the light stays on, contact support.

How do I adjust the keystone correction?

Press the Keystone button on the remote or access the menu under 'Settings' > 'Keystone'. Use the arrow keys to correct vertical distortion. The range is ±30°.

Can I project onto a curved or uneven surface?

For best image quality, use a flat, white projection screen. The projector may work on a light-colored wall, but curved surfaces can cause distortion and reduce sharpness.

Why is the projector not turning on?

Check the power cord connection and ensure the outlet is working. If the Standby LED is off, the projector may have a blown fuse or internal issue. Try resetting by unplugging for 1 minute.

How do I replace the lamp?

Turn off the projector and let it cool for 30 minutes. Remove the lamp cover, loosen the screws, and pull out the old lamp. Insert the new lamp (model 3M X80 Lamp), tighten screws, and close the cover. Reset the lamp timer in the menu.

Does the projector support 3D?

This model does not support 3D playback. It is designed for standard 2D presentations and videos.

USER MANUAL X80 3M

Line drawing of a projector with ventilation grilles and control panel (no text or symbols)

Thank you for purchasing this projector.

CAUTION Before using, read the "Product Safety Guide" and this "Operator's guide" to ensure correct usage through understanding. After finding, store them in a safe place for future reference.

NOTE

- The information in this manual is subject to change without notice.

• The manufacturer assumes no responsibility for any errors that may appear in this manual.
• The reproduction, transmission or use of this document or contents is not permitted without express written authority.

TRADEMARK ACKNOWLEDGMENT :

• VGA and XGA are registered trademarks of the International Business Machines Corporation.
• Apple and Mac are registered trademarks of Apple Computer, Inc.
• VESA and SVGA are trademarks of the Video Electronics Standard Association.
- Windows is a registered trademark of Microsoft Corporation.
- Internet Explorer is a trademark of Microsoft Corporation.
All other trademarks are the property of their respective owners.

Projector Features

This multimedia projector is used to project various computer signals as well as NTSC/PAL/SECAM video signals onto a screen. Little space is required for installation and large images can easily be realized.

Ultra High Brightness

Crisp, ultra-bright presentations is achieved by using a UHB (ultra high brightness) lamp and a highly efficient optical system.

Whisper Mode Equipped

Special mode is available for reducing projector noise to achieve quieter operation.

User Memory Function

This projector can memorize 4 settings by MY MEMORY function.

Partial Magnification Function

Interesting parts of images can be magnified for closer viewing.

Keystone Distortion Correction

Quick correction of distorted images electrically.

Optical Lens Shift (X80 only)

The lens of this projector can be shifted vertically. When you want to finely adjust the picture position, use the LENS SHIFT buttons.

Preparation

Please see the "Quick Start Guide". Your projector should come with the items shown there. Contact your dealer anything is missing.

NOTE • Keep the original packing material for future reshipment. For moving the projector, be sure to use the original packing material. Use special caution for the lens part.

Contents

Projector Features 2

Preparation 2

Part Names 4

Projector 4

Control Buttons 5

Remote control 5

Setting Up 6

Arrangement 6

Adjusting The Projector's

Elevator 7

Using The Lens shift Buttons (X80 only) …7

Connecting Your Devices……8

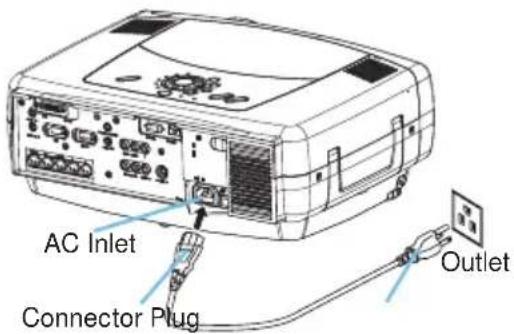

Connecting The Power Supply …11

Remote Control 12

About The Laser Pointer ……12

Putting Batteries 12

Operating The

Remote Control 13

Using The Remote

ID Feature....13

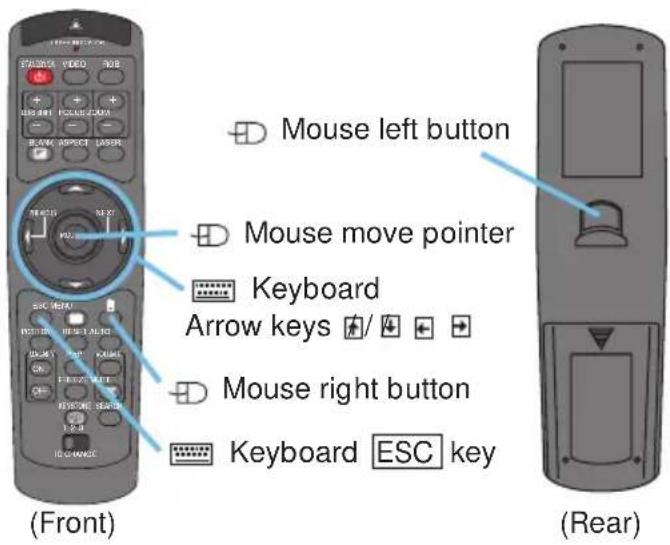

Using The Mouse/Keyboard

Control Function 14

Power ON/OFF 15

Turning On The Power 15

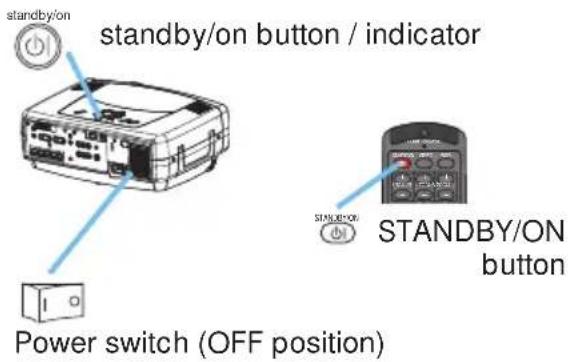

Turning Off The Power 15

Operating 16

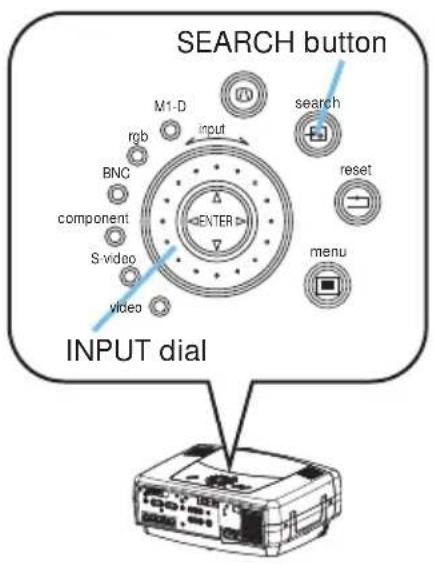

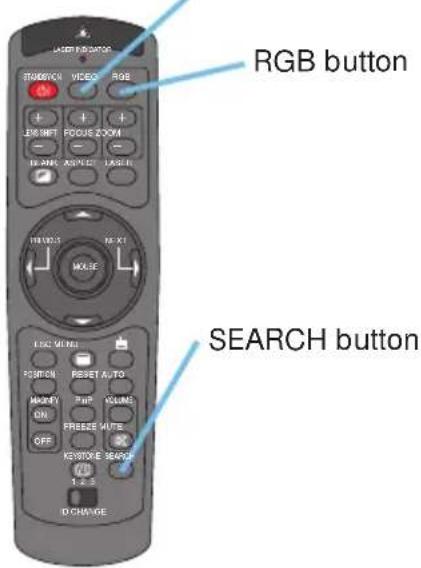

Selecting An Input Signal ……16

Selecting The Aspect Ratio ……17

Using The Automatic

Adjustment Feature……17

Adjusting The Picture Position …18

Correcting The Keystone

Distortion 18

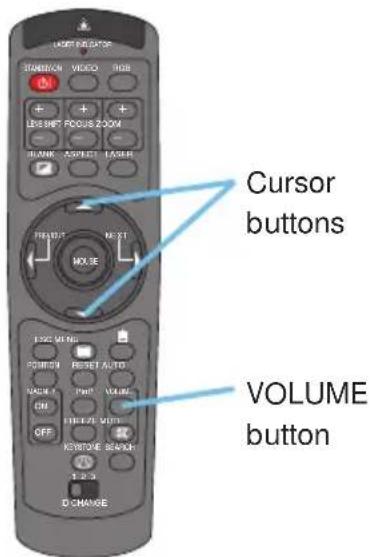

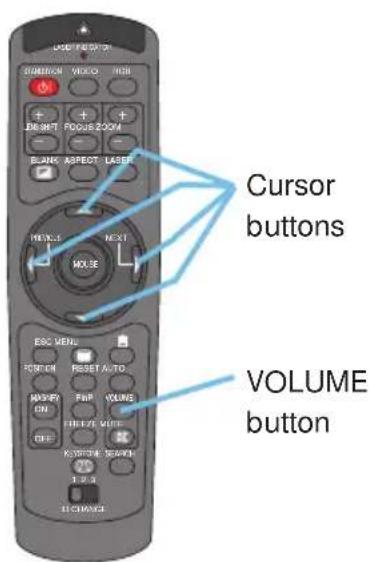

Adjusting The Volume ……19

Muting The Sound 19

Temporarily Blanking

The Screen 19

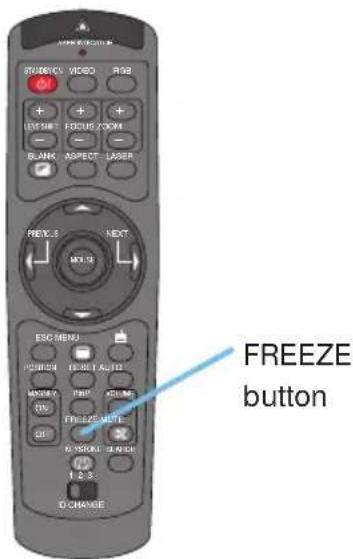

Freezing The Screen 20

Using The Magnify Feature ……20

Displaying The Child Window …21

Selecting An Audio Input ……21

Multifunctional Settings 22

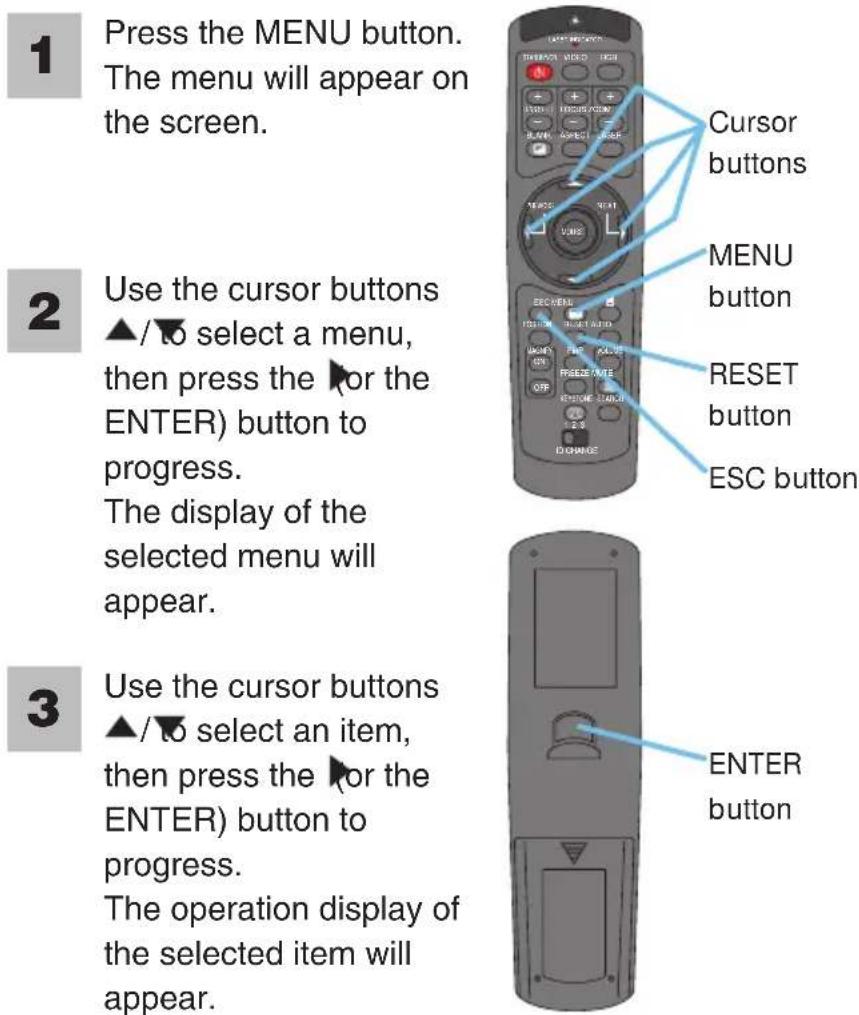

Using The Menu Functions ……22

MAIN Menu 23

PICTURE-1 Menu 24

PICTURE-2 Menu 26

INPUT Menu 27

AUTO Menu 29

SCREEN Menu 31

OPTION Menu 33

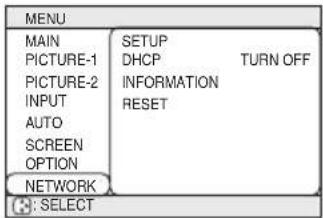

NETWORK Menu 35

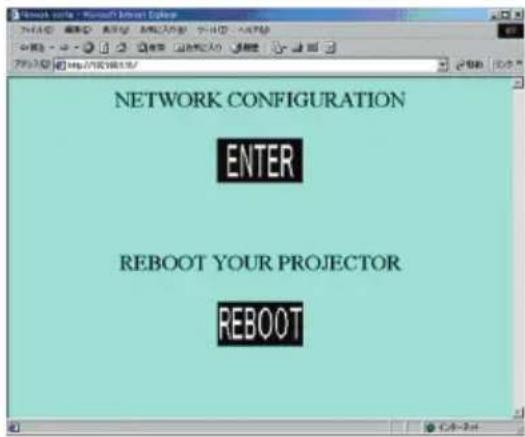

Network Setting Up 36

Lamp 37

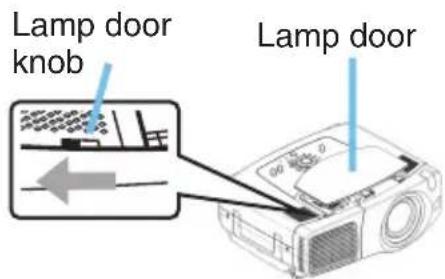

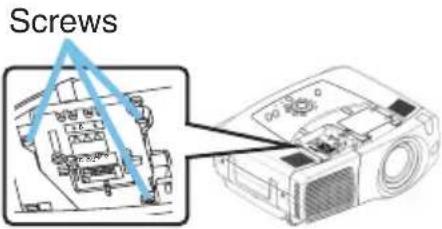

Replacing The Lamp 38

Air Filter 39

Caring For The Air Filter……39

Other Care 40

Caring For The Inside Of

The Projector 40

Caring For The Lens 40

Caring For The Cabinet And

Remote Control 40

Troubleshooting 41

Related Messages 41

Regarding The Indicator

Lamps 43

Phenomena That May Easily Be

Mistaken For Machine Defects …45

Specifications 47

Accessories 48

TECHNICAL

Part Names

Projector

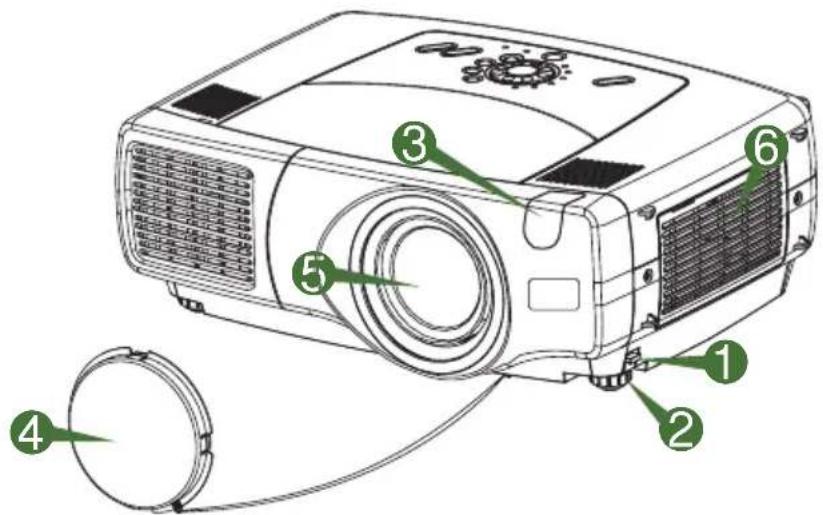

Diagram of a projector with numbered parts labeled 1 to 6, showing internal components and wiring connections.

Projector (Front/Right)

1 Elevator button
② Elevator foot
③ Remote sensor
4 Lens cap
⑤ Lens
The picture is projected from here.
6 Filter cover
An air filter is inside.

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 10 11 8 7

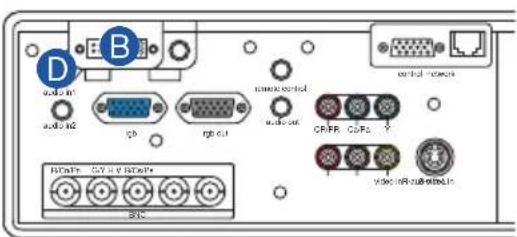

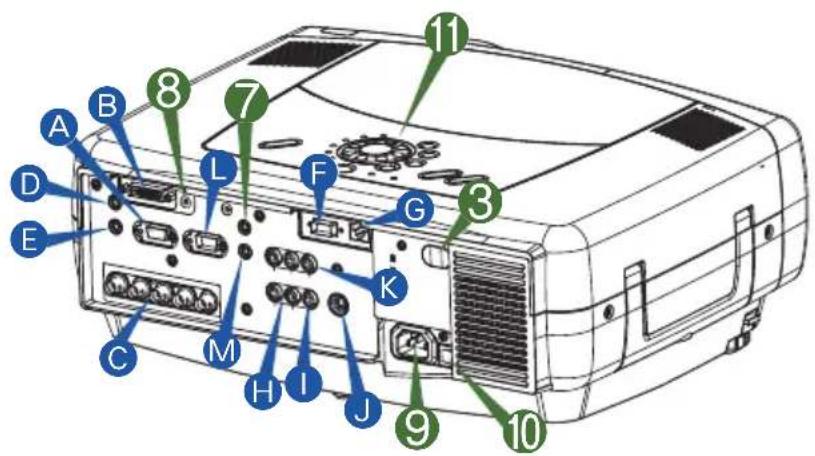

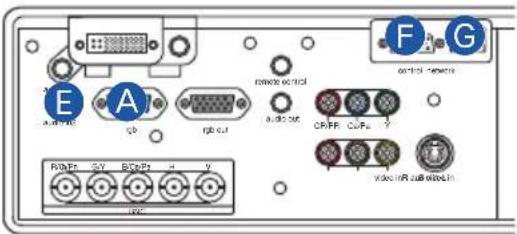

Projector (Rear/Left)

Argb port
BM1-D port

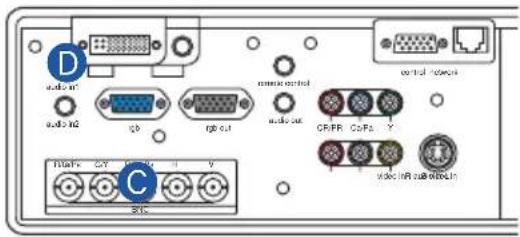

CBNC port
D audio in 1 port
Eaudio in 2 port
F control port
Gnetwork port
Haudio in R/L port
video in port
JS-video in port

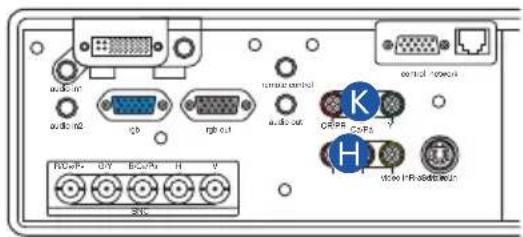

Kcomponent port

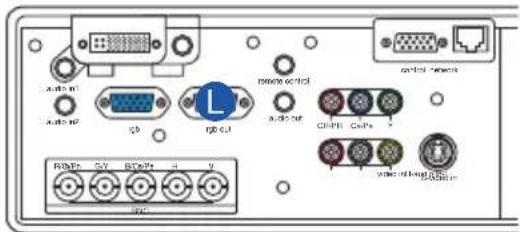

Lrgb out port

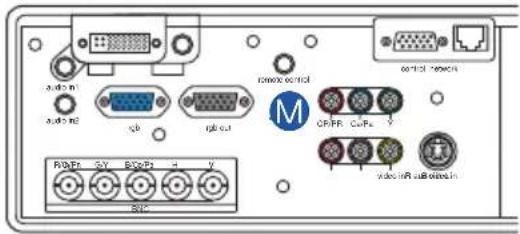

Maudio out port
⑦ remote control port
8 dc out port
9 AC Inlet
10 Power switch
Control buttons See the following page.

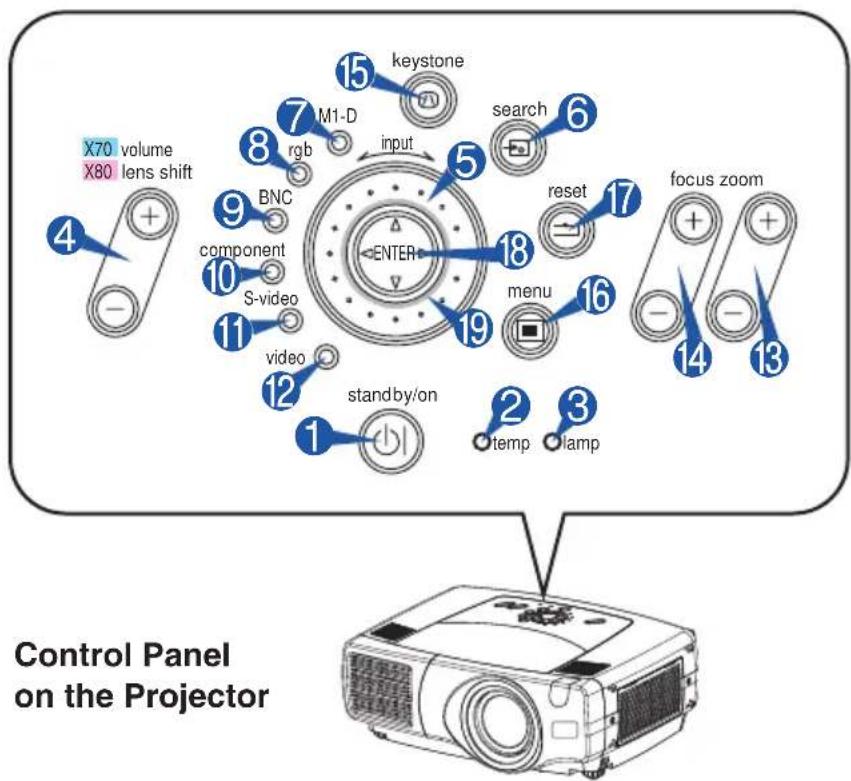

Control Buttons

X70 volume X80 lens shift 4 + - + 15 keystone 7 M1-D input 8 rgb 9 BNC component 10 S-video 11 video 12 standby/on 13 temp lamp 14 - - 15 search 16 reset 17 focus zoom 18 19 menu 2 3 control Panel on the Projector

Remote Control

1 STANDBY/ON button
4 LENS SHIFT buttons (X70: No buttons)
⑥ SEARCH button
13 ZOOM buttons
14 FOCUS buttons

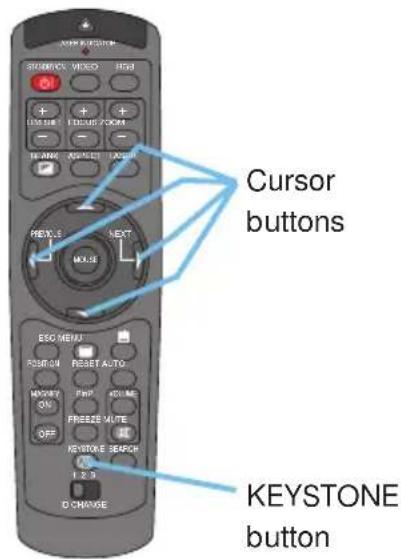

15 KEYSTONE button
16 MENU button
17 RESET button
18 ENTER button ( Mouse left button)

18 (Rear)

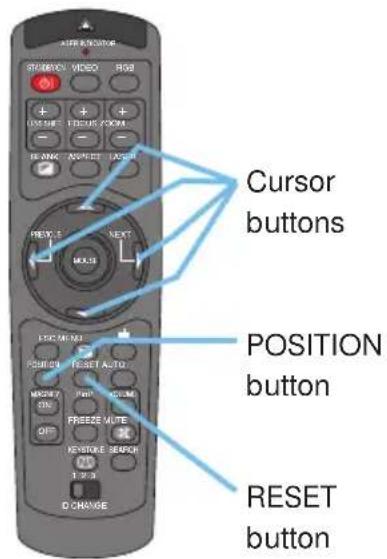

19 Cursor buttons

Keyboard

Arrow keys / ( )

LASER INDICATOR STANDBYKON VIDEO RGB LENS SHIFT FOCUS ZOOM BLANK ASPECT LASER PREVIOUS NEXT MOUSE ESC MENU POSITION RESET AUTO MAGNEY PIN P VOLUME ON FREEZE MUTE OFF KEYSTONE SEARCH 1 2 3 ID CHANGE 20 1 13 4 14 21 22 23 25 24 19 16 27 29 31 32 33 35 6 36

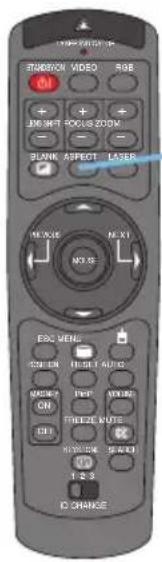

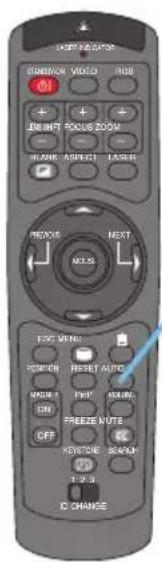

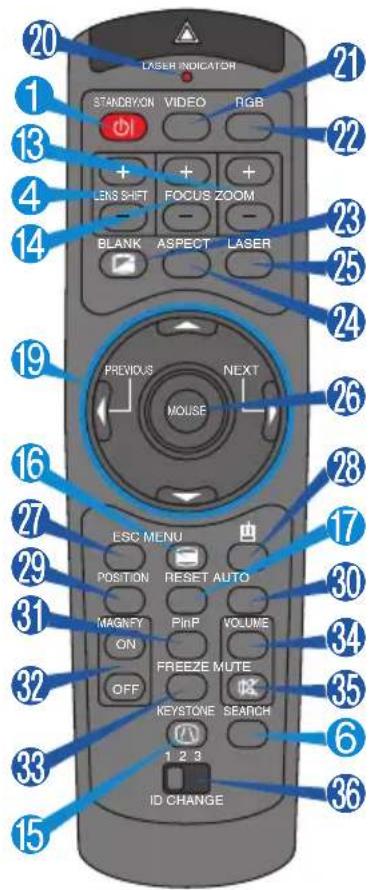

Remote Control

1 STANDBY/ON button and STANDBY/ON indicator

② TEMP indicator

③ LAMP indicator

4 X70 VOLUME buttons X80 LENS SHIFT buttons

⑤ INPUT dial

⑥ SEARCH button

7 M1-D indicator

⑧ RGB indicator

⑨ BNC indicator

⑩ COMPONENT indicator

S-VIDEO indicator

12 VIDEO indicator

13 ZOOM buttons

14 FOCUS buttons

15 KEYSTONE button

16 MENU button

17 RESET button

18 ENTER button

19 Cursor buttons ▲/▼ ◀▶

20 LASER INDICATOR
21 VIDEO button
22 RGB button

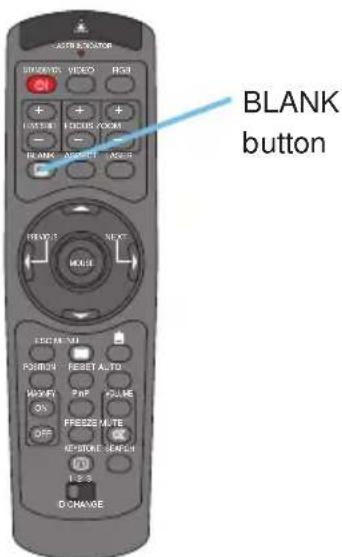

23 BLANK button
24 ASPECT button
25 LASER button
26 Cursor buttons ▲/▼ ◀ ▶ (Mouse move pointer)
ESC button (keyboard ESC key)
28 (Mouse right button)

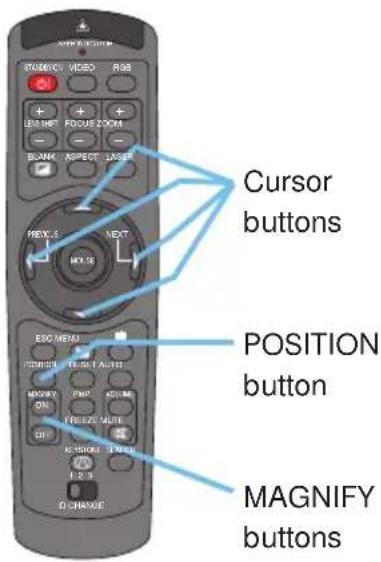

29 POSITION button
30 AUTO button

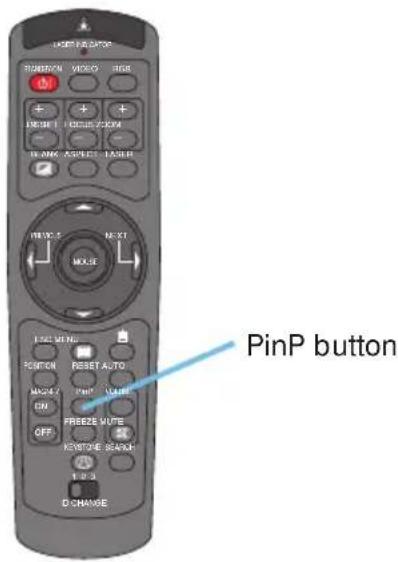

31 PinP button
32 MAGNIFY buttons
33 FREEZE button
34 VOLUME button

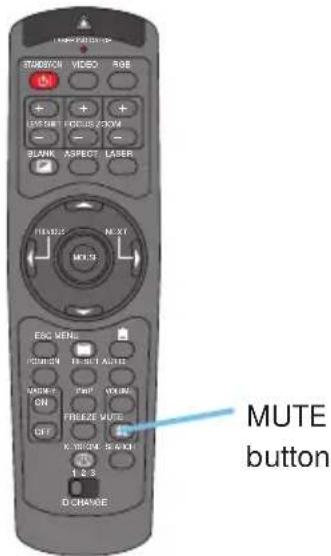

35 MUTE button

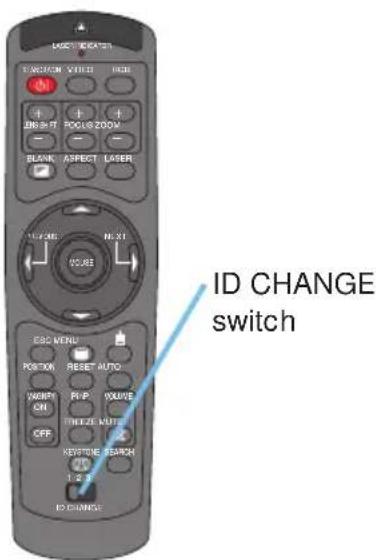

36 ID CHANGE switch

Setting Up

Arrangement

WARNING • Before installation, make sure that the projector is turned off and the power code is disconnected.

• Do not set up and move the projector, while it is hot.
• Install the projector in a suitable environment according to instructions of the “Product Safety Guide” and this manual.
• The power outlet should be close to the projector and easily accessible.

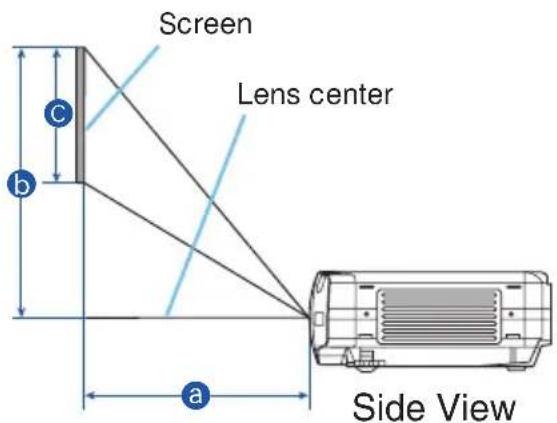

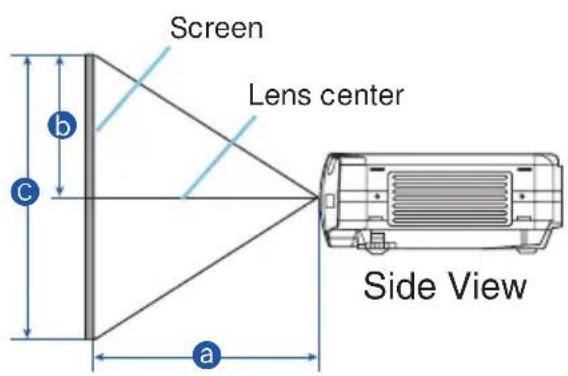

Refer to the illustrations and tables below to determine the screen size and projection distance. The values shown in the table are calculated for a full size screen. (±10%)

Reference for the 4:3 aspect ratio

Screen Lens center Side View a b C

Reference for the 16:9 aspect ratio

Screen Lens center Side View a b c

Screen Size[inch (m)]	a[inch (m)] b[inch (cm)]				c[inch (cm)]
	Min. Max.		X80 :min	X80 :max X70
40 (1.0) 46(1	.2) 71(1	8) 12(30)	24(61) 2	4(61)
60 (1.5) 71(1	.8) 107(2	.7) 18(46)	36(91)	36(91)
70 (1.8)	83(2.1)	126(3.2)	21(53)	42(107)	42(107)
80 (2.0)	95(2.4)	144(3.7)	24(61)	48(122)	48(122)
100 (2.5)	120(3.0)	181(4.6)	30(76)	60(152)	60(152)
120 (3.0)	144(3.7)	217(5.5)	36(91)	72(183)	72(183)
150 (3.8)	181(4.6)	272(6.9)	45(114)	90(229)	90(229)
200 (5.1)	243(6.2)	364(9.2)	60(152)	120(305)	120(305)
250 (6.4) 304	(7.7)	455(11.6)	75(191)	150(381)	150(381)
300 (7.6) 366	(9.3)	547(13.9)	90(229)	180(457)	180(457)
350 (8.9)	427(10.9)	638(16.2)	105(267)	210(533)	210(533)
400 (10.2)	489(12.4)	730(18.5)	120(305)	240(610)	240(610)
500 (12.7)	612(15.5)	913(23.2)	150(381)	300(762)	300(762)

Screen Size[inch (m)]	a[inch (m)] b[inch (cm)]				c[inch (cm)]
	Min. Max.		X80 :min	X80 :max X70
40 (1.0) 50(1.3) 77(2) 0) 10(25) 23(58) 20(50)
60 (1.5) 77(2.0) 117(3.0) 15(37) 34(87) 29(75)
70 (1.8)	91(2.3)	137(3.5)	17(44)	40(102)	34(87)
80 (2.0)	104(2.6)	157(4.0)	20(50)	46(116)	39(100)
100 (2.5)	131(3.3)	197(5.0)	25(62)	57(145)	49(125)
120 (3.0)	158(4.0)	237(6.0)	29(75)	69(174)	59(149)
150 (3.8)	198(5.0)	297(7.5)	37(93)	86(218)	74(187)
200 (5.1) 265(6.7)		396(10.1)	49(125)	114(291)	98(249)
250 (6.4) 332(8.4)		496(12.6)	61(156)	143(363)	123(311)
300 (7.6)	399(10.1)	596(15.1)	74(187)	172(436)	147(374)
350 (8.9)	466(11.8)	696(17.7)	86(218)	200(508)	172(436)
400 (10.2)	533(13.5)	795(20.2)	98(249)	229(581)	196(498)
450 (11.4)	600(15.2)	895(22.7)	110(280)	257(654)	221(560)

Setting Up (continued)

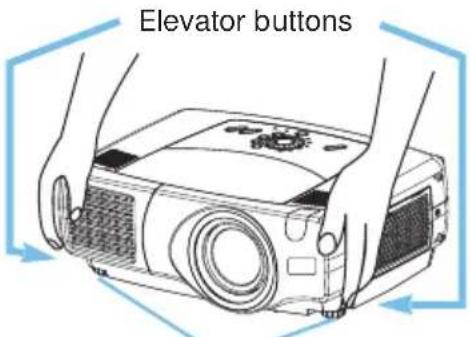

Adjusting The Projector's Elevator

WARNING • Do not touch about the lens and ventilation openings during use or immediately after use to prevent a burn.

CAUTION • To prevent damaging the projector and injuring yourself, always hold the projector whenever using the elevator buttons to adjust the elevator feet.

You can use the elevator feet to make adjustments if the surface on which you need to set the projector is uneven or if you otherwise need to adjust the angle of projection. The adjustment range of the elevator feet is 0 to 9 degrees.

1

Press and hold in the elevator buttons.

2

Raise or lower the projector to the desired height and then release the elevator buttons.

When you release the elevator buttons, the elevator feet will lock into position.

3

As necessary, you can also finely adjust the height of the projector by twisting the elevator feet by hand.

Elevator buttons

Elevator feet

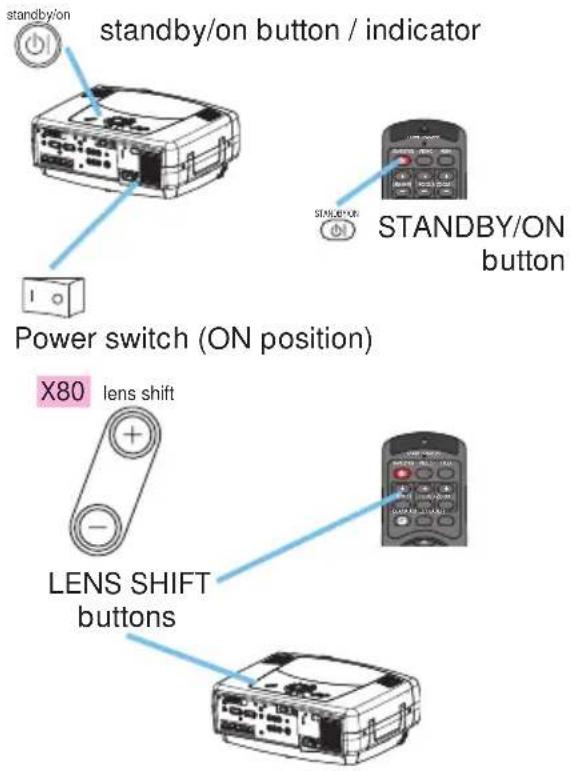

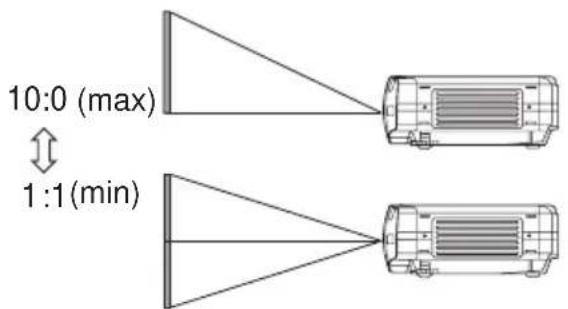

Using The Lens Shift Buttons (X80 only)

NOTE • Generally, better quality of a picture is available when the lens shift is set to the center.

The lens of this projector can be shifted vertically. When you want to finely adjust the picture position, use the LENS SHIFT buttons of the projector.

Projector

LENS SHIFT buttons

LINK SELECT SHROOM VIDEO HIGH ENSHIFT FOCUS ZOOM LINK SELECT LAYER

Remote control

10:0 (max) 1:1 (min)

Setting Up (continued)

Connecting Your Devices

WARNING • Whenever attempting to connect other devices to the projector, read thoroughly the "Product Safety Guide", this manual and the manual of each device be connected. Incorrect connecting could result in fire or electrical shock.

CAUTION • TURN OFF ALL DEVICES prior to connecting them to the projector.

Attempting to connect a live device to the projector may generate extremely loud noises or other abnormalities that may result in malfunction and/or damage to the device and/or projector.

ATTENTION • Make sure that you connect devices to the correct port. Incorrect connection may result in malfunction and/or damage to the device and/or projector. Refer to the section “Technical” of this manual for the pin assignment of connectors and RS-232C communication data.

• Some cables have to be used with core set. Use the accessory cable or a designated-type cable for the connection. For cables that have a core only at one end, connect the core to the projector.
• Secure the screws on the connectors and tighten.
• Whenever attempting to connect a laptop computer to the projector, be sure to activate the laptop's RGB external image output (set the laptop to CRT display or to simultaneous LCD and CRT display). For details on how this is done, please refer to the instruction manual of the corresponding laptop computer.

NOTE • Some computers may have multiple display screen modes. Use of some of these modes may not be compatible with this projector.

• For some RGB input modes, the optional Mac adapter is necessary.
• When the image resolution is changed on a computer, depending on an input, automatic adjust function may take some time and may not be completed. In this case, you may not be able to see a check box to select "Yes/No" for the new resolution on Windows. Then the resolution will go back to the original. It might be recommended to use other CRT or TFT monitors to change the resolution.

NOTE Plug-and-Play Capability

• Plug-and-Play is a system incorporated in the computer, its operating system and peripheral equipment (i.e. display devices).
• This projector is compatible with VESA DDC 1/2B. Plug-and-Play can be achieved by connecting this projector to computers that are VESA DDC (display data channel) compatible.
• Please take advantage of this function by connecting the accessory RGB cable to the RGB port (DDC 1/2B compatible). Plug-and-Play may not work properly if any other type of connection is attempted.
• Please use the standard drivers in your computer as this projector is a Plug-and-Play monitor.

Setting Up (continued)

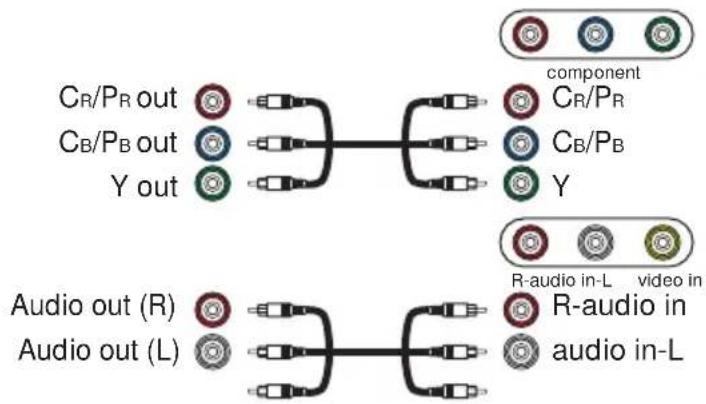

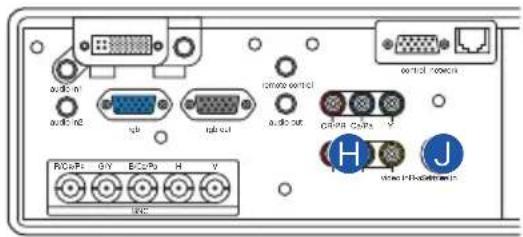

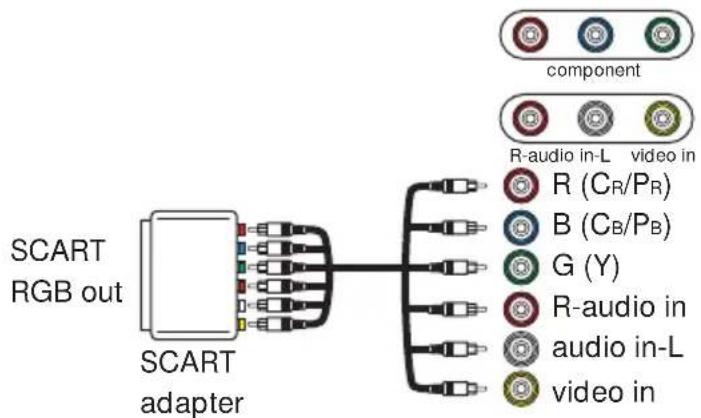

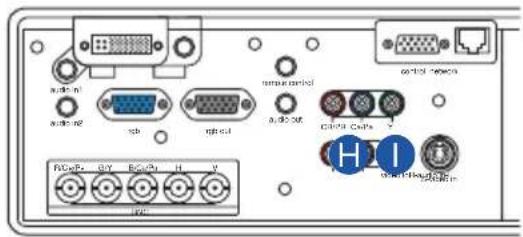

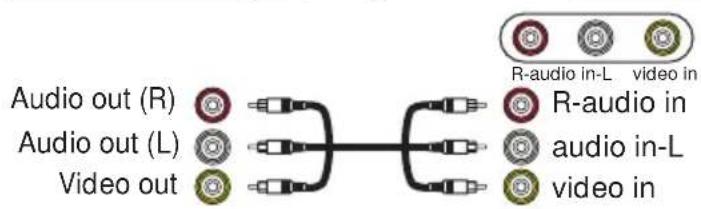

Please refer to the following (for example) for connecting your devices. See the rear of the projector. You can see the ports.

Examples of connection with a computer

Line drawing of two desktop computers: one with monitor and keyboard, the other with laptop (no text or symbols)

Computer Projector

RGB out RGB cable rgb

A

Audio out Stereo Mini cable audio in 2

RS-232C port RS-232C cable

control

Network port

CAT-5 cable

network

E
F

E A GND GND F G remote control control network USB USB USB USB CPU CPU CPU CPU CPU CPU CPU CPU

G

■ If using a M1-D input (to mouse control)

DVI port

USB port

Pure electrical circuit lines without any symbols

M1-D cable

M1-D

B

D B audio H2 USB USB CNT audio out CPU PR CPU PS user PR sub digital RDCs

Audio out Stereo Mini cable audio in 1

D

■ If using a BNC input

R/C#/Pr G/Y B/C#/P# H V

C

RGB out

Pure electrical connector diagram without any text or symbols

BNC cable

R/C_R/P_R

G/Y

B / C_B / P_B

H

V

D

Audio out Stereo Mini cable audio in 1

audio D* USB USB OUT GND OUT CRPR CoFS Y XDC/HR 2.08/406319

Setting Up (continued)

Examples of connection with a VCR/DVD Player

VCR/DVD Player Projector

Audio out (R) Audio out (L) Video out R-audio in-L video in R-audio in audio in-L video in

H

S-video out S-video cable S-video in Audio out (R) Audio out (L) R-audio in-L video in R-audio in audio in-L

J

audio n audio nE USB USB out audio out audio control audio control Gbps Cbps V H I J

H

■If using a component signal

CR/PR out CB/PR out Y out component CR/PR CB/PR Y Audio out (R) Audio out (L) R-audio in-L video in- R-audio in audio in-L

K

audio port audio port USB USB port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio ports

H

■If using a SCART RGB input

SCART RGB out SCART adapter component R-audio in-L video in R (CR/PR) B (CB/PB) G (Y) R-audio in audio in-L video in

K

audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port audio port AUDIO CODE H I

H
1

Setting Up (continued)

Connecting to a monitor

Monitor Projector

RGB in RGB cable rgb out

audio port audio port RGB RGB L music control audio port CPU16000000000000000000000000000000000000000000000000000000000000000000000000000000000 RPG16 3G7 8G8G9 4 9 BDC

Connecting to a speaker (with amplifier)

Speaker Projector

Audio in Stereo Mini cable audio out

USB port USB port USB port USB port USB port USB port USB port USB port USB port USB port USB port USB port USB port USB port USB port USB port USB port USB port USB port USB port USB port USB port USB port USB port USB port USB port USB port USB port USB port USB port USB port USB port USB port USB port US port US port US port US port US port US port US port US port US port US port US port US port US port US port US port US port US port US port US port US port US port US port US port US port US port US port US port US port US port US port US port US port US port US ports

Connecting The Power Supply

WARNING • Use extra caution when connecting the power cord as incorrect or faulty connections may result in fire and/or electrical shock. Please adhere to the “Product Safety de” and the following.

• Only plug the power cord into outlets rated for use with the power cord's specified voltage range.
• Only use the power cord that came with the projector. If it is damaged, contact your dealer to newly get correct one.
• Never modify the power cord. Never attempt to defeat the ground connection of the three-pronged plug.
  • Make sure that you firmly connect the power cord to the projector and wall outlet.

1

Connect the connector of the power cord to the AC inlet of the projector.

2

Firmly plug the power cord's plug into the outlet.

AC Inlet Connector Plug Outlet

Remote Control

About The Laser Pointer

WARNING • The laser pointer of the remote control is used in place of a finger or rod. Never look directly into the laser beam outlet or point the laser beam at other ple. The laser beam can cause vision problems.

CAUTION • Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

This remote control has a laser pointer in place of a finger or rod. The laser beam works and the LASER INDICATOR lights while the LASER button is pressed.

Putting Batteries

CAUTION • About the battery

• Keep a battery away from children and pets.
  • Use only the battery specified: two AA batteries.
• Do not mix new battery with used one.
• Make sure the plus and minus terminals are correctly aligned when loading the battery (as indicated in the remote control).
• Dispose of batteries in accord with environmental laws.

Remove the battery cover.

Slide back and remove the battery cover in the direction of the arrow.

Insert the batteries. Align and insert the two AA batteries according to their plus minus terminals (as indicated in the remote control).

Close the battery cover.

Replace the battery cover in the direction of the arrow and snap it back into place.

Illustration of a hand holding a remote control device with a blue arrow pointing to the button (no text or symbols present)

Illustration of a remote control device with red batteries and blue battery spout (no text or symbols)

Illustration of a hand holding a remote control device with a blue arrow pointing to the button (no text or symbols present)

Remote Control (continued)

Operating The Remote Control

CAUTION • Do not disassemble the remote control.

- Do not place the remote control near the projector's lens, fan, or vents.

• Do not drop or otherwise expose the remote control to physical impact.
• Do not get the remote control wet or place it on wet objects on it. Doing so may result in malfunction.
• Remove the batteries from the remote control and store them in a safe place if you won't be using the remote control for an extended period.

NOTE

- Replace the batteries whenever the remote control starts to malfunction.

- When strong light, such as direct sunlight or light from an extremely close range (such as from an inverter fluorescent lamp), hits the projector's remote sensor, the remote control may cease to function. Adjust the direction of the projector to keep light from directly hitting the projector's remote sensor.

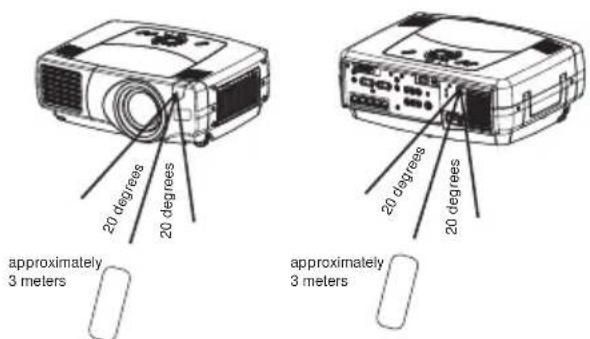

• The remote control works with the projector's remote sensor.

• Front remote sensor is 3 meters with a 40 degree range (20 degrees to the left and right of a remote sensor).
  Rear remote sensor is 3 meters with a 40 degree range (20 degrees to the left and right of a remote sensor).

• Also a remote signal reflected in the screen etc.
  may be available. If it is difficult to send a remote signal to the sensor directly, please try.

• Since the remote control uses infrared light to send signals to the projector (Class1 LED), be sure to use the remote control in an area free from obstacles that could block the remote control's output signal to the projector. memo You can use the remote control as a wired remote control, by connecting the REMOTE CONTROL ports of the main unit and remote control via an audio cable (3.5 dia. stereo mini cable with plugs).

20 degrees 20 degrees approximately 3 meters 20 degrees 20 degrees approximately 3 meters

Using The Remote ID Feature

This is the function to properly use when you use two or three same type projectors at the same time. This function should be used combining a setup of a projector.

1

Set the ID number to the projector beforehand, referring to the item "IR REMOTE ID" of the section "OPTION Menu".

memo When the ALL is selected to the item "IR REMOTE ID" of the OPTION menu, the projector is controlled by a remote control irrespective of the position of the ID CHANGE switch.

2

Slide the knob of the switch into the position of the ID number of the projector you want to control.

ID CHANGE switch

Remote Control (continued)

Using The Mouse/Keyboard Control Function

CAUTION • Before connecting, read the manuals of the device you will connect.

Mistaken use of the mouse/keyboard control could damage your equipment.

• Only connect to a PC or an USB Hub connected PC.
• Do not unplug the connector cables while the computer is operating.

Using the USB control feature, you can use the remote control as a simplified mouse or keyboard of the computer.

Connect the M1-D port of the projector to the computer via the M1-D cable. Then functions illustrated below will be enabled.

memo The USB control can be used with Windows 95 OSR 2.1 or higher. It may not be possible to use the remote control, depending on the computer's configurations and mouse drivers.

memo The function can be used only for the functions illustrated on the right.

memo The projector would be enumerated as a mouse and a keyboard of HID (Human Interface Device) class devices, after connecting cable.

Mouse left button Mouse move pointer Keyboard Arrow keys // Mouse right button Keyboard ESC key (Front) (Rear)

Power ON/OFF

WARNING • When the power is ON, a strong light is emitted. Do not look into the lens or vents of the projector.

NOTE • Turn the power on/off in right order. Please power on the projector before the connected devices. Power off the projector after the connected devices.

Turning On The Power

1 Remove the lens cap.
2 Set the power switch to [ I ] (ON). The standby/on indicator will light to solid orange.
3 Press the STANDBY/ON button. The projector lamp will light up and the standby/on indicator will begin blinking green. When the power is completely on, the indicator will stop blinking and light green.
4 Use the LENS SHIFT buttons to shift the picture upward or downward. (X80 only) memo X70 does not have the lens shift function. X70 has the volume buttons instead of the lens shift buttons on the projector.
5 Select an input signal according to the section "Selecting An Input Signal" of the following page.

Turning Off The Power

1 Press the STANDBY/ON button. The message "Power off?" will appear on the screen for approximately 5 seconds.
2 Press the STANDBY/ON button again while "Power off?" the message is visible. The projector lamp will go off, and the standby/on indicator will begin blanking orange. Then the standby/on indicator will stop blinking and light to solid orange when the lamp cooling is complete.
3 Switch the power switch to [O] (OFF). The standby/on indicator will go off.
4 Attached the lens cap.

standby/on standby/on button / indicator STANDBY/ON button Power switch (ON position) X80 lens shift LENS SHIFT buttons

standby/on standby/on button / indicator STANDBY/ON button Power switch (OFF position)

Operating

Selecting An Input Signal

1

Select an input signal.

■Using the INPUT dial

Turn the INPUT dial of the projector.

Turning the dial cycles through the input ports as shown below. Select the signal you wish to project.

■Using SEARCH button

Press the SEARCH button of the projector or the remote control.

Pressing the button automatically cycles through input ports and displays the picture of retrieved signal.

memo If no signal is found or the projector is unstable to find an input signal at any of its ports, it will turn to the state it was in prior to the search.

■Using RGB button

Press the RGB button of the remote control.

Pressing the button toggles between the RGB ports as shown below Select the signal you wish to project.

■Using VIDEO button

Press the VIDEO button of the remote control.

Pressing the button toggles between the VIDEO ports as shown below Select the signal you wish to project.

2

Use the ZOOM buttons to adjust the screen size.

3

Use the FOCUS buttons to adjust the focus.

SEARCH button M1-D input search rgb BNC component ENTER S-video video reset menu INPUT dial

VIDEO button

RGB button SEARCH button

ZOOM buttons

FOCUS buttons

Operating (continued)

Selecting The Aspect Ratio

1

Press the Aspect button to toggle between the modes for aspect ratio.

■At a M1-D signal

memo NORMAL keeps the original aspect ratio of the input signal.

■At a RGB signal (not M1-D)

4:3 ←→ 16:9

■At a video signal

memo At a HDTV signal of 1125i or 750p, only 16:9 can be selected.

TURBOON VIDEO RAB + - JIMINT FOCUS ZOOM BLANK ASPECT LASER MAKE ME X1 NO. 50 EXC. WENS SEN ON HUST AUTO WIDE ON FREE YOUR ON THREEK KUTE OFF 1:2:3 I C CHANGE

ASPECT button

Using The Automatic Adjustment Feature

memo The automatic adjustment operation requires approximately 10 seconds. Also, please note that it may not function correctly with some input.

1

Press the AUTO button.

■At a RGB signal

The Vertical position (V POSITION), the horizontal position (H POSITION), the clock phase (H PHASE) and horizontal size (H SIZE) will be automatically adjusted.

memo Make sure that the application window is set to its maximum size prior to attempting to use this feature. Dark pictures may still be incorrectly adjusted. Use a bright screen when adjusting.

■At a video signal

The signal type mode best suited for the respective input signal will be selected automatically.

memo This function is available only when the AUTO is selected to the item VIDEO of the INPUT menu. For a component video signal, the signal type is identified automatically independently of this function.

I/OFF GENERATOR STRAWBOW VIDEO ROB + + ENGLISH ROOTS ZOOM INJAM ASPECT LASER PREVOC NEXT NLS3 FLOT MENU RESET AUTO MASK 1 TIME MAX ON FREEZE NUTS CFP KEYSTONE SEARCH 1 2 3 IC CHANGE

AUTO button

Operating (continued)

Adjusting The Picture Position

memo This function is available only for RGB signals.

1

Press the POSITION button. As illustrated on the right, a dialog will appear on the screen to aid you in adjusting the position.

POSITION

2

Use the cursor buttons ▲/ ▼ to adjust the position.

memo When you want to initialize the position, press the RESET button during adjustment.

3

Press the POSITION button again to close the dialog and complete this operation.

memo Even if you don't do anything, the dialog will automatically disappear after a few seconds.

AEREN REVERSE STRAWBEN VIDEO RGB + + USE MORE + + FIDUS ROOM - - IN MATH INFOLET ✉ LIFE PRET 1 NEXT MUSH EXCM SET PUSH SET AUTO MUSH SET QUN FREE SEE MUTE KNEESE SEARCH 3.000 O CHANGE Cursor buttons POSITION button RESET button

Correcting The Keystone Distortion

1

Press the KEYSTONE button. As illustrated on the right, a dialog will appear on the screen to aid you in correcting the keystone distortion.

2

Use the cursor buttons ↗to select the direction of distortion to correct (or).

KEYSTONE ±0 ±0

3

Use the cursor buttons ▲ to correct the distortion.

4

Press the KEYSTONE button again to close the dialog and complete this operation.

memo Even if you don't do anything, the dialog will automatically disappear after a few seconds.

memo When this adjustment is excessive, certain degradation may appear on the picture. Also, please note that it may not function correctly with some input.

CURRY KEYSTONE STRAWK VICO HIGH + + + + + + CLOCK FLOWER + - BEANS ACCESS + - PRETLE NEXT + - MUS Esc MENU RESET AUTO MOSSET ON Fire INSIDE FREE ZAUTE OFF KEYSTONE SEASON 1.2.9 D CNGAGE Cursor buttons KEYSTONE button

Operating (continued)

Adjusting The Volume

1

Press the VOLUME button.

As illustrated on the right, a dialog will appear on the screen to aid you in adjusting the volume.

2

Use the cursor buttons ▲to▼ adjust the volume.

VOLUME 16

3

Press the VOLUME button again to close the dialog and complete this operation.

memo Even if you don't do anything, the dialog will automatically disappear after a few seconds.

LGBT REDUCOR TOMENIA VIDEO ROB + + LESS INST FOCUS ZOOM BLANK ACCESS LASER FLEX 3000 NEXT MX3E VOLUME button 1200 MHz POWER RESET AUTO MAIN PORT NAME ON FREE WITH OFF KEYSTONE SWITCH RANGE D CHANGE

Muting The Sound

1

Press the MUTE button.

As illustrated on the right, a dialog will appear on the screen indicating that you have muted the sound.

2

Press the MUTE or VOLUME button to restore the sound.

memo Even if you don't do anything, the dialog will automatically disappear after a few seconds.

VOLUME 16

MUTE button D CHANGE

Temporarily Blanking The Screen

1

Press the BLANK button.

The input signal screen will shut off, and a BLANK screen will appear.

memo You can set the BLANK screen using the menu. Please refer to the item "BLANK" of the table of the section "SCREEN Menu".

2

Press the BLANK button again to remove the blank screen, and return to the input signal screen.

LATE BOX BRINJORS VIDEO BOX + + + + LASTOR LICKERS ROOM - - BLANK ACCESS ORDER PREVENT NEXT MOVE BEET AUTO FORION PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF FFS OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PREF OFF PRef OFF PRef OFF PRef OFF PRef OFF PRef OFF PRef OFF PRef OFF PRef OFF PRef OFF PRef OFF PRef OFF PRef OFF PRef OFF PRef OFF PRef OFF PRef OFF PRef OFF PRef OFF PRef OFF PRef OFF PReS OFF

Operating (continued)

Freezing The Screen

1

Press the FREEZE button. As illustrated on the right, a dialog will appear on the screen, and the screen will freeze at the current image.

FREEZE II

2

Press the FREEZE button again to restore the screen to normal.

The icon "ll" will change to the icon "▶". And after a couple of seconds, the dialog will be closed and the screen will be restored to normal.

memo The freezing feature will automatically finish if a remote control's button that changes some display state (ex. blanking the screen, displaying a dialog or a menu, adjusting the picture, changing the input signal) is pressed, or a button of projector is pressed.

STUDIO/VIDEO RGB + + OFFICE EFFECTS/COMM Blank ASPECT LASER NEXT MOSI ESC MENU FIRELLA AUTO MINISTRY PREF. KILLAGE WHIP FREEZE MOUNT R/WNSKU R/WNSKU 1.2.3. 0 CHANGE FREEZE button

NOTE • If the projector continues projecting the same image for a long time (i.e. you forget to exit FREEZE mode), the image might possibly remain as an afterimage. Do not leave the projector in FREEZE mode for too long.

Using The Magnify Feature

1

Press the MAGNIFY ON button.

As illustrated on the right, a dialog will appear on the screen to aid you in magnifying the picture.

MAGNIFY

2

Press the POSITION button, then use the cursor buttons ▲/ ▼ to select the area to zoom.

3

Press the POSITION button again to finalize the zoom area.

4

Use the cursor buttons ▲ to adjust the zoom level.

5

Press the MAGNIFY button again to close the dialog and complete this operation.

memo The magnify feature will automatically finish if the automatic adjustment is execute, or the aspect, the signal type mode of video or the signal input state is changed.

Cursors buttons POSITION button MAGNIFY buttons STRAWYOU VIDEO RGB LEASER FOCUS ZOOM BLANK ASPECT LASER PREXLS NEXT MX 50 ESC MENU POMEN TE-SI-T-A-TE MASKY ON PKP K-SUM FTR EZU MUTE K-SSOOK E-SSO 1.2.9 D-CHANGE

Operating (continued)

Displaying The Child Window

memo This feature called "PinP (Picture in Picture)" is available only when a RGB signal is selected to main screen.

1

Press the PinP button.

The child window with a picture of a video signal will appear.

2

Press the PinP button again to change the size of the child window or close the window.

Small child window Large child window ↑ ↓ No child window

memo You can select the video signal to display in the child window, and the position of the child window. Please refer to the items "P.INP. INPUT" and "P.INP. POSIT." of the table of the section "INPUT Menu".

USB MOTOR TOMBOON VIDEO RISE + + + + RESET CHECK Blank ACCESS LABEL AUTO 5 NEXT MULSE LOAD MACH BUTTON RESET AUTO MAKE PIN WAVE ON FREE ZUBE OFF KONTOE BAND F:0.3 D CHARGE PinP button

Selecting An Audio Input

memo This feature is available only when the child window is on the screen.

1

When the child window is on the screen, press the VOLUME button. As illustrated on the right, a dialog will appear on the screen.

2

Use the cursor buttons /to select an audio input.

RGB (Audio input for the main screen)

Video (Audio input for the child window)

memo You also can adjust the volume using the cursor buttons ◀/▶. Please refer to the section "Adjusting The Volume".

VOLUME RGB Video 16

DUAL FLOWER SUMMER VIDEO RGB + + RESET FOCUS ZOOM BLANK ASPECT LASER MIXE NEXT MENU VOLUME button ESC MENU HORN ON RESET AUTO MUSSET ON FAB VOLUME ON FREE VOLUME OFF KONKINI RUNCHIN RISK RICHWINDS Cursors buttons VOLUME button

3

Press the VOLUME button again to close the dialog and complete this operation.

memo Even if you don't do anything, the dialog will automatically disappear after a few seconds.

Multifunctional Settings

Using The Menu Functions

This projector has the following menus: MAIN, PICTURE-1, PICTURE-2, INPUT, AUTO, SCREEN, OPTION and NETWORK. Each of these menus is operated using the same methods. The basic operations of these menus are as follows.

1

Press the MENU button. The menu will appear on the screen.

2

Use the cursor buttons ▲/▼ to select a menu, then press the ▶or the ENTER) button to progress. The display of the selected menu will appear.

3

Use the cursor buttons ▲/▼ to select an item, then press the ▶or the ENTER) button to progress. The operation display of the selected item will appear.

4

Use the cursor buttons ▲to▼operate the item. memo When you want to reset the adjustment, press the RESET button during the operation. Note that the items whose functions are performed simultaneously with operating (ex. LANGUAGE, WHISPER, H PHASE etc.) are not reset. memo When you want to return to the previous display, press the ▲r ESC button.

5

Press the MENU button again to close the menu display and complete this operation. memo Even if you don't do anything, the menu will automatically disappear after a few seconds

ex. Turning off the built-in speaker

Multifunctional Settings (continued)

MAIN Menu

With the MAIN menu, the items shown in the table below can be performed. Perform each operation in accordance with the instructions in the table below.

MENU
MAIN	BRIGHT	+0
PICTURE-1	CONTRAST	+0
PICTURE-2	ASPECT	4:3
INPUT	WHISPER	NORMAL
AUTO	MIRROR	NORMAL
SCREEN	LANGUAGE	ENGLISH
OPTION	[Language]
NETWORK	RESET

Item Description
BRIGHT	Adjust the brightness using the ▲buttons. : Light ⇔ Dark
CONTRAST	Adjust the contrast using the ▲buttons. : Strong ⇔ Weak
ASPECT	Select an aspect ratio using the ▲buttons. :■At a M1-D signalNORMAL ⇔4:3 ⇔16:9The NORMAL keeps the original aspect ratio of the input signal.■At a RGB signal (not M1-D)4:3 ⇔16:9■At a video signal4:3 ⇔16:9 ⇔SMALLmemo At a HDTV signal of 1125i or 750p, only the 16:9 can be selected.
WHISPER	Select the NORMAL or the WHISPER using the ▲buttons. :NORMAL ⇔WHISPERWhen the WHISPER is selected, acoustic noise and screen brightness are reduced.
MIRROR	Select a mirror status using the ▲buttons. :NORMAL ⇔H:INVERT ⇔V:INVERT ⇔H&V:INVERT ex.
LANGUAGE	Select a menu language using the ▲buttons. :ENGLISH ⇔FRANÇAIS ⇔DEUTSCH ⇔ESPAÑOL ⇔ITALIANONORSK ⇔NEDERLANDS ⇔日本語 ⇔PORTUGUÊS ⇔中文[IMAGE]
RESET	Select the EXECUTE using the ▲button to reset the MAIN menu items. :EXECUTE ⇔CANCELThe items of the MAIN menu are collectively returned to the initial setting. Note that the items “WHISPER” and “LANGUAGE” are not reset.

Multifunctional Settings (continued)

PICTURE-1 Menu

With the PICTURE-1 menu, the items shown in the table below can be performed. Perform each operation in accordance with the instructions in the table below.

MENU
MAIN	GAMMA	NORMAL
PICTURE-1	COLOR BAL R	+0
PICTURE-2	COLOR BAL G	+0
INPUT	COLOR BAL B	+0
AUTO	SHARPNESS	+0
SCREEN	COLOR	+0
OPTION	TINT	+0
NETWORK	MY MEMORY	LOAD1

Item Description
GAMMA	Select a gamma mode using the▲buttons. :NORMAL ⇔ CINEMA ⇔ DYNAMIC ⇔ CUSTOMSelecting the CUSTOM and then pressing the ▶(or the ENTER) button calls the CUSTOM menu.CUSTOM MenuSelect an item using the▲buttons, and press the▶(or the ENTER) button to perform each function.GAMMA ⇔ COLOR TEMP ⇔ R ⇔ G ⇔ Bmemo The R, G and B can be selected only when the USER is selected under the COLOR TEMP.
	GAMMA	Adjust the gamma data using the▲buttons. :Up ⇔ Down
	COLOR TEMP	Select a color temperature using the▲buttons. :HIGH ⇔ MIDDLE ⇔ LOW ⇔ USER
	R	Adjust the red color level for the USER mode of the COLOR TEMP using the▲buttons. : Strong ⇔ Weak
	G	Adjust the green color level for the USER mode of the COLOR TEMP using the▲buttons. : Strong ⇔ Weak
	B	Adjust the blue color level for the USER mode of the COLOR TEMP using the▲buttons. : Strong ⇔ Weak
COLOR BAL R	Adjust the red color balance using the▲buttons. :Strong ⇔ Weak
COLOR BAL G	Adjust the green color balance using the▲buttons. :Strong ⇔ Weak
COLOR BAL B	Adjust the blue color balance using the▲buttons. :Strong ⇔ Weak
SHARPNESS	Adjust the sharpness using the▲buttons. :Clear ⇔ Softmemo This item can be selected only at a video signal.
COLOR	Adjust the whole color using the▲buttons. :Strong ⇔ Weakmemo This item can be selected only at a video signal.
TINT	Adjust the tint using the▲buttons. :Green ⇔ Redmemo This item can be selected only at a video signal.

(This table is continued to the following page.)

Multifunctional Settings (continued)

PICTURE-1 Menu (continued)

Item Description
MY MEMORY	Select a command to load or save using the▲buttons, and then press the ▶or the ENTER) button to perform the function.:LOAD1 ⇔ LOAD2 ⇔ LOAD3 ⇔ LOAD4SAVE1 ⇔ SAVE2 ⇔ SAVE3 ⇔ SAVE4This projector has 4 numbered memories for adjustment data.Performing the SAVE1, SAVE2, SAVE3 or SAVE4 puts the current adjustment data on the memory whose number corresponds with the command's number.Performing the LOAD1, LOAD2, LOAD3 or LOAD4 loads the data on the memory whose number corresponds with the command's number, and adjusts the picture automatically depending on the data.
RESET	Select the EXECUTE using the▲button to reset the PICTURE-1 menu items.: EXECUTE ⇔CANCELThe items of the PICTURE-1 menu are collectively returned to the initial setting. Note that the items “MY MEMORY” and “GAMMA” of the CUSTOM menu under the item “GAMMA” are not reset.

Multifunctional Settings (continued)

PICTURE-2 Menu

With the PICTURE-2 menu, the items shown in the table below can be performed. Perform each operation in accordance with the instructions in the table below.

memo This menu cannot be selected at a M1-D signal.

MENU
MAIN	V POSITION	20
PICTURE-1	H POSITION	142
PICTURE-2	H PHASE	31
INPUT	H SIZE	1344
AUTO	OVER SCAN	95
SCREEN	RESET
OPTION
NETWORK
: SELECT

Item Description
V POSITION	Adjust the vertical position using the▲buttons. :Up ⇔Downmemo This item can be selected only at a RGB signal.
H POSITION	Adjust the horizontal position using the▲buttons. :Left ⇔Rightmemo This item can be selected only at a RGB signal.
H.PHASE	Adjust the horizontal phase to eliminate flicker using the▲buttons. :Right ⇔Leftmemo This item can be selected only at a RGB signal or a component video signal other than a COMPONENT port input of 525i/625i/SCART RGB.
H SIZE	Adjust the horizontal size using the▲buttons. :Large ⇔Smallmemo This item can be selected only at a RGB signal.memo When this adjustment is excessive, the picture may not be displayed correctly. In such a case, please reset the adjustment pressing the RESET button during this operation.
OVER SCAN	Adjust the over-scan ratio using the▲buttons. :Small ⇔Largememo This item can be selected only at a video signal.memo When this adjustment is too large, certain degradation may appear at the frame area of the picture. In such a case, please adjust small.
RESET	Select the EXECUTE using the▲button to reset the PICTURE-2 menu items. :EXECUTE ⇔CANCELThe items of the PICTURE-2 menu are collectively returned to the initial setting. Note that the item “H PHASE” is not reset.

Multifunctional Settings (continued)

INPUT Menu

With the INPUT menu, the items shown in the table below can be performed. Perform each operation in accordance with the instructions in the table below.

MENU
MAIN	COLOR SPACE	AUTO
PICTURE-1	COMPONENT	COMPONENT
PICTURE-2	VIDEO	AUTO
INPUT	3D-YCS	TURN OFF
AUTO	VIDEO NR	LOW
SCREEN	P. INP. INPUT	VIDEO
OPTION	P. INP. POSIT.
NETWORK	POWERUP INPUT	RGB

Item Description
COLOR SPACE	Select a color space mode using the▲buttons. :AUTO ⇔ RGB ⇔ SMPTE240 ⇔ REC709 ⇔ REC601Selecting the AUTO automatically selects the optimum mode.memo This item can be selected only at a RGB signal or a component video signal other than a COMPONENT port input of 525i/625i/SCART RGB.memo The AUTO operation may not work well at some signals. In such a case, select the SMPTE240 or the REC709 for a HDTV signal.
COMPONENT	Select a function of COMPONENT port using the▲buttons. :COMPONENT ⇔ SCART RGBWhen the SCART RGB is selected, the COMPONENT port function as a port for a SCART RGB signal input. Please refer to the section “Connecting Your Devices”.
VIDEO	Select a signal type mode using the▲buttons. :AUTO ⇔ NTSC ⇔ PAL ⇔ SECAM ⇔ NTSC4.43 ⇔ M-PAL ⇔ N-PALSelecting the AUTO automatically selects the optimum mode.memo This item is performs only at a video signal from the VIDEO port or the S-VIDEO port. For a component video signal, the signal type is identified automatically independently of this function.memo The AUTO operation may not work well at some signals. If the picture becomes unstable (ex. a irregular picture, a color lack), please select the mode depending on the input signal.
3D-YCS	Select the TURN ON or the TURN OFF using the▲buttons. :TURN ON ⇔ TURN OFFWhen the TURN ON is selected, the 3D-YCS mode works for a completely still image, or images with few motions.memo This item performs only at a video signal of NTSC3.58.memo When this function performs, the setting of the item “VIDEO NR” of this INPUT menu is not effective.
VIDEO NR	Select a noise reduction level using the▲buttons. :HIGH ⇔MIDDLE ⇔LOWThe noise on screen is reduced according to the selected level.memo This item performs only at a video signal from the VIDEO port or the S-VIDEO port. At a video signal of NTSC3.58, this function performs only when the TURN OFF is selected to the item “3D-YSC” of this INPUT menu.memo When this adjustment is excessive, certain degradation may appear on the picture.

(This table is continued to the following page.)

Multifunctional Settings (continued)

INPUT Menu (continued)

Item Description
P.IN P. INPUT	Select a signal input port for the child window using the▲buttons. :video ⇔S-videomemo About the child window, please refer to the section “Displaying the Child Window”.
P.IN P. POSIT.	Select the display position of the child window using the▲buttons. :☐ ⇔☐ ⇔☐ ⇔☐memo About the child window, please refer to the section “Displaying the Child Window”.
POWERUP INPUT	Select a signal input port to display just when the projector is turned on, using the▲/▼buttons. :LAST INPUT ⇔M1-D ⇔rgb ⇔BNC ⇔component ⇔S-video ⇔videoSelecting the LAST INPUT selects the port that was used at the last time.
INFORMATION	Pressing the (or the ENTER) button displays the INPUT INFORMATION menu.The INPUT INFORMATION menu shows the information about the current signal input as illustrated below.memo The “FRAME LOCK” message means the frame lock function is working.This function automatically works when a RGB signal with vertical frequency of 50 to 60 is input, and it displays a moving picture more smoothly.memo The “SCART RGB” message means the COMPONENT port is working as a SCART RGB port. Please refer to the item “COMPONENT” in this table.
S2-ASPECT	Select the TURN ON or the TURN OFF using the▲buttons. :TURN ON ⇔TURN OFFWhen the TURN ON is selected, an S2-video signal can be identified and the optimum aspect ratio is automatically selected.memo This item is performs only at a S-VIDEO signal.memo When the ASPECT button is used or the item “ASPECT” of the MAIN menu is operated, the TURN OFF will be automatically selected to this item.
RESET	Select the EXECUTE using the▲button to reset the INPUT menu items. :EXECUTE ⇔CANCELThe items of the INPUT menu are collectively returned to the initial setting. Note that the item “INFORMATION” is not reset.

Multifunctional Settings (continued)

AUTO Menu

With the AUTO menu, the items shown in the table below can be performed. Perform each operation in accordance with the instructions in the table below.

MENU
MAIN	ADJUST
PICTURE-1	POWER OFF	0 min
PICTURE-2	POWER ON	TURN ON
INPUT	SEARCH	TURN ON
AUTO	RESET
SCREEN
OPTION
NETWORK

Item Description
ADJUST	Pressing the (or the ENTER) button performs the automatic adjustment.■At a RGB signalThe vertical position (V POSITION), the horizontal position (H POSITION), the clock phase (H PHASE) and the horizontal size (H SIZE) will be automatically adjusted.memo Make sure that the application window is set to its maximum size prior to attempting to use this feature. Dark pictures may still be incorrectly adjusted. Use a bright screen when adjusting.■At a video signalThe signal type mode best suited for the respective input signal will be selected automatically.memo This function is available only when the AUTO is selected to the item “VIDEO” of the INPUT menu. For a component video signal, the signal type is identified automatically independently of this function.memo This operation requires approximately 10 seconds, and the message “AUTO IN PROGRESS” is displayed during the operation.memo This operation may not work well at some signals. If the picture becomes unstable (ex. a irregular picture, a color lack), please select the suitable mode to the item “VIDEO” of the INPUT menu.
POWER OFF	Set the time using the ▲buttons.:Long (max. 99 minutes) ⇔ Short (min. 0 minute = DISABLE)ex.When the time is set to 1 to 99, the projector lamp will go off and the STANDBY/ON indicator begins blinking when the passed time with a proper signal (without no-signal and an unsuitable signal) reaches at the set time. Please refer to the section “Turning Off The Power”.
POWER ON	Select the TURN ON or the TURN OFF using the ▲buttons.:TURN ON ⇔ TURN OFFWhen the TURN ON is selected, you can turn the projector on without pressing the STANDBY/ON button. Please refer to the section “Turning Off The Power”.

(This table is continued to the following page.)

Multifunctional Settings (continued)

AUTO Menu (continued)

Item Description
SEARCH	Select the TURN ON or the TURN OFF using the▲buttons. :TURN ON ⇔TURN OFFWhen the TURN ON is selected, detecting no signal cycles through input ports and displays the picture of retrieved signal.memo When the TURN ON is selected, pressing the RGB button selects the M1-D ports, and pressing the VIDEO button selects the component port.memo If no signal is found or the projector is unstable to find an input signal at any of its ports, it will return to the state it was in prior to the search.
RESET	Select the EXECUTE using the▲button to reset the AUTO menu items. :EXECUTE ⇔CANCELThe items of the AUTO menu are collectively returned to the initial setting. Note that the item “ADJUST” is not reset.

Multifunctional Settings (continued)

SCREEN Menu

With the SCREEN menu, the items shown in the table below can be performed. Perform each operation in accordance with the instructions in the table below.

MENU
MAIN	BLANK	BLACK
PICTURE-1	START UP	ORIGINAL
PICTURE-2	MyScreen
INPUT	MyScreen SIZE	x1
AUTO	MyScreen LOCK	TURN OFF
SCREEN	MENU POSITION
OPTION	MESSAGE	TURN ON
NETWORK	RESET

Item Description
BLANK	Select a type of the BLANK screen using the▲buttons. :MyScreen ⇔ ORIGINAL ⇔ BLUE ⇔ WHITE ⇔ BLACKThe BLANK screen is the screen, which is displayed by pressing the BLANK button.The MyScreen is the screen you can register a desired screen, and the ORIGINAL is the existing standard screen. The BLUE, the WHITE and the BLACK are the non-pattered (plain) screens in each color.memo To avoid remaining as an afterimage, the MyScreen and the ORIGINAL screens will change to the BLACK screen after several minutes.memo For the MyScreen, please refer to the item “MyScreen” in this table.
START UP	Select a type of the START UP screen using the▲buttons. :MyScreen ⇔ ORIGINAL ⇔ TURN OFFThe START UP screen is the screen, which is displayed by detecting no signal or an unsuitable signal.The MyScreen is the screen you can register a desired screen, and the ORIGINAL is the existing standard screen. When the TURN OFF is selected, the BLUE is used.memo To avoid remaining as an afterimage, the MyScreen and the ORIGINAL screens will change to the BLANK after several minutes. If also the BLANK screen is the MyScreen or the ORIGINAL, it will change to the BLACK screen.memo About the MyScreen, please refer to the item “MyScreen” in this table.About the BLUE, BLACK and BLANK screens, please refer to the item “BLANK” in this table.
MyScreen	Pressing the (or the ENTER) button starts the MyScreen registration. Please see the flow chart on the following page.
MyScreen SIZE	Select the size of the MyScreen using the▲buttons. :x1 ⇌FULL
MyScreen LOCK	Select the TURN ON or the TURN OFF using the▲buttons.:TURN ON ⇌TURN OFFThe TURN ON disables the operation of the item “MyScreen” of this SCREEN menu.
MENU POSITION	Adjust the menu position using the▲/ /buttons.►Up↑Left ⇔+ ➔Right↓Downmemo To finish this operation, press the ESC button but not the◀button.

(This table is continued to the following page.)

Multifunctional Settings (continued)

SCREEN Menu (continued)

Item Description
MESSAGE	Select the TURN ON or the TURN OFF using the ▲buttons. :TURN ON ⇔TURN OFFWhen the TURN ON is selected, the following message function works.The message of the “AUTO IN PROGRESS” for the auto adjustment.The message of the "NO INPUT IS DETECTED"The message of the "SYNC IS OUT OF RANGE"The message of the "Searching ..."The message of the “Detecting ..."The indication of the input signal by input change.The indication of the aspect ratio by changing the aspect ratio.The indication of “FOCUS” by adjusting the focus.
RESET	Select the EXECUTE using the ▲button to reset the SCREEN menu items. :EXECUTE ⇔CANCELThe items of the SCREEN menu are collectively returned to the initial setting.

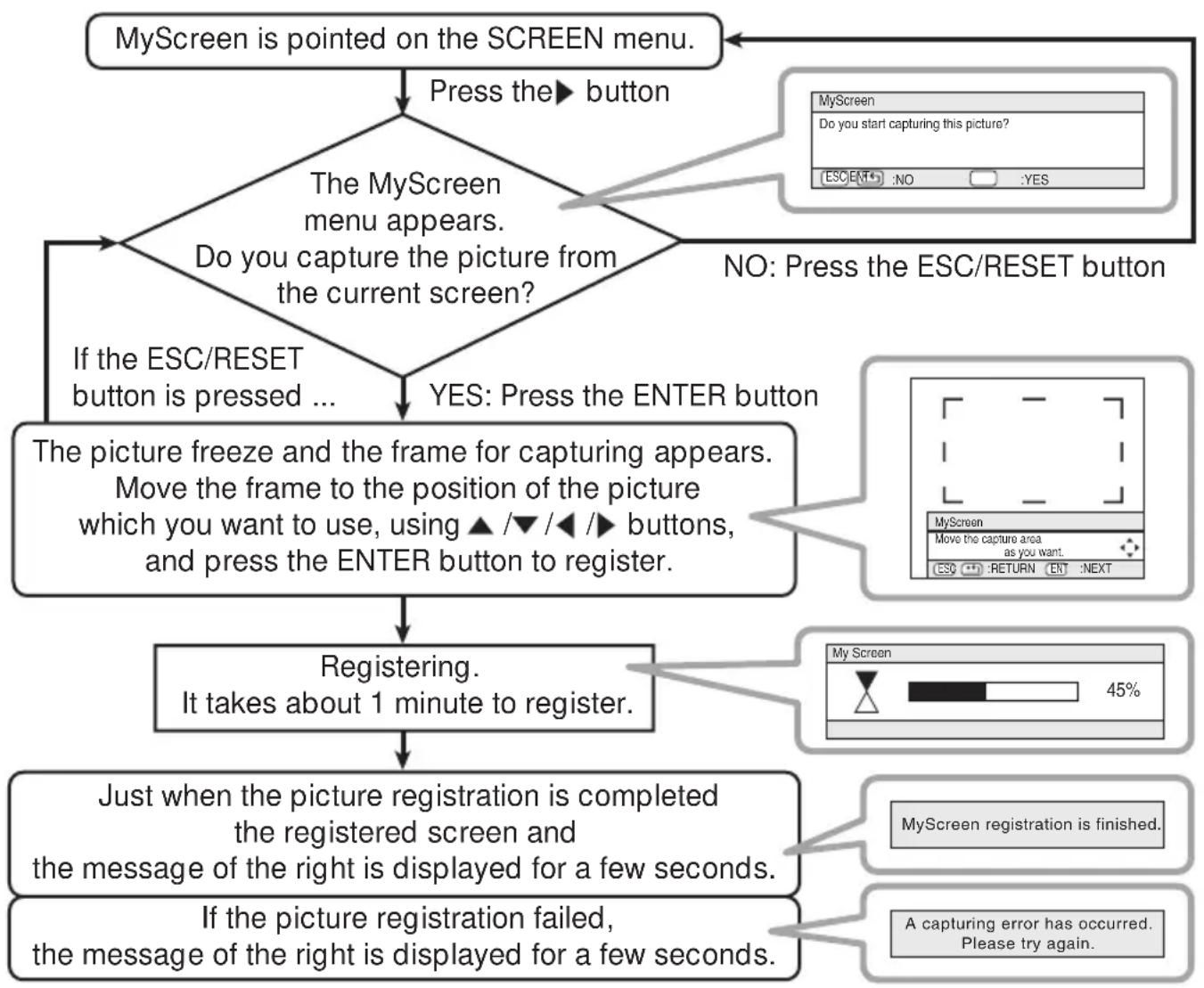

How to register your picture as the MyScreen

Multifunctional Settings (continued)

OPTION Menu

With the OPTION menu, the items shown in the table below can be performed. Perform each operation in accordance with the instructions in the table below.

MENU
MAIN	VOLUME	16
PICTURE-1	SPEAKER	TURN ON
PICTURE-2	IR REMOTE
INPUT	IR REMOTE ID	ALL
AUTO	LAMP TIME	1234 h
SCREEN	FILTER TIME	4321 h
OPTION	SERVICE
NETWORK	PIN LOCK	TURN ON

Item Description
VOLUME	Adjust the volume using the ▲buttons. :High ⇔Low
SPEAKER	Select the TURN ON or the TURN OFF using the ▲buttons. :TURN ON ⇔TURN OFFWhen the TURN ON is selected, the built-in speaker works.
IR REMOTE	Select a remote sensor using the ▲button (1), then switch it using the ENTER button (2). :(1) 1:FRONT ⇔ 2:TOP ⇔ 3:REAR (2) □ (Off) ⇔ ☑ (On) memo A sensor cannot be turned off when the other two are off.Always at least one sensor is on.
IR REMOTE ID	Select a number as an ID number for remote control using the ▲buttons. :ALL ⇔ 1 ⇔ 2 ⇔ 3The projector is controlled by the remote control whose ID CHANGE switch is set into the position of the same number as this number. When the ALL is selected, the projector is controlled by a remote control irrespective of the position of the ID CHANGE switch.memo Please refer to the section “Using The Remote ID Feature”.
LAMP TIME	Pressing the RESET button for about 3 seconds displays the LAMP TIME menu.Select the RESET using button to reset the timer. :RESET ⇔CANCELSelecting the RESET resets the count of the lamp timer to 0.memo Perform this function only when you have replaced the lamp. The lamp timer counts the used time of the current lamp, to display the messages about the lamp. Incorrect performing causes incorrect operation of the messages.memo About replacing the lamp, please refer to the section” Lamp”.
FILTER TIME	Pressing the RESET button for about 3 seconds displays the FILTER TIME menu.Select the RESET using button to reset the timer. :RESET ⇔CANCELSelecting the RESET resets the count of the lamp timer to 0.memo Perform this function only when you have cleaned or replaced the air filter. The filter timer counts the used time of the air filter after cleaning or replacement, to display the messages about the air filter. Incorrect performing causes incorrect operation of the messages.memo About caring for the air filter, please refer to the section “Air Filter”.

(This table is continued to the following page.)

Multifunctional Settings (continued)

OPTION Menu (continued)

Item Description
	Pressing the ▶ or the ENTER) button calls the SERVICE menu.SERVICE MenuSelect an item using the ▲ buttons, and press the (or ▶ the ENTER) button to per form each function. :FANSPEED ⇔ AUTO ADJUST ⇔ LENS TYPE ⇔ LENS LOCK
	FANSPEED	Select the fan speed level using the ▲ buttons. :HIGH ⇔ NORMALThe HIGH ups rotation speeds of fans, though. Please use this function in using a projector at highlands etc.memo Note that the projector is noisier when the HIGH is selected.
	AUTO ADJUST	Select the ENABLE or the DISABLE using the ▲▼ buttons. :ENABLE ⇔ DISABLEWhen you want to keep the current adjustment state, select the DISABLE. When the ENABLE is selected, detecting a signal change to a RGB signal performs the automatic adjustment of the vertical position (V POSITION), the horizontal position (H POSITION), the clock phase (H PHASE) and the horizontal size (H SIZE).
	LENS TYPE	Select the lens type currently used using the ▲ buttons. :AUTO ⇔ 1 ⇔ 2 ⇔ 3 ⇔ 4 ⇔ 5Please select depending on the following.AUTO: automatically selects optimum mode.1: for a standard lens (Type NL-500 etc.)2: for a fixed short throw lens (Type FL-501 etc.)3: for a short throw lens (Type SL-502 etc.)4: for a long throw lens (Type LL-503 etc.)5: for a super long throw lens (Type LL-504 etc.)memo This setting has an influence on the keystone distortion etc.memo About the optional lens, ask your dealer.
	LENS LOCK	Select the TURN ON or the TURN OFF using the ▲ /▼ buttons. :TURN ON ⇔ TURN OFFSelecting the TURN ON locks the adjustment of the lens shift (X80 only), the zoom and the focus.
RESET	Select the EXECUTE using the ▲ button to reset the OPTION menu items. :EXECUTE ⇔ CANCELThe items of the OPTION menu are collectively returned to the initial setting. Note that the items “VOLUME”, “LAMP TIME”, “FILTER TIME” and “SERVICE” are not reset.

Multifunctional Settings (continued)

NETWORK Menu

This projector provides the NETWORK function. If you use this function, please set up the projector according to the Network environment in which you use it.

memo The following settings is not required If your network can assign an IP address through its DHCP server. The projector is set to DHCP by default.

Please see the section "Network Setting Up".

MENU MAIN PICTURE-1 PICTURE-2 INPUT AUTO SCREEN OPTION NETWORK SETUP DHCP TURN OFF INFORMATION RESET NETWORK: SELECT

Item Description
SETUP	Pressing the (or the ENTER) button, displays the IP ADDRESS menu to the right. memo This menu will be shown only when the DHCP is disabled at the NETWORK menu. The IP Address is identification number of the projector on the Network.1. Set the IP Address using the ▲buttons. memo The same IP Address cannot be used for two devices. Pressing the (or the ENTER) button at the IP ADDRESS menu, displays the SUBNET MASK menu. The SUBNET MASK is an address of the Network.2. Set the address of the Network to be used. Pressing the (or the ENTER) button at the SUBNET MASK, shows the DEFAULT GATEWAY menu. The DEFAULT GATEWAY is the main device to access outside of the Network.3. Set the address of the device as gateway to an outer Network.
DHCP	Select the TURN ON or the TURN OFF using the ▲buttons. : TURN ON ⇔TURN OFFIf your Network doesn't support the DHCP function, select the TURN OFF.
INFORMATION	Pressing the (or the ENTER) button displays the INFORMATION menu. The menu shows the information about the current Network setting as illustrated right.
RESET	Select the EXECUTE using the ▲button to reset the NETWORK menu items. : EXECUTE ⇔CANCELAll items on the NETWORK menu are returned to the initial setting.

Network Setting Up

This projector provides the NETWORK function. When you start to use this function, please consult your dealer for further information.

To start, connect the network port to a gateway device via a CAT-5 cable, then set up the projector according to the Network environment in which you use it.

When your Network enables the DHCP function

The IP Address can be set automatically if the DHCP is "TURN ON" using the NETWORK menu. Please refer to the section "NETWORK Menu".

When your Network doesn't support the DHCP function or When you use a fixed address even if your Network can support the DHCP function

Please set the IP Address, the Subnet Mask, the Default Gateway and the DHCP using the NETWORK menu.(Page 35) At first, set the DHCP function to "TURN OFF". You can set them using a Web Browser (Internet Explore 4.0 or higher) on the computer connected to the Network.

Input the same IP address as set to the projector onto the Web Browser on the computer connected to LAN.

ex. Case of IP Address = 192.168.1.11

1) Input "http://192.168.1.11".
2) Click "ENTER".

NETWORK CONFIGURATION ENTER REBOOT YOUR PROJECTOR REBOOT

3) Input the required data according to the screen.
4) Make sure the input data is correct, then click "Write". memo These setting will be active after reboot. These setting will be stored, and used when DHCP is OFF.
5) Click "Return to top page".

IP CONFIGURATION IP ADDR SIN MASK Casbury DHCP FID:146.1.11 FS5.FIS.205.0 FCI:146.1.5 SP MWA settings return to top page

6) Click "REBOOT" to complete this operation.

WARNING

HIGH VOLTAGE

HIGH TEMPERATURE

HIGH PRESSURE

The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. In addition, when the bulb bursts, it is possible for shards of glass to fly into the lamp housing, and for gas containing mercury to escape from the projector's vent holes.

About disposal of a lamp • This product contains a mercury lamp; do not put in trash. Dispose of in accord with environmental laws.

For lamp recycling, go to www.lamprecycle.org. (in USA)

For product disposal, contact your local government agency or www.eiae.org (in the US) or www.epsc.ca (in Canada).

For more information, call your dealer.

Disconnect the plug from the power outlet

- If the lamp should break (it will make a loud bang when it does), unplug the power cord from the outlet, and make sure to request a replacement lamp from your local dealer. Note that shards of glass could damage the projector's internals, or cause injury during handling, so please do not try to clean the projector or replace the lamp yourself.

- If the lamp should break (it will make a loud bang when it does), ventilate the room well, and make sure not to breathe the gas that comes out of the projector vents, or get it in your eyes or mouth.

- Before replacing the lamp, make sure the power switch is off and the power cable is not plugged in, then wait at least 45 minutes for the lamp to cool sufficiently. Handling the lamp while hot can cause burns, as well as damaging the lamp.

- Do not open the lamp door while the projector is suspended from above. This is dangerous, since if the lamp's bulb has broken, the shards will fall out when the door is opened. In addition, working in high places is dangerous, so ask your local dealer to have the lamp replaced even if the bulb is not broken.

- Use only the lamp of the specified type 78-6969-9718-4 for X70 / 78-6969-9719-2 for X80.

- If the lamp breaks soon after the first time it is used, it is possible that there are electrical problems elsewhere besides the lamp. If this happens, contact your local dealer or a service representative.

- Handle with care: jolting or scratching could cause the lamp bulb to burst during use.

- If the indicators or a message prompts you to replace the lamp (see the section “Related Messages” and “Regarding the indicator Lamps”), replace the lamp as soon as possible. Using the lamp for long periods of time, or past the replacement date, could cause it to burst. Do not use old (used) lamps; this is a cause of breakage.

Lamp (continued)

Replacing The Lamp

If the indicators or a message prompts you to replace the lamp, replace the lamp as soon as possible.

1 Turn off the projector, and unplug the power cord. Allow the lamp bulb to cool for at least 45 minutes.
2 Contact your dealer to prepare a new lamp. Tell the dealer your lamp type number. If the projector is mounted on the ceiling, or if the lamp has broken, also ask the dealer to replace the lamp.

In the case of replacement by yourself,

3 After making sure that the projector has cooled adequately, slide the knob of a lamp door lock as shown in the Figure. Then, one side of the lamp door is raised. Pull up the lamp door and remove it, as shown in the Figure.

4 Unscrew the 3 screws, and slowly pull out the lamp by the handle. Be careful not to touch the inside of the lamp case.

Screws

5 Insert the new lamp, and tighten the 3 screws firmly to lock it in place.

Tabs

6 Interlocking the 2 tabs of the lamp door to the projector, put the lamp door on the projector. Then push the point of the lamp door to fix it, as shown in the Figure. Make sure that the lamp door doesn't come up.

NOTE • Do not use the projector with the lamp door removed. At the lamp replacing, make sure that the screws are screwed in firmly. Loose screws could result in damage or injury.

7 Turn on the projector, and reset the lamp timer.

(1) While the projector running, press the MENU button to open the menu.
(2) Choose the "OPTION" on the menu using the ▲ / ▼ button, then press the ▶ button or ENTER button.
(3) Choose the "LAMP TIME" using the ▲ / ▼ button, then press and hold the RESET button for 3 seconds.
(4) Choose the "RESET" using the ▲ button.

memo When the lamp has been replaced after the message of "THE POWER WILL TURN OFF AFTER 0hr." is displayed, complete this operation within 10 minutes of switching power on.

memo Incorrectly resetting of the lamp timer (resetting without replacement, or neglect of resetting after replacement) will result in incorrect message functions.

Air Filter

WARNING

- Please carefully read the "Product Safety Guide.

- Before caring, make sure the power switch is off and the power cable is not plugged in, then wait at least 45 minutes for the lamp to cool sufficiently.

- Use only the air filter of the specified type 78-8118-9187-4.

- Do not use the projector with the air filter and filter cover removed. The use without the air filter could result in damage.

CAUTION • If the air filter becomes clogged by dust or the like, internal temperature rises and could cause malfunction. The power is automatically turned in order to prevent the projector from overheating internally.

Caring For The Air Filter

The air filter should be cleaned about every 100 hours. If the indicators or a message prompts you to clean the air filter, clean the air filter as soon as possible. If the soiling will not come off the air filter, or it becomes damaged, then it needs to be replaced. Please replace the air filter as soon as possible.

memo When you replace the lamp, please replace also the air filter.

1

Turn off the projector, and unplug the power cord. Allow the lamp bulb to cool for at least 45 minutes.

2

After making sure that the projector has cooled adequately, remove the filter cover and air filter.

3

Apply a vacuum cleaner to the top of the filter cover and the air filter to clean.

If the soiling will not come off the air filter, or it becomes damaged, it needs to be replaced.

If the air filter needs to be replaced, contact your dealer to prepare a new air filter. Tell the dealer your air filter type.

4

Insert the cleaned air filter or a new air filter, and replace the filter cover.

5

Turn on the projector power, and reset the filter timer.

(1) While the projector running, press the MENU button to open the menu.
(2) Choose the "OPTION" on the menu using the ▲ / ▼ button, then press the button or ENTER button.
(3) Choose the "FILTER TIME" using the ▲ / ▼ button, then press and hold the RESET button for 3 seconds.
(4) Choose the "RESET" using the ▲ button.

memo Incorrectly resetting of the filter timer (resetting without replacement, or neglect of resetting after replacement) will result in incorrect message functions.

Hold the release buttons of the filter cover while pulling down it.

Line drawing of a projector with a blue arrow indicating rotation (no text or symbols)

Hold the release button of the air filter while pulling out it.

Line drawing of a projector with a blue arrow pointing to its side panel (no text or symbols present)

Other Care

WARNING

- Please carefully read the "Product Safety Guide".

- Before caring, make sure the power switch is off and the power cable is not

plugged in.

• Be cautious of high temperature. Do not touch about the lens and ventilation openings during use or immediately after use prevent a burn.
• Never try to care for the inside of the unit yourself. Doing so is dangerous.
• Do not use cleaner or chemicals other than those listed below, including benzene and paint thinner.
• Do not use aerosols or sprays.

CAUTION • Incorrect care could have adverse influence such as discoloration,

peeling paint, etc.

NOTE

- Do not polish or wipe with hard objects.

Caring For The Inside Of The Projector

In order to ensure the safe use of your projector, please have it cleaned and inspected by your local dealer about once every 2 years.

Caring For The Lens

Turn off the projector, and unplug the power cord.

Lightly wipe the lens with a commercially available lens-cleaning wipe. Do not touch

the lens directly with your hand.

Caring For The Cabinet And Remote Control

Turn off the projector, and unplug the power cord.

Wipe lightly with gauze or a soft cloth.

memo If soiling is severe, dip soft cloth in water or a neutral cleaner dilute in water, and wipe lightly after wringing well. Then, wipe lightly with a soft, dry cloth.

Troubleshooting

Related Messages

When the unit's power is on, messages such as those shown below may be displayed. When any such message is displayed on the screen, please respond as described below. If the same message is displayed after the treatment, or if a message other than the following appears, please contact your dealer or service company.

memo Although these messages will be automatically disappeared around several minutes, it will be reappeared every time the power is turned on.

Message Description
CHANGE THE LAMP AFTER REPLACING LAMP, RESET THE LAMP TIMER.	The time the lamp timer has counted is approaching 2000 hours.Preparation of a new lamp, and an early lamp change is recommended. After you have change the lamp, please be sure to reset the lamp timer.
CHANGE THE LAMP AFTER REPLACING LAMP, RESET THE LAMP TIMER.THE POWER WILL TURN OFF AFTER ** hr.	The time the lamp timer has counted is approaching 2000 hours, so a lamp change within ** hours is recommended.When lamp usage reaches 2000 hours, the power will automatically be turned off.Please change the lamp by referring to the section “Lamp”. After you have changed the lamp, please be sure to reset the lamp timer.
CHANGE THE LAMP AFTER REPLACING LAMP, RESET THE LAMP TIMER.THE POWER WILL TURN OFF AFTER 0 hr.	As the time the lamp timer has counted has reached 2000 hours, the power will soon be automatically turned off.Please immediately turn the power off, and change the lamp by referring to the section “Lamp”. After changing the lamp, please be sure to reset the lamp timer.

(This table is continued to the following page.)

NOTE • A lamp has a finite product life. Lamps are characterized by the fact that, after long hours of usage, a lamp will no longer light up, or the lamp will break or burst, etc. This projector is equipped with an automatic shut-down function, such that the power will automatically be turned off when lamp usage time has reached 2000 hours. Please be aware, however, that among lamp types, there are major differences in product lifetimes; a lamp may thus fail to light even prior to the functioning of the automatic shut-down function of this projector.

Troubleshooting (continued)

Related Messages (continued)

Message Description
CLEAN THE AIR FILTERPOWER OFF FIRST,THEN CLEAN THE AIR FILTER.AFTER CLEANING THE AIR FILTER,RESET THE FILTER TIMER.	The time the filter timer has counted has reached 100 hours.Please clean or change the air filter by referring to the section “Air Filter”. After caring for the air filter, please be sure to reset the filter timer.
CHECK THE AIR FLOW	The internal portion temperature is rising.Please turn the power OFF, and allow the unit to cool down at least 20 minutes. After the projector has sufficiently cooled down, please make confirmation of the following items, and then turn the power on again.Is there blockage of the air passage aperture?Is the air filter dirty?Does the peripheral temperature exceed 35°C?
NO INPUT IS DETECTED ON ***	There is no input signal.Please confirm the signal input connection, and the status of the signal source.
SYNC IS OUT OF RANGEON *** fH *****kHz fV *****Hz	The horizontal or vertical wavelength of the inputted signal is outside of the response parameters of this unit.Please confirm the specs for this unit or the signal source specs.

Troubleshooting (continued)

Regarding The Indicator Lamps

Lighting and flashing of the standby/on indicator, the lamp indicator, and the temp indicator have the meanings as described in the table below. Please respond in accordance with the instructions within the table. If the same indication is displayed after the treatment, or if an indication other than the following is displayed, please contact your dealer or service company.

NOTE • When the interior portion has become overheated, for safety purposes, the power source is automatically turned off, and the indicator lamps may also be turned off. In such a case, press the “○” (OFF) side of the main power switch, and wait at least 45 minutes. After the projector has sufficiently cooled down, please make confirmation of the attachment state of the lamp and lamp door, and then turn the power on again.

standby/on indicator	lamp indicator	temp indicator	Description
Lighting in Orange	Turned off	Turned off	The projector is in a standby state.Please refer to the section “Power On/Off”.
Blinking in Green	Turned off	Turned off	The projector is warming up.Please wait.
Lighting in Green	Turned off	Turned off	The projector is in an on state.Ordinary operations may be performed.
Blinking in Orange	Turned off	Turned off	The projector is cooling down.Please wait.
Blinking in Red	(discretionary)	(discretionary)	The projector is cooling down. A certain error has been detected.Please wait until the STANDBY/ON indicator finishes blink, and then perform the proper response measure using the item descriptions below as reference.
Lighting in Red	Lighting in Red	Turned off	The lamp does not light, and there is a possibility that interior portion has become heated.Please turn the power off, and allow the unit to cool down at least 20 minutes. After the projector has sufficiently cooled down, please make confirmation of the following items, and then turn the power on again.Is there blockage of the air passage aperture?Is the air filter dirty?Does the peripheral temperature exceed 35°C?If the same indication is displayed after the treatment, please change the lamp by referring to the section “Lamp”.

(This table is continued to the following page.)

Troubleshooting (continued)

Regarding The Indicator Lamps (continued)

standby/on indicator	lamp indicator	temp indicator	Description
Lighting in Red	Blinking in Red	Turned off	Either there is no lamp and/or lamp door, or either of these has not been properly fixed.Please turn the power off, and allow the unit to cool down at least 45 minutes. After the projector has sufficiently cooled down, please make confirmation of the attachment state of the lamp and lamp door, and then turn the power on again.If the same indication is displayed after the treatment, please contact your dealer or service company.
Lighting in Red	Turned off	Blinking in Red	The cooling fan is not operating.Please turn the power off, and allow the unit to cool down at least 20 minutes. After the projector has sufficiently cooled down, please make confirmation that no foreign matter has become caught in the fan, etc., and then turn the power on again.If the same indication is displayed after the treatment, please contact your dealer or service company.
Lighting in Red	Turned off	Lighting in Red	There is a possibility that the interior portion has become heated.Please turn the power off, and allow the unit to cool down at least 20 minutes. After the projector has sufficiently cooled down, please make confirmation of the following items, and then turn the power on again.Is there blockage of the air passage aperture?Is the air filter dirty?Does the peripheral temperature exceed 35°C?If the same indication is displayed after the treatment, please contact your dealer or service company.
Lighting in Green	Alternative Blinking in Red		There is a possibility that the interior portion has become overcooled.Please use the unit within the usage temperature parameters (0°C to 35°C). After the treatment, resent the power to ON.
Lighting in Green	Simultaneous Blinking in Red		It is time to clean the air filter, or there is no air filter.Please immediately turn the power OFF, and clean or change the air filter by referring to the section “Air Filter”. After cleaning or changed the lamp, please be sure to reset the filter timer. After the treatment, resent the power to ON.

Troubleshooting (continued)

Phenomena That May Easily Be Mistaken For Machine Defects

WARNING

- Never use the projector if abnormal operations such as smoke, excessive sound, damaged casing or elements or cables, fluids or foreign matter, etc. should occur. In such cases, immediately switch and then disconnect the power plug from the power outlet that the smoke or odor has stopped, contact your dealer or service

Before requesting repair, please check in accordance with the following chart. If the situation cannot be corrected, please contact your dealer or service company.

NOTE • Although bright spots or dark spots may appear on the screen, this is a unique characteristic of liquid crystal displays, and such do not constitute or imply a machine defect.

Phenomenon Cases not involving a machine defect		Reference pages
Power does not come on.	The electrical power cord is not plugged in.Correctly connect the power cord.	11
	The power switch is not set to the on position.Set the power switch to [ ] (On).	15
	The main power source has been interrupted during operation such as by a power outage (blackout), etc.Please turn the power off, and allow the unit to cool down at least 20 minutes. After the projector has sufficiently cooled down, please turn the power on again.	15
	Either there is no lamp and/or lamp door, or either of these has not been properly fixed.Please turn the power off, and allow the unit to cool down at least 45 minutes. After the projector has sufficiently cooled down, please make confirmation of the attachment state of the lamp and lamp door, and then turn the power on again.	35, 36
Neither sounds nor pictures are outputted.	The signal cables are not correctly connected.Correctly connect the connection cables.	8, 9
	Signal source does not correctly work.Correctly set up the signal source device by referring to the manual of the source device.	-
	The input changeover settings are mismatched.Select the input signal, and correct the settings.	16

(This table is continued to the following page.)

Troubleshooting (continued)

Phenomena That May Easily Be Mistaken For Machine Defects (continued)

Phenomenon Cases not involving a machine defect		Reference pages
Pictures are displayed, but no sounds are heard.	The signal cables are not correctly connected.Correctly connect the connection cables.	8, 9
	The volume is adjusted to an extremely low level.Adjust the VOLUME to a higher level.	19, 32
	The sound is muted.Press the MUTE button to restore the sound.	19
	The audio input is not correctly selected when the child window is displayed.Correctly select the audio input.	22
Sounds are heard, but no pictures are displayed.	The lens cap is attached.Remove the lens cap.	4, 15
	The signal cables are not correctly connected.Correctly connect the connection cables.	8, 9
	The brightness is adjusted to an extremely low level.Adjust the BRIGHT to a higher level using the menu function.	23
	The screen is blanked.Press the BLANK button to return to the input signal screen.	19
Colors have a faded-out appearance, or Color tone is poor.	Color settings are not correctly adjusted.Perform picture adjustments by changing the COLOR BAL R,COLOR BAL G, COLOR BAL B, COLOR and/or TINT settings, using the menu functions.	24
Pictures appear dark.	The brightness and/or contrast are adjusted to an extremely low level.Adjust the BRIGHT and/or CONTRAST settings to a higher level using the menu function.	23
	The WHISPER function is working.Select the NORMAL to the item WHISPER in the MAIN menu.	23
	The lamp is approaching the end of its product lifetime.Replace the lamp.	35, 36
Pictures appear blurry.	Either the focus and/or horizontal phase settings are not properly.Adjust the focus using the focus buttons, and/or H PHASE using the menu function.	16
	The lens is dirty or misty.Clean the lens by referring to the section “Caring For The Lens”.	38
Input signal changes with no operation.	The INPUT dial is set between the click points.Turn the INPUT dial and set it at a click point.	16

Specifications

NOTE

• This specifications are subject to change without notice.

Item Specification
Product name Liquid crystal projector
Liquid crystal panel	Panel size 2.5 cm (0.9 type)
	Drive system TFT active matrix
	Pixels 786,432 pixels (1024 horizontal x 768 vertical)
Lens Zoom lens F=1.7 ~ 2.4 f=30.5 ~ 45.8 mm
Lamp		X70:275W UHBX80:310W UHB
Speaker 1.0W + 1.0W (Stereo)
Power supply		X70:AC100 ~ 120V, 4.7A / AC220 ~ 240V, 2.0AX80:AC100 ~ 120V, 5.2A / AC220 ~ 240V, 2.2A
Power consumption		X70:430WX80:470W
Temperature range 0 ~ 35°C (Operating)
Size		420 (W) x 150 (H) x 336 (D) mm (Not including protruding parts)Please refer to the figure of the section “TECHNICAL” of the end of this manual.
Weight (mass) 7.7 kg
Ports		RGB input portsgb RGB output portrgbM1-DBNC (R, G, B, H, V) Audio output portaudio outVideo input portsvideo in Control portS-video in control(CR/PR, CB/PB, Y)Other portsnetworkAudio input portsaudio in 1 remote controlaudio in 2 dc outaudio in R/L

Accessories

Accessories ...... Part Number

UHB Lamp, 275W (X70) 78-6969-9718-4
UHB Lamp, 310W (X80) 78-6969-9719-2
Air Filter 78-8118-9187-4
Power Cord (US) 78-8118-8102-4
Power Cord (UK) 78-8118-8101-6
Power Cord (Europe) 78-8118-8103-2
VGA Cable 78-8118-8708-8
RCA Video/Audio Cable 78-8118-3234-0
M1-D Cable 78-8118-9276-5
Remote Control (X70).... 78-8118-9274-0
Remote Control (X80)....78-8118-9275-7

Not Included with Basic Packet.... Part Number

Ceiling Mount 78-6969-9697-0
Adjustable Height Suspension 78-6969-9699-6
Shipping Case 78-6969-8925-6
Soft rolling case 78-6969-8926-4
RCA Component Cable 78-8118-8843-3
S-Video Cable 78-8118-3238-1
Stereo Mini-Cable 78-8118-8846-6
RS-232C Cable 78-8118-9192-4
Ultra value warranty X70 (US only) 78-6969-9708-5
Ultra value warranty X80 (US only) ..... 78-6969-9709-3
Mac Adapter 78-8118-3308-2

How to Order

Please order these parts through your dealer, or contact 3M Customer Service at the following number:

In U.S. or Canada : 1-800-328-1371

In other locations, contact your local 3M sales office.

Intended Use

Before operating this machine, please read this entire manual thoroughly. The 3MTM Multimedia Projectors are designed, built, and tested for use indoors, using 3M lamps, 3M ceiling mount hardware, and nominal local voltages.

The use of other replacement lamps, outdoor operation, or different voltages has not been tested and could damage the projector peripheral equipment and/or create a potentially unsafe operating condition.

3M Multimedia projectors and Wall Display Systems are designed to operate in a normal office environment.

• 16^ to 29^ C (60° to 85° F)
  • 10-80 %RH (without condensation)
  • 0-1828 m (0-6000 feet) above sea level

The ambient operating environment should be free of airborne smoke, grease, oil and other contaminates that can affect the operation or performance of the projector.

Use of this product in adverse conditions will void the product warranty.

Let us help you make the most of your next presentation. We offer everything from presentation supplies to tips for better meetings. And we're the only transparency manufacturer that offers a recycling program for your used transparencies. For late-breaking news, handy reference and free product samples, call us toll-free in the continental United States and Canada, 24 hours a day, or visit our Internet Website.

800-328-1371

http://www.3m.com/meetings e-mail: [e-mail]

3M Austin Center

Building A145-5N-01

6801 River Place Blvd. Austin, TX 78726-9000

3M Canada

P.O. Box 5757

London, Ontario N6A 4T1

3M Mexico, S.A. de C.V.

78-6970-9368-6 Rev. A
