USER MANUAL Junior Snow Kit Big Blizzard Infento

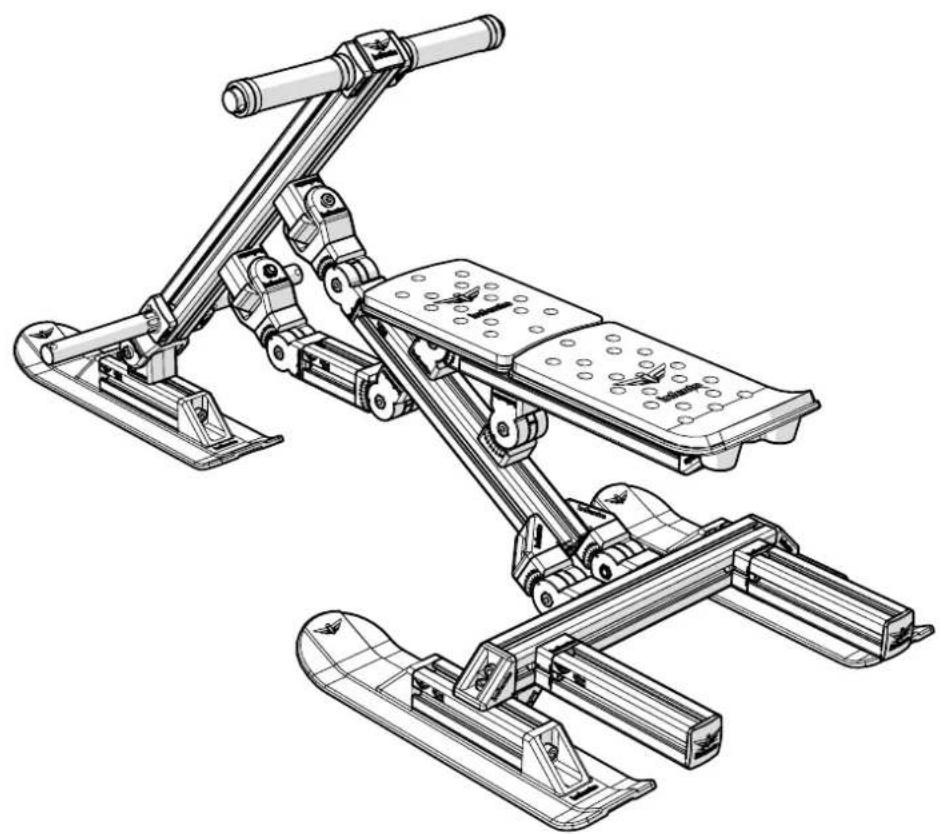

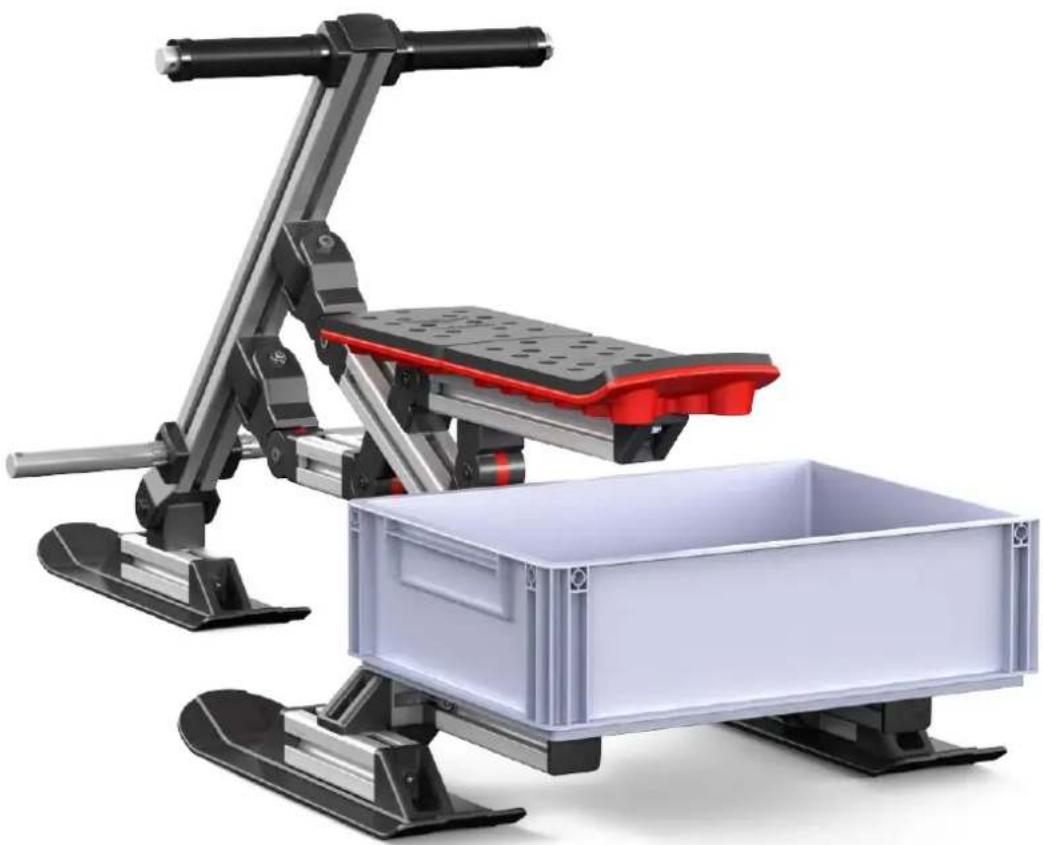

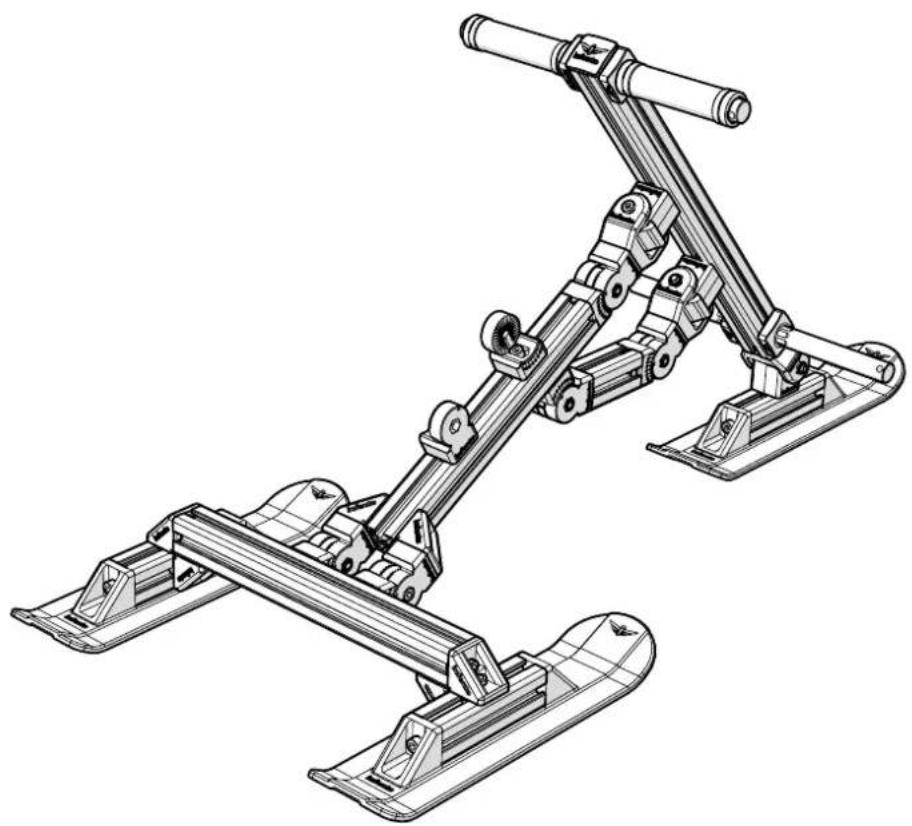

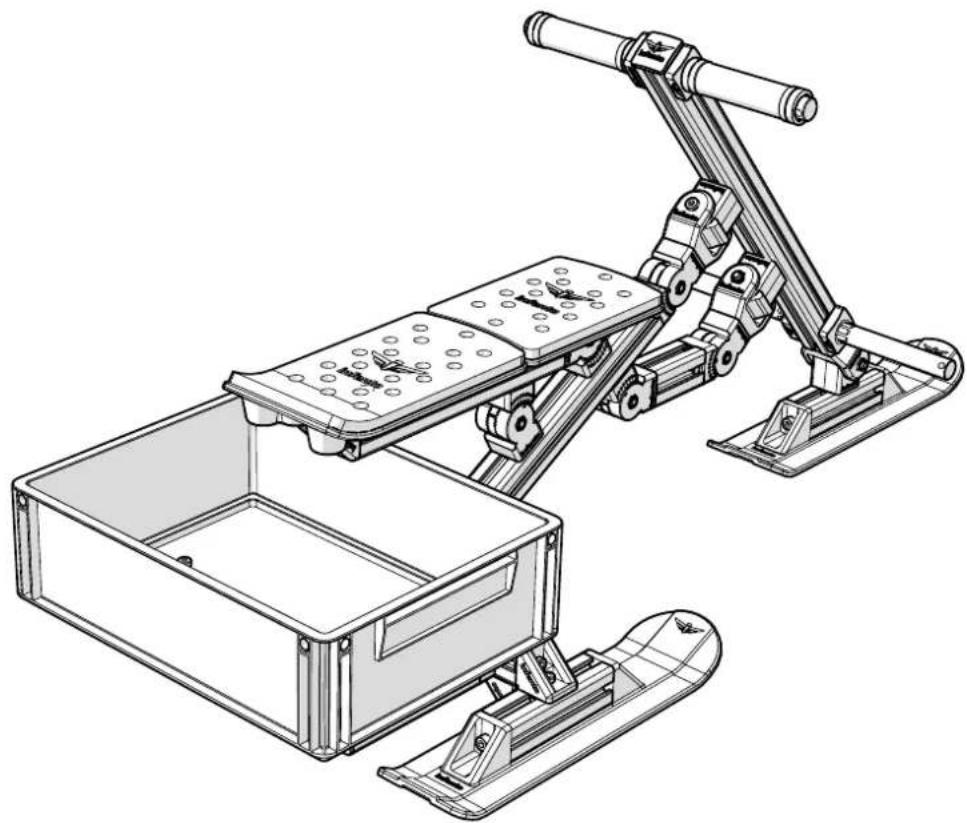

Modern outdoor mobility platform with black and silver arms, red seat, and white plastic tank (no text or symbols visible)

Length 98 - 125 cm / 39-49 inch

Max weight 50kg / 110 lbs

Time to build 2.5 hours

infento

World's first real constructible rides

WARNING - IMPORTANT NOTICE TO PARENTS

Before you start constructing and use our product, please carefully read the following safety warning and download our manual from our website. This safety warning and manual contains important information relating to your child's safety. It is your responsibility to review this information with your child and make sure they are fully aware of all the warnings before they start riding. Failure to follow instructions and safety precautions can result in serious injury or death.

You can find a digital copy of the manual at the following web address:

www.infentorides.com

WARNING

This Junior ride has to be assembled by an adult.

PLEASE PRINT OUT THE MANUAL AND KEEP THE MANUAL AND THIS SAFETY WARNING IN A SAFE LOCATION FOR FUTURE REFERENCE.

SAFETY SECTION

WARNING! PARENTAL SUPERVISION AND APPROPRIATE USE

Like any moving product, rides made from Infento parts can be dangerous if due care and attention is not paid. To reduce the risk of serious injury: use only under close adult supervision. Parents must review the following warnings and instructions with each Infento ride that is being build. It is your responsibility to review this information and make sure that all riders understand all warnings, cautions, instructions and safety topics, and assure that young riders are able to safely and responsibly use this product. Infento recommends that you periodically review and reinforce the information in this manual with younger riders, and that you inspect and maintain your child's Infento rides to insure their safety.

WARNING! RIDING ON INFENTO RIDES CAN BE A DANGEROUS ACTIVITY

Riding on Infento rides can be a dangerous activity. Certain conditions may cause the equipment to fail without fault of the manufacturer. Rides made from Infento parts can and are intended to move, and it is therefore possible to lose control, fall off and/or get into dangerous situations that no amount of care, instruction or expertise can eliminate. If such things occur you can be seriously injured or die, even when using safety equipment and other precautions. Ride at your own risk and use common sense.

WARNING! NO LIABILITY FOR CONSTRUCTED RIDES THAT DIFFER FROM OUR MANUALS

The rides that you can find in our manuals have been tested by official independent testing agencies. We will not be responsible or liable, directly or indirectly, in any way for any loss or damage of any kind incurred as a result of your decision to build constructions or rides that differ from the official rides that we show in our manuals.

ASSEMBLY - SUBSECTION

WARNING! OUR KITS CONTAIN SMALL PARTS

This package contains small parts which, before assembly, present a choking hazard to children under the age of three. Care should be taken during unpacking and assembly to insure that all small parts and plastic bags are accounted for and kept out of the reach of children.

WARNING! TO AVOID SERIOUS INJURY:

1. Construction/assembly of a ride should always be under supervision of an adult using the Infento manual for the specific ride.
2. All fasteners (bolts and nuts) should be fully tightened.
3. It is the responsibility of the adult who assembles this bicycle to properly install all parts included in the factory sealed shipping carton and to make the adjustments to the functional parts such as handle bar and seat and chain when necessary.

USE - SUBSECTION

WARNING! TO AVOID SERIOUS INJURY:

1. Continuous adult supervision is required.
2. Only ride constructed rides that have been built according to the instructions given in the official Infento manual.
3. Never exceed the maximum weight. You can find the maximum weight for every specific ride in our manual.
4. Always check the manual to see the minimum and maximum age as well as the minimum and maximum length for every specific ride.
5. Always wear safety equipment such as a helmet, knee pads and elbow pads. We recommend riders always wear a properly fitted helmet that complies with local or national guidelines or laws. Keep chinstrap of helmet securely buckled.
6. Always wear closed toed shoes (lace-up shoes with rubber soles), never ride barefooted or in sandals, and keep shoe laces tied and out of the way of the wheels.
7. Avoid streets and surfaces with water, sand, gravel, dirt, leaves, and other debris. Wet weather impairs traction, braking and visibility.
8. Excessive exposure to sunlight, temperatures below 0 degrees Celsius, water, sand, gravel, dirt, leaves, and other debris can damage, shrink, expand or weaken parts. Keep your ride in a dry environment with proper heating.
9. Avoid sharp bumps, drainage grates and sudden surface changes. Your Infento ride may suddenly stop.
10. Ride on smooth, paved surfaces away from

motor vehicles. Wet, slick or uneven and rough surfaces may impair traction and contribute to possible accidents.

1. Never risk damaging surfaces, such as carpet or flooring, by use of an Infento ride indoors.
2. Never use near motor vehicles, streets, roadways, alleys, swimming pool areas, hills, steps, sloped driveways, inclines and public highways.
3. Watch out for pedestrians, skaters, skateboards, scooters, bikes, children or animals who may enter your path, and respect the rights and property of others.
4. Avoid excessive speed associated with downhill rides.
5. Do not use at night or in periods with reduced visibility.
6. Before every use, please make sure that the complete ride and all joints have been assembled tightly, as with use, joints may wear out.
7. Before using your Infento ride, please check that the screws are tightened securely.
8. It's your own responsibility if you modify the product other than manufacturer's instructions.
9. Maintain a hold on the handlebars at all times.
10. Brake will get hot from continuous use. Do not touch after braking.
11. Periodically check hardware and tighten if necessary. Replace worn or broken parts immediately.
12. Skill is required to avoid falls or collision causing injury to the user and third parties.
13. Check operation of breaks every time before bicycle is ridden.
14. Check local laws before you start with riding.
15. Never tow wagons, other vehicles, or children on skates or skateboards.
16. Make certain that anyone who uses an Infento ride has been fully instructed in its operation.
17. Instruct your child on how to use the breaks.
18. Do not perform stunts.
19. Never use headphones or a cell phone when riding.
20. Only one rider at a time on an Infento ride.
21. Do not allow children to stand on the product at any time.

FAILURE TO USE COMMON SENSE AND HEED THE ABOVE WARNINGS INCREASES RISK OF SERIOUS INJURY. USE WITH APPROPRIATE CAUTION AND SERIOUS ATTENTION TO SAFE OPERATION.

SAFETY SECTION

OUR KITS CONTAIN SMALL PARTS

This package contains small parts which, before assembly, present a choking hazard to children under the age of three. Care should be taken during unpacking and assembly to insure that all small parts and plastic bags are accounted for and kept out of the reach of children.

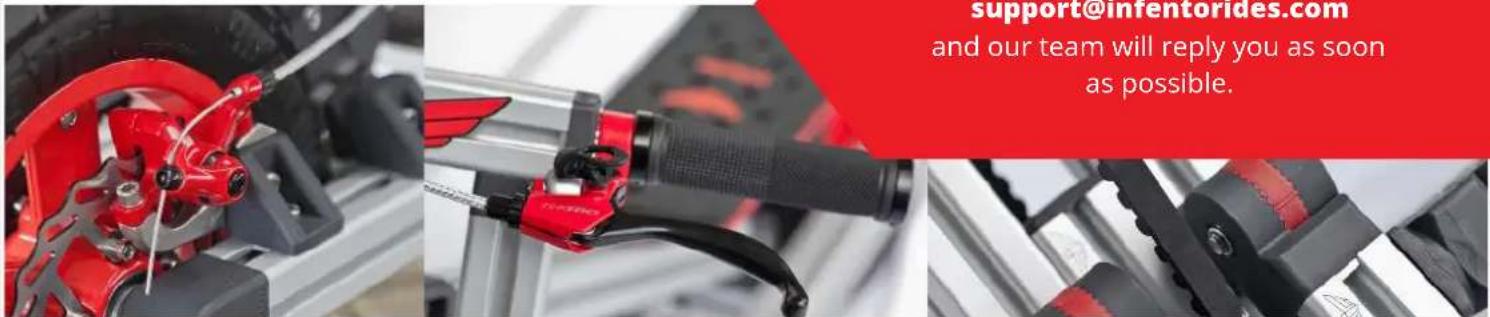

QUESTIONS OR SUPPORT NEEDED?

You can mail us all your questions at: [e-mail]

and our team will reply you as soon as possible.

[e-mail] and our team will reply you as soon as possible.

INSTRUCTIONMAINTENANCE

1. Oil or grease moving parts periodically.
2. Check nuts and bolts often and tighten if necessary.
3. Any parts showing evidence or wear should be replaced immediately.
4. Follow closely the assembly instructions pertaining to the proper adjustments of parts
5. Periodically check the brake system for proper function
6. Periodically check the steering mechanism for proper function
7. Check the air pressure in the tires to be the amount specified in the manual
8. Periodically check the bicycle's tooth belt to be sure that it is not too lose which could allow the chain to slip off the sprockets.

RECOMMENDED TOOLS

4 x Allen key 3, 4, 5, 6 mm

1 x Tapeline

1 x T-handle for Allen key

Six red wrench-style tools arranged in descending order (no text or symbols)

5 x Wrench 10, 13, 14, 15, 19 mm

1
glide BIG BLIZZARD

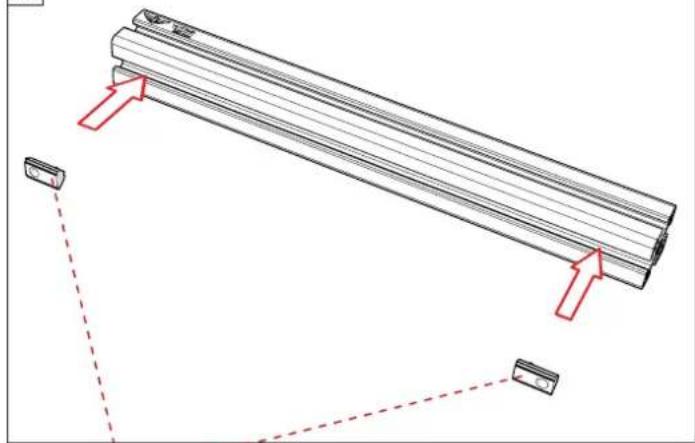

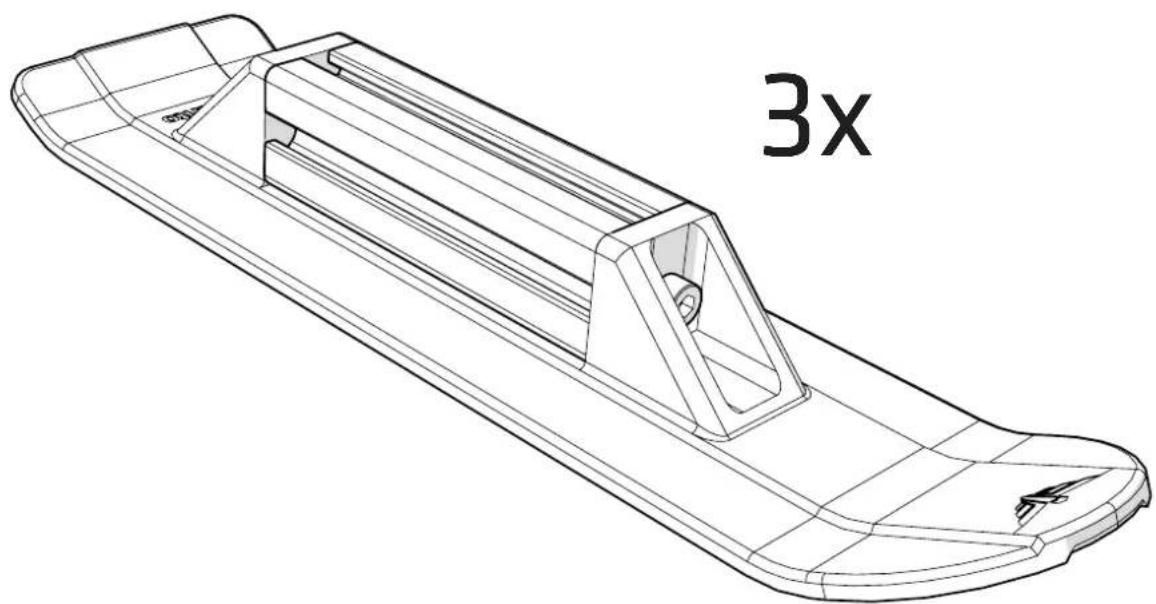

First, get all required materials stated here and then follow the instructions.

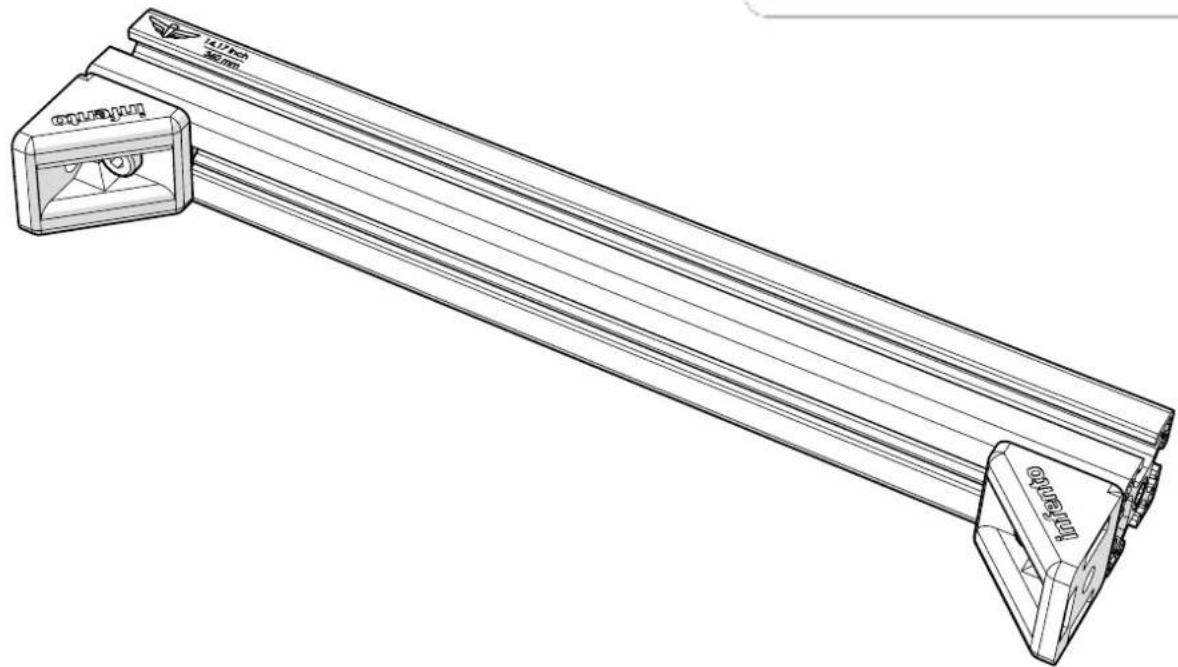

Bolt M8x20 2x (low head)

2x Profi le nut short

L-joint

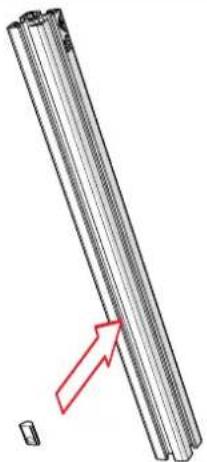

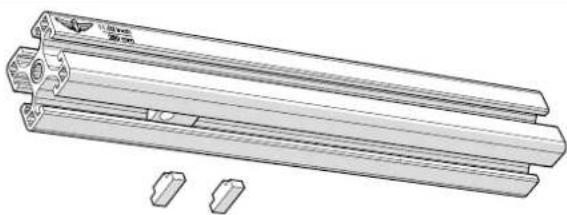

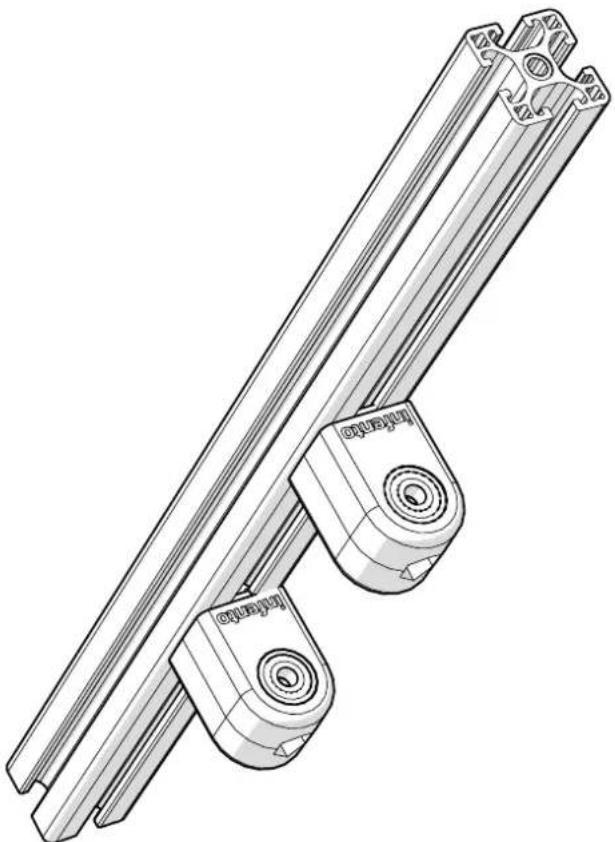

Profi le 14.17inch | 360mm

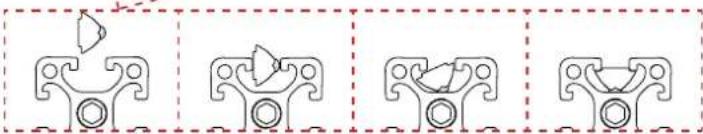

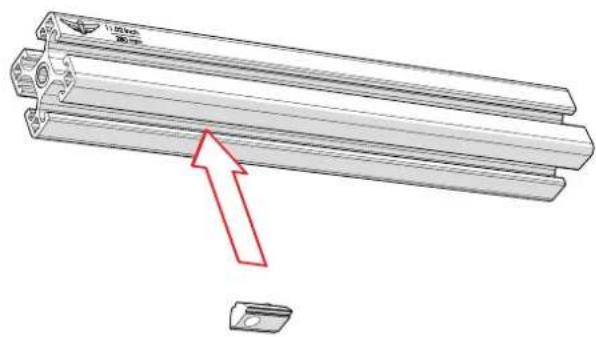

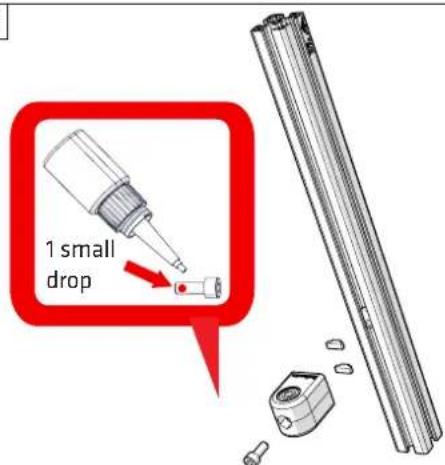

When tightening the bolt always check whether the profile nut remains perfectly straight in the slot. If this becomes crooked, you can push against the side of the profile bolt with the Allen key to correct this.

Tighten the bolts with full force. Ensure that you hold the long side of the Allen key in your hand as this enables you to exert greater force.

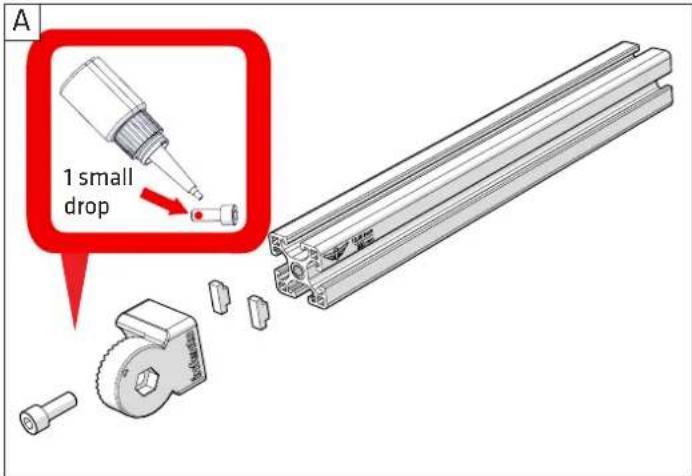

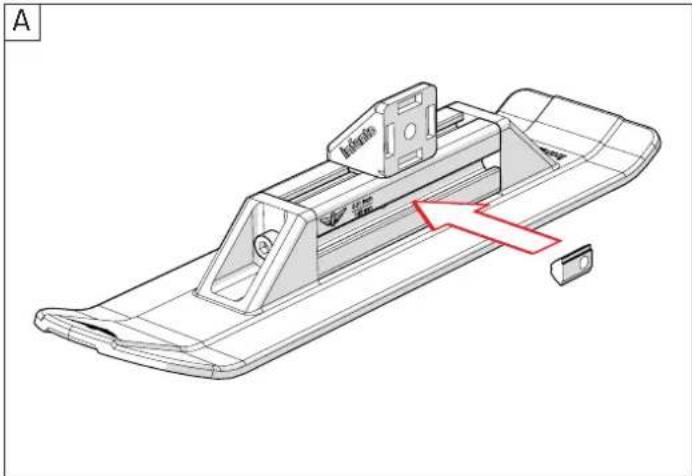

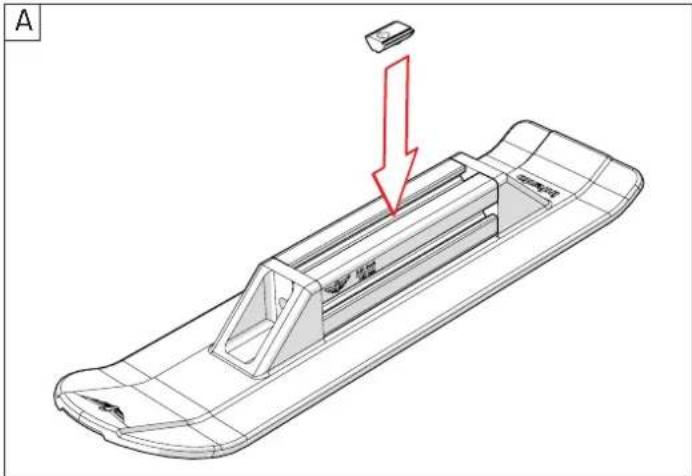

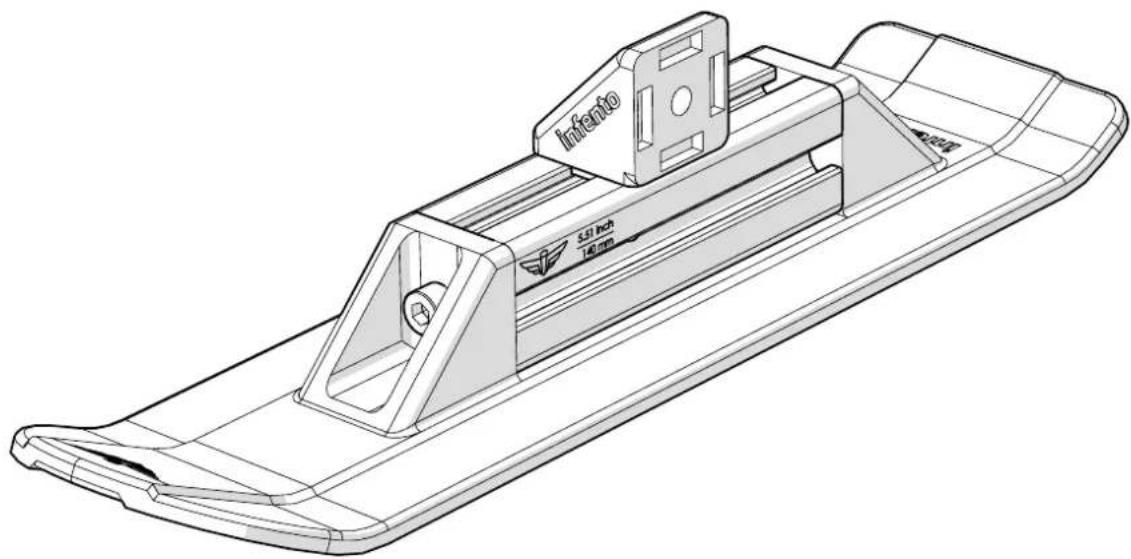

A

Technical line drawing of a mechanical component with red arrows indicating motion or assembly (no text or symbols)

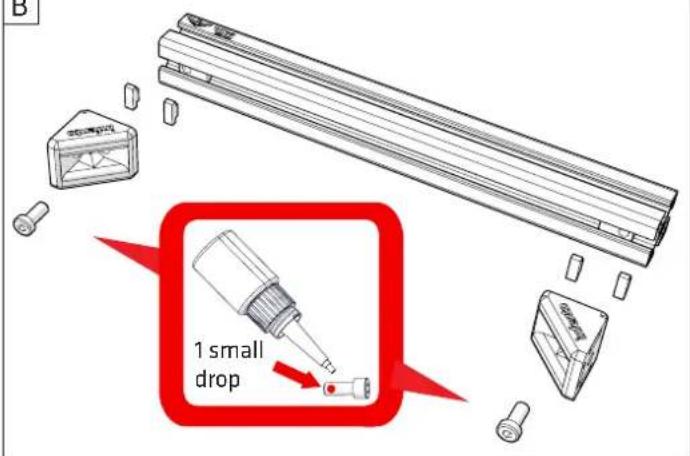

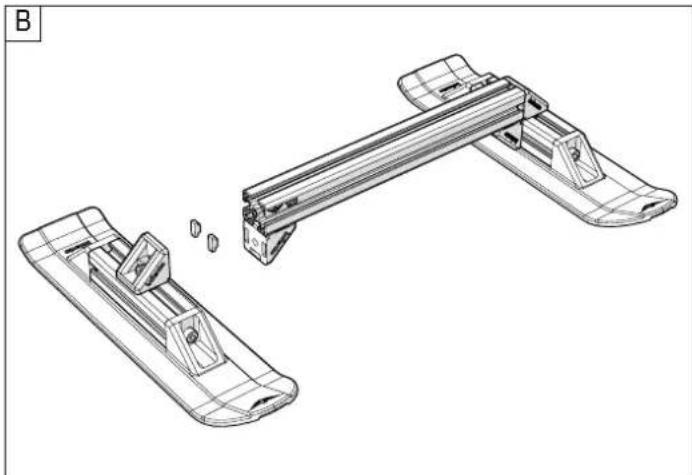

B

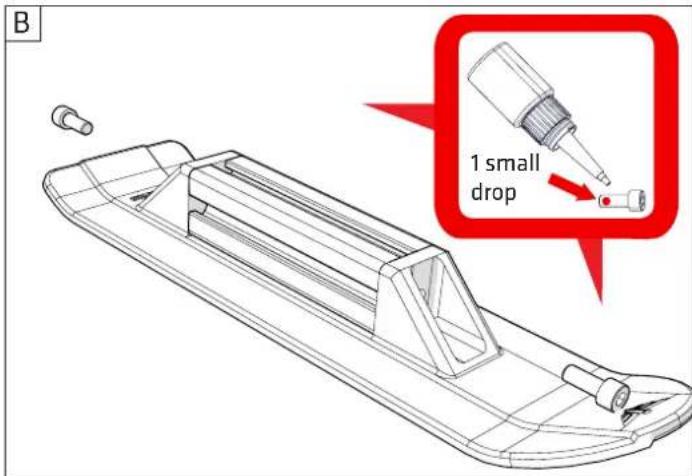

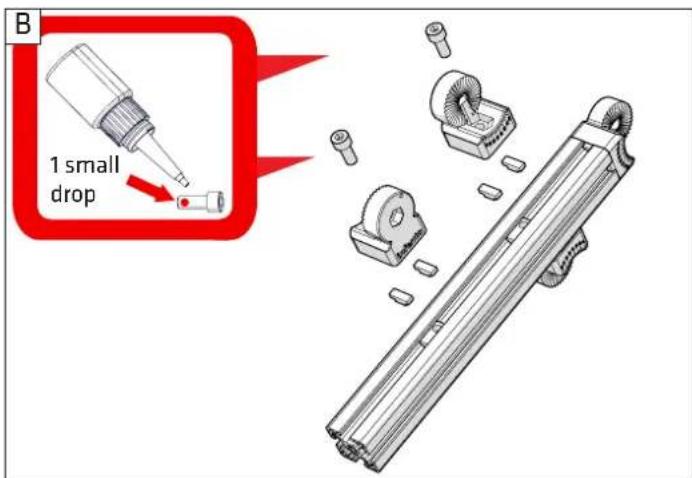

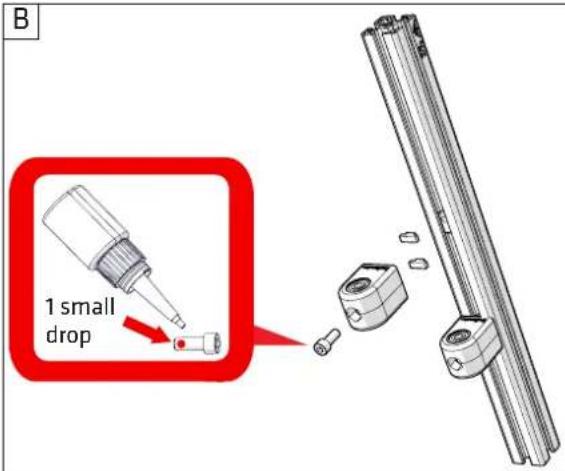

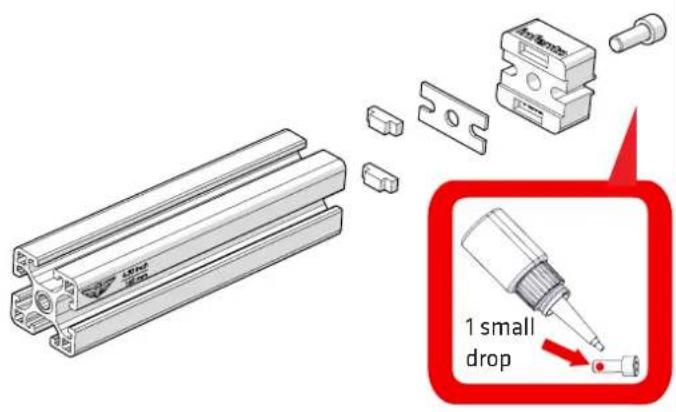

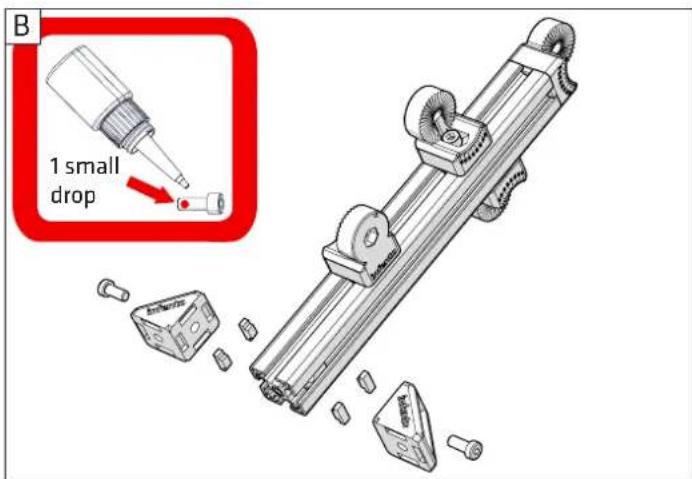

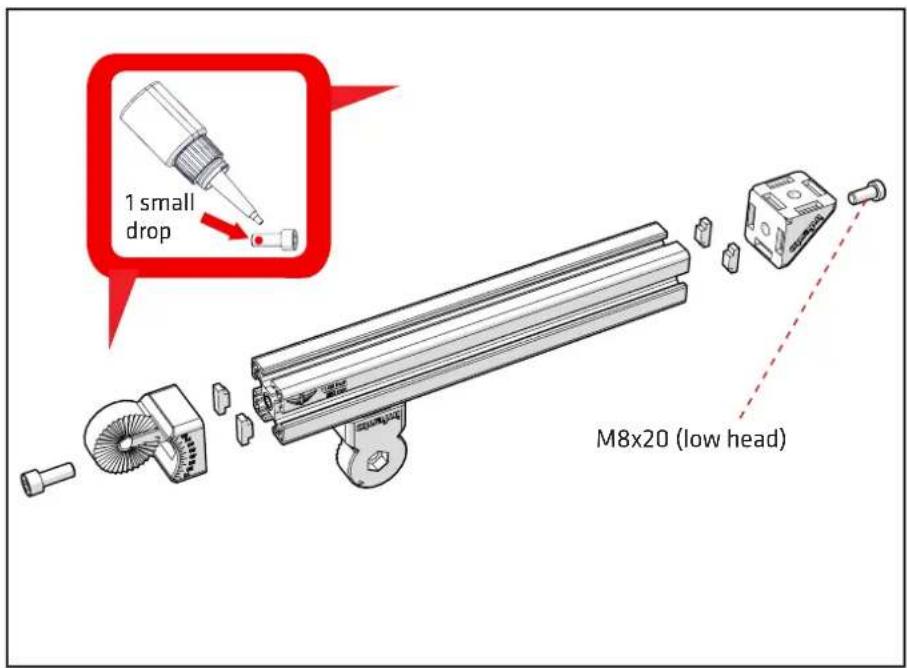

B 1 small drop

Four identical mechanical component diagrams with no text or symbols, showing variations in shape and motion (no text or symbols present)

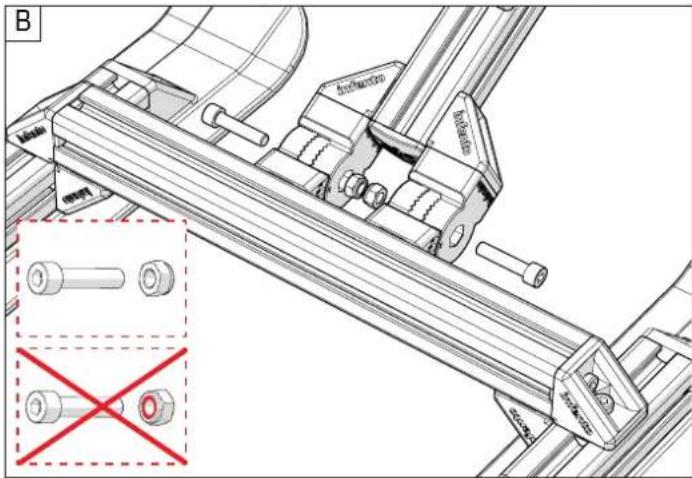

Bolts tightened (without lock nut) in a warm environment can come undone when exposed to a cold environment. One small droplet of lock fluid will prevent this.

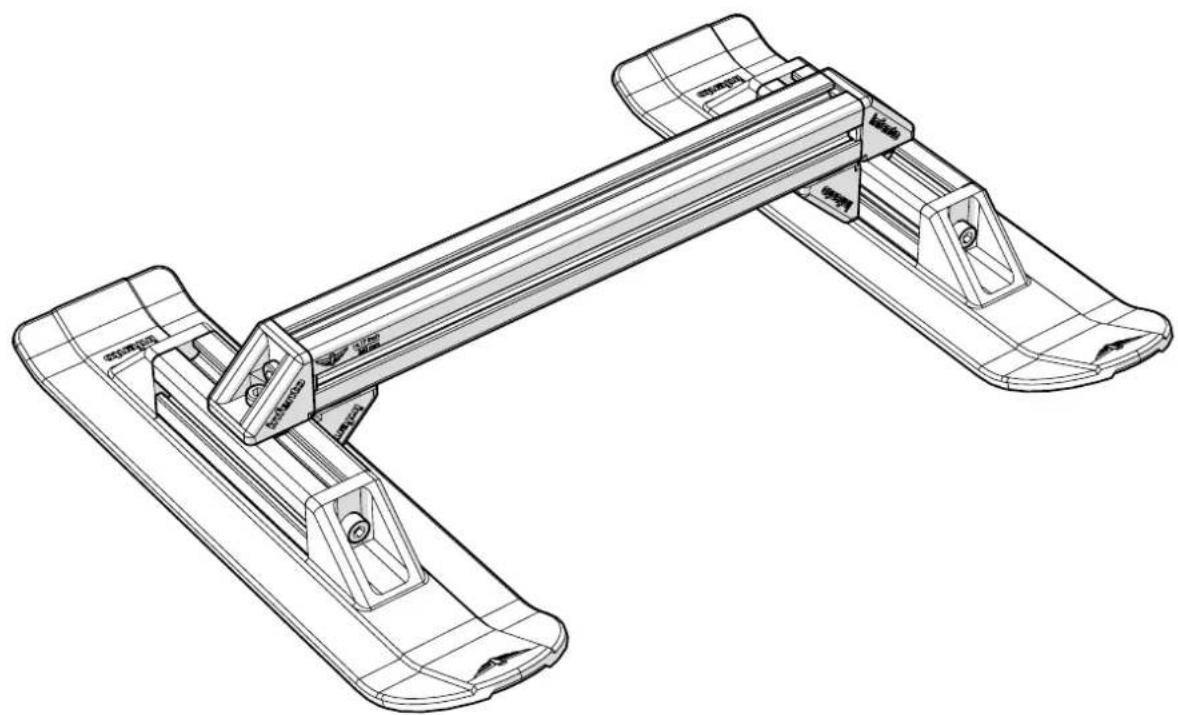

Technical line drawing of a mechanical assembly with no visible text or symbols

TOP 3 REQUIREMENTS MAKING A GREAT INFENTO EXPERIENCE:

1

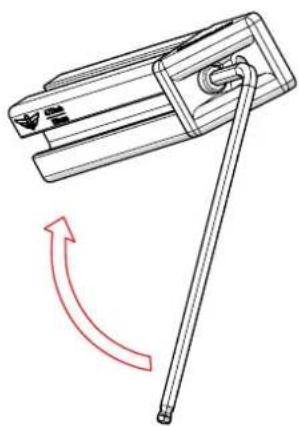

Tighten bolts with full force (15Nm) to prevent them from coming loose.

Diagram of a mechanical clamp or lever mechanism with a red curved arrow indicating rotational motion (no text or symbols present)

2

Constructing and playing always under supervision of an adult.

A man and a child sitting on a white surface, examining a metallic mechanical device (no visible text or symbols)

3

Check frequently if all parts are still firmly tightened and function properly.

A young boy in a blue cap and blue shirt interacting with a small object, possibly a device or tool, while an adult is visible in the background (no text or symbols present).

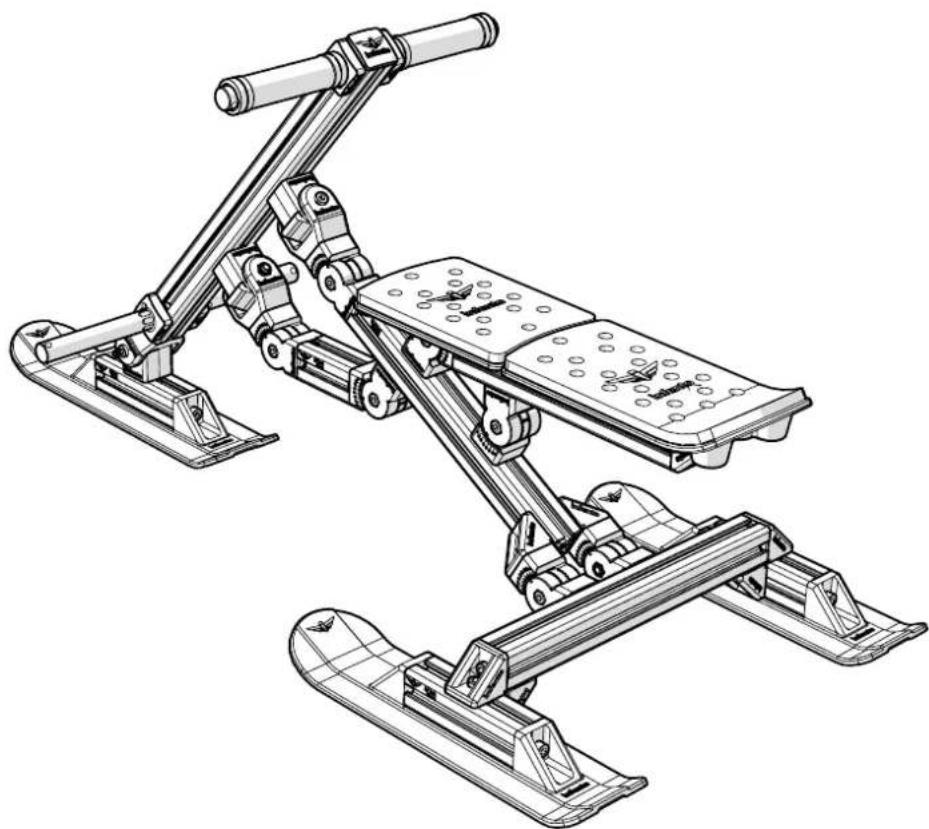

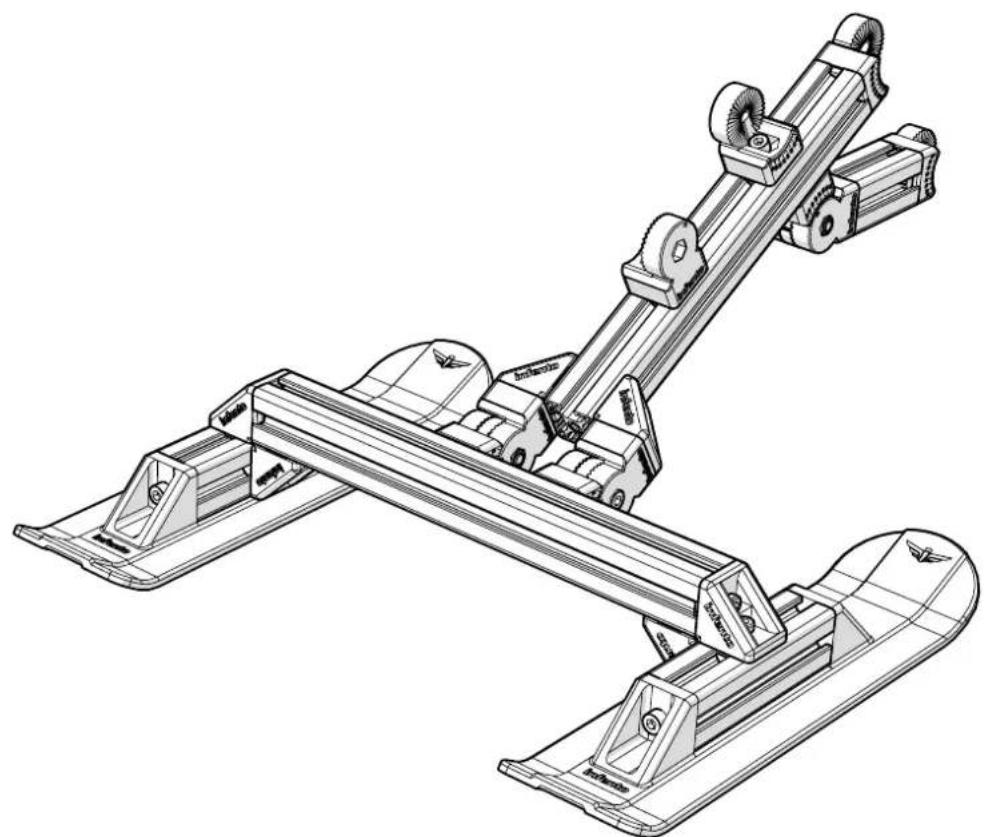

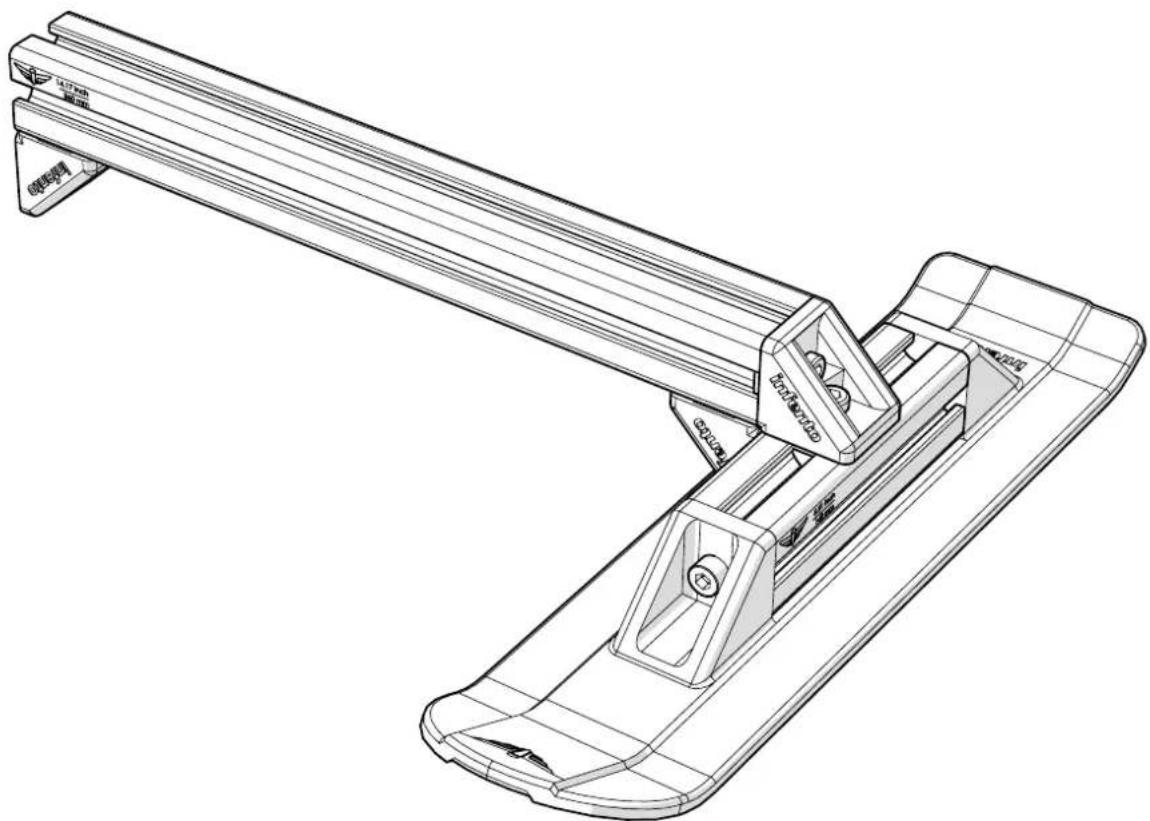

Technical line drawing of a vehicle chassis with structural components and a red arrow indicating a detail (no text or symbols present)

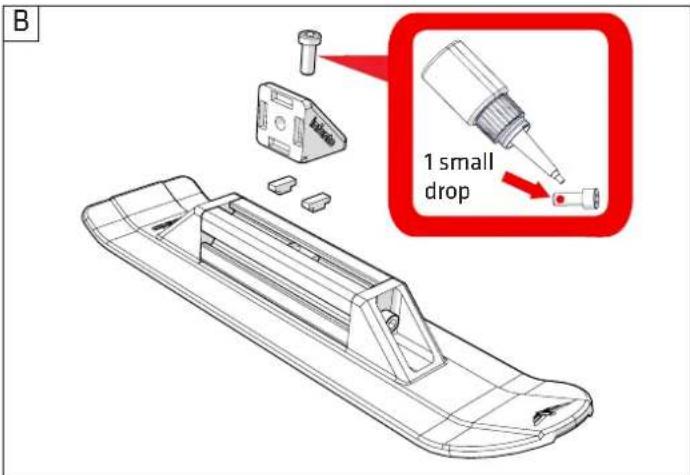

B 1 small drop

Technical line drawing of a 3D model of a vehicle chassis with no text or symbols

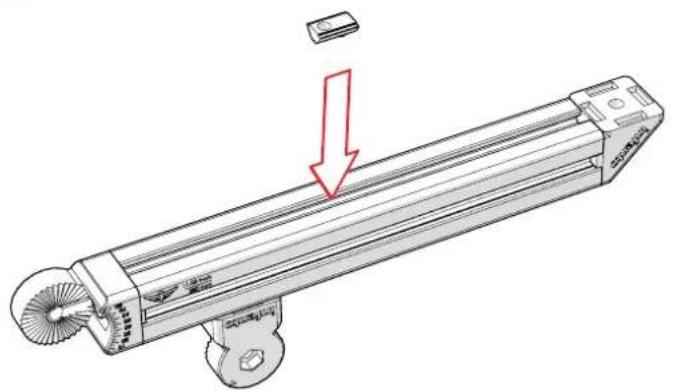

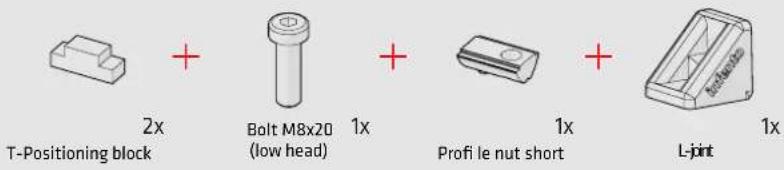

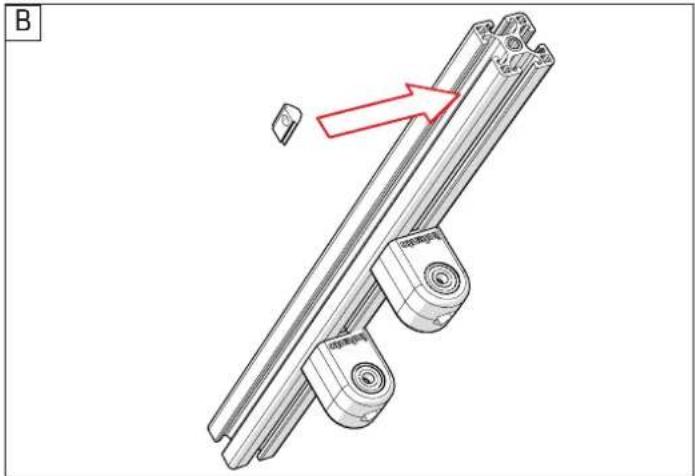

T-Positioning block 2x Bolt M8x20 (low head) 1x Profi le nut short 1x L-joint 1x

Technical line drawing of a vehicle chassis with a red arrow indicating a component (no text or symbols present)

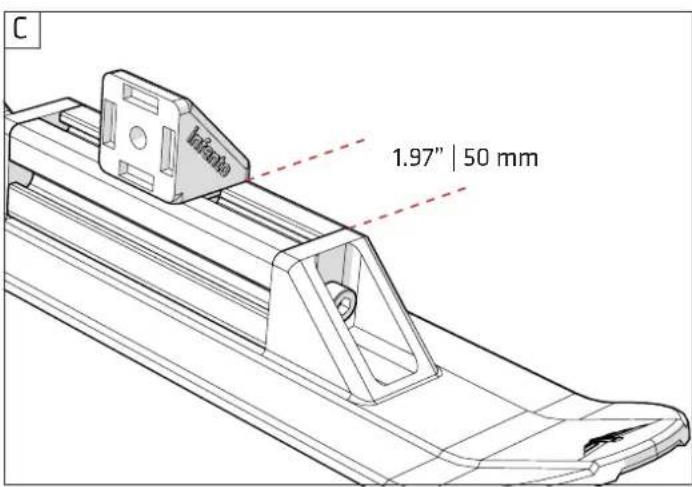

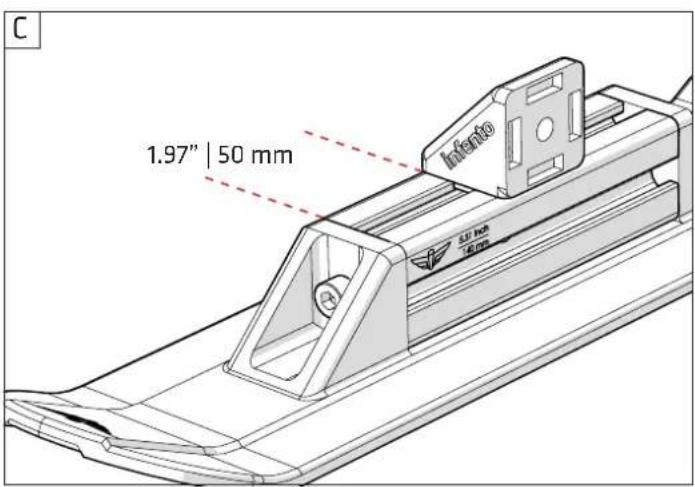

C 1.97" | 50 mm

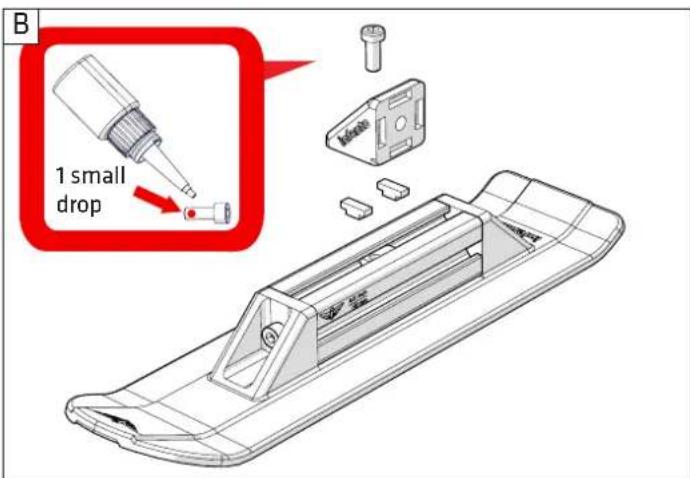

B 1 small drop

Technical line drawing of a 3D model of a vehicle chassis with no visible text or symbols

T-Positioning block 2x Bolt M8x20 (low head) 2x Profile nut short 1x

Technical line drawing of a vehicle chassis with a red arrow indicating motion direction (no text or symbols)

Technical line drawing of a mechanical assembly with two views (no text or symbols)

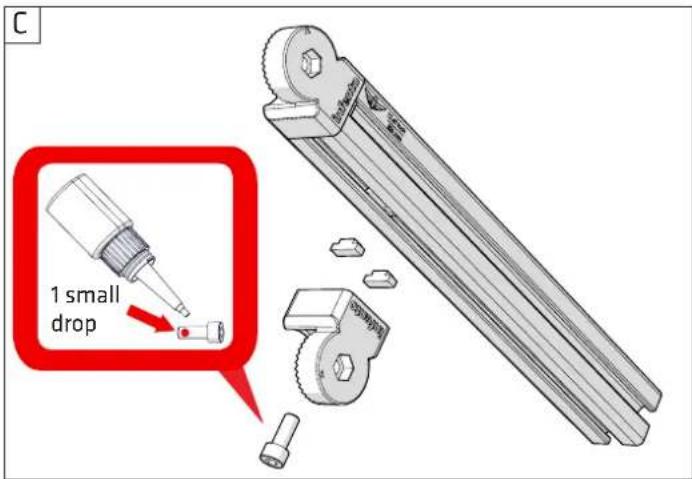

C 1 small drop

Technical line drawing of a mechanical assembly with no visible text or symbols

T-Positioning block 2x Bolt M8x20 (low head) 1x Profi le nut short 1x L-joint 1x

Technical line drawing of a vehicle chassis with a red arrow indicating assembly or motion direction (no text or symbols)

C 1.97" | 50 mm Inferio 50 mm 40 mm

B 1 small drop

Infento L31 inch 14 mm

T-Positioning block 2x Bolt M8x20 (low head) 2x Profile nut short 1x

Technical line drawing of a vehicle chassis frame with a red arrow indicating a specific component (no text or symbols present)

Technical line drawing of a mechanical assembly with two views, one showing internal components and the other showing a bracket (no text or symbols)

C 1 small drop

Technical line drawing of a mechanical support structure (no text or symbols)

Technical line drawing of a mechanical assembly with red arrows indicating motion or force directions (no text or symbols)

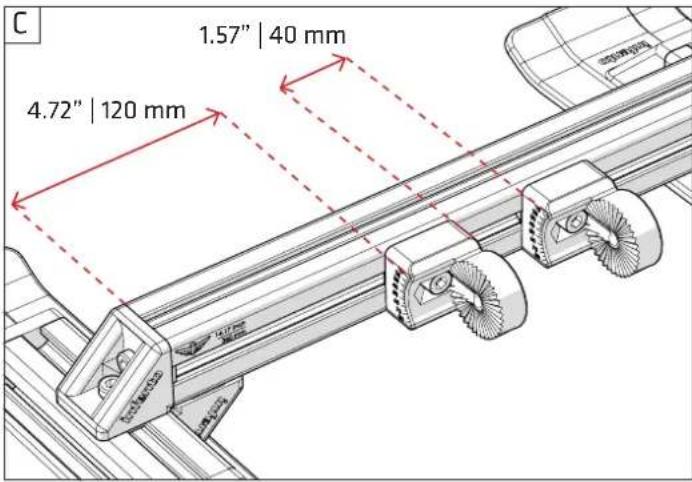

C 1.57" | 40 mm 4.72" | 120 mm

B 1 small drop

Technical line drawing of a mechanical assembly with no visible text or symbols

•
  Bolt M8x20

•
  2x
  T-Positioning block

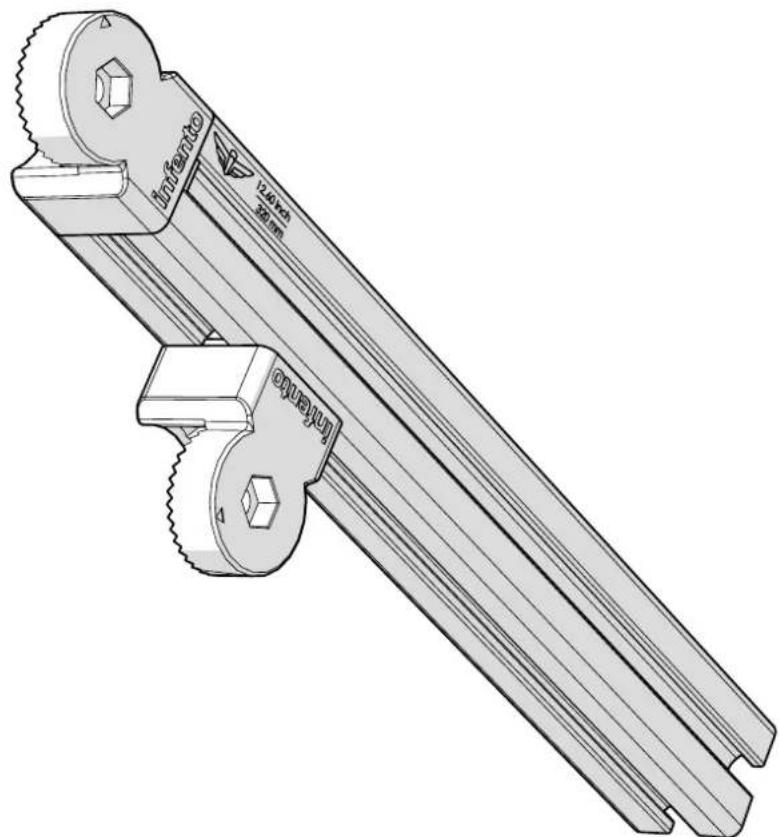

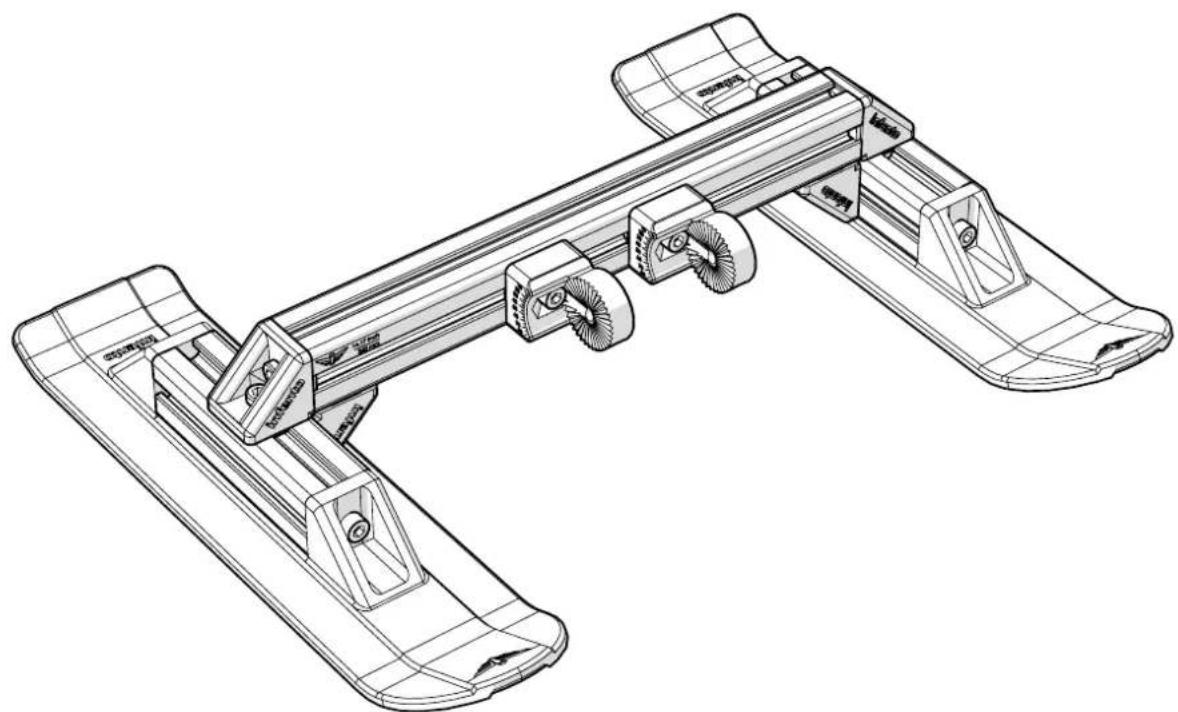

Multi angle joint

Profi le 1x 12.60inch | 320mm

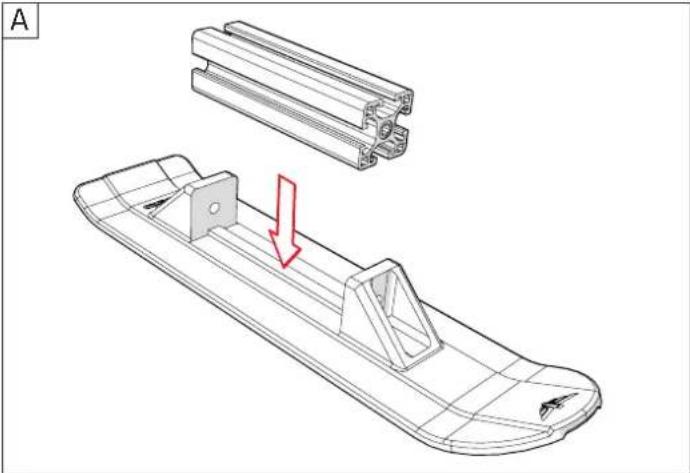

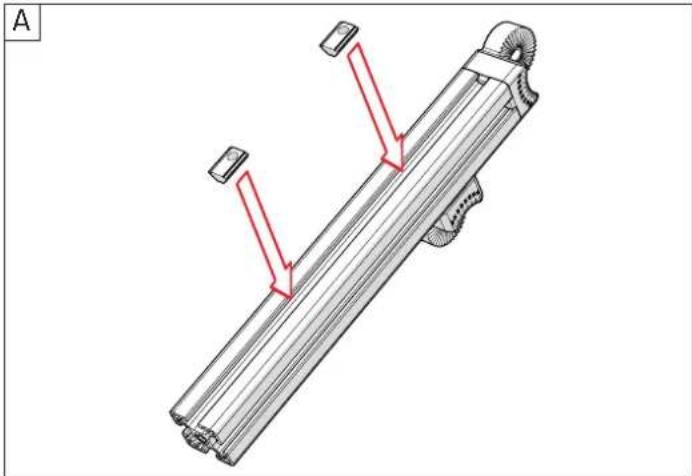

A 1 small drop

Mechanical component diagram showing a pin or lever mechanism with a red arrow pointing to a small component (no text or symbols present)

C 1 small drop

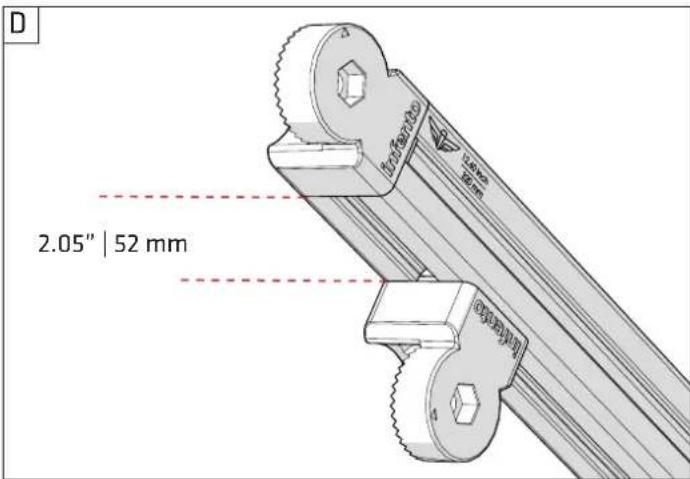

D 2.05" | 52 mm

Technical line drawing of a mechanical tool with two interlocking parts, one labeled 'Infermoto' and the other 'Intermoto', showing no text or symbols beyond labels.

Technical illustration of a mechanical component with red arrows indicating assembly or force direction (no text or symbols present)

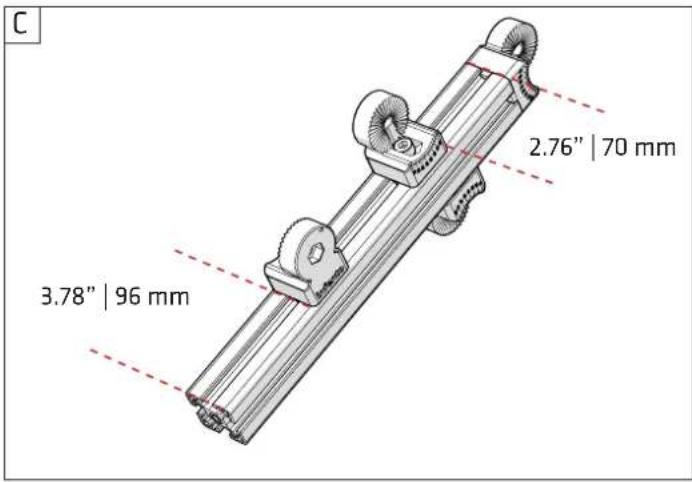

C 2.76" | 70 mm 3.78" | 96 mm

B 1 small drop

Technical line drawing of a mechanical linkage component (no text or symbols)

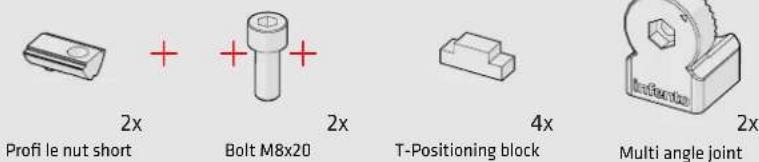

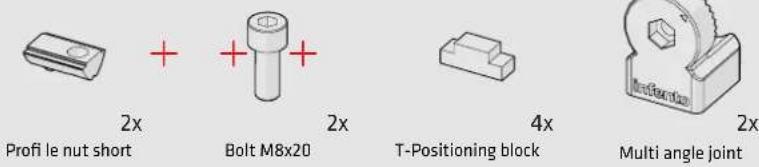

4x T-Positioning block Bolt M8x20 (low head) 2x Profi le nut short 2x L-joint 2x

Mechanical assembly diagram showing a lever mechanism with red arrows indicating motion direction (no text or symbols)

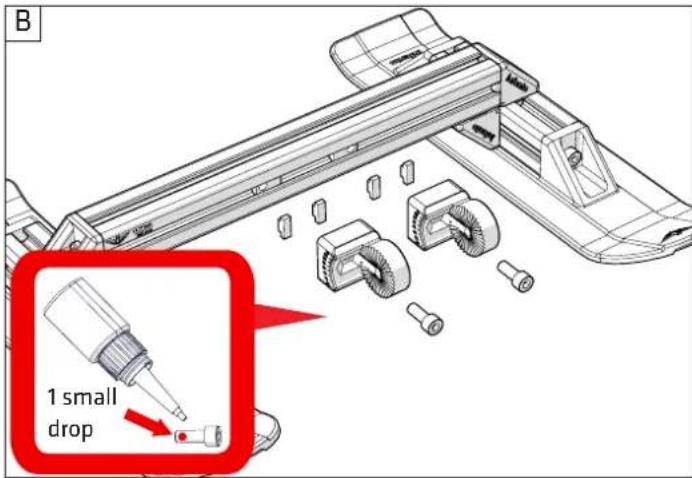

B 1 small drop

Technical line drawing of a mechanical clamp or rail assembly with labeled components (no text or symbols beyond labels)

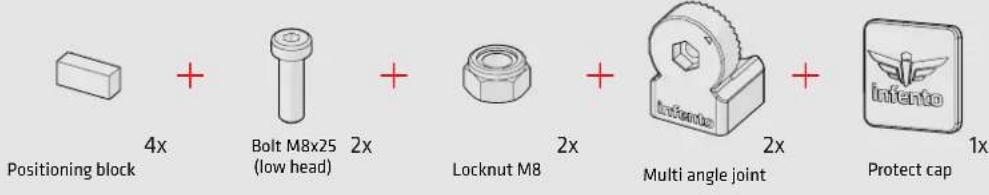

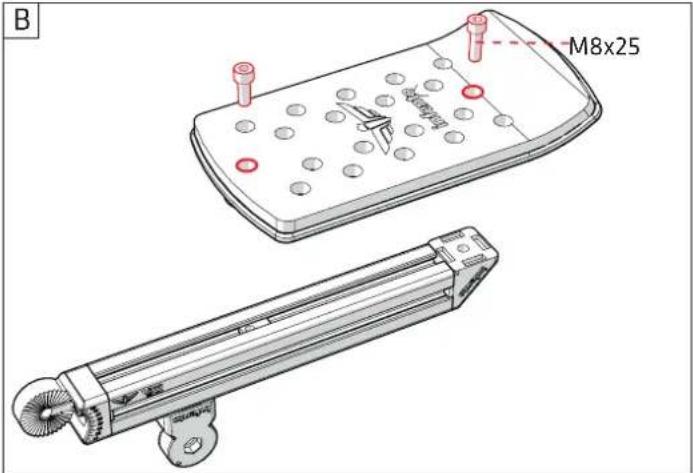

Positioning block 4x Bolt M8x25 2x (low head) Locknut M8 Multi angle joint Protect cap 1x

Mechanical assembly diagram showing a lever mechanism with a red arrow pointing to a component (no text or symbols present)

Technical illustration of a mechanical assembly with disassembled parts and a red cross symbol (no text or labels)

Technical line drawing of a mechanical linkage assembly (no text or symbols)

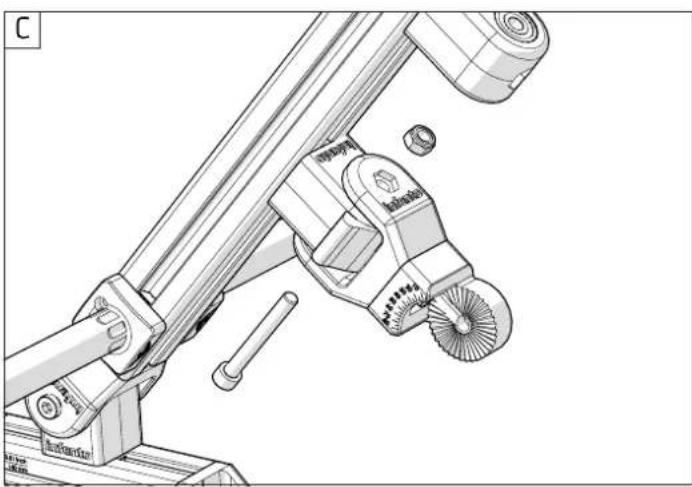

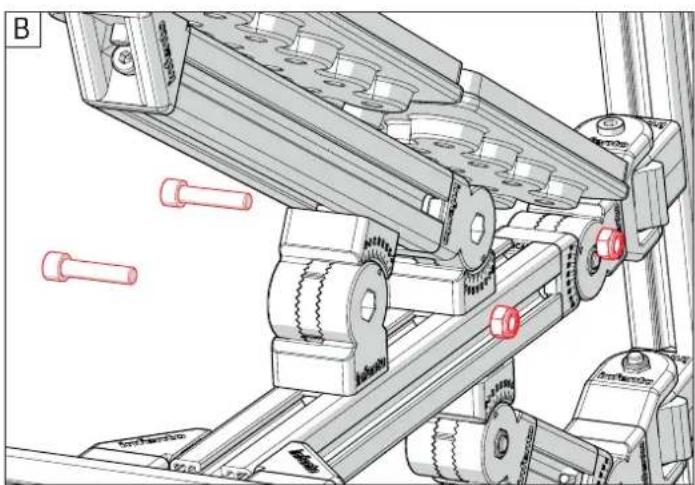

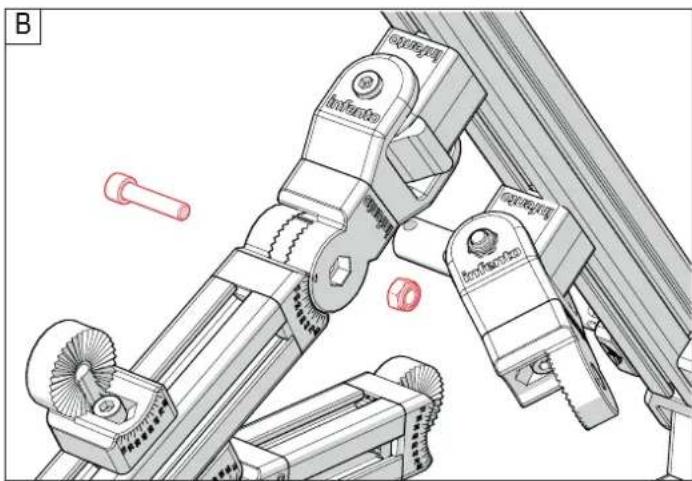

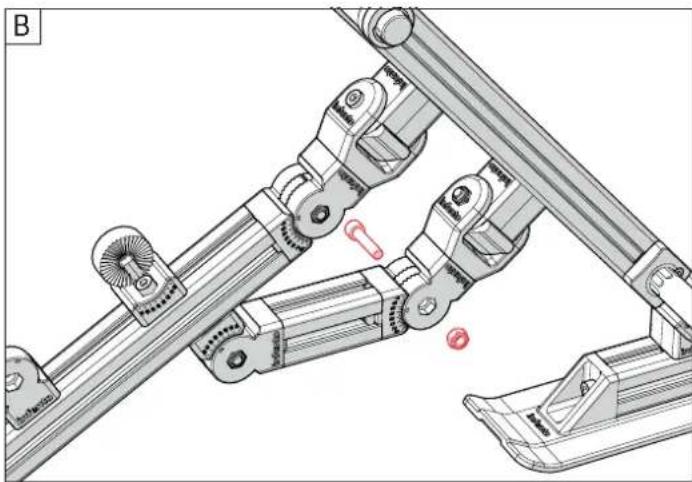

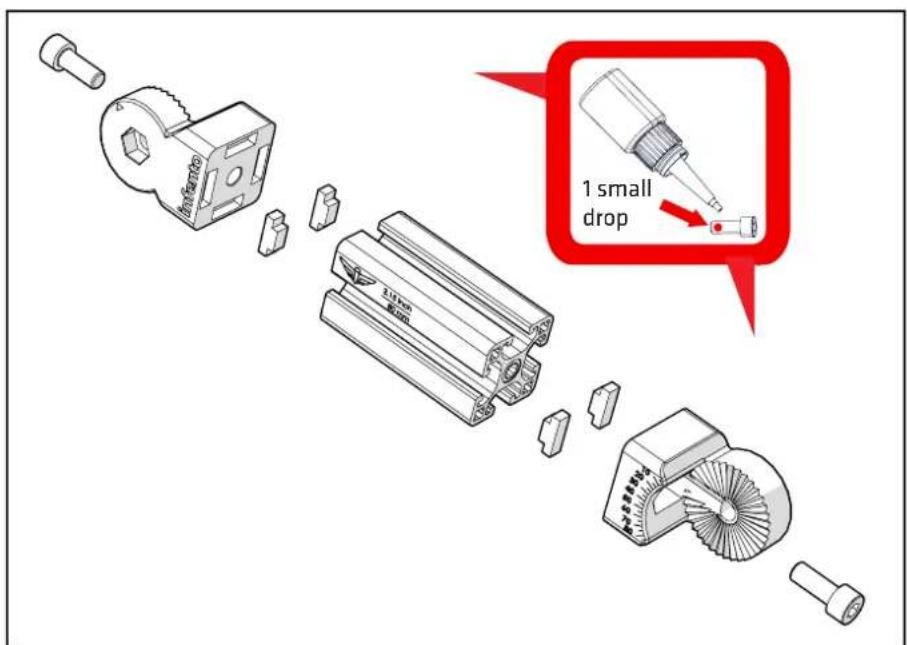

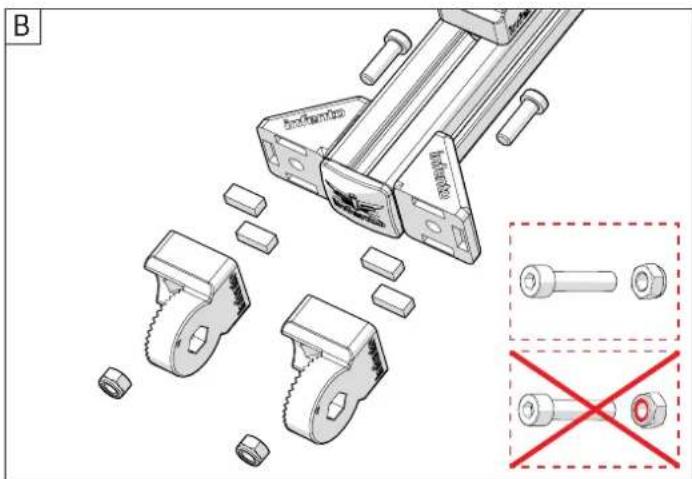

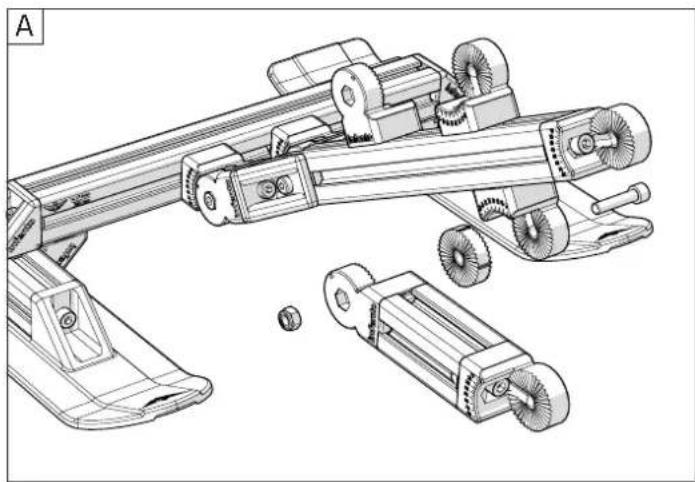

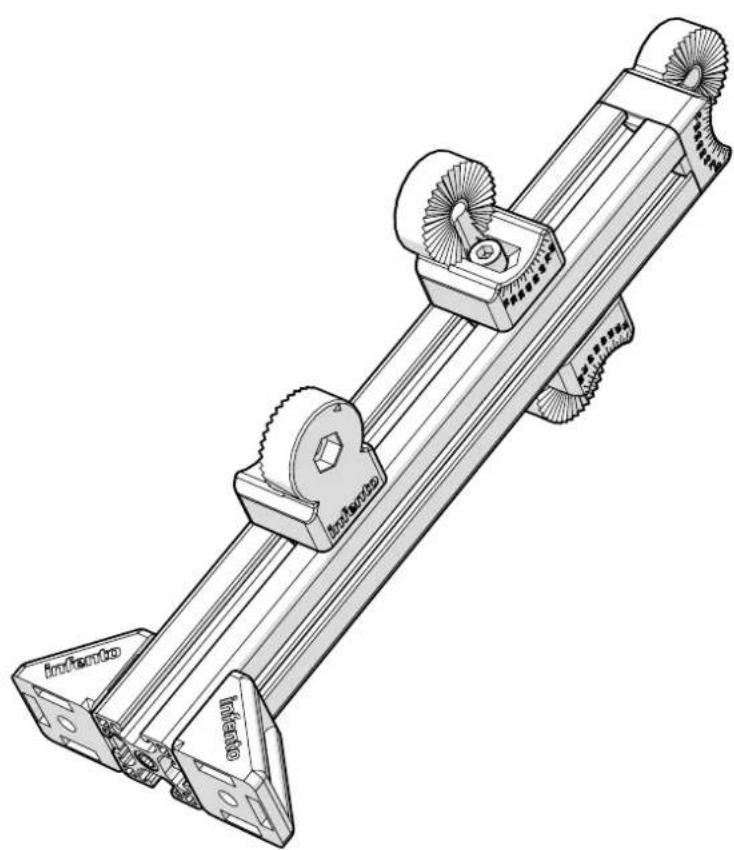

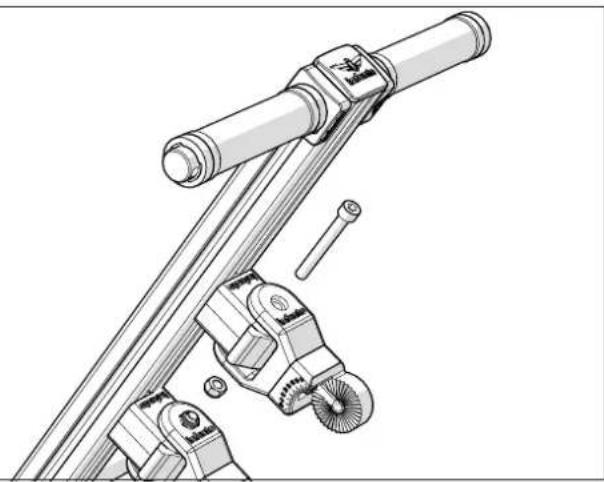

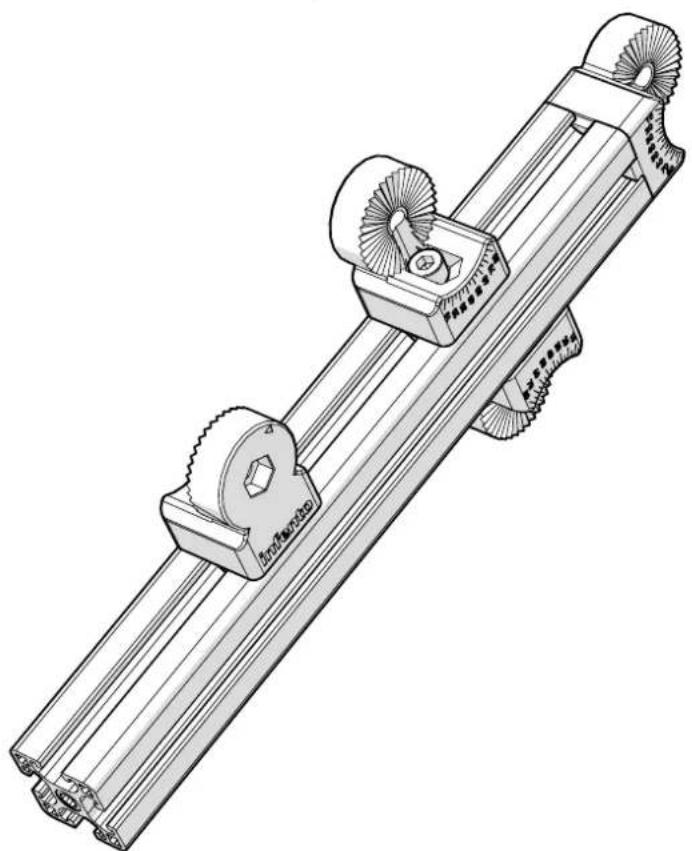

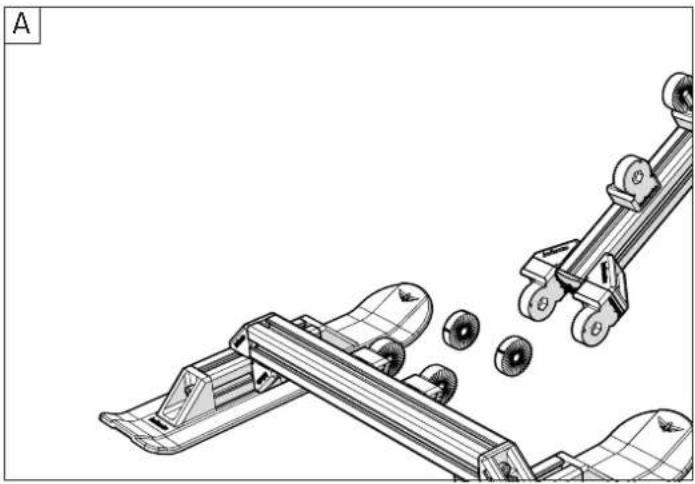

Bolt M8x35 + Locknut M8 + Knurled disc 2 stripes 2x 2x 2x

Technical line drawing of mechanical components with no visible text or symbols

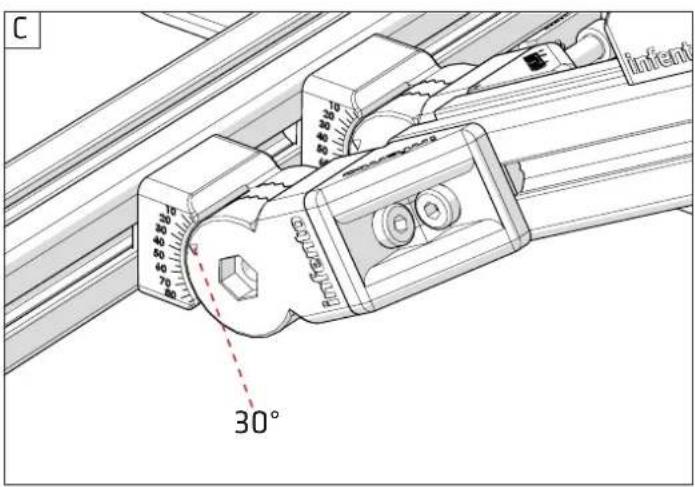

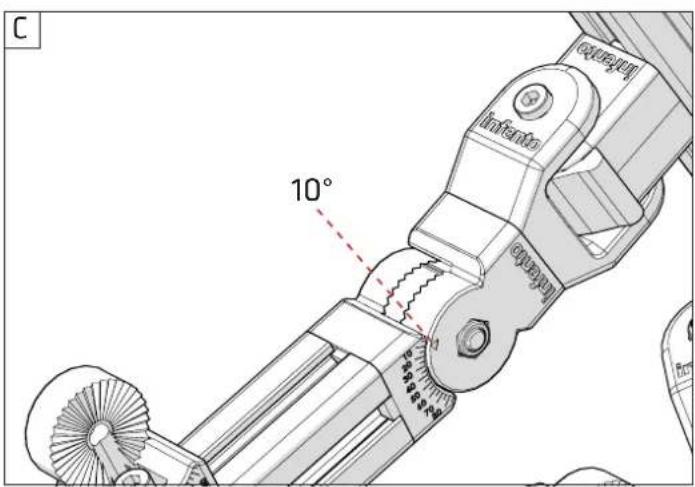

C 30° infent

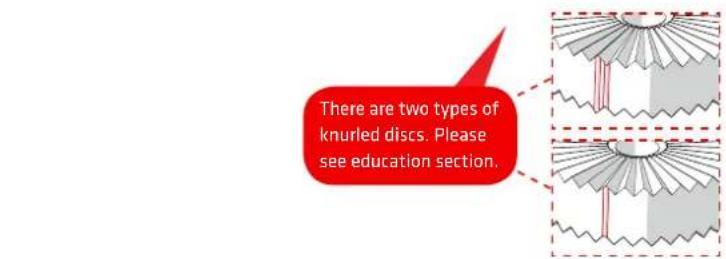

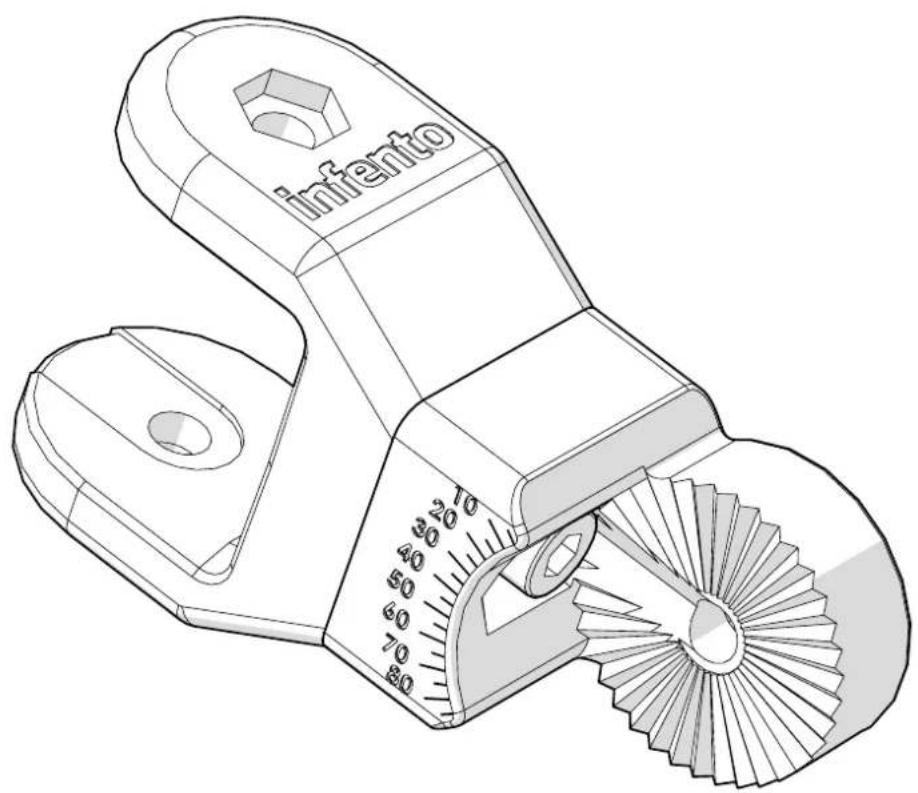

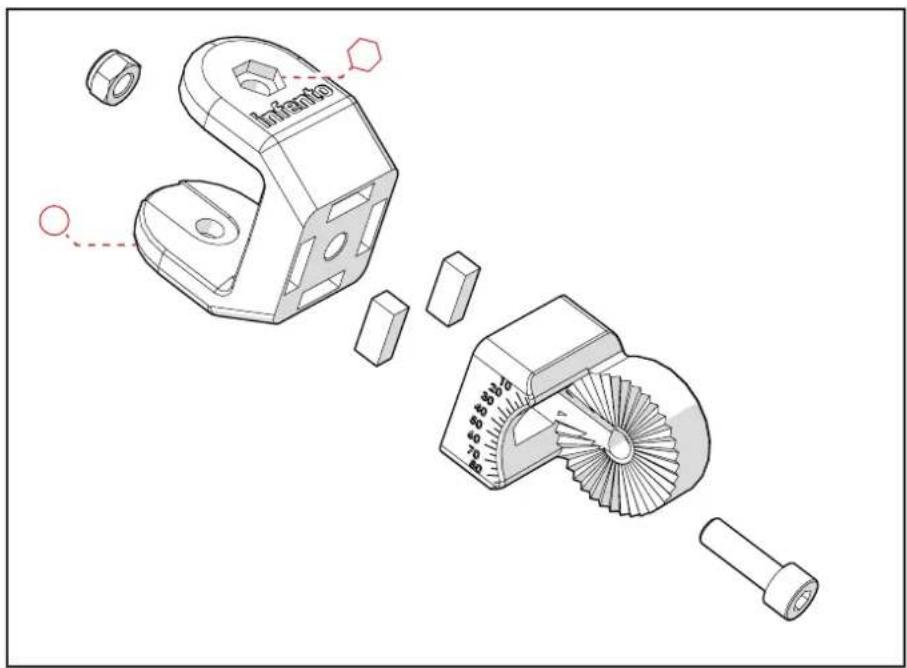

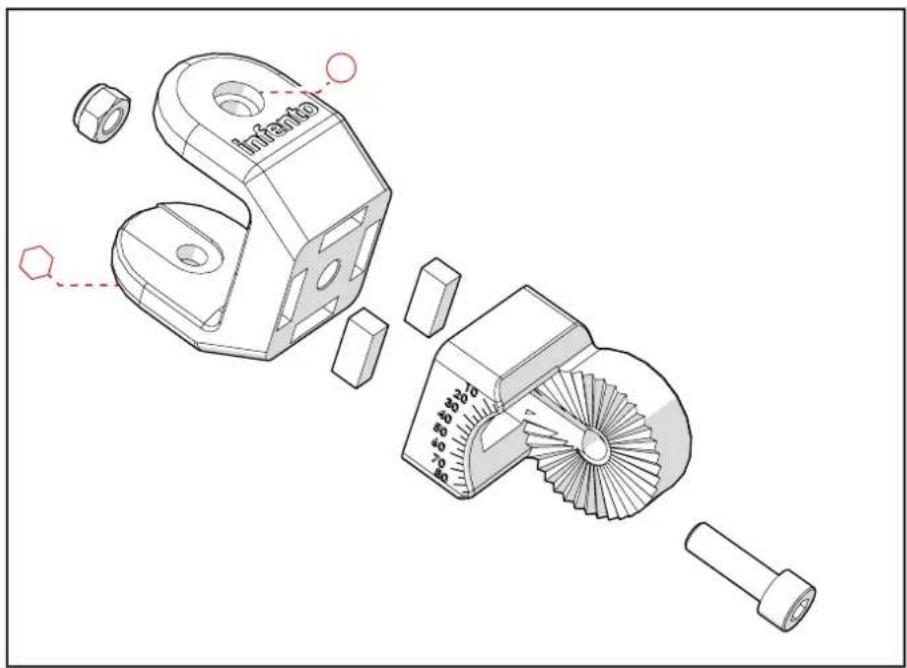

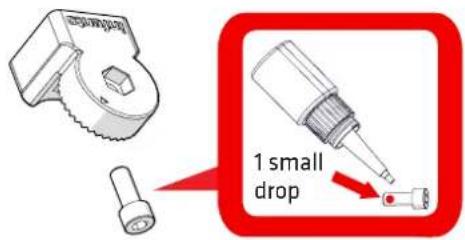

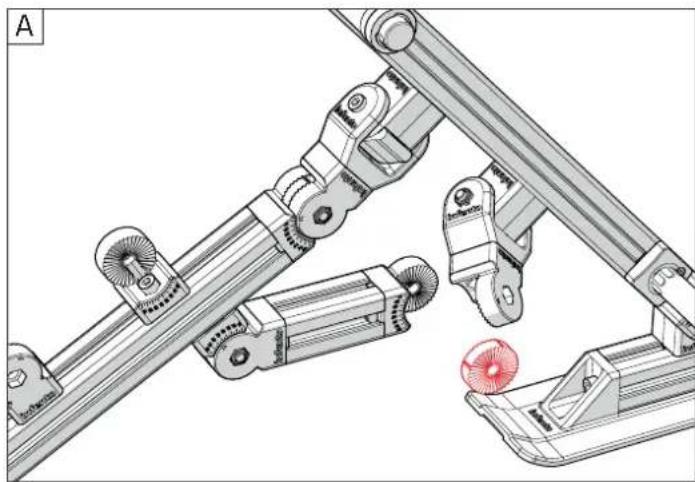

There are two types of knurled discs. Please see education section.

B A10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 A1548 A1548 A1548 A1548 A1548 A1548 A1548 A1548 A1548 A1548 A1548 A1548 A1548 A1548 A1548 A1548 A1548 A1269 A1269 A1269 A1269 A1269 A1269 A1269 A1269 A1269 A1269 A1269 A1269 A1269 A1269 A1269 A1269 A1269 A1377 A1377 A1377 A1377 A1377 A1377 A1377 A1377 A1377 A1377 A1377 A1377 A1377 A1377 A1377 A1377 A1377 A1466 A1466 A1466 A1466 A1466 A1466 A1466 A1466 A1466 A1466 A1466 A1466 A1466 A1466 A1466 A1466 A1466 A1538 A1538 A1538 A1538 A1538 A1538 A1538 A1538 A1538 A1538 A1538 A1538 A1538 A1538 A1538 A1538 A1538 A1629 A1629 A1629 A1629 A1629 A1629 A1629 A1629 A1629 A1629 A1629 A1629 A1629 A1629 A1629 A1629 A1629

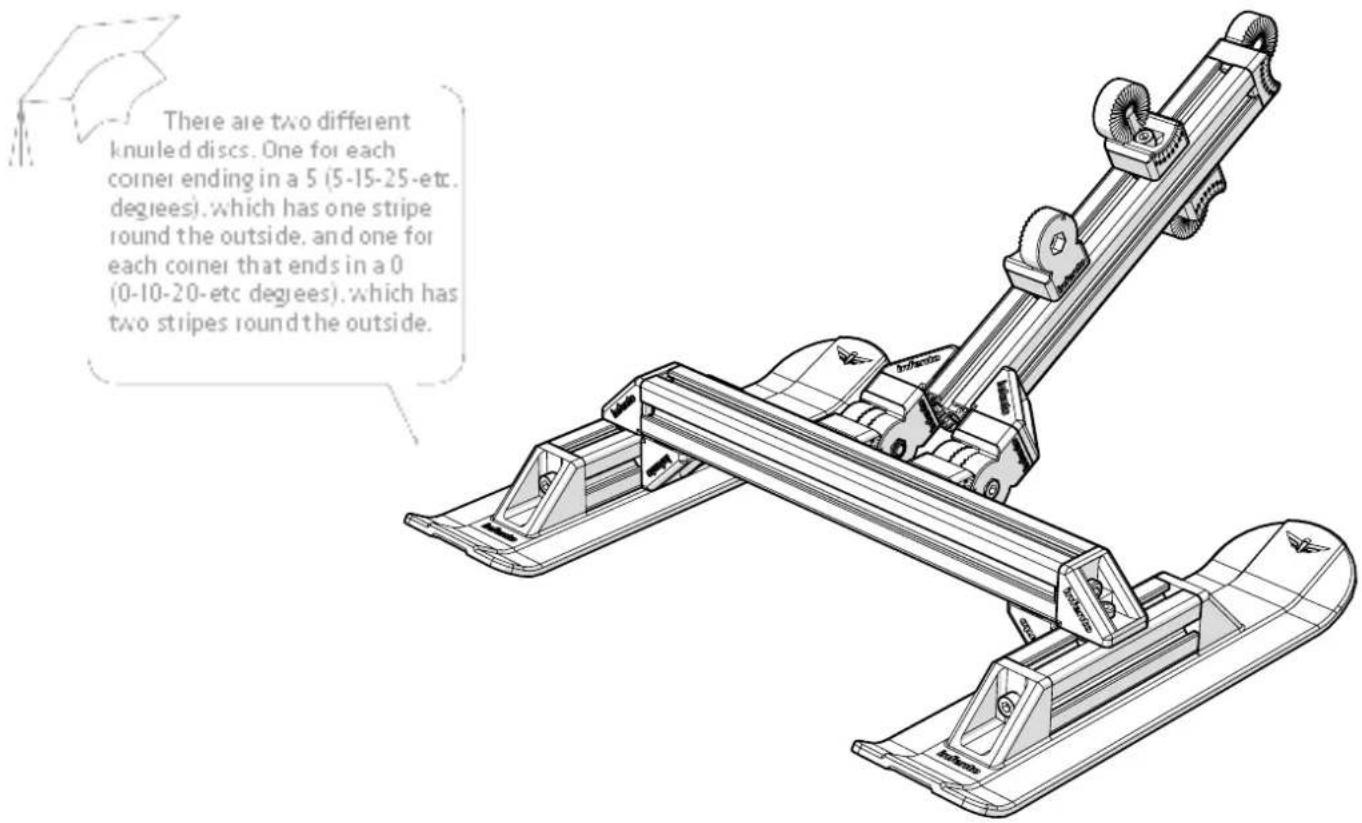

There are two different knuiled discs. One for each corner ending in a 5 (5-15-25-etc. degrees), which has one stripe round the outside, and one for each corner that ends in a 0 (0-10-20-etc degrees), which has two stripes round the outside.

Bolt M8x20 + - T-Positioning block 2x 4x

Nintendo 1 small drop

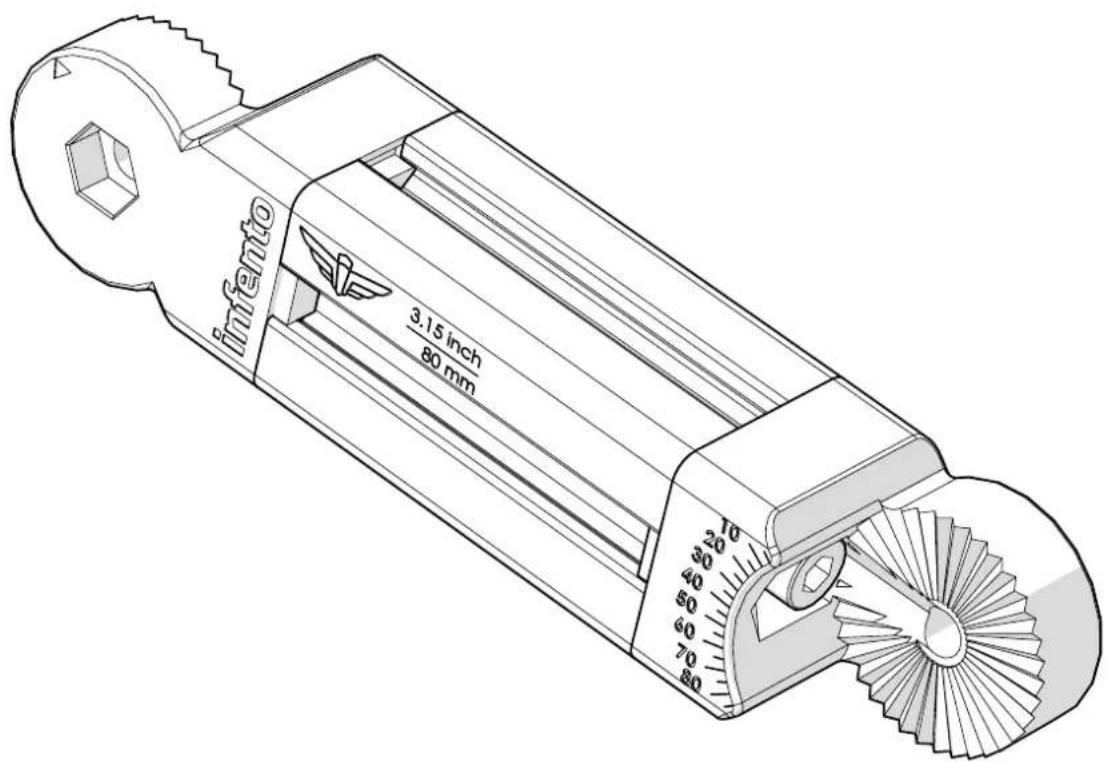

inento 3.15 inch 80 mm

Technical line drawing of a mechanical assembly with rollers and components (no text or symbols)

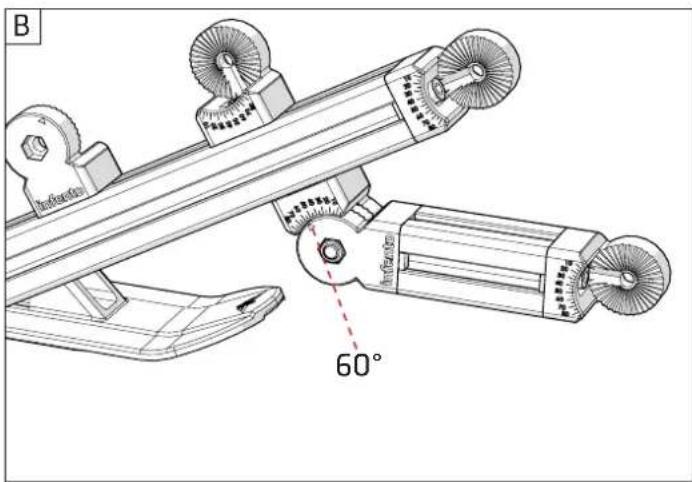

B 60°

Technical line drawing of a mechanical assembly with articulated arms and mounting brackets (no text or symbols)

•

•

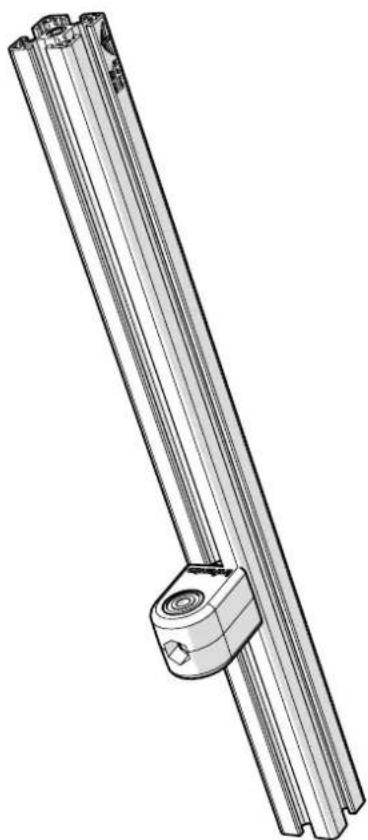

Bearing block
40×40_8
1x

Profi le IX 20.47inch | 520mm

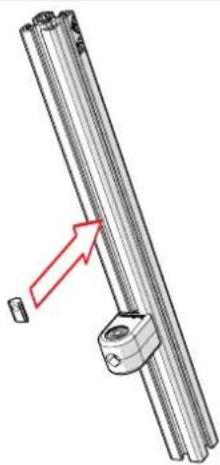

A

Diagram of a cylindrical mechanical component with a red arrow pointing to a small protrusion (no text or symbols present)

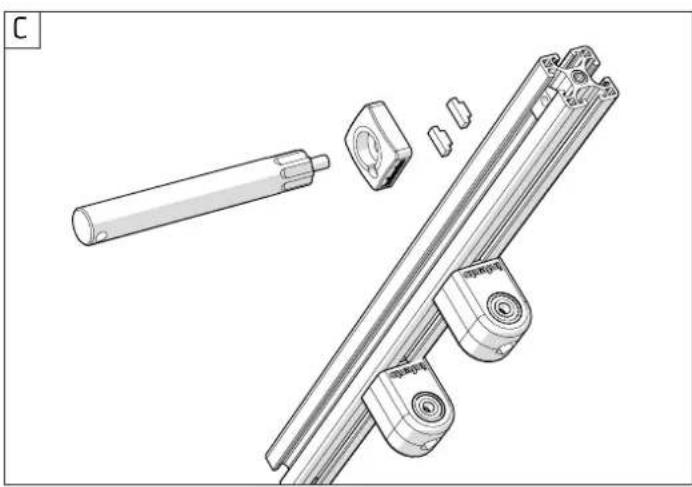

C

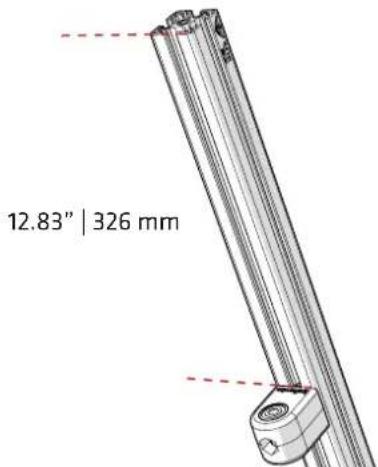

12.83" | 326 mm

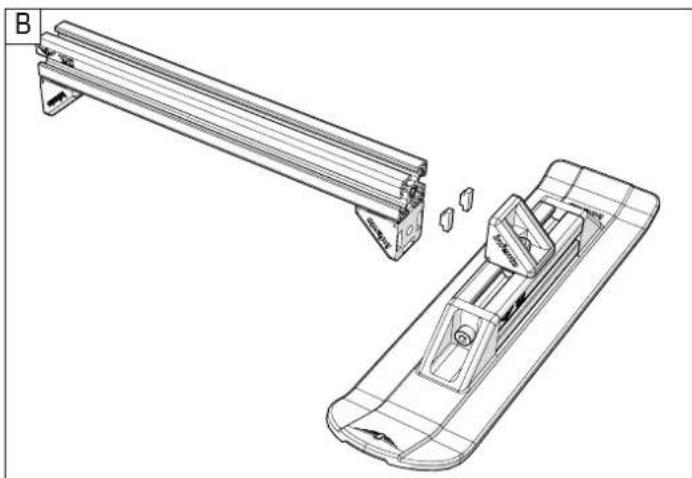

B

1 small drop

Technical line drawing of a mechanical component with flanged ends and a central mounting bracket (no text or symbols)

•

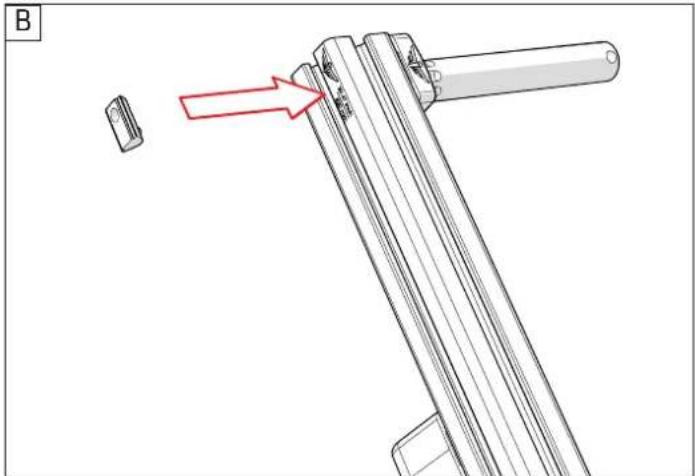

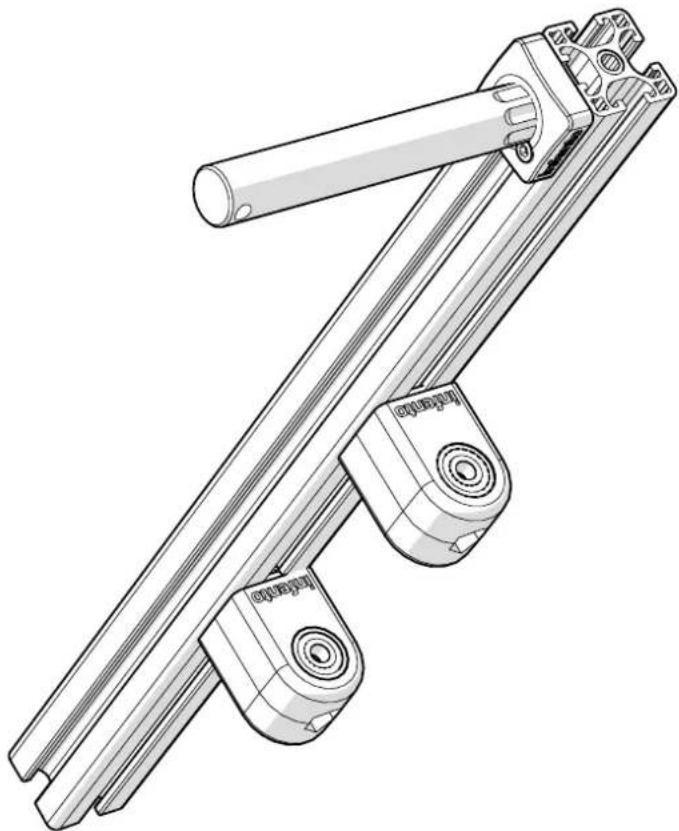

  Bolt M8x20

2x
T-Positioning block

Bearing block
40x40_8

A

Technical line drawing of a mechanical assembly with a red arrow indicating a specific component (no text or symbols present)

C

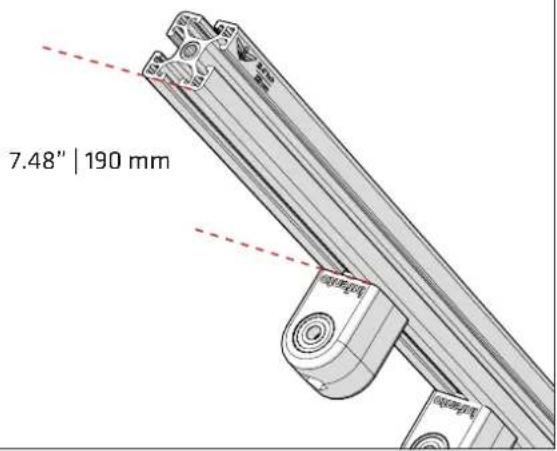

7.48" | 190 mm

B

B 1 small drop

Technical line drawing of a mechanical linkage assembly (no text or symbols)

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

m = 311

+

•
  j

1x

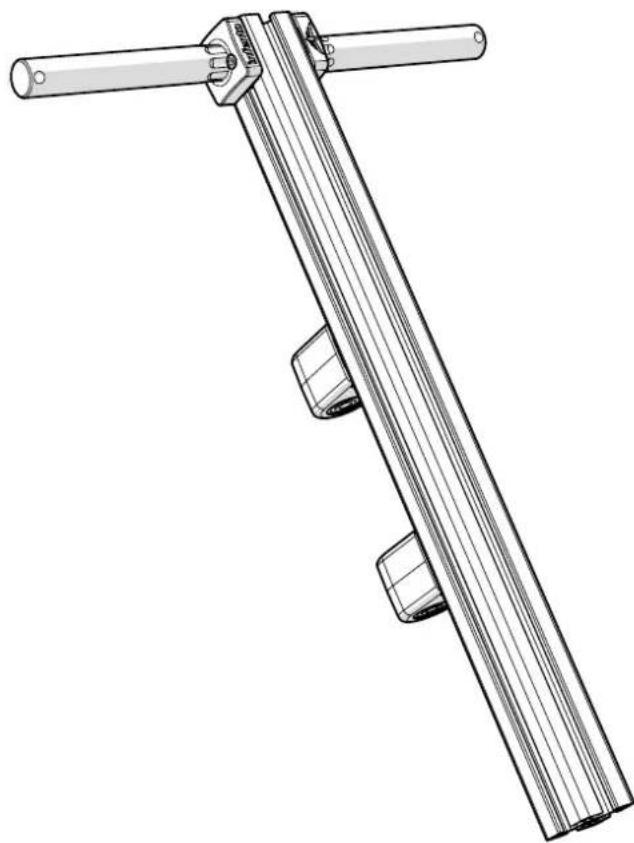

Axle plate

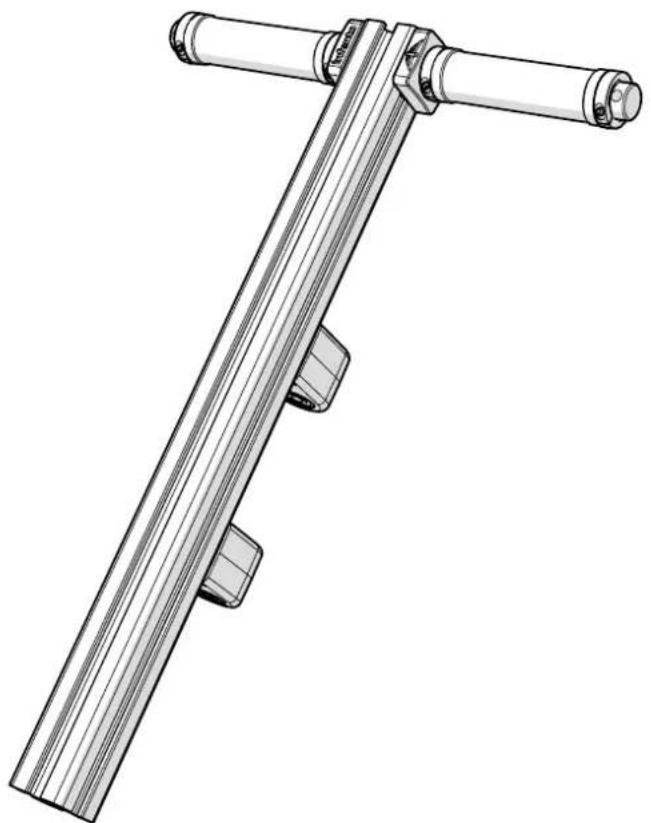

Handlebar short

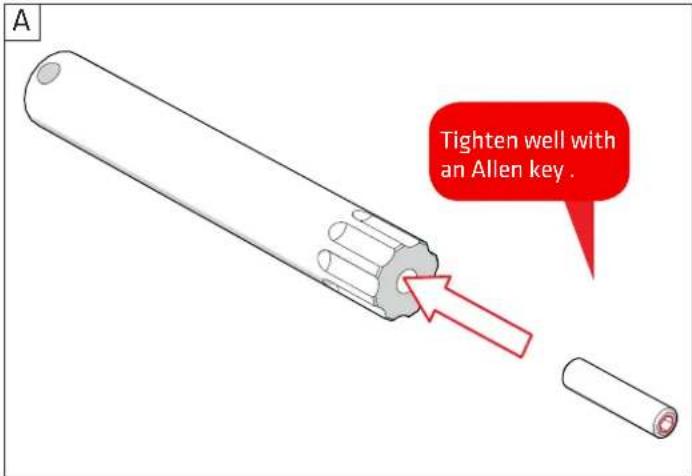

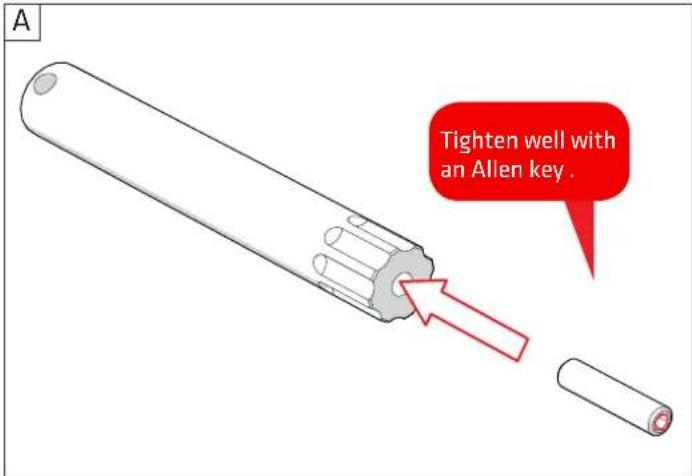

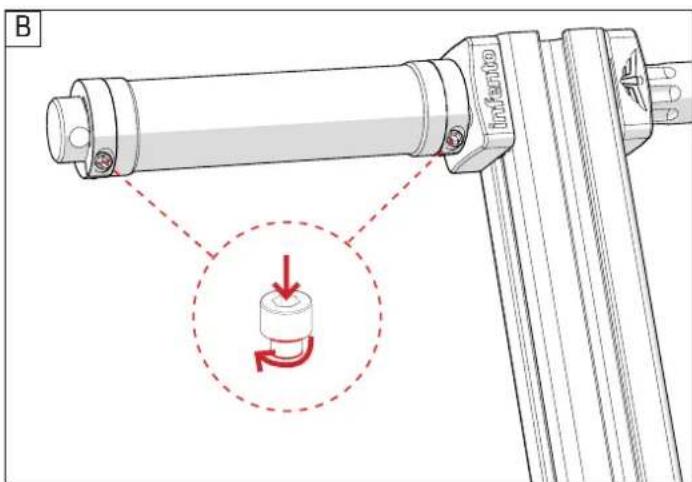

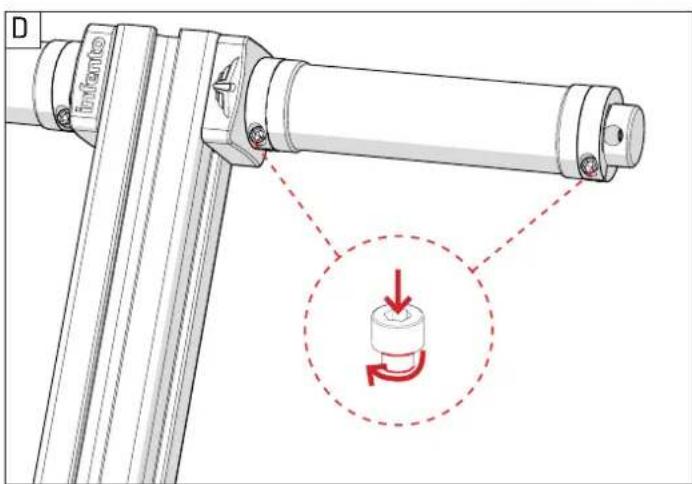

A Tighten well with an Allen key.

Mechanical assembly diagram showing a bracket with mounting holes and a red arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with cylindrical components and mounting brackets (no text or symbols)

Mechanical assembly diagram showing a shaft inserted into a housing with a red arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical linkage assembly (no text or symbols)

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

m = 311

+

•
  j

1x
Axle plate

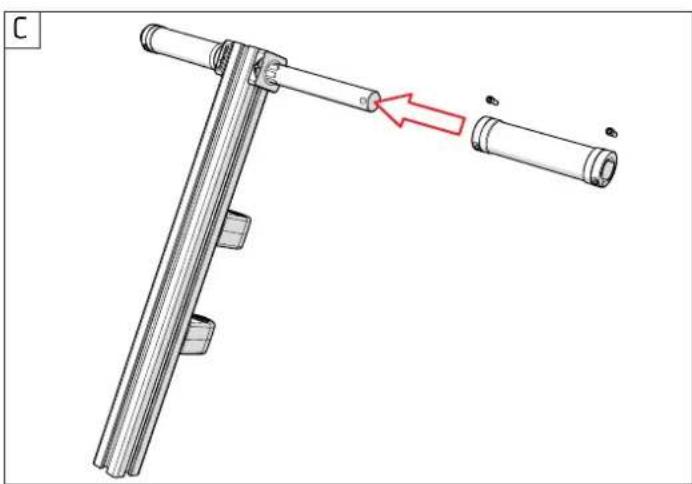

A Tighten well with an Allen key.

Technical line drawing of a mechanical lever assembly with a red arrow indicating motion direction (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view of components (no text or symbols)

D 100x200x250

Technical line drawing of a mechanical support structure with no visible text or symbols

Mechanical assembly diagram showing a shaft being inserted into a bracket with a red arrow indicating direction (no text or symbols)

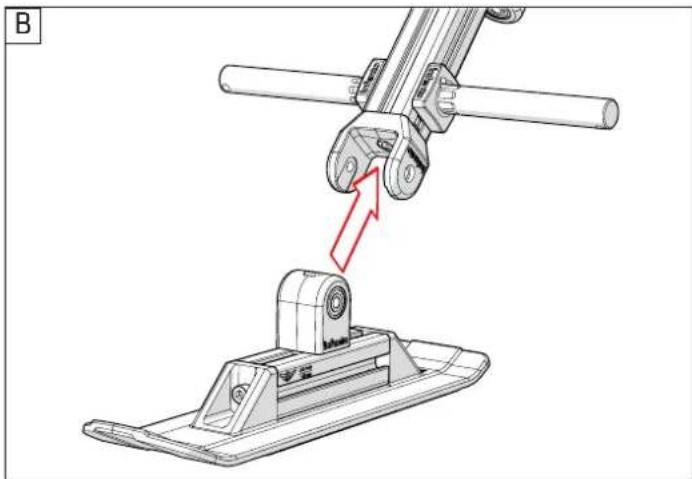

B infanto

Technical illustration of a mechanical assembly with two cylindrical components and a red arrow indicating a joint or connection point (no text or symbols present)

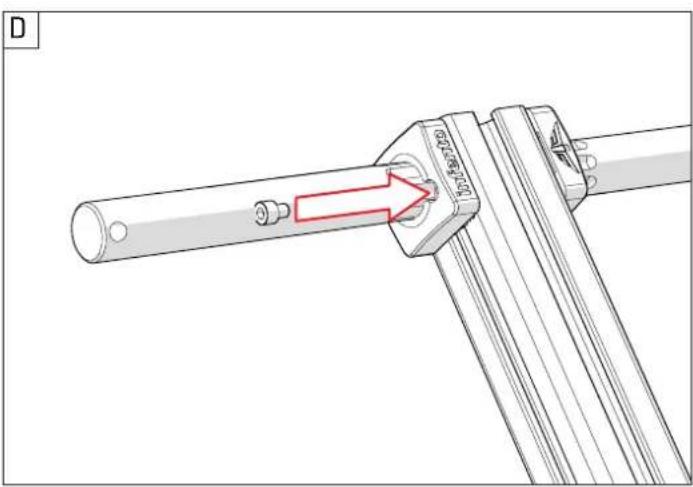

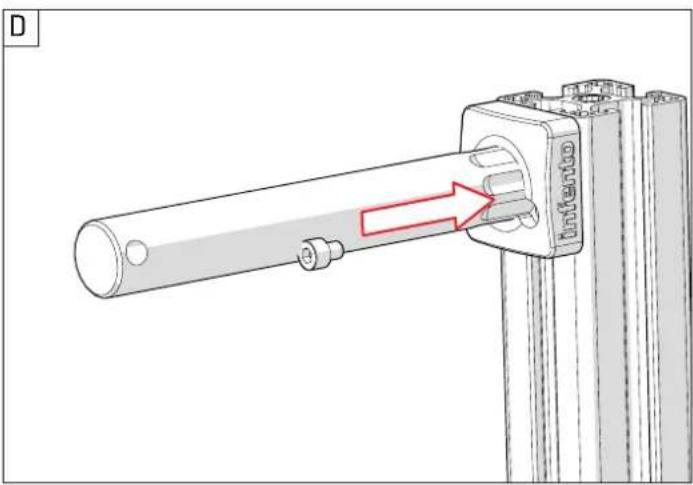

D Infanto

Technical line drawing of a mechanical lever assembly (no text or symbols)

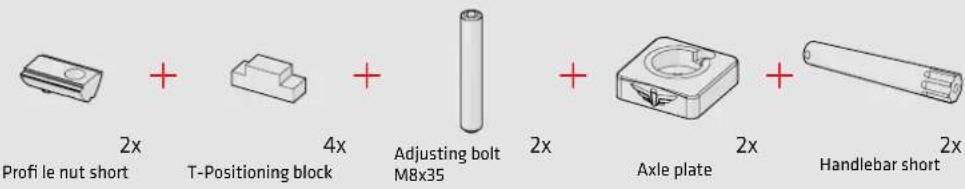

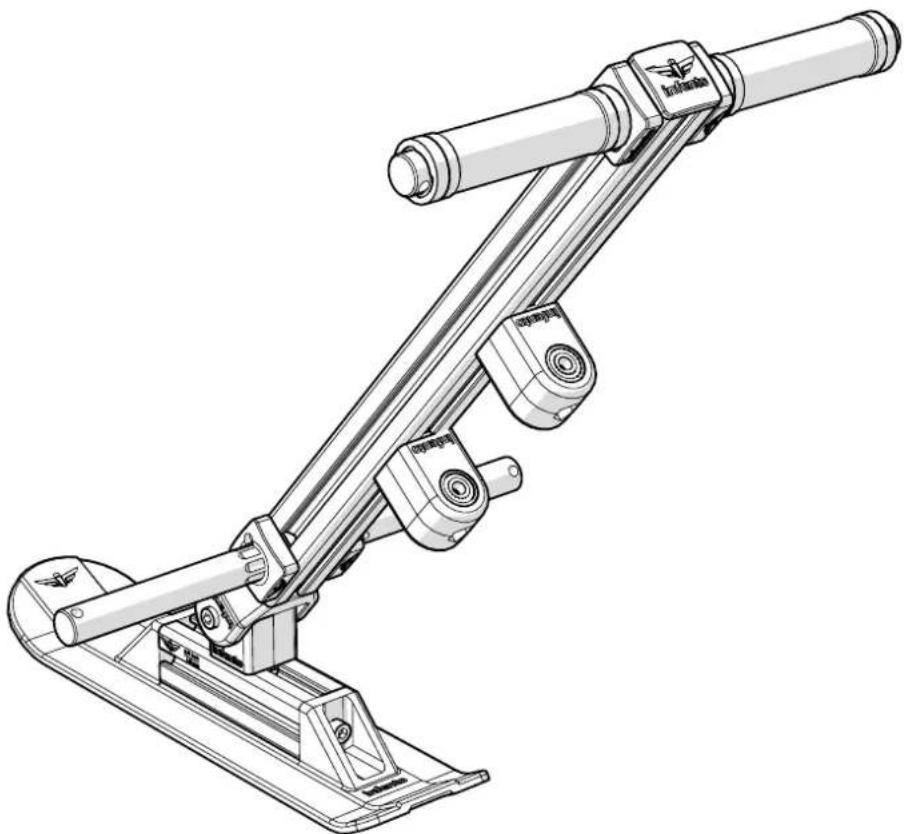

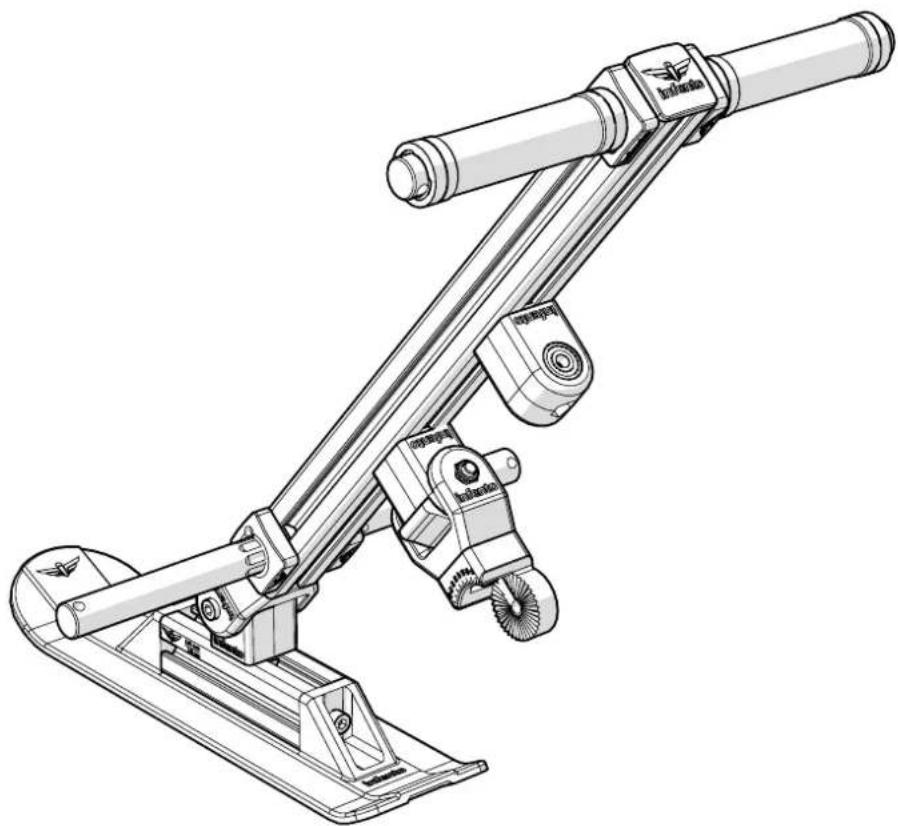

Profi le nut short 2x T-Positioning block 4x Adjusting bolt M8x35 Axle plate 2x Handlebar short

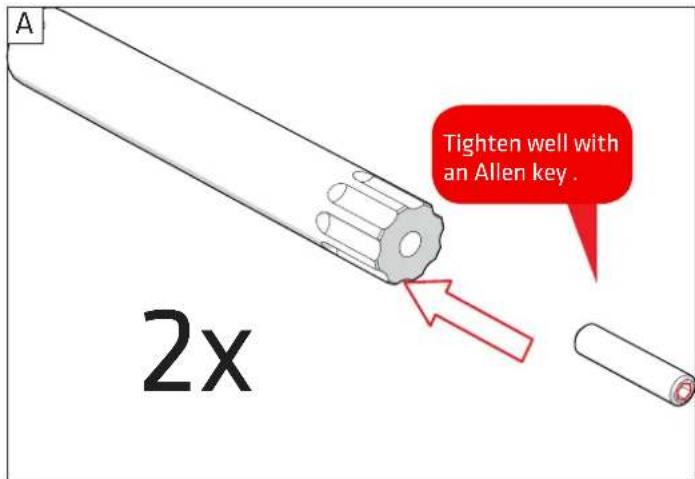

A Tighten well with an Allen key . 2x

Mechanical assembly diagram showing a lever mechanism with red arrows indicating motion direction (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view of components (no text or symbols)

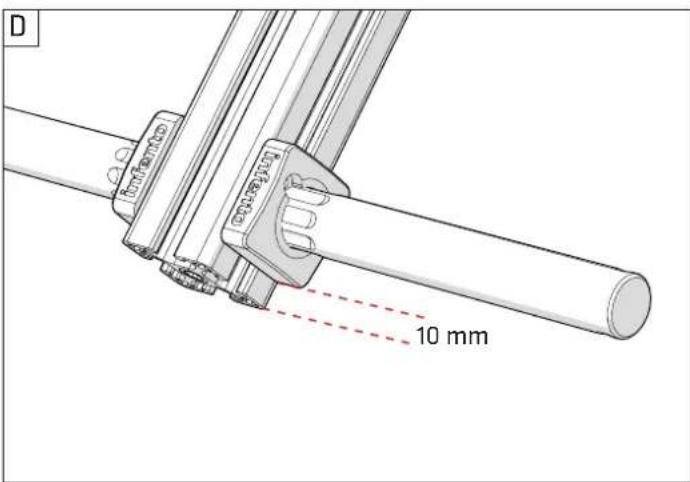

D 10 mm

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Bolt M8x20 1x T-Positioning block 2x U-Block 1x

1 small drop

Technical line drawing of a mechanical lever assembly (no text or symbols)

•

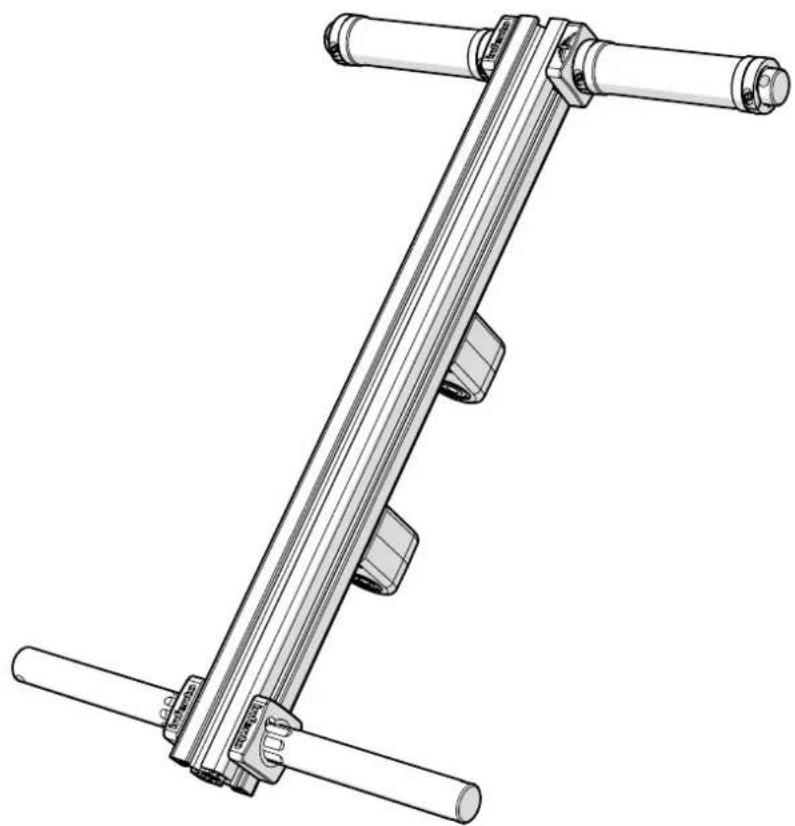

  Bolt M8x20

2x
T-Positioning block

Bearing block
40x40_8

3D wireframe model of a vehicle chassis with a red arrow indicating a component (no text or symbols)

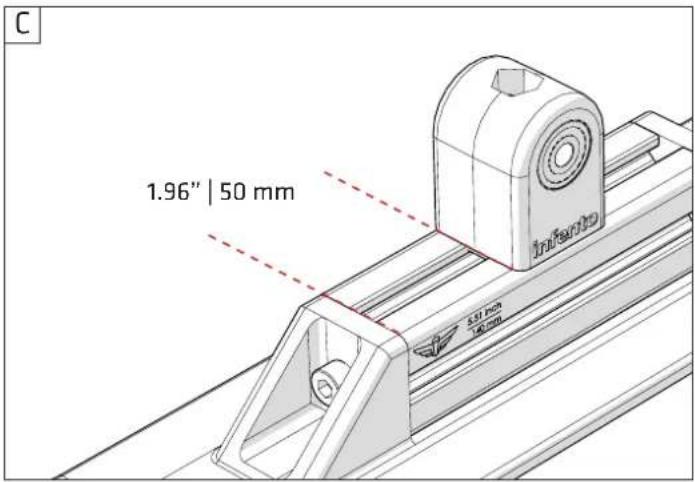

C 1.96" | 50 mm 5.51 mm 40 mm

B 1 small drop

Technical line drawing of a vehicle chassis with labeled components (no text or symbols beyond branding)

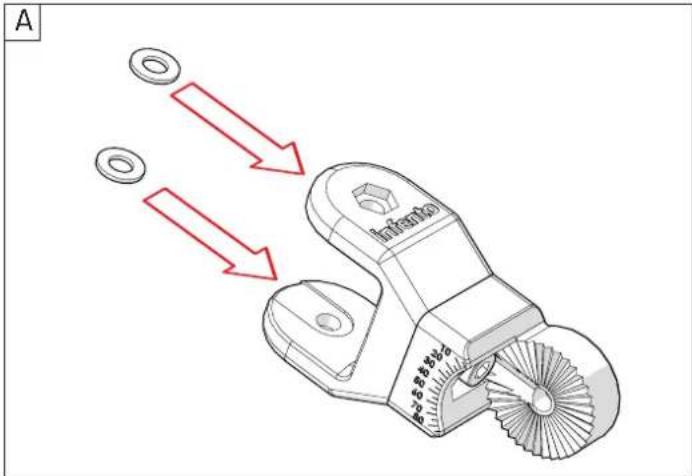

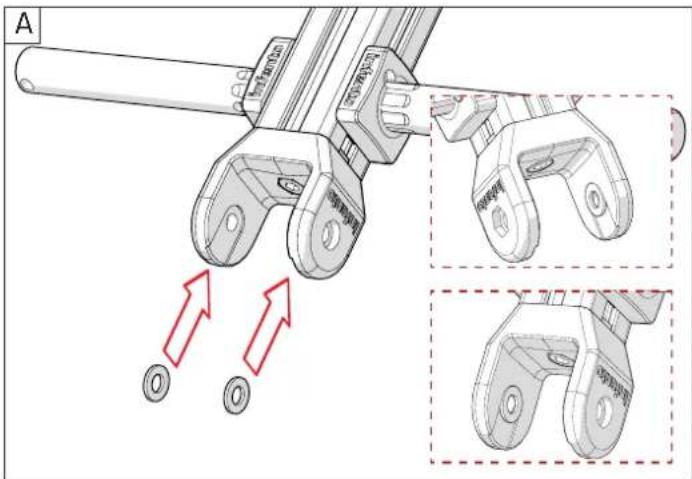

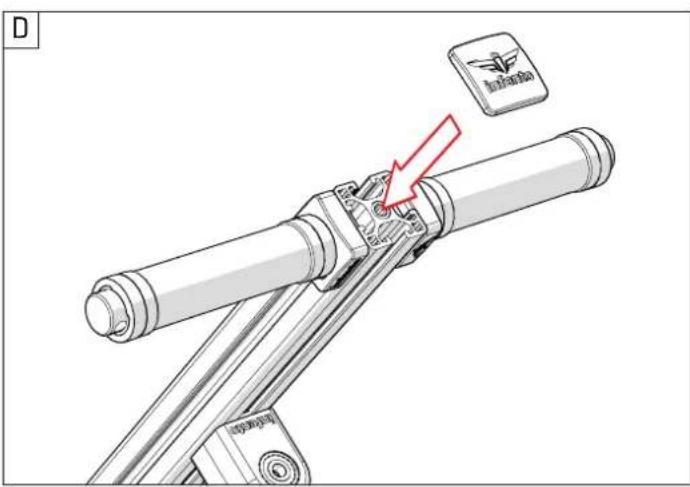

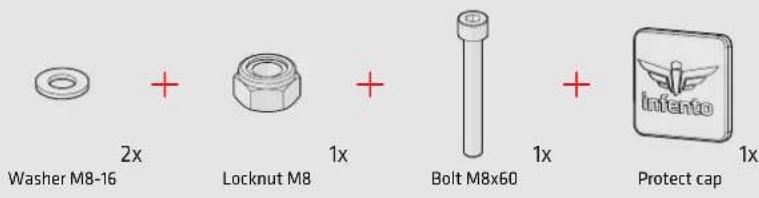

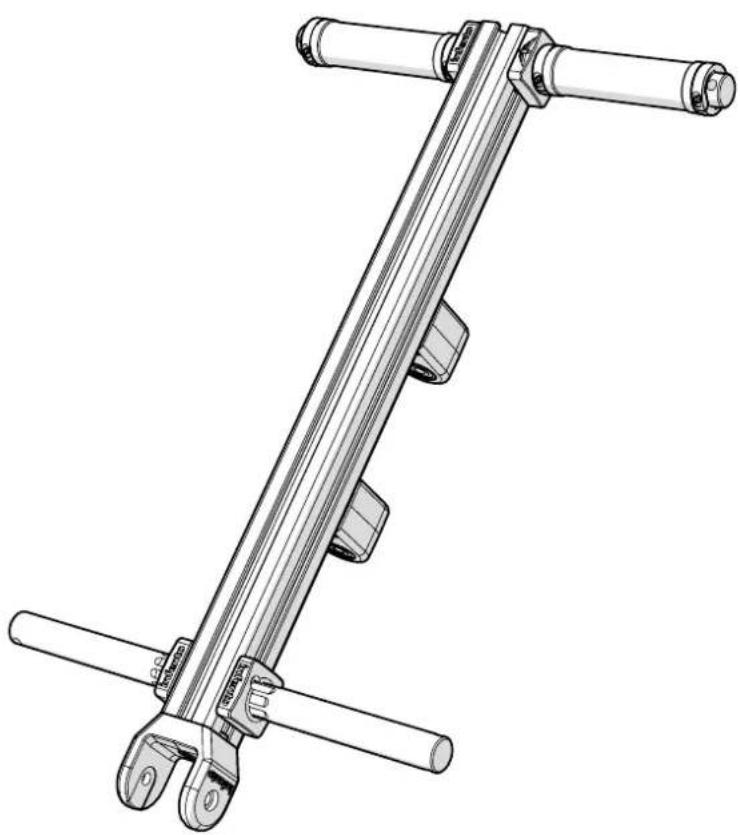

Washer M8-16 2x Locknut M8 1x Bolt M8x60 1x Protect cap 1x

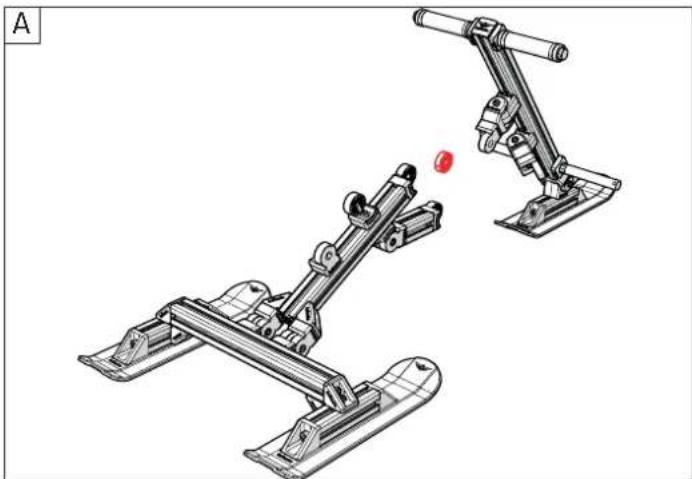

A 100mm x 200mm x 300mm x 400mm x 500mm x 600mm x 700mm x 800mm x 900mm x 1000mm x 1100mm x 1200mm x 1300mm x 1400mm x 1500mm x 1600mm x 1700mm x 1800mm x 1900mm x 2000mm x 2100mm x 2200mm x 2300mm x 2400mm x 2500mm x 2600mm x 2700mm x 2800mm x 2900mm x 3000mm x 3100mm x 3200mm x 3300mm x 3400mm x 3500mm x 3600mm x 3700mm x 3800mm x 3900mm x 4000mm x 4100mm x 4200mm x 4300mm x 4400mm x 4500mm x 4600mm x 4700mm x 4800mm x 4900mm x 5000mm x 5100mm x 5200mm x 5300mm x 5400mm x 5500mm x 5600mm x 5700mm x 5800mm x 5900mm x 6000mm x 6100mm x 6200mm x 6300mm x 6400mm x 6500mm x 6600mm x 6700mm x 6800mm x 6900mm x 7000mm x 7100mm x 7200mm x 7300mm x 7400mm x 7500mm x 7600mm x 7700mm x 7800mm x 7900mm x 8000mm x 8100mm x 8200mm x 8300mm x 8400mm x 8500mm x 8600mm x 8700mm x 8800mm x 8900mm x 9000mm x 9100mm x 9200mm x 9300mm x 9400mm x 9500mm x 9600mm x 9700mm x 9800mm x 9900mm x1

Mechanical assembly diagram showing a tool interacting with a base plate (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

D Jinkraubio

Technical line drawing of a mechanical support system with articulated arms and cylindrical components (no text or symbols)

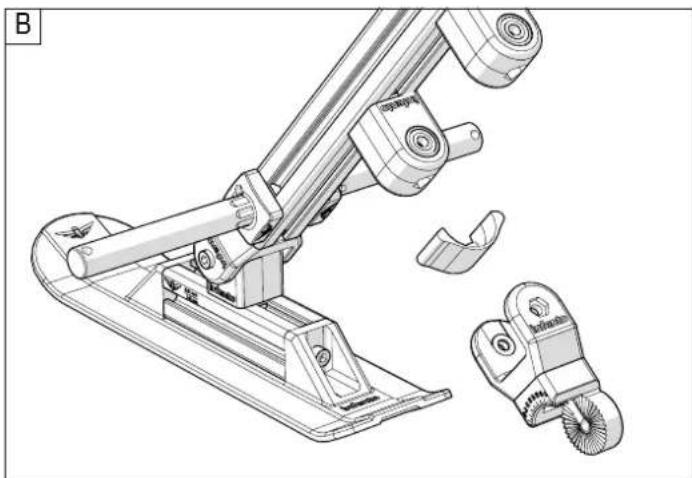

Locknut M8 1x Bolt M8x25 1x Positioning block 2x

U-Block 1x Multi angle joint 1x

Infanter 200mm x 5.5

Infento 30 40 50 60 70 80

Angle limiter 40°

1x
Washer M8-16
Locknut M8

Bolt M8x60

A 5-18 8 9 10

Technical line drawing of a mechanical device with labeled parts (no readable text or symbols)

Technical line drawing of a mechanical device with attached components, showing no text or symbols

Technical line drawing of a mechanical device with articulated arms and cylindrical components (no text or symbols)

Locknut M8 1x Bolt M8x25 1x Positioning block 2x

Two 3D mechanical part diagrams labeled U-Block and Multi angle joint, each with a 1x magnification indicator (no text or symbols on the parts themselves)

Technical line drawing of a mechanical assembly with disassembled parts (no text or symbols)

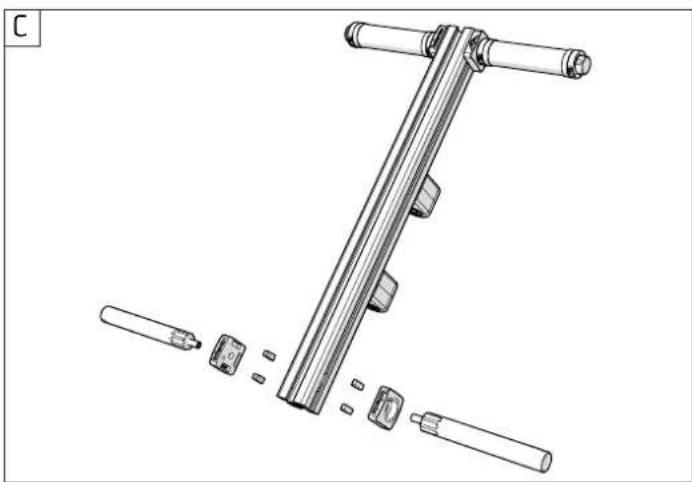

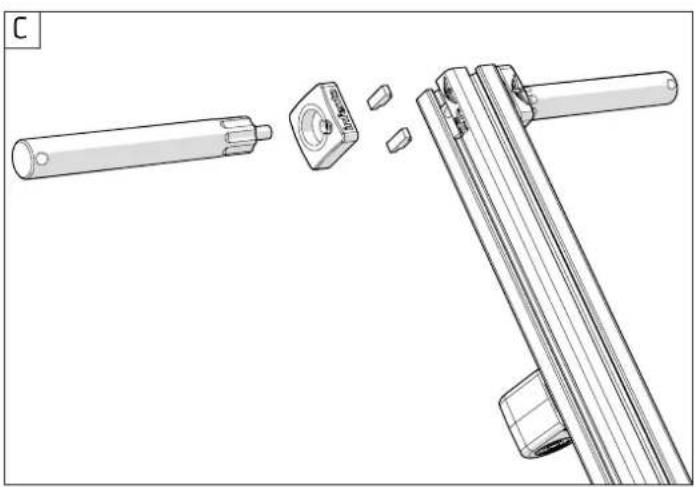

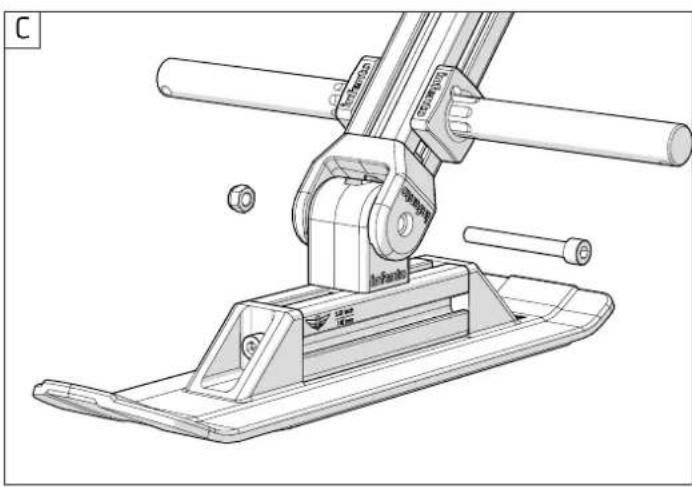

C

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with articulated arms and wheels (no text or symbols)

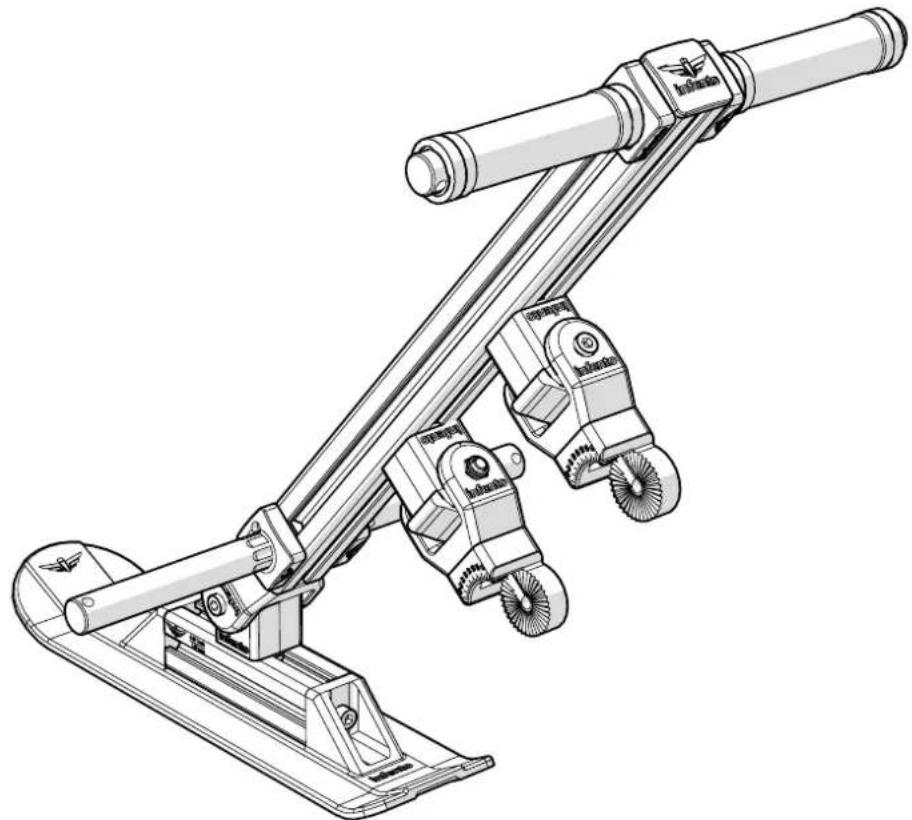

Bolt M8x35 1x Locknut M8 1x Knurled disc 2 stripes 1x

Technical line drawing of a mechanical assembly with two articulated arms and a red circular component (no text or symbols)

C 10°

Mechanical assembly diagram showing interlocking gears and linkages with no visible text or symbols

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Mechanical assembly diagram showing linkage components and a red circular component (no text or symbols)

Mechanical linkage diagram showing interlocking components with no visible text or symbols

Technical line drawing of a mechanical linkage assembly (no text or symbols)

+

+

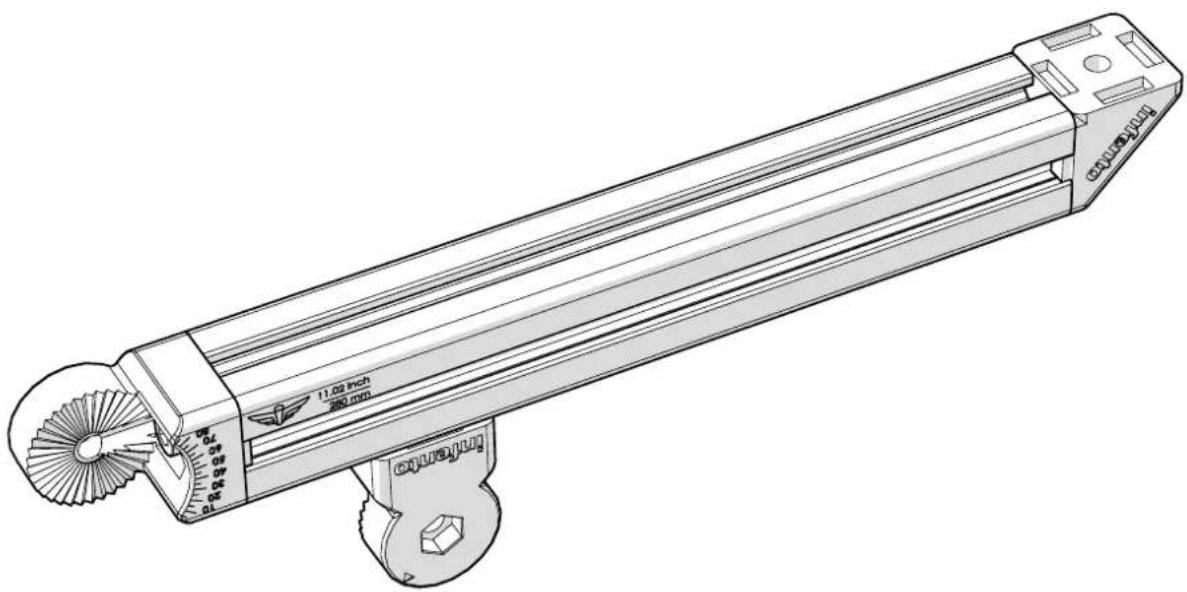

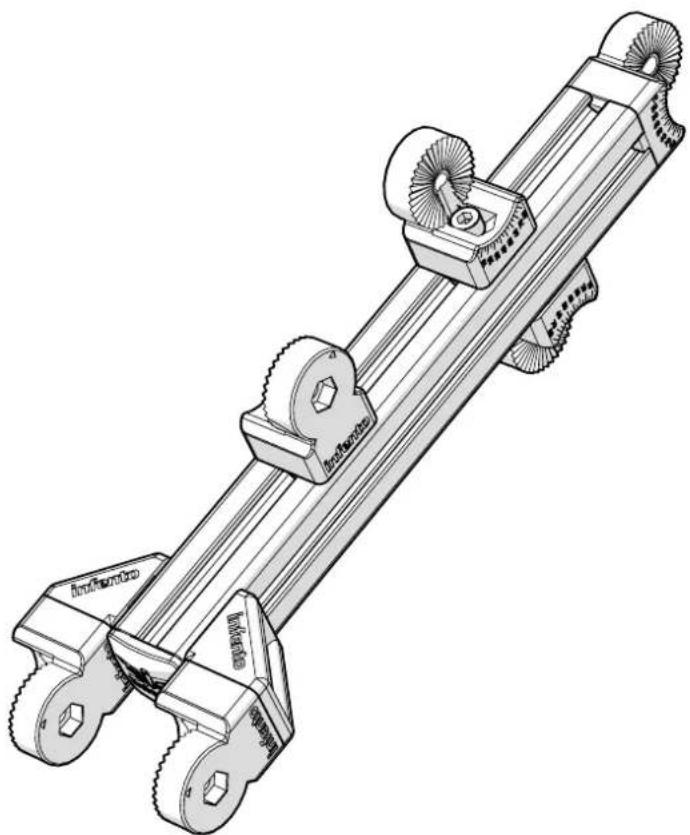

Profi le 1x 11.02inch | 280mm

1x

Profi le nut short

T-Positioning block

Bolt M8x20

Multi angle joint

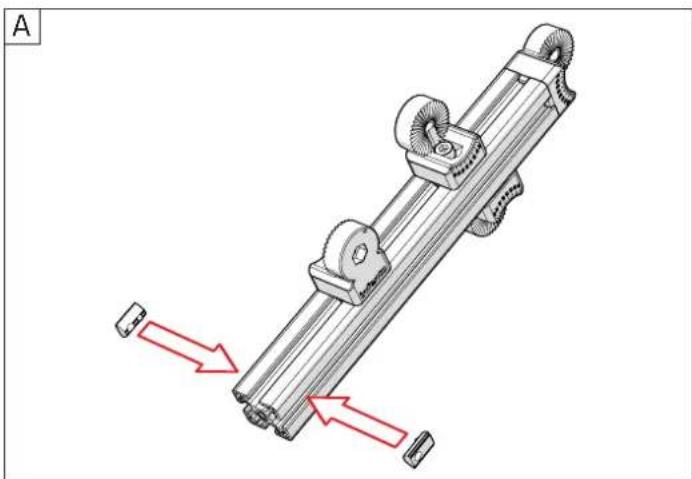

A

Technical illustration of a mechanical component with a red arrow pointing to a small inset (no text or symbols)

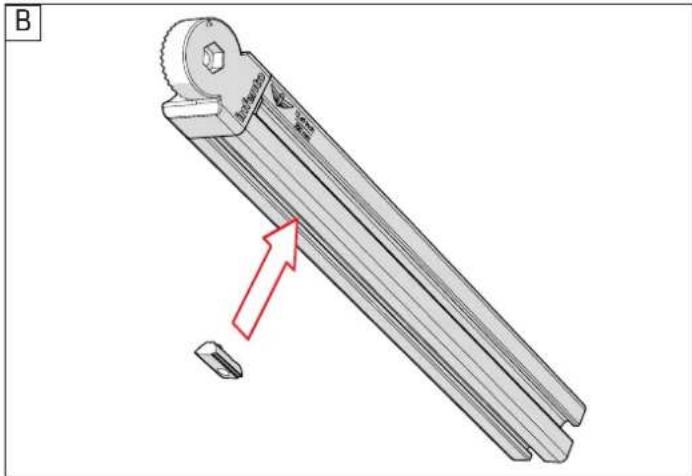

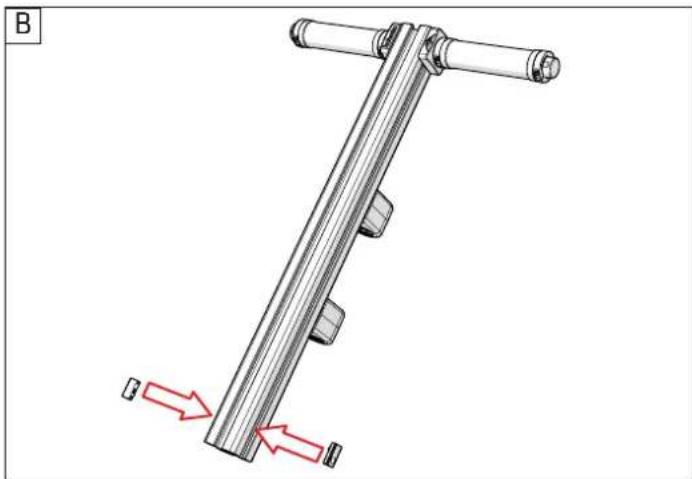

B

Technical line drawing of a mechanical bracket assembly (no text or symbols)

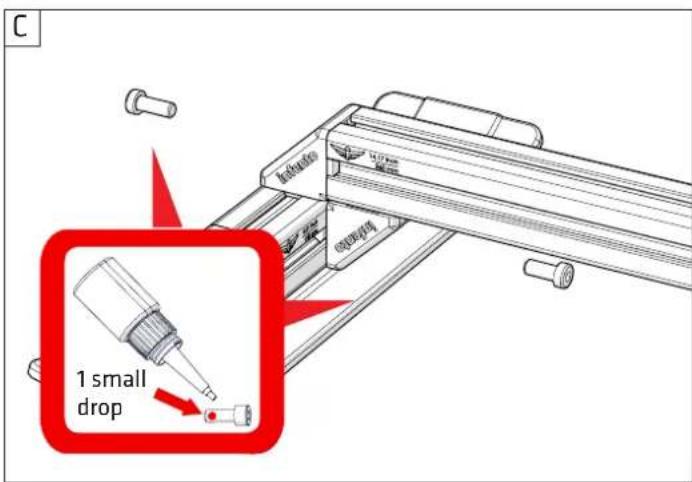

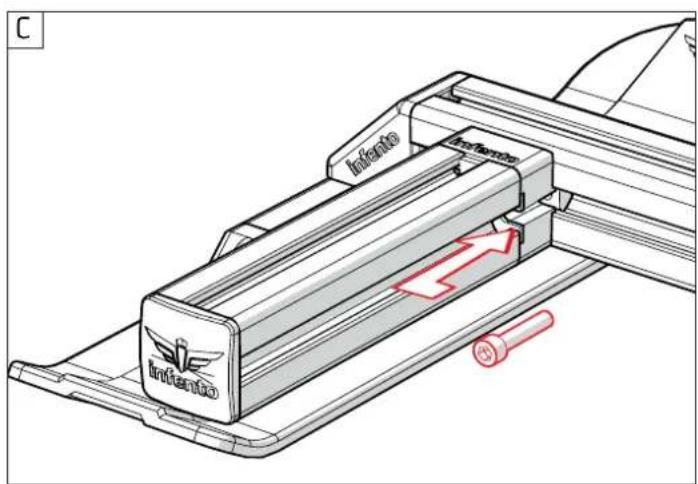

C

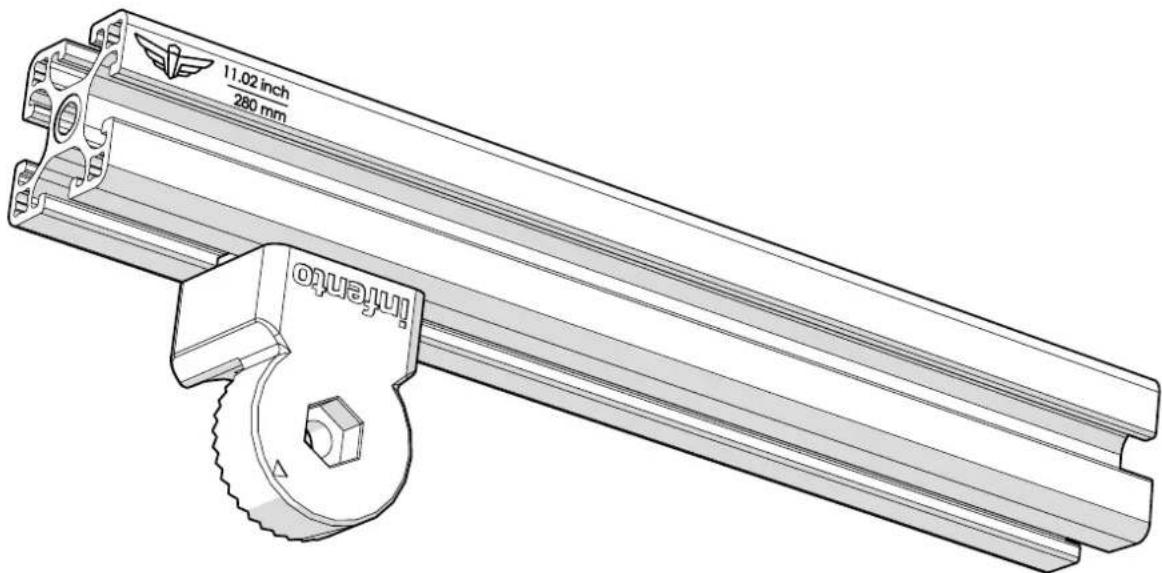

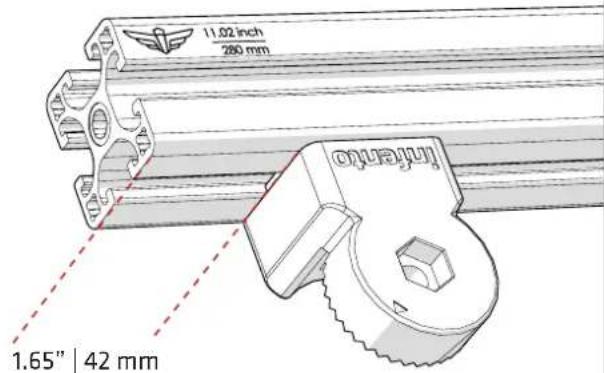

11.02 inch 280 mm 1.65" | 42 mm

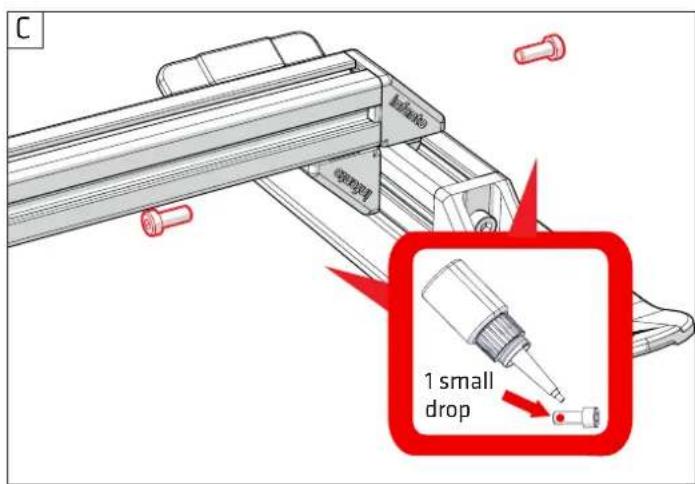

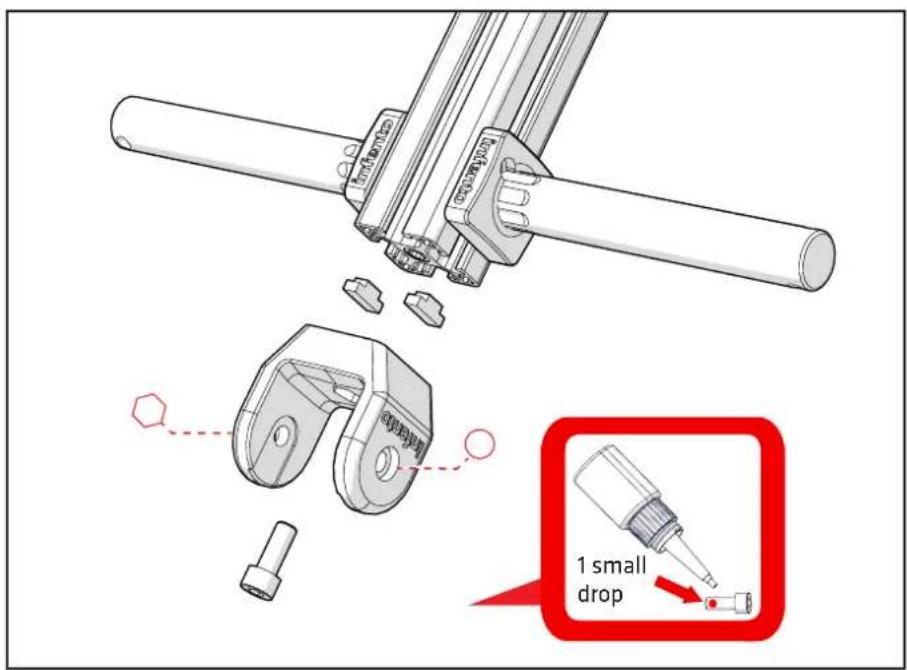

1 small drop

11.02 inch 280 mm intero

+

•

m = 311

T-Positioning block
Bolt M8x20 1x (low head)
Bolt M8x20

1 small drop M8x20 (low head)

11.02 inch 200 mm

•
  +

•
  m = 311

Bolt M8x25

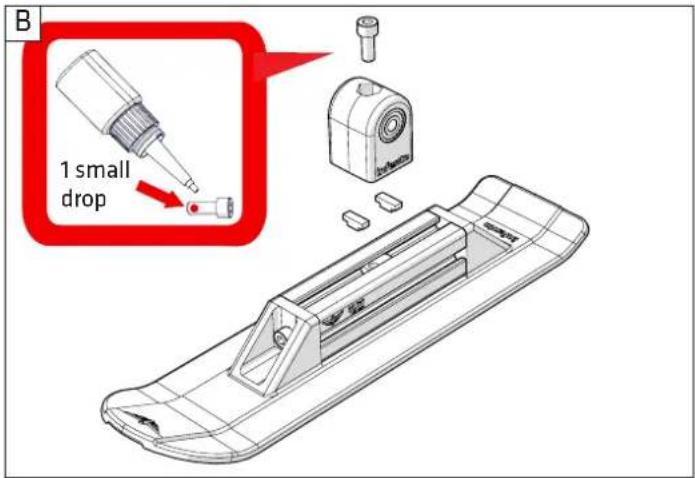

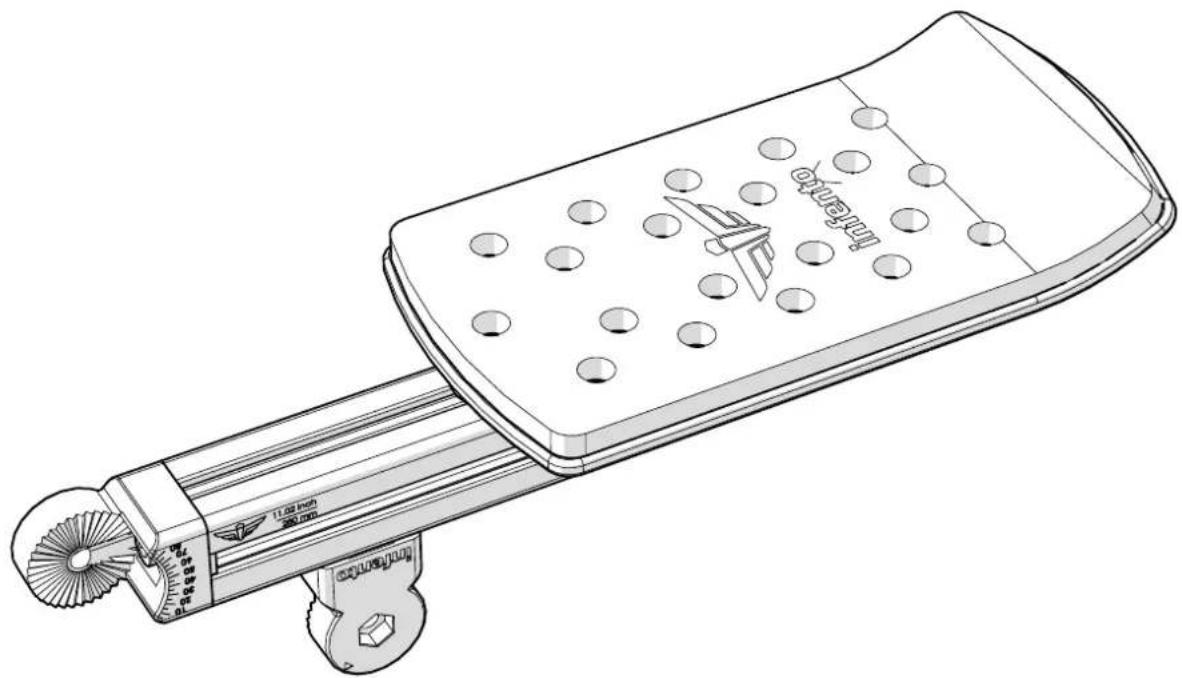

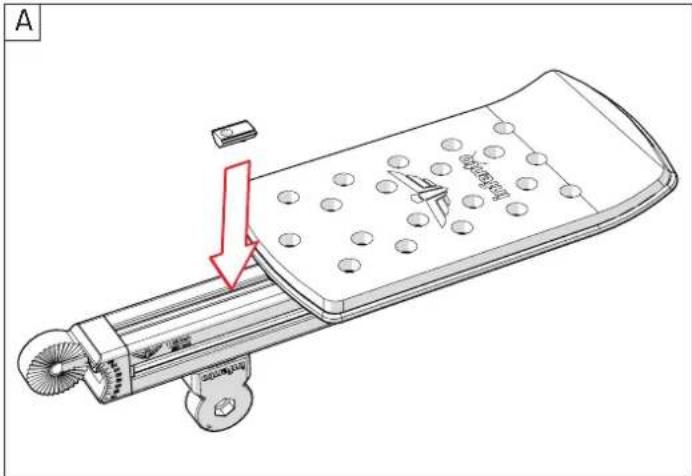

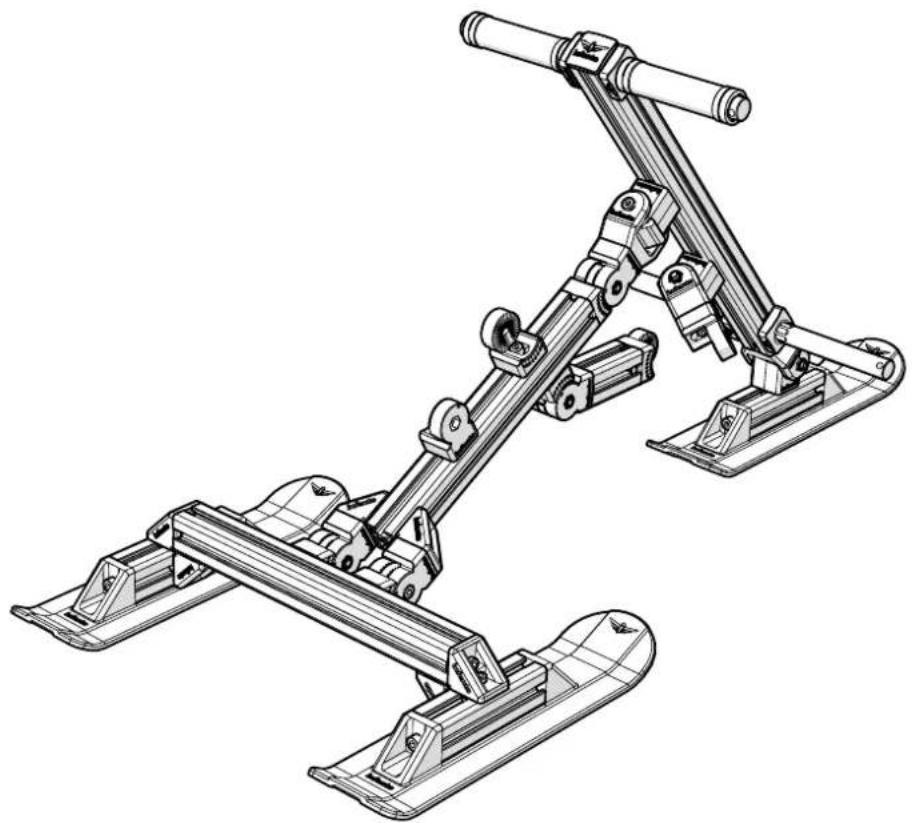

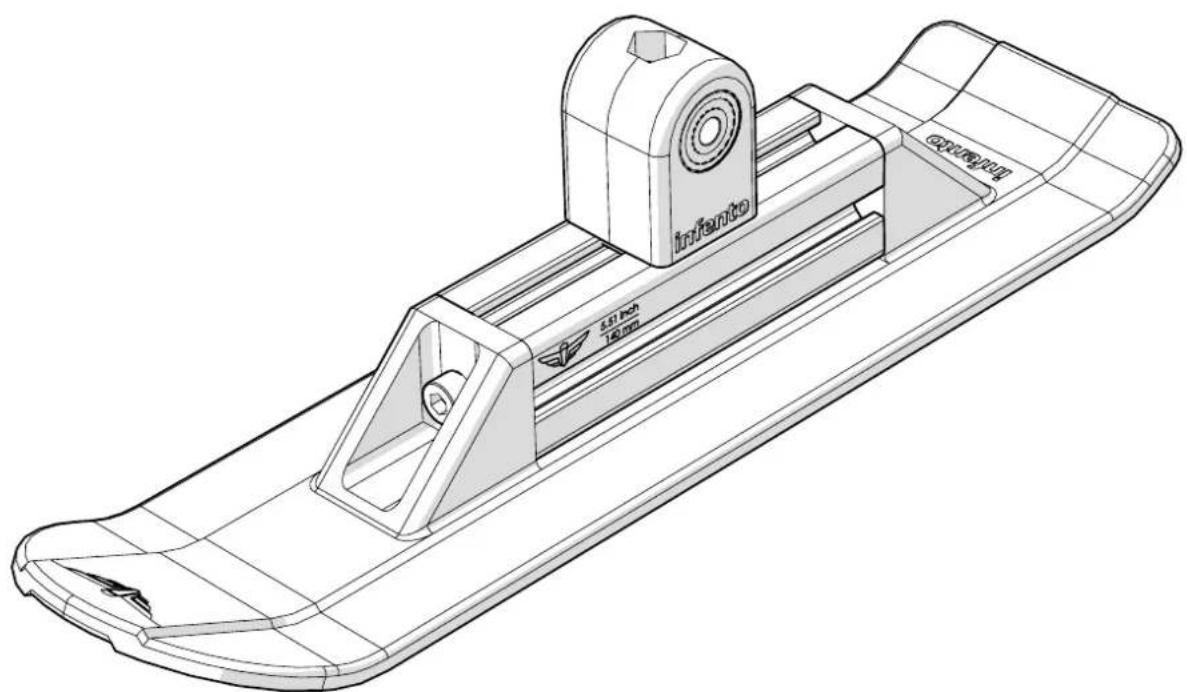

Ducktail board
+ foam

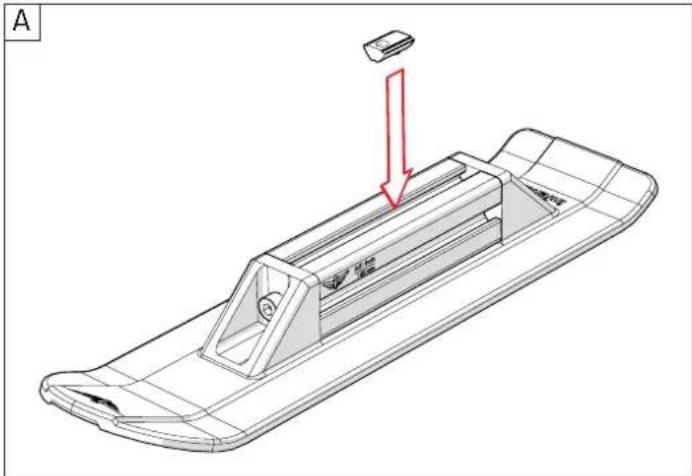

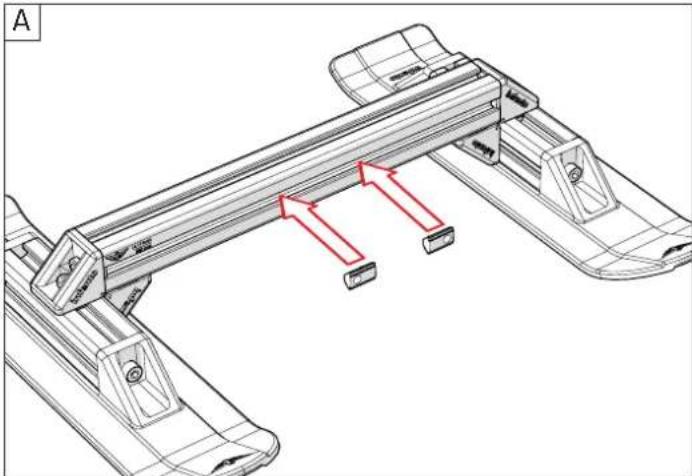

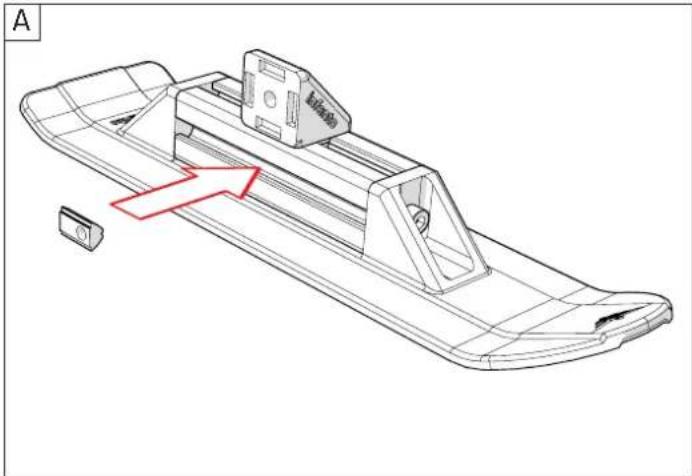

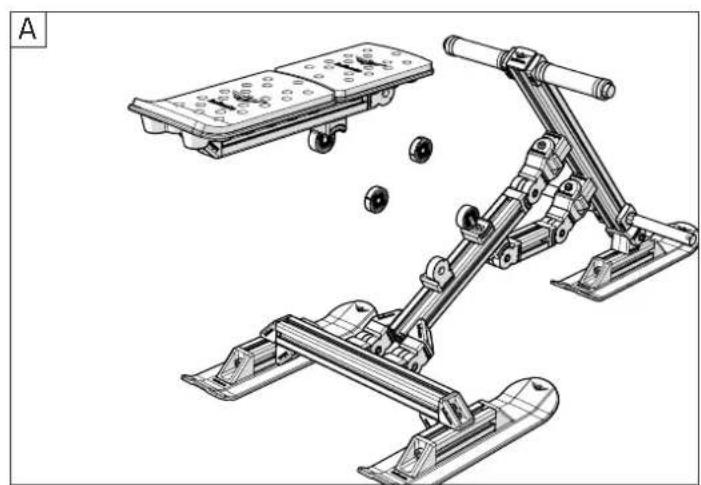

A

Technical line drawing of a mechanical component with a red arrow indicating a downward motion (no text or symbols present)

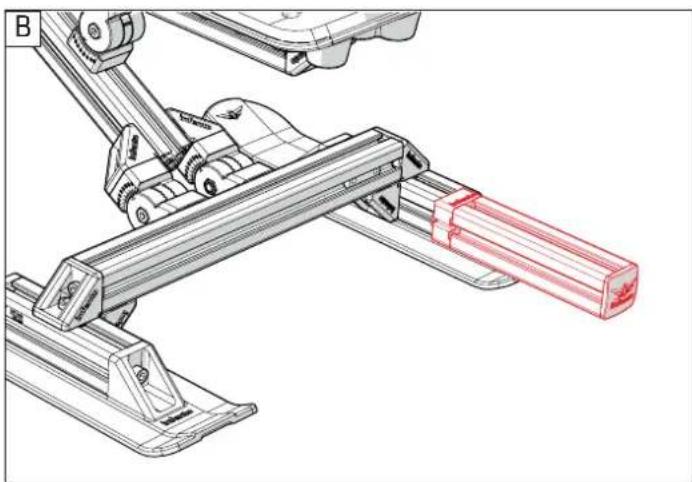

B M8x25

Line drawing of a mechanical tool with a handle and spool, showing no text or symbols on the object itself.

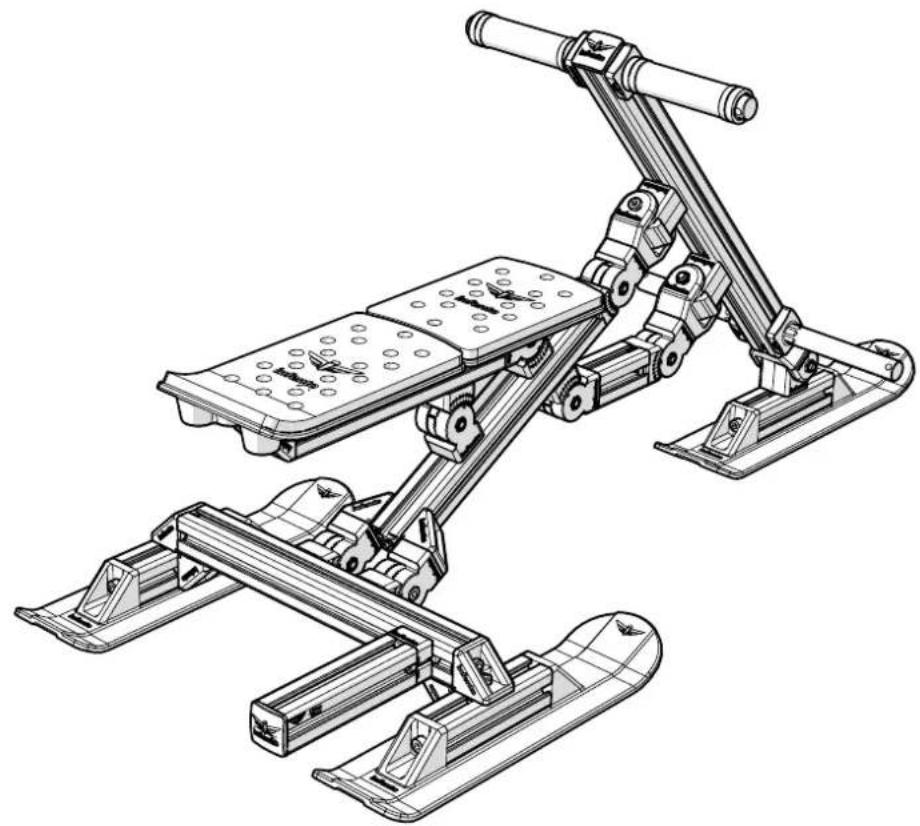

Profi le nut short + Bolt M8x20 + Ducktail board extension + foam 1x 1x 1x

Technical line drawing of a multi-wheeled conveyor device with wheels and mounting feet (no text or symbols)

Technical line drawing of a mechanical device with wheels and a tray, no text or symbols present

Mechanical assembly diagram showing gears and linkages with red fasteners (no text or labels)

Technical line drawing of a multi-level mechanical device with articulated arms and levers (no text or symbols)

Bolt M8x20

+

T-Positioning block

+

Protect cap

2x

T-joint

+

T-plate

[NO TEXT]

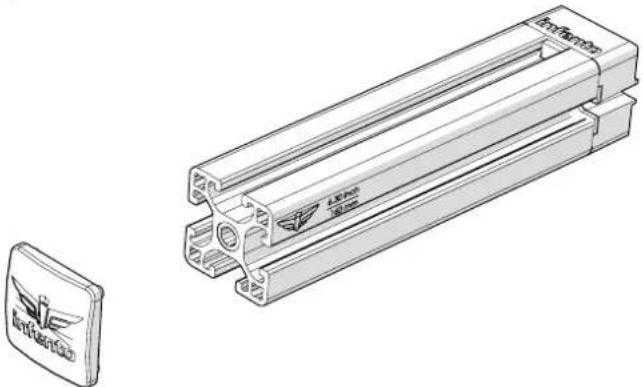

Profi le 2x 6.30inch | 160mm

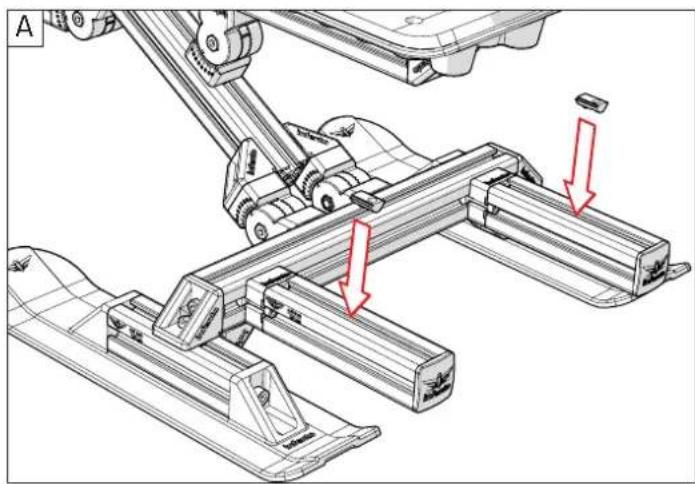

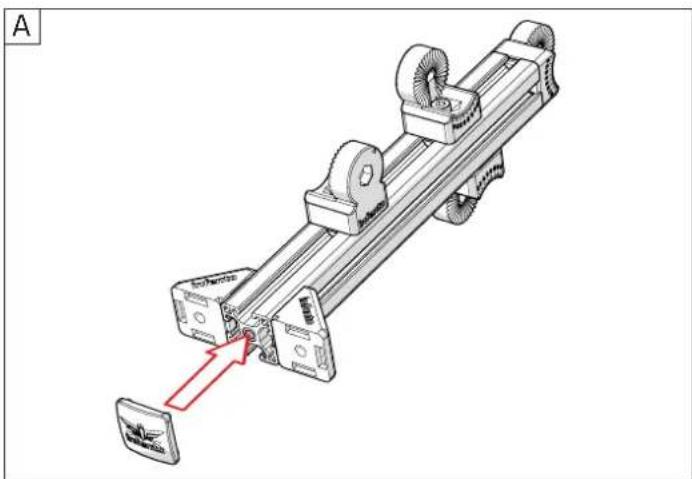

A

1.50x12 2.00x12 1 small drop

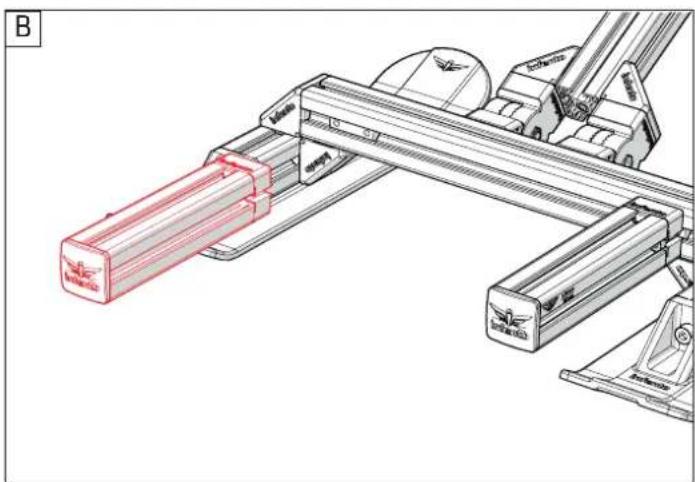

B

Technical line drawing of a mechanical bracket assembly with a separate inset showing a logo (no text or symbols on the main diagram)

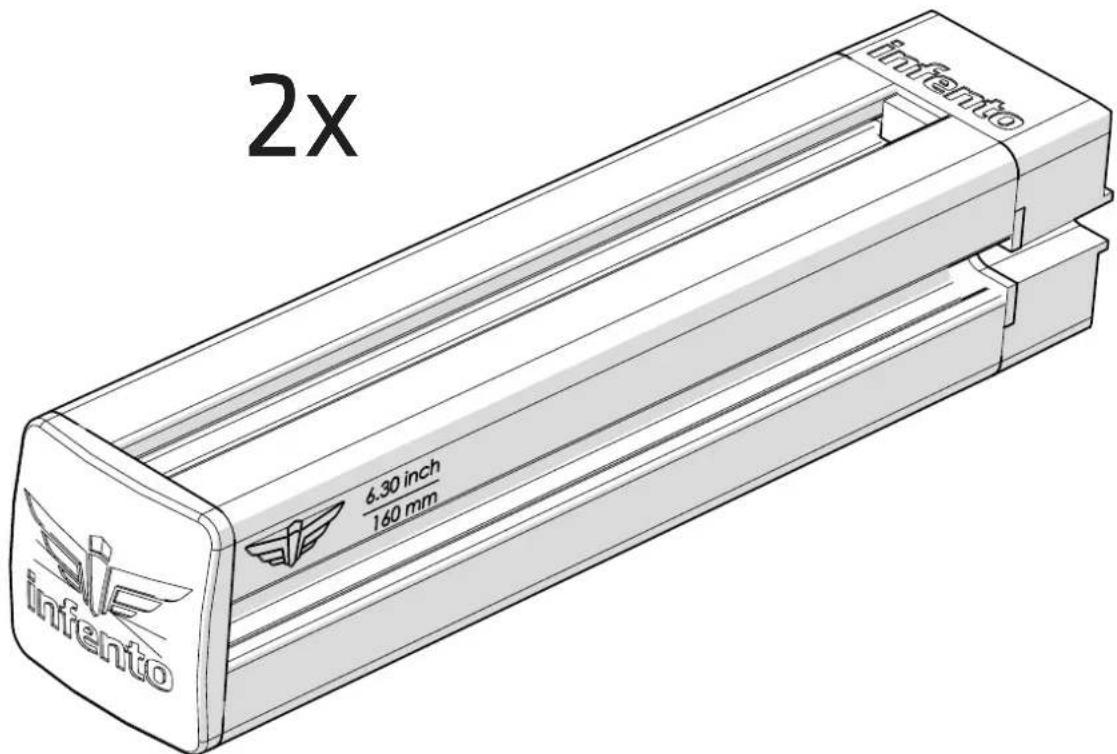

2x infento 6.30 inch 160 mm infento

A Ford Machflow Ford Machflow Ford Machflow

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with red annotation lines and a logo (no readable text or symbols)

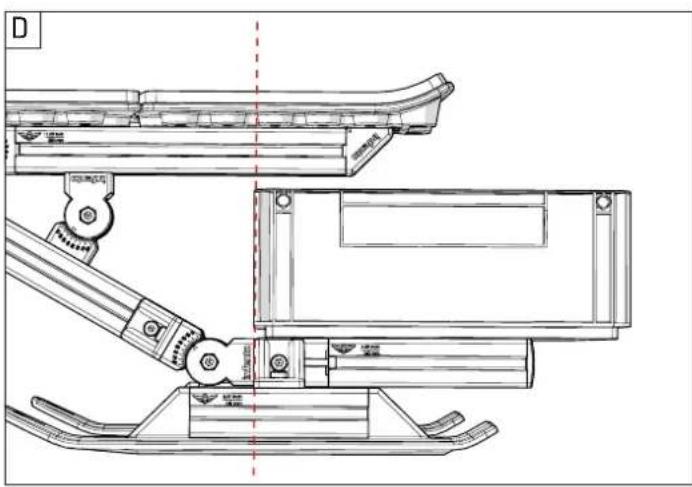

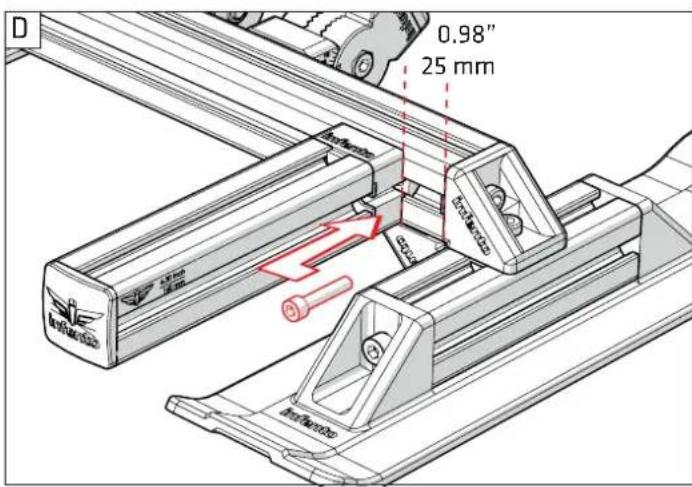

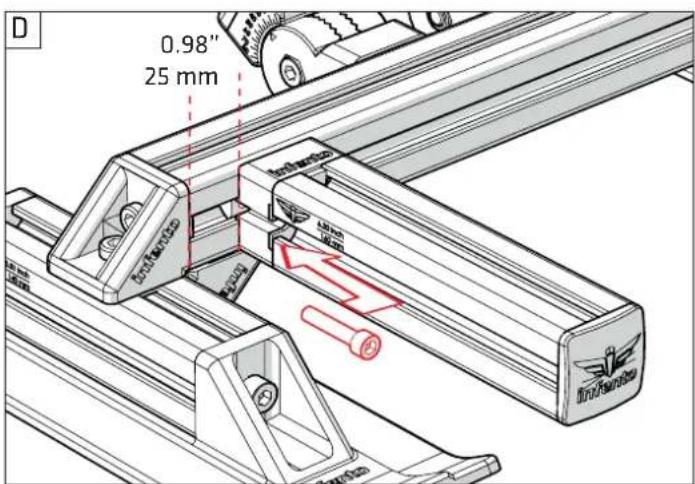

0.98" 25 mm D

Technical line drawing of a multi-level exercise platform with levers and legs (no text or symbols)

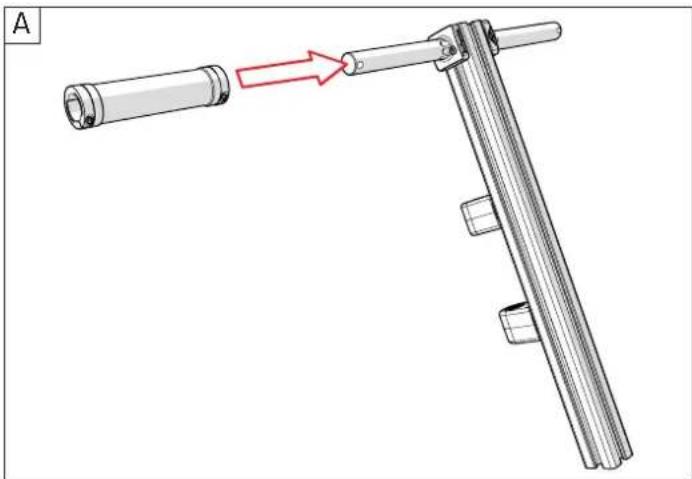

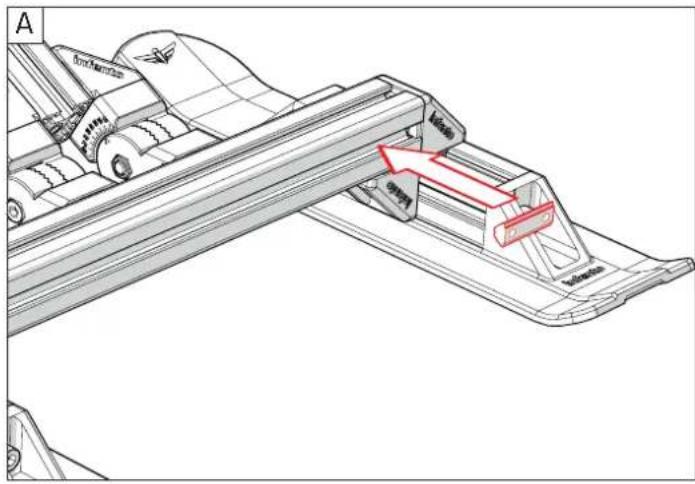

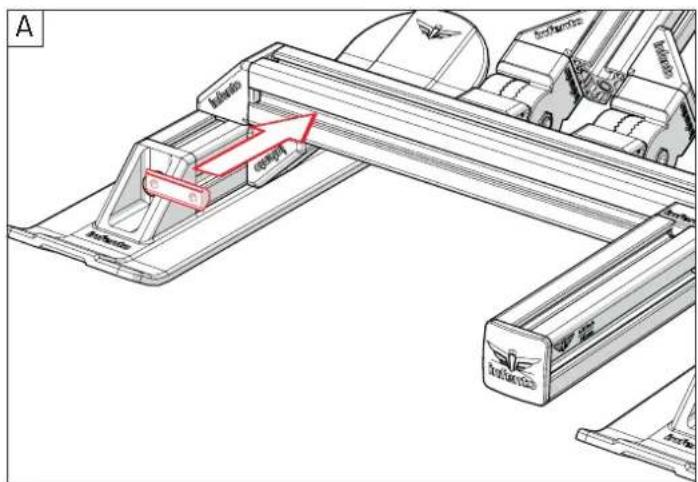

A

### ### ###

Technical line drawing of a mechanical assembly with red annotation lines (no readable text or symbols)

Infento Infento Infento

0.98" 25 mm Influenza Influenza Influenza

Technical line drawing of a mechanical exercise platform with articulated arms and levers (no text or symbols)

Technical line drawing of a mechanical assembly with two components and red arrows indicating motion or assembly points (no text or symbols present)

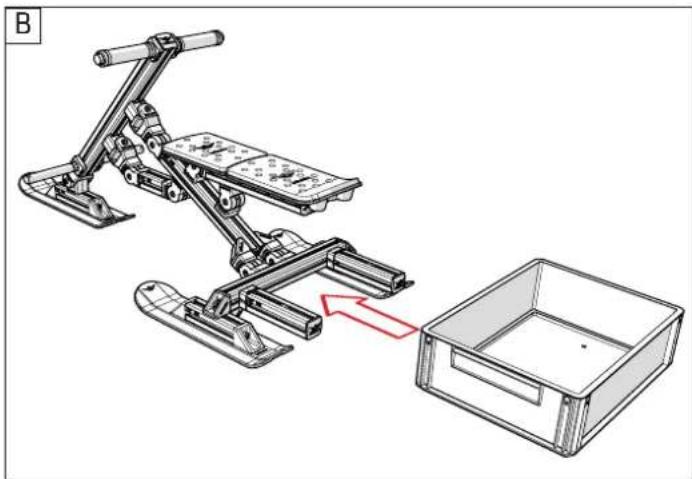

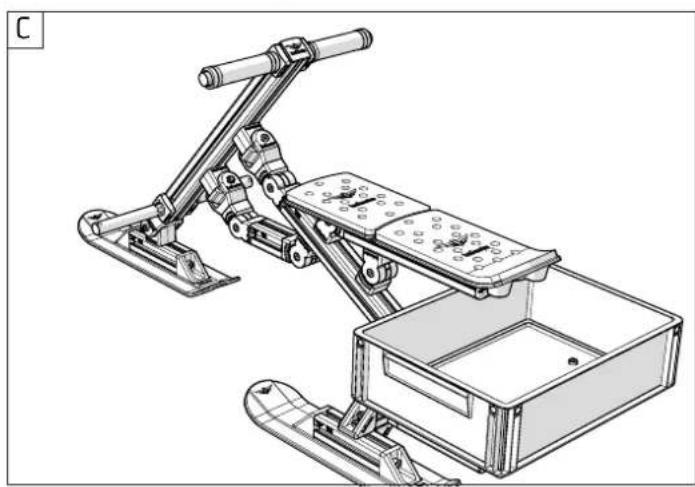

Mechanical assembly diagram showing a lever mechanism interacting with a rectangular storage unit (no text or symbols present)

Technical line drawing of a mechanical assembly with articulated arms and a box (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with a rectangular base and articulated arms (no text or symbols)

BIG BLIZZARD

Modern outdoor mobility platform with a red and silver frame, no visible text or symbols

THANK YOU FOR READING ME!
