Jetfry - Deep fryer FAKIR - Free user manual and instructions

Product Type	Deep Fryer
Brand	Fakir
Model	Jetfry
Dimensions (W x D x H)	Approx. 30 x 25 x 20 cm
Weight	Approx. 3.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	1800 W
Oil Capacity	2.5 L
Food Capacity	1.2 kg
Temperature Range	130°C – 190°C
Adjustable Thermostat	Yes
Timer	0 – 60 minutes with automatic shut-off
Indicator Lights	Power and heating indicators
Frying Basket	Removable, with handle
Lid	Removable, with viewing window
Oil Drain	Yes, with spout
Safety Features	Overheat protection, cool-touch handles, non-slip feet
Cleaning	Removable parts are dishwasher-safe; body wipe clean
Spare Parts Available	Replacement basket, lid, and oil filter (optional)
Reparability	User-replaceable fuse and power cord; professional repair for motor
Warranty	2 years

Frequently Asked Questions - Jetfry FAKIR

What type of oil should I use in the Fakir Jetfry?

Use high-quality frying oil such as vegetable, canola, or peanut oil. Avoid olive oil as it has a low smoke point.

How do I clean the deep fryer?

Unplug and let it cool. Remove the oil, then clean the removable parts in a dishwasher or by hand with mild soap. Wipe the body with a damp cloth. Do not immerse the base in water.

How often should I change the oil?

Change oil after 8-10 uses or if it becomes dark, smelly, or cloudy. For best results, strain oil after each use.

Why is my deep fryer not heating up?

Check that the power cord is plugged in and the thermostat is set above the minimum temperature. If it still doesn't heat, the thermal fuse may have tripped; contact Fakir support.

Can I fry frozen food directly?

Yes, but be careful of oil splatters. Pat off excess ice to reduce splashing. Lower the basket slowly.

What is the maximum frying temperature?

The maximum temperature is 190°C. Do not exceed this to avoid oil breakdown.

How do I store the deep fryer?

Ensure it is completely dry and cool. Store in a dry place with the lid closed to keep dust out.

Is the frying basket dishwasher safe?

Yes, the frying basket and other removable parts are dishwasher safe. However, hand washing is recommended to prolong their life.

What should I do if the oil catches fire?

Do not use water. Unplug the fryer and cover with a lid or a fire blanket to smother the flames. If safe, use a Class B fire extinguisher.

Where can I find replacement parts?

Visit the Fakir official website or authorized dealers. Common parts like the basket and lid are available for order.

USER MANUAL Jetfry FAKIR

Exterior view of a black and white electric food fryer with control knobs (no visible text or symbols)

Simple line drawing of an open box with an upward arrow on the lid (no text or symbols)

Safety is important....16

Important safeguards....16

CE Declaration of Conformity....18

Intended use....18

Unauthorized use 18

Information about the operating instructions ....18

Liability....18

Notices in the operating instructions....19

Unpacking....19

Parts of Description 20

Technical Specifications....20

Before usage 21

If you are using your appliance for the first time....21

Usage 22

Cooking advice....23

Cleaning of the appliance....24

Trouble-Shooting 25

Waste Disposal....26

Dispatch....26

Thank you for purchasing Fakir JetFry Stainless Steel Deep Fryer which has been designed and manufactured to give you many years of trouble-free service. You may already be familiar with using a similar product, but do please take time to read these instructions - they have been written to ensure you get the very best from your purchase.

Safety is important

For yours and others safety please read the instructions before using the appliance. Please keep this instruction in a safe place for the further use. If you pass the appliance on, pass on the instructions too. Remove all packaging, but keep it until you are satisfied that the appliance is working.

Important Safeguards

• When use electrical appliances, basic safety precautions should always be followed, including the following:
• Before operating this appliance, please read the instruction manual first.
• Before operating your appliance, make sure the power rating of your appliance does in fact match that of your electrical system.
• Only connect the appliance to an earthed wall socket.
• This appliance is for household only. Do not use this appliance other than for its intended use.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to an authorized Fakir Service facility for examination, repair or adjustment.
• Do not immerse the body of the unit into water.
• Close supervision is necessary when the appliance is in use or while the oil is hot. Keep it out of the reach of children.
• Place the appliance on a horizontal, even and stable surface.
• During frying, hot steam is released through the filter. Keep your hands and face at a safe distance from the steam. Also be careful of the hot steam when you open the lid.
• Do not touch the viewing window as it becomes hot during frying.

• Fry good till golden-yellow instead of dark or brown and remove burnt remnants. Do not fry starchy goods, especially potato and cereal products at a temperature above 175^ (to minimize the production of acrylamide).

• Do not touch hot surfaces. Please use handles or knobs.

• To protect against fire, electric shock and injury to people, do not immerse cord or plug in water or any other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• To disconnect the appliance, turn any control to "Off", then remove plug from wall outlet.
• Unplug from outlet when not in use and before cleaning. Allow to cooling before putting on or taking off parts, and before cleaning the appliance.
• The use of accessory attachments not recommended by Fakir may result in fire, electric shock or injury to people.
• Do not let cord hang over edge of table or counter, or touch hot surface.
• Do not place the appliance on or near a hot gas or electric burner, or in a heated oven.
• Do not clean the appliance with cleaners, steel wool pads, or other abrasive materials.
• Be careful while placing the removable parts.
• This appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. Prevent children to reach the appliance.
  • Children should be supervised to ensure that they do not play with the appliance.
• Do not use appliance for other than intended use.

NOTICE!

Please read all instructions and safety guards carefully. Please keep this instruction manual for further usage.

CE Declaration of Conformity

This appliance fulfills the requirements of the Appliance and Product Safety Law (GPSG) and the EU Directives. 2004/108/EC “Electromagnetic Compatibility” and 2006/95/EC “Low-Voltage Directive”. The appliance bears the CE mark on the rating plate.

Intended use

This product designed for just household use. It is not suitable for Business and industry type. Otherwise it will be accepted as “out of warranty conditions” by our Authorized Services.

Unauthorized use

• This appliance is not designed to be used by persons (including children) with limited physical, sensory or mental capacities or by persons lacking in experience and/or knowledge, unless they are supervised by someone who is responsible for their safety or have received instructions on how to use the appliance. Children should be supervised to ensure that they do not play with the appliance.
• Children should be supervised to ensure that they do not play with the appliance. Electric appliances are not toys for children! Therefore, use and store the appliance away from the reach of children. Children do not recognize the danger involved with handling an electric appliance. Do not let the power cord dangle from the appliance...
• Keep packaging films away from children - danger of suf-location!

Information about the operating instructions

These operating instructions are intended to enable the safe and proper handling and operation of the appliance.

Read these operating instructions carefully before using the appliance for the first time. Keep the operating instructions in a safe place. Include these operating instructions when passing the appliance on to another user.

Liability

Fakir Elektrikli Ev Aletleri Dış Tic. A.Ş. will accept no liability for damages resulting from failure to comply with the operating instructions and cannot assume any liability in case the appliance is used for other purposes than its intended use or handled, repaired or serviced improperly.

Notices in the operating instructions

WARNING!

Indicates notices which, if ignored, can result in risk of in jury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

NOTICE!

Emphasizes tips and other useful information in the operating instructions.

Simple line drawing of an open box with an upward arrow on the lid (no text or symbols)

Unpacking

Unpack the device and check the content of the packaging for completeness (see scope of supply). Should you note any damage incurred during transit, please contact your dealer immediately.

WARNING!

Never use a defective appliance.

NOTICE!

Keep the packaging for storage and future transports (e.g. for moves, service).

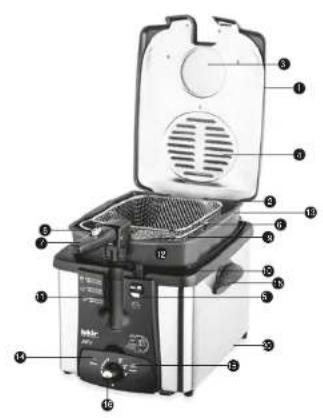

Parts of Description

1-Removable lid
2-Lid location guides
3-Viewing window
4-Steam vents
5-Lid release button
6-Basket
7-Basket handle
8-Handle release button
9-Basket rest
10-Lid lock catch
11-Basket handle rest position
12-Removable cooking pot
13-Bowl finger lifting lip
14-Power on light (red)
15-Temperature ready light (green)
16-Variable temperature control
17-Min and max oil levels inside bowl
18-Carrying handles
19-Non slip feet on base
20-Fryer body
21-Thermostat part

Technical Specifications

Power consumption: 2100 Watt

Voltage: 220-240V, 50-60 Hz

Capacity: 2,2 - 2,7 L

Adjustable °C setting: Up to 190°C

Protection class: II

Usage life: 7 years

Before usage

• Temperature Control Knob: Adjust the dial thermostat to the desired temperature. See recipe instructions for proper temperature selection.
• Red Light: Indicates that the deep fryer is heating. The light will turn to green after the set temperature is reached.
• You need to preheat the oil in a deep fryer for 10-15 minutes before the first batch of food is cooked.
• Open the lid.
• Basket Handle: Lift up to raise basket.
• Viewing Window: Allows you to see cooking food.
• Power Cord
• Removable Cooking Pot

If you are using your appliance for the first time,

• Remove any stickers from the surface of the appliance.
• Open the lid and lift the basket out of the fryer.
• Remove all printed documents and any other documents from the basket.
  • Always keep the bottom of the cooking pot, the heating plate clean so that they do not accumulate foreign substances. Otherwise it will lower the heating efficiency and shorten the life of the fryer.
• Do not operate this appliance without the cooking pot in place or the cooking pot has not oil.
  • Dry the unit thoroughly before using.
• Select a location the appliance. The location should be on a flat counter where the plug will reach an outlet.

Usage

• Remove frying basket and set aside.
• Using only a good quality peanut oil, vegetable oil, pure corn oil, sunflower oil, canola oil or light olive oil for deep-frying, fill the pot to point between the MIN marking and the MAX marking.
• Do not fill past the MAX marking.
• Wipe the inside of the viewing window with a little oil to prevent condensation.
• Close the lid lightly.
• Plug the Power Cord into outlet. Adjust the Temperature Control Knob to the desired temperature. The red light will turn on. (Check the cooking guide end of the manual for
  proper temperature selection)
• When the desired temperature is reached, the red light change to green color.
• Place food as dry as possible into the basket, do not overfill the basket.

ATTENTION!

Do not add water or wet food into hot oil. Water will cause oil to splatter.

• Open the lid.
• Use basket handle place the basket with dry food inside into the oil pot gently.
• Close the lid lightly.
• Fry the food for a suitable time, (Check the cooking guide end of the manual for proper temperature election)
• Open the lid.

WARNING!

Do not add water or wet food into hot oil. Water will cause oil to splatter.

• Remove the basket with cooked food form the oil pot.
• Make the Temperature Control Knob to close position and unplug the Deep Fryer.
• Replace new oil after about 5 frying or according to the oil such as become thick or brown.

Cooking advice

When you fry several kinds of foods, fry the food whose desired temperature is lower first, then fry the food whose desired temperature. When you fry the same kind of foods for several times, the time between the end of first frying and the beginning of second frying should be 3-5 minutes.

The red indicator will turn Green when the temperature reaches again.

If the foods you are fry have been pre-cooked, they need a higher temperature. And less cooking time than those foods which are completely raw. When you fry French fries,

make sure to lower the auto-raise slowly, especially when you use fresh or freezing potato (they have more water)

Otherwise the oil may overflow. Never fill the auto-raise more than 1/2 full of food (1/4 to 1/2 is the best), since this will cause the temperature of the oil to decrease below the optimal frying temperature and result in foods that are not as light or crispy as they can be.

For best results, we recommend no more than 800g of frozen chips or 1000g of fresh chips are fried.

NOTICE!

Do not mix different oil for frying. Use only a good quality vegetable oil, pure corn oil or light olive oil for frying. We do not recommend using oils that deteriorate quickly like sunflower oil, lard, or dropping.

Food	Oil temperature (°C)	Weigh (Grams)	Approximate Cooking Time (Minutes)
Shrimp	130	200	3~5
Onion	150	250	5~7
Mushroom	140	250	7~10
Fish	170	400	5~6
Sliced meat	170	250	7~10
Chicken portion	180	400	15~20
Fresh chips	190	1000	10~12
Frozen chips	190	800	12~15

Cleaning of the appliance

Make sure that the appliance has been unplugged and the temperature adjustment knob is in OFF position before cleaning. Start cleaning as shown below after the fryer and oil inside cool entirely.

Open the lid and remove the lid from the body. Lift up the basket handle and remove the basket from the pot.

Wait for the appliance to cool, then remove cooking pot and pour oil out. Make sure to snap the lid back in place and close it. Oil should be filtered after each use.

After removing the oil, remove the filter on the lid and thermostat part in front of the housing then all parts excluded these parts can be put into dishwasher. Keep the unit assembled and dry.

It is recommended that you change your oil after 2 weeks of storage.

Wash the filters with warm, soapy water. Finally, use a dry cloth.

Trouble-Shooting

PROBLEM	POSSIBLE CAUSE	SOLUTION
Unpleasant odors occur from the appliance	The oil in the oil pot may be spoiled. You had put in to deep fryer oil is not suitable.	Replace the oil inside the oil pot with a period of 2 weeks is recommended. Use a good quality oil that suitable for deep fryer.
The lower edge of the cover emergence of steam	In use, the cover may give off steam. If you cover the excess steam coming of the cover make sure that it is firmly seated.	Make sure that the cover is securely closed.
The oil overflow	Oil capacity may be above the level of the MAX. Food can be more than the capacity of the cooking pot. Food may be wet.	Make the oil capacity between the MIN and MAX level. Do not fill more than half of the cooking basket with food. Make sure that the food is not wet before frying.
If food is prepared is not crispy and fried enough	Cooking temperature may be too low. Food can be more than the capacity of the cooking pot.	Make sure that the setting is appropriate for the cooking temperature. Check cooking guide section for cooking capacity and temperature.

Waste Disposal

Dispose of the device according to the environmental regulations applicable in your country.

Electrical waste must not be disposed of together with household waste. Bring the worn-out device to a collection center.

The packaging of the device consists of recycling-capable materials. Place these, sorted out according to material, in the collectors provided, so that recycling can be carried out on them.

For advice on recycling, refer to your local authority or your dealer.

This appliance is compatible with 2002/96/EC WEEE directive.

Dispatch:

Carry the appliance in the original package or a similar, well-padded package to prevent damage to the appliance.

This product is produced by Eastern Sources Housewares (Hong

Kong) Limited 12/F., Block A, Chung Mei Centre, 15-17 Hing Yip St, Kwun

Tong, Kowloon, Hong Kong on behalf of Fakir Elektrikli Ev Aletleri Dış Tic. A.Ş.
