Brand	Visage
Model	HB-850
Product Type	Volumizing Hot Air Brush
Power Supply	125 V~, 60 Hz
Power Consumption	1000 W
Protection Class	II
Dimensions (approx.)	12 in (30 cm) length
Weight (approx.)	1 lb (0.45 kg)
Heat Settings	2 heat levels (low and high airflow) + cool shot
Brush Adapters	Round brush adapter and volume brush adapter
Direction of Rotation	Switchable (clockwise/counterclockwise)
Intended Use	Styling wet and dry human hair only
Safety Features	Automatic overheat protection, cool air function for fixing curls
Cleaning	Wipe with damp cloth; clean air intake/outlet with vacuum; remove hair from brush
Repairability	Only qualified professionals; use original spare parts
Warranty	See warranty card provided in package

Frequently Asked Questions - Volumizing Hot Air Brush HB-850 Visage

How do I change the brush adapter?

Ensure the power plug is pulled and the function switch is set to 0. Turn the locking ring to the right, remove the current adapter, attach the desired adapter, turn the locking ring to the left until it audibly locks into place.

What heat settings are available?

Position 0: Off. Position 1: Hot low airflow. Position 2: Hot high airflow. Position C: Cold high airflow for fixing hair.

Can I use the hot air brush in the bathroom?

Yes, but keep it away from water. Unplug after use. For additional safety, install a residual current device (FI/RCD) with ≤30 mA in the bathroom circuit.

How do I clean the hot air brush?

Unplug and let it cool. Remove the brush adapter and clean hair from it. Clean the air intake and outlet with a vacuum. Wipe the body with a dry or damp cloth. Do not immerse in water.

What should I do if the hot air brush overheats?

If it switches off automatically, set the function switch to 0, unplug, let it cool completely, clean the air intake and outlet, then try again. This indicates overheat protection activated.

Is the hot air brush suitable for synthetic wigs?

No, it is only designed for human hair. Using it on synthetic wigs or hairpieces may cause damage or fire hazard.

Can I use the hot air brush with dripping wet hair?

No, dry your hair with a towel first. Using it on dripping wet hair increases the risk of electric shock.

How do I achieve curls with this hot air brush?

Use the round brush adapter. Wind a strand of hair around it, hold for a few seconds, then use the cold air function (position C) to fix the curl before unwinding.

Can I repair the hot air brush myself?

No, do not open the housing. Repairs must be performed by a qualified professional using original spare parts to maintain safety and warranty.

What should I do if the power cord is damaged?

Stop using the device immediately. The power cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to prevent hazards.

USER MANUAL Volumizing Hot Air Brush HB-850 Visage

Two hair curlers with black and pink designs, no visible text or symbols on the designs themselves.

English......06

Español .....19

Product Info

QR codes take you where you want to go quickly and easily

Whether you require product information, spare parts or accessories, details on warranties or aftersales services, or if you want to watch a product demonstration video or 360° product view, our QR codes will take you there in no time at all.

What is a QR code?

A QR code (QR = Quick Response) is a type of matrix that can be read with a smartphone camera and that contains a link to a website or contact details, for example.

Advantage: You do not need to manually enter a website address or contact details.

How it works

To scan the QR code, all you need is a smartphone with QR code reader software and an internet connection. This type of software can be downloaded for free from your smartphone's app store.

Try it out now

Just scan the QR code with your smartphone and find out more about the ALDI product you have purchased.

Your ALDI Service Portal

All details mentioned above can also be found in the ALDI Service Portal at www.aldi.us.

Product Info www.aldi.us + VIDEO

Contents

Overview ....4

Package contents/device parts......6

General information....7

Reading and storing the user manual ....7

Explanation of symbols ......7

Safety 8

Proper use....8

Safety instructions....8

First use....12

Checking the hot air brush and package contents......12

Basic cleaning....13

Operation....13

Changing the brush adapter 13

Selecting a heat setting....14

Styling your hair....14

Observing styling tips....15

Automatic overheat protection.... 15

Cleaning....15

Storage 16

Technical data ....17

Disposal....17

Disposing of the packaging 17

Disposing of the hot air brush.... 17

A 12 8 4 5 7 6

B 4 5

C 3<|>

D 0 1 2 C 2

Package contents/device parts

1 Air intake and air outlet
2 Function switch
3 "Direction of rotation" switch
4 Locking ring, 2×
5 Round brush adapter
6 Volume brush adapter
7 Hand piece

General information

Reading and storing the user manual

This user manual accompanies this volumizing hot air brush (referred to below only as the "hot air brush").

It contains important information on start-up and handling.

Before using the hot air brush, read the user manual carefully.

This particularly applies to the safety instructions. Failure to observe this user manual may result in severe injury or damage to the hot air brush.

Store the user manual for future use. If you pass the hot air brush on to third parties, please be absolutely sure to include this user manual.

Explanation of symbols

The following symbols and signal words are used in this user manual, on the hot air brush or on the packaging.

WARNING!

This signal symbol/word designates a hazard with moderate degree of risk which may lead to death or severe injury if not avoided.

CAUTION!

This signal symbol/word designates a hazard with low risk that, if not avoided, may result in minor or moderate injury.

NOTICE!

This signal word warns against potential damages to property.

This symbol provides you with useful supplementary information on use.

This symbol identifies electrical devices that belong to the protection class II.

This symbol states that the hot air brush must not be used near bath tubs, shower trays or other vessels containing water.

Safety

Proper use

The hot air brush is only designed for styling wet and dry human hair.

It is intended for private use only and is not suitable for commercial purposes, e.g. for a hair salon.

Only use the hot air brush as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The hot air brush is not a children's toy.

The manufacturer or vendor accepts no liability for damage caused by improper or incorrect use.

Safety instructions

WARNING!

Risk of electric shock!

A faulty electrical installation or excessive line voltage may result in an electric shock.

• Do not use the hot air brush if your hair is dripping wet. Dry your hair beforehand with a towel.
• Do not use the hot air brush if you are standing on a wet floor.
• Make sure that hair or other debris do not end up in the air intake and air outlet.
• Only connect the hot air brush if the line voltage of the socket corresponds to the specification on the rating plate.
• Only connect the hot air brush to an easily accessible socket so that you can quickly disconnect the hot air brush from the grid in the event of a fault.
• Do not operate the hot air brush if it exhibits visible damages or the power cable or power plug is defective.

• If the power cable of the hot air brush is damaged, it must be replaced by the manufacturer, its after sales support or a similarly qualified person to prevent risks.

• Do not open the housing; instead, have a qualified professional perform the repairs. Contact a qualified workshop for this. Liability and warranty claims are waived in the event of repairs performed by the user, improper connection of the device or incorrect operation.

• Only parts that comply with the original device data may be used for repairs. Electrical and mechanical parts, which are essential for providing protection against sources of danger, are located in this hot air brush.
• Do not operate the hot air brush with an external timer or separate telecontrol system.
• Do not store the hot air brush near water.
• Pull the power plug after use if you are using the hot air brush in a bathroom. If water is nearby, there is a risk even if the hot air brush has been switched off.
• As additional protection, it is recommended that you install a residual current protective device (FI/RCD) with a release current of no more than 30 mA in the bathroom power circuit. Ask your installation technician for advice.
• Do not immerse the hot air brush, the power cable or the power plug in water or other liquids.
• Do not touch the power plug with wet hands.
• Never pull the mains plug out of the socket by the power cable; instead, always do so by taking hold of the power plug.
• Never use the power cable as a carrying handle.
• Keep the hot air brush, power plug and power cable away from open flames and hot surfaces.
• Lay the power cable so that it does not pose a tripping hazard.
• Do not kink the power cable and do not lay it over sharp edges.
• Only use the hot air brush in rooms located indoors.

• Never expose the hot air brush to the effects of the weather such as rain or snow.

• Never store the hot air brush such that there is a risk of it falling in a tub or sink.

• Never reach to retrieve an electrical device if it has fallen in water. In such a case, immediately disconnect the power plug.
• Make sure that children do not insert any objects in the hot air brush.
• Always switch the hot air brush off and pull the power plug out of the socket when you are not using the hot air brush, cleaning it or in the event of a fault.
• Do not modify the hot air brush or power cable in any way.
• Only use an extension cord or plug adapter that does not exceed the maximum current rating and which complies with valid safety regulations.
• Do not use the hot air brush in a storm. In such a case, immediately disconnect the power plug.

WARNING!

Danger for children and persons with impaired physical, sensory or mental capacities (e.g. partially disabled persons, older persons with reduced physical and mental capacities) or lack of experience and knowledge (e.g. older children).

• This hot air brush may be used by children ages eight and over as well as persons with impaired physical, sensory or mental capacities or those lacking experience and knowledge if they are supervised or have been instructed in how to safely use the hot air brush and have understood the risks associated with operating it. Cleaning and user maintenance must not be performed by unsupervised children.
• Keep children under eight years of age away from the hot air brush and the connector cable.
• Do not leave the hot air brush unattended while in use.

- Do not allow children to play with the packaging material. While playing, children could swallow small parts or slip the plastic foil over their head and suffocate.

CAUTION!

Scalding, burn and fire hazard!

The parts of the hot air brush become hot during use. You could burn yourself on them or they could cause a fire.

• Keep the hot air brush away from burning objects during use.
• Do not touch the brush adapter, particularly the air intake and air outlet during operation.
• Do not place any objects such as towels or newspapers on the hot air brush.
• Do not use the hot air brush for wigs or hairpieces made of synthetic materials.
• Do not cover the air intake and air outlet during operation.
• Clean the air intake and air outlet grate regularly.
• Immediately switch the hot air brush off if it gets too hot.
• Immediately pull the power plug if the temperature protection switch is activated and the hot air brush has switched off.
• Make sure there is a safe distance to all flammable objects, e.g. curtains and drapes.
  – Clearly advise other users of the risks.

NOTICE!

Risk of damage!

Improper handling of the hot air brush may damage it.

- Do not place the hot air brush on the edge or corner of the work surface.

• Prevent the build-up of heat by setting down the hot air brush so that the heat produced during use can disperse into the surroundings.
• Never place the hot air brush on or near hot surfaces (stovetops etc.).
• Ensure that the power cable does not come into contact with hot parts.
• Never expose the hot air brush to high temperatures (heater etc.) or to the effects of the weather (rain etc.). Never fill the hot air brush with liquid.
• Never attempt to clean the hot air brush by submerging it in water and do not use a steam cleaner to clean it. Otherwise, the hot air brush could be damaged.
• Stop using the hot air brush if its plastic parts or the hot air brush exhibit cracks or breaks or are deformed. Only replace damaged parts with corresponding original spare parts.
• Only use the hot air brush with the enclosed accessories.
• Let the hot air brush cool off completely after each use.

First use

Checking the hot air brush and package contents

NOTICE!

Risk of damage!

If you are not cautious when opening the packaging with a sharp knife or other pointed objects, you may quickly damage the hot air brush.

- Be very careful when opening it.

1. Take the hot air brush out of the packaging.
2. Check to make sure that the delivery is complete (see Fig. A).
3. Check whether the hot air brush or the individual parts exhibit damages. If this is the case, do not use the hot air brush. Contact the manufacturer at the service address specified on the warranty card.

Basic cleaning

- Remove the packaging material and all protective foils.

- Before first use, wipe the hot air brush off with a soft, damp cloth to remove any packaging and production residue.

Operation

CAUTION!

Burn hazard!

There is a burn hazard if you use the hot air brush without the brush adapter, for drying non-human, synthetic hair or clothing being worn on the body. There is a burn hazard if you change the brush adapter while the hot air brush is switched on or hot.

• Do not use the hot air brush without a brush adapter.
• Do not use the hot air brush to dry synthetic hair.
• Do not use the hot air brush to dry clothing.
• Always keep sufficient distance to body parts during use.
• Always switch the hot air brush off and pull the power plug before you change the brush adapter.
• Make sure that the brush adapter is no longer hot before removing it.

Changing the brush adapter

Adjust the size of the brush adapter used to the length of your hair. Use the volume brush for long hair and the round brush for shorter hair.

This hot air brush includes two different brush adapters which you can change:

The round brush adapter 5 and the volume brush adapter 6.

Proceed as follows to change the brush adapter:

1. Make sure that the power plug has been pulled.

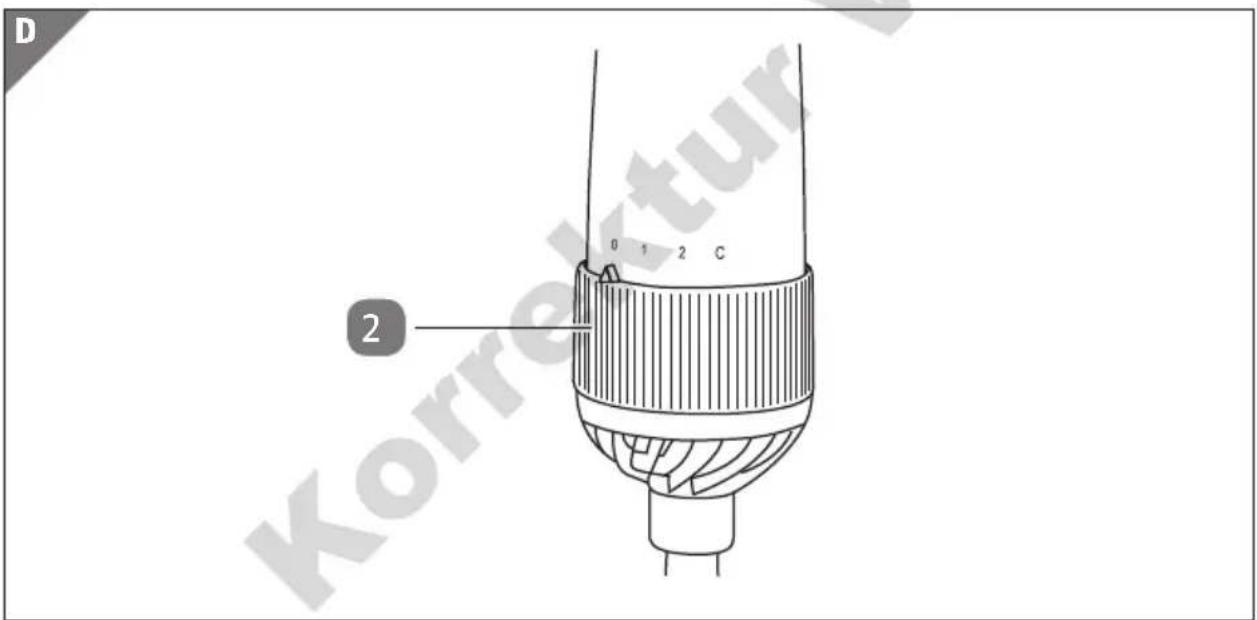

2. Make sure that the function switch 2 is set to the O position (see Fig. D).

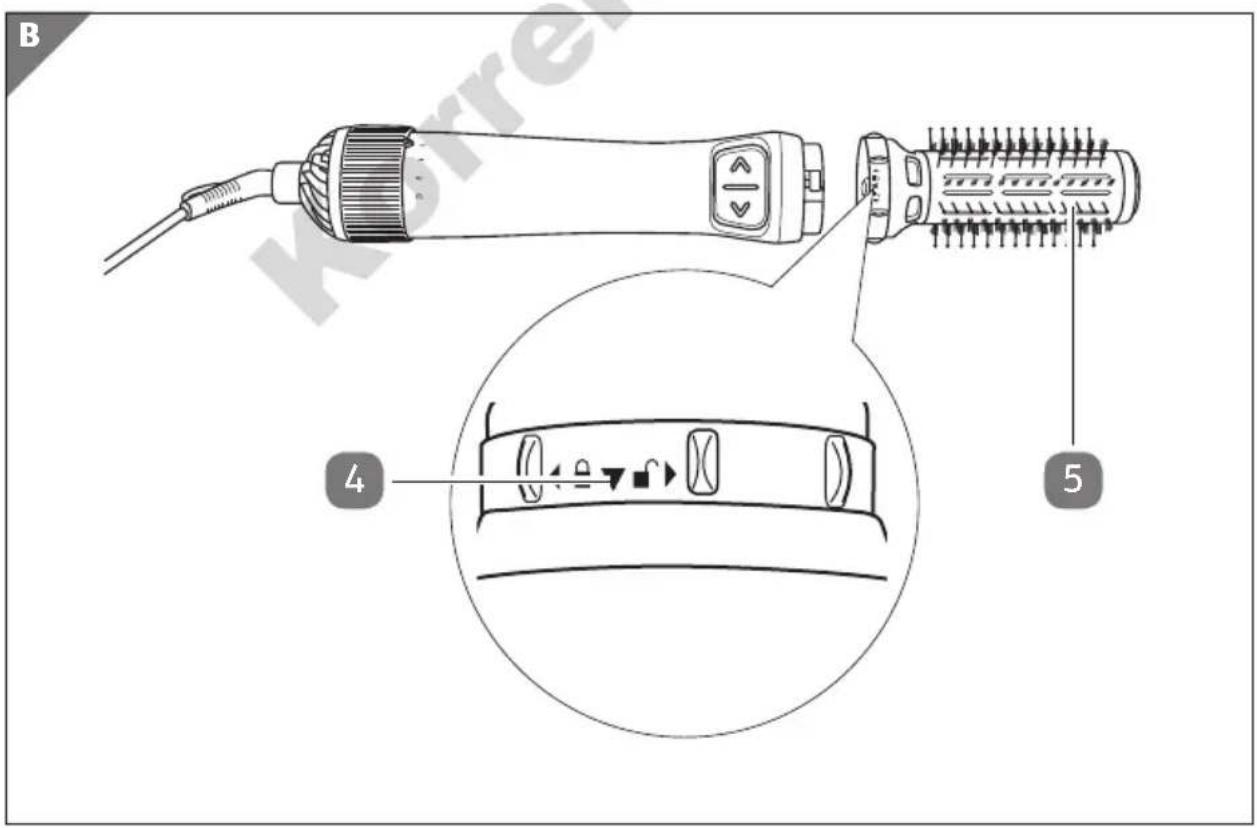

3. Turn the locking ring 4 to the right and take the brush adapter 5 or 6 off (see Fig. A and B).

4. Attach the desired brush adapter to the hand piece 7 (see Fig. A and B).

5. Turn the locking ring to the left.

The brush adapter will audibly lock into place (see Fig. C).

You can now use the hot air brush.

Selecting a heat setting

The following table provides an overview of the possible heat settings.

Heat setting Property
Position 0 Off
Position 1 hot low airflow
Position 2 hot high airflow
Position C cold high airflow

Styling your hair

1. Make sure that the function switch 2 is set to the 0 position (see Fig. D).
2. Only connect the hot air brush to a properly installed socket.
3. Turn the function switch to the desired heat setting (see table in the chapter section "Selecting a heat setting").
4. Separate a strand of hair from the rest of your hair.
5. Place the hair tips on the brush adapter 5 or 6 (see Fig. A).
6. Push the "direction of rotation" switch 3 in the desired direction to wind your strand of hair onto the brush adapter (see Fig. C).
7. Depending on the desired intensity, hold the wound up strand of hair on the brush adapter for a brief moment.
8. If necessary, use the cold air function to fix your hair. To do so, turn the function switch to position C.
9. To unwind the strand of hair again, push the "direction of rotation" switch in the opposite direction as you would when winding the strand of hair.
10. Repeat the process for all strands of hair.
11. To switch off the hot air brush, turn the function switch to the 0 position.
12. If you no longer wish to use the hot air brush, pull the power plug out of the socket.
13. Let the hot air brush cool off completely.
14. Clean the hot air brush as described in the chapter "Cleaning".

Observing styling tips

Observe the following notes for successful styling:

• For maximum volume, first let the brush head rotate at the hairline for a few seconds.
• Use the large volume brush adapter 6 if you want plenty of volume (see Fig. A).
• Use the small round brush adapter 5 to curl your hair.
• To curl your hair, wind your hair around the brush adapter several times.
• Use the cold air function to fix the curls before you unwind them from the brush adapter.
• To create waves to the inside or outside, only wide the ends of your hair around the brush adapter.

Automatic overheat protection

The hot air brush is equipped with a built-in overheat protection. If the hot air brush automatically switches off and cannot be switched back on again, the overheat protection may be activated. Proceed as follows:

1. Set the function switch 2 to the 0 position (see Fig. D).
2. Pull the power plug out of the socket.
3. Let the hot air brush cool off completely.
4. Clean the air intake and air outlet 1 as described in the chapter "Cleaning" (see Fig. A).

Cleaning

WARNING!

Risk of electric shock!

If objects are inserted in the hot air brush through the air intake and air outlet, the hot air brush could be damaged and there is a risk of electric shock.

• Do not insert any objects in the hot air brush through the air intake and air outlet.
• Clean the air intake and air outlet regularly.
• Remove hair from the brush adapter after every use.

NOTICE!

Risk of short circuit!

Liquids that have penetrated the housing may cause a short circuit.

• Never immerse the hot air brush in liquids.
• Make sure that no liquids penetrate the housing.

NOTICE!

Risk of damage!

Improper handling of the hot air brush may damage it.

• Do not use any aggressive cleaners, brushes with metal or nylon bristles or sharp or metallic cleaning utensils such as knives and the like. They could damage the surfaces.

• Do not in any case place the hot air brush in the dishwasher. It would be destroyed as a result.

• Before cleaning, pull the power plug out of the socket.

• Set the function switch 2 to the 0 position (see Fig. D).
• Let the hot air brush cool off completely.
• Remove the brush adapter 5 or 6 as described in the chapter section "Changing the brush adapter" (see Fig. A).
• Remove all hair from the brush adapter.
• Clean the air intake and air outlet 1. You can e.g. use a vacuum cleaner for this.
• Wipe the hot air brush off with a dry or damp cloth and, if necessary, a small amount of dishwashing detergent.
• Then let all parts dry completely.

Storage

• Make sure that all parts of the hot air brush are dry before storage.
• Always store the hot air brush in a dry place that is protected from direct sunlight and heat and is not accessible to children.

Technical data

Model: HB-850

Article number: 94907

Supply voltage: 125 V\~/60 Hz

Output: 1000 W

Protection class: II

Disposal

Disposing of the packaging

- Dispose of the packaging separated into single type materials. Dispose of paperboard and cardboard with waste paper and plastics with recyclable waste.

Disposing of the hot air brush

• Should the hot air brush no longer be capable of being used at some point in time, dispose of it in accordance with the regulations in force in your city or state.
• Please ensure your recycling information applies to the local regulations and EPA recommendations (www.epa.gov).

Korrektur V2

Contenido

Conjunto ....4

Volumen de suministro/partes del aparato....20

Códigos QR....21

Generalidades....22
