Product Type	Portable Bluetooth Speaker with Karaoke
Brand	Denver
Model	TSP-305
Output Power	30 W RMS
Power Supply	AC 100-240V via adaptor (15 V, 1.5 A) or built-in rechargeable battery
Battery Type	Sealed lead-acid, 12 V / 2600 mAh (model Tianchang 6-FM-2.6)
Charging Time	Approximately 3 hours
Playback Time	Approximately 2 hours at moderate volume
Bluetooth	2.4 GHz, pairing name: TSP-305
FM Radio	87.5 - 108 MHz with auto search and store
Audio Inputs	3.5 mm line-in, USB port (MP3 playback)
Microphone Inputs	2 x 6.35 mm jacks with independent volume and echo controls
USB Charging Output	5 V, 1 A for smartphones/tablets (AC power recommended when battery low)
Equalizer Presets	Flat, Classic, Pop, Rock, Jazz
Light Effects	LED lantern (short press) and disco light (long press)
Display	LED numeric display for mode and radio frequency
Auto Standby	After 20 minutes of inactivity
Included Accessories	Main unit, AC power adaptor, user manual
Cleaning	Wipe with a soft dry cloth; do not use liquid cleaners
Safety	Use only supplied adaptor; battery replacement by qualified service only; do not expose to water

Frequently Asked Questions - TSP-305 DENVER

How do I pair my phone with the Denver TSP-305 via Bluetooth?

Turn on the speaker. The default mode is Bluetooth. On your phone, search for 'TSP-305' in Bluetooth settings and select it. The blue LED will stop flashing and stay steady when connected.

How do I charge the speaker?

Connect the supplied AC adaptor to the speaker and plug it into a wall outlet. The battery indicator turns red during charging and green when fully charged. A full charge takes about 3 hours.

Can I charge my smartphone using this speaker?

Yes, use the 1A charger USB port on the side panel. A 5V, 1A output is provided for charging smartphones/tablets. Note: when the battery is low (red indicator), charging only works via AC power.

How do I use the FM radio?

Press Source to select Radio mode. Hold the Play/Pause key to auto-search and store available stations. Use the Tuning buttons to navigate stored stations.

How do I connect a microphone and adjust its volume?

Plug a microphone into MIC 1 or MIC 2 jack. Adjust the microphone volume using MIC +/- and echo using EH +/- on the top panel. Keep echo and mic volume moderate to avoid feedback.

How do I reset the speaker if it stops responding?

Turn the Power On/Off switch off and then on again. If still unresponsive, unplug the AC adaptor and plug it back.

What are the light effects and how do I control them?

The speaker has two light modes: LED lantern (short press the Light button) and disco light (long press the Light button). Press again to turn off.

How do I change the sound equalizer?

Press the EQ key to cycle through presets: Flat, Classic, Pop, Rock, and Jazz. The selected preset is applied to the current audio source.

What should I do if there is no sound?

Check that the volume is turned up on both the speaker and your connected device. Ensure the correct source is selected. For Bluetooth, make sure the device is paired and outputting audio via Bluetooth.

How do I disconnect Bluetooth and pair a new device?

Hold the BT DISCONNECT key (also labeled BT OFF) for about 2 seconds. The speaker will disconnect and enter pairing mode. Then search for 'TSP-305' on your new device.

USER MANUAL TSP-305 DENVER

PART DESCRIPTIONS....2

SAFETY INSTRUCTIONS....3

POWER CONNECTION ....4

RECHARGING....4

BLUETOOTH CONNECTION....5

FM RADIO 5

USB PORT 5

LINE IN 6

SMARTPHONE / TABLETS RECHARGING....6

SING-A-SONG 6

SOUND EFFECTS....7

LIGHT EFFECTS....7

TROUBLE SHOOTING....7

CAUTION 8

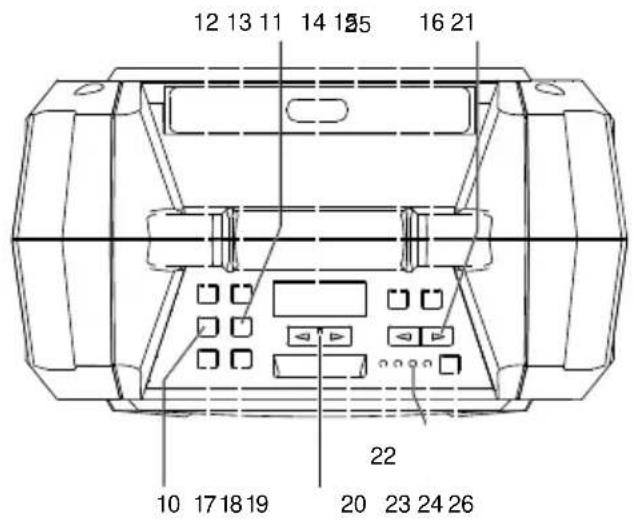

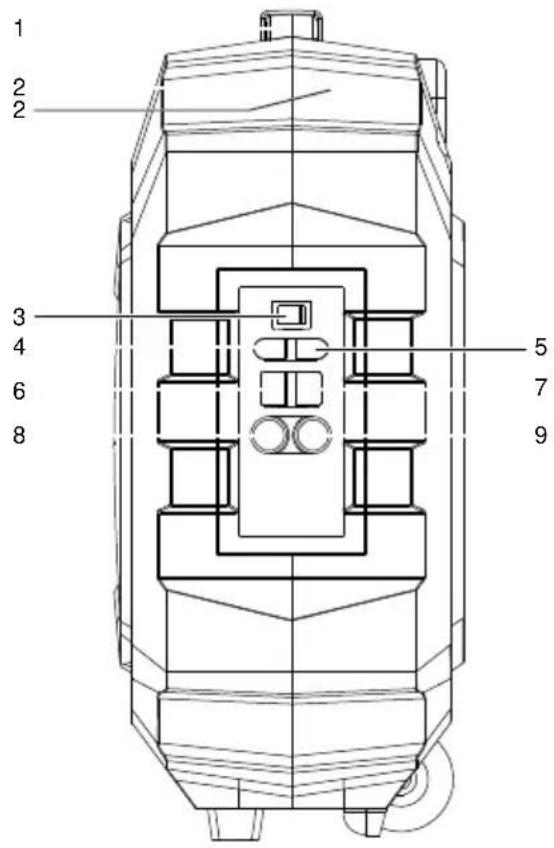

PART DESCRIPTIONS

1. HANDLE
2. RUGGED CASING
3. POWER ON/OFF KEY
4. LINE IN
5. DC(15V, 1.5A) INPUT
6. USB PORT
7. 1A CHARGER (5V)
8. MIC PORT1
9. MIC PORT2
10. TUNING DOWN/
11. TUNING UP/▶▶
12. REPEAT KEY
13. EQ KEY

14. LED DISPLAY

15. ECHO DOWN

16. ECHO UP
17. SOURCE
18. PAUSE/PLAY/BT OFF (DISCONNECT) KEY
19. VOLUME (UP/DOWN) KEY
20. LED LANTERN
21. MIC VOLUME (UP/DOWN)
    22.POWER INDICATOR
22. BLUETOOTH INDICATOR
23. BATTERY (LOW/FULL) INDICATOR
24. TROLLEY HANDLE
25. LIGHT (ON/OFF) BUTTON

SAFETY INSTRUCTIONS

To ensure proper operation of the products and prevent fire or shock hazard, please carefully read all information contained in these Safety instructions.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING: TOREDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (ORBACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

UNPACKING:

Check that all the following items should be included in the box.

• Main Unit
• AC Power Adaptor
• User Manual

IMPORTANTS INSTRUCTIONS:

1. Ensure the plug is fully inserted into the wall outlet and the product is operated on an electric power source matched to its rated voltage.

2. Never operate the product if the cord or adaptor is damaged or overly hot.

3. Do not modify the cord or damage it in any way such as by bending, twisting or pulling on it unnecessarily.

4. Do not attempt to modify, repair or in any way dismantle the product, other than when discarding it at the end of its useful life.

5. Never unplug this product with wet hands.

6. Unplug the product from the wall outlet before cleaning and maintenance. Do not use liquid cleaners or aerosol cleaners.

7. The power cord should be unplugged from the wall outlet when unused for a long period of time.

8. Keep and store this product in dry and moisture-free areas at all times.

9. Do not use this product near water, or any other heat sources or other apparatus that produce heat.

10. Battery shall not be directly exposed to sunshine and fire.

11. Do not attempt to replace the battery. For repairing and servicing, please consult the store of purchase or customer service centre designated by the store.

CAUTION: Danger of explosion if battery is incorrectly replaced.

1. Do not use any other power supply other than the one specially designed for this product.

2. Keep this operating instruction in a safe place.

3. Contact an authorized service centre if you have any inquiry about this product.

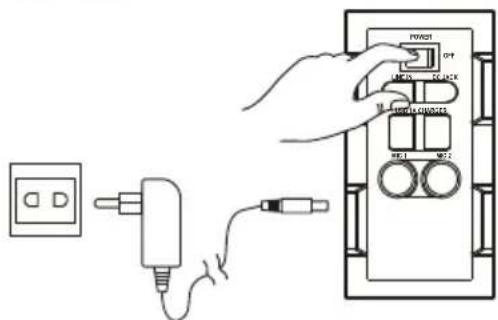

POWER CONNECTION

- Unpack this product, ensure the power ON/OFF switch is on "OFF".

- Connect the supplied AC adaptor to this product, plug the AC adaptor to the wall outlet.

- Battery GREEN LED indicator will turn to RED.

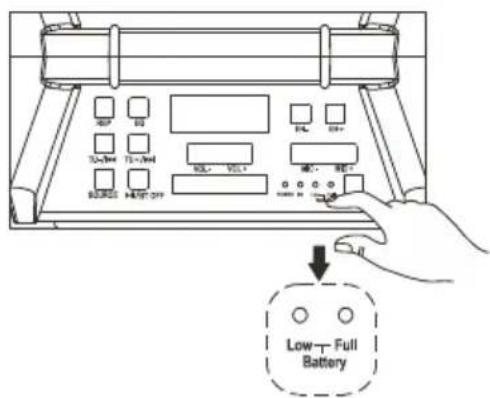

RECHARGING

- Unit comes with a battery indicator alert.

- If Battery Low LED flash, it means the battery level is low and recharging is required.

- By connecting the AC power, the Battery Full LED will turn orange, it means the unit is under recharging.

- The Battery Full LED become green, it means the level of battery is fully charged.

It is recommended to charge the battery about 6 hours before you start using the unit for the first time.

Energy Saving: If this product is idle for about 20 minutes, it will go to standby mode automatically. It will auto power off.

Caution: To keep and protect the rechargeable battery in good condition, users should check the unit and be sure to turn the Power On/Off switch on the side panel to "Off" every time after using and before storage, it is highly recommended that users should fully recharge the battery at least once in every two months.

BLUETOOTH CONNECTION

• Once the power switch is turned to "On", Bluetooth "BT" mode is set as default
• Blue LED indicator will flash in pairing mode. The RED LED display will show "bt"
• Turn on the Bluetooth function on your device and search for "TSP-305" then press to connect.
• Connected sound signal will be heard and the blue led connection indicator will stop blinking and stay steady.
• Bluetooth connection is completed.
• Select the music from your Bluetooth device and start playing.
• Hold the BT DISCONNECT(BT OFF) key to disconnect paired device and enter pairing mode.

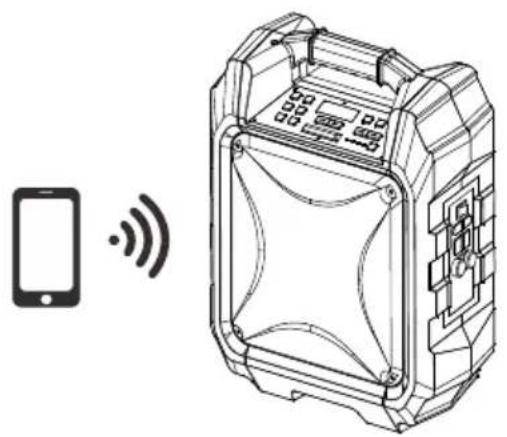

Technical line drawing of a device with a smartphone and wireless signal icon (no text or symbols)

FM RADIO

• Press the "Source" Button and select Radio, the FM Radio Frequency will show on the RED LED display.
• Hold play/pause key to auto search and store.
• Press and hold the TU for TU buttons for choosing the next stored available station. Short press them to fine tune.

USB PORT

• Press the "Source" Button and select to USB, USB will show on the RED LED display.
• Insert the USB stick.
• Select your favorite music by pressing TU ◀TU . ▶
• Press "REP" to repeat once for the current song, Press again "REP" to repeat all songs.

If unit is playing on Bluetooth mode "BT", it will automatically switch to USB mode when the USB stick is inserted.

Important: The USB port is intended for data transfer only, Other devices cannot be used with this USB connection. The use of USB extension cords is not recommended

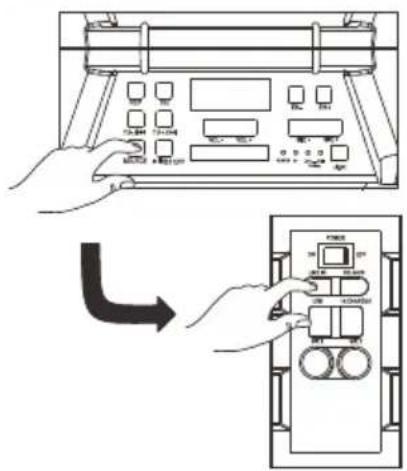

LINE IN

• Press the "Source" Button and select LINE, LINE will show on the RED LED display.
• Plug in your 3.5mm cable into the LINE IN put on the side panel and the unit will enter into LINE IN mode.
• You can connect any audio device that has 3.5mm audio output jack and playback any audio from the connected device.

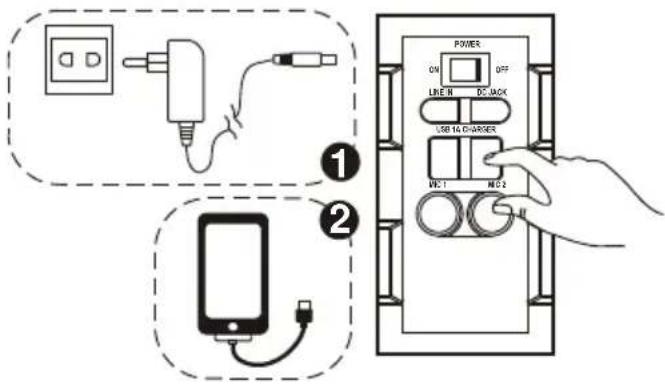

SMART PHONES/TABLETS RECHARGING

- Smartphones recharging works on both AC power and DC power.

CAUTION: When the low battery red indicator lights up, that means product needs to be recharged and smartphones recharging can only be done by AC power adaptor.

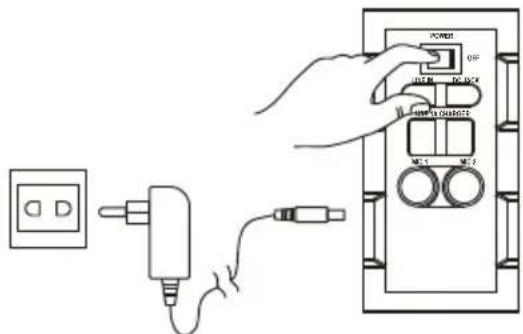

• Plug in the Power AC Adaptor to the wall outlet.
• Plug in your smart phones/tablets USB recharging cable into the side panel marked "1A charger".
• Connect the recharging cable to your smart phones/tablets. Recharging starts.
• Unplug your USB recharging cable when your smart phones / tablets are fully recharged.

This jack is only designed for charging devices requiring 5V and 1A.

Otherwise it may lead to damage.

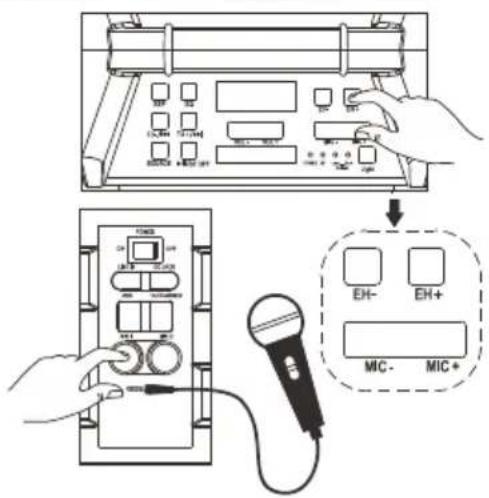

SING-A-SONG

• This product allows you to sing-a-long with the songs playing either on BT, USB or LINE IN mode and allow 2 microphones at the same time.
• Plug in your Microphone cable into the side panel marked "MIC 1" and /or "MIC 2".
• Adjust the MIC Volume "MIC + / MIC - " or main volume on the top control panel.
• Adjust the Echo level "EH + /EH - ".
• Start to sing

WARNING: - If the MIC Volume and ECHO levels are set too high or to the maximum, you may hear a high pitch feedback tone. Lower the volume quickly to avoid damage.

SOUND EFFECTS

• "Customer's model" has a built in Equalizer
• Press and select the preset sound effect for your music; FLAT, CLASSIC, POP, ROCK and JAZZ

LIGHT EFFECTS

- Short press to turn On / Off LED Lantern on Top panel. Long press to turn On/Off disco light.

TROUBLESHOOTING

General

No power

• Check that AC power cord is securely inserted in the unit and the electrical outlet.
• Check the Power On/Off switch is turn to On position.
• If battery is flat Plug in the AC Power cord to charge and operate.

Keys no response

• Turn the Power On/Off switch to Off, and then On again to reset the unit.
• Unplug the AC Power cord and plug it back again.

No sound heard

• Make sure the LINE connected volume is turned to a reasonable level.
• Make sure the Bluetooth connected device output the audio via BT out.
• Make sure the Bluetooth connected device volume is turned to a reasonable level.

Bluetooth Operations

Audio quality is poor

- Bluetooth reception is poor. Move the Bluetooth device nearer to the Speaker.

Cannot pair to Bluetooth device

• Make sure both Bluetooth device and Speaker is not connected to any other Bluetooth device.
• Make sure the Bluetooth On/Off switch located below Speaker is slide to On position.
• Make sure the Blue LED on the Speaker is fast flashing (Pairing mode).
• Turn Power switch to Off, and then On again, Press and hold BT button for 2 seconds to enter into pairing mode.

CAUTION:

• The AC/DC adaptor and main unit shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus and AC/DC adaptor.
• Minimum distances 10 cm around the apparatus for sufficient ventilation.
• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• When the mains plug of AC/DC Adaptor is used as the disconnect device, the disconnect device shall remain readily operable.
  To be completely disconnected the power input, the AC/DC adaptor shall be disconnected from the mains completely.
• The AC/DC adaptor should not be obstructed or should be easily accessed during intended use.
• The use of apparatus in tropical climates.

About Sealed Lead-Acid Battery:

This unit works either on the battery pack (Model no.: Tianchang 6-FM-2.6, 12V, 2600mAh) or the AC power: unplug the AC Power adapter from the DC input jack to work on the battery pack (after fully charged); plugging the AC Power adapter while the battery pack is attached initiates the charging of this battery. The charged LED indicator lights red during charging, when the battery is fully charged the indicator is Green. Fully charging a run-out battery pack may take 3 hours, A fully charged battery pack can endure approximately 2 hours of continuous playback. This playing time may vary with the surrounding environment, the volume level of the speaker and the battery condition. It is advised that you wait 10-20 minutes before recharging the battery pack if it has turned flat during operation.

ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S

DENVER®

www.denver-electronics.com

Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.

Electric and electronic equipment and batteries is marked with the crossed out trash can symbol, seen below. This symbol signifies that electric and electronic equipment and batteries should not be disposed of with other household waste, but should be disposed of separately.

As the end user it is important that you submit your used batteries to the appropriate and designated facility. In this manner you make sure that the batteries are recycled in accordance with legislature and will not harm the environment.

All cities have established collection points, where electric and electronic equipment and batteries can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.

Operating Frequency Range:

Radio: FM 87.5-108 MHz

BT: 2.4 GHz

Audio:20 Hz-20 KHz

Max Output Power: 30W

Imported by:

DENVER ELECTRONICS A/S

Omega 5A, Soeften

DK-8382 Hinnerup

Denmark

www.facebook.com/denverelectronics

Hereby, Inter Sales A/S declares that the radio equipment type TSP-305 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:
