Congratulations, and thank you for choosing a BMW M5.

Thorough familiarity with your vehicle will provide you with enhanced control and security when you drive it. We therefore have this request:

Please take the time to read this Owner's Manual and familiarize yourself with the information that we have compiled for you before starting off in your new BMW. It contains important data and instructions intended to assist you in gaining maximum use and satisfaction from the unique range of technical features on your BMW. In addition, you will find information on maintenance and care, there to ensure operating and driving safety, as well as to maintain the best possible value of your vehicle.

This Owner's Manual should be considered a permanent part of this vehicle. It should stay with the vehicle when sold to provide the next owner with important operating, safety and maintenance information.

This manual is supplemented by a Service and Warranty Information Booklet (US models) or a Warranty and Service Guide Booklet (Canadian models). We recommend that you read this publication thoroughly.

Your BMW is covered by the following warranties:

▷ New Vehicle Limited Warranty
▶ Limited Warranty Rust Perforation
▶ Federal Emissions System Defect Warranty
▶ Federal Emissions Performance Warranty
▶ California Emission Control System Limited Warranty

Detailed information about these warranties is listed in the Service and Warranty Information Booklet (US models) or in the Warranty and Service Guide Booklet (Canadian models).

We wish you an enjoyable driving experience.

BMW M

Notes on the Owner's Manual

We have made every effort to ensure that you are able to find what you need in this Owner's Manual as quickly as possible. The fastest way to find certain topics is by using the detailed index at the end. If you desire an initial overview of your vehicle, this can be found in the first chapter. The detailed list of contents that directly follows the summary of contents is intended to stimulate your curiosity regarding your BMW and to encourage you to read the manual.

Should you wish to sell your BMW at some time in the future, please remember to hand over the Owner's Manual to the new owner; it is part of the vehicle.

Should you have any further questions, your BMW center will be glad to assist at any time.

Symbols used

Indicates instructions or precautions that must be followed precisely in order to avoid the possibility of personal injury and serious damage to the vehicle.

Contains information that will assist you in gaining the optimum benefit from your vehicle and enable you to care more effectively for your vehicle.

Refers to measures that can be taken to help protect the environment.

◀ Marks the end of a specific item of information.

* Indicates special equipment, country-specific equipment and optional extras.

Identifies index entries that refer to owner service procedures or topics on car care.

Identifies systems or components, which your BMW center can either activate or adapt to suit an individual driver's requirements ("Car Memory", "Key Memory"). Refer to page 52.

© 2000 BMW M GmbH

Munich, Germany

Reprinting, including excerpts, is permitted

only with the express written approval of

BMW M GmbH, Munich.

Order no. 01 41 0 155 429

US English VIII/2000

Printed in Germany

Printed on environmentally friendly paper

(bleached without chlorine, suitable for recycling).

The individual vehicle

On buying your BMW, you have decided in favor of a model with individualized equipment and fittings. This Owner's Manual describes all models and equipment that BMW offers within the same group.

We hope you will understand that equipment and features are included that you might not have chosen for your vehicle. Any differences can easily be identified, since all optional accessories and special equipment are marked with an asterisk *.

If your BMW features equipment that is not described in this Owner's Manual (a car radio or telephone, for instance), we have enclosed Supplementary Owner's Manuals. We ask you to read these manuals as well.

Status at time of printing

BMW pursues a policy of continuous, ongoing development conceived to ensure that our vehicles continue to embody the highest quality and safety standards combined with advanced, state-of-the-art technology. For this reason, it is possible that the features described in this Owner's Manual could differ from those on your vehicle. Nor can errors and omissions be entirely ruled out. You are therefore asked to appreciate that no legal claims can be entertained on the basis of the data, illustrations or descriptions in this Owner's Manual.

For your own safety

Use unleaded gasoline only. Fuels containing up to and including

10 % ethanol or other oxygenates with up to 2.8 % oxygen by weight (that is, 15 % MTBE or 3 % methanol plus an equivalent amount of co-solvent) will not void the applicable warranties respecting defects in materials or workmanship. Field experience has indicated significant differences in fuel quality (volatility, composition, additives, etc.) among gasolines offered for sale in the United States and Canada. The use of poor-quality fuels may result in driveability, starting and stalling problems, especially under certain environmental conditions such as high ambient temperature and high altitude. Should you encounter driveability problems that you suspect could be related to the fuel you are using, we recommend that you respond by switching to a recognized high-quality brand. Failure to comply with these recommendations may result in unscheduled maintenance.

Follow the relevant safety rules when you are handling gasoline.

Important safety information!

For your own safety, use genuine parts and accessories approved by BMW. When you purchase accessories tested and approved by BMW and Original BMW Parts, you simultaneously acquire the assurance that they have been thoroughly tested by BMW to ensure optimum performance when installed on your vehicle.

BMW warrants these parts to be free from defects in material and workmanship.

BMW will not accept any liability for damage resulting from installation of parts and accessories not approved by BMW.

BMW cannot test every product from other manufacturers to verify if it can be used on a BMW safely and without risk to either the vehicle, its operation, or its occupants.

Original BMW Parts, BMW Accessories and other products approved by BMW, together with professional advice on using these items, are available from all BMW centers.

Installation and operation of non-BMW approved accessories such as alarms, radios, amplifiers, radar detectors, wheels, suspension components, brake dust shields, telephones (including operation of any portable cellular phone from within the vehicle without using an externally-mounted antenna) or transceiver equipment (for instance, CBs, walkie-talkie, ham radio or similar accessories) may cause extensive damage to the vehicle, compromise its safety, interfere with the vehicle's electrical system or affect the validity of the BMW Limited Warranty. See your BMW center for additional information.

Maintenance, replacement, or repair of the emission control

devices and systems may be performed by any automotive repair establishment or individual using any certified automotive part.

Symbol on vehicle parts

Indicates that you should consult the relevant section of this

Owner's Manual for information on a particular part or assembly.

The following only applies to vehicles owned and operated in the US.

REPORTING SAFETY DEFECTS

If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying BMW of North America, Inc., P.O. Box 1227, Westwood, New Jersey 07675-1227, Telephone [phone].

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer, or BMW of North America, Inc.

To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-800-424-9393 (or 366-0123 in Washington, D.C. area) or write to: NHTSA, U.S. Department of Transportation, Washington, D.C. 20590. You can also obtain other information about motor vehicle safety from the Hotline.

Close-up of a car wheel rim and tire (no visible text or symbols)

Two types of screwdrivers, one with a handle and the other with a pointed tip (no text or symbols visible)

Online Edition for Part No. 01 41 0 155 429 - © 09/00 BMW AG

Overview

Controls and features

Operation, care and maintenance

Owner service procedures

Advanced technology

Technical data

Index

Contents

Overview

Cockpit 16

Instrument cluster 18

Indicator and warning lamps 20

Multifunction steering wheel (MFL) 23

Hazard warning flashers 24

Warning triangle 24

First-aid kit 24

Refueling 25

Fuel specifications 26

Tire inflation pressure 26

Controls and features

Locks and security systems:

Keys 30

Electronic vehicle immobilizer 31

Central locking system 32

Opening and closing – from the outside 32

Using the key 32

Using the remote control 33

Opening and closing - from the inside 36

Luggage compartment lid 37

Luggage compartment 39

Alarm system 40

Electric power windows 42

Sliding/Tilt sunroof 43

Adjustments:

Seats 45

Steering wheel 48

Mirrors 49

Seat, mirror and steering wheel memory 50

Car Memory, Key Memory 52

Passenger safety systems:

Safety belts 53

Airbags 54

Transporting children safely 58

Driving:

Steering/Ignition lock 61

Starting the engine 62

Switching off the engine 62

Parking brake 63

Manual transmission 64

Turn signal indicator/Headlamp flasher 64

Washer/Wiper system/Rain sensor 65

Rear window defroster 67

Cruise control 67

Everything under control:

Odometer, outside temperature display 69

Tachometer 70

Engine oil temperature gauge 70

Fuel gauge 70

Coolant temperature gauge 71

Service Interval Display 71

Check Control 72

Multi-Information Display (MID) 75

Digital clock 76

Computer 79

Technology for safety and driving convenience:

Park Distance Control (PDC) 84

Dynamic Stability Control (DSC) 86

M Dynamic Driving Control 87

Tire Pressure Warning (RDW) 88

Lamps:

Side lamps/Low beams 90

Instrument rheostat 90

High beams/Parking lamps 91

Fog lamps 91

Interior lamps 91

Reading lamps 92

Controlling the climate for pleasant driving:

Automatic climate control 94

Integrated rear center console 100

Seat heating 102

Roller sun blind 102

Independent ventilation system 102

Interior conveniences:

BMW Universal Transmitter 103

Integrated rear-seat equipment 106

Glove compartment 107

Storage compartments 108

Cellular phones 108

Beverage holder 108

Ashtray, front 109

Cigarette lighter 110

Ashtray, rear 110

Loading and transporting cargo:

Through-loading system 111

Ski bag 112

Cargo loading 114

Roof-mounted luggage rack 115

Special operating instructions:

Break-in procedure 118

Driving notes 119

Catalytic converter 120

Antilock Brake System (ABS) 121

Disc brakes 123

Brake system 124

Winter operation 125

Power steering 127

Cellular phone 127

Radio reception 127

Wheels and tires:

Tire inflation pressure 128

Tire condition 128

Tire replacement 129

Tire rotation 130

Wheel and tire combinations 131

Special features of winter tires 132

Snow chains 133

Approved wheel and tire specifications 134

Contents

Under the hood:

Hood 135

Engine compartment 136

Washer fluids 138

Washer nozzles 138

Engine oil 139

Coolant 141

Brake fluid 142

Vehicle Identification

Number 143

Care and maintenance:

The BMW Maintenance System 144

Caring for your vehicle 145

Airbags 151

Vehicle storage 151

Laws and regulations:

Technical modifications 152

California Proposition

65 Warning 152

OBD interface socket 153

Replacement procedures:

Onboard tool kit 156

Windshield wiper blades 156

Lamps and bulbs 157

Repairing a flat tire 162

Battery 166

Fuses 168

In case of electrical

malfunction:

Assistance, giving and receiving:

Jump-starting 171

Towing the vehicle 172

Airbags 176

Radio reception 176

BMW active seat 177

Dynamic Stability Control (DSC) 178

Safety belt tensioner 178

DSP sound system 179

Mirrors with

automatic dimmer 179

Integrated rear suspension 180

Rain sensor 180

Xenon lamps 181

Engine data 184

Dimensions 185

Weights 186

Capacities 186

Electrical system 188

Drive belts 188

Everything from A to Z 192

Top-down view of a steering wheel and its analog gauge (no text or symbols on the diagram itself)

Online Edition for Part No. 01 41 0 155 429 - © 09/00 BMW AG

Cockpit 16

Instrument cluster 18

Indicator and warning lamps 20

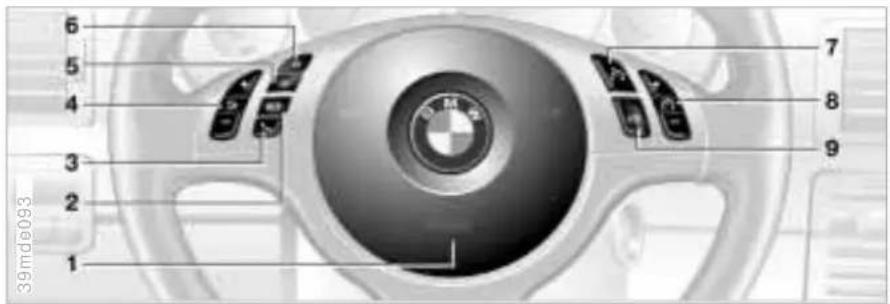

Multifunction steering wheel (MFL) 23

Hazard warning flashers 24

Warning triangle 24

First-aid kit 24

Refueling 25

Fuel specifications 26

Tire inflation pressure 26

Overview

Controls and features

Operation, care and maintenance

Owner service procedures

Advanced technology

Technical data

Index

Cockpit

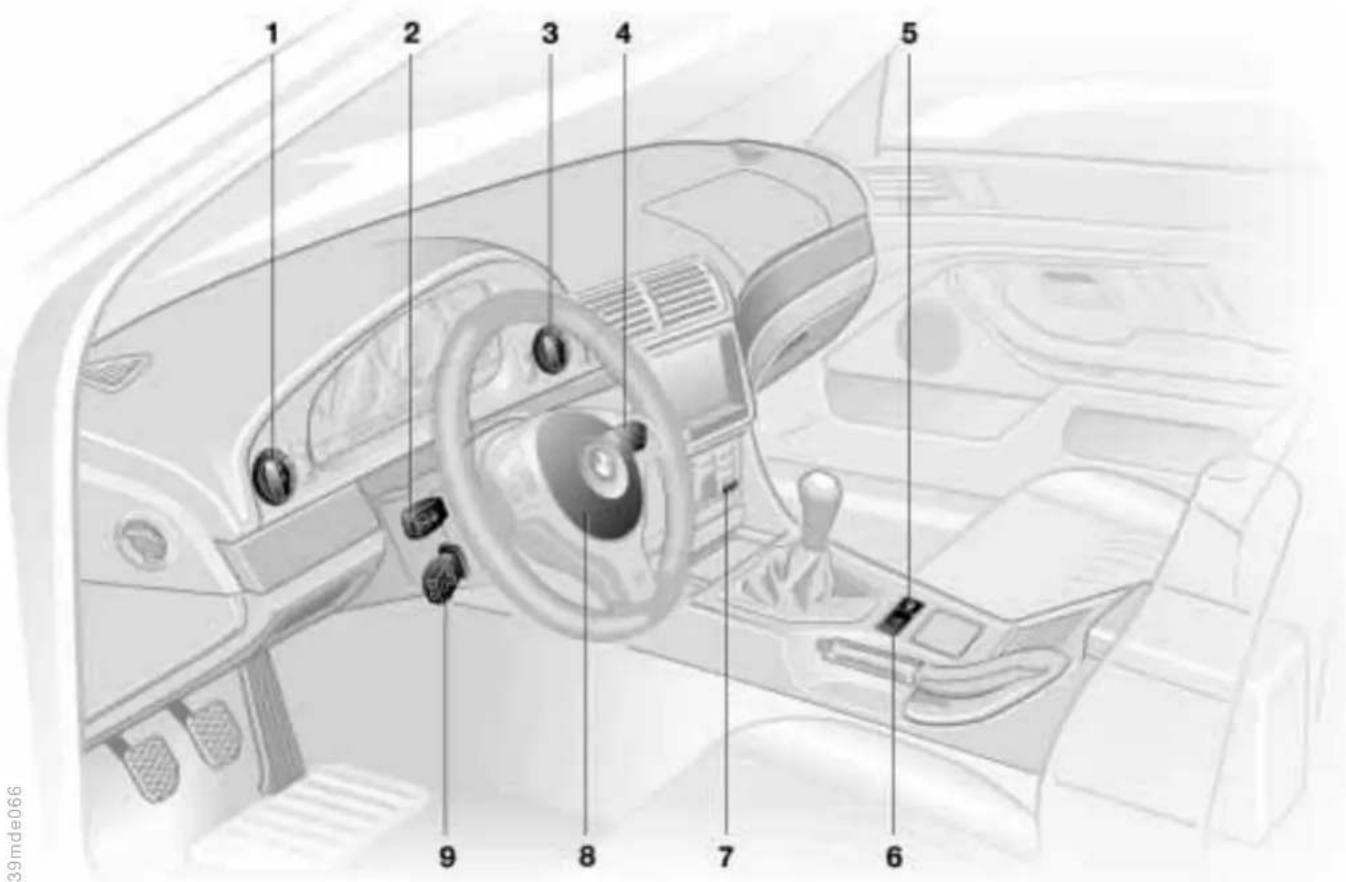

1 2 3 4 5 9 8 7 6 39mde066

Online Edition for Part No. 01 41 0 155 429 - © 09/00 BMW AG

Cockpit

1 Side lamps/Low beams 90

2 ▷ Turn signal indicator 64

Parking lamp 91
▷ High beams 91
▷ Headlamp flasher 64
▷ Computer 83

3 Fog lamps 91

4 Wiper/Washer system 65
5 Central locking system 32
6 Hazard warning flashers 24
7 Rear window defroster 67
8 Horn: the entire surface
9 Adjusting the steering wheel 48

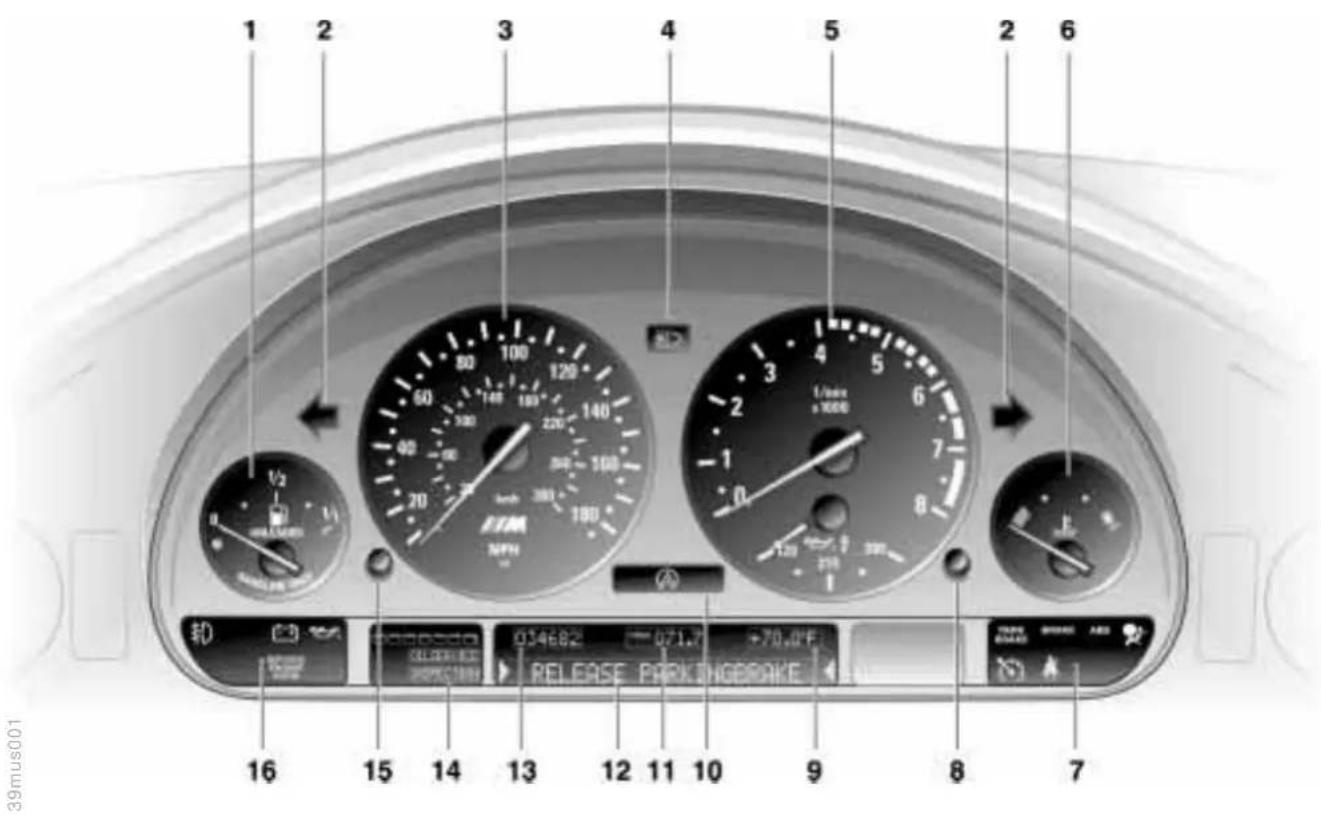

Instrument cluster

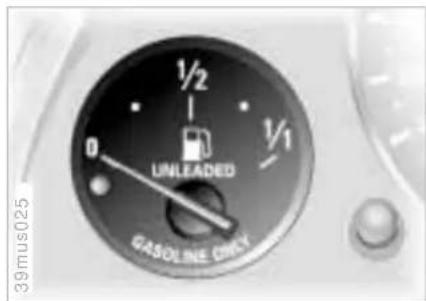

1 Fuel gauge with indicator lamp for fuel reserve 70
2 Indicator lamp for turn signals 22
3 Speedometer
4 Indicator lamp for high beams 22

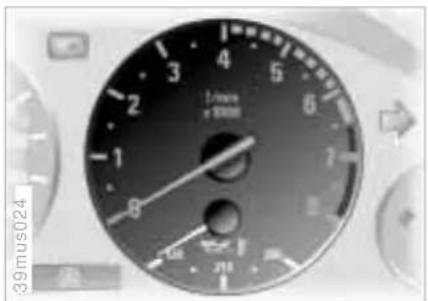

5 Tachometer and engine oil temperature gauge 70
6 Engine coolant temperature gauge 71
7 Indicator and warning lamps (clockwise) for:
Parking brake 21
Brake hydraulic system, Dynamic Brake Control (DBC) ^* 20, 21
Antilock Brake System (ABS) 21
Airbags 21
▶ Please fasten safety belts 21
▶ Cruise control* 22

8 CHECK button 72

9 Outside temperature display 69

10 Indicator lamp for Dynamic Stability Control (DSC) 21
11 Trip odometer 69
12 Check Control display 72
13 Odometer 69
14 Service Interval Display 71
15 Trip odometer, reset to zero 69
16 Indicator and warning lamps (clockwise) for:
Fog lamps 22
▶ Battery charge current 20
▶ Engine oil pressure 20
Service Engine Soon 21

You can display the outside temperature and distance driven ferent units of measurement.

Indicator and warning lamps

Technology that monitors itself

Many of the systems of your BMW monitor themselves automatically, both during engine starts and while you are driving. Indicator and warning lamps that are identified by "●" are tested for proper functioning whenever the ignition key is turned. They light up once for different periods of time.

If a fault should occur in one of these systems, the corresponding lamp does not go out after the engine is started or it lights up while the vehicle is moving. You will see how to react to this in the following section.

Red: stop immediately

Battery charge current • The battery is no longer being charged. There is a malfunction of the alternator drive belt or in the charging circuit of the alternator. Please contact the nearest BMW center.

If the drive belt is defective, do not continue driving. The engine could damaged due to overheating. If the belt is defective, increased ing effort is also required.

Engine oil pressure If the message "STOP! ENGINE OIL PRESSURE" appears in the

Check Control: stop the vehicle and switch off the engine immediately. Check the engine oil level; top up as required. If the oil level is correct: please contact the nearest BMW center.

Do not continue driving. The engine could be damaged use of inadequate lubrication.

Brake hydraulic system • Have the brake fluid level checked. Before continuing your v, be sure to read the notes on 124 and 142.

The indicator lamp comes on together with the "Check brake pads" message in the Check Control.

Brake hydraulic system warning lamp for Canadian models.

Indicator and warning lamps

Red: an important reminder

Parking brake

Comes on when you engage the parking brake.

For additional information, refer to page 63.

Parking brake warning lamp for Canadian models.

Please fasten safety belts • An acoustical signal is sounded and a message appears in the

Check Control for 4 to 8 seconds. The acoustical signal ends when the belt is fastened.

For additional information on safety belts, refer to page 53.

Airbags

Please have the system inspected by your BMW center.

For additional information, refer to pages 54, 176.

Yellow: check as soon as possible

Antilock Brake System (ABS) • ABS has been deactivated in response to a system malfunc-

tion. Conventional braking efficiency is available without limitations. Please have the system inspected by your BMW center.

For additional information, refer to page 121.

ABS warning lamp for Canadian models.

Dynamic Stability Control (DSC)

DSC has been switched off or

has been deactivated because of a malfunction. In the event of a malfunction, have the system checked by your BMW center.

For additional information, refer to page 86.

Dynamic Brake Control (DBC) ^*

Fault in the DBC system.

Conventional braking efficiency

is available without limitations.

For additional information, refer to page 124.

Dynamic Brake Control (DBC)* warning lamp for Canadian models.

Service Engine Soon • If the indicator lights up either continuously or intermittently,

this indicates a fault in the emissions-related electronic systems. Although the vehicle remains operational, you should have the systems checked by your BMW center at the earliest possible opportunity.

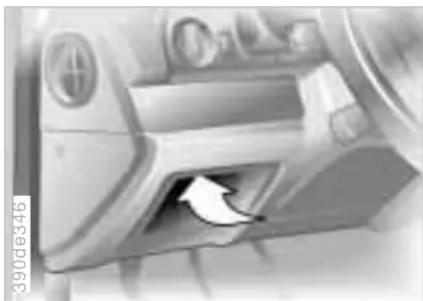

For additional information on the OBD interface socket, refer to page 153.

Service Engine Soon warning lamp for Canadian models.

22 Indicator and warning lamps

Green: for your information

Turn signal indicator Flashes when the turn signals are in operation. Rapid flashing

means there is a fault in the system.

For additional information, refer to page 64.

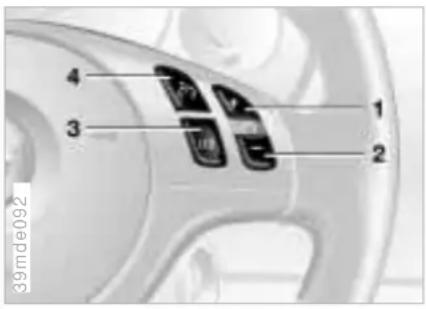

Cruise control Comes on when the cruise control is activated: available for

operation via the multifunction steering wheel.

For additional information, refer to page 67.

Fog lamps Comes on whenever you switch on the fog lamps.

For additional information, refer to page 91.

Blue: for your information

High beams Comes on when the high beams are on or the headlamp flasher

is actuated.

For additional information, refer to pages 64, 91.

Multifunction steering wheel (MFL)

The controls integrated in the multifunction steering wheel (MFL) are provided so that you can operate a number of accessories quickly and without being distracted from traffic conditions. You may operate:

▶ Selected functions of the radio as well as the CD and cassette modes,
▷ the cruise control,
▶ selected cellular phone* functions and
the voice recognition*.

In order to operate a system via the MFL, the corresponding

system controls must be activated.

The illustration shows the maximum possible number of controls, corresponding to a full range of optional equipment. Refer to the individual accessory manuals for more detailed descriptions.

6 5 4 3 2 1 7 8 9 39md0093

1 Horn: the entire surface
2 Radio/Cellular phone: select
3 Press briefly: Receive a phone call, initiate dialing, and terminate a call. Press longer:
Turn voice recognition on and off
4 Radio/Cellular phone: volume
5 Radio/Cellular phone: scan backward or scan station keys or scroll through the phone listings. Rewind for the CD and cassette players

6 Radio/Cellular phone: scan forward or scan station keys or scroll through the phone listings.
Fast forward for the CD and cassette players
7 Cruise control: activate stored setting (resume)
8 Cruise control: accelerate and store (+) as well as decelerate and store (−)
9 Cruise control: activate/interrupt/deactivate.

24 Hazard warning flashers Warning triangle\* First-aid kit\*

Interior view of a passenger airplane cabin with flight suit, keyboard, and monitor (no visible text or symbols)

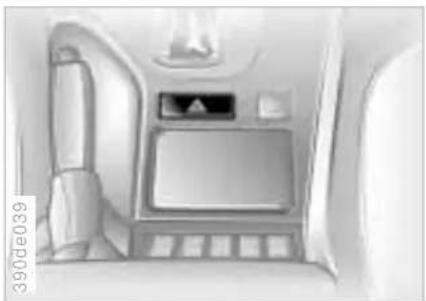

The button flashes intermittently when the hazard warning flashers are on. To help you locate the switch in an emergency, the button is also illuminated whenever the vehicle's lamps are on.

Close-up of a mechanical component with a white arrow pointing to a feature, no visible text or symbols.

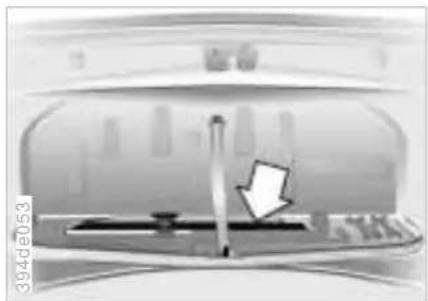

The hazard warning triangle is readily accessible. It is stored in the container for the onboard tool kit mounted in the luggage compartment lid.

To open the container, loosen the wing nut(s).

Comply with legal requirements that cover the availability of a hazard warning triangle in the vehicle.

Black office pen holder with a small pen resting on top, placed on a white surface with open book covers (no visible text or symbols)

Under the front passenger's seat.

To remove: lift the release lever on the front (arrow) and pull the first-aid kit forward out of its support.

To store: position the back of the kit into the support, then push back until the lever engages.

Some of the articles in the first-aid kit may be used within a limited time only. For this reason, check the contents of the kit regularly. Replace any items whose expiration dates have passed. These items are available in any drugstore or pharmacy. Comply with legal requirements that cover the availability of a first-aid kit in the vehicle.

Refueling

Close-up of a car's side panel with an arrow pointing to a specific area (no text or symbols visible)

Fuel filler door

Before filling the tank, shut off the engine. If you do not, fuel cannot

be filled into the tank and the Service Engine Soon lamp may come on.

To open the filler door, press on the front edge.

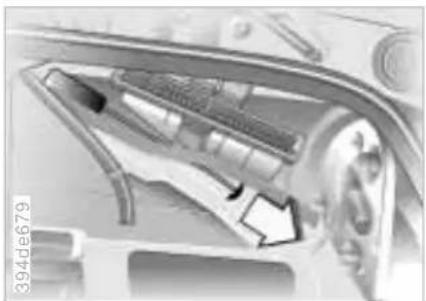

To unlock the fuel filler door if the central locking system malfunctions, refer to page 170.

When handling fuels, comply with all of the applicable safety precautions and regulations posted at the filling station. Never carry spare fuel containers in your vehicle. Whether empty or full, these containers can leak, cause an explosion, or lead to fire in the event of a collision.

Close-up of a car's front camera with a sensor and sensor component, no visible text or symbols

Simple and environmentally friendly

Open the filler cap carefully to prevent fuel from spraying out.

Fuel spray may cause injury. Do not top off. Topping off may cause fuel to spill.

Keep the filler cap in the bracket attached to the fuel filler door.

When refueling, insert the filler nozzle completely into the filler pipe. Pulling the nozzle out of the pipe during refueling

results in premature pump shutoff and will reduce the effect of the vapor recovery system on the pump.

As long as the filler nozzle is used properly, the fuel tank is full whenever the nozzle shuts off the first time.

Tank capacity: refer to page 186.

Close the filler cap carefully after refueling until a "click" is heard.

While closing, be sure not to squeeze the strap which is fastened to the cap. A loose or missing cap will activate the message "CHECK FILLER CAP" in the Check Control or the Service Engine Soon lamp.

Fuel specifications Tire inflation pressure

The engine uses lead-free gasoline only.

Required fuel:

Premium Unleaded Gasoline, min. 91 AKI

AKI = Anti Knock Index

Do not use leaded fuels. The use of leaded fuels will cause perma-

nent damage to the system's oxygen sensor and the catalytic converter.

Close-up of a mechanical component with metallic parts and connectors (no visible text or symbols)

The inflation pressures are indicated on a label attached to the B-pillar behind the driver's door (visible with door open).

Check tire pressures

All pressure specifications are indicated in psi (kilopascal) for tires at ambient temperature (refer also to the next page).

After you have corrected the tire inflation pressure, reactivate the

Tire Pressure Warning (RDW) system. Refer to page 88.

Check tire inflation pressures regularly – at least every two ks and before beginning a longer Incorrect tire pressure can other- lead to tire damage and acci-

Tire inflation pressure

Comply with tire approval specifications

The inflation pressures in the table apply to tires from BMW-approved manufacturers. Your BMW center is familiar with these pressures. Higher pressures may be specified for tires from other manufacturers. You will find a list of approved tire sizes on page 133.

Your vehicle is equipped with tires which not only meet US standards, but also European standards. We recommend the exclusive use of BMW-approved tires.

BMW TiresAll pressure specifications in the table are indicated in psi (kilopascal) with cold tires (cold = ambient temperature)
M5	245/40 ZR 18 35 (240) - 44 (300) -
	275/35 ZR 18 - 38 (260) - 48 (330)
	235/45 R 17 94 H M+S 35 (240) 38 (260) 39 (270) 46 (320)

Locks and security systems:

Keys 30

Electronic vehicle immobilizer 31

Central locking system 32

Opening and closing – from the outside 32

Using the key 32

Using the remote control 33

Opening and closing - from the inside 36

Luggage compartment lid 37

Luggage compartment 39

Alarm system 40

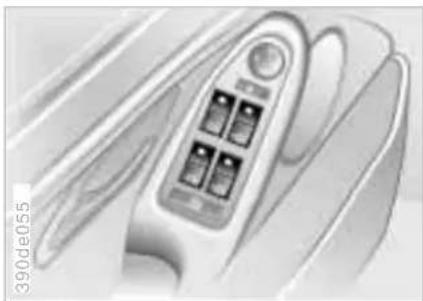

Electric power windows 42

Sliding/tilt sunroof 43

Adjustments:

Seats 45

Steering wheel 48

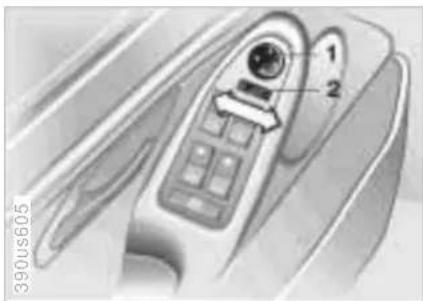

Mirrors 49

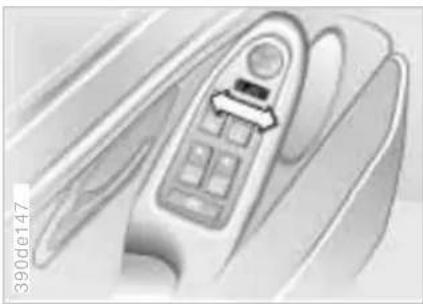

Seat, mirror and steering wheel memory 50

Car Memory, Key Memory 52

Passenger safety systems:

Safety belts 53

Airbags 54

Transporting children safely 58

Driving:

Steering/Ignition lock 61

Starting the engine 62

Switching off the engine 62

Parking brake 63

Manual transmission 64

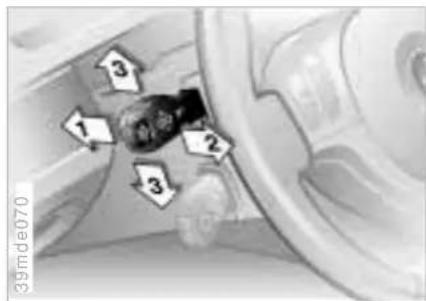

Turn signal indicator/Headlamp flasher 64

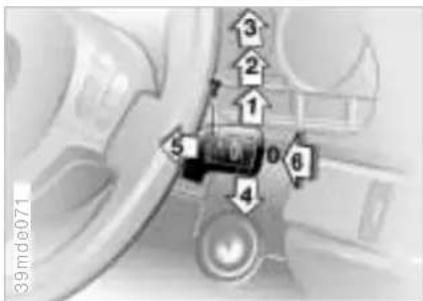

Wiper/Washer system/Rain sensor 65

Rear window defroster 67

Cruise control 67

Everything under control:

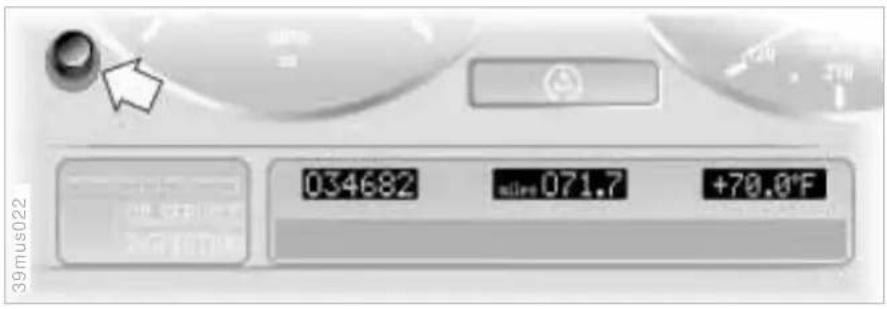

Odometer, outside temperature display 69

Tachometer 70

Engine oil temperature gauge 70

Fuel gauge 70

Coolant temperature 71

Service Interval Display 71

Check Control 72

Multi-Information Display (MID) 75

Digital clock 76

Computer 79

Technology for safety and convenience:

Park Distance Control (PDC) 84

Dynamic Stability Control (DSC) 86

M Dynamic Driving Control 87

Tire Pressure Warning (RDW) 88

Lamps:

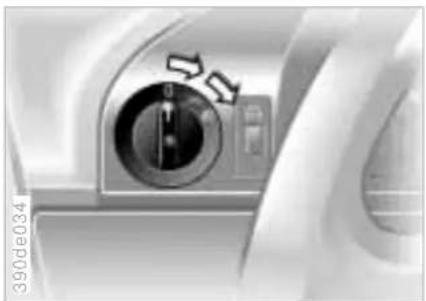

Side lamps/Low beams 90

Instrument rheostat 90

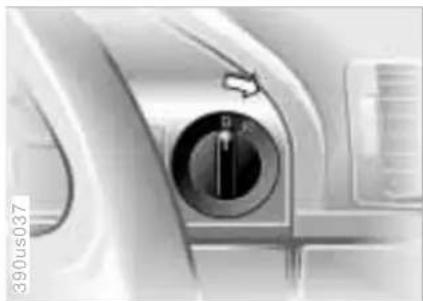

High beams/Parking lamps 91

Fog lamps 91

Interior lamps 91

Reading lamps 92

Controlling the climate for pleasant driving:

Automatic climate control 94

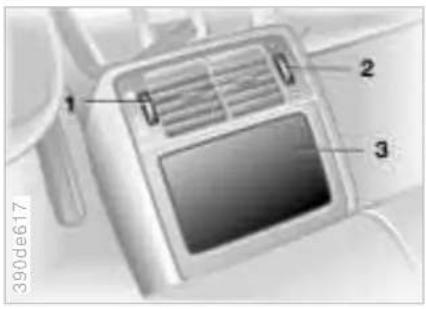

Integrated rear center console 100

Seat heating 102

Roller sun blind 102

Independent ventilation system 102

Interior conveniences:

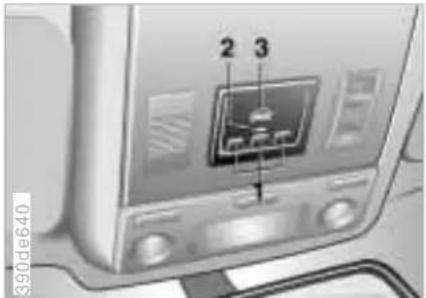

BMW Universal Transmitter 103

Integrated rear-seat equipment 106

Glove compartment 107

Storage compartments 108

Cellular phone 108

Beverage holder 108

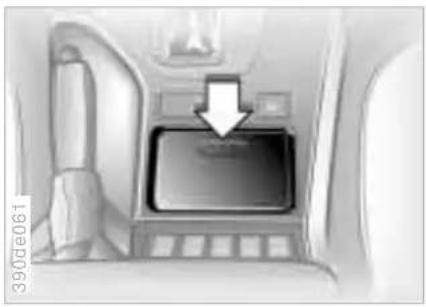

Ashtray, front 109

Cigarette lighter 110

Ashtray, rear 110

Loading and transporting:

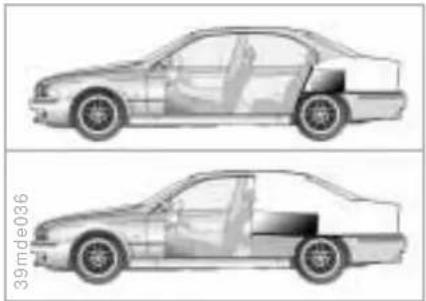

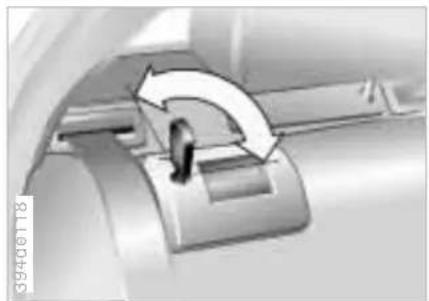

Through-loading system 111

Ski bag 112

Cargo loading 114

Roof-mounted luggage rack 115

Overview

Controls and features

Operation, care and maintenance

Owner service procedures

Advanced technology

Technical data

Index

Online Edition for Part No. 01 41 0 155 429 - © 09/00 BMW AG

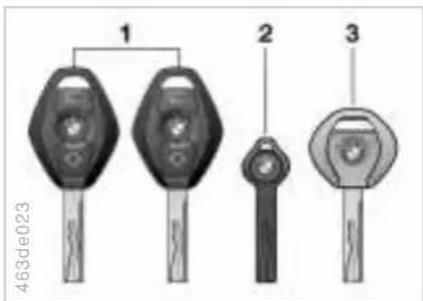

Keys

463de023 1 2 3

1 The master keys with remote control determine the functions of the Key Memory. Refer to page 52

There is an extended-life battery in every master key which is

charged automatically in the steering lock as you drive.

For this reason, if you have a master key that is otherwise not used, use that key approximately once every year while driving for an extended period.

This will charge the battery. Refer also to page 33.

2 Spare key for storage in a safe place, such as in your wallet. This key is not intended for constant use

3 Door and ignition key

The lock for the glove compartment cannot be operated with this key. This is recommended for valet parking, for instance

Replacement keys

Replacement keys are available exclusively through your BMW center. Your BMW center is obligated to ensure that a person requesting a key is authorized to do so since the keys belong to a security system (refer to "Electronic vehicle immobilizer" on page 31).

If possible, take all of the master keys that belong to the vehicle

with you when you pick up your replacement key.

Whenever you receive a new replacement key, turn it once to position 2 in the ignition lock (ignition switched on) and then back, so that the electronic vehicle immobilizer can "learn" the new key.

Electronic vehicle immobilizer

Mechanical component diagram showing internal components and housing (no text or symbols)

The key to security

Your BMW is equipped with a passive anti-theft system. This electronic immobilization system is designed to reduce the susceptibility of the vehicle to theft by making it impossible to start the engine using any means other than the special keys furnished with the vehicle. Your BMW center can cancel the electronic system authorization for individual keys (in the event of loss, for instance). A deactivated key can no longer be used to start the engine.

How the electronics work

At the heart of this system is an electronic chip that is integrated into the key. The lock mechanism itself is actually a dual-function device, simultaneously serving as a communications interface designed to allow the security system to maintain a continuous stream of variable, vehicle-specific signals with the electronic circuitry in the key. The system will not release the ignition, fuel injection and starter unless it recognizes an "authorized" key.

Force applied to the key can damage the integrated electronic circuitry. A damaged key can no longer be used to start the engine.

Central locking system Opening and closing – from the outside

The concept

The central locking system is ready for operation when both front doors are closed. The system engages and releases the locks on the

doors
luggage compartment lid
fuel filler door.

The central locking system can be operated

from outside via the door lock and using the remote control

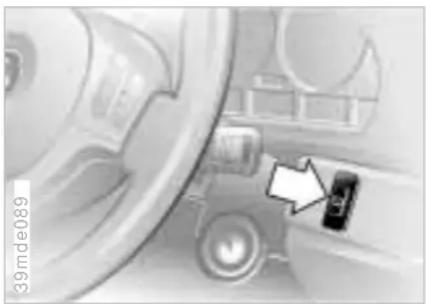

from inside by pressing a button.

The fuel filler door is not locked when you open the vehicle from the inside (refer to page 36). The alarm system is automatically armed whenever you activate the central locking system from outside of the vehicle. Both the door locks and release handles remain locked. The alarm system is also activated or deactivated.

If locked from inside, the central locking system unlocks automatically (only those doors which were not locked separately with the safety lock buttons) in the event of an accident. Refer to page 36. In addition, the hazard warning flashers and interior lamps come on.

Close-up of a metallic door handle with a curved arrow indicating rotation or adjustment (no text or symbols)

Using the key

One turn of the key in the driver's door lock unlocks the driver's door only. Turning the key a second time unlocks all of the remaining doors, the luggage compartment lid and the fuel filler door.

You can have a confirmation message set to inform you that the role has been properly locked.

Convenience operation

You can also operate the windows and sliding/tilt sunroof via the door lock.

To open: with the door closed, turn the key to the "Unlock" position and hold it.
To close: with the door closed, turn the key to the "Lock" position and hold it.

Watch during the closing process to be sure that no one is inadvertent injured. Releasing the key stops operation.

Manual operation

(in the event of an electrical failure)

Turn the key to the extreme left or right to unlock/lock the door.

Opening and closing – from the outside

Using the remote control

The remote control makes opening and locking the doors of your vehicle very convenient. Furthermore, it provides three additional functions that can only be executed by means of the remote control:

▷ Switch on interior lamps, refer to page 34
With this function, you can also "search for" your vehicle – when parked in an underground garage, for instance.
Open the luggage compartment lid, refer to page 35
The luggage compartment lid will open slightly, regardless of whether the lid was previously locked or unlocked.
▷ Panic mode, refer to page 35 In case of danger, you can trigger an alarm.

When the vehicle is unlocked or locked, the anti-theft system is simultaneously deactivated/activated, the alarm system is disarmed/armed and the interior lamps are switched on/off.

Black-and-white image showing a car and a key (no text or symbols visible)

Master keys

Keys with remote control are master keys. Refer to page 30.

Children might be able to lock the doors from the inside. For this reason, always take the vehicle's keys with you so that the vehicle can be opened again from the outside at any time.

Master keys that are used repeatedly are always ready for operation since the battery in the key is charged automatically in the steering lock as you drive.

If it is no longer possible to unlock the vehicle via the remote control, the battery is discharged. Use this key while driving for an extended period in order to charge the battery. Refer also to page 30.

To prevent unauthorized use of the remote control, surrender only the door and ignition key 3 or the spare key 2 (refer to page 30) when leaving the vehicle for valet parking, for example. In the event of a system malfunction, please contact your BMW center.

You can also obtain replacement keys there.

You can have a confirmation message set to inform you that the uncle has been properly locked.

Opening and closing – from the outside

Illustration of a mechanical component with labeled parts and motion indicators (no readable text or symbols)

Unlocking and convenience opening mode

To unlock: press button 1.

Press the button once to unlock the driver's door only; press a second time to unlock all remaining doors as well as the luggage compartment and fuel filler door.

Convenience opening mode: press and hold button 1. The windows and the sliding/tilt sunroof are then opened.

463de027 2

To lock and secure

Press button 2.

463de027 2

Deactivate the tilt sensor alarm system and interior motion sensor

Press button 2 a second time immediately after locking.

For additional information, refer to page 41.

To switch on the interior lamps

After locking the vehicle, press button 2 a second time.

Opening and closing – from the outside

463de026 3

Luggage compartment lid open – Panic mode

Open the luggage compartment lid: press button 3.

The luggage compartment lid will open slightly, regardless of whether it was previously locked or unlocked.

Before and after a trip, be sure that the luggage compartment lid

was not opened unintentionally.

Panic mode: by pressing and holding button 3 for two to five seconds, you can trigger the alarm system if there is an impending danger (the system must be armed).

The alarm is deactivated by pressing button 1.

Non-BMW systems

The remote control system's functioning may be affected by other units or equipment operating in the immediate vicinity of your vehicle.

If this should occur, you can unlock and lock the vehicle via the door lock with a master key.

For US owners only

The transmitter and receiver units comply with part 15 of the FCC (Federal Communications Commission) regulations. Operation is governed by the following:

FCC ID: LX8EWS

LX8FZVS

LX8FZVE

Compliance statement:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference, and
this device must accept any interference received, including interference that may cause undesired operation.

Any unauthorized modifications to these devices could void the

user's authority to operate this equipment.

Opening and closing – from the inside

Interior view of a vehicle cabin with a monitor, keyboard, and a small device (no visible text or symbols)

Use this button to operate the central locking system when the front doors are closed. The doors and luggage compartment lid are unlocked or locked only. The antitheft alarm system is not activated. Also, the fuel filler door remains unlocked to allow refueling.

If you desire, the central locking system will secure the locks as as you start to drive. This can be tested to be key-specific.

If only the driver's door was unlocked from the outside and you press the button

all other doors, the luggage compartment lid and the fuel filler door will be unlocked if the driver's door is open
the driver's door will be locked again if it is closed.

To unlock and open the doors

Either unlock the doors together with the button for the central locking system and then pull each of the release handles above the armrests or
pull the release handle for each door twice: the first pull unlocks the door, and the second one opens it.

To engage locks

Use the central locking button to lock all of the doors simultaneously, or press down the individual door lock buttons. The fuel filler door remains then unlocked. To prevent the driver from being inadvertently locked out of the vehicle, the driver's door lock button will not engage as long as the door is open.

When the vehicle is moving, do not lock the doors with the safety lock buttons. Doors locked in this manner would not open automatically in the event of an accident.

Children might be able to lock the doors from the inside. For this reason, always take the vehicle's keys with you so that the vehicle can be opened again from the outside at any time.

Luggage compartment lid

Diagram of a vehicle interior with a flag and circular component, no readable text or symbols present

The lock

Only the master key (refer to page 30) fits in the lock of the luggage compartment.

Opening separately

Turn the master key to the left in the luggage compartment lock clear to the stop – the luggage compartment lid will open slightly.

The luggage compartment is locked again as soon as you close the lid.

Diagram of a car door handle with a circular button and curved arrow indicating direction (no text or symbols)

Secure separately

Turn the master key to the right past the resistance point and then pull it out in the horizontal position.

This locks the luggage compartment lid and disconnects it from the central locking system. This feature can be used to prevent unauthorized access to the luggage compartment when you surrender the door and ignition key (refer to page 30) for valet parking, for instance.

Close-up of a car's front panel with BMW logo and arrow indicator (no readable text or symbols)

To open from outside

Press the button (arrow): the luggage compartment lid opens slightly.

The luggage compartment is lighted when the luggage compartment lid is opened.

Manual operation

(in the event of an electrical failure)

Turn the master key to the left in the luggage compartment lock clear to the stop – the luggage compartment lid will open slightly.

The luggage compartment is locked again as soon as you close the lid.

Luggage compartment lid

Close-up of a mechanical component with a small inset showing a connector or detail (no visible text or symbols)

Opening from inside the vehicle

Provided the luggage compartment has not been locked separately, you can use this button to open it when the vehicle is stationary.

Interior view of a car dashboard with a white arrow pointing to the top panel (no text or symbols visible)

To close

The handle recess (arrow) next to the lock mechanism is designed to assist you in closing the luggage compartment lid.

Operate the vehicle only when the luggage compartment lid is completely closed. Otherwise, exhaust fumes could penetrate the interior of the vehicle. Should it be absolutely necessary to operate the vehicle with the luggage compartment lid open:

▶ Close all windows. Shut the sliding/tilt sunroof.
Increase the air supply of the automatic climate control to a high level. Refer to page 97.

Luggage compartment

Top-down view of a rectangular object placed on a mesh tray, no visible text or symbols

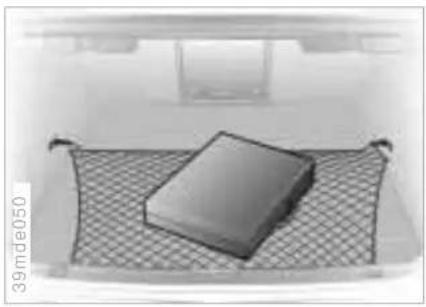

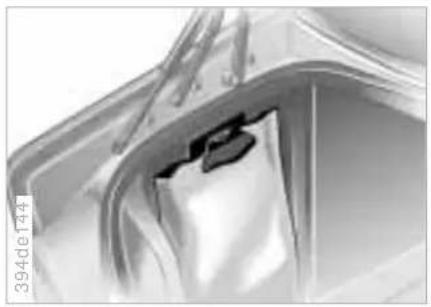

Luggage net

Use the luggage net to secure smaller items of luggage.

If you place objects on the luggage net, this helps to prevent them from moving.

The lashing eyes located at the corners of the luggage compartment provide you with a convenient means of attaching draw straps* for securing suitcases and luggage.

Refer also to "Cargo loading" on page 114.

Close-up of a metallic mechanical component with a dark central feature and curved surfaces (no visible text or symbols)

Hanger\*

You will find a hanger on the left-hand side of the luggage compartment for fastening shopping bags, packages or other items.

Alarm system

The concept

The vehicle alarm system responds:

When a door, the hood or the luggage compartment lid is opened.
To movement inside the vehicle (interior motion sensor).
to changing the vehicle's tilt if someone attempts to steal the wheels or tow the vehicle.

To an interruption in battery voltage.

The system responds to unauthorized vehicle entry and attempted theft by simultaneously activating the following

Sounding an acoustical alarm for 30 seconds.
The hazard warning flashers are activated for approx. five minutes.
The high beams flash on and off in the same rhythm.

To activate and deactivate the alarm system

When the vehicle is locked or unlocked with the key or the remote control, the alarm system is also simultaneously armed or disarmed.

The interior motion sensor is activated approx. 30 seconds after you have finished locking the vehicle.

The system indicates that it has been correctly armed by switching on the hazard warning flashers for a single cycle and by emitting an acoustical signal.

You can have various confirmation messages set to inform you that alarm system has been armed or med.

You can still open the luggage compartment after the system has been armed by pressing button 3 of the remote control (refer to page 35). When you close the luggage compartment, the lid is secured again.

Close-up of a computer monitor with a circular dial and an arrow pointing to it (no visible text or symbols)

Indicator lamp displays

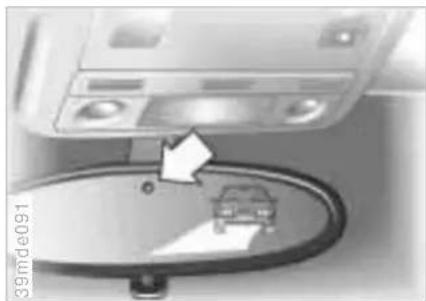

The indicator lamp below the interior rearview mirror flashes continuously: the system is armed.
The indicator lamp flashes when it is armed: a door (or doors), the hood, luggage compartment lid or rear window is not completely closed. Even if you do not close the indicated area, the system begins to monitor the remaining areas, and the indicator lamp flashes continuously after 10 seconds. However, the interior motion sensor is not activated.
The indicator lamp goes out when the system is disarmed: no manipulation or attempted intrusions have been detected in the period since the system was armed.

Alarm system

The indicator lamp flashes for 10 seconds when the system is disarmed: an attempted entry has been detected in the period since the system was armed.

Following triggering of an alarm, the indicator lamp will flash continuously.

Avoiding unintentional alarms

The tilt alarm sensor and interior motion sensor may be switched off at the same time. You can do this to prevent a false alarm from being triggered (in garages with elevator ramps, for instance, or when the vehicle is transported by trailer or train):

Actuate the lock (= arm the system) twice; in other words, press button 2 of the remote control twice in succession (refer to page 34). You may also actuate the lock twice with the key (refer to page 32).

The indicator lamp lights up briefly and then flashes continuously. The tilt alarm sensor and the interior motion sensor are deactivated as long as the system is armed.

Close-up of a small rectangular object with a dark border, possibly a vent or cushion (no text or symbols visible)

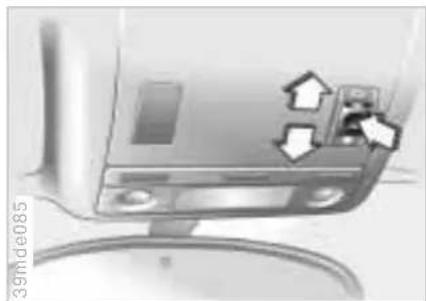

Interior motion sensor

The illustration depicts the transmitter and receiver of the interior motion sensor.

In order for the interior motion sensor to function properly, the windows and sliding/tilt sunroof must be completely closed.

Nevertheless, you should deactivate the interior motion sensor (refer to the previous column) if the windows or sliding/tilt sunroof should be left open.

Electric power windows

Close-up of a medical device with four buttons and a label '390de055' on the left (no other text or symbols visible)

Open and close windows

In ignition key position 1 and 2:

Depress the rocker switch until you feel resistance:

The window continues to move as long as you maintain pressure on the switch.

Press the rocker switch beyond the resistance point:

The window moves automatically. Press the switch a second time to stop the window.

After the ignition has been switched off:

You can still operate the power windows as long as neither of the front doors has been opened. To open a window, press the switch beyond the resistance point.

Remove the key from the ignition key and close the doors when you leave the vehicle so that children cannot operate the power windows and possibly injure themselves.

For convenience operation via the door lock or remote control, refer to page 32 or 34.

Safety feature

A contact strip is located on the inside upper frame of each of the windows. If pressure is exerted against this contact strip while a window is being raised, the system will respond by stopping the window and then retracting it a small distance.

Despite this safety feature, be extremely careful to ensure that the closing path of the window is not obstructed. Otherwise, an object might not touch the contact strip in some situations (very thin objects, for instance). You can disable this safety feature by pressing the switch beyond the pressure point and holding it.

Because the power windows are sealed at high pressure to prevent wind noise when closed, a powerful motor is required for efficient closing. When closing the windows, always be sure that they are not obstructed in any way. Unsupervised use of these systems can result in serious personal injury.

Remove the ignition key to deactivate the electric power windows whenever you leave the vehicle. Never leave the keys in the vehicle with unsupervised children. Never place anything that could obstruct the driver's vision on or next to the windows.

Electric power windows Sliding/tilt sunroof\*

Close-up of a remote control panel with an arrow pointing to the button (no text or symbols visible)

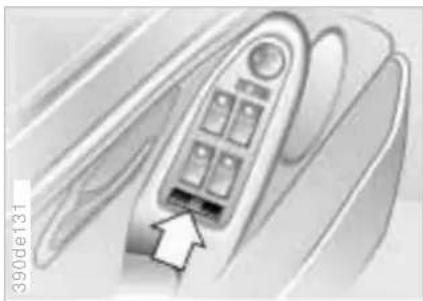

Safety switch

With the safety switch, you can prevent the rear windows from being opened or closed via the switch in the rear passenger area (by children, for example).

Press the safety switch whenever children are riding in the rear of the vehicle. Careless use of the power windows can lead to injury.

To prevent injuries, exercise care when closing the sliding/tilt sunroof and keep it in your field of vision until it is shut. Before leaving the vehicle, switch off the electric sunroof mechanism by taking out the ignition key. Do not leave children unattended in the vehicle with access to vehicle keys. Use of the key can result in starting of the engine and operation of vehicle systems such as the power sunroof. Unsupervised use of these systems can result in serious personal injury.

You can avoid pressure or drafts in the passenger compartment when the sunroof is open or lifted by opening the air vents in the dashboard and increasing the air supply as required. Refer to page 97.

If the sunroof is completely open, air disturbances may be caused in the vehicle when you are driving at higher speeds. Close the roof as far as is necessary until this natural phenomenon ceases.

For convenience operation via the door lock or remote control, refer to page 32 or 34.

Close-up of a computer monitor with a close-up view showing a device and arrows indicating motion (no text or symbols)

Lifting - opening - closing

With the ignition key in position 1 or higher, press the switch or slide it to the desired direction until you feel resistance.

When lifting, the headliner retracts several inches.

If the sliding/tilt sunroof is up, then the headliner cannot be closed.

After the ignition has been switched off, you can still operate the sunroof as long as neither front door has been opened.

44 Sliding/tilt sunroof\*

Automatic\* opening and closing

Press the switch past the resistance point briefly: the sunroof travels to either the fully-closed or fully-open position.

Other automatic operations are:

With the sunroof open, press the switch briefly toward "Lift:" the sunroof automatically extends to its fully raised position.
With the sunroof raised, press the switch briefly toward "Open:" the sunroof automatically extends to the "Open" position.

Pressing the switch again stops the motion immediately.

Safety feature

If the sliding/tilt sunroof encounters resistance at a point roughly past the middle of its travel when it is closing, the closing cycle is interrupted and the sunroof will open again slightly.

Despite this safety feature, be extremely careful to ensure that the closing path of the roof is not obstructed. Otherwise, triggering the closing-force limitation may not be ensured in some situations (with very thin objects, for instance). You can disable this safety feature by pressing the switch beyond the pressure point and holding it.

Sliding/tilt sunroof with glass moonroof\*

The options and control procedures are essentially the same as those previously described for the sliding/tilt sunroof. In order to open the raised roof, press the control switch towards "Open" until the roof has reached the desired position.

The headliner insert slides back somewhat when you raise the sunroof. When the sunroof is opened, the headliner retracts with it. The headliner will then automatically remain in its retracted position, but can be repositioned as desired.

Close-up of a computer monitor with a small button on the side panel, no visible text or symbols

Power loss or malfunction

Following a power interruption (if the battery is disconnected, for instance), the sunroof can only be raised in some circumstances. To correct this situation:

1 Raise the sliding/tilt sunroof fully. 2 Press and hold the switch for approx. 20 seconds.

In the event of an electrical system malfunction, the sliding/tilt sunroof can be manually operated. Refer to page 170.

Seat adjustment BMW M sports seat

For maximum safety when adjusting the seat position, please observe the following:

Never try to adjust your seat while driving the vehicle. The seat could cond with unexpected movement, the ensuing loss of vehicle control and lead to an accident.

Be sure that the safety belt remains firmly against your body at all times. In the event of a frontal impact, a loose lap belt could slide over your hips, leading to abdominal injury. In addition, the safety belt's restraint effectiveness is reduced if the belt is worn loosely.

Never travel with the backrest reclined to an extreme angle (especially important for front passengers). Keep the backrest relatively upright to minimize the risk of sliding under the safety belt and sustaining injury in the event of a crash.

Do not move the seats to the rear when the vehicle is at an extreme angle (on garage ramps or steep slopes, for example). If you do so, the automatic safety belt height adjustment can be disengaged.

Correct sitting posture

To reduce strain on your spinal column, sit all the way back in the seat and rest your back fully against the backrest.

The ideal sitting posture is achieved when your head is extended from your spine in a straight line.

For long-distance driving, you may wish to increase the angle of the backrest slightly to reduce muscular tension.

You should always be able to reach the highest point on the steering wheel without straightening your arms.

39mde009 1 2 3 4 5

1 Tilt angle (driver's seat only)
2 Backward/Forward adjustment
3 Cushion height
4 Backrest angle
5 Head restraint height Adjust the tilt angle of the head restraint manually by rotating it

BMW M sports seat

Close-up of a white electronic device with a small circular button and indicator lights (no visible text or symbols)

Lumbar support

You can adjust the backrest's contour for additional support in the curvature of your spine's lumbar region.

The upper hips and spinal column receive supplementary support to help you maintain a relaxed, upright posture.

Press the front/rear of switch: increase/decrease curvature.
Press the upper/lower end of the switch: curvature is shifted upward or downward.

Comply with the adjustment instructions on page 45. Failure to

do so could result in diminished personal safety.

Close-up of a computer mouse with a black scroll wheel and white scroll wheel, showing no text or symbols.

Thigh support

You can also adjust the thigh support to correspond with your personal comfort.

Silhouette of a person wearing a helmet, standing in front of clothing (no visible text or symbols)

Head restraints

Adjust the angle of the front head restraint by rotating it forward or back. Adjust the height of the rear head restraint by pulling it up or pushing it down.

Head restraints reduce the risk of spinal injury in the event of an dent.

Adjust the head restraint so that its center is approximately level with your ears.

Leave the center-rear head restraint in the fully-lowered position at all times. Extending it limits its function.

BMW comfort seat\*

380de024 1 2

This seat allows you to make additional adjustments with the power seat system (see under BMW M sports seat, page 45) for

1 Lumbar support
2 Shoulder support

Lumbar support

See under BMW M sport seat on page 46.

Interior view of a vehicle seat with a circular arrow pointing to the side (no visible text or symbols)

Shoulder support

Press the rocker switch to adjust the tilt angle of the shoulder support.

You can use the adjustable upper back-rest for supplementary support in the shoulder region. This provides a relaxed driving position and helps relieve stress on the shoulder muscles.

To obtain the optimal shoulder support setting, we recommend:

Driver and front passenger:

1 Adjust the upper backrest section to its extreme rear position.
2 Adjust the seat to the optimal position as described on page 45.
3 Bring the upper backrest section forward until your shoulders enjoy firm support.

Front passenger's seat adjustment for relaxed traveling:

1 Adjust the upper backrest section to its extreme rear position.
2 Increase the seat cushion tilt.
3 Tilt the backrest somewhat further.
4 Bring the upper backrest section forward.

Make corrections in the forward/backward adjustment of the seat

to ensure that the safety belt still fits firmly against your body. If you do not do this, the protection provided by the safety belt may be reduced.

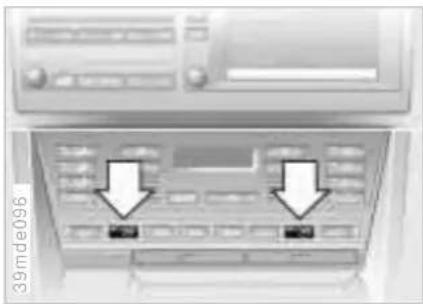

BMW active seat\* Adjusting the steering wheel

39mde096

Active changes in the seat's surface help to avoid muscle cramps, pain in the spine's lumbar region and fatigue. To activate the seat, press the button (arrow).

For additional details concerning the BMW active seat, please refer to the chapter describing "Advanced technology" on page 177.

Close-up of a car wheel with a black connector and directional arrows indicating movement (no text or symbols)

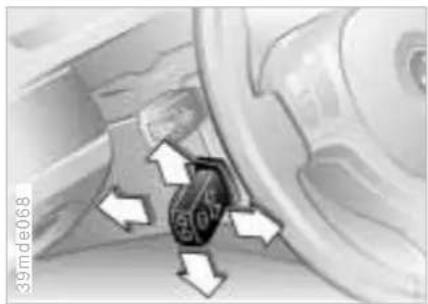

The steering wheel can be moved in any of four directions. Adjust by moving the control lever in the desired direction.

Do not adjust the steering wheel while the vehicle is moving. There is a risk of accident from unexpected movement.

To store the steering wheel setting, refer to "Seat, mirror and steering wheel memory" on page 50.

Automatic steering wheel adjustment

In order to make it easier to get into and out of the vehicle, the steering wheel automatically moves into the top position and returns to the driving (memory) position.

This automatic feature is controlled by the position of the ignition key and by the driver's door.

Your BMW center can adjust your vehicle's systems in such a manner that your personalized setting is automatically called up for the steering wheel position when you unlock the vehicle with your personal key.

Mirrors

390us605 1 2

Exterior mirrors

1 Switch for 4-way adjustment
2 Selection switch for changing between mirrors

You can also adjust the mirrors manually by pressing against the outer edges of their lenses.

To store the mirror settings, refer to "Seat, mirror and steering wheel memory" on page 50.

The mirror on the passenger's side features a lens with a more convex surface than the mirror installed on the driver's side. When estimating the distance between yourself and other traffic, bear in mind that the objects reflected in the mirror are closer than they appear. This means that estimations of the distance to following traffic should not be regarded as precise.

Your BMW center can adjust your vehicle's systems in such a manner that your personalized setting is automatically called up for the mirror position when you unlock the vehicle with your personal key.

Electric heaters

Both mirrors are automatically defrosted with the ignition key in position 2.

Close-up of a mechanical component with a circular dial and an arrow pointing to a hole (no visible text or symbols)

Interior and exterior mirrors, automatic dimming feature

By responding to the effects of ambient light and the glare from following traffic, these mirrors dims automatically through an infinitely-variable range.

The mirrors automatically revert to their clear, undimmed setting whenever you engage reverse gear.

To ensure that the mirrors continue to operate properly, keep the two photocells in the interior mirror clean and unobstructed. One photocell (arrow) is in the mirror glass, while the other is offset somewhat on the opposite side of the mirror.

For an explanation of the electro- chromic technology used in this mirror, refer to page 179.

Mirrors Seat, mirror and steering wheel memory

Close-up of a kitchen appliance with a circular dial and a hanging button (no visible text or symbols)

Sun visors

The sun visors can be folded down toward the windshield or swiveled out against the side windows.

Lighted vanity mirror

Fold down the sun visor and slide the cover panel to the side as required.

The mirror lamps operate in ignition key positions 1 and 2.

MEMORY 3 2 1 390de032

You can store and call up three different seat, exterior mirror and steering wheel positions. The illustration shows the buttons on the driver's door, for making these position adjustments.

The adjustment setting for the lumbar support is not saved in the memory.

To store

1 Turn the key to ignition key position 1 or 2.
2 Adjust the desired positions for the seat, door mirror and steering wheel.
3 Press the MEMORY button: the indicator lamp in the button lights up.
4 Press memory button 1, 2 or 3, as desired: the indicator lamp goes out.

To select a stored setting

Convenience function:

1 Open the driver's door after unlocking or put ignition key in position 1.
2 Briefly press memory button 1, 2 or 3, as desired.
Movement stops immediately when one of the seat-adjustment or memory buttons is activated during the adjustment process.

Safety function:

1 With the driver's door closed and ignition key either removed or in position 0 or 2.
2 Maintain pressure on desired memory button 1, 2 or 3 until the adjustment process is completed.
If you press the MEMORY button accidentally: press the button a second time, the indicator lamp goes out.

Do not call up a position from the memory while the vehicle is ng. There is a risk of accident from expected movement of the seat or ring wheel.

Seat, mirror and steering wheel memory

Your BMW center can adjust your vehicle's systems in such a manner that your personalized settings are automatically called up for the seat, mirror and steering wheel positions when you unlock the vehicle with your personal remote control key.

If you make use of this setting mode, be sure that the footwell behind the driver's seat is unobstructed before unlocking the vehicle. Otherwise, persons or objects could be injured or damaged should the seat move backward.

Illustration of a stylized hand holding a small object, possibly a device or tool, with no visible text or symbols.

Passenger side exterior mirror tilt function

(automatic curb monitor)

1 Move the mirror selector switch (arrow) to the "driver's mirror" position.
2 When reverse gear is engaged, the passenger-side mirror tilts downward. This brings the area directly adjacent to the vehicle (curbs, etc.) into the driver's field of vision as an aid during parking.

You can deactivate this automatic feature by setting the mirror selection switch to the "passenger-side mirror" position.

Car Memory, Key Memory

Diagram showing a car key being processed into a segmented container with a curved arrow indicating motion (no text or symbols)

How the system functions

You have probably frequently wished that you could configure individual functions of your vehicle to reflect your own personal requirements. In developing this vehicle, BMW has "built in" a few options that, should you so desire, your BMW center can adjust for you.

There are settings related to the vehicle ("Car Memory") and settings related to individuals ("Key Memory"). You can configure two different basic settings for two different persons. The only requirement is that each person uses his or her own remote control key.

When your vehicle is unlocked with the remote control, the vehicle recognizes the individual user by means of a data exchange with the key, and makes adjustments accordingly.

In order for you to distinguish between different keys, colored decals are supplied together with the keys.

What the system can do

Your BMW center can provide you with details on the capabilities of the Car Memory and Key Memory systems.

You will see this symbol throughout the Owner's Manual. It is to remind you at appropriate places of the settings that are available to you.

An example for Key Memory is the automatic adjustment of the driver's power seat with stored settings for the individual person when the vehicle is unlocked.

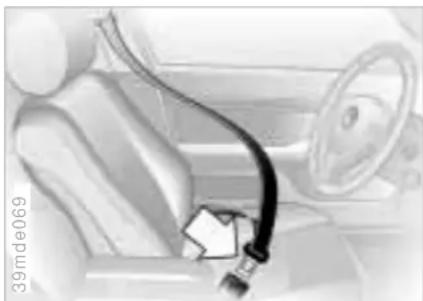

Safety belts

Close-up of a car interior with a black cable and connector, no visible text or symbols

Drive with your safety belt on

Fasten your safety belt at the beginning of every trip.

To fasten: make sure you hear the catch engage in the belt buckle.

To release: press the red button in the buckle. Hold the belt and guide it back into its reel.

The shoulder belt anchor automatically adjusts to continue providing an optimum fit when you move the seat forward or back.

For care instructions, refer to page 149.

The two safety belt buckles that are integrated in the rear seat are for passengers sitting on the left and right. The belt buckle with the word "CENTER" (in the red button) is intended exclusively for a passenger sitting in the middle.

For your safety, comply with the following instructions for wearing safety belts. If you do not, the safety belts may not be able to provide their maximum protection. The following information also applies to your passengers:

Never allow more than one person to wear a single safety belt. Never allow infants or small children to ride in a passenger's lap.

Avoid twisting the belt while routing it firmly across the hips and shoulder, wear it as snugly against your body as possible. Do not allow the belt to rest against hard or fragile objects. Never route the belt across your neck, do not run it across sharp edges and ensure that the belt does not become caught or jammed.

Avoid wearing bulky clothing that prevents the belt from fitting properly. Pull on the belt periodically to readjust

the tension over your shoulder. In the event of a frontal impact, a loose lap belt could slide over your hips, leading to abdominal injury. In addition, the safety belt's restraint effectiveness is reduced if the belt is worn loosely. Expectant mothers should always wear their safety belts, taking care to position the lap belt against the lower hips, where it will not exert pressure against the abdominal area.

Vehicles with through-loading system*: please read and comply with the instructions for the center safety belt on page 111.

If the safety belt system has been subjected to the stresses involved in an accident or otherwise damaged: have the entire safety belt mechanism replaced by your BMW center, including the safety belt tensioner. In addition, have your BMW center inspect the safety belt anchors. If a child restraint system was in the vehicle during an accident, consult the manufacturer's instructions regarding replacement.

54 Safety belts Airbags

Child restraint systems\*

Never install a rear-facing child restraint device on the front passenger seat. Otherwise, injuries could occur when the airbag is triggered in the event of an accident. Children should always ride in the rear and the restraint systems should be secured with the outer belts.

The center seat belt should only be used when it is necessary to secure three child restraint systems.

Do not attempt to modify child restraint systems. If you do this, the protection provided by these systems could be impaired.

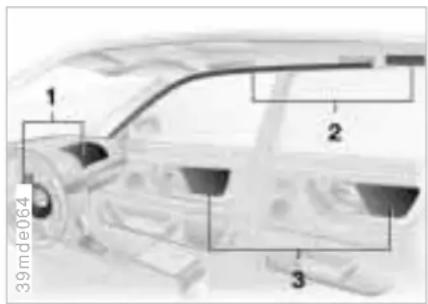

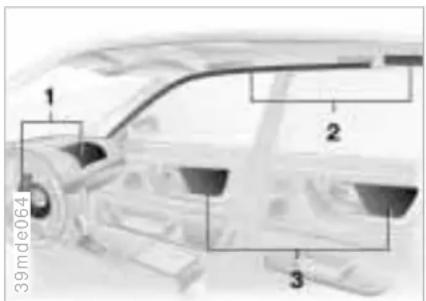

39mde064 1 2 3

1 Front airbags on the driver and passenger sides
2 Head airbags on the driver and passenger sides (front and rear*)
3 Side airbags on the driver and passenger sides (front and rear*)

Protective effect

The front airbags protect the driver and passenger in the event of a severe frontal collision in which the protection afforded by the belts alone may no longer be sufficient. The head protection and side airbags help provide protection in the event of a collision from the side. Each of the side airbags is designed to help support the upper body.

The side airbags in the rear passenger area* of your vehicle already have been deactivated, or at the time of manufacture or by a BMW center. You may have them acti- d if you desire to do so. Please act your BMW center for additional mation.

Airbags

Illustration of a car with directional arrows indicating movement or orientation (no text or symbols)

The illustration schematically depicts the primary directions of vehicle impact that initiate an airbag deployment.

The airbags will not be triggered in the event of a minor accident, a

vehicle roll-over, or an impact from the rear.

Functional status

The indicator lamp in the instrument cluster displays the operational status of the airbag

system with the ignition key in position 1 and higher.

System operational:

The indicator lamp comes on briefly then goes out.

System malfunction:

The indicator lamp fails to come on.
The indicator lamp comes on briefly before going out and then lighting up again.

A system malfunction could prevent the system from responding to an impact occurring within its normal response range.

Have the system checked by a BMW center immediately.

Sitting correctly with airbags

For your own safety, please observe the following precautions

concerning airbags. If you do not, their protective function may be impaired and your personal safety in jeopardy. This information applies to all vehicle occupants:

Even though there is an airbag, wear a safety belt every time you get in the vehicle, because airbags enhance safety by providing added protection. Make sure you are seated comfortably in your seat in such a way that you always maintain control, and are not too close to the steering wheel.

Always hold the steering wheel by the rim to keep any chance of injury to hands or arms to an absolute minimum should the airbag be deployed.

No one and nothing is to come between the airbag and the seat occupant. Do not use the cover panel above the front passenger-side airbag as a storage area.

Airbags

Never tape the airbag cover panels, cover them over or alter them in any other way.

Do not install a rear-facing child restraint system in the front passenger seat of this vehicle. Children under 13 years of age and children less than 5 ft (150 cm) tall should only ride in the rear seat.

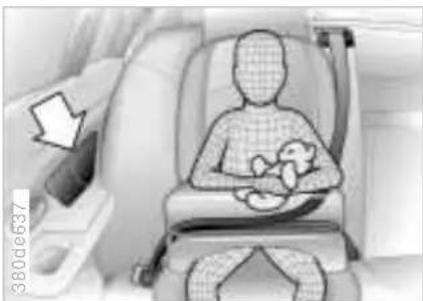

If your vehicle is equipped with side airbags in the rear passenger area, be sure that child restraints are mounted correctly and provided with the greatest-possible distance between the airbags in the side trim panels. Do not allow children to lean out of the child seat in the direction of the side trim panels. Otherwise, serious injuries could occur if the airbag is triggered (if activated per customer request).

At all times, occupants should sit upright and be properly restrained (infants and small children in appropriate child restraint systems; larger children and adults using the safety belts). Never let an occupant's head rest near or on a side airbag because the inflating airbag could cause a serious or fatal injury. Please note that the word "Airbag" imprinted on the door trim panel indicates the airbag's location. Accident research shows that the safest place for children in an automobile is in the rear seat. However, a child sitting in the rear seat and not properly restrained may place his or her head on or near the side airbag, if so equipped. For example, a child – even though belted – may fall asleep with his or her head against the side airbag. It may be difficult for a driver to ensure that children in the rear seat will remain properly positioned at all times and not place their heads on or near the side airbag.

Therefore, we recommend that the rear-seat side airbags, if provided, be deactivated if children will be travelling in the rear seat.

The rear seat side airbags may already have been deactivated, either at the time of manufacture or by a BMW center. Labels in the rear door opening should indicate the status of your rear seat side airbags. If you are uncertain of their status, or wish to have the airbags activated or deactivated, please contact your BMW center.

Airbags

Even when all these guidelines are observed, there is still a small residual risk of injuries to the face, hands and arms occurring from airbag deployment in isolated instances.

The ignition and inflation noise may provoke a mild temporary hearing loss in extremely sensitive individuals.

Airbag warning information is also provided on the sun visors.

For additional information concerning the airbag system, refer to pages 151 and 176.

Interior view of a car seat with a person seated and a baby on the seat, showing no text or symbols.

This is the right way for a child to sit in a child restraint when rear side airbags (arrow) are provided.

Interior view of a car seatbelt with a person holding a baby (no text or symbols visible)

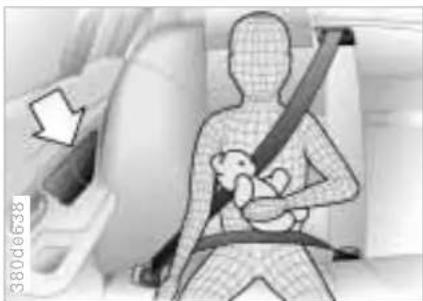

This is the right way for a larger child to sit wearing the safety belt when rear side airbags (arrow) are provided.

Transporting children safely

Top-down view of a car chassis with visible structural elements and directional arrows (no text or symbols)

Commercially-available child restraint systems are designed to be secured with a lap belt or with the lap belt portion of a combination lap/shoulder belt. Improperly or inadequately installed restraint systems can increase the risk of injury to children. Always read and follow the instructions that come with the system.

If you use a child restraint system with a tether strap, three additional tether anchorage points have been provided (refer to the arrows in the illustration). Depending on the location selected for seating in the rear passenger area, attach the strap hook to the corresponding anchorage point to secure the child restraint system.

Adjust the tether strap according to the child restraint manufacturer's instructions.

Before installing any child restraint device or child seat, please read following:

Never install a rear-facing child restraint system in the front passenger seat of this vehicle.

Your vehicle is equipped with an airbag supplemental restraint system for the front passenger. Because the backrest on any rear-facing child restraint system (of the kind designed for infants under 1 year and 20 lbs/9 kg) would be within the airbag's deployment range, you should never mount such a device in the front passenger seat, since the impact of the airbag against the child restraint's backrest could lead to serious or fatal injuries.

Transporting children safely

If it is necessary for a child (not an infant) to ride in the front seat, certain precautions should be taken. First, move the passenger seat as far away from the dashboard as possible. This important precaution is intended to maximize the distance between the airbag and the child. Older children should be tightly secured with a safety belt.

Younger children should be secured in an appropriate forward-facing child restraint system that has first been properly secured with a safety belt. Never install a rear-facing child restraint system in the front passenger seat. We strongly urge you to carefully read and comply with the instructions for installation and use provided by the child restraint's manufacturer whenever you use such a device.

Be sure that all occupants (of all ages) remain properly and securely restrained at all times.

All rear seating positions in your vehicle meet the recommendations of SAE J1819, an industry-recommended practice for securing child restraint systems in motor vehicles.

Transporting children safely

Interior view of a vehicle cabin with a seat and dashboard (no visible text or symbols)

Unlock the safety belt

Release the safety belt, remove the child's seat and retract the safety belt to its end position on the belt retractor.

Close-up of a mechanical component with arrows indicating motion or force direction (no visible text or symbols)

Child seat security

All of the rear belt retractors and the front passenger's safety belt can be locked for mounting and securing child restraint systems.

Information regarding this is located near the buckle latch of each safety belt.

Lock the safety belt

Pull the entire length of the belt from the belt retractor. Allow the reel to retract the belt somewhat and engage the buckle, then tighten the belt against the child restraint system. The retraction mechanism is now locked.

Child-safety locks

Insert the key into a rear door lock and turn it outward:

The door can now be opened from the outside only.

Steering/Ignition lock

390de010 3 2 1 0

0 Steering lock engaged

The key can be inserted and removed in this position only.

An acoustic warning is sounded when you fail to remove the ignition key after opening the driver's door.

After removing the key, turn the steering wheel slightly to the left or right until you hear the lock engage.

Once the ignition has been switched off (ignition key in position 0 or pulled out), the radio functions are still available for approx. 20 minutes. Turn the radio back on to use it.

1 Steering lock disengaged

Turning the steering wheel slightly to the right or left often makes it easier to turn the key from 0 to 1. Individual electrical accessories are ready for operation.

2 Ignition on

All electrical equipment and accessories are available for use.

3 Starting the engine

Starting the engine Switching off the engine

Before starting

Engage the parking brake.
Move the shift lever to the neutral position.
Depress the clutch pedal.

Do not allow the engine to run in enclosed spaces. The exhaust gases contain carbon monoxide, an odorless and colorless, but highly toxic gas. Breathing the exhaust gases poses an extreme health risk, and can lead to unconsciousness and death.

Never leave the vehicle unattended with the engine running. An unattended vehicle with a running engine represents a potential safety hazard.

Starting the engine

Start the engine. Do not press the accelerator pedal.

Do not actuate the starter for too short a time. Do not turn it for more than approx. 20 seconds. Release the ignition key immediately as soon as the engine starts.

Do not allow the engine to warm up by leaving it running while the vehicle remains stationary. Instead, begin driving immediately at a moderate engine speed.

If the engine does not start on the first attempt (the engine is very hot or cold, for instance):

Press the accelerator pedal halfway down while engaging the starter.

Cold starts at very low temperatures, from approx. +5 °F (-15 °C) and at altitudes above 3,300 ft (1,000 m):

On the first start attempt, engage the starter for a longer period (approx. 10 seconds).

Press the accelerator pedal halfway down while engaging the starter.

Engine idle speed is controlled by the engine computer system. Increased speeds at startup are normal and should decrease as the engine warms up. If engine speed does not decrease, service is required.

To prevent the battery from discharging, always switch off any electrical devices not in use, as well as the ignition when the vehicle is not being driven.

Turn the ignition key to position 1 or 0.

Do not remove the ignition key while the vehicle is still moving. If you do so, the steering will lock, making it impossible to steer the vehicle. When you leave the vehicle, always remove the ignition key and engage the steering lock.

Always engage the parking brake when parking on slopes and inclined surfaces, since not even placing the lever in 1st gear or reverse may not provide adequate resistance to rolling.

Parking brake

Close-up of a mechanical component with a black handle and white arrow, possibly part of a robotic arm or tool (no visible text or symbols)

The parking brake is primarily designed to prevent the vehicle from rolling while parked. It operates against the rear wheels.

To engage

The lock engages automatically when you lift the lever, and the "PARK BRAKE" (in Canada "P") indicator lamp comes on in the instrument cluster in ignition key position 2. Refer to page 21.

To release

Pull up slightly on the lever, press the button and lower the lever.

If, in exceptional circumstances, it should be necessary to engage the parking brake while the vehicle is in motion, do not pull it with excessive pressure. Keep your thumb pressed against the release button while carefully pulling up the lever to apply moderate pressure.

Excessive pressure can lead to overbraking and loss of traction (fishtailing) at the rear axle.

The brake lamps do not come on when the parking brake is engaged.

Always engage the parking brake when parking on slopes and inclined surfaces, since even placing the lever in 1st gear or reverse may not provide adequate resistance to rolling.

To avoid corrosion, apply the parking brake lightly from time to time when coasting to a standstill (at a traffic signal, for instance), provided that it is safe to do so.

Manual transmission

R 1 3 5 LIM 2 4 6 39mde017

Every time you shift gears, always depress the clutch pedal all the way down, pushing the manual-shift gear lever into the desired position.

Alos, depress the clutch when starting the vehicle, as otherwise lockout will prevent the engine from starting if the clutch is not depressed.

The shift lever's neutral gate is located between 3rd and 4th gears.

When shifting from each gear into "Neutral," the shift lever returns automatically to this neutral position because of its spring loading.

When the vehicle lighting is switched on, the shift pattern is illuminated on the shift lever.

When shifting gears in the 5th/6th-gear plane, be sure to press the shift lever to the right in order to prevent inadvertent selection of a gear in the 3rd/4th-gear plane.

Reverse

Select "Reverse" only when the vehicle is stationary. Press the shift lever to the left to overcome a slight resistance.

As you do this, the backup lamps will turn on automatically when the ignition key is in position 2.

Do not hold the vehicle in place on slopes by slipping or "riding" the clutch. Use the parking brake instead. A slipping clutch increases clutch wear.

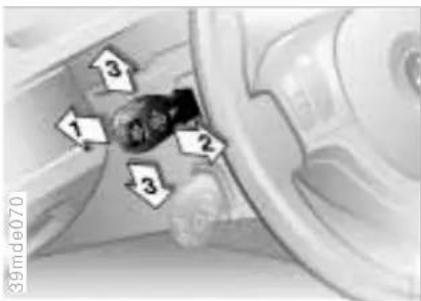

Turn signal/Headlamp flasher

39mde070 1 2 3 3

1 High beam (blue indicator lamp)
2 Headlamp flasher (blue indicator lamp)
3 Turn signal indicator (green indicator lamp accompanied by periodic clicking sound from the relay)

If the indicator lamp and the "ticking" from the relay are both faster than normal, one of the turn indicators has failed.

To signal briefly

Press the lever up to but not beyond the detent. It then returns to the center position when released.

Washer/Wiper system

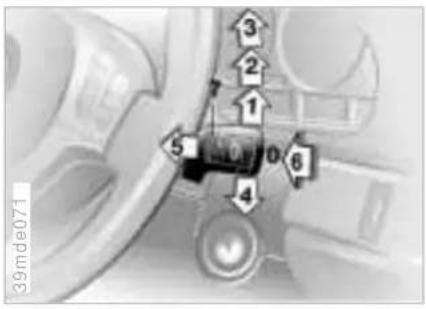

39mde071 1 2 3 4 5 6 0

0 Wipers retracted

1 Intermittent mode or rain sensor *
2 Normal wipe
3 Fast wipe
4 Brief wipe
5 Cleaning windshield
6 Intensive cleaning*
7 Rotary dial for control of the wipe interval or the sensitivity of the rain sensor

1 Intermittent mode or rain sensor\*

Intermittent mode:

You can set the wipe interval to four stages with rotary dial 7. In addition, the wipe interval automatically adapts to variations in road speed.

Rain sensor:

When the rain sensor is activated, the windshield wiper is controlled automatically, depending on the degree of wetness of the windshield (in both snow and rain). You do not have to be concerned with switching the windshield wiper on or off or adjusting the wipe interval between intermittent and full wipe. Instead, you can concentrate fully on the traffic conditions. The is especially important under adverse weather conditions.

The rain sensor is positioned on the windshield, directly ahead of the interior rearview mirror.

To activate the rain sensor:

Move the lever to position 1 with the ignition key in position 1 or higher. The wipers travel once across the windshield, regardless of the weather conditions.

You can also leave the lever permanently in position 1. It is then only necessary to activate the rain sensor from ignition key position 1 and higher. To do this

turn rotary dial 7 briefly or use either the cleaning windshield 5 or the intensive cleaning 6.

To adjust the sensitivity of the rain sensor:

Turn rotary dial 7.

Deactivating the rain sensor: Move lever into position 0.

Deactivate the rain sensor in automatic car washes. If you do not, damage may occur if the wipers switch on unintentionally.

Washer/Wiper system

39mde071 1 2 3 4 5 6

2 Normal wiper speed

When the vehicle is stationary, the wipers switch automatically to intermittent wipe (not on vehicles with rain sensor).

3 Fast wiper speed

When the vehicle is stationary, the wipers operate at normal speed (not on vehicles with rain sensor).

5 Cleaning windshield

The system sprays washer fluid against the windshield and activates the wipers for a brief period.

If you pull the lever only briefly, the system sprays washer fluid onto the windshield without activating the wipers.

6 Intensive cleaning\*

As at 5. In addition, an intensive-action washer fluid is first sprayed on the windshield.

For changing the wiper blades, refer to page 156.

Cleaning headlamps\*

If the headlamps are on, they will also be cleaned every fifth time you activate cleaning windshield 5 or intensive cleaning 6.

Do not use the washers if there is any danger that the fluid will

freeze on the windshield. If you do so, your vision could be obscured. For this reason, use an antifreeze agent. Refer to page 138. Do not press the washer lever if the supply tank is empty. If you do so, the washer pump will be damaged.

Windshield washer jets

The windshield washer jets are warmed automatically when the ignition key is in position 2.

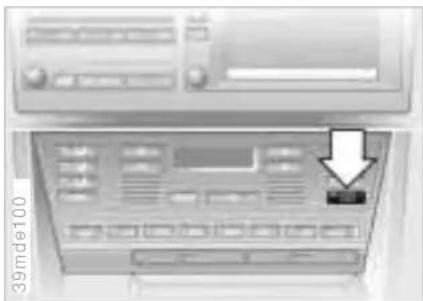

Rear window defroster Cruise control

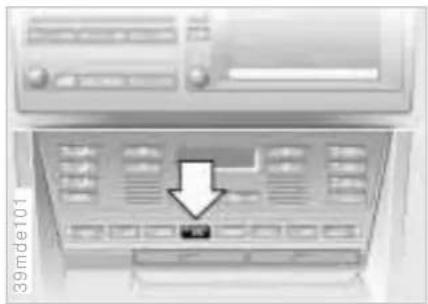

Front view of a computer control panel with a black button and arrow pointing to it (no visible text or symbols)

To activate

Press the button: as long as the indicator lamp remains on, the rear window defroster continues at high-output (rapid thaw).

After the indicator lamp goes out, the defroster continues operating at reduced power for a limited period before deactivating automatically.

To deactivate

If the indicator lamp is still on, press the button.

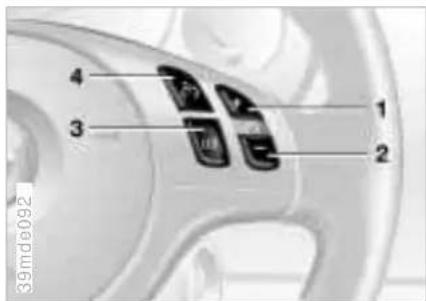

39mde092

You can store and automatically maintain any desired vehicle speed above approx. 20 mph (30 km/h).

1 Accelerate and store
2 Decelerate and store
3 Activate/interrupt/deactivate the system
4 Recall the stored speed

Do not use cruise control on winding roads, when high traffic

density prevents driving at a constant speed, when the road surface is slick (snow, rain, ice), or when the road surface is loose (rocks, sand).

To activate the system

From ignition key position 2.

Press button 3. The indicator lamp in the instrument cluster comes on. You can now use the cruise control.

To deactivate the system

In the activated state: press button 3 twice.
When the cruise control has been interrupted: press button 3 once.

Turn the ignition key to position 0.

The indicator lamp goes out and the stored speed is deleted.

Cruise control

39mde092 1 2 3 4

To store and maintain speed or to accelerate

Press button 1 briefly:

The system registers and maintains the current vehicle speed. Every time you briefly touch the button, the speed increases by approx. 0.6 mph (1 km/h).

Press and hold button 1:

The vehicle accelerates without pressure on the accelerator pedal. When you release the button, the system registers and maintains the current speed.

If, on a downhill gradient, the engine braking effect is not sufficient, the controlled speed can be exceeded. Speed can drop on uphill grades if the engine output is insufficient.

To decelerate

Press button 2 briefly:

With the cruise control active, every brief touch of the button reduces the speed by approx. 0.6 mph (1 km/h).

Press and hold button 2:

With the cruise control active, the system automatically reduces the throttle opening to slow the vehicle. When you release the button, the system registers and maintains the current speed.

To cancel the cruise control

When the system is activated, press button 3. The indicator lamp stays on.

If you like, you can use the cruise control at a later time by pressing button 4 to resume the last stored speed.

In addition, cruise control is canceled automatically

▷ if the brakes are applied,
▷ when you depress the clutch pedal,
or if the cruise speed is either exceeded or not met for an extended length of time (if you depress the accelerator pedal and exceed the set speed, for example).

To resume the stored setting

Press button 4:

The vehicle accelerates to and maintains the last speed stored.

Odometer, outside temperature display

39mus022 034682 +70.0°F

Odometer

You can activate the displays shown in the illustration with the ignition key in position 0 by pressing the button in the instrument cluster (arrow).

The range of available displays varies according to your individual vehicle's equipment.

Trip odometer

To reset the trip odometer to zero, press the button (arrow) with the ignition key in position 1 or higher.

Outside temperature display

The outside temperature appears in the display panel from ignition key position 1 and higher.

You can change the units of measurement (°C/°F) by

1 pressing and holding the button (arrow) with the ignition key in position 1
2 and then turning the ignition key to 0.

Ice warning

If the outside temperature drops to approx. +37.5 °F (+3 °C), a signal is sounded as a warning and the display flashes for a brief period. The warning is repeated whenever the temperature climbs to at least +43 °F (+6 °C) following the last warning and then drops back to +37.5 °F (+3 °C).

The ice warning does not alter the fact that surface ice can form at theratures above +37.5 °F (+3 °C), ridges or shaded road surfaces, for nce.

Tachometer Engine oil temperature Fuel gauge

1/min ±2000 39mus023

The orange early warning zone appears depending upon the engine temperature. As the engine temperature increases, more and more sectors of this early warning zone disappear.

Avoid engine speeds in the early warning zone if possible.

Do not operate the engine with the needle in the red overspeed zone of the gauge.

To protect the engine, the engine-management system automatically interrupts the fuel supply in this range; the resulting effect resembles that associated with a sudden loss of power.

Close-up of a speedometer gauge with no visible text or symbols on the dial face (pure technical drawing)

The normal operating temperature is in a range between +176 °F (+80 °C) and +248 °F (+120 °C). Do not exceed the maximum temperature of +302 °F (+150 °C).

1/2 UNLEADED 0 1/1 GASOLINE ONLY 39mus025

When you switch on the ignition, the indicator lamp comes on briefly to confirm that the system is operational.

If the indicator lamp comes on and stays on, there are approx. 2.5 gal (10 liters) of fuel still in the tank.

For fuel tank capacity, refer to page 186. If the tilt of the vehicle varies (when you are driving in mountainous areas, for example), the needle may fluctuate slightly.

Please refuel early, as driving to the last drop of fuel can result in age to the engine and/or catalytic enter.

Coolant temperature Service Interval Display

Close-up of a circular industrial control dial with indicator lights and a thermometer, no readable text or symbols beyond the label.

Blue

The engine is still cold. Drive at moderate engine and vehicle speeds.

Red

If the warning, "COOLANT TEMPERATURE" appears in the Check Control: the engine is overheated. Shut off the engine immediately and allow it to cool down.

Between the blue and red zones

Normal operating range. It is not unusual for the needle to rise as far as the edge of the red zone in response to high outside temperatures or severe operating conditions.

Checking coolant level: page 141.

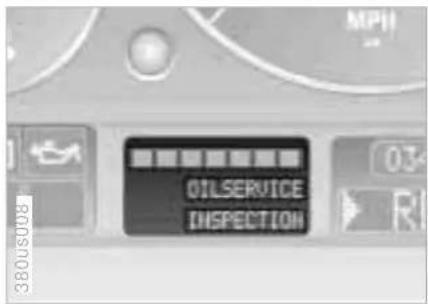

MPH 03- 380us008 OTLSERVICE INSPECTION

Green lamps

The number of illuminated lamps decreases as the time for your next maintenance visit approaches.

Yellow lamp

This field appears together with OILSERVICE or INSPECTION.

Maintenance is due. Please contact your BMW center for an appointment.

Red lamp

The maintenance deadline has been passed.

Check Control

39mus027 1 2 3 RELEASE PARKINGBRAKE

Text messages are used to alert the driver to system malfunctions with the ignition key in position 2 and higher. The alert is accompanied by a gong.

1 Status symbol for messages
2 Display
3 CHECK button

Messages concerning system faults are differentiated based on two priorities:

Priority 1

These defects are immediately indicated by a gong and a flashing warning symbol (1). Simultaneous defects will be displayed consecutively. These status messages remain in the display until the defects are corrected. They cannot be deleted by pressing the CHECK button (3):

"RELEASE PARKING BRAKE"

"COOLANT TEMPERATURE" The coolant is overheated. Stop the vehicle and switch off the engine immediately. Refer to page 141.
"STOP! ENGINE OILPRESS" The oil pressure is too low. Stop the vehicle and switch off the engine immediately. Refer to page 139.

"CHECK BRAKE FLUID"

The level has dropped nearly to the minimum. Top up the brake fluid at the next opportunity. Refer to page 142. Have the source of the brake fluid loss diagnosed and corrected by your BMW center.

"FLAT TIRE"

Reduce vehicle speed immediately and stop the vehicle. Avoid hard brake applications. Do not oversteer. Refer to page 89.

"LIMIT"

This is displayed if the programmed speed limit has been exceeded.

Check Control

Priority 2

These displays appear for 20 seconds with the ignition key in position 2 and higher. The warning symbols remain after the message disappears. You can display the messages again by pressing the CHECK button 3.

"TRUNK LID OPEN"

This message appears only when you initially begin a trip.

"DOOR OPEN"

This message appears after a minimal defined road speed has been exceeded.

"FASTEN SEAT BELTS"

In addition to this message, an indicator lamp with the safety belt icon appears and an acoustical signal is sounded.

"WASHER FLUID LOW"

Too low; top up fluid at the next opportunity. Refer to page 138.

"CHECK ENGINE OIL LEV"

The oil level is at the absolute minimum, therefore add engine oil as soon as possible. Refer to page 139. Until then, do not drive more than approx. 30 miles (50 km).

"TIRE PRESSURE SET"

The RDW has transferred the current inflation pressure in the tires as the target values that the system will monitor. Refer to page 88.

"TIRE CHECK INACTIVE"

This indicates a temporary interference in the RDW or a system fault. Refer to page 89.

"CHECK BRAKE LAMPS"

A lamp has failed or the electrical circuit has a fault. Refer to page 159 and 168 or consult a BMW center.

"CHECK LOWBEAM LAMPS" "CHECK SIDE LAMPS"

"CHECK REAR LAMPS"

"CHECK FRONT FOGLAMPS"*

"CHECK LICPLATE LAMP"

"CHECK HIGHBEAM LAMP"

"CHECK BACK UP LAMPS"

Defective bulb or circuit. Refer to pages 157 ff. and 168 or consult a BMW center.

"CHECK BRAKE LININGS"

Have the brake linings checked by your BMW center. Refer to page 124.

"CHECK COOLANT LEVEL"

The coolant level is too low; top up at the next opportunity. Refer to page 141.

"CHECK FILLER CAP"

Check whether the fuel filler cap has been properly closed. Refer to page 25. An improperly closed fuel filler cap will activate the Service Engine Soon lamp.

"ENGINE FAILSAFE PROG"

There is a fault in the engine's electronic control system.

The electronics allow for continued driving with reduced engine output and engine speed.

Please have the system inspected by your BMW center.

"OUTSIDE TEMP 24 °F (-5.0 °C)"

This temperature display is only an example. The current temperature is displayed at outside temperatures of 37.5^ F (+3°C) and below. Refer also to page 69.

74 Check Control

Displays after completion of a trip

All of the malfunctions registered during the trip appear consecutively when the key is turned to position 0.

The following displays will appear when appropriate:

"LIGHTS ON"

This display appears when you open the driver's door after parking the vehicle.

"KEY IN IGNITION LOCK"

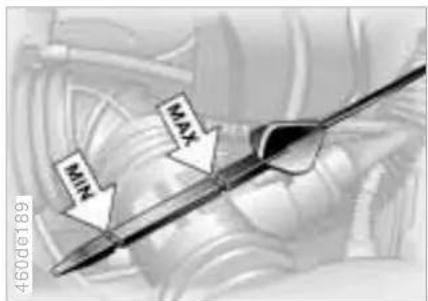

"CHECK ENGINE OIL LEV" Check the engine oil at the earliest opportunity (next stop for fuel). Refer to page 139.

Status messages remain available for a period of approx. three minutes after the display goes out and the key is removed from the ignition. Press the CHECK button (3) to display these messages. If there were multiple messages, press the CHECK button repeatedly to view them all in sequence.

To check the Check Control

Press the CHECK button (3) with the ignition key in position 2:

CHECK CONTROL OK appears in the display.

There are no faults in the monitored systems.

You can have the Check Control messages displayed in a different

language.

Multi-Information Display (MID)

Central display

The MID serves as the central display and control for the following onboard systems:

Digital clock (e.g. time displayed in digital numerals, date)
▶ Audio-systems (radio, cassette, CD)
Computer (e.g. fuel consumption, cruising range)
▶ Cellular phone (e.g. dialing)

You will find explanations and notes for operating the digital clock and the computer on the following pages. Please refer to the separate Owner's Manual on operating the audio-systems, the cellular phone and the onboard monitor.

Any unrealistic number entries will not be accepted.

All stored data will be lost if the power supply is interrupted. Time of day, switch-on times for independent heating and ventilation, distance and cruise control speed limit must be reset, once the power supply has been re-established.

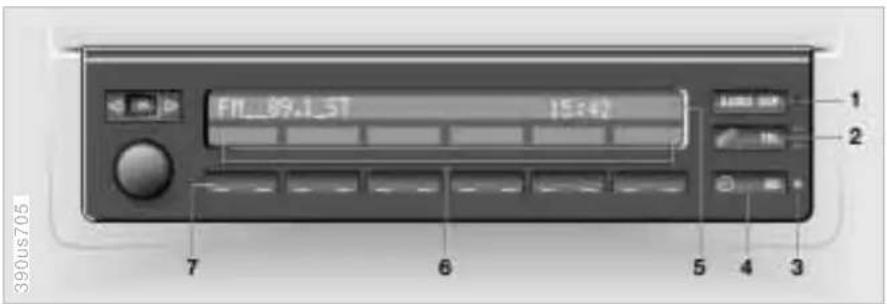

390us705 FHL_89.1_5T 15:42 1 2 7 6 5 4 3

1 Function button for sound systems
2 Function button for the cellular phone*
3 Indicator lamp for independent ventilation system
▶ remains on if switch-on time is active
▶ flashes while operating
4 Function button for the digital clock and computer
5 Indicator display for the various computer systems

6 Display for the entry and check buttons. Depending on the operating mode, the functions and alternatives which can be selected via the keys are displayed here
7 Entry and check buttons for operating the various computer systems

Digital clock

Only make entries when the vehicle is standing still – to avoid

endangering yourself or other road users.

To display time or date

Press the left side of the key.

Display shows:

You can have the clock time displayed in 12 or 24 hours.

To change the display:

Press the left side of the key.

If the 12-hour clock display is in use, AM or PM appear after the time.

Changing the time display

Press the left side of the key.

Press the right side of the key: The dots flash in the display.

To alter the setting:

Press on the left or right, or keep holding down.

To store the input:

Press the right side of the key.

To change the date

Press the left side of the key.

Press.

Press the right side of the key: The dots and the DATE display will flash.

To alter the setting:

Press on the left or right, or keep holding down.

To store the input:

Press the right side of the key.

The clock takes leap years into account and therefore does not have to be reset manually.

Digital clock

Reminder signal

You can program an hourly reminder signal (Memo), that will, for example, remind you of news broadcasts.

Press the left side of the key.

Press:

MEMO OFF appears in the display for entry and check buttons, and the tone symbol will appear in the upper right of the display.

A signal is then heard 15 seconds before each hour.

Timer

Press the left side of the key.

Press.

Display shows:

To start the stopwatch:

Press the right of the key.

To take an intermediate time reading:

Press.

Press.

The stopwatch display can be seen counting up; the stopwatch continues to run.

To halt the stopwatch:

Press the right side of the key.

The stopwatch is halted whenever the ignition switch is turned back

to 0, but starts to run again when the ignition key is turned to 1.

Digital clock

Enter the switch-on times for the independent ventilation system

You can enter two different switch-on times.

After 30 minutes, the ventilation will switch off automatically.

Please observe the notes for operating the independent

ventilation system on page 102.

Press the left side of the key.

Press at left/right.

Display shows:

Press the right side of the key: Display flashes, e.g. TIME 1.

To input the time:

Press on the left or right, or keep holding down.

To confirm the input:

Press the right side of the key.

The activated time is marked with an asterisk.

The switch-on times remain memorized until new inputs are made.

You can change switch-on times that have already been memorized by making a new time input as described above.

When the switch-on time is active, the LED comes on in the MID. During actual operation of the ventilation, the LED flashes. The LED goes out when the system is switched off.

To activate/deactivate the time:

Press twice.

Turning the independent ventilation system on and off directly

The independent ventilation function can only be called up in on key position 1.

Press the left side of the key.

Press

or

press.

Computer

Only make entries when the vehicle is standing still – to avoid

endangering yourself or other road users.

Computer calculations begin at the start of the journey.

Information can also be called up in the display by remote control; see page 83.

Speed limit

Speed limit input:

You can input the road speed here at which you wish to hear and see a reminder signal: a signal will sound, the word LIMIT will flash and the stored speed will briefly flash in the Check Control display on the instrument panel (Limit).

The speed limit reminder is only repeated if the vehicle has in the meantime been driven at least 3 mph (approx. 5 km/h) slower.

Press the right side of the key.

Press.

Press the right side of the key.

Display shows:

Input the limit by pressing the function keys.

To correct an entry:

Press the left side of the key and repeat the input.

To store the input:

Press the right side of the key.

Computer

Adopting the current speed as the speed limit:

Press the right side of the key.

Press.

Press twice at right.

Deactivating the speed limit:

Press the right side of the key.

Press.

The LIMIT display goes out, but the memorised value is not lost and can be reactivated by pressing the LIMIT key.

Distance to destination

The remaining distance to the destination will be displayed on the screen.

This is of course only possible if you entered the entire distance before starting the journey.

Input:

Press the right side of the key.

Press the left side of the key.

Press the right side of the key.

Display shows:

You can input the distance by pressing the function keys.

To correct an entry:

Press the left side of the key and repeat the input.

To store the input:

Press the right side of the key.

Checking memorised value:

Press the right side of the key

Press the left side of the key.

Computer

Estimated time of arrival

When you have input the distance from your destination, you can obtain an estimated time of arrival display which is continuously updated by the computer as your average driving period varies.

Press the right side of the key.

Press the right side of the key: The estimated time of arrival is displayed.

Cruising range

The distance which the vehicle should cover on the remaining fuel in the tank is displayed.

Press the right side of the key.

Press.

The display shows the probable range.

When there is only enough fuel to drive less than 30 miles (50 km), should refuel, as otherwise the one or the catalytic converter could be damaged.

The onboard computer will only register fuel amounts over 1.8 gal (6 liters).

Fuel consumption

You can have the average fuel consumption displayed for two different distances, for example a complete journey and part of the journey.

To start the calculation, select the CONS function with the engine running.

Press the right side of the key.

Press the left or right side of the key: The average fuel consumption will be indicated in the display.

To restart the fuel consumption calculation:

Press the left or right side of the key.

Press the right side of the key.

Computer

Speed

You can call up a display of the vehicle's average speed.

To start the calculation, select the SPEED function with the engine running.

Press the right side of the key.

Press:

The display indicates the average speed.

To recalculate the speed:

Press the right side of the key.

Extended immobiliser function

You can establish a code that will prevent the engine from being started unless the code is entered.

If you do not have access to the code, the emergency deactivation procedure will have to be carried out.

Establishing and activating the code

Press the right side of the key.

Press the left side of the key.

Display shows:

Enter the code via the function keys.

To correct an entry:

Press at the left and repeat the input.

To store the input:

Press the right side of the key.

Turn the ignition key to position 0.

Deactivate the code:

When you are asked to input the code (ignition key in position 1 or 2):

▶ Input the code at the function keys.

Press the right side of the key.

After the code has been input correctly and confirmed with the SET key, the time display appears.

Computer

After three incorrect code entries, or three attempts to start the engine without a code entry, the alarm will sound for 30 seconds on vehicles fitted with an alarm.

Emergency deactivation:

If you have forgotten the code, proceed as follows:

1 Disconnect the battery, wait approx. 2 minutes, then reconnect it. Note that on vehicles with an alarm, this will sound.
2 Place the ignition key in position 1: The time display will count down for the next ten minutes.
3 After ten minutes, start the engine.

If the code becomes available again in the meantime, it can be input during the waiting period after pressing the CODE key.

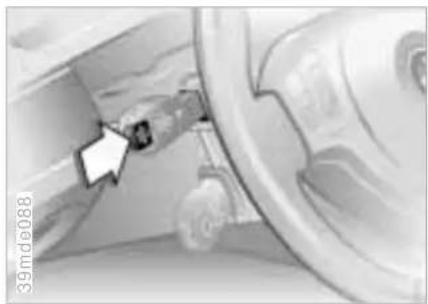

Mechanical component with a highlighted arrow pointing to a small component (no visible text or symbols)

Remote control

The button on the flashing turn indicator lever can be used to select the items of computer information which are to be displayed.

To do this, press:

The button on the lever until PROG 1 shows on the display.
The MID keys in the order in which you wish the information to be displayed.

Each time an entry is stored, the program number appears on the display.

To terminate the selection procedure:

Press the right side of the key.

To have all the available information displayed, press:

The button on the lever until the display shows PROG 1.
The SET key.

To obtain individual items of information, press the button in briefly as often as necessary.

Park Distance Control (PDC)\*

The concept

The PDC assists you when you are parking. A signal warns you of the real distance to an obstacle. To do this, four ultrasonic sensors in the front and rear bumpers measure the distance to the nearest object. The monitoring range for the front and both rear corner sensors extends approx. 2 ft (60 cm) beyond the bumper. The range for the center rear sensors extends approx. 5 ft (1.50 meters).

Automatic operation

The system starts to operate automatically approx. one second after you select reverse or move the selector lever into the "R" position with the ignition key in position 2.

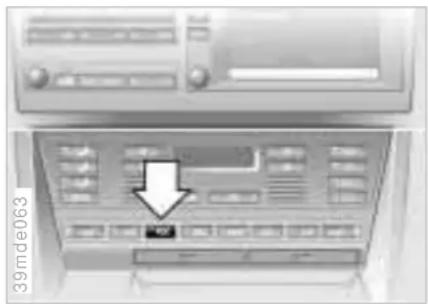

39mde063

Turn on manually

Press the button (arrow), the indicator lamp comes on.

After driving more than approx. 160 ft (50 meters) or exceeding approx. 20 mph (30 km/h), the system switches off and has to be switched back on when you want to use it again.

Turn off manually

Press the button again.

Acoustic signals

The distance to an object is indicated by a high beeping sound in the front and a low beeping sound in the back. As the distance between the vehicle and object decreases, the intervals between the tones become shorter. A continuous tone indicates the presence of an object less than 1 ft (30 cm) away.

The warning signal will be canceled after approx. 3 seconds if the distance to the obstruction remains constant during this time (if you are moving parallel to a wall, for instance).

Malfunction in the PDC system: The indicator lamp flashes and a brief continuous signal tone is heard

▷ when the PDC system is activated via the button
▷ when you first select reverse or move the selector lever into the "R" position after switching on the ignition
▷ when there is a malfunction while the PDC system is active.

Switch the system off and have the cause of the malfunction corrected by your BMW center.

Park Distance Control (PDC)\*

The PDC does not remove the driver's personal responsibility for evaluating the distance between the vehicle and any obstacles. Even when sensors are involved, there is a blind spot in which objects cannot be detected. This applies especially in those cases where the system approaches the physical limits of ultrasonic measurement, as occurs with tow bars and trailer couplings, and in the vicinity of thin and painted objects. Certain sources of sound, such as a loud radio, could drown the PDC signal tone.

Keep the sensors clean and free of ice or snow in order to ensure that they will continue to operate effectively.

Do not apply high-pressure spray to the sensors for a prolonged period of time. Maintain an adequate distance of more than 4 in (10 cm).

Dynamic Stability Control (DSC)

DSC maintains vehicle stability, even in critical driving situations.

The system optimizes vehicle stability during acceleration and when starting from a full stop, as well as optimizing traction. In addition, the system recognizes unstable vehicle conditions (understeering or oversteering, for example) and holds the vehicle on a sure course by intervening via the engine and by braking intervention at the individual wheels.

The system starts up automatically each time you start the engine.

Indicator lamp

The indicator lamp in the instrument cluster goes out shortly after you switch on the ignition.

Refer to page 21.

Indicator lamp flashes:

The system is active and governs the drive and braking forces.

If the indicator lamp fails to go out after the engine is started, or if it comes on during normal driving and stays on: There is a system malfunction or the system was deactivated with the button. You can continue to drive the vehicle normally, but without DSC. Please consult your BMW center for repairs.

39mde101

To deactivate the system

Press the button (arrow); the indicator lamp comes on and stays on.

When DSC is deactivated, you are driving with conventional power transfer.

In the following exceptional circumstances, it may be effective to deactivate the DSC for a short period:

When rocking the vehicle or starting off in deep snow or on loose surfaces
When driving with snow chains. Refer also to page 125.

To reactivate the system

Press the button again; the indicator lamp goes out.

The laws of physics cannot be repealed, even with DSC. An

appropriate driving style always remains the responsibility of the driver. We therefore urge you to avoid using the additional safety margin of the system as an excuse for taking risks.

For additional details concerning DSC, please refer to the chapter describing "Advanced technology" on page 178.

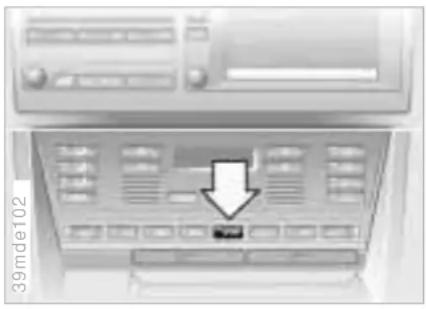

M Dynamic Driving Control

39mde102

Whenever it is required, this system changes the settings of the Servotronic power steering, and the accelerator pedal response from a performance-comfort mode to a pure performance mode. That is, steering response becomes more performance-oriented and the response of the accelerator pedal is much more spontaneous (performance recognition).

Performance recognition

With the ignition key in position 2, press the key (arrow). The indicator lamp illuminates.

Deactivating performance recognition: Press the button again; the indicator lamp goes out.

The coordinated performance-comfort mode is activated automatically each time you start the engine.

Tire Pressure Warning (RDW)

The concept

The tire-pressure warning system, RDW, monitors the tire inflation pressure in all four tires while driving. The system provides an alert whenever the inflation pressure has dropped significantly in one of the tires.

So that the RDW can "learn" the correct tire inflation pressure, check the inflation pressure in all the tires, comparing them to the values in the inflation pressure table (page 27), making corrections if necessary. Then activate the system.

The Check Control (refer to page 72) will inform you if the tire pressure of one the tires has dropped significantly.

Close-up of a car interior with a small electronic device and a directional arrow pointing to it (no visible text or symbols)

Activate the system

1 Turn the ignition key to position 2 (do not start the engine).
2 Press and hold the button (arrow) until the message "SET TIRE PRESSURE" is displayed for a few seconds in the Check Control.
3 The RDW initiates an automatic learning process during driving, and stores this target condition. This one-time learning process takes at least 10 minutes, and from that point on the RDW can identify and report a flat tire.

Repeat this process after altering the tire inflation pressure, changing the tire or rotating the wheels.

Do not carry out any further system activation on the target condition that has already been "learned" after correcting the inflation pressure.

Tire Pressure Warning (RDW)

Flat tire

In the event of a flat tire, the message "TIRE DEFECT" appears in the Check Control. In addition, a gong is sounded. If this occurs, reduce vehicle speed immediately and stop the vehicle in a safe location. Avoid hard brake applications. Do not oversteer. Correct the tire failure using the M Mobility system (refer to page 162).

The RDW cannot inform you of sudden and severe tire damage ed by external influences.

The RDW will not identify the natural, even loss of pressure in all four tires, either.

Check the tire inflation pressure on a regular basis and correct if necessary. Refer to page 26. Do not carry out any kind of system activation when using snow chains. Under these kinds of conditions, false warnings and unidentified losses in pressure are possible. In certain circumstances, when driving on snow-covered or slippery road surfaces, there may be a delay in identifying any loss in inflation pressure. A sporty driving style (slip at the wheels receiving the torque, high lateral accelerations) can lead to delayed RDW warnings.

System fault

The message "TIRECONTROL INACTIVE" appears in the Check Control if there is a system fault.

Please contact your BMW center for additional information.

Side lamps/Low beams Instrument rheostat

Close-up of a computer mouse with a dial and control knob (no visible text or symbols)

Side lamps (side marker lamps)

With the switch in this position, the front, rear and side vehicle lighting is switched on. For

lighting on one side for parking as an additional feature, refer to page 91.

Low beams

When you switch off the ignition and the low beams are still on, only the position lamps (side

marker lamps) remain on.

"Follow-me-home lighting:" If you actuate the headlamp flasher after you have parked the vehicle and shut off the engine, the low beams will remain on for a brief period. You may also have this function deactivated if you wish.

"LAMPS ON" warning

With the ignition key in position 0, this message is displayed in the Check Control after the driver's door is opened if the headlamps have not been switched off.

Daytime running lamps\*

The headlamps are automatically switched on for daylight driving at ignition key position 2.

Close-up of a mechanical component with circular features and a small rectangular component, no visible text or symbols.

Turn the rotary dial to adjust the lighting intensity.

High beams/Parking lamp Fog lamps Interior lamps

39mde070 1 2 3 3

1 High beam (blue indicator lamp)
2 Headlamp flasher (blue indicator lamp)
3 Parking lamp

Parking lamp, left or right

As an additional feature, you can illuminate your vehicle on either side for parking, if you wish to do so:

With the ignition key in position 0, push the lever in the appropriate direction.

The lever engages in the turn signal position.

Close-up of a car's air vent with a circular dial indicator (no visible text or symbols)

Front fog lamps

A green indicator lamp appears in the instrument cluster to indicate that the front fog lamps are on.

If the high beam is switched on, the front fog lamps go out.

Comply with the legal regulations concerning the use of fog lamps.

Close-up of a computer monitor with a white arrow pointing to the front panel (no visible text or symbols)

The interior lamps operate automatically.

Switching the interior lamps on and off

Press the button (arrow).

If you wish the interior lamps to remain off at all times, press and hold the button for approximately 3 seconds.

Press the button briefly to revert to normal operation.

92 Interior lamps Reading lamps

Footwell lamps

The footwell lamps operate in the same way as the interior lamps.

Close-up of a mechanical component with an arrow pointing to a small component (no visible text or symbols)

The reading lamps are located in the front near the interior lamp. There are also reading lamps in the rear. They can be switched on and off with the switch (arrow) next to each lamp.

In order to prevent battery discharge, all of the lamps in the vehicle are switched off automatically approx. 15 minutes after the ignition key is turned to position 0.

Automatic climate control

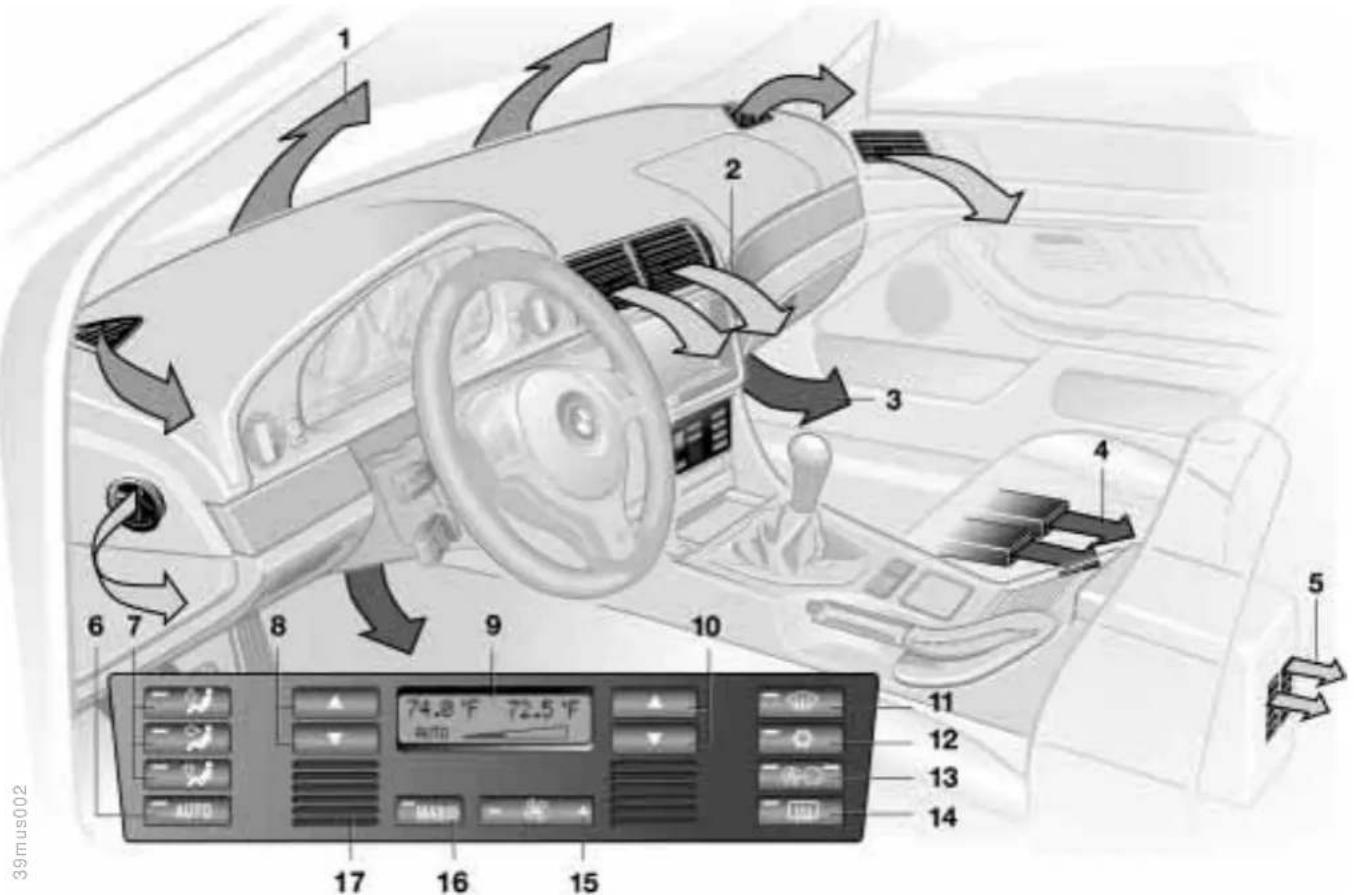

1 2 3 4 5 6 7 8 9 10 74.8°F 72.5°F AUTO 11 12 13 14 17 16 15 39mus002

Online Edition for Part No. 01 41 0 155 429 - © 09/00 BMW AG

Automatic climate control

1 Air flow directed toward the windshield and side windows
2 Air flow for the upper body The side rotary dials allow you to open and close the air supply through an infinitely-variable range, while the levers change the airflow direction. The center rotary dial controls the temperature of the air as it flows out, see page 98
3 Front footwell ventilation
4 Rear footwell ventilation
5 Air flow for the upper body in the rear seat 99
6 Automatic air distribution 96
7 Individual air distribution 96
8 Temperature control – left-hand side 96
9 Display for temperature and air supply 96, 97

10 Temperature control – right-hand side 96
11 To defrost windows and remove condensation 97
12 Air conditioner 97
13 Automatic recirculated air control (AUC) 98
14 Rear window defroster 67, 98
15 Air supply 97
16 Maximum cooling 97 or residual heat mode 98
17 Air grill for interior temperature sensor – please keep clear and unobstructed

Automatic climate control

Tips for pleasant driving

Use the automatic system (AUTO button 6). Select an interior temperature that is comfortable for you – we recommend 72 °F (22 °C). When the outside temperature is above 41 °F (5 °C), you can also use the air conditioner 12. This will dry the air as well as preventing condensation on the window surfaces – if there are passengers with damp clothing, for example. Set the air outlets 2 so that the air flows past you and is not directed straight at you. Set the rotary dial between the air outlets 2 for the upper body to a medium position, since air that is somewhat cooler promotes driving without fatigue.

The following description will lead you through additional individual adjustments.

Your BMW center can program the settings of your vehicle in such a manner that, when you unlock the vehicle with your individualized key, your own personalized setting for the automatic climate control is initiated.

Automatic air distribution

The AUTO program assumes the adjustment of the air distribution and the air supply for you and – in addition to that – adapts the temperature to external influences (summer, winter) to meet preferences you can specify. This program maintains a comfortable in-car climate regardless of the season. Select an interior temperature that is comfortable for you – we recommend 72 °F (22 °C). The selected temperature and AUTO for the air supply appear in the display 9. Refer to the overview on page 94. Open the air outlets for the upper body. Switch on the air conditioner 12 in warm weather. The maximum cooling capacity is achieved when you set rotary dial 3 (refer to page 98) to cold.

Individual air distribution

You can cancel the AUTO program by selecting specific distribution patterns to suit your own individual requirements. You can direct air to flow onto the windows, toward the upper body, and into the footwell.

Temperature

You can make individual temperature adjustments on the driver's side or the front passenger side. The figures in the display provide a general indication of interior temperature. We recommend 72 °F (22 °C) as a comfortable setting, whether the air conditioner is operating or not. When you start the vehicle, this system ensures that the selected temperature is achieved as quickly as possible. It then maintains this temperature, regardless of the season.

Set the rotary dial 3 (refer to "Draft-free ventilation" on page 98) to a medium setting, since air that is somewhat cooler promotes driving without fatigue. Utilize this method of mixing air especially for making minor adjustments for personal comfort.

You can set uncontrolled heater output up to 90 °F (32 °C). Full cooling output is available from the air conditioner down to 60 °F (16 °C).

Automatic climate control

Air supply

In the "AUTO" program, the air supply is controlled automatically. AUTO will appear in the display 9. Refer to the overview on page 94. Use "+" and "-" to vary the air supply. Your setting is displayed with bars and the automatic air supply is switched off. The automatic air distribution setting is maintained. You can reactivate the automatic air supply by pressing the "AUTO" button.

When you press "-" during operation at the lowest blower speed, all displays are canceled: the fan, heating and air conditioner are switched off. The outside air supply is closed. You can switch the system back on by pressing any button of the automatic climate control (except the MAX button 16).

To defrost windshield and side windows

This program quickly removes ice and conden-

sation from the windshield and the side windows.

Air conditioner

The air is cooled and dehumidified and - depending on the temperature setting – warmed again when the air conditioner system is switched on.

Depending on the weather, the wind-shield may fog over briefly when the engine is started.

Switch off the air conditioner at outside temperatures below approx. 41 °F (5 °C). This will help to prevent the windows from fogging up. If the windows fog over after switching the air conditioner off, switch it back on.

Condensation forms in the air conditioner system during opera-which then exits under the vehicle.

Traces of condensed water of this kind are thus normal.

Maximum cooling

You will get maximum cooling capacity using this program if the engine is running and the outside temperature is above +41 °F (+5 °C).

The temperature display 9 jumps to +61 °F (+16 °C), the system switches over to the recirculated-air mode, and the air will only stream out of the ventilation grill with the maximum amount of air flow. That is why you need to keep these open if you select this program.

Automatic climate control

Automatic recirculated air control (AUC)

You can respond to unpleasant external odors by temporarily excluding the flow of outside air. The system then recirculates the air currently within the vehicle. By repeated actuations of the button, you can select one of three different operation modes.

Indicator lamps off: outside air flow operational.
Left-hand indicator lamp on – AUC mode: the system recognizes pollutants in the outside air and blocks the flow of air when necessary. The system then recirculates the air currently within the vehicle. Depending on the air quality, the automatic system then switches back and forth between outside air supply and recirculation of the air within the vehicle.
Right indicator lamp on - recirculated air mode: the flow of external air into the vehicle is completely blocked. The system then recirculates the air currently within the vehicle.

If the windows fog over in the recirculated air mode, switch the recirculated air off and increase the air supply as required.

Rear window defroster

When the rear window defroster is activated, the

indicator lamp comes on. The rear window defroster switches off automatically.

Residual heat mode

The heat which is stored in the engine is utilized for

heating the interior when the engine has been switched off (while waiting at a railroad crossing, for instance). In ignition key position 1, you can alter the settings of the automatic climate control. With the ignition key in position 0, the system automatically directs heated air to the windshield, side windows and footwells.

This function may be activated when the outside temperature is below approx. 59 °F (15 °C), the engine is at operating temperature, and the battery is adequately charged. The LED on the button will light up when all conditions have been met.

1 2 3 2 1 990de05

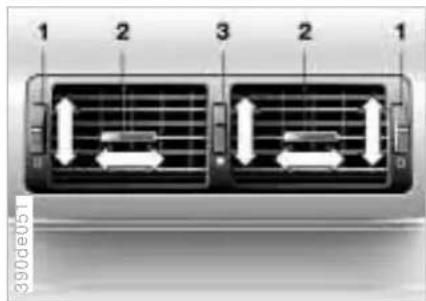

Draft-free ventilation

For your optimal personal comfort, you can adjust airflow onto the upper body area from the air outlets:

Use rotary dial 1 to open and close the air outlets through an infinitely-variable range. You can use the levers 2 to adjust the direction of the airflow.

Set the air outlets so that the air flows past you and is not directed straight at you.

Rotary dial 3 allows you to control the temperature of the air flow from these air outlets as desired:

▶ Turn toward blue – colder.
▶ Turn toward red – warmer.

Automatic climate control

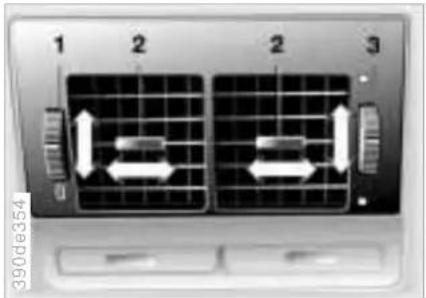

1 2 2 3 390de354

Rear passenger area ventilation

Rotary dial 1 opens the air outlets in an infinitely-variable range. You can vary the temperature of the air as it flows out using rotary dial 3 in the same manner as for the front rotary dial.

You can change the direction of the air flow with levers 2.

Microfilter, activated-charcoal filter

The microfilter removes dust and pollen from the incoming air. The activated-charcoal filter provides additional protection by filtering gaseous pollutants from the outside air. Your BMW center replaces this combined filter as a standard part of your scheduled maintenance. A substantial reduction in air supply indicates that the filter must be replaced before normal maintenance.

Integrated rear center console\*

1 2 3 390de617

Climate control

1 Air supply
2 Temperature
3 Storage compartment with ventilation

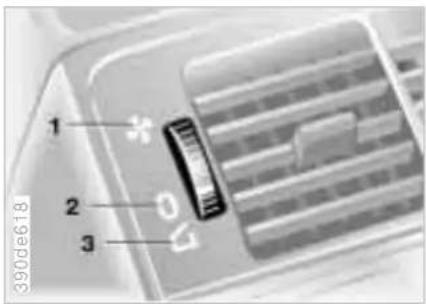

1 2 3 390de618

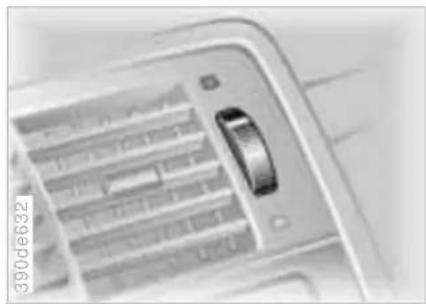

Air supply

1 Maximum blower speed
2 Blower off
3 Storage compartment

You can adjust the air supply for the air outlets and the storage compartment through an infinitely-variable range between the "0" and "Maximum" settings.

When set to "0" and "Storage compartment," the fan is switched off and the air supply through the air outlets is blocked. The storage compartment is ventilated in both settings as follows:

"0" setting - warm air.
"Storage compartment" setting - cold air

Individual adjustments on the front-seat control elements influence the air supply of the rear passenger area climate control.

Close-up of a smartphone screen with a circular button and grid layout (no visible text or symbols)

Temperature

Passengers in the rear seating area can adjust their own temperature for the adjacent air outlets:

Turn toward blue - colder.
▷ Turn toward red - warmer.

When you start the vehicle, the system ensures that the selected temperature is achieved as quickly as possible. It then maintains this temperature, regardless of the season.

A temperature adjustment is only possible when the blower is checked on – it is not possible when
o "0" and "Storage compart-

."

Integrated rear center console\*

Close-up of a mechanical component with internal compartments and housing (no visible text or symbols)

Storage compartment with ventilation

Press the cover back gently to open it.

1 Slide regulator for opening and closing the air supply:
Regulator to the left – air supply opened.
Regulator to the right – air supply closed.
2 Beverage holder insert – may also be removed.

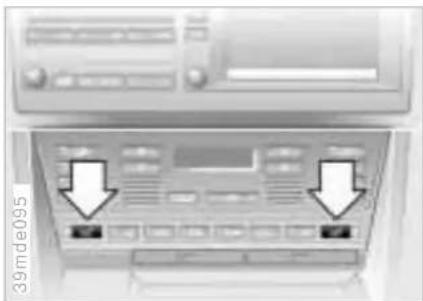

Seat heating\*

Front view of a computer interface with two arrows pointing to ports (no readable text or symbols)

The seat cushion and backrest can be heated when the ignition key is in position 2. You can call up different heating modes by repeatedly pressing the keys

When the three indicator lamps are illuminated, the highest heating mode is activated. One lamp indicates the lowest heating mode. The temperature is regulated with a thermostat in each mode.

You can also switch the higher heating modes off directly: press the key and hold it slightly longer.

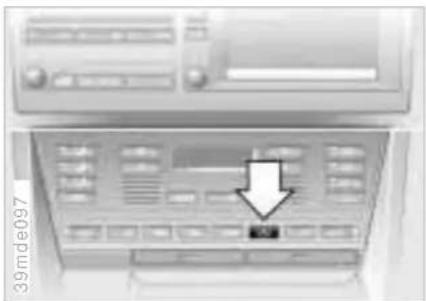

Roller sun blind\*

39mde097

To actuate, press the button briefly with ignition key in position 1.

Roller sun blinds\* for rear side windows

Use the strap to pull out the blinds, then hook them in the provided attachment.

Independent ventilation system

This system ventilates the interior and lowers its temperature by using the blower of the automatic climate control, when the vehicle is unattended.

The independent ventilation system is operated via the Multi-Information Display (MID) – refer to page 78 – or the onboard monitor. Refer to the separate onboard monitor Owner's Manual.

You may preselect two different activation times. The ventilation will remain activated for 30 minutes. You can also turn it on and off directly. Because of its high current consumption, you should not activate the system twice in succession without allowing the battery to be recharged while you are driving.

When a preselected activation time is set, the independent ventilation system is operational at outside temperatures above 60 °F (16 °C), or by direct switch activation. It cannot be switched on when the vehicle is moving.

The air emerges via the air outlets for the upper body. Therefore, the air outlets must be open for the system to operate.

You can adjust the airflow volume and the air distribution when the ignition key is in position 1.

BMW Universal Transmitter\*

The concept

The BMW Universal Transmitter replaces up to three hand-held transmitters that control different devices such as a garage door opener, alarm systems or a door locking system. The BMW Universal Transmitter recognizes and "learns" the transmitted signal from each of the original hand-held transmitters.

The signal of an original hand-held transmitter can be programmed to one of three channel keys. Following that, each of the devices can be operated with the channel key that you have programmed for it. A transmission of the signal is indicated by the indicator lamp.

Before you sell your vehicle, the programmed channel keys should be deleted. Refer to page 105 for the description of this process.

To prevent potential injuries or damage: during the programmi operation and before every remote triggering of a programmed device using the BMW Universal Transmitter, be sure that there are no persons, animals or objects within the range of movement of the respective device. Read and comply with the safety instructions for the original hand-held transmitter also.

To Canadian residents During programming, your handheld transmitter may automatically stop transmitting after two seconds. This may not be long enough to program the BMW Universal Transmitter. If you are programming from one of these handheld transmitters, the Universal Transmitter's lamp may begin to flash in a series of double-blinks. If this occurs, continue to hold the button on the Universal Transmitter while you reactivate your hand-held transmitter. You may have to repeat this function several times while programming.

Before programming, read the "User's information" section on page 105.

The original hand-held transmitter

If this symbol is depicted on the packaging or in the user's instructions for the original hand-held transmitter, it may be assumed that this original hand-held transmitter is compatible with the BMW Universal Transmitter.

Checking for the change code

In order to determine whether the original hand-held transmitter is equipped with a change code system, you may either refer to the instructions for the original hand-held transmitter or program a channel key as described in the left column on page 104 under "Programming."

Following that, press and hold the programmed channel key of the BMW Universal Transmitter. If the indicator lamp of the BMW Universal Transmitter flashes rapidly for two seconds and then stays on continuously, the original hand-held transmitter is equipped with a change code system. If the change code system is available, program the channel keys as described in the right-hand column on page 104 under "Programming a hand-held transmitter with change code."

If you have additional questions, please consult your BMW center or call 1-800-355-3515.

BMW Universal Transmitter\*

2 3 S90de640

Programming

1 Channel keys
2 Indicator lamp
3 Receiver for programming

Read and comply with the safety precautions on page 103.

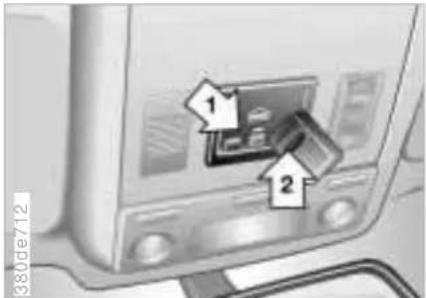

1 Ignition key position 2
2 For initial operation: press and hold the two outer keys (1) until the indicator lamp (2) flashes. Release the keys. The three channel keys are cleared.

1 2 380de712

3 Hold the original hand-held transmitter toward the receiver (3) a maximum of 2 in (5 cm) away.
4 Simultaneously press the transmitting key of the original hand-held transmitter (arrow 2) and the desired channel key of the BMW Universal Transmitter (arrow 1). Release both keys as soon as the indicator lamp flashes rapidly.
5 To program other original hand-held transmitters, repeat steps 3 and 4.

The corresponding channel key is now programmed with the signal of the original hand-held transmitter.

Programming a hand-held transmitter with change code

Read and comply with the safety precautions on page 103.

Consult the operating instructions for the individual device when programming the BMW Universal Transmitter. Read and comply with the following programming instructions for the use of the BMW Universal Transmitter with a change code system:

A second person simplifies programming of the BMW

Universal Transmitter.

BMW Universal Transmitter\*

1 Program the BMW Universal Transmitter as described above under "Programming."
2 Press and hold the programming key on the receiver of the device for about two seconds or until the programming lamp on the device comes on.
3 Press the desired channel key of the BMW Universal Transmitter three times.

If you have additional questions, please consult your BMW center or call 1-800-355-3515.

Clearing the channel keys

Read and comply with the safety precautions on page 103.

Individual channel keys cannot be cleared. However, the three channel keys can be cleared together in the following manner:

Press and hold the two outer channel keys of the BMW Universal Transmitter until the indicator lamp flashes, and then release the keys. All channel keys are cleared.

User's information

Do not use this BMW Universal Transmitter with any garage door opener that lacks safety "stop" and "reverse" features as required by federal safety standards (this includes any garage door opener model manufactured before April 1, 1982).

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Integrated rear-seat equipment\*

Interior view of a car seatbelt with a directional arrow icon (no text or symbols)

Fold the armrest out and open the cover by lifting the handle (arrow).

390us615 1 2 3

In order to operate certain functions from the rear passenger area as well, the corresponding controls are integrated in the center armrest.

The illustration shows the maximum possible number of controls, corresponding to a full range of optional equipment. Refer to the individual Owner's Manuals for more detailed descriptions of the equipment.

1 Multi-Information Display for operation of the radio and onboard computer (with limited functional range)
2 Cigarette lighter
3 Electric rear window blind

Interior view of a vehicle showing a rectangular object with a small arrow pointing to it, no visible text or symbols.

Two beverage holders are provided in the lower section of the center armrest. Pull the handle outward to open (arrow).

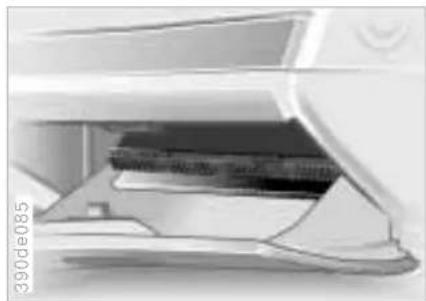

Glove compartment

Close-up of a white plastic door with a hole and a small arrow pointing to the interior (no text or symbols visible)

To open

Pull the handle and the lamp comes on.

To close

Fold up cover.

To lock

Use one of the master keys. A master key is also required for unlocking.

If you turn over only your door and ignition key for valet parking, for example (refer to page 30), access to the glove compartment is not possible.

To prevent injury in the event of a crash, close the glove compart-immediately after use.

Rechargeable flashlight\*

Located on the left-hand side of the glove compartment.

It features integral overload-protection, so it can be left in its holder continuously.

Be sure that the flashlight is switched off when it is inserted

into its holder. Failure to comply with this precaution could lead to over-charging and damage.

Storage compartments Cellular phone\* Beverage holder\*

Interior view of a modern air conditioner unit with a digital display and control panel (no visible text or symbols)

The cover of the storage compartment on the inclined surface of the center console can be pushed open or closed (arrow). If your vehicle is equipped with a cassette holder*, open each cassette compartment by pressing the small button.

Storage compartment on center console between the front seats: to open, reach into the recess at the front and pull upward. If a cellular phone has been installed, this compartment is occupied by the phone.

You will find additional storage compartments in all of the doors as well as in the backrests of the front seats*.

Close-up of a device rear panel with a white arrow pointing to a button (no text or symbols visible)

Handsfree system\*

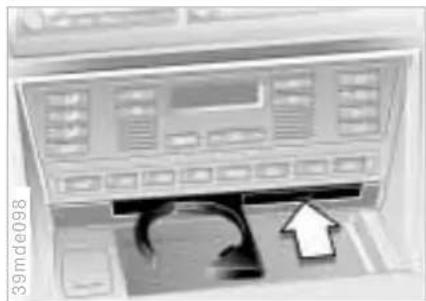

For vehicles with a telephone hookup*, the trim cover for the handsfree speaker is located in the headliner in the area of the interior lamp.

For further information on the cellular phone, refer to the separate Owner's Manual.

Interior view of a control panel with buttons and a cable connector (no visible text or symbols)

Two holders for canned drinks have been provided in the front center console (illustration).

Press to open; push back inward to close.

Ashtray, front\*

Interior view of a car showing a computer with an arrow pointing to the screen (no visible text or symbols)

To open

Press briefly in the direction indicated by the arrow.

To extinguish a cigarette, tap off the ash and gently press the tip into the funnel.

Interior view of a car with a black arrow pointing to the internal component (no text or symbols visible)

To empty

Open the lid and press down (arrow): You can now pull the ashtray upward for removal.

On vehicles equipped for nonsmokers, the insert is removed in the same way.

110 Cigarette lighter\* Ashtray, rear\*

Interior view of a computer room with a highlighted drive or button (no visible text or symbols)

Press the cover panel for access (arrow), then push the lighter down. Remove as soon as the lighter retracts.

Hold or touch the hot cigarette lighter by the knob only. Holding or touching it in other areas could result in burns. The cigarette lighter remains operational when the ignition key has been removed. For this reason, children should never be left in the vehicle unattended.

Cigarette lighter socket

Suitable for attaching power supplies for flashlights, vehicle vacuum cleaners, etc., up to a rating of approx. 200 watts at 12 volts. Avoid damage to the socket caused by inserting plugs of a different shape or size.

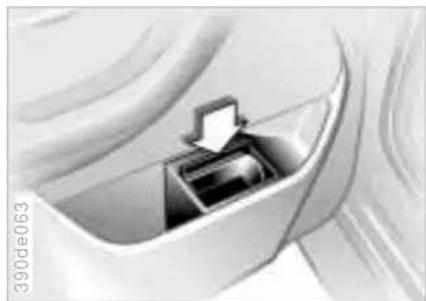

Close-up of a car interior showing a plastic bag with an arrow pointing to it, no visible text or symbols.

To open

Press the recess the in lid.

To empty

Press the edge of the cover (arrow). You can now pull the ashtray upward for removal.

Through-loading system\*

3946e117 2 1

The rear backrest is divided into two sections, one-third and two-thirds of the seat respectively. For carrying longer objects, you can fold down either section of the backrest separately.

To open:

Reach into the recess and pull forward (arrow 1).

When you close the backrest, be sure that the catch engages securely. The red tab (arrow 2) must go fully down.

Close-up of a hand holding a small object with an arrow, possibly part of a device or tool (no visible text or symbols)

The center belt has an additional small buckle.

If you connect the two belt sections, you can use the center belt as any normal 3-point belt.
It is easier to fold the rear seat back-rest up and down if you unbuckle the belt (arrow).

Mechanical component diagram showing a rotating mechanism with directional arrows (no text or symbols)

You can lock each backrest in the rear seat with a master key.

This also prevents access to the luggage compartment from the interior of the vehicle when you turn over the door and ignition key (3) to someone else (refer to page 30). This is convenient for valet parking, for instance.

112 Ski bag\*

The ski bag allows the safe and clean transport of up to four pairs of standard skis or up to two snowboards.

With the length of the ski bag and the additional space in the luggage compartment, you can store skis with a length of up to 6.8 ft (2.10 meters).

Because of the tapered shape of the bag, the ski bag can only accommodate two pairs of skis with a length of 6.8 ft (2.10 meters).

3D rendered mechanical component with a highlighted section and arrow, no visible text or symbols

Removing the center armrest

(Not required for vehicles with the through-loading system. Refer to page 114.)

1 Fold the center armrest completely down.

2 Loosen the trim from the upper Velcro® fastener and place it on the armrest.

3 Grasp the front of the armrest with one hand, then use your other hand to reach down behind the armrest and pull up sharply (arrow).

Installing the center armrest

Guide the armrest into position from above, then apply pressure until you hear it snap into position.

Be sure that the seat covers are not damaged by the side pins.

Ski bag\*

2 2 1 394de068

Loading

1 Press the release button (arrow 1): The cover panel in the luggage compartment is unlocked.
2 Press the detent levers inward (arrow 2) and pull the cover forward.
3 Extend the ski bag between the front seats. The zipper provides convenient access to stored items. It may be opened to allow the ski bag to dry.

Close-up of a black metal device with a white arrow symbol on its side, mounted on a curved surface (no text or symbols visible)

4 Use the magnetic retainers to attach the cover panel to the upper surface (metal surface below rear tray) of the luggage compartment.

To store the ski bag, perform the above steps in reverse sequence.

An unsecured ski bag could lead to loss of vehicle control and to personal injury in case of an accident.

Diagram showing a mechanical component with an upward arrow, no visible text or symbols

Securing the load

Secure the bag's contents by tightening down the retaining at the buckle.

Please be sure that the skis are clean before loading them into the bag. Take care to avoid damage from sharp edges.

114 Ski bag\* Cargo loading

394de119 2 1

With throughloading system

1 Fold the center armrest down. Loosen the trim from the upper Velcro® fastener and place it on the armrest.
2 Press button 1 downward and swing the cover forward.
3 Press knob 2: the cover in the luggage compartment is unlocked.

Two-sectional cutaway diagrams of a sedan showing side and front views (no text or symbols)

Stowing cargo

If you are transporting a load in your BMW:

Load heavy cargo as far forward as possible – directly behind the back-rests or the luggage compartment partition – and as low as possible.
Cover sharp edges and corners.
Do not pile objects higher than the top edge of the backrest.
If you are transporting very heavy loads when the rear seat is not occupied, secure the outer safety belts in the opposite buckle.

Close-up of a curved metallic object with a small dark mark, possibly part of a device or component (no visible text or symbols)

Securing the load

Secure smaller, light pieces with the luggage net or use draw straps* (refer to page 39).
For large, heavy pieces, see your BMW center for load-securing devices*. The lashing eyes provided at the corners of the luggage compartment serve for mounting these load-securing devices.
Read and comply with the information enclosed with the load-securing devices.

Cargo loading Roof-mounted luggage rack\*

Always position and secure the load correctly. If you do not, it can endanger the passengers during braking or evasive maneuvers.

Do not exceed the permissible gross weight and axle load (refer to page 186), otherwise the vehicle's operating safety is no longer assured and a violation of the laws of the road occurs.

Do not carry hard or heavy objects unsecured in the passenger compartment. If you do so, they may be projected through the air during braking and evasive maneuvers, thus endangering vehicle occupants.

Close-up of a car's side panel with a white arrow pointing to a specific area (no text or symbols visible)

Anchors

Access to the anchors:

To open the cover (arrow) please use the tool included with the luggage system.

A special luggage system is available as an option for your BMW. Please comply with the precautions included with the installation instructions.

Roof-mounted luggage racks raise the center of gravity of the vehicle when they are loaded. For this reason, they exercise a major effect on the vehicle's handling and steering response.

You should therefore always remember not to exceed the approved roof weight, the approved gross vehicle weight or the axle weights when loading the rack. You will find the specifications under "Technical Data" on page 186.

Make sure that the load is not too heavy, and attempt to distribute it evenly.

Always load the heaviest pieces first (on the bottom). Be sure that adequate clearance is maintained for raising the sliding/tilt sunroof.

Secure the roof luggage correctly and securely to prevent it from shifting or being lost during driving (danger to following traffic).

Drive smoothly and avoid sudden acceleration or braking. Do not corner at high speeds.

The roof load increases the aerodynamic resistance. Increased fuel consumption and additional stresses on the vehicle's body result from this.

Close-up of a toothpaste bottle and a small square object, both resting on a white surface (no visible text or symbols)

Online Edition for Part No. 01 41 0 155 429 - © 09/00 BMW AG

Special operating instructions:

Break-in procedure 118

Driving notes 119

Catalytic converter 120

Antilock Brake System (ABS) 121

Disc brakes 123

Brake system 124

Winter operation 125

Power steering 127

Cellular phone 127

Radio reception 127

Wheels and tires:

Tire inflation pressure 128

Tire condition 128

Tire replacement 129

Tire rotation 130

Wheel and tire combinations 131

Special features of winter tires 132

Snow chains 133

Approved wheel and tire specifications 134

Under the hood:

Hood 135

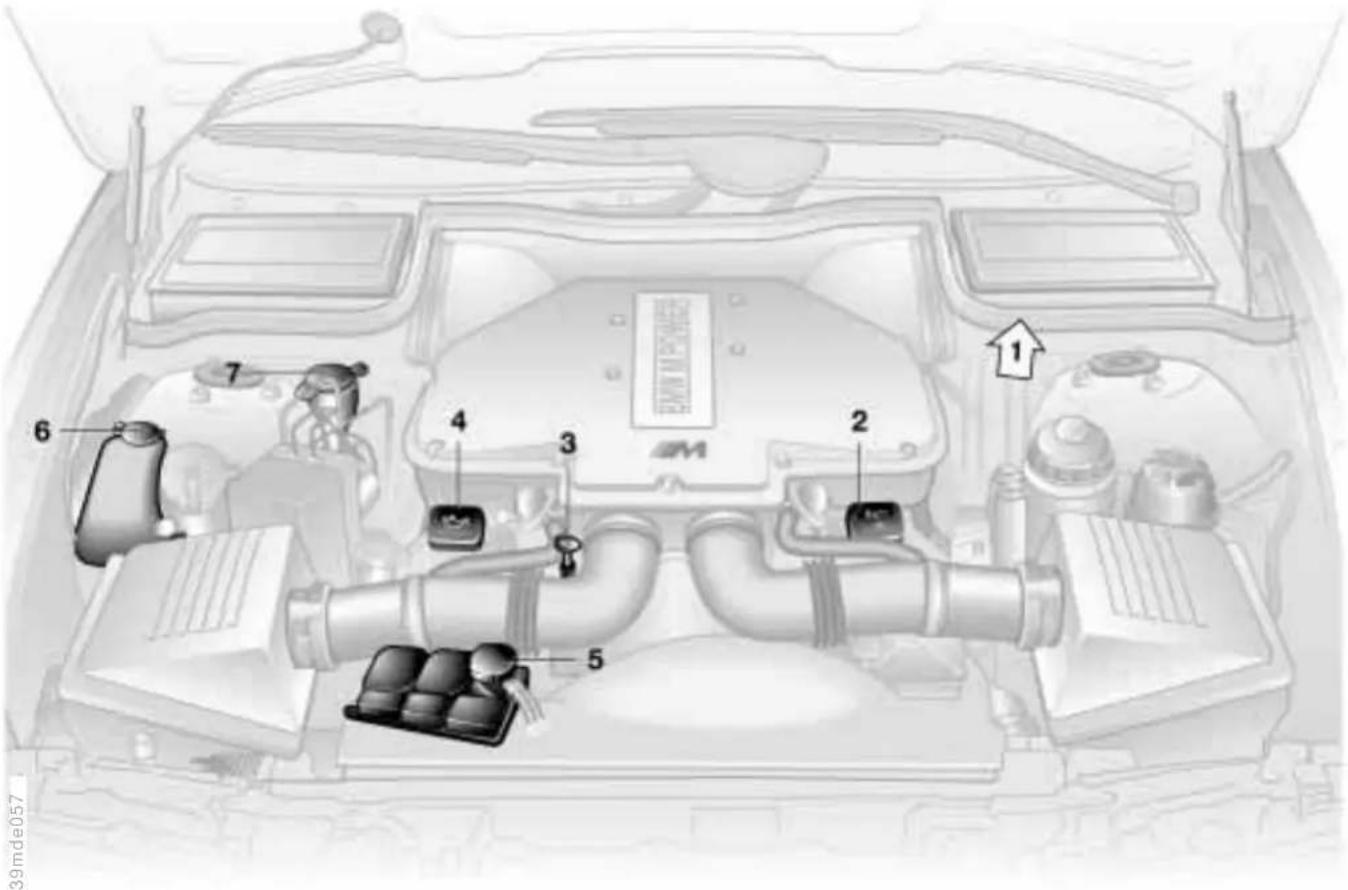

Engine compartment 136

Washer fluids 138

Washer nozzles 138

Engine oil 139

Coolant 141

Brake fluid 142

Vehicle Identification

Number 143

Care and maintenance:

The BMW Maintenance System 144

Caring for your vehicle 145

Airbags 151

Vehicle storage 151

Laws and regulations:

Technical modifications 152

California Proposition 65 Warning 152

OBD interface socket 153

Overview

Controls and features

Operation, care and maintenance

Owner service procedures

Advanced technology

Technical data

Index

Break-in procedure

To ensure that your vehicle provides maximum economy throughout a long service life, we request that you observe the following suggestions.

Because of its engineering design, the BMW M5 is an especially high-

quality vehicle. To protect your own investment, we recommend that you follow the break-in instructions carefully. By doing so, you will create the basis for optimal service life of the vehicle.

Engine and differential

Up to 1,200 miles (2,000 km): Drive at varying engine speeds and road speeds, but do not exceed 5,500 RPM or 105 mph (170 km/h) during this period.

Obey all applicable local, state, provincial or federal speed limits.

Do not depress the accelerator pedal to the full-throttle position.

Following the break-in inspection at 1,200 miles (2,000 km), you can gradually increase engine or road speeds.

You should also comply with these break-in procedures if the engine or differential is replaced later in the course of the vehicle service life.

Tires

Due to technical factors associated with their manufacture, tires do not achieve their full traction potential until an initial break-in period has elapsed. For this reason, drive with extra care during the initial 200 miles (300 km).

Obey all applicable local, state, provincial or federal speed limits.

When the vehicle is operated on wet or slushy roads, a wedge of air may from between the tire and road surface. This phenomenon is red to as aquaplaning, or hydro- ing, and can lead to partial or complete loss of traction, vehicle rol and braking effectiveness. Use your speed on wet roads.

Brake system

Approximately 300 miles (500 km) must elapse before the brake pads and disks achieve the optimal pad-surface and wear patterns required for trouble-free operation and long service life later on.

To break in the separate parking brake drums, apply the parking brake lightly when coasting to a standstill (at a traffic signal, for instance), provided that traffic conditions allow you to do so. To avoid corrosion, repeat this procedure from time to time.

The brake lamps do not come on when the parking brake is applied.

Vacuum for the brake system servo unit on your BMW is available only when the engine is running. When you move the vehicle with the engine shut off – when towing, for instance – substantially higher levels of pedal force will be required to brake the vehicle.

Clutch

The clutch will also begin to function optimally after approx. 300 miles (500 km). During the run-in period, treat the engine with care and do not engage the clutch at high engine speeds.

Driving notes

Brakes:

Do not drive with your foot resting on the brake pedal. Even light but consistent pedal pressure can lead to high temperatures, brake wear and possibly even brake failure.

Aquaplaning:

A wedge of water can form between the tires and the road surface when you operate the vehicle on wet or slushy roads. This phenomenon is referred to as aquaplaning or hydroplaning. It is characterized by a partial or complete loss of contact between the tires and the road surface. The ultimate results are loss of steering and braking control. Driving through water:

Do not drive through water that is deeper than 1 ft (30 cm). If you must drive through water accumulations up to that depth, drive only at walking speed. Driving at a faster speed could cause damage to the engine, the electrical systems and the transmission.

Rear parcel tray:

Do not place heavy or hard objects on the rear parcel tray. If you do so, they could pose a danger to vehicle occupants during a braking or evasive maneuver, or in a crash.

Clothes hooks:

When suspending articles of clothing from the hooks, be sure that they will not obstruct the driver's vision. Do not hang heavy objects on the hooks. If you do so, such objects could pose a danger during braking or evasive maneuvers.

Catalytic converter

The catalytic converter reduces harmful exhaust emissions, and is designed for use with unleaded fuel only. Even minute quantities of lead would be enough to permanently damage both the catalytic converter and the system oxygen sensor.

To ensure efficient, trouble-free engine operation and avoid potential damage:

Be sure to comply with the scheduled maintenance requirements.
Fill the fuel tank well before it is empty.
Do not attempt to start the engine by tow-starting. If you do so, unburned gasoline in the catalytic converter could ignite and cause severe damage. If you have starting problems, start the engine with an outside starting aid only. Refer to page 171.

Avoid other situations in which the fuel is not burned or burns incompletely such as frequent or extended starter engagement or repeated start attempts in which the engine does not start. Stopping and restarting an engine which is running properly does not present a problem. Never allow the engine to run with any of the spark plug cables disconnected.

Be sure to comply with the instructions above to prevent burned fuel from reaching the cataconverter. Otherwise, the catalytic converter could respond by over- ing, leading to serious damage.eme temperatures occur at the lytic converter on this and every yst-equipped vehicle. Heat shields installed adjacent to some sections the exhaust system. Never remove the shields; do not apply under- ing to their surfaces. When driving, dding at idle or when parking, take autions to avoid contact between not exhaust system and easily flam- le materials (grass, hay or leaves, example). Such contact could lead fire, resulting in serious personal y and property damage.

Antilock Brake System (ABS)

The concept

ABS enhances active safety by helping to prevent the wheels from locking when the brakes are applied. This is done because locked wheels are dangerous. When the front wheels slide, the driver loses steering control over the vehicle. Traction loss at the rear wheels can cause the rear axle to break into an uncontrolled skid.

With ABS, the shortest possible braking distances are achieved under most conditions (on straight-aways and in curves, with different road surfaces).

ABS is designed to meet two essential requirements during every brake application:

To help provide vehicle stability
To help maintain steering control and maneuverability – on all types of road surfaces (asphalt, concrete, mud, wet, snow, ice).

Braking with ABS

The system becomes operative once the vehicle exceeds a speed of approx. 6 mph (10 km/h). The ABS is deactivated whenever the vehicle's speed drops back below approx. 4 mph (6 km/h). This means that the wheels can lock in the final phase of a brake application – a factor of no significance in actual practice.

If you are in a situation that requires full braking, you will exploit the full benefits of the ABS system if you apply maximum brake pressure ("panic stop"). Since the vehicle maintains steering responsiveness, you can avoid possible obstacles with a minimum of steering effort, despite the full brake application.

The ABS system closed-loop control circuit cycles in fractions of a second. A pulsing of the brake pedal, combined with the sounds associated with the hydraulic controls, tells you that the brake system is within its maximum limit range and reminds you that you should adapt your vehicle's speed to road conditions.

On road surfaces which have a loose layer on a firm base (on gravel or snow, for instance), the braking distances with ABS may be longer than with the wheels locked. This is also true if snow chains are mounted. However, ABS continues to provide enhanced vehicle stability and steering response under these conditions.

Antilock Brake System (ABS)

Information for your safety

Not even ABS can suspend the laws of physics. The consequences of brake applications with an adequate safety distance between vehicles, if the vehicle is driven at excessive speeds in curves, or during aquaplaning remain the responsibility of the driver. You should never allow the added safety of ABS to lull you into a false sense of security, or mislead you into taking risks that could affect your own safety and that of others.

Do not make any modifications to the ABS system.

Service procedures on ABS are to be performed by authorized technicians only.

In the event of a fault

If the ABS warning lamp in the instrument cluster lights up, refer to page 21. The brake system then reverts to conventional operation as on vehicles without ABS. However, have the

brake system checked by your BMW center as soon as possible. To prevent undetected defects and cumulative faults from adversely affecting the brake system, refer any problems to your BMW center at the earliest opportunity.

Disc brakes

Disc brakes furnish optimum deceleration and braking control and greater fade resistance under heavy use.

Infrequent driving, extended periods when the vehicle is parked, and driving conditions in which brake applications are less frequent all promote an increase in corrosion of the brake disks and contamination of the brake pads. This occurs because the minimal application force that is required to clean the disks is not reached between the pads and disks.

If the brake disks are corroded, they will tend to respond to braking with a pulsating effect which even extended application cannot correct.

For your own safety: use only brake linings that BMW has

released for your particular vehicle model. BMW cannot evaluate non-approved brake pads to determine if they are suited for use, and therefore cannot ensure the operating safety of the vehicle if they are installed.

Driving notes

While driving on wet roads or in heavy rain, it is a effective to apply light pressure to the brake pedal every few miles or kilometers. Watch traffic conditions to ensure that this maneuver does not endanger other road users. The heat which is generated by the brake applications helps to dry the brake disks and pads.

Maximum braking force is obtained while the wheels continue to rotate, peaking when the wheels remain on the verge of locking without actually doing so. ABS maintains this state automatically. If the ABS fails, you should revert to the staggered braking technique described on page 126).

Extended or steep mountain descents should be driven in the gear in which only minimal periodic brake applications is required. This avoids excessive strain on the brakes and possible impairment of the braking effect.

The engine's braking effectiveness can be increased even more by progressively shifting down - clear into first gear, if necessary.

If engine braking should prove to be inadequate, you should still avoid extended, continuous braking. Instead of maintaining low to moderate pressure over an extended period of time, you should decelerate the vehicle by applying more substantial force on the pedal (watch for following traffic). Pause before repeating the brake application. This staggered braking technique allows the brakes to cool in the intervals between active braking phases. This prevents overheating and ensures that full braking capacity remains available at all times.

Do not coast with the clutch depressed, with the shift lever in tal or with the engine shut off. The he does not provide any braking with the transmission in neutral or the engine shut off.

Never allow floor mats, carpets or any other objects to protrude into the area around the accelerator, clutch and brake pedals and obstruct their movement.

Disc brakes Brake system

Dynamic Brake Control (DBC)\*

If you apply the brakes rapidly, this system automatically generates maximum braking force boost and thus helps to achieve the shortest possible braking distance in "panic braking" situations. All of the benefits of the ABS system are exploited under these circumstances.

Do not reduce the pressure on the brake pedal for the duration of the brake application. When the brake pedal is released, the DBC is deactivated.

In the event of a malfunction, the yellow warning lamp comes on. Conventional braking efficiency is available without limitations. Have the system checked and repaired at your center as soon as possible.

Refer to the "Information for your safety" covering the ABS system 122. This information also applies to DBC.

Brake fluid level

The warning lamp for the brake's hydraulic system comes on or the message "CHECK BRAKE FLUID" appears in the Check Control:

The brake fluid level is too low in ervoir (refer to page 142).

the reservoir (refer to page 142). If the brake fluid level is too low and brake pedal travel has become noticeably longer, there may be a defect in one of the brake system's hydraulic circuits.

Proceed to the nearest BMW center. Higher brake application sure may be necessary under these ititions, and brake pedal travel may significantly longer. Please member to adapt your driving style ordingly.

The warning lamp also comes on when the message "CHECK BRAKE LININGS" is displayed in the Check Control.

Brake linings

The message "CHECK BRAKE LININGS" appears in the Check Control:

The brake pads have reached their minimum pad thickness. Proceed to the nearest BMW center as soon as possible to have the pads replaced.

For your own safety: use only brake linings that BMW has used for your particular vehicle pel. BMW cannot evaluate non-oved brake pads to determine if we are suited for use, and therefore not ensure the operating safety of vehicle if they are installed.

Winter operation

The onset of winter is often accompanied by rapid changes in weather. Adaptations in driving style should be accompanied by preparations on the vehicle itself to ensure that your progress through the winter remains safe and trouble-free.

Coolant

Be sure that the coolant mixture contains the year-round ratio of 50:50 water and antifreeze/corrosion protection. This mixture provides protection against freeze-ups down to approx. -34 °F (-37 °C). Replace the coolant every three years.

Locks

BMW door lock deicer can be used to free locks if they are frozen. This deicer also contains lubricant. After using the deicer, treatment with BMW lock cylinder grease is recommended.

Rubber seals and components

Treat the rubber parts and weather-stripping on the doors, hood and luggage compartment lid with BMW rubber treatment or BMW Silicon Spray to prevent them from freezing.

A full range of car care products is available from your BMW center.

Snow chains

Mount BMW snow chains* on winter tires only. Always mount snow chains in pairs and on the rear wheels only. Read and comply with the chain manufacturer's safety precautions. Do not exceed a maximum speed of 30 mph (50 km/h). To achieve maximum traction, we recommend that you deactivate the DSC system when snow chains have been mounted. Refer to page 86.

Starting off

When starting from a full stop in deep snow or for "rocking" the vehicle to free it, we recommend that you deactivate the DSC system. Refer to page 86.

Driving on low-traction road surfaces

Use smooth, gentle pressure to control the accelerator pedal. Avoid excessive engine speeds and shift to the next higher gear at an early point. Adapt your speed and driving style when approaching grades or slopes. Maintain an adequate distance between yourself and the vehicle ahead.

Winter operation

Brakes

Winter road conditions substantially reduce the amount of traction available between the tires and the road surface. The resulting increases in braking distance are considerable and should be kept in mind at all times.

ABS is intended to prevent the wheels from locking during brake applications, thus helping to maintain vehicle stability and steering response.

If the ABS system does not respond for any reason and the wheels lock: reduce the pressure on the brake pedal until the wheels just start to roll again while still maintaining enough force to continue braking. Following that, increase pedal pressure again. Reduce the pressure as the wheels lock, then reapply pressure. Repeat this braking method as necessary.

This type of staggered braking will reduce the braking distance, and the vehicle still remains responsive to steering.

You can then attempt to steer around hazards after you have reduced pressure on the brake pedal.

Do not shift down on slick road surfaces. Doing so could cause the rear wheels to lose traction and skid, resulting in the loss of vehicle control.

Depress the clutch during hard braking on road surfaces that provide only poor or uneven traction.

Skid control

Depress the clutch and release the accelerator pedal. Countersteer carefully and attempt to regain control of the vehicle.

Parking

Engage either 1st or reverse gear. Apply the parking brake whenever you park on inclined surfaces. In order to prevent the parking brake linings from locking due to frost or corrosion, dry them by gently applying the parking brake as the vehicle is coming to a stop. Make sure that following traffic is not endangered.

The brake lamps do not light up when the parking brake is applied.

Power steering Cellular phone\* Radio reception

If there is a change in steering response (difficult steering, for example) or, especially on vehicles with Servotronic*, if the steering "drifts" or "floats" at increasing speeds: Consult a BMW center to have it checked.

If the power steering fails, increased effort will be required to the vehicle.

Mobile communications systems (cellular phone, radio, etc.) are only allowed a power output of up to 10 watts. Mobile communication devices not specifically designed for use in your vehicle may trigger malfunctions in the operation of your vehicle. BMW can neither test nor assume responsibility for every individual product being offered on the market. We recommend that you consult your BMW center before purchasing any device of this kind.

To ensure that your BMW continues to provide reliable and trouble-free operation, do not use a cellular phone or other radio device with an antenna located inside the passenger compartment. The antenna should always be mounted on the outside of the vehicle.

Before loading the vehicle on a car-carrier train or driving it through a car-wash, remove the antenna.

The reception and sound quality obtained from mobile radios varies according to a variety of factors, including the broadcast range of the transmitter and the directional orientation of the antenna. Interference factors such as high-tension power lines, buildings and natural obstructions can all lead to unavoidable reception interference, regardless of how well the vehicle's sound system is operating. Climatic factors such as intense solar radiation, fog, rain and snow can also interfere with reception.

Cellular phones without formal BMW approval can also generate interference. This phenomenon assumes the form of a low-pitched hum emanating from the speaker system.

Please refer to the supplementary Owner's Manual provided with your sound system for detailed information on its use.

Tire inflation pressure Tire condition

Information for your safety

The factory-approved radial tires are matched to the vehicle and have been selected to provide optimum safety and driving comfort on your vehicle.

It is not merely the tire's service life, but also driving comfort and – above all else – driving safety that depend on the condition of the tires and the maintenance of the specified tire pressure. Incorrect inflation pressure is a frequent cause of tire damage. It also significantly influences the roadholding ability of your BMW.

Check tire inflation pressures on a regular basis (refer to page 26),

at least every two weeks and before beginning a longer trip. If this is not done, incorrect tire pressures can cause driving instability and tire damage, ultimately resulting in accidents.

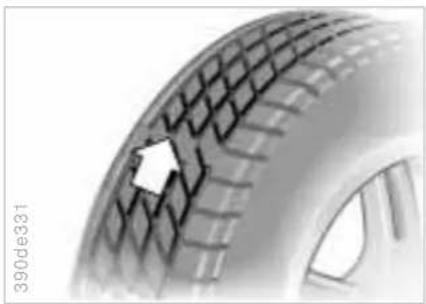

Close-up of a car tire with visible tread pattern and a white arrow pointing to a specific area (no text or symbols)

Tire tread - Tire damage

Inspect your tires frequently for tread wear, signs of damage and for foreign objects lodged in the tread. Check the tread depth.

Tread depth should not be allowed to go below 0.12 in (3 mm), even though the legally specified minimum tread depth is 0.063 in (1.6 mm). At a tread depth of 0.063 in (1.6 mm), tread depth indicators (arrow) in the tread-groove base indicate that the legally-permissible wear limit has been reached. Below 0.12 in (3 mm) tread depth, there is an increased risk of aquaplaning, even at relatively moderate speeds and with only small amounts of water on the road.

Do not drive on a deflated (flat) tire. A flat tire greatly impairs steering and braking response, and can lead to complete loss of control over the vehicle.

Avoid overloading the vehicle so that the permitted load on the tires is not exceeded. Overloading can lead to overheating and increases the rate at which damage develops inside the tires. The ultimate result can assume the form of a sudden air loss.

Unusual vibrations encountered during normal vehicle operation can indicate tire failure or some other vehicle defect, as can variations in normal vehicle response, such as a pronounced tendency to pull to the left or right.

Should this occur, respond by immediately reducing your speed and carefully proceeding to the nearest BMW center or professional tire center, or having the vehicle towed in to have it and its tires inspected.

Tire damage (up to and including blow-outs) can endanger the lives of both the vehicle occupants and other road users.

Tire replacement

To maintain good handling and vehicle response, use only tires of a single tread configuration from a single manufacturer. BMW tests and approves wheel/tire combinations. Refer to page 133.

DOT Quality Grades

Tread wear

Traction AA A B C

Temperature A B C

All passenger vehicle tires must conform to Federal Safety

Requirements in addition to these grades.

Tread wear

The tread wear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course.

For example, a tire graded 150 would wear one and one-half (1 ½) times as well on the government course as a tire graded 100. The relative performance of tires depends upon the actual conditions of their use, however, and may depart significantly from the norm due to variations in driving habits, service practices and differences in road characteristics and climate.

Traction

The traction grades, from highest to lowest, are AA, A, B and C.

Those grades represent the tire's ability to stop on wet pavement as measured under controlled conditions on specified government test surfaces of asphalt and concrete. A tire marked C may have poor traction performance.

The traction grade assigned to this tire is based on straight-

ahead braking traction tests, and does not include acceleration, cornering, hydroplaning, or peak traction characteristics.

Temperature

The temperature grades are A (the highest), B and C, representing the tire's resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel.

Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure. The grade C corresponds to a level of performance which all passenger car tires must meet under the Federal Motor Vehicle Safety Standard No. 109. Grades B and A represent higher levels of performance on the laboratory test wheel than the minimum required by law.

The temperature grade for this tire is established for a tire that is erly inflated and not overloaded.

Excessive speed, underinflation, or excessive loading, either separately or in combination, can cause heat buildup and possible tire failure.

Uniform Tire Quality Grading

Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example:

Treadwear 200 Traction AA Temperature A

Tire replacement Tire rotation

Do not use retreaded tires, since driving safety may be impaired.

This is due to the possible variations in casing structures and, in some cases, to their extreme age, which can lead to a decrease in their durability.

Tire age

The date on which the tire was manufactured is indicated by the code on the sidewall:

DOT ... 3400 indicates that the tire was manufactured during week 34 of the year 2000.

BMW recommends the replacement of all tires when the tires are no more than 6 years old, even if a tire life of 10 years is possible.

Between the axles

The tread wear patterns at the front end differ from those at the rear – the actual patterns will vary according to individual driving conditions. In the interests of safety and maintaining optimal handling characteristics, interaxle tire rotation is not recommended.

If a proposed interaxle rotation of tires is based on economic considerations, one should consider whether the costs for the rotation are likely to be recaptured by any increase in the service life of the tires which might be realized. In principle, interaxle tire rotation should be performed at short intervals, with a maximum of 3,000 miles (5,000 km).

Consult your BMW center for more information.

Should you decide to rotate the tires, it is essential that you comply with the following:

Rotate tires on the same side only, since braking characteristics and road grip could otherwise be adversely affected.

Following rotation, correct the tire inflation pressure.

If different tire sizes are mounted on the front and rear axles (refer to the 133), the wheels may not be deded from one axle to the other.

Wheel and tire combinations

The right choice

Use only wheels and tires approved by BMW for the corresponding vehicle model, as otherwise the tires may make contact with the body as the result of tolerances despite the same nominal size being used, resulting in serious accidents. If non-approved wheels and tires are used, BMW cannot evaluate their suitability, and therefore cannot be held liable for driving safety.

For wheel and tire specifications approved by BMW, refer to page 134.

The correct wheel-tire combination affects on different systems otherwise will not function prop-e.g. ABS, DSC.

For this reason, use only tires of the same brand and tread pattern on the vehicle and, for example, restore the approved wheel-tire combination following a flat tire as soon as possible.

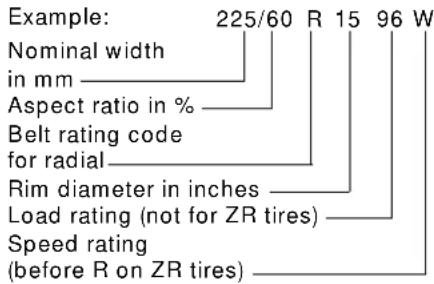

Codes on the tires and wheels

The code on tires has the following meaning.

Codes on radial tires:

Example: Nominal width in mm Aspect ratio in % Belt rating code for radial Rim diameter in inches Load rating (not for ZR tires) Speed rating (before R on ZR tires)

The speed rating indicates the approved maximum speed for the tire.

Summer tires:

S = up to 112 mph (180 km/h)

T = up to 118 mph (190 km/h)

H = up to 130 mph (210 km/h)

V = up to 149 mph (240 km/h)

W = up to 167 mph (270 km/h)

Y = up to 186 mph (300 km/h)

ZR = over 149 mph (240 km/h)

Winter tires:

Q M+S = up to 100 mph (160 km/h) T M+S = up to 118 mph (190 km/h) H M+S = up to 130 mph (210 km/h)

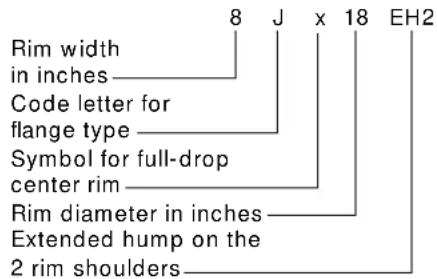

Codes on light-alloy wheels:

Rim width in inches Code letter for flange type Symbol for full-drop center rim Rim diameter in inches Extended hump on the 2 rim shoulders 8 J x 18 EH2

Protect valve stems and valves from dirt using screw-on valve stem caps. Dirt in the valves frequently leads to slow leaks.

Storage

Store tires in a cool, dry place, protecting them against light whenever possible. Protect the tires against contact with oil, grease and fuel.

Special features of winter tires

Choosing the right tire

BMW recommends winter tires (M+S radial tires) for operation under inclement winter driving conditions. While so-called all-season tires (M+S designation) provide better winter traction than summer tires with the load ratings H, V, W, Y and ZR, they generally do not achieve the performance of winter tires.

In the interests of safe tracking and steering response, install radial tires made by the same manufacturer and with the same tread configuration on all four wheels if you elect to mount winter tires.

Do not exceed specified maximum speeds

In Germany: attach a corresponding sign in accordance with the Federal Motor Vehicles Safety Standards in your field of vision if the maximum speed of the vehicle is higher. This sticker is available from the tire dealer or your BMW center.

Never exceed the maximum speed for which the tires are rated.

Unprofessional attempts by laymen to service tires can lead to damage and accidents.

Have this work performed by skilled professionals only. Your BMW center will be glad to assist you with both their expertise and the proper equipment for your vehicle.

Tire condition, tire pressure

Winter tires display a perceptible loss in their ability to cope with winter driving conditions once the tread wears to below 0.16 in (4 mm), and should thus be replaced.

Comply with the specified tire inflation pressure and be sure to have the wheels balanced each time a tire or wheel is changed. In addition, also have the Tire Pressure Warning (RDW) reinitialized, for details refer to page 88.

Snow chains\*

The use of narrow-link BMW snow chains on winter tires is approved only in pairs and only on the rear wheels. Comply with all manufacturer's safety precautions when mounting the chains.

Deactivate the Tire Pressure

Warning (RDW) when using snow

chains. The snow chains can lead to malfunction warnings and undetected losses in pressure.

For further information, refer to page 88.

134 Approved wheel and tire specifications

BMW tests certain tire brands for each tire size, classifies them as road-safe and approves them. Your BMW center can provide information in this connection.

Observe any regulations applicable in the country of use, e.g. requiring entry in the vehicle documents.

Tire specifications

Summer

Front: 245/40 ZR 18 8Jx18EH2

Rear: 275/35 ZR 18 9.5Jx18EH2

Winter (M+S)

235/45 R 17 94 H 8Jx17EH2

Snow chains\*

It is not possible to mount snow chains with 18-inch wheels and tires.

Deactivate the tire pressure

control (RDW) when using snow

chains. The snow chains can lead to malfunction warnings and undetected losses in pressure.

For further information, refer to 88.

Hood

Close-up of a door handle with an arrow indicating rotation (no text or symbols)

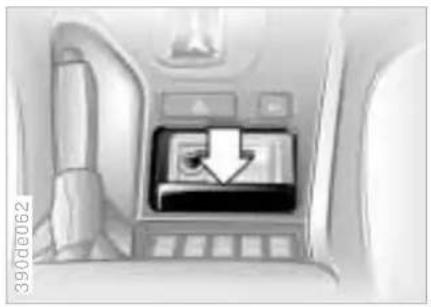

To unlock

Pull the lever located under the left-hand side of the instrument panel.

Do not work on your vehicle without appropriate skills. Always switch off the engine and allow it to cool down before working in the engine compartment. Always disconnect the battery before working on any electrical systems or equipment, especially when these are located within the engine compartment. Comply with all applicable instructions and warnings. Failure to work in an informed, professional manner when servicing components and materials constitutes a safety hazard for vehicle occupants and other road users. If you are not familiar with

Close-up of a car's front grille and grille (no visible text or symbols)

the guidelines, please have the operations performed by your BMW center.

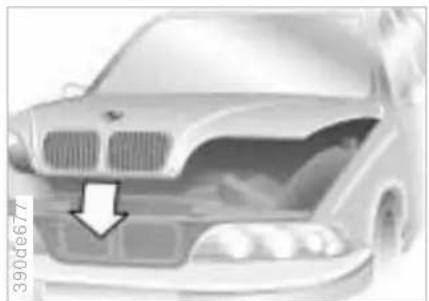

To open

Pull the release handle and open the hood.

Front view of a car with a white arrow pointing to the dashboard area (no visible text or symbols)

To close

Allow the hood to fall from a height of about 4 in(10 cm) so that it audibly engages.

To avoid injuries, be sure that the travel path of the hood is clear when it is closed, as with all closing procedures. If it is determined that the hood is not completely closed while driving, stop immediately and close it securely.

Engine compartment

Diagram of a car engine compartment with numbered parts for identification and assembly reference

Online Edition for Part No. 01 41 0 155 429 - © 09/00 BMW AG

Engine compartment

1 Reservoir for brake fluid (under the housing of the microfilter) 142
2 Auxiliary terminal for jump starting 171
3 Engine oil dipstick 139
4 Engine oil filler neck 139
5 Coolant expansion tank 141
6 Reservoir for the intensive-cleaning system 138
7 Reservoir for the windshield and headlamp washer system* 138

Washer fluids Washer nozzles

Close-up of a mechanical device with a lever and handle, no visible text or symbols

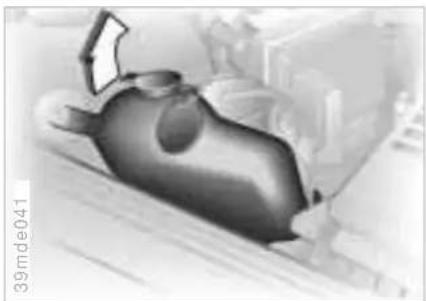

Headlamp\* and windshield washer system

Capacity in US quarts (liters).

Windshield washer:

Approx. 3.7 US quarts (3.5 liters)

With headlamp-washing system:

Approx. 6.3 US quarts (6.0 liters).

Fill with water and – if required – with a washer antifreeze (according to manufacturer's recommendations).

We recommend that you mix the washer fluid before adding it to

the reservoir.

Black and white photo of a metallic object with a handle, possibly a pot or container, placed on a surface (no visible text or symbols)

Intensive-action washer reservoir\*

Capacity approx. 1.1 US quarts (1.0 liters).

Fill with intensive-action washer fluid. It resists freezing to approx. -17 °F (-27 °C) and is available from your BMW center.

Antifreeze agents or intensive-action washer fluids for the

washer systems are highly flammable. For this reason, keep them away from sources of flame and store them only in their original containers. Store them so that they are inaccessible to children. Comply with the instructions on the containers.

Windshield washer

The spray from the nozzles should be directed so as to ensure effective cleaning, even at high speeds. Use a needle to adjust the nozzles as required or have them adjusted at your BMW center.

Headlamp washer system

Have the nozzles adjusted by your BMW center as required.

Engine oil

Illustration of a mechanical pipe fitting with a magnified inset showing a component (no text or symbols)

Checking oil level

1 Park the vehicle on a level surface.
2 Allow the engine to run at operating temperature for at least 15 seconds at idle, then shut it off.
3 After approx. one minute, pull the dipstick out and wipe it off with a clean lint-free cloth, paper towel, or similar material.
4 Carefully push the dipstick all the way into the guide tube and pull it out again.
5 The oil level should be between the two graduations on the dipstick.

As with fuel economy, oil consumption is directly influenced by your driving style and vehicle operating conditions.

460de189 MAX MAX

The oil volume between the two marks on the dipstick corresponds to approx. 1.1 US quarts (1 liter). Do not fill beyond the upper mark on the dipstick. Excess oil will damage the engine.

Close-up of a mechanical component with a small black component and an arrow pointing to it, no visible text or symbols.

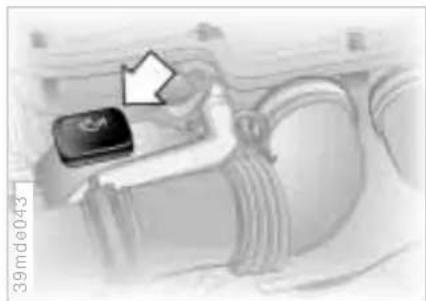

To add oil

Wait until the level has dropped to just above the lower mark before adding oil. However, do not wait until the oil level drops below the lower mark.

BMW engines are designed to operate without oil additives; the of additives could lead to damage time cases. This is also true for the dual transmission, the differential, the power steering system.

Engine oil

Specified engine oils

The quality of the engine oil selected has critical significance for the operation and service life of an engine. Based on extensive testing, BMW has approved only certain engine oils. Use only approved "BMW High Performance Synthetic Oil."

If you are unable to obtain "BMW High Performance Synthetic Oil," you can add small amounts of synthetic oil in between oil changes. Use only oils with the API SH specification or higher.

Ask your BMW center for details concerning the specific "BMW

High Performance Synthetic Oil" or "synthetic oils" which have been approved.

You can also call BMW of North America at 1-800-831-1117 or visit this website: www.bmwusa.com to obtain this information.

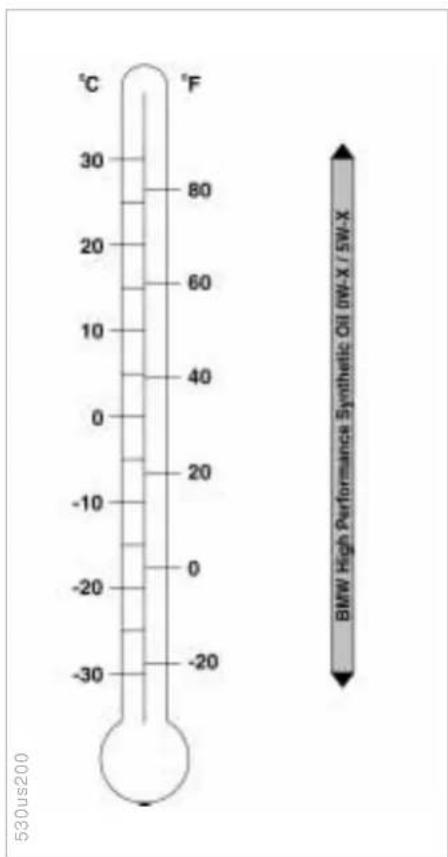

Viscosity ratings

Viscosity is the oil flow rating as established in SAE classes.

The selection of the correct SAE class depends on the climatic conditions in the area where you typically drive your BMW.

Approved oils are in SAE classes 5W-40 and 5W-30.

These oils may be used for driving in all ambient temperatures.

530us200 °C 30 80 20 60 10 40 0 20 -10 0 -20 -30 -20 °F BMW High Performance Synthetic Oil DW-X / SW-X

Engine oil Coolant

Always observe all environmental protection guidelines and regula- when disposing of used oil.

Recommendation: have the oil changed by your BMW center only.

Continuous exposure to used oil has caused cancer in laboratory

For this reason, any skin areas that come into contact with oil should be thoroughly washed with soap and water.

Always store oils, grease and similar materials so that they are inaccessible to children. Comply with warning labels and information on containers.

Do not add coolant to the cooling system when the engine is hot. If attempt to do so, escaping coolant cause burns.

To avoid the possibility of secondary damage, never use anything other than factory-approved, nitrite and amino-free extended-duty antifreeze with corrosion inhibitor. Your BMW center is familiar with the official specifications. Antifreeze and anticorrosion agents are hazardous to health. You should always store them in their original container and in a location which is out of reach of children. Extended-duty antifreeze with corrosion inhibitor contains the flammable substance ethylene glycol. For this reason, do not spill antifreeze with corrosion inhibitor on hot engine parts. It could ignite and cause serious burns.

Comply with the applicable environmental laws regulating theposal of extended-duty antifreeze corrosion inhibitor.

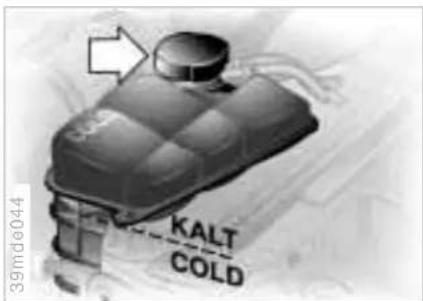

39md0044 KALT COLD

Checking coolant level

Correct coolant level when the engine is cold (approx. 68 °F/20 °C): Visible within the transparent expansion tank, no higher than the COLD mark.

Coolant Brake fluid

Adding coolant

Wait until the engine cools before removing the cap from the expansion tank. The needle of the coolant gauge in the instrument cluster must be located in the blue zone; otherwise, there is a danger of scalding.

1 Turn the cap counterclockwise slightly in order to allow accumulated pressure to escape. Then open.
2 If the coolant is low, slowly add coolant until the correct level is reached - do not overfill.

The coolant is a mixture of water and extended-duty antifreeze with corrosion inhibitor. Always maintain the prescribed all-season 50:50 mixture ratio for year-round protection against internal corrosion. No other additives are required.

Replace the coolant every three years.

Brake fluid level

If the indicator lamp for the brake hydraulic system appears or if the "CHECK BRAKE FLUID" message appears in the Check Control*: the brake fluid level is too low in the reservoir.

The brake fluid reservoir is located under the microfilter housing on the driver's side of the vehicle. For adding brake fluid or for determining and correcting the cause of brake fluid loss, consult your BMW center. Your BMW center is familiar with the specifications for factory-approved brake fluids (DOT 4).

Brake fluid loss may result in extended brake pedal travel. If this occurs, refer to the information on page 124.

Brake fluid is hygroscopic, that is, it absorbs moisture from the air time. In order to ensure the safety reliability of the brake system, have brake fluid changed every two years in BMW center. Refer also to the ice and Warranty Information klet (US models) or the Warranty Service Guide Booklet (Canadianels). Brake fluid is toxic and ages the vehicle's paint. You old always store it in its originalainer and in a location which is out each of children. Do not spill the land and do not fill the brake fluid reser-beyond the MAX mark. The brake could ignite upon contact with hot one parts and cause serious burns.

Comply with the applicable environmental laws regulating disposal of brake fluid.

Vehicle Identification Number

Illustration of a person wearing a hat with an arrow pointing to the upper part of the head (no text or symbols)

In the engine compartment, stamped on the right-hand strut dome (arrow) and on the upper edge of the instrument panel on the left-hand side.

The BMW Maintenance System

MPH OILSERVICE INSPECTION 03- 8000sno

The BMW Maintenance System has been designed as a reliable means of providing maximum driving and operating safety – and as cost-effectively as possible for you.

Please keep in mind that regular maintenance is not only necessary for the safety of your vehicle, but also plays a significant role in maintaining the resale value of the vehicle.

Service Interval Display

Advanced technology is employed to calculate the optimal maintenance intervals, which are then indicated in the Service Interval Display. While conventional systems rely solely on distance traveled to determine when service is due, the BMW Maintenance System began many years ago to take the actual conditions under which the vehicle is driven into consideration.

From the point of view of maintenance, 62,000 miles (100,000 km) accumulated in short-distance urban driving are not the equivalent of the same distance covered at moderate speeds in long-distance highway travel.

The BMW Maintenance System includes the Engine Oil Service and Inspections I and II.

Determining the maintenance intervals according to the actual vehicle driving loads on the vehicle covers every kind of operating situation. However, even those who drive only short distances – significantly less than 6,200 miles (10,000 km) annually – should have the engine oil changed at least every 2 years since oil deteriorates over time, regardless of use.

Service and Warranty Information Booklet (US models)/Warranty and Service Guide Booklet (Canadian models)

For additional information on maintenance intervals and procedures, please refer to the Service and Warranty Information Booklet (US models) or the Warranty and Service Guide Booklet (Canadian models).

As a precaution against rust, it might be a good idea to have the body checked for damage from rocks or gravel at the same time, depending upon operating conditions.

Caring for your vehicle

Have your BMW center perform maintenance and repairs.

Your BMW center is always informed on the latest maintenance work and repair techniques and equipped with the required special tools. In addition, checking parts known from experience to be subject to wear is a permanent part of the maintenance specifications. Be sure that all maintenance work is confirmed in the Service and Warranty Information Booklet (US models) or the Warranty and Service Guide Booklet (Canadian models). These entries are your proof that the vehicle has received regular maintenance. They are also a requirement for warranty claims.

Washing your vehicle

You can have your new BMW washed in an automatic car wash. Car wash systems that do not employ brushes are preferable.

Wipe away tough dirt and loosen and remove dead insects before washing the vehicle.

To prevent spots, do not wash the vehicle when the hood is still warm, or immediately after and during exposure to strong sunlight.

When using an automatic car wash, be sure that:

The car wash system is suited for the dimensions of your vehicle.
No damage will occur on vehicles with attached body accessories (such as spoilers or antennas). Consult the car wash operator if necessary.
The wheels and tires of your vehicle cannot be damaged by the conveyance devices of the car wash system.
The vehicle is cleaned with minimum brush pressure, and that ample water is available for washing and rinsing.

Vehicles with rain sensor*:

Clean the windshield regularly. Wax from automatic car washes or insects, for example, can cause malfunctions in the function of the rain sensor.

Deactivate the rain sensor in automatic car washes. If you do not, age may occur if the wipers switch intentionally.

Parts of the vehicle that are inaccessible to the automatic washer – such as door sills, door and hood edges, etc. – should be cleaned by hand.

In the winter months, it is especially important to be sure that the vehicle is washed on a regular basis. Large quantities of dirt and road salt are difficult to remove, and they also cause damage to the vehicle.

Caring for your vehicle

If spray wands or high-pressure washers are used, be sure to maintain an adequate distance between the spray source and the vehicle's surface. Inadequate distance and excessive pressure can damage or weaken the finish, making it more susceptible to subsequent attack. In addition, moisture could penetrate to vehicle components, leading to long-term damage.

When cleaning the headlamps, please observe the following:

Do not wipe dry (scratches). Never use abrasives or strong solvents to clean the covers.

Remove dirt and contamination (such as insects) by soaking with BMW Car Shampoo and then rinsing with plenty of water.
Always use a deicer spray to remove accumulated ice and snow – never use a scraper.

After washing the vehicle, apply the brakes briefly to dry them.

Braking efficiency might otherwise be reduced by the moisture and the brake rotors could also be corroded.

Exterior finish

To provide effective corrosion protection, multilayer paintwork is applied at the factory. Cataphoretic immersion priming techniques are supplemented using special body-cavity protectants, with the application of specially-developed and extensively tested materials. A layer of flexible PVC is first applied to the undercarriage. Following this, a comprehensive undercoating treatment with a wax-based protectant is applied. Regular maintenance makes an important contribution to maintaining the safety and value of your vehicle.

Increasing awareness of the effects of harmful environmental factors on vehicle finishes have led paint and vehicle manufacturers to initiate ongoing programs designed to further improve the durability of their finishes. Despite this, environmental factors that occur locally or regionally can have negative effects on the finish of your vehicle. These should guide you in determining the frequency and extent of your efforts to maintain the vehicle finish.

Caring for your vehicle

Depending upon material and type of impact (perforation of paint layer), physical stresses from sand, road salt, gravel, etc., can cause corrosion to start extending beneath the finish, starting at the point of impact.

Road dirt, tar spots, dead insects, animal droppings (strong alkali effect) and tree excretions (resins and pollen) all contain substances capable of causing damage if they are allowed to remain on the finish of your vehicle for any period of time (spots, etching, flaking, separation in the top coat).

In industrial areas, deposits of flue dust, lime, oily soot, precipitation containing sulfur-dioxide (acid rain) and other environmental pollutants will damage the vehicle's finish unless adequate care is provided – even though this is generally limited to the outside horizontal surfaces.

In coastal regions, high levels of atmospheric salt and humidity promote corrosion.

In tropical zones, temperatures of over 105 °F (40 °C) in the shade prevail, in addition to heavy ultraviolet radiation and high humidity. Under those conditions, light paints can reach temperatures up to 175 °F (80 °C) and dark paints up to 250 °F (120 °C).

Caring for the vehicle finish

Regular washing is a preventive measure against long-term effects from substances that are harmful to the vehicle's finish, especially if you drive your vehicle in areas with high levels of air pollution or aggressive natural substances (tree resins, pollen).

Nevertheless, you should immediately remove especially aggressive substances. Failure to do so can lead to changes in the paint's chemical structure or to discoloration. Gasoline spilled during refueling, oil, grease and brake fluid should always be cleaned away immediately, as should bird droppings (finish damage).

Any contamination remaining on the surface of the vehicle will be especially conspicuous after washing. Use cleaning fluid or alcohol with a clean cloth or cotton pad to remove. Remove tar spots with tar remover. After cleaning, the affected areas should be waxed to ensure continued protection.

Use cleaning and car-care products that you can obtain ur BMW center.

Caring for your vehicle

Waxing your vehicle

Protect the finish using carnauba or synthetic-based waxes only.

The best way to determine when the finish needs to be waxed is by noting when water stops beading on the surface.

You can use a glass cleaner to remove any wax or silicone that may have been left on the windows during waxing.

Use cleaning and car-care products that you can obtain

at your BMW center.

Paint damage

You can touch up small areas of paint damage with a BMW spray paint or a BMW touchup stick.

The paint color code for your vehicle is provided on a sticker located on the right hand side under the hood and on the first page the Service and Warranty Information Booklet (US models) or of the Warranty and Service Guide Booklet (Canadian models).

Damage caused by flying stones, scratches, etc., must be touched up without delay to prevent rust from forming.

If corrosion has started to form in an area with paint damage, remove all rust and clean the area. Then prime the area with a BMW Primer Stick. Finally, apply the finish coat. Wait a few days, then polish the repaired area. Finish by applying a wax preservative.

More extensive paint damage should be professionally repaired in accordance with the manufacturer's instructions. Your BMW center uses original BMW finish materials in accordance with factory-approved repair procedures.

Window care

You an use window and glass cleaner to clean inside window surfaces and mirrors without smearing and streaking. Never use polishing pastes or abrasive (quartz) cleansers on mirror lenses.

When caring for break-resistant security glass*, observe the wing instructions:

The inner surface of the side windows is coated with a plastic film. For this reason, do not affix any decals or adhesive stickers on the inside of these windows unless they are to be placed there permanently. Wash the glass with clean water. If necessary, you may add a commercially-available mild household cleaner. Do not use abrasive cleaners. If the windows are fogged or iced over, treat them with an anti-misting cloth or a deicer spray – do not use an ice scraper.

Caring for your vehicle

Clean the wiper blades with soapy water. The wiper blades should be replaced twice a year, before and after the cold season.

Use only wiper blades approved by BMW.

Caring for other vehicle components and materials

Light-alloy wheels should be treated with alloy wheel cleaner, especially during the winter months. However, do not use aggressive products containing acids, strong alkalis or abrasives. Do not use steam cleaners operating at temperatures above 140 °F (60 °C). Follow the manufacturer's instructions. If your vehicle has chrome parts* such as the window frames and door handles, clean these parts carefully with ample clean water after driving on roads that have been salted. Add a shampoo supplement if desired. Use chrome polish as an additional treatment.

Plastic components, vinyl upholstery, headliners, lamp lenses, the clear cover of the instrument cluster and components with a sprayed dull black surface can be cleaned with water (add plastic shampoo as required). Do not allow moisture to soak through the seats or headliner. Never use solvents such as lacquer thinner, heavy-duty grease remover, fuels, etc.

Rubber components should be cleaned with water only; a rubber treatment or silicone spray may also be applied.

The safety belts should be cleaned with a mild soap and water solution without being removed from the vehicle. Never attempt chemical or dry cleaning, as damage to the belt fabric could result.

After cleaning, never allow the inertia reel to retract the belts until they are completely dry. Dirty safety belts prevent the inertia reel mechanism from retracting the strap properly, and thus constitute a safety hazard.

Heavily soiled floor carpets and mats* can be cleaned with an interior cleaner. The floor mats can be removed from the vehicle for cleaning.

Please use only a damp cloth to clean wooden fascia panels and components. Follow up by drying with a soft cloth.

Use cleaning and car-care products that you can obtain ur BMW center.

Caring for your vehicle

Leather care

The leather upholstery* used by BMW is a natural product of the highest quality, processed using state-of-the-art methods to ensure that it will maintain its high quality for years to come, provided that it is properly cared for.

Because this product is manufactured using natural materials, you must make allowance for its special characteristics as well as for the peculiarities of its use and care.

Regular periodic cleaning and care are essential, as dust and road dirt act as abrasives in the pores and creases of the material. This leads to wear spots and premature brittleness on the surface of the leather. We therefore suggest that you clean the leather with a vacuum cleaner or dust cloth at frequent intervals.

For cleaning use BMW leather cleaning foam.

Since dirt and grease gradually attack the protective layer of the leather, the cleaned surfaces should be treated with BMW leather care agent. This also acts as an antistatic agent.

For protection against dampness or moisture, treat the leather with a BMW impregnating agent.

We recommend that you perform this procedure twice a year on leather exposed to normal use.

Spills should be wiped up immediately. If the upholstery will be exposed to intense sunlight or if the vehicle is to be stored for an extended period, cover all leather surfaces (or better yet, cover the windows) to prevent fading.

Use cleaning and car-care products that you can obtain ur BMW center.

Cleaning agents can contain substances that are dangerous lose health risks. For this reason, you read and comply with the things and danger notices on the age.

Open the doors or windows on your vehicle when cleaning the interior. Never clean your vehicle with solvents or other materials not specifically intended for this application.

Airbags

39m de064 1 2 3

1 Front airbags on the driver and passenger sides
2 Head airbags on the driver and passenger sides (front and rear*)
3 Side airbags on the driver and passenger sides (front and rear*)

Important safety notices

Do not remove the airbag restraint system's gas generator. Testing and servicing are to be performed only by trained technicians. In the event of the air bag restraint system malfunctioning, being deactivated or triggered (in response to an accident), consult an BMW center only for the performance of any removal and service operations.

Do not modify or tamper with either the wiring or the individual components in the airbag system. This includes the padded steering wheel hub, the instrument panel, the side trim panels of the front or rear doors and the roof pillars or the sides of the headliner. Never apply adhesive materials to these components or cover or modify them in any way. Do not remove or dismantle the steering wheel yourself.

To ensure compliance with official safety regulations, have an BMW center dispose of airbag generators. Unprofessional attempts to service the system could lead to failure in an emergency or undesired airbag activation, either of which could result in personal injury.

Vehicle

Consult your BMW center regarding special procedures if you intend to store the vehicle for more than three months.

Technical modifications California Proposition 65 Warning

Any BMW center will be glad to inform you of the advisability, legal requirements and factory recommendations regarding technical modifications on your vehicle. For this purpose, the BMW center will require the Vehicle Identification Number and, in some cases, also the engine number.

Light-Emitting Diodes (LEDs)

Light-emitting diodes installed behind translucent lenses serve as the light source for many of the controls and displays in your vehicle. The concept behind their operation is related to that employed for lasers, and they are officially designated as Class 1 light-emitting diodes.

Do not remove the protective lens and avoid staring directly at the

unfiltered beam for extended periods (several hours), as inflammation of the iris could result.

California laws require us to state the following warning:

Engine exhaust, some of its constituents, and certain vehicle

components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

OBD interface socket

Close-up of a mechanical component with a circular arrow indicating direction (no visible text or symbols)

Access to the interface socket for the On-Board-Diagnostics (OBD): lift the cover (arrow) next to the steering column.

The purpose of the OBD (Onboard Diagnostic) system is to assure proper emission control system operation for the vehicle's lifetime by monitoring emission-related components and systems for deterioration and malfunction.

SERVICE ENGINE SOON An illuminated indicator informs you of the need for service, not of the need to stop the vehicle.

However, the systems should be checked by your BMW center at the earliest possible opportunity.

Under certain conditions, the indicator will blink or flash. This indicates a rather severe level of engine misfire. When this occurs, you should reduce speed and consult the nearest BMW center as soon as possible. Severe engine misfire over only a short period of time can seriously damage emission control components, especially the catalytic converter.

Warning lamp: Service Engine Soon for Canadian models

When the filler cap is not properly tightened, the OBD system can detect the vapor leak and the indicator will light up. If the filler cap is subsequently tightened, the indicator should go out within a few days.

Close-up of a medical or surgical tool with a pen and a tool, no visible text or symbols.

Online Edition for Part No. 01 41 0 155 429 - © 09/00 BMW AG

Repla Onbo Wind Lamp Repair Batter Fuses In ca malfu Fuel t Sliding Assis recei Jump Towing

Replacement procedures:

Onboard tool kit 156

Windshield wiper blades 156

Lamps and bulbs 157

Repairing a flat tire 162

Battery 166

Fuses 168

In case of electrical

malfunction:

Assistance, giving and

receiving:

Jump-starting 171

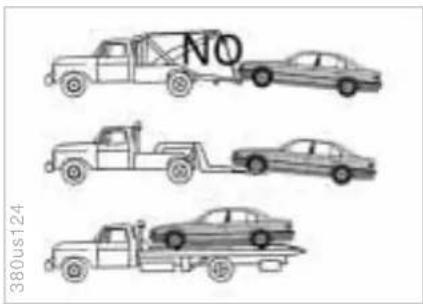

Towing the vehicle 172

Overview

Controls and features

Operation, care and maintenance

Owner service procedures

Advanced technology

Technical data

Index

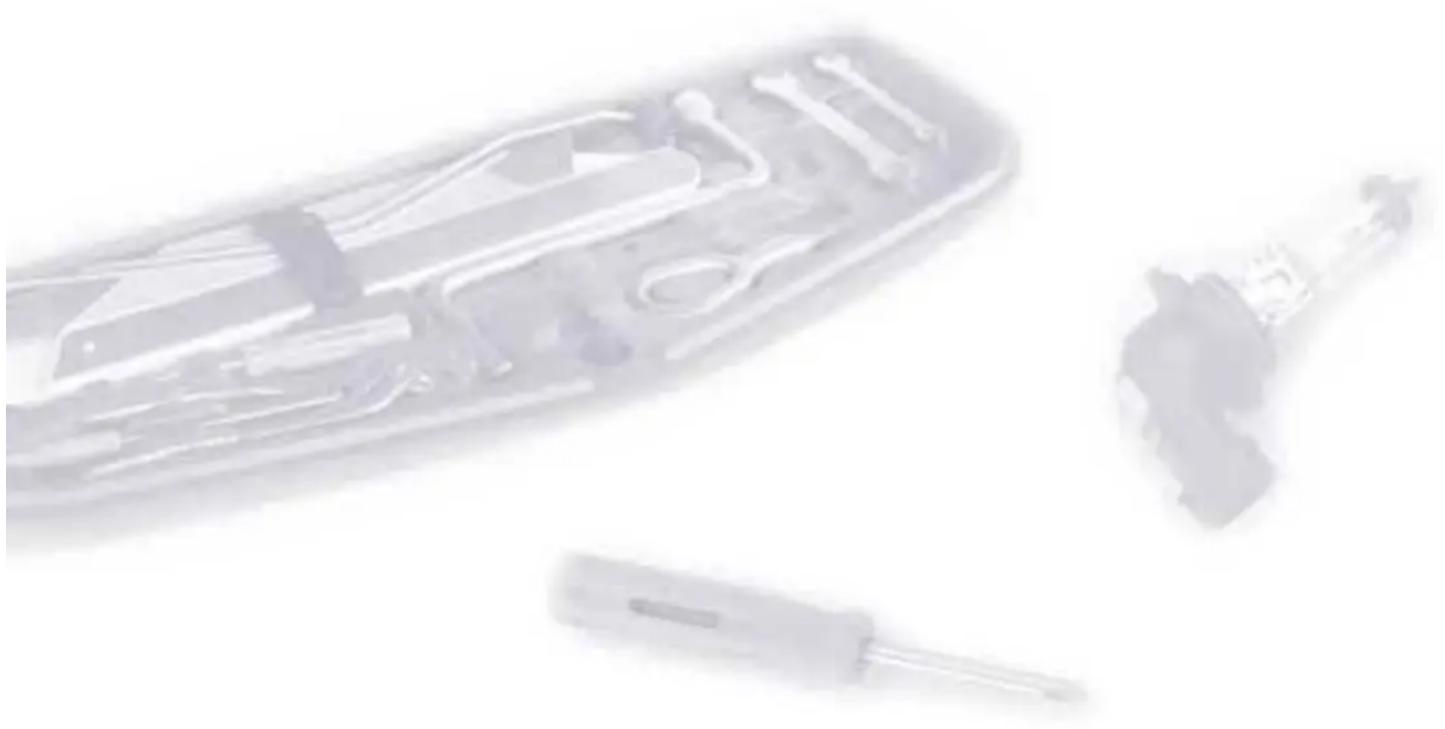

Onboard tool kit Windshield wiper blades

Close-up of a car rear bumper with visible engine and dashboard (no text or symbols)

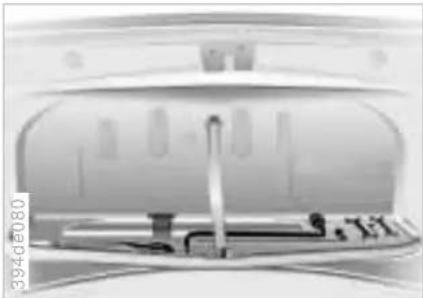

The onboard tool kit is located in the luggage compartment lid.

Loosen the wingnut to open.

Black and white photo of a train on a highway with a moving truck in the background (no visible text or symbols)

1 Lift the wiper arm up slightly and hold it firmly.
2 Press back the release (arrow) and pull the wiper blade back toward the base of the wiper arm.
3 Install the new blade and slide the release back into position.

Use only wiper blades approved by BMW.

Lamps and bulbs

The lamps and bulbs are essential factors contributing to the safety of your vehicle. Observe the following instructions during bulb replacement carefully. If you are not familiar with any of the procedures, consult your BMW center.

Do not touch the glass portion of a new bulb with your bare hands since even small amounts of impurities burn in to the surface and reduce the service life of the bulb. Use a clean cloth, paper napkin, or a similar material, or hold the bulb by its metallic base.

A replacement bulb set is available from your BMW center.

Whenever working on the electrical system, switch off the electrical accessory you are working on or disconnect the cable from the negative terminal of the battery. Failure to do this could result in short circuits.

To prevent injuries and damage, comply with any instructions provided by the bulb manufacturer.

Xenon lamps

The service life of these bulbs is very long and the probability of a failure is very low, provided that they are not switched on and off an unusual number of times. If one of these bulbs should nevertheless fail, it is possible to continue driving with great caution using the fog lamps, provided traffic laws in your area do not prohibit this.

Because of the extremely high voltages involved, any work on the

Xenon lighting system should be carried out by technically-qualified personnel only. Otherwise, there is a risk of fatal injury.

When cleaning the headlamps, please observe the following:

Do not wipe dry (this causes scratches). Never use abrasives or strong solvents to clean the covers.
Remove dirt and contamination (such as insects) by soaking with BMW Car Shampoo and then rinsing with ample water.
Always use a deicer spray to remove accumulated ice and snow – never use a scraper.

Mechanical assembly diagram showing internal components and a highlighted section (no text or symbols)

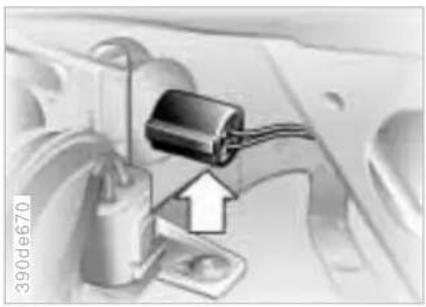

Parking lamp

10 watt bulb

The bulb holder and reflector are a single unit and are both changed the same time.

1 Turn the bulb holder with reflector to the left and remove.
2 Disconnect the plug.
3 Plug the new bulb holder into the plug connector. Be sure that it is securely engaged.
4 Insert the reflector with bulb holder and turn to the right as far as possible.

Lamps and bulbs

Close-up of a mechanical component with wires and a directional arrow, no visible text or symbols

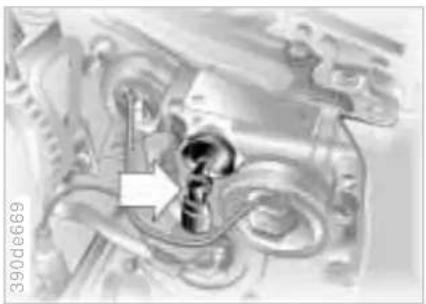

Turn signal indicator/Side lamps (side marker lamps), front

Dual-filament bulb, 21 watts

1 Turn the bulb holder to the left and remove it.
2 Remove and replace the bulb.

Close-up of a car wheel and a directional arrow icon (no text or symbols)

Side turn signals\*

5 watt bulb

1 Use finger pressure against the rear end of the lens (arrow) to press it forward for removal.
1 Apply gentle pressure to the bulb while turning it to the left to remove.

Close-up of a mechanical component with a circular knob and an arrow pointing to a small feature (no text or symbols visible)

Front fog lamps

HB4, 51 watt bulb

The bulb is pressurized. Therefore, wear safety glasses and prove gloves. Failure to comply with precaution could lead to injury if the is accidentally damaged during incement.

1 Pull the cover panel next to the fog lamp forward to remove.
2 Loosen the screw (arrow) and swing the lamp assembly out.
3 Release the spring on the back of the lamp and turn the cover to the left.
4 Release the clamp, remove the contact base and replace the bulb.

Lamps and bulbs

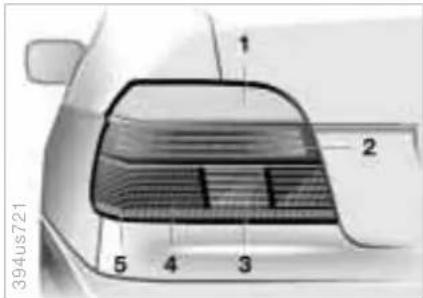

394us721 1 2 5 4 3

Tail lamp assembly

Rear lamp/side marker lamps: LEDs Remaining bulbs: 21 watts

1 Turn signal indicator yellow
2 Rear lamp/side marker lamps red
3 Backup lamp white
4 Brake lamp red

5

Reflector

Close-up of a car's front wheel and dashboard components (no visible text or symbols)

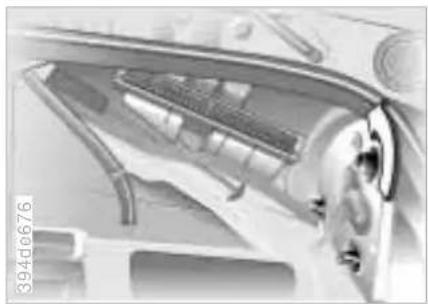

1 Use the upper handle to fold down the side panel in the luggage compartment.
2 Turn the corresponding bulb holder to the left (arrow) and remove it.
3 Press the defective bulb gently and turn it to the left. Remove the bulb and replace it.
4 Insert the bulb holder and turn to the right as far as possible.

Close-up of a mechanical component with a downward arrow indicating force or direction (no visible text or symbols)

Center (high-mount) brake lamp\*

21 watt bulb

1 Open the luggage compartment lid.
2 Unclip the cover panel (on the underside of the package tray) with a screwdriver (arrow).
3 Turn the bulb holder to the left and remove.
4 Apply gentle pressure to the bulb while turning it to the left to remove.

Please contact your BMW center if there is a defect in the rear

lamp/side marker lamp assembly.

Lamps and bulbs

Close-up of a car's door panel with BMW logo, gear, and plastic components (no visible text or symbols)

License plate lamps

5 watt bulb

1 Insert a screwdriver into the slot and press to the left (arrow); this disengages the lamp.
2 Remove the lamp and replace the bulb.

Interior lamps

Front

Interior lamp (10 watt bulb) with reading lamps (10 watt bulbs)

1 Interior lamp: press the lamp out to the side with a screwdriver and remove the lens. Pull the bulb from the contact tabs.
2 Reading lamp: gently press against the lamp while turning it to the left to remove it.

Indirect lighting

1 watt bulb

1 Unclip the lamp holder.
2 Remove the bulb.

Rear

Interior lamp (10 watt bulb) with reading lamp (5 watt bulb)

1 Use a screwdriver in the upper recesses to pry the lamp out.
2 Interior lamp: push back the tab on the reflector and replace the bulb.
3 Reading lamp: gently press against the lamp while turning it to the left to remove it.

Lamps and bulbs

Footwell lamps

5 watt bulb

1 Use a screwdriver to press the lens out to the side.
2 Replace the bulb.

Glove compartment lamp

5 watt bulb

1 Apply a screwdriver in the recess to pry the lamp out.
2 Remove the reflector.
3 Replace the bulb.

Luggage compartment lamps

Lamp on the underside of the rear package tray: 10 watt halogen lamp.

Lamp in luggage compartment lid:

10 watt bulb.

1 Apply a screwdriver in the recess to pry the lamp out.
2 Remove the reflector.
3 Replace the bulb.

Repairing a flat tire

Precautions in case of a flat tire: Stop the vehicle as far as possible from passing traffic. Switch on the hazard warning flashers.

Turn the steering wheel to the straight-ahead position, remove the key and engage the steering lock. Shift into 1st or reverse and engage the parking brake.

All passengers should be outside the vehicle and well away from your immediate working area (behind a guardrail, for instance).

If a warning triangle or portable hazard warning lamp is available, set it up on the roadside at an appropriate distance from the rear of the vehicle. Comply with all safety guidelines and regulations.

M Mobility System

For repairing a flat tire, you will find an M Mobility system in the BMW M5. With the aid of this system, you can apply a liquid sealant to the inside of the tire, thereby sealing off the damaged area, and then continue driving.

The M Mobility system makes the transport of a spare wheel superfluous and minimizes the curb weight.

Interior view of a vehicle or enclosure with curved structural elements and a small window (no visible text or symbols)

The M Mobility system is located in the luggage compartment under the floor mat;

1 Lift up the floormat and then raise the front cover panel.
2 Loosen the M Mobility system from its storage location.

Please note that the system's sealant container must be re-

placed every three years by your BMW center if the device is not used.

Repairing a flat tire

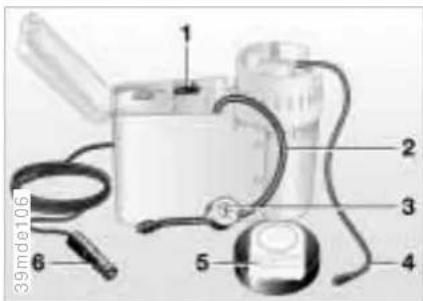

39mde106 1 2 3 4 5 6

The components of the M Mobility system

1 On/Off switch
2 Connection hose with pressure gauge for connecting the compressor with the sealant container or to connect the compressor to the wheel
3 Pressure gauge for indicating the tire pressure
4 Connector hose from the sealant container to the wheel
5 Warning sticker for maximum speed
6 Plug and cable for the cigarette lighter socket
7 Protective gloves (not illustrated).

Use the M Mobility System

If possible, leave the foreign object in the tire.

Do not exceed the maximum speed limits described below, otherwise it could lead to accidents. Before you use the M Mobility System, read the warnings and danger notices on the device carefully.

1 Remove the warning sticker 5 for maximum speed that is located on top of the device and affix it to the steering wheel.

Diagram of a car wheel with a valve and sensor, no readable text or symbols present

2 Take off the round cover and take out hose 4. Unscrew the valve from the defective wheel and screw the hose to the valve.

Repairing a flat tire

Medical device with tubing and a labeled arrow pointing to a component (no readable text or symbols)

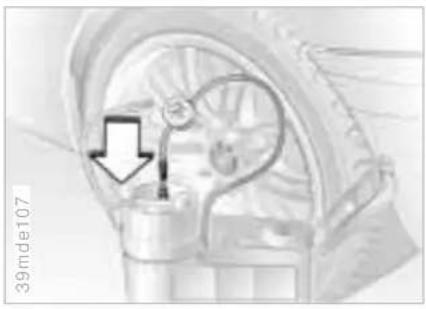

3 Flip open the cover and pull out the enclosed protective gloves. Take out hose 2 with the pressure gauge and screw it to the connection on the sealant container, as shown in the illustration.

4 Make sure that the system has been switched off (Position 0). Take out plug 6 and plug it into the cigarette lighter socket in the passenger compartment (refer to page 110).

Close-up of a mechanical component with a downward arrow indicator (no readable text or symbols)

5 Make sure that the screw on the rear of the pressure gauge 3 is tightened down. Turn on the M Mobility System (position 1, refer to illustration) and allow 3 minutes to elapse, to let the sealant flow in. At this point, it is insignificant what the tire pressure is.

6 Turn off the device. Disconnect the connector hose from the sealant container and the tire valve. Stow the M Mobility System in the luggage compartment.

7 Directly, afterward, drive at least 1.2 miles (2 km), so that the liquid sealant distributes evenly throughout the inside of the tire. If possible drive at no less than 15 mph (20 km/h), but not more than 40 mph (60 km/h). Stop in a suitable spot.

Repairing a flat tire

Medical illustration showing a surgical instrument inserted into a patient's ear with an arrow indicating direction (no text or symbols present)

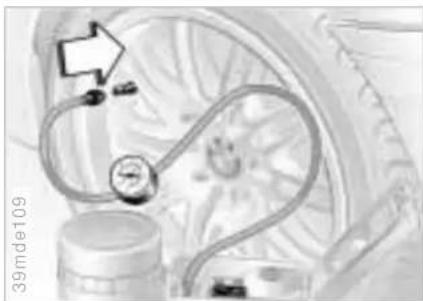

8 Take out the hose with the pressure gauge and screw it onto the valve. Take out the plug and plug it into the cigarette lighter socket in the passenger compartment.
9 Inflate the tire pressure:

To increase the tire pressure: turn on the M Mobility System (position I). To check the new tire pressure briefly turn off the device.

To reduce the tire pressure: turn the screw on the back of the pressure gauge, this will open the air release valve.

If the inflation pressure does not hold, complete step 10 and then repeat steps 7 through 10.

The use of the M Mobility System may be ineffective if the damaged area in the tire is larger than approx.

0.15 inches (4 mm). Please contact the nearest BMW center if the tire with the M Mobility System cannot be made roadworthy, or contact BMW Roadside Assistance at 1-800-332-4269.

10 Unscrew the hose from the valve and stow the M Mobility System in the luggage compartment.

When you start driving again, do not exceed the permissible maximum speed of 50 mph (80 km/h).

You will find corresponding instructions for using the M Mobility System on the device.

Replace the defective tire as soon as possible and have the wheel and tire balanced. Reactivate the tire pressure warning system (RDW), refer to page 88. Have the M Mobility System filled. Contact your BMW center for this.

Battery

39mde047 1

Battery posts, terminals, and related accessories contain lead

and lead compounds. Wash hands after handling.

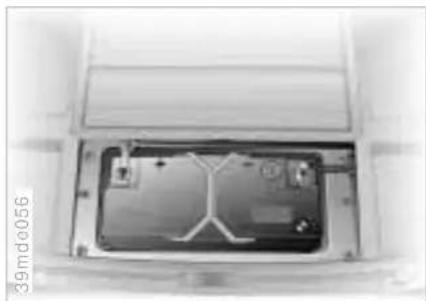

Installation location

The battery is located under the floor-mat in the luggage compartment.

1 Read and comply with the warning information on page 167.
2 Lift the floormat.
3 Press the small cover gently. Lift the cover (arrow 1).
4 Disconnect the battery cable from the negative terminal.
5 Loosen the three screws (arrows) and remove the cover.

Maintenance

The battery is absolutely maintenance-free, that is, the original electrolyte will normally last for the service life of the battery under moderate climatic conditions.

Symbols

You will find the following symbols on your vehicle battery. To avoid injury, please comply with the corresponding precautions whenever you work with or near the battery.

Before handling the battery, please read the following information:

Wear eye protection. Do not allow particles containing battery acid or lead to come into

contact with your eyes, your skin, or your clothing.

Battery acid is extremely corrosive. Wear eye protection and protective gloves. Do not tip the . Battery acid can leak from the tion openings.

Do not allow children access to batteries and battery acid.

Never allow sparks or open flame near the battery. Do not smoke in the vicinity of the battery. Avoid sparks from electrical cables or electrical equipment. Turn the key to position 0 in the steering lock when connecting or disconnecting the battery. Don't short-circuit the battery terminal. If you do so, you could be injured by electrical sparks.

A highly-explosive gas is generated when the battery is charged.

If you happen to get acid in your eyes, rinse thoroughly for 15 minutes with clear water.

Consult a physician immediately. If your skin or clothing are splashed by acid, rinse immediately with plenty of water. If electrolyte is accidentally swallowed, consult a physician immediately.

In order to protect the battery case from ultraviolet radiation, do not place it in direct sunlight.

A discharged battery can freeze. Store the battery in areas where temperature remains above freezing.

Battery

Interior view of an electronic device showing a circuit board with a button and a white arrow pointing to it (no text or symbols visible)

Charge condition

You can read the charge condition of the battery with the "Magic Eye" (a hydrometer):

▷ Green: adequate charge.
Black: not adequately charged. The battery has to be recharged. Please contact your BMW center for additional information.
Yellow: replace the battery.

The service life specified for the battery can be achieved only if it is always kept adequately charged. Check the charge condition of the battery frequently if the vehicle is used primarily for driving short distances.

Interior view of a device with a visible internal circuit or component, no text or symbols present.

Removal and installation

Do not disconnect the battery when the engine is running. If you do so, the ensuing voltage surge will damage the vehicle's onboard electronics.

Do not alter the positive terminal wiring in any way. If you do so, the Battery Safety Terminal's safety function will no longer be guaranteed. Repair and disposal must be performed by trained technicians only.

When removing the battery, disconnect the cable on the negative terminal first, then the cable on the positive terminal. When installing a battery, connect the positive terminal first, then connect the negative terminal.

When installing the battery, be sure that it is mounted securely in the battery well and that the cover is installed. If the battery is not mounted and fastened properly, it will not be adequately secured in case of an accident.

Battery Fuses

Charging the battery

Charge the battery in the vehicle only when the engine is not running.

Before doing any work on the electrical system, be sure to disconnect the cable from the battery's negative terminal. Failure to do so could result in short-circuits, a fire or personal injury.

If the vehicle is to be parked longer than four weeks, disconnect the battery from the vehicle's electrical system by disconnecting the negative terminal cable and then recharge using a suitable charging device.

If you intend to store your vehicle for longer than twelve weeks: remove the battery, charge it and store it in a cool (but frost-and dust-free) room. Every three months and before reinstalling the battery, have it recharged. If it is not recharged, it will not be serviceable. Every time the battery is discharged, especially over extended periods, its service life is reduced.

Avoid environmental pollution when disposing of old batteries.

Return used batteries to a recy- cling point or your BMW center. Maintain the battery in an upright position for transport and storage. Secure the battery against tilting in transit.

Close-up of a mechanical component or device with no visible text or symbols

If an electrical accessory should fail, switch it off and check the fuse.

In the glove compartment

1 Open the glove compartment and turn the two white quick-release knobs to the left. Spare fuses and plastic tweezers are located on the fuse holder.
2 Use the plastic tweezers to remove the fuse for the accessory or equipment that has stopped working.
3 If the fuse is burned through (the metal strip will have melted and separated), replace it with a new fuse of the same ampere rating (color code).

Fuses

The fuses, their respective ampere ratings and the equipment in their circuits are all indicated below the fuse holder.

Close the fuse holder by holding the top of the cover in place and screwing the two quick-release knobs to the right.

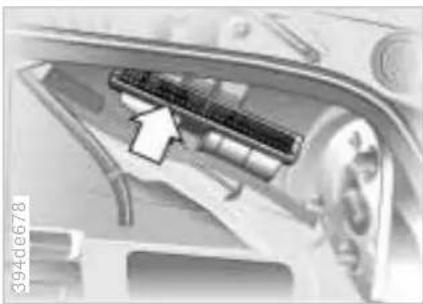

Additional fuses are provided in the luggage compartment (refer to the next column).

The fuse for continuous positive current is located in a separate fuse box above the battery. If this fuse is defective, refer the problem to your BMW center for repair.

Do not attempt to repair a burned fuse or replace it with a fuse

having a different color or amperage rating. To do this could cause a fire in the vehicle resulting from a circuit overload.

If the fuse continues to burn through, have the problem corrected by a BMW center.

Close-up of a car's internal engine compartment showing valve and hose assembly (no visible text or symbols)

In the luggage compartment

Use the handle to pull the trim on the right wall down.

A list of the fuses, their respective ampere ratings and the equipment in their circuits is provided on the rear of the side trim.

Fuel filler door Sliding/Tilt sunroof\*

Close-up of a car's front and side compartments showing internal components (no visible text or symbols)

Manual release

1 Use the handle to lower the trim panel on the right side of the luggage compartment.
2 Pull the knob with the fuel pump symbol (arrow).

Close-up of a mechanical component with an arrow pointing to a circular feature, no visible text or symbols.

Manual operation

1 Remove the interior lamp (refer to page 160), reach into the opening and push out the panel.
2 Use the Allen wrench from the onboard tool kit (refer to page 156) to turn the sliding/tilt sunroof in the desired direction.

Jump-starting

Never use spray starter fluids.

If the battery is discharged, the engine can be started with the use of two jumper cables and the battery of another vehicle. Always use jumper cables with fully insulated handles on the terminal clamps.

Do not touch the parts conducting electrical current while the engine

is running. To do so creates the risk of fatal injury.

Carefully comply with the following instructions to avoid personal injury and damage to one or both vehicles:

1 Be sure that the battery on the support vehicle is also rated at 12 volts, and that the capacities of the two batteries (Ah) are roughly comparable (printed on casing).
2 Leave your battery connected to the vehicle electrical system.
3 Make sure that there is no contact between the bodywork of the two vehicles – this creates a risk of short circuits.

39mde048 Bar

4 Start by connecting the jumper cable from the positive terminal of the support vehicle to the positive terminal connector located in your BMW's engine compartment. The cover of the auxiliary terminal for jump starting is identified with a "Batt. +" sign. Refer to the illustration. Flip the cap out to open.

Medical or laboratory setup with a pipette and glassware, no visible text or symbols

5 Then connect the negative terminals. Attach the cable to either the support vehicle's negative battery terminal (−), or to a suitable ground on its engine or bodywork. Then connect the other end of the cable to a ground on the engine or on the bodywork of the vehicle that is to be started. There is a special nut on the strut dome of your BMW for this (refer to the arrow in the illustration).

Observe the same sequence for connecting the jumper cables

when helping other vehicles. If you do not, there is the risk of injury if sparks generate at the battery.

172 Jump-starting Towing the vehicle

6 Start the engine of the support vehicle and let it run.
7 Start the engine on the vehicle needing the jump-start, and allow it to run as usual. If the first start attempt is not successful, wait a few minutes before another attempt in order to allow the discharged battery to recharge.
8 Before disconnecting the jumper cables from your BMW, turn on the headlamps, the rear window defroster, and set the blower to the highest speed; allow the engine to run approx. 10 seconds. This will prevent a voltage surge from the voltage regulator to the electrical accessories.
9 Then disconnect the jumper cables in reverse sequence.

Depending on the cause of the fault, recharge the battery.

Close-up of a car interior showing a highlighted seatbelt mechanism (no text or symbols visible)

Tow fitting

The screw-in tow fitting is stored in the onboard tool kit; be sure that it remains in the vehicle at all times. This fitting is designed for installation in the tow sockets located at the front and rear of the vehicle, and is intended for towing on paved road surfaces only. It should not be used to pull a vehicle out of deep snow, mud, sand, etc. Always observe all applicable towing laws and regulations.

Access to tow sockets

Front:

Apply pressure to the arrow symbol on the cover and remove the cover.

Close-up of a car's side panel with a small mechanical component and an arrow pointing to it (no text or symbols visible)

Rear:

Apply pressure to the arrow symbol on the cover; remove the cover.

Tightly screw in the towing fittings all the way. If you do not, the ads could be damaged.

Never attach tie-down hooks, chains, straps, or tow hooks to tie rods, control arms, or any other part of the vehicle suspension, as severe damage to these components will occur, leading to possible accidents.

Use only a nylon towing strap to tow the vehicle, since the inherent resilience of this material helps protect both vehicles from sudden jerking movements.

Towing the vehicle

The towed vehicle should always be the lighter of the two vehicles.

If this is not the case, it is no longer possible to control vehicle response.

Tow-starting

It is better to start the vehicle's engine by jump starting. For instructions on jump starting, refer to page 171.

Never attempt to use your vehicle to push another vehicle, as damage to the energy-absorbing bumpers could result.

Towing a vehicle

1 Place selector lever in position N.

2 Towing speed: Max. 45 mph (70 km/h).

3 Towing distance: Max. 95 miles (150 km).

4 Leave the ignition key at position 1 to ensure that the brake lamps, turn signals, horn and windshield wipers remain operative, and to prevent the steering lock detent from engaging.

5 Switch on the hazard-warning system (comply with country-specific regulations).

Find some means of identifying the vehicle in tow, for instance, place a sign or warning triangle in the rear window.

Make sure that the ignition key remains in position 1 even when electrical system has failed. This will ent the steering lock from ringing. The steering and brakes are out power assist when the engine is running. This means that increased it is required for steering and ringing.

NO 380us124

Towing with a commercial tow truck

Do not tow with sling-type equipment. Use a wheel lift or flat bed carrier.

Please comply with applicable towing laws.

Never allow passengers to ride in a towed vehicle for any reason.

Stacked industrial machinery components including wheel, fan, and conveyor system (no visible text or symbols)

Close-up of a circular mechanical component with no visible text or symbols

Online Edition for Part No. 01 41 0 155 429 - © 09/00 BMW AG

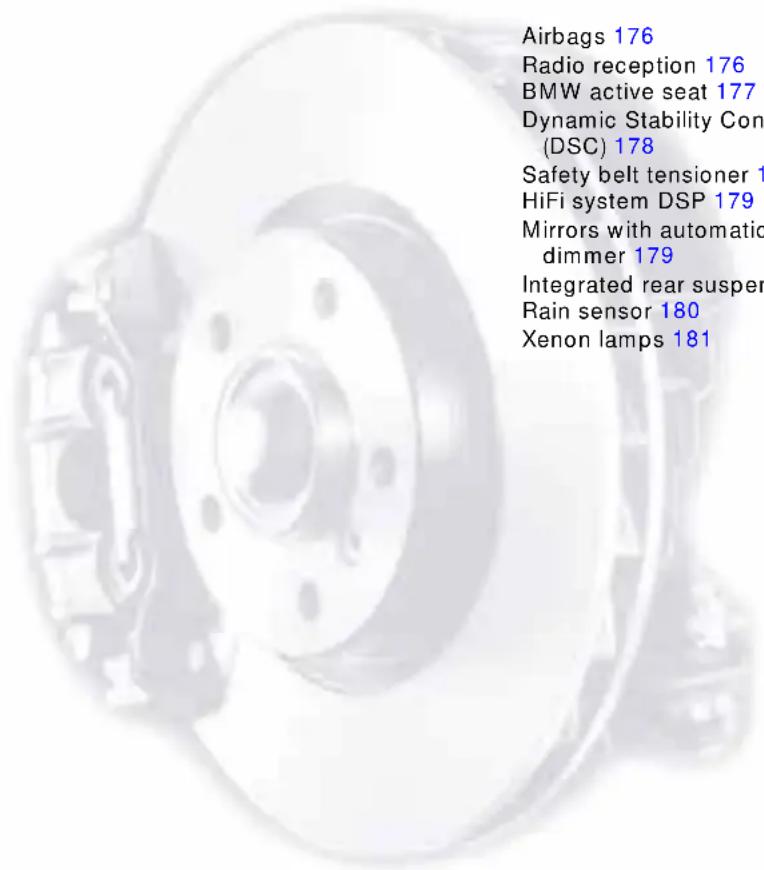

Airbags 176 Radio reception 176 BMW active seat 177 Dynamic Stability Con (DSC) 178 Safety belt tensioner 1 HiFi system DSP 179 Mirrors with automatic dimmer 179 Integrated rear susper Rain sensor 180 Xenon lamps 181

Airbags 176

Radio reception 176

BMW active seat 177

Dynamic Stability Control (DSC) 178

Safety belt tensioner 178

HiFi system DSP 179

Mirrors with automatic dimmer 179

Integrated rear suspension 180

Rain sensor 180

Xenon lamps 181

Overview

Controls and features

Operation, care and maintenance

Owner service procedures

Advanced technology

Technical data

Index

Airbags Radio reception

Close-up of a metallic mechanical component with a textured surface (no visible text or symbols)

Deceleration sensors continuously monitor the physical forces acting upon the vehicle. If, as the result of a frontal collision, a deceleration is reached at which the protection of the safety belts alone is no longer adequate, the gas generators of the front airbag will be simultaneously ignited on both the driver and passenger sides. However, the front airbag on the passenger-side is only triggered if an additional sensor has recognized that the passenger seat is occupied.

Depending on which side the vehicle is involved in a side collision, the head protection and side airbags in the front and rear* are triggered if necessary.

The airbags located under the marked covers inflate and unfold in a matter of a few milliseconds. In this process, they tear through the designed breaking points of the upholstered covers or press them out.

Because the inflation process must be virtually instantaneous, it is necessarily accompanied by a certain amount of ignition and inflation noise. The gas required to inflate the airbags is not dangerous, and the associated smoke then dissipates.

The entire process is completed within fractions of a second.

Close-up of a curved metallic component with diagonal hatching and two small figures on the surface (no text or symbols visible)

The AM frequency bands (medium-wave, long-wave and short-wave) make it possible to receive stations from a great distance, because the broadcast signals travel not only along the ground as surface waves, but also as waves bounced back to earth from the ionosphere.

Frequency-modulation (FM) provides substantially better sound quality than AM. However, because FM transmissions rely on line-of-sight broadcast waves, their effective reception range is limited.

Radio reception BMW active seat\*

Although numerous factors combine to impose inherent limitations on the reception quality available from mobile radios, specially designed systems can be employed to minimize their effects:

The "Radio Data System" (RDS) makes sure that, for broadcast stations sending on several frequencies, the radio automatically tunes to the frequency with the best reception quality.

The Diversity Antenna system employs several FM antennas integrated within the rear window. An integral processor automatically selects the antenna with the best FM reception quality at any given time. The selection of the antenna takes place within milliseconds, and is therefore not noticed by the radio listener.

Top-down view of a refrigerator with two refrigerators and a curved arrow indicating rotation (no text or symbols)

BMW seats are configured for your orthopedic well-being. The active seat is an engineering enhancement of BMW's seats, designed to ensure less fatigue during extended trips while sitting with little movement. The seat is no longer a passive element between the road, the running gear and the passenger. Instead, it creates minor and imperceptible shifts in your weight by an active change in the contour of the seat surface. The basic seat position is not changed as this occurs. Fluid cushions are located below the surface of the seat in the seat's upholstery on the left and right. The fluid is circulated slowly back and forth between the two cushions by means of a pump. This causes a movement of the spinal column which is virtually imper-

ceptible, resulting in an improved flow of blood to the vertebral discs and the muscles in the area of the spinal column. Vehicle occupants can experience less muscle cramping, back pain in the spine's lumbar region and fatigue. The active seat thus provides a significant contribution to your driving comfort and safety.

178 Dynamic Stability Control (DSC) Safety belt tensioner

Highly sensors monitor the number of revolutions of the wheels, the steering angle, lateral acceleration, brake pressure and the movement of the vehicle around its vertical axis.

If differences in the wheel speeds occur, the system counteracts the danger of wheelspin by reducing engine torque. If necessary, the system also responds with additional braking intervention at all four wheels.

In addition, DSC permanently monitors the vehicle's current operating condition and compares it with an ideal condition that is calculated from the sensor's signals. If deviations from this occur (understeering or oversteering, for instance), DSC can stabilize the vehicle in fractions of a second by reducing engine output and with the assistance of braking intervention at individual wheels. As a result, dangerous skids can be prevented even as they are just beginning.

You may need some time to become accustomed to this system intervention. However, it provides optimum drive force and vehicle stability.

The braking intervention is accompanied by sounds specific to the system.

Close-up of a mechanical component with a metallic clip and attached cable (no visible text or symbols)

The safety belt tensioner responds to severe frontal collisions by tightening the belts to ensure that occupants remain firmly positioned in their seats. A gas-pressure system retracts the buckle assembly to tension the shoulder and lap belts within fractions of a second. This reduces the tendency to slide under the lap belt.

DSP sound system\* Mirrors with automatic dimmer


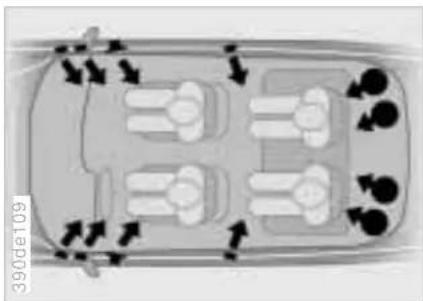

The DSP Professional premium sound system features a special amplifier combined with Digital Sound Processing (DSP) and integrated speakers to surround you with crisp, true-to-life sound reproduction. The speaker system's subwoofers, woofers, midrange speakers and tweeters furnish you with an impressively full-bodied listening experience. The loudspeakers are oriented in such a manner that they produce the aural sensation that you would experience facing the stage in a concert hall. The system also automatically adjusts the bass and treble settings to compensate for changes in volume and vehicle speed.

Close-up of a car being tested under a device, showing no visible text or symbols

The interior and exterior mirrors with automatic dimming feature reduce the glare from following traffic by adapting the intensity of the reflected images to correspond to levels of light registered by the unit's sensors. The mirrors revert to their undimmed setting as soon as the light source disappears.

One sensor is mounted on the front of the interior mirror housing and is designed to monitor light levels in the area immediately forward of the vehicle. A second sensor is integrated within the mirror's glass.

The electronic control system operates by comparing the respective levels of luminous intensity in front of and behind the car. The difference provides the basic parameter used to modulate an electrical current and induce chemical changes in a semisolid layer incorporated in the lens.

The semisolid reacts chemically to this electrical current, thus providing infinitely-variable dimming of the mirror (electrochromic technology). As a result, it is no longer necessary to dim the mirror manually, and the driver can maintain full concentration on traffic.

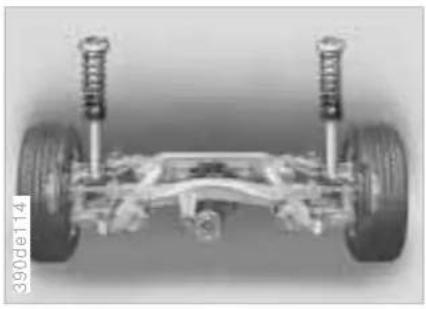

Integrated rear suspension

Rain sensor\*

Front view of a vehicle chassis frame with suspension components (no text or symbols visible)

Diagram of light rays interacting with a reflective surface, showing incident and reflected rays (no text or symbols)

When the "Intermittent" wiper speed position is selected, the wiper reacts immediately if water is splashed onto the windshield from vehicles traveling ahead, for example. As a result, the rain sensor provides a contribution to driving safety and comfort.

The control arms on the patented integrated aluminum rear axle assembly are not mounted directly on the body. They are mounted elastically on a chassis sub-frame which is joined in turn with elasticity to the vehicle body. The resulting double elastic suspension system effectively absorbs the forces resulting from bumps and road surface irregularities.

The compliance rates of the integrated rear axle assembly's control arm mounts have been precisely calibrated to help provide supplementary adjustment in the tracking angle of the rear wheels (programmed self-steer effect). The ultimate result is enhanced safety and control under all conditions.

The rain sensor controls windshield wiper operation, depending on how wet the windshield is.

Infrared light is carried along the surface of the windshield in an optical conductor in such a manner that it is reflected completely when the windshield is dry. The quantity of reflected light is measured.

If there is moisture on the glass, the amount of light reflected is reduced since the infrared light at the surface of the windshield can escape. The quantity of reflected light is thus a means of gauging the degree of wetness on the windshield.

Xenon lamps

Cross-sectional view of a biological structure with internal components (no visible text or symbols)

Xenon lamps illuminate the side and front areas of the vehicle with significantly more brightness and uniformity than traditional halogen lamps.

In a xenon lamp, an electric arc replaces the filament in order to generate intense illumination. A gas mixture in a quartz glass tube with metal vapor is ignited by a high electric voltage. The arc that is generated is then sustained by a lower voltage. When the lamp is turned on there is a brief warm-up period. Maximum brightness is attained in approx. 15 seconds.

Xenon lamps improve the driver's visibility and orientation to the road, especially in adverse weather conditions and driving situations (driving at night in heavy rain or through road repair areas where there are no lane markers, for instance).

Vehicles with xenon lamps are equipped with automatic headlamp range control. As a result, the highway is always optimally lighted, regardless of load conditions, and drivers in oncoming traffic are not blinded.

Xenon lamps make a significant contribution to highway safety since other highway users, or bicyclists and motorcyclists in the right lane, and pedestrians are more easily detected.

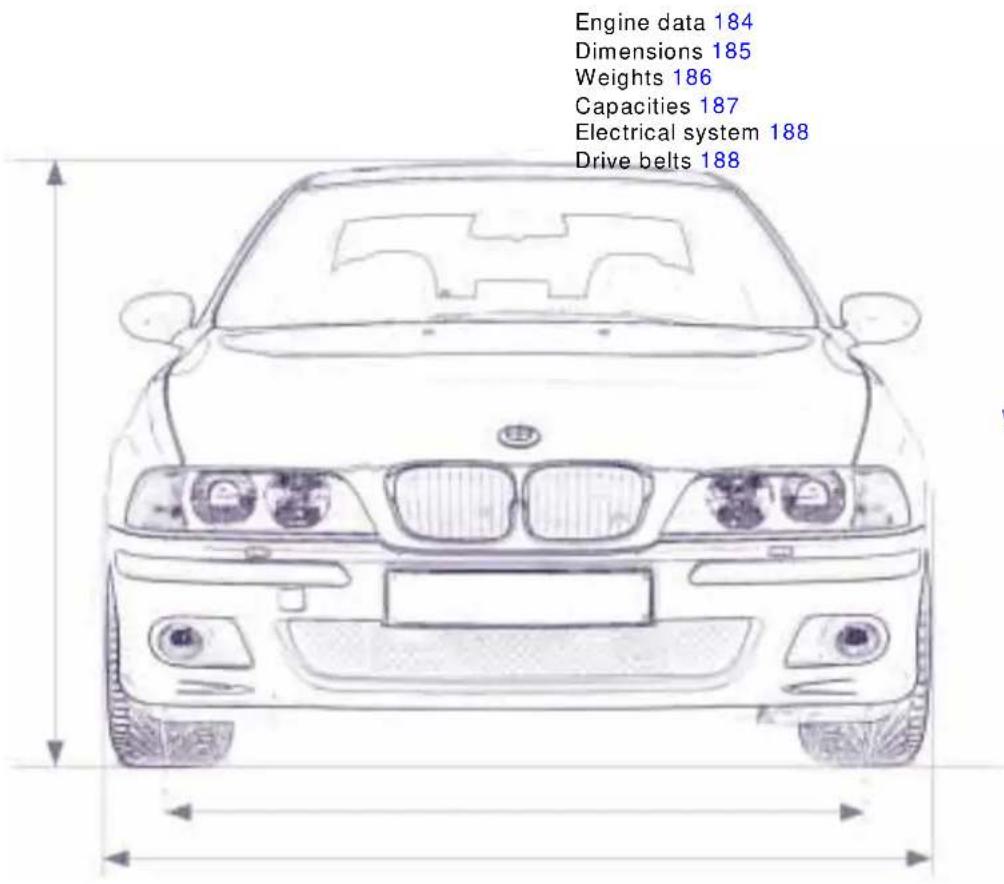

Front view line drawing of a car (no text or symbols)

Side profile line drawing of a sedan car with visible wheel rim and side panel (no text or symbols)

Online Edition for Part No. 01 41 0 155 429 - © 09/00 BMW AG

Engine data 184 Dimensions 185 Weights 186 Capacities 187 Electrical system 188 Drive belts 188

Overview

Controls and features

Operation, care and maintenance

wner service procedures

Advanced technology

Technical data

Index

Engine data

	BMW M5
Displacement	cu in (cm3)	301.5 (4,941)
Number of cylinders		8
Maximum output	hp	394
at engine speed	RPM	6,600
Maximum torque	lb ft (Nm)	368 (500)
at engine speed	RPM	3,800
Compression ratio	ε	11.0
Stroke	in (mm)	3.50 (89.0)
Bore	in (mm)	3.70 (94.0)
Fuel-injection system Digital-electronic engine management system

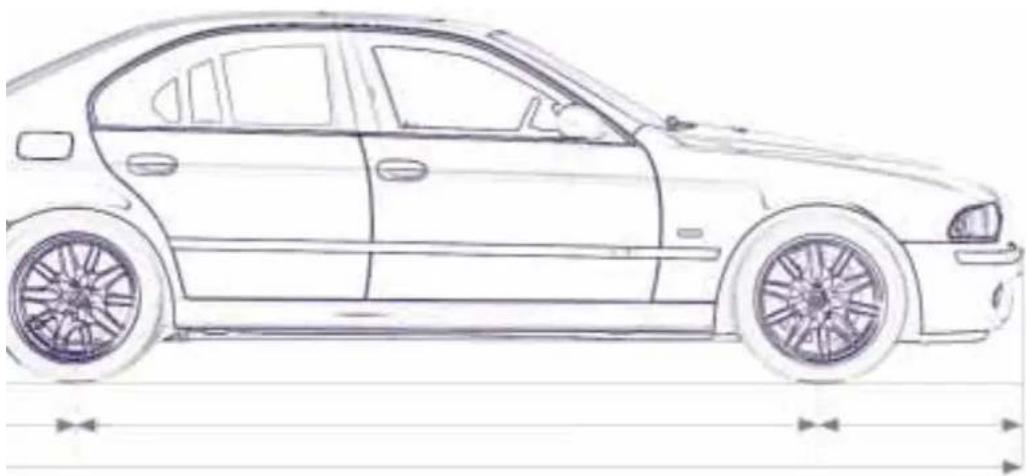

Dimensions

All dimensions are given in inches (mm). Minimum turning circle dia.: 38.1 ft (11.6 m)

Weights

BMW M5
Curb weight (with one person, ready for operation, full tank of fuel, options not included)
Ibs. (kg) 4,024 (1,825)
Approved gross vehicle weight lbs. (kg) 5,049 (2,290)
Approved front axle weight lbs. (kg)	2,426 (1,100)
Approved rear axle weight lbs. (kg) 2,701 (1,225)
Approved roof load capacity	Ibs. (kg) 220 (100)
Never exceed either the approved axle weights or the gross vehicle weight.
Luggage compartment capacity cu ft (liters) 16.2 (460)

Capacities

			Notes
Fuel tank reserve	gal. (liters)	approx. 18.5 (approx. 70)	Fuel specification: page 26
	gal. (liters)	approx. 2.5 (approx. 10)
Windshield washer system, with headlamp washer system	quarts (liters)	approx. 3.7 (approx. 3.5)	For details: page 138
	quarts (liters)	approx. 6.3 (approx. 6.0)
Intensive cleaning system	quarts (liters)	approx. 1.1 (approx. 1.0)
Cooling system including heater circuit	quarts (liters)	12.7 (12.0) For details: page 141
Engine oil and filter change quarts (liters)	6.9 (6.5)	"BMW High Performance Synthetic Oil"
Manual transmission and differential – Oil change at the 1,200 mile service, then the oil never needs to be changed again

188 Electrical system Drive belts

Battery

12V 110 Ah

Coolant pump – Generator – Power steering

Drive belt 7 K x 1629

Spark plugs

NGK BKR 6 EQU P or

Bosch FGR 7 DQP

This spark ignition system meets all requirements of the Canadian Interference-Causing Equipment Regulations (ICES-2).

A/C compressor

Drive belt 5 K x 980

You can obtain Original BMW

Parts and Accessories, as well as

professional advice from your BMW center.

A

PQR Online Edition for Part No. 01 41 0 155 429 - © 09/00

Online Edition for Part No. 01 41 0 155 429 - © 09/00 BMW AG

Everything from A to Z 192

Overview

Controls and features

Operation, care and maintenance

Owner service procedures

Advanced technology

Technical data

Index

Everything from A to Z

A

ABS (Antilock Brake

System) 21, 121

Accessories 6

Activated charcoal filter 99

Active seat 48, 177

Adding

antifreeze 142

brake fluid 142

engine coolant 142

engine oil 139

washer fluid 138

Adjusting

backrest 45

seats 45

steering wheel 48

temperature 96

Air conditioner 94

Air distribution 96

Air outlets 94

Air pressure 26, 128

Air supply 95, 97

Airbags 21, 54, 151, 176

Alarm system 40

Antenna 127, 177

Antifreeze 141

radiator 125

Antilock Brake System

(ABS) 21, 121

Anti-theft alarm system 40

Anti-theft protection 31

Approved axle weight 186

Approved gross vehicle weight 186

Approved roof load capacity 186

Approved wheel and tire specifications 134

Aquaplaning 119, 128

Arrival time 81

Ashtray 109

Attaching a vehicle vacuum cleaner 110

AUC (Automatic recirculated-air control) 98

Automatic car washes 145

Automatic climate control 94

removing condensation on the windows 96

Automatic cruise control 67

Automatic curb monitor 51

Automatic dimming exterior rearview mirror 49

interior rearview mirror 49

Automatic intensive-action washer 138

Automatic recirculated-air control (AUC) 98

Automatic windshield washer 66

Average fuel

consumption 81

Average speed 82

Avoiding false alarms 41

Axle loads 186

B

Backrest, adjusting 45, 46

Backup lamps 64

bulb replacement 159

Battery 166, 188

capacity 188

charge condition 167

charging 168

discharged 171

removal and

installation 167

safety terminal 167

Battery charge indicator 19

Belts 53

Beverage holder 108

Blower 97

BMW active seat 48, 177

BMW comfort seat 47

BMW High Performance

Synthetic Oils 140

BMW M sports seat 45

BMW Maintenance System 144

BMW Universal

Transmitter 103

Body-cavity

protectants 146

Brake 123

faults 124

fluid 142

fluid, adding 142

hydraulic system 20, 124

lamps, bulb

replacement 159

malfunctions 124

pads 20, 124

Brake system, refer also to ABS or Disc brakes

Brake-in procedure 118

Break-resistant safety glass, care 148

Bulb replacement 157

Bulbs and lamps 157

C

California Proposition 65 Warning 152

Capacities 187

Car battery 166, 188

Car keys 30

Everything from A to Z

Car Memory 52

Car radio reception 127, 176

Car radio, refer to the separate Owner's Manual

Car telephone 108

Car wash 145

Care exterior 146 interior 149

Cargo loading 114 securing 39, 114

Caring for the vehicle finish 147

Catalytic converter 120

Cellular phones 108, 127 refer also to the separate Owner's Manual

Center (high-mount) brake lamp 159 bulb replacement 159

Central locking system 32, 36

Charge condition, battery 167

Charging the battery 168

CHECK button 72

Check Control 72

Check engine oil level 139

Check tire

pressure 26, 128

Child restraint systems 54

Child seat security 60

Child seats 58

Child-safety locks 60

Cigarette lighter 110

Cleaning headlamps 66

Cleaning windshield 65

Climate control, automatic 94

Clock 76

refer also to the Onboard

Monitor Owner's Manual

Cockpit 16

Code 82

activating 82

de-activating 82

emergency

deactivation 83

selecting 82

Cold start 62

Comfort seat 47

Compartments 108

Computer 79, 83

cruising range 81

distance from

destination 80

extended immobiliser

function 82

fuel consumption 81

remote control 83

speed limit 79

time of arrival 81

Computer, refer also to the separate Onboard Monitor Owner's Manual

Condensation on windows, removing 97

Configure settings 52

Consumption, fuel 81

Contamination on paintwork 146

Control elements 16

Convenience operation doors 32 luggage compartment 37 sliding/tilt sunroof 43 windows 42

Coolant 125, 141

adding 142

antifreeze 125

temperature gauge 71

Copyright 4

Cover, sun blinds 102

Cruise control 67

Cruising range 81

Cup holder 108

Curb monitor, automatic 51

Curb weight 186

D

Dashboard 16

Data link connector for Onboard Diagnostics 153

Date

calling up 76

changing 76

refer also to the Onboard

Monitor Owner's Manual

Daytime running lamps 90

DBC (Dynamic Brake Control) 21, 84, 124

Deactivating

alarm system 40

interior motion

sensor 41

Deep water 119

Defrosting position 96

Defrosting the windows 97

Difficult steering 127

Digital clock 76

refer also to the Onboard

Monitor Owner's Manual

Digital sound processor 179

Dimensions 185

Dipstick, engine oil 139

Disc brakes 123

Disconnect the

battery 171

Displacement 184

Everything from A to Z

Display lighting 90

Displays 18

Disposal batteries 168 engine oil 141

Distance from destination 80

Distance warning 84

Diversity, antenna 177

Divided rear backrest 111

Door keys 30

Door locks, care 125

Doors emergency operation 32 manual operation 32 remote control 33 unlocking and locking 32

DOT Quality Grades 129

Draft-free ventilation 98

Drive belts 188

Driving notes 119

Driving through water 119

DSC (Dynamic Stability Control) 21, 86, 178

DSP amplifier, refer to the Radio Owner's Manual

DSP sound system 179

Dynamic Brake Control (DBC) 21, 84, 124

Dynamic Stability Control (DSC) 21, 86, 178

E

Electric power windows 42 safety switch 43

Electrical accessory, failure 168

Electrical malfunction fuel filler door 170 sliding/tilt sunroof 170

Electrical system 188

Electronic vehicle immobilizer 31

Elements of operation 16

Emergency deactivation, code 83

Emergency operation doors 32 fuel filler door 170 luggage compartment lid 37 sliding/tilt sunroof 170

Engine compartment 136 coolant 141

coolant temperature gauge 71 data 184

oil grades 140 performance 184

Engine oil 139

adding 139 checking

level 139, 139

consumption 139

dipstick 139

grades 140

level 20

pressure 20

temperature gauge 70

Estimated time of arrival 81

Exterior finish 146

Exterior mirrors 49 with automatic dimming feature 179

F

Failure messages 72

Failure of an electrical accessory 168

False alarms, avoiding 41

Fault displays 72

Filler cap 25

Filling capacities 187

Filling the washer reservoir 138

First-aid kit 24

Fittings, tow starting and towing 172

Flasher 64

Flashlight 107

Flat tire 128

repairing 162

Fog lamps 91

bulb replacement 158

Folding rear backrest 111

Footbrake 123

Footwell lamps 92

bulb replacement 161

Front seat adjustment 45

Frost protection, radiator 141

Fuel

consumption 81

gauge 70

quality 26

specifications 26

tank capacity 187

Fuel consumption, average 81

Fuel filler door 25

releasing following an

electrical

malfunction 170

Fuses 168

replacement 168

G

Gasoline gauge 70

Gasoline quality 26

Glove compartment 107

bulb replacement 161

Everything from A to Z

Grades of engine oil 140

Grilles 94

Gross vehicle weight 186

H

Handbrake 21, 63

Handsfree system 108

Hanger 39

Hazard warning flashers 24

Hazard warning triangle 24

Head restraints 46

Headlamp cover, care 146

Headlamp flasher 64

Headlamp washer system 66, 138

Headlamps 90

Heated seats 102

Heater and ventilation 94

Heating while stopped 98

Heavy cargo 114

Height 185

Height adjustment seats 45 steering wheel 48

Help with jump starting 171

HiFi system 179

High beams 22, 64, 91

High Performance Synthetic Oils 140

Hood release 135

Horn 17

Hydraulic Brake Assistant, refer to DBC 84

|

Ice warning 69

Identification number of vehicle 143

Identification, tires 131

Ignition key 30

Ignition lock 61

Imprint 4

Independent ventilation system 102

activating 78

refer also to the Onboard Monitor Owner's Manual

Indicator lamps 20

Inflation pressure 26, 128

monitoring 88

INSPECTION 71

Instrument cluster 18

Instrument lighting 90

Instrument panel 18

Instrument rheostat 90

Integrated rear center console 100

Integrated rear suspension 180

Integrated rear-seat equipment 106

Intensive cleaning 65

Intensive-action automatic washer 138

Interaxle tire rotation 130

Interface socket for Onboard-Diagnostics 153

Interference with car phones 127

Interior lamps 91 bulb replacement 160 remote control 34

Interior mirrors 49 with automatic dimming feature 179

Interior motion sensor 40 deactivating 41

Intermittent wipe 65

J

Jump-starting 171

K

Key Memory 52

Keys 30

Keys with remote control 30

L

Lamps and bulbs 157

LAMPS ON warning 90

Lamps switch 90

Lashing eyes 114

Leather care 150

Length 185

License plate lamps, bulb replacement 160

Light switch 90

Light-alloy wheels 134

Lighter 110

Loading cargo 114

Load-securing devices 114

Locking and unlocking the doors 32

Low beams 90

Low-fuel warning lamp 70

Luggage compartment 39 bulb replacement 161

capacity 186

hanger 39

lighting 37

net 39

Luggage compartment lid 37

emergency operation 37 manual operation 37

opening from the inside 38

opening separately 37

remote control 35

securing separately 37

Everything from A to Z

Luggage net 39

Luggage straps 39

Lumbar support 46

M

M Dynamic Driving Control 87

M Mobility System 162

M+S radial tires 132

Magic Eye, refer to Battery charge condition 167

Maintenance 71, 144

Malfunction displays 72

Manual operation doors 32

luggage compartment lid 37

sliding/tilt sunroof 170

Manual transmission 64

Master key 37

Memo 77

Memory 50

MFL (Multifunction steering wheel) 23

Microfilter 99

MID (Multi-Information Display) 75

computer 79

digital clock 76

Mirror defrosting 49

Mirror memory 50

Mirrors 49

with automatic dimming feature 179

Mobile phones 127

refer also to the separate Owner's Manual

Modifications,

technical 6, 152

Moonroof 44

Multifunction steering wheel (MFL) 23

Multifunction switch 64

Multi-Information Display (MID) 75

N

Navigation system, refer to the Onboard Monitor Owner's Manual

Non-smoking

equipment 109

Nozzles 94

0

OBD interface socket 153

Odometer 69

Oil

additives 139

consumption 139

grades 140

Oil change interval, refer to the Service and Warranty Information Booklet (US models) or Warranty and Service Guide Booklet (Canadian models)

Oil dipstick 139

Oil level, checking 139

Oil pressure, indicator lamp 20

OILSERVICE 71

Old batteries 168

Onboard computer, refer to computer 79

Onboard Monitor, refer to the separate Owner's Manual

Onboard tool kit 156

Opening and closing from inside 36 from outside 32

Outlets, ventilation 94

Outside temperature display 69

P

Paintwork

contamination 146

minor repairs 148

waxing 148

Park Distance Control (PDC) 84

Parking brake 21, 63

Parking help 84

Parking lamp 91

bulb replacement 157

Parking, winter 126

Passenger side mirror tilt function 51

PDC (Park Distance Control) 84

Performance recognition 87

Playing cassettes, refer to the Radio Owner's Manual

Playing CDs, refer to the Radio Owner's Manual

Pocket flashlight 107

Pollen 99

Power steering 127

Power windows 42 safety switch 43

Pressure monitoring, tires 88

Pressure, tires 26, 128

R

Radiator, frost

protection 141

Radio Data System (RDS) 177

Radio reception 127, 176

Everything from A to Z

Radio, refer to the separate Owner's Manual

Rain sensor 65, 180

RDS (Radio Data System) 177

RDW (Tire Pressure Warning) 88, 132

Reading lamps 92

Rear backrest, folding 111

Rear window defroster 67, 98

Rearview mirrors 49

Recirculated air mode 98

Reclining seat 45

Refueling 25

Releasing the fuel filler door after an electrical malfunction 170

Releasing the hood 135

Reminder signal 77

Remote control 33, 83

Removal from service of the vehicle 151

Removing condensation from windows 97

Repairing a flat tire 162

Replacement keys 30

Replacing bulbs 157

Replacing wiper blades 156

Reporting safety defects 7

Reservoir, washer system 138

Residual heat 98

Reverse 64

Rims 131

Roller sun blinds 102

Roof load capacity 186

Roof-mounted luggage rack 115

Rubber parts 125

s

Safety belt tensioner 178

Safety belts 53, 55

Safety buttons 36

Safety defects, reporting 7

Safety terminal, battery 167

Seat

adjustment 45

heating 102

memory 50

Securing the load 39, 114

Self-dimming mirrors 179

Service and Warranty Information Booklet (US models) 144

Service Interval

Display 71, 144

Shutting off the engine 62

Side airbags 54

Side impact Head Protection System 54

Side lamps 90

bulb replacement 158

Ski bag 112

Skid control 126

Sliding/tilt sunroof 43

closing after an electrical

malfunction 44, 170

convenience

operation 32, 34

Slippery roads 125

Snow

chains 125, 133, 134

Socket 110

Sound system, refer to DSP 179

Spare key 30

Spark plugs 188

Speaker 108

Special features of winter tires 132

Special oils 140

Speed 82

Speed limit 79

Speed, average 82

Speedometer 18

Sports seat 45

Starting the engine 62

assistance 171

help 171

problems 120, 171

Steering 127

Steering wheel

adjustment 48

lock 61

memory 50

Stopwatch 77

refer also to the Onboard

Monitor Owner's Manual

Storage compartments 108

Summer tires 131

Sun blinds 102

Sunvisors50

Sunroof 44

Switching off the engine 62

Switching off the tilt sensor alarm 41

Switch-on times for

independent ventilation

system 78

Symbols 4, 166

Synthetic oils 140

T

Tachometer 70

Tail lamp assembly, bulb

replacement 159

Tank capacity 187

Everything from A to Z

Technical

modifications 6, 152

Telephone hookup 108

Telephone, refer to the separate Owner's Manual

Temperature display engine coolant 71 engine oil 70 outside temperature 69

Temperature gauge, coolant 71

Temperature selection 98

Thigh support adjustment 46

Third brake lamp, bulb replacement 159

Through-loading system 111

Tilt alarm 34

Tilt function, passenger side mirror 51

Tilt sensor alarm system deactivating 41

Time

calling up 76

changing 76

refer also to the Onboard

Monitor Owner's Manual

Time of arrival 81

Timer 76

refer also to the Onboard

Monitor Owner's Manual

Tire

code 131

condition 128

damage 128

inflation

pressure 26, 128

labeling 131

pressure monitoring 88

replacement 129

rotation 130

specifications 134

tread 128

Tire Pressure Warning

(RDW) 88, 132

Tools 156

Torque 184

Tow starting 173

Towing fittings 172

Towing the vehicle 172

Track width 185

Traction Control System, refer to DSC 86

Transmission 64

Transmitter key 30

Transporting children safely 58

Tread depth, tires 128

Tread wear indicator 128

Trip odometer 69

Trunk capacity 186

Trunk lid, refer to luggage compartment lid 37

Turn signal indicator 22, 64 bulb replacement 158

Turning circle 185

U

Uniform Tire Quality Grading (UTQR) 129

Unintentional alarms, avoiding 41

Universal Transmitter 103

Use antifreeze, radiator 142

Used batteries, disposal 168

Used oils, disposal 141

V

Valves 163

Vanity mirror 50

Vehicle battery 166

Vehicle care

exterior 146

interior 149

Vehicle finish, caring 147

Vehicle Identification Number (VIN) 143

Vehicle immobilizer 31

Vehicle removal from service 151

Vehicle storage 151

Vehicle vacuum cleaner, attaching 110

Ventilation 94, 98 in the rear 99

Ventilation while parked 102 activating 78

refer also to the Onboard Monitor Owner's Manual

Ventilation, draft-free 98

Vinyl upholstery, care 149

Viscosity ratings 140

Voice recognition 23 refer also to the separate Owner's Manual

W

Warm feet - cool head 98

Warning lamps 20

Warning messages 72

Warning triangle 24

Warranty and Service Guide Booklet (Canadian models) 144

Washer fluids 138 adding 138

Washer nozzles 138

Washer reservoir, filling 138

Washer/Wiper system 65

Washing your vehicle 145

Everything from A to Z

Water on the roads 119

Waxing, paintwork 148

Wear indicator in the tires 128

Weights 186

Wheelbase 185

Wheels and tires 131, 134

Width 185

Windows 42

convenience operation 32

defrosting 97

remote control 34

Windshield washer 66

Windshield washer nozzle adjustment 138

Windshield washer reservoir, filling 138

Windshield wiper 65

blades replacing 156

Winter operation 125

Winter tires 132

special features 132

Wipers 65

Work in the engine

compartment 135

x

Xenon lamps 157, 181

So that you will have important specifications available when you stop to refuel, we recommend that you supplement this table with data which apply to your vehicle.

Refueling

BMW recommends Castrol

Fuel

Designation Premium Unleaded Gasoline
AKI Minimum 91

Engine oil

Quality

The oil volume between the two marks on the oil dipstick amounts to approx. 1.1 US quarts (1 liter).

Tire inflation pressures		Summer Winter
		Front Rear	Front Rear
4 persons
5 persons or 4 plus luggage

We wish you an enjoyable driving experience.

The Ultimate Driving Machine

Online Edition for Part No. 01 41 0 155 429 - © 09/00 BMW AG
