Product Type	Automobile
Brand	Citroën
Model	Berlingo Dag (2010)
Category	Automotive

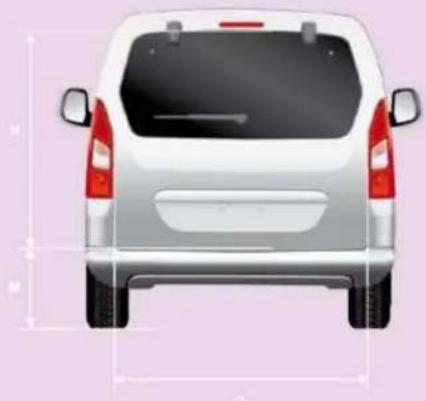

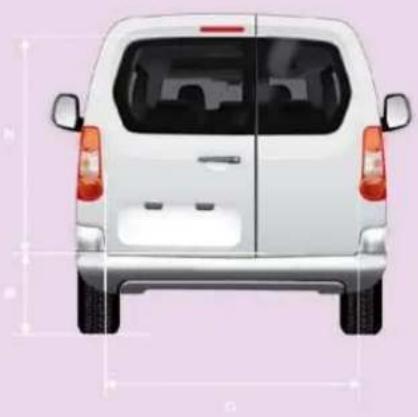

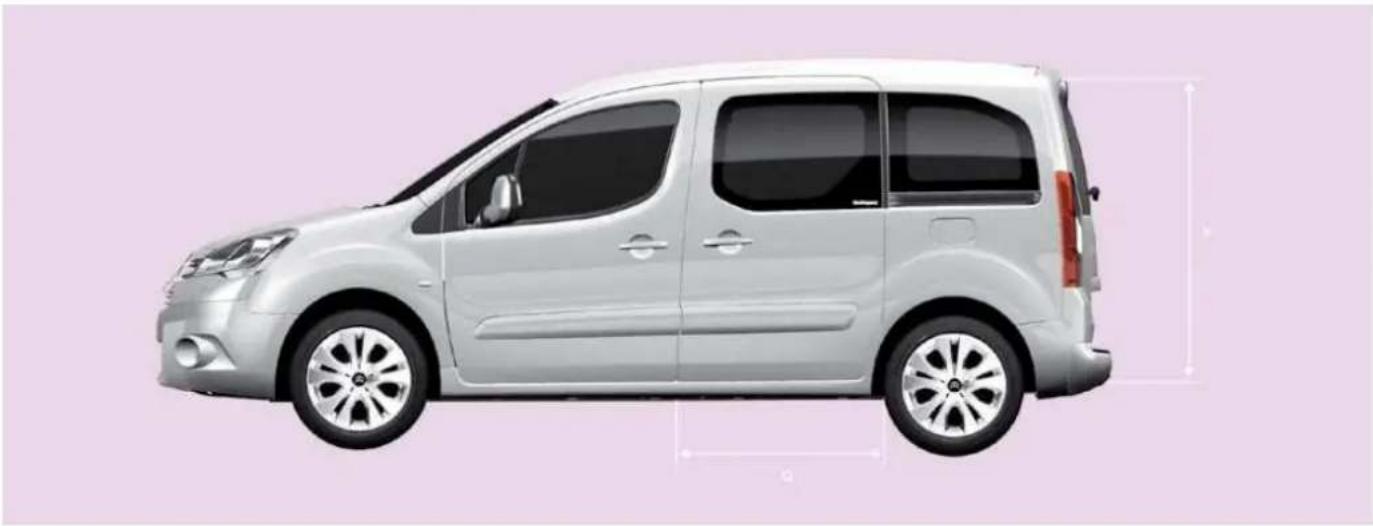

Dimensions (approx.)	Length: 4.38 m, Width: 1.84 m, Height: 1.84 m
Fuel Tank Capacity	Approximately 60 liters
Transmission	5-speed manual gearbox
Engine Options	Petrol and diesel engines available
Key Features	Remote central locking, electric windows, cruise control, speed limiter, hill start assist, automatic air conditioning, trip computer
Safety Systems	ABS, ESP, airbags (front, side), seat belt reminders, tyre under-inflation detection
Maintenance	Service indicator, engine oil level dipstick, coolant level check, brake fluid top-up, cabin air filter replacement
Battery	Type: CR1620/3V for remote control, 12V vehicle battery
Spare Parts & Reparability	Contact authorized CITROËN dealer for genuine parts and repairs

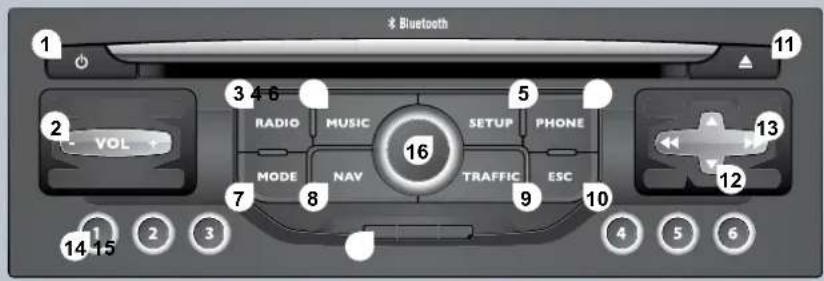

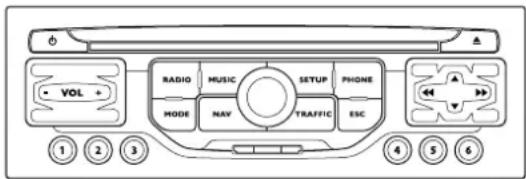

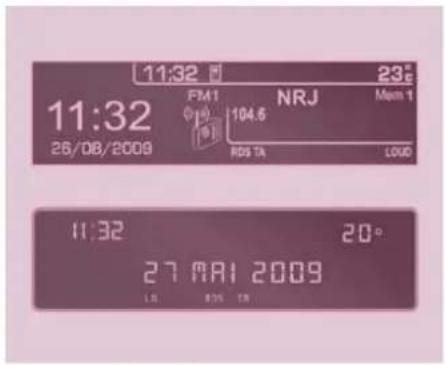

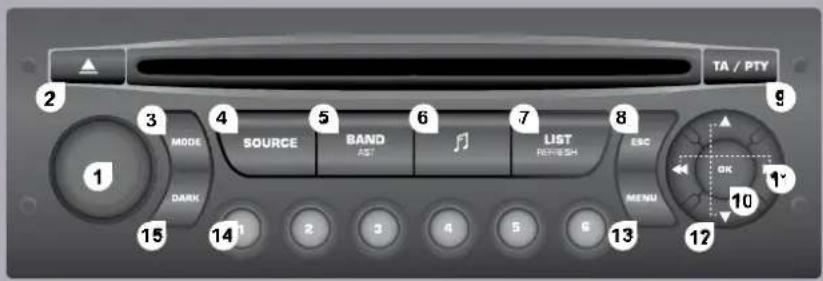

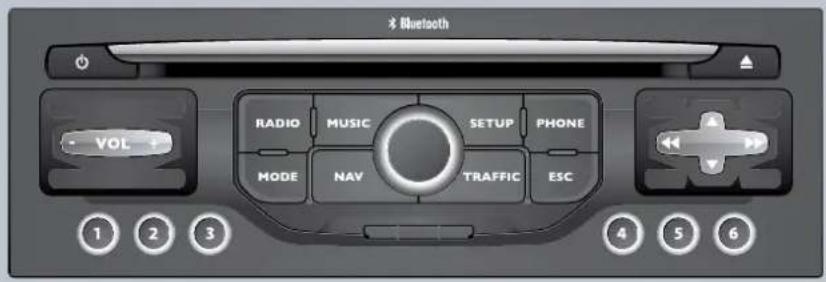

Audio System	MyWay system with radio, CD/MP3 player, Bluetooth telephone, navigation (optional)
Climate Control	Manual or automatic air conditioning with separate driver/passenger settings

Frequently Asked Questions - Berlingo Dag (2010) CITROEN

How do I change the battery in the remote control?

Use a CR1620/3V battery. Unclip the casing using a coin at the ring, replace the battery, and reprogram the remote control if necessary. Refer to the Remote Control section.

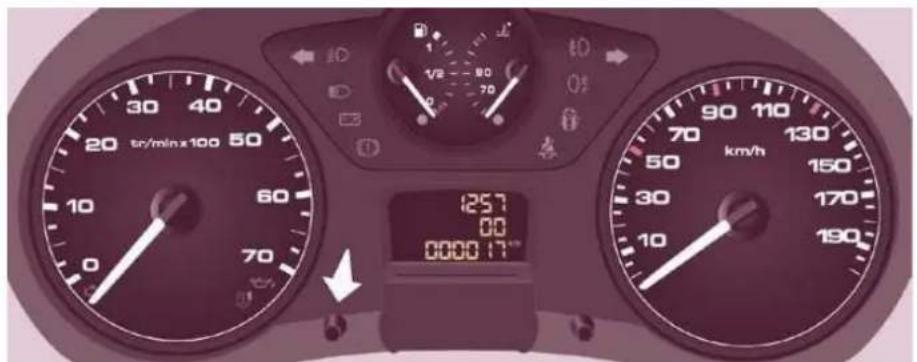

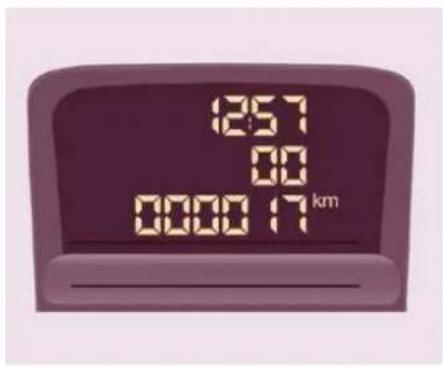

How do I reset the service indicator?

With the ignition off, press and hold the trip recorder reset button. Switch on the ignition. When the display shows '=0', release the button. Wait at least 5 minutes after restart. See Service Indicator section.

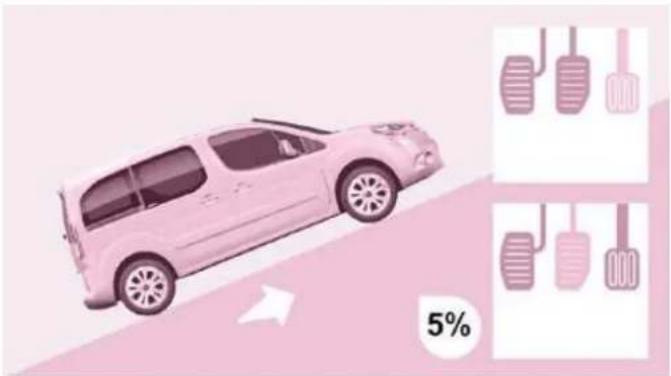

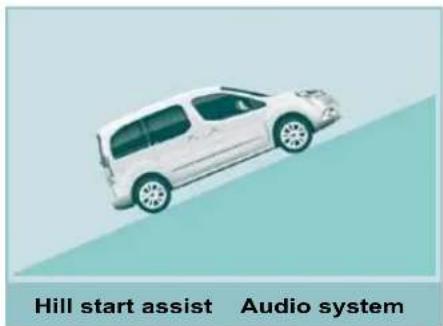

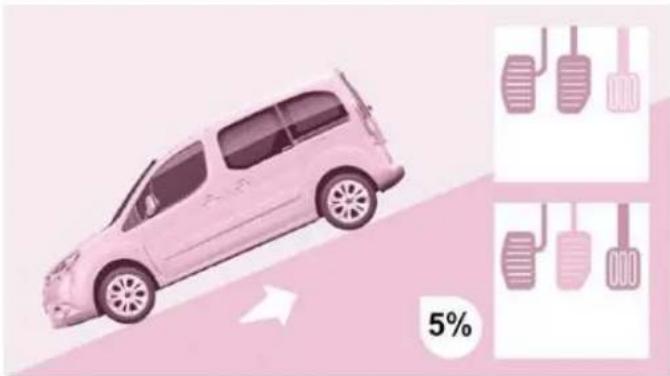

How does the hill start assist work?

With the vehicle stationary on a gradient >5%, foot on brake, release the brake pedal: the vehicle is held for approx. 2 seconds to allow moving off. It activates automatically when conditions are met. See Hill Start Assistance.

How do I pair my phone via Bluetooth?

Ensure vehicle is stationary and ignition on. Activate Bluetooth on your phone. Press PHONE button, select 'Search phone', then select your phone. Enter the code displayed on screen. See Bluetooth Telephone section.

What should I do if the cruise control stops working?

If the programmed speed flashes and dashes appear, the system has a fault. Contact a CITROËN dealer. Temporary exceeding is normal; release accelerator to resume. See Cruise Control section.

How do I use the automatic windscreen wipers?

Press the stalk downwards to the AUTO position. The wipers will adjust speed based on rainfall. Reactivate if ignition has been off >1 minute. See Windscreen Wiper Stalk section.

How do I operate the sliding side doors from inside?

Unlock using the handle, then slide the door rearward past the point of resistance. Close using the shaped recess at the top of the door pillar. Do not use the grab handle. See Sliding Side Doors.

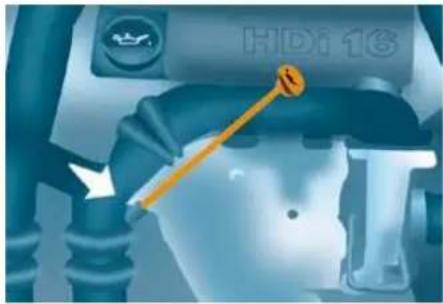

What is the correct procedure for checking engine oil level?

Ensure vehicle is on level ground and engine off for >15 minutes. Use dipstick: level between min and max. If low, top up via oil filler cap with suitable oil. See Engine Oil Level Indicator.

How do I fold the rear bench seat?

Lower head restraints, move front seats forward if needed. Press grey control on seatback, fold seatback onto cushion. Raise grey bar at rear of cushion, tilt entire seat forward. See Rear Bench Seat section.

How do I adjust the headlamp beam height?

Turn the headlamp beam adjustment dial: 0 (no load), 1 (partial load), 2 (average load), 3 (maximum load). Initial setting is 0. See Headlamp Beam section.

USER MANUAL Berlingo Dag (2010) CITROEN

Key - Remote control

Complete unlocking of the vehicle.

Complete locking of the vehicle.

Close-up of a car key with two icons (car and plug) on a teal background, no visible text or symbols.

17

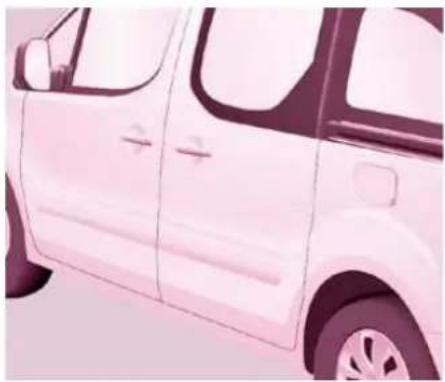

Sliding side door

Pull the handle towards you then towards the rear and open the door guiding the rearward sliding until the point of resistance has been passed.

Close-up of a car's side panel with two blue arrows pointing to the front panel (no text or symbols visible)

21

Key

: chapter identifi cation

: page identifi cation

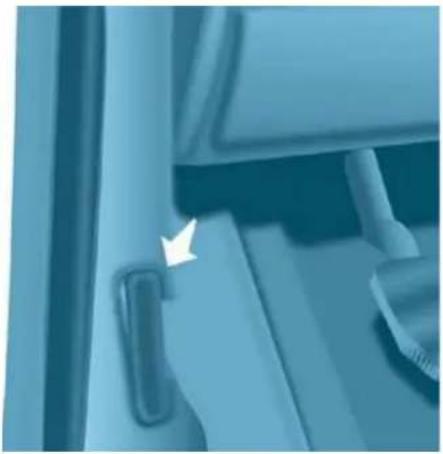

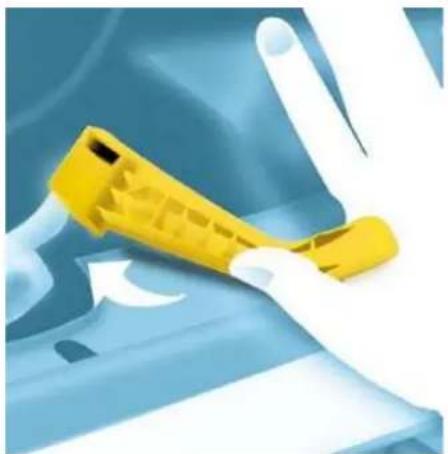

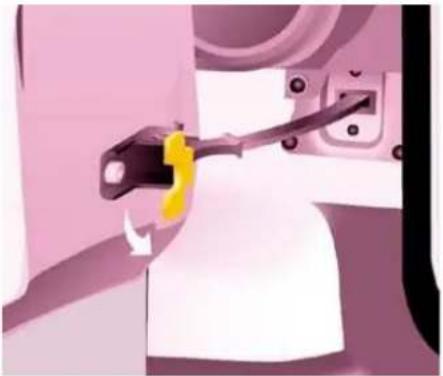

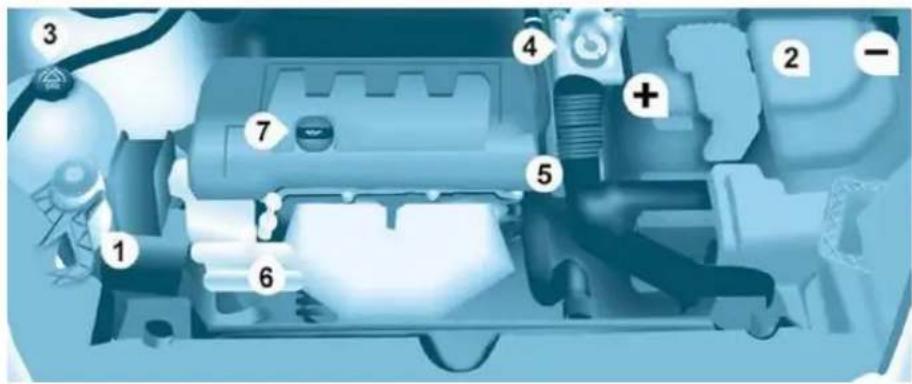

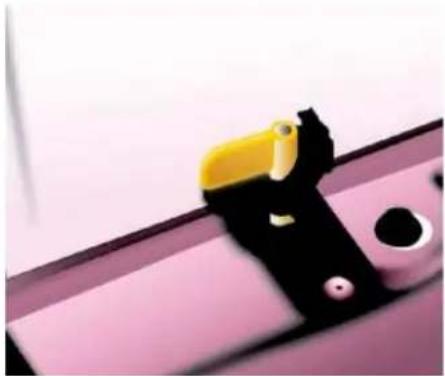

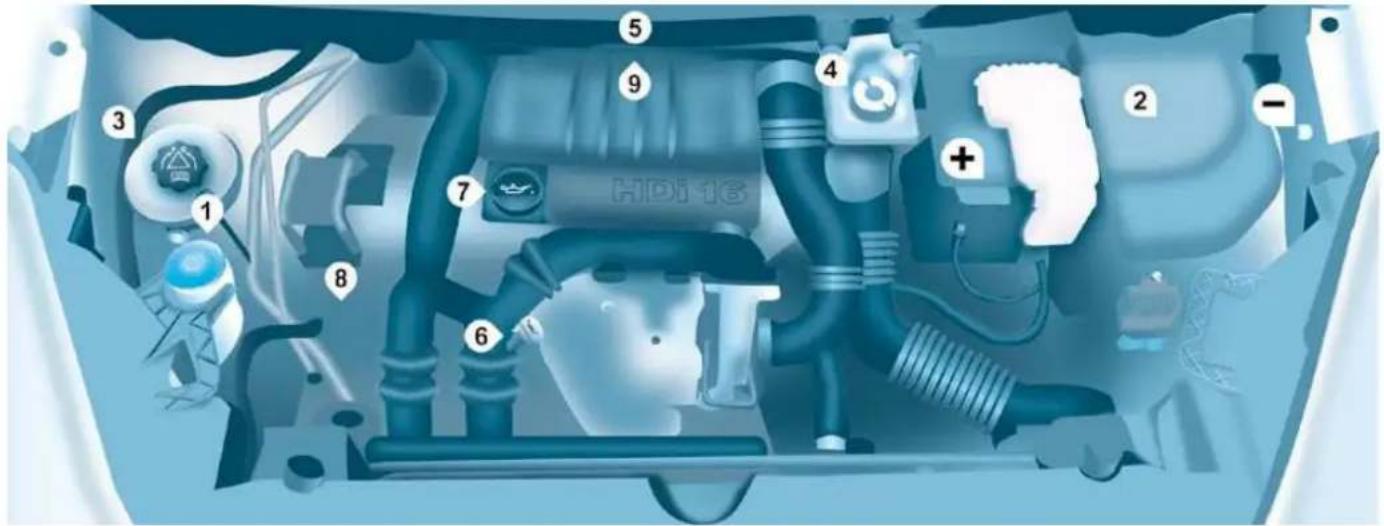

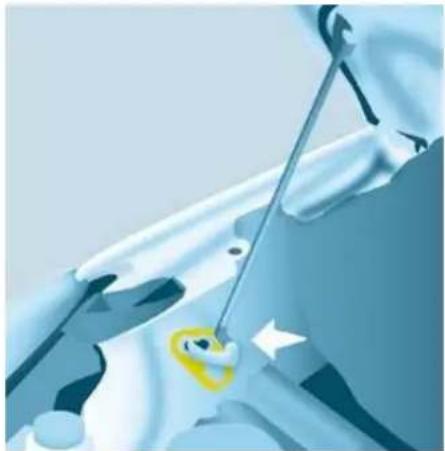

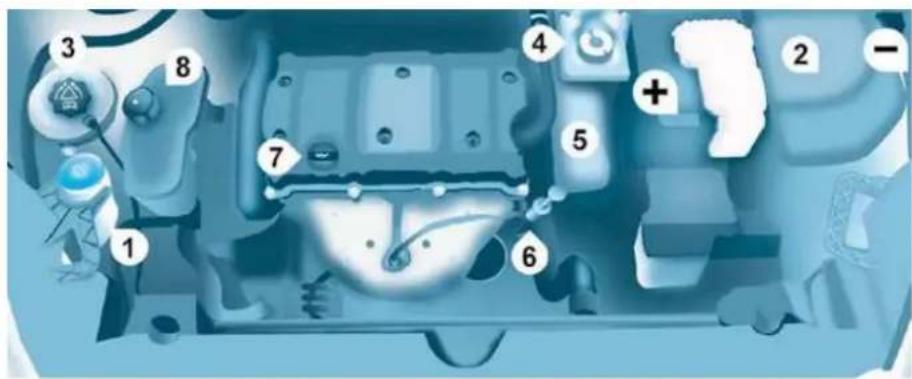

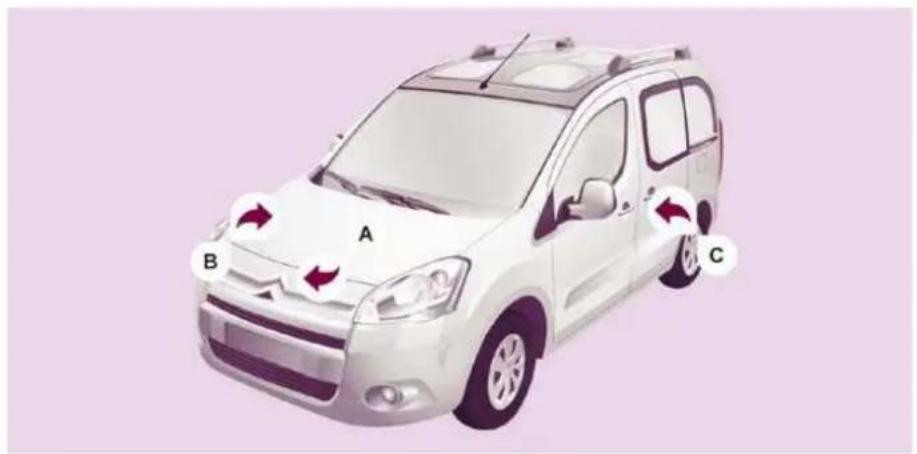

Opening the bonnet

Take care when working under the bonnet.

Raise the bonnet slightly by reaching in a fl at hand, palm down, to make access to the lever easier. Engage the base of the strut in the hole provided to hold the bonnet open.

High pressure washing of the engine compartment is prohibited, to guarantee correct operation of the vehicle.

Illustration of a yellow tool and a cartoon character (no text or symbols)

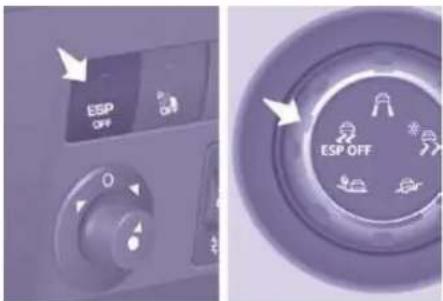

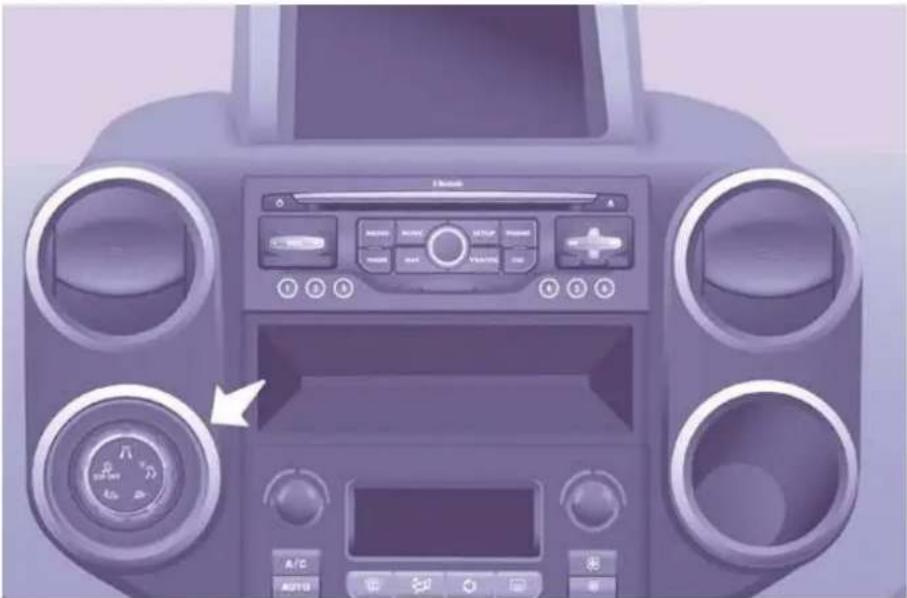

"Grip Control"

The anti-slip "GRIP CONTROL" Electronic Stability Programme (ESP) System improves traction on snow, mud and sand.

4

104

Close-up of a black industrial sensor device with a metallic clamp and control knob (no visible text or symbols)

A mechanical system prevents opening of the left-hand side door when the fuel filler fl ap is open.

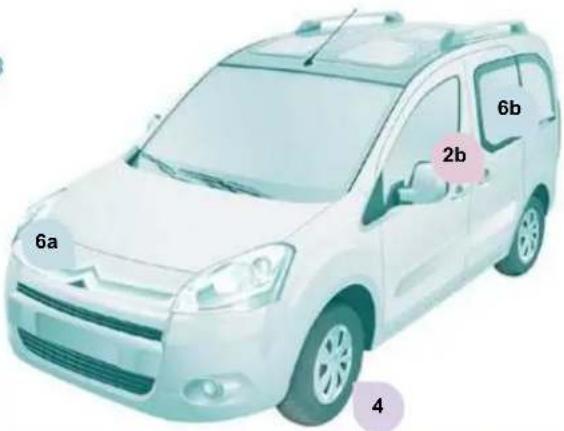

6a 6b2b126

133

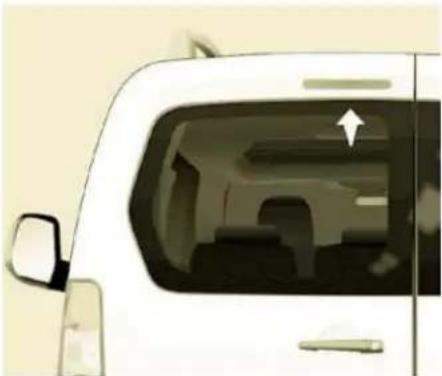

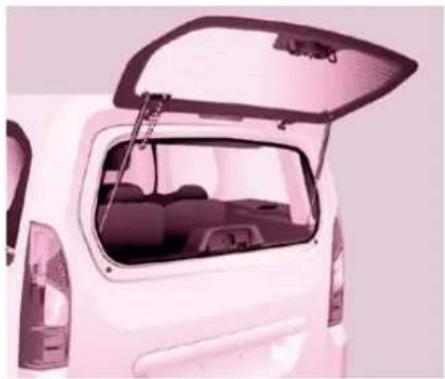

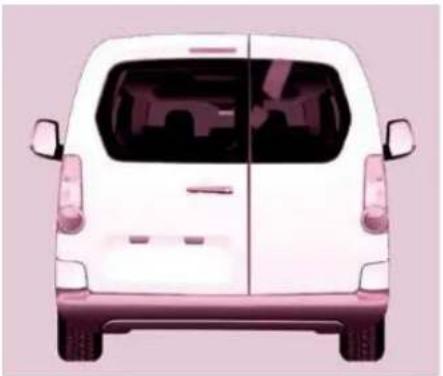

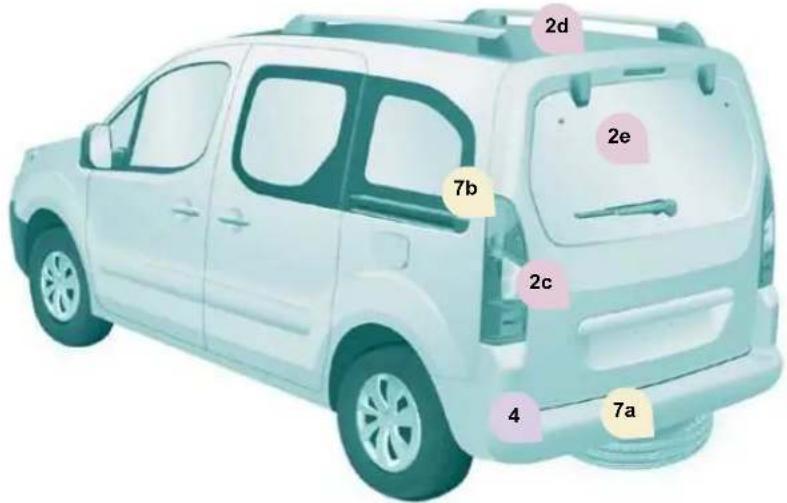

Tailgate and rear screen
Use the strap to close the rear tailgate.
Close by pressing firmly without slowing the travel of the tailgate.

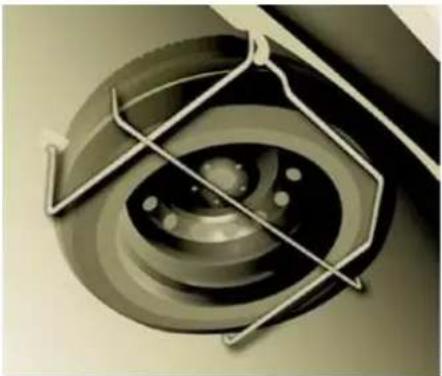

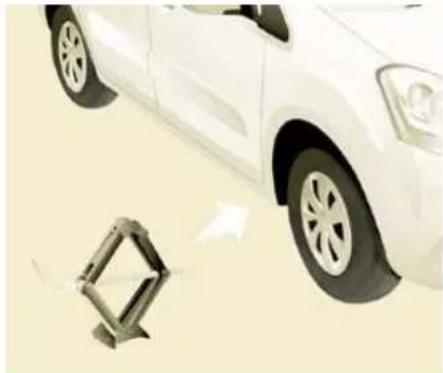

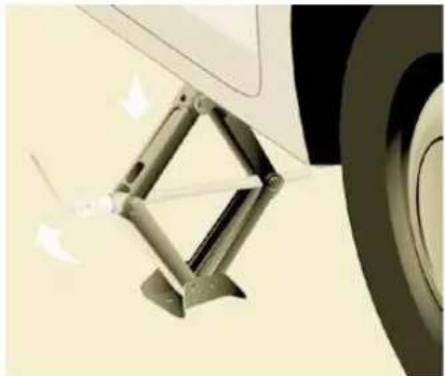

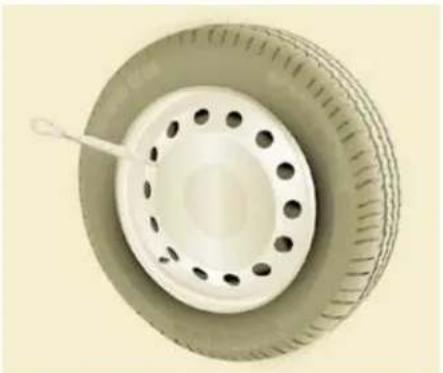

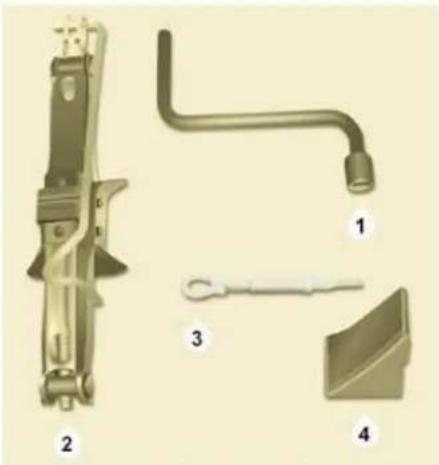

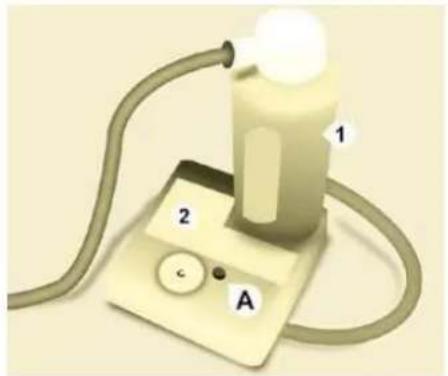

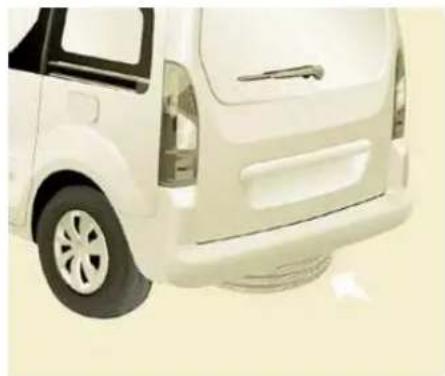

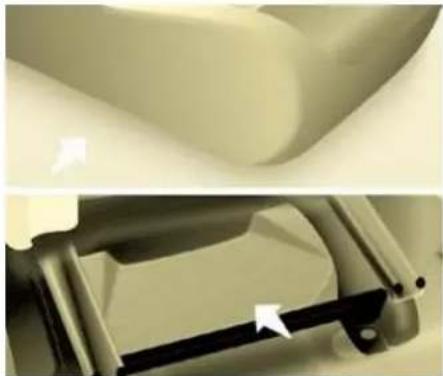

Spare wheel and repair kit

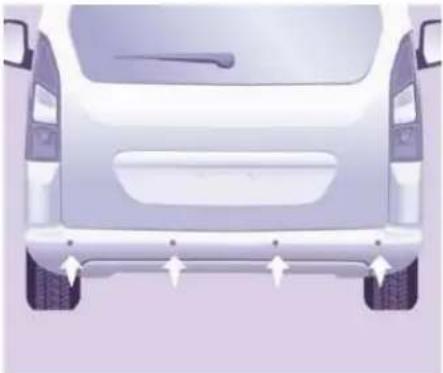

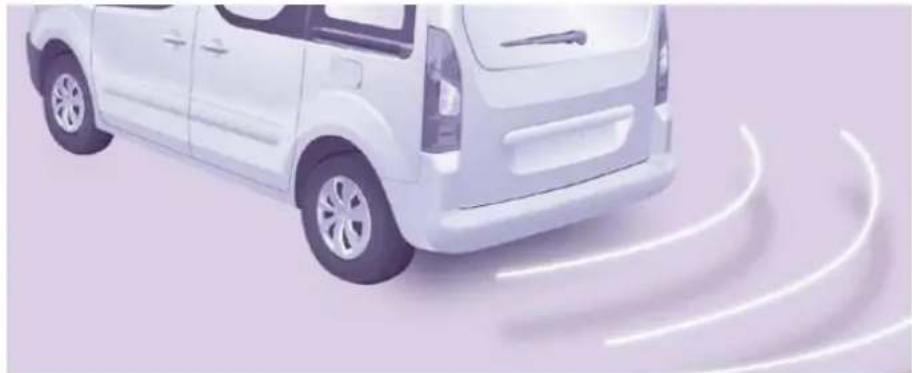

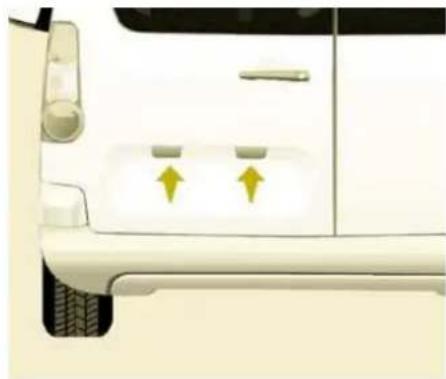

Parking assistance

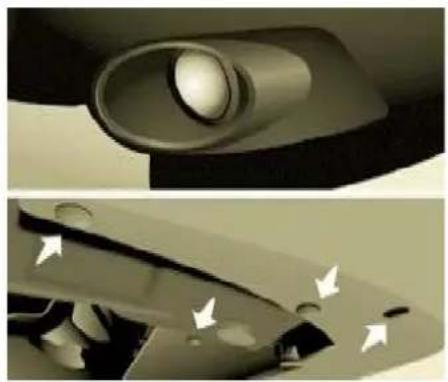

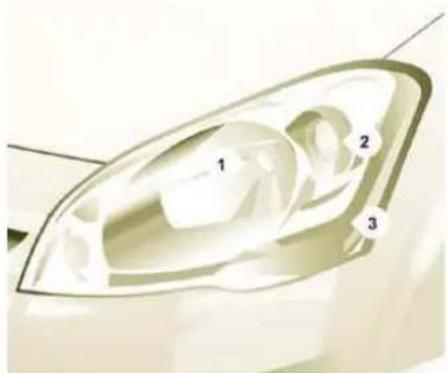

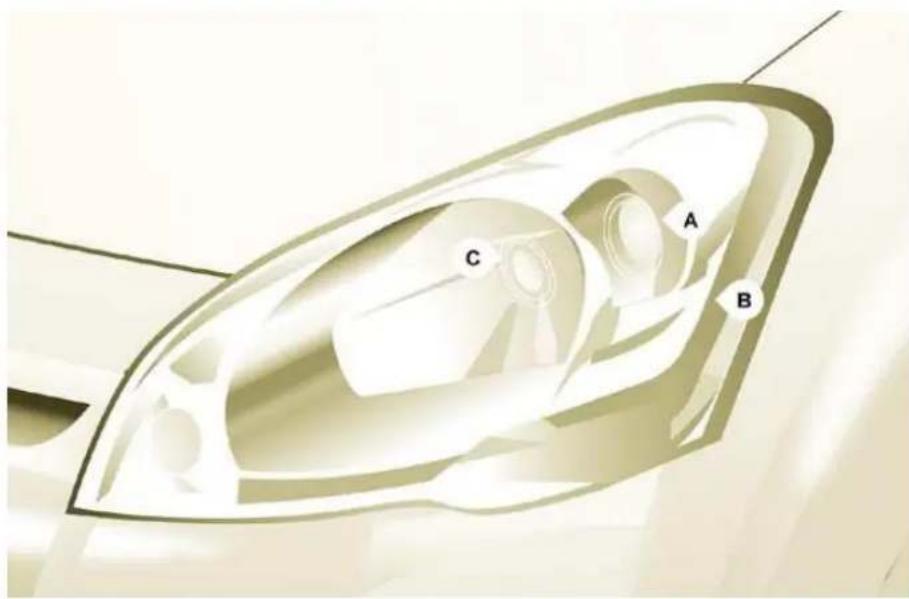

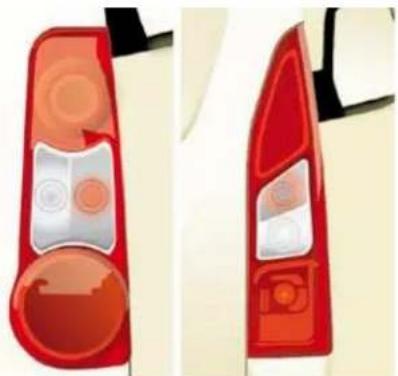

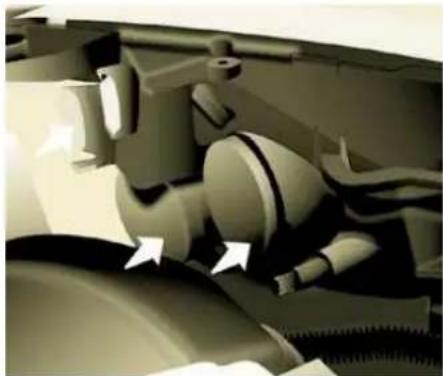

Changing bulbs

Interior

∞

Interior view of a car dashboard and infotainment system (no visible text or symbols)

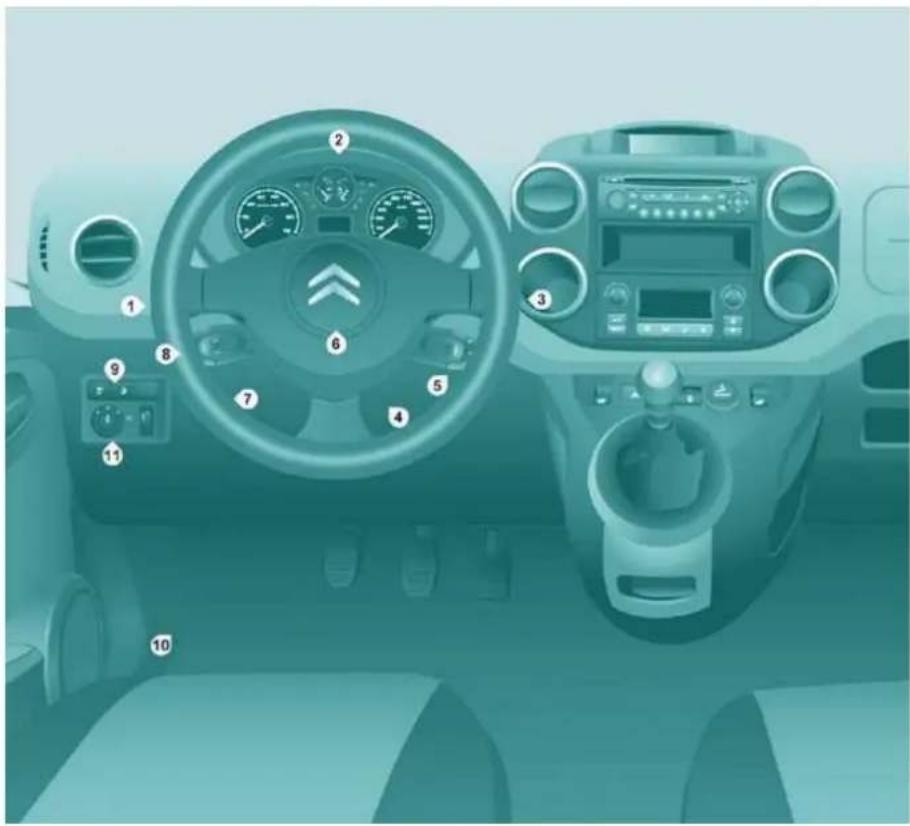

INSTRUMENTS AND CONTROLS

1. Lighting and direction indicators stalk.
2. Instrument panel with display.
3. Wipers, screenwash, trip computer controls.
4. Ignition.
5. Audio equipment.
6. Driver's airbag, horn.
7. Steering wheel height and reach adjustment.
8. Cruise control, speed limiter switch.
9. Control panel, parking assistance, headlamp beam adjustment, ESP.
10. Bonnet release.

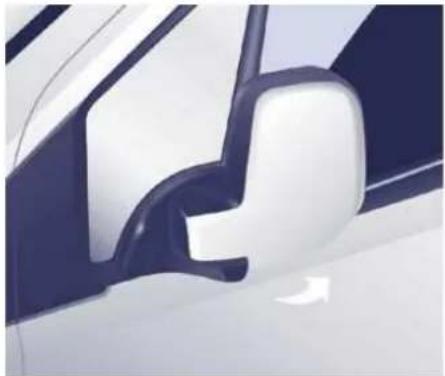

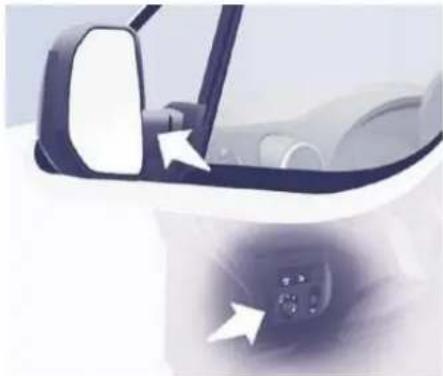

11. Electric exterior mirror adjustment.

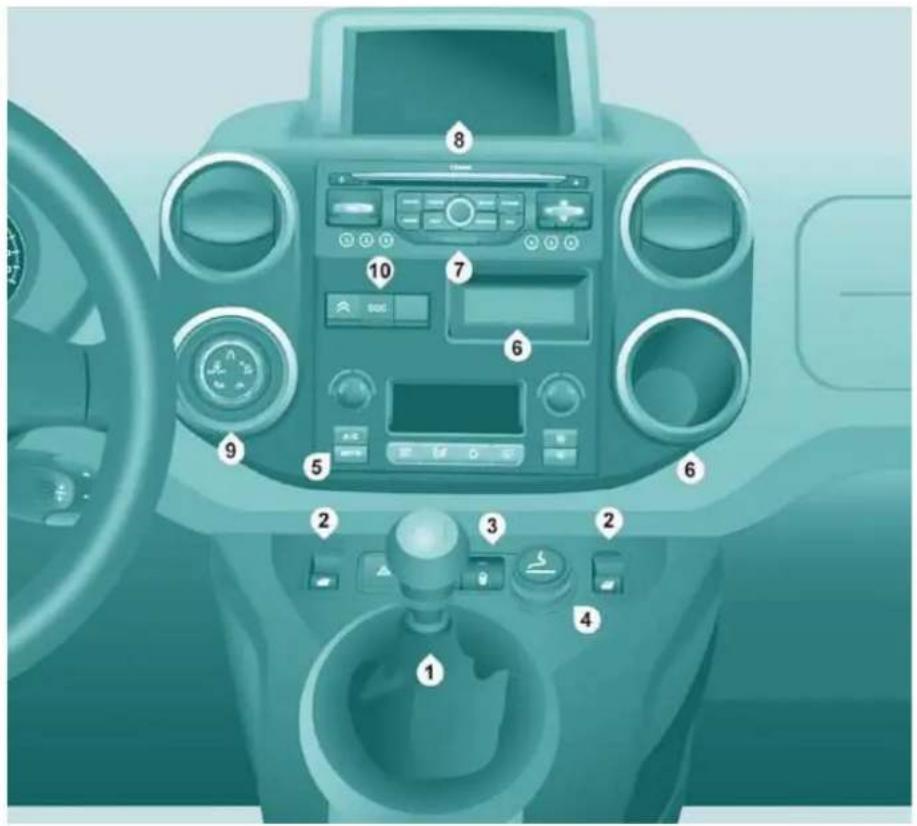

CENTRE CONSOLE

1. Gear lever.

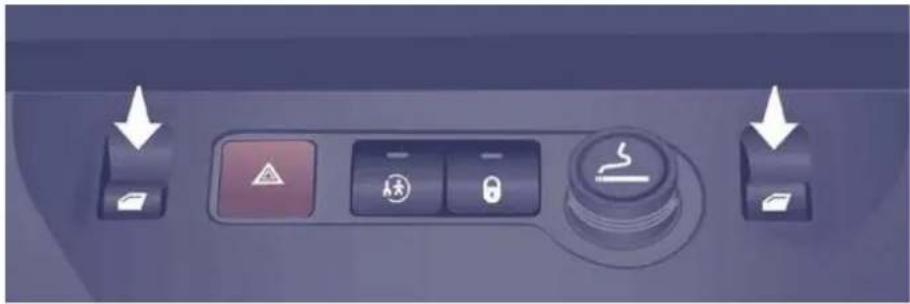

2. Control panel: electric windows.

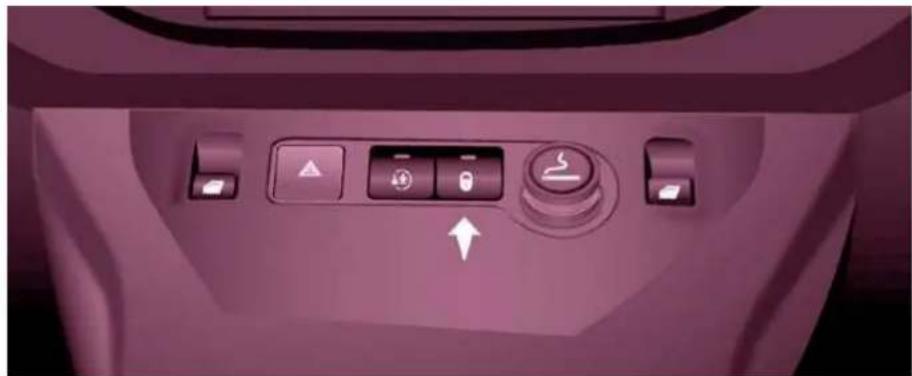

3. Control panel: hazard warning lamps, central locking.
4. Cigar lighter.
5. Heating-ventilation controls.
6. Storage compartment.
7. Audio equipment.
8. Screen.

1. Emergency call.


6

Interior

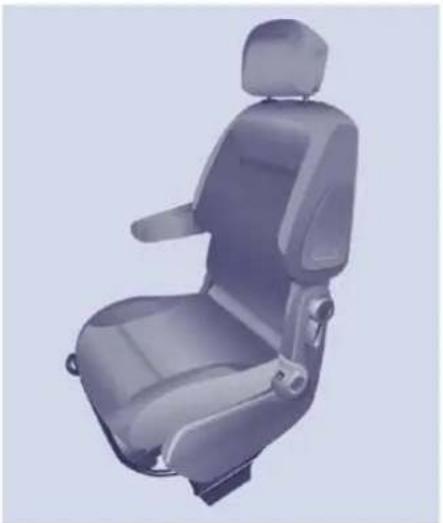

SIT COMFORTABLY

10

3D rendered image of a teal-colored car seat with no visible text or symbols on the device itself

1. Forwards-backwards adjustment

2. Angle.

3. Seat cushion height.

4. Head restraint height and angle.

Interior view of a car dashboard with steering wheel and steering wheel (no visible text or symbols)

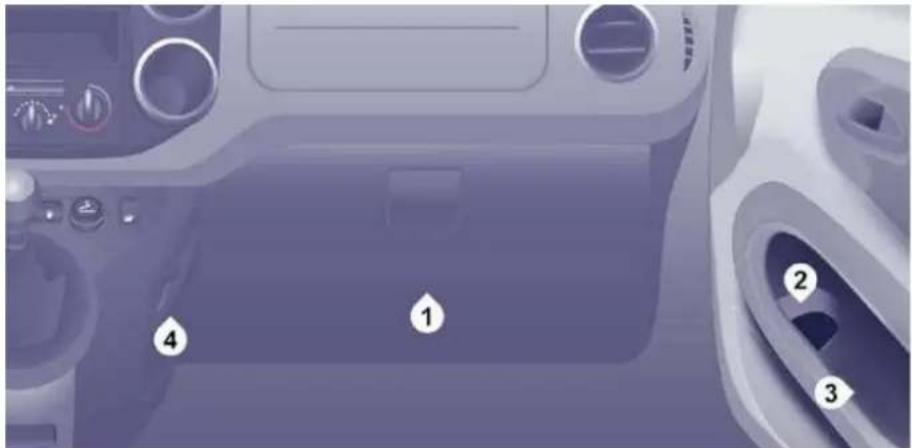

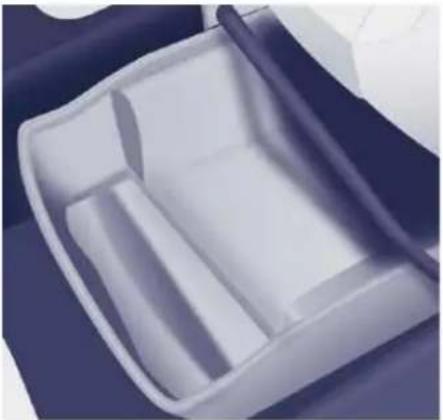

Steering wheel Storage compartments
Adjust the height and reach of the steering wheel.

Close-up of a teal-colored mechanical component with two views showing internal structure (no text or symbols visible)

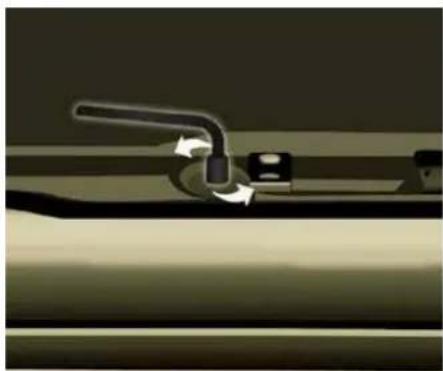

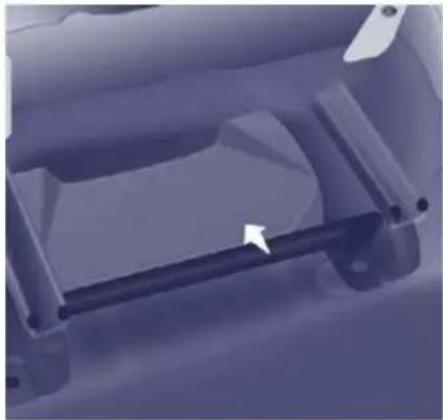

The tools are stored under the right-hand seat.

Height adjustment. Fastening.

Close-up of a hand holding a small object with a white arrow pointing to it, labeled 'Mirrors' at the bottom (no other text or symbols)

Manual adjustments. Electric adjustments.

SEE CLEARLY

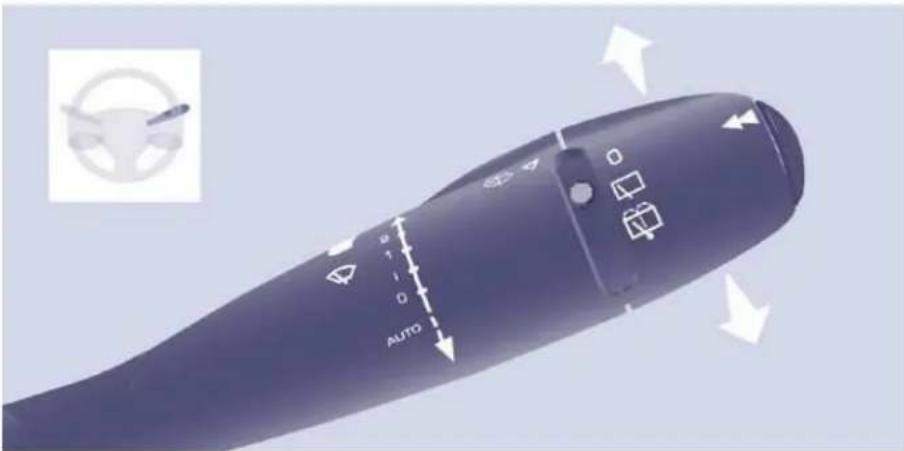

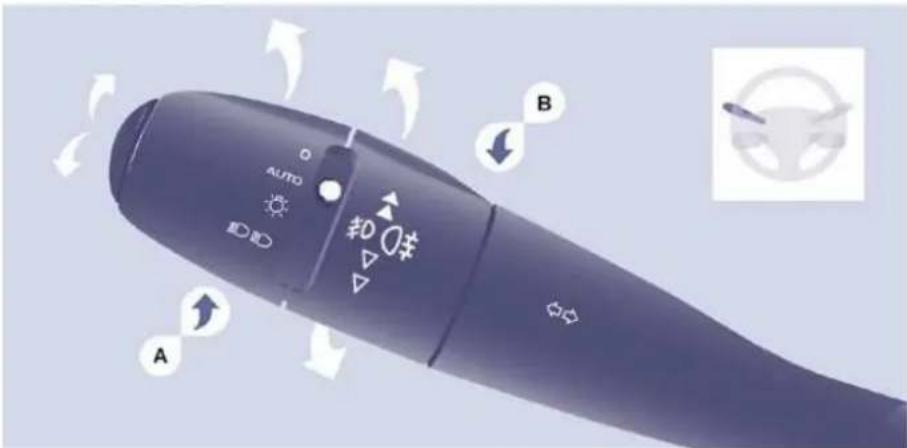

Lighting stalk Wiper stalk Changing bulbs

Illustration of a teal-colored missile or projectile with directional arrows indicating movement or positioning (no text or symbols present)

ng bulbs

Illustration of a car's headlight with no visible text or symbols

In bad weather or in winter, ensure that the lamps are not covered with mud or snow.

Lighting off.

Sidelamps.

2 fast.

1 normal.

I intermittent.

0 park.

↓ single wipe.

Main beam headlamps (blue). Dipped headlamps (green).

AUTO, press the stalk down. Reactivate if the ignition has been off for more than one minute.

7 142

AUTO, automatic lighting.

Motorway function: press the stalk up or down to fl ash the direction indicator three times.

3 42

3 45

Special position for the front wipers

For one minute after swiching off the ignition, any action on the wiper stalk places the wiper arms and blades vertically alongside the screen pillars.

3 46,151

Interior

DRIVE SAFELY

12

The vehicle speed must be higher than 25 mph (40 km/h) with at least 4th gear engaged.

From the time you release the brake pedal, the vehicle is held for approximately 2 seconds without need to use the parking brake, to allow you to set off.

Illustration of a teal-colored electric fan with control panel and side view (no text or symbols)

9

3

47

41

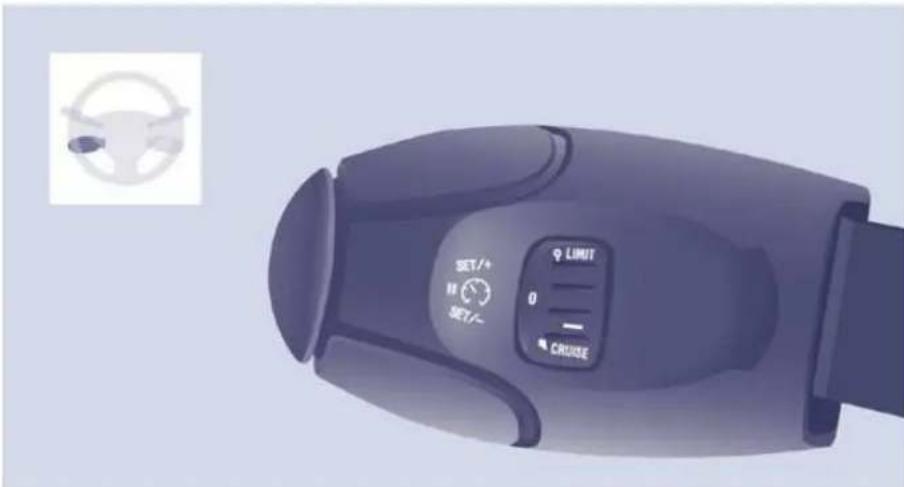

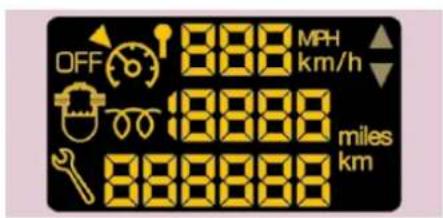

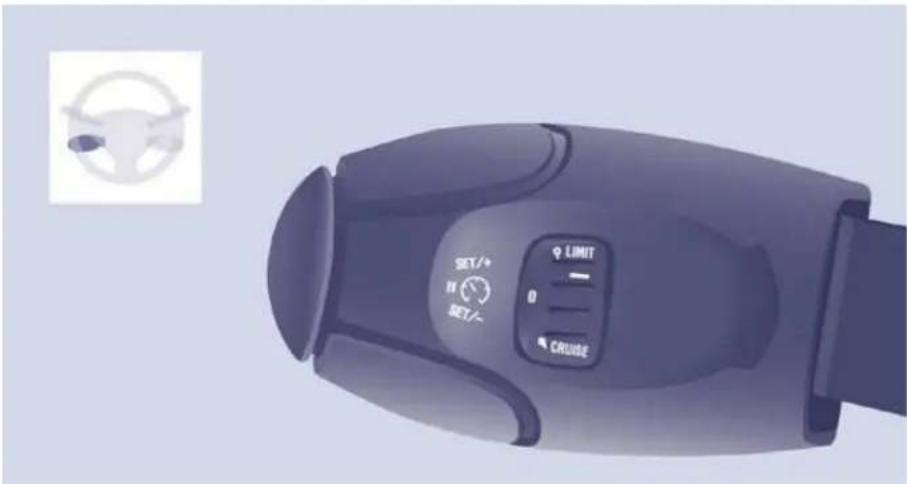

The minimum speed which can be programmed is 20 mph (30 km/h).

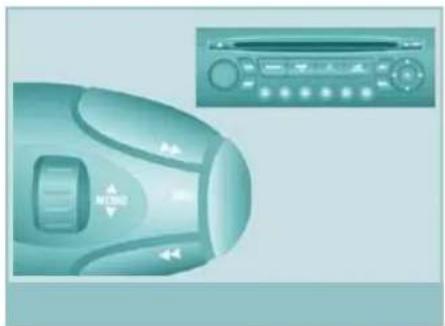

Illustration of a USB player with open and closed buttons, no text or symbols on the device itself

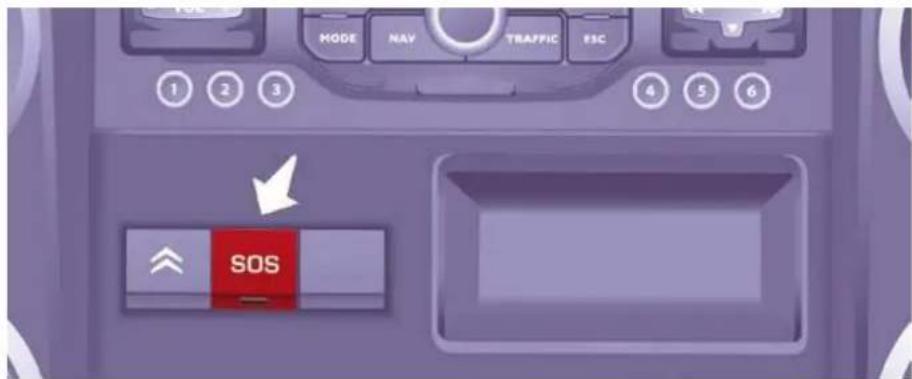

Emergency or roadside assistance call

This in-car system allows you to send an emergency or roadside assistance call to the dedicated CITROËN centres.

106

3

50

9

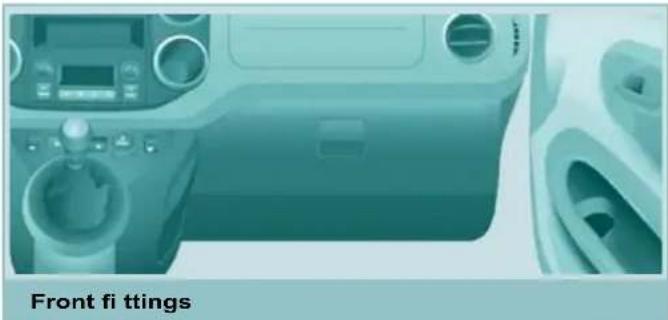

PASSENGER COMPARTMENT SPA

Front view of a digital camera with control panel and steering wheel (no visible text or symbols)

Interior

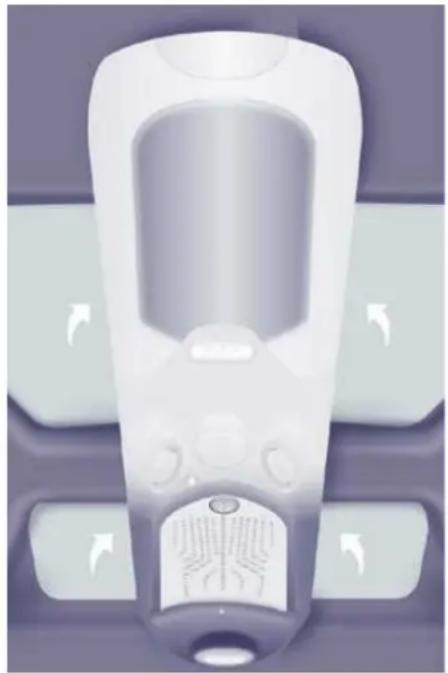

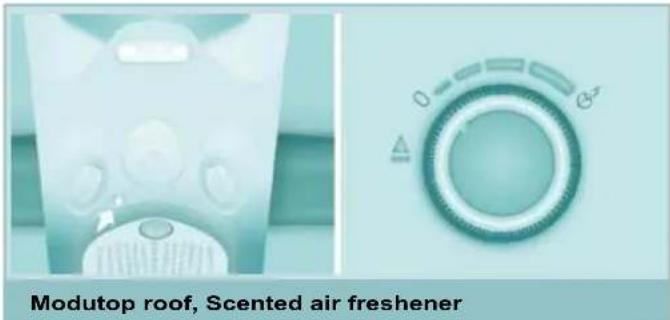

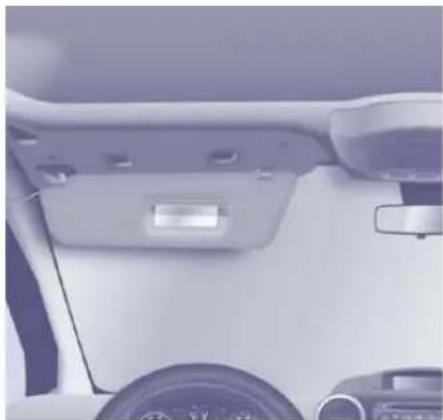

The multifunction roof console extends the overhead storage compartment.

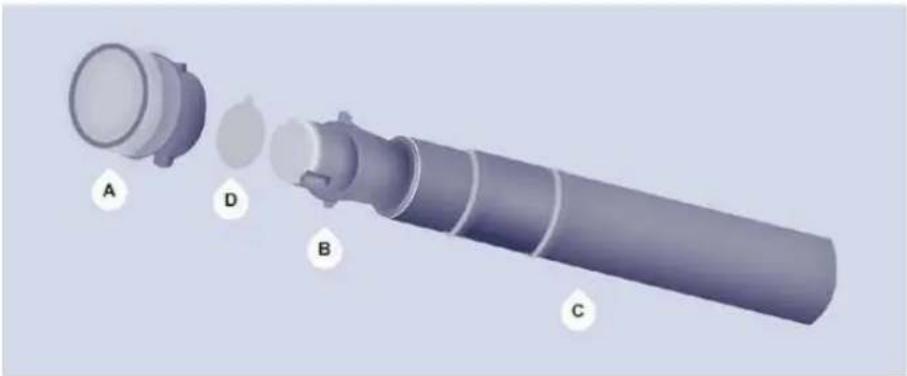

The fragrance is diffused in the passenger compartment from the vents of the roof console.

3D rendered image of a teal-colored mechanical component with a hole and mounting bracket (no text or symbols)

Clipped between row 1 and row 2, this offers an additional storage area and 2 cup holders.

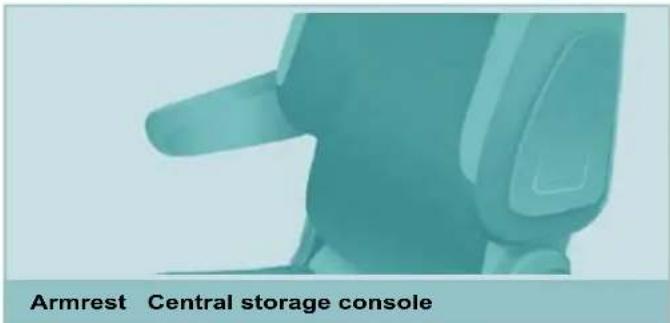

If the vehicle is fitted with the additional console and an armrest, to fold the passenger seat to the table position remove the console or the armrest.

Interior

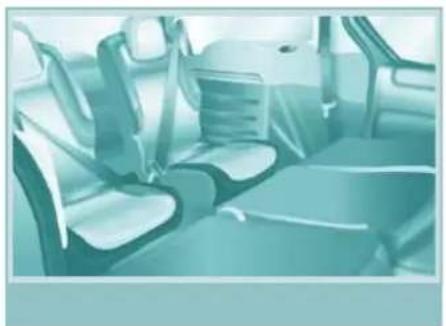

REAR FITTINGS

14

3D rendered image of a car seat with three seats and four seats, no text or symbols visible

3 64

3D architectural rendering of a modern building facade with a curved skylight and window (no text or symbols visible)

3 88

Two transparent mechanical components with curved ends, labeled 'Interior rack Load space cover, 5 seat vel' below (no other text or symbols)

94

3

Interior view of a modern car with large seats and driver seats, rendered in monochrome teal tones (no text or symbols visible)

3 67

Interior view of a car cab with rear seats and overhead canopy (no visible text or symbols)

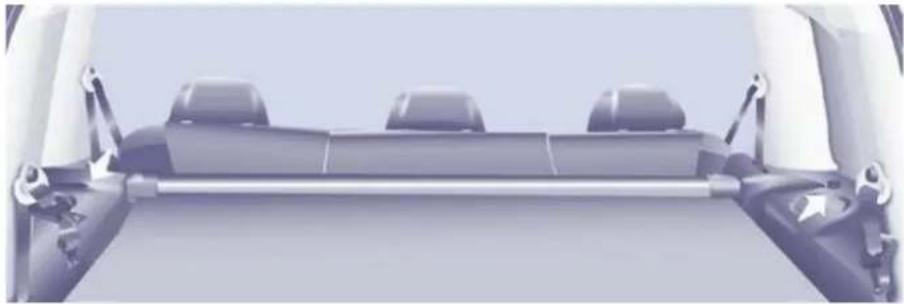

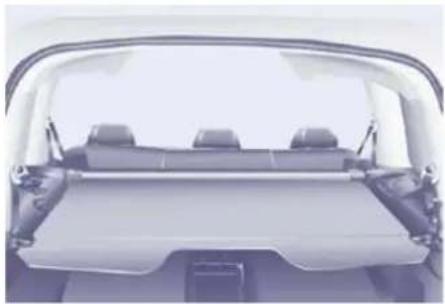

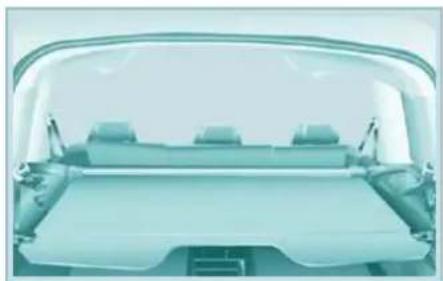

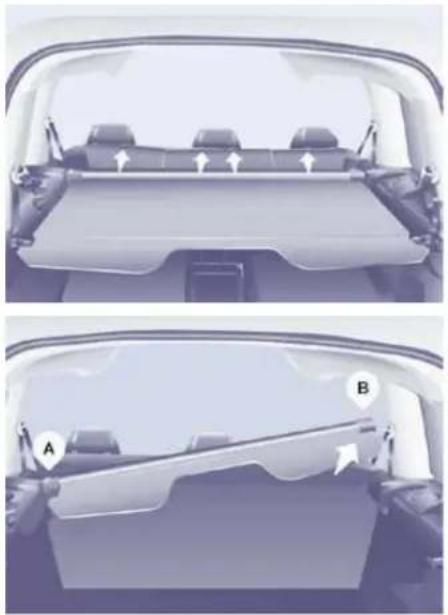

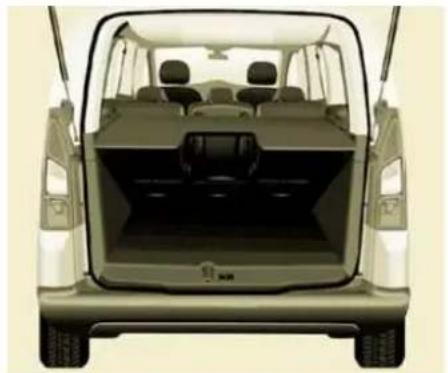

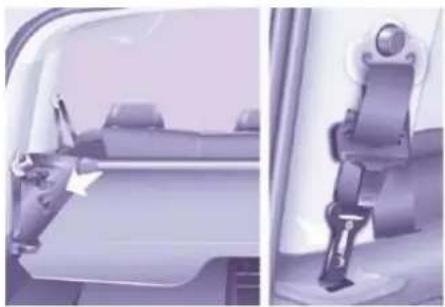

Load space cover, 7 seat version

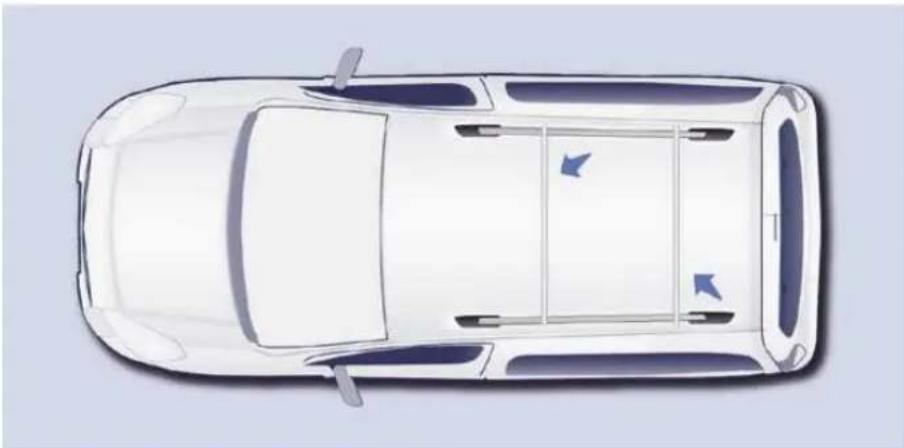

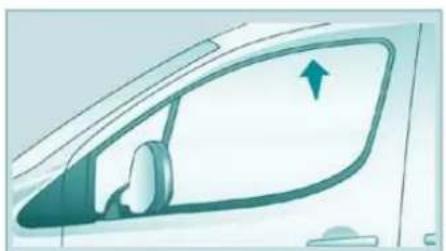

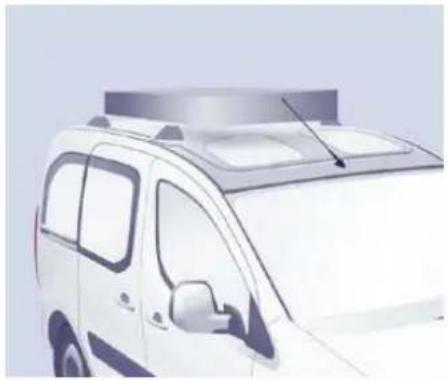

Maximum loads

Overhead storage compartment: 5 kg. Modutop roof:

- central storage compartments: 6 kg,

- box: 10 kg,

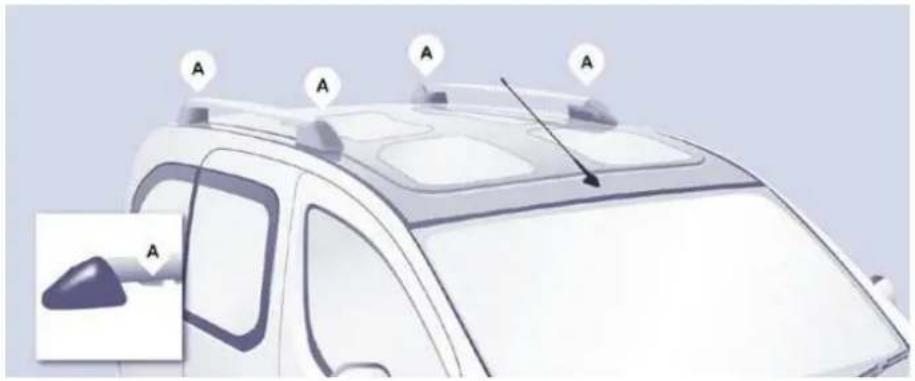

- roof bars placed longitudinally or transversely: 35 kg.

Transverse roof bars: 75 kg.

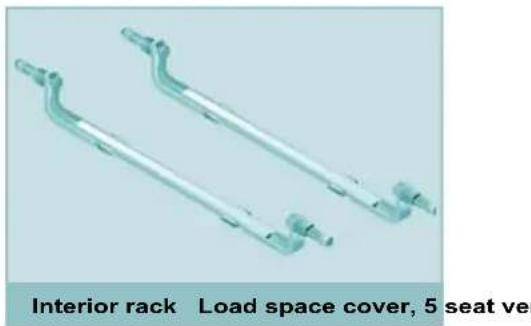

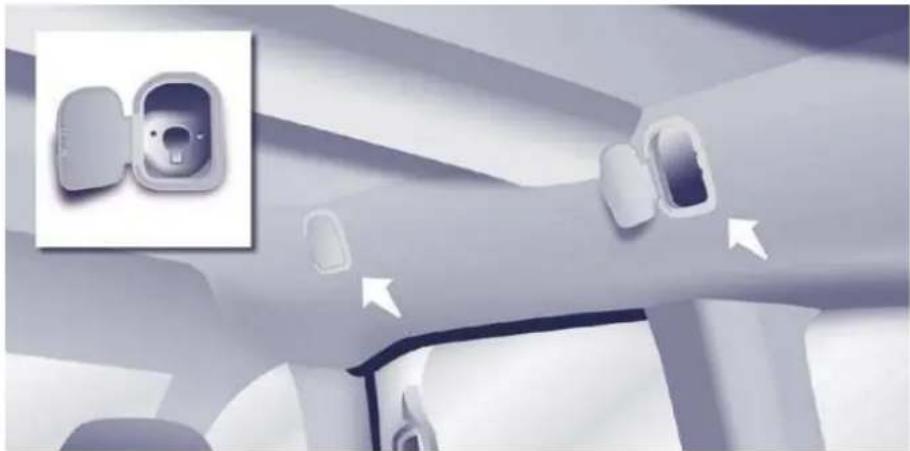

Interior rack: 10 kg per bar.

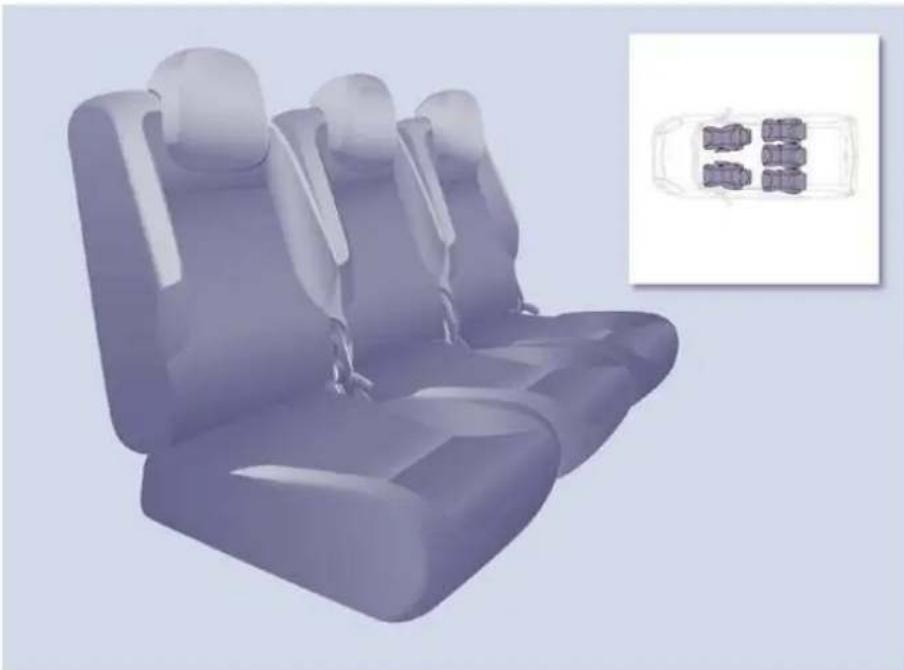

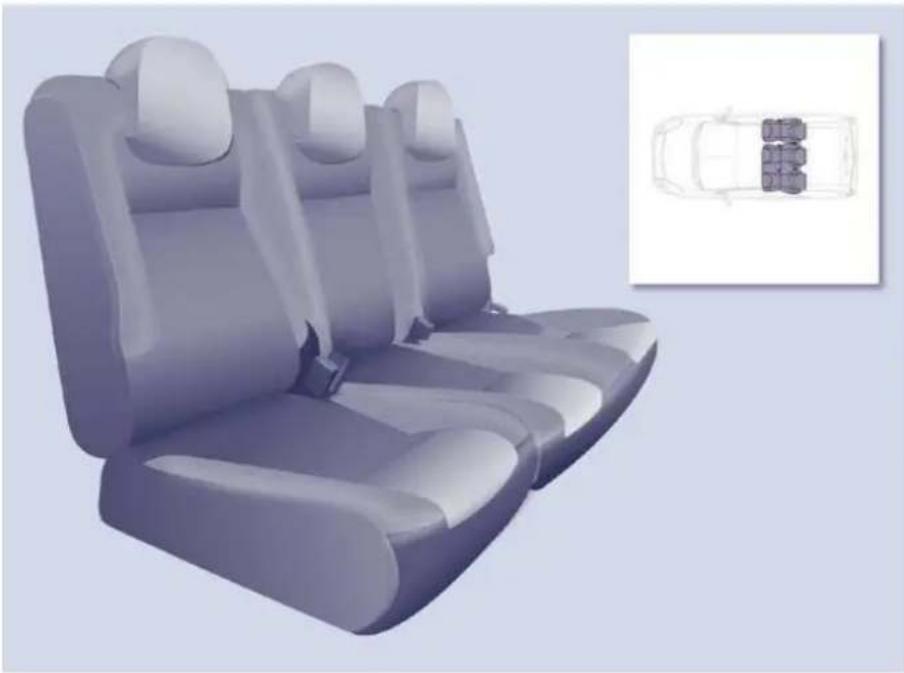

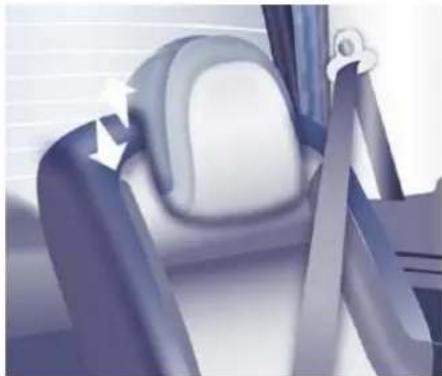

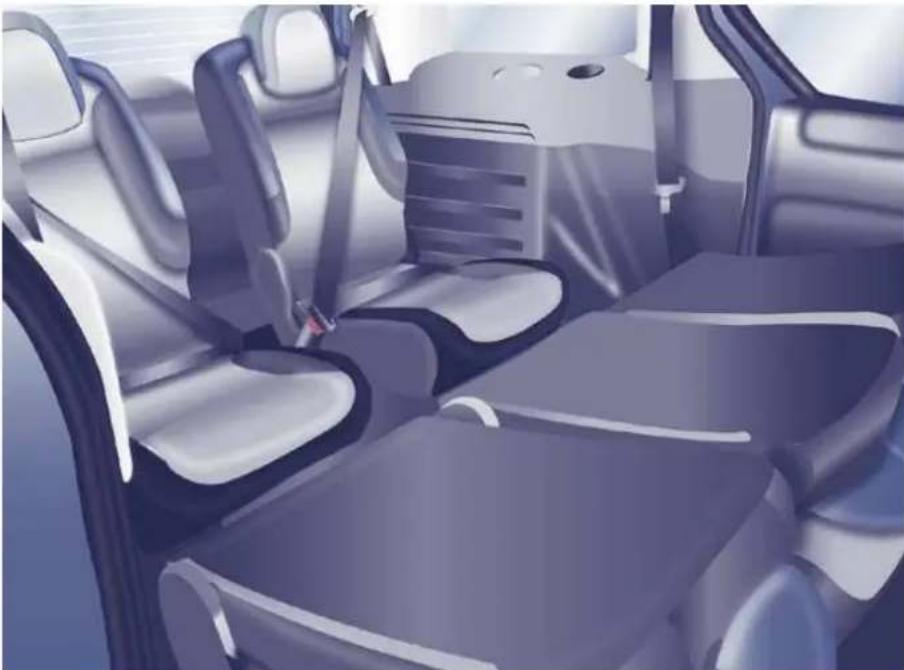

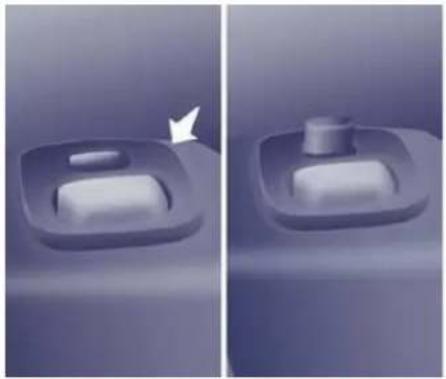

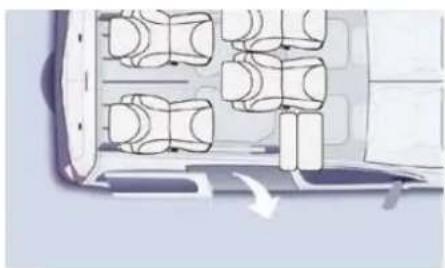

Rear seats, 7 seat version

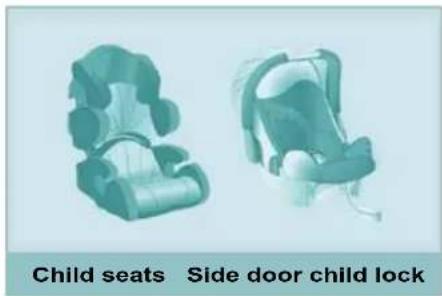

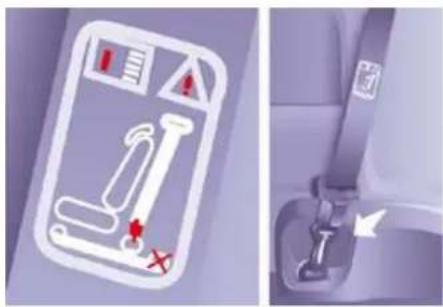

CHILD SAFETY

Illustration of a hand holding a wall-mounted device with numbered buttons and directional arrows (no text or symbols)

5 120

Abstract 3D illustration of a white folder with teal shading, no text or symbols present

3 97

Two 3D-printed car seats and side door lock components (no text or symbols on the objects themselves)

5 114

Side view of a car's front window with a blue arrow pointing to the side panel (no text or symbols)

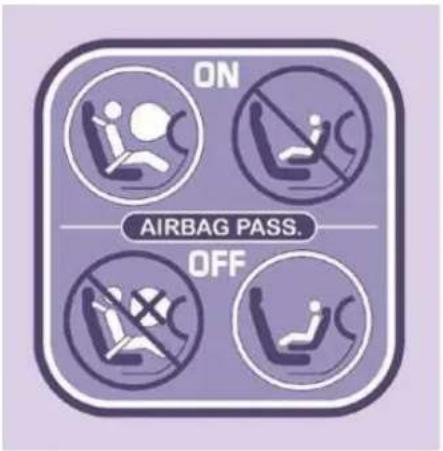

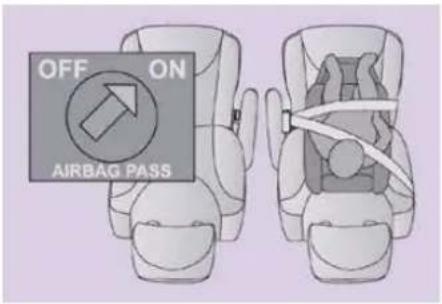

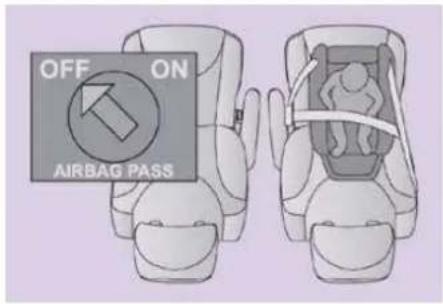

pag deactivation

5 113
3 98

Interior

15

Child

Interior

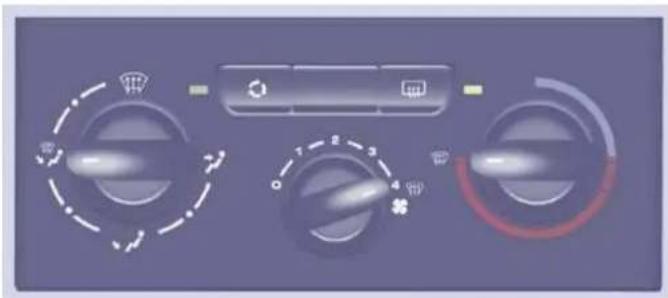

VENTILATION

16

Three circular industrial control knob designs on a teal background, no text or symbols present

Heating

Air conditioning

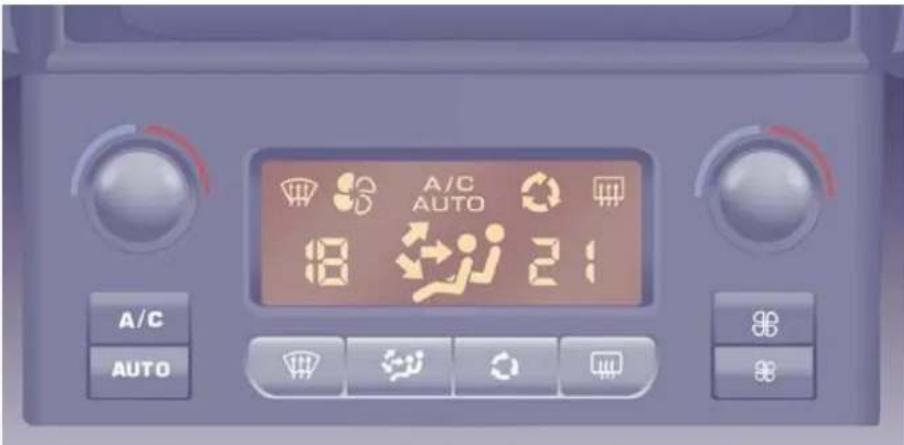

Automatic air conditioning

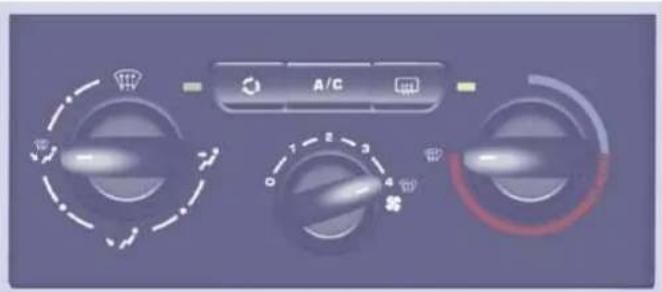

Recommended settings for the Manual Air Conditioning

For optimum use of the system, we recommend:

If I require

Air distribution

Temperature

Air flow

Air recirculation

AC

Heating

Cooling

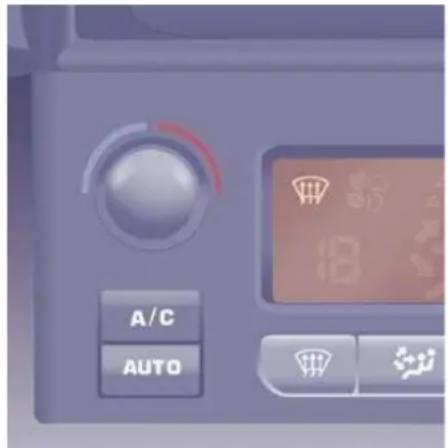

With Automatic Air Conditioning, operation in AUTO mode is recommended irrespective of the requirement.

3

55

3

57

Remember to switch the system off when the ambient air suits your requirements.

Accesses

Pink key with black arrow design on a light pink background (no text or symbols)

ACCESSES

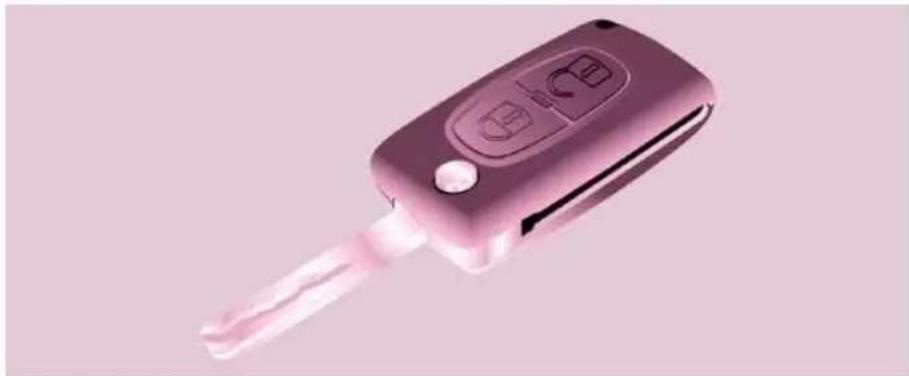

KEY

This locks and unlocks the locks on the vehicle and starts the engine.

Pink handheld car key with illuminated buttons and a string, against a solid pink background (no text or symbols visible)

REMOTE CONTROI

Central unlocking

Press this button to unlock all of your vehicle's doors.

The direction indicators flash twice.

Central locking

Press this button to lock all of your vehicle's doors.

The direction indicators flash once. If one of the doors is open or is not closed correctly, the central locking will not work.

Deadlocking

A second press on the closed padlock on the remote control within five seconds after locking changes the locking to deadlocking.

This is confirmed by fixed lighting of the direction indicators for approximately two seconds.

Deadlocking renders the exterior and interior door opening handles inoperative: do not leave anyone inside the vehicle when it is deadlocked.

If deadlocking is activated from inside the vehicle using the remote control, it will change to normal locking when the vehicle is started.

Accesses

Folding/unfolding the key

18

Press this button to release the key from its housing. To fold the key, press this chromed button then fold the key into the housing.

If you do not press the button, the mechanism may be damaged.

Good practice

Take care not to allow the remote control to come into contact with grease, dust, rain or a damp environment.

A heavy object attached to the key (keyring, ...) weighing on the shaft of the key in the switch, may cause a malfunction.

REMOTE CONTROL

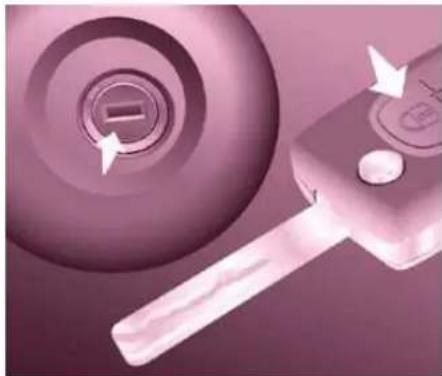

Changing the battery

Battery ref.: CR1620/3 volts.

The information "battery flat" is given by an audible signal, accompanied by a message on the display.

To replace the battery, unclip the casing using a coin at the ring.

If the remote control does not work after the battery has been changed, re-programme the remote control.

There is a risk of damage if the replacement battery does not conform.

Illustration of a pink plastic device with a small cartoon character inside, no text or symbols visible

Use only identical batteries or batteries of an equivalent type to those recommended by CITROËN dealers.

Do not discard the remote control batteries, they contain metals which are harmful to the environment.

Deposit them at a CITROËN dealership, or at any other approved collection point.

Close-up of a key inserted into a lock, with arrows indicating the mechanism (no text or symbols visible)

Programming the remote control

Following changing of the remote control battery or disconnection of the vehicle battery, the remote control may have to be reprogrammed.

Wait at least one minute before using the remote control.

Insert the key in the ignition switch with the buttons (padlocks) of the remote control facing you.

Switch on the ignition.

Press the locking padlock for at least five seconds within the next ten seconds.

Switch off the ignition.

Wait at least one minute before using the remote control.

The remote control is now working again.

ELECTRONIC IMMOBILISER

All of the keys contain an electronic immobiliser device.

This device locks the engine supply system. It is activated automatically when the key is removed from the ignition.

After the ignition is switched on, a dialogue is established between the key and the electronic immobiliser system.

The metal part of the key must be unfolded correctly for correct dialogue to take place.

If you lose your keys

Visit a CITROËN dealer with the vehicle's V5 registration document and your identification document.

A CITROËN dealer will be able to retrieve the key code and the transponder code so that a replacement key can be ordered.

Good practice

Do not make any modifi cations to the electronic immobiliser system.

Operating the remote control, even when it is in your pocket, may result in involuntary unlocking of the doors.

The simultaneous use of other high frequency equipment (mobile telephones, domestic alarms...), may interfere with the operation of the remote control temporarily.

The remote control does not operate while the key is in the ignition, even if the ignition is off.

As a safety precaution (with children on board), remove the key from the ignition when leaving the vehicle, even for a short time.

When purchasing a second-hand vehicle:

- have the keys memorised by a CITROËN dealer to ensure that the keys in your possession are the only ones which can start the vehicle.

Accesses

Close-up of a pink plastic car handle and handle with a small circular object, no visible text or symbols

FRONT DOORS

From the outside

Use the remote control to lock/unlock the vehicle.

Insert the metal part of the key in the lock on the driver's side if the remote control does not work.

Close-up of a pink 3D-printed mechanical part with no visible text or symbols

From the inside

Use the door opening control to unlock and open the door concerned.

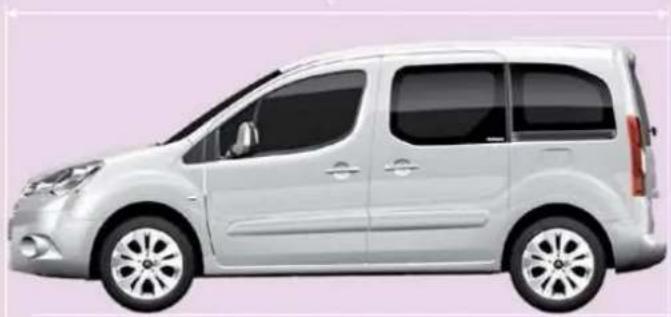

Side profile of a white car with visible door and side window, rendered in pink tones (no text or symbols)

SLIDING SIDE DOORS

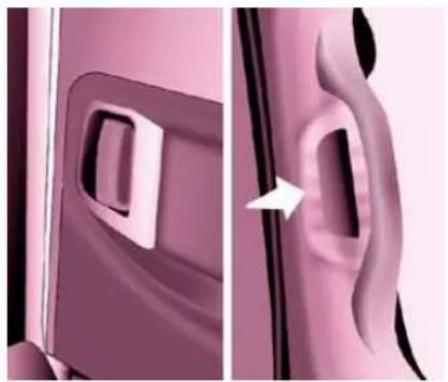

From the outside

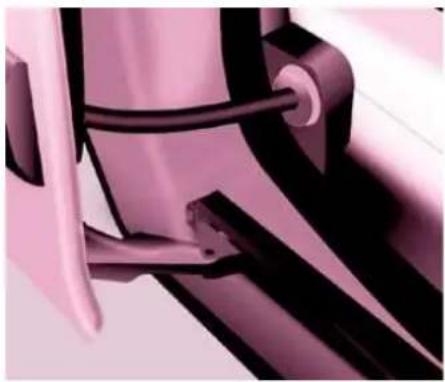

Pull the handle towards you then towards the rear and open the side door guiding the rearward sliding to beyond the point of resistance to hold it open.

A mechanical system prevents opening of the left-hand side door when the fuel filler fl ap is open.

Accesses

Close-up of a pink car door handle and side panel showing a curved grip detail (no text or symbols visible)

Close-up of a mechanical component with visible wiring and mounting bracket (no text or symbols)

Illustration of a shoe and a cat inside a garment with decorative stars and arrows (no text or symbols)

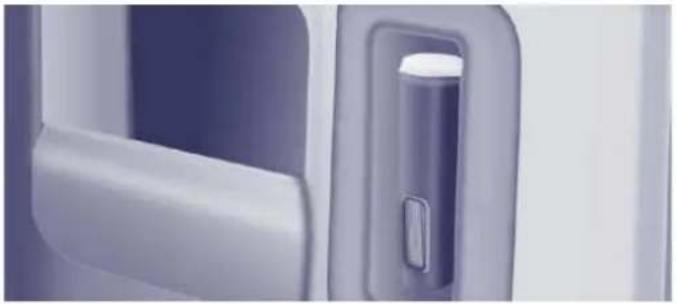

From the inside

Unlock the side door using this handle and open it, guiding the rearward sliding to the point of resistance. Pass this point to hold the door open.

Close the side door using the handle to start the sliding and pass the point of resistance. Then, use the shaped recess at the top of the door pillar to guide the door until it locks.

Do not use the grab handle to slide the door.

Good practice

Take care not to block the guide space on the floor to allow the door to slide correctly.

If your vehicle is parked on a slope, guide the sliding of the side door. In fact, the door could open or close more rapidly due to the slope of the ground and could cause injury.

For safety and operation reasons, do not drive with the sliding side doors open.

Operation in the event of a battery failure

Front and side passenger doors

In the event of a malfunction of the battery or of the central locking, use the lock to lock the doors mechanically.

To open the door and get out of the vehicle, pull the interior control.

To lock the door, insert the key in the lock, located on the edge of the door, then turn it one eighth of a turn.

Driver's door

Insert the key in the lock, then turn it to the right to lock or to the left to unlock.

Accesses

22

Close-up of a pink plastic door with a white recess and a small arrow pointing to the side (no text or symbols visible)

TAILGATE

From outside

Locking/unlocking is by means of the remote control.

To open, press the control below the trim then raise the tailgate.

A pull strap is available to close the tailgate in the high position.

Guide the closing of the tailgate to the balance point of its travel then apply a fi nal press on the tailgate to close it fully.

Illustration of a car interior with highlighted seats and directional arrows indicating movement (no text or symbols)

From inside

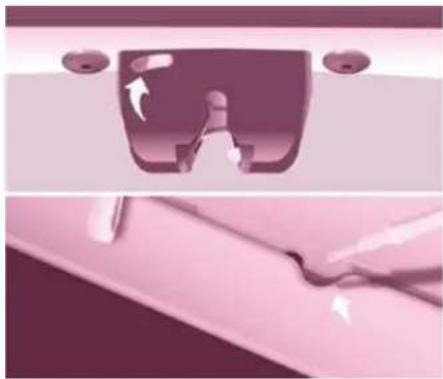

Emergency control

In the event of a central unlocking operating fault, this permits unlocking of the tailgate from the inside.

Insert a small screwdriver in the opening, between the door and the floor. To unlock the lock, move the catch to the left then push the tailgate.

Front view of a white car with its open hood, showing the rear window and side seats (no visible text or symbols)

Tailgate screen

The opening rear screen allows you to access the rear of the vehicle directly, without having to open the tailgate.

Opening

After unlocking the vehicle using the remote control or the key, press the control and raise the rear screen to open it.

Closing

Close the rear screen by pressing the centre of the glass until it is fully closed.

The tailgate and tailgate screen cannot both be open at the same time, to prevent damage to the glass and the screen itself.

Accesses

Front view of a white van with rear headlights and blank windows (no text or symbols visible)

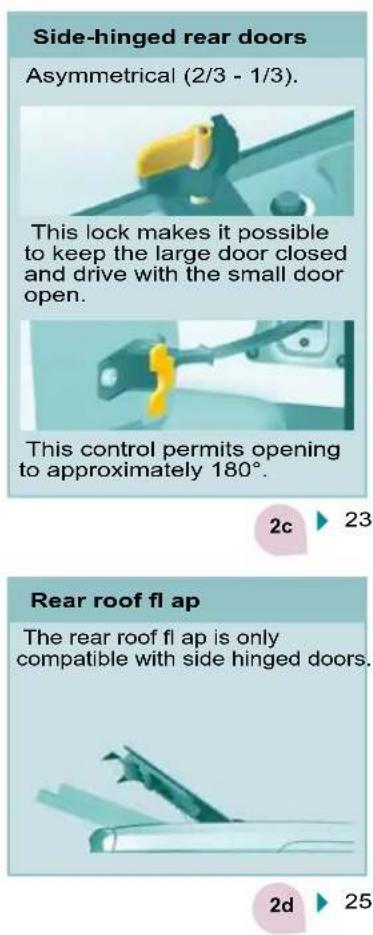

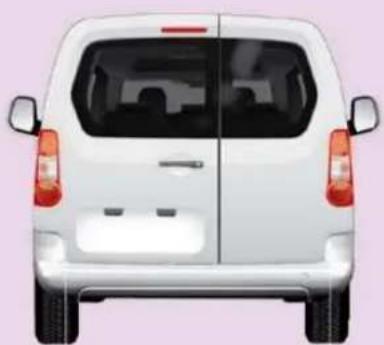

HINGED REAR DOORS

The hinged rear doors are asymmetrical (2/3 - 1/3), with the smaller door on the right. They are fitted with a central lock.

From outside

To open, pull the handle towards you.

Illustration of a robotic arm with motion blur, rendered in monochrome tones (no text or symbols)

Pull the lever to open the right-hand door.

To close, start with the right-hand door then close the left-hand door.

With the roof rear flap, the rear bumper has been strengthened to serve as a footrest on accessing the vehicle.

Close-up of a pink mechanical component with a yellow handle and black base (no visible text or symbols)

Practice

It is possible to drive with the right-hand door open to make the transportation of long loads easier. The left-hand door is kept closed by the distinctive "yellow" lock, positioned at the base of the door. This closed door must not be used as a load retainer.

Driving with the right-hand door open is a special dispensation. Comply with the usual safety indications to attract the attention of other drivers.

Accesses

24

Illustration of a mechanical device with a yellow tool inserted, showing a handle and lever mechanism (no text or symbols)

Opening to approximately 180°

Close-up of a purple smartphone back panel with a white arrow pointing to the side of the screen (no text or symbols visible)

From inside

A check strap system permits extension of the opening from approximately 90° to approximately 180°.

Pull the yellow control when the door is open.

The check strap will re-attach automatically on closing.

Pull the handle towards you to open the left-hand door.

Illustration of a pink refrigerator with a white door, no visible text or symbols

Illustration of a mechanical device with a lever and clamping mechanism, rendered in monochrome tones (no text or symbols)

REAR ROOF FLAF

This rear roof fl ap is only compatible with the hinged doors.

To open the rear roof fl ap:

• raise the black paddle of the toggle,
• relieve the toggle by pressing the rear roof fl ap (downwards) then release the hook,
• lift the rear roof fl ap,
• pass the point of resistance to secure the rear roof fl ap using the support struts.

To close the rear roof fl ap:

• check that the support bar is secured correctly,
• lower the rear roof fl ap,
• while pressing the rear roof fl ap (downwards), take hold of the two loops of the spring then place the hook in its housing,

- lower the black paddle to secure the rear roof fl ap.

Securing the rear roof fl ap places it on the seal correctly and guarantees sealing without noise.

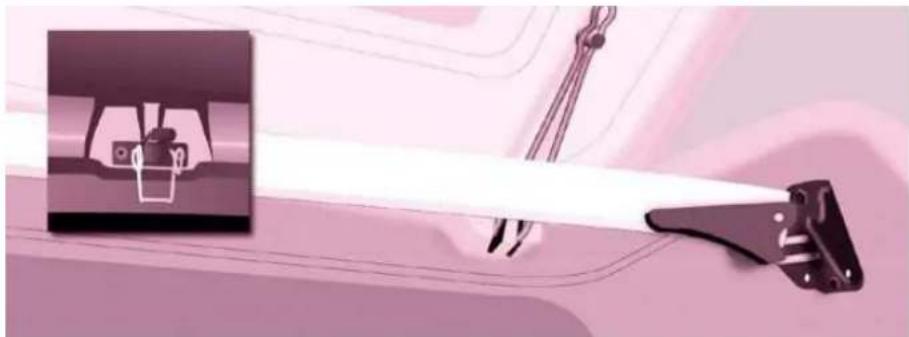

Support bar

A support bar is provided for transporting long loads, after opening the rear roof fl ap.
Fold back the support bar by lifting the lever.

Support it to the door pillar.

Support the long loads to be transported, lift them and reposition the support bar with one hand.

Ensure that it is secured correctly by pressing the handle downwards past the point of resistance and secure the loads firmly.

The side supports can be used as hooking points.

The rear bumper has been strengthened to serve as a footrest on entering the vehicle.

Never drive without the support bar in place.

The rear doors only lock when the support bar is installed.

When the rear roof fl ap is open, take care when driving where height is restricted.

Never rest loads directly on the rear doors.

Comply with the usual indications, to attract the attention of other drivers.

Accesses

Interior view of a car dashboard with control buttons and a directional arrow indicator (no text or symbols)

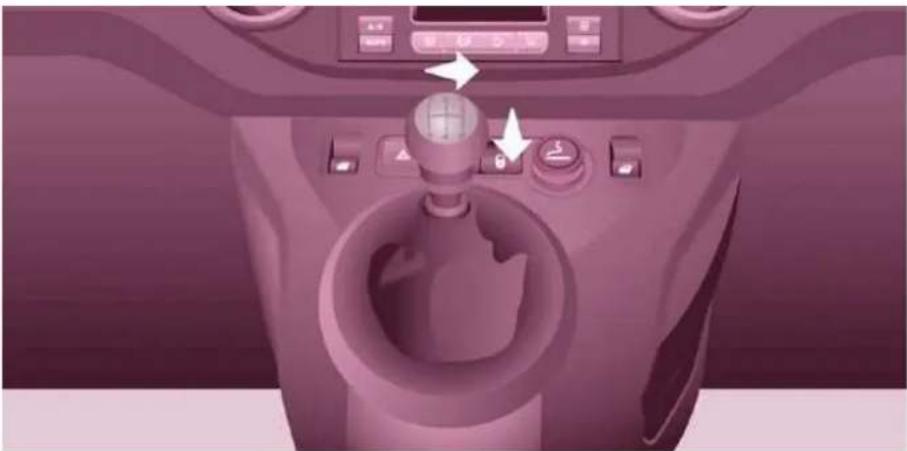

CENTRAL LOCKING

Protection against attack

Locking while driving

When the vehicle moves off, as soon as you reach approximately 6 mph (10 km/h), the system locks the doors. A noise characteristic of central locking is heard. The diode on the control on the fascia central control panel comes on.

During the journey, opening a door results in complete unlocking of the vehicle.

In the event of a serious impact, the doors are unlocked automatically to permit access by the emergency services.

Activating/deactivating the function

An initial press permits central locking of the vehicle, when all of the doors are closed.

A second press permits central unlocking of the vehicle.

The control is inactive when the vehicle has been locked using the remote control or the key from the outside.

The doors can still be opened from the inside.

The control diode:

- fl ashes when the doors are locked with the vehicle stationary and the engine off,

- comes on when the doors are locked and from the time the ignition is switched on.

With the ignition on, press and hold this button to activate or deactivate the function.

Door open warning light

If this warning light comes on, check that all of your vehicle's doors are closed correctly.

Instruments and controls

INSTRUMENTS AND CONTROLS INSTRUMENT PANEL

Screens

The information is presented on board the vehicle in different display formats according to the vehicle's equipment.

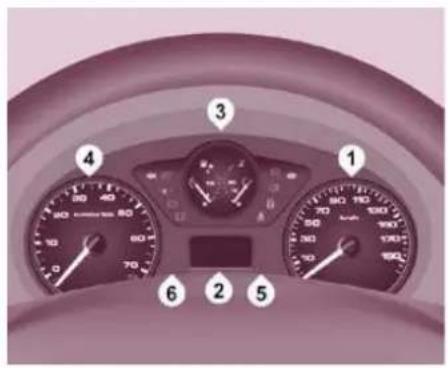

Dials

1. Distance recorder in kilometres/miles.
2. Display.
3. Fuel level, coolant temperature.
4. Rev counter.
5. Trip distance recorder/service indicator zero reset.
6. Instrument panel lighting rheostat.

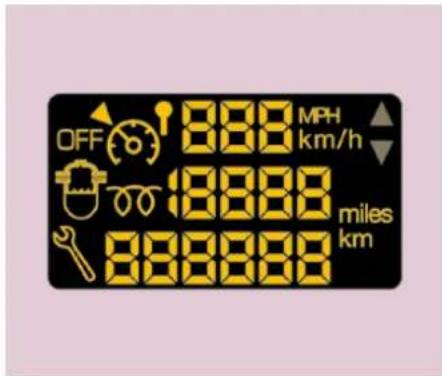

Displays

• Speed limiter/cruise control.
• Kilometres/Miles travelled.
• Service indicator, engine oil level indicator, total kilometres/miles.
• Presence of water in the diesel filter.
• Diesel pre-heating.

Instruments and controls

Instrument panel without display

ADJUSTING THE TIME

Centre console without display

To adjust the time of the clock, use the left-hand button on the instrument panel then carry out the operations in the following order:

• turn to the left: the minutes flash,
• turn to the right to increase the minutes (hold the button to the right for rapid scrolling),

• turn to the left: the hours flash,

• turn to the right to increase the hours (hold the button to the right for rapid scrolling),

• turn to the left: 24H or 12H is displayed,
• turn to the right to select 24H or 12H,
• turn to the left to complete the time adjustment.

After approximately 30 seconds without any action, the display returns to the normal display.

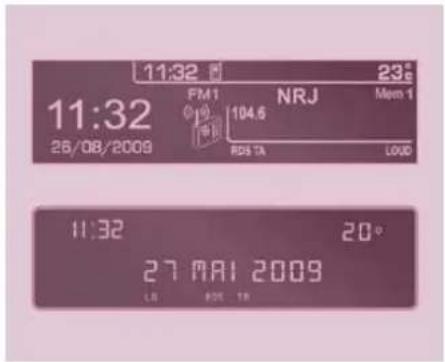

Centre console with display

The display - time sequence is linked according to model (version). The access to the "Date" adjustment is only active when the model version offers a date in words.

To adjust the time and date indicated on the display, refer to the "Adjusting the date and time" section of chapter 9.

WARNING LAMPS

Each time the vehicle is started: a series of warning lamps comes on applying a self-test check. They switch off almost immediately. When the engine is running: the warning lamp becomes a warning if it remains on continuously or flashes. This initial warning may be accompanied by an audible signal and a message which appears on the display.

Do not ignore these warnings.

Warning lamp		is	indicates	Solution - action
STOP	STOP	lit, associated with another warning lamp and accompanied by a message on the display.	major faults linked with the "Brake fl uid level", "Engine oil pressure and temperature", "Coolant temperature", "Electronic brake force distribution" and "Power steering" warning lights.	You must stop, park and switch off the ignition. Have the fault checked by a CITROËN dealer.
	Handbrake/ Brake fl uid level/EBFD	lit.	that the handbrake is applied or has not been released fully.lamp.	Releasing the handbrake switches off the warning
		lit. a low brake	fl uid level. Top up using a fl uid recommended by CITROËN.
		remaining on even though the level is correct and associated with the ABS warning lamp.	a failure of the electronic brake force distribution.	You must stop, park and switch off the ignition. Have the fault checked by a CITROËN dealer.
	Engine oil pressure and temperature	lit while driving.	insuffi cient pressure or a high temperature.	Park and switch off the ignition then allow to cool. Visually check the level. Chapter 6, "Levels" section.
		remaining on, even though the level is correct.	a major fault. Have the fault checked by a CITROËN dealer.

Instruments and controls

Warning lamp		is	indicates	Solution - action

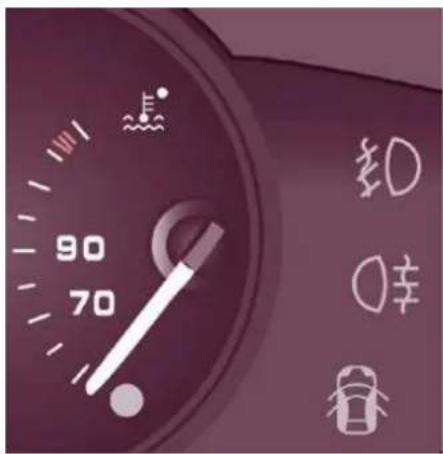

	Coolant temperature and level	lit with needle in the red zone.	an abnormal increase in temperature.	Park and switch off the ignition then allow to cool. Visually check the level.
		fl ashing. a drop in the coolant level.		Chapter 6, "Levels" section. Consult a CITROËN dealer.
	Service	lit temporarily.	minor faults or warnings.	Consult the warnings log on the display or on the screen. If your vehicle is equipped with a trip computer or a screen: refer to the "Audio equipment - Trip computer" section of chapter 9. Consult a CITROËN dealer.
		remaining on.	major faults.
	Driver's seat belt not fastened	lit then fl ashing.	the driver has not fastened his seat belt.	Pull the strap then insert the tongue in the buckle.
		accompanied by an audible signal then remains on.	the vehicle is moving with the driver's seat belt not fastened.	Check that the seat belt is fastened by pulling the strap. Chapter 4, "Seat belts" section.

Instruments and controls

Warning lamp		is	indicates	Solution - action
	Front/side air bag	fl ashing or remaining on.	a failure of an air bag.	Have the system checked by a CITROËN dealer without delay. Chapter 4, "Air bags" section.
	Front passenger air bag disarmed	lit.	the intentional disarming of this air bag in the presence of a rear-facing child seat.	Chapter 4, "Air bags-child safety" section.
	Low fuel level	lit with gauge needle in the red zone.	that there remain 8 litres of fuel when the lamp comes on.	You must fi ll up with fuel to avoid running out. This warning lamp comes on each time you switch on the ignition until you have fi lled up. Capacity of the tank: approximately 60 litres. Never risk driving until the tank is empty, this could damage the antipollution and injection systems.
		fl ashing.	cutting off of the supply following a serious impact.	Restore the supply. Chapter 6, "Fuel" section.
	EOBD emission control system	fl ashing or remaining on.	a failure of the system.	There is a risk of damage to the catalytic converter. Have the system checked by a CITROËN dealer.
	Battery charge	lit.	a fault in the charging circuit.	Check the battery terminals, ... Chapter 7, "Battery" section.
		fl ashing.	placing of the active functions on standby (economy mode).	Chapter 7, "Battery" section.
		remaining on, in spite of the checks.	a faulty circuit, an ignition or injection malfunction.	Have the fault checked by a CITROËN dealer.

Instruments and controls

Warning lamp		is	indicates	Solution - action
	Power steering	lit. a malfunction of the system.		The vehicle retains conventional steering without assistance. Have the system checked by a CITROËN dealer.
	Door open detection	lit and accompanied by a message on the display.	that a door is not closed correctly.	Check that all of the doors are closed.
	ABS remaining on.		a failure of the anti-lock braking system.	The vehicle retains conventional braking. Consult a CITROËN dealer.
	ESP	fl ashing.	triggering of the ASR or ESP regulation.	The system optimises drive and permits improvement of the directional stability of the vehicle. Chapter 4, "Driving safety" section.
		remaining on.	a malfunction of the system. E.g.: under-inflation of the tyres.	E.g.: check the pressure of the tyres. Have the system checked by a CITROËN dealer. (Wheel speed sensor, hydraulic block, ...).
		remaining on with the diode on the button (on the fascia) lit.	deactivation of the system at the request of the driver.	Operation of the system is deactivated. Reactivation is automatic above 30 mph (50 km/h) or after pressing the button (on the fascia).

Instruments and controls

Warning lamp		is	indicates	Solution - action
	Particle emission fi Iter	lit.	a malfunction of the particle emission fi Iter (diesel additive level, risk of clogging, ...).	Have the fi Iter checked by a CITROËN dealer. Chapter 6, "Levels" section.
	Dipped headlamps/ Daytime lights	lit.	a manual selection or automatic lighting.	Turn the ring on the lights stalk to the second position.
			lighting of the dipped headlamps from the time the ignition is switched on: daytime lights (depending on the country in which the vehicle is sold).	Chapter 3, "Steering wheel controls" section.
	Main beam headlamps		pulling of the stalk towards you.	Pull the stalk to return to dipped headlamps.
	Direction indicators	fl ashing with buzzer.	a change of direction via the lights stalk, to the left of the steering wheel.	To the Right: control to be pushed upwards. To the Left: control to be pushed downwards.
	Front fog lamps	lit. a manual selection.		The fog lamps only operate if the side lights or dipped headlamps are on.
	Rear fog lamps	lit. a manual selection.		The fog lamps only operate if the side lights or dipped headlamps are on. In conditions of normal visibility, take care to switch them off to avoid breaking the law. "This light is a dazzling red."

Instruments and controls

Warning lamp on the display		is	indicates	Solution - action
	Cruise control	lit. cruise control selected.		Manual selection. Chapter 3, "Steering wheel controls" section.
	Speed limiter	lit. speed limiter selected.		Manual selection. Chapter 3, "Steering wheel controls" section.
	Diesel pre-heating	lit.	climatic conditions requiring pre-heating.	Wait until the warning light is switched off before operating the starter.
	Presence of water in the diesel fi Iter	lit and accompanied by a message on the display.	water in the diesel fi Iter.	Have the fi Iter bled by a CITROËN dealer without delay. Chapter 6, "Checks" section.According to country.
	Service spanner	lit.	that a service will be due shortly.	Refer to the list of checks in the Maintenance and Warranty Guide. Have the service carried out by a CITROËN dealer.
	Time	flashing.	adjustment of the time.	Use the left-hand button on the instrument panel. Chapter 2, at the beginning of the "Instruments and controls" section.

Close-up of a purple industrial control dial with icons for fuel, battery, and timer (no readable text or symbols)

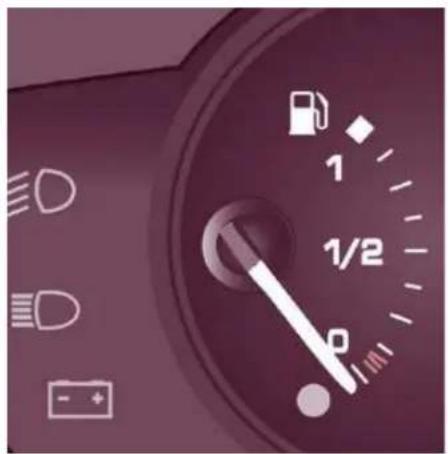

FUEL GAUGE

The fuel level is tested each time the key is turned to the "running" position.

The gauge is positioned on:

- 1: the fuel tank is full, approximately 60 litres.

- 0: the reserve is now being used, the warning light comes on continuously. The reserve when the warning first comes on is approximately 8 litres.

Refer to the "Fuel" section of chapter 6.

COOLANT TEMPERATURE

The needle is positioned before the red zone: normal operation.

In arduous conditions of use or hot climatic conditions, the needle may move close to the red graduations.

Instruments and controls

What you should do if the needle enters the red zone:

Reduce your speed or let the engine run at idle.

What you should do if the warning light comes on:

- stop immediately, switch off the ignition. The fan may continue to operate for a certain time up to approximately 10 minutes,

- wait for the engine to cool down in order to check the coolant level and top it up if necessary.

As the cooling system is pressurised, follow this advice in order to avoid any risk of scalding:

wait at least one hour after switching off the engine before carrying out any work,
- unscrew the cap by 1/4 turn to allow the pressure to drop,
- when the pressure has dropped, check the level on the expansion bottle,
- if necessary, remove the cap to top up.

If the needle remains in the red zone, have the system checked by a CITROËN dealer.

Refer to the "Levels" section of chapter 6.

Instruments and controls

EMISSION CONTROL

36

EOBD (European On Board Diagnosis) is a diagnostics system which complies with, among others, the standards concerning authorised emissions of:

• CO (carbon monoxide),
• HC (unburnt hydrocarbons),
• NOx (nitrogen oxides) or particles, detected by oxygen sensors placed upstream and downstream of the catalytic converters.

Therefore, the driver is warned of any malfunction of this emission control system by the lighting of this specific warning light on the instrument panel.

There is a risk of damage to the catalytic converter. Have it checked by a CITROËN dealer.

TYRE UNDER-INFLATION DETECTION

Sensors check the tyre pressure during driving (speed higher than 12 mph [20 km/h]) and trigger a warning in the event of a malfunction or puncture.

Any anomaly detected (fl at or punctured tyre, malfunction of a sensor) is indicated by visual and audible information and is accompanied by a message on the display.

Flat tyre

Check the tyre pressure as soon as possible.

Puncture

Stop immediately, avoiding any sudden movement of the steering wheel and the brakes.

Change the damaged (punctured or very deflated) tyre, and have the tyre pressure checked as soon as possible.

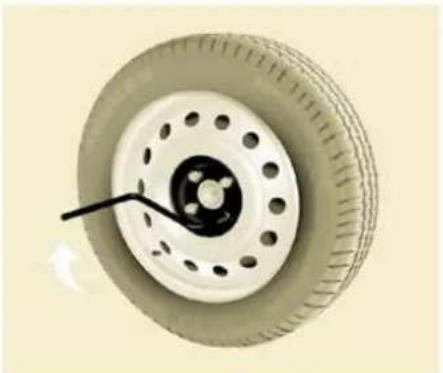

Refer to the "Changing a wheel" section of chapter 7.

If the damaged tyre is temporarily stored inside the vehicle, it will again emit this message to remind you of the necessity of having it repaired. This will prevent another warning of the same type being displayed.

Sensor(s) not detected

Under-inflation detection is absent from one (or several) tyre(s). Contact a CITROËN dealer to replace the faulty sensor(s).

This message is also displayed when one of the tyres is away from the vehicle (being repaired) or when a wheel without a sensor is fitted.

All repairs and changing of tyres on a wheel fitted with this system must be carried out by a CITROËN dealer.

The tyre under-inflation detection system is a driving aid which does not take the place of vigilance or the responsibility of the driver.

This system does not remove the need to have the tyre pressure checked regularly (including the spare wheel), to ensure that the dynamic performance of the vehicle remains at its best and to avoid premature wear of the tyres, in particular in the case of arduous driving (heavy load, high speed).

The system may temporarily be disturbed by radio broadcasts on a frequency close to it.

Instruments and controls

SERVICE INDICATOR

This programmes service intervals according to the use of the vehicle.

Operation

A few moments after the ignition has been switched on, the spanner indicating a service operation lights up; the display for the total distance recorder tells you (in round figures) the distance remaining before the next service.

The points at which a service is due are calculated from the last indicator zero reset.

The point at which a service is due is determined by two parameters:

• the distance travelled,
• the time which has elapsed since the last service.

The distance remaining before the next service may be weighted by the time factor, depending on the driver's driving habits.

More than 1 000 miles/km before the next service is due

Example: 4 800 miles/km remain before the next service is due. When the ignition is switched on and for a few seconds, the display shows:

A few seconds after the ignition is switched on, the oil level is displayed, then the total distance recorder resumes normal operation showing the total and trip distances.

Less than 1 000 miles/km before the next service is due

Each time the ignition is switched on and for a few seconds, the spanner fl ashes and the number of miles/ kilometres remaining is displayed:

A few seconds after the ignition is switched on, the oil level is displayed, then the total distance recorder resumes normal operation and the spanner remains lit. This indicates that a service should be carried out shortly.

Service overdue

Each time the ignition is switched on and for a few seconds, the spanner fl ashes and the excess distance is displayed.

With the engine running the spanner remains lit until the service has been carried out.

First of the two terms reached: the spanner also lights up if the two-year interval has elapsed.

Instruments and controls

Zero re-set

38

Your CITROËN dealer carries out this operation after each service.

However, if you carry out the service yourself, the re-set procedure is as follows:

- switch off the ignition,

- press and hold the trip recorder reset button,

- switch on the ignition.

The display begins a countdown. When the display shows "="0", release the button; the spanner disappears.

After this operation, if you wish to disconnect the battery, lock the vehicle and wait for at least fi veutes, otherwise the zero re-set will be registered.

Engine oil level indicator

When the ignition is switched on, the engine oil level is indicated for a few seconds, after the service information.

Oil level correct

Lack of oil

Flashing of "OIL", linked with the service warning light, accompanied by an

audible signal and a message on the display, indicates a lack of oil which could damage the engine.

If the lack of oil is confirmed by a check using the dipstick, it is essential that the level is topped up.

Oil level gauge fault

Flashing of "OIL--" indicates a malfunction of the engine oil level gauge. Consult a CITROËN dealer.

The level read will only be correct if the vehicle is on level ground and the engine has been off for more than 15 minutes.

Dipstick

A = maximum, never exceed this level as a surplus of oil may damage the engine.

Contact a CITROËN dealer without delay.

B = minimum, top up the level via the oil filler cap, using the type of oil suited to your engine.

Trip recorder zero reset button

With the ignition on, press the button until the zeros appear.

Lighting rheostat

With the lights on, press the button to vary the intensity of the lighting of the instruments and controls. When the lighting reaches the minimum (or maximum) setting, release

the button then press it again to increase (or reduce) the brightness. As soon as the lighting is of the required brightness, release the button.

Gearbox and steering wheel

Interior view of a car dashboard with control buttons and a central gear mechanism (no visible text or symbols)

5-speed - reverse gear gearbox

Gear shift indicator

GEARBOX

To change gear easily, always press the clutch pedal fully.

To prevent the mat from becoming caught under the pedal:

- ensure that the mat and its fi xings on the floor are positioned correctly, - never fi t one mat on top of another.

When driving, avoid leaving your hand on the gear knob as the force exerted, even if slight, may wear the internal components of the gearbox over time.

To engage reverse gear, wait until the vehicle is stationary then push the gear lever to the right then down.

The lever should be moved slowly to reduce the noise on engaging reverse gear.

In order to drive as fuel effi ciently as possible with a manual gearbox, this indicator lamp indicates to the driver to change up.

The driver remains responsible for deciding whether or not to follow this indication, since the indicator lamp comes on without taking into account the configuration of the road, the amount of traffic and safety factors.

The lighting of this indicator lamp cannot be deactivated.

When reverse gear is engaged and when changing down whilst decelerating, the function is disabled.

This equipment will become available during the year.

Interior view of a car dashboard and steering wheel, showing no visible text or symbols

STEERING WHEEL ADJUSTMENT

When the vehicle is stationary, unlock the steering wheel by pulling the lever.

Adjust the height and depth of the steering wheel, then lock by pushing the lever fully.

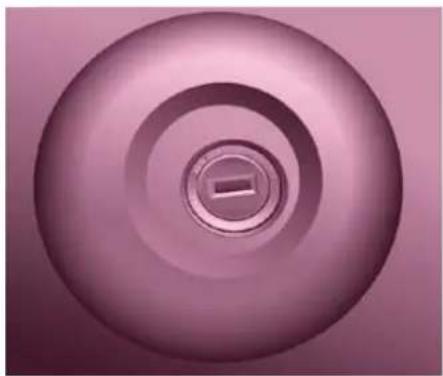

Close-up of a metallic circular button with a central knob, set against a solid purple background (no text or symbols visible)

STARTING AND STOPPING

Running and accessories position.

To unlock the steering, turn the steering wheel gently while turning the key, without forcing. In this position, certain accessories can be used.

Starting position.

The starter is operated, the engine turns over, release the key.

STOP position: steering lock.

The ignition is off. Turn the steering wheel until the steering locks. Remove the key.

Good practice when starting

Door or bonnet open warning light

If this comes on, a door or the bonnet is not closed correctly, check!

Diesel pre-heating warning light

If the temperature is high enough, the warning light comes on for less than one second, you can start without waiting.

In cold weather, wait for this warning light to switch off then operate the starter (Starting position) until the engine starts.

Good practice when stopping

Minimise engine and gearbox wear

When switching off the ignition, let the engine run for a few seconds to allow the turbocharger (Diesel engine) to return to idle.

Do not press the accelerator when switching off the ignition.

There is no need to engage a gear after parking the vehicle.

Starting and stopping

Illustration of a pink car on an upward slope with two inset icons showing charging stations, no text or symbols present.

Illustration of a pink minivan on a slope with two inset car gauges showing 5% efficiency (no text or symbols on the vehicle itself)

HILL START ASSISTANCI

This function, linked with the ESP, makes hill starts easier and is activated in the following conditions:

• the vehicle must be stationary, engine running, foot on the brake,
• the gradient of the road must be steeper than 5 %,
• uphill, the gearbox must be in neutral or in a gear other than reverse,
• downhill, reverse gear must be engaged.

The HHC (Hill Holder Control) or Hill Start Assistance function is a driving comfort feature. It is not an automatic vehicle parking function or an automatic handbrake.

Operation

With the brake pedal and clutch pedal pressed, from the time you release the brake pedal you have approximately 2 seconds before the vehicle starts to roll back and without using the handbrake within which to move off.

During the moving off phase, the function is deactivated automatically, gradually releasing the braking pressure. During this phase, the typical noise of mechanical disengaging of the brakes can be heard, indicating the imminent movement of the vehicle.

The hill start assistance is deactivated in the following situations:

• when the clutch pedal is released,
• when the handbrake is applied,
• when the engine is switched off,
• when the engine stalls.

Anomaly

If a malfunction of the system occurs, this warning light comes on accompanied by an audible signal and confirmed by a message

on the display. Contact a CITROËN dealer to have the system checked.

Steering wheel controls

DIRECTION INDICATORS
LIGHTING CONTROL

Direction indicators

Left : downwards passing the point of resistance.

Right : upwards passing the point of resistance.

"Motorway" function

Press the control up or down to flash the corresponding direction indicator three times.

Front and rear lighting

Selection is by turning ring A.

+ Checking by means of the indicator lamps on the instrument panel is described in the "Instruments and controls" section of chapter 2.

Lighting off

Automatic lighting

Sidelamps

Dipped beam (green) Main beam (blue)

Dipped beam/main beam change

Pull the stalk fully towards you.

Lighting-on buzzer

On switching of the ignition, all of the lamps turn off, except dipped beam if automatic guide-me-home lighting has been activated. To activate the lighting control, turn ring A to the lighting off position "0" then to the selection of your choice.

On opening the driver's door, a warning buzzer sounds if you have left the lighting on. If the user does not operate any equipment for 30 minutes, the Economy mode engages to avoid discharging the battery (see "Battery" in section 7). Electrical functions are put on standby and the battery warning lamp fl ashes.

Sidelamp operation is not affected by Economy mode.

Steering wheel controls

DIRECTION INDICATORS
LIGHTING CONTROL

Direction indicators

Left : downwards passing the point of resistance.

Right : upwards passing the point of resistance.

"Motorway" function

Press the control up or down to flash the corresponding direction indicator three times.

Front and rear lighting

Selection is by turning ring A.

+ Checking by means of the indicator lamps on the instrument panel is described in the "Instruments and controls" section of chapter 2.

Lighting off

Automatic lighting

Sidelamps

Dipped beam (green) Main beam (blue)

Dipped beam/main beam change

Pull the stalk fully towards you.

Lighting-on buzzer

On switching of the ignition, all of the lamps turn off, except dipped beam if automatic guide-me-home lighting has been activated. To activate the lighting control, turn ring A to the lighting off position "0" then to the selection of your choice.

On opening the driver's door, a warning buzzer sounds if you have left the lighting on. If the user does not operate any equipment for 30 minutes, the Economy mode engages to avoid discharging the battery (see "Battery" in section 7). Electrical functions are put on standby and the battery warning lamp fl ashes.

Sidelamp operation is not affected by Economy mode.

Steering wheel controls

Front and rear foglamps

Rotate ring B forwards to switch on and rearwards to switch off. The status is confirmed by the lamp on the instrument panel.

These operate with the sidelamps and the dipped beam headlamps.

Front foglamps (green, 1st rotation of the ring forwards).

Rear foglamps (amber, 2nd rotation of the ring forwards).

To switch off the front and rear foglamps, turn the ring rearwards twice in succession.

In clear weather or in rain, both day and night, rear foglamps dazzle and their use is prohibited.

Do not forget to switch them off when they are no longer needed.

Operation of the utomatic lighting switches off the rear foglamps, but the front foglamps remain on.

Daytime lights

Depending on the country in which the vehicle is sold, the vehicle may be equipped with daytime lights. The dipped headlamps come on when the vehicle is started.

This warning light comes on on the instrument panel.

The instruments and controls (instrument panel, display, air conditioning control panel, ...) are

only lit on switching to the automatic switching on of the lights mode or when the lights are switched on manually.

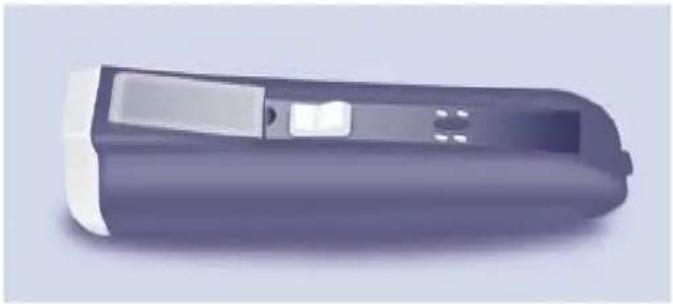

Automatic switching on of the lights

The side lights and dipped beam headlamps switch on automatically if the light is poor, or

during operation of the windscreen wipers. They switch off as soon as the light becomes bright enough or the windscreen wipers stop.

This function is not compatible with the daytime lights.

In foggy weather or in snow, the brightness sensor can

detect suffi cient light. As a consequence, the lights will not come on automatically.

If necessary, you must switch on the dipped headlamps manually.

Do not cover the brightness sensor located on the windscreen, behind the mirror. It is used for the automatic switching on of the lights and for the automatic wipers.

Activation

Turn the ring to the AUTO position. The activation of this function is accompanied by a message on the display.

Deactivation

Turn the ring forwards or rearwards. The deactivation of this function is accompanied by a message on the display.

The function is deactivated temporarily when you use the manual lights stalk.

Steering wheel controls

If the brightness sensor does not function correctly, the lights come on accompanied by the service warning light, an audible signal and a message on the display.

Consult a CITROËN dealer.

Guide-me-home lighting

The temporary maintaining of the dipped headlamps lighting, with the ignition off, makes the driver's exit easier when the light is poor.

Manual operation

- With the ignition off, "fl ash" the headlamps within one minute after switching off the ignition.

The guide-me-home lighting switches off automatically after a set time.

Automatic operation

Activate the function via the "Vehicle config" menu.

Refer to the "Display flow chart" section of chapter 9.

Interior view of a car dashboard with control panel and steering wheel (no visible text or symbols)

HEADLAMP BEAM

Depending on the load in your vehicle, the beam setting must be adjusted.

0 - No load.
1 - Partial load.
2 - Average load.
3 - Maximum authorised load.

Initial setting is position 0.

Steering wheel controls

If the brightness sensor does not function correctly, the lights come on accompanied by the service warning light, an audible signal and a message on the display.

Consult a CITROËN dealer.

Guide-me-home lighting

The temporary maintaining of the dipped headlamps lighting, with the ignition off, makes the driver's exit easier when the light is poor.

Manual operation

- With the ignition off, "fl ash" the headlamps within one minute after switching off the ignition.

The guide-me-home lighting switches off automatically after a set time.

Automatic operation

Activate the function via the "Vehicle config" menu.

Refer to the "Display flow chart" section of chapter 9.

Interior view of a car dashboard with control panel and steering wheel (no visible text or symbols)

HEADLAMP BEAM

Depending on the load in your vehicle, the beam setting must be adjusted.

0 - No load.
1 - Partial load.
2 - Average load.
3 - Maximum authorised load.

Initial setting is position 0.

Steering wheel controls

WINDSCREEN WIPER STALK

Manual windscreen wipers

2 Fast wipe (heavy rain).

1 Normal wipe (moderate rain).

I Intermittent wipe.

0 Off.

↓ Single wipe

(press downwards).

In the Intermittent position, the wiping speed is in proportion to the vehicle speed.

Whenever the ignition has been switched off for more than one minute,

with the windscreen wiper stalk in position 2, 1 or 1, the stalk must be reactivated:

• move the stalk to any position,
• then move it back to the required position.

Automatic windscreen wipers

Do not cover the rain sensor, located in the centre of the windscreen, behind the mirror.

In the AUTO position, the windscreen wipers operate automatically and adapt their speed to the intensity of the rainfall.

When not in AUTO mode, for the other positions, refer to the manual windscreen wipers section.

Activation

Press the control downwards. Activation of the function is accompanied by a message on the display.

The automatic windscreen wipers function must be reactivated if the ignition has been switched off for more than one minute, by pressing the stalk downwards.

Deactivation/Switching off

Place the windscreen wipers stalk in position I, 1 or 2. Deactivation of the function is accompanied by a message on the display.

In the event of malfunction of the automatic windscreen wipers, the windscreen wipers will operate in intermittent mode.

Contact a CITROËN dealer to have the system checked.

When using an automatic car wash, switch off the ignition to avoid triggering of the automatic wiping.

In winter, it is advisable to wait for the windscreen to completely clear of ice before operating the automatic wipe.

Steering wheel controls

Wash-wipe and headlamp wash

46

Pull the stalk towards you, the wash-wipe is accompanied by a timed sweep of the wipers.

The headlamp wash is linked with the wash-wipe, it is triggered if the dipped headlamps are on.

To top up the levels, refer to the "Levels" section of chapter 6.

Special position of the windscreen wipers

In the minute following switching off of the ignition, any action on the stalk positions the wipers against the windscreen uprights.

This action enables you to position the wiper blades for winter parking, cleaning or replacement.

Refer to the "Changing a windscreen wiper blade" section of chapter 7.

To park the wipers in their normal position after this has been done, switch on the ignition and move the stalk.

Rear windscreen wiper Rear windscreen wash

Turn the ring to the first notch.

Turn the ring past the fi rst notch: the windscreen wash then the windscreen wiper operate for a fi xed time.

In winter, in the event of a considerable amount of snow

or ice, switch on the rear screen demister. Once de-icing is complete, remove the snow or ice which has accumulated on the rear wiper

blade. You can then operate the rear windscreen wiper.

Steering wheel controls

CRUISE CONTROL "CRUISE"

"This is the speed at which the driver wishes to drive".

This aid to driving in free-flowing traffic enables the vehicle to maintain the speed programmed by the driver, unless a steep gradient makes this impossible.

In order for it to be programmed or activated, the vehicle speed must be greater than 25 mph (40 km/h) with at least 4th gear engaged.

This cruise control shows the function selection status on the instrument panel and displays the programmed speed:

Function selected, displaying of the "Cruise Control" symbol.

Function deactivated, OFF (example at 107 km/h).

Function activated (example at 107 km/h).

Vehicle speed above (e.g. 118 km/h), the programmed speed is displayed fl ashing.

Operating fault detected, OFF - the dashes flash.

Steering wheel controls

Selecting the function

- Place the switch in the CRUISE position. The cruise control is selected but is not yet active and no speed has been programmed.

Temporary exceeding of the speed

It is possible to accelerate and drive momentarily at a speed greater than the programmed speed. The value programmed flashes.

When the accelerator pedal is released, the vehicle will return to the programmed speed.

Reactivation

- Following deactivation of the cruise control, press this button.

Your vehicle will return to the last programmed speed.

Alternatively, you can repeat the "fi rst activation" procedure.

First activation/ programming a speed

- Reach the chosen speed by pressing the accelerator.

Deactivation (off)

- Press this button or the brake or clutch pedal.

- Press the SET - or SET + button. This programmes/activates the reference speed and the vehicle will maintain this speed.

Close-up of a blue mechanical component with a circular head and starburst pattern (no visible text or symbols)

Changing the programmed speed

There are two methods of memorising a speed higher than the previous one:

Without using the accelerator:

- press the Set + button.

A brief press increases the speed by 1 mph (km/h).

A maintained press increases the speed in steps of 5 mph (km/h).

Using the accelerator:

- exceed the memorised speed until the speed required is reached,

- press the Set + or Set - button.

To memorise a speed lower than the previous one:

- press the Set - button.

A brief press decreases the speed by 1 mph (km/h).

A maintained press decreases the speed in steps of 5 mph (km/h).

Switching the function off

- Place the dial in position 0 or switch off the ignition to switch everything off.

Cancelling the programmed reference speed

When the vehicle becomes stationary, after switching off the ignition, the system no longer memorises a speed.

Operating fault

The programmed speed is cleared then replaced by three dashes. Contact a CITROËN dealer to have the system checked.

Good practice

When changing the programmed reference speed by means of a maintained press, pay attention as the speed can increase or decrease rapidly.

Do not use the cruise control on slippery roads or in heavy traffic c.

In the event of a steep slope, the cruise control cannot prevent the vehicle from exceeding the programmed speed.

In any event, the cruise control cannot replace the need to observe the speed limits, nor can it replace the need for vigilance and responsibility on the part of the driver.

It is advisable to leave your feet near the pedals.

To avoid any jamming under the pedals:

- ensure that the mat and its fi xings on the floor are positioned correctly,

- never place one mat on top of another.

Steering wheel controls

50

Illustration of a blue handheld device with control buttons and a steering wheel icon (no text or symbols on the device itself)

SPEED LIMITER "LIMIT"

"This is the selected speed which the driver does not wish to exceed".

This selection is made with the engine running while stationary or with the vehicle moving. The minimum speed which can be programmed is 20 mph (30 km/h).

The speed of the vehicle responds to the pressure of the driver's foot as far as the accelerator pedal point of resistance which indicates that the programmed speed has been reached.

However, pressing the pedal beyond this point of resistance to the floor permits exceeding of the programmed speed. To resume use of the limiter, simply reduce the pressure on the accelerator pedal gradually and return to a speed below that programmed.

The operating actions may be carried out when stationary, with the engine running, or with the vehicle moving.

This speed limiter shows the function selection status on the instrument panel and displays the programmed speed:

Function selected, displaying of the "Speed Limiter" symbol.

Function deactivated, last programmed speed - OFF (example at 65 mph (107 km/h)).

Function activated (example at 65 mph (107 km/h)).

Vehicle speed above (example 70 mph (118 km/h)), the programmed speed is displayed fl ashing.

Operating fault detected, OFF - the dashes flash.

Steering wheel controls

Selecting the function

- Place the dial in the LIMIT position. The limiter is selected but is not yet active. The display indicates the last programmed speed.

Programming a speed

A speed can be programmed without activating the limiter but with the engine running.

To memorise a speed higher than the previous one:

- press the Set + button.

A brief press increases the speed by 1 mph (km/h).

A maintained press increases the speed in steps of 5 mph (km/h).

To memorise a speed lower than the previous one:

- press the Set - button. A brief press decreases the speed by 1 mph (km/h).

A maintained press decreases the speed in steps of 5 mph (km/h).

Activation/Deactivation (off)

Pressing this button once activates the limiter, pressing the button again deactivates it (OFF).

Steering wheel controls

Exceeding the programmed speed

Pressing the accelerator pedal in order to exceed the programmed speed will have no effect unless you press the pedal firmly beyond the point of resistance.

The limiter is deactivated temporarily and the programmed speed fl ashes.

To return to the limiter function, reduce your speed to below the programmed speed.

Flashing of the speed

The speed fl ashes:

• following forcing of the accelerator point of resistance,
• when the limiter cannot prevent an increase in the vehicle speed due to the profile of the road or on a steep descent,
• in the event of sharp acceleration.

Switching the function off

- Place the dial in position 0 or switch off the ignition to switch the system off. The last programmed speed remains in the memory.

Operating fault

The programmed speed is cleared then replaced by three dashes.

Contact a CITROËN dealer to have the system checked.

Good practice

In any event, the speed limiter cannot replace the need to observe speed limits, nor can it replace the need for vigilance and responsibility on the part of the driver.

Always pay attention to the profi le of the road and sharp acceleration and stay in complete control of your vehicle.

To avoid any jamming under the pedals:

ensure that the mat and its fi xings on the floor are positioned correctly,
- never place one mat on top of another.

Ventilation

Interior view of a car dashboard with three rotary controls and a control panel (no text or symbols visible)

Heating control panel

Interior view of a car air conditioning control panel with dials, switches, and a speedometer (no text or symbols visible)

Air conditioning control panel

VENTILATION

Manual adjustments:

Temperature

Control positioned:

in the blue zone, triggers cool air,

in the red zone, triggers heating of the interior ambient air.

Air flow

The force of the blown air at the vents varies from 1 to the strongest 4. Position 0 switches it off.

Remember to adjust this control in order to reach the ambient air comfort level.

Air distribution

The air supply distribution is determined by the following symbols:

the side vents and the central vents,

the footwells,

the windscreen and the footwells,

the windscreen.

The air distribution can be modulated by placing the control in the intermediate positions, marked "●".

Ventilation

Intake of exterior air

54

The diode on the button is off. This is the preferred operating position.

Recirculation of interior air

The diode on the button is lit. Recirculation temporarily prevents exterior odours and smoke from entering the passenger compartment.

Used with the setting of the force of blown air (from 1 to 4), recirculation enables you to obtain the required ambient air comfort level more quickly with both hot or cold settings.

This position should only be temporary. When your ambient air comfort level has been reached, return to the intake of exterior air position to permit renewal of the air in the passenger compartment and avoid misting. This operating mode is preferable.

Air conditioning A/C

The air conditioning can only operate with the engine running.

Pressing the button triggers the operation of the air conditioning, the diode is lit. Pressing the button again switches the function off and the diode is switched off.

The air conditioning does not operate if the air flow is set to 0.

Ventilation

AUTOMATIC AIR CONDITIONING WITH SEPARATE ADJUSTMENTS FOR THE DRIVER AND PASSENGER

Good practice

For maximum cooling or heating of the passenger compartment, it is possible to exceed the value 15 by turning until LO is displayed or the value 27 by turning until HI is displayed.

On entering the vehicle, the inside temperature may be much colder (or warmer) than is comfortable. There is no advantage in changing the value displayed in order to quickly reach the level of comfort required. The system will use its maximum performance to reach the comfort value set.

Automatic operation

AUTO comfort programme

This is the normal air conditioning system operating mode.

Press this button, the AUTO symbol is displayed. In accordance with the comfort value selected, the system controls the distribution, the

flow and the intake of air to guarantee comfort and a sufficient circulation of air in the passenger compartment. No further action on your part is required.

When the engine is cold, to prevent an excessive diffusion of cold air, the air diffuser will reach its optimum level gradually.

For your comfort, the settings are stored when the ignition is switched off and are reinstated the next time the vehicle is started.

The automatic function will no longer be maintained if you change a setting manually (AUTO is cleared).

Driver or passenger side comfort value

The value indicated on the display corresponds to a level of comfort and not a temperature in degrees Celsius or Fahrenheit.

Turn this control to the left or to the right to decrease or increase the value. A setting around the value 21 provides optimum comfort. However,

depending on your requirements, a setting between 18 and 24 is usual.

Do not cover the sunshine sensor located on the fascia.

Ventilation

Manual operation

56

You can, according to your requirements, make a different selection from that offered by the system by changing a setting. The other functions will still be controlled automatically. Pressing the AUTO button restores fully automatic operation.

Air distribution

Pressing this button several times in succession directs the air flow towards:

• the windscreen,
• the windscreen and footwells,
• the footwells,
• the side vents, central vents and footwells,
• the side vents and central vents.

Air flow

Press the small fan button to reduce the flow or the large fan button to increase the flow.

On the display, the blades of the fan fill when the flow is increased.

Deactivating the system

Press the air flow small fan button until the fan symbol disappears from the display.

This action deactivates all of the system's functions, with the exception of the air recirculation and rear screen demisting (if fitted on your vehicle). Your comfort setting is no longer maintained and is switched off.

Intake of exterior air/Recirculation of interior air

Press this button to recirculate the interior air. The recirculation symbol is displayed.

Recirculation prevents exterior odours and smoke from entering the passenger compartment. Avoid prolonged operation in interior air recirculation mode (risk of condensation, odour and humidity).

Pressing this button again activates the intake of exterior air.

Switching the air conditioning On/Off

Press this button, the A/C symbol is displayed and the air conditioning is activated.

For your comfort, do not deactivate the system for long periods.

Pressing the large fan button or the AUTO button reactivates the system with the values set before it was deactivated.

Pressing this button again switches off the air cooling.

The ventilation outlet, located in the glove box, diffuses cool air (if the air conditioning is

on) regardless of the reference temperature requested in the passenger compartment and regardless of the exterior temperature.

Ventilation

Interior view of a car air conditioning control panel with dials, switches, and a red dial (no text or symbols visible)

DE-ICING AND DEMISTING

Manual mode

Direct the control to this air distribution setting.

Direct the control to this temperature setting.

Increase the air flow setting.

Press the air conditioning.

Returning to exterior air intake open permits renewal of the air in the passenger compartment (diode off).

De-icing the rear screen and/or mirrors

Pressing this button, with the engine running, activates the rapid demisting - de-icing of the rear screen and/or electric mirrors.

This function switches off:

• when the button is pressed,
• when the engine is switched off,
• automatically to prevent excessive energy consumption.

Ventilation

DE-ICING AND DEMISTING

Automatic mode: visibility programme

The comfort programme (AUTO) may not be sufficient to quickly demist or de-ice the windows (humidity, several passengers, ice).

In this case, select the visibility programme. The visibility programme indicator light comes on.

It activates the air conditioning, the air flow and provides optimum distribution of the ventilation to the windscreen and side windows.

It deactivates the air recirculation.

GOOD PRACTICE

Vents

"Leave them open"

For optimum distribution and diffusion of hot or cool air in the passenger compartment, there are adjustable central and side vents which can be directed sideways (right or left) or vertically (up or down). For your comfort while driving, do not close them and direct the flow of air towards the windows instead.

Air vents in the footwells and directed towards the windscreen complete the equipment.

Do not block the vents located at the windscreen or the air extractor located in the boot.

Dust filter, odour filter (activated carbon)

This fi Iter traps certain dust and limits odours.

Ensure that this fi Iter is in good condition and have all of the fi Iter elements replaced regularly.

Refer to the "Checks" section of chapter 6.

Air conditioning

In all seasons, the air conditioning should only be used with the windows closed. However, if the interior temperature remains high after a prolonged period parked in the sun, do not hesitate to ventilate the passenger compartment for a few minutes.

Use the AUTO mode as much as possible as it permits optimised control of all of the functions: air flow, passenger compartment comfort temperature, air distribution, air intake mode or air recirculation in the passenger compartment.

Operate the air conditioning system for 5 to 10 minutes, once or twice a month, to keep it in perfect working order.

It is normal that the condensation created by the air conditioning system results in a flow of water which may form a puddle under the vehicle when parked.

If the system does not produce cold air, do not use it and contact a CITROËN dealer.

Seats

3D rendered image of a car seat with neck and seatbelt (no text or symbols)

FRONT SEATS

The following adjustments are available:

Close-up of a mechanical component with two white arrows indicating direction (no text or symbols)

1 - Forwards/backwards adjustment

Lift the bar and slide the seat forwards or backwards.

Close-up of a mechanical component with a white arrow pointing to a knob (no text or symbols visible)

3D rendered white object with curved arrows indicating motion or rotation (no text or symbols)

2 - Seat back angle adjustment

With your back pressed against the seat back, move the lever forwards and set the required angle.

Close-up of a gray, curved object with a small protrusion and arrow indicator (no text or symbols)

3 - Driver's seat height adjustment

Illustration of a white chair seat with directional arrows indicating movement or force (no text or symbols)

To raise the seat, pull the control upwards then take your weight off the seat cushion.

To lower the seat, pull the control upwards then push on the seat cushion.

Seats

3D rendered object resembling a stylized animal head or abstract form, with smooth surfaces and no visible text or symbols.

Side view of a car seat with white arrows indicating direction (no text or symbols)

Head restraint height adjustment

To raise the head restraint, slide it vertically upwards.

To lower the head restraint, press the button and slide the head restraint vertically downwards.

The adjustment is correct when the upper edge of the head restraint is level with the top of the head.

To remove the head restraint, press the button and pull the head restraint upwards.

To re-install the head restraint, engage the rods in the holes making sure they are aligned with the seat back.

Adjustable armrest

To access the vertical position, raise the armrest until it locks.

Lower the armrest to return it to a position for use.

To remove the armrest, press the release button from the vertical position and move aside the armrest.

To put the armrest back in place, clip it in the vertical position.

If the vehicle is fitted with the additional console and an armrest, to fold the passenger seat to the table position remove the console or the armrest.

Close-up of a mechanical component with a curved handle and circular end (no visible text or symbols)

Front heated seats control

Each front seat may be fitted with a control located on the side part of the cushion.

Press to switch on the cushion heating. Press again to switch it off.

Never drive with the head restraints removed; they must be in place and correctly adjusted.

Seats

3D model of a car seat with four seats and three side seats, shown with an inset diagram of a vehicle (no text or symbols on the main image)

REAR BENCH SEA

The 1/3 - 2/3 rear bench seat is fitted with "comma" head restraints.

Each 1/3 - 2/3 section can be folded fully, then removed individually.

Close-up of a metallic mechanical component with curved surfaces (no visible text or symbols)

Head restraint

High position: lift and raise the head restraint.

Low position: press on the head restraint to lower it.

To remove the head restraint, after raising it press the tab and lift the head restraint.

To install the head restraint, engage the rods of the head restraint in the holes keeping it in line with the seat back.

Seats

62

Two 3D-rendered objects with a white object on their bases, one with a black handle and arrow indicating rotation (no text or symbols)

Fully folded position

Example of operations for the 1/3 section. They are identical for the 2/3 section.

• Place the head restraints in the low position.
• If necessary, move the front seats forward.
• Press the grey control located on the upper part of the seat back.
• Fold the seat back onto the seat cushion.

Close-up of a dark cylindrical object with a curved line extending from its side (no text or symbols visible)

• Raise the grey control bar, located at the rear of the seat cushion.

Illustration of a modern office chair with a white arrow pointing upward and three dots on the side (no text or symbols)

• Tilt the entire seat forward.

Close-up of a metallic mechanical bracket with mounting holes and a circular hole (no text or symbols visible)

Putting back in place

Tilt the entire seat rearwards until it locks.

Raise the seat back.

The seat is locked correctly when the control (at the top of the seat back) is no longer visible.

Check that the seat is locked on the floor securely when it is returned to the sitting position.

Seats

3D rendered image of a mechanical device with a handle and clasp, showing motion arrows (no text or symbols)

Removing the bench seat

• If necessary, move the front seats forward.
• Place the bench seat (1/3 section and/or 2/3 section) in the fully

Close-up of a mechanical component with a metallic bracket and circular features (no visible text or symbols)

• Tilt the entire seat rearwards by approximately 45°.
• Lift the bench seat vertically to the limit of the anchorages.
• Straighten bench seat by tilting it forwards then lift it.

folded position.

Refer to the "fully folded position" described on the previous page.

Refitting the bench seat

• Offer up the bench seat (1/3 section 8 and/or 2/3 section) vertically.
• Place the hooks between the two bars.
• Fold the bench seat rearwards.

To return the bench seat (1/3 section and/or 2/3 section) to the "passenger transportation"

position, refer to the "fully folded position" described on the previous page.

Seats

64

3D model of a car seat with four seats and two rear seats, shown alongside an inset diagram of a vehicle (no text or symbols)

REAR SEATS (5 SEAT VERSION)

The three independent rear seats are fitted with "comma" head restraints.

The back of the centre seat, folded onto the seat cushion, has a shell which serves as a table with cup holder.

Each seat can be removed individually. Each time a seat is returned to the sitting position or after removing then refi tting a seat, check that it is locked on the floor securely.

Close-up of dental implant components (no text or symbols visible)

Head restraint

High position: lift and raise the head restraint.

Low position: press on the head restraint to lower it.

To remove the head restraint, after raising it press the tab and lift the head restraint.

To install the head restraint, engage the rods of the head restraint in the holes keeping it in line with the seat back.

Close-up of a dark, textured surface with a white arrow pointing to a small white object (no text or symbols visible)

Adjusting the angle of the seat back

- Operate the control and adjust the angle of the seat back.

Close-up of a car seatbelt device with hands extended (no visible text or symbols)

Placing the seat back in the table position

- Pull the control to fold the seat back onto the seat cushion.

Do not place hard or heavy objects on the table. They could become dangerous projectiles in the event of sharp braking or impact.

Returning the seat back to the sitting position

- Release the seat back by pulling the control, then return it to its original position.

When returning the seat back to the sitting position, ensure that it is locked securely.

Three dark rectangular objects with a central panel and a blue arrow pointing to one (no text or symbols visible)

Placing the seat in the fully folded position

• Pull the control to place the seat back in the table position.
• Raise the bar located behind the seat to release the rear anchoring points.
• Tilt the entire seat forwards, until it locks.

Interior view of a vehicle showing two rear seats with a central illuminated panel and a white arrow indicating direction (no text or symbols)

Returning the seat to its original position

• Push the red control.
• Fold back the seat to fix the rear anchoring points.
• Raise the seat back by pulling the control.

Check that the entire seat is anchored securely.

Seats

Seats

Close-up of a white mechanical component with a metallic tool and directional arrows indicating motion (no text or symbols)

Removing the seat

• If necessary, move the front seats forward and lower the head restraint.
• Place the seat in the fully folded position.

Refer to the "fully folded position" described on the previous page.

• Press the red lever to release the front feet.
• Tilt the entire seat rearwards by approximately 45^ without releasing the lever.
• Release the lever.
• Lift the seat vertically to the limit of the anchorages.
• Straighten the seat by tilting it forwards then lift it.

3D rendered mechanical component with directional arrows indicating motion (no text or symbols)

Putting the seat back in place

• Tilt the seat forward by 45^ .
• Place the hooks between the two bars.
• Fold back the seat to fix the rear anchoring points.
• Pull the control to return the seat back to its initial position.
• Raise the head restraint.

Check that no object is obstructing the anchoring recesses or preventing correct locking of the seats.

Good practice

Following the various operations:

• do not remove a head restraint without storing it and fix it to a support,
• ensure that the passengers can always access the seat belts and fasten them easily,
• a passenger must never take his seat without adjusting and fastening his seat belt.

Seats

Interior view of a modern car with silver seats and white trim, no visible text or symbols

REAR SEATS (7 SEAT VERSION

The seats of row 2 and row 3 are independent and adjustable.

Each seat can be removed and must be replaced in the specified position, indicated by a symbol on its label.

Close-up of a car seatbelt with visible seatbelt and seatbelt buckle (no text or symbols)

Head restraint

This is of the "comma" type.

High position: press the tab, lift and raise the head restraint.

Low position: push the tab and press the top of the head restraint to lower it.

To remove the head restraint: place it in the high position, lift it, then remove it.

Store it inside the vehicle, securing it firmly.

To install the head restraint: engage the rods of the head restraint in the holes keeping it in line with the seat back.

Seats

Abstract 3D rendered shape with smooth gradient and dark edges, no text or symbols visible

Types of Row 2 seat
Left-hand side seat

White and purple chair seat with seatbelt, no visible text or symbols

Centre seat Right-hand side seat

Illustration of a blue and white chair seat with no text or symbols visible

Interior view of a car showing two seats with seatbelt covers (no text or symbols visible)

Types of Row 3 seat

Interior view of a car showing two seats with seatbelt covers (no text or symbols visible)

Right-hand side seat Left-hand side seat

Interior view of a car seat with visible seats and seatbelt (no text or symbols)

Row 2 seat adjustments

Adjusting the angle of the seat back

- Operate the control and adjust the angle.

3D rendered image of a car seat with directional arrows indicating movement (no text or symbols)

Placing the seat in the table position

• Lower the head restraint fully.
• Operate the control to fold the seat back onto the seat cushion.

Returning the seat back to the sitting position

- Release the seat back by pulling the control, then return it to its original position.

Ensure that the entire seat is anchored securely.

Three different back-to-back seat designs shown in side-by-side illustrations, no text or symbols present.

Three different back-to-back seat designs shown in side-by-side illustrations, no text or symbols present.

Placing the seat in the fully folded position

• Place the seat in the table position.
• Pull the red strap, located behind the seat, to release the feet of the seat from their anchorage on the floor.
• Tilt the entire seat forwards.

Side view of a dark gray car seat with directional arrows indicating movement or positioning (no text or symbols)

Returning the seat to its original position

- Fold back the entire seat.

Before folding the seat, ensure that:

• in row 3, no passenger's foot is at one of the seat anchorages on the floor,
• the seat is locked securely on the floor,
• the seat belt is available for the passenger.

Seats

70

Interior view of a car showing the dashboard and seat area with a yellow indicator light (no text or symbols visible)

Row 3 seat adjustments

Illustration of a gray ergonomic chair with a white upward arrow on the backrest (no text or symbols)

Placing the seat in the fully folded position

• Place the seat in the table position.
• Raise the bar fitted with a red strap, located behind the seat, to release feet of the seat from their anchorage on the floor.
• Tilt the entire seat forwards.

Placing the seat back in the table position

• Lower the head restraint fully.
• Operate the control to fold the seat back onto the seat cushion.

Returning the seat back to the sitting position

- Release the seat back by pulling the control, then return it to its original position.

Ensure that the entire seat is anchored securely.

Close-up of a car seatbelt with a red screwdriver inserted, no visible text or symbols

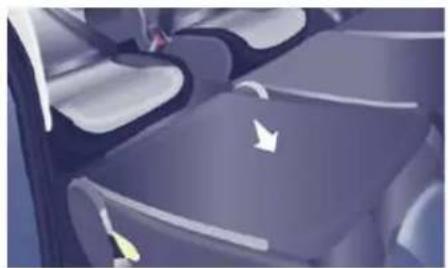

Returning the seat to its original position

• Push the red control.
• Fold back the entire seat.

Ensure that:

• the seat is locked securely on the floor,
• the seat belt is available for the passenger.

Seats

Interior view of a car showing seat compartments and decorative arrows (no text or symbols)

Entering, exiting from row 3

Close-up of a person's foot and ankle with a red prohibition symbol (no text or numbers present)

Before folding it back, ensure that the feet of the passenger in row 3 are not obstructing the row 2 seat anchoring points.

Exterior view of a modern office chair with seat and side panel (no signage or text)

• Pull the red strap to place the seat in the fully folded position.
• Tilt the entire seat forwards.

Entering

- Place the row 2 seat in the table position.

Exterior view of a modern office chair with seat and side panel (no signage or text)

• Tilt it to the fully folded position to allow access.

Interior view of a car showing the dashboard and seat area with directional arrows (no text or symbols)

Exiting

• Lower the head restraint fully.
• Operate the yellow control, located on the back of the row 2 seat back.
• Fold the seat back to the table position.

Top-down view of a vehicle showing four cars parked in rows with directional arrows indicating movement (no text or symbols)

• Exit via the side door.
  i Ensure that the stored centre seat belt is placed correctly in its strengthener in the headlining.

Seats

Close-up of a white mechanical component with directional arrows indicating motion or movement (no text or symbols visible)

3D rendered mechanical component with highlighted parts and motion lines (no text or symbols)

Close-up of a blue hard hat with a red prohibition symbol overlay (no text or symbols on the object)

Handling the Row 2 seat

Removing the seat

• If necessary, move the front seats forward.
• Lower the head restraint.
• Place the seat in the fully folded position.
• Tilt the entire seat forwards then lift it.

Repositioning the seat

The label on the seat indicates the position in which it must be installed.

• Place the hooks of the front feet between the two bars.
• Fold back the seat to fix the rear anchoring points.
• Operate the control to raise the seat back to its initial position.
• Raise the head restraint.

Ensure that no object or foot of a passenger seated in the rear is obstructing the anchoring

recesses or preventing correct locking of the seat.

Close-up of a white mechanical component with directional arrows indicating motion or force (no text or symbols visible)

Handling the Row 3 seat

Close-up of a mechanical component with a tool and directional arrow, no visible text or symbols

Repositioning the seat

The label on the seat indicates the position in which it must be installed.

• Place the hooks of the front feet between the two bars.
• Ensure that no object or foot is obstructing the rear anchoring recesses and that the seat belt is positioned correctly and available.
• Fold back the seat to fix its rear anchoring feet.
• Operate the control to raise the seat back to its initial position.
• Raise the head restraint.

Good practice

Do not place hard or heavy objects on the seat backs forming a table, they could become dangerous projectiles in the event or sharp braking or impact.

Following the various operations:

• do not remove a head restraint without storing it, fi x it to a support in the vehicle,
• ensure that the passengers can always access the seat belts and fasten them easily,
• a passenger must never take his seat without adjusting and fastening his seat belt.
• a passenger seated in row 3 must ensure that he does not obstruct the row 2 seat anchoring recesses.

Seats
74

Top-down diagram of a car with four vehicle models and a circular object (no text or symbols)

Top-down schematic of a car showing two vehicles with horizontal stripes (no text or symbols)

Top-down diagram of a car with four vehicle models and a coin for scale (no text or symbols)

Top-down diagram of a car with two cars and three circular objects on the side (no text or symbols)

Top-down diagram of a car with four cars and two round objects on the side (no text or symbols)

Top-down diagram of a car with four vehicle models and a coin for scale (no text or symbols)

ADJUSTMENTS AND DIFFERENT CONFIGURATIONS OF THE SEATS
5 seat layouts

Seats

Top-down view of six identical mechanical component designs arranged in a 2x2 grid (no text or symbols)

Top-down view of four identical car component designs arranged in a 2x2 grid (no text or symbols)

Top-down view of six identical mechanical component designs arranged in a 2x2 grid (no text or symbols visible)

Six identical mechanical component diagrams arranged in a 2x2 grid (no text or symbols)

Top-down schematic of six identical mechanical components arranged in a grid (no text or labels)

Top-down schematic of four vehicle components arranged in a grid (no text or labels)

7 seat layouts

The various operations must be carried out while stationary.

Practical information

76

Abstract 3D rendering of a curved, layered object with smooth surfaces (no text or symbols)

Interior view of a car dashboard with numbered slots and control buttons (no text or symbols visible)

FRONT LAYOUT

Upper storage compartment

This is located on the fascia, behind the steering wheel.

A recess makes lifting of the lid easier when opening. Guide it to its rest position.

To close, guide the lid then press the centre gently.

Any liquid which could spill risks causing an electrical short circuit and therefore a potential fire.

1. Lower glove box

This may or may not be fitted with a lid.

2. Storage tray and bottle holder (1.5 L)

3. Side storage compartment

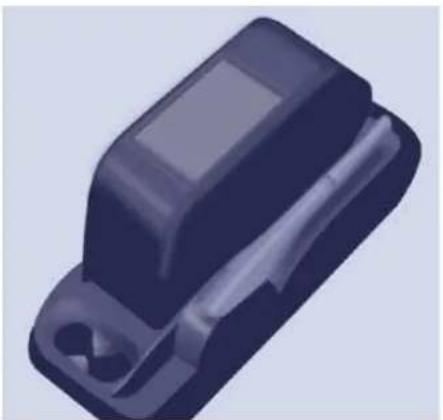

4. Bag hook

Only hang fl exible bags which are not too heavy on this hook.

3D rendered image of a black rectangular electronic component with a circular port and mounting holes (no text or symbols visible)

Central storage console

This console offers an appreciable additional storage area: it can be removed and clips onto a base which also incorporates two cup holders at the rear.

Ensure that the object (bottle, can...) placed in the cup holder is retained securely and does not risk being dislodged while driving.

Any liquid which could spill presents a risk of damage on contact with the instrument panel and centre console controls.

Take care.

Interior view of a vehicle showing rear seats, dashboard, and camera (no visible text or symbols)

Overhead storage unit

This is located above the sun visors and can accommodate various objects (a jumper, fi le, gloves...).

The openings concealed by the sun visors allow you to see and access the objects stored in the overhead storage unit.

The maximum weight permitted in the overhead storage unit is 5 Kg.

Do not place objects in this storage unit which could present a risk to the occupants.

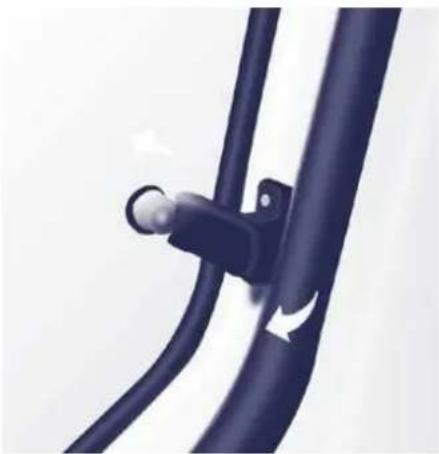

Sun visor

To prevent dazzle from ahead, fold the sun visor down.

A pocket is provided in the driver's sun visor for storing toll cards, tickets, ...

Practical information

White plastic tray with two compartments, placed on a dark surface (no text or symbols visible)

Drawers under seats

Your vehicle may be fitted with a drawer, under each front seat.

Close-up of a mechanical component with a white arrow pointing to a cylindrical feature (no visible text or symbols)

Storage compartment under seats

Storage compartments are available, with or without lid, in the floor under the front seats.

To gain access to them, move the seat forward. The lid must be lifted from the rear of the seat.

Practical information

Interior view of a car seatbelt mechanism (no text or symbols visible)

SEATING AREA LAYOU

Close-up of a medical device with a metallic tray and handle, showing internal components (no text or symbols visible)

Aircraft style tables

Close-up of a car's side panel showing the front and back angles with a white arrow pointing to a specific area (no text or symbols visible)

Side blinds

Floor boxes

Two boxes are available, located under the rear passenger footwells.

To open them, slide your fingers into the recess and lift the lid.

To put the table in place, pull it upwards and fold it down.

As a safety precaution, above a high pressure, the table is designed to unhook.

To put it back in place, with the table vertical, engage one side then the other, forcing slightly.

Do not place hard or heavy objects on the table. They could become dangerous projectiles in the event of sharp braking or impact.

A bag hook is provided on the side of each table.

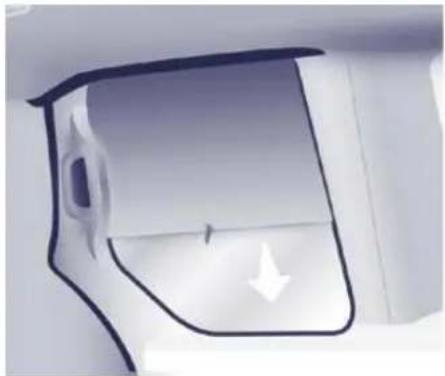

Side blinds may be available on the sliding side doors.

Pull the side blind by the tab to install it. To avoid damaging the blind when opening the door, check that the tab is hooked securely.

Always guide the blind slowly using the tab, both when raising and when lowering.

Practical information

Top-down view of a white passenger seat with directional arrows indicating airflow or movement (no text or symbols)

Close-up of a white and gray automotive headrest with control panel and directional arrows (no text or symbols)

Storage compartments

Storage compartments are provided on each side of the roof. The maximum weight is 6 Kg.

The translucent base assists with finding objects stored inside.

Do not store objects which could present a risk to the occupants.

White plastic fan with grid pattern and three metallic clips at the bottom (no text or symbols)

Courtesy lamp

The operation of the courtesy lamp is identical to that of the front courtesy lamp.

Refer to the "Comfort and Safety" section of chapter 3, "Courtesy lamps" part.

MODUTOP ROOF

The multifunction roof extends the overhead storage unit. It consists of the following components:

Practical information

Interior view of a modern office or hotel room with a large rectangular window and side panels (no visible text or symbols)

From inside

Close-up of a white car interior panel with a small handle (no text or symbols visible)

From outside

Abstract illustration of a computer monitor with three circular buttons and directional arrows, no text or symbols present.

Vents

Rear box

This roof box can be accessed from the rear seats and the boot.

From the rear seats, slide the fl aps to open.

From the boot, place your thumb on the recess then pull the handle to open.

Open carefully to prevent objects stored in this interior roof box from falling out.

The maximum authorised weight is 10 Kg.

A 3-position control allows you to adjust the air flow through the vents.

The vents are also fitted with a scented air freshener.

Practical information

Close-up of a mechanical component with circular features and a central knob (no visible text or symbols)

SCENTED AIR FRESHENER

The scented air freshener diffuses a fragrance in the passenger compartment from the roof console vents.

Adjusting the flow

Turn the chromed button to adjust the diffusion:

• to the left to decrease,
• to the right to increase.

To stop the diffusion, turn the chromed button fully to the left.

Circular mechanical component with directional arrows and angle markings (no text or symbols)

Removing the scented air freshener

• Press the button down while turning it a quarter of a turn to the left to the stop.
• Remove the scented air freshener from the roof console.
• Replace the cartridge.

3D diagram of a cylindrical mechanical component with labeled parts A, B, C, D (no text or symbols beyond labels)

3D rendered image of a cylindrical object with segmented sections (no text or symbols)

Replacing a cartridge

The scented air freshener refi II consists of a cartridge B and its sealing case C.

• Remove the protective film D.
• Place the head of the cartridge B on the button A of the scented air freshener.
• Turn it a quarter of a turn to lock it on the button and remove the case.
• Insert the scented air freshener in its location.

You can change the cartridges at any time and store cartridges which have already been started in their original case.

The scented air freshener button A is independent of the cartridge.

The cartridges are supplied without the button A.

The scented air freshener button A can only be fixed on the multifunction roof console with a cartridge.

Therefore, always retain button A and a cartridge.

The cartridges are available from CITROËN dealers.

Inserting the scented air freshener

After fitting or changing the cartridge:

• Put the scented air freshener back in place in its location.
• Turn it a quarter of a turn to the right.

Good practice

As a safety precaution, only use the cartridges provided for this purpose. Do not dismantle the cartridges.

Keep the cartridge sealing cases which are used as packaging when the cartridges are not in use.

Never try to refi ll the cartridges with fragrances other than those recommended by the CITROËN network.

Keep out of reach of children and animals. Avoid contact with the skin and eyes. If swallowed, consult a doctor and show him the packaging or product label.

Practical information

84

Modutop roof BARS

These two longitudinal Modutop roof bars can be removed.

The maximum authorised weight on each bar is 35 kg.

Recommendations for loading on the roof:

• Open the protective covers.
• Use the screwdriver (stored in the tool kit under the right-hand seat) to remove the 4 bolts.
• Turn the bars 90° placing the hollow parts towards the front.
• Tighten the 4 bolts.
• Close the protective covers.
• Use the strap passages A only to secure the load firmly.

Side view of a white van with roof-mounted sensors and a mounted antenna (no visible text or symbols)

In all cases, the load must rest on the non-slip bands provided for this purpose and must not touch the roof or the glazing of the roof.

Top-down architectural rendering of a white car with visible structural lines and directional arrows (no text or symbols)

ROOF BARS

If you install transverse bars on these bars, refer to the weight values indicated by the manufacturer but do not exceed 75 Kg.

Practical information

Practical information

Close-up of a metallic mechanical component with a white arrow pointing downward (no text or symbols visible)

Front courtesy light

Top-down view of a white, grid-patterned surface with a small icon at the bottom (no text or symbols visible)

Rear courtesy light

Two gray electronic devices with buttons and a grid-patterned background (no visible text or symbols)

Front individual reading lights

COURTESY LIGHTS

Automatic switching on/off

The front courtesy light comes on when the key is removed from the ignition, when the vehicle is unlocked, when one of the front doors is opened and for location of the vehicle using the remote control.

It switches off gradually after the ignition is switched on and when the vehicle is locked.

Front seats: comes on when one of the front doors is opened.

Rear seats: comes on when one of the rear doors is opened.

If the doors remain open for a few minutes, the courtesy lights are switched off.

These are switched on and off by means of a manual switch, with the ignition on.

Permanently on, ignition on.

Permanently off.

Practical information

Close-up of a white interior door with a button, no visible text or symbols

3D rendered image of a handheld electronic device with a black body and white casing (no text or symbols visible)

TORCH (5 SEAT VERSION

A removable torch, incorporated in the wall of the boot, carries out two functions:

- boot light,

- torch.

The boot light operates automatically when the boot is opened.

The torch operates with NiMH type storage batteries.

Observe the polarities when fi tting these storage batteries.

Using the torch

Remove it from its location by pulling from the top.

Press the switch, located on the back of the torch, to switch it on or off.

The retaining clip allows you to position the torch for precise use (for example, lighting while changing a wheel).

Storing the torch

Always put the torch back starting by positioning the lower part in its location.

If it is not engaged correctly it may not charge and may not come on when the boot is opened.

Putting the torch back in place switches it off automatically if it has not been switched off already.

The torch has a maximum operating time of 45 minutes and charges within a few hours while driving.

Never replace the storage batteries with conventional batteries.

Practical information

88

3D rendered architectural or mechanical structure with labeled points A, B, and C (no readable text or symbols)

LOAD SPACE COVER (5 SEAT VERSIC

This rigid shelf conceals the objects stored in the boot.

Folding

From the boot, fold the half-shelf, raising it to detach it from the notch C.

Thermal image showing a person standing near a metal structure with an arrow indicating a specific area (no text or symbols visible)

Removing

Fold the load space cover. Detach it from the notches A and B pulling it towards you. Raise it and remove the assembly.

Refi tting

Place the load space cover in front of A and B. Push it forwards to insert the lugs in the notches. Unfold and clip into the notches C.

Interior view of a modern office building (no signage)

Storing (according to version)

A location is provided in the back of the rear seats to accommodate the load space cover folded onto itself. Slide it vertically between the side guides located at mid seat back height. Insert the hinge fi rst, with the free fl aps turned upwards.

This rigid load space cover can form a shelf. However, for safety reasons, do not place objects on it which could become dangerous projectiles in the event of sharp braking or rear impact.

Practical information

12 Volt socket (120 W Max)

It is advisable to limit the use of this socket to avoid discharging the battery.

Close-up of a white plastic sheet with a metal clip, against a solid purple background (no text or symbols)

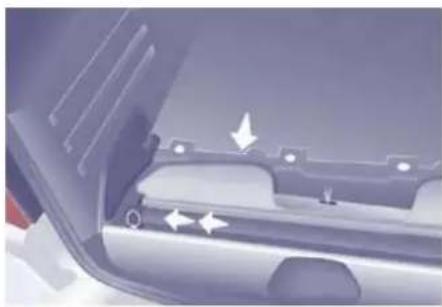

Stowing rings

Use these rings to secure loads on the floor.

Close-up of a white airplane seat with open lid, showing internal compartments and a white arrow pointing to a specific area (no text or symbols)

Protective net

Open the cover located in the hook support.

Fix the top of the net in the notches, having first turned the bar 1/4 of a turn. Ensure that the end of the bar engages correctly in the metal part of its location.

Fix the straps in the locations provided on the floor.

Tighten the net using the straps.

Practical information

90

Interior view of a car showing three rear seats and a horizontal rail bar (no text or symbols visible)

Close-up of a mechanical component with a red prohibition symbol and white arrow indicating a specific part (no text or symbols present)

REAR FITTINGS (7 SEAT VERSION)

Cup holder

Any liquid carried in a cup (mug or other) on board which could spill, presents a risk. Take care.

It is advisable to limit the use of this socket to avoid discharging the battery.

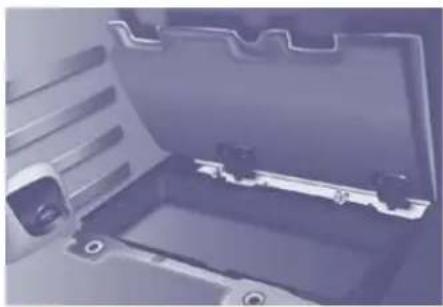

Stowing rings

Use the stowing rings on the floor to secure and retain your loads firmly. The seat belt anchorages must not be used for this purpose.

It is recommended that the load is immobilised by securing it firmly using the stowing rings on the floor.

Practical information

Side-by-side technical illustration of a car seatbelt mechanism, showing front and side views with no text or symbols.

Close-up of a mechanical component with a metallic bracket and mounting holes (no visible text or symbols)

Close-up of a car's front bumper and side panel showing structural components (no text or symbols visible)

Seat belts

Ensure that the centre seat belt is rolled up correctly in its strengthener on the roof.

Prevent the row 3 seat belt buckles from knocking by raising them as close as possible to the stowages, located on the roof.

The seat belt buckle attachment rings on each side of the boot must not be used to retain loads.

Storage flaps

Raise the corresponding fl ap.

Next to the boot sill, the recess is intended to receive the roller tube containing the load space cover.

Practical information

Close-up of a car's rear bumper showing plastic components and mounting brackets (no text or symbols visible)

Interior view of a car showing rear seats and side-mounted sensors (no visible text or symbols)

Interior view of a car showing the front wheel and side panel, with labeled points A and B (no text or symbols beyond labels)

LOAD SPACE SCREEN, LOAD SPACE COVER

The load space screen is a load space cover of the blind type with roller. Take care not to place heavy objects on the load space cover when unrolled.

To install it

Place the row 3 seats in the fully folded position.

Raise the storage fl ap at the boot sill. Take hold of the roller in the centre and compress it towards the left-hand pillar. Raise the assembly.

Interior view of a car showing a vehicle's rearview panel with labeled points A and B (no text or symbols beyond labels)

Position the load space screen so as to present the rear load space cover fl aps towards you.

Engage the left-hand lug of the roller in the support A.

Top-down view of a car backseat showing three seats and a white cab (no text or symbols visible)

Compress then place the right-hand lug facing the support B.

Release to engage the roller in its support.

Unroll the load space cover to the rear side pillars.

Engage the ends in the rear notches to keep it taut.

Practical information

The roller is fitted with three flaps permitting concealment of the boot, whether the row 2 seats are in the normal position or the comfort position.

Each flap has two clips which are hooked on the base of each head restraint.

Top-down and side-by-side views of a car backseat showing rear seats and seat compartments, with no visible text or symbols.

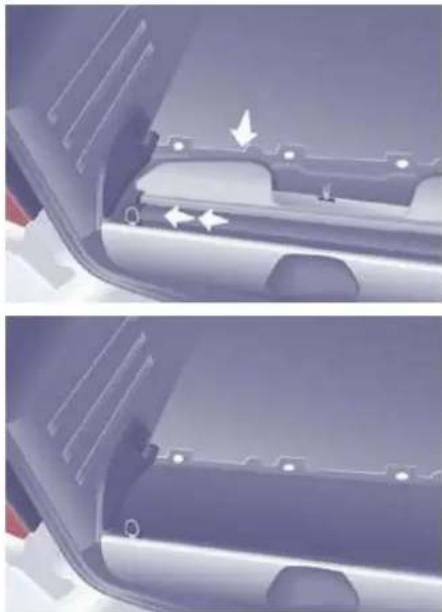

To remove it

From the boot, pull the load space cover towards you to release it from the side pillars.

Guide the load space cover as it rolls up.

Remove the clips of the three fl aps from the base of each row 2 head restraint.

Compress the roller to the left to remove it from the support B.

Raise it and pivot it forwards.

Two-panel illustration showing a car interior with structural components and directional arrows (no text or symbols)

To store it

Store it in the recess at the boot sill, with the two rear fl aps uppermost.

First, compress the load space screen to the left.

Release.

Arrange the two fl aps and close the storage fl ap.

Practical information

94

Interior view of a modern airplane cabin with two airbags and directional arrows indicating flight paths (no text or symbols)

Two metallic mechanical linkages with curved ends and connectors, shown against a plain background (no text or symbols)

INTERIOR RACK

The interior rack consists of two bars to be installed at the top of the space leaving the lower area of the passenger compartment free.

It permits the transportation of long loads (2 metres maximum) with the doors or tailgate closed. The long load must rest on the overhead storage compartment and the two bars.

The two interior bars are covered with rubber and incorporate a strap passage to secure the loaded objects.

However, be sure to comply with the loads and weights permitted.

Maximum load: 10 kilogrammes per bar.

Fitting the bars

• Unclip the plastic covers C.
• Unscrew the knurled wheels located at the ends of the bars fully.
• Take hold of the bar by the ends to slide them towards the inside to retract them.
• Extract the metal end piece A taking hold of the end of the bar like a syringe.

• Insert the end piece A on one side then lower it to fix it in the base of the notch B.

• Carry out the same operations on the other side.

• Ensure that they are engaged correctly at the base of the notch.
• Tighten the knurled wheels and check the tightening by pushing the bar sideways.

To remove, proceed in the reverse order.

Storing

When the bars are not in use:

• partially loosen the knurled wheels,
• lift the bar slightly,
• pivot it upwards by 180°,
• tighten the knurled wheel.

Good practice

In the event of a front impact, the rack is disengaged to avoid injury to the occupants of the vehicle. The slight clearance observed in the bar is linked with this safety disengagement.

Do not loosen or place the bars in a position other than those described above.

The load on the rack must rest on the overhead storage compartment and be strapped using the strap passages provided on the bars.

The bars are not grab handles for the passengers.

The interior rack is not compatible with the Modutop roof.

Mirrors and windows

96

Close-up of a car's side mirror and steering wheel, showing no text or symbols

MIRRORS

Manual exterior mirrors

Move the lever in all four directions to adjust.

When the vehicle is parked, the exterior mirrors can be folded back manually.

The mirrors are not equipped with automatic de-icing.

Close-up of a car's side mirror and dashboard with control panel (no visible text or symbols)

Electric exterior mirrors

• Move the control to the right or to the left to select the corresponding mirror.
• Move the control in all four directions to adjust.
• Return the control to the central position.

Close-up of a car's front wheel and side arm (no visible text or symbols)

Heated mirrors

The electric mirrors can be heated.

Press the rear screen de-icing button.

Electric folding/unfolding

The mirrors can be folded or unfolded electrically from the inside, with the vehicle parked and the ignition on:

• Place the control in the central position.
• Turn the control downwards.

Forced folding

If the mirror casing has come out of its initial location, with the vehicle stationary reposition the mirror casing manually or use the electric folding control.

Mirrors and windows

Close-up of a car frontview mirror showing the side mirror and dashboard (no text or symbols visible)

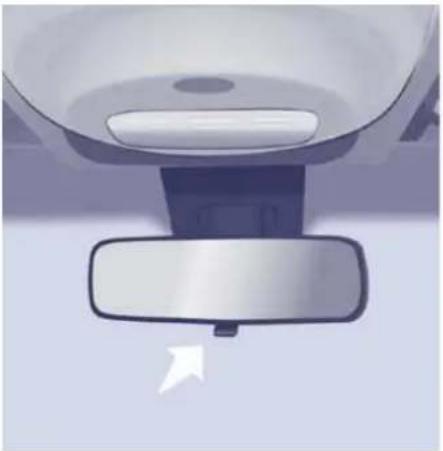

Manual interior mirror

The interior mirror has two positions:

-day (normal),

- night (anti-dazzle).

To change from one to the other, push or pull the lever on the lower edge of the mirror.

Areas for toll cards/car park tickets

The athermic windscreen has two non-refl ective zones located either side of the base of the interior mirror.

They are intended for affi xing toll cards and/or car park tickets.

Close-up of a white office chair with a dark top, against a purple and white background (no text or symbols visible)

MONITORING MIRROF

This mirror, placed on top of the central mirror, enables the driver or front passenger to observe all the rear seats.

Fitted on its own ball joint, it's manual adjustment is simple and provides a view of the rear interior of the vehicle.

It can also be adjusted for improved visibility during manoeuvres or when overtaking.

Close-up of a dark blue bicycle seatbelt with a small attached component and directional arrows indicating motion (no text or symbols)

REAR WINDOWS

To partially open the rear windows, tilt the lever and push it fully to lock the windows in the open position.

Mirrors and windows

Close-up of a car frontview mirror showing the side mirror and dashboard (no text or symbols visible)

Manual interior mirror

The interior mirror has two positions:

-day (normal),

- night (anti-dazzle).

To change from one to the other, push or pull the lever on the lower edge of the mirror.

Areas for toll cards/car park tickets

The athermic windscreen has two non-refl ective zones located either side of the base of the interior mirror.

They are intended for affi xing toll cards and/or car park tickets.

Close-up of a white office chair with a dark top, against a purple and white background (no text or symbols visible)

MONITORING MIRROF

This mirror, placed on top of the central mirror, enables the driver or front passenger to observe all the rear seats.

Fitted on its own ball joint, it's manual adjustment is simple and provides a view of the rear interior of the vehicle.

It can also be adjusted for improved visibility during manoeuvres or when overtaking.

Close-up of a dark blue bicycle seatbelt with a small attached component and directional arrows indicating motion (no text or symbols)

REAR WINDOWS

To partially open the rear windows, tilt the lever and push it fully to lock the windows in the open position.

Mirrors and windows

Control panel with switches and icons, no visible text or symbols

ELECTRIC WINDOWS

1. Driver's electric window control
2. Passenger electric window control There are two operating modes:

Manual mode

Press or pull the control, without passing the point of resistance. The window stops when you release the control.

Automatic mode

Press or pull the control, beyond the point of resistance. The window opens or closes fully when the control is released. Pressing the control again stops the movement of the window.

The electrical functions of the electric windows are deactivated:

• approximately 45 seconds after the ignition is switched off,
• after one of the front doors is opened, if the ignition is off.

Safety auto-reverse

When the window rises and meets an obstacle, it stops and partially lowers.

Reinitialisation

Following reconnection of the battery, or in the event of a malfunction, the safety auto-reverse function must be reinitialised.

Lower the window fully, then raise it, it will rise in steps of a few centimetres each time the control is pressed. Repeat the operation until the window is fully closed.

Continue to press the control for at least one second after the window closed position has been reached.

The safety auto-reverse does not operate during these operations.

Good practice

If the electric windows meet an obstacle during operation, you must reverse the movement of the window. To do this, press the control concerned.

When the driver operates the passenger electric window controls, he must ensure that no one is preventing correct closing of the windows.

The driver must ensure that the passengers use the electric windows correctly.

Be aware of children when operating the windows.

Following several consecutive closing/opening operations of the electric window control, a protection system is triggered which only authorises closing of the window. After closing, wait approximately 40 minutes. Once this time has elapsed, the control becomes operational again.

DRIVING SAFETY

HAZARD WARNING LIGHTS

Press this button, the direction indicators flash.

They can operate with the ignition off. The hazard warning lights should only be used in dangerous situations, when stopping in an emergency or when driving in unusual conditions.

Automatic lighting of hazard warning lights

When braking in an emergency, depending on the force of deceleration, the hazard warning lights come on automatically. They switch off automatically the first time you accelerate.

It is also possible to switch them off by pressing the button.

HORN

Press the centre of the steering wheel.

Close-up of a mechanical component with purple and white surfaces, no visible text or symbols

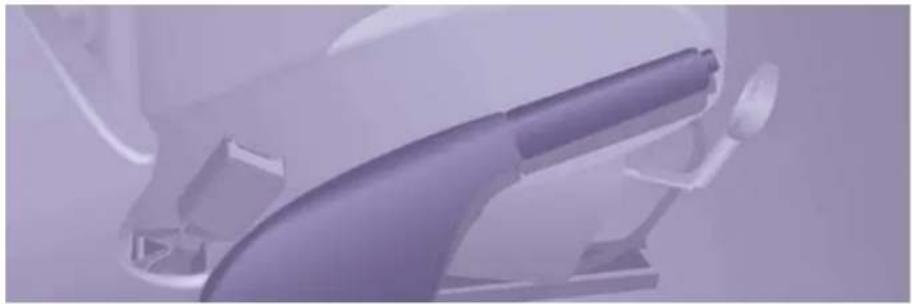

HANDBRAKE

Applying

Pull the handbrake to immobilise your vehicle.

Check that the handbrake is applied firmly before leaving the vehicle.

If the handbrake is still on or has not been released properly, this is indicated by this warning light which comes on on the instrument panel.

When parking on a slope, direct your wheels towards the pavement and pull the handbrake.

There is no advantage in engaging a gear after parking the vehicle, particularly if the vehicle is loaded.

Releasing

Pull the handle and press the button to lower the handbrake.

Parking assistance

Front view of a white car with visible rear wheels and side headlights (no text or symbols)

REAR PARKING ASSISTANCI

The audible and/or visual rear parking assistance consists of four proximity sensors, installed in the rear bumper. The sensors detect any obstacle which enters the field: person, vehicle, tree, fence, behind the vehicle during the manoeuvre.

Certain objects detected at the beginning of the manoeuvre will no longer be detected at the end of the manoeuvre due to the blind spots between and below the sensors. Examples: stake, roadworks cone or pavement post.

Side view of a white minivan with motion lines indicating speed (no text or symbols)

Engage reverse gear

An audible signal confirms the activation of the system by engaging reverse gear. The proximity information is indicated by an audible signal which becomes more rapid as the vehicle approaches the obstacle.

When the distance between the rear of the vehicle and the obstacle is less than approximately thirty centimetres, the audible signal becomes continuous.

Three abstract icons: a warning triangle with an exclamation mark, a car, and a striped pattern (no text or symbols)

Display on the screen

Stop the assistance

Change to neutral.

Activation/Deactivation

You can activate or deactivate the system by pressing this button.

The activation or deactivation of the system is stored when the vehicle stops.

Operating fault

In the event of an operating fault, when reverse gear is engaged the diode on the button comes on, accompanied by an audible signal and a message on the display. Consult a CITROËN dealer.

Good practice

In bad weather or in winter, ensure that the sensors are not covered with mud, ice or snow.

The system will be deactivated automatically if a trailer is being towed or if a bicycle carrier is fitted (vehicle fitted with a towbar or bicycle carrier recommended by CITROEN).

The parking assistance cannot, in any circumstances, take the place of the vigilance and responsibility of the driver.

Parking assistance

Driving safety

ANTI-LOCK BRAKING SYSTEM (ABS - EBFD)

The ABS and EBFD (electronic brake force distribution) systems improve the stability and manoeuvrability of your vehicle on braking, in particular on poor or slippery surfaces.

The ABS prevents locking of the wheels, the EBFD provides control of the braking pressure wheel by wheel.

Good practice

The anti-lock braking system comes into operation automatically when there is a risk of wheel lock. It does not reduce the braking distance.

On very slippery surfaces (ice, oil, etc...) the ABS may increase the braking distance. When braking in an emergency, do not hesitate to press the brake pedal firmly, without releasing the pressure, even on a slippery surface, you will then be able to continue to manoeuvre the vehicle to avoid an obstacle.

Normal operation of the ABS may be felt by slight vibration of the brake pedal.

When changing wheels (tyres and rims), ensure that these are recommended by CITROËN.

If this warning light comes on, accompanied by an audible signal and a message on the display, it indicates a malfunction of the ABS which could result in a loss of control of the vehicle on braking.

If this warning light comes on, together with the brake and STOP warning lights, accompanied by an audible signal and a message on the

display, it indicates a malfunction of the electronic brake force distribution which could result in a loss of control of the vehicle on braking.

Stop immediately.

In both cases, contact a CITROËN dealer.

In an emergency, this system enables the optimum braking pressure to be reached more quickly, press the pedal firmly without releasing it.

It is triggered by the speed at which the brake pedal is activated.

This alters the resistance of the brake pedal under your foot.

To prolong the operation of the emergency braking assistance system: keep your foot on the brake pedal.

TRACTION CONTROL (ASR AND DYNAMIC STABILITY CONTROL (ESP)

These systems are linked and complement the ABS.

The ASR system is very useful for maintaining optimum drive and avoiding losses of control of the vehicle on acceleration.

The system optimises drive to prevent the wheels skidding, by acting on the brakes of the drive wheels and on the engine. It also allows the directional stability of the vehicle to be improved on acceleration.

Use the ESP to hold your course without attempting to countersteer. If there is a variation between the trajectory followed by the vehicle and that required by the driver, the ESP system automatically acts on the engine and the brake of one or more wheels, in order to put the vehicle back on course.

Operation of the ASR and ESP systems

The luminous diode fl ashes when the ASR or ESP is triggered.

Disarming the ASR/ESP systems

In certain exceptional conditions (starting the vehicle when stuck in mud or snow, or on loose ground...), it could prove useful to disarm the ASR and ESP systems to make the wheels spin and regain grip.

- Press the button or turn the dial to the ESP OFF position (depending on model).

- The indicator light comes on: the ASR and ESP systems no longer act.

They engage again:

- automatically above 30 mph (50 km/h),

- manually by pressing the button again or by turning the dial to this position (depending on model).

Operating check

When a malfunction of the systems occurs, the indicator light comes on, accompanied by an audible signal and a message on the display.

Contact a CITROËN dealer to have the system checked.

The warning light may also come on if the tyres are under-inflated. Check the pressure of each tyre.

Good practice

The ASR/ESP systems offer increased safety during normal driving, but should not incite the driver to take risks or to drive at high speed.

The operation of these systems is ensured if the recommendations of the manufacturer regarding the wheels (tyres and rims), the braking components, the electronic components and the fi tting and repair procedures within the CITROËN network are observed.

After an impact, have these systems checked by a CITROËN dealer.

Driving safety

Interior view of a car dashboard with air conditioners and control panel (no visible text or symbols)

Grip control "GRIP CONTROL"

When driving on snow, mud or sand, this traction system is linked with all-season M+S (Mud and Snow) tyres which offer an excellent compromise between safety, grip and traction.

This equipment allows you to manoeuvre in most conditions of poor grip.

Pressing the accelerator pedal should be sufficient so that the power of the engine can ensure optimum management of the various parameters.

Correct use

Your vehicle is designed principally to drive on tarmacked roads but it allows you to drive on other less passable terrain occasionally.

However, it does not permit all-terrain activities such as:

• crossing and driving on terrain which could damage the underframe or strip away components (fuel pipe, fuel cooler, ...) due to obstacles or stones in particular,
• driving on terrain with steep gradients and poor grip,
• crossing a stream.

Driving safety

This ESP mode is calibrated for a low level of skidding, based on different conditions of grip encountered on the road.

When the ignition is switched off, the system returns automatically to ESP mode.

This snow mode allows the vehicle to adapts its strategy to the conditions of grip encountered for each of the two front wheels, on moving off.

When moving, the system optimises the skidding to guarantee the best acceleration possible in relation to the grip available.

This sand mode allows little skidding on the two driving wheels at the same time to allow the vehicle to move forward and limit the risks of getting stuck in the sand.

Do not use the other modes on sand as the vehicle may become stuck.

This ESP OFF mode is only suitable for specific conditions encountered when moving off or at low speed.

This all terrain mode (mud, wet grass...) allows, when moving off, considerable skidding on the wheel with the least grip to favour

This mode is active up to 30 mph (50 km/h)

clearing of the mud and regain "grip". At the same time, the wheel with the most grip is controlled in such a way as to pass as much torque as possible.

When moving, the system optimises the skidding to respond to the driver's requirements as fully as possible.

Driving safety

EMERGENCY OR ASSISTANCE CALL

This on-board technology system allows you to make, depending on the button selected:

- an emergency call to locate your vehicle and immediately summon emergency assistance,

- an assistance call, in the event of a breakdown, to the dedicated CITROËN assistance services.

These services are subject to conditions and availability. Consult a CITROËN dealer.

Emergency call

Press this button for more than 2 seconds.

The fl ashing of the green warning lamp and a voice message confi rm that a

call is being made to the CITROËN Emergency platform.

The green warning lamp remains lit (without fl ashing) when communication is established. It goes out at the end of the call.

Two consecutive presses (or a further press immediately) on the emergency call button cancel the request. The green warning lamp goes out.

This call is operated by the CITROËN Emergency platform, which receives the information on the vehicle's location and can then transmit all the information necessary to the emergency services. In countries where such a platform is not operational, or if the vehicle cannot be located by the service, the call is operated directly by the emergency services (112).

In the event of a collision detected by the airbags computer, and regardless of

any deployment of the airbags, the emergency call is made automatically.

Operating fault

When the ignition is switched on, the green warning lamp lights up for approximately 3 seconds to indicate that the system is operational.

If the orange warning lamp lights up and fl ashes when switching on the ignition or during use, there is a system fault.

If the orange warning lamp remains lit, the back-up battery needs replacing.

Consult a CITROËN dealer.

Assistance call

In the event of a vehicle breakdown:

Press this button for more than 2 seconds.

A voice message confi rms that a call is being made to the services.

Two consecutive presses (or a further press immediately) on the assistance call button cancel the test. A voice message confirms the cancellation.

Close-up of a white car seatbelt buckle with purple bands, against a plain background (no text or symbols visible)

SEAT BELTS

Height adjustment

Squeeze the control with the return and slide the assembly on the driver's seat side and on the individual passenger seat side.

Fastening

Pull the strap, then insert the tongue into the buckle.

Check that the seat belt is fastened correctly by pulling the strap.

Close-up of a purple and pink button switch with a white arrow indicating compression (no text or symbols)

Unfastening

Press the red button.

Driver's seat belt not fastened warning light

When the vehicle is started, this warning light comes on if the driver has not fastened his seat belt.

Good practice

The driver must ensure that passengers use the seat belts correctly and that they are all strapped in securely before moving off.

Wherever you are seated in the vehicle, always fasten your seat belt, even for short journeys.

The seat belts are fitted with an inertia reel which automatically adjusts the length of the strap to your size.

Do not use accessories (clothes pegs, clips, safety pins, etc.) which permit a clearance with the seat belt straps.

Ensure that the seat belt is rolled up correctly after use.

After folding or moving a seat or a rear bench seat, ensure that the seat belt is rolled up correctly and that the buckle is ready to accommodate the tongue.

Depending on the nature and seriousness of any impact, the pretensioning device may be triggered before and independently of inflation of the airbags. It instantly tightens the seat belts against the body of the occupants.

Triggering of the pretensioners is accompanied by a slight discharge of harmless smoke and a noise, due to the activation of the pyrotechnic cartridge incorporated in the system.

Seat belts

The force limiter reduces the pressure of the seat belt against the body of the occupants.

The pretensioning seat belts are active when the ignition is switched on.

The inertia reels are fitted with a device which automatically locks the strap in the event of a collision or emergency braking or if the vehicle rolls over.

You can unfasten the seat belt by pressing the red button on the buckle. Guide the seat belt after unfastening.

The airbag warning light comes on if the pretensioners are triggered. Consult a CITROËN dealer.

In order to be effective, a seat belt must:

• restrain one person only,
• must not be twisted, check by pulling in front of you with an even movement.
• be tightened as close to the body as possible.

The upper part of the seat belt should be positioned in the hollow of the shoulder.

The lap part should be placed as low as possible on the pelvis.

Do not invert the seat belt buckles as they will not fulfil their role completely. If the seats are fitted with armrests, the lap part of the seat belt should always pass under the armrest.

Check that the seat belt is fastened correctly by pulling the strap firmly.

Recommendations for children:

• use a suitable child seat if the passenger is less than 12 years old or shorter than one metre fi fty,
• never allow a child to travel on your lap, even with the seat belt fastened.

For further information regarding child seats, refer to the "Children on board" section of chapter 4.

In accordance with current safety regulations, your CITROËN dealer guarantees all work or any checks, from testing to maintenance, on your seat belt equipment.

Have the seat belts checked regularly (even after a minor impact) by a CITROËN dealer: they must not show any signs of wear, cutting or fraying and they must not be transformed or modified.

Clean the seat belt straps with soapy water or a textile cleaning product, sold by CITROËN dealers.

Front seat belts

The front seats are fitted with pretensioners and force limiters.

Rear seat belts (5 seat version)

The rear seats are fitted with three-point inertia reel seat belts.

Seat belts

3D rendered illustration of a car seat with screws and strings (no text or symbols)

Rear seat belts (7 seat version)

In row 3
The two seats are fitted with three-point inertia reel seat belts.

Interior view of a car showing two views: front view with seat and side arm, right side with handrests (no text or symbols visible)

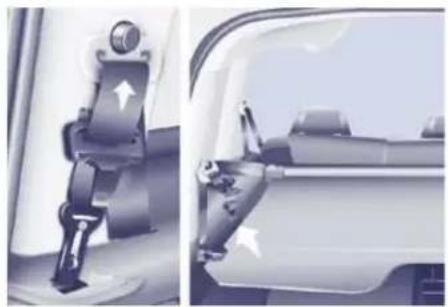

The row 3 seat belts which are not in use can be stored to clear the load space and make use of the load space cover easier.
Hook the snap hook in the location provided on the rear pillar trim.

In row 2

The three seats are fitted with three-point inertia reel seat belts.

When folding the side seats or the seat backs to the table position, avoid trapping the strap of the centre seat belt.

When handling the side seats (removing/installing) or when accessing row 3, avoid hooking the centre seat belt.

Ensure that the centre seat belt is rolled up correctly in its strengthener on the roof.

Do not attach the seat belts to the stowing rings marked with a red cross, represented on the label.

Take care to hook the seat belts correctly on the rings provided for this purpose.

Airbags

Abstract illustration of a stylized yellow and white object with geometric shapes, no text or symbols present.

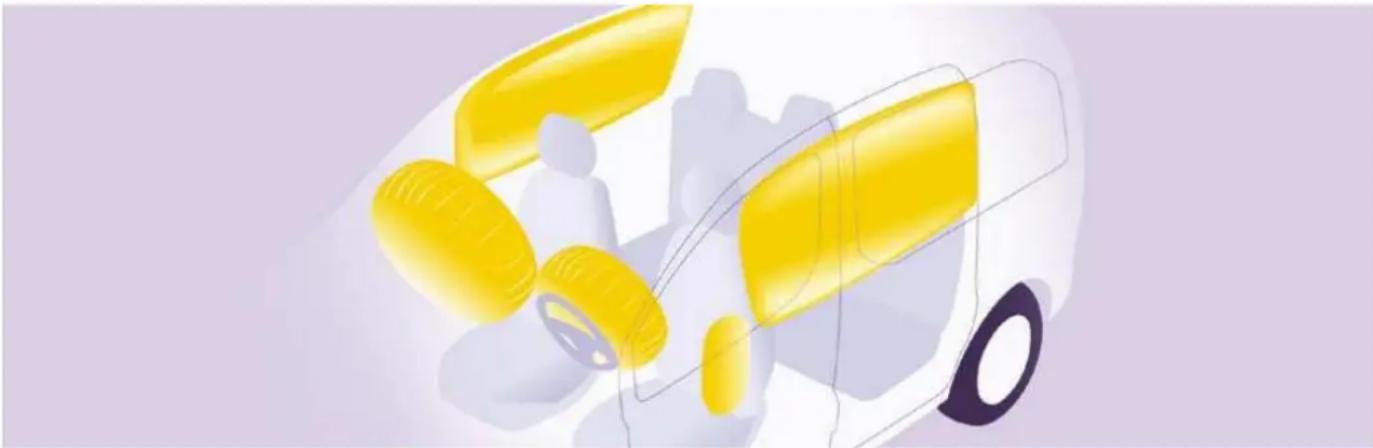

AIRBAGS

The airbags have been designed to maximise the safety of the occupants in the event of a serious collision; they work in conjunction with the force limiting seat belts.

In the event of a serious collision, the electronic detectors record and analyse the front and side impacts suffered in the impact detection zones:

- in the event of a serious impact, the airbags infl ate instantly and protect the occupants of the vehicle. Immediately after the impact, the airbags defl ate rapidly, so that they do not hinder the visibility of the occupants nor their possible exit from the vehicle.

- in the event of a minor or rear impact and in certain roll-over conditions, the airbags will not be deployed; the seat belt alone is suffi cient to provide maximum protection in these situations.

The seriousness of the collision depends on the nature of the obstacle and the speed of the vehicle at the moment of impact.

Airbags only operate when the ignition is switched on.

This equipment only operates once. If a second impact occurs (during the same or a subsequent accident), the airbag will not operate.

The triggering of an airbag or airbags is accompanied by a slight discharge of harmless smoke and a noise, due to the activation of the pyrotechnic cartridge incorporated in the system.

This smoke is not harmful, but sensitive individuals may experience some irritation.

The noise of the detonation may result in a slight loss of hearing for a short time.

It is imperative that the passenger airbag is disarmed if a child seat is installed facing rearwards. Refer

to the "Children on board" section of chapter 4.

Good practice

Sit in a normal upright position.

Wear a correctly adjusted seat belt. Do not leave anything between the occupants and the airbags (a child, pet, object...). This could hamper the operation of the airbags or injure the occupants.

After an accident or if the vehicle has been stolen or broken into, have the airbag systems checked.

All work on the airbag system is strictly forbidden unless it is carried out by qualified personnel of the CITROËN network.

Even if all of the precautions mentioned are observed, a risk of injury or of minor burns to the head, chest or arms when an airbag is triggered cannot be ruled out. In fact, the bag inflates almost instantly (within a few milliseconds) then deflates within the same time discharging the hot gas via openings provided for this purpose.

Side airbags

Only put recommended covers on the seats. These will not hinder inflation of the side airbags. Consult a CITROËN dealer.

Do not fix or glue anything to the seat backs. This could cause injury to the chest or arms when the side airbag inflates.

Do not sit with the upper part of the body any nearer to the door than necessary.

Front airbags

Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.

Do not allow passengers to place their feet on the fascia, they risk serious injury if the airbag is triggered.

Smoke as little as possible as deployment of the airbags can cause burns or the risk of injury from a cigarette or pipe.

Never remove or pierce the steering wheel or hit it violently.

Illustration of a camera with two lenses and a lens, shown against a plain background (no text or symbols)

Front airbags

The front airbags are incorporated in the centre of the steering wheel for the driver and in the fascia for the front passenger.

Activation

They are deployed simultaneously, unless the passenger's front airbag has been disarmed, in the event of a serious front impact applied to all or part of the front impact zone A in the longitudinal centreline of the vehicle on a horizontal plane directed from the front towards the rear of the vehicle.

The front airbag inflates between the front occupant of the vehicle and the fascia to cushion his forward movement.

Disarming

The passenger's front airbag alone can be disarmed:

• With the ignition switched off, insert the key into the passenger airbag disarming switch,
• turn it to the off "OFF" position,
• then remove the key keeping the slot in this position.

The airbag warning light on the instrument panel is lit throughout the period of disarming.

To ensure the safety of your child, it is essential to disarm the passenger airbag when you install

a rear-facing child seat on the front passenger seat. Otherwise, the child would risk being killed or seriously injured if the airbag were to inflate.

Reactivation

In the "OFF" position, the passenger airbag will not be triggered in the event of an impact.

As soon as the child seat is removed, turn the airbag slot to the "ON" position to re-activate the airbag and thus ensure the safety of your passenger in the event of an impact.

Front airbag fault

If this warning light comes on, accompanied by an audible signal and a message on the display, consult a CITROËN dealer to have the system checked.

If the two airbag warning lights are lit continuously, do not install a rear-facing child seat. Consult a CITROËN dealer.

Airbags

Abstract illustration of a stylized yellow and white object with geometric shapes, no text or symbols present.

AIRBAGS

The airbags have been designed to maximise the safety of the occupants in the event of a serious collision; they work in conjunction with the force limiting seat belts.

In the event of a serious collision, the electronic detectors record and analyse the front and side impacts suffered in the impact detection zones:

- in the event of a serious impact, the airbags infl ate instantly and protect the occupants of the vehicle. Immediately after the impact, the airbags defl ate rapidly, so that they do not hinder the visibility of the occupants nor their possible exit from the vehicle.

- in the event of a minor or rear impact and in certain roll-over conditions, the airbags will not be deployed; the seat belt alone is suffi cient to provide maximum protection in these situations.

The seriousness of the collision depends on the nature of the obstacle and the speed of the vehicle at the moment of impact.

Airbags only operate when the ignition is switched on.

This equipment only operates once. If a second impact occurs (during the same or a subsequent accident), the airbag will not operate.

The triggering of an airbag or airbags is accompanied by a slight discharge of harmless smoke and a noise, due to the activation of the pyrotechnic cartridge incorporated in the system.

This smoke is not harmful, but sensitive individuals may experience some irritation.

The noise of the detonation may result in a slight loss of hearing for a short time.

It is imperative that the passenger airbag is disarmed if a child seat is installed facing rearwards. Refer

to the "Children on board" section of chapter 4.

Good practice

Sit in a normal upright position.

Wear a correctly adjusted seat belt. Do not leave anything between the occupants and the airbags (a child, pet, object...). This could hamper the operation of the airbags or injure the occupants.

After an accident or if the vehicle has been stolen or broken into, have the airbag systems checked.

All work on the airbag system is strictly forbidden unless it is carried out by qualified personnel of the CITROËN network.

Even if all of the precautions mentioned are observed, a risk of injury or of minor burns to the head, chest or arms when an airbag is triggered cannot be ruled out. In fact, the bag inflates almost instantly (within a few milliseconds) then deflates within the same time discharging the hot gas via openings provided for this purpose.

Side airbags

Only put recommended covers on the seats. These will not hinder inflation of the side airbags. Consult a CITROËN dealer.

Do not fix or glue anything to the seat backs. This could cause injury to the chest or arms when the side airbag inflates.

Do not sit with the upper part of the body any nearer to the door than necessary.

Front airbags

Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.

Do not allow passengers to place their feet on the fascia, they risk serious injury if the airbag is triggered.

Smoke as little as possible as deployment of the airbags can cause burns or the risk of injury from a cigarette or pipe.

Never remove or pierce the steering wheel or hit it violently.

Airbags

Close-up of a mechanical component with a white arrow pointing to it (no visible text or symbols)

Side airbags

This is a system which protects the driver and front passenger in the event of a serious side impact in order to limit the risk of injury to the chest.

Each side airbag is incorporated in the front seat back frame, on the door side.

Activation

It is triggered unilaterally in the event of a serious side impact applied to all or part of the side impact zone B, perpendicular to the longitudinal centreline of the vehicle on a horizontal plane and directed from the outside towards the inside of the vehicle.

The side airbag inflates between the front occupant of the vehicle and the corresponding door trim pad.

Top-down diagram of a car showing side and top views with labeled points A and B (no text or symbols beyond labels)

Impact detection zones

A. Front impact zone.
B. Side impact zone.

In the event of a minor impact or bump on the side of the vehicle or if the vehicle rolls over, the airbag may not be triggered.

Operating fault

If this warning light comes on on the instrument panel, accompanied by an audible signal and a message on the display, contact a

CITROËN dealer to have the system checked. The airbags may no longer be triggered in the event of a serious impact.

Curtain airbags

This is a system which protects the driver and passengers (with the exception of the centre seat of row 2) in the event of a serious side impact in order to limit the risk of head injuries.

Each curtain airbag is incorporated in the pillars and the upper part of the passenger compartment.

Activation

It is triggered at the same time as the corresponding side airbag in the event of a serious side impact applied to all or part of the side impact zone B, perpendicular to the longitudinal centreline of the vehicle on a horizontal plane and directed from the outside towards the inside of the vehicle.

The curtain airbag inflates between the front or rear occupant of the vehicle and the windows.

Child safety

GENERAL POINTS RELATING TO CHILD SEATS

Although one of CITROËN's main criteria when designing your vehicle, the safety of your children also depends on you.

For maximum safety, please follow these precautions:

• all children under the age of 12 or less than one metre fi fly tall must travel in approved child seats suited to their weight, on seats fitted with a seat belt or ISOFIX mountings.
• statistically, the safest seats in your vehicle for the transportation of children are the rear seats,
• a child weighing less than 9 kg must travel in the "rearwards-facing" position both in the front and in the rear,
• the passenger must not travel with a child on his lap.

CHILD SEAT IN THE FRONT

"Rearwards-facing"

Recommended on the rear seats up to the age of 2.

When a "rearwards-facing" child seat is installed on the front passenger seat, it is essential that the passenger airbag is disarmed. Otherwise, the child would risk being seriously injured or killed if the airbag were to inflate.

"Forwards-facing"

Recommended on the rear seats over the age of 2.

When a "forwards-facing" child seat is installed on the front passenger seat, leave the passenger airbag armed.

The rules for transporting children are specific to each country. Consult the current legislation in your country.

Please consult the list of seats approved in your country. The isofi x mountings, the rear seats, the passenger airbag and the disarming of this airbag depend on the version sold.

Refer to chapter 4, "Airbags" section.

The child seats function and the passenger airbag disarming function are common to the entire ROËN range.

If the passenger airbag is not disarmed, the installation of a "rearwards-facing" child seat in the front is strictly prohibited.

UNIVERSAL CHILD SEATS RECOMMENDED BY CITROËN

CITROËN offers a complete range of recommended child seats which are secured using a three point seat belt :

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

L1

"ROMER Baby-Safe Plus" Installed in the rear-facing position

Groups 1, 2 and 3: from 9 to 36 kg

L2

"KIDDY Life"

Use of the restraining cushion is compulsory for the transportation of young children (from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

L3

"RECARO Start".

L4

"KLIPPAN Optima"

From the age of 6 years

(approximately 22 kg), the booster is used on its own.

L3: to install this seat in row 2, remove the head restraints.

Child safety

INSTALLING CHILD SEATS ATTACHED USING THE SEAT BEL

In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved in accordance with the weight of the child and the seat in the vehicle.

Seat(s)			Weight of the child and indicative age
			Under 13 kg(groups 0 (a)and 0+)Up to approx 1 year	From 9 to 18 kg(group 1)1 to 3 years approx	From 15 to 25(kg)group 2)3 to 6 years approx	From 22 to 36(kg)group 3)6 to 10 years approx
Row 1 (b)		Passenger seat	U U	U U
Row 2 (d)5 and 7 seats)		Side seats U	U U U
		Centre seat U	U U U
Row 3 (c, d)(7 seats)			U U	U U

a: Group 0: from birth to 10 kg.
b: consult the legislation in force in your country before installing your child on this seat.
c: if the seats in row 3 are occupied, do not leave a child seat installed on the foldable row 2 seat, to allow easy access to row 3.
d: the head restraints of the seats in row 2 and row 3 must be removed for more secure fitting of the child seat.
U: seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rear facing" and/or "forward facing".

Refer to chapter 4, "Airbags" section.

The child seats function and the passenger airbag disarming function are common to the entire ROËN range.

If the passenger airbag is not disarmed, the installation of a "rearwards-facing" child seat in the front is strictly prohibited.

UNIVERSAL CHILD SEATS RECOMMENDED BY CITROËN

CITROËN offers a complete range of recommended child seats which are secured using a three point seat belt :

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

L1

"ROMER Baby-Safe Plus" Installed in the rear-facing position

Groups 1, 2 and 3: from 9 to 36 kg

L2

"KIDDY Life"

Use of the restraining cushion is compulsory for the transportation of young children (from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

L3

"RECARO Start".

L4

"KLIPPAN Optima"

From the age of 6 years

(approximately 22 kg), the booster is used on its own.

L3: to install this seat in row 2, remove the head restraints.

"ISOFIX" MOUNTINGS

Top-down view of a car with four seats arranged in a grid pattern (no text or symbols visible)

Your vehicle has been approved in accordance with the new ISOFIX regulation.

The mountings comprise three rings for each seat:

Abstract purple background with white circular icons labeled A and B, no readable text or symbols

- two front rings A and B, located between the vehicle seat back and cushion,

Isofi x seat with support

ISOFIX child seats fitted with a support (which rests on the floor of your vehicle) cannot be installed on rear seats equipped with floor boxes (under the footwells).

Close-up of a printer's front panel showing a button labeled 'C' and a scroll wheel (no text or symbols beyond labels)

- a rear ring C, located on the back of the vehicle's seat back, for securing the upper strap referred to as the TOP TETHER.

This ISOFIX mounting system guarantees you fast, reliable and safe fitting of the child seat in your vehicle on the side seats.

The ISOFIX child seats are fitted with two locks which are secured easily on the two front rings.

Some also have an upper strap which is attached to the rear ring C.

To attach this strap, raise the vehicle seat's head restraint then pass the hook between its rods.

Then fi x the hook on the rear ring and tighten the upper strap.

Child safety

ISOFIX CHILD SEAT RECOMMENDED BY AND APPROVED FOR YOUR

VEHICLE

ISOFIX RÖMER Duo Plus (size category B1)

Group 1: from 9 to 18 kg

Installed in the forward facing position.

Fitted with an upper strap to be secured on the ISOFIX upper ring, referred to as the TOP TETHER.

Three seat body angles: sitting, reclining, lying.

This child seat can also be used on seats which are not fitted with ISOFIX mountings.

In this case, it must be attached to the vehicle seat using the three point seat belt.

Follow the instructions for fi tting the child seat given in the seat manufacturer's installation guide.

SUMMARY TABLE FOR THE INSTALLATION OF ISOFIX CHILD SEAT

In accordance with European regulations, this table indicates the options for the installation of ISOFIX child seats on the vehicle seats fitted with ISOFIX mountings.

In the case of the universal and semi-universal ISOFIX child seats, the child seat's ISOFIX size category, determined by a letter from A to G, is indicated on the child seat next to the ISOFIX logo.

		Weight of the child /indicative age
		Less than 10 kg (group 0) Up to 6 months approx		Less than 10 kg (group 0) Less than 13 kg (group 0+) Up to 1 year approx			From 9 to 18 kg (group 1) From 1 to 3 years approx
Type of ISOFIX child seat		Infant car seat		"rear facing"			"rear facing"		"forward facing"
ISOFIX size category		F	G	C	D	E	C	D	A	B	B1
Row 2(5 and 7 * seats)	Side seats	IL-SU		IL-SU			IL-SU		IUF, IL-SU
	Centre seat	Non-Isofix seat
Row 3(7 seats)	Seats	Non-Isofi x seats

IUF: Seat suitable for the installation of an ISOFIX child seat of the universal category. "Forward facing" ISOFIX child seats fitted with an upper strap secured to the upper ring of the vehicle seats equipped with ISOFIX mountings.
IL-SU: Seat suitable for the installation of a semi-universal ISOFIX child seat. "Forward facing" ISOFIX child seats.

* In the 7 seat version, the three seats of row 2 must be present when child seats are installed.

Child safety

ADVICE ON CHILD SEATS

The incorrect installation of a child seat in a vehicle compromises the child's protection in the event of an accident.

Remember to fasten the seat belts or the child seat harnesses keeping the slack in relation to the child's body to a minimum, even for short journeys.

For optimum installation of the "forward facing" child seat, ensure that the back of the child seat is in contact with the back of the vehicle's seat and that the head restraint does not cause any discomfort.

If the head restraint has to be removed, ensure that it is stored or attached securely to prevent it from being thrown around the vehicle in the event of sharp braking.

Children under the age of 10 must not travel in the "forward facing" position on the front passenger seat, unless the rear seats are already occupied by other children, cannot be used or are absent.

Disarm the passenger airbag when a "rear facing" child seat is installed on the front seat.

Otherwise, the child would risk being seriously injured or killed if the airbag were to inflate.

As a safety precaution, do not leave: one or more children alone and unsupervised in a vehicle,

- a child or an animal in a vehicle which is exposed to the sun, with the windows closed,

- the keys within reach of children inside the vehicle.

To prevent accidental opening of the doors, use the "Child Lock".

Take care not to open the rear windows by more than one third.

To protect young children from the rays of the sun, fi t side blinds to the rear windows.

Installing a booster seat

The chest part of the seat belt must be positioned on the child's shoulder without touching the neck.

Ensure that the lap part of the seat belt passes correctly over the child's thighs.

CITROËN recommends the use of a booster seat which has a back, fitted with a seat belt guide at shoulder level.

CHILD LOCK

This prevents opening of the side doors from the inside.

Manual mode

A label indicates the location of the child lock.

• Open fully past the point of resistance.
• Tilt the lever, located on the rear section of the door.

Electric mode

With the ignition on, press this button. The diode comes on. Warning: this system is independent of the central locking control.

Always remove the ignition key when leaving the vehicle, even for a short time. It is advisable to check the activation of the child lock each time the ignition is switched on.

In the event of a serious impact the electric child lock is deactivated automatically.

Towing a trailer

Side profile illustration of a beige minivan with visible wheels and side panels (no text or symbols)

TOWING A TRAILER, CARAVAN, BOAT, ETC.

For more information about

weights, refer to the administrative documents (V5 registration

document, ...) or to the "Weights" section of chapter 8.

Driving advice

A towed vehicle must free wheel: gearbox in neutral.

Distribution of loads

Distribute the load in the trailer so that the heaviest objects are as close as possible to the axle and the nose weight is close to the maximum authorised without, however, exceeding it.

Cooling

Towing a trailer on a slope increases the coolant temperature.

As the fan is electrically controlled, its cooling capacity is not dependent on the engine speed.

On the contrary, use a high gear to lower the engine speed and reduce your speed.

In all cases, pay attention to the coolant temperature.

Towing a trailer

Good Practice

In certain cases of particularly arduous use (towing the maximum load up a steep slope in high temperatures), the engine automatically limits its power. In this case, the automatic cutting off of the air conditioning allows the engine power to be recovered.

If the coolant temperature warning light comes on, stop the vehicle and switch off the engine as soon as possible.

See the "Levels" section of chapter 6.

Tyres:

Check the tyre pressures of the towing vehicle (see the "Identifi cation features" section of chapter 8) and of the trailer, observing the recommended pressure.

Brakes

Towing increases the braking distance. Drive at a moderate speed, change down early and brake gradually.

Side wind

Sensitivity to side wind is increased. Drive smoothly and at a moderate speed.

ABS/ESP

The ABS or ESP systems only control the vehicle, not the trailer or caravan.

Rear parking assistance

The assistance does not function while the vehicle is towing.

Towbar

We recommend the use of original CITROËN towbars and their harnesses, which have been tested and approved from the design stage of your vehicle, and that you entrust the fi tting of this equipment to a CITROËN dealer.

If this equipment is not fitted by a CITROËN dealer, it is imperative that it is fitted using the electrical pre-equipment installed at the rear of the vehicle and in accordance with the manufacturer's instructions.

In accordance with the general instructions a reminder of which has been given above, we draw your attention to the risk linked with fi tting a towbar or electrical accessory not recommended by CITROËN. Fitting such equipment could result in the failure of your vehicle's electronic system. Please contact a CITROËN dealer for information before fi tting this type of equipment.

Illustration of delivery boxes and three app icons (lock, car, walking person) on a blue background with green and yellow rounded squares (no text or symbols)

OTHER ACCESSORIES

These accessories and parts, having been tested and approved for reliability and safety, are all adapted to your vehicle. A wide range of recommended accessories and original parts is offered.

A further range is also available, structured around comfort, leisure and maintenance:

Anti-theft alarm, window engraving, fi rst aid kit, high visibility jacket, rear parking assistance, warning triangle, ...

Seat covers compatible with air bags for the front seats, bench seat, rubber mats, carpet mats, snow chains, blinds, tailgate bicycle carrier, ...

To prevent the mat from becoming caught under the pedals:

• ensure that the mat and its fixings are positioned correctly,
• never fit one mat on top of another.

Audio equipment, hands-free kit, speakers, CD changer, navigation, ... Regardless of the audio and telematic equipment offered on the market, the technical constraints linked with the fi tting of equipment of these product groups mean that the special features of the equipment and its compatibility with the capacities of your vehicle's standard equipment must be taken into account. Please ask a CITROËN dealer for further information before fi tting such equipment.

Maximum weights on bars

- ModutopTransverse bars on longitudinal bars: 75 Kg (these bars are not compatible with the Modutop roof).

Installing radiocommunication transmitters

You are advised to contact a CITROËN dealer before installing accessory radiocommunication transmitters with external aerial on your vehicle.

The CITROËN network will inform you of the characteristics (frequency band, maximum output power, aerial position, specific conditions of installation) of the transmitters which can be fitted, in accordance with the Motor Vehicle Electromagnetic Compatibility Directive (2004/104/EC).

Front mud fl aps, rear mud fl aps, 15/17 inch alloy wheels, wheelarch trim, leather steering wheel, ...

Screenwash, interior and exterior cleaning and maintenance products, spare bulbs, ...

Equipment

The fi tting of electrical equipment or accessories which are not recommended by CITROËN may

result in a failure of your vehicle's electronic system. Please note this specific warning. You are advised to contact a dealer to be shown the range of recommended equipment or accessories.

Depending on the country in which the vehicle is sold, it is compulsory to have a high visibility jacket, warning triangle and spare bulbs available in the vehicle.

"Active Fleet Data" telematic unit

Connected directly to the heart of the vehicle (multiplexed network: "Full CAN"), the telematic unit, by means of a "ready to use" service, permits the sending in real time of information such as:

• distance travelled,
• distance remaining before the next service,
• warnings and faults (oil level, coolant level, oil temperature, coolant temperature, etc ...).

This enables "Fleet" managers to optimise the monitoring and management of their professional vehicles.

Depending on country, contact a CITROËN dealer for further information.

Opening the bonnet

Close-up of a car door handle and side panel, showing a white arrow pointing to the door (no text or symbols visible)

OPENING THE BONNE

On the inside

Pull the lever under the fascia panel towards you. The bonnet is unlocked.

Illustration of a hand holding a yellow plastic tool against a blue background (no text or symbols)

On the outside

Raise the bonnet slightly by reaching in a fl at hand, palm down, to make access to the lever easier.

With this hand, push the lever to the left. Raise the bonnet.

Close-up of a medical procedure showing a needle inserted into a patient's ear area (no text or symbols visible)

Bonnet strut

Secure the strut in its location, identified by a sticker on the left-hand panel side of the vehicle, to hold the bonnet open.

Before closing the bonnet, put the strut back in its clip without using excessive force.

To close

Lower the bonnet and release it at the end of its travel. Check that the bonnet is locked.

Avoid manoeuvring the bonnet in strong winds.

PETROL ENGINE

Take care when working under the bonnet.

1. Windscreen wash reservoir.
2. Fuse box.
3. Engine coolant reservoir.
4. Brake and clutch fluid reservoir.
5. Air filter.
6. Dipstick.
7. Engine oil fi ller cap.
8. Power steering fluid reservoir.

Battery connections:

• Positive metal point.
• Negative metal point (earth).

Under the bonnet

DIESEL ENGINE

Take care when working under the bonnet.

1. Windscreen wash reservoir.
2. Fuse box.

3. Engine coolant reservoir.

4. Brake and clutch fluid reservoir.

5. Air fi Iter.

6. Dipstick.

7. Engine oil fi ller cap.

8. Power steering fluid reservoir.
9. Priming pump.

Battery connections:

• Positive metal point.
• Negative metal point (earth).

LEVELS

These regular maintenance operations will keep your vehicle in good running order. Consult the instructions at a CITROËN dealer or in the servicing booklet enclosed in the handbook pack.

If you have to remove/refi t the engine style cover, handle it with care to avoid damaging the fi xing clips.

Oil level

Check the level regularly and top up between changes.

Check the level with the vehicle level, engine cold, using the dipstick.

Yellow laboratory pipette with labeled parts A and B (no text or symbols on the device itself)

Dipstick

There are two marks on the dipstick:

A = maximum

If you fill past this mark, consult a CITROËN dealer.

B = minimum

Never allow the level to fall below this mark.

To maintain the reliability of engines and emission control systems, the use of additives in engine oil is prohibited.

Close-up of a mechanical component with a yellow tool inserted, showing no visible text or symbols.

Oil change

It is imperative that this is carried out at the intervals specified and the viscosity grade of the oil selected must fulfil the requirements in accordance with the manufacturer's servicing schedule. Consult the instructions at a CITROËN dealer.

Remove the dipstick before fi lling. Check the level after fi lling (never exceed the max mark).

Screw the cap back onto the sump before closing the bonnet.

Viscosity selection

In all cases, the oil selected must meet the manufacturer's requirements.

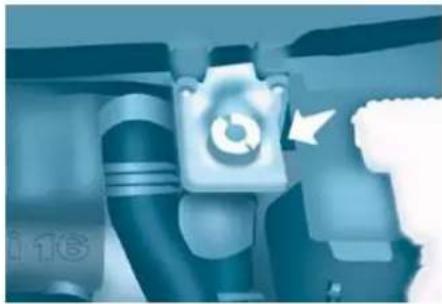

Close-up of a mechanical component with a circular button and arrow indicator (no readable text or symbols)

Changing the brake fluid

The brake fluid must be changed at the intervals stated, according to the manufacturer's servicing schedule.

Use fluids recommended by the manufacturer, which fulfi I DOT4 standards.

The level must be between the MIN and MAX marks on the reservoir.

If fluid has to be added frequently, this indicates a failure which must be checked by a CITROËN dealer as soon as possible.

Warning lights

+ Checking by means of the warning lights on the instrument panel is described in chapter 2, refer to the "Instruments and controls" section.

Levels

Cooling system

Only use the fluid recommended by the manufacturer.

Otherwise, you risk seriously damaging your engine.

When the engine is warm, the temperature of the coolant is controlled by the engine fan. As this fan can operate with the ignition key removed and because the cooling system is pressurised, wait for at least one hour after the engine has stopped before carrying out any work.

Slacken the cap by 1/4 of a turn to release the pressure to prevent any risk of scalding. When the pressure has dropped, remove the cap and top up the level with coolant.

If fluid has to be added frequently, this indicates a failure which must be checked by a CITROËN dealer as soon as possible.

Topping up

The level must be between the MIN and MAX marks on the expansion bottle. If more than 1 litre of fluid is required to top up the level, have the system checked by a CITROËN dealer.

Power steering fluid level

The vehicle must be parked on level ground with the engine cold. Unscrew the cap integrated with the gauge and check the level which must be between the MIN and MAX marks.

Windscreen wash and headlamp wash level

For best quality cleaning and for your safety, we would advise that you use products of the CITROËN range.

For optimum cleaning and to avoid freezing, this fluid must not be topped up or replaced with water.

Capacity of the screenwash reservoir: approximately 4.5 litres.

If your vehicle is fitted with headlamp washers, the capacity of the reservoir is 7.5 litres.

Diesel additive level (Diesel with particle emission filter)

The minimum level of this additive is indicated by lighting of the service warning light, accompanied by an audible signal and a message on the display.

When this occurs with the engine running it is due to the start of saturation of the particle emission filter (exceptionally prolonged urban type driving conditions: low speed, long traffic jams, ...).

In order to regenerate the fi lter, you are advised to drive at a speed higher than 40 mph (60 km/h) for at least fi ve minutes as soon as possible, when traffic conditions permit (until the message disappears and the service warning light is switched off).

During regeneration of the particle emission fi Iter, relay noise may be heard under the fascia.

If the message is still displayed and if the service warning light remains on, consult a CITROËN dealer.

Topping up

It is imperative that this additive is topped up by a CITROËN dealer without delay.

Used oil

Avoid prolonged contact of used oil with the skin.

Brake fluid is harmful to health and very corrosive.

Do not dispose of used oil, brake fluid or coolant into drains or into the ground but into the containers dedicated to this use at CITROËN dealer.

CHECKS

Battery

At the start of winter, have your battery checked by a CITROËN dealer.

Brake pads

Brake pad wear depends on the style of driving, in particular for vehicles which are used in town, over short distances. It may be necessary to check the thickness of the pads, even between services.

Unless there is a leak on the circuit, a drop in the brake fluid level indicates that the brake pads are worn.

Brake disc/drum wear status

For any information relating to checking the brake disc/drum wear status, consult a CITROËN dealer.

Handbrake

Where the handbrake travel is too great or there is a reduction in the performance of the system, the handbrake should be adjusted, even between services.

Have the system checked by a CITROËN dealer.

Illustration of a vehicle interior with a highlighted rectangular component and airflow direction arrow (no text or symbols)

Carbon filter and passenger compartment filter

An access fl ap below the glove box permits replacement of the fl iters.

The carbon filter permits continuous and effective filtering of dust.

If the passenger compartment filter becomes clogged, this may reduce the performance of the air conditioning system and generate unpleasant odours.

We recommend the use of a combined passenger compartment filter. By means of its second special active filter, it contributes to the purification of the air breathed by the occupants and the cleanness of the passenger compartment (reduction of allergic symptoms, unpleasant odours and greasy deposits).

Refer to the servicing booklet to find out the replacement interval for these components.

Depending on the environment (dusty atmosphere...) and the use of the vehicle (urban driving...), change them twice as often if necessary.

Oil filter

Change the filter regularly in accordance with the servicing schedule.

Particle emission filter (Diesel)

It is imperative that particle emission fi lter maintenance is carried out by a CITROËN dealer.

On acceleration after the vehicle has been running for a prolonged period at very low speed or at idle, you may, in exceptional circumstances, notice the emission of water vapour at the exhaust. This water vapour does not have any adverse effect on vehicle handling or the environment.

Checks

Bleeding the water contained in the diesel filter

If this warning light comes on, bleed the filter. Otherwise bleed regularly each time the engine is drained.

To evacuate the water,

unscrew the bleed screw located on the filter.

Operate until all of the water in the transparent pipe has been drained out then tighten the bleed screw.

HDi engines use advanced technology. All work requires a special qualification which is guaranteed by a CITROËN dealer.

According to country.

Manual gearbox

Have the level checked in accordance with the manufacturer's servicing schedule.

To check the main levels and certain components, in accordance with the

manufacturer's servicing schedule, refer to the pages of the Maintenance and Warranty Guide which correspond to your vehicle's engine.

Only use products recommended by CITROEN or products of equivalent quality and specification.

In order to optimise the operation of units as important as the braking system, CITROËN selects and offers specific products.

In order to avoid damaging the electrical units, high pressure washing to clean the engine compartment is strictly prohibited.

Close-up of a mechanical clamp or connector with blue directional arrows indicating movement (no text or symbols visible)

FILLING WITH FUEL

Low fuel level

When the minimum fuel tank level is reached, this warning light comes on.

You then have

approximately 8 litres of

fuel remaining. Fill up without delay to avoid running out of fuel.

Never risk driving until you run out of fuel as this may damage the antipollution and injection systems.

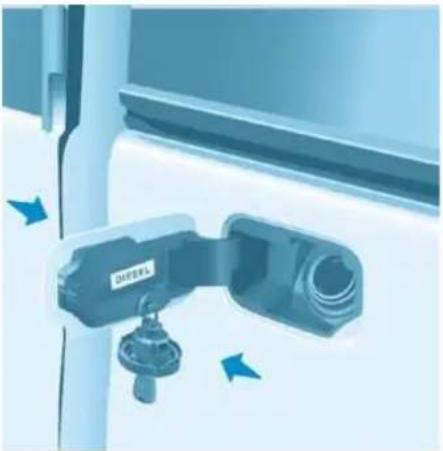

Filling

The fuel tank must be filled with the engine off.

• Open the fuel filler fl ap.
• Insert the key, then turn it a quarter turn.
• Remove the cap and hook it onto the clip located on the inside of the flap.

A label affi xed to the inside of the fl ap reminds you of the type of fuel to be used.

You must fill with at least 5 litres of fuel for it to be registered by the fuel gauge.

When the fuel filler cap is opened, there may be a slight air suction noise. This vacuum is entirely normal and is due to the sealing of the fuel circuit.

When fi lling the fuel tank, do not continue after the 3 rd cut-off of the nozzle. This could cause malfunctions.

The capacity of the fuel tank is approximately 60 litres.

- After filling the fuel tank, lock the cap and close the fl ap.

When fi lling with fuel, a mechanical system prevents opening of the left-hand side door.

When the fuel filler flap is open, ensure that no one tries to slide this door.

Once the flap has been closed, the sliding side door may jam, push the door to close it then open it.

Fuel

Quality of the fuel used for petrol

The petrol engines are perfectly compatible with E10 type petrol biofuels (containing 10 % ethanol), conforming to European standards EN 228 and EN 15376.

E85 type fuels (containing up to 85% ethanol) are reserved exclusively for vehicles marketed for the use of this type of fuel (BioFlex vehicles). The quality of the ethanol must comply with European standard EN 15376.

For Brazil only, special vehicles are marketed to run on fuels containing up to 100 % ethanol (type E100).

Fuel

Quality of the fuel used for DiesFUEL CIRCUIT DISARMED

engines

The Diesel engines are perfectly compatible with biofuels which conform to current and future European standards (diesel fuel which complies with standard EN 590 mixed with a biofuel which complies with standard EN 14214) available at the pumps (containing up to 7 % Fatty Acid Methyl Ester).

The B30 biofuel can be used in certain Diesel engines; however, this use is subject to strict application of the special servicing conditions. Consult a CITROËN dealer.

The use of any other type of (bio)fuel (vegetable or animal oils, pure or diluted, domestic fuel...) is strictly prohibited (risk of damage to the engine and fuel circuit).

In a serious collision, a mechanism automatically prevents fuel from reaching the engine.

The flashing of this warning light is accompanied by a message on the display.

Check that there is no odour or leakage of fuel outside the vehicle and re-establish the fuel supply:

• switch off the ignition (STOP position).
• remove the key.
• put the key back in the ignition.
• switch on the ignition and start.

DIESEL REPRIMING PUMF

If you should run out of fuel, it is necessary to re-prime the circuit:

• fi ll the fuel tank with at least fi ve litres of diesel,
• squeeze and release the manual re-priming pump, under the bonnet under the protective cover,
• operate the starter until the engine starts.

Refer to the "Under the bonnet" section of chapter 6.

DIESEL

Fuel

Quality of the fuel used for DiesFUEL CIRCUIT DISARMED

engines

The Diesel engines are perfectly compatible with biofuels which conform to current and future European standards (diesel fuel which complies with standard EN 590 mixed with a biofuel which complies with standard EN 14214) available at the pumps (containing up to 7 % Fatty Acid Methyl Ester).

The B30 biofuel can be used in certain Diesel engines; however, this use is subject to strict application of the special servicing conditions. Consult a CITROËN dealer.

The use of any other type of (bio)fuel (vegetable or animal oils, pure or diluted, domestic fuel...) is strictly prohibited (risk of damage to the engine and fuel circuit).

In a serious collision, a mechanism automatically prevents fuel from reaching the engine.

The flashing of this warning light is accompanied by a message on the display.

Check that there is no odour or leakage of fuel outside the vehicle and re-establish the fuel supply:

• switch off the ignition (STOP position).
• remove the key.
• put the key back in the ignition.
• switch on the ignition and start.

DIESEL REPRIMING PUMF

If you should run out of fuel, it is necessary to re-prime the circuit:

• fi ll the fuel tank with at least fi ve litres of diesel,
• squeeze and release the manual re-priming pump, under the bonnet under the protective cover,
• operate the starter until the engine starts.

Refer to the "Under the bonnet" section of chapter 6.

DIESEL

BATTERY

To charge the battery using a battery charger

• Disconnect the battery,
• Follow the instructions for use given by the battery charger manufacturer,
• Reconnect starting with the negative (-) terminal,
• Check that the terminals and connectors are clean. If they are covered with sulphate (white or greenish deposit), disconnect them and clean them.

To start the vehicle from another battery

• Connect the red cable to the positive (+) terminals of the two batteries,
• Connect one end of the green or black cable to the negative (-) terminal of the slave battery,
• Connect the other end of the green or black cable to an earth point on the broken down vehicle as far as possible from the battery,
• Operate the starter, let the engine run,
• Wait for the engine to return to idle, then disconnect the cables.

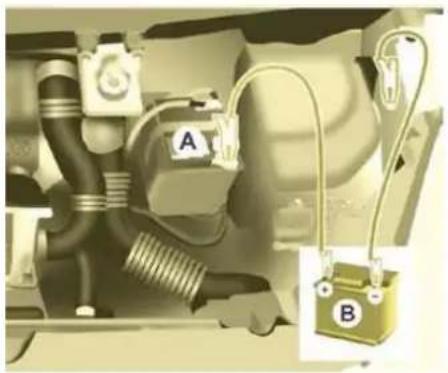

Mechanical assembly diagram showing hoses and components labeled A and B (no readable text or symbols)

It is advisable to disconnect the battery if the vehicle is not to be used for a period of more than one month.

Before disconnecting the battery, you must wait for 2 minutes after switching off the ignition.

Never disconnect a terminal when the engine is running.

Never charge a battery without first disconnecting the terminals.

After every reconnection of the battery, switch on the ignition and wait 1 minute, before starting to allow the electronic systems to be initialised. If slight diffi culties are experienced after this, please contact a CITROËN dealer.

After changing bulbs, wait approximately 3 minutes before reconnecting the battery.

ECONOMY MODE

After the engine has stopped, with the key in the ignition position, certain functions (windscreen wiper, electric windows, courtesy lights, audio equipment, etc.) can only be used for a cumulative duration of thirty minutes, to prevent discharging of the battery.

Once the thirty minutes are over, the active functions are put on standby and the battery warning light flashes accompanied by a message on the display.

To resume the use of these functions immediately, start the engine and let it run for a few minutes.

The time available will then be double the time for which the engine was left running. However, this time will always be between five and thirty minutes.

A fl at battery will prevent the engine from starting.

Changing a wheel

Illustration of a medical or laboratory device with labeled parts (1, 2, A) and a tube, no readable text or symbols beyond labels.

PUNCTURE REPAIR KIT

The kit is located in one of the two storage compartments located under the front seats.

Vehicles supplied with a temporary puncture repair kit do not have a spare wheel or tooling (jack, wheelbrace, ...).

It is a complete system consisting of a compressor and an incorporated sealant.

Using the kit

1. Tick the deflated wheel on the speed limitation sticker then affi x the sticker to the vehicle's steering wheel to remind you that a wheel is in temporary use.

2. Clip the bottle 1 on the compressor 2.

3. Connect the bottle 1 to the valve of the tyre to be repaired.

4. Take care to unwind the compressor pipe before connecting it to the bottle.

5. Connect the power lead to one of the vehicle's 12 V sockets.

6. Switch on the compressor by pressing button A until the tyre pressure reaches 2.0 bars. If this pressure cannot be reached, the tyre cannot be repaired.

7. Remove and store the compressor.

8. Drive immediately, for a few miles (kilometres), at reduced speed, to fill the puncture.

9. Adjust the pressure using the compressor in accordance with the recommendation for the vehicle and check that the leak is filled correctly (no further loss of pressure).

10. Drive at reduced speed (50 mph [80 km/h]). The tyre must be examined and repaired by a professional as soon as possible.

After use, the bottle can be stored in a plastic bag, supplied in the kit, to avoid staining your vehicle with traces of fluid.

Warning: the bottle of gel contains ethylene-glycol, a product which is harmful if swallowed and which causes irritation to the eyes.

Keep it out of reach of children.

After use, do not discard the bottle into the environment, take it to a CITROËN dealer or to an specialised waste disposal site.

Replacement bottles of sealant are available from CITROËN dealers.

Changing a wheel

Side view of a white minivan with closed-top roof and front blank windows (no text or symbols visible)

CHANGING A WHEEL

Two views of a mechanical component with arrows indicating direction (no text or symbols)

- If available, place a chock under the wheel diagonally opposite the one to be changed.

If the vehicle is fitted with a towbar, it is sometimes necessary to raise the vehicle slightly to make it easier to remove the spare wheel from its carrier.

On certain types of ground and/or if considerable loads are being transported, call a CITROËN dealer.

Illustration of four different mechanical components with numbered labels (1, 2, 3, 4), no text or symbols present.

2. TOOLS

- The tools are stowed in a storage compartment located under the front seat. If necessary, move the seat forward to access the storage compartment from the rear.

- Unscrew the nut then take out the jack and the wheelbrace.

1. Wheelbrace.
2. Jack.
3. Alloy wheel embellisher remover.
4. Chock.

The jack and the tool kit are specific to your vehicle. Do not use them for other purposes.

Changing a wheel

Top-down view of a car backseat showing the rear seats and front trunks (no text or symbols visible)

Mechanical component diagram showing a lever and adjustment mechanism (no text or symbols)

Side profile of a white minivan with visible rear wheel and side window (no text or symbols)

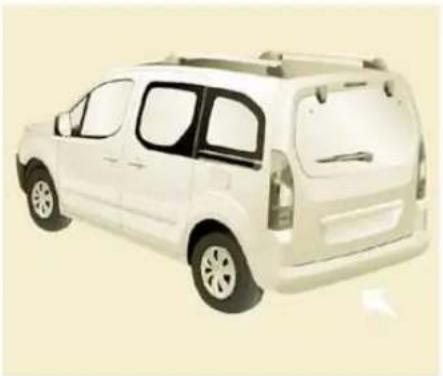

3. SPARE WHEEL

- Open the rear doors to gain access to the spare wheel.

- Unscrew the bolt using the wheelbrace until the carrier is lowered fully.

- Detach the carrier from the hook and place the spare wheel near the wheel to be changed.

Changing a wheel

Top-down view of a car tire and its wheel rim (no text or symbols visible)

• Remove the trim pulling it using the embellisher remover.
• Loosen the wheel bolts and start unscrewing them.

Side view of a white car with visible tire and mechanical bracket (no text or symbols)

• Place the jack in contact with the locating point provided, the one which is closest to the wheel to be changed. Ensure that the jack is straight and that the base of the jack is fully in contact with the ground.
• Extend the jack to lift the wheel clear of the ground.
• Resume and complete the unscrewing of the wheel bolts.
• Remove the bolts and remove the wheel.

Do not extend the jack until you have started unscrewing the bolts on the wheel to be changed and have placed the chock under the wheel diagonally opposite.

Close-up of a mechanical assembly with no visible text or symbols

Security bolts

If your vehicle is fitted with alloy wheels:

• Each wheel has a security bolt.
• These bolts can be loosened using your security socket (given to you on handover of your vehicle) and the wheelbrace.

Changing a wheel

Top-down view of a car tire with a brake caliper inserted (no text or symbols visible)

Close-up of a mechanical assembly with a metallic frame and attached component (no visible text or symbols)

Close-up of a mechanical component with concentric rings and a central hub (no visible text or symbols)

5. FITTING THE SPARE WHEEL

• Position the wheel on the hub and start tightening the bolts by hand.

• Carry out an initial tightening of the bolts using the wheelbrace.

• Lower the vehicle completely by folding the jack, then remove the jack.

• Tighten the bolts again using the wheelbrace, tighten them fully without forcing them.
• Place the wheel to be repaired in the carrier.

- Secure the carrier on the hook then raise the carrier using the bolt and the wheelbrace.

Never go underneath a vehicle that is supported only by a jack (use a ramp). Never use a screwdriver in place of the wheelbrace.

Snow screen

6. REFITTING THE REPAIRED WHEEL

The wheel is refitted as described in step 5, not forgetting to refit the wheel embellisher.

Refer to the "Identifi cation markings" section of chapter 8 to locate the tyre label.

Refer to the "Instruments and controls" section of chapter 2, "Tyre under-inflation detection"

part, for recommendations after changing a wheel fitted with a tyre under-inflation detection sensor.

The spare wheel is not designed to be used over long distances. Have the tightening of the bolts the tyre pressure checked by a ROËN dealer as soon as possible, have the original wheel repaired refi ted by a CITROËN dealer as in as possible.

Front view of a white car grille with black trim and ventilation grilles (no visible text or symbols)

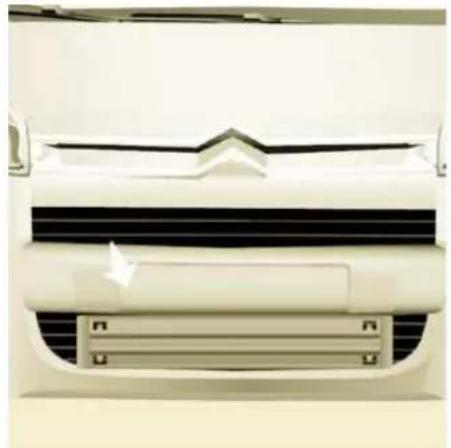

REMOVABLE SNOW SCREEN

According to country, the removable snow screen is installed on the lower part of the front bumper to prevent the accumulation of snow at the radiator cooling fan.

FITTING

• Offer up the snow screen facing its centring pin A on the front bumper.
• Put it in place by pressing at each clip B located in the four corners.

Do not forget to remove the snow screen when the exterior temperature is higher than 10 °C (no risk of snowfall) and when towing.

REMOVAL

• Pass a screwdriver into the hole located near each of the clips.
• Use the screwdriver as a lever to unclip the four clips B in turn.

Snow screen

6. REFITTING THE REPAIRED WHEEL

The wheel is refitted as described in step 5, not forgetting to refit the wheel embellisher.

Refer to the "Identifi cation markings" section of chapter 8 to locate the tyre label.

Refer to the "Instruments and controls" section of chapter 2, "Tyre under-inflation detection"

part, for recommendations after changing a wheel fitted with a tyre under-inflation detection sensor.

The spare wheel is not designed to be used over long distances. Have the tightening of the bolts the tyre pressure checked by a ROEN dealer as soon as possible, have the original wheel repaired refitted by a CITROEN dealer as in as possible.

Front view of a white car grille with black trim and ventilation grilles (no visible text or symbols)

REMOVABLE SNOW SCREEN

According to country, the removable snow screen is installed on the lower part of the front bumper to prevent the accumulation of snow at the radiator cooling fan.

FITTING

• Offer up the snow screen facing its centring pin A on the front bumper.
• Put it in place by pressing at each clip B located in the four corners.

Do not forget to remove the snow screen when the exterior temperature is higher than 10 °C (no risk of snowfall) and when towing.

REMOVAL

• Pass a screwdriver into the hole located near each of the clips.
• Use the screwdriver as a lever to unclip the four clips B in turn.

Changing a bulb

CHANGING A BULE

Open the bonnet. To access the bulbs, reach behind the headlamp unit.

Carry out the operations in reverse order to refi t each bulb and check that the bonnet is closed securely.

Halogen bulbs must be changed with the headlamp off. Wait a few minutes (risk of serious burns). Do not touch the bulb directly with your fi ngers, use lint-free cloths.

It is normal for condensation to form inside the headlamps. Regular use of the vehicle eliminates this misting.

The bulbs must be changed with the ignition off or with the battery disconnected. Wait approximately 3 minutes after changing the bulb before reconnecting the battery.

Check that the lights operate correctly after each operation.

High pressure washing

When using this type of washing on stubborn dirt, do not persist on the headlamps, the lights and their surround to avoid damaging their coating and their seal.

Types of bulb

Various types of bulb are installed on your vehicle. To remove them:

Type A

Entirely glass bulb: pull gently as it is fitted by pressure.

Type B

Bayonet bulb: press on the bulb then turn it anticlockwise.

Type C

Halogen bulb: release the retaining spring from its housing.

Technical illustration of a car head with numbered components (1, 2, 3), no visible text or symbols beyond labels

FRONT LIGHTS

Close-up mechanical assembly showing internal components and motion arrows (no text or symbols)

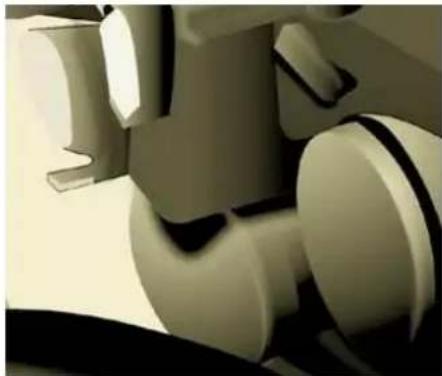

2. Side lights

Type A, W5W - 5W

ype C , H4 - 55W

• Remove the centre cover by pulling the fl exible rubber tab.
• Disconnect the electrical connector.
• Release the retaining tab.
• Change the bulb taking care to align the metal part with the grooves on the light.
• Reposition the retaining tab.

• Ensure that the cover is refitted correctly over its entire periphery to guarantee sealing.

• Remove the cover by pulling the fl exible rubber tab.

• Remove the bulb holder fitted by pressure by pulling the connector.
• Change the bulb.
• Ensure that the cover is refitted correctly over its entire periphery to guarantee sealing.

Close-up of mechanical components with no visible text or symbols

3. Direction indicators

Type B, PY21W - 21W (amber)

• Remove the cover by pulling the fl exible rubber tab.
• Turn the bulb holder a quarter turn anticlockwise.
• Remove the bulb by pressing it lightly while turning it anticlockwise.
• Change the bulb.
• Ensure that the cover is refitted correctly over its entire periphery to guarantee sealing.

Changing a bulb

Close-up of a mechanical component with a cylindrical opening and a curved handle, showing directional arrows (no text or symbols)

Close-up of a car's front wheel and side door, with a yellow arrow pointing to the wheel (no text or symbols visible)

Simple line drawing of a stylized face with a mouth and top, no text or symbols present

Front/Rear

4. Fog lamps

Type C, H1 - 55W

• Remove the fog lamp by removing the bolt, which can be accessed via the hole provided for this purpose in the bumper, using a TorfX30 screwdriver.
• Remove the three mud guard fi xing clips, located below the bumper.
• Move the mud guard upwards.
• Unclip the fog lamp by squeezing the clip to release it.
• Remove the fog lamp from the outside.
• Turn the yellow cover a 1/4 turn to open.
• Separate the clips which secure the base of bulb on each side to release the bulb.
• Remove the bulb by pulling, keeping it straight.
• Insert the new bulb, re-tighten the clips around the base of the bulb and carry out the operations in reverse order to put the light unit and the bumper back in position.

SIDE REPEATER

Type A, WY 5W (amber)

• Push the repeater towards the rear and disengage it by pulling the front.
• Consult a CITROËN dealer to obtain a new repeater which is a fully moulded part.
• To refi t, engage the repeater towards the rear and bring it towards the front.

COURTESY LIGHTS

Type A, 12V5W - 5W

• Unclip the lens by sliding a screwdriver in the slots on each side of the courtesy light.
• Pull the bulb and change it.
• Clip the lens in its housing and ensure that it is secured correctly.

Changing a bulb

Two side-view illustrations of a red and white car headlight with no text or symbols

Wooden mechanical component with internal cutouts and mounting holes (no text or symbols visible)

Microscopic view of a single elongated biological cell or vesicle with internal structures (no text or symbols)

REAR LIGHTS

For further information concerning the bulbs, refer to the "Types of bulb".

1. Brake lights/side lights Type B, P21/5W - 21/5W
2. Direction indicators Type B, PY21W - 21W (amber)
3. Reversing lights Type B, P21W - 21W
4. Fog lamps Type B, P21W - 21W

High pressure washing

When using this type of washing on stubborn dirt, do not persist

on the headlamps, the lights and their surround to avoid damaging their coating and their seal.

• Identify the faulty bulb then open the rear doors to 180°.
  Refer to the "Accesses" section of chapter 2.
• Remove the two fi xing bolts using the screwdriver stored in the tool kit under the right-hand seat.
• Pull the light unit from the outside.

• Holding the light, disconnect the electrical connector.

• Move aside the 4 tabs then extract the bulb holder.

• Remove the faulty bulb by pressing it lightly while turning it anticlockwise.
• Change the bulb.

When removing the light unit:

• with tailgate, pull the light unit towards the centre of the vehicle,
• with hinged doors, pull the light unit towards you.

When refi tting, take care to reposition the tabs and the supply wire correctly to avoid trapping the wire.

After changing the rear direction indicator bulb, the reinitialisation time is more than approximately 2 minutes.

Changing a bulb

Close-up of a car's side profile with two yellow directional arrows pointing to the front and side (no text or symbols)

NUMBER PLATE LIGHTS

Type A, W5W - 5W

Side view of a white car door panel with two yellow directional arrows indicating movement or flow (no text or symbols)

With hinged doors

• Unclip the interior trim.
• Disconnect the connector by moving aside its tab.
• Turn the bulb holder a quarter turn anticlockwise.
• Change the bulb.
• Put the bulb holder back in place and reconnect the connector.
• Put the trim back in place.

Side view of a white vehicle's front and side panels showing the windshield and window (no text or symbols visible)

THIRD BRAKE LIGHT

Type A, W16W - 16W

• Unscrew the two nuts.
• Push the pins.
• If necessary, disconnect the connector to remove the light.
• Change the bulb.

Changing a fuse

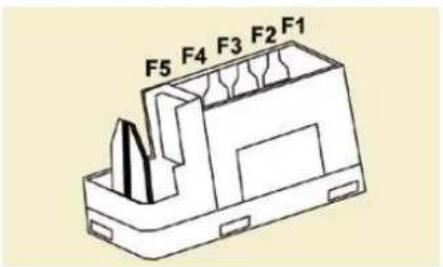

CHANGING A FUSE

The fuse boxes are placed:

• in the lower part of the dashboard on the left-hand side (behind the cover),
• under the bonnet (near the battery).

The information given concerns only those fuses which can be changed by the user using the pliers and the spare fuses, located behind the dashboard storage compartment on the right-hand side. For any other work, visit a CITROËN dealer.

Trade professionals: for complete information on the fuses and relays, consult the "Repair

Manual" diagrams via the dealer network.

CITROËN will not accept responsibility for the cost incurred in repairing your vehicle or for rectifying the malfunctions resulting from the installation of accessories not supplied and not recommended by the CITROËN network and not installed in accordance with its instructions, in particular when the combined consumption of all of the additional equipment connected exceeds 10 milliamperes.

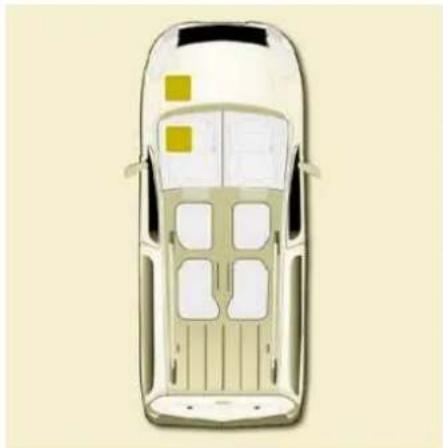

Top-down architectural rendering of a car showing front, rear, and side panels with no text or symbols

Removing and fitting a fuse

Before replacing a fuse, the cause of the incident must be found and rectified.

- Use the pliers.

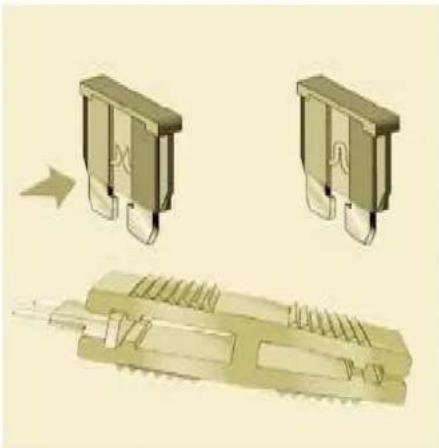

Illustration of two mechanical components with a magnified view showing internal structure (no text or symbols)

Always replace a faulty fuse with a fuse of the same rating.

Changing a fuse

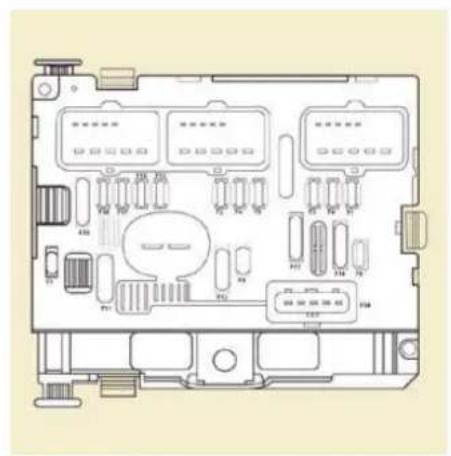

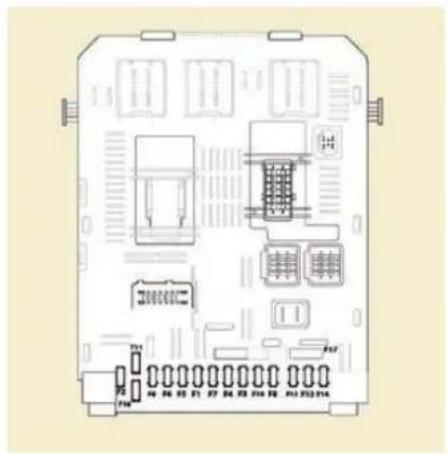

DASHBOARD FUSES

Tilt the cover to gain access to the fuses.

Fuses F		Amperes A	Allocation
1	15	Rear wiper
2	-	Spare
3	5	Air bag
4	10		Air conditioning, diagnostic socket, mirror control, headlamp beam
5	30	Electric windows
6	30	Locks
7	5		Rear courtesy lamp front map reading lamp, roof console
8	20		Audio equipment, display, tyre under-inflation detection, alarm and siren
9	30	Front and rear 12 V socket
10	15	Central column
11	15	Low current ignition switch
12	15	Rain and brightness sensor, airbag
13	5	Instrument panel
14	15		Parking assistance, automatic air conditioning controls, hands-free phone kit
15	30	Locks
16	-	Spare
17	40	Rear screen/mirrors demist/defrost

PASSENGER COMPARTMENT FUSES

Changing a fuse

Fuses		Amperes		Allocation
F		A
1	-	Spare
2	20	Heated seats
3	-	Spare
4	15	Folding mirrors relay
5	15	Refrigeration equipment socket relay

Changing a fuse

FUSES UNDER THE BONNET

After opening the bonnet, unclip and tilt the corresponding box to gain access to the fuses.

Fuses		Amperes	Allocation
F		A
1	20	Engine management
2	15	Horn
3	10	Front and rear wash-wipe pump
4	20	Headlamp wash pump
5	15	Engine components
6	10	Steering wheel angle sensor, ESP
7	10	Brake switch, clutch switch
8	25	Starter
9	10	Headlamp beam motor, parc management unit
10	30	Engine components
11	40	Spare
12	30	Wipers
13	40	Built-in systems interface
14	30	Pump
15	10	Right-hand main beam headlamp
16	10	Left-hand main beam headlamp
17	15	Right-hand dipped headlamp
18	15	Left-hand dipped headlamp

Changing a wiper blade

Close-up of a green cylindrical device with control buttons and directional arrows, no visible text or symbols

Abstract geometric line drawing with intersecting curves and a small rectangular element (no text or symbols)

Close-up of a white door handle with a metallic tool inserted (no visible text or symbols)

CHANGING A WINDSCREEN WIPER BLADE

Placing the wiper blades in the special position

- Less than a minute after switching off the ignition, press the wipers stalk downwards to position the wiper blades along the windscreen uprights (special position).

Changing a front wiper blade

• Lift the wiper arm.
• Unclip the blade and remove it.
• Fit the new blade.

- Push back the wiper arm. To return the windscreen wipers to their normal position, switch on the ignition and operate the wipers stalk.

Changing the rear wiper blade

• Lift the wiper arm, then unclip the blade and remove it.
• Fit the new blade and push back the wiper arm.

Having your vehicle towed

Close-up of a mechanical component with a black arrow indicating a specific part, no visible text or symbols.

BEING TOWED

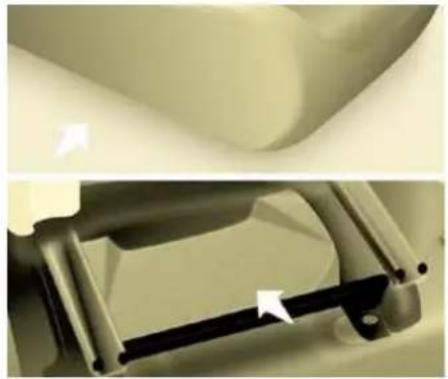

The towing eye is stored in the tool kit, located under the right-hand seat.

Without lifting (4 wheels on the road)

You should always use a towbar.

Close-up of a car air conditioner unit with a handle and circular vent (no visible text or symbols)

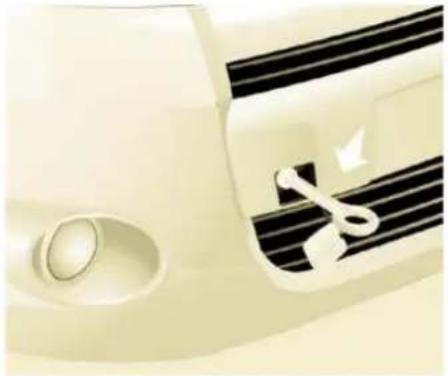

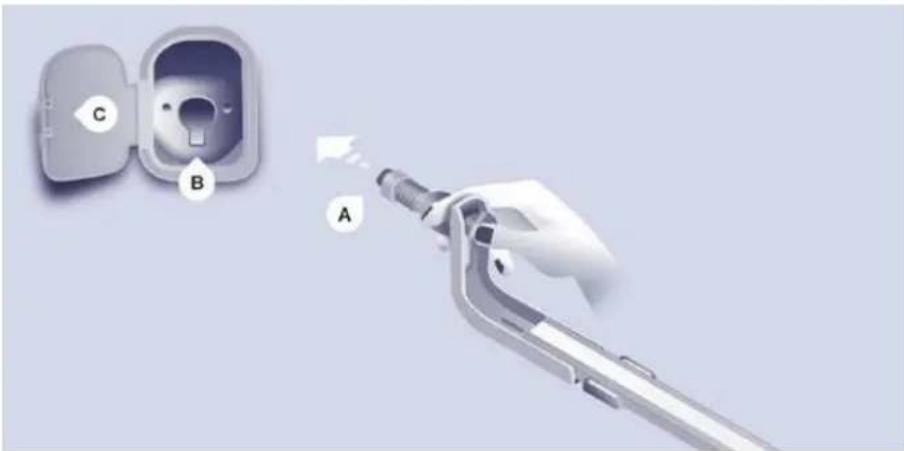

From the front

• Unclip the cover by pressing the bottom part.
• Screw in the removable towing eye until it locks.

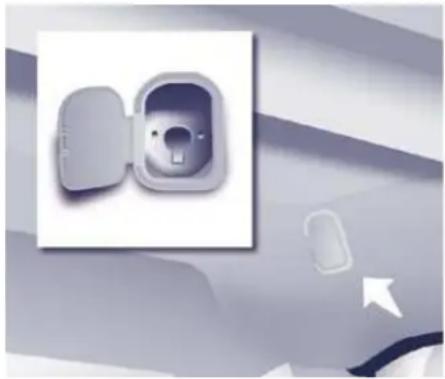

From the rear

• Unclip the cover using a coin or the fl at part of the towing eye.
• Screw in the removable towing eye until it locks.

Lifting (2 wheels on the road only)

It is preferable to raise the vehicle using professional lifting equipment.

Close-up of a white industrial machine handle with a black clip and a small metallic clip attached (no visible text or symbols)

When towing with the engine switched off, there is no braking or steering assistance.

Vehicles fitted with a manual gearbox (diesel version)

In the case of vehicles fitted with a manual gearbox, the gear lever must be in the neutral position, failure to observe this special condition may result in damage to certain braking components and the absence of braking assistance when the engine is started again.

Dimensions

Front view of a white car with headlights and grille (no visible text or symbols)

Side profile of a silver minivan with two wheels and front suspension (no visible text or symbols)

Front view of a white van with red headlights and blank front panel, viewed from rear (no text or symbols)

Front view of a silver car with red and white side stripes, viewed from rear angles (no text or symbols visible)

DIMENSIONS (MM)

L	Overall length 4 380
H	Overall height 1 801-1862
A	Wheelbase 2 728
B	Front overhang 925
C	Rear overhang 727
D	Width over panels:	without mirrors 1 810
		with mirrors 2 112
E	Width of front tracks 1 505-1 507
F	Width of rear tracks 1 554-1 556
-	Length of the loading surface to the seat	Row 2 990
		Row 2, seat fully folded	1 343
		With front passenger seat folded	3 000

Dimensions

Front view of a white car with rear livery and side headlights (no visible text or symbols)

Front view of a white car with red accent and black side stripes, shown from rear angles (no text or symbols)

REAR DOORS (mm)

M Max threshold with 205/65 R15 tyre and tailgate trim 582

				Hinged doors Tailgate
				Small	Large
N	Useful opening height (under panel) 1 118 1 313
O	Width 495 543 1 582

Dimensions

Side profile illustration of a silver minivan with visible side brackets and wheels (no text or symbols)

SLIDING SIDE DOORS (mm)

P	Useful height 1 009
Q	Useful width 650
-	Height under raised tailgate 1 892

Weights

WEIGHTS AND TOWED LOADS (KG)

General points

For further information, consult your registration certifi cate.

In each country, it is imperative that the towed loads authorised by local legislation are complied with. To find out your vehicle's towing capacities and its gross train weight, consult a CITROEN dealer.

The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

The braked towed weight with load transfer can be increased, on condition that the equivalent of this load is removed from the vehicle so that the GTW is not exceeded. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

The GTW and towed load values indicated are valid up to a maximum altitude of 1000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres.

High exterior temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when the exterior temperature is higher than 37 °C, limit the towed weight.

The kerb weight is equal to the weight without load + driver (75 kg) + fuel tank filled to 90%.

GTW: gross train weight

GVW: gross vehicle weight

KW: kerb weight

Nose weight: vertical load on the towbar

Weights							5 - 1.6 HDI110 PEF 7J9 HZC/192 PEF 7J9HVC/1
Number of seats	Engine	GTW	GVW	Kerb weight	Nose weight
5	1.6 Petrol 90	2 925	2 025	1 472	50		3 065
	1.6 Petrol 110	3 025	2 025	1 502	55
	1.6 Petrol 120	3 000	2 000	1 480	70
	1.6 HDi 75	2 940	2 040	1 482	50
	1.6 HDi 90	3 040	2 040	1 482	55
	1.6 HDi 90 PEF	3 065	2 065	1 504	55
	1.6 HDi 110 PEF	3 065	2 065	1 504	55
7	1.6 Petrol 110	3 025	2 150	1 588	70		1 504
	1.6 Petrol 120	3 025	2 150	1 565	70
	1.6 HDi 90	3 040	2 170	1 599	70
	1.6 HDi 90 PEF	3 065	2 190	1614	70
	1.6 HDi 110 PEF	3 065	2 190	1614	70

ENGINES AND GEARBO)

Petrol Diesel
Name	1.6 Petrol	1.6 Petrol	1.6 Petrol	1.6	HDi	1.6 HDi					1.6 HDi PEF	1.6 HDi PEF
Power (hp)	90	110	120	75	92	92	110
EU standard maximum power (kW)					66	80	88	55	66	66	80
Engine speed (rpm)					5 800	5 800		6 000		4 000	4 000	4 000
Cubic capacity (cc)					1 587	1 587		1 598		1 560	1 560	1 560
Gearbox - manual					5	5		5		5	5	5
Bore x stroke (mm)					78.5 x 82	78.5 x 82		77 x 85.8		75 x 88.3	75 x 88.3	75 x 88.3
EU standard max torque (Nm)					132	147		160		185	215	215
Max torque engine speed (rpm)					2 500	4 000		4 250		1 750	1 750	1 750
Fuel					Unleaded					Diesel
Particle emission filter					-	-		-		-	Yes	Yes
Catalytic converter					Yes	Yes	Yes	Yes	Yes	Yes

Identification features

IDENTIFICATION FEATURES

A. Manufacturer's plate.

C. Tyres and Pa-Setriab low-breference.

This is engraved on the front right wheelarch.

The label C, on the front door gives:

• the wheel and tyre sizes,
• the brands of tyres approved by the manufacturer,
• the tyre pressures (the tyre pressure must be checked when the tyre is cold, at least once a month),
• the paint colour reference.

The audio system is coded in such a way that it will on operate in your vehicle. If it is to be installed in another vehicle, contact a CITROËN dealer for configuration the system.

For safety reasons, the driver must carry out operation which require prolonged attention while the vehicle is stationary

When the engine is off, and in order to prevent discharging of the battery, the audio system may switch off after a few minutes.

Audio syster

CONTENT:

• 01 First steps pg. 9.2
• 02 General menu pg. 9.3
• 03 Audio - Telephone pg. 9.5
• 04 USB Player pg. 9.10
• 05 Telepho

Bluetooth functions pg. 9.13

• 06 Control short-cuts pg. 9.15

• 07 Configuration pg. 9.16
  ● 08 Display flow charts pg. 9.17
  ● Frequently asked questions pg. 9.19

01 FIRST STEPS

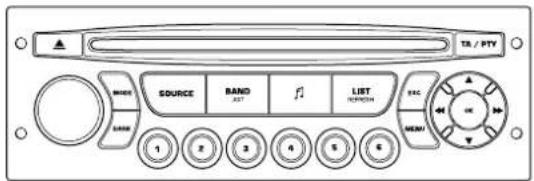

1. On/Off and volume adjustment.
2. CD eject.
3. Selection of the display on the screen from the modes: Audio (AUDIO), Trip Computer (TRIP) and Telephone (TEL) functions.
4. Selection of the source: radio, audio CD/MP3 CD, CD changer, USB, Jack connection, Streaming
   5 Selection of the FM1, FM2, FMast and AM wavebands.
   6 Setting audio options: front/rear balance, left/right balance, loudness, sound ambiences
   7 Display the list of local stations, of the tracks on the CD or of the MP3 directories

8 Abandon current operation.
9. IA (Traffic Announcement) function on/or Long press: access to the P1Y (Types of radio programme) mode.
10 Confirmation
11. Automatic search for a lower/higher frequency Selection of previous/next CD, MP3 or USB track.
12 Selection of a lower/higher radio frequency Selection of the previous/next CD. Selection of the previous/next MP-3 directory. Selection of the previous/next USB equipment directory/genre/artist/playlist

1. Display the general menu.
2. Buttons 1 to 6: Selection of a stored radio station. Selection of a CD in the CD changer. Long press: storing of a station.
3. The DARK button changes the display on the screen to improve driving comfort at night. 1st press: lighting of the top banner only. 2nd press: displaying of a black screen. 3rd press: return to the standard display.

GENERAL MENU

02

MONOCHROME SCREEN C

AUDIO FUNCTIONS: radio, CD USB, options.

TELEPHONE

Bluetooth, pairing, call management and transmission of .mp3 files

Four orange icons representing different electronic devices: wireless, USB flash unit, USB drive, and mobile phone (no text or symbols)

TRIP COMPUTER

entering distance, warnings, status of functions.

PERSONALISATION-CONFIGURATION vehicle parameters, display, languages.

MONOCHROME SCREEN /

For a detailed global view of the menus available, refer to the "Screen menu map" section o this chapter

03 AUDIO

RADI SELECTING A STATIO

The external environment (hills, buildings, tunnels, basement car parks) may block reception, including in RDS mode. This is a normal effect of the way in which radio waves are transmitted and does not indicate any failure of the audio equipment!

RD

Press the SOURCE button several times in succession and select the radio.

Press the BAND AST button to select a waveband: FM1, FM2, FMast, AM

Briefly press one of the buttons carry out an automatic search of the radio stations.

Press one of the buttons to carry out manual search of the radio stations

Press the LIST REFRESH button 1 display the list of stations received locally (30 stations maximum) To update this list, press for more than two seconds.

Press the MENU button

Select AUDIO FUNCTIONS the press OK

Select the FM WAVEBAI PREFERENCES function then pres OK.

FM WAVEBAND PREFERENCE:

Select ACTIVATE FREQUEF FOLLOWING (RDS) then press OK RDS appears on the display

ACTIVATE FREQUENCY FOLLOWING (RI)

The RDS, if displayed, enables you to continue listening to the : station by automatic retuning to alternative frequencies. However certain conditions, coverage of an RDS station may not be ass throughout the country as radio stations do not cover 100 % o territory. This explains the loss of reception of the station during a journey.

CE PLAYING A C

MP3 CD PLAYING AN MP3 COMPILATIO

Insert circular compact discs only.

Some anti-pirating systems, on original discs or CL copied using a personal recorder, may cause fault which are no reflection on the quality of the origin player.

Without pressing the EJECT button, insert a CD in the player, play begins automatically

Insert an MP3 compilation in the playe

The audio equipment searches for all of the mus tracks, which may take anything between a few seconds and several tens of seconds, before pla begins

On a single disc, the CD player can read up to 255 MP3 fi les spre over 8 directory levels. However, it is advisable to keep to a limit two levels to reduce the access time before the CD is played. While the CD is being played, the directory flow chart is not followed. All of the fi les are displayed on a single level

To play a disc which has already been inserted, press the SOURCE button several times in succession and select CD.

To play a disc which has already been inserted, press the SOURCE button several times in succession and select CD.

Press one of the buttons to select track on the CD.

Press the LIST REFRESH button t display the list of tracks on the CD

Press and hold one of the buttons for fast forward or backward

Press one of the buttons to select track on the CD

Press the LIST REFRESH button 1 display the list of directories of the MP3 compilation

Press and hold one of the buttons for fast forward or backward play

MP3 CD INFORMATION AND ADVIC

The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Lay 3, is an audio compression standard which permits the recording several tens of music files on a single dis

The playing and displaying of an MP3 compilation may depend on the recording programme and/or the parameters usec

In order to be able to play a recorded CDR or CDRW, when recordi select standards ISO 9660 level 1.2 or Jolie:

If the disc is recorded in another format, it may not be played correctly

It is recommended that the same recording standard is always used for an individual disc, with as low a speed as possible for optimal sound quality

In the particular case of a multi-session CD, the Joliet standard recommended

The audio equipment will only play fi les with the extension ".mp3". other type of fi le (.wma, .mp4...) can be played

It is advisable to restrict fi le names to 20 characters without usi special characters (e.g.: " " ? ; ü) to avoid any playing or displayin problems.

AUDIO/MP3 CD CHANGER PLAYING A C

Insert the CDs in a multislot change one by one.

On a single slot changer, pres LOAD, select the number of the CD then insert the CD or press and hold LOAD and insert the CDs one by one Press the SOURCE button sever times in succession and selec CD CHANGER.

Press one of the buttons on the numeric keypad to select the corresponding CD

Press one of the buttons to select track on the CD Press and hold one of the buttons for fast forwards or rewind play

* According to availability on the vehi

HANDS-FREE KIT

MATCHING A TELEPHON DISPLAY

The services offered by the hands-free kit depend on the network, the SIM card and t compatibility of the Bluetooth equipment usec

Consult your telephone's manual and your operator to find out which services available to you. A list of mobile telephones which offer the best range of services available from the network. Consult a CITROËN deale

Refer to the next page: "Correct use of the hands-free kit telephone".

!

For safety reasons and because they require prolonged attention of the part of the driver, the operations for matching of the Bluetooth mobile telephone with the audio equipment hands-free kit must be carried out with the vehicle stationary and the ignition or

1

Activate the telephone's Bluetooth function ar carry out a search of the Bluetooth accessorie present for the telephone

2

Select the accessory which corresponds to the name of the vehicle, a superimposed confi guratic display appears on the multifunction display

3

Enter the vehicle's authentication code (=1234) Depending on the telephone, you may be asked to enter this code before the superimposed configuration display appears

4

Select the YES tab on the display using the buttons then confirm by pressing Off

YES

RECEIVING A CAL

1

An incoming call is announced by a ring and a superimposed displ on the multifunction display

2

Select the YES tab on the display using the buttons and confirm pressing OK

YES

#

Press the end of the steering wheel stalk to ace the call.

MAKING A CAL

#

Press the end of the steering wheel stalk for more than two seconds to access your directory

1

To dial a number, use the keypad on yo telephone

Correct use of the hands-free kit telephon

The matching of a new Bluetooth mobile telephone does not work while the vehicle is being driven

For safety reasons and because they require prolonged attention: the part of the driver, the operations for matching the Bluetooth mobi telephone with the audio equipment hands-free kit must be carried out with the vehicle stationary and the ignition or

How many mobile telephones can be stored in the audio equipment

Up to 4 different mobile telephones can be stored. The mobile telepho stored as 1 will be connected first, then number 2.

Is it possible to scroll through the phone book contacts more quickly than line by line

The controls << >> on the control panel or on the steering wheel cont permit direct access to the first contact recorded starting with the ne previous letter of the alphabet

Are all of the numbers associated with a contact displayed on the audio equipment display

A maximum of 4 different numbers for one contact in Vcard format a displayed: "Home", "Work", "Mobile" and "Car".

04 USB Player

USING THE USB SOCKE

The list of compatible equipment is available from CITROËN dealers.

1

This unit consists of a USB port and .Jack socket. It reads audio file format (.mp3, .ogg, .wma, .wav...) which are transmitted from portable equipment such as a digital player or a USB stick to your Audio system to be listened to via the vehicle's speakers

2

USB stick (1.1, 1.2 and 2.0) or lpo ^® o generation 5 or later

• the playlists accepted are of the ty m3u, .pls, .wpl.,
• the lpc ^® lead is essentia
• navigation through the fi le base is means of the steering wheel controls
• the battery of the portable equipme can charge automatically

3

Other Ipot ^® players of earlier generation and players using the MTP protocol

• play via Jack-Jack lead only (i supplied),
• navigation through the file base is from the portable equipment.

CONNECTING A USB STIC

1

Connect the stick to the socket, direct or using a lead. If the audio equipment is switched on, the USB source is detected as soon as it is connected. Play begins automatically after a delay which depends on the capacity of the USE stick.

The file formats recognised are .mp (mpeg1 layer 3 only), .wma (standard 9 only), .wav and .ogg

!

The system puts together playlists (temporary memory) created on a period which depends on the capacity of the USB equipment. The other sources are available during this time.

The playlists are updated each time the ignition is switched off each time a USB stick is connected

When connecting for the first time, the tracks are classified by foli. When you reconnect, the classification system selected previously retained.

04 USB Player

USING THE USB SOCKE

2

Press and hold LIST to display the different classifi cations Select by Folder/Artist/Genre/Playlis press OK to select the classifi catic required, then press OK again to confi rn

OK

• by Folder: all folders containing au fi les recognised on the peripher device, classified in alphabetical order without following the flow char
• by Artist: all of the artist nam defi ned in the ID3 Tags, classifi ed alphabetical order
• by Genre: all of the genres defined the ID3 Tags
• by Playlist: in accordance with tl playlists recorded on the USB device.

1

Press LIST briefly to display the of Folders/Genres/Artists/Playlists or the USB equipment. Navigate through the list using the left/right and up/down buttons Confirm the selection by pressing OI

4

Press one of these buttons fc access to the previous/next track or the classification list currently be in played.

Press and hold one of the buttons for fast forward or backward

5

Press one of these buttons for access to the previous/next Genre, Folder Artist or Playlist on the classifi catic list currently being played

CONNECTING AN IPO® VIA THE USB SOCKET

1

The lists available are Artist, Genre and Playlist (as defined the iPoc®) Selection and Navigation are described in steps 1 to 5 above.

!

Do not connect a hard disk or USB devices other than audio equipment to the USB socket. This could damage your installation.

USING THE AUXILIARY INPUT (AUX) JACK SOCKET OR RCA SOCKET (according to vehi

The auxiliary input, JACK and RCA, permits the connection portable equipment (MP3 player...)

Do not connect a single piece of equipment via the USB port and the JACK socket at the same time

Connect the portable equipment (MP player...) to the JACK socket or to the audio sockets (white and red RCA type) using a suitable cable (no supplied).

Press the SOURCE button several times in succession and select AUX

ADJUSTING THE VOLUME OF THE AUXILIARY SOUF

First adjust the volume of your portable equipmer

Then adjust the volume of your audi equipment.

The controls are displayed and managed via the portable equipment

05 BLUETOOTH FUNCTIONS

BLUETOOTH TELEPHON SCREEN C

The services offered depend on the network, the SIM card and tl compatibility of the Bluetooth equipment usec

Consult your telephone's manual and your operator to fl nd out wh services are available to you. A list of mobile telephones which offer ti best range of services is available from the network. Consult a CITROË dealer

PAIRING A TELEPHON

For safety reasons and because they require prolonged attention on the part of the driver, the operations for pairing of the Bluetooth mobile telephone with the Bluetooth hands-free system of your audi equipment must be carried out with the vehicle stationary and the ignition on.

1

Activate the telephone's Bluetooth function.

2

Press the MENU buttor

3

In the menu, select

• Bluetooth telephone function - Au
• Bluetooth confi gurati
• Perform a Bluetooth sear

4

A window is displayed with "Searching...

5

The first 4 telephones recognised are displayed in this windc

! The TELEPHONE menu permits access to the following functions particular: Directory *, Call list, Pairing management

* If your telephone hardware is fully compati

6 Select the telephone to be connected from the list. Only or telephone can be connected at a time

7 A virtual keypad is displayed on the scre enter a code with at least 4 digi Confi rm by pressing OI OK

8 A message is displayed on the screen of the telephone chosen: to accept the pairing, ente the same code on the telephone, then confi rm t pressing OK. If pairing fails, the number of attempts is not limite

9 "Pairing of Name_telephone successful" appears on the scree

10 The automatic connection authorised is only active after the telephone has been configured. The directory and the call list can be accessed after the synchronisation period

The pairing can also be initiated from the telephone.

BLUETOOTH AUDIO STREAMING (AVAILABLE DURING THE YEAR)

RECEIVING A CAL

1 An incoming call is announced by a ring and a superimposed display on the multifunction screen

2

Select the YES tab on the display using the buttons and confirm t pressing OK.

YES

Press the steering wheel control OK to accept the call.

MAKING A CAL

1 From the Bluetooth telephone function Audio menu, select Manage the telephone call then Call, Call list or Directory

2

Press the end of the steering wheel control for more than two seconds to gain access to your directory. To dial a number, use your telephone's keypad, w the vehicle stationary

! Wireless transmission of the telephone's music fi les via the au equipment. The telephone must be able to manage the appropriat bluetooth profi les (Profi les A2DP/AVRCI

1 Initiate the pairing between the telephone and vehicle. This pairing can be initiated from the vehicle telephone function menu or via the telephone's key. See steps 1 to 10 on the previous pages. During pairing phase, the vehicle must be stationary with key in the ignitio

2 Select the telephone to be connected from the telephone function menu The audio system connects to a newly pair telephone automatically

3

Activate the streaming source b pressing the SOURCE button *. TI tracks to be played can be controlled as usual via the buttons on the Radi control panel and the steering wheel controls **. The contextual information can be displayed on the screen

* In certain cases, playing of the Audio files must be initiated fro keypad.
** If the telephone supports the functi

06 CONTROL SHORT-CUTS

STEERING WHEEL CONTROL

RADIO: selection of the previous store station.

CD CHANGER: selection of the previous C[ Selection of the previous item on a men

RADIO: automatic search for a higher frequency CD/CD CHANGER/MP3: selection of the net track.

CD/CD CHANGER: continuous press: fa: forward play

Selection of the previous item

Volume increas

• Change of sound sour
• Confirmation of a selectio
• Pick up/Hang up the telephone.
• Press for more than 2 second access to the telephone menu

Mute: by pressin the volume increase and decrease buttons simultaneously

Restore the sound b pressing one of the two volume buttons

RADIO: selection of the next stored static CD CHANGER: selection of the next CI Selection of the next item on a meni

Volume decreas

RADIO: automatic search for a lower frequency CD/CD CHANGFR/MP3: selection of the previous track

CD/CD CHANGER: continuous press: backward play.

Selection of the next item

07 CONFIGURATION

ADJUSTING THE DATE AND TIM SCREEN

Press the MENU buttor

Press to confirm the selectic

Using the arrows, select the PERSONALISATION CONFIGURATION function

PERSONALISATION CONFIGURATION

Using the arrows, select the ADJUS DATE AND TIME functor

ADJUST DATE AND TIMI

Press to confirm the selectio

Press to confirm the selectic

Using the arrows, select the DISPLA CONFIGURATION function

DISPLAY CONFIGURATION

Adjust the settings one by on confi rming by pressing the OK butto Next select the OK tab on the scree then confi rm

OK

SCREEN MENU

monochrome A

RADIO-C

RDS SEARC

REG MOD

CD REPEA

RANDOM PLA

VEHICLE CONFIG

REV WIPE AC

GUIDE LAMP

OPTION

DIAGNOSTIC

consu

abandon

UNIT

TEMPERATURE: °CELSIUS/°FAHRENHE

FUEL CONSUMPTION: KM/L - L/100 - MPG

* The parameters vary according to vehi

1 MAIN FUNCTION

2 CHOICE

3 Choice A

3 Choice A

2 CHOICE B.

DISPLAY ADJUS

YEAI

MONII

DA

HOUI

MINUTE:

12 H/24 H MOD

LANGUAGE:

FRANCAI

ITALIAN

NEDERLAND:

PORTUGUE

PORTUGUES-BRASI

DEUTSCI

ENGLISI

ESPANO

monochrome C

Press the OK dial for access to short-ci menus according to the display on the screen:

RADI

activate/deactivate RD

activate/deactivate track repe

Audio CD/Changer: the entire C

MP3 CD/MP3 Changer: the entire current fold

activate/deactivate random pla

Audio CD/Changer: the entire C

MP3 CD: the entire current fold

MP3 Changer: all of the folders

U

activate/deactivate track repe

current folders/artist/genre/playli

activate/deactivate random pla

current folders/artist/genre/playlist

SCREEN MENU

monochrome A

RADIO-C

RDS SEARC

REG MOD

CD REPEA

RANDOM PLA

VEHICLE CONFIG

REV WIPE AC

GUIDE LAMP

OPTION

DIAGNOSTIC

consu

abandon

UNIT

TEMPERATURE: °CELSIUS/°FAHRENHE

FUEL CONSUMPTION: KM/L - L/100 - MPG

* The parameters vary according to vehi

1 MAIN FUNCTION

2 CHOICE

3 Choice A

3 Choice A

2 CHOICE B.

DISPLAY ADJUS

YEAI

MONII

DA

HOUI

MINUTE:

12 H/24 H MOD

LANGUAGE:

FRANCAI

ITALIAN

NEDERLAND:

PORTUGUE

PORTUGUES-BRASI

DEUTSCI

ENGLISI

ESPANO

monochrome C

Press the OK dial for access to short-ci menus according to the display on the screen:

RADI

activate/deactivate RD

activate/deactivate track repe

Audio CD/Changer: the entire C

MP3 CD/MP3 Changer: the entire current fold

activate/deactivate random pla

Audio CD/Changer: the entire C

MP3 CD: the entire current fold

MP3 Changer: all of the folders

U

activate/deactivate track repe

current folders/artist/genre/playli

activate/deactivate random pla

current folders/artist/genre/playlist

08 SCREEN MENU MAP monochrome C

AUDIO FUNCTION

FM BAND PREFERENCE

alternative frequencies (RD:

activate/deactivat

regional mode (REC

activate/deactivat

radio-text information (RDTX)

activate/deactivat

PLAY MODE

album repeat (RP)

activate/deactivat

track random play (RDM

activate/deactivat

TRIP COMPUTE

ENTER DISTANCE TO DESTINATION

WARNING LO

STATUS OF FUNCTION

PERSONALISATION-CONFIGURATIC

DEFINE THE VEHICLE PARAMETERS®

DISPLAY CONFIGURATIC

video brightness adjustme

normal video

inverse video

brightness (- +) adjustmer

date and time adjustment

day/month/year adjustmer

hour/minute adjustment

choice of 12h/24h mod

choice of uni

BLUETOOTH CONFIGURATIO

CONNECT/DISCONNECT A DEVIC

Telephone function

Audio Streaming function

CONSULT THE PAIRED DEVIC

DELETE A PAIRED DEVIC

PERFORM A BLUETOOTH SEARC

CAL

CALLS LIS

Director

MANAGE THE TELEPHONE CAL

TERMINATE THE CURRENT CAL

ACTIVATE PRIVATE MODE

FREQUENTLY ASKED QUESTIONS

The table below groups together the answers to the most frequently asked questions concerning your Audio system.

QUESTION	ANSWEF	SOLUTION
There is a difference i sound quality between the different audic sources (radio, CD CD changer...)	For optimum sound quality, the audio settings (Volume, Bass, Treb Ambience, Loudness) can be adapted to the different sound source which may result in audible differences when changing sourc (radio, CD, CD changer...)	Check that the audio settings (Volume, Bas Treble, Ambience, Loudness) are adapted t the sources listened to. It is advisable to se the AUDIO functions (Bass, Treble, Front-Rea Balance, Left-Right Balance) to the middl position, select the musical ambience "None and set the loudness correction to the "Active position in CD mode or to the "Inactive" positio in radio mode
The CD is ejecte automatically or is no played by the player	The CD is inserted upside down, is unplayable, does not contain any auc data or contains an audio format which the player cannot plaThe CD is protected by an anti-pirating protection system which is r recognised by the audio equipmen	- Check that the CD is inserted in the player right way up.- Check the condition of the CD: the CD canr be played if it is too damaged- Check the content in the case of a record CD: consult the advice in the "Audio" sector- The audio equipment's CD player does r play DVDs.- Due to inadequate quality, certain record CDs will not be played by the audio system
The CD player soun is poor	The CD used is scratched or of poor qualit	Insert good quality CDs and store them i suitable conditions.
	The audio equipment settings (bass, treble, ambiences) are unsuitab	Set the treble or bass level to 0, without selectir an ambience.
The stored stations d not function (no sound 87.5 Mhz is displayed...	An incorrect waveband is selected	Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which the stations are stored
The traffic announce (TA) is displayed. I d not receive any traffic information	The radio station is not part of the regional traffic information netwc	Tune to a radio station which broadcasts traffic information
The quality of receiptio of the radio station listened to gradually deteriorates or the stored stations dc not function (nc sound, 87.5 Mhz is displayed...)	The vehicle is too far from the transmitter used by the station listened to there is no transmitter in the geographical area through which the vehic is travelling.	Activate the RDS function to enable the syste to check whether there is a more powerful transmitter in the geographical area
	The environment (hills, buildings, tunnels, basement car parks...) blo reception, including in RDS mode	This phenomenon is normal and does no indicate a failure of the audio equipment
	The aerial is absent or has been damaged (for example when goir through a car wash or into an underground car park	Have the aerial checked by a CITROËN deals
Sound cut-outs o 1 to 2 seconds in radic mode.	During this brief sound cut-out, the RDS searches for any frequent permitting better reception of the station	Deactivate the RDS function if the phenomenon is too frequent and always on the same route
With the engine of the audio equipment switches off after a few minutes of use.	When the engine is switched off, the audio equipment operating tin depends on the battery chargeThe switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's batter	Start the vehicle's engine to increase the batte charge.
The message "the audi system is overheated" appears on the display	In order to protect the installation if the surrounding temperature is to high, the audio equipment switches to an automatic thermal protective mode leading to a reduction of the volume or stopping of the playir of the CD.	Switch the audio system off for a few minutes allow the system to cool

MyWay

MULTIMEDIA AUDIO EQUIPMENT/BLUETOOTH TELEPHONE

GPS EUROPE BY SD CARD

The MyWay is protected in such a way that it will operate in your vehicle. If it is to be installed in another vehicle, contact a CITROËN dealer for configuration the system.

For safety reasons, it is imperative that the driver carries out operations which require prolonged attention while the vehicle is stationary

When the engine is switched off and to preve discharging of the battery, the MyWay switches c following the activation of the Energy Economy mode

Certain functions described in this handbook will become available during the course of the year

CONTENT:

• 01 First steps pg. 9.22
• 02 General operation pg. 9.24
• 03 Navigation - Guidance pg. 9.26
• 04 Traffic information pg. 9.33
• 05 Radio pg. 9.34
• 06 Music media players pg. 9.35
• 07 Bluetooth telephone pg. 9.38
• 08 Configuration pg. 9.40

• 09 Control short-cuts pg. 9.42

• 10 Display flow charts pg. 9.43

- Frequently asked questions pg. 9.46

01 FIRST STEPS

MyWay CONTROL PANE

Diagram of a car steering wheel with two blades, no text or symbols present

FIRST STEPS 01

MyWay CONTROL PANE

Engine not running

• Short press; on/off.
• Long press: CD pause, mute for the radio.
  Engine running
• Short press: CD pause, mute for the radio.

• Long press: reinitialisation of the system.

• Volume adjustment.

3 - 4 Long press: access to the audio settings: front/rear an left/right balance, bass/treble, equalizer, loudness, automat volume adjustment, initialise the settings
3 Access to the "Radio" Menu. Display the list of stations.
4. Access to the "Music" Menu. Display the tracks.

5 Access to the "SETUP" Menu.
Long press: access to the GPS coverage and the demonstration mode
6 Access to the "Phone" Menu. Display the call list.
7 Access to the "MODE" Menu Selection of the successive display of: Radio, Map, NAV (if navigation is in progress), Telephone (if a conversation is in progress), Trip Computer Long press: display of a black screen (DARK).
8 Access to the "Navigation" Menu. Display the last destinations.
9 Access to the "Traffi c" Menu. Display the current traffi c alerts

1 ESC: abandon the operation in progress

1 CU eject.

1: Selection of the previous/next radio station from the list Selection of the previous/next CD. Selection of the previous/next MP3 directory. Selection of the previous/next page of a list.
1: Selection of the previous/next radio station Selection of the previous/next CD or MP3 track. Selection of the previous/next line of a list.
1. Buttons 1 to 6 Selection of the stored radio station Selection of the CD in the CD changer. Long press: store the current radio station.
1! SD card reader.
11 Dial for selection of the screen display and according to the context of the menu Short press: confirmation.

Press the MODE button several times in succession for access to the following men

RADIO / MUSIC MEDIA PLAYE

TELEPHONE (If a conversation is in progress

TRIP COMPUTER

FULL SCREEN MA

NAVIGATIO (If guidance is in progress

SETUF

system language, date and time, display vehicle settings, unit and system settings, "Dem mode".

TRAFFIC

TMC information and messages

For cleaning the screen, the use of a soft, non-abrasive clo (spectacles cloth) is recommended, with no additional product

For a detailed global view of the menus available, refer to section 10.

DISPLAY ACCORDING TO THE CONTEX

A press on the OK dial gives access 1 short-cut menus according to the display on the screen.

NAVIGATION (IF GUIDANCE IS IN PROGRESS)

ABORT GUIDANCI

REPEAT ADVICI

BLOCK ROA[

ROUTE INFO

SHOW DESTINATION!

TRIP INFO

Route typ

AVOII

Satellite

ZOOM/SCROLI

VOICE ADVICI

ROUTE OPTIONS

TRIP COMPUTER

ALERT LOC

STATUS OF FUNCTION

TELEPHONE

END CALI

HOLD CALI

DIAL

DTMF-TONE:

PRIVATE MODI

MICRO OFF

MUSIC MEDIA PLAYER:

TRAFFIC INFO (TA

PLAY OPTIONS

NORMAL ORDEF

RANDOM TRACK

REPEAT FOLDEF

SCAN

SELECT MUSIC

RADIC

IN FM MOD

TRAFFIC INFO (TA

RDS

RADIOTEX ^TM

REGIONAL PROG

AN

IN AM MOD

TA

REFRESH AM LIS

ABORT GUIDANCE/RESUME GUIDANC

SET DESTINATION

POIS NEARBY

POSITION INFO

MAP SETTINGS

ZOOM/SCROLI

Insert the SD card in the front panel reader and leave it there to use the Navigation functions.

The navigation SD card data must not be modified

Map data updates are available from CITROEN dealer

1

Press the NAV buttor

4

Select the "Address input" functio and press the dial to confi rn

ADDRESS INPUT

The image is too blurry to recognize any text content.

The list of the last 20 destinations appears under the "Navigation" Menu function.

5

Once the country has been selected turn the dial and select the town function. Press the dial to confirm

2

Press the NAV button again or select the "Navigation" Menu function and press the dial to confirm

"NAVIGATION" MEN!

6

Select the letters of the town one t one confi rming each time by pressin the dial.

3

Select the "Destination input" functic and press the dial to confirm

DESTINATION INPU

A pre-set list (by entering the first few letters) of the towns in the country selected can be accessed via the LIST butto on the virtual keypad.

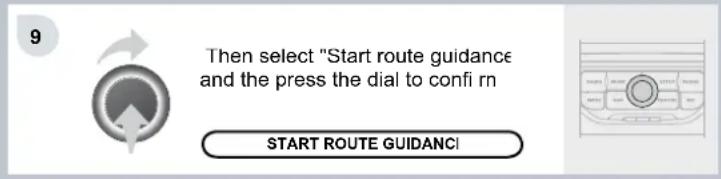

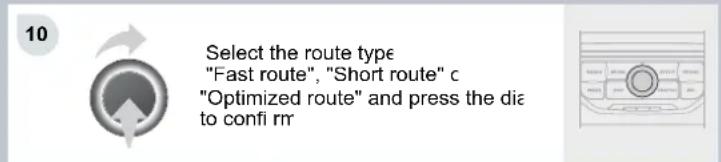

The route selected by the MyWay audio/telephone depends directly on the route option. Changing these options may change the route complete

1

Press the NAV buttor

2

Press the NAV button again or select the "Navigation" Menu function and press the dial to confirm

"NAVIGATION" MEN!

3

Select the "Route options" function and press the dial to confirm

ROUTE OPTIONS

4

Select the "Route type" function an press the dial to confirm. This function allows you to change the route type

ROUTE TYPE

5

Select the "Route dynamics" function This function gives access to th "Traffi c independent" or "Serr dynamic" options

ROUTE DYNAMICS

6

Select the "Avoidance criteria function. This function provides access to the AVOID option (motorways, toll roads, ferries)

AVOIDANCE CRITERIA

7

Turn the dial and select th "Recalculate" function to take into account the route options selected Press the dial to confirm

RECALCULATI

ADDING A STOPOVE

Stopovers can be added to the route once the destination has been select

1

Press the NAV buttor

2

Press the NAV button again or select the "Navigation" Menu function and press the dial to confirm

"NAVIGATION" MEN!

3

Select the "Stopovers" function an press the dial to confirm

STOPOVERS

4

Select the "Add stopover" functio (5 stopovers maximum) and press the dial to confi rr

ADD STOPOVEF

5

Enter a new address, for example

ADDRESS INPUT

6

Once the new address has bee entered, select OK and press the dia to confi rm

OK

7

Select "Recalculate" and press th dial to confirm

RECALCULATI

#

The stopover must be completed or deleted in order for the guidance to continue to the next destination. Otherwise, the MyWay will always return you to the previous stopover

SEARCHING FOR POINTS OF INTERES

The points of interest (POIs) indicate all of the service locations in the vicinity (hotels, various businesses, airports...)

1

Press the NAV button

2

Press the NAV button again or select the "Navigation" Menu function and press the dial to confirm

"NAVIGATION" MENI

3

Select the "POI search" function and press the dial to confirm

POI SEARCH

4

Select the "POI nearby" function 1 search for POIs around the vehicle

POI NEARBY

5

Select the "POI near destination function to search for POIs near the point of arrival of the route

POI NEAR DESTINATION

6

Select the "POI in city" function I search for POIs in the city required. Select the country then enter the name of the city using the virtual keypad.

POI IN CII

A list of cities present in the country selected can beccessed via the LIST button on the virtual keypad

7

Select the "POI in country" functic to search for POIs in the country required

POI IN COUNTR

8

Select the "POI near route" function 1 search for POIs near the route

POI NEAR ROUT

03 NAVIGATION - GUIDANCI

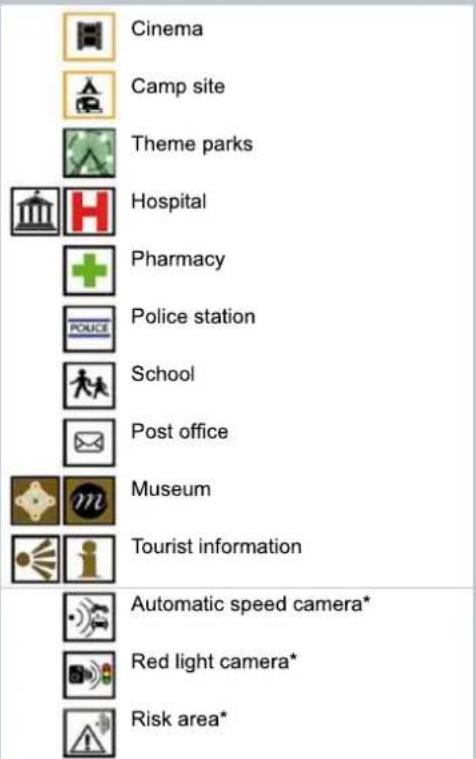

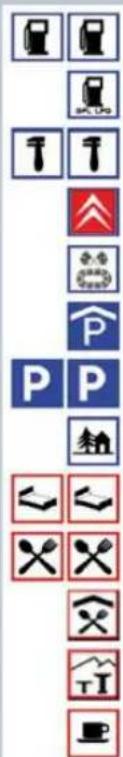

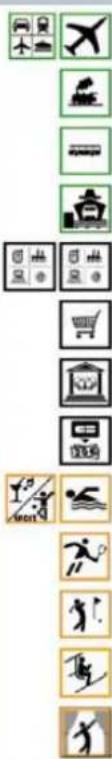

List of POIs

This icon appears when several PO are grouped together in the same area. Zooming in on this icon shows details of

the POIs

Service station

LPG station

Garage

CITROËN

Motor racing circuit

Covered car park

Car park

Rest area

Hotel

Restaurant

Refreshment area

Picnic area

Cafeteria

Airport

Railway station

Bus station

Port

Industrial estate

Supermarket

Bank

Vending machine

Swimming pool

Tennis court

Golf course

Winter sports resort

Theatre

According to availability in the coun

Contact a CITROËN dealer for details of the procedure for obtaining the RISK AREA PC Updating of the RISK AREA POIs requires an SDHC (High Capacity) compatible reac

1

Press the NAV button

2

"Press the NAV button again or select the "Navigation" Menu function and press the dial to confirm

"NAVIGATION" MEN!

3

Select the "Settings" function an press the dial to confirm
SETTINGS

4

Select the "Navi volume" function ar turn the dial to set the volume of each voice synthesiser (traffic information alert messages...).
NAVI VOLUME

5

Select the "POI categories on Map function to select the POIs to be displayed on the map by default
POL CATEGORIES UN MA

6

Select "Set parameters for risk areas to gain access to the "Display or map", "Visual alert" and "Sound alert functions
SET PARAMETERS FOR RISK AREA

04 TRAFFIC INFORMATIO

CONFIGURE THE FILTERING AN DISPLAY OF TMC MESSAGES

1

Press the TRAFFIC buttor

The image contains a graphical symbol resembling a light bulb or a sun, with no readable text or mathematical content. Therefore, no OCR output can be generated.

The list of TMC messages appears under the "Traffic" Menu sorted in order of proximity

2

Press the TRAFFIC button again c select the "Traffi c" Menu function ar press the dial to confi rr

"TRAFFIC" MENT

i

The TMC icon, at the bottom left of the screen, may appear in 3 different forms

No TMC station availab

• TMC station available, no message on route,
• TMC station available and messages on route (if guidance is active)

The filters are independent and their results are cumulative

We recommend a filler on the route and a filler around the vehicle.

• 2 miles (3 km) or 3 miles (5 km) for a region with heavy tra
• 6 miles (10 km) for a region with normal traf
• 30 miles (50 km) for long journeys (motorwa

3

Select the fi Iter of your choic

MESSAGES ON ROUTE

ONLY WARNINGS ON ROUT

ALL WARNING MESSAGE:

ALL MESSAGES

The messages appear on the ma and on the list. To exit, press ESC

4

Select the "Geo. Filter" function an press the dial to confirm

GEO. FILTEI

5

Then select the radius of the filter (miles (km)) required in accordance with the route, press the dial to confirm

When all of the messages on the route are selected, the addition of a geographical fi-iter is recommended (within a radius of 3 miles (5 km) for example) to reduce the number of messages displayed on the map. The geographical fi-iter follows the movement of the vehicle

05 RADIO

SELECTING A STATIO

1

Press the RADIO button to display the list of stations received locally sorted in alphabetical order Select the station required by turning the dial and press to confirm

#

While listening to the radio, press one of tr buttons to select the previous or next station of the list

#

A long press of one of the buttons starts it automatic search for a station with a lower c higher frequency.

#

Press one of the buttons on the numeric keypad for more than 2 seconds to store the current station Press the button on the numeric keypad to recall the stored radio station.

The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS following mode. This phenomenon is a normal result of the way in which radio waves are transmitted and does not in any way indicate a failure of the audio equipment.

RDS - REGIONAL MODE - TRAFFIC INFO

1

When the current radio station i displayed on the screen, press the dial.

2

The radio source short-cuts menu appears and proves access to the following short-cuts

TRAFFIC INFO (TA

RDS

RADIOTEX

REGIONAL PROG

AN

3

Select the function required and pres the dial to confirm to gain access i the corresponding settings

[Non-Text]

The RDS, if displayed, allows you to continue listening to the same station by automatic retuning to alternative frequencies. However, in certain conditions, coverage of an RDS station may not be assured throughout the entire country as radio stations do not cover 100% of the territory. This explains the loss of reception of the station during a journey

If the GPS is used, the navigation SD card must remain in the MyWay read. In this case, it is not possible to play an SD card containing MP3 fi I

The MP3 format, an abbreviation of MPEG 1,2 & 2.5 Audio Layer 3 and the WMA format, an abbreviation of Windows Media Audio and the property of Microsoft, are audio compression standards which permit the recording of several tens of music files on a single disc.

In order to be able to play a recorded CDR or CDRW, when recording it is preferable to select the ISO 9660 level 1, 2 or Joliet standard.

If the disc is recorded in another format it may not be played correctly

It is recommended that the same recording standard is always used for an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality

In the particular case of a multi-session CD, the Joliet standard is recommended.

The MyWay will only play audio files with the extension ".mp3" with a speed of between 8 Kbps and 320 Kbps and the extension ".wma" with a speed of between 5 Kbps and 384 Kbps It also supports the VBR (Variable Bit Rate) mod No other type of fi le (.mp4, .m3u...) can be play€

It is advisable to restrict file names to 20 characters, without using of special characters (e.g.: " " ?; ù) to avoid any playing and displaying problems.

During play, exit the SD Card mode before removing the SD card from its reader

To avoid any risk of theft, remove the SD card when you leave your vehicle with the roof open

SELECTING/PLAYING MUSIC CD, MP3/WMA CD, MP3/WMA SD CARD

1

Press the MUSIC buttor

!

The list of tracks or MP3/WMA files appears under "Music" Menu.

2

Press the MUSIC button again o select the "Music" Menu function and press the dial to confi rr

"MUSIC" MENL

3

Select the "Select music" SELEC MUSIC function and press the dial to confirm

SELECT MUSIK

4

Select the music source required CD, MP3/WMA CD, MP3/WMA SICARD... Press the dial to confirm Play begins

5

Press the up or down button to select the next/previous folder

6

Press one of the buttons to select music track Press and hold one of the buttons for fast forward or rewind play

#

The playing and displaying of an MP3/WMA compilation may depend on the recording programme and/or the settings used. We recommend the ISO 9660 file standard

Connect the portable equipment (MP3/WMA player...) to the audio sockets (white and red, RCA type) in the glove box using a JACK/RCA audio cable

2

Press the MUSIC button then pres it again or select the "Music" Men function and press the dial to confirm

3

Select the "External device" functio and press the dial to activate il

EXTERNAL DEVICI

4

Select the AUX music source an press the dial to confirm. Play begin automatically

!

The display and management of the controls is via the portable equipment.

CD CHANGER

PLAYING A CD (NOT MP3/WMA COMPATIBLE

1

Insert one or more CDs in th changer. Press the MUSIC button

2

Press the MUSIC button again c select the "Music" Menu function and press the dial to confi rn

"MUSIC" MENL

3

Select the "Select music" function ar press the dial to confi rn

SELECT MUSIC

4

Select the "Changer" music sourc and press the dial to confi rn

CHANGEF

5

Press one of the buttons on the numeric keypad to select the corresponding CD

07 BLUETOOTH TELEPHONE

CONNECTING A TELEPHON

!

For reasons of safety and because they require prolonged attention on the part of the driver, the operations for pairing the Bluetooth mobile telephone to the hands-free system of the MyWay must be carried out with the vehicle stationary. The ignition must be on.

1

Activate the telephone's Bluetooth function The last telephone connected is reconnecte automatically

2

Press the PHONE buttor

The list of telephones connected previously (4 maximum) appears on the multifunction screen. Select the telephone required for a new connection.

The services available depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Refer to your telephone's manual and your operator to check which services you have access to. A list of mobile telephones which offer the best range of services is available from dealers.

3

For a first connection, sele

"Search phone" and press the dial to confirm. Then select the name of the telephone.

SEARCH PHONI

4

Enter the authentication code on the telephone. The code to be entered i displayed on the screen

i

Once the telephone has been connected, MyWay ce synchronise the address book and the call list. This synchronisation may take a few minutes.

1

To change the telephone connected press the PHONE button, then select "Phone" Menu and press the dial to confirm

2

Select "Connect phone". Select th telephone and press to confi rr

CONNECT PHONE

RECEIVING A CAL

1

An incoming call is announced by a ring and a superimposed display on the multifunction screen

2

Select the "Yes" tab to accept or "No" to refuse and confirm by pressing the dial.

YES

NO

3

To hang up, press the PHONE butto or press the dial and select "End call then confi rm by pressing the dia

END CAL

#

Press the end of the steering mounted control accept the call or end the call in progress

MAKING A CAL

1

Press the PHONE button

[Non-Text]

The list of the last 20 calls made and received in the vehicle appears under "Phone" Menu. You can select a number and press the dial to make the call

2

Select the "Phone" Menu function an press the dial to confirm

3

Select "Dial number", then dial th telephone number using the virtual keypad.

DIAL NUMBER

[Non-Text]

It is also possible to select a number from the address book. You can select "Dial from address book". The MyWay permits the recording of up to 4 000 entries

[Non-Text]

Press the end of the steering wheel control for more than two seconds to gain access to the address bool

08 CONFIGURATION

SETTING THE DATE AND TIM

This function gives access to the options: System language, Date & Time, Display (Brightness, Colour, Map colour), Vehicle, Units, System

1

Press the SET UP button

2

Select the "Date & Time" function ar press the dial to confi rr

3

Select the "Set date & time" functic and press the dial to confirm

DATE & TIMI

4

Set the parameters one by one using the direction arrows and confirm means of the dial

5

Select the "Date format" function an press the dial to confirm

6

Confir rm the format required usir the dial.

Select the "Time format" function an press the dial to confirm

Confir rm the format required using the di Pressing the SET UP button for more than 2 seconds gives access to:

DESCRIPTION OF THE UNI

GPS COVERAGE

DEMO MODI

TRIP COMPUTER/VEHICLE PARAMETERS

TRIP COMPUTE

A FEW DEFINITION

Press the MAIN button or pres the MODE button several times in succession until the trip computer is displayed.

- The "vehicle" ta

The range, the current consumption and the distance remaining
- The "1" (trip 1) tab wit The average speed, the average consumption and the distance travelled calculated over route "1"
- The "2" (trip 2) tab with the sar functions for a second route

Each press of the button at the end of the wip stalk displays the different trip computer information in succession, according to the screer

Range displays the distance which can travelled with the remaining fuel detected in the tank, based on the average fuel consumption over the last few miles (kilometres).

This displayed value may vary significantly following a change in the vehicle speed or the relief of the route

When the range falls below 20 miles (30 km), dashes are displayed. After filling with at least 5 litres of fuel, the range is recalculated and is displayed when it exceeds 60 miles (100 km

If, whilst driving, dashes are displayed continuously in place of the digits, contact a CITROËN dealer

Current fuel consumption only calculated and displayed above 20 mph (30 km/h)

Average fuel consumption this is the average fuel consumption since the last trip computer zero reset

Distance travel calculated since the last trip computer zero reset.

Distance remaining to the destination calculated with reference to the final destination, entered by the user. If guidance is activated, the navigation system calculates it as a current value

Average speed: this is the average speed calculated since the last trip computer zero reset (ignition on.

09 CONTROL SHORT-CUTS

STEERING WHEEL CONTROLS

RADIO: selection of the next stored static MP3/WMA SD CARD: selection of the next director CD CHANGER: selection of the next CE Selection of the next entry in the address boo

RADIO: selection of the previous stored station. MP3/WMA SD CARD: selection of the previous directory CD CHANGER: selection of the previous CI Selection of the previous entry in the address boo

RADIO: change to the next radio station on the lis
Long press: automatic search for a higher frequenc
CD/MP3 SD CARD/CD CHANGER: selection of the next trac
CD/MP3 SD CARD/CD CHANGER: continuous press: fast forward pla

Volume increase

• Change the sound source
• Make a call from the address box
• Pick up/Hang up the telephor
• Press for more than 2 second access to the address book

Volume decrease

Mute: by pressing the volume increase and decrease buttons simultaneously

Restore the sound: b pressing one of the two volume buttons

RADIO: change to the previous radio station on the li: Long press: automatic search for a lower frequenc CD/MP3 SD CARD/CD CHANGER: selection of the previous trac CD/MP3 SD CARD/CD CHANGER: continuous press: fast backward pla

10 SCREEN MENU MAP

1 MAIN FUNCTIO

2 CHOICE

3 CHOICE A

3 CHOICE A

2 CHOICE B.

"TRAFFIC" MEN

MESSAGES ON ROUT

ONLY WARNINGS ON ROUT

ALL WARNING MESSAGE:

ALLMESSAGE:

GEO. FILTEF

Within 2 miles (3 kr

Within 3 miles (5 k

Within 6 miles (10 k

Within 30 miles (50 k

Within 60 miles (100 km)

"MUSIC" MEN

2 SELECT MUSI

SOUND SETTING:

3 Balance/Fade

3 Bass/Trebl

3 Equalize

4 Linea

4 Classi

1. Jazz

4 Rock/Pop

4 Techni

4 Voca

3 Loudness

3 Speed dependent volum

2 Reset sound setting

"RADIO" MEN

WAVEBAN

3 FN

3 AN

2 MANUAL TUN

2 SOUND SETTING:

3 Balance/Fade

3 Bass/Trebl

3 Equalize

4 Linea

4 Classi

Jaz:

4 Rock/Pop

4 Techni

4 Voca

3 Loudnes

3 Speed dependent volun

3 Reset sound setting

1	"NAVIGATION" MEN
2	ABORT GUIDANCE/RESUME GUIDANCE
2	DESTINATION INPU
3	Address input
	Country
	City
	Stree
	House numbe
	Start route guidanc
	Postal codi
	Save to address boo
	Intersection
	City district
	Geo position
	Mar.
3	Navigate HOME
3	Choose from address boo
3	Choose from last destination
2	TMC STATION INFORMATION

2	STOPOVER
3	Add stopovei
4	Address input
4	Navigate HOMt
4	Choose from address boo
4	Choose from last destination
3	Rearrange route
3	Replace stopovei
3	Delete stopovei
3	Recalculate
4	Fast route
4	Short route
4	Optimized route
2	POI SEARC
3	POI nearby
3	POI near destination
3	POI in city
3	POI in country
3	POI near route

2	ROUTE OPTION
3	Route typi
4	Fast rout
4	Short route
4	Optimized rout
3	Route dynamic
4	Traffl c independe
4	Semi-dynami
3	Avoidance criteri
4	Avoid motorway
4	Avoid toll road
4	Avoid terrie
3	Recalculate
2	SETTING:
3	Navi volum
3	POI categories on Map

"PHONE" MEN

DIAL NUMBE

DIAL FROM ADDRESS BOO

CALL LISTS

CONNECT PHONE

Search phone

Phones connecte

Disconnect phone

Rename phone

Delete pairing

Delete all pairings

Show details

SETTING

Select ring ton

Phone/Ring tone volum

Enter mailbox numbe

"SETUP" MEN

SYSTEM LANGUAG

Deutsch

Enqlisl

Espano

Français

Italiano

Nederland:

Polsk

Portugues

DATE & TIM

Set date & tim

Date forma

Time forma

DISPLA

Brightness:

Colou

Pop titaniur

Toffei

Blue steel

Technogre

Dark blue

Map colour

4 Day mode for ma

4 Night mode for maj

4 Auto. Day/Night for ma

VEHICLI

Vehicle informatio

Alert log

4 Status of function

UNIT

Temperature

Celsius:

4 Fahrenheit

Metric/Imperia

4 Kilometres (Consumption: I/100

4 Kilometres (Consumption: km/

Miles (Consumption: MPG

SYSTEM

Factory rese

Software version

Automatic scrolling

FREQUENTLY ASKED QUESTIONS

The table below groups together the answers to the most frequently asked questions concerning the MyWay.

QUESTION	ANSWEF	SOLUTION
There is a difference in sound quality between the different audio sources (radio, CD CD changer...)	For optimum sound quality, the audio settings (Volume, Bass, Treb Ambience, Loudness) can be adapted to the different sound source which may result in audible differences when changing source (radio CD, CD changer...)	Check that the audio settings (Volume, Bas Treble, Ambience, Loudness) are adapted t the sources listened to. It is advisable to se the AUDIO functions (Bass, Treble, Front-Rea Balance, Left-Right Balance) to the middl position, select the musical ambience "Linear and set the loudness correction to the "Active position in CD mode or to the "Inactive" positio in radio mode
The CD is ejecte automatically or is no played by the player	The CD is inserted upside down, is unplayable, does not contain any auc data or contains an audio format which the player cannot pla The CD is protected by an anti-pirating protection system which is r recognised by the audio equipment	- Check that the CD is inserted in the player right way up - Check the condition of the CD: the CD canr be played if it is too damaged - Check the content in the case of a record CD: consult the advice in the "Audio" sector - The audio equipment's CD player does r play DVDs. - Due to inadequate quality, certain record CDs will not be played by the audio system - The CD changer does not play MP3 CD
The CD player soun is poor	The CD used is scratched or of poor qualit	Insert good quality CDs and store them i suitable conditions.
	The audio equipment settings (bass, treble, ambiences) are unsuitab	Set the treble or bass level to 0, without selectir an ambience.
The quality of reception of the radio station listened to gradually deteriorates or the stored stations dc not function (nc sound, 87.5 Mhz is displayed...)	The vehicle is too far from the transmitter used by the station listened to there is no transmitter in the geographical area through which the vehic is travelling.	Activate the "RDS" function to enable the syste to check whether there is a more powerft transmitter in the geographical area
	The environment (hills, buildings, tunnels, basement car parks...) blo reception, including in RDS mode	This phenomenon is normal and does no indicate a failure of the audio equipmen
	The aerial is absent or has been damaged (for example when goir through a car wash or into an underground car park.	Have the aerial checked by a CITROËN deale
Sound cut-outs of to 2 seconds in radic mode.	During this brief sound cut-out, the RDS searches for any frequen permitting better reception of the statior	Deactivate the "RDS" function if the phenomenc is too frequent and always on the same route
With the engine of the audio equipment switches off after a few minutes of use.	When the engine is switched off, the audio equipment operating tin depends on the battery chargeThe switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's batter	Start the vehicle's engine to increase the batte charge.
The "TA" box is ticked. However, certain traffi jams along the route are not indicated in rea time.	On starting, it is several minutes before the system begins to receive tl traffi c information	Wait until the traffi c information is being receiv correctly (displaying of the traffi c informatic symbols on the map)
	In certain countries, only major routes (motorways, ...) are listed for tl traffi c information	This phenomenon is normal. The system dependent on the traffi c information availabl
The time taken to calculate a route sometimes seems longer than usual	The performance of the system may slow down temporarily if a CD being copied onto the Jukebox at the same time as a route is bein calculated.	Wait until the CD has been copied or stop tr copying before starting the guidance function
The altitude is nc displayed.	On starting, the initialisation of the GPS may take up to 3 minutes receive more than 4 satellites correctly	Wait until the system has started up completel Check that there is a GPS coverage of at least 4 satellites (long press on the SETUP buttor then select "GPS coverage")
	Depending on the geographical environment (tunnel, ...) or the weather the conditions of reception of the GPS signal may var.	This phenomenon is normal. The system dependent on the conditions of reception of th GPS signal.
The route calculation i not successful	The exclusion criteria may conflict with the current location (exclusion toll roads on a toll motorway)	Check the exclusion criteria
There is a long waitir time after inserting a CE or SD card.	When a new medium is inserted, the system reads a certain amount data (directory, title, artist, etc.). This may take a few second	This phenomenon is norma
I cannot connect m Bluetooth telephone	The telephone's Bluetooth function may be deactivated or the equipme may not be visible.	- Check that your telephone's Bluetooth funct is activated.- Check that your telephone is visible.
