USER MANUAL Camping Cot 96122 Adventuridge

Two open camping tables in green and blue shades, displayed against a plain background (no text or symbols on the tables themselves)

CERT! FED hanse control mhansecont.com User-friendly Manual ID: #07177

Contents

Overview ....3

Use....4

Package contents/parts 6

General information....7

Reading and storing the instruction manual ......7

Explanation of symbols ......7

Safety 7

Proper use....7

Safety notes 8

First use....9

Checking the cot and scope of delivery 9

Use....9

Setting up the cot 9

Disassembling the cot....10

Cleaning....10

Storage 11

Technical data 11

Disposal....12

Disposing of packaging 12

Disposing of the cot 12

A 1 2 3 Zur Freigarge V2

Mechanical assembly diagram showing a vertical component with two horizontal supports, each with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical support structure with two vertical supports and a central vertical post (no text or symbols)

Technical line drawing of a mechanical assembly with clamps and a fabric sheath (no text or symbols)

Illustration of a person sitting on a bench with folded fabric, no text or symbols present

Diagram of a mechanical device with a lever and tool, showing internal components and motion direction (no text or symbols)

G KLICK

Illustration of a simple table with legs and a folded seat, no text or symbols present

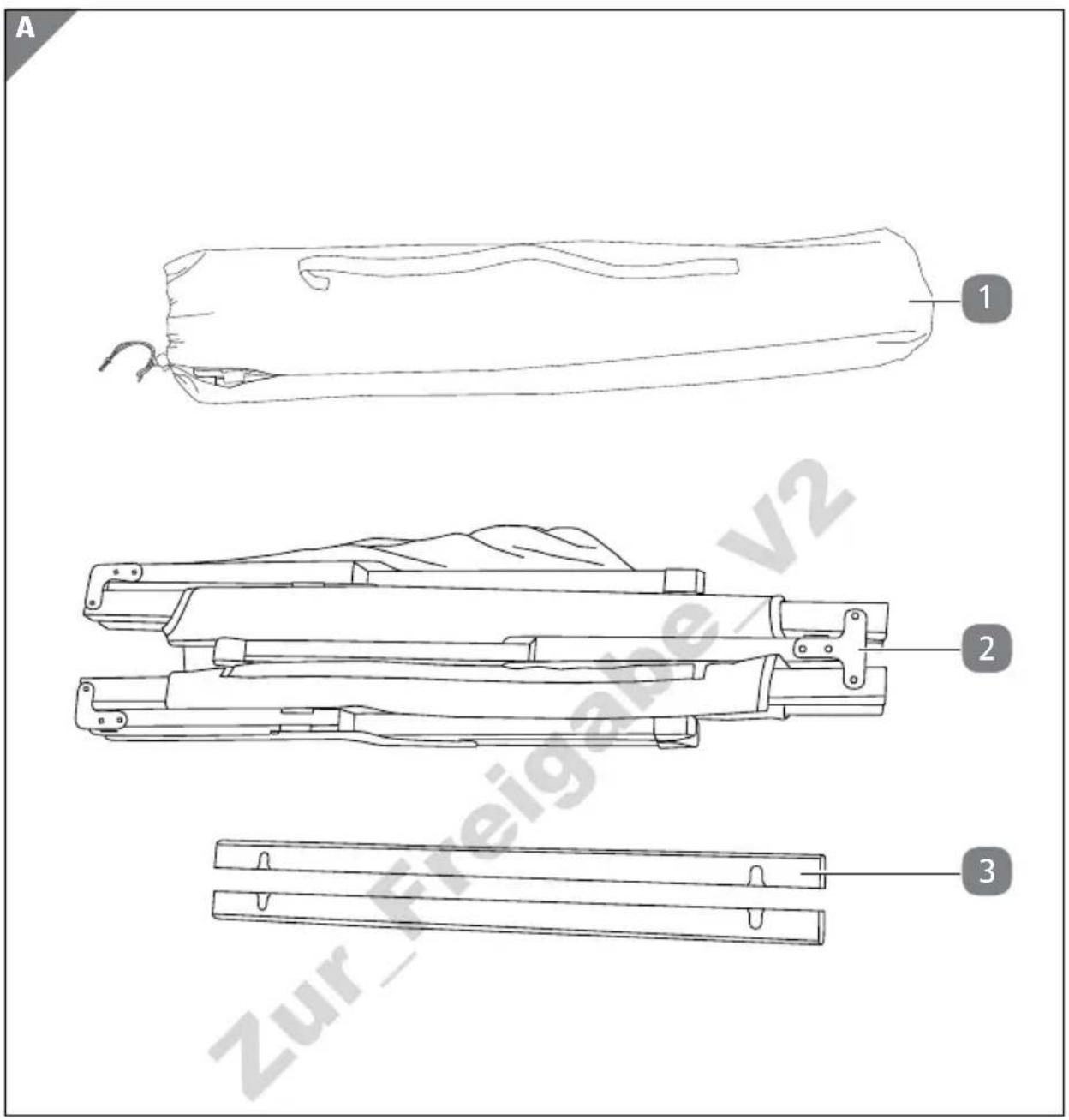

Package contents/parts

1 Storage bag
2 Cot
3 Lateral brace, 2×

IMPORTANT, PLEASE STORE FOR FUTURE REFERENCE: PLEASE READ CAREFULLY

General information

Reading and storing the instruction manual

This user manual accompanies this camping cot (referred to below only as the "cot"). It contains important information on set-up and handling.

Before using the cot, read the instruction manual carefully. This particularly applies for the safety notes. Failure to heed this user

manual may result in severe injury or damage to the cot.

Store the instruction manual for future use. If you pass the cot on to third parties, please be absolutely sure to include this instruction manual.

Explanation of symbols

The following symbols and signal words are used in this instruction manual, on the cot, or on the packaging.

WARNING!

This signal symbol/word designates a hazard with a moderate degree of risk which may lead to death or severe injury if not avoided.

CAUTION!

This signal symbol/word designates a hazard with low risk that, if not avoided, may result in minor or moderate injury.

NOTICE!

This signal word warns against potential damages to property.

Safety

Proper use

The cot is designed exclusively as a sleeping and resting place for camping and leisure activities. The maximum total load may not exceed 265 lbs (120 kg). The cot is only intended for private use and not suitable for commercial purposes.

Only use the cot as described in this instruction manual. Using it in any other way is deemed improper and may result in damage to property or even personal injury. The cot is not a children's toy.

The manufacturer or vendor cannot be held liable for damages incurred

through improper or incorrect use.

Safety notes

WARNING!

Danger of suffocation!

If children play with the packaging material and slip the plastic bags of the packaging or the storage bag over their head, they may suffocate.

• Keep the packaging material as well as the storage bag away from children.
• Never leave the storage bag lying around unattended.

WARNING!

Risk of injury!

Improper set-up and use of the cot may result in injury.

• Set the cot up on a level and nonskid surface.
• Do not stand or jump on the cot. The cot can tip over easily.
• Make sure that children do not play with or on the cot.
• The cot may only be used by one person at a time.
• Do not exceed the cot's load bearing capacity of 265 lbs (120 kg).

WARNING!

Fire hazard!

The cover of the cot consists of a flammable material. If the cot is too close to an intense heat source (e.g. a camp fire), the cover could melt or burn.

- Keep the cot away from fire and other heat sources.

NOTICE!

Risk of damage!

Improper handling of the cot may damage it.

- Shield the cot from weathering effects such as rain, direct exposure to sun or dampness.

First use

Checking the cot and scope of delivery

NOTICE!

Risk of damage!

If you are not cautious when opening the packaging with a sharp knife or other pointy objects, you may quickly damage the cot.

- Be very careful when opening.

1. Take the cot out of the packaging.
2. Check to make sure that the delivery is complete (see Fig. A).
3. Check whether the cot 2 or the individual parts exhibit damages. If this is the case, do not use the cot. Contact the manufacturer at the service address specified on the warranty card.

Use

Setting up the cot

CAUTION!

Risk of injury!

Improper set-up and use of the cot may result in injury.

- When setting up the cot, make sure not to squash your fingers. If possible, wear suitable work gloves.

1. Position the cot 2 'on end' (upright) in front of you and fold the legs of the cot out to the side (see Fig. B).

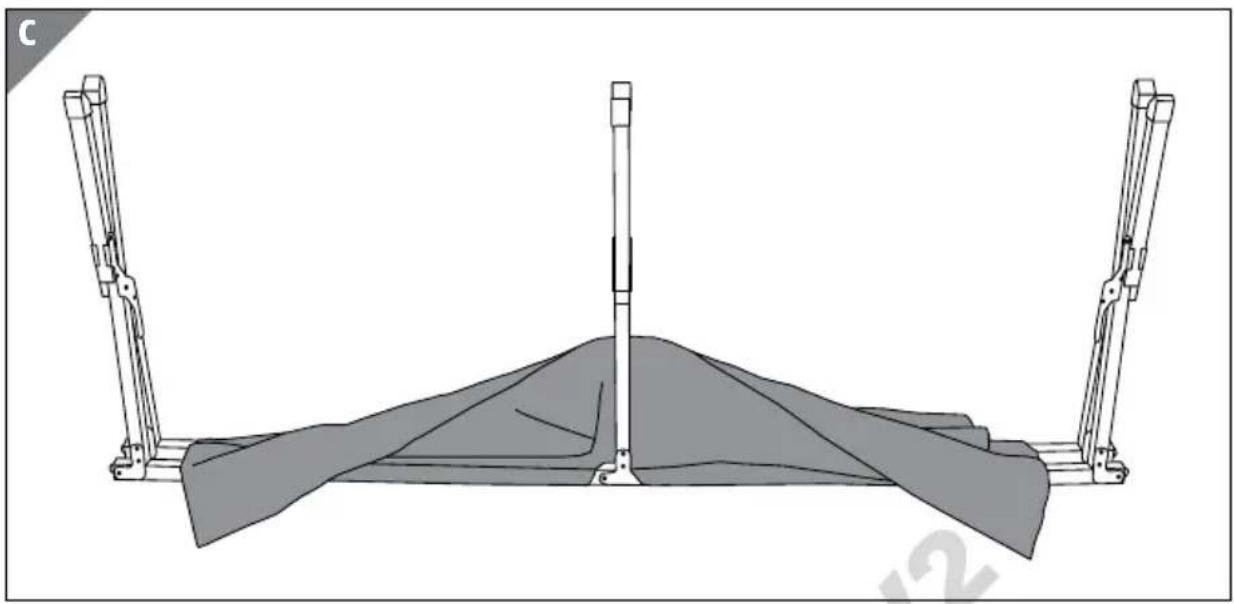

2. Fold the outer legs all the way up (see Fig. C).

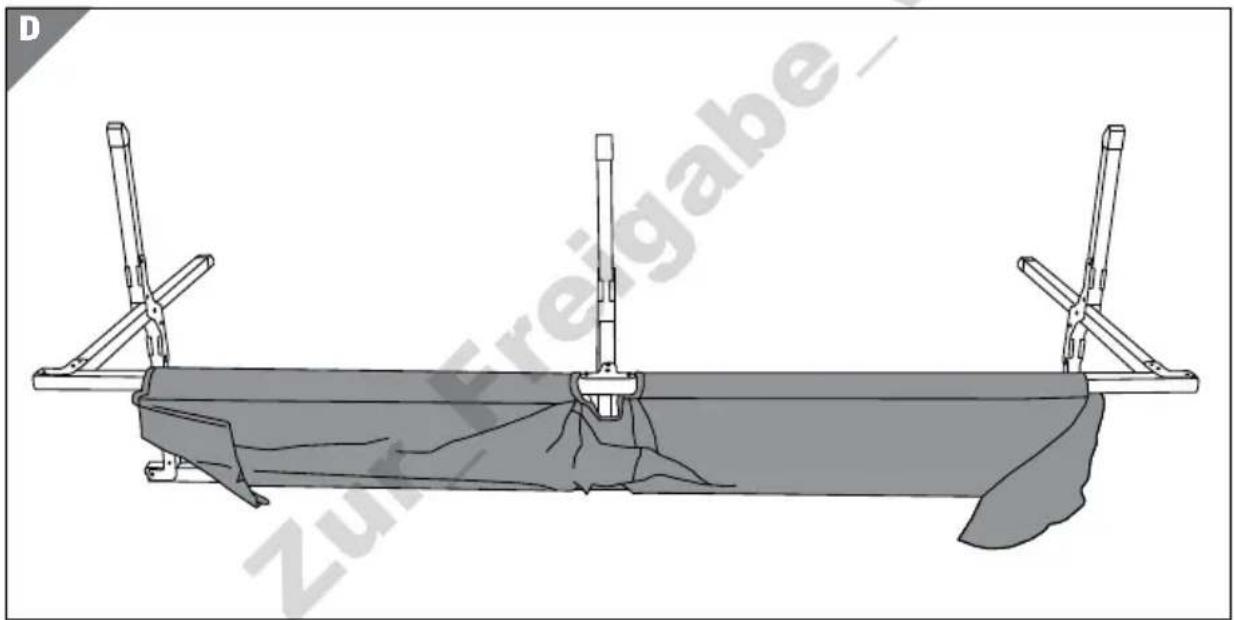

3. Fold out the legs of the cot so that the bed surface is stretched out (see Fig. D).

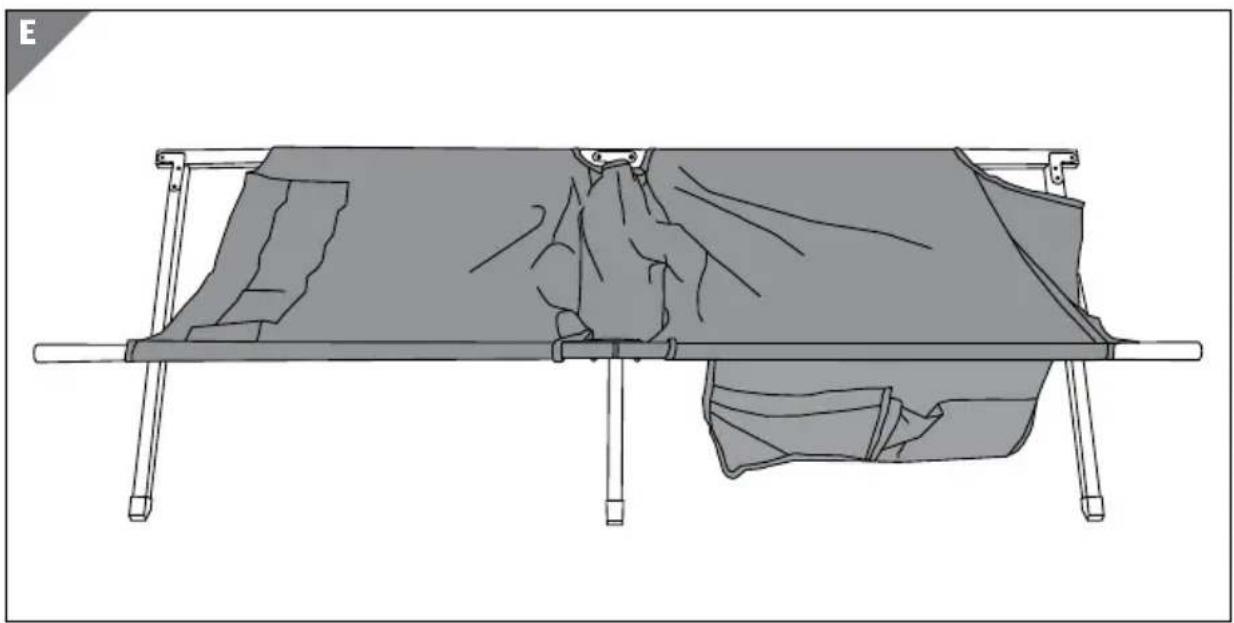

4. Once folded-out, turn the cot over (see Fig. E).

The bed surface is now facing up.

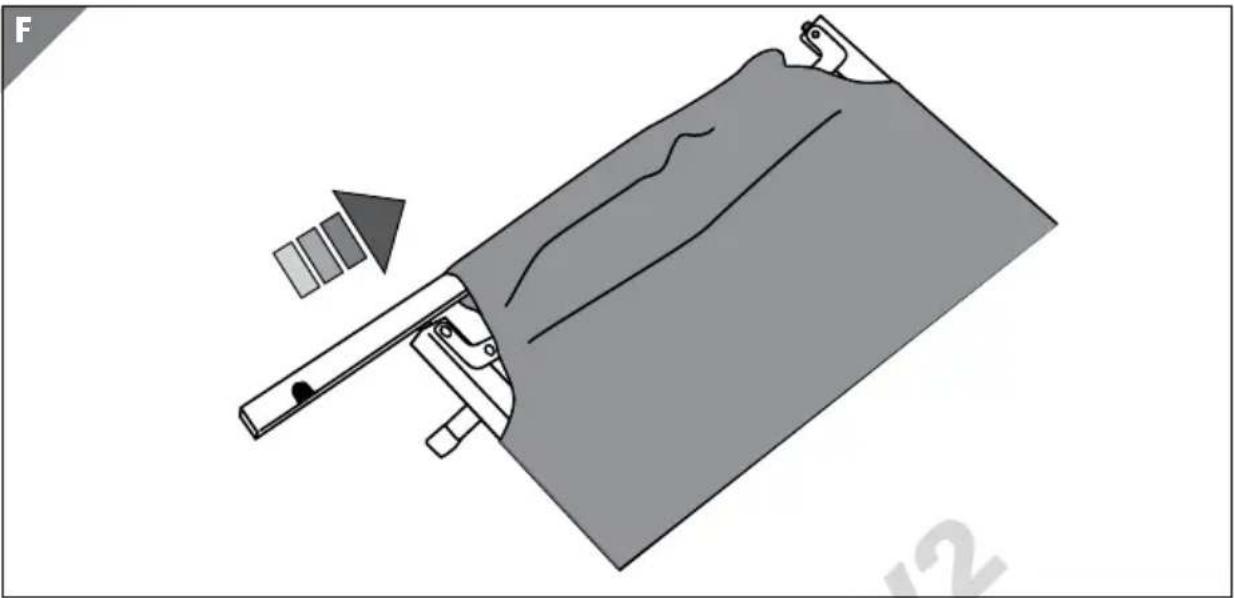

1. Push a lateral brace 3 through its designated loop in the cover at the top and bottom end of the cot. In the process, pay attention to alignment of the notches in the lateral braces to the bed surface (see Fig. F).

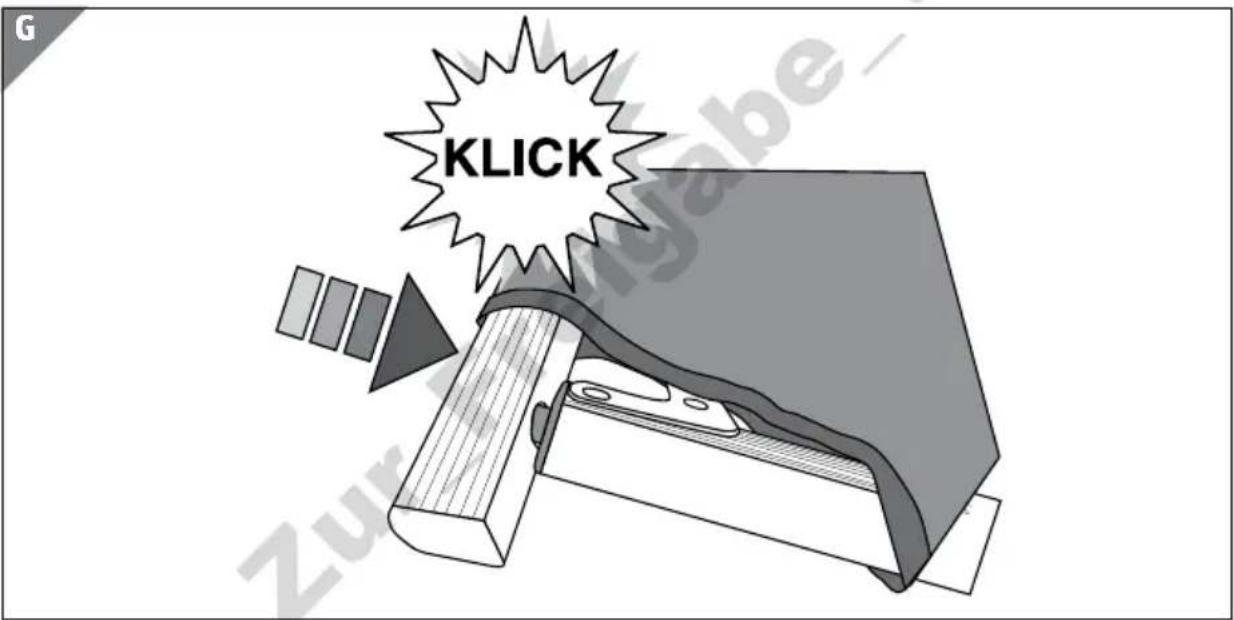

2. Pull the bed surface's cover tight over the lateral braces and anchor the lateral braces' notches into the ducts on the side of the cot's frame (see Fig. G).

You will have to use some force to do so. Make sure that each lateral brace audibly and noticeable locks into place.

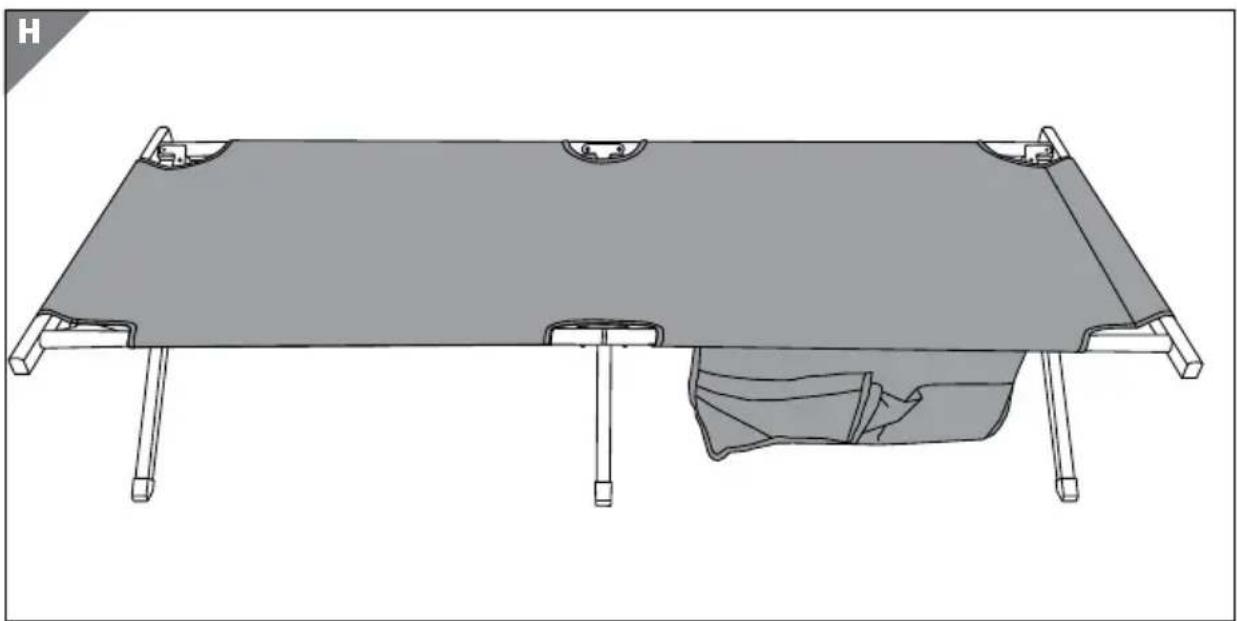

You have successfully set up the cot and can begin using it (see Fig. H).

Disassembling the cot

CAUTION!

Risk of injury!

Improper disassembly and use of the cot may result in injury.

• When taking the cot apart, make sure not to squash your fingers. If possible, wear suitable work gloves.
• Reverse the steps described in the chapter "Setting up the cot" to disassemble the cot.

Cleaning

NOTICE!

Risk of damage!

Improper handling of the cot may damage it.

- Do not use any aggressive cleaners, brushes with metal or nylon bristles, or sharp or metallic cleaning utensils such as knives, hard scrapers and the like. They could damage the surfaces.

1. Dry the cot 2 off with a dry cloth. In case of persistent dirt, use a slightly wet cloth and perhaps a mild detergent.
2. Dry the cot off with a dry cloth.

Storage

All parts must be completely dry before being stored.

• Clean the cot 2 and air it out thoroughly before you store it.
• Store all parts of the cot in the storage bag 1 included in delivery.
• Always store the cot in a dry, frost-free environment inaccessible to children and not exposed to direct sunlight.

Technical data

Model: FLX-CB-01

Article number: 96122

Maximum total load: approx. 265 lbs (120 kg)

Weight incl. storage bag: approx. 18 lbs (8 kg; +/- 5%)

Dimensions (L × W × H)

set up: approx. 74.8 × 29.1 × 16.9'' ( 190 × 74 × 43 cm) folded: approx. 37 × 7.9 × 5.9'' ( 94 × 20 × 15 cm)

Bed surface (W × L): approx. 22 × 72" (57 × 184 cm)

Material

Frame: Lateral brace made from rust-proof aluminum, longitudinal brace made of stainless steel, foot brace made of rust-proof aluminum with steel reinforcement Cover: Polyester with PVC coating

Side pocket (not detachable)

Compartments: 4 compartments, including 1 net pocket Dimensions (W × L): approx. 21.5 × 11" (55 × 27.5 cm) Material: Polyester with PVC coating

This user manual can also be downloaded as a PDF file from our homepage www.aldi.us.

Disposal

Disposing of packaging

- Sort the packaging before you dispose of it. Dispose of paperboard and cardboard with the waste paper and wrappers in the recyclable waste.

Disposing of the cot

• Should the cot no longer be capable of being used at some point in time, dispose of it in accordance with the regulations in force in your city or state.
• Please ensure your recycling information applies to the local regulations and EPA recommendations (www.epa.gov).
