Product Type	2-Slice Toaster
Brand	KORONA
Model	47017
Power Supply	800-1000W, 220-240V, 50/60Hz
Dimensions (approx.)	30 x 20 x 20 cm
Weight (approx.)	1.5 kg
Browning Control	Adjustable browning level with 7 settings
Functions	Cancel, Reheat, Defrost
Bread Guide	Self-centering bread guides for even toasting
Crumb Tray	Removable crumb tray for easy cleaning
High Lift	High lift function for easy removal of small items
Material	Stainless steel and high-quality plastic
Cord Storage	Cord wrap underneath for tidy storage
Safety	Auto shut-off, cool-touch exterior, non-slip feet
Cleaning	Wipe exterior with damp cloth; empty crumb tray regularly
Spare Parts	Contact KORONA customer service for replacement parts
Repairability	Repairs should be done by qualified personnel only
Warranty	2 years manufacturer warranty

Frequently Asked Questions - 47017 KORONA

How do I clean the toaster?

Unplug the toaster and allow it to cool. Wipe the exterior with a damp cloth. Remove and empty the crumb tray regularly. Do not immerse in water.

What should I do if the toaster doesn't turn on?

Check that the power cord is properly plugged in and the outlet is working. If it still doesn't work, contact customer service for assistance.

Can I toast bagels and pastries?

Yes, use the bagel function if available, or simply place them in the slots. For pastries, use a lower browning setting to avoid burning.

How does the defrost function work?

Press the defrost button to toast frozen bread. The toaster automatically adjusts the toasting time to ensure even browning.

What is the reheat function for?

The reheat function warms up already toasted bread without further browning. Simply insert the bread and press the reheat button.

How do I adjust the browning level?

Use the browning control knob to select your preferred level from 1 (light) to 7 (dark). Start with a medium setting and adjust as needed.

Is the toaster safe to use?

Yes, it features auto shut-off to prevent overheating, a cool-touch exterior, and non-slip feet for stability. Always supervise during use.

Can I use the toaster for something other than bread?

It is designed for toasting bread, bagels, and pastries. Do not insert metallic objects, oversized items, or foods with dripping fillings.

What is the high lift function?

The high lift function raises the toast higher for easy removal of small items like English muffins or crumpets.

How do I store the toaster?

Wrap the power cord around the base cord storage. Store in a clean, dry place. Avoid placing heavy objects on top.

USER MANUAL 47017 KORONA

Close-up of a slice of bread with a knife and leaf (no text or symbols visible)

CE

Exterior view of a waffle grill with two side panels showing shell cavities (no text or symbols)

Produktbeschreibung

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is intended and suitable for toasting sandwiches. All other use or modification of the appliance is not intended by the manufacturer and might entail a risk of damage or injury. This appliance is not intended for commercial use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

- Always unplug your appliance when it is not in use, and before cleaning.

- Always pull the plug – not the cord.

- Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.

- Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.

- Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.
• if the appliance was dropped or is damaged otherwise.
  Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.
• Only use accessories evaluated for use with this appliance.
• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, and risk of burns.

• Only use the appliance for its intended purpose and as described in this manual.
• Place the appliance on an even and heat-resistant surface.
• Attention: The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Only use the handle. Danger of serious burns!

- Do not move the appliance during operation.

- Always use a flat wooden or plastic spatula to remove the sandwiches. Never use any sharp or metal objects (e.g. knife, metal spatula, etc.) as they would damage the non-stick coating of the plates.

- Adhere to a safety distance around the appliance.

- Do not use the appliance close to or under inflammable objects, e.g. curtains, wall cabinets

- Always unplug the appliance after use and let it completely cool down before cleaning.

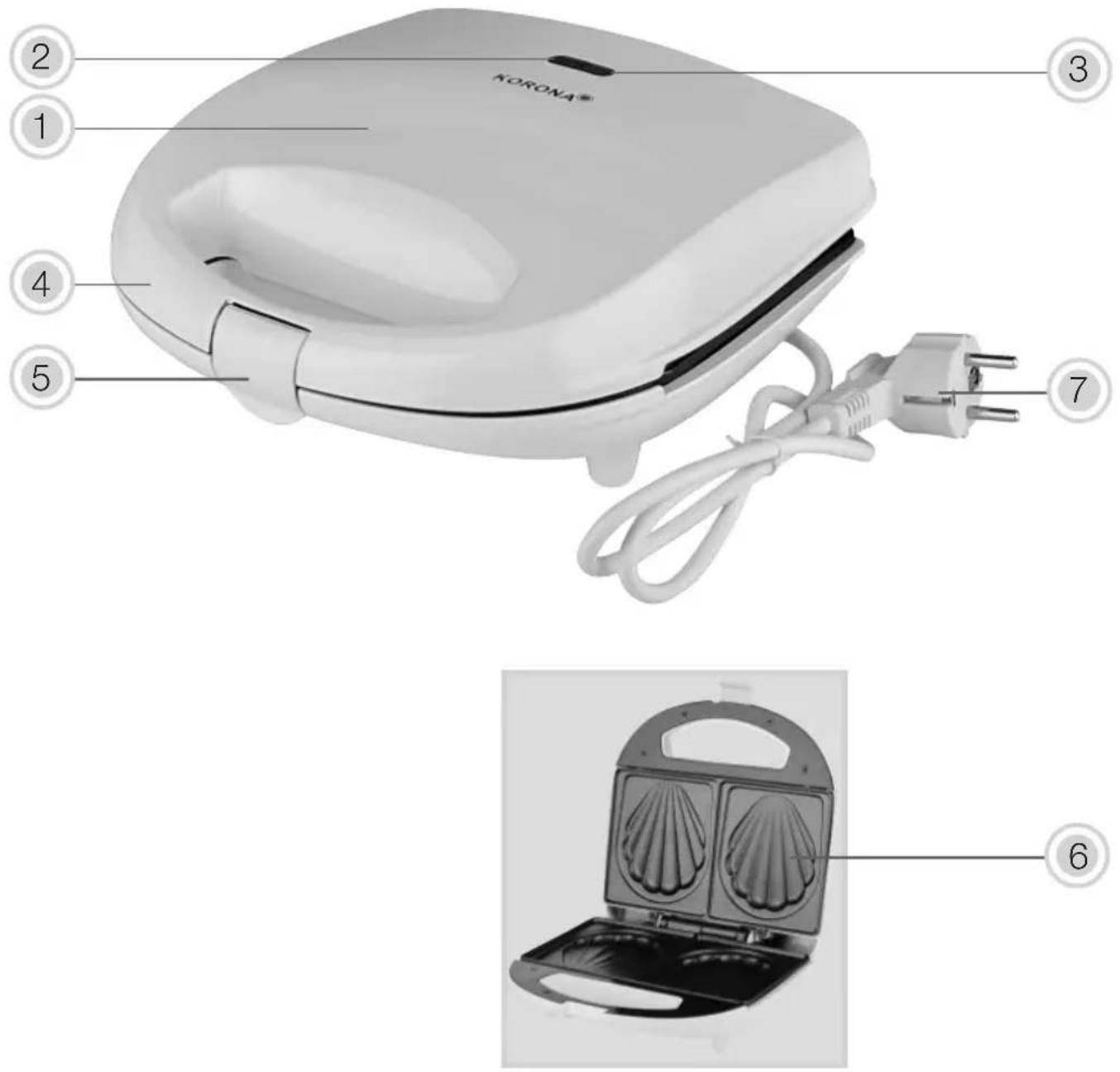

2 1 4 5 3 KORONA® 7 6

Product Description

1. Lid
2. Red indicator light
3. Green indicator light
4. Handle
5. Fastener
6. Toasting plates
7. Power cable and plug

Before First Use

• Remove all packaging material and check whether the appliance is complete.
• Place the appliance on an even, non-slippery and heat resistant surface.
• Fully unwind the power cord (7) and connect the appliance to a properly installed wall socket.

Note: The toasting plates (6) have a protective coating. To remove the protective layers on the heating elements, heat up the toasting plates (6) (without food) for a few minutes.

This could cause a slight build-up of smoke and odour. This doesn't cause any harm nor does it mean that your appliance does not work properly. Make sure that the room is well ventilated!

After this process your sandwich maker is ready for operation.

Warning: Plastic bags are a danger to toddlers and s, therefore keep them away to avoid suffocation.

Operation

The temperature of accessible surfaces may be high g operation. Therefore, do not touch the appliance g and/or immediately after operation.

Tip: Prepare all ingredients in advance before switching on the appliance.

Toasting Sandwiches

1. Connect the appliance to a properly installed wall socket.
2. The red indicator light (2) lights up and the heating process starts.
3. As soon as the necessary temperature is reached the green indicator light (3) lights up as well. Your sandwich maker is now ready for operation.
4. Open the lid (1) of the appliance by pulling the fastener (5) at the handle
   (4) upwards.
5. Place your prepared sandwich into the sandwich maker.

Tip: To guarantee an even browning process grease either the toasting plates with some oil / butter or butter the outside of the resp. bread or toast slices.

1. Close the lid (1) carefully until the fastener (5) locks into place. You will hear a click sound. Your sandwich is now being toasted.
2. After 3 – 4 minutes your sandwich will be ready. Open the appliance and check whether your sandwich is toasted according to your liking.
3. To remove your sandwiches use a wooden or plastic spatula to avoid damage to the non-stick coating of the plates.
4. If you wish to prepare more sandwiches follow steps 3 – 7.
5. After use, disconnect the appliance from the mains and let it completely cool down.

To turn the appliance properly off the power plug must be disconnected from the mains after each use.

During operation, an integrated thermostat switches the appliance on and off to ensure a constant temperature. This is indicated by the green indicator light (3) cycling on and off.

Cleaning and Care

Due to hygienic reasons clean your sandwich maker best after each use, and remove any food residues. Not doing so could possibly result in a hazardous situation.

Before cleaning, always switch off the appliance and disconnect it from the mains. Let it completely cool down. Never immerse the appliance in water. Danger! Electric Shock!

Clean the appliance and the toasting plates (6) with a moistened soft cloth.

Dry the entire appliance and all parts well after cleaning.

Do not use any aggressive cleaning agents and/or other hard objects to clean the appliance.

Storage

Disconnect the appliance from the mains after each use and let it completely cool down.

Keep the appliance away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but – according to the EU directive on Waste Electric And Electronic Equipment of 4th July 2012 – are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your sandwich maker 47017 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240 V \~ 50 / 60 Hz

Rated Power: 700 W

Protection Class: I

Subject to change without notice!

CE

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service

Am Steinbach 8

59872 Meschede-Enste

Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
