Product Type	2-Bike Trunk Rack
Brand	Bikemate
Model	SCT102
Maximum Load Capacity	70 lbs (total)
Maximum Weight per Bike	35 lbs
Number of Bikes	2
Mounting Type	Trunk mount
Material	Steel frame with scratch-resistant foam bumpers
Dimensions (Approx.)	Not specified; suitable for most car trunks
Weight (Approx.)	8-10 lbs (estimated)
Compatible Bike Types	Standard bikes (not tandems or recumbent)
Safety Features	Red security strap, anti-sway cradles, rubber-covered hooks
Straps Included	6 tie-down straps with camlock buckles, 1 red safety strap
Adjustable Locking Hubs	Yes, for tilting bike support arms
Scratch Protection	Foam bumpers on contact points
Warranty	2 years
Usage	On-road use only, not for off-road or trailers
Maintenance	Check straps for wear; clean with damp cloth
Spare Parts Availability	Contact after-sales support
Included Items	Bike support arms, foam bumpers, straps, hooks, red safety strap, warranty card

Frequently Asked Questions - 2-Bike Trunk Rack SCT102 Bikemate

What is the maximum weight capacity of the Bikemate 2-Bike Trunk Rack SCT102?

The total maximum load capacity is 70 lbs, with a maximum of 35 lbs per bike.

Can I use this rack on a trailer or other towed vehicle?

No, this rack is designed for trunk mount only and should not be installed on a trailer or any towed vehicle.

How do I attach the rack to my car?

Position the rack centrally on your trunk, then attach the upper straps to the leading edge, lateral straps to the side lips, and lower straps to the lower lip. Tighten all straps and tie a knot for added security.

Is the rack suitable for recumbent or tandem bikes?

No, the rack is designed for standard bikes only and cannot accommodate tandems or recumbent bicycles.

What should I do if the red security strap is missing?

Contact after-sales support immediately. The red security strap is essential for safety and must be used to prevent bikes from rocking.

How do I adjust the bike support arms?

Loosen the adjustable locking hubs by turning knobs 2-3 turns, position arms tilted slightly upward, then tighten the knobs until teeth interlock.

Can I use this rack off-road?

No, this trunk carrier is not intended for off-road use. It is designed for on-road transportation only.

How do I prevent bike sway during driving?

Use the anti-sway cradles (Part #8) and tighten the rubber straps (Part #10). Also loop the red security strap around all bikes and the upper trunk frame.

What is the warranty period for this rack?

The rack comes with a 2-year warranty from the date of purchase. Contact after-sales support for claims.

How should I clean and maintain the rack?

Check straps regularly for wear and replace if damaged. Clean the rack with a damp cloth and mild detergent. Avoid abrasive cleaners.

USER MANUAL 2-Bike Trunk Rack SCT102 Bikemate

Rear view of a black bike with attached metal tractors and a 'bikemate' logo, no visible text or symbols on the vehicle itself.

Contents

Contents....2

Warnings....3

Parts Overview....4

Using The Bike Rack....5

Warranty Card....7

• Do not exceed the maximum load capacity of 70 lbs for the 2-bike trunk rack.
  • Maximum weight per bike is 35 lbs with a maximum load of 2 bikes.
• Some vehicles cannot safely accept any rear trunk carrier. This trunk carrier has been designed to protect the paint of the vehicle if mounted properly.
• Check tightness of all hooks, locking spring hubs and straps frequently.
• Bicycle tires cannot hang near the exhaust pipe. Exhaust pipe could melt and damage the tires.
• Check rubber security strap for wear and replace immediately if worn.
• This 2-bike trunk carrier is not intended for off-road use.
• This 2-bike carrier is not for tandems or recumbent bikes.
• Do not install on a trailer or other towed vehicle.
• Failure to use red security straps is extremely dangerous and may result in loss of bicycles.
• Incorrect installation can result in an automobile accident and present potential life threatening hazards to other automobiles on the road.

Technical diagram of a mechanical linkage system with numbered components and a cable labeled 11

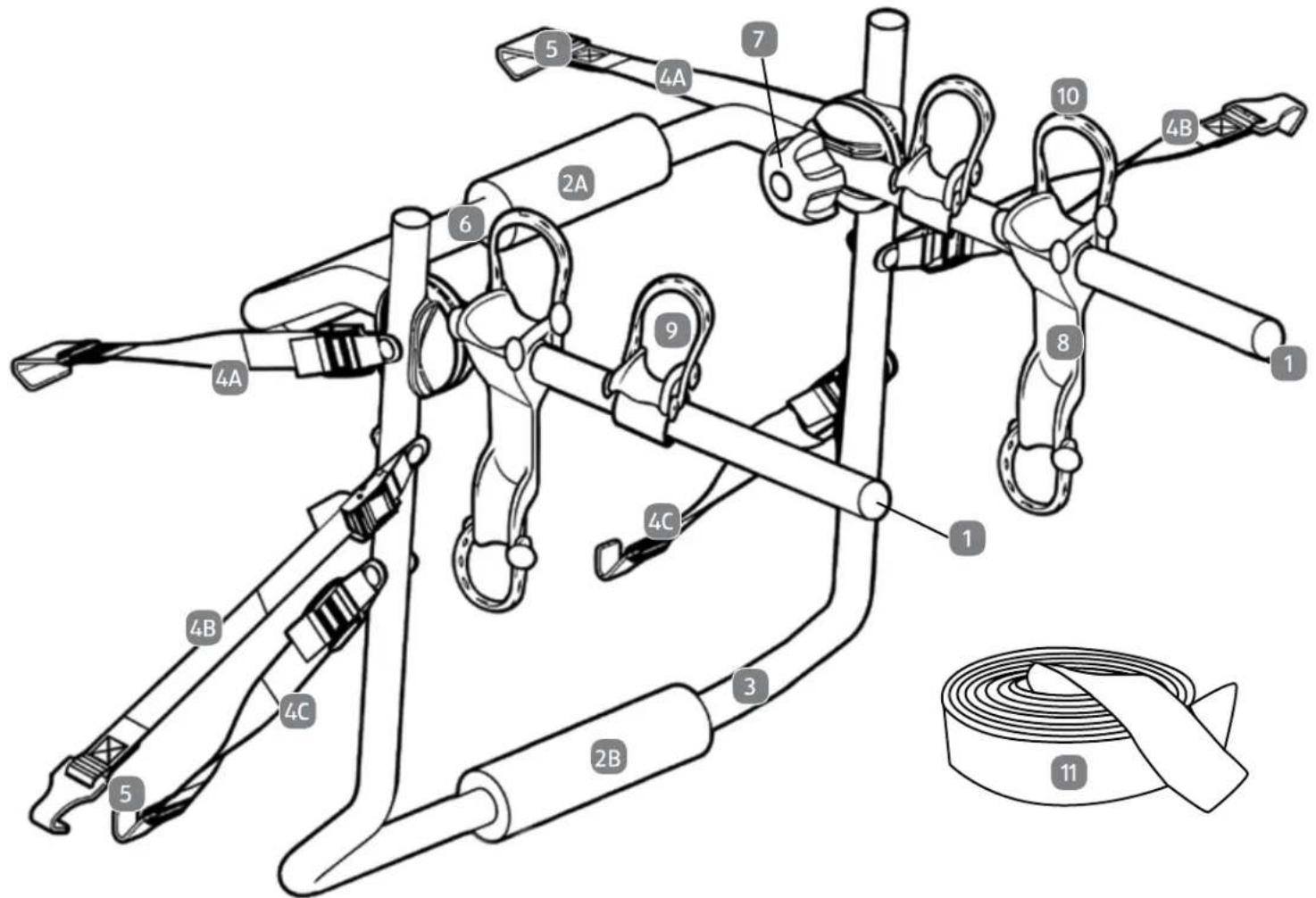

Item Description Qty

1	Bike	support	arm	assembly
2A	Scratch	resistant	foam	bumpers		1
2B	Scratch	resistant	foam	bumpers		1
3	Lower	trunk	support			1
4A	Tie down strap with rubber covered hook & camlock buckle			2
4B	Tie down strap with rubber covered hook & camlock buckle			2
4C	Tie down strap with rubber covered hook & camlock buckle			2
5	Rubber	covered	hooks			6
6	Upper	trunk	frame			1
7	Adjustable	locking	hub			2
8	Anti	sway	bike	frame	support	saddle
9	Horizontal	bike	frame	support	saddle
10	Adjustable rubber straps for No.8 & No.9			6
11	Red	safety	strap			1

Locking Hubs Adjustment

Loosen the two adjustable locking hubs by turning the knobs on each hub 2 or 3 turns only so that the spring loaded hubs release the interlocking teeth.

Bike Support Arm Positioning Secure Lateral Straps

Adjust the bike support arms until they tilt slightly upward. Tighten the adjustable locking hubs by turning the knobs until the teeth on the hubs interlock.

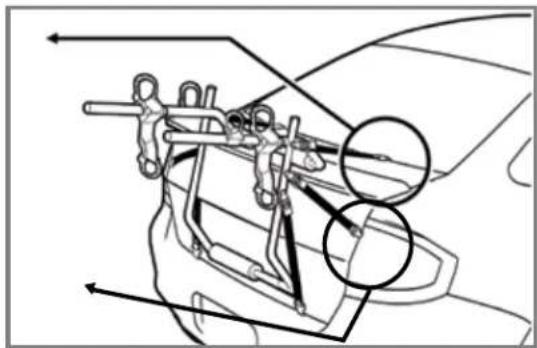

Now hold the trunk mount carrier in place in the center of your car trunk and attach the 2 upper straps with rubber hooks on to the leading edge of the trunk (see detail in figure 2).

Now attach the 2 lateral straps with rubber hooks to the side lips of the trunk (as show in figure 2).

The hooks will seek their final position as the straps are tightened.

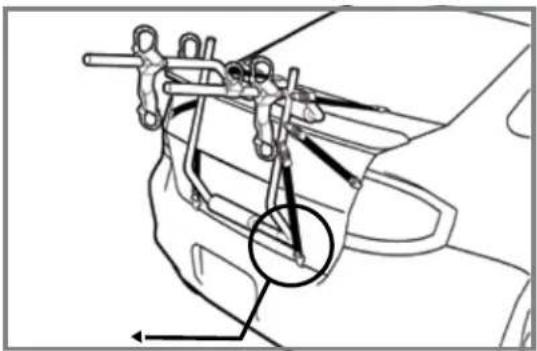

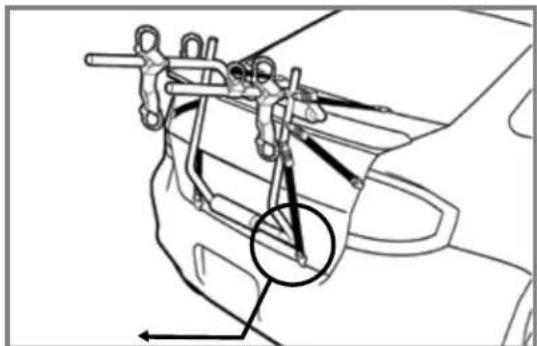

Secure Lower Straps

Now attach the 2 lower straps with rubber hooks to the lower lip of the trunk (as shown in figure 3).

Tighten all straps making sure that the bike carrier remains centralized on the trunk lid.

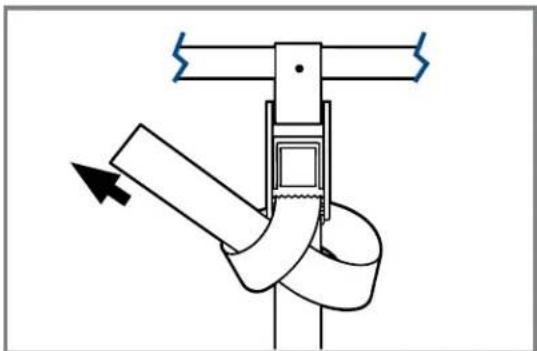

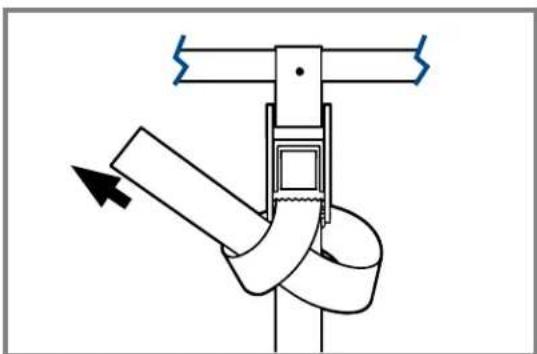

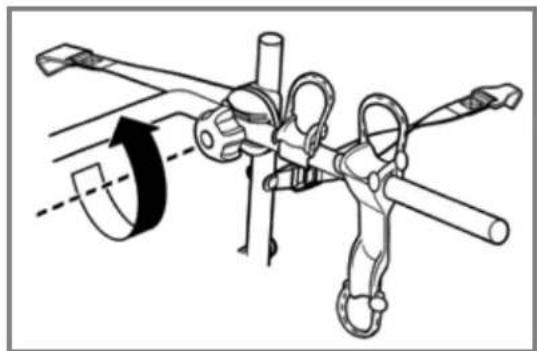

Tie A Knot For Added Security

Tighten all the straps securely. For added security tie a knot in the free end of each strap (as shown in figure 4).

1

Technical line drawing of a mechanical clamp or bracket assembly with directional arrows (no text or symbols)

2

Technical line drawing of a mechanical assembly with no visible text or symbols

3

Technical line drawing of a mechanical assembly with no visible text or symbols

4

Diagram of a mechanical clamp or spring mechanism with directional arrows indicating movement (no text or symbols)

Bicycle Transportation

Load the heaviest bike first onto bike arm so that the heaviest bike is closest to the vehicle (as shown in figure 5).

Different Bike Frames

Anti sway cradles (Part #8) can be rotated on the bike arm to accommodate different bike frames.

Alternate direction of bikes when loading

Parts #9 Horizontal bike frame support saddle

Parts #8 Anti sway bike frame support saddle

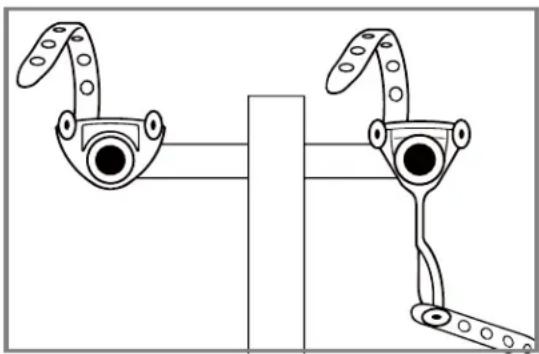

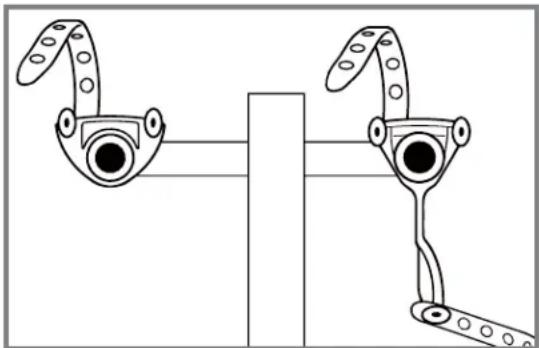

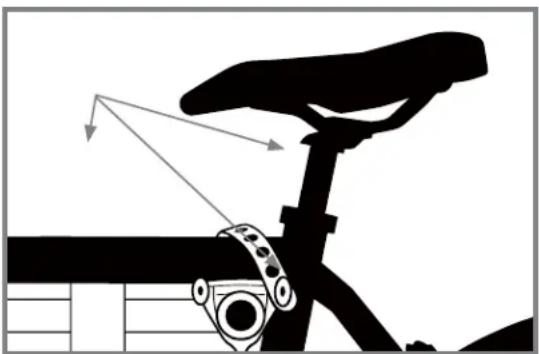

Tighten Rubber Straps IMPORTANT!

Ensure rubber straps (part #10) are tightened securely around bike frame.

Adjustable rubber straps for No.8 & No.9

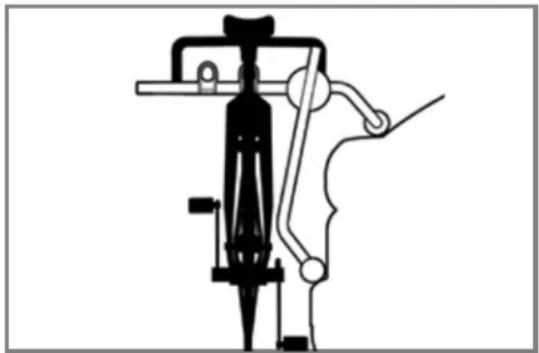

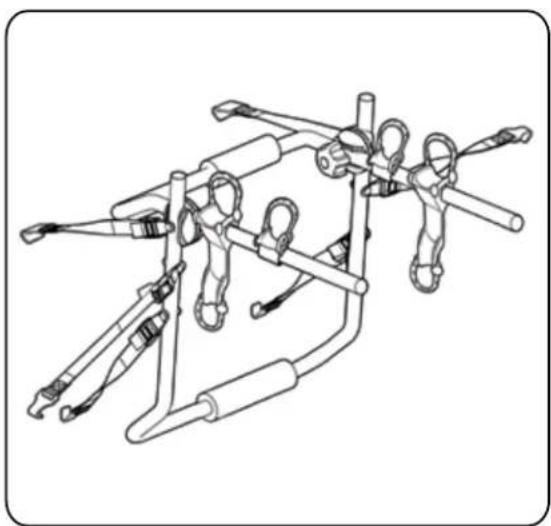

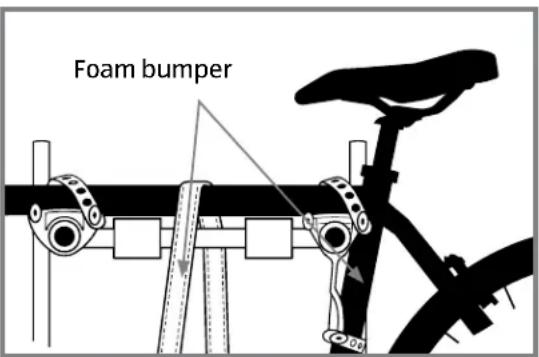

Red Security Strap

Loop the red security strap around all bikes that are mounted on the bike carrier and around the upper trunk frame of the bike support arm in the space between the scratch resistant foam bumpers.

Tighten the red security strap so that all bikes are held close to the rear of the vehicle. This will prevent the bikes from rocking backwards and forwards during acceleration or deceleration of the vehicle.

5

Mechanical device diagram showing a lever mechanism with no visible text or symbols

6

Diagram of two mechanical linkage systems with no text or symbols

7

Silhouette of a bicycle with a hand and belt system, no text or symbols visible

8

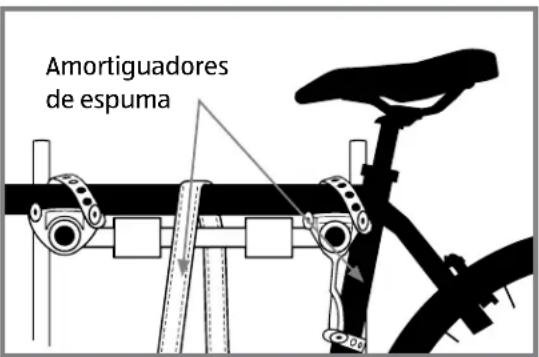

Foam bumper

Your details:

Name: ____

Address:

E-mail:

Date of Purchase* ____

* We recommend you keep the receipt with this warranty card.

Location of Purchase: ____

Description Of Malfunction:

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

If after contacting the manufacturer you are requested to return the faulty product please return the completed warranty card together with it.

AFTER SALES SUPPORT

800-671-6035

[e-mail]

MODEL: SC-T102 PRODUCT CODE: 49926 05/2017
