Gardenline 6' Folding Picnic Table - Picnic table Easy Home - Free user manual and instructions

Product Type	Folding Picnic Table
Brand	Easy Home
Model	Gardenline 6' Folding Picnic Table
Dimensions (Open)	72 x 30 x 29 inches (L x W x H)
Dimensions (Folded)	36 x 30 x 5 inches
Table Height	29 inches
Weight	32 lbs
Weight Capacity	220 lbs (table top), 100 lbs per bench side
Seating Capacity	4-6 people
Frame Material	Steel with powder-coated finish
Table Top Material	High-density polyethylene (HDPE)
Bench Material	Plastic (polyethylene)
Folding Mechanism	Scissor-fold with locking support
Portability	Built-in carrying handle, 2-person lift recommended
Assembly Required	Yes, minimal assembly (attach benches to frame)
Care Instructions	Wipe with damp cloth; mild soap if needed; air dry
Weather Resistance	UV-resistant and water-resistant but store indoors when not in use
Safety Features	Locking mechanism to prevent accidental folding
Spare Parts Availability	Contact manufacturer for replacement parts (bolts, caps)
Warranty	1-year limited warranty against defects
Ideal Use	Picnics, camping, tailgating, outdoor gatherings

Frequently Asked Questions - Gardenline 6' Folding Picnic Table Easy Home

How do I assemble the table?

Assembly requires attaching the benches to the frame using included bolts and an Allen wrench. Follow the step-by-step instructions in the manual. Two people are recommended for easy setup.

What is the weight capacity?

The table top can hold up to 220 lbs evenly distributed, and each bench side supports up to 100 lbs. Do not exceed these limits to avoid damage or injury.

Is the table weather-resistant?

The materials are UV and water resistant, but prolonged exposure to rain or sun may cause fading or wear. Store the table indoors or cover it when not in use.

Can I leave it outside?

It is best to store the table in a dry place. While it can withstand occasional light rain, continuous outdoor exposure may reduce its lifespan.

How do I clean the table?

Wipe the surfaces with a damp cloth and mild soap. Rinse with water and dry thoroughly. Avoid abrasive cleaners that may scratch the plastic.

Does it fold flat for storage?

Yes, the table folds into a compact size (36 x 30 x 5 inches) with a carrying handle for easy transport and storage.

What tools are needed for assembly?

The included Allen wrench and bolts are sufficient. No additional tools are required.

Can I replace broken parts?

Some parts like bolts and caps are replaceable. Contact Easy Home customer service for spare part availability.

Is it suitable for children?

Yes, the table is designed for family use. Ensure children are supervised and do not climb or stand on the table.

How many people does it seat?

The table comfortably seats 4-6 adults, depending on size. Each bench is about 72 inches long.

USER MANUAL Gardenline 6' Folding Picnic Table Easy Home

DISTRIBUTED BY • DISTRIBUIDO POR:

ALDI INC., BATAVIA, IL 60510

www.aldi.us

AFTER SALES SUPPORT-SERVICIO POSVENTA

USA 1855 965 5310

[e-mail]

MODEL: 55662

PRODUCT CODE: 55662

05/2018

YEAR WARRANTY AÑOS DE GARANTÍA

Contents

Getting Started....2

Parts List.... 3

Assembly Instructions.... 4

Warranty Information......9

6 Foot Folding Picnic Table

USA

Getting Started

Identify all the parts packaged in the carton against the parts list. Remove all protective materials and place parts on a non-abrasive surface to avoid scratching. If any parts are missing or damaged, DO NOT attempt to assemble. Please contact our customer service center (Monday-Friday 9:00AM-5:00PM CST) at 1(855) 965-5310.

Caution

Read all the instructions before assembly. Failure to do so may result in faulty assembly and potential injury! Assemble product on a soft, non-abrasive surface such as a carpet or cardboard to avoid damaging the item.

Cleaning & Maintenance

Be careful to never allow water build up in frames as this will cause corrosion and freeze damage in cold climates. Wash all frames with a solution of mild soap and water. Rinse with clean water and dry with a soft absorbent cloth towel. Frames can be treated with a liquid wax for maximum protection against UV rays and/or salty damp air.

Warning

To avoid serious personal injury or damage, please comply to the following warning:

1. NEVER sit or stand on this table. It could. It could tip over causing you to fall.
2. Weight limit of table: 700 lbs.
3. Weight limit of bench: 800 lbs per bench.

AFTER SALES SUPPORT

USA 1855 965 5310

[e-mail]

6 Foot Folding Picnic Table

Parts List

Part Picture Description Qty
A		Table Top	1
B		Bench Top	2
C		Leg Frame	2
D		Bolt(M6x38mm)	4
E		Bolt(M6x20mm)	12
F		Nut	4
G		Spanner	1
H		Allen Wrench	1

1:1 bolt reference

3

[e-mail]

AFTER SALES SUPPORT

USA 1855 965 5310

6 Foot Folding Picnic Table

Assembly Instructions

Please inspect your table top before assembly.

Assembly Step 1:

1. Place Table Top (A) upside down on a clean, dry, soft surface.
2. Use Bolts (E), Long Bolts (D) and Nuts (F) to attach Leg Frame (C) to Table Top (A), and lock into place.
3. Turn picnic table upright after completed this step.

AFTER SALES SUPPORT

USA 1855 965 5310

[e-mail]

4

6 Foot Folding Picnic Table

USA

Assembly Instructions

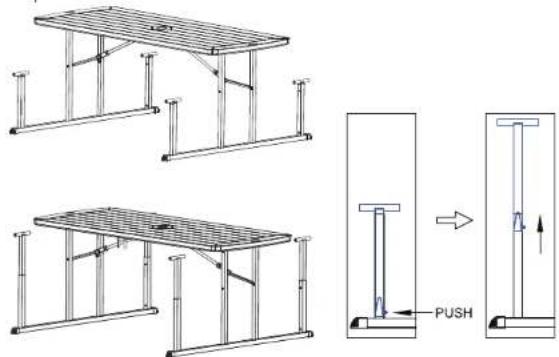

Assembly Step 2:

1. Push the button down on leg frame and pull out the extension tube to lock into place.

1. Turn the table with top upside down, then use Bolts (E) to screw Bench Top (B) to the extension tube.

5

[e-mail]

AFTER SALES SUPPORT

USA 1855 965 5310

6 Foot Folding Picnic Table

USA

Assembly Instructions

Assembly Step 3:

After bench top is securely assembled, push the adjust button on leg tube again, to make entension tube fall down and lock into place. Table is able to use now.

AFTER SALES SUPPORT

USA 1855 965 5310

[e-mail]

6

6 Foot Folding Picnic Table

Assembly Instructions

USA

Follow the below steps to fold the table flat for easy storage after it's assembled.

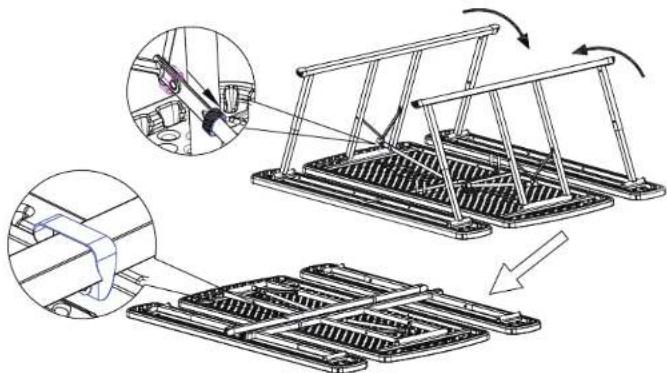

Folding Step 1:

Press the buttons on leg frame to adjust the leg frame. Legs need to be raised before folding Attention:

This step will require two people to operate adjustment at the same time.

Folding Step 2:

1. Turn table upside down.
2. Release the safety lock as shown and then fold in leg frame.
3. Fasten the leg frame to the table top with velcro straps.

7

[e-mail]

AFTER SALES SUPPORT

USA 1855 965 5310

6 Foot Folding Picnic Table

USA

Assembly Instructions

Follow the below steps to unfold the table for re-use.

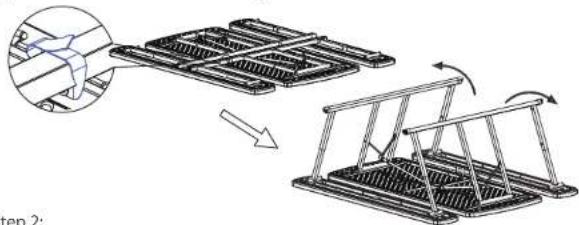

Unfolding Step 1:

1. Place the table upside down, unfasten the velcro straps.
2. Unfold leg frame as indicated in the drawing.

Unfolding Step 2:

1. Turn table up-right, press the buttons as shown to slide/adjust the leg frame.
   Attention: this step will require two people to operate adjustment at the same time.
2. Make sure safety lock under table top in locked position.

AFTER SALES SUPPORT

USA 1855 965 5310

[e-mail]

8

6 Foot Folding Picnic Table

USA

Warranty Information

Your Details:

Name

Address

Phone ____ E-mail

Date of purchase:

Location of purchase:

*Please keep your receipt with this warranty card.

Description of malfunction:

For warranty claims please send a copy of this warranty card and your receipt to the following: [e-mail]

To register your product or for frequently asked questions, please visit: Discover Home Products www.discoverhomeproducts.com

If you need further assistance, please contact our customer service line Monday through Friday 9AM-5PM CST at 1(855) 965-5310

AFTER SALES SUPPORT

18559655310

[e-mail]

MODEL: 55662 PRODUCT CODE: 55662 05/2018

9

[e-mail]

AFTER SALES SUPPORT

USA 1855 965 5310

6 Foot Folding Picnic Table

USA

Warranty Information

Warranty conditions

Dear Customer,

The ALDI warranty offers you extensive benefits compared to the statutory obligation arising from a warranty:

Warranty period: 2 years from date of purchase

Costs:

Free same or equivalent replacement of damaged or missing parts. No shipping cost when covered under warranty.

ADVICE:

To inquire about or process warranty claims, please contact our Customer Service Line by phone or email Monday thru Friday 9AM-5PM CST 1-855-965-5310

In order to make a claim under the warranty, please send us via email:

• The original receipt and the warranty card properly completed.
• Photos of the damage if applicable.

The warranty does not cover damage caused by:

• Accident or unanticipated events (e.g. lightning, fire, inclement weather)
• Wind or water damage.
• Improper treatment or modification.
• Lack of care or maintenance.
• Failure to follow the safety instructions.

If the warranty period has expired or your claim is not covered by the limited warranty, you may still have the option of replacing or repairing your product at your own cost provided the parts needed available. If the damaged or missing parts are not covered by the limited warranty you will be informed of any costs in advance. The distributor is under no obligation to provide parts after the warranty period has expired or if the damage is not covered by the limited warranty and may offer the option to purchase replacement parts at their discretion.

AFTER SALES SUPPORT

USA 1855 965 5310

10

[e-mail]
