USER MANUAL Rising Comfort Queen Airbed INTEX

CERTI FED hanse control myhanseco mhot.com User-friendly Manual ID: #07177

CERT! FED hanse control [e-mail] User-friendly Manual ID: #07177

Contents

Overview 3

Use....4

Package contents/parts 6

General information....7

Reading and storing the user manual ...... 7

Explanation of symbols 7

Safety 8

Proper use....8

Safety notes 8

First use....11

Checking the airbed and package contents....11

Inflating the airbed 11

Deflating the airbed 12

Cleaning....13

Storage 14

Repairing the airbed....14

Technical data ......15

Disposal....15

Disposing of the packaging .....15

Disposing of the airbed....15

A

Line drawing of a rectangular electronic device with internal grid lines and a labeled component (no text or symbols on the device itself)

23

Simple line drawing of a bell with a vertical line above it (no text or symbols)

6

B V3

Line drawing of a device with a circular component and cable, showing a close-up of its cable attachment (no text or symbols present)

D

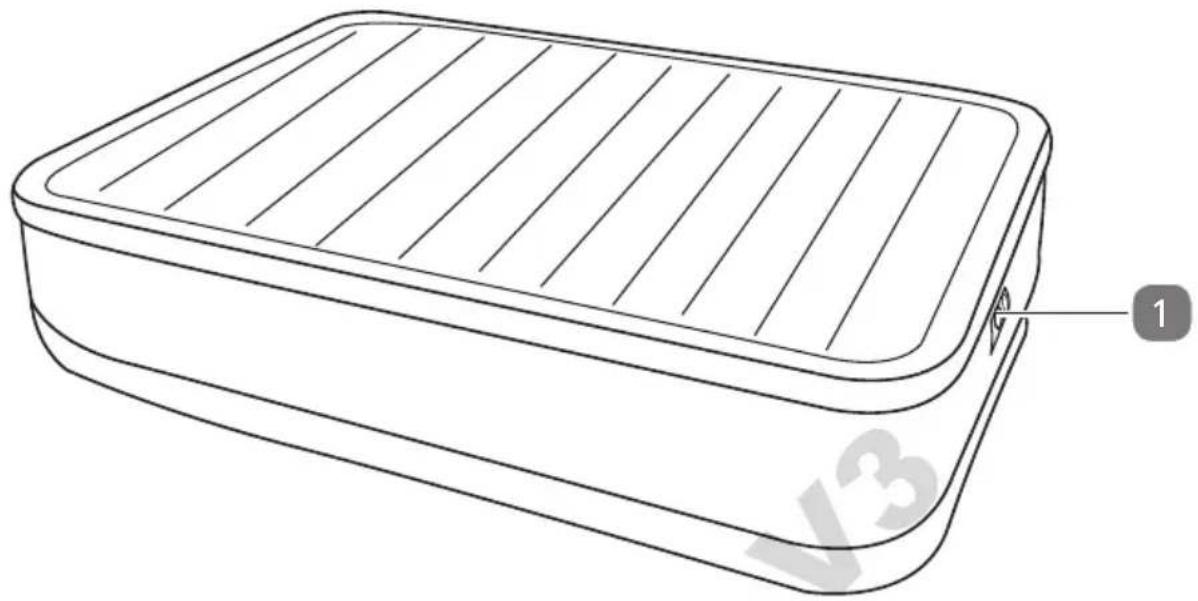

Package contents/parts

1 Air pump (built-in)
2 Control dial
3 On/Off switch
4 Power cable cover
5 Transport bag
6 Repair patch

General information

Reading and storing the user manual

This user manual accompanies this Rising Comfort Queen Airbed (hereafter referred to as the “airbed”), and contains important information on setup and handling.

Before using the airbed, read the user manual carefully.

This particularly applies to the safety notes. Failure to do so may result in personal injury or damage to the airbed.

Store the user manual for further use. Make sure to include this user manual when passing the airbed on to third parties.

Explanation of symbols

The following symbols and signal words are used in this user manual, on the airbed or on the packaging.

WARNING!

This signal symbol/word designates a hazard with moderate risk, which may result in death or severe injury if not avoided.

NOTICE!

This signal word warns of possible damage to property.

This symbol provides you with useful additional information on handling and use.

Protection class II

The permissible working pressure is approx. 0.36 psi (0.025 bar).

The maximum load is approx. 600 lb (273 kg).

The airbed may not be used by children under 15 months.

Safety

Proper use

The airbed is exclusively designed for resting and sleeping on. It is only intended for private use and not suitable for commercial purposes.

Only use the airbed as described in this user manual. Any other use is considered improper and may result in damage to property or persons.

The manufacturer or vendor cannot be held liable for damages or injury incurred through improper or incorrect use.

Safety notes

WARNING!

Risk of electric shock!

A faulty electrical installation, excessive line voltage, or incorrect operation may result in an electric shock.

• Only connect the air pump if the line voltage of the outlet corresponds to the specification on the rating plate.
• Only connect the air pump to an easily accessible outlet so that you can quickly disconnect it from the power supply in the event of a malfunction.
• Do not use the airbed if it is visibly damaged or if the power cable or power plug is defective.
• If the power cable of the air pump is damaged, it must be replaced by the manufacturer, its customer service team or a person with similar qualifications.
• Do not operate the air pump with an external timer or separate remote control system.
• Do not open the housing; instead, have a qualified professional perform repairs. Contact the after sales support line for assistance. Liability and warranty claims are waived in the event of repairs performed by the user, improper connection or incorrect operation.

- Only parts that comply with the original device construction may be used for repairs. Electrical and mechanical parts, which are essential for providing protection against sources of danger, are located in this airbed.

- Do not immerse the air pump, the power cable or the power plug in water or other liquids.

- Never touch the power plug with damp hands.

- Do not pull the power plug out of the outlet by the power cable; instead, always pull it out by the plug.

- Never use the power cable as a carrying strap.

- Keep the airbed away from open fire and hot surfaces.

- Do not kink the power cable and do not lay it over sharp edges.

- Only use the airbed indoors. Do not use it in wet rooms or in the rain.

- Never reach to retrieve an electrical device if it has fallen in water. In such a case, immediately disconnect the power plug.

- Make sure that children do not insert any objects into the airbed.

- Always switch the air pump off and pull the power plug out of the outlet when you are not using the airbed, cleaning it or in the event of a malfunction.

WARNING!

Danger for children and persons with impaired physical, sensory or mental capacities (e.g. partially disabled persons, older persons with reduced physical and mental capacities) or lack of experience and knowledge (e.g. older children).

- This airbed is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction

concerning use of the airbed by a person responsible for their safety. Children must not play with the airbed. Cleaning and user maintenance must not be performed by unsupervised children.

• Keep children under the age of eight away from the airbed and power cable.
• Make sure that children do not play with the plastic wrapping. They may get caught in it when playing and suffocate.

WARNING!

Risk of fire and explosion!

Never expose the airbed to flammable materials, there is a risk of fire or explosion.

• Do not use any cleaning or repair sprays that could catch fire and explode.
• Keep open flames and electrical heat sources away from the airbed.

WARNING!

Risk of drowning!

The airbed is not suitable for use in water. It is not a raft or buoyancy aid. There is a risk of drowning or a short circuit if you use it on water.

• The airbed is only suitable for domestic home use.
• Never use the airbed near or on bodies of water.
• Never let children play near or with the airbed.

NOTICE!

Risk of damage!

Improper handling of the airbed may damage it.

• Place the airbed on an easily accessible, level, dry and sufficiently stable surface where there are no sharp edges or pointy objects.
• Never expose the airbed to high temperatures (heaters etc.) or to weather (rain etc.). Never fill the airbed with liquid.
• Do not exceed the airbed's load bearing capacity of 600 lb (273 kg).
• Discontinue using the airbed if the outer body exhibits cracks or breaks or is deformed.

First use

Checking the airbed and package contents

NOTICE!

Risk of damage!

If you are not cautious when opening the packaging with a sharp knife or other pointed object, you may quickly damage the airbed.

- For this reason, be very careful when opening it.

1. Take the airbed out of the packaging.
2. Check to make sure that the delivery is complete (see Fig. A).
3. Check whether the airbed or individual parts are damaged. If this is the case, do not use the airbed. Contact the manufacturer via the service address indicated on the warranty card.

Inflating the airbed

NOTICE!

Risk of damage!

Improperly inflating the airbed may damage it.

- Only inflate the airbed with the built-in air pump.

The airbed needs to be fully inflated in a warm, well-ventilated room for at least 5 days before first use.

1. Find an unobstructed area of at least 514 ft × 7 ft (160 × 210 cm) where there are no sharp edges or pointy objects.

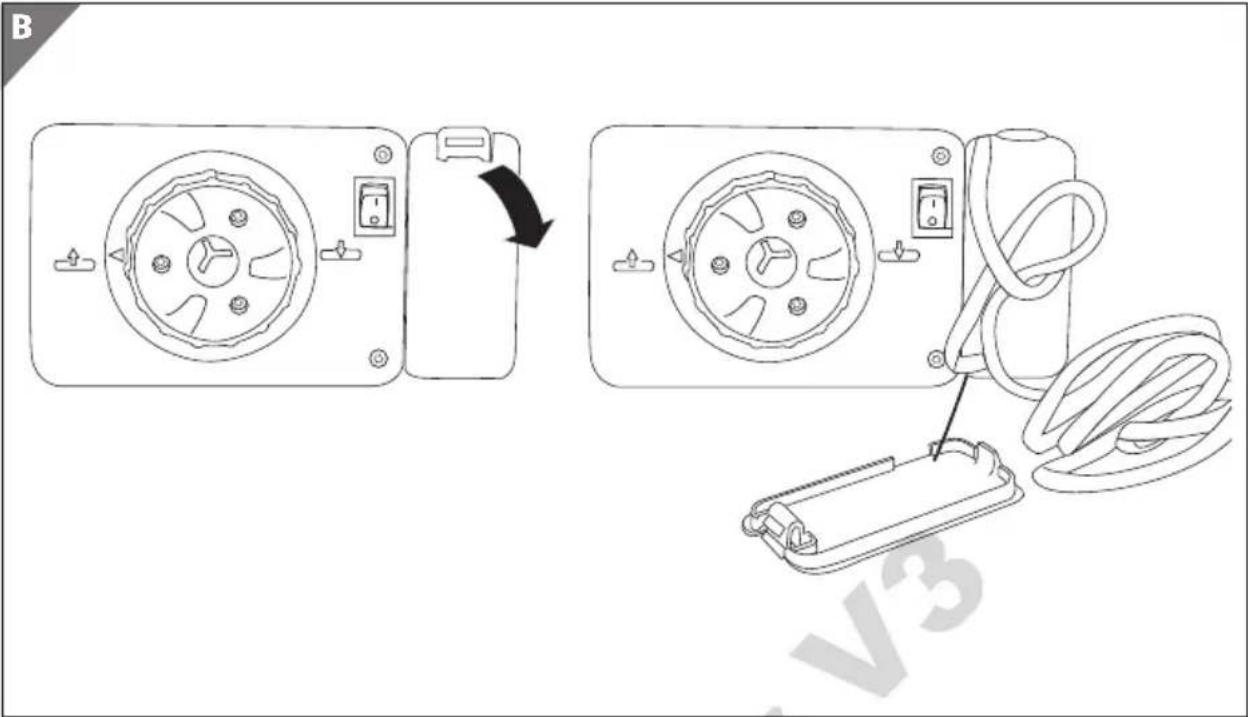

2. Remove the power cable cover 4 and insert the power plug into a properly installed outlet (see Fig. B).
3. Lay the power cable so that it does not pose a tripping hazard.

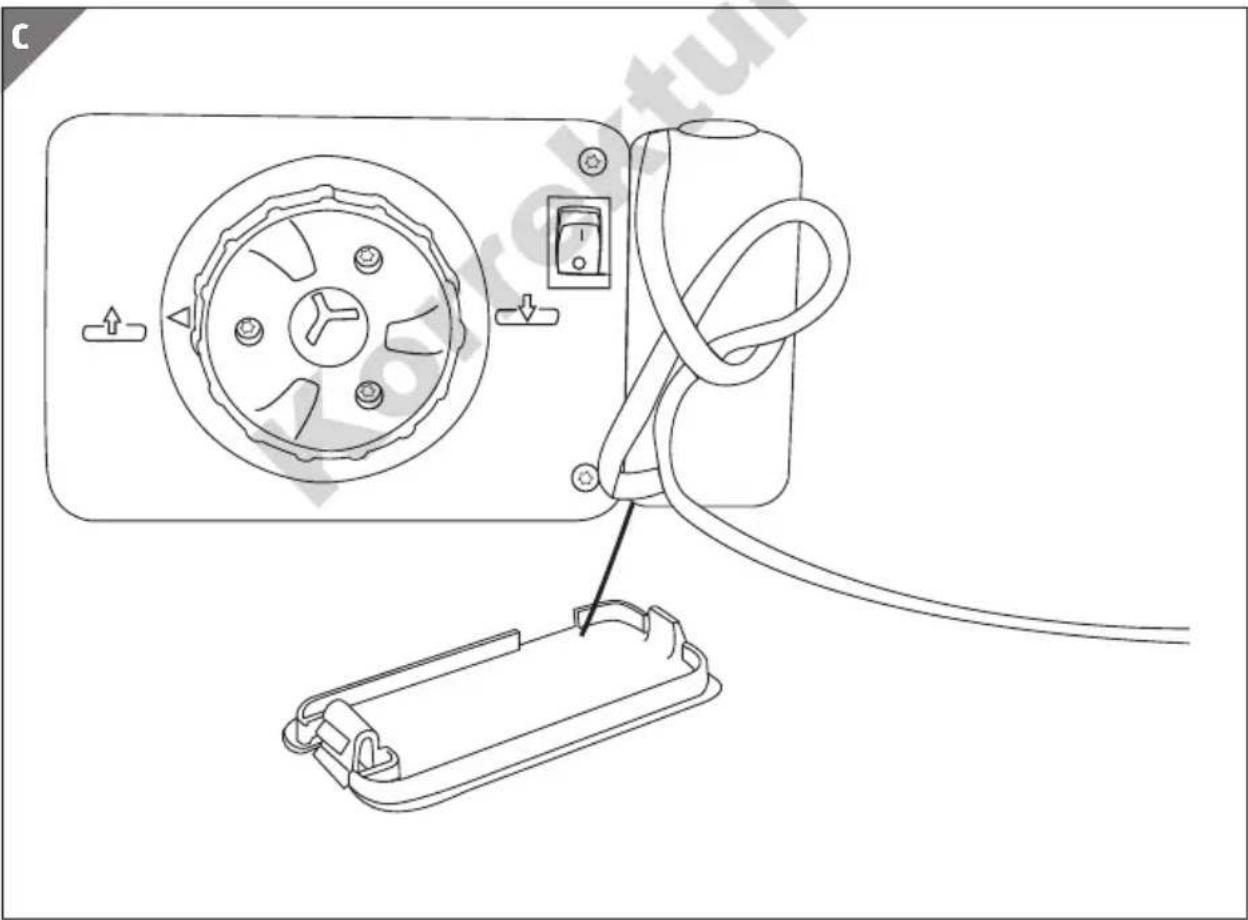

4. Turn the control dial 2 clockwise up to the stop point (see Fig. C).
5. Then set the On/Off switch 3 to position I. Use the control dial to adjust the supply of air.
6. It will take approx. 5 minutes for the bed to inflate; the recommended working pressure is 0.36 psi (0.025 bar).
7. As soon as the desired firmness has been reached, set the On/Off switch to position 0.

Deflating the airbed

1. Turn the control dial 2 counterclockwise up to the stop point.
2. Set the On/Off switch 3 to position I to release the air.
3. As soon as the airbed has been fully deflated, set the On/Off switch back to position 0.

• The ambient temperature at the set up location affects the inner pressure of the airbed. At a low ambient or room temperature, the air in the airbed will contract and the airbed will feel softer.
• Add air until the desired firmness has been attained.
• At a high ambient temperature, air in the airbed will expand; the airbed will feel harder and there is a risk of it bursting.

- Deflate the airbed somewhat to prevent damage; this will also ensure that it is softer. Do not expose the airbed to extreme hot or cold temperatures.

• The air in the airbed may expand and contract depending on the load on the bed. The firmness of the airbed may also change as a result.
  – Follow the above recommendations to add or release some of the air.

It is normal for new vinyl to expand. It is therefore possible that the airbed initially loses some of its firmness and has to be inflated in order to maintain the desired level of firmness. This is a normal occurrence during the first days of use. The specified dimensions are only of an approximate nature and may vary depending on the temperature of the vinyl and the air.

Cleaning

WARNING!

Risk of electric shock!

Water that has penetrated the airbed may result in an electric shock.

- Disconnect the power plug before cleaning.

NOTICE!

Risk of short circuit!

Water and other liquids that have penetrated the airbed may cause a short circuit.

• Make sure that no water or other liquids penetrate the airbed.
• Never wash the airbed in a washing machine, as this will destroy it.

NOTICE!

Risk of damage!

Improper handling or cleaning of the airbed may result in damage to the airbed.

- Do not use any aggressive cleaners, brushes with metal or nylon bristles, or sharp or metallic cleaning utensils.

They could damage the surfaces.

Always clean the airbed before storing it in the transport bag.

1. Clean the airbed by using a mild soapy solution and damp cloth.
2. Let the airbed dry off completely thereafter.

Storage

NOTICE!

Risk of damage!

If you do not fold the airbed together properly, there is a risk of damaging the surface.

- Avoid sharp creases and pointed corners when folding it up.

• Store the airbed in a dry area.
• Protect the airbed from direct sunlight.
• Store the airbed so that is not accessible to children, securely locked away and at a storage temperature between +41 °F and +68 °F (+5 °C and +20 °C) (room temperature).

To store the airbed, proceed as follows:

1. Make sure that all parts are completely dry.
2. Let the airbed completely deflate before storing it (see chapter "Deflating the airbed").

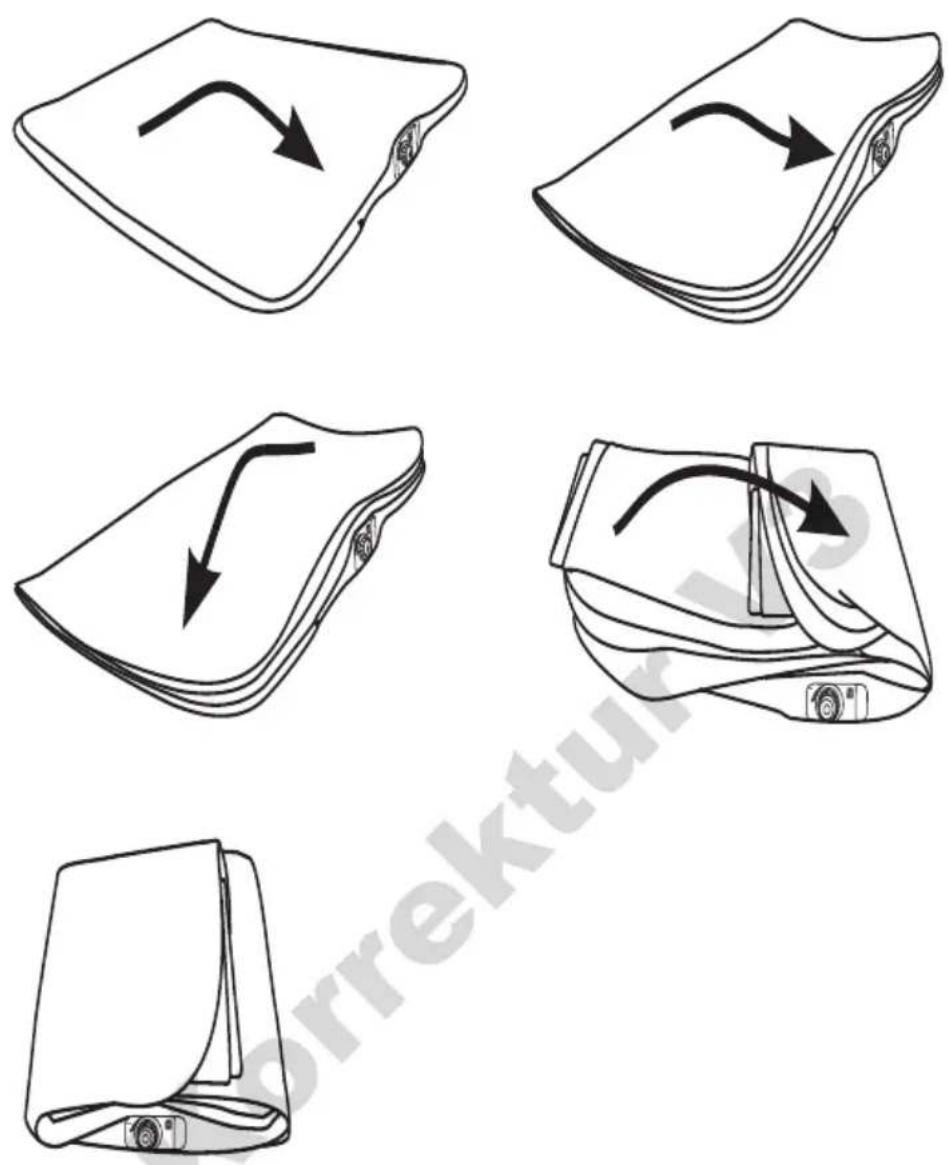

3. Lay the airbed down flat with the sleeping surface up and gently fold it as described in the folding instructions (see Fig. D).
4. Once the airbed has been folded, store it in the enclosed transport bag 5.

Repairing the airbed

WARNING!

Risk of fire and explosion!

Never expose the airbed to flammable materials. There is a risk of fire or explosion.

• Do not use any repair products, such as aerosol tire repair.
• Only use common PVC repair glue and patches.
• You can repair small holes in the sides or on the bottom of the airbed with the enclosed repair patch.

• If the top side of the airbed is damaged, you can repair it with commercially available repair glue.

• When using repair patches or glue, follow the manufacturer's instructions.

• If you are unable to repair the damage, dispose of the airbed in accordance with applicable regulations (see chapter “Disposal”).

• Clean and dry the repair area thoroughly.

• Cut a piece out of the repair patch 6, making sure it is larger than the repair area.

• Remove the paper backing, place the patch over the hole, and press down firmly until it is securely attached.
• Do not inflate the airbed for at least 30 minutes.

Technical data

Model: 164139AL

Supply voltage: 110–120 V\~, 60 Hz

Output (pump): 90 W

Protection class: II

Maximum load bearing capacity: 600 lb (273 kg)

Dimensions (W × L × H): approx. 60" × 80" × 20"

$$ (1 5 2 \mathrm{cm} \times 2 0 3 \mathrm{cm} \times 5 1 \mathrm{cm}) $$

Article number: 95256

Recommended working pressure: approx. 0.36 psi (0.025 bar)

Maximum permissible working overpressure: approx. 0.57 psi (0.039 bar)

Disposal

Disposing of the packaging

- Sort the packaging before you dispose of it. Dispose of paperboard and cardboard with the recycled paper service and wrappings with appropriate collection service.

Disposing of the airbed

- Should the airbed no longer be capable of being used at some point in time dispose of it in accordance with the regulations in force in your state or city.

- Please ensure your recycling information applies to local regulations and the EPA recommendations (www.epa.gov).
