Product Type	Monitor
Brand	Planar
Model	EP5814K
Screen Size	58 inches
Resolution	3840 x 2160 (4K UHD)
Aspect Ratio	16:9
Panel Type	IPS (estimated)
Backlight	LED
Refresh Rate	60 Hz
Response Time	8 ms (estimated)
Brightness	350 cd/m² (estimated)
Contrast Ratio	1000:1 (typical)
Viewing Angle	178° horizontal / 178° vertical
Color Support	1.07 billion colors (10-bit)
Input Connectors	HDMI, DisplayPort, USB-C, VGA (estimated)
Built-in Speakers	Yes, 2 x 10W (estimated)
VESA Mount	400 x 400 mm
Power Consumption	Typical 120W, Standby <0.5W
Dimensions (W x H x D with stand)	51.5 x 32.3 x 10.2 inches (estimated)
Weight (with stand)	55 lbs (estimated)
Energy Star Certified	Yes
Tilt Adjustment	-5° to +15°
Swivel Adjustment	±45°
Height Adjustment	0 to 5 inches

Frequently Asked Questions - EP5814K Planar

How do I connect my laptop to the Planar EP5814K monitor?

Use an HDMI, DisplayPort, or USB-C cable to connect your laptop to the corresponding port on the monitor. Ensure the monitor is powered on and select the correct input source using the menu button.

What is the recommended resolution for the EP5814K?

The native resolution is 3840 x 2160 (4K UHD). For optimal image quality, set your device to output at this resolution.

Can I wall-mount this monitor?

Yes, the monitor supports VESA 400 x 400 mm wall mounts. Use a compatible mount and ensure it can support the monitor's weight (approx. 55 lbs).

How do I clean the screen safely?

Turn off the monitor and unplug it. Use a soft, lint-free cloth slightly dampened with water or a dedicated screen cleaner. Gently wipe the screen in a circular motion. Avoid using abrasive materials or harsh chemicals.

Why is there no sound from the built-in speakers?

Check that the monitor's volume is not muted and the audio source is set to HDMI or DisplayPort audio output. Also, ensure the device is not outputting via another audio device.

How do I adjust the monitor's settings?

Press the Menu button on the monitor's bezel or remote (if included). Use the on-screen display (OSD) to adjust brightness, contrast, color temperature, input source, and more.

Does the EP5814K support HDR?

Yes, this monitor supports HDR10 for enhanced contrast and color accuracy when viewing HDR content.

What should I do if the screen flickers?

Ensure the cable connections are secure. Try a different cable or port. Update your graphics driver. If flickering persists, reduce the refresh rate to 60 Hz in your display settings.

Can I use the monitor with a Mac?

Yes, the monitor is compatible with Mac devices via USB-C or DisplayPort. You may need an adapter for older Mac models with Thunderbolt 2.

How do I reset the monitor to factory settings?

Go to the OSD menu, navigate to Setup or System, and select Factory Reset. Confirm the action. The display will revert to default settings.

USER MANUAL EP5814K Planar

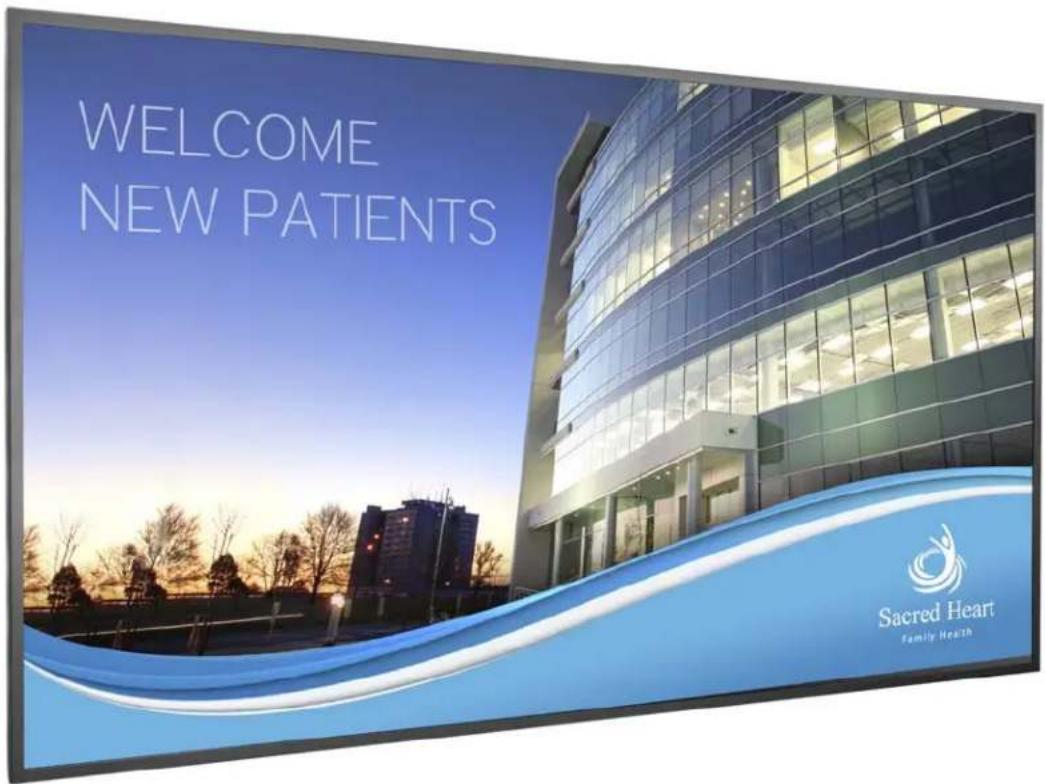

EP Series Ultra HD LCD Displays User Guide

WELCOME NEW PATIENTS Sacred Heart Family Health

Copyright © 1 Feb 2016 by Planar Systems, Inc. All rights reserved.

Contents of this publication may not be reproduced in any form without permission of Planar Systems, Inc.

Trademark Credits

Windows ^™ is a trademark of Microsoft Corp.

All other companies are trademarks or registered trademarks of their respective companies.

Disclaimer

The information contained in this document is subject to change without notice. Planar Systems, Inc. makes no warranty of any kind with regard to this material. While every precaution has been taken in the preparation of this manual, the Company shall not be liable for errors or omissions contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

Warranty and Service Plans

Planar warranty and service plans will help you maximize your investment by providing great support, display uptime, and performance optimization. From post-sale technical support to a full suite of depot services, our services are performed by trained Planar employees. When you purchase a Planar product, you get more than a display, you get the service and support you need to maximize your investment. To find the latest warranty and service information regarding your Planar product, please visit http://www.planar.com/support

RoHS Compliance Statement

The Planar EP Series is fully RoHS compliant.

Part Number: 020-1280-00C

Table of Contents

EP Series Ultra HD LCD Displays User Guide ...... i

Introduction 1

Safety Information 2

Safety Precautions....2

Recommended Usage 4

VESA Mounts, General Description....6

Cleaning the Display ....7

Package Contents....8

Unpacking the Display ....8

Installing the Cable Clips 12

Dimensions 13

EP5014K 13

EP5014K-T 14

EP5814K 15

EP5814K-T 16

EP6514K 17

EP6514K-T 18

Planar EP Series - Standard Inputs.... 19

Installing the Display 20

Before You Begin.... 20

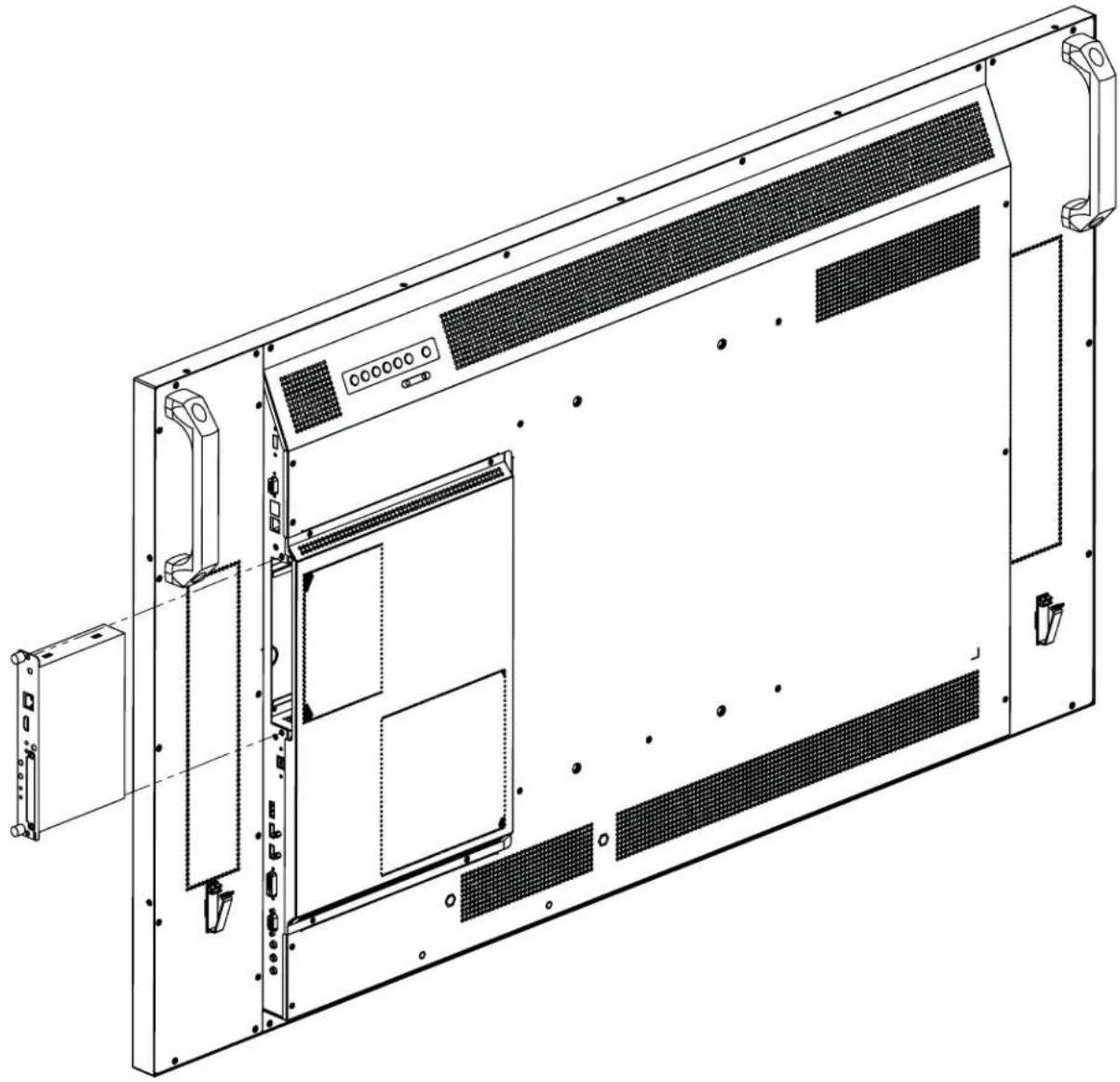

Installing OPS Expansion (Optional) 22

Operating the Display 23

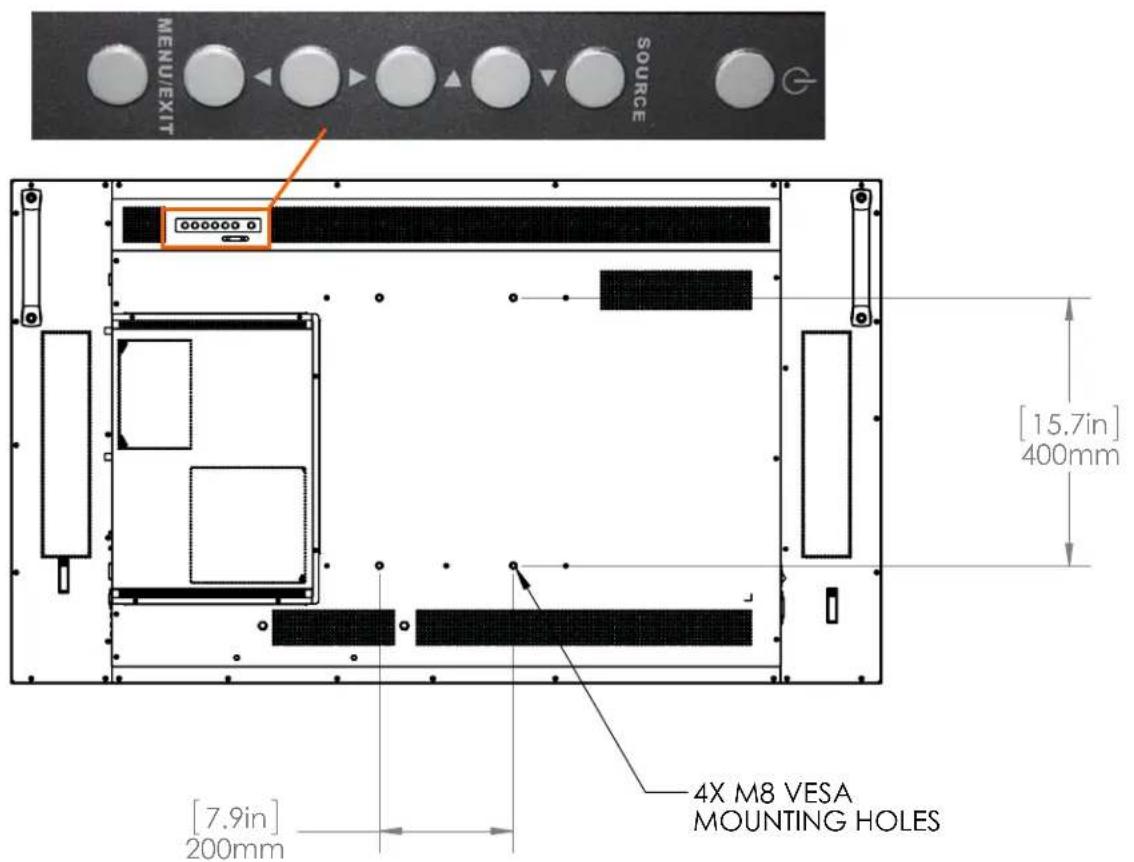

OSD Keypad....23

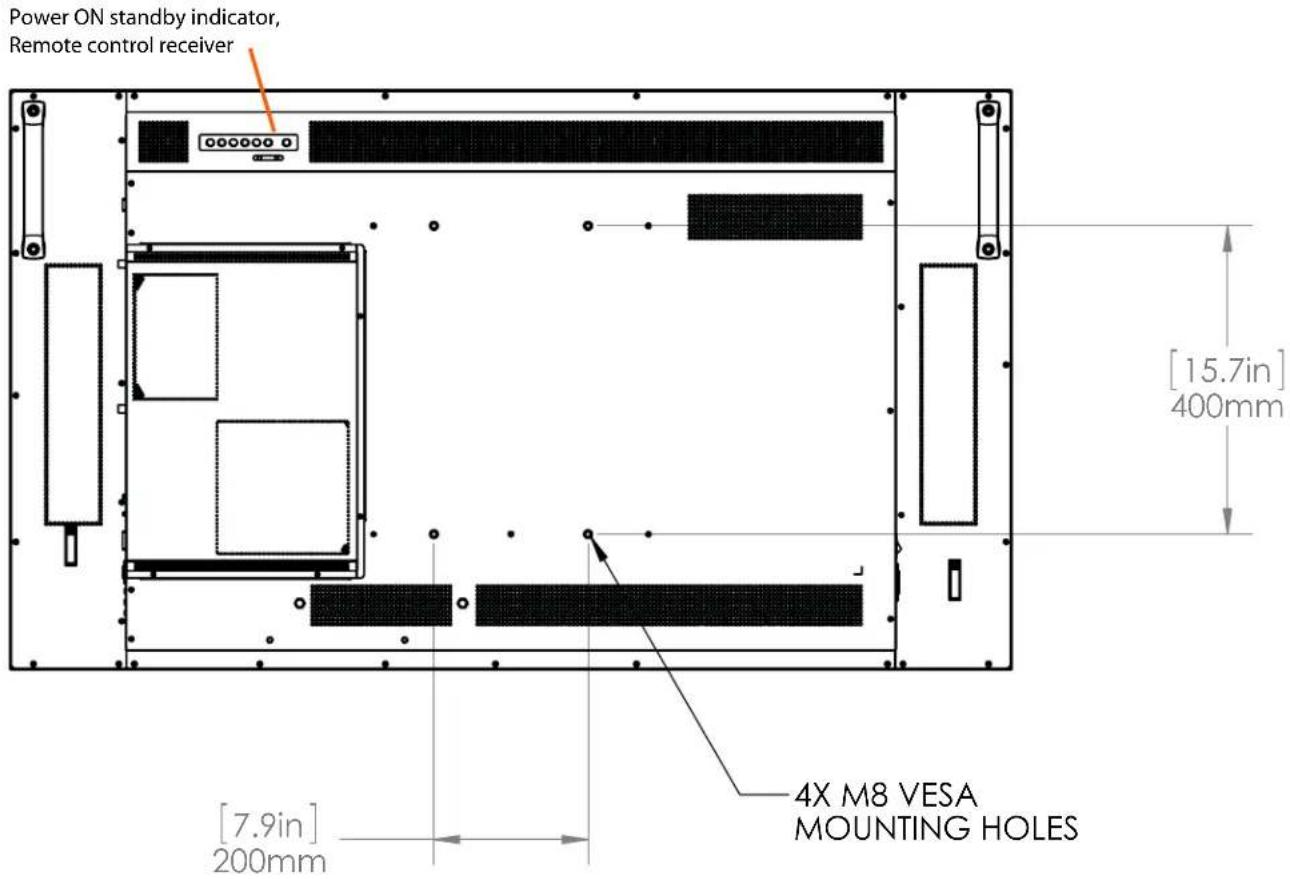

Remote Control Receiver 24

LED Indicators.... 25

Using the Display in Portrait Mode 25

Using the Display in Flat or Tilted Orientation 25

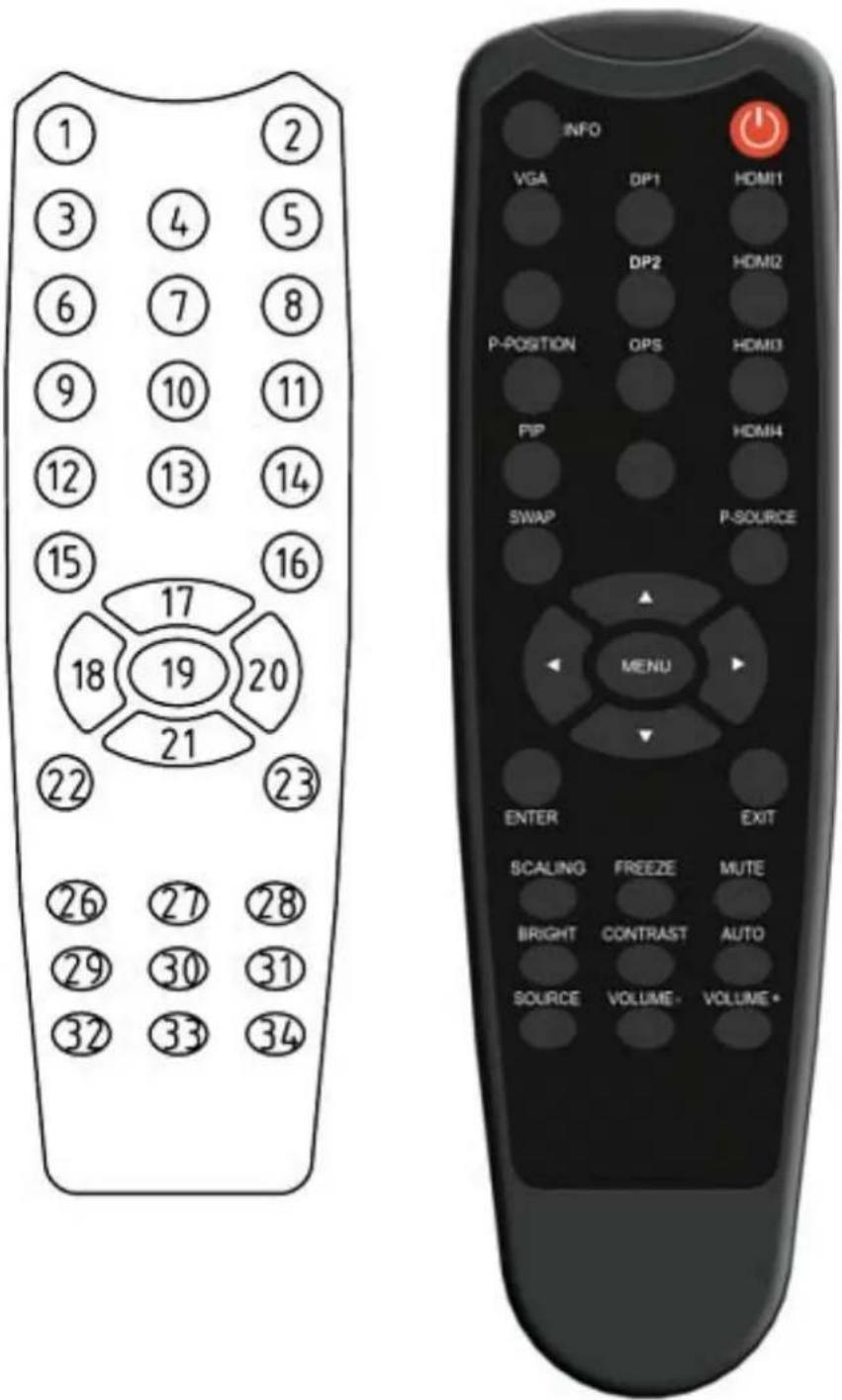

Using the Remote Control 26

Turning the Display On 29

Turning the Display Off 30

Adjusting the Volume 30

Selecting the Input Source.... 30

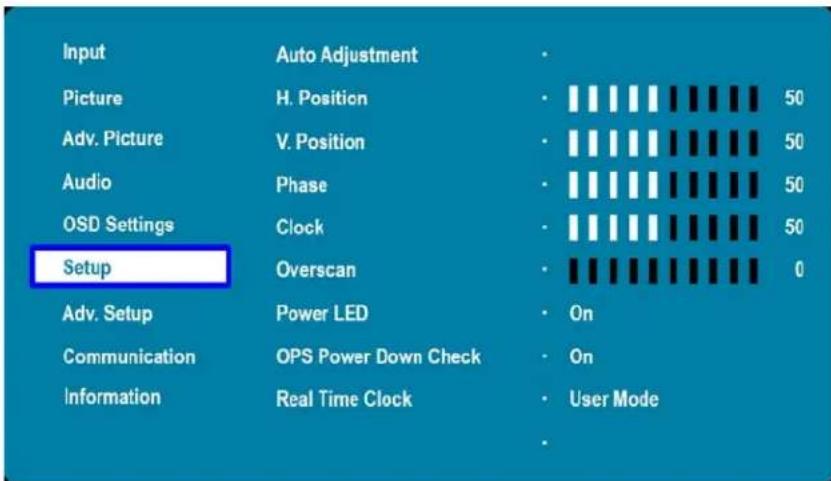

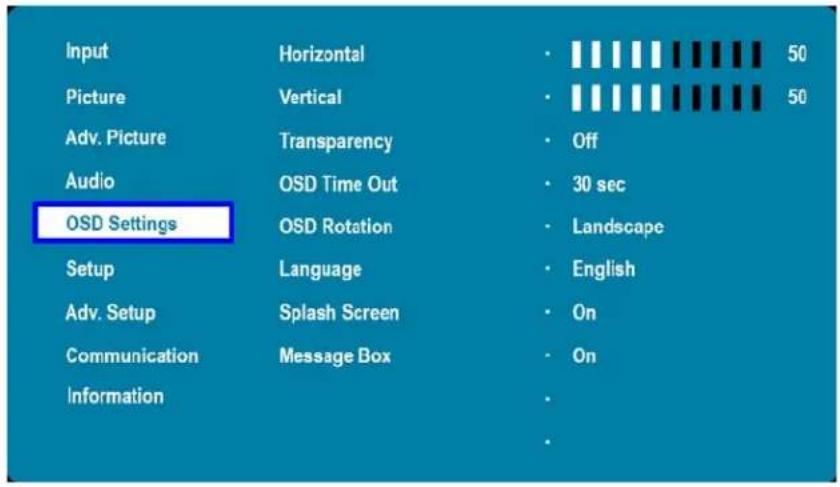

Navigating Through the Menus.... 30

Using the Touch Screen 53

Performing basic functions 53

Touchscreen MultiTouch Driver Installation 55

Touchscreen (PQLabs) MultiTouch Platform Content 55

Uninstalling the MultiTouch Driver.... 56

Multi-Touch Functions 56

LAN Control 57

Supported Operating Systems 57

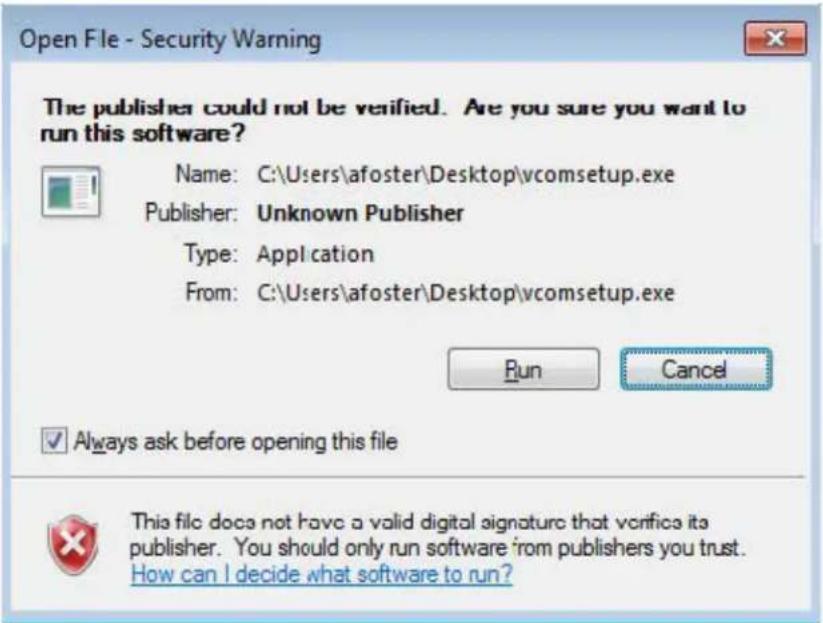

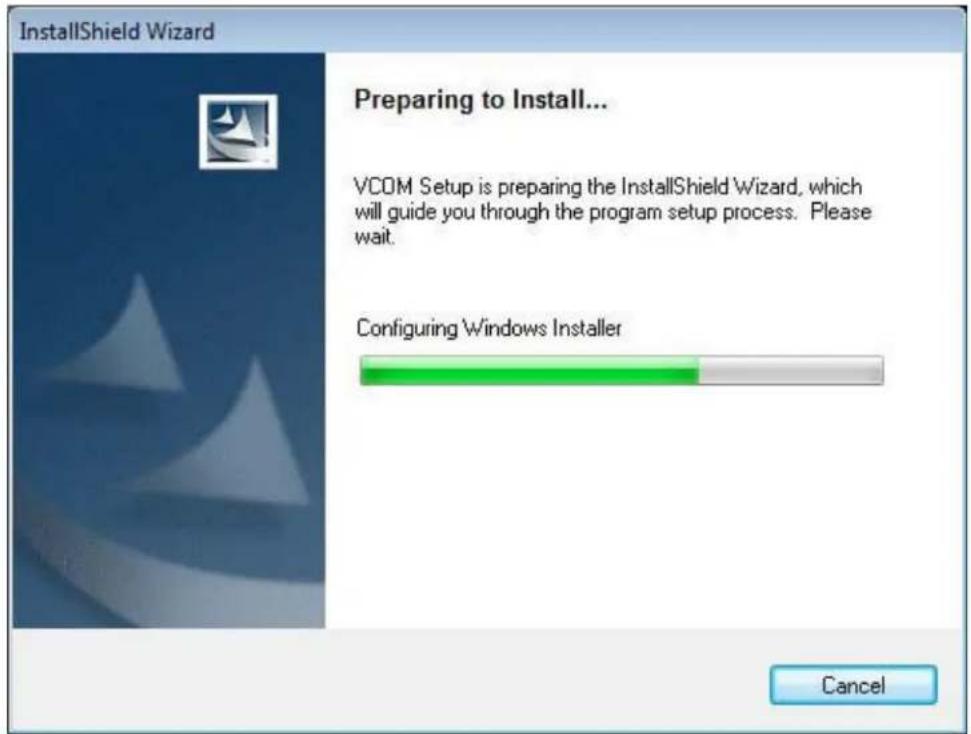

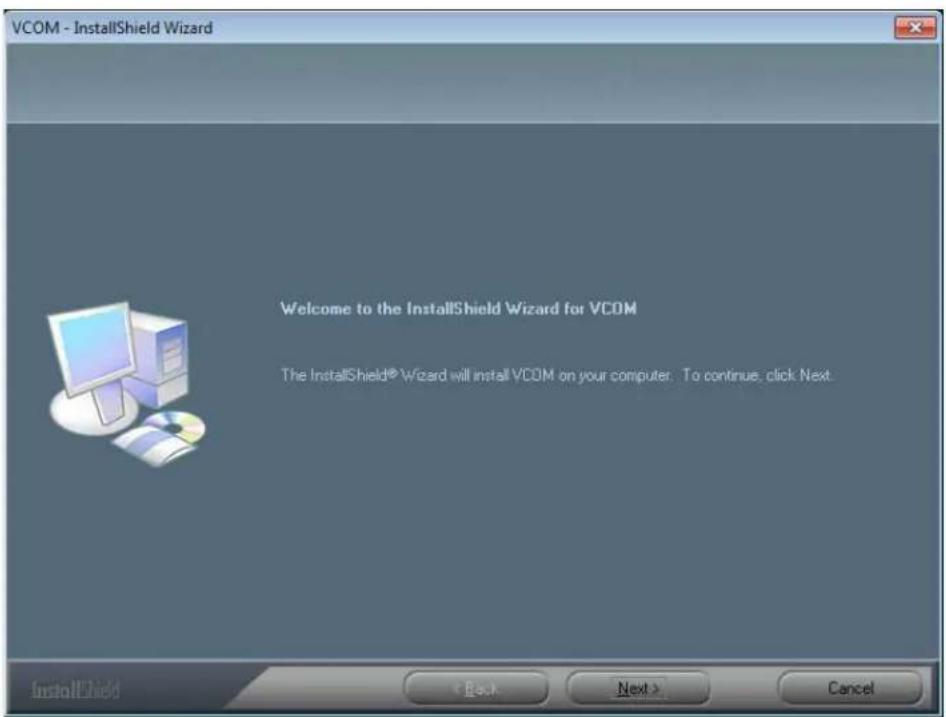

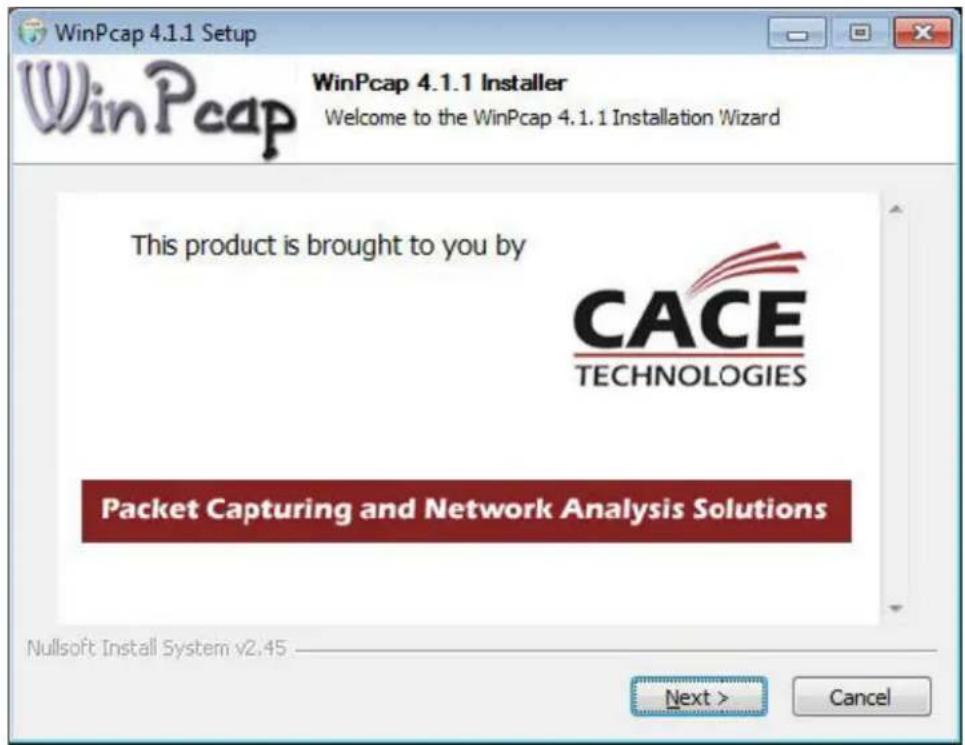

Installation....58

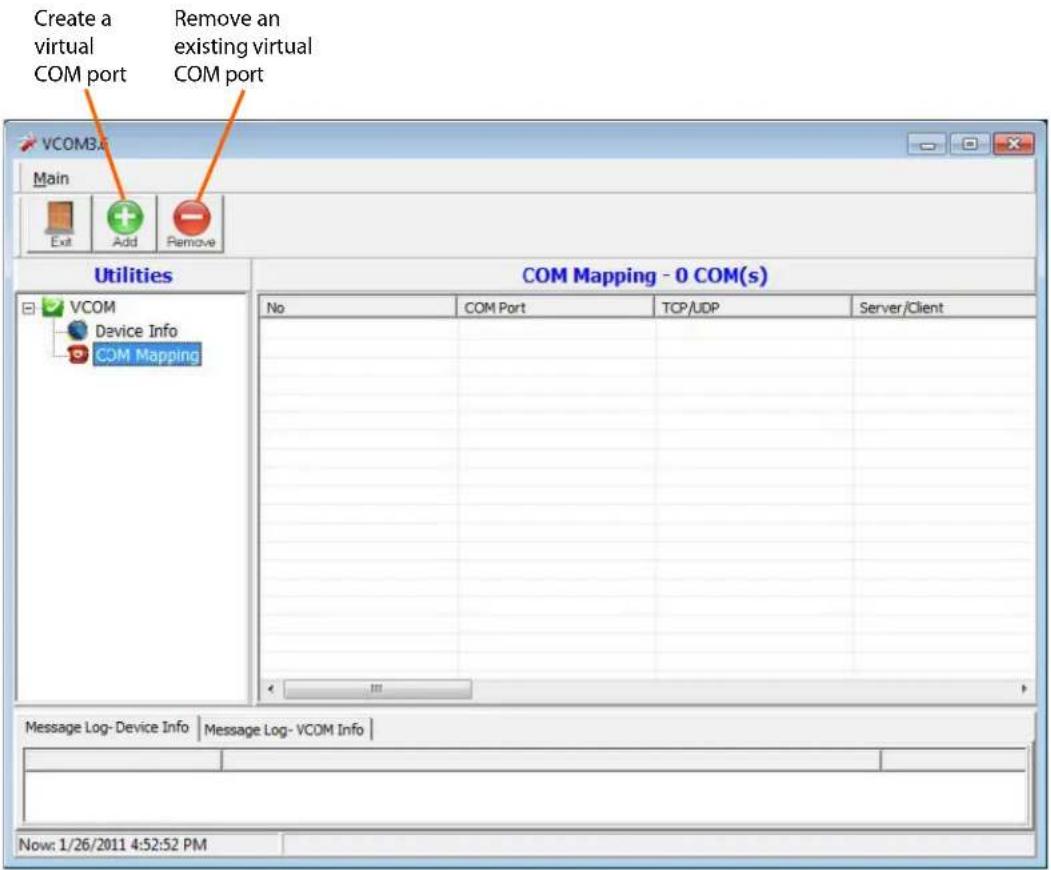

Configuring VCOM 61

Function Descriptions ...... 63

Setting Up Email Alerts 67

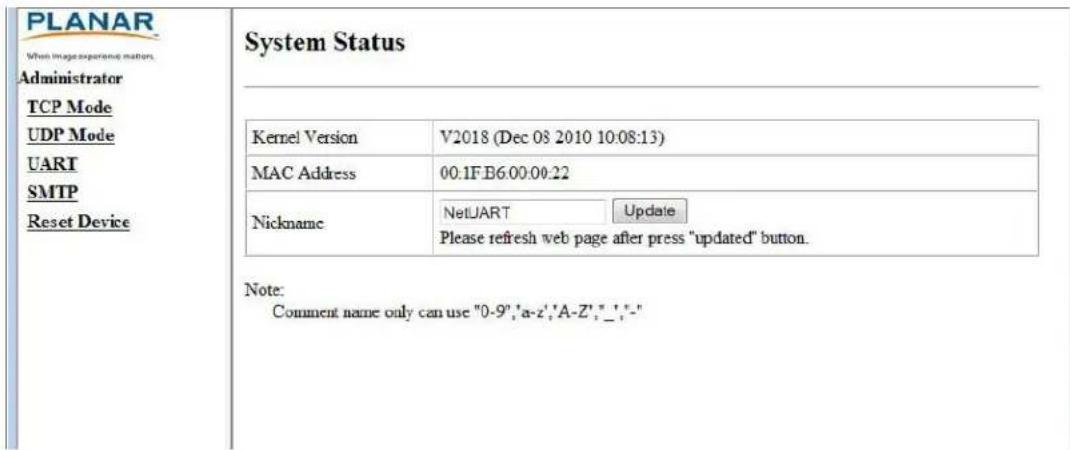

Login 67

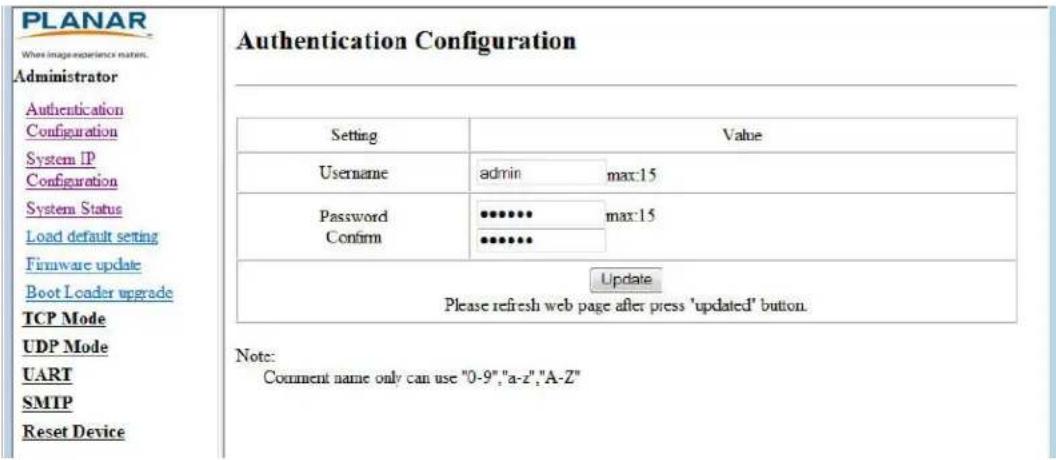

Administrator 69

TCP Mode, UDP Mode and UART 72

Table of Contents

SMTP 72

Reset Device 73

Signal Compatibility....74

Specifications....76

Troubleshooting....79

Accessing Planar's Technical Support Website....80

Introduction

The Ultra HD resolution Planar EP Series LCD displays offer best-in-class reliability with the stunning image quality of 4K resolution. The displays come standard with commercial-grade features required for digital signage, corporate, and control room environments.

Also available in touch versions, Ultra HD Planar EP Series displays bring interactivity to the 4K immersive experience.

Caution: This manual is intended for use by qualified service persons and end users with experience installing LCD displays.

Safety Information

Before using the Planar EP Series, please read this manual thoroughly to help protect against damage to property, and to ensure personnel safety.

• Be sure to observe the following instructions.
• For your safety, be sure to observe ALL the warnings detailed in this manual.
• For installation or adjustment, please follow this manual's instructions, and refer all servicing to qualified service personnel.

Safety Precautions

• If water is spilled or objects are dropped inside the display, remove the power plug from the outlet immediately. Failure to do so may result in fire or electrical shock. Contact your dealer for inspection.
• If the display is dropped or the chassis is damaged, remove the power plug from the outlet immediately. Failure to do so may result in fire or electrical shock. Contact your dealer for inspection.

WARNING! Wall mounts must be secure.

- If the display is hung on a wall, the wall must be strong enough to hold it. Simply mounting it to wallboard or wall paneling won't be adequate or safe.

Caution: The screen could be damaged by heavy pressure.

- Slight pressure on the LCD will cause distortion of the image. Heavier pressure will cause permanent damage. Displays should be mounted where viewers cannot touch the screen or insert small objects in the openings that will create hazards by contacting bare conductive parts.

Caution: The front polarizer is soft and subject to scratches from sharp objects.

• The polarizer is a thin sheet of film laminated to the outside layer of glass on the LCD screen. Take care when handling items near the screen.
• If the power cord or plug is damaged or becomes hot, turn off the main power switch of the display. Make sure the power plug has cooled down and remove the power plug from the outlet. If the display is still used in this condition, it may cause a fire or an electrical shock. Contact your dealer for a replacement.

Important Safety Instructions

1 Read these instructions.

2 Keep these instructions.

3 Heed all warnings.

4 Follow all instructions.

5 Do not use the display near water.

6 Clean the LCD screens with an LCD screen cleaner or LCD wipes.

7 Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.

8 Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for the replacement of the obsolete outlet.

9 Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the point where they exit from any of the displays.

10 Only use the attachments/accessories specified by the manufacturer.

11 Unplug all displays during lightning storms or when unused for long periods of time.

12 You must follow all National Electrical Code regulations. In addition, be aware of local codes and ordinances when installing your system.

13 Refer all servicing to qualified service personnel. Servicing is required when any of the displays have been damaged in any way. For example, if the AC power cord or plug is damaged, liquid has been spilled or objects have fallen into a display, the displays have been exposed to rain or moisture, do not operate normally or have been dropped.

14 Keep the packing material in case the equipment should ever need to be shipped.

15 Wall mounts must be secure. The wall must be strong enough to hold all displays, brackets and cables.

16 Slight pressure on the LCD will cause distortion of the image. Heavier pressure will cause permanent damage. Displays should be mounted where viewers cannot touch the screen or insert small objects in the openings that will create hazards by contacting bare conductive parts.

17 The front polarizer is soft and subject to scratches from sharp objects. The polarizer is a thin sheet of film laminated to the outside layer of glass on the LCD screen. Take care when handling items near the screen.

Recommended Usage

In order to get the most out of your LCD, use the following recommended guidelines to optimize the display.

Burn-In Versus Temporary Image Retention

Burn-in causes the screen to retain an image essentially forever, with little or no way to correct the problem. Under normal use, an LCD will not experience burn-in, as plasma displays do, nor will it retain images in any way.

Normal use of an LCD is defined as displaying continuously changing video patterns or images. However, LCDs can experience temporary image retention when recommended usage guidelines are not followed.

What is Temporary Image Retention?

Temporary image retention (TIR) can occur when a static image is displayed continuously for extended periods of time (12 hours or longer). An electrical charge differential may build up between the electrodes of the liquid crystal, which causes a negative-color video image (color-inverted and brightness-inverted version of the previous image) to be retained when a new image is displayed. This behavior is true for any LCD device from any LCD manufacturer.

TIR is not covered under warranty. See standard warranty terms and conditions for details. Here are some guidelines to help you avoid TIR:

• Use the LCD to show a screen saver, moving images or still pictures that change regularly. When using high-contrast images, reposition the images frequently.
• Turn off the LCD when it is not in use. To use your source computer's Power Options Properties, set up your computer to turn off the display when not in use.

Caution: For optimal performance, we suggest turning off the backlight power on the display for six hours per day.

European Union Disposal Information

English

☐ Disposal of old Electrical & Electronic Equipment (Applicable throughout the European Union and other European countries with separate collection programs)

This symbol found on your product or on its packaging, indicates that this product should not be treated as household waste when you wish to dispose of it. Instead, it should be handed over to an applicable collection point for the recycling of electricity and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate disposal of this product. The recycling of materials will help to conserve natural resources.

This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Español

Waste Electrical and Electronic Equipment (WEEE) Directive In the European Union, this label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling. EEE complies with Directive 'Regulation on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment'

Waste Electrical and Electronic Equipment (WEEE) Directive In the European Union, this label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling. EEE complies with Directive 'Regulation on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment'

Normal use of the LCD is defined as operating in the open air to prevent heat buildup, and without direct or indirect heat sources such as lighting fixtures, heating ducts, or direct sunlight that can cause the modules to experience high operating temperatures. For all modules, do not block fans or ventilation openings. If the LCD module will be installed in a recessed area with an LCD surround or enclosure, ensure adequate openings are applied for proper air flow and ventilation.

At 3000 meters or below, the maximum ambient operating temperature for the LCD module cannot be above 40^ C nor below the minimum ambient operating temperature of 0^ C. If one of these conditions exists, it is up to the installer to ensure that module placement is changed, thermal shielding is provided and/or additional ventilation is provided to keep the display within its nominal operating parameters.

Cooling Requirements

For optimal performance, active cooling by the installer should be planned for when the ambient temperature at the top of the wall is predicted to be above the specified ambient temperature for the panel. Cooling may be done behind the displays and depending on the wall configuration, it may be helpful to place air ducts (AC) at every third display tall.

VESA Mounts, General Description

VESA mounts are used to secure the Planar EP Series for display. The display can be installed using a variety of VESA mounts available through Planar. If you do not have a VESA mount and would like to purchase one, contact Planar.

If you purchased a VESA mount, you should have a received a separate box with mounting supplies and an Installation manual. Follow these instructions carefully.

Keep in mind the following general installation guidelines:

• Screw length is crucial and will vary depending on the type of mount you use. Total screw length will include the penetration length plus the length required by the type of VESA mount in use.
• Mount spacers may be required to accommodate the protruding back panel of the OPS slot.

Caution: Shorter screws will result in insufficient mounting strength and longer screws could puncture parts inside the display.

• Prior to installation, make sure you know where all of the mounting points are located.
• Follow all safety precautions outlined in the VESA Installation manual.
• Verify the parts received with the list shown in the VESA Installation manual.

Cleaning the Display

If dust has collected on the power plug, remove the plug from the outlet and clean off the dust. Dust build-up may cause a fire.

Remove the power plug before cleaning. Failure to do so may result in electrical shock or damage.

Keep the following points in mind when cleaning the surface of the display:

• When the surface of the display becomes dirty, wipe the surface lightly with a soft clean cloth.
• If the surface requires additional cleaning, use LCD screen cleaner or LCD wipes, which are available at most electronics stores.
• Do not let cleaner seep into the display, as it may cause electrical shock or damage.

Package Contents

Unpacking the Display

The display is packed in a cardboard box using foam to protect it during shipping.

Before unpacking the display, prepare a stable, level and clean surface near a wall outlet.

1 Place the LCD panel box in an upright position and remove the carton locks from the bottom first.
2 Remove the entire top of the box and the top shipping foam.
3 Remove the accessory bag and packing list.

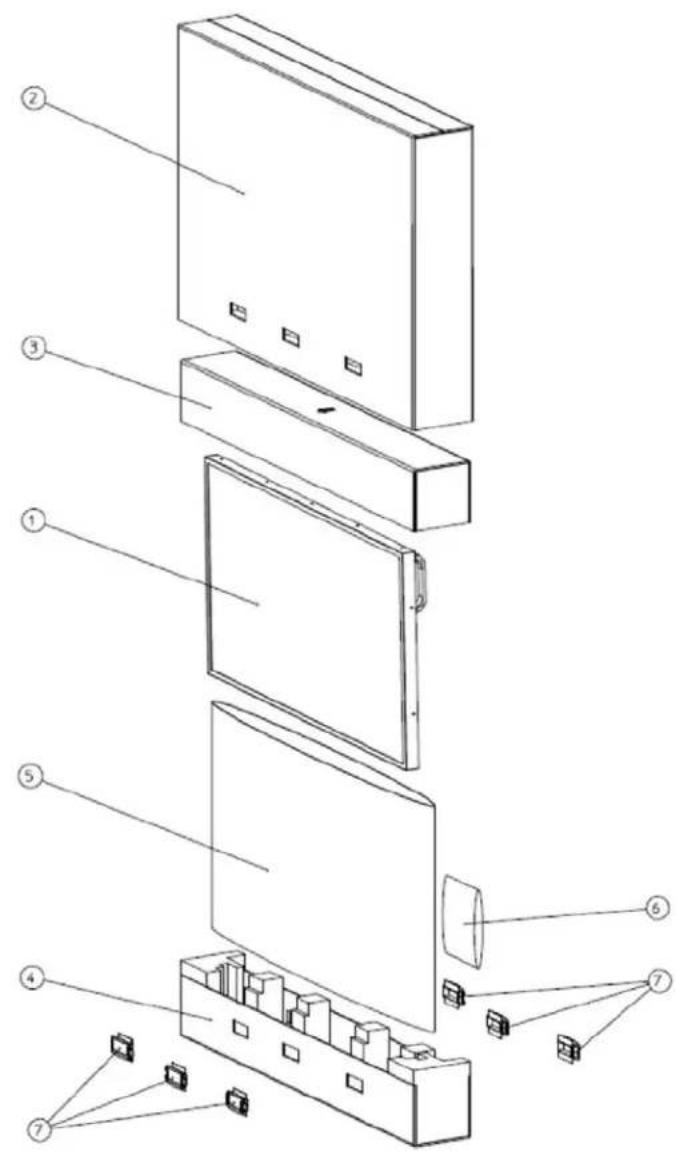

Exploded view diagram of a device with numbered parts for identification

Item Description Quantity
1	L	C	D	p	a	n	e
2	C	a	r	t	o	n	1
3 Foam Cushion Top 1
4 Foam Cushion Bottom 1
5 Polyurethane Bag 1
6 Accessory Bag 1
7	C	a	r	t	o	n	L

1

c k 6

Contents of the Accessory Kit

Part Picture Quantity
HDMI Cable 1
USB Drive 1
USB Cable(For Touch version)			1
Power cord 1
IR extender cable 1

Part Picture Quantity

Cable Clips 2
OSD Remote (AAA batteries included)		1

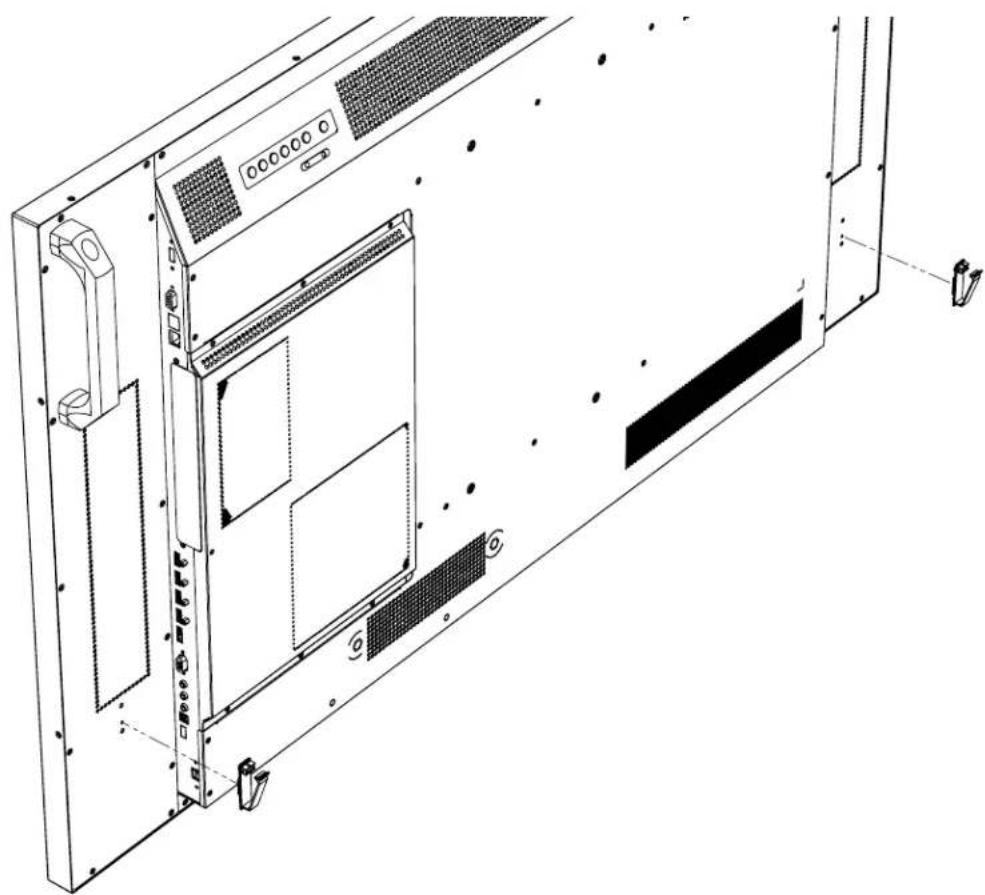

Installing the Cable Clips

The cable clips included in the Accessory Kit are used to assist with cable management. These clips snap into place as shown in the image below.

Technical line drawing of a server rack unit with mounting brackets and ventilation slots (no text or symbols)

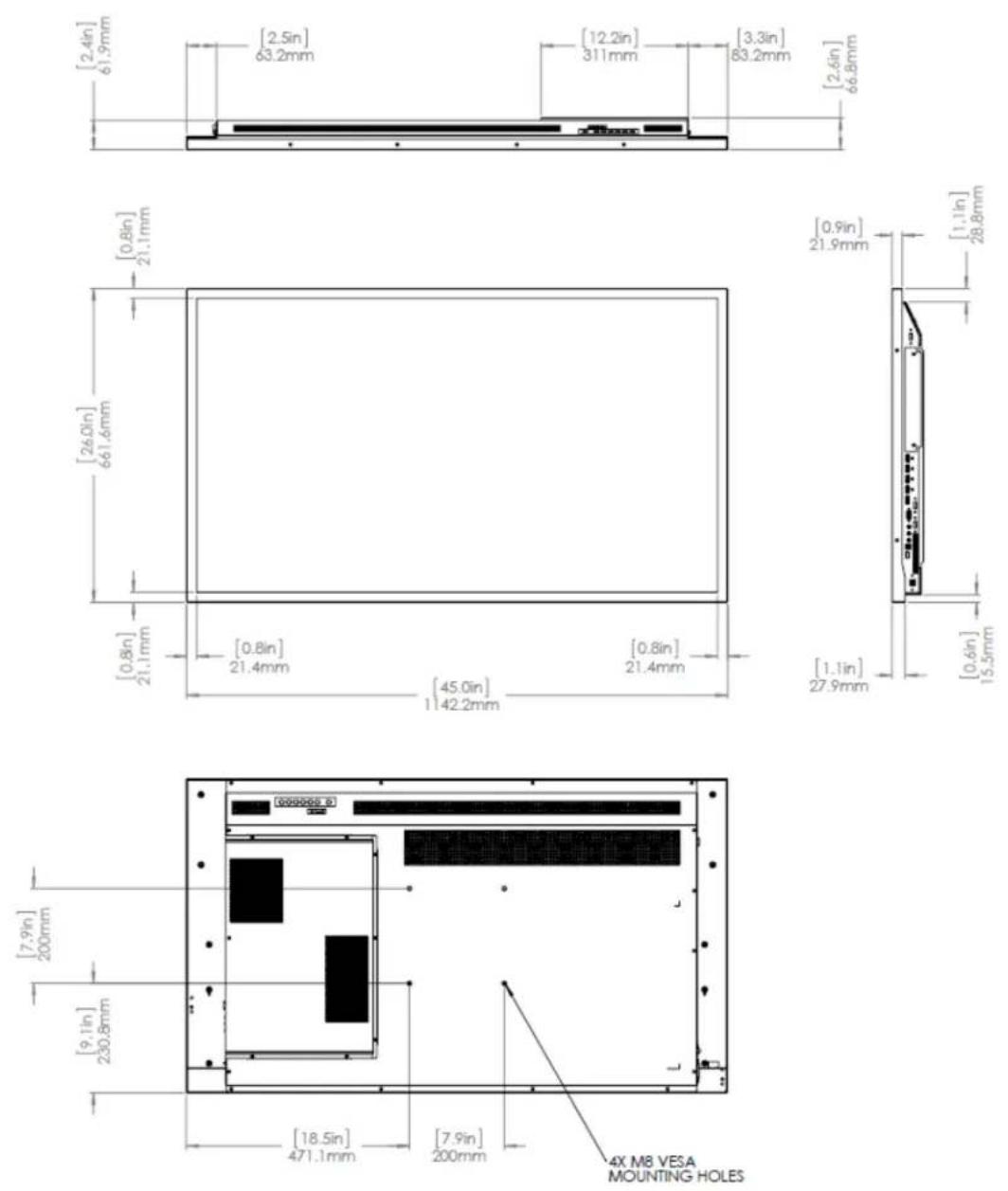

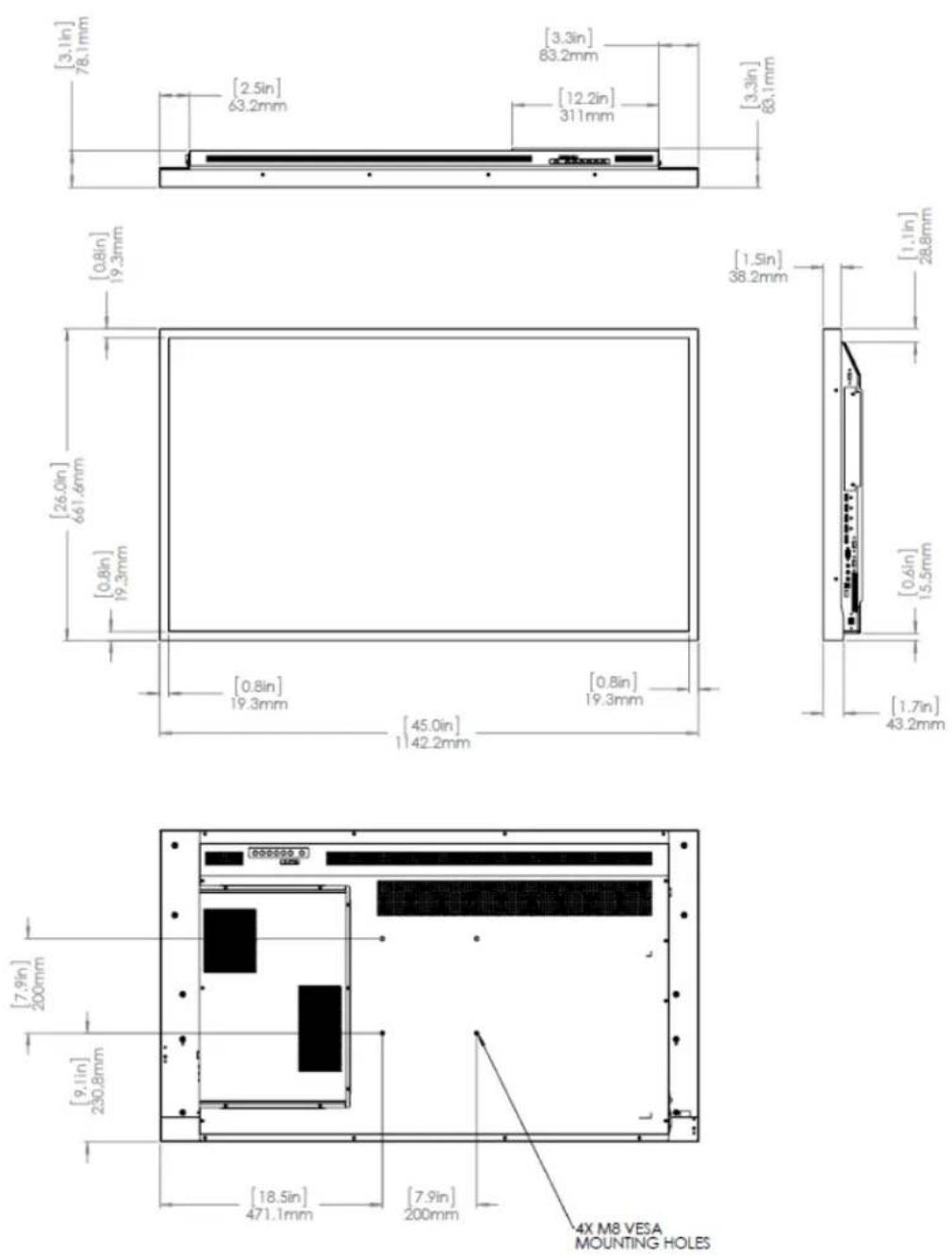

Dimensions

EP5014K

EP5014K-T

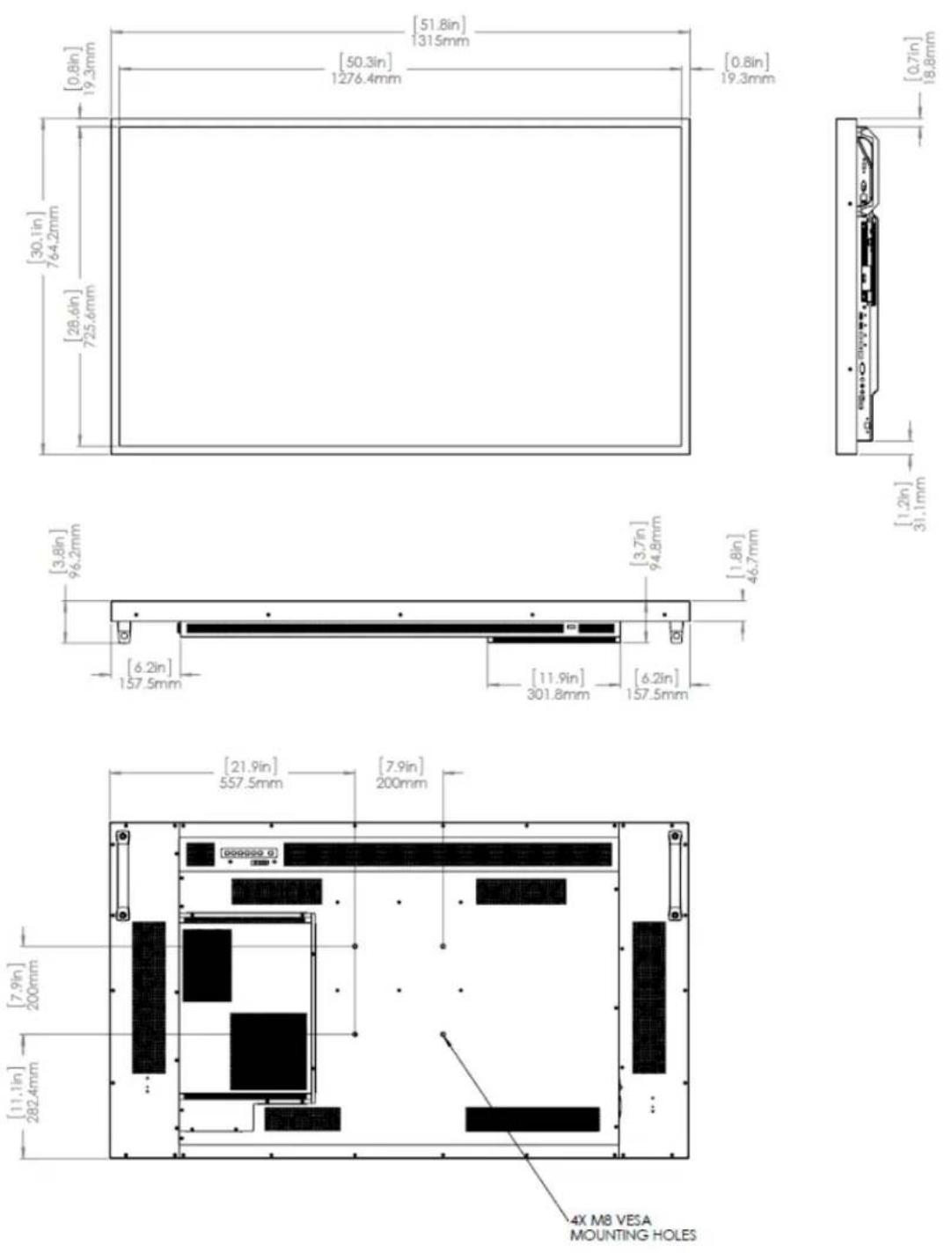

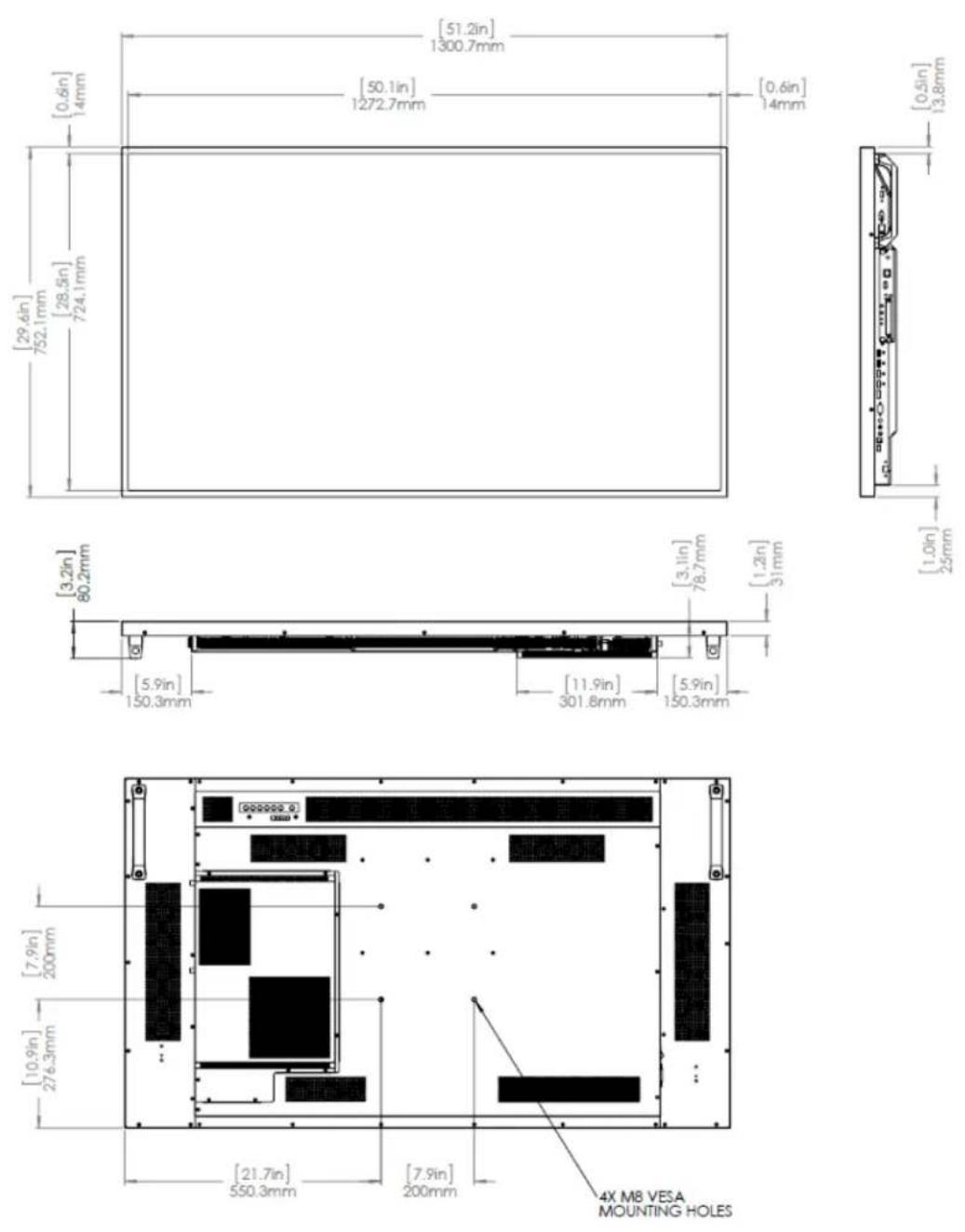

EP5814K

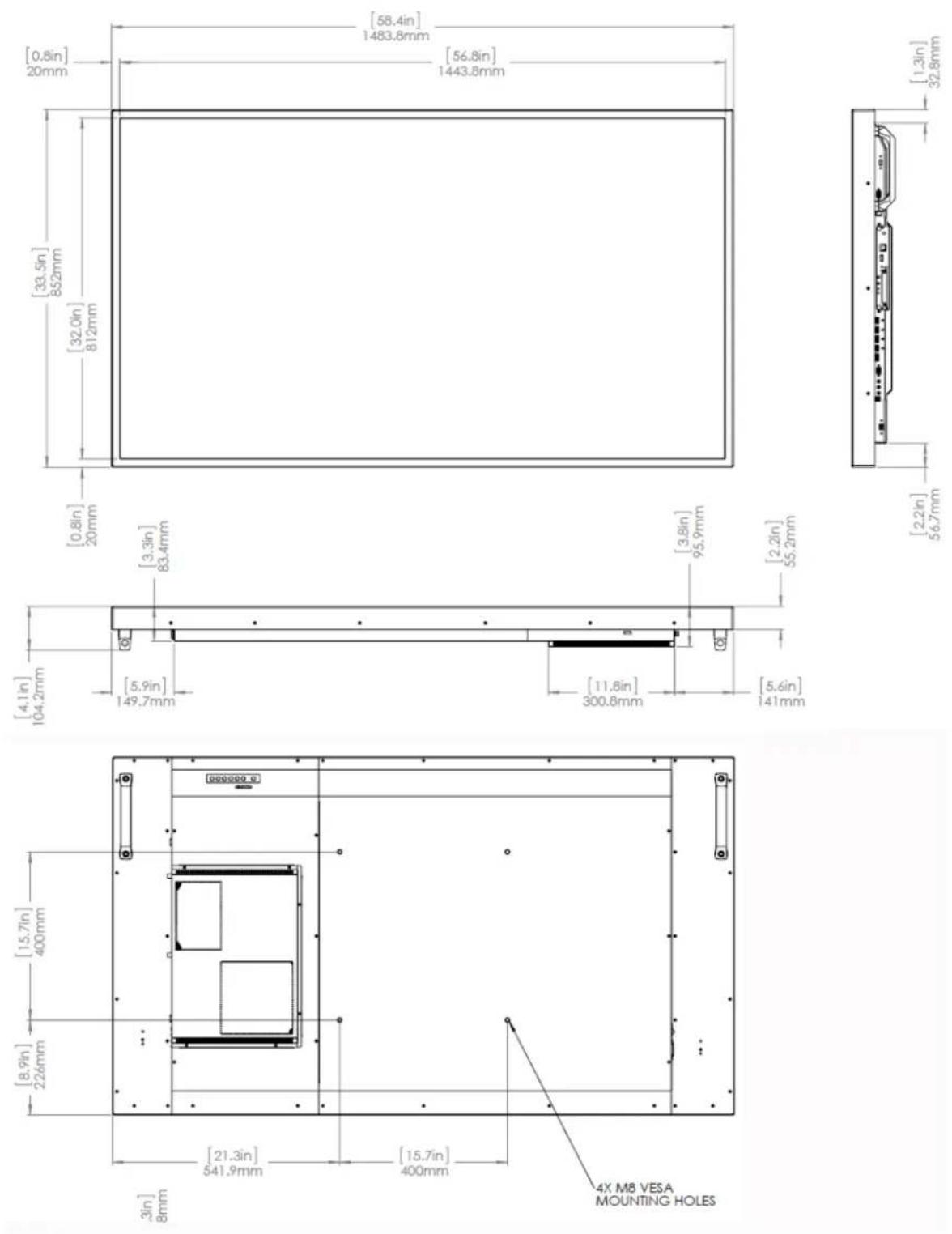

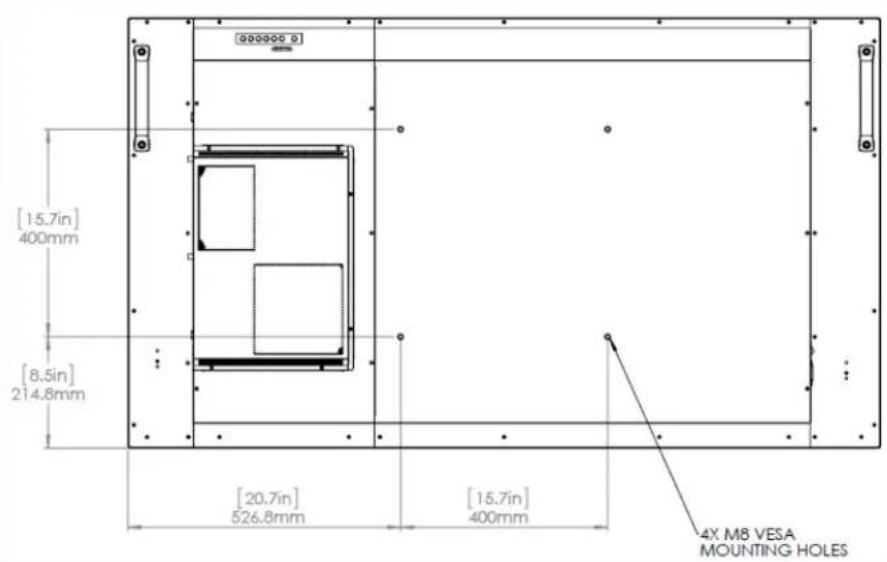

EP5814K-T

EP6514K

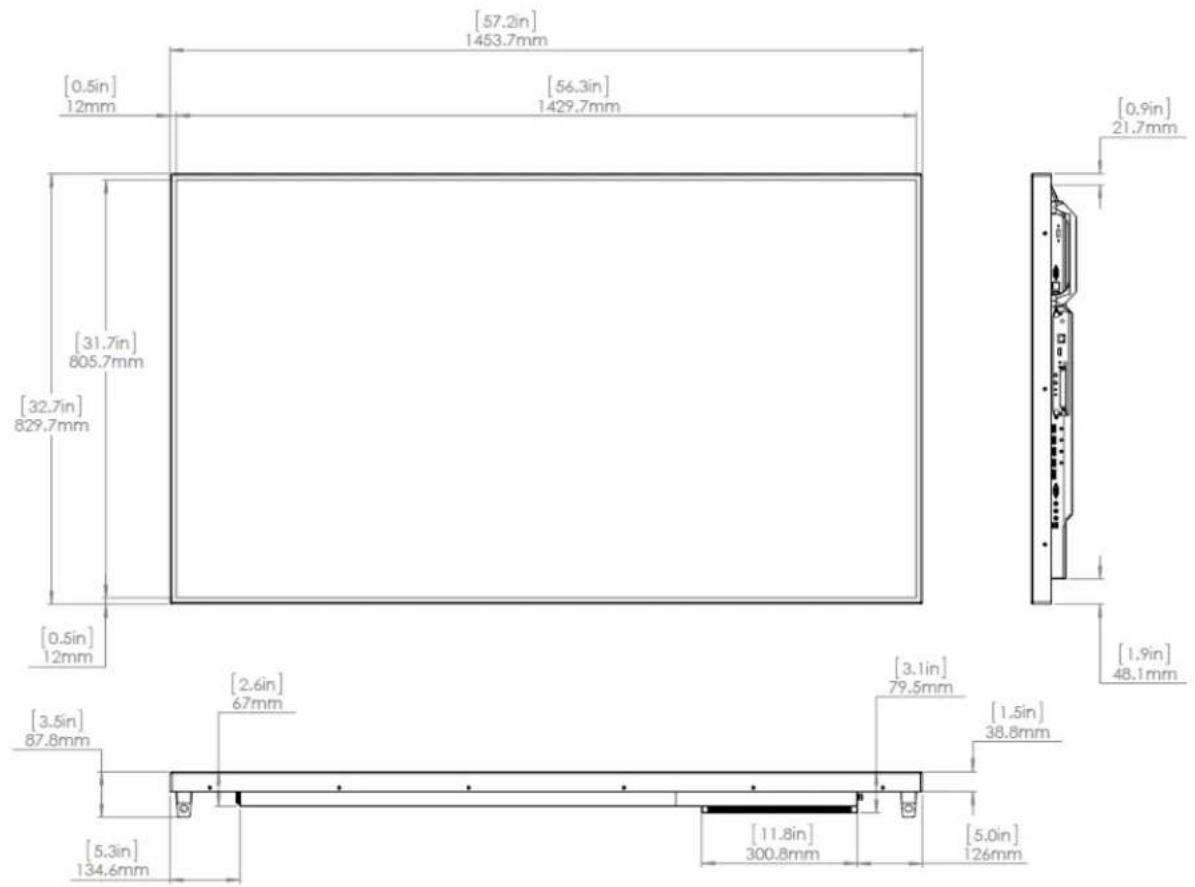

[57.2in] 1453.7mm [0.5in] 12mm [56.3in] 1429.7mm [0.9in] 21.7mm [31.7in] 805.7mm [32.7in] 829.7mm [0.5in] 12mm [1.9in] 48.1mm [3.5in] 87.8mm [2.6in] 67mm [3.1in] 79.5mm [1.5in] 38.8mm [5.3in] 134.6mm [11.8in] 300.8mm [5.0in] 126mm

[15.7in] 400mm [8.5in] 214.8mm [20.7in] 526.8mm [15.7in] 400mm 4X M8 VESA MOUNTING HOLES

EP6514K-T

Planar EP Series - Standard Inputs

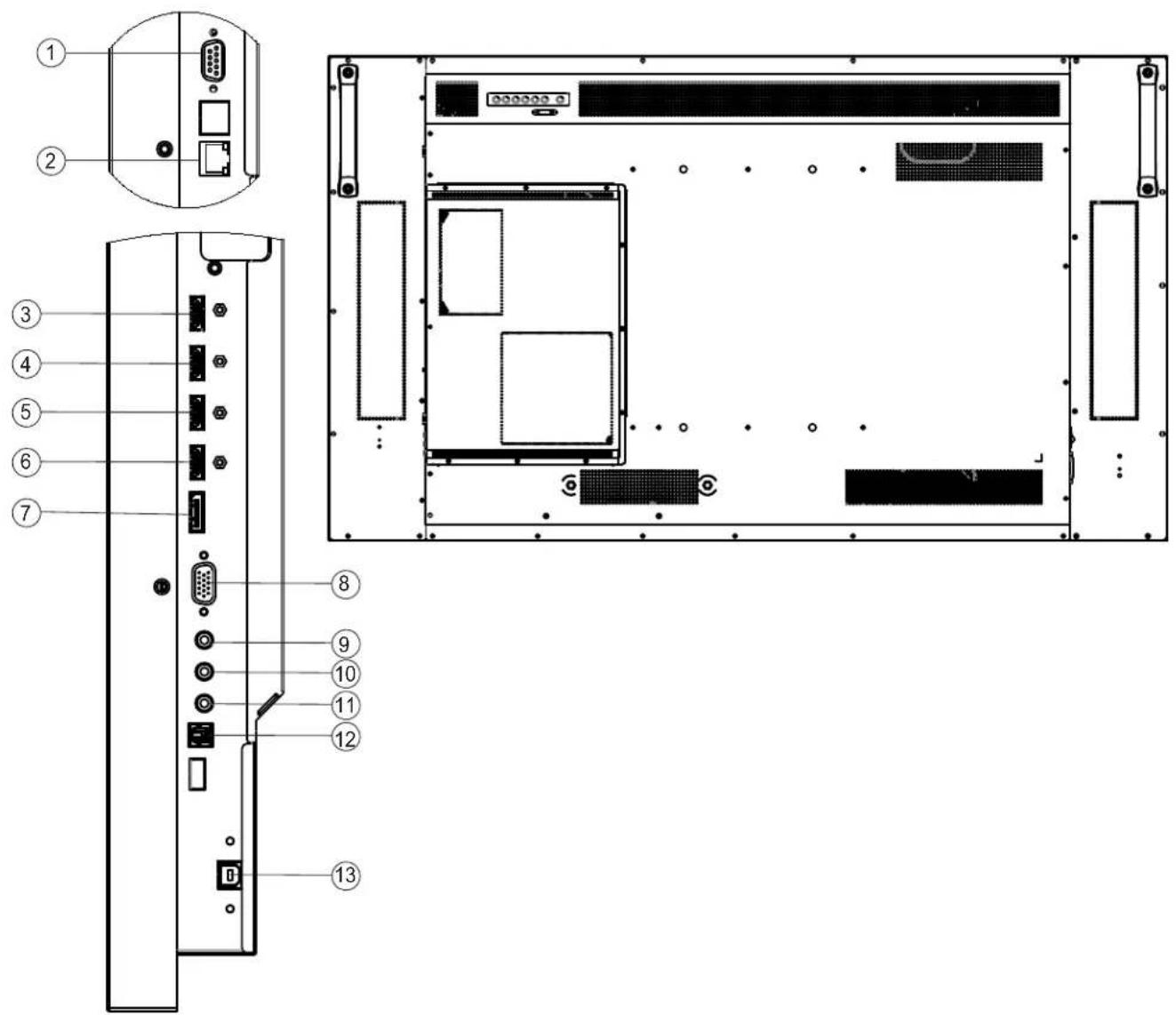

Technical diagram of an electronic device rear panel with labeled ports and connectors

1	R	S	-	2	3	2		8	V	G	A
2	L	A	N	9	P	C	A	u	d	i	o
3 HDMI 1 10 IR Extender
4	H	D	M	I	2	1	1	P	C	A	u
5	H	D	M	I	3	1	2	S	/	P	D
6 HDMI 4 13 Touch USB (for Touch version)
7	D	i	s	p	l	a	y	P	o	r	t

Installing the Display

This section explains how to install your display. We suggest that you read the entire section before you attempt to install the unit.

Before You Begin

Make sure you have all the items in these lists before you begin unpacking and installing your display(s).

Tools/Equipment List

Depending on your installation, you may need one or more of the following items:

• String/string level
• Digital/laser level
• Ladders/lift
• Back brace
• Stud finder (if hanging display on a wall)

Other Things You May Need

• LCD screen cleaner or LCD wipes - available at most electronics stores
• At least two very strong people to help lift units into place

Plan Your Installation

You should have a detailed plan of how the units are to be configured. The plan should include calculations for the following:

• Power (maximum of five units per 20A circuit for 115V operation)
- Cable runs
• Ventilation and cooling requirements
- If hanging display on a wall, location of studs in the wall

Prepare Your Installation Location

You should have prepared the area where you will install the unit. If custom enclosures are part of the installation, they must be fully designed to accommodate the installation of the displays, as well as the installed unit and ventilation and cooling requirements.

If your installation included a lot of construction or dust, it is highly recommended that you clean all of the screens after the wall installation and configuration are complete.

Cable Length Recommendations

Cable length performance may vary between different cables and sources. The recommended maximum DisplayPort length is 3m for DisplayPort 1.2 and 5m for DisplayPort 1.1. HDMI cable length is recommended for up to 15m.

Installing OPS Expansion (Optional)

The Planar EP Series displays are equipped with an expansion slot that supports the Intel® Open-Pluggable Specification (OPS). The slot will support OPS devices such as PC's, SDI modules, HDBaseT receivers, etc.

To install an OPS device, remove the protective cover on the display and slide the device firmly into position. When installed, the OPS device will be connected internally to the display. No external video or power cables are required.

For convenience, two Type-A USB 2.0 ports and one Type-A USB 3.0 port are provided on the rear cover of the display. When an OPS device is installed, these USB ports can be used for a keyboard, webcam, USB drive, or other peripherals.

Technical line drawing of a server rack unit with mounting bracket and ventilation slots (no text or symbols)

Operating the Display

OSD Keypad

The OSD keypad is located on the rear of the display.

MENU/EXIT SOURCE 000000 0 [15.7in] 400mm [7.9in] 200mm 4X M8 VESA MOUNTING HOLES

OSD Keypad Buttons

Key Descriptions

Power Power on/Power off

Source Source selection (toggle)

► Menu Right/Increase value

◄ Menu Left/Decrease value

▲ Menu Up

▼ Menu Down

Menu/Exit Menu/Exit

Remote Control Receiver

The remote control receiver is located near the keypad on the rear of the display. Use the IR extender cable for operating the remote from the front of the display.

Power ON standby indicator, Remote control receiver [15.7in] 400mm [7.9in] 200mm 4X M8 VESA MOUNTING HOLES

LED Indicators

The LED indicator light is located on the rear of the display near the keypad. The following table explains what the different colors and blink patterns mean.

LED On

Power Status Condition
Green Power	on
Blinking Orange No signal
Orange Power	saving mode
Off AC off
Off Power off

Using the Display in Portrait Mode

When using the display in the portrait position and looking at the rear of the display, it should be rotated according to the arrow stickers on the back of the display. This will allow for proper ventilation. Then select the OSD rotation of landscape or portrait on the OSD menu (MAIN MENU > OSD SETTINGS > OSD ROTATION).

Caution: Improper ventilation may shorten the life of the display.

Using the Display in Flat or Tilted Orientation

The display is not recommended for use in flat orientation for tabletop, floor, or ceiling installations. LCD panels of this size are at risk of panel deflection, which can cause cosmetic sagging, brightness uniformity issues, a shortened life span, and malfunction of optional touch sensors. Installations where the display is tilted downward or upward at an angle may also be prone to these issues and are not recommended.

Using the Remote Control

Below is a picture of the remote control and its corresponding Hex codes. See the following page for button descriptions and Hex codes.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 26 27 28 29 30 31 32 33 34 INFO VGA DP1 HDMI1 DP2 HDMI2 P-POSITION OPS HDMI3 PIP HDMI4 SWAP P-SOURCE MENU ENTER EXIT SCALING FREEZE MUTE BRIGHT CONTRAST AUTO SOURCE VOLUME- VOLUME·

Num Function		Customer Code	Hex Code Description
1	INFO	40AF	04FB Provides source and resolution information
2		40AF 1CE3 Turns the display on and off
3	VGA	40AF 07F8 Selects the PC's VGA source
4	DP1	40AF 08F7 Selects the DisplayPort 1 source
5	HDMI1	40AF 09F6 Selects the HDMI source 1
6			Not used
7			Not used
8	HDMI2	40AF 0CF3 Selects the HDMI source 2
9	P-position	40AF 1AE5 Selects the PiP (Picture-in-Picture) position
10	OPS	40AF 15EA Selects the OPS source
11	HDMI3	40AF 10EF Selects the HDMI source 3
12	PIP	40AF 11EE Selects the Multi-Source View
13			Not used
14	HDMI4	40AF 16E9 Selects the HDMI source 4
15	SWAP	40AF 06F9 Swaps the main input source with source 2
16	P-SOURCE	40AF 13EC Selects the PiP (Picture-in-Picture) source
17		40AF 02FD Navigates up through submenus and settings
18		40AF 01FE N navigates back through submenus and settings
19	MENU	40AF 0EF1 Opens the display's on-screen menu system. When the menu system is already open, pressing this button will select the previous submenu.
20		40AF 03FC Navigates forward through submenus and settings
21	▼	40AF 19E6 N	Navigates down through submenus and settings
22	ENTER	40AF 12ED S	Selects highlighted menu choices
23	EXIT	40AF 05FA C	Closes the menu system
26	SCALING	40AF 14EB T	Toggles between different aspect ratios (Auto, Native, 4 x 3, 16 x 9, 16 x 10 and Letterbox)
27	FREEZE	40AF 43BC F	Freezes the current source image
28	MUTE	40AF 00FF T	Turns off the sound
29	BRIGHT	40AF 17E8 A	Adjusts the brightness
30	CONTRAST	40AF 18E7 A	Adjusts the contrast
31	AUTO	40AF 1EE1 S	Synchronizes the display to the source
32	SOURCE	40AF 0FF0 A	Allows selection of the different sources
33	VOLUME -	40AF 1BE4 D	Decreases the sound volume
34	VOLUME +	40AF 1DE2 I	Increases the sound volume

Locking/Unlocking the OSD Menus

You can lock or unlock the OSD menus by pressing a series of key commands on the remote control. To lock the menu, press the following keys on the remote in the order listed: ENTER, ENTER, EXIT, EXIT, ENTER and EXIT. To unlock it, simply follow the same sequence.

Depending on whether you locked or unlocked the menu, you will see one of the following messages on the screen.

Key Unlocked

Key Locked

Changing the Remote Control Battery

1 Remove the battery cover.

Slide back and remove the battery cover in the direction of the arrow.

Line drawing of a hand holding a handheld device with a scroll wheel (no text or symbols)

2 Insert the batteries.

Align and insert two AAA batteries according to their plus and minus ports (as indicated in the remote control).

Technical line drawing of a remote control box with labeled ports and buttons (no text or symbols)

3 Close the battery cover.

Replace the battery cover in the direction of the arrow and snap it back into place.

Line drawing of a hand holding a handheld device (no text or symbols)

Turning the Display On

1 Insert the power cord into the display and into the power outlet.

2 Ensure the AC switch is set to “—”.

3 Press the power button on the remote or side control panel.

Turning the Display Off

With the power on, press the power button on the remote or side control panel to put the LCD panel in a standby mode. To turn off power completely, turn the AC switch to "O" or disconnect the AC power cord from the power outlet.

Note: If there is no signal for a certain period of time, the LCD panel will automatically go into standby mode.

Adjusting the Volume

1 Using the remote, press the VOLUME - or VOLUME + to increase or decrease the volume.
2 Press the MUTE button to temporarily turn off all sound. To restore the sound, press the MUTE button again.

Note: The analog audio out is variable. S/PDIF is fixed.

Selecting the Input Source

Do one of the following:

• Using the remote, press the desired source button (DP1, HDMI1, HDMI2, HDMI3, HDMI4, VGA).
• Press the source button on the display's keypad. Use the arrow buttons (▲▼) to select one of the following input sources and press ENTER: DISPLAYPORT1, HDMI1, HDMI2, HDMI3, HDMI4, VGA.

Note: When the display cannot find a source, a "No signal" message will appear.

Navigating Through the Menus

1 With the power on, press MENU. The INPUT menu appears.
2 Within the menu, use ▲, ▼, ◀, ▶ and ENTER to navigate through the menus and adjust options.
3 Press MENU to return to the previous menu. To exit the menu system, press EXIT.

Input Menu

This menu is used for selecting the input sources. Up to four sources can be displayed at the same time.

Input	Main Source	VGA
Picture	Auto Scan	Off
Adv. Picture	Multi-Source Views	Off
Audio	Source 2	HDMI1
OSD Settings	Source 3	HDMI1
Setup	Source 4	HDMI1
Adv. Setup	PiP Size	Small
Communication	PiP Position	BotR
Information	Swap
	Multi-Source Presets

Main Input

Select the Main Input source

Options: DisplayPort1, HDMI1, HDMI2, HDMI3, HDMI4, VGA, OPS

Auto Scan

Select whether the display will automatically scan for a Main Input source Options: On, Off; Default: Off

Multi-Source Views

Select the Multi-Source View mode

Options: Off, PiP, Dual View, Dual View Portrait, Triple View, Quad View Default: Off

Source 2

Select the second source

Options: DisplayPort1, HDMI1, HDMI2, HDMI3, HDMI4, VGA, OPS

Note: This function is only available when Multi-Source Views is set to PiP, Dual View, Dual View Portrait, Triple View or Quad View. If HDMI1 was selected as another source, OPS cannot be selected. If OPS was selected as another source, HDMI1 cannot be selected.

Source 3

Select the third source

Options: DisplayPort1, HDMI1, HDMI2, HDMI3, HDMI4, VGA, OPS

Note: This function is only available when Multi-Source Views is set to Triple View or Quad View. If HDMI1 was selected as another source, OPS cannot be selected. If OPS was selected as another source, HDMI1 cannot be selected.

Source 4

Select the fourth source

Options: DisplayPort1, HDMI1, HDMI2, HDMI3, HDMI4, VGA, OPS

Note: This function is only available when Multi-Source Views is set to Quad View. If HDMI1 was selected as another source, OPS cannot be selected. If OPS was selected as another source, HDMI1 cannot be selected.

PIP Size

Select the size of the PiP (Picture-in-Picture)

Options: Small, Mid, Large

Note: This function is only available when Multi-Source Views is set to PiP

PIP Position

Set the position of the PiP (Picture-in-Picture)

Options: TopR (Top Right), TopL (Top Left), BotR (Bottom Right), BotL (Bottom Left)

Note: This function is only available when Multi-Source Views is set to PiP

Swap

Swap the Main Input source with Source 2

Note: This function is only available when Multi-Source Views is set to PiP, Dual View, or Dual View Portrait

Multi-Source Presets

Save or Recall Multi-Source Preset1, Preset2, Preset3 or Preset4

Note: See page 33 for more information.

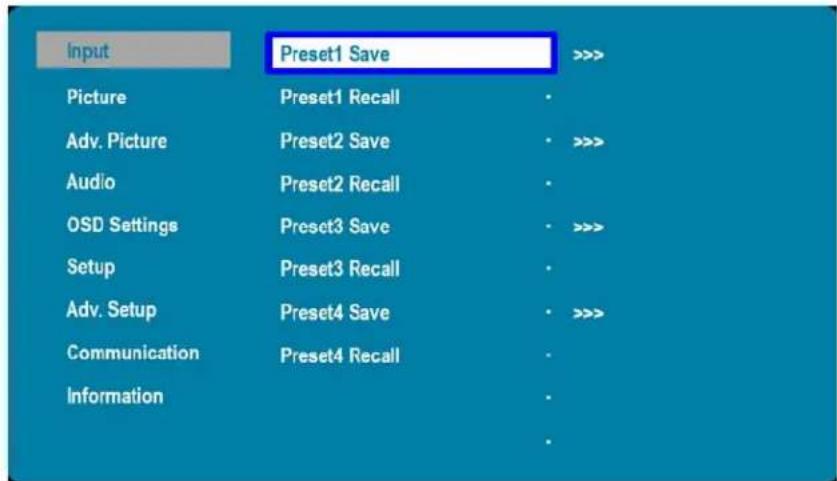

Multi-Source Presets Submenu

Save and recall up to four configurations of single or multi-source layouts. Source selection and location are saved within each preset.

Input Preset1 Save >>> Picture Preset1 Recall · Adv. Picture Preset2 Save · >>> Audio Preset2 Recall · OSD Settings Preset3 Save · >>> Setup Preset3 Recall · Adv. Setup Preset4 Save · >>> Communication Preset4 Recall · Information ·

Saving Configurations

1 Set up the single or multi-source layout as desired.
2 Select PRESET1 SAVE, PRESET2 SAVE, PRESET3 SAVE, or PRESET4 SAVE to assign the configuration to one of the preset slots.

Recalling Stored Configurations

1 Select PRESET1 RECALL, PRESET2 RECALL, PRESET3 RECALL, or PRESET4 RECALL in the on screen menu to recall the desired saved configuration. Presets can be also be recalled from RS-232.

Note: Presets can be overridden but cannot be deleted.

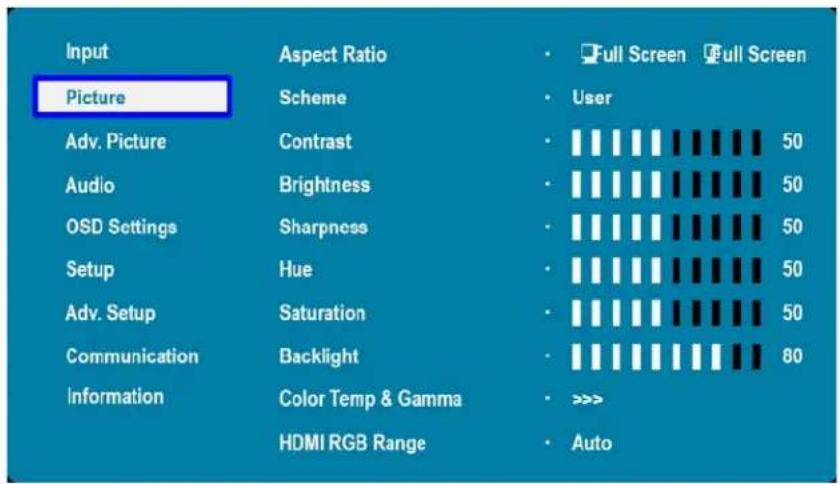

Picture Menu

This menu is used for making common image adjustments.

Input Picture Aspect Ratio Scheme • Full Screen Full Screen • User Adv. Picture Contrast 50 Audio Brightness 50 OSD Settings Sharpness 50 Setup Hue 50 Adv. Setup Saturation 50 Communication Backlight 80 Information Color Temp & Gamma >>> HDMI RGB Range • Auto

Aspect Ratio
	Adjust the aspect ratio of the screen. The first selection is for the main source, and the second selection is for sources 2-4.Options: Full Screen, Letterbox, 4:3, 1:1; Default: Full Screen
Scheme
	Press ◀ or ▶ to select one of the following:Options: User, Vivid, Cinema, Game, Sport;Default: User
Contrast
	Increase or decrease the contrast of picture. Press ◀ or ▶ to select the desired level.Range: 0~100; Default: 50
Brightness
	Increase or decrease the brightness of picture. Press ◀ or ▶ to select the desired level.Range: 0~100; Default: 50
Sharpness
	Adjust the definition of picture. Press ◀ or ▶ to select the desired level.Range: 0~100; Default: 50
Hue
	Increase or decrease the green hue. Press ◀ or ▶ to select the desired level.Range: 0~100; Default: 50Note: This function is not available when displaying PC or graphics sources

Saturation

Adjust the brilliance and brightness. Press ◀ or ▶ to select the desired level.

Range: 0\~100; Default: 50

Note: This function is not available when displaying PC or graphics sources

Backlight

Increase or decrease the intensity of the LCD backlight. Press ◀ or ▶ to select the desired level.

Range: 0\~100; Default: 80

Color Temp and Gamma

Select gamma

Options: Off, 1.85, 1.9, 1.95, 2.0, 2.05, 2.10, 2.15, 2.2, 2.25, 2.3, 2.35, 2.4, 2.45, 2.5, 2.55, 2.6

Default: 2.2

Select color temperature

Options: User, 3200K, 5000K, 6500K, 7500K, 9300K; Default: 9300K

HDMI RGB Range

Select RGB range for HDMI sources

Options: Auto, Full, Limited; Default: Auto

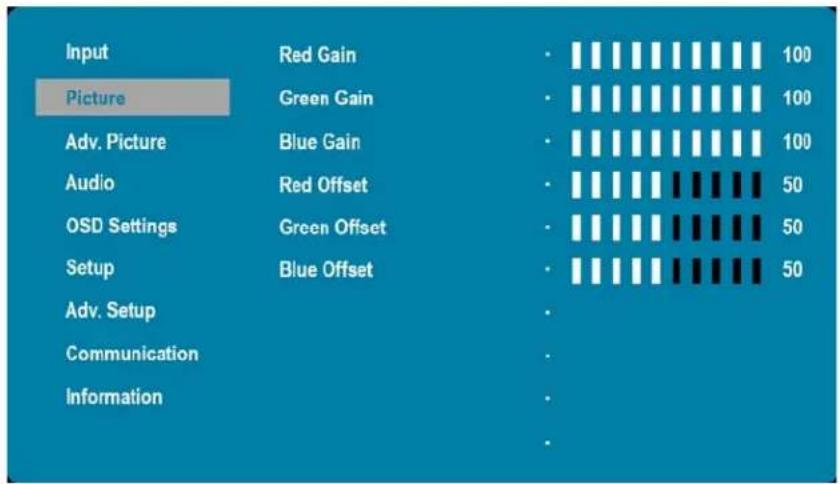

Picture Menu - RGB Adjust Submenu (Color Temp = User)

Input Picture Red Gain Green Gain Adv. Picture Blue Gain Audio Red Offset OSD Settings Green Offset Setup Blue Offset Adv. Setup Communication Information 100 100 100 50 50 50

Red Gain
	Set Color Temperature to "User" in order to adjust this setting. Range: 0~100 Default: 100
Green Gain
	Set Color Temperature to "User" in order to adjust this setting. Range: 0~100 Default: 100
Blue Gain
	Set Color Temperature to "User" in order to adjust this setting. Range: 0~100 Default: 100
Red Offset
	Set Color Temperature to "User" in order to adjust this setting. Range: 0~100 Default: 50
Green Offset
	Set Color Temperature to "User" in order to adjust this setting. Range: 0~100 Default: 50
Blue Offset
	Set Color Temperature to "User" in order to adjust this setting. Range: 0~100 Default: 50

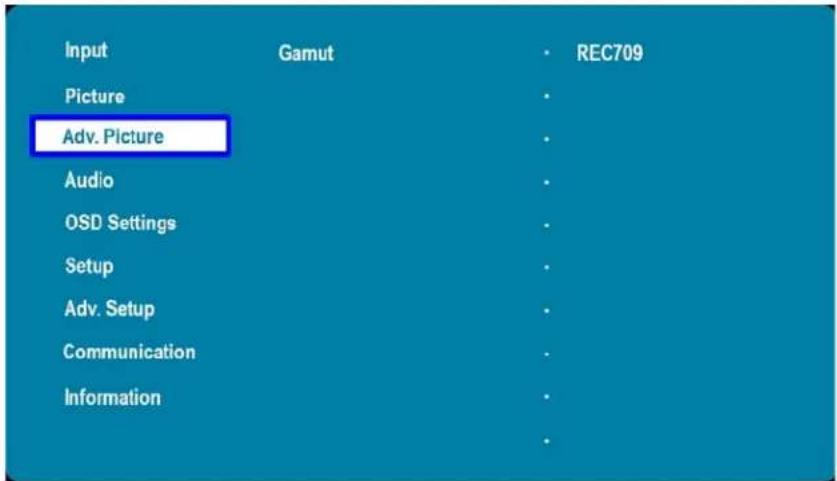

Advanced Picture Menu

Input Gamut REC709 Picture Adv. Picture Audio OSD Settings Setup Adv. Setup Communication Information -

Gamut

Select the range of colors shown on the display

Options:

Native: Selects the maximum range of colors

REC709: Selects the color gamut used in HDTV content

SMPTE C: Selects the color gamut used in SD content in the US

EBU: Selects the color gamut used in SD content in Europe

Default:

EP5014K and EP5814K: REC709

EP6514K: Native

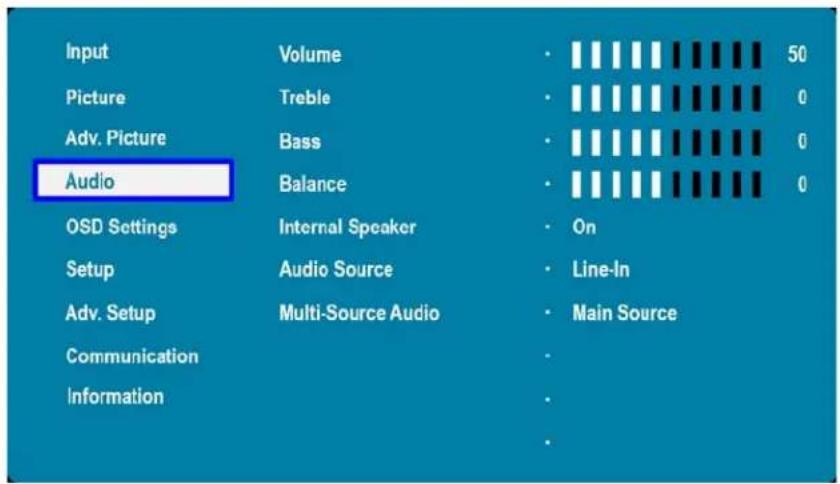

Audio Menu

This menu is used for adjusting audio settings.

Input Volume 50 Picture Treble 0 Adv. Picture Bass 0 Audio Balance 0 OSD Settings Internal Speaker On Setup Audio Source Line-In Adv. Setup Multi-Source Audio Main Source Communication Information

Volume

Adjust the sound. Press ◀ or ▶ to select the desired level.

Range: 0\~100

Default: 50

Treble

Adjust the sound in high tones (treble). Press ◀ or ▶ to select the desired level.

Range: -6\~+6

Default: 0

Bass

Adjust the sound in low tones (bass). Press ◀ or ▶ to select the desired level.

Range: -6\~+6

Default: 0

Balance

Adjust the balance of the left and right speakers. Press ◀ or ▶ to select the desired level.

Range: -6\~+6

Default: 0

Internal Speaker

Turn the internal speaker on or off

Default: On

Audio Source

Select the audio source for the Main input

Options: DisplayPort1, HDMI1, HDMI2, HDMI3, HDMI4, Line-In

Multi-Source Audio

Select the audio source that is played through the display's internal speakers, audio out and digital audio out

Options: Main Source, Source 2, Source 3, Source 4

Default: Main Source

Note: Adjustments to the Audio Source setting will override selections made to Multi-Source Audio. Do not change the Audio Source setting if you plan to make audio source selections in Multi-Source Audio.

Off-screen audio sources can be selected from Audio Source.

OSD Settings Menu

This menu is used to make initial setup adjustments to the OSD (On-Screen Display) menu and other on-screen messages.

Input Picture Adv. Picture Audio OSD Settings Setup Adv. Setup Communication Information Horizontal Vertical Transparency OSD Time Out OSD Rotation Language Splash Screen Message Box Off 30 sec Landscape English On On 50 50

Horizontal
	Adjust the horizontal position of the OSD menu. Press ◀ or ▶ to select the desired level.Range: 0~100Default: 50
Vertical
	Adjust the vertical position of the OSD menu. Press ◀ or ▶ to select the desired level.Range: 0~100Default: 50
Transparency
	Submenu to adjust the transparency of the OSD menu. Press ◀ or ▶ to select the desired level.Options: Off, 1, 2, 3, 4Default: Off
OSD Timeout
	Submenu to adjust the time in seconds before the OSD menu disappears. Press ◀ or ▶ to select the desired level.Options: 5 sec, 10 sec, 20 sec, 30 sec, 60 secDefault: 30 sec
OSD Rotation
	Select the OSD Rotation. Press ◀ to select the rotation.Options: Landscape, PortraitDefault: Landscape

Language

Select the OSD language

Splash Screen

Select whether a splash screen appears when the monitor is powered up

Options: On, Off

Default: On

Message Box

Select whether a message box is displayed on screen

Options: On, Off

Default: On

Setup Menu

Input Picture Adv. Picture Audio OSD Settings Setup Adv. Setup Communication Information Auto Adjustment H. Position V. Position Phase Clock Overscan Power LED OPS Power Down Check Real Time Clock On On User Mode

Auto Adjustment

Force the display to reacquire and lock to the input signal (VGA source only). This is useful when the signal quality is marginal. Note: This feature does not continually reacquire the signal.

Options: No, Yes

Default: No

H. Position

Adjust the horizontal position of the image (VGA source only). Press ◀ or ▶ to select the desired level.

Range: 0\~100

Default: 50

V. Position

Adjust the vertical position of the image (VGA source only). Press ◀ or ▶ to select the desired level.

Range: 0\~100

Default: 50

Phase

Adjust the phase of the displayed signal (VGA source only). Press ◀ or ▶ to select the desired level.

Range: 0\~100

Clock

Adjust the clock of the displayed signal (VGA source only). Press ◀ or ▶ to select the desired level.

Range: 0\~100

Overscan

Adjust the zoom (overscan) of the image

Default: 0

Power LED

Enable or disable the status LED

Options: On, Off

Default: On

OPS Power Down Check

Allow the display to skip waiting for the OPS module to power down when the display is powering down

Default: On

Real Time Clock

See details on next page

Real Time Clock Submenu

This menu is used to set the internal clock of the display, and to power on and power off the display at preset times if desired.

Current Time	2015 / 05 / 21		09 : 40	Thursday
Timer Mode	User Mode
Week	Enable	Power On	Power Off
Monday	□	00 : 00	00 : 00
Tuesday	□	00 : 00	00 : 00
Wednesday	□	00 : 00	00 : 00
Thursday	□	00 : 00	00 : 00
Friday	□	00 : 00	00 : 00
Saturday	□	00 : 00	00 : 00
Sunday	□	00 : 00	00 : 00

Current Time

Set the year, month, day, and time of day

Options: User Mode, Workday Mode, Everyday Mode

Real Time Clock – User Mode

Current Time	2015 / 05 / 21 09 : 40 Thursday
Timer Mode	User Mode
Week	Enable	Power On	Power Off
Monday	□	00 : 00	00 : 00
Tuesday	□	00 : 00	00 : 00
Wednesday	□	00 : 00	00 : 00
Thursday	□	00 : 00	00 : 00
Friday	□	00 : 00	00 : 00
Saturday	□	00 : 00	00 : 00
Sunday	□	00 : 00	00 : 00

User Mode

Select the power on/off time for each day of the week

Options: Disable, Enable

Use the arrow keys to specify the on and off times.

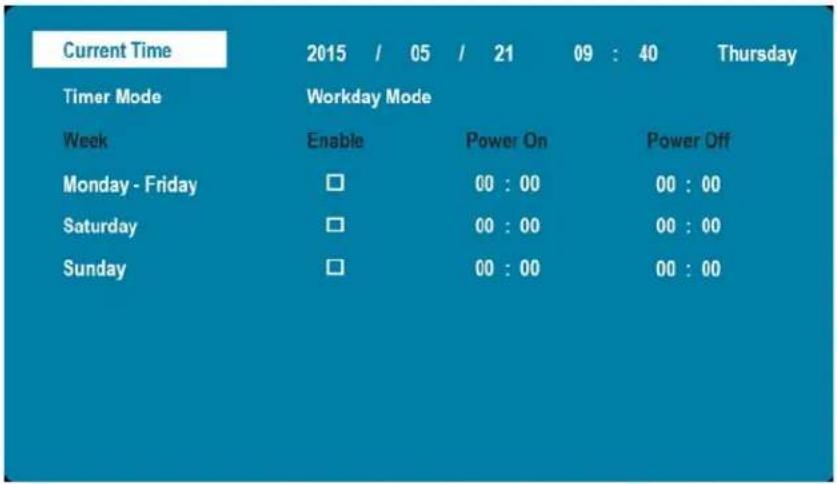

Real Time Clock – Workday Mode

Current Time 2015 / 05 / 21 09 : 40 Thursday Timer Mode Workday Mode Week Enable Power On Power Off Monday - Friday □ 00 : 00 00 : 00 Saturday □ 00 : 00 00 : 00 Sunday □ 00 : 00 00 : 00

Workday Mode

Select the power on/off time for Monday–Friday, Saturday, and Sunday

Options: Disable, Enable

Use the arrow keys to specify the on and off times.

Real Time Clock – Everyday Mode

Current Time	2015 / 05 / 21 09 : 40 Thursday
Timer Mode	Everyday Mode
Week	Enable	Power On	Power Off
Monday - Sunday	☐	00 : 00	00 : 00

Everyday Mode

Select the power on/off time for all days of the week

Options: Disable, Enable

Use the arrow keys to specify the on and off times.

Advanced Setup Menu

Input	Smart Light Control	Off
Picture	IRFM	Off
Adv. Picture	Local Dimming	Off
Audio	Noise Reduction	Off
OSD Settings	Power Saving Config	Wake On VGA
Setup	DP Ver.	1.2
Adv. Setup	EDID Setup	>>>
Communication	Touch Control	Auto
Information	Factory Reset	>>>

Smart Light Control

Enable dynamic contrast (DCR) or ambient light sensor

Options: Off, DCR, Light Sensor

Default: Off

IRFM

Create slight frame motion to help avoid image retention

Options: On, Off

Default: Off

MEMC

Enable motion estimation motion compensation (frame interpolation). This improves smoothness for fast motion video content.

Options: Off, Low, Medium, High

Default: Off

Local Dimming

Enable local dimming of the LCD backlight. This improves black levels and contrast; however for some content it may introduce artifacts.

Options: On, Off

Default: Off

Noise Reduction

Reduce random noise in the video content

Options: Off, Low, Medium, High

Default: Off

Power Saving Config

	Options: Wake on VGA, Wake on All, Always OnDefault: Wake on VGANote: For Wake on VGA and Wake on All, the display will enter power saving mode if no signal is received for 5 minutes.
DP Ver.
	Select DisplayPort version of the DisplayPort inputsOptions: 1.1, 1.2Default: 1.2Note: DisplayPort 1.2 is the more modern standard and supports 3840x2160 @ 60 Hz resolution. However, sometimes DisplayPort 1.1 is needed for compatibility with older graphics cards.
EDID Setup
	Select EDID (Extended Display Identification Data) of the HDMI and DisplayPort inputsOptions: 4K2K, 1080pDefault: 4K2KNote: Use the 1080p setting for the broadest support of lower resolution sources. Use the 4K2K setting to support high resolution sources such as 3840x2160.
Touch Control
	Select whether the touchscreen controls the internal OPS PC, or controls an external PC via the Touch USB connectorOptions: Auto, OPS, ExternalDefault: Auto
Factory Reset
	Restore all settings to their defaultOptions: No, YesDefault: No

Communication Menu

This menu configures the display's RS-232 and Ethernet communication ports.

Input	Baud Rate	19200
Picture	Enable Network	No
Adv. Picture	IP Address Settings	>>>
Audio	Power Status Alert	No
OSD Settings	Source Status Alert	No
Setup	Signal Lost Alert	No
Adv. Setup	Load Default	No
Communication
Information
	Device MAC

Baudrate

Select the baud rate of the display's RS-232 port

Options: 115200, 38400, 19200, 9600

Default: 19200

Enable Network

Enable the display's built-in Ethernet port

Options: No, Yes

Default: No

IP Address Settings

Enable Dynamic IP mode or set the static IP address of the display's Ethernet port

Power Status Alert

Enable an automatic alert when the display is powered down

Options: No, Yes

Default: No

Source Status Alert

Enable an automatic alert when the source is changed

Options: No, Yes

Default: No

Signal Lost Alert

Enable an automatic alert when the video signal is lost

Options: No, Yes

Default: No

Load Default

Load default communication settings

Options: No, Yes

Default: No

Device MAC

Shows the MAC address of the display

Assigning an IP Address to the Display

To assign an IP address to your display, access the IP Address Settings Menu in the Communication menu. Consult your system administrator if you do not know how to configure the parameters shown in the menu.

Dynamic IP	Disable
Static IP Address	192 .	168 .	2 .	1
Subnet Mask	255 .	255 .	255 .	0
Gateway	192 .	168 .	2 .	1
DNS Addr.	192 .	168 .	2 .	1
Save Settings	No
Refresh	>>>

The default settings are shown below.

Item Setting
Dynamic IP Disable
Static IP Address 192.168.2.1
Subnet Mask 255.155.155.0
Gateway 192.168.2.1
DNS Addr. 192.168.2.1

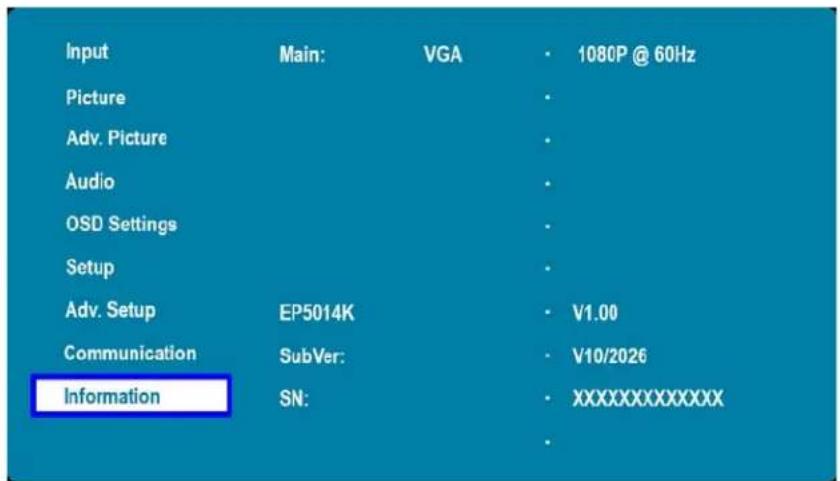

Information Menu

This read-only menu provides information on the active sources and the latest firmware version.

Input Main: VGA · 1080P @ 60Hz Picture · Adv. Picture · Audio · OSD Settings · Setup · Adv. Setup EP5014K · V1.00 Communication SubVer: · V10/2026 Information SN: ·XXXXXXXXXXXXX ·

Using the Touch Screen

You can use the touch screen to control your operating system. The touch screen can emulate basic mouse functions and supports multi-touch functions for Windows 7* and Windows 8*. The following table shows a list of functions you can use on the touch screen.

Note: *Ensure that you have installed the USB cable on the display to a computer.

Note: If an OPS PC is installed in the OPS slot, the OPS PC will automatically be connected internally to the touch system. The touch functionality is configurable via the Touch Control setting.

Performing basic functions

The following table shows how to perform basic tasks using the touch screen for Windows 8, Windows 7, Vista, XP, Mac OSX, and Linux.

Function Action
Click Tap the screen once.
Double-Click Tap the screen twice.

Right-click Press on the target. Hold and wait for a blue ring to appear. Release your finger.
Drag or select Drag one finger left or right.
Pan up/down /back/forward	Quickly drag your finger (flick) in a desired direction.
Wake up from Windows sleep mode (S3)	Press and hold for four seconds.

Touchscreen MultiTouch Driver Installation

1 With the PC on, plug in the USB memory stick to the USB drive.

2 Locate and open the USB drive.

3 Double-click on the "mt_driver_kit [xxxxxx].exe" to install the driver.

4 Follow installation prompts until driver installation is complete.

Once driver installation is complete, the touchscreen is ready for use.

Touchscreen (PQLabs) MultiTouch Platform Content

The PQLabs Software is used for troubleshooting and calibration. The different menus are described below.

1 On the PC, select the Start menu, All Programs and then PQLabs Software.

2 Click on "MultiTouch Platform" to open the PQLabs MultiTouch Platform window.

Touchscreen Information

• Serial Number – Displays the serial number of the connected touchscreen.
• Firmware Version – Displays the firmware version of the touchscreen selected under the "Serial Number" dropdown menu.
• Touch Points – Displays the number of touch points for which the touchscreen is capable.
• Status – Displays the current status of the touchscreen.

Calibration

• Calibration – Starts a 4-point calibration of the touchscreen. Perform the programmed touchscreen calibration process. At the conclusion of the calibration routine your touchscreen device is ready to use and will perform with accurately positioned touch points.
• Reset Calibration – Resets calibration to factory default settings.

Utility

- Diagnose – Starts the "MultiTouchDoctor" program. This can be used to troubleshoot issues with the touchscreen.

Options

- Default settings on options have the following programs enabled: Tuio Support, Flash Tuio Support, Handwriting Optimization, Enable Windows Native Touch, Enable Mouse/Keyboard Simulation, and Launch When Windows Starts Up.

- Flexible Scan Rate is at a default setting.

Uninstalling the MultiTouch Driver

1 On the PC, select the Start menu, All Programs and the PQLabs Software
2 Click on the MultiTouch Driver.
3 Select the Uninstall option.

Multi-Touch Functions

The following table shows how to perform multi-touch tasks using the touch screen for Windows 7 - Home Premium, Professional, Enterprise and Ultimate versions.

Function Action
Right-click Press on the target. Tap the screen with another finger. Release the second finger.
Scrolling Drag one or two fingers up or down.
Zoom Move two fingers apart or toward each other.
Rotate • Move two fingers in opposing directions• Use one finger to pivot around the other.

LAN Control

The Planar EP Series supports extending access to the RS232 commands over a network connection using a virtual COM port (VCOM). The VCOM driver installer is included on the USB drive that came with your display.

Note: RS232 commands over LAN can be achieved by opening a TCP connection to Port 23 to the display. The LAN control functionality is most frequently used by control systems, and they won't be able to use the VCOM drivers

Supported Operating Systems

The utility supports the following operating systems:

• Windows XP
• Windows Vista
• Windows 7
• Windows 8 and 8.1

Installation

Use the following instructions to install the VCOM driver.

1 Launch the vcomsetup.exe file.

2 You may see a security warning similar to the following example. Click Run to continue.

Open File - Security Warning The publisher could not be verified. Are you sure you want to run this software? Name: C:\Users\afoster\Desktop\vcomsetup.exe Publisher: Unknown Publisher Type: Application From: C:\Users\afoster\Desktop\vcomsetup.exe Run Cancel Always ask before opening this file This file does not have a valid digital signature that verifies its publisher. You should only run software from publishers you trust. How can I decide what software to run?

3 The vcomsetup.exe installer installs both the VCOM virtual serial port and also a utility (WinPcap) for finding your displays on the network. Follow the steps in the two installers, accepting defaults and license agreements as needed.

InstallShield Wizard Preparing to Install... VCOM Setup is preparing the InstallShield Wizard, which will guide you through the program setup process. Please wait. Configuring Windows Installer Cancel

VCOM - InstallShield Wizard Welcome to the InstallShield Wizard for VCOM The InstallShield® Wizard will install VCOM on your computer. To continue, click Next InstallShield < Back Next > Cancel

WinPcap 4.1.1 Setup WinPcap 4.1.1 Installer Welcome to the WinPcap 4.1.1 Installation Wizard This product is brought to you by CACE TECHNOLOGIES Packet Capturing and Network Analysis Solutions Nullsoft Install System v2.45 Next > Cancel

4 When the installers are finished, you will see a VCOM icon on your desktop and you find two new folders in your start menu: IC Plus corp (with VCOM sub folder) and WinPcap. If you need to uninstall the software, there are shortcuts to uninstall from these menus.

Configuring VCOM

Use the VCOM shortcut to launch the VCOM setup utility. The utility starts up on the Device Info page, shown below. The controls on this page allow you to find and configure each display that you want to access via virtual COM ports.

Search for the display's in same domain Search by IP address Configure the display's IP address Open a browser and link to the display's web service VCOM3.6 Main Exit Search Search by IP Configure Web Utilities Device Info- 0 Device(s) VCOM Device Info COM Mapping No Device ID Device Name Project Name Message Log- Device Info Message Log- VCOM Info Now: 1/26/2011 4:39:39 PM

Click on COM Mapping to display the COM Mapping page, shown below. The controls on this page allow you to make virtual COM ports and select the display to which you want to map each virtual COM port.

Create a virtual COM port Remove an existing virtual COM port VCOM3.0 Main Exit Add Remove Utilities COM Mapping - 0 COM(s) VCOM Device Info COM Mapping No COM Port TCP/UDP Server/Client Message Log- Device Info | Message Log- VCOM Info | Now: 1/26/2011 4:52:52 PM

Function Descriptions

Search

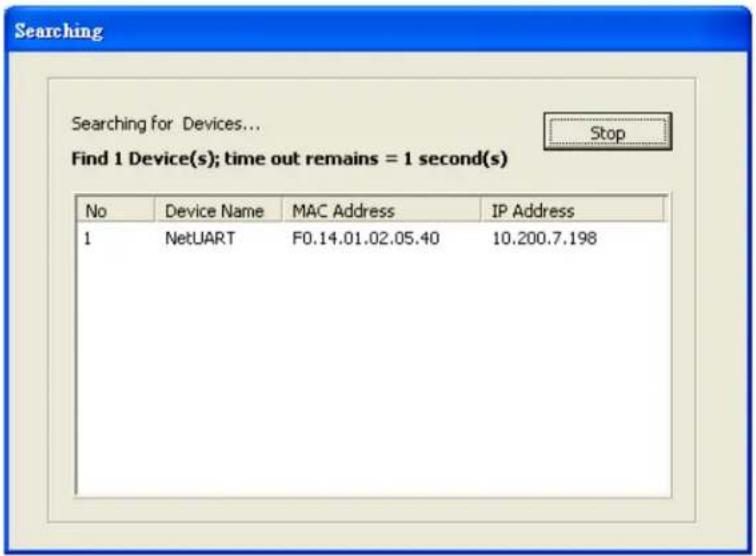

In the Device Info page, click the Search icon. This function searches for any devices that are connected to the same network segment (maximum of 254 devices) as your PC. Any devices found will be listed in the Device Info table.

Searching Searching for Devices... Find 1 Device(s); time out remains = 1 second(s) Stop No Device Name MAC Address IP Address 1 NetUART F0.14.01.02.05.40 10.200.7.198

Search By IP

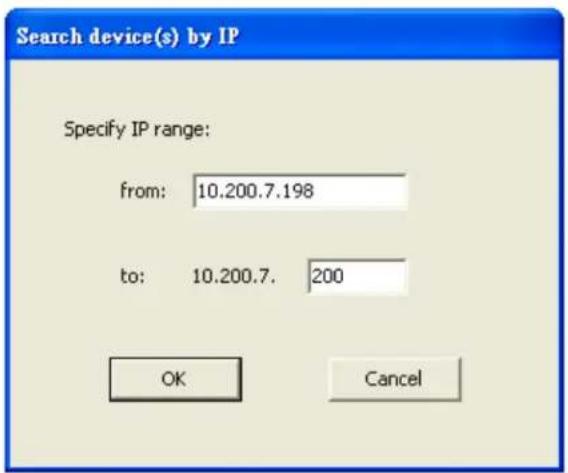

On the Device Info page, click the Search by IP icon. This function searches for any devices in the given IP address range. Any devices found will be listed in the Device Info table.

Search device(s) by IP Specify IP range: from: 10.200.7.198 to: 10.200.7. 200 OK Cancel

Configure IP Address

This function allows you to configure the network settings of the selected device. We recommend using the on-screen menus or the web interface described in the User Guide instead of this function.

Configure Dialog Administrator IP Address 10.200.7.198 Subnet Mask 255.255.255.0 Gateway 10.200.7.254 DNS 10.200.1.6 IP Configure Static DHCP VLAN Tag Disable Enable

Note: To cancel this function, scroll to the bottom and click the Cancel button.

Web

Click the Web icon to launch your default browser and link it to the display's web service.

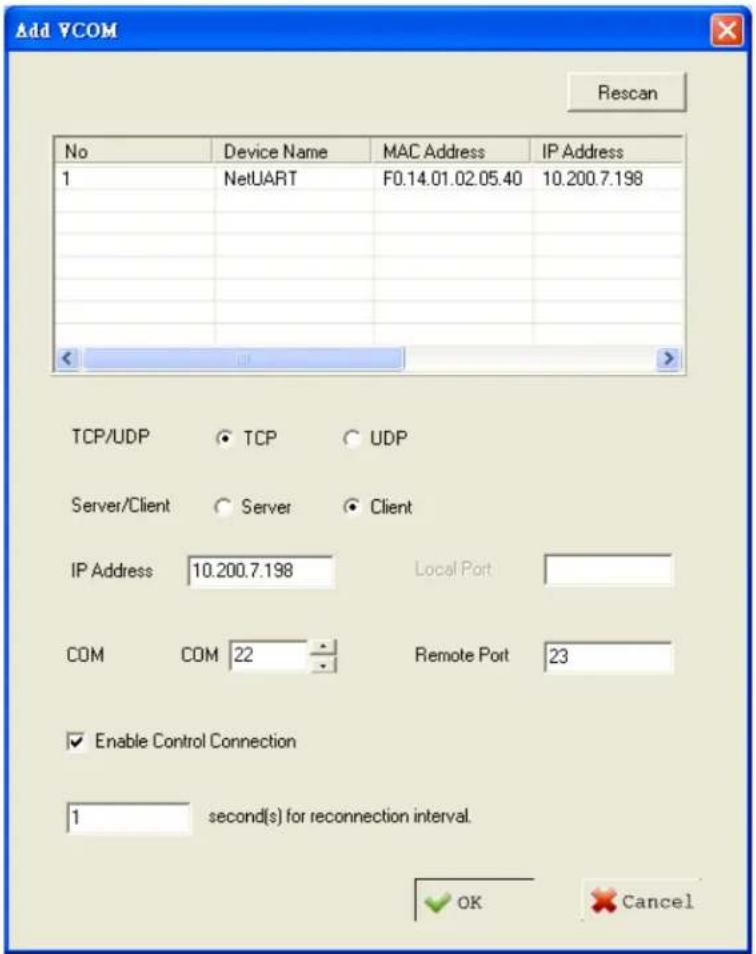

Adding a Virtual COM Port

To add a virtual COM port, click the Add icon on the COM Mapping page to open the following dialog window.

Add VCOM Rescan No Device Name MAC Address IP Address 1 NetUART F0.14.01.02.05.40 10.200.7.198 TCP/UDP TCP UDP Server/Client Server Client IP Address 10.200.7.198 Local Port COM COM 22 Remote Port 23 Enable Control Connection 1 second(s) for reconnection interval. OK Cancel

Select the display you want to control from the table and accept defaults, as shown. Make a note of the COM number assigned to the new VCOM port. Click OK to create the new port. The new port appears in the COM Mapping table.

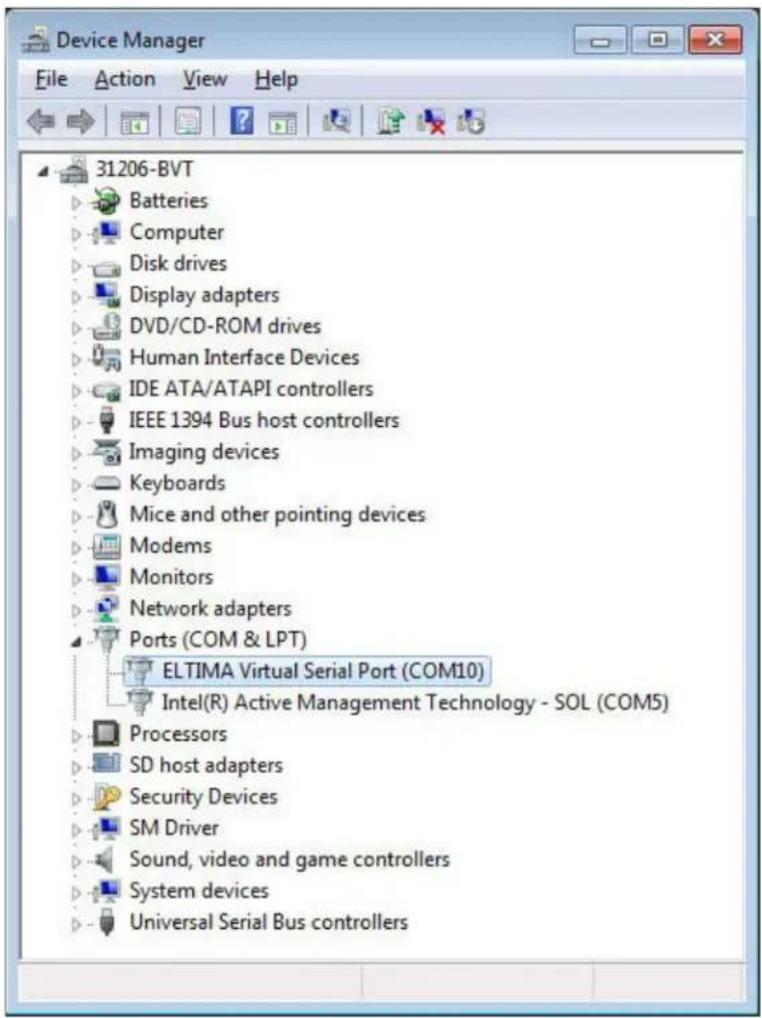

You can view details for the virtual COM port device using Device Manager, shown below.

Device Manager File Action View Help 31206-BVT Batteries Computer Disk drives Display adapters DVD/CD-ROM drives Human Interface Devices IDE ATA/ATAPI controllers IEEE 1394 Bus host controllers Imaging devices Keyboards Mice and other pointing devices Modems Monitors Network adapters Ports (COM & LPT) ELTIMA Virtual Serial Port (COM10) Intel(R) Active Management Technology - SOL (COM5) Processors SD host adapters Security Devices SM Driver Sound, video and game controllers System devices Universal Serial Bus controllers

Removing a COM Port

On the COM Mapping page, select the COM port you want to delete and click the REMOVE button.

Setting Up Email Alerts

The web service allows you to configure the settings required to send email alerts. If you are not using email alerts, you do not need to use the web service and can skip this section.

Login

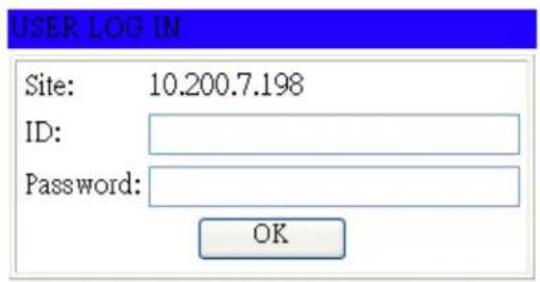

When you direct your browser to the network IP address of the display, you are prompted to login as shown here.

USER LOG IN Site: 10.200.7.198 ID: Password: OK

The default ID is admin and the default password is system.

Note: Cookies and JavaScript must be enabled in your browser.

Note: If your session times out or if you enter an incorrect ID or password, you will see the following message.

Error Invalid User name or Password

When you first login, you will see the System Status page, as shown here.

PLANAR When image experience motors Administrator TCP Mode UDP Mode UART SMTP Reset Device System Status Kernel Version V2018 (Dec 08 2010 10:08:13) MAC Address 00.1F.B6:00:00:22 Nickname NetUART Update Please refresh web page after press "updated" button. Note: Comment name only can use "0-9", 'a-z', 'A-Z', '_,'-"

Administrator

Click on the word Administrator under the Planar logo to show/hide these menu items.

Authentication Configuration

Set user ID and password for login to the web service.

PLANAR When image-experience matches. Administrator Authentication Configuration System IP Configuration System Status Load default setting Firmware update Boot Loader upgrade TCP Mode UDP Mode UART SMTP Reset Device Authentication Configuration Setting Value Username admin[max:15] Password ******** max:15 Confirm ******** Update Please refresh web page after press 'updated' button. Note: Comment name only can use "0-9","a-z","A-Z"

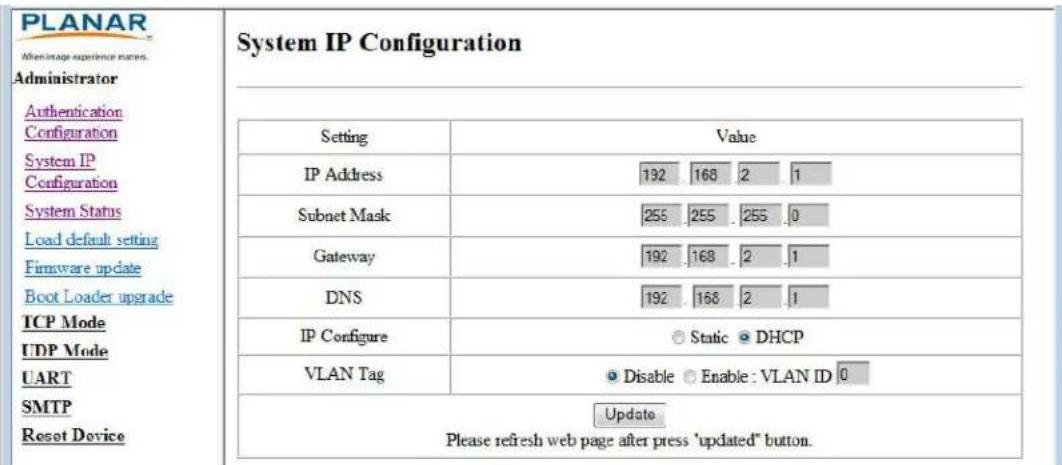

System IP Configuration

You can view and/or change the network settings here. However, for best results, we recommend that you use the on-screen display menus.

PLANAR When image experience updates. Administrator Authentication Configuration System IP Configuration System Status Load default setting Firmware update Boot Loader upgrade TCP Mode UDP Mode UART SMTP Reset Device System IP Configuration Setting Value IP Address 192 168 2 1 Subnet Mask 255 255 255 0 Gateway 192 168 2 1 DNS 192 168 2 1 IP Configure Static DHCP VLAN Tag Disable Enable : VLAN ID 0 Update Please refresh web page after press 'updated' button.

If your network requires a VLAN tag, your network administrator will give you a number from 1 to 4094 to enter here.

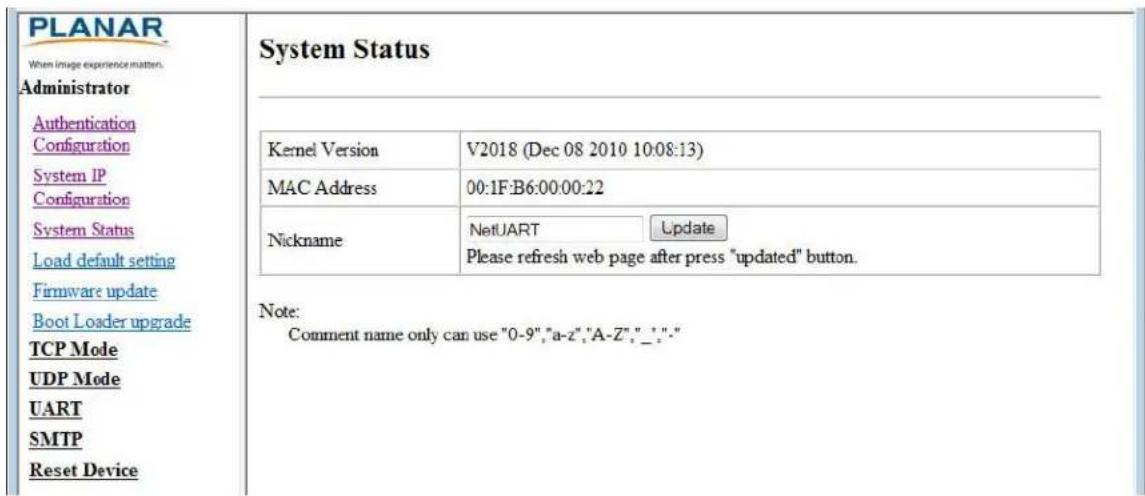

System Status

• Kernel version - Shows the firmware version for the network interface.
  • MAC Address - Shows the unique address assigned to the network interface.
• Nickname - Enter a device tag, up to 12 characters. This tag will appear in email alerts, which help you identify the source of the alert.

PLANAR When image experience matters. Administrator Authentication Configuration System IP Configuration System Status Load default setting Firmware update Boot Loader upgrade TCP Mode UDP Mode UART SMTP Reset Device System Status Kernel Version V2018 (Dec 08 2010 10:08:13) MAC Address 00:1F:B6:00:00:22 Nickname NetUART Update Please refresh web page after press "updated" button. Note: Comment name only can use "0-9","a-z","A-Z","_";" Note:

Load Default Setting

1 Click the LOAD button to return the network interface to default settings.

Load Default Setting to EEPROM

Load

2 After a few seconds, you will see a green box with the message "Setting Saved RESET." Click the RESET button to restart the network interface.

Setting Saved RESET

Reset

3 Make sure the IP address in your browser is correct and then click OK.

Type IP in URL ok

4 When the process is complete, you should see the login page again.

Firmware Update and Boot Loader Upgrade

In most cases, you will not need to update firmware for the network interface. If you do, contact Planar's Technical Support Department. See "Accessing Planar's Technical Support Website" on page 80 for more information.

WARNING! Do not use the controls in these two sections unless you have received a specific procedure and firmware from Planar. Following improper procedures can disable the network interface and require factory repair service.

TCP Mode, UDP Mode and UART

For normal operation, you will not need to change any settings on these pages. If you do need to change information, Planar's Technical Support Department will provide you with more information.

SMTP

SMTP setup

Enable SMTP	□ Enable,Port: 25
SMTP server address	smtp.xxx.yyy
SMTP Login Information	□ EnableUsername: username,Password: ********
Mail to	[e-mail]: 200
Mail from	[e-mail]

Your network administrator must provide information for the following fields:

• Enable SMTP - Make sure this checkbox is checked. Port 25 is the default.
• SMTP Server Address - Name or IP address of the mail server.
• SMTP Login Information - If required, check the ENABLE box and enter a username and password.
• Mail to - Enter the destination email addresses. Separate multiple addresses with a semi-colon.
• Mail from - Enter the email address from which you want to send alerts.

SMTP 01 Warning
Subject	Power Status Change Alert
Message Body	SMTP 01 bcdymax: 100
SMTP 02 Warning
Subject	Source Change Alert
Message Body	SMTP 02 bcdymax: 100
SMTP 03 Warning
Subject	Signal Lost Alert
Message Body	SMTP 03 bcdymax: 100

SMTP 03 Warning
Subject	Signal Lost Alert
Message Body	SMTP 03 bcdymax: 100

You can edit the subject and body of the email warnings, which are sent when there is a power status change, source change and signal lost. The SMTP 04 and 05 warnings are not used.

Reset Device

Click the RESET button to reboot the network interface. Note that the current settings are not changed.

Reset Device Reset

Signal Compatibility

Signal Type	Resolution	Frame rate (Hz)	Line Rate (kHz)	Pixel Rate (MHz)	HDMI - RGB	DisplayPort - RGB	VGA - RGB	References
P C	6	4 0	x	4	8	0	6	0	3	1	.
	6 4	0	x	4 8	0	7	2	3	7	.	8
	6 4	0	x	4 8	0	7	4	.	9	9	3
	6 4	0	x	4 8	0	8	5	4	3	.	2
	8 0	0	x	6 0	0	5	6	.	2	5	3
	8 0	0	x	6 0	0	6	0	.	3	2	3
	8 0	0	x	6 0	0	7	2	4	8	.	0
	8 0	0	x	6 0	0	7	5	4	6	.	8
	8 0	0	x	6 0	0	8	5	.	0	6	5
	1 0	2	4	x 7	6	8	6	0	4	8	.
	1 0	2	4	x 7	6	8	7	0	5	6	.
	1 0	2	4	x 7	6	8	7	5	.	0	3
	1 0	2	4	x 7	6	8	8	5	.	0	3
	1 1	5	2	x 8	6	4	7	5	6	7	.
	1 2	8	0	x 7	2	0	5	9	.	9	8
	1 2	8	0	x 7	2	0	5	9	.	8	6
	1 2	8	0	x 7	2	0	7	4	.	7	8
	1 2	8	0	x 7	6	8	6	0	4	7	.
	1 2	8	0	x 7	6	8	6	0	4	7	.
	1 2	8	0	x 8	0	0	5	9	.	9	1
	1 2	8	0	x 8	0	0	5	9	.	8	1
	1 2	8	0	x 1	0	2	4	6	0	.	0
	1 2	8	0	x 1	0	2	4	7	5	.	0
	1 2	8	0	x 1	0	2	4	8	5	.	0
	1 3	6	0	x 7	6	8	6	0	4	7	.
	1400x1050	60	64.7	101.000	x	x	x	VESA CVT-R
	1400x1050	60	65.317	121.750	x	x	x	VESA CVT
	1 4	4	0	x 9	0	0	5	9	.	9	0
	1440x900	59.88	55.935	106.500	x	x	x	VESA CVT
	1 6	0	0	x 1	2	0	0	6	0	7	5

6 6 7 6 5 7 7 7 3 8 4 0 8 6 4 4 6 4 7 9 9 6 7 9 7 1 5 0

Signal Type	Resolution	Frame rate (Hz)	Line Rate (kHz)	Pixel Rate (MHz)	HDMI - RGB	DisplayPort - RGB	VGA - RGB	References
P C	1	6 8	0	x	1	0	5	0 5 9 . 8
	1 6	8	0	x 1	0	5	0	5 9 . 9
	1 9	2	0	x 1	0	8	0	6 0 6 6
	2560x1440 59	951 88.787	241.500 x	x VESA CVT-R
	2560x1600 59	972 98.713	268.500 x	x VESA CVT-R
	3840x2160 24	52.438 209	750 x x VESA CVT-R
	3840x2160 30	65.688 262	750 x x VESA CVT-R
	3840x2160 50	110.500 44	2.000	x VESA CVT-R
	3840x2160 60	133.313 53	3.250	x VESA CVT-R
EDTV	480p	60 31.469	27.000 x x	ITU-R BT.1	358, CEA-	861-E Format 17	& 18
	576p	50 31.250	27.000 x x	SMPTE 12	5M, CEA-	861-E Format 6 & 7
HDTV	1080i	50 28.125	74.500 x x	SMPTE 27	4M, CEA-	861-E Format 20
	1080i	60 33.750	74.250 x x	SMPTE 27	4M, CEA-	861-E Format 5
	720p	50 37.500	74.250 x x	SMPTE 29	6M, CEA-	861-E Format 19
	720p	60 45.000	74.250 x x	SMPTE 29	6M, CEA-	861-E Format 4
	1080p	24 27.000	74.250 x x	SMPTE 27	4M, CEA-	861-E Format 32
	1080p	25 28.125	74.250 x x	SMPTE 27	4M, CEA-	861-E Format 33
	1080p	30 33.750	74.250 x x	SMPTE 27	4M, CEA-	861-E Format 34
	1080p	50 56.250	148.500 x	x SMPTE 2	74M, CEA-	861-E Format 31
	1080p	60 67.500	148.500 x	x SMPTE 2	74M, CEA-	861-E Format 16
UHDTV	3840x2160 24	54.000 297	.000 x x SMPTE ST 20	36-1:200	9, HDMI	1.4b	VIC 1
	3840x2160 25	56.250 297	.000 x x SMPTE ST 20	36-1:200	9, HDMI	1.4b	VIC 2
	3840x2160 30	67.500 297	.000 x x SMPTE ST 20	36-1:200	9, HDMI	1.4b	VIC 3
	3840x2160 50	112.500 594.000		x CEA-861-F	Format 96
	3840x2160 60	135.000 594.000		x CEA-861-F	Format 97

Specifications

Item Model Specification
LCD panel Resolution 3840 x 2160
		Aspect Ratio 16:9
		Screen Size EP5014K(-T) 50"
			EP5814K(-T) 58"
			EP6514K(-T) 65"
		Orientation Landscape/Portrait
		Brightness (Typ.) EP5014K(-T)	550 cd/m2
			EP5814K(-T) 480 cd/m2
			EP6514K(-T) 450 cd/m2
		Contrast Ratio EP5014K(-T) 4000:1
			EP5814K(-T) 4500:1
			EP6514K(-T) 4000:1
		Viewing Angle (Typ.) 178°
		Response Time	EP5014K(-T) 9.5 ms
			EP5814K(-T) 6.5 ms
			EP6514K(-T) 5.5 ms
		Color Gamut	EP5014K(-T) 88% NTSC
			EP5814K(-T) 98% NTSC
			EP6514K(-T) 72% NTSC
		Display Color
		Pixel Pitch	EP5014K(-T) 0.285 mm x 0.285 mm
			EP5814K(-T) 0.334 mm x 0.334 mm
			EP6514K(-T) 0.372 mm x 0.372 mm
		Auto Brightness Control
		Features
Touch Touch Technology EP5014K-T,	EP5814K-T,EP6514K-T	6 pt IR
Supporting OS EP5014K-T,EP5814K-T,EP6514K-T	Windows 8, 7, Vista, XP, Mac OSX, and Linux
Connectivity Standard Inputs HDMI x 4 / DisplayPort / VGA / IR
Audio Input PC Audio In (Jack)
Audio Output R/L Line Out (Jack)
Control and Monitoring		LAN RJ45, RS232 In, IR, Keypad (lockable)
Mechanical Display Weight EP5014K D	Display Weight: 64 lbs (29 kg);Shipping Weight: 79 lbs (36 kg)
	EP5014K-T Display Weight: 84 lbs (38 kg);Shipping Weight: 99 lbs (45 kg)
	EP5814K Display Weight: 84 lbs (36 kg);Shipping Weight: 97 lbs (44 kg)
	EP5814K-T Display Weight: 112 lbs (51 kg);Shipping Weight: 130 lbs (59 kg)
	EP6514K	Display Weight: 110 lbs (50 kg):Shipping Weight: 146 lbs (66 kg)
	EP6514K-T	Display Weight: 132 lbs (60 kg)Shipping Weight: 168 lbs (76 kg)
Mounting	EP5014K(-T)	VESA 200 mm x 200 mm
	EP5814K(-T)	VESA 200 mm x 200 mm
	EP6514K(-T)	VESA 400 mm x 400 mm
Display Dimensions	EP5014K	45.0" x 26.0" x 2.6" (1142.2 mm x 661.6 mm x 66.8 mm)
	EP5014K-T	45.0" x 26.0" x 3.3" (1142.2 mm x 661.6 mm x 83.1 mm)
	EP5814K	51.2" x 29.6" x 3.2" (1300.7 mm x 752.1 mm x 80.1 mm)
	EP5814K-T	51.8" x 30.1" x 3.8" (1315.0 mm x 764.2 mm x 96.2 mm)
	EP6514K	57.2" x 32.7" x 3.1" (1453.7 mm x 829.7 mm x 79.5 mm)
	EP6514K-T	58.4" x 33.5" x 3.8" (1483.8 mm x 852.0 mm x 95.9 mm)

Mechanical Bezel Width EP5014K 0.8" (21 mm)
			EP5014K-T 0.7" (19 mm)
			EP5814K 0.6" (14 mm)
			EP5814K-T 0.7" (19 mm)
			EP6514K 0.5" (12 mm)
			EP6514K-T 0.8" (20 mm)
			Enclosure Metal, Industrial
			Fanless Yes
			Speakers 10W x 2 Built-In
Usage Recommended Usage Up to 24x7 Operation
			Backlight E-LED
			Backlight Life 30,000 Hours Min
Power Source	Input Voltage/ Frequency		AC 100V~240V; 50-60 Hz
Environment	Storage Temperature		Min -4°F ~ Max 140°F (-20°C ~ Max 60°C)
	Operating Temperature		Min 32°F ~ 104°F (0°C ~ Max 40°C)10,000 ft (3000 m) altitude
	Humidity		20~90% RH
	Approvals		FCC Class A, UL, CE

Troubleshooting

Before calling service personnel, please check the following table for a possible cause of the problem you are experiencing. Please note the following:

• Perform the adjustments according to "Operating the Display" on page 23.
• If the problem you have experienced isn't described below or you can't correct the problem, stop using the display and contact Planar's Technical Support Department. (See "Accessing Planar's Technical Support Website" on page 80)

Issue Check for the following
No image is displayed Make sure the correct source is selected.
The image is not centered Make sure the input signal is compatible with this display.
The remote control doesn't work	Make sure the batteries are new and are installed correctly.Ensure the remote is aimed at the IR sensor.
	Make sure the remote control sensor is plugged in correctly.
	Make sure the remote is aimed towards the back of the display, where the sensor is located.
The picture color looks poor Check the picture settings.Reset the display.

Accessing Planar's Technical Support Website

Go to http://www.planar.com/support to locate the following support documents and resources:

• User Guide
  • RS232 User Manual
• Touchscreen drivers
• Standard warranties
• Planar support hotline number and email

Index

A

accessory kit, 10

adjusting volume, 30

administrator in web service, 69

audio settings menu, 31

authentication configuration page, 69

avoiding temporary image retention, 4

B

basic settings menu, 31

batteries

changing in the remote, 29

C

cable clamps

installation, 12

cleaning the display, 7

Connecting the Touchscreen, 53

cooling requirements, 6

D

default setting

loading in web service, 70

dimensions, 13

display settings menu, 31

E

exemptions for product use, 8

H

HD-SDI board

installing, 23

|

image settings menu, 31

input source

selecting, 30

installation, 20

cable clamps, 12

HD-SDI board, 23

OPS expansion slot, 22

safety precautions, 3

introduction, 1

ip system configuration, 69

L

LAN control, 57

locking, 28

M

menus

audio settings, 31

basic settings, 31

display settings, 31

image settings menu, 31

using, 30

N

navigating, 30

navigating menus, 30

network interface

resetting, 73

normal usage guidelines, 6

0

OPS expansion slot

installation, 22

osd menus, 28, 30

unlocking, 28

P

package contents, 8

product usage exemptions, 8

R

recommended usage, 4

remote control

changing the batteries, 29

using, 26

resetting the network interface, 73

RS232 network connection, 57

S

safety

during installation, 3

information, 2

precautions, 2

precautions during use, 4

selecting input source, 30

service plans, ii

signal compatibility, 74

signal source input, 22

SMTP setup page, 72

specifications, 76

supported timings, 74

system ip configuration page, 69

system status page, 68, 70

T

temporary image retention

avoiding, 4

definition, 4

timings, 74

TIR see temporary image retention

touchscreen

using the touchscreen, 53

troubleshooting, 79

turning off the displays, 30

turning on the displays, 29

U

unpacking the displays, 8

using the remote, 26

V

VCOM

configuration, 61

driver installation, 58

vesa mounts, 6

volume, 30

W

warranty

exemptions, 8

information, ii

web service, 67

administrator, 69

authentication configuration, 69

loading default setting, 70

reset device, 73

SMTP setup page, 72

system ip configuration, 69

system status, 68

system status page, 70
