USER MANUAL Ascent 22 Ortovox
BACKLENGTH Regular

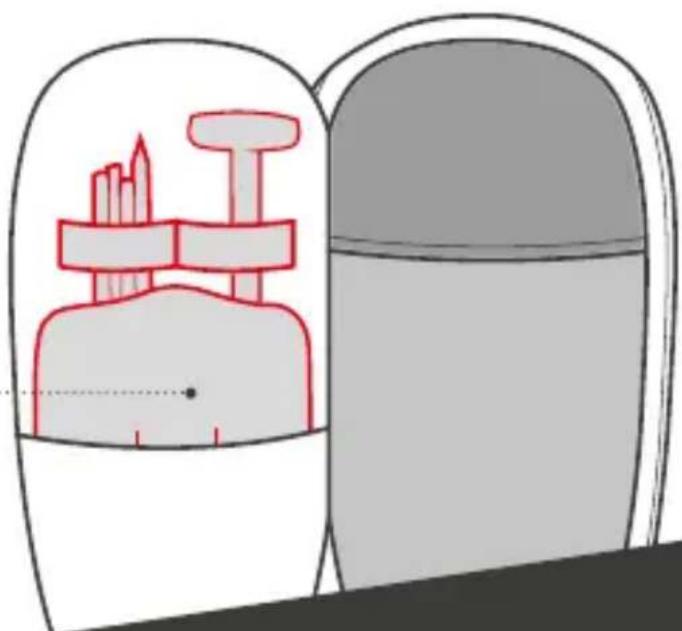

SAFETY COMPARTMENT
Fixations for shovel and probe can be found in the main compartment. Place the shovel blade with the sharp edge up.
ASCENT 22


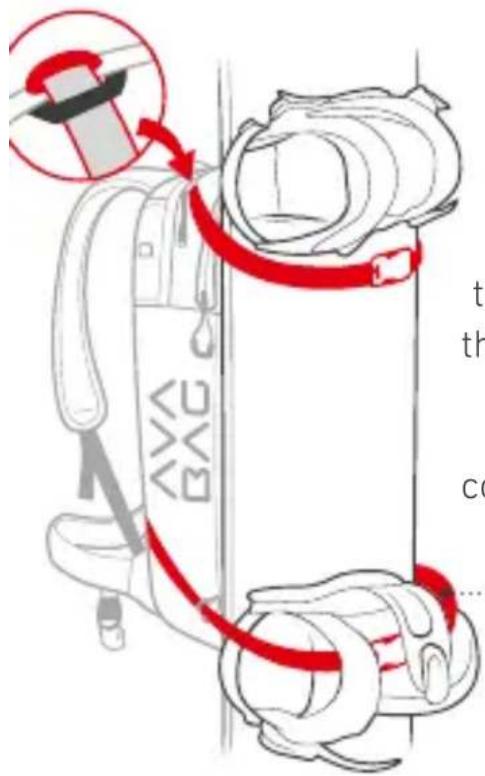

R SNOWBOARD ANDSNOWBOARD AND SNOWSHOE FASTENER
compartment. Connect the half moon hooks on the small lateral loops at the lower end of the pack and at the top (one is hidden in the small zip compartment by the right shoulder strap).


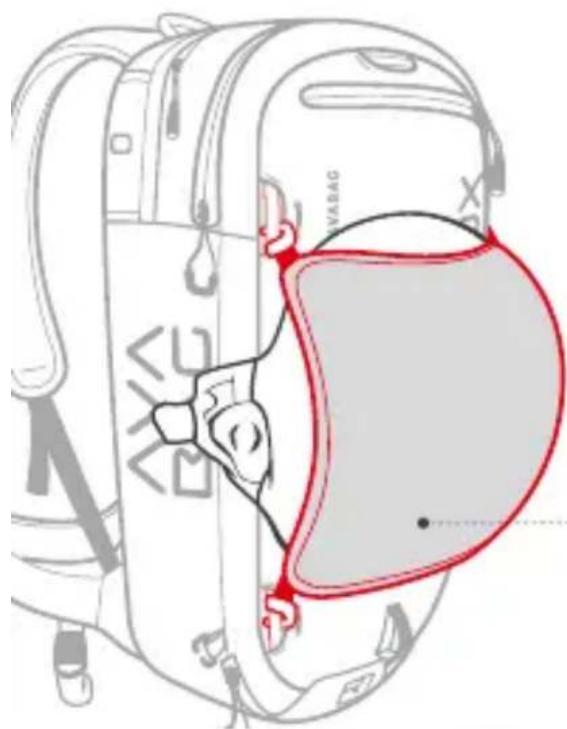

VASAGHELMET FIXATION
The helmet net can be found in the foremost compartment.
Hook the helmet net hooks onto the lateral plastic straps.

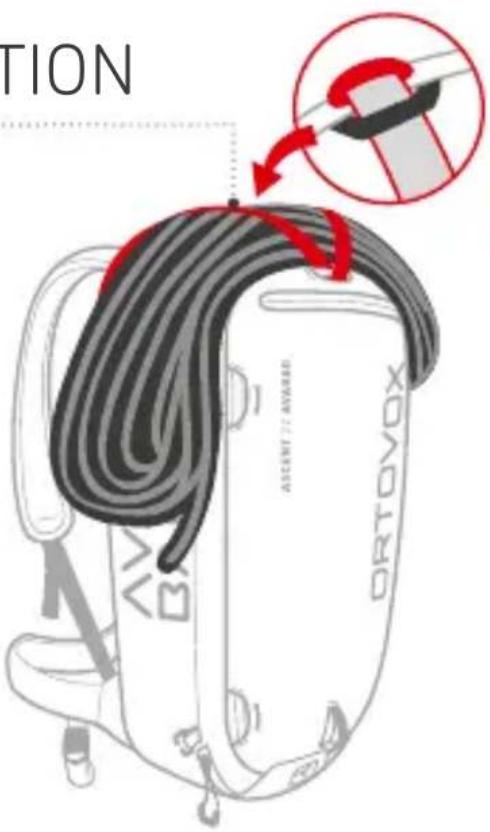

ROPE FIXATION
Use fixation strap (located in the formost compartment) and fit two half moon hooks through the loops on the upper side of pack. Open the buckle, catch the plastic loop above middle compartment, close the buckle again and tighten the strap.


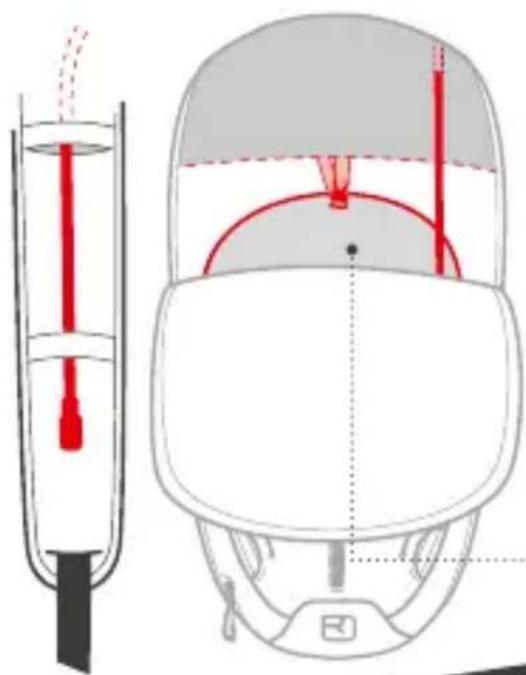

Diagram of a medical device with red tubing and a vertical tube, showing internal components (no text or labels)Secure the drink bladder with the clip at the back system, then lead the tube through the small hole underneath the lid compartment and fasten it on the right shoulder strap.


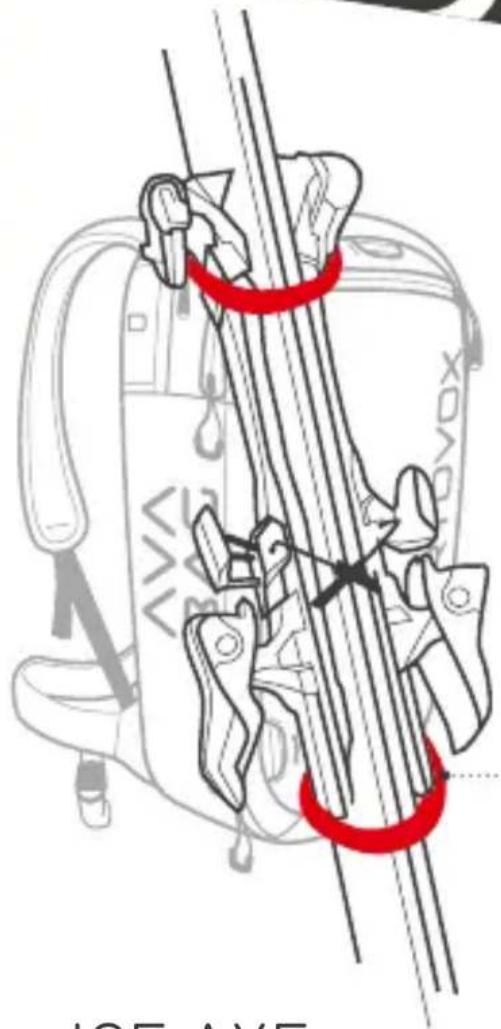

ICE AVED-SKIFIX
Push the ski through the large loop hidden on the right side of the front panel, then secure with loop, hidden in small compartment above the left shoulder strap.

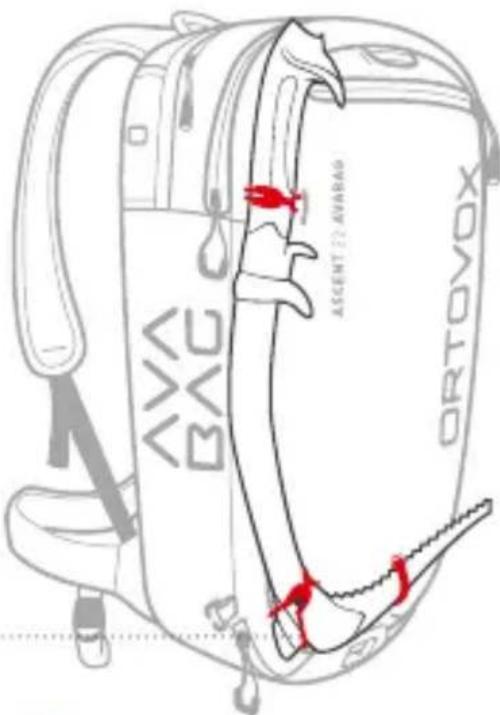

ICE AXE ATTACHMENT
Feed the pick though the lower central plastic loop and fix it with the hidden elastic cord on the lower left side. Fix the shaft also with an elastic cord, hidden in a small compartment on the foremost side.

