AXG BVG ASCENT 3D AVABAG ORTOVOXSIZE 30l/28l WEIGHT 1170g/1140g
BACKLENGTH Regular/Short
SAFETY
COMPARTMENT


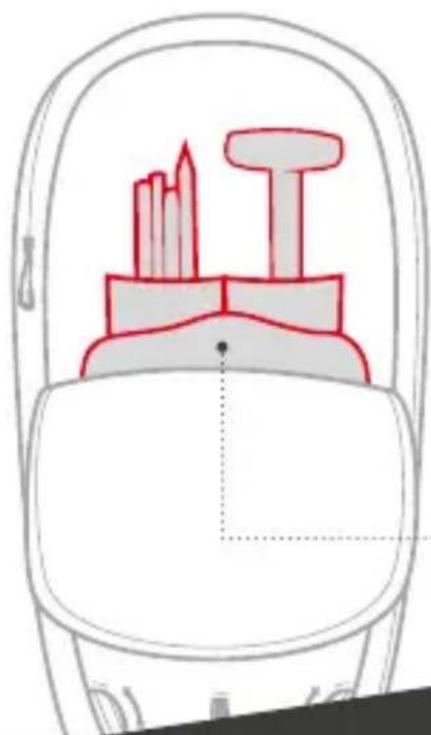

Diagram of a vehicle's front view showing engine, battery, and roof components (no text or labels)Access to the compartment is marked with the red zipper pullers.
Probe and shaft receiver are marked with icons. Fasten the shovel, with the sharp edge up, on the front of the backpack.


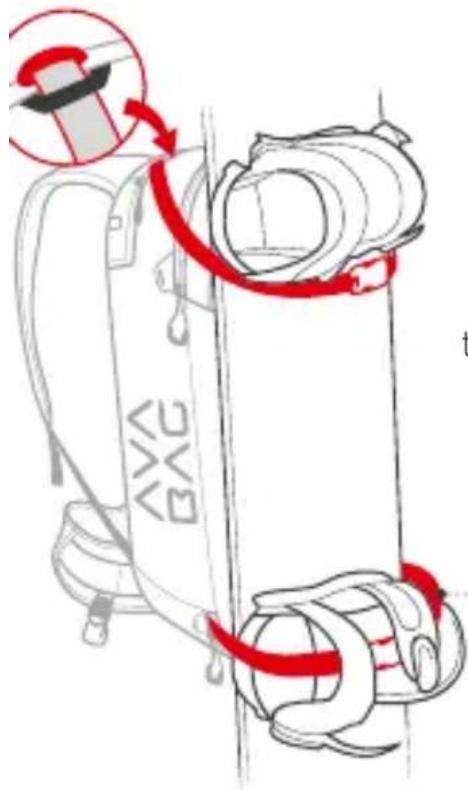

R SNOWBOARD ANDSNOWBOARD AND SNOWSHOE FASTENER
compartment. Connect the half moon hooks on the small lateral loops at the lower end of the pack and at the top (one is hidden in the small zip compartment by the left shoulder strap).
HELMET FIXATION


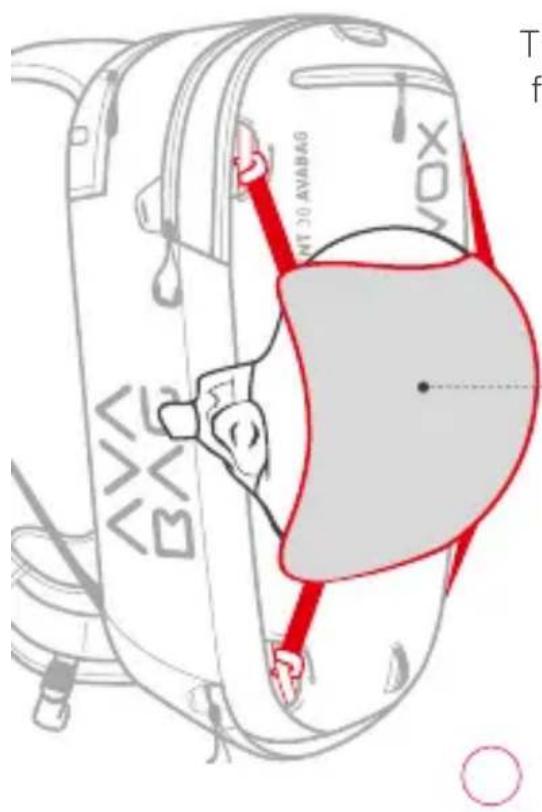

NT 30 AVABAG X20 fThe helmet net can be found in the foremost
compartment.
Hook the helmet net hooks onto the lateral plastic straps.

ROPE FIXATION

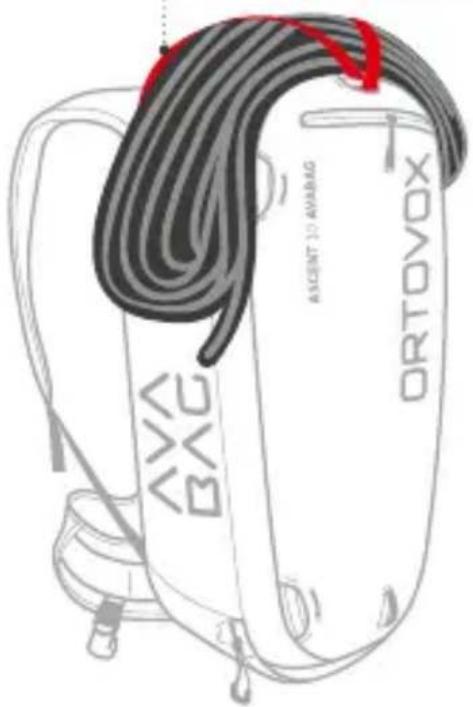

Use fixation strap (located in the foremost compartment) and fit two half moon hooks through the loops on the upper side of pack. Open the buckle, catch the loop above middle compartment, close the buckle again and tighten the strap.


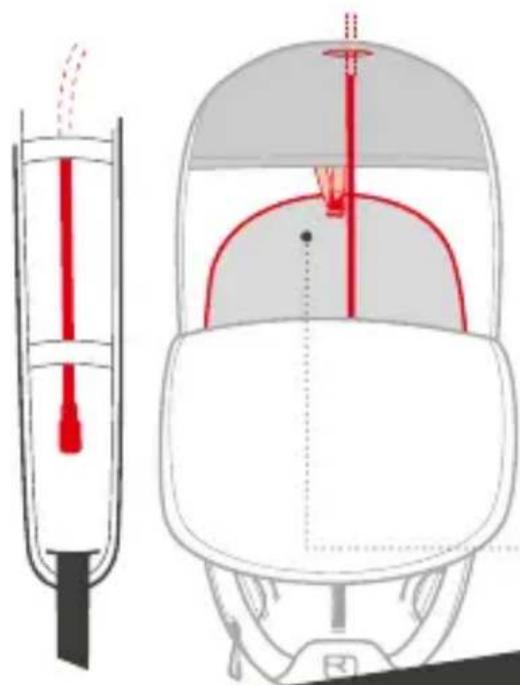

Diagram of a medical device with red tubing and a vertical tube, showing internal components (no text or labels)Secure the drink bladder with the clip at the back system, then lead the tube through the small hole underneath the lid compartment and fasten it on the right shoulder strap.
AVABAG
ASCENT 30 / 28 S


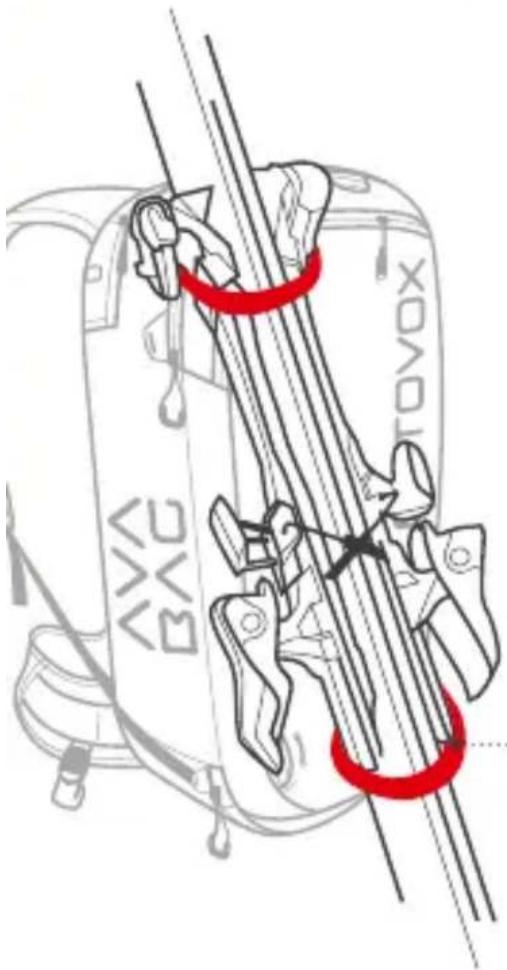

Push the ski through the large loop hidden on the right side of the front panel, then secure with loop, hidden in small compartment abouve the left shoulder strap.
ICE AXE ATTACHMENT

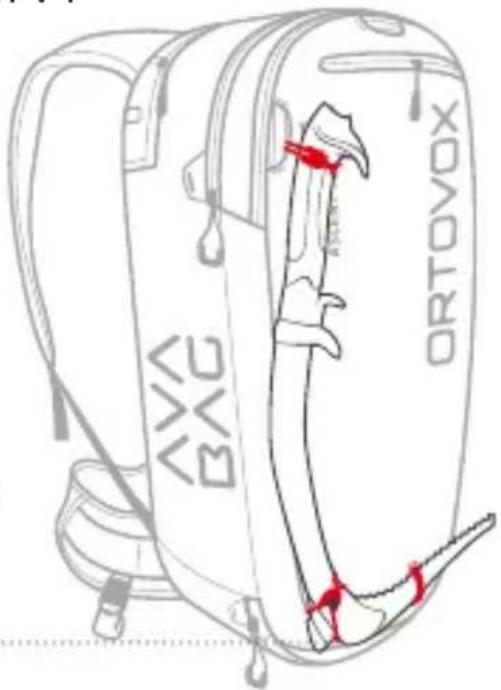

Feed the pick though the lower central plastic loop and fix it with the hidden elastic cord on the lower left side. Fix the shaft also with an elastic cord, hidden in a small compartment on the foremost side.
