USER MANUAL Carina Azzura Klarstein

Row of white icons representing kitchen appliances including blender, blender, kettle, fan, lamp, air conditioner, and microwave (no text or symbols)

Red Klarstev kitchen mixer with stainless steel bowl and control knob (no visible text or symbols)

Technical diagram of a kitchen mixer with numbered parts for identification

Rührhaken

6 Untere

Gehäuseabdeckung

Große Abdeckung

7 Stand

uβ

Line drawings of three kitchen appliances: a blender, a bowl with lid, and a coffee cup with lid (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this Klarstein equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Safety Instructions

Read all safety and operating instructions carefully and retain them for future reference.

General Instructions

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges.
  • Do not use the appliance with the wet hands. If the appliance is humid or wet, unplug it immediately.
• For cleansing and storage, switch the appliance off and always pull out the plug from the socket if the appliance is not being used. Store attached accessories safely.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off and remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufactures, by our customer service or by qualified person and with a cable of the same type.
• Use only original spare parts.
• In order to ensure your children's safe, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Instructions on Use

• Mixer blades are sharp. Before replacement of accessories or additional parts which move during operation, the device must be switched off and cut off from the mains. Don't touch moving parts.
• Place the appliance on a firm and even surface, Set it up so that it cannot tip over.
• The machine should only be used under supervision.
• Do not carry or lift the appliance during operation, but turn it off first and then disconnect the mains plug.
• This appliance can be used by children aged from 8 tears and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance

This appliance is only to be used as instructed in this user manual. The appliance is not intended for commercial use. Any other use shall be considered as not intended use and can lead to material damage or even personal injury. The manufacturer shall not be liable for damages caused by not intended use.

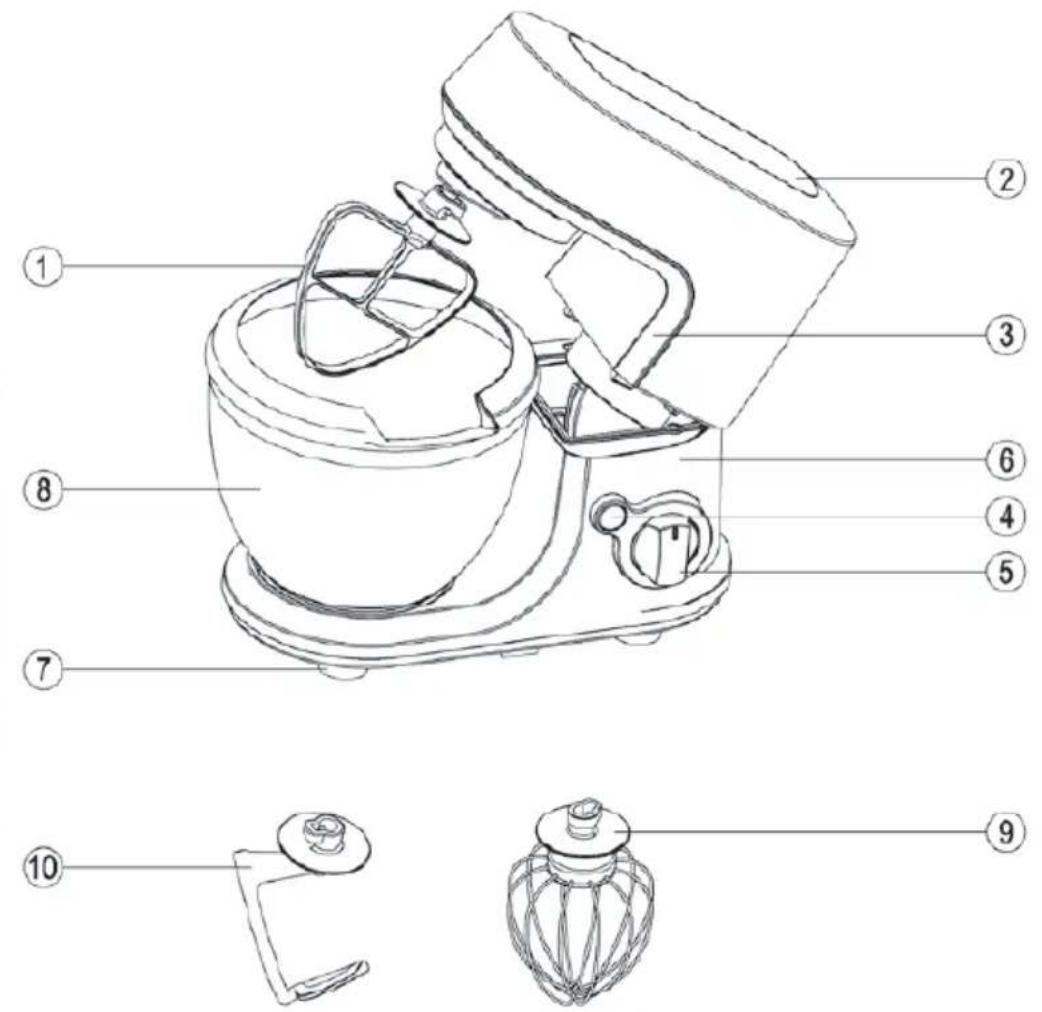

Teile

Technical diagram of a kitchen mixer with numbered parts for identification

Mixer blade 16 Lower housing cover

Large cover 27 Foot

Upper housing cover 3 8 Mixing bowl

Knob 4 9 Whisk

Switch 5 10 Dough hook

Initial Use / Operation

All parts of the device are to be thoroughly cleaned before being used. Take out the required lenght of cable from the cable storage on the base of the device. Connect to household mains supply.

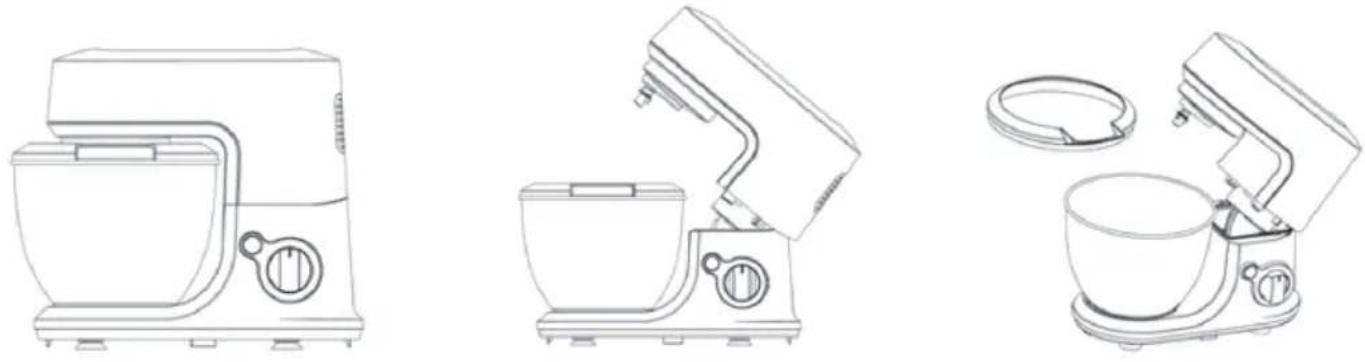

1. Mix ingredients in accordance with your recipe. Then open the upper housing by pressing the knob (4).

Line drawings of three kitchen appliances: a stand mixer, a bowl with lid, and a coffee cup (no text or symbols present)

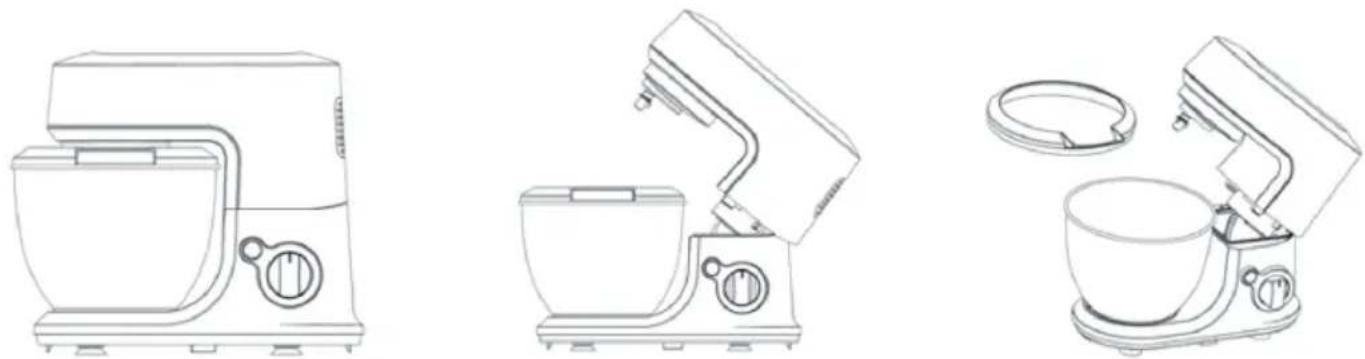

1. Place the mixing bowl on the device plate and turn it until it is fixed. Put the lid onto the bowl.

2. Fix the dough blade, the whisk or the mixer blade at the blade connector and rotate the connector anticlockwise until it engages firmly.

Line drawings of three kitchen appliances: a blender, a microwave oven, and a coffee cup (no text or symbols present)

1. Press the upper housing down.

2. To turn the mixer on, turn the switch to the desired speed (1 - 6): Use 1 - 3 for kneading and 4 - 6 for mixing and whipping

3. Turn the device off by turning the switch back to 0.

4. Lift up the housing by pressing the switch (4).

5. You can now remove the mixing bowl.

Cleansing: Cleansing: Turn the switch to 0 and pull the plug. Let the machine cool down. For cleaning the housing, use a damp cloth and some mild detergent. Do never submerge the unit in water. The dough hook, whisk and mixing blade are not dishwasher safe. Clean with warm water and household cleanser. The bowl can be washed in the dishwasher. Do not use any abrasive detergents anyway.

Technical Data

Article no. 10008799, 10008800, 10008801, 10008802

Power supply 120-240V AC

Scope of delivery Main device, mixing bowl, dough hook, mixer blade, Whisk, Lid (splash guard), manual

Disposal Considerations

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

According to the European waste regulation 2002/96/EC this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Manufacturer: CHAL-TEC Vertriebs- + Handels GmbH, Wallstraße 16, 10179 Berlin, Germany

This product is conform to the following European Directives:

2004/108/EC (EMC)

2011/65/EU (RoHS)

2006/95/EC (LVD)

CE
