USER MANUAL IC-3010 Edimax

Dual Mode Mega Pixel IP Camera

IC-3010 / IC-3010Wg User Manual

Version 1.0 / 9, 2008

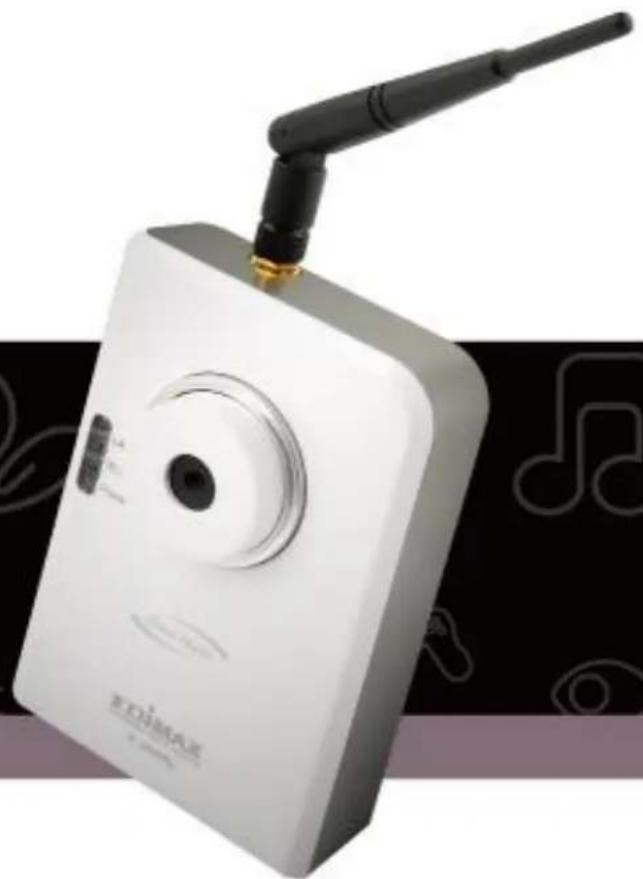

White digital camera with antenna and earplifier, no visible text or symbols on device body

ErP Announcement

Product: Internet Camera (IP CAM)

Purpose: 24 hours surveillance and transfer the picture for safety and health of intended use.

Detail description:

Health purpose: User can pass through the internet (from everywhere) to control the product (IP CAM). To watch and listen the people who needs to be cared in house and automatically send e-mail and phone to warn you and ask your attention. The product also provides a record function to keep all images and voice information for record.

Safety purpose: User can initial “motion detect” function, to record and send email to warn you when your door or window was opened by someone.

General purpose: Record/monitor environment images and sound and storage the images and sound into hard disk as a record.

We won't know when the situation we want will happen, therefore, we need to keep the product work every time.

If the product got into “standby/off” mode, that will impact the record and warning functions. User won’t get the information they want.

Base on the ErP official journal of European Union

Directives 2009/125/CE of the European parliament and of the council of

21 October 2009 Article 15 sector 5 part (a) and (b) as below:

“Implementing measures shall be no significant negative impact on the functionality of the product, from the perspective of the user.”

“Health, safety and environment shall not be adversely affected.”

We announce the product doesn't need comply with the (EC) No 1275 Standby and on/off mode function of Implementing Measurement.

We will follow up the newest Implementing Measurement in the future if related this product.

Table of Contents

Chapter I: Familiar with your Internet IP Camera 8

1.1 Package Contents....8

1.2 Basic Introduction....9

1.3 Product Highlights .... 10

1.4 Familiar with Key Components.... 11

1.5 Descriptions for LED Indicators 14

1.6 Camera Installation .... 15

1.7 Locate the IP Address of this IP Camera.... 16

1.8 Log Onto Web Management Interface 20

Chapter II: Using Web Management Interface 23

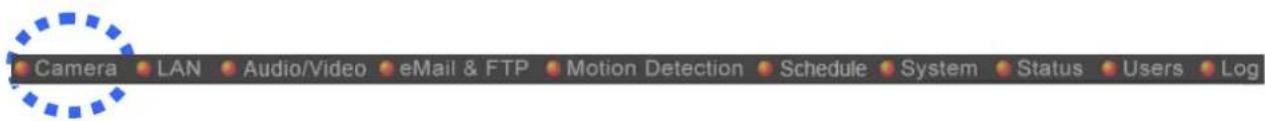

2.1 Camera Settings....23

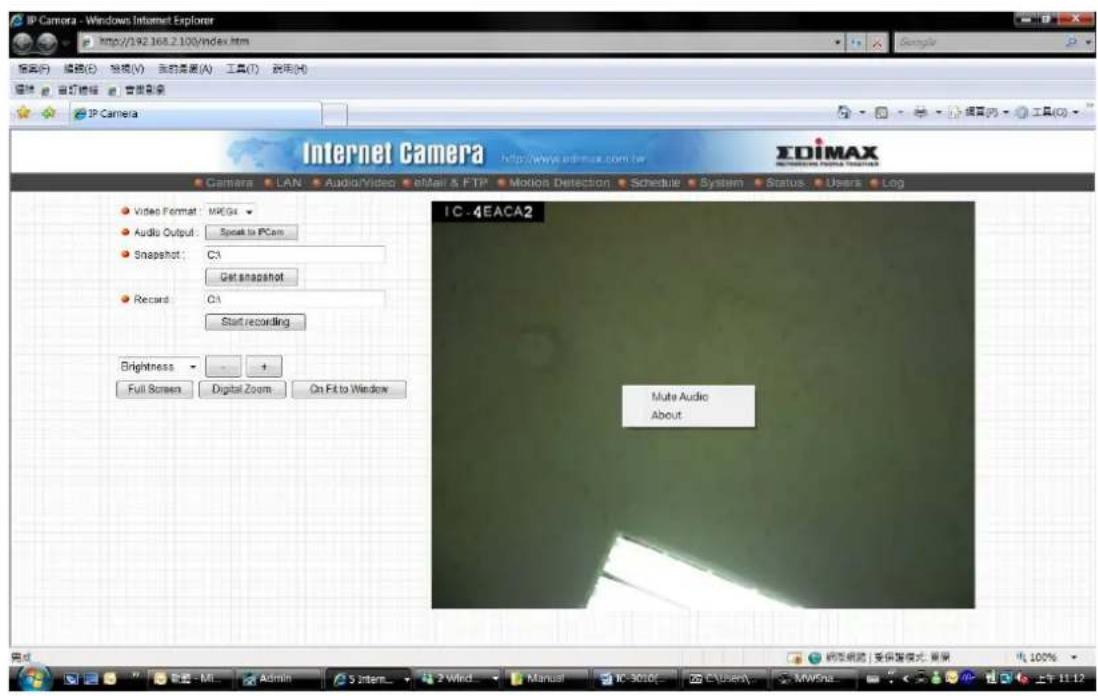

2.1.1 Mute Audio....276

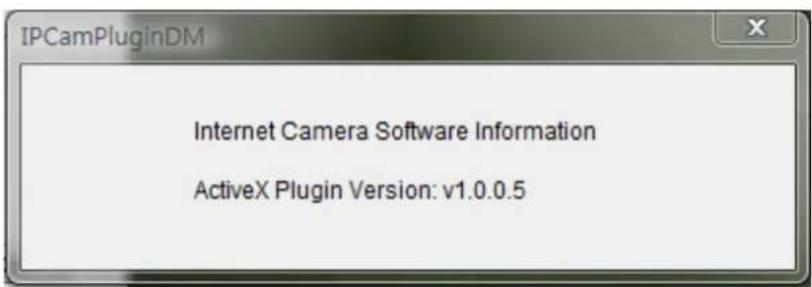

2.1.2 About 287

2.2 LAN Settings 298

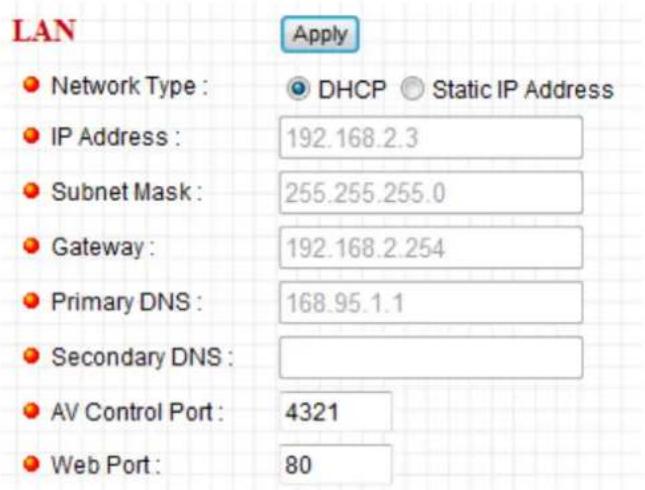

2.2.1 IP Address 298

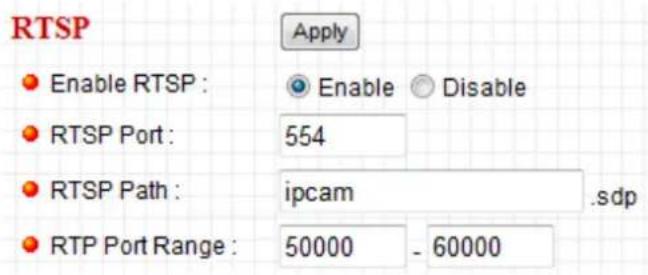

2.2.2 RTSP....30

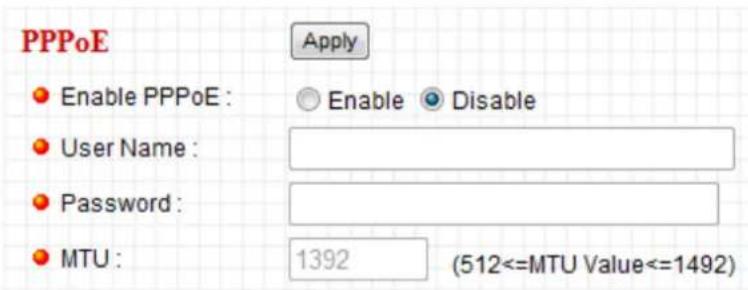

2.2.3 PPPoE.... 31

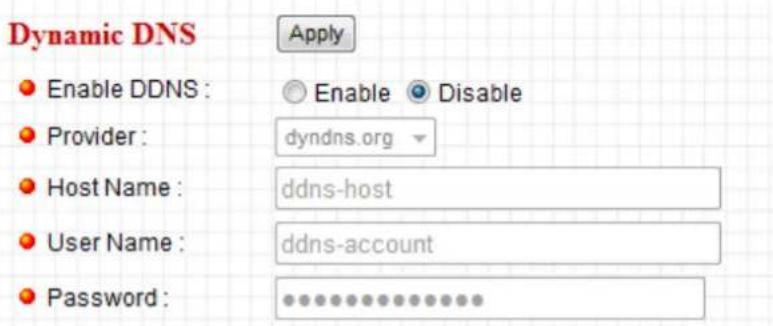

2.2.4 Dynamic DNS 32

2.2.5 UPnP 343

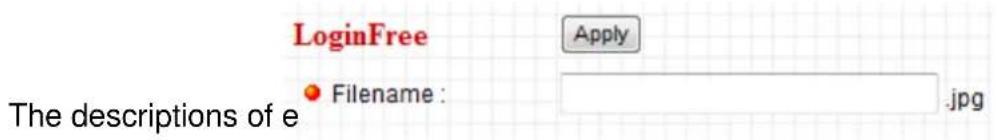

2.2.6 LoginFree 365

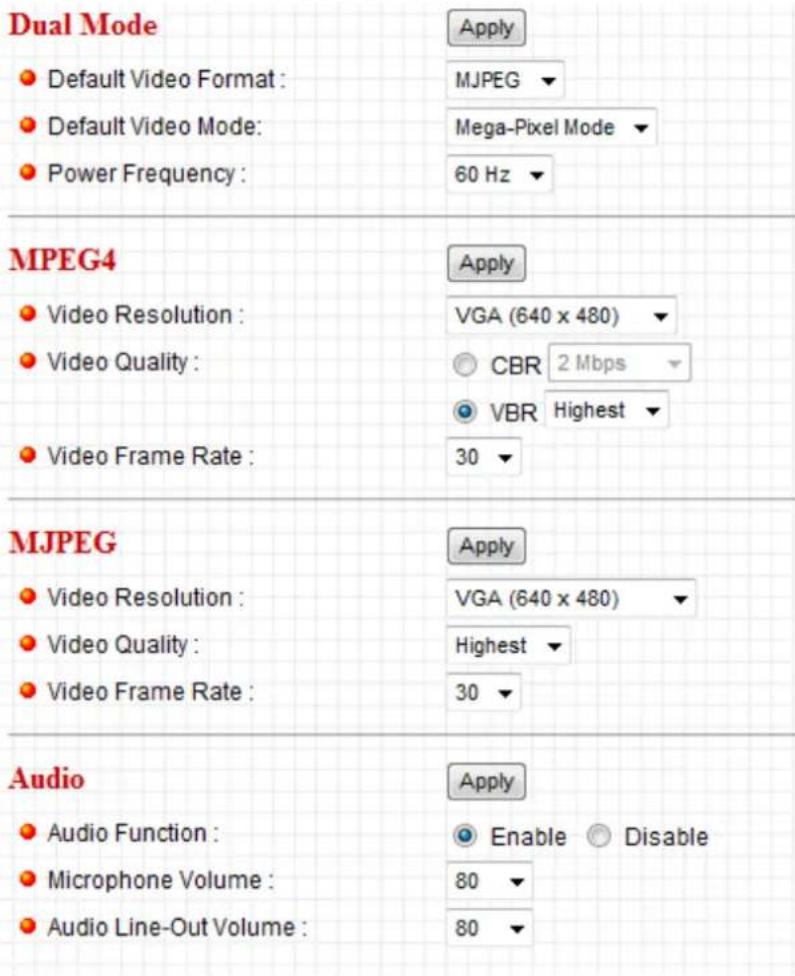

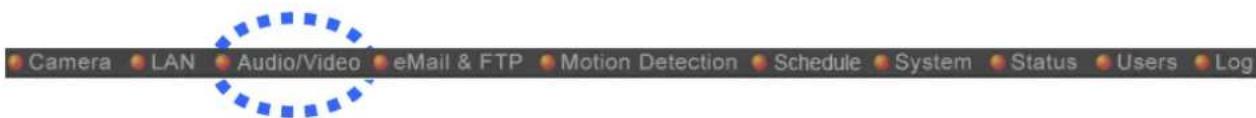

2.3 Audio/Video 376

2.3.1 Dual Mode 387

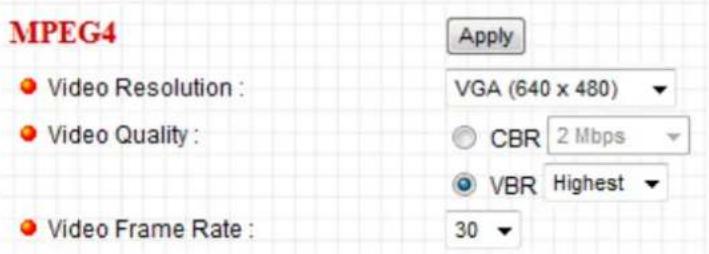

2.3.2 MPEG4 38

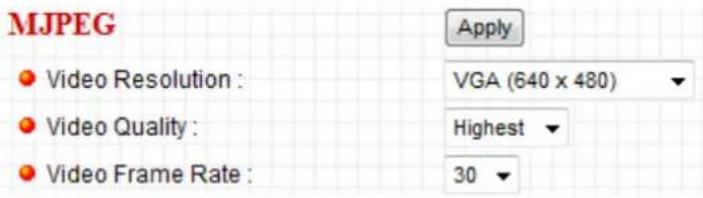

2.3.3 MJPEG 39

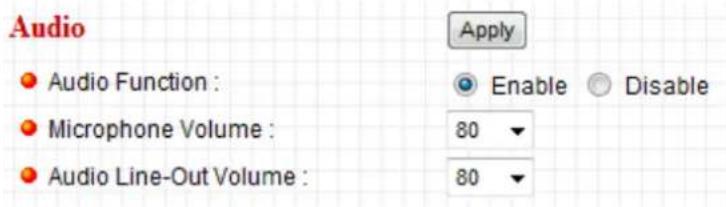

2.3.4 Audio....40

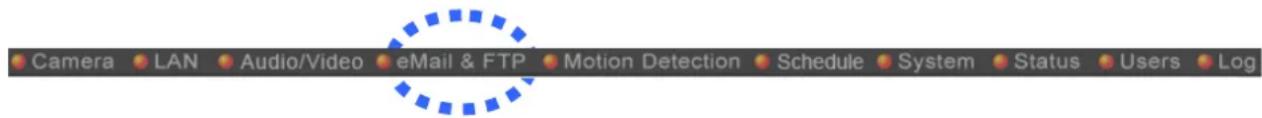

2.4 Email & FTP 421

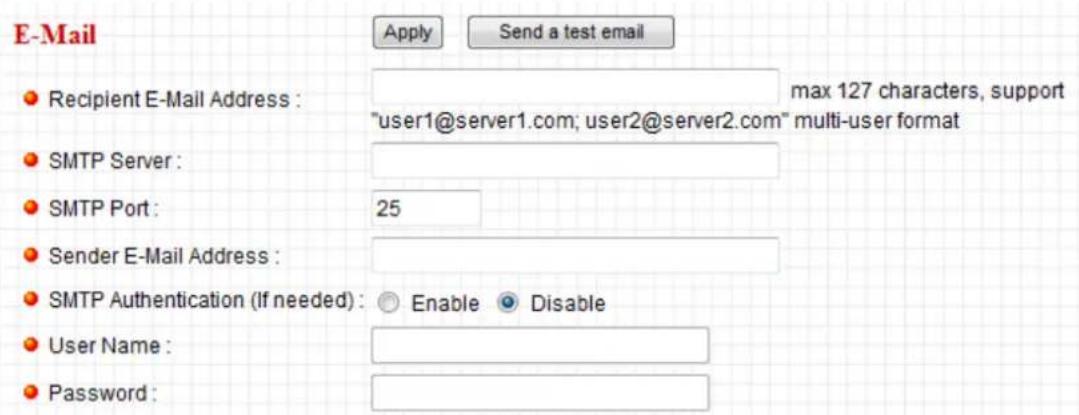

2.4.1 Email Settings....432

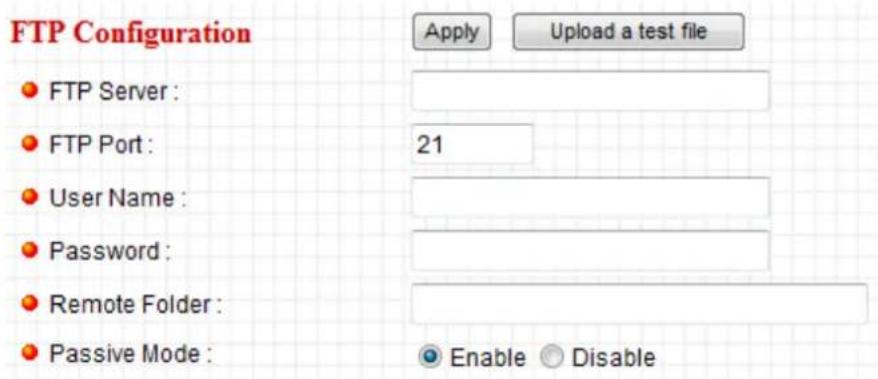

2.4.2 FTP Settings 454

2.5 Motion Detection 476

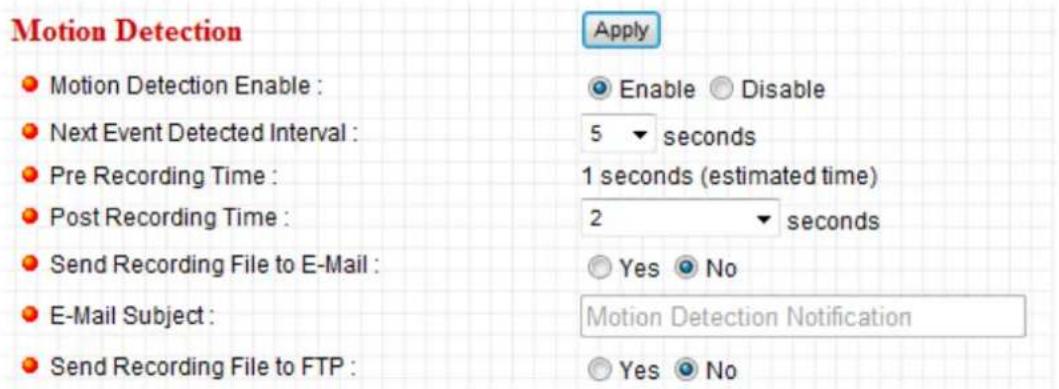

2.5.1 Motion Detection....46

2.5.2 Motion Region....48

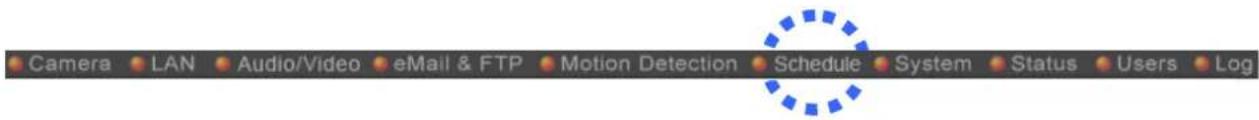

2.6 Schedule....50

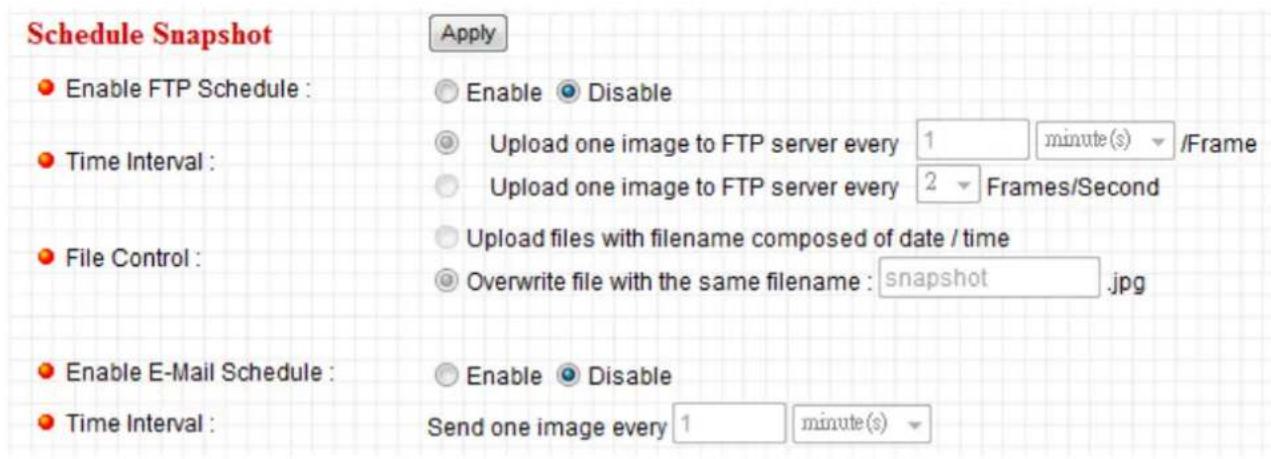

2.6.1 Schedule Snapshot....50

2.6.2 Schedule Recording....52

2.7 System 494

2.7.1 Camera Information....554

2.7.2 On-Screen Display....55

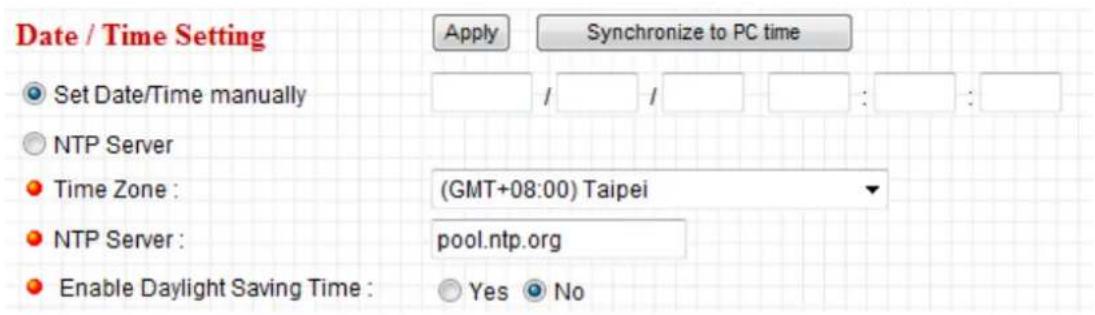

2.7.3 Date / Time Setting 565
2.7.4 Utilities....587

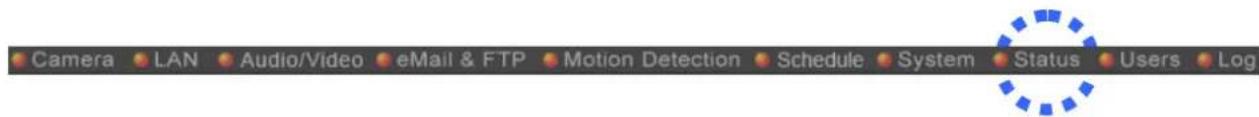

2.8 Status 609

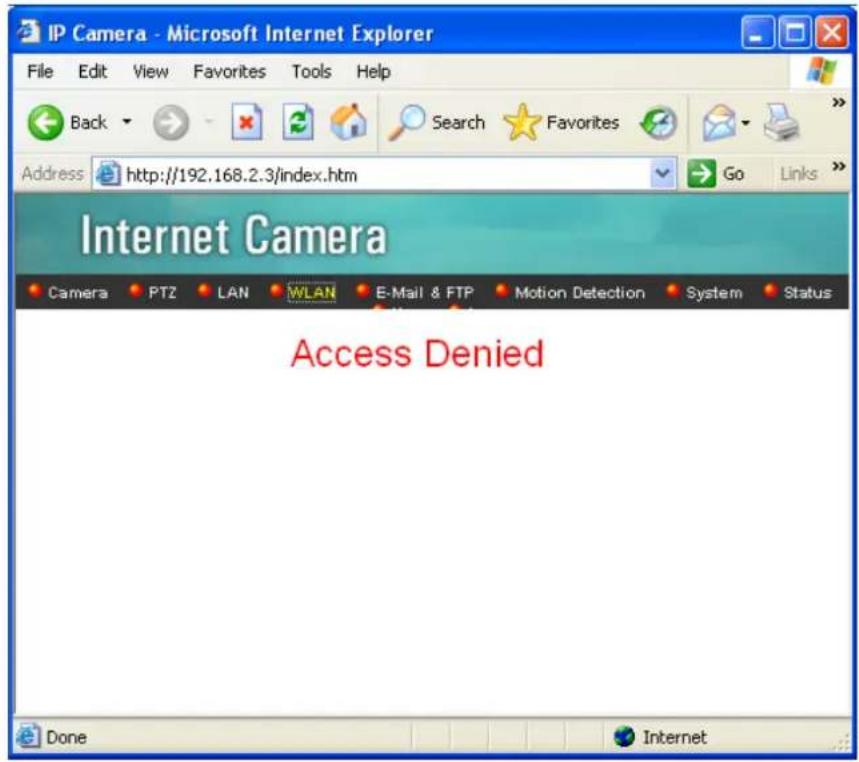

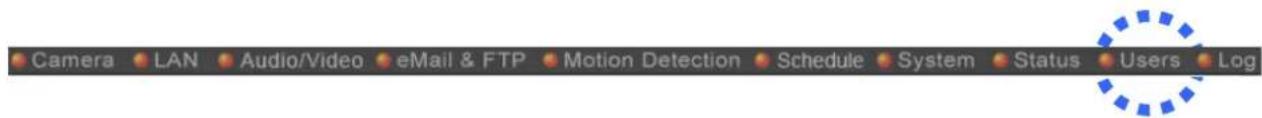

2.9 Users....60

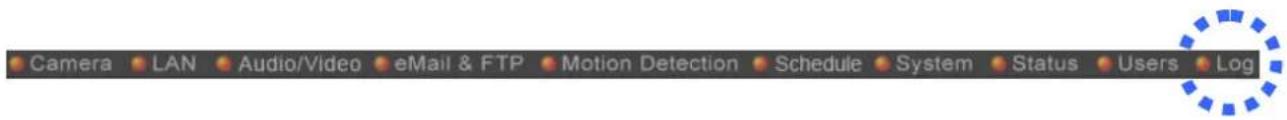

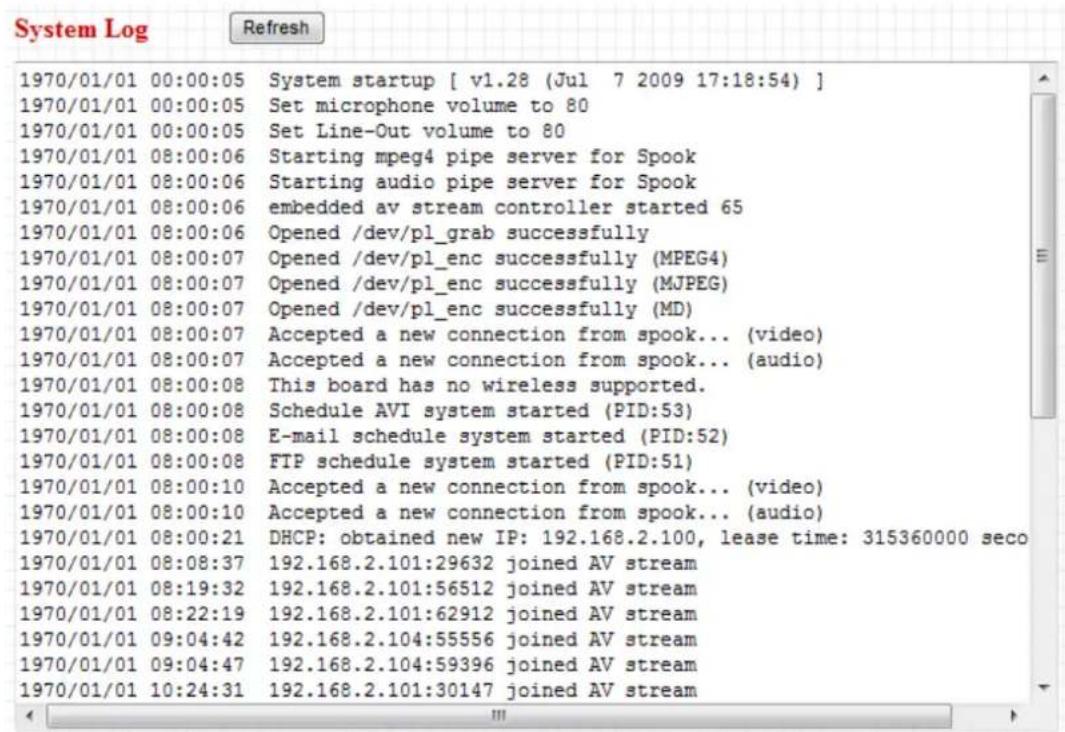

2.10 Log....62

Chapter III: Windows-Based Utility 63

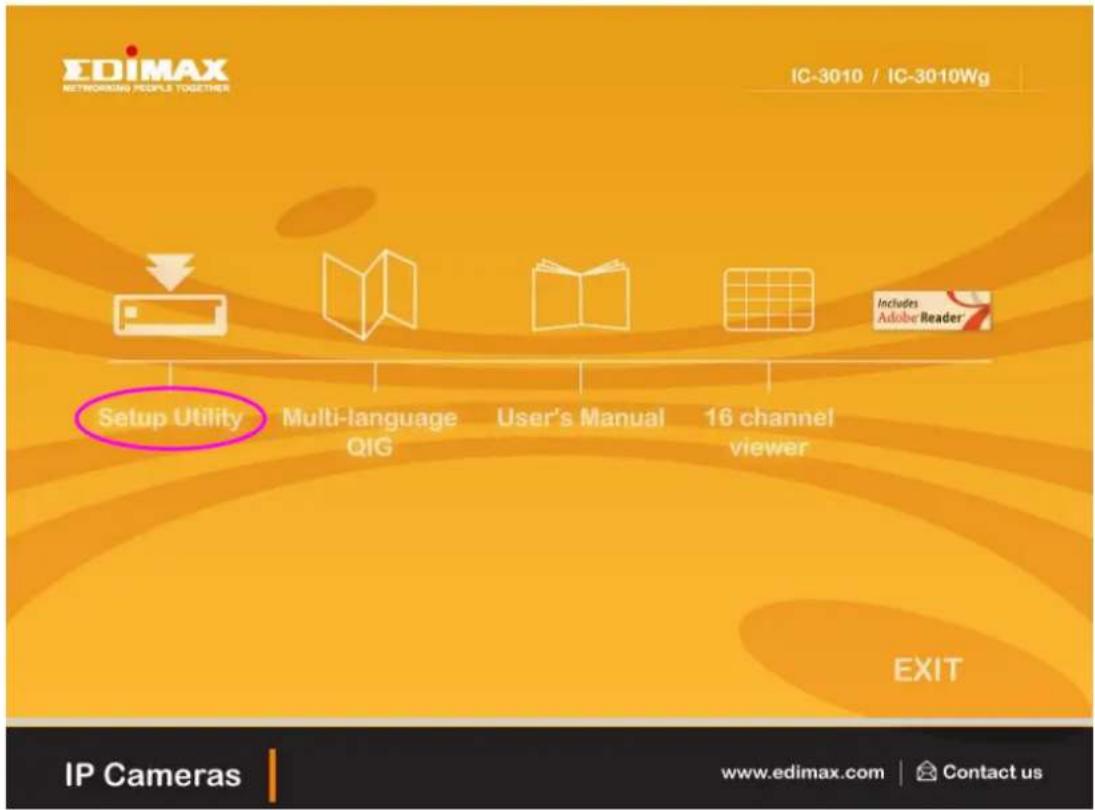

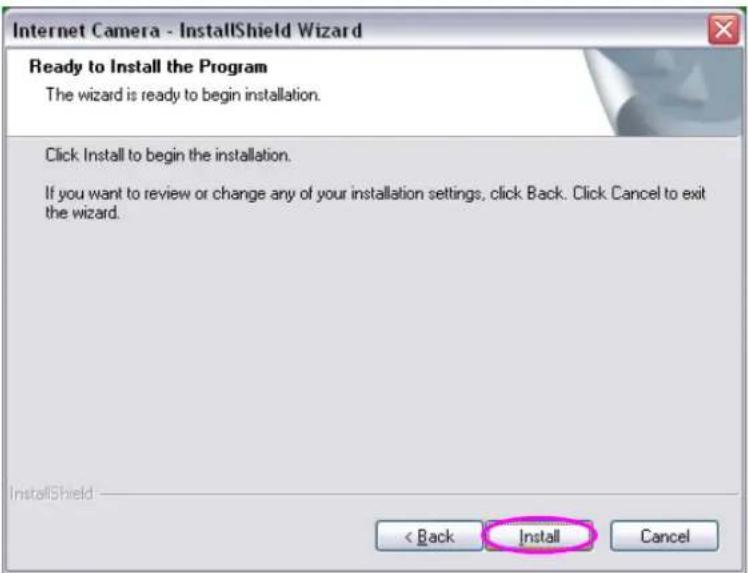

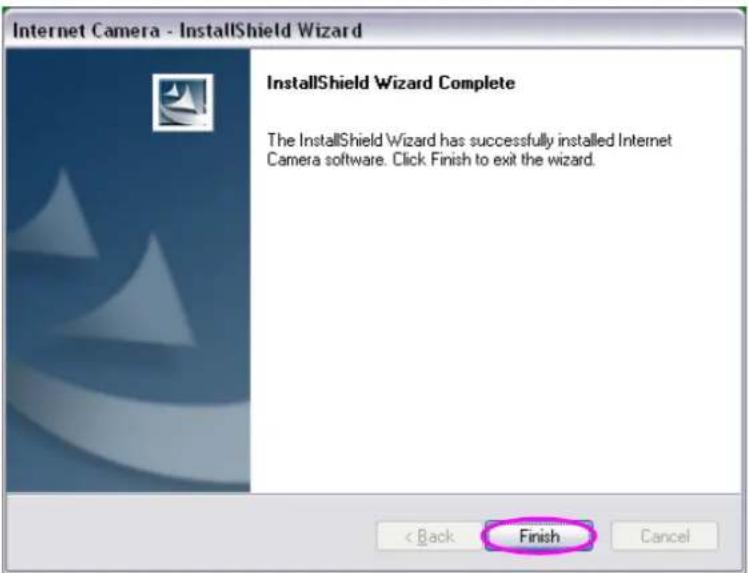

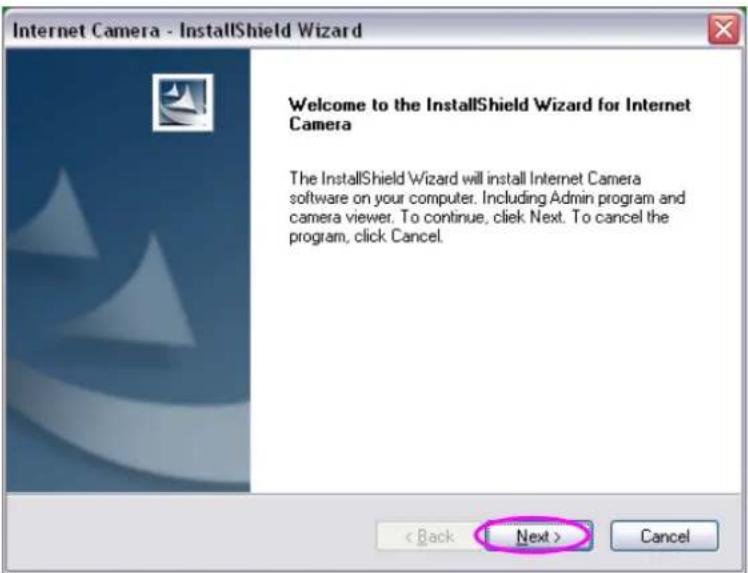

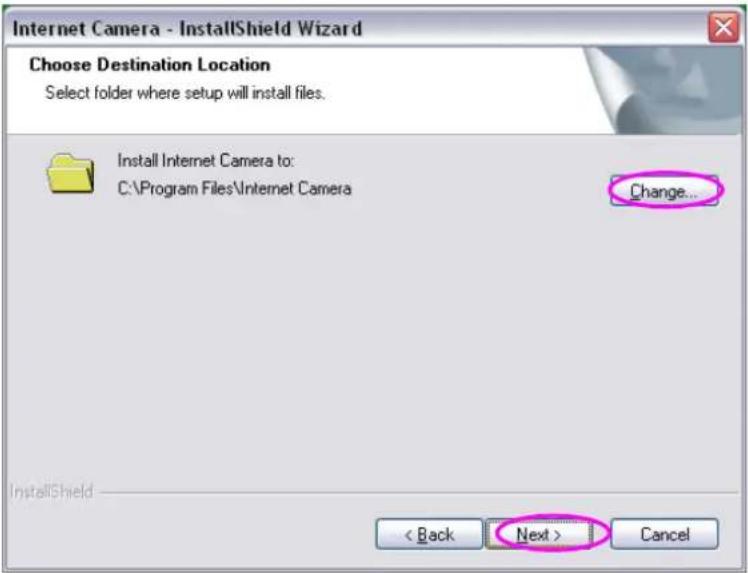

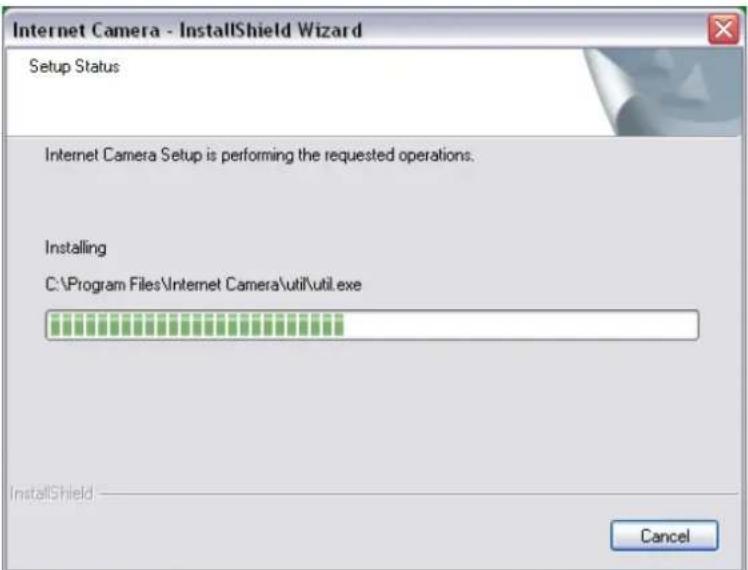

3.1 Install Windows-based Utility....63

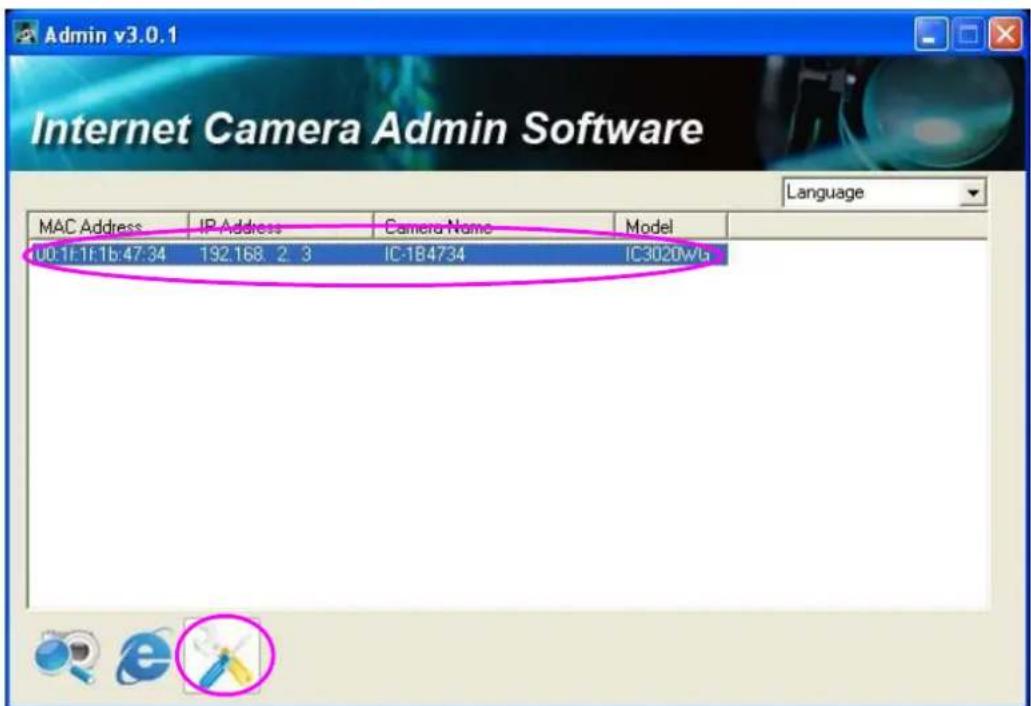

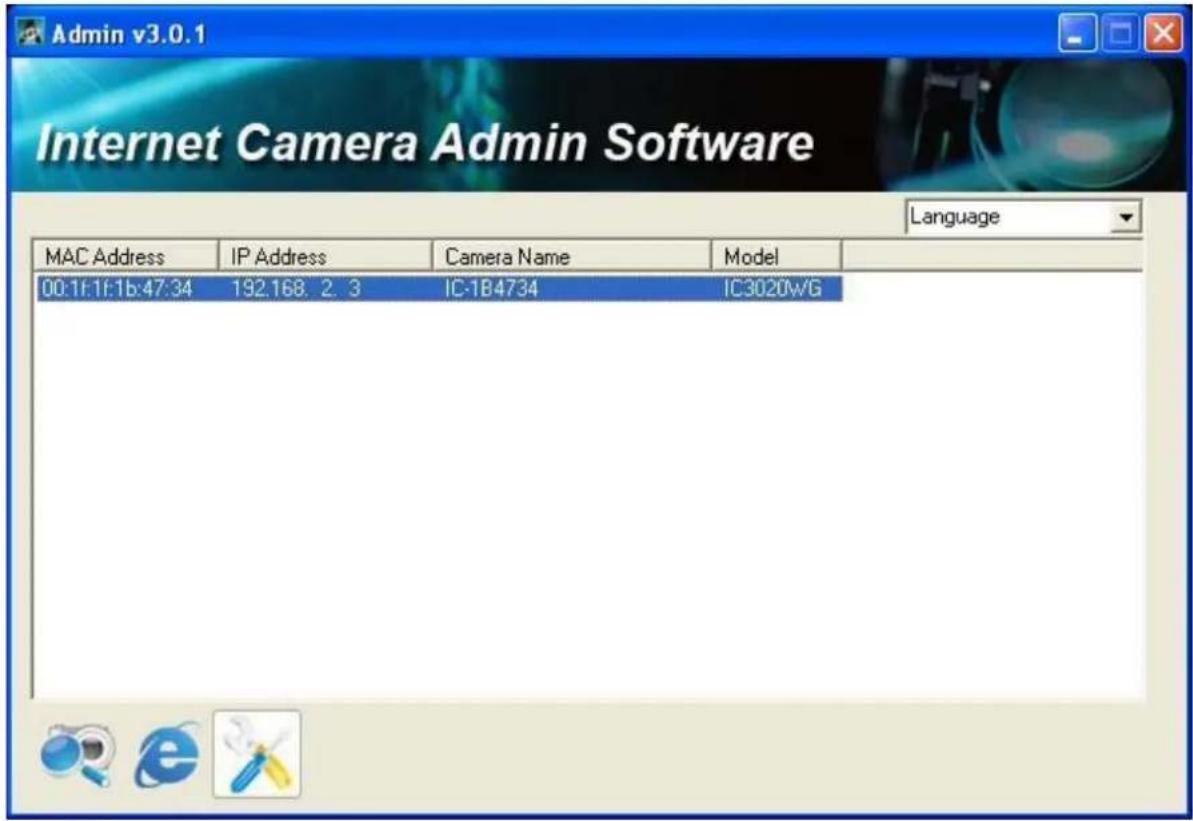

3.2 Using the Administrator Utility....68

3.2.1 General Setting....69

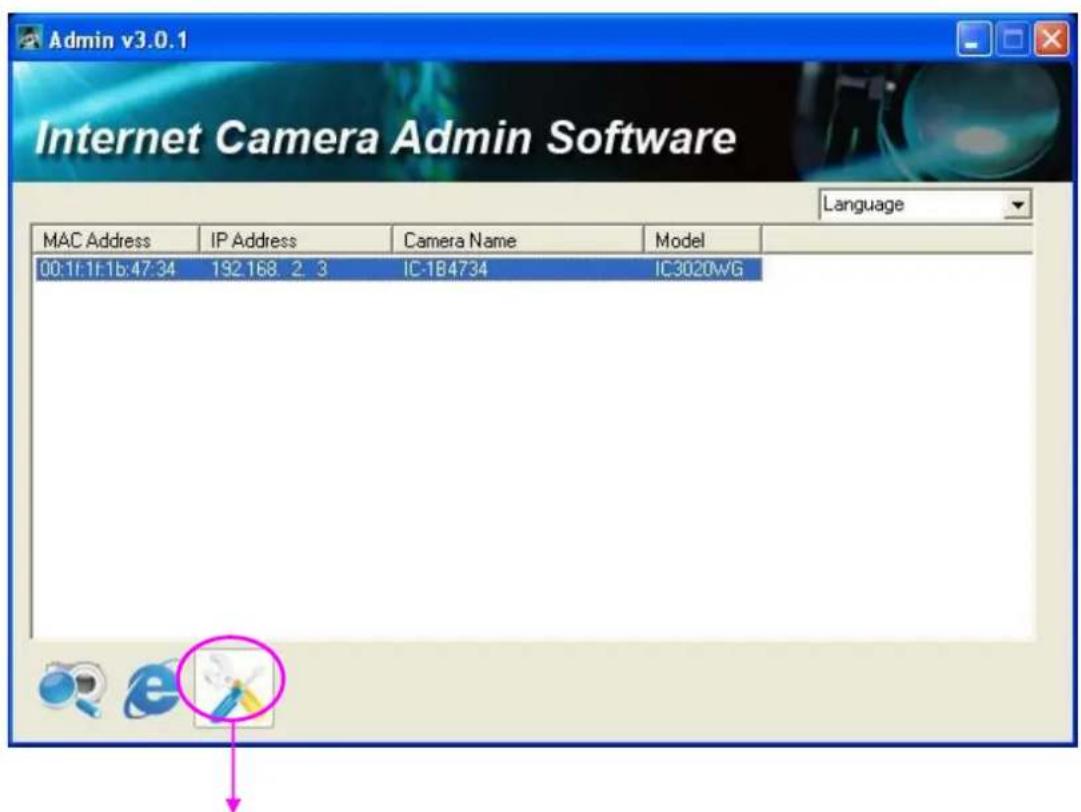

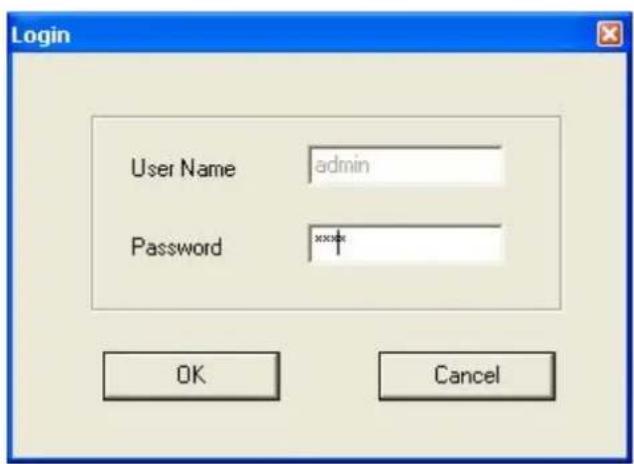

3.2.2 Configure Camera....70

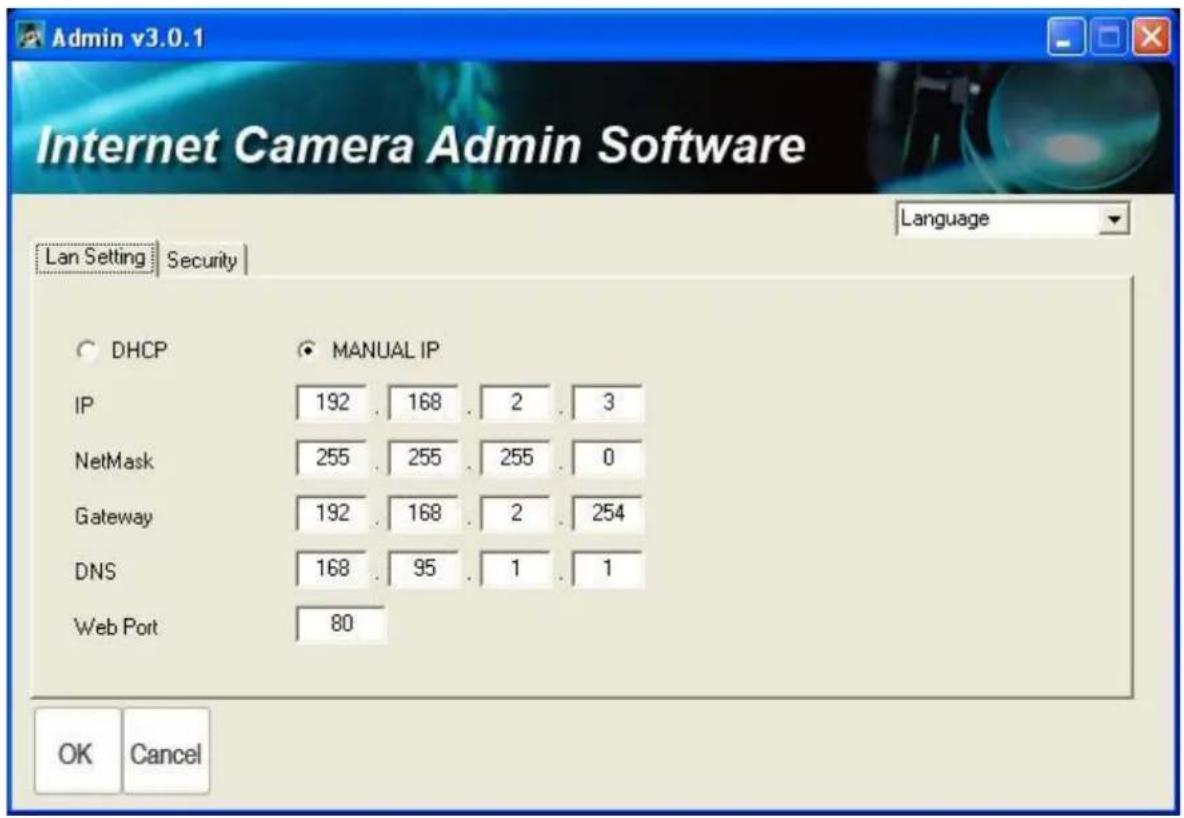

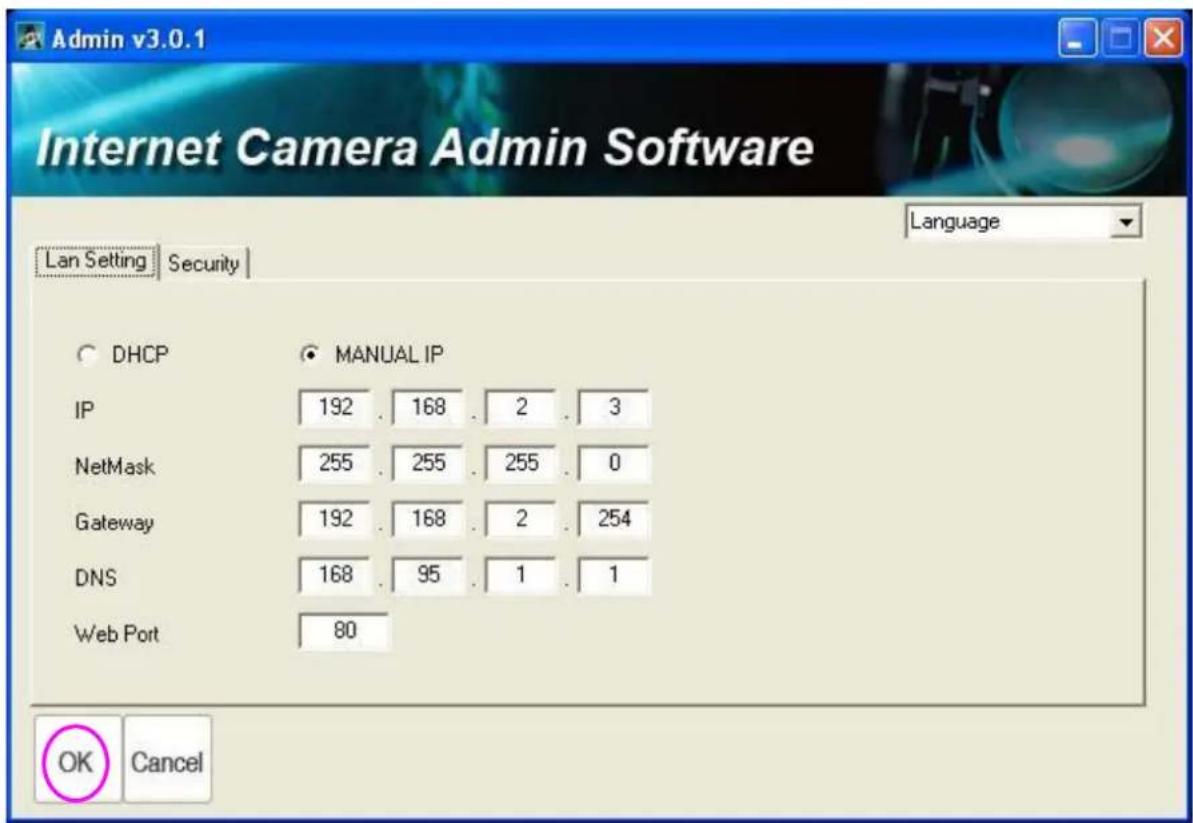

3.2.3 LAN Setting....71

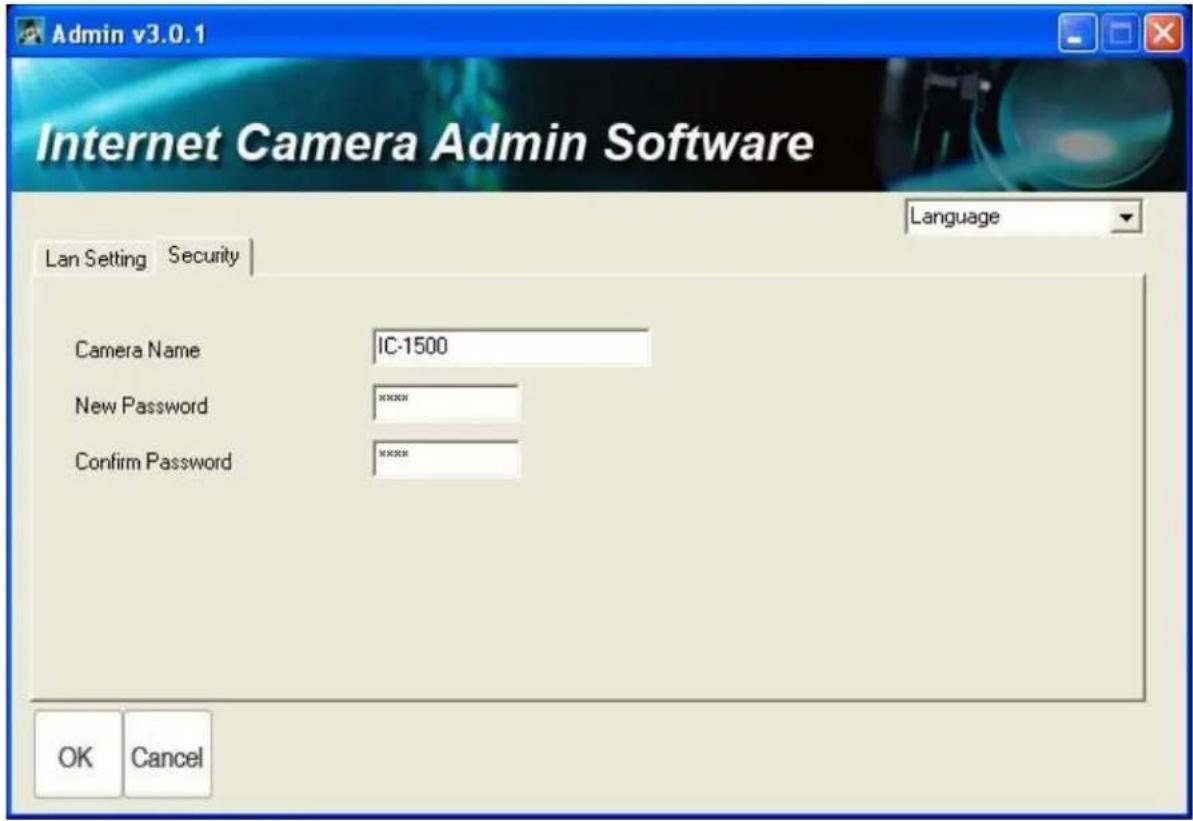

3.2.4 Security....73

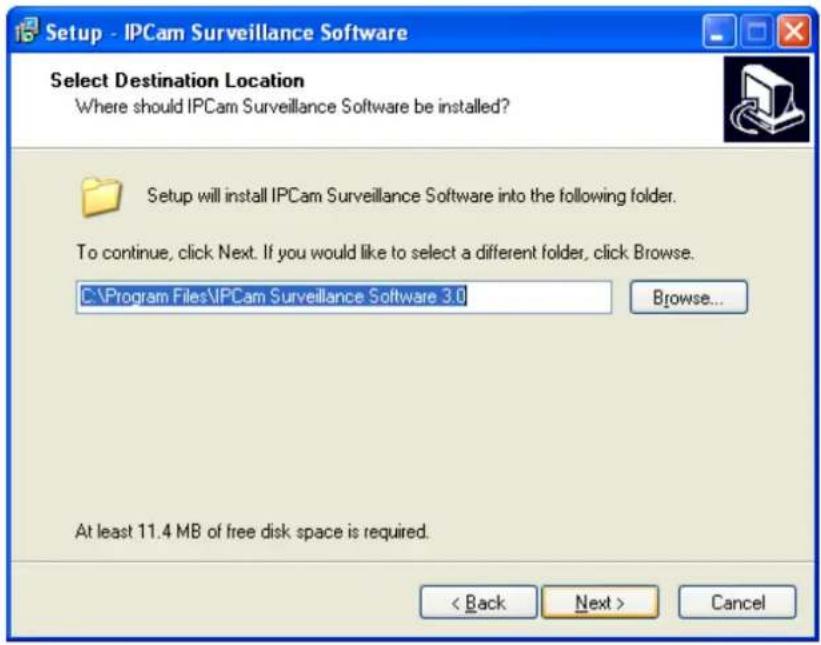

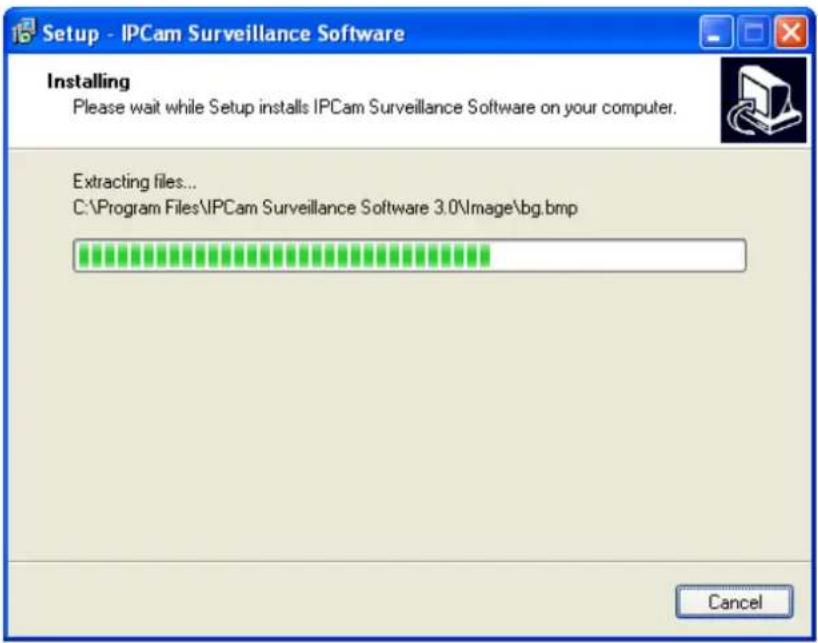

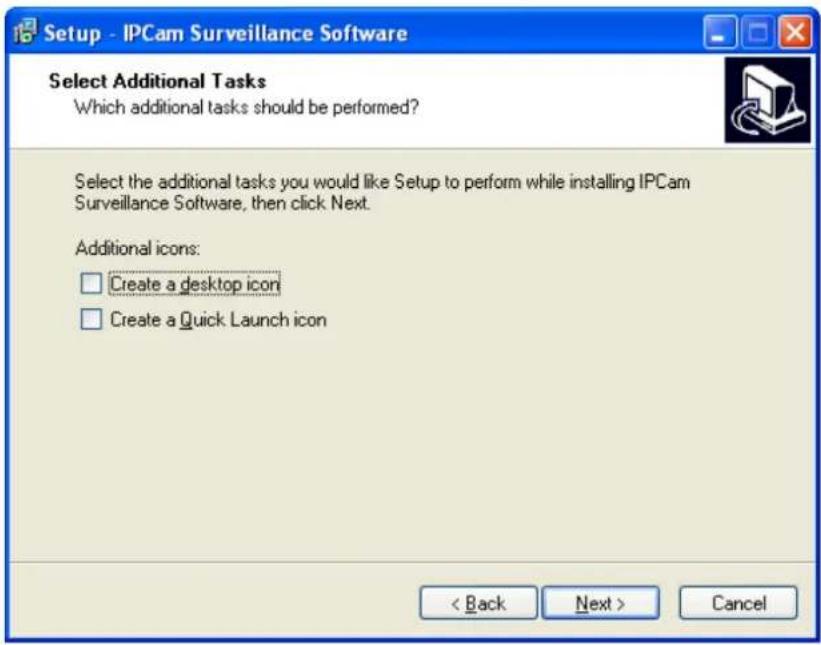

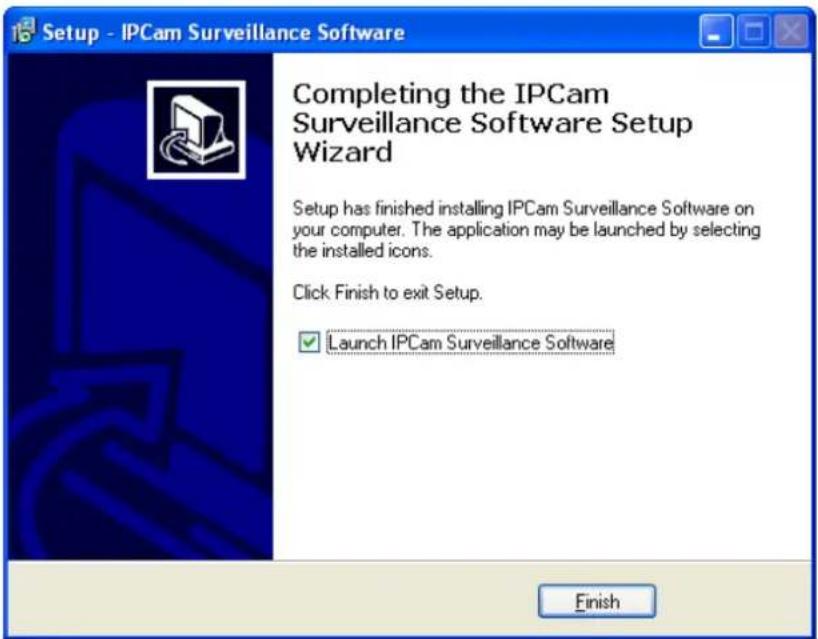

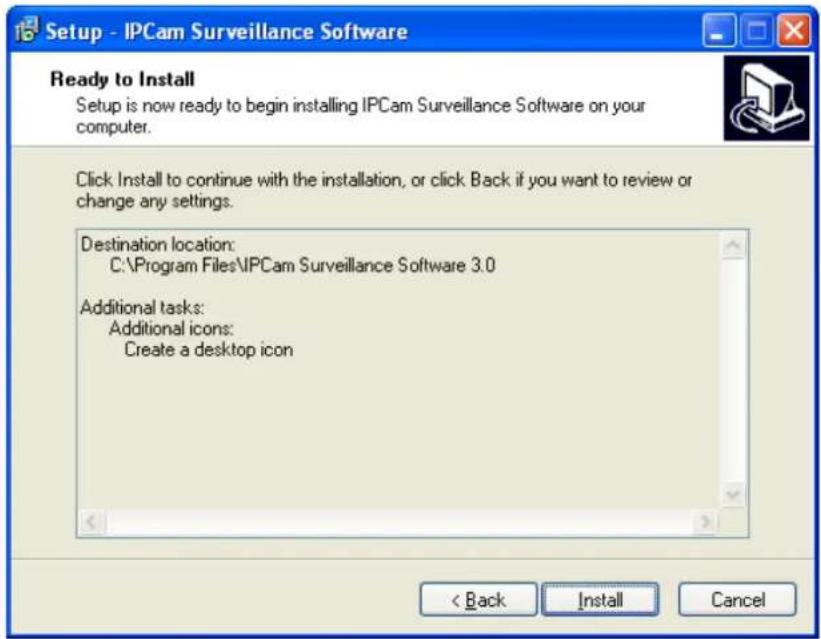

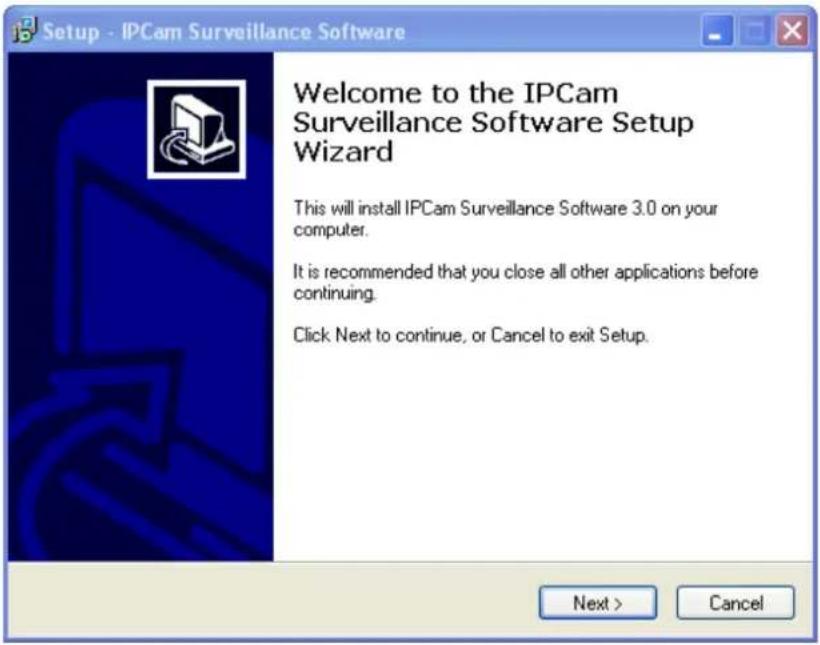

3.3 Installing IP Camera Surveillance Software....74

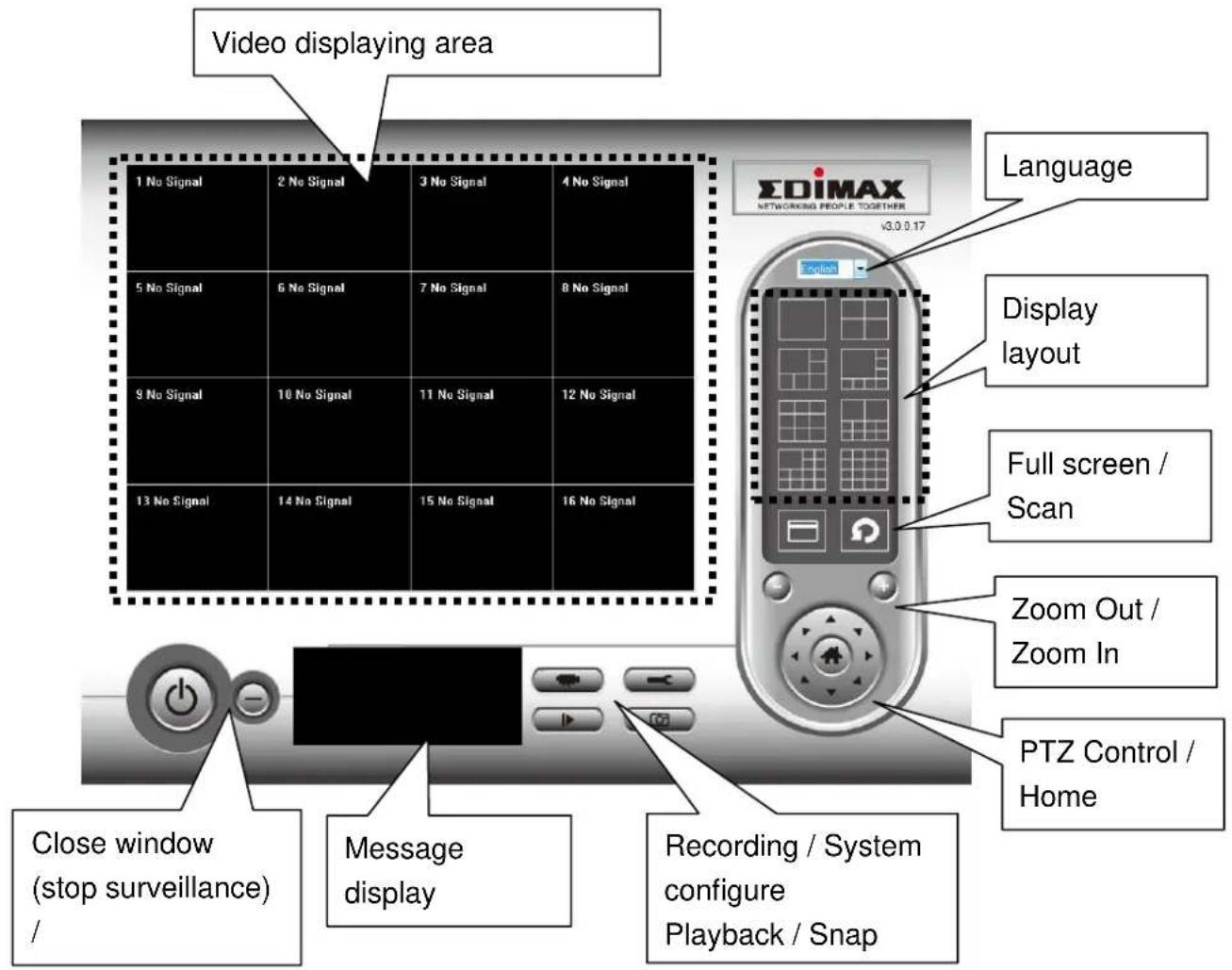

3.4 Using IP Camera Surveillance Software....77
3.5 Configure IP Camera Surveillance Software....80

3.5.1 Configure Cameras....80

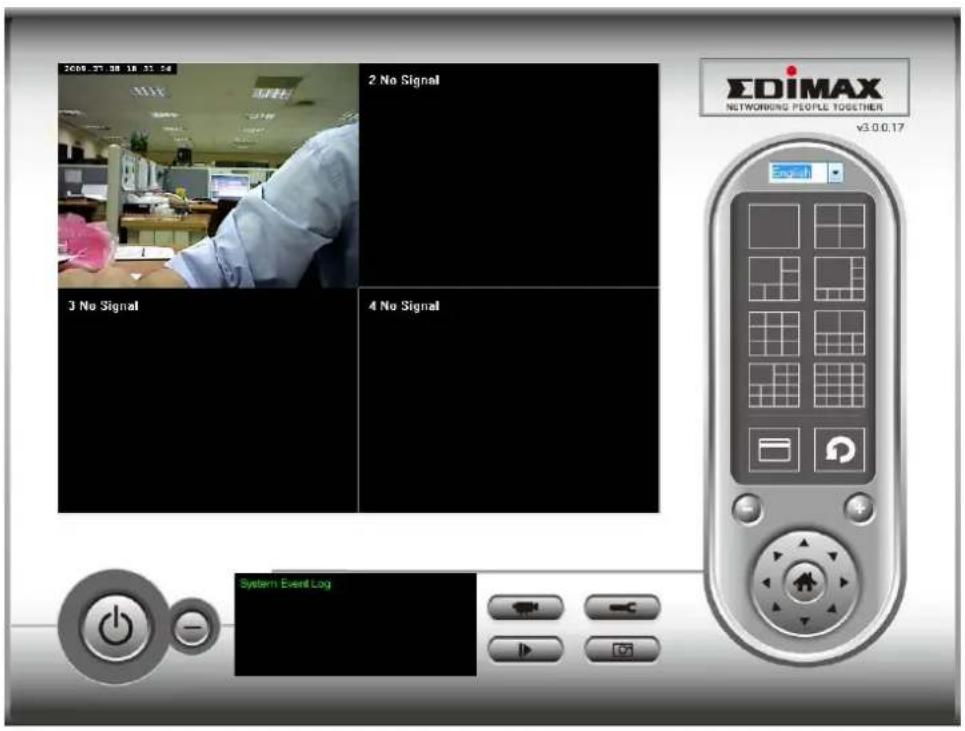

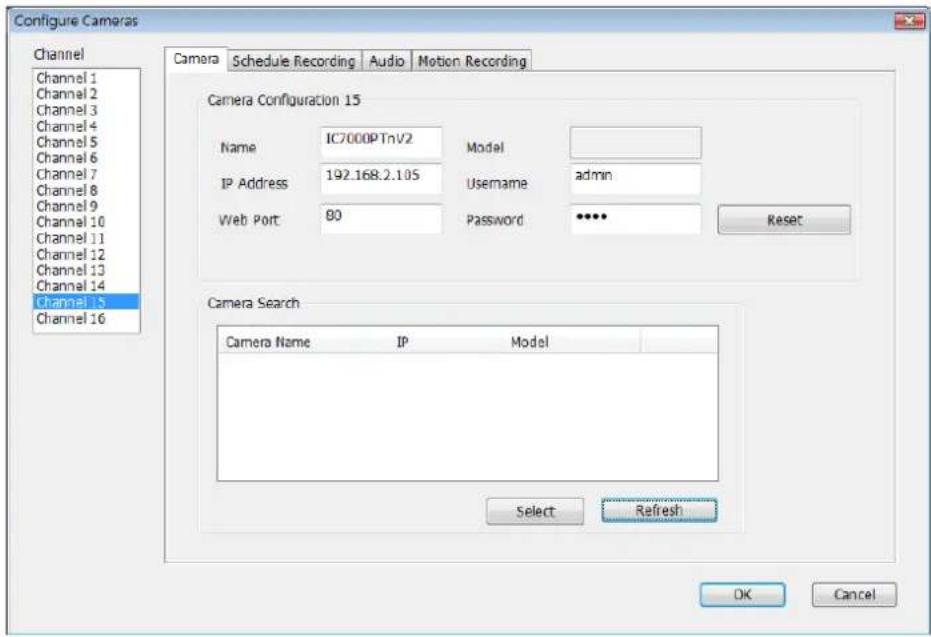

3.5.1.1 'Camera' Tab....81

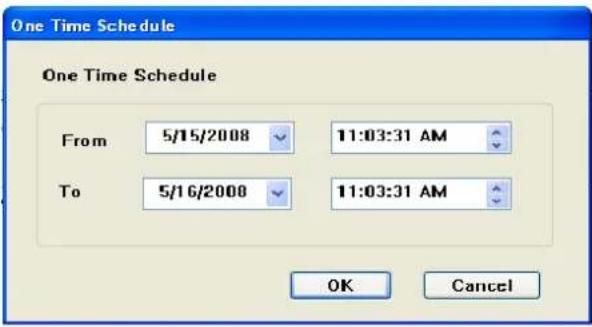

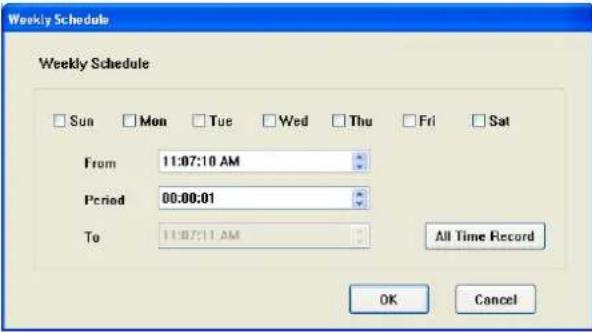

3.5.1.2 Schedule Recording....83

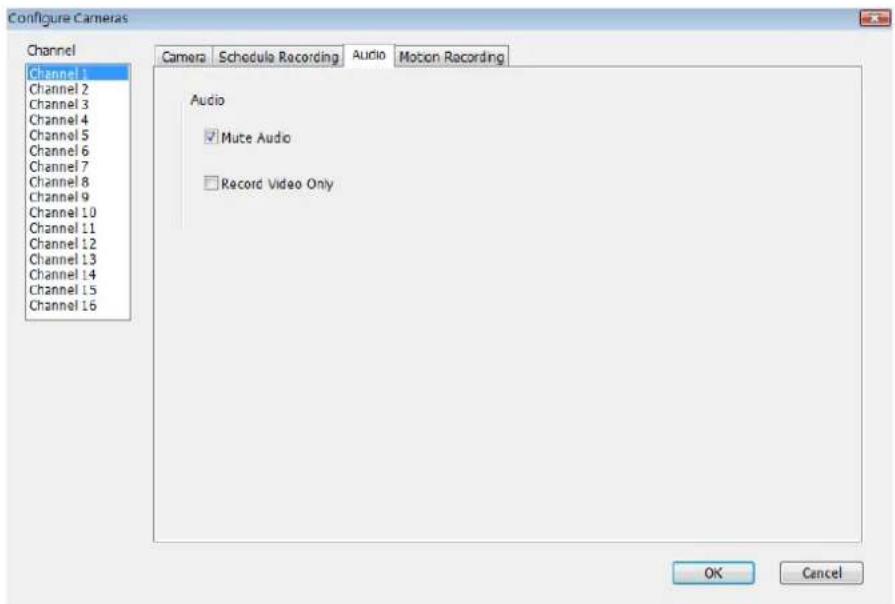

3.5.1.3 Audio....85

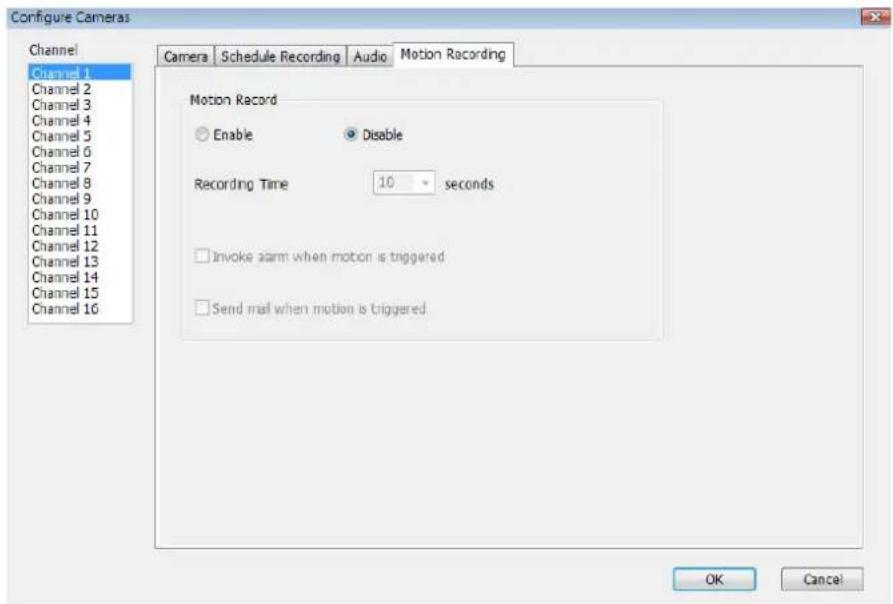

3.5.1.4 Motion Record....87
3.5.2 General Settings....88

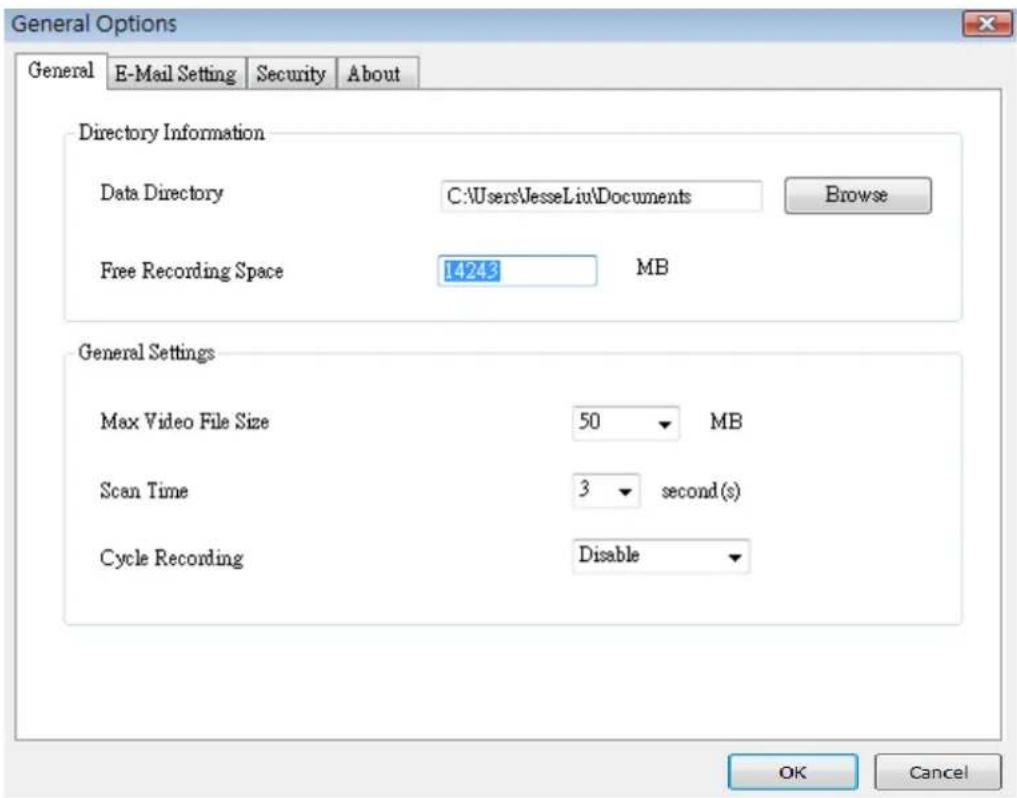

3.5.2.1 'General' Tab....88

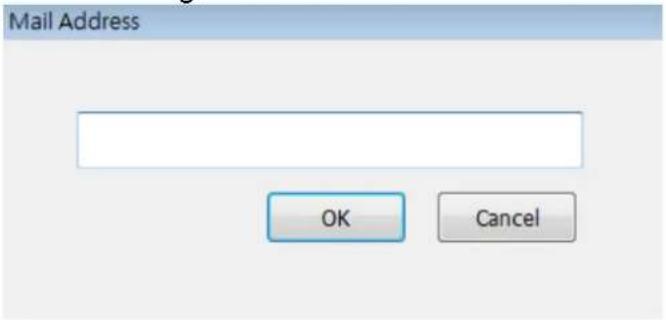

3.5.2.2 'E-Mail Setting' Tab....90

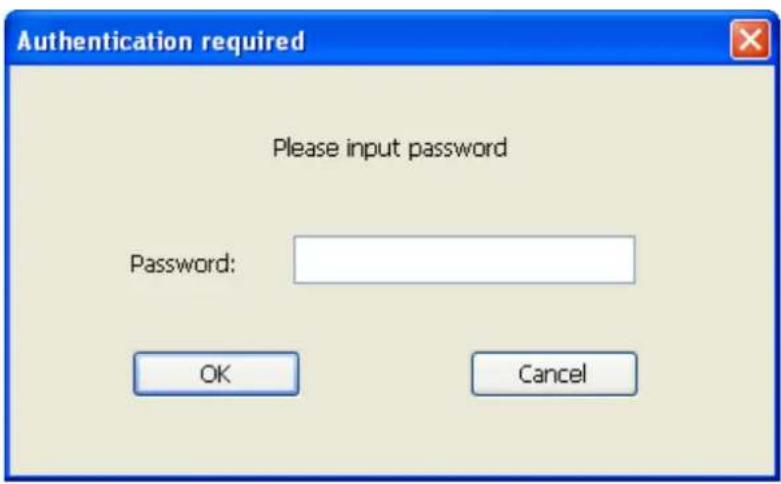

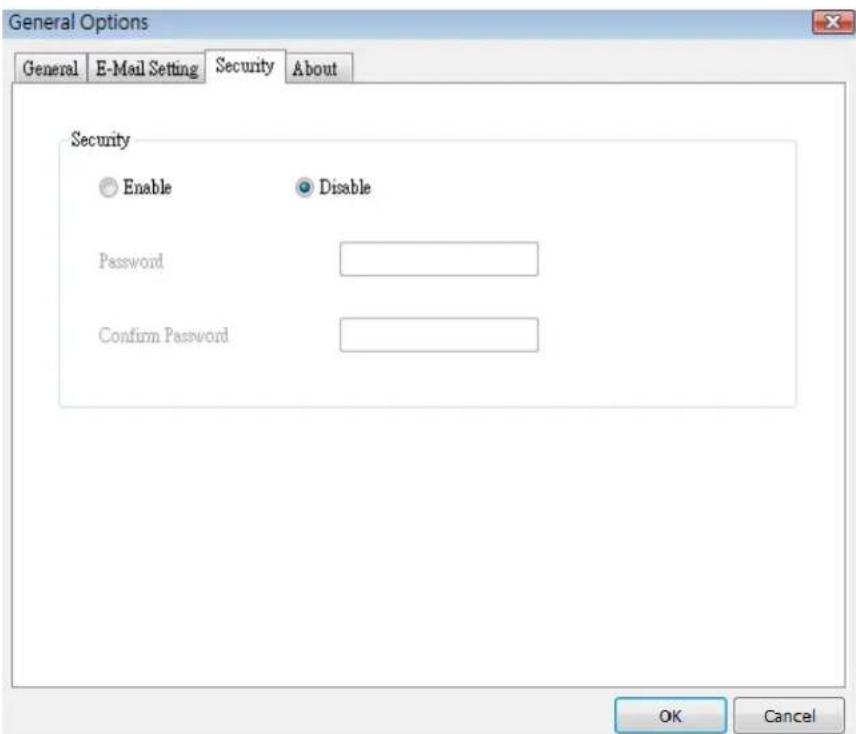

3.5.2.3 Security....92

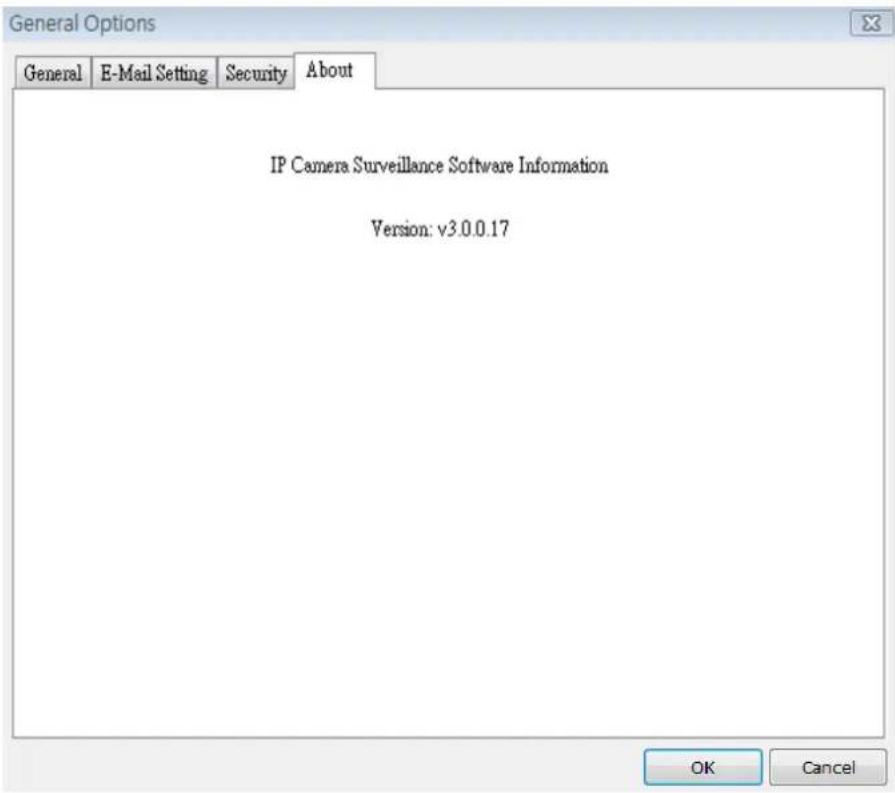

3.5.2.4 About....94

3.6 Change Display Layout....95

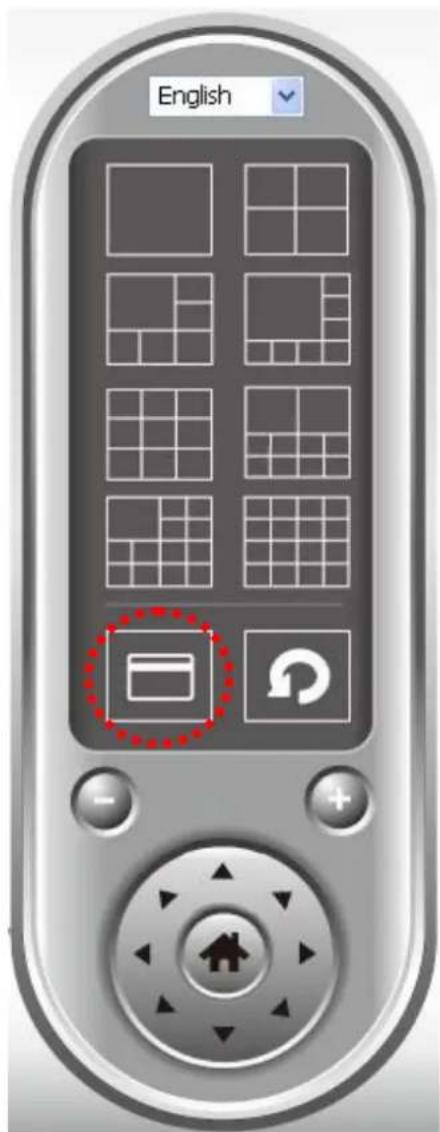

3.7 Full-Screen Modes....98

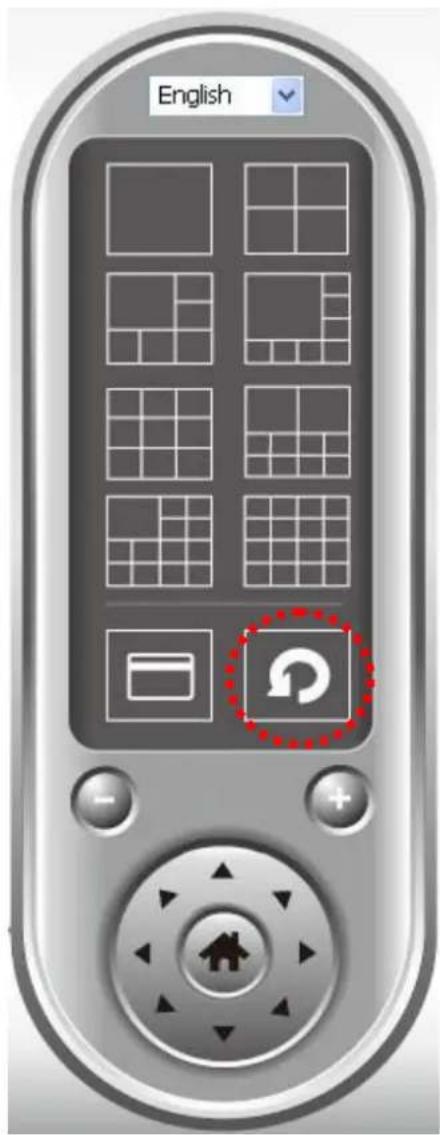

3.8 Scan....99

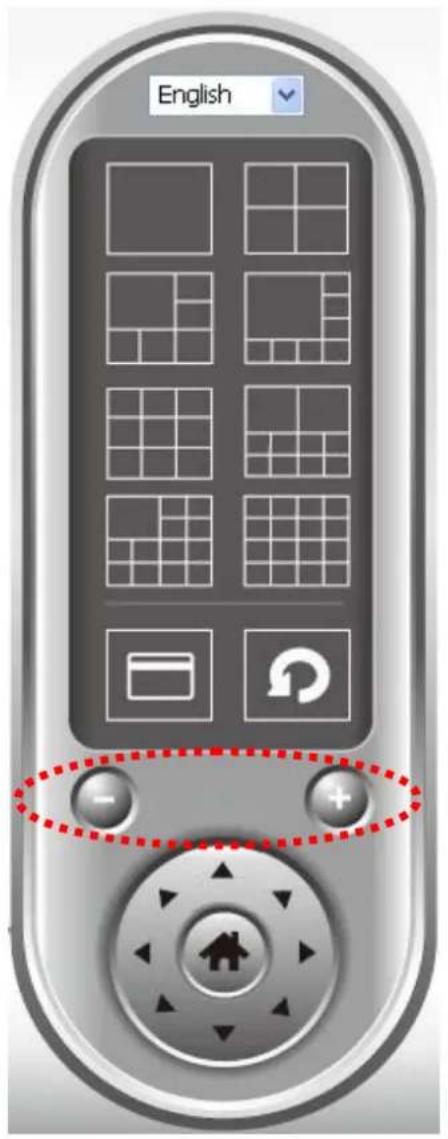

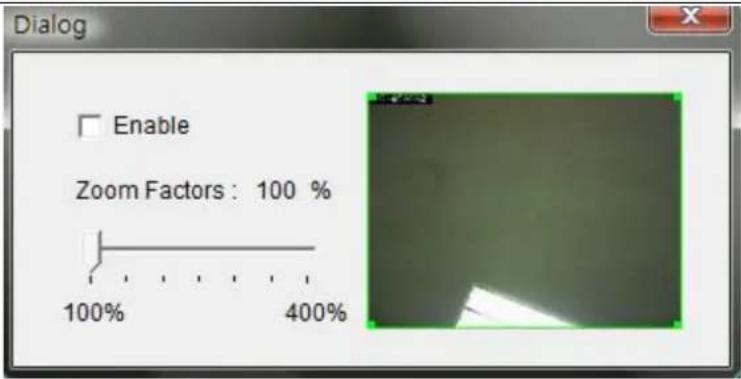

3.9 Zoom-in / Zoom-out....100

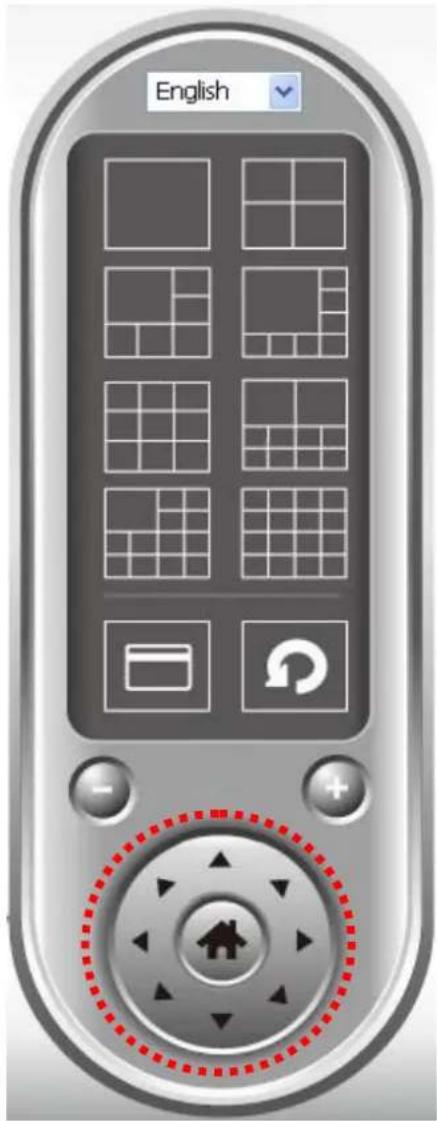

3.10 PTZ....101

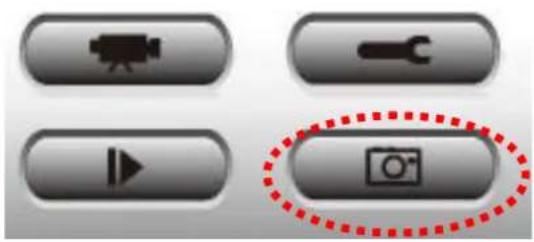

3.11 Snapshot....102

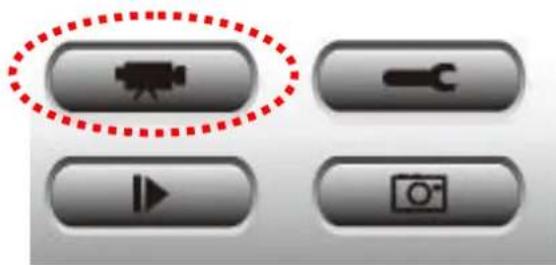

3.12 Recording....102

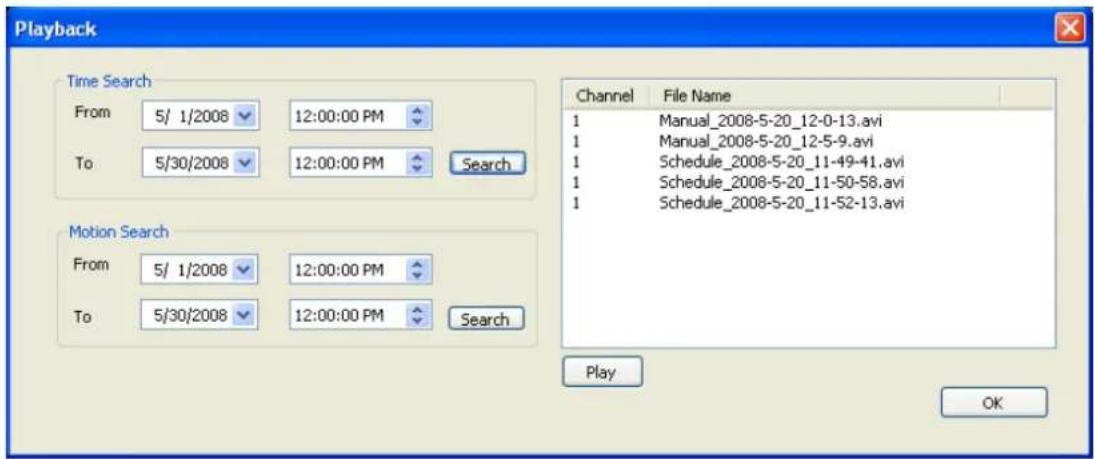

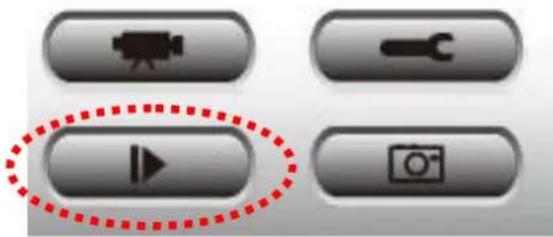

3.13 Video Playback....103
Chapter IV: Trouble Shooting....104

Copyright© by Edimax Technology Co, LTD. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company.

This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, this company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

The product you have purchased and the setup screen may appear slightly different from those shown in this QIG. For more detailed information about this product, please refer to the User Manual on the CD-ROM. The software and specifications are subject to change without notice. Please visit our web site www.edimax.com for the update. All rights reserved including all brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders.

Notice according to GNU/GPL-Version 2

This product includes software that is subject to the GNU/GPL-Version 2. You find the text of the license on the product cd/dvd. The program is free software and distributed without any warranty of the author. We offer, valid for at least three years, to give you, for a charge no more than the costs of physically performing source distribution, a complete machine-readable

copy of the corresponding source code.

Please contact Edimax at: Edimax Technology co., Ltd, NO. 3, Wu-Chuan 3rd RD

Wu-Ku-Industrial Park, Taipei Hsien, Taiwan. R.O.C., TEL : [phone], FAX :

Federal Communication Commission Interference Statement

FCC Part 68

This equipment complies with Part 68 of the FCC Rules. On the bottom of this equipment is a label that contains the FCC Registration Number and Ringer Equivalence Number (REN) for this equipment. You must provide this information to the telephone company upon request.

The REN is useful to determine the quantity of devices you may connect to the telephone line and still have all of those devices ring when your number is called.

In most, but not all areas, the sum of the REN of all devices connected to one line should not exceed five (5.0). To be certain of the number of devices you may connect to your line, as determined by the REN, you should contact your local telephone company to determine the maximum REN for your calling area.

If the modem causes harm to the telephone network, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance.

But if advance notice isn't practical, you will be notified as soon as possible. You will be advised of your right to file a complaint with the FCC.

The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the proper operation of your equipment.

If they do, you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service.

If you experience trouble with this modem, please contact your dealer for repair/warranty information. The telephone company may ask you to disconnect this equipment from the network until the problem has been corrected or you are sure that the equipment is not malfunctioning.

This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subject to state tariffs.

Installation

This device is equipped with a USOC RJ11C connector.

FCC Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio technician for help.

FCC Caution

This equipment must be installed and operated in accordance with provided instructions and a minimum 20 cm spacing must be provided between computer mounted antenna and person's body (excluding extremities of hands, wrist and feet) during wireless modes of operation.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment.

Federal Communication Commission Radiation Exposure Statement

This equipment must be installed and operated in accordance with provided instructions and a minimum 20 cm spacing must be provided between computer mounted antenna and person's body (excluding extremities of hands, wrist and feet) during wireless modes of operation.

The equipment version marketed in US is restricted to usage of the channels 1-11 only.

R&TTE Compliance Statement

This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity

(R&TTE).

The R&TTE Directive repeals and replaces in the directive 98/13/EEC

(Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000.

Safety

This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment.

EU Countries Intended for Use

The ETSI version of this device is intended for home and office use in Austria, Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Italy, Luxembourg, Bulgaria, Cyprus, Czech Republic, Estonia, Hungary, Latvia, Lithuania, Malta, Poland, Romania, Slovakia, Slovenia, the Netherlands, Portugal, Spain, Sweden, and the United Kingdom.

The ETSI version of this device is also authorized for use in EFTA member states: Iceland, Liechtenstein, Norway, and Switzerland.

EU Countries Not intended for use

None.

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio interface, in which case the user may be required to make adequate measures.

A CE declaration of conformity is available on www.edimax.com

Chapter I: Familiar with your Internet IP Camera

1.1 Package Contents

Thank you for purchasing this IP camera! Before you start to use this IP camera, please check the package contents. If anything is missing, please contact the dealer of purchase and return the package to claim for missing contents.

	Item Name	Quantity
1	IP Camera	1
2	Antenna (IC-3010Wg)	1
3	Power Adapter	1
4	Ethernet Cable	1
5	Driver and User Manual CD-ROM	1

1.2 Basic Introduction

Thank you for purchasing this Internet IP camera! This IP camera is an ideal product for all kinds of video-surveillance purposes, like home/office safety, kid/pet monitoring, and remote video acquire etc. Unlink conventional close-circuit vide camera, you're not limited to the length of cable! Once this IP camera is connected to Internet, you can receive video from anywhere in the world where Internet access is available.

If you have problem installing a new cable from the place the camera is installed to your monitoring computer, don't worry! This IP camera also supports wireless network, that is, you can link to this camera wirelessly! You only have to provide this IP camera with 12V power by the power adapter that comes with the product package, and you don't have to set a new network cable between the IP camera and monitoring computer.

Worry about the content will be intercepted by unauthorized person when the video is transmitted over the air? That's also not a problem! Unlink conventional analog wireless camera, which video will be intercepted by anyone who got a compatible video receiver, this IP camera supports data encryption (WEP & WPA), which will provide ultimate data security level. All video transmitted over the air is encrypted; therefore no one will be able to get the video captured by the IP camera, expect yourself.

Some people may concern that there will be some places which will not be covered by camera, but this problem is completely solved by this IP camera. With built-in pan-tilt function, you can point the camera to the position where you wish to look at with user interface. You can even define a preset path, and the camera will cruise along the path you defined.

You can discover more useful functions in next section!

1.3 Product Highlights

No pre-loaded software required - all you need is a browser like Internet Explorer 6 (and above, with plugin installed).
Supports VGA (640 x 480), QVGA (320 x 240), and QQVGA (160 x 120) and MJPG mega pixel mode SXGA(1280x1024), VGA(640x480)and QVGA(320x240) video resolution.
Supports 2-way audio transmission with speaker output and built-in microphone.
Anti-flicker function (eliminates flash caused by fluorescent lights, 50 / 60Hz selectable).
Supports two video compression formats (MJPEG and MPEG4).
Wired and wireless network (802.11b / 802.11g) support, supports up to 100Mbps for wired network and 54Mbps for wireless network.
Wireless data encryption (WEP / WPA)
Supports DHCP and PPPoE protocol, you can also assign a fixed IP address to the camera also.
Supports Dynamic DNS (used to allocate the IP camera's Internet address, when the ISP you're using does not assign you with a fixed Internet address).

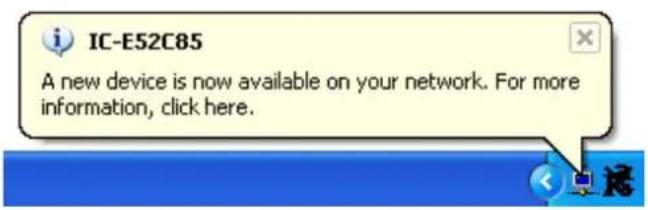

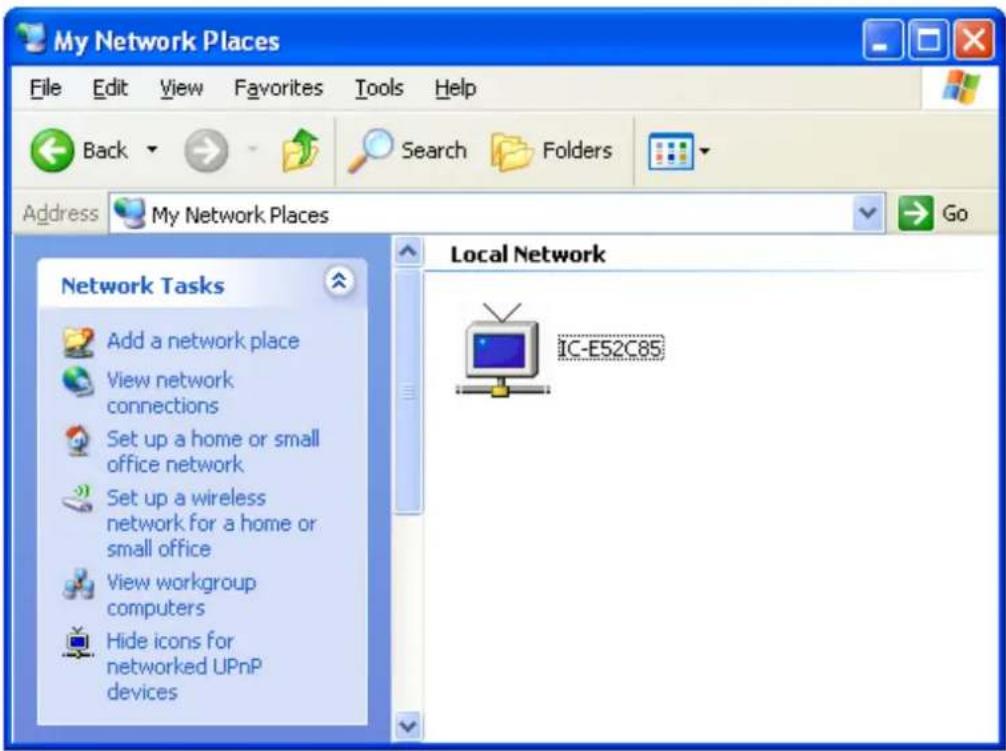

Supports UPnP, Windows XP (and above) will discover this IP camera in network neighbor automatically.
Send captured picture by Email or FTP when motion is detected.
Configurable motion detection sensitivity
Built-in real-time clock, date and time information will be recorded with every captured picture / video clip (also supports auto time synchronization via network time protocol).
Upgradeable firmware - enjoy new functions without buying a new camera!
Supports up to 4 users, and you can set different password to different user.
Usage and event logging.

1.4 Familiar with Key Components

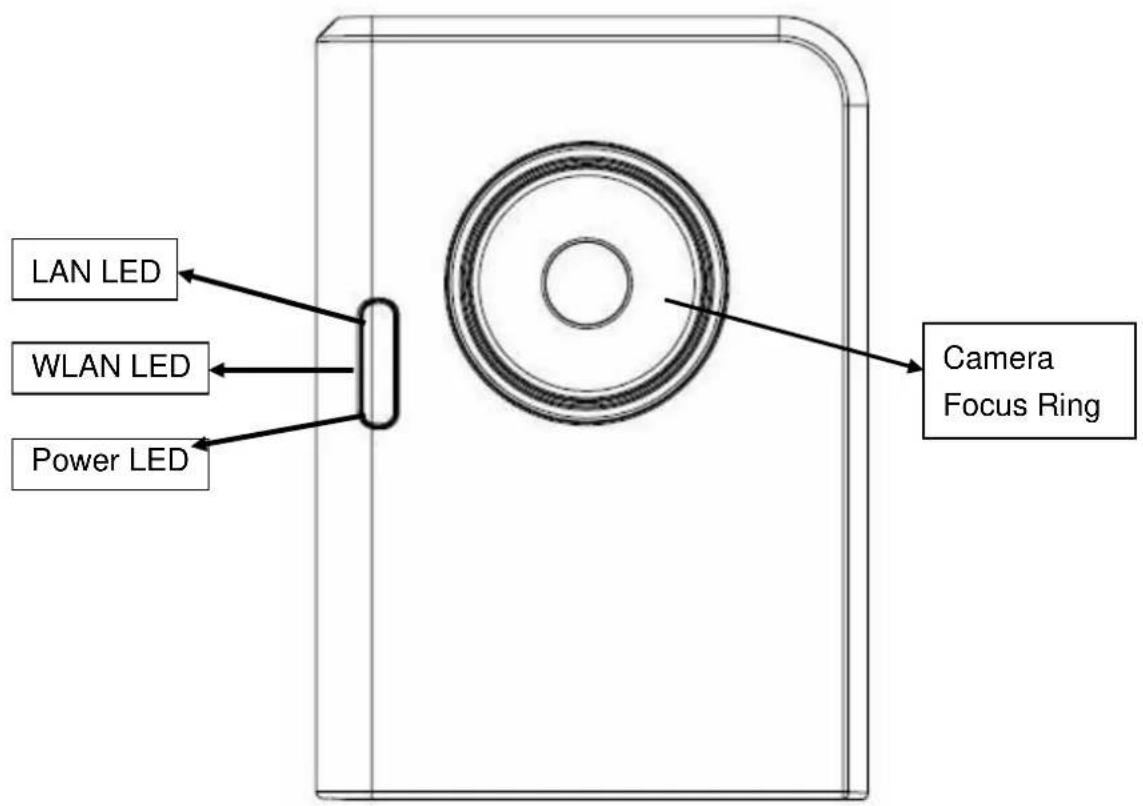

Front View

LAN LED WLAN LED Power LED Camera Focus Ring

LAN LED: Indicates LAN activity

WLAN LED: Indicates Wireless LAN activity

Power LED: Indicates power status

Camera: Video camera with lens

Focus Ring: Adjusts focus

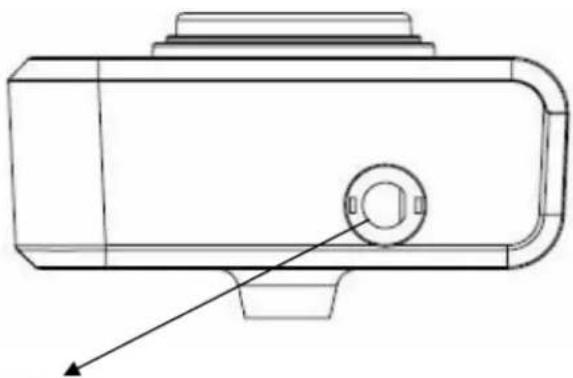

Top View

Antenna Base

Technical line drawing of a mechanical component with a circular feature and an arrow indicating direction (no text or symbols)

Antenna Base: Connect to antenna

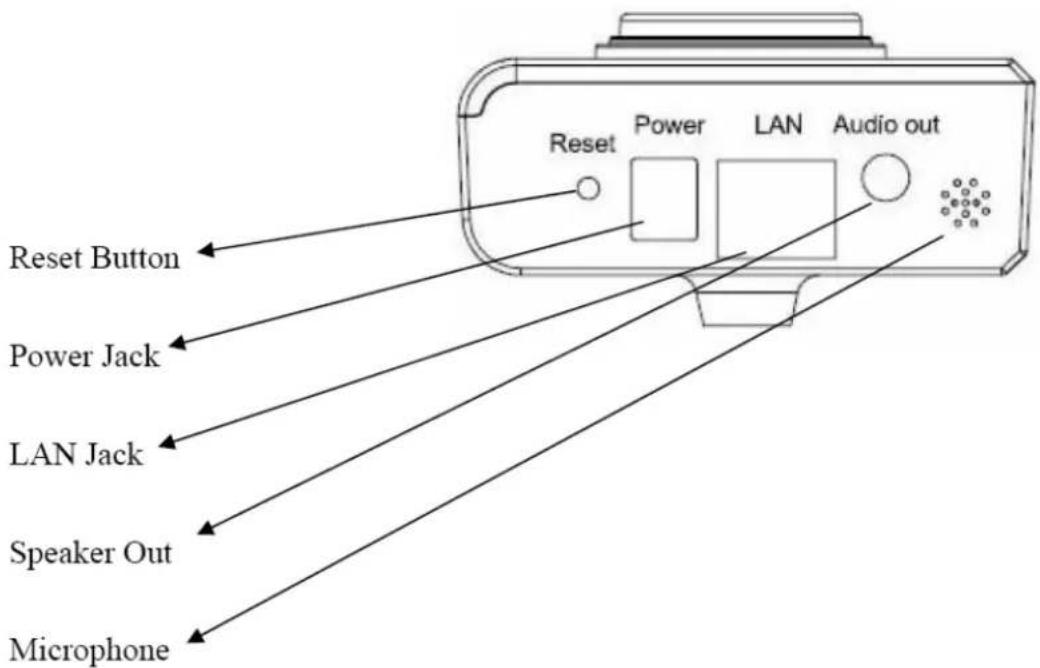

Bottom View

Reset Button Power Jack LAN Jack Speaker Out Microphone Reset Power LAN Audio out

Reset Button: Press and hold for 5 seconds to reset the camera settings to factory default value.

Power Jack: Connect to power adapter for power supply.

LAN Jack: Connect to your local area network by network cable.

Speaker Out: Connect to external speaker

Microphone: Built-in microphone for voice pick-up

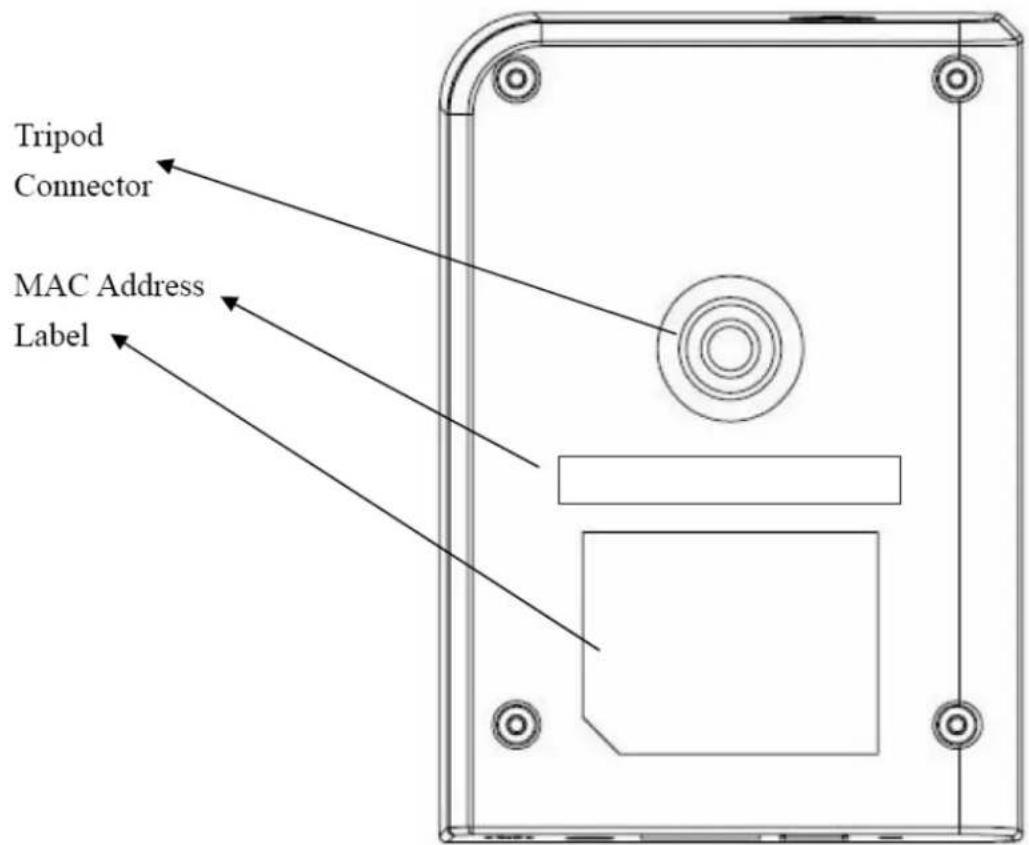

Back View

Tripod Connector MAC Address Label

Tripod Connector: Connects to any standard tripod / camera wall holder. MAC Address Label: Shows the MAC address of this IP camera. Useful when you can't locate the camera on the network.

1.5 Descriptions for LED Indicators

LED Name	Status	Description
LAN	Off	Network cable is disconnected
	On	Network cable is connected
	Flash	Transferring data via LAN port
WLAN	Off	No wireless LAN activity
	On	Transferring data via wireless LAN
Power	Off	Camera is not powered (camera off)
	On	Camera is correctly powered (camera on)

1.6 Camera Installation

Please follow the following instructions to set your IP camera up.

Unpack the product package and check if anything's missing.

Connect the antenna to the antenna base, which is located at the top of this IP camera.

Plug the power adapter to wall socket, and connect the power connector to the power jack located at the bottom of the IP camera.

Connect the Ethernet cable to your local area network, and connect the other end to the LAN jack of this IP camera.

NOTE: You can skip this step if you plan to use wireless LAN only.

Connect your tripod / camera holder, and point the camera to the place you wish to monitor.

1. Connect the external speaker's audio cable to 'Speaker' jack located at the bottom of this IP camera.

If you don't need audio support, you can skip this step.

1.7 Locate the IP Address of this IP Camera

Default IP address of this IP camera is 192.168.2.3. If you wish to assign another IP address to this IP camera, you have to log onto the web configuration interface of the camera first.

If the left three fields of the IP address of your computer is not 192.168.2, you'll have to change the IP address of your computer first:

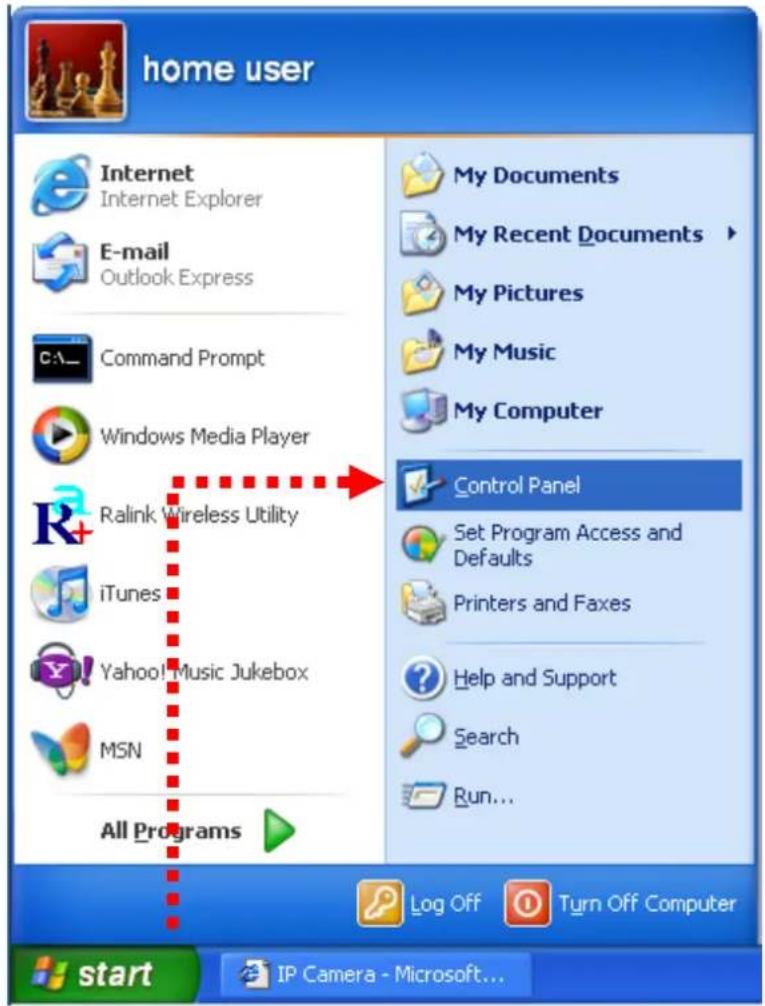

Click 'Start' -> 'Control Panel'

home user Internet Internet Explorer E-mail Outlook Express Command Prompt Windows Media Player Ralink Wireless Utility iTunes Yahoo! Music Jukebox MSN All Programs My Documents My Recent Documents My Pictures My Music My Computer Control Panel Set Program Access and Defaults Printers and Faxes Help and Support Search Run... Log Off Turn Off Computer start IP Camera - Microsoft...

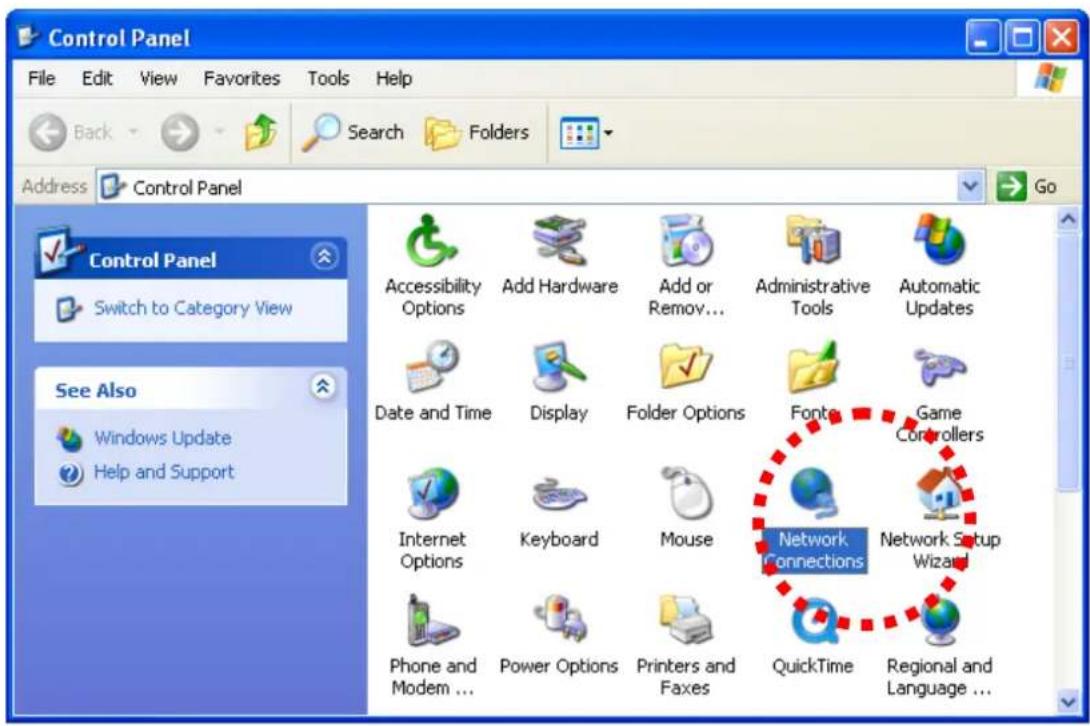

Double-click 'Network Connections' icon.

Control Panel File Edit View Favorites Tools Help Back Search Folders Address Control Panel Go Control Panel Switch to Category View See Also Windows Update Help and Support Accessibility Options Add Hardware Add or Remov... Administrative Tools Automatic Updates Date and Time Display Folder Options Fonte Game Controllers Internet Options Keyboard Mouse Network Connections Network Setup Wizard Phone and Modem ... Power Options Printers and Faxes QuickTime Regional and Language ...

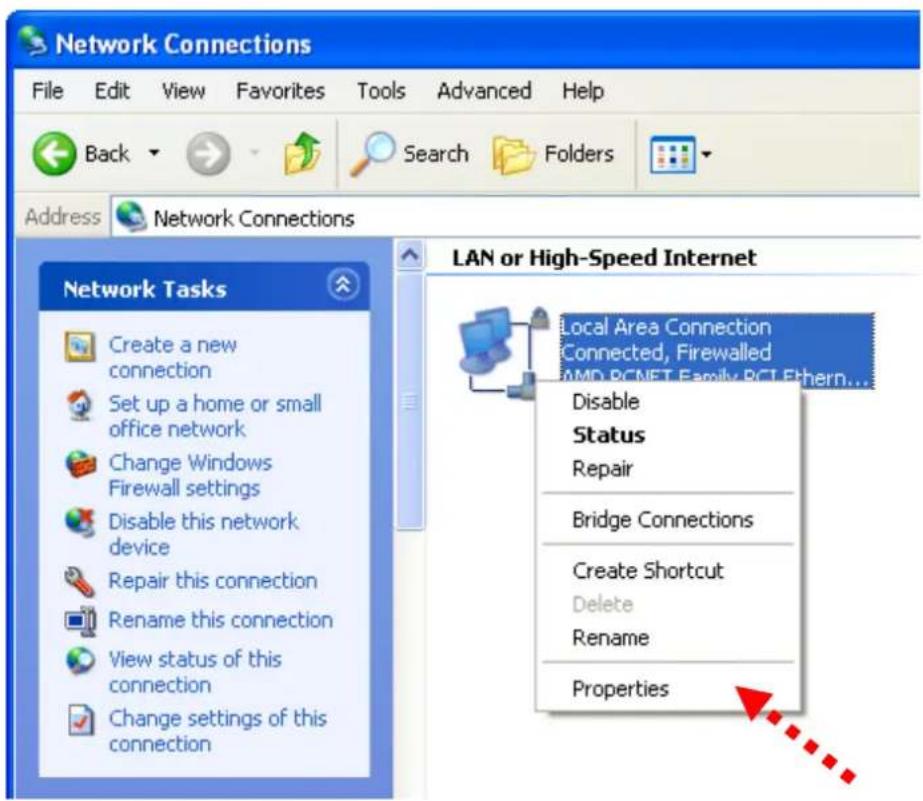

Right-click 'Local Area Connection', and click 'Properties'.

Network Connections File Edit View Favorites Tools Advanced Help Back Search Folders Address Network Connections Network Tasks Create a new connection Set up a home or small office network Change Windows Firewall settings Disable this network device Repair this connection Rename this connection View status of this connection Change settings of this connection LAN or High-Speed Internet Local Area Connection Connected, Firewalled AMD PCNET Family PCI Ethernet... Disable Status Repair Bridge Connections Create Shortcut Delete Rename Properties

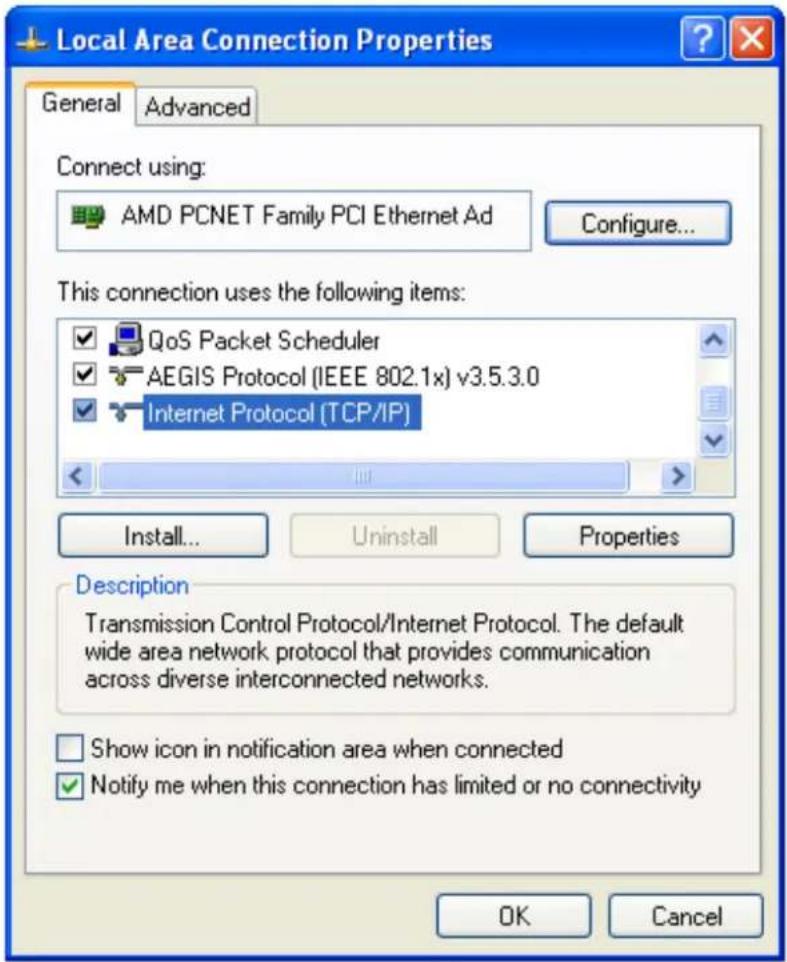

Select 'Internet Protocol (TCP/IP)', then click 'Properties'.

Local Area Connection Properties General Advanced Connect using: AMD PCNET Family PCI Ethernet Ad Configure... This connection uses the following items: QoS Packet Scheduler AEGIS Protocol (IEEE 802.1x) v3.5.3.0 Internet Protocol (TCP/IP) Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. Show icon in notification area when connected Notify me when this connection has limited or no connectivity OK Cancel

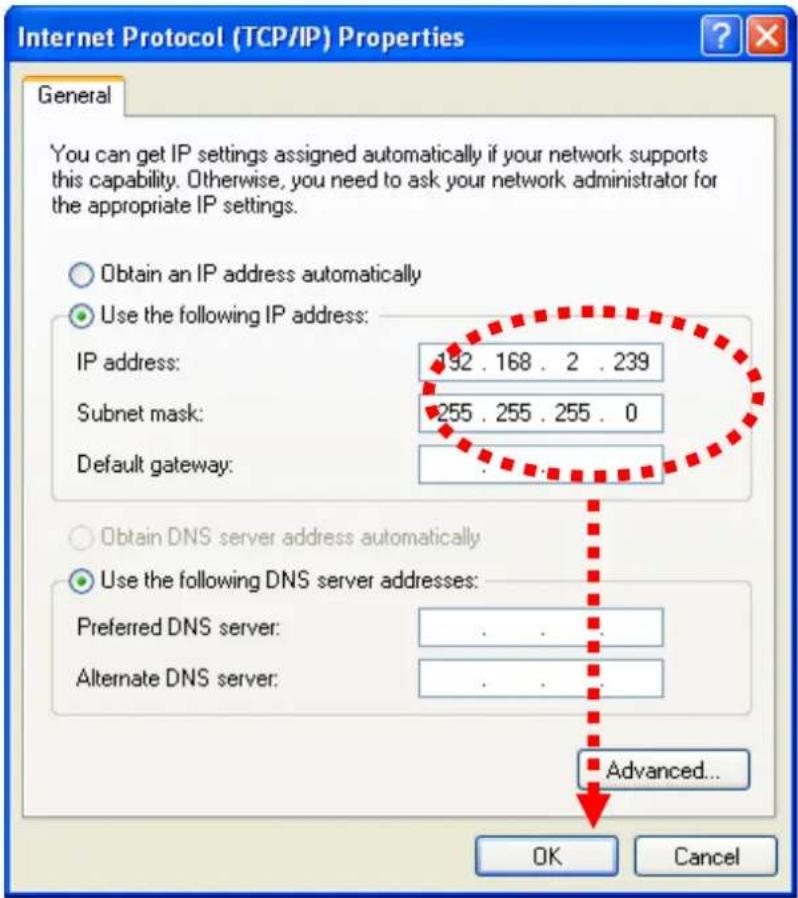

In 'IP address' field, please fill in any IP address begins with '192.168.2', and ends with a value greater than 2 and less than 254 (You can use the example in the picture '192.168.2.339'). In Subnet mask field, please fill '255.255.255.0'. Please keep all other fields empty, and click 'OK'.

Internet Protocol (TCP/IP) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 192 . 168 . 2 . 239 Subnet mask: 255 . 255 . 255 . 0 Default gateway: Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Advanced... OK Cancel

If you changed the IP address of this IP camera and you forget it, there're 2 methods to recover it:

Press and hold the 'Reset' button located at the bottom of this IP camera, to clear all settings of the IP camera and reset the IP address back to 192.168.2.3. You'll lose all settings in the IP camera.

Ask network administrator to check the DHCP release table, if the camera was set to obtain the IP address by DHCP, a new record will be added to DHCP release table on DHCP server when the IP camera is connected to the local area network.

1.8 Log Onto Web Management Interface

Make sure the IP camera is correctly powered (Power LED is on), and then launch Internet Explorer and type the IP address of the IP camera in address bar of Internet Explorer. You should be prompted to input the user name and password:

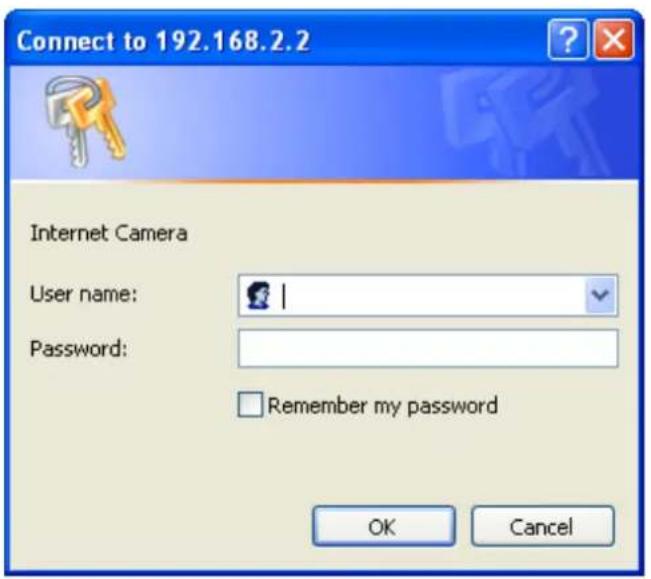

Connect to 192.168.2.2 Internet Camera User name: Password: Remember my password OK Cancel

Default user name is 'admin' (in lower case) and password is '1234'. Click 'OK' to continue after user name and password has entered.

If you're rejected, maybe the password has been modified previously. This should not happen if this is a newly-purchased camera, however, if you get the camera from someone else, the password would be changed. Please try to obtain the correct user name / password, or you'll have to reset the camera.

After logged on, you should see the following messages at the top of Internet Explorer:

IP Camera - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Search Favorites Address http://192.168.2.2/index.htm This site might require the following ActiveX control: 'IPCamPluginMJPEG.cab' from 'Edimax Technology CO., LTD.'. Click here to install...

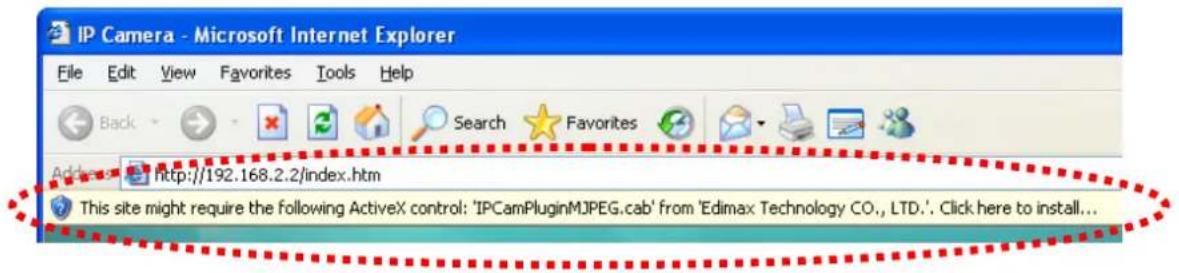

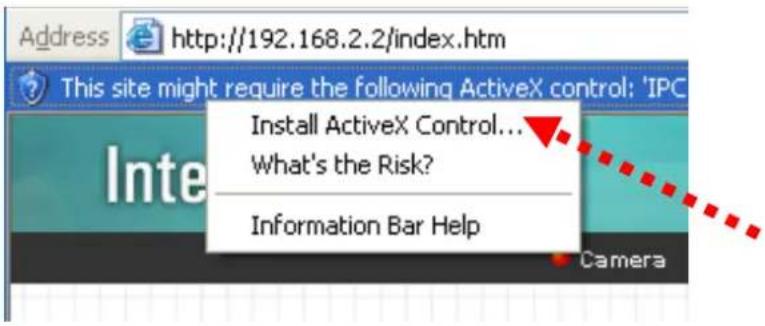

This IP camera requires a special ActiveX control (A.K.A. 'Plugin') to work. Please click on the message, and select 'Install ActiveX Control...':

Address http://192.168.2.2/index.htm This site might require the following ActiveX control: 'IPC Install ActiveX Control... What's the Risk? Information Bar Help Camera

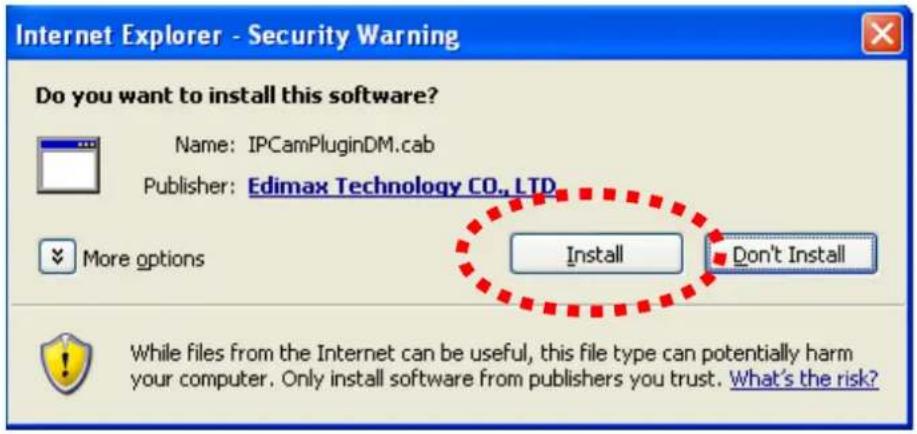

When you're prompted, click 'Install' to continue.

Internet Explorer - Security Warning Do you want to install this software? Name: IPCamPluginDM.cab Publisher: Edimax Technology CO., LTD. More options Install Don't Install While files from the Internet can be useful, this file type can potentially harm your computer. Only install software from publishers you trust. What's the risk?

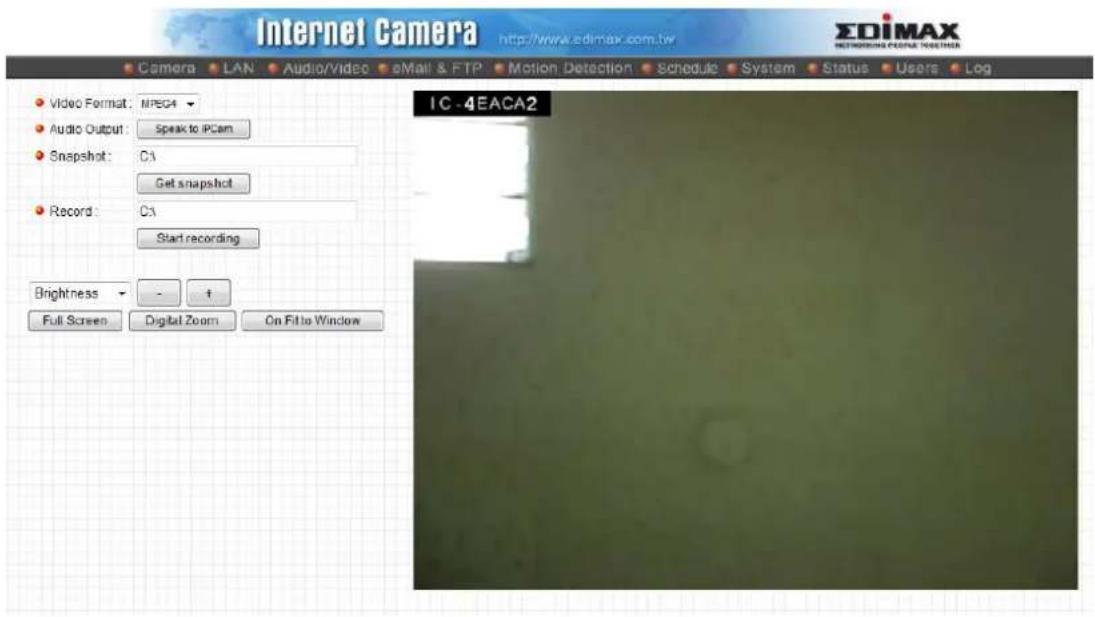

You should be able to see the image from camera now:

Internet Camera http://www.edimax.com.tw Camera LAN Audio/Video eMail & FTP Motion Detection Schedule System Status Users Log Video Format: MPEG4 Audio Output: Speak to IPCam Snapshot: CA Get snapshot Record: CA Start recording Brightness - + Full Screen Digital Zoom On Fill to Window IC-4EACA2

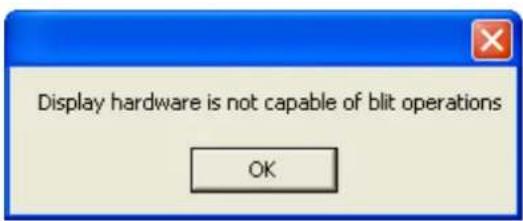

Note: If you see one of these messages (or both):

Display hardware is not capable of blit operations OK

OR

Error Can't initialize DirectX. OK

Your computer may not have the display capability that this IP camera requires, or you don't have Microsoft DirectX® installed. Please download Microsoft DirectX® from Microsoft's website (http://www.microsoft.com), and try again.

In some cases, your computer is able to display the image from IP camera correctly, but you'll still see these messages. If this happens, just ignore them.

Chapter II: Using Web Management Interface

2.1 Camera Settings

The first menu after you logged onto web management interface is 'Camera', and this is the only menu you can see the real-time image from camera.

Internet Camera http://www.edimax.com.tw Camera LAN Audio/Video eMail & FTP Motion Detection Schedule System Status Users Log Video Format: MPEG4 Audio Output: Speak to iPCam Snapshot: C3 Get snapshot Record: C3 Start recording Brightness - + Full Screen Digital Zoom On Fit to Window IC-4EACA2

You can always back to this menu by clicking 'Camera' on the top of web management interface.

Camera LAN Audio/Video eMail & FTP Motion Detection Schedule System Status Users Log

The descriptions of every setting in this menu will be given below:

Item	Description
Video Format	Specifies video encoding format. You can choose MPEG4 or MJPEG (Motion-JPEG).MPEG4 mode also supports motion detection (see chapter 2.2.1).
Audio Output	If your computer is equipped with a microphone, you can click ‘Speak to IPCAM’ button and speak to the microphone. Your voice will be transmitted to the external speaker connected to the IP camera. This makes the IP camera become a network telephone, and you can talk to the people there.Please note that your voice will only be transmitted during the time you press and hold the ‘Speak to IPCam’ button. When you release the button, your voice will not be transmitted to IP camera.(If ‘Speak to IPCam’ button is grayed out, you have to activate audio function of this IP camera before you can use this function - see chapter 2.4 for detailed instruction).
Snapshot	Take a snapshot picture and save the picture to your computer’s hard drive.
Record	Start video recording and save recorded video clip to your computer’s hard drive.
Brightness /Saturation /Sharpness	Select brightness, saturation, and sharpness from dropdown menu, and click ‘-’ or ‘+’ button to increase or decrease brightness / saturation / sharpness setting value. In certain environment, adjust brightness, saturation, and / or sharpness will help improve video quality.
Full Screen	Click this button to display the image in full-screen mode (uses all available space to display the image captured by this camera).
Digital Zoom	If you wish to enlarge certain portion of the captured image, you can click this button to set digital zoom:Click ‘Enable’ to enable digital zoom function, then you can drag the slide bar to adjust zoom ratio. You can also use your mouse to drag the zoom area (the yellow square) to reposition the zoom area.
On/Off Fit to Window	Click this button and the image size will be adjusted to fit the size of browser window.

2.1.1 Mute Audio

IC-3010(Wg) is able to transmit all sound received by built-in microphone to your computer by default. If you don't want to hear it or want to save more bandwidth for video on a slow network connection, you can mute audio for a while.

To mute audio, please right-click on the image. A pop-up menu will appear:

IP Camera - Windows Internet Explorer http://192.168.2100/index.htm IP Camera Internet Camera http://www.edimax.com.tw XCIMAX INSTRUMENTS MEDIA TRAVELING Camera LAN Audio/Video eMail & FTP Motion Detection Schedule System Status Users Log Video Format: MPEG4 Audio Output: Speak to PCam Snapshot: C1 Get snapshot Record: C1 Start recording Brightness - Full Screen Digital Zoom On Fit to Window IC 4EACA2 Mate Audio About 完成 新版测试 | 受京版模式 新版 100%

Click ‘Mute Audio’ to mute audio. A check will appear in front of ‘Mute audio’ to indicate that sound received by IP camera’s microphone will not be transferred to your computer. Click ‘Mute audio’ again to hear the sound received by IP camera’s microphone again.

2.1.2 About

This function will provide you with the version number of current IP camera plugin, which is useful when you need online support.

To see version information, right-click on the image. A pop-up menu will appear:

IP Camera - Windows Internet Explorer http://192.168.2.100/index.htm 文件(F) 编辑(E) 视图(V) 新建内容(A) 工具(T) 改用(H) 属性 自动编辑 音量渲染 IP Camera Internet Camera http://www. admin.cs.com.br IC-4EACA2 Video Format: MPEG4 Audio Output: Speak to PCam Snapshot: C1 Get snapshot Record: C1 Start recording Brightness Full Screen Digital Zoom On Fit to Window Mute Audio About 确定 网页链接 受保留模式 帮助 100%

Select 'About' and the version information will appear:

IPCamPluginDM Internet Camera Software Information ActiveX Plugin Version: v1.0.0.5

2.2 LAN Settings

All network-related settings can be found in this menu, and you have to specify TCP/IP parameters in this menu if you want to change IP address, use PPPoE, Dynamic DNS, and activate UPnP function.

You can access this menu by clicking 'LAN' on the top of web management interface.

Camera LAN Audio/Video eMail & FTP Motion Detection Schedule System Status Users Log

2.2.1 IP Address

You can define IP address and select the port number you wish to use here.

LAN Apply Network Type : DHCP Static IP Address IP Address : 192.168.2.3 Subnet Mask : 255.255.255.0 Gateway : 192.168.2.254 Primary DNS : 168.95.1.1 Secondary DNS : AV Control Port : 4321 Web Port : 80

The descriptions of every setting in this menu will be given below:

Item	Description
Network Type	This camera can obtain the IP address from DHCP server automatically (if you have one), or set a fixed IP address. Select ‘DHCP’ to obtain IP address automatically or ‘Static IP Address’ to assign this IP camera with a fixed IP address.When ‘DHCP’ is selected, IP address parameters below will be grayed out.
IP Address	Specify the IP address for this IP camera here.
Subnet Mask	Specify the subnet mask for this IP camera here.
Gateway	Specify the gateway address of the local network here.
Primary DNS	Specify the IP address of DNS server here. Please input IP address only. If you don’t know the address of DNS server, ask network administrator or your ISP for help.
Secondary DNS	Specify the IP address of backup DNS server here. When primary DNS is unreachable, IP camera will use the IP address specified here as DNS server.This field is optional.
AV Control Port	Specify the port number of video transfer here. If you have firewall on your network, you need to allow computers on Internet to access this port number of the IP address of IP camera, or you’ll not be able to view video from Internet.
Web Port	Specify the port number of web management interface here. If it’s not 80, you’ll have to add ‘:port’ after the IP address / hostname of this IP camera.For example, if the Web port number you specified here is 90 and the IP address of IP camera is 10.20.20.30, then you have to input ‘http://10.20.20.30:90’ in the address bar of Internet explorer.

Click 'Apply' to save settings and make the new settings take effect.

2.2.2 RTSP

Before using RTSP player to view video image from camera, you will need to configure the RTSP settings in this menu.

RTSP Apply Enable RTSP : Enable Disable RTSP Port : 554 RTSP Path : ipcam .sdp RTP Port Range : 50000 - 60000

Item	Description
Enable RTSP	You can select ‘Enable’ when you wish to use RTSP player to view video image from camera.
RTSP Port	This option allows you to enter RTSP port. The default value of RTSP port is 554. Please make sure the RTSP port applied on the RTSP player shall be same as the RTSP port applied on the IP cam.
RTSP Path	You can input RTSP path here. Please make sure the RTSP path applied on the RTSP player shall be same as the RTSP path applied on the IP cam.
RTSP Port Range	You can input the RTSP port range here. The default value of RTSP port range is 5000 -60000

2.2.3 PPPoE

If the ISP requires you to connect to the Internet by PPPoE, you can specify PPPoE username and password here.

PPPoE Enable PPPoE : User Name : Password : MTU : Apply Enable Disable 1392 (512<=MTU Value<=1492)

The descriptions of every setting in this menu will be given below:

Item	Description
Enable PPPoE	Select ‘Enable’ to activate PPPoE function of this IP camera, select ‘Disable’ to disable it.
User Name	Input the PPPoE username assigned by your ISP here.
Password	Input the PPPoE password assigned by your ISP here.
MTU	Input the MTU (Maximum Transmission Unit) given by your ISP here. Ask your ISP if you don’t know what value you should input here, or use default value.

Click 'Apply' to save settings and make the new settings take effect.

2.2.4 Dynamic DNS

If your ISP does not give you a fixed Internet IP address (i.e. the Internet address you're using when you access the Internet is not always the same – ask your ISP for detailed information), you can use this function to help you locate the IP address of this IP camera when you're away from home or office.

Before you can use this function, you'll need to apply for an account at dyndns.org (http://www.dyndns.org). Detailed instructions of how to apply a new account can be found on dyndns.org's website.

Dynamic DNS Apply Enable DDNS : Enable Disable Provider : dyndns.org Host Name : ddns-host User Name : ddns-account Password : ********

The descriptions of every setting in this menu will be given below:

Item	Description
Enable DDNS	Select ‘Enable’ to activate Dynamic DNS function of this IP camera, select ‘Disable’ to disable it.
Provider	Select dynamic DNS service provider here. Only dyndns.org is available currently.
Host Name	Input dynamic DNS host name here.
User Name	Input dynamic DNS user name here, must be the same as the one you applied on dyndns.org.
Password	Input dynamic DNS password here, must be the same as the one you applied on dyndns.org.

Click 'Apply' to save settings and make the new settings take effect.

2.2.4 UPnP

When UPnP function is activated, all UPnP-compatible computers / network devices will be able to discover this IP camera automatically (only those in the same local network).

This function is useful and you don't have to remember the IP address of this IP camera. Simply open 'Network neighbor' and it's there!

UPnP Enable UPnP : Apply Enable Disable

The descriptions of every setting in this menu will be given below:

Item	Description
Enable UPnP	Select ‘Enable’ to activate UPnP function of this IP camera, select ‘Disable’ to disable it.

Click 'Apply' to save settings and make the new settings take effect.

After UPnP function is activated, a popup message will appear:

IC-E52C85 A new device is now available on your network. For more information, click here.

Click the message to open 'My Network Places', and you'll see the IP camera:

My Network Places File Edit View Favorites Tools Help Back Search Folders Address My Network Places Go Network Tasks Add a network place View network connections Set up a home or small office network Set up a wireless network for a home or small office View workgroup computers Hide icons for networked UPnP devices Local Network IC-E52C85

You can double-click the icon to launch Internet Explorer and log onto IP camera's web management interface directly.

2.2.5 LoginFree

You can specify a filename here, and everyone who know this filename can gain access to the picture captured by the IP camera with this name with .jpg file extension.

For example, if the filename you specified here is 'loginfree' and your IP camera's IP address is '192.168.2.3', then everyone on the network can access to the picture taken by the IP camera at 'http://192.168.2.3/loginfree.jpg'.

This function is for convenience only, and anyone who knows this filename will be able to see the picture taken by your IP camera. Please think again before you use this function.

LoginFree Apply The descriptions of e Filename : .jpg

Item	Description
LoginFree	Specify the file name of the picture here. If you want to disable this function, leave it blank.

Click 'Apply' to save settings and make the new settings take effect.

2.3 Audio/Video

Camera LAN Audio/Video eMail & FTP Motion Detection Schedule System Status Users Log

You can specify the video and audio parameters of this IP camera here.

Dual Mode Default Video Format: Default Video Mode: Power Frequency: Apply MJPEG Mega-Pixel Mode 60 Hz MPEG4 Video Resolution: Video Quality: Video Frame Rate: Apply VGA (640 x 480) CBR 2 Mbps VBR Highest 30 MJPEG Video Resolution: Video Quality: Video Frame Rate: Apply VGA (640 x 480) Highest 30 Audio Audio Function: Microphone Volume: Audio Line-Out Volume: Apply Enable Disable 80 80

2.3.1 Dual Mode

This IP camera supports two video encoding formats: MPEG4 and MJPEG. You can select the encoding format from one of them.

Dual Mode

Default Video Format :
Default Video Mode:
Power Frequency :

Apply

MJPEG ▼

Mega-Pixel Mode

60 Hz ▼

The descriptions of every setting in this menu will be given below:

Item	Description
Default Video Format	Specify default video encoding format of this IP camera here. Available options are MPEG4 and MJPEG.
Default Video Mode	Specify default video mode of this IP camera hear. Available options are Mega-Pixel Mode and Normal
Power Frequency	Adjust this property to fitting light frequency.

Click 'Apply' to save settings and make the new settings take effect.

2.3.2 MPEG4

If you selected 'MPEG4' as the video encoding format of this IP camera, you can specify the parameters of MPEG4 video encoder here.

MPEG4 Apply Video Resolution : VGA (640 x 480) Video Quality : CBR 2 Mbps VBR Highest Video Frame Rate : 30

The descriptions of every setting in this menu will be given below:

Item	Description
Video Resolution	Specify video resolution of MPEG4 video encoder. Available options are XGA, VGA and QVGA resolution under mega pixel mode, VGA, QGVA and QQGVA under Normal mode. VGA resolution provides more details than QVGA, but requires more network bandwidth.
Video Quality	Specify video encoding rate of MPEG4 video encoder by either CBR or VBR.CBR available options are from 200Kbps to 2Mbps. VBR available options are from highest to lowest. Greater video bit rate provides better video quality, but requires more network bandwidth.
Video Frame Rate	Specify video refresh rate of MPEG4 video encoder. Higher video refresh rate provides more details about motion, but requires more network bandwidth.CAUTION: Choosing a low frame rate will save bandwidth, but may not be able to capture every motion if the object that IP camera points to is moving fast.

Click 'Apply' to save settings and make the new settings take effect.

2.3.3 MJPEG

If you selected 'MJPEG' as the video encoding format of this IP camera, you can specify the parameters of MPEG4 video encoder here.

MJPEG • Video Resolution : • Video Quality : • Video Frame Rate : Apply VGA (640 x 480) Highest 30

The descriptions of every setting in this menu will be given below:

Item	Description
Video Resolution	Specify video resolution of MJPEG video encoder. Available options are SXGA, VGA and QVGA under megapixel mode, VGA, QVGA, and QQVGA resolution under normal mode. VGA resolution provides more details than QVGA and QQVGA, but requires more network bandwidth.
Video Quality	Specify video encoding quality of MJPEG video encoder. There are five levels of video quality from highest to lowest. Higher video quality provides better video quality, but requires more network bandwidth.
Video Frame Rate	Specify video refresh rate of MJPEG video encoder. Higher video refresh rate provides more details about motion, but requires more network bandwidth.CAUTION: Choosing a low frame rate will save bandwidth, but may not be able to capture every motion if the object that IP camera points to is moving fast.

Click 'Apply' to save settings and make the new settings take effect.

2.3.4 Audio

This IP camera supports audio function, that is, when external speaker is connected to this IP camera, you can talk to the people in front of the IP camera like using a telephone, when your computer is equipped with speaker and microphone.

Using audio function requires additional bandwidth. If your network bandwidth is not enough, you may not be able to use audio function smoothly. In this case, you can try a lower video resolution / quality / frame rate, to save more bandwidth for audio function.

Audio ● Audio Function : ● Microphone Volume : ● Audio Line-Out Volume : Apply ● Enable ○ Disable 80 ▼ 80 ▼

The descriptions of every setting in this menu will be given below:

Item	Description
Audio Function	Choose ‘Enable’ to enable audio function of this IP camera, or choose ‘Disable’ to disable it.
Microphone Volume	Specify the microphone volume. If you found that you can not hear the sound from IP camera clearly, you may increase the number here.
Audio Line-Out Volume	Specify the line-out volume here. If you found that the people encounters difficult when listening to you, you may increase the number here. The default volume is 80.CAUTION: Using a high number here with an amplified external speaker may cause hearing problem to the people standing in front of the speaker, or may cause damage to the speaker itself.

Click 'Apply' to save settings and make the new settings take effect.

2.4 Email & FTP

This IP camera is capable to send an Email or perform FTP upload with captured image, when a motion is detected. This is very convenient since IP camera will guard the environment automatically for you, and you don't have to look at the monitor all the time.

You can access this menu by clicking 'E-Mail & FTP' on the top of web management interface.

The instructions of Email and FTP settings will be given below.

2.4.1 Email Settings

These settings are used to send the captured picture via Email:

E-Mail Apply Send a test email Recipient E-Mail Address : max 127 characters, support "[e-mail]; [e-mail]" multi-user format SMTP Server : SMTP Port : 25 Sender E-Mail Address : SMTP Authentication (If needed) : Enable Disable User Name : Password :

The descriptions of every setting in this menu will be given below:

Item	Description
Recipient E-Mail Address	Input the email recipient's Email address here.
SMTP Server	Input the IP address or host name of the SMTP server (the server that delivers the Email for you) here.If you don't know, please refer to the SMTP server you're using in your Email software (like Outlook, Outlook Express etc.), or ask your network administrator or ISP.
SMTP Port	Input the port number of the SMTP server you wish to use here.
Sender E-Mail Address	Input the Email address of mail sender, this will help you to identify the Email sent by this IP camera by sender's Email address.NOTE: Some mail server would reject to deliver the Email from unknown sender, it's recommended to input your own Email address here, or any other actual one.
SMTP Authentication	Some SMTP server requires mail senders to be authenticated before they can send Email. If your SMTP server requires you to do so, please select 'Enable', or select 'Disable' to disable it. If you don't know, please refer to the SMTP server you're using in your Email software (like Outlook, Outlook Express etc.), or ask yournetwork administrator or ISP.
User Name	Please input the user name of SMTP server here, if your SMTP server requires the use of authentication.
Password	Please input the password of SMTP server here, if your SMTP server requires the use of authentication.

Click 'Apply' to save settings and make the new settings take effect.

After that, you can click 'Send a test email' to send a testing Email to the address you set here, so you can make sure the setting you specified here is correct and working.

2.4.2 FTP Settings

These settings are used to send the captured picture by FTP:

FTP Configuration ● FTP Server : ● FTP Port : 21 ● User Name : ● Password : ● Remote Folder : ● Passive Mode : Enable Disable

The descriptions of every setting in this menu will be given below:

Item	Description
FTP Server	Input the IP address or host name of the FTP server you wish to use here.
FTP Port	Input the port number of the FTP server you wish to use here.
User Name	Input the user name of the FTP server you wish to use here.
Password	Input the password of the FTP server you wish to use here.
Remote Folder	Input the remote folder name on the FTP server here. If nothing is specified here, all uploaded image files will be placed in FTP server's root directory.Please ask FTP server's administrator to know which folder you should use. Certain user name may have restrictions and therefore can not place the file in the directory not owned by the user.
Passive Mode	Select ‘Enable’ to use passive mode to send file, or select ‘Disable’ to not to use passive mode to send file.Some FTP servers require passive mode, if you don't know, please ask FTP server's administrator; most of FTP servers will work fine with both modes, but if you found that non-passive mode is not working, you can tryto use passive mode.

Click 'Apply' to save settings and make the new settings take effect.

After that, you can click 'Upload a test file' to send a file to the FTP server you set here, so you can make sure the setting you specified here is correct and working.

2.5 Motion Detection

Motion detection function makes this IP camera become your non-stop guard. You don't have to waste all the time monitoring the images from the camera, and camera will detect all motions for you. Once motion is detected, a captured image or video recording will be sent to you by Email or via FTP.

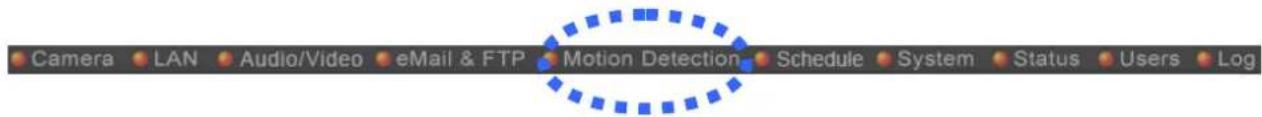

You can access this menu by clicking 'Motion Detection' on the top of web management interface.

2.5.1 Motion Detection Settings

You can use this menu to setup basic motion detection settings:

Motion Detection ● Motion Detection Enable : ● Next Event Detected Interval : ● Pre Recording Time : ● Post Recording Time : ● Send Recording File to E-Mail : ● E-Mail Subject : ● Send Recording File to FTP : Apply ● Enable ○ Disable 5 ▼ seconds 1 seconds (estimated time) 2 ▼ seconds ○ Yes ○ No Motion Detection Notification ○ Yes ○ No

The descriptions of every setting in this menu will be given below:

Item	Description
Motion Detection Enable	Select ‘Enable’ to enable motion detection, and select ‘Disable’ to disable this function.
Next Event Detected Interval	Specify the time interval between two motion detections in seconds. If a motion is detected after last detection time, and before next detection time, nothing will be send by Email or via FTP.Please specify a time interval that suites your need. If the time interval is too long, you may not be able to know whatis happened between time interval; if the time interval is too short, you may receive too much unnecessary images, and consumes too much disk
Pre Recording Time	This option allows the IP cam to capture additional image frames prior to the event. The duration of pre-recording is based on the settings of Resolution, Video Type, and Frame Rate and estimated by the IP cam automatically. For example, if the Resolution is 640x480@MPEG4 and Frame Rate is 15fps, the pre-recording time is about 2 sec.
Post Recording Time	Select the duration you wish this camera to record image when a motion is detected from dropdown menu. The available option of the duration is based on the settings of Resolution, Video Type, and Frame Rate. For example, if the Resolution is 640x480@MPEG4 and Frame Rate is 15fps, the available options of are 1, 2, and 3 (second).
Send Recording File to Email	Select ‘Yes’ to send a picture to the Email address you specified in ‘E-Mail & FTP’ menu when a motion is detection, and select ‘No’ to disable this function.
E-Mail Subject	Set the subject of Email being sent here. This will help you to distinguish the Email sent by this IP camera from others.
Send snapshot file to FTP	Select ‘Yes’ to send a picture to the FTP server you specified in ‘E-Mail & FTP’ menu when a motion is detection, and select ‘No’ to disable this function.

Click 'Apply' to save settings and make the new settings take effect.

2.5.2 Motion Region

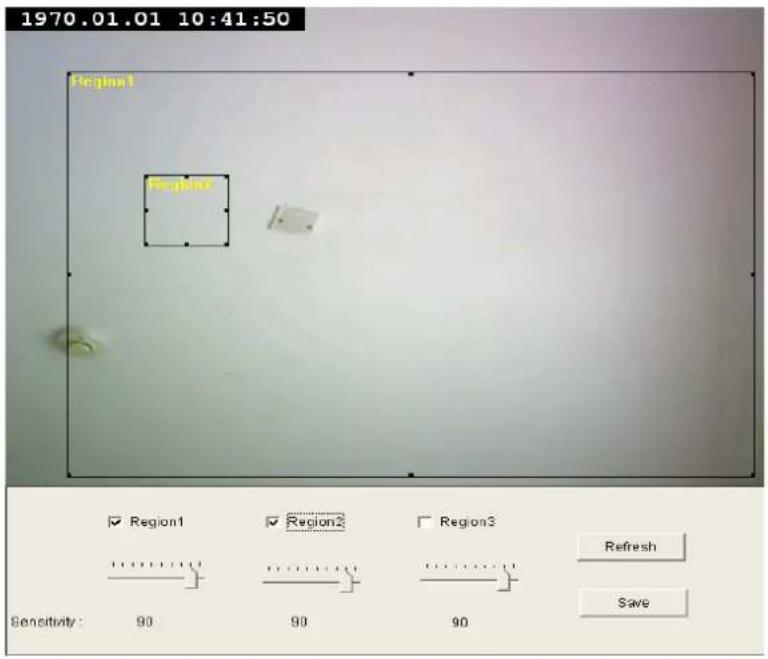

You can define the motion detection region within the image that camera captures, so this camera will ignore motions which are not covered by the motion region setting, and reduce the chances of false alarm.

1970.01.01 10:41:50 Region1 Region2 Region3 Sensitivity: 90 90 90 Refresh Save

The descriptions of every setting in this menu will be given below:

Item	Description
Region 1 – 3	Check the box to enable motion detection region 1 to 3. You can check multiple boxes to enable multiple motion detection regions. When you checked a box, a new region (and region number) will be displayed on captured image.
Sensitivity	Move the slide bar to change the motion detection sensitivity setting: Drag the slide to the right to increase sensitivity (camera will detect minor changes in the image), and drag the slide to the left to decrease sensitivity (camera will only detect major changes in the image).
Refresh	In case the objects of the image captured by the camera moved, click this button to reload the image captured by camera, so you can decide the motion detection region more precisely.
Save	Save motion detection region settings.

To change the motion detection region, you can 'resize' and 'reposition' it:

Any class?

Move the mouse cursor to the eight dots located at the border of motion detection region, and the mouse cursor will switch to ↔ , or ↑ . You can click and hold mouse button and move the mouse to resize the motion detection region.

To move reposition the motion detection region, move the mouse within the motion detection region, and the mouse cursor will switch to . Click and hold mouse button and move the mouse to reposition the motion detection region.

2.6 Schedule

In this menu, you can setup scheduled video recording, so you can record the video captured by all cameras you have by a pre-defined schedule.

2.6.1 Schedule Snapshot

You can use this menu to setup Schedule Snapshot settings:

Schedule Snapshot Enable FTP Schedule : Time Interval : File Control : Enable E-Mail Schedule : Time Interval : Apply Enable Disable Upload one image to FTP server every 1 minute(s) /Frame Upload one image to FTP server every 2 Frames/Second Upload files with filename composed of date / time Overwrite file with the same filename : snapshot.jpg Enable Disable Send one image every 1 minute(s)

The descriptions of every setting in this menu will be given below:

Item	Description
Enable FTP Schedule	Select ‘Enable’ to send the Schedule Snapshot to the appointed FTP server, or select’ Disable’ to disable this function. You have to configure FTP server parameters in ‘email & FTP’ menu first, so this function will take effect.
Time Interval	You can choose to upload one image to FTP server according to the time interval you wish, or choose to upload image as you wish to FTP server every second.
File Control	This option allows you to choose to upload each schedule snapshot with different file name composed of date/time, or to choose to upload the schedule snapshot with the same file name you wish. If you choose the latter, the prior-saved schedule snapshot will be overwritten by the latest schedule snapshot.
Enable E-Mail Schedule	Select ‘Enable’ to send the Schedule Snapshot to the appointed e-mail address, or select’ Disable’ to disable thisfunction. You have to configure e-mail settings in ‘email & FTP’ menu first, so this function will take effect.
Time Interval	This option allows the IP camera to send one image according to the time interval you wish.

2.6.2

You can use this menu to setup Schedule Snapshot settings:

Schedule Recording

Enable Schedule Recording :

Time Interval :

Recording Time :

Send Recording File to FTP :

File Control :

Send Recording File to E-Mail :

Apply

○ Enable ○ Disable

Send one recording file every 1 minute(s)

5 seconds (from 1 second to 10 seconds)

Enable Disable

○ Upload files with filename composed of date / time

Overwrite file with the same filename : schedule .avi

Enable Disable

The descriptions of every setting in this menu will be given below:

Item	Description
Enable Schedule Recording	Select ‘Enable’ to enable schedule recording, or select ‘Disable’ to disable this function.
Time Interval	This option allows the IP camera to send one recording file according to the time interval you wish.
Recording Time	This option allows you to adjust the recoding time based on your preference.Note: The available recording time is varied according to the video resolution and video frame rate settings in “Audio/Video” menu.
Send Recording File to FTP	Select ‘Enable’ to send the recoded video to the appointed FTP server, or select‘ Disable’ to disable this function. You have to configure FTP server parameters in ‘email & FTP’ menu first, so this function will take effect.
File Control	This option allows you to choose to upload each recorded video with different file name composed of date/time, or to choose to upload the recorded video with the same file name you wish. If you choose the latter, the prior-saved recorded video will be overwritten by the latest recorded video.
Enable E-Mail Schedule	Select ‘Enable’ to send the recorded video to the appointed e-mail address, or select’ Disable’ to disable this function. You have to configure e-mail settings in ‘email & FTP’ menu first, so this function will take effect.

2.7 System

The system menu allows you to set some system-specific parameters, like password and time setting. You can also upgrade the firmware of this IP camera, to make new functions available on this IP camera. You may also clear all settings or reboot the IP camera here.

You can access this menu by clicking 'System' on the top of web management interface.

2.7.1 Camera Information

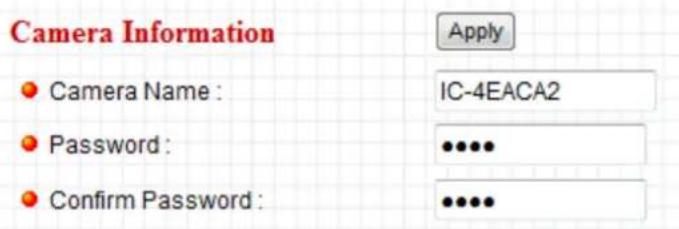

Camera information allows you to set the name and administrator's password of this camera.

Camera Information • Camera Name : • Password : • Confirm Password : Apply IC-4EACA2 ••••• •••••

The descriptions of every setting in this menu will be given below:

Item	Description
Camera Name	Please specify the name of this IP Camera here. This can be used to identify your camera on the network when you have more than one IP camera in the same network.Default name begins with ‘IC-‘ plus the last 6 characters of the MAC address of this IP camera. You can modify the name to the one you can remember and meaningful to you, but never give all IP cameras in the same network with same name.
Password	Please specify user name ‘admin’ ‘s password here. (The one you need when you log onto web management interface and use ‘admin’ as user name.
Confirm Password	Please input the same password again, to make sure there’s no typo.

Click 'Apply' to save settings and make the new settings take effect.

2.7.2 On-Screen Display

This setting allows you to show the name of the IP camera, date and time on the real-time image.

On-Screen Display

On-Screen Display enable:
Show camera name:
Show date:
Show time:

Apply

Enable Disable
Enable Disable
○ Enable ● Disable
○ Enable ● Disable

Item	Description
On-Screen Display enable	Select ‘Enable’ to display the name of the IP camera, date and time on real-time image from camera, or select ‘Disable’ to not to display the name of the IP camera, date and time on real-time image from camera.
Show camera name	Select ‘Enable’ if you want to display the name of the IP camera on the real-time image from the IP camera, or select ‘Disable’ if you do not want to display the name of the IP camera on the real-time image from camera.
Show date	Select ‘Enable’ if you want to display the date on the real-time image from the IP camera, or select ‘Disable’ if you do not want to display the date on the real-time image from camera.
Show time	Select ‘Enable’ if you want to display the time on the real-time image from the IP camera, or select ‘Disable’ if you do not want to display the time on the real-time image from camera.

2.7.3 Date / Time Setting

This setting allows you to change the date and time of the real time clock in this IP camera. You can set the time manually, or use network time protocol (NTP) to set the time automatically.

Date / Time Setting Set Date/Time manually NTP Server Time Zone : ( GMT+08:00 ) Taipei NTP Server : pool.ntp.org Enable Daylight Saving Time : Apply Synchronize to PC time Yes No

The descriptions of every setting in this menu will be given below:

Item	Description
Set Date/Time manually	Please input the date and time you wish to set here.Date / time format is YYYY / MM / DD HH:MM:SS Time is in 24-hour format.You can click ‘Synchronize to PC time’ to use the time of the computer you’re using.Example: 24^th August 2007 = 2007/ 08 / 24,and PM 9:24:30 = 21:24:30
Time Zone	Please select the time zone of the country / city of resident from dropdown menu here.
NTP Server	Please input the IP address or host name of NTP server here. You can use default value ‘pool.ntp.org’, or ask your ISP for the IP address or host name, if they have one.
Enable Daylight Saving Time	You can enable daylight saving time by selecting “Yes”,or disable daylight saving time by selecting “No”

Click 'Apply' to save settings and make the new settings take effect.

If you wish to use the date and time setting of the computer which is connecting to the camera, click 'Synchronize to PC time' button. The date and time setting of the computer will be filled to date and time setting in this page.

2.7.4 Utilities

This menu allows you to upgrade firmware, clear all settings, reboot the IP camera, and switch LED lights on/off.

Utilities

• Upgrade Firmware :
  Reset To Factory Defaults :
  Reboot Device :
  LED Setting :

瀏覽... Upgrade Reset Reboot Turn off LED light

The descriptions of every setting in this menu will be given below:

Item	Description
Upgrade Firmware	If you downloaded latest firmware file from our website, you can click ‘Browse’ button to pick the firmware file you wish to use. Then click ‘Upgrade’ button to start firmware upgrade procedure.It’s recommended to use wired Ethernet connection when you use this function, and DO NOT DISCONNECT OR CLOSE WEB BROWSER DURING UPGRADE!
Reset	Clear all settings in the camera. Please think again before you do this, and then click this button to reset all settings.NOTE: IP address will be reset to default value‘192.168.2.3’ also. You’ll need to change the IP address setting of your computer if the IP address of your computer does not begin with ‘192.168.2’, and subnet mask is not ‘255.255.255.0’, or you’ll not be able to connect to this IP camera again.
Reboot Device	If you found the IP camera is responding slowly or behaves strange, you can click this button to try to reboot the IP camera, this may help.
LED Setting	Switch the LED light of this IP camera off, so ‘LAN’ and ‘WLAN’ LED on the IP camera will stop working, in case you don’t want other people know the camera is transferring data.You can click this button again to switch LED lights on again.

2.8 Status

This menu provides all information about this IP camera, like firmware version, system uptime, date / time, and network information.

You can access this menu by clicking 'Status' on the top of web management interface.

Status

Firmware Version : v1.28 (Jul 7 2009 17:18:54)
Device Uptime : 5 hours 23 min 32 sec
System Time : 1970/01/01 13:23:32

LAN

IP Address : 192.168.2.100
Subnet Mask: 255.255.255.0
Gateway: 192.168.2.1
DNS Server: 192.168.2.1
MAC Address : 00:0E:2E:4E:AC:A2
AV Control Port: 4321
AV Data Port: 4322
Web Port: 80

PPPoE

Link Status : Disconnected
IP Address :
Subnet Mask:
Gateway:

2.9 Users

If you wish to allow other people to view the image captured by this camera, but don't want to allow them to modify system settings, you can give them user-level user name and password, so they can only view the image and can not change any system setting. When they want to click menus other than 'Camera', they will see the following message informing that they don't have permission to do that:

IP Camera - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Search Favorites Address http://192.168.2.3/index.htm Go Links Internet Camera Camera PTZ LAN WLAN E-Mail & FTP Motion Detection System Status Access Denied Done Internet

This IP camera supports up to 4 users.

You can access this menu by clicking 'Users' on the top of web management interface.

Camera LAN Audio/Video eMail & FTP Motion Detection Schedule System Status Users Log

Please note: only one user (including administrator) will be able to view the image of IP camera at the same time.

Users

User 1:

Enable Disable

Login :

- Password:

Confirm password :

Apply

User 2:

Enable Disable

Login :

- Password:

Confirm password :

Apply

User 3:

Enable Disable

- Login :

Password:

Confirm password :

Apply

User 4:

Enable Disable

Login:

Password:

- Confirm password :

Apply

The descriptions of every setting in this menu will be given below:

Item	Description
User (1 - 4)	Select ‘Enable’ to enable this user (allow him / her to login), and select ‘Disable’ to disallow him / her to login.Selecting ‘Disable’ won’t erase the user name and password, so you can select ‘disable’ to disallow a user from logging in temporarily, without erasing it’s account information.
Login	Specify the user name here. Please use alphanumerical characters (0 to 9, A to Z, and a to z). Not using symbols and space.
Password	Specify the password for this user here.
Confirm Password	Specify the password for this user here again.

Click 'Apply' to save settings and make the new settings take effect.

2.10 Log

All activities of this IP camera will be logged, and you and enter 'Log' menu to view these logs.

You can access this menu by clicking 'Log' on the top of web management interface.

Camera LAN Audio/Video eMail & FTP Motion Detection Schedule System Status Users Log

1970/01/01 00:00:05 System startup [ v1.28 (Jul 7 2009 17:18:54) ] 1970/01/01 00:00:05 Set microphone volume to 80 1970/01/01 00:00:05 Set Line-Out volume to 80 1970/01/01 08:00:06 Starting mpeg4 pipe server for Spook 1970/01/01 08:00:06 Starting audio pipe server for Spook 1970/01/01 08:00:06 embedded av stream controller started 65 1970/01/01 08:00:06 Opened /dev/pl_grab successfully 1970/01/01 08:00:07 Opened /dev/pl_enc successfully (MPEG4) 1970/01/01 08:00:07 Opened /dev/pl_enc successfully (MJPEG) 1970/01/01 08:00:07 Opened /dev/pl_enc successfully (MD) 1970/01/01 08:00:07 Accepted a new connection from spook... (video) 1970/01/01 08:00:07 Accepted a new connection from spook... (audio) 1970/01/01 08:00:08 This board has no wireless supported. 1970/01/01 08:00:08 Schedule AVI system started (PID:53) 1970/01/01 08:00:08 E-mail schedule system started (PID:52) 1970/01/01 08:00:08 FTP schedule system started (PID:51) 1970/01/01 08:00:10 Accepted a new connection from spook... (video) 1970/01/01 08:00:10 Accepted a new connection from spook... (audio) 1970/01/01 08:00:21 DHCP: obtained new IP: 192.168.2.100, lease time: 315360000 seco 1970/01/01 08:08:37 192.168.2.101:29632 joined AV stream 1970/01/01 08:19:32 192.168.2.101:56512 joined AV stream 1970/01/01 08:22:19 192.168.2.101:62912 joined AV stream 1970/01/01 09:04:42 192.168.2.104:55556 joined AV stream 1970/01/01 09:04:47 192.168.2.104:59396 joined AV stream 1970/01/01 10:24:31 192.168.2.101:30147 joined AV stream

Click 'Refresh' to get latest update.

Chapter III: Windows-Based Utility

3.1 Install Windows-based Utility

Follow the simple steps below to run the Install Wizard to guide you quickly through the Installation process. The following installation is implemented in Windows XP. The installation procedures in Windows 2000/Server 2003 are similar.

Insert the CD shipped along with the Internet Camera into your CD-ROM drive. The "Autorun.exe" program should be executed automatically. If not, run "Autorun.exe" manually from "Autorun" folder in the CD.

The Install Wizard will show four selections, select the program you want to install or click "Exit" to install the program later. The following installation steps are the demonstration of "Install Administrator Utility".

EDIMAX NETWORK People TOGETHER IC-3010 / IC-3010Wg Setup Utility Multi-language QIG User's Manual 16 channel viewer Includes Adobe Reader EXIT IP Cameras www.edimax.com Contact us

The system will start the installation procedures. Click "Next" to continue installation.

Internet Camera - InstallShield Wizard Welcome to the InstallShield Wizard for Internet Camera The InstallShield Wizard will install Internet Camera software on your computer. Including Admin program and camera viewer. To continue, click Next. To cancel the program, click Cancel. < Back Next > Cancel

If you wish to install the software program in an alternate location, click "Change"; otherwise click "Next" to move on to the next step.

Internet Camera - InstallShield Wizard Choose Destination Location Select folder where setup will install files. Install Internet Camera to: C:\Program Files\Internet Camera Change... InstallShield < Back Next > Cancel

Click "Install" to start installing the program.

Internet Camera - InstallShield Wizard Ready to Install the Program The wizard is ready to begin installation. Click Install to begin the installation. If you want to review or change any of your installation settings, click Back. Click Cancel to exit the wizard. InstallShield < Back Install Cancel

The system will install the program automatically.

Internet Camera - InstallShield Wizard Setup Status Internet Camera Setup is performing the requested operations. Installing C:\Program Files\Internet Camera\util\util.exe InstallShield Cancel

Click "Finish" to complete "Administrator Utility" installation.

Internet Camera - InstallShield Wizard InstallShield Wizard Complete The InstallShield Wizard has successfully installed Internet Camera software. Click Finish to exit the wizard. < Back Finish Cancel

"Administrator Utility" will run automatically after installation. On the Internet Camera first page, the cameras found in the network are listed. Choose the one you want to configure and click "Configure Camera" to proceed.

Admin v3.0.1 Internet Camera Admin Software Language MAC Address IP Address Camera Name_Model U0.1F:1F:1b:47:34 192.168_2_3 IC-1B4734 IC3020WtG

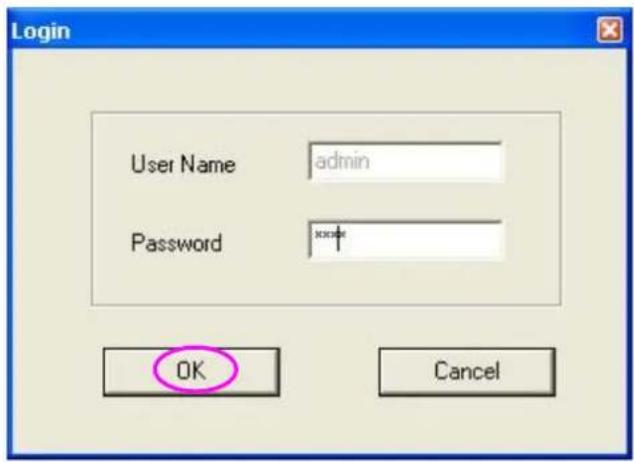

Please enter the default password "1234" and click "OK" to login to the IP setup page.

Login User Name admin Password xxx+ OK Cancel

Internet Camera is working through the network (TCP/IP Protocol). The IP address and subnet mask setting must be correct, or you cannot access to the camera. The wizard program will detect the IP address status of your network automatically and suggest a free IP address for the Camera. You can accept the suggested value or enter the value manually. If you enter the value manually, please be aware that the “Subnet Mask” must be the same for both the camera and the PC. Click “Finish” to apply the configuration.

Admin v3.0.1 Internet Camera Admin Software Language Lan Setting Security DHCP MANUAL IP IP 192 . 168 . 2 . 3 NetMask 255 . 255 . 255 . 0 Gateway 192 . 168 . 2 . 254 DNS 168 . 95 . 1 . 1 Web Port 80 OK Cancel

3.2 Using the Administrator Utility

The Administrator Utility allows users to search and setup the cameras located within the Intranet or on the Internet. From the utility, users can view all the information of the selected camera; furthermore, it provides a setting wizard, which can guide users to add the camera to the network easily and promptly.

There are two ways to run the Administrator Utility as follows.

Click "Start", select "Programs\IP Camera\Admin Utility" to run the utility.

Double click the "IP Camera Admin" icon

Once the utility is started, it will search all the cameras within the network. To do more settings, please refer to the description in the following sections.

Admin v3.0.1 Internet Camera Admin Software Language MAC Address IP Address Camera Name Model 00:1f:1f:1b:47:34 192.168.2.3 IC-1B4734 IC3020WG

3.2.1 General Setting

Admin v3.0.1 Internet Camera Admin Software Language MAC Address IP Address Camera Name Model 00:1f:1f:1b:47:34 192.168. 2. 3 IC-1B4734 IC3020wG

Information of Camera
Camera Information	It displays all information of the selected camera. The information includes MAC address, IP Address, Camera Name and Model.
Task Bar
Search Camera	Click “Search Camera” to search cameras on the network.
Browse Camera via Web	Click “Browse Camera via Web” to activate browser and auto connect to IP cam to get video
Configure Camera	Click “configure camera” to change the IP setting and user name password of the IP Cam you selected.
Languages
Language	It displays 3 languages of this utility. This utility supports, English, Japanese and Chinese.

3.2.2 Configure Camera

When you click the "Configure Camera", a screen will pop up for you to enter the "Administrator Name" and "Password". The default value is as follows.

Name: "Admin"

Password: "1234"

Admin v3.0.1 Internet Camera Admin Software Language MAC Address IP Address Camera Name Model 00:1f:1f:1b:47:34 192.168.2.3 IC-1B4734 IC3020WG

Login User Name admin Password xxxxx OK Cancel

If the name and password you enter are correct, you can start to setup the camera.

3.2.3 LAN Setting

Admin v3.0.1 Internet Camera Admin Software Language Lan Setting | Security | DHCP IP MANUAL IP 192 . 168 . 2 . 3 NetMask 255 . 255 . 255 . 0 Gateway 192 . 168 . 2 . 254 DNS 168 . 95 . 1 . 1 Web Port 80 OK Cancel

LAN Setting

IP Address	Enter an unused IP Address within the IP address range used on your LAN. If the IP Address of your LAN is from the 192.168.2.1 to 192.168.2.254, you can set an unused IP Address from the range for the camera, for example: 192.168.2.250.
NetMask	The Subnet Mask field must match the subnet setting on your LAN. For example: 255.255.255.0.
Gateway	The Gateway is used to forward frames to destinations in a different subnet on the Internet. The Gateway setting must be the same with the gateway used by the PCs on your LAN.
DNS Server	DNS Server (Domain Name Server) that translates names to IP addresses. Set the same DNS Server as the PCs on your LAN.

Web Port

This Camera support web connection, the default web port is 80. You could give the port name from 1-65536. Since the web server may use port 80, you can use a different port for the camera. If you change the web port from 80 to 8080, you must type http://192.168.2.3:8080 to connect the camera through web browser.

3.2.4 Security

Admin v3.0.1 Internet Camera Admin Software Language Lan Setting Security Camera Name IC-1500 New Password XXXX Confirm Password XXXX OK Cancel

Security

Camera Name

The default camera name is "IC1500WG". It is recommended to name a meaningful name for the camera..

New Password

Enter the new password you want to use for the camera.

Confirm Password

Retype the new password to confirm the setting.

3.3 Installing IP Camera Surveillance Software

The IP camera surveillance software provides various functions like video recording, after this software is installed, you can use your IP camera to safeguard your property. Please follow the following instructions to install the surveillance software.

1. Double click the setup file located in 'xxx' folder in supplied CD-ROM, when the following window appears, click 'Next'.

Setup - IPCam Surveillance Software Welcome to the IPCam Surveillance Software Setup Wizard This will install IPCam Surveillance Software 3.0 on your computer. It is recommended that you close all other applications before continuing. Click Next to continue, or Cancel to exit Setup. Next > Cancel

1. You can specify the destination folder of software installation, you can just use the default folder, and click 'Next' to continue.

Setup - IPCam Surveillance Software Select Destination Location Where should IPCam Surveillance Software be installed? Setup will install IPCam Surveillance Software into the following folder. To continue, click Next. If you would like to select a different folder, click Browse. C:\Program Files\IPCam Surveillance Software 3.0 Browse... At least 11.4 MB of free disk space is required. < Back Next > Cancel

1. If you need installation program to create a desktop icon or a quick launch icon for you, click all items you need here, than click 'Next' to continue.

Setup - IPCam Surveillance Software Select Additional Tasks Which additional tasks should be performed? Select the additional tasks you would like Setup to perform while installing IPCam Surveillance Software, then click Next. Additional icons: Create a desktop icon Create a Quick Launch icon < Back Next > Cancel

1. Here lists all options you chose in previous steps, if everything's correct, click 'Install' to start installing procedure, or click 'Back' to go back to previous step to modify installing settings.

Setup - IPCam Surveillance Software Ready to Install Setup is now ready to begin installing IPCam Surveillance Software on your computer. Click Install to continue with the installation, or click Back if you want to review or change any settings. Destination location: C:\Program Files\IPCam Surveillance Software 3.0 Additional tasks: Additional icons: Create a desktop icon < Back Install Cancel

1. The installing procedure will take some time, please be patient.

Setup - IPCam Surveillance Software Installing Please wait while Setup installs IPCam Surveillance Software on your computer. Extracting files... C:\Program Files\IPCam Surveillance Software 3.0\Image\bg.bmp Cancel

1. When you see this window, it means the software installing procedure is complete. Please click 'Finish' to finish the procedure (IP camera surveillance software will start after you click 'Finish' button, if you want to start it later, uncheck 'Launch IPCam Surveillance Software' box).

Setup - IPCam Surveillance Software Completing the IPCam Surveillance Software Setup Wizard Setup has finished installing IPCam Surveillance Software on your computer. The application may be launched by selecting the installed icons. Click Finish to exit Setup. Launch IPCam Surveillance Software Finish

3.4 Using IP Camera Surveillance Software

You can click 'IPCam Surveillance Software' icon from desktop, quick launch bar, or start menu to start the IP camera surveillance software.

Before you start:

IP camera surveillance software will only work when your monitor's resolution is '1024 x 768'. Please change the resolution before you use IP camera surveillance software, or it won't start.

Here are descriptions for all components of IP camera surveillance software:

Video displaying area 1 No Signal 2 No Signal 3 No Signal 4 No Signal 5 No Signal 6 No Signal 7 No Signal 8 No Signal 9 No Signal 10 No Signal 11 No Signal 12 No Signal 13 No Signal 14 No Signal 15 No Signal 16 No Signal Language Display layout Full screen / Scan Zoom Out / Zoom In PTZ Control / Home Close window (stop surveillance) / Message display Recording / System configure Playback / Snap

You can put the mouse cursor on a certain component and see its button name, and here're detailed descriptions of all buttons:

Item	Description
Video displaying	The image of all connected cameras will be displayed here.
area
Language	Select a language from this dropdown menu to change display language.
Display layout	Change camera image display layout (Click a layout icon to change camera display layout). There are 8 kinds of available display layouts.
Full screen	Click this button to switch to full screen mode (only display all camera's image), press 'ESC' key to quit full screen mode.
Scan	Click this button and the IP camera surveillance software will switch displaying the image of all connected camera automatically. Click this button once to activate scan function (scan icon will become blue), click again to stop scanning (scan icon will become white)
Zoom out	Zoom-out (To see more objects).This function is only available for supported cameras.
Zoom In	Zoom-in (Too see more details).This function is only available for supported cameras.
PTZ control	There are 8 directions in PTZ control ring. If the camera you connect support PTZ, you can use PTZ control ring to change the direction that camera points to.This function is only available for supported cameras.
Home	Click this button to return the camera to 'Home' (default) position.This function is only available for supported cameras.
Recording	Start video recording.
Configure	Software / camera configuration.
Plavback	Playback a recorded video file.
Snapshot	Take a snapshot of current camera.
Message display	Displays all system messages like camera is disconnected etc.
	Terminates IP camera surveillance software.
Minimize window	Minimizes IP camera surveillance software window.
Video displaying area	Displays the image of all cameras by the display layout you selected.

3.5 Configure IP Camera Surveillance Software

3.5.1 Configure Cameras

Before you use this IP camera surveillance software, you must configure the camera(s) you wish to connect. Please click 'System configure' button and a popup menu will appear:

Configure Cameras General Options

Please select 'Configure Cameras' to configure cameras:

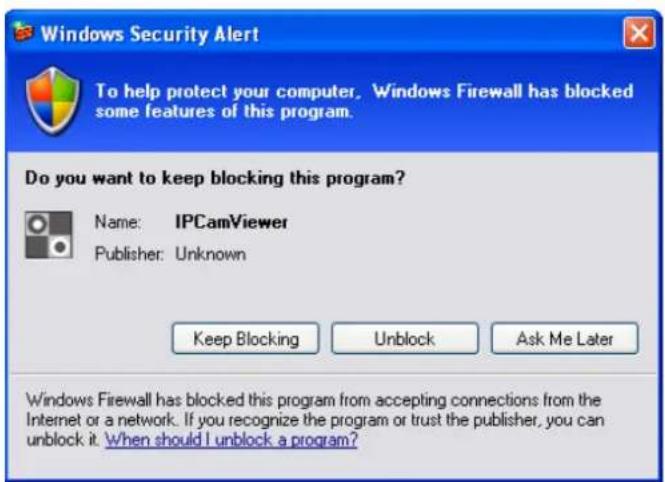

Note: If you're prompted by a windows security alert which asks you if you want to block 'IPCam Viewer' program, please click 'Unblock' button, of IP camera surveillance software will not be able to function correctly.

Windows Security Alert To help protect your computer, Windows Firewall has blocked some features of this program. Do you want to keep blocking this program? Name: IPCamViewer Publisher: Unknown Keep Blocking Unlock Ask Me Later Windows Firewall has blocked this program from accepting connections from the Internet or a network. If you recognize the program or trust the publisher, you can unlock it. When should I unlock a program?

3.5.1.1 'Camera' Tab

In this tab you can configure all cameras you wish to connect. Up to 16 cameras can be connected simultaneously:

Configure Cameras Channel Channel 1 Channel 2 Channel 3 Channel 4 Channel 5 Channel 6 Channel 7 Channel 8 Channel 9 Channel 10 Channel 11 Channel 12 Channel 13 Channel 14 Channel 15 Channel 16 Camera Schedule Recording Audio Motion Recording Camera Configuration 15 Name IC7000PTnV2 Model IP Address 192.168.2.105 Username admin Web Port 80 Password **** Reset Camera Search Camera Name IP Model Select Refresh OK Cancel

Here are the descriptions of all setting items:

Item	Description
Channel	Select the channel number you wish to set.
Camera Search	All cameras found on your local network will be displayed in ‘Camera Search’ box.
Select	Select a camera listed in ‘Camera Search’ box, and click ‘Select’ button to fill all parameters of selected camera in every camera configuration fields.
Refresh	Rescan all cameras on your local network. If you didn’t see the camera you expected in ‘Camera Search’ box, or new cameras has been joined to your local network after last scan.
Name*	Input the name of camera here. Default value is the first 6 bytes of camera’s MAC address, you can change the name of camera so you can remember the camera’s location of purpose easily.
Model	Displays the model of selected camera, this field can not be changed.
IP*	Input the IP address of camera.
Username*	Input the user name of camera.
Web Port*	Input the web port of the camera. By default it’s ‘80’.
Password	Input the password of camera. Default value is ‘1234’. You should change the password if you changed the password of selected camera.
Video Format**	Select the video encoding format of this camera (MJPEG or MPEG4).
Reset	Clear all fields in ‘Camera Configuration’ section.
OK	Save settings in this tab.
Cancel	Discard all settings in this tab.

*: It's recommended to use 'Select' button to fill the content of this field.

**: Only available for cameras support this function.

After you've set all channels you wish to set, click 'OK' to save settings, and if everything's correct, you'll see the camera's image in IP camera surveillance software's main menu:

2008.37.08 18:31:56 2 No Signal 3 No Signal 4 No Signal System Event Log

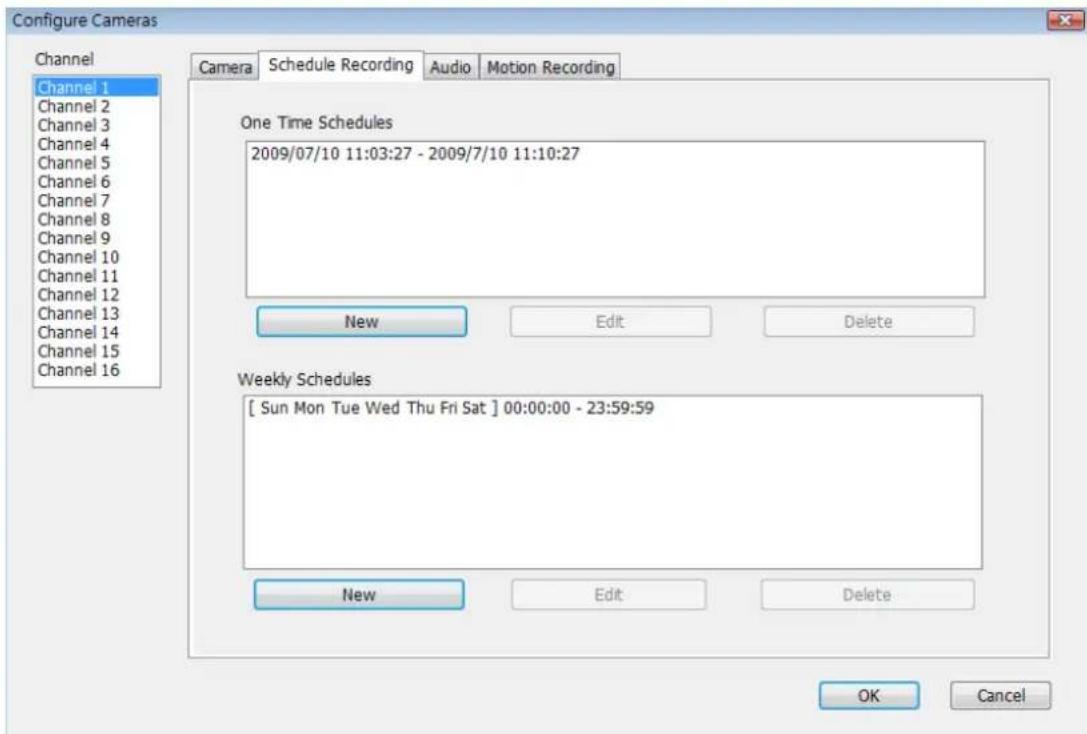

3.5.1.2 Schedule Recording

In this tab, you can setup scheduled video recording, so you can record the video captured by all cameras you have by a pre-defined schedule.

Configure Cameras Channel Channel 1 Channel 2 Channel 3 Channel 4 Channel 5 Channel 6 Channel 7 Channel 8 Channel 9 Channel 10 Channel 11 Channel 12 Channel 13 Channel 14 Channel 15 Channel 16 Camera Schedule Recording Audio Motion Recording One Time Schedules 2009/07/10 11:03:27 - 2009/7/10 11:10:27 New Edit Delete Weekly Schedules [ Sun Mon Tue Wed Thu Fri Sat ] 00:00:00 - 23:59:59 New Edit Delete OK Cancel

Here are the descriptions of all setting items:

Item	Description
Channel	Select the channel number you wish to set.
One Time Schedules	You can specify the one-time schedule for selected camera; this schedule will be executed once only.
New (One Time Schedules)	Click this button and a new window will appear: Please specify the time duration of this one-time schedule (the date and time of 'From' and 'To'), then click 'OK' to save settings. Please note you must set a schedule that will be happened in the future, you can not set a schedule in the past.
Edit	You can modify a scheduled recording item. Select a schedule in 'One Time Schedules' list, and click 'Edit' button to edit the start and end time of this schedule.
Delete	Delete a selected schedule item.
New (Weekly Schedules)	Click this button and a new window will appear: You can define recording schedule that will be executed at the specified time of certain weekday(s) in a week. Please check all weekdays that applies, and set the start time in 'From' field. You can set the duration of video recording in 'Period' field (format is HH:MM:SS), and the end time will be calculated automatically and displayed in 'To' field. You can also click 'All Time Record' button to define a recording schedule that will be executed every weekday, from 12:00:00AM to 11:59:59PM.Click ‘OK’ to save changes.
Edit	You can modify a scheduled recording item. Select a schedule in ‘One Time Schedules’ list, and click ‘Edit’ button to edit the start and end time of this schedule.
Delete	Delete a selected schedule item.
OK	Save settings in this tab.
Cancel	Discard all settings in this tab.

3.5.1.3 Audio

For cameras that support audio, you can use this tab to decide if you wish to hear the audio captured by selected camera.

Configure Cameras Channel Channel 1 Channel 2 Channel 3 Channel 4 Channel 5 Channel 6 Channel 7 Channel 8 Channel 9 Channel 10 Channel 11 Channel 12 Channel 13 Channel 14 Channel 15 Channel 16 Camera Schedule Recording Audio Motion Recording Audio Mute Audio Record Video Only OK Cancel

Here are the descriptions of all setting items:

Item	Description
Channel	Select the channel number you wish to set.
Mute Audio	Check this box and the IP camera surveillance software will not play the audio captured by this camera.
Record Video Only	Check this box and the IP camera surveillance software will not record the audio captured by this camera.
OK	Save settings in this tab.
Cancel	Discard all settings in this tab.

3.5.1.4 Motion Record

With this function activated, only motions captured by the camera will be recorded, so you don't have to waste hard disk storage space on images you don't need to pay attention to.

WARNING: For applications that security is highly concerned, it's not recommended to use this function since some tiny changes you may need to know may not be able to trigger the camera and the camera will not start recording.

Configure Cameras Channel Channel 1 Channel 2 Channel 3 Channel 4 Channel 5 Channel 6 Channel 7 Channel 8 Channel 9 Channel 10 Channel 11 Channel 12 Channel 13 Channel 14 Channel 15 Channel 16 Camera Schedule Recording Audio Motion Recording Motion Record Enable Disable Recording Time 10 seconds Invoke alarm when motion is triggered Send mail when motion is triggered OK Cancel

Here are the descriptions of all setting items:

Item	Description
Channel	Select the channel number you wish to set.
Enable	Enable motion record function.
Disable	Disable motion record function.
Recording Time	Select the time duration that camera will record when a motion has been detected from dropdown menu in seconds.
Invoke alarm when motion is triggered	Send an alarm when a motion has been detected by the camera.
Send mail when motion is triggered	Send an email to a pre-defined address when a motion has been detected by the camera.
OK	Save settings in this tab.
Cancel	Discard all settings in this tab.

3.5.2 General Settings

You can set system-wide settings of this IP camera surveillance software in this menu.

3.5.2.1 'General' Tab

All general settings like file storage directory and recording spaces can be set here.

General Options General E-Mail Setting Security About Directory Information Data Directory C:\Users\JesseLiu\Documents Browse Free Recording Space 14243 MB General Settings Max Video File Size 50 MB Scan Time 3 second(s) Cycle Recording Disable OK Cancel

Here are the descriptions of all setting items:

Item	Description
Data Directory	Set the directory (folder) you wish to store the recorded video and captured image. You can click ‘Browse’ button to pick a directory in your hard disk.
Free Recording Space	Displays remaining storage space.
Max Video File Size	Defines the maximum file size of every video file. When the size of file exceeds this value, IP camera surveillance software will open another file to record the video.
Scan Time	Define the time period to pause between every camera switch when you activate ‘Scan’ function.
Cycle Recording	You can decide the behavior when hard disk space is full:Disable: Do not overwrite recorded video files. Enable: Overwrite recorded video files.
OK	Save settings in this tab.
Cancel	Discard all settings in this tab.

3.5.2.2 'E-Mail Setting' Tab

If you want to use motion detection function and wish to get an email that contains the image captured by the camera, please setup your email related parameters here first.

General Options General E-Mail Setting Security About E-Mail Subject Recipient E-Mail Address New Edit Delete Sender E-Mail Address SMTP Server SMTP Port 25 SMTP Auth Enable Disable SMTP Account SMTP Password OK Cancel

Here are the descriptions of all setting items:

Item	Description
E-Mail Subject	Specify the subject of sending email.
Recipient E-Mail Address	Here lists all email addresses you set.
New	Click this button and you'll be prompted to input the email address.Click 'OK' to save changes.
Edit	Select an email address from 'Recipient E-Mail Address' box, andclick ‘Edit’ to edit the email address.
Delete	Delete selected email address.
Sender E-Mail Address	Specify the email address of email sender.
SMTP Server	Specify the IP address or host name of the SMTP server you wish to use. For most of ISPs they will only allow its subscriber to use their SMTP server, if you don’t know which SMTP server you should use, please refer to the setting of your email software or ask your ISP / network administrator.
SMTP port	Specify the port number of the SMTP server you wish to use here. By default (and the setting of most of SMTP servers) it’s ‘25’.
SMTP Auth	Select ‘Enable’ if your SMTP server requires authentication, select ‘Disable’ if it’s not required. If you don’t know if your SMTP server requires authentication, please refer to the setting of your email software or ask your ISP / network administrator.
SMTP Account	Input the SMTP account (username) of your SMTP server here. In most cases, it’s the same with your POP3 username (the one you used to receive email). Please refer to the setting of your email software or ask your ISP / network administrator if you’re not sure about this.
SMTP Password	Input the SMTP password of your SMTP server here. In most cases, it’s the same with your POP3 password (the one you used to receive email). Please refer to the setting of your email software or ask your ISP / network administrator if you’re not sure about this.
OK	Save settings in this tab.
Cancel	Discard all settings in this tab.

3.5.2.3 Security

If you don't want other people to access this IP camera surveillance software, you can set a password to protect it.

You'll need to input the password every time you wish to use this IP camera surveillance software:

Authentication required Please input password Password: OK Cancel

To set password, please use 'Security' tab in 'General Options' menu:

General Options General E-Mail Setting Security About Security Enable Disable Password Confirm Password OK Cancel

Here are the descriptions of all setting items:

Item	Description
Enable	Requires password authentication when this software starts.
Disable	Password authentication is not required when this software starts.
Password	Input the password you wish to use here.
Confirm Password	Input the password you wish to use here again.

3.5.2.4 About

This tab shows the version number of the IP camera surveillance software you're using.

General Options General E-Mail Setting Security About IP Camera Surveillance Software Information Version: v3.0.0.17 OK Cancel

3.6 Change Display Layout

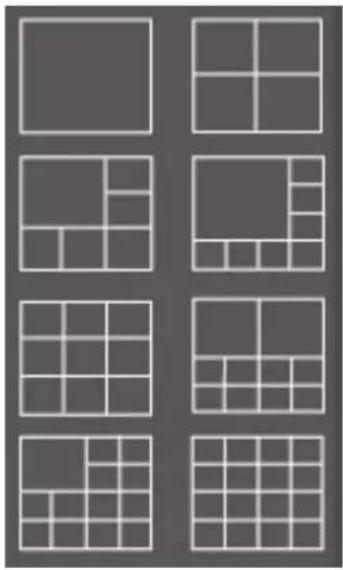

This IP camera surveillance software provides 8 kinds of display layout:

Grid of nine identical gray squares arranged in 3x3 pattern, no text or symbols present

Every layout displays different number of camera and camera arrangement, you can click the icon that presents a specific kind of layout, and the video displaying area will change accordingly.

Layout style 1: 1Camera only	Displays the video of 1 camera only.
Layout style 2: 4Cameras	Displays the video of up to 4 cameras.
Layout style 3: 6 Cameras	Displays the video of up to 6 cameras.
Layout style 4: 8 Cameras	Displays the video of up to 8 cameras.
Layout style 5: 9 Cameras	Displays the video of up to 9 cameras.
Layout style 6: 10 Cameras	Displays the video of up to 10 cameras.
Layout style 7: 13 Cameras	Displays the video of up to 13 cameras.
Layout style 8: 16 Cameras	Displays the video of up to 16 cameras.

3.7 Full-Screen Modes

If you want to use all available spaces on your monitor to display surveillance image, you can click 'Full Screen' button to switch display mode to full-screen mode.

English

To exit full-screen mode, press 'ESC' key.

3.8 Scan

If you have more than one camera configured, and you wish to switch the displaying image between cameras, you can click 'Scan' button to switch between all configured cameras.

NOTE: If a camera is configured but disconnected, it will still be displayed in a scan sequence (you'll see nothing and you'll see 'Disconnected' text displayed at the upper-left corner of display image).

English

Click 'Scan' button once to activate scan function (scan icon will become blue), click again to stop scanning (scan icon will become white)

3.9 Zoom-in / Zoom-out

For cameras that support zoom-in / zoom-out function, you can use this function to see more objects that fall in the scope of camera's view, or enlarge the image size of a certain object to see its detail.

English

Please select a camera in video displaying area by clicking on its image, then click

button to see more objects that fall in the scope of camera's view, or click to enlarge the image size of a certain object to see its detail (Before zoom-in, you may need to use PTZ buttons - described in next section) to find an object you wish to see its detail).

3.10 PTZ

For cameras that support pan - tilt function, you can change the position that camera points to, to see different places that fall in the scope of camera's view.

English

Please select a camera in video displaying area by clicking on its image, and then click the directions you wish the camera to move to (total 8 directions available). Click 'Home' button ( ) to return to camera's home (default) position.

3.11 Snapshot

You can take a snapshot of selected camera and save it to 'Snapshot' sub-folder of pre-defined data directory.

Four gray button icons with icons: video camera, wrench, play button, and camera icon (no text or symbols)

Click snapshot button once to take a snapshot; you can take as much snapshot as you want before hard disk is full.

3.12 Recording

You can start video recording of selected camera manually by clicking 'Start Recording' button:

User interface buttons including video camera, wrench, play, and camera (no text or symbols)

When recording starts, you'll see a message displayed in message displaying box like '1/1 10:00:00, Camera 2 Start Manual', which means camera 1 starts recording manually on 1/1 at 10:00:00.

To stop recording, click 'Start Recording' button again, and you'll see a message displayed in message displaying box like '1/1 10:00:00, Camera 2 Stop Manual'.

3.13 Video Playback

You can playback all recorded video by clicking this button.

User interface buttons including video camera, wrench, play button, and camera (no text or symbols)

A new window will appear:

Playback Time Search From 5/ 1/2008 12:00:00 PM To 5/30/2008 12:00:00 PM Search Motion Search From 5/ 1/2008 12:00:00 PM To 5/30/2008 12:00:00 PM Search Channel File Name 1 Manual_2008-5-20_12-0-13.avi 1 Manual_2008-5-20_12-5-9.avi 1 Schedule_2008-5-20_11-49-41.avi 1 Schedule_2008-5-20_11-50-58.avi 1 Schedule_2008-5-20_11-52-13.avi Play OK

You have to search the video file before you can play it. There are two kinds of video search: Time Search (search all videos file that falls in a specific period of time) and Motion Search (search all videos recorded by motion detection function and falls in a specific period of time).

Please define the start and end date / time of the time period you wish to search, and then click 'Search' button (of 'Time Search' of 'Motion' Search'). All found videos will be displayed, select the video you wish to play and click 'Play' button to playback.

Chapter IV: Trouble Shooting

If the IP camera is not working properly, before you contact the dealer of purchase for help, please check the troubleshooting list here, this may help you to solve the problem by yourself and therefore saves your valuable time.

Scenario	Possible Solution
I can not connect to IP camera	a. Please confirm the IP address setting of the computer you're using. If they're not in the same subnet, they will not be able to communicate with each other.b. Please make the IP address you used to connect to the IP camera is correct.c. If you forget the IP address of the IP camera, you will have to reset it to factory default value (which is 192.168.2.3) by pressing ‘reset’ button at the bottom of the IP camera. You'll need a pen or pin to be able to press the reset button. Press and hold reset button for 5 seconds, then try to connect to the IP camera with IP address ‘192.168.2.3’ again.d. Please make sure IP camera is correctly powered (the ‘Power’ LED should be on).e. If you're trying to connect to the IP camera from Internet, please make sure the port that IP camera uses (Video and HTTP port, see section 2.3.1) is not blocked by firewall or other software / hardware.f. Contact dealer of purchase for help, if above solutions do not work.
Image refreshes very slow	a. Try a higher frame rate setting, if it's not 30.b. Try a lower resolution.c. If you’re connecting this camera from Internet, it could be caused by a slow Internet connection, and it’s not a problem caused by camera. However, when the network connection is slow, you should use lower frame rate / resolution.d. Adjust the antenna if you’re using wireless connection. The antenna should be perpendicular to the ground to get best reception, and the distance between IP camera and computer / wireless access point should not be too far.e. Try to adjust ‘MTU’ setting if you’re using PPPoE to connect to Internet. Ask your ISP or network administrator for detailed instruction.
IP camera is not responding	a. Is the network cable or wireless connection disconnected? Please check it.b. Unplug the power adapter from wall socket and plug it in again after 10 seconds, then try to connect to the IP camera again.c. If IP camera is correctly powered (‘Power’ LED is on), but you still can not connect to the camera when you’re sure that IP address is correct, please contact dealer of purchase for help).
Image is fuzzy	a. Adjust the focus ring on the camera until the image becomes clear.b. Use a soft cloth to clean the lens on the camera. You can use cloth with water, but DO NOT use alcohol or other chemical solution.c. Try to adjust brightness setting.d. If there’s any light at the place where IP camera is located, switch it on and see if image looks better.
I set the IP camera to send image by Email or FTP, but nothing is received	a. If the image is send by Email, please make sure it's not blocked by any anti-spam mechanism.b. Please make sure you have enough permission for FTP uploading (You can try this by clicking 'Upload a test file' button).c. Make sure the user name and / or password of SMTP server is correct, if your SMTP server requires authentication (You can try this by click 'Send a test Email' button).d. Please check log, if FTP upload or Email sending is failed, it will be logged, and this may give you some clue on how to solve the problem.e. Change the threshold to a more sensitive setting.
I heard strange sound when I use pan / tilt function	a. Please check if anything jams the camera, remove it.a. If the camera does not respond to you when you're trying to use pan / tilt function, the servo motor inside the camera may dead. Please return the camera to the dealer of purchase and ask for help.
Nothing is heard at the camera side when I use 'Speak to IPCam' function	An external speaker is required to playback the voice received at computer side.

Specification

Max Resolution: 1280 x 1024 pixels

Sensor: 1.3 mega pixels 1/4" color CMOS sensor

Gain control: Automatic

Exposure: Automatic

White Balance: Automatic

Focal Length: 4.8 mm

Aperture: F=1.8

Image (Video Setting)

Image compression: MPEG4/ MJPEG Image Video

Digital 24-bit Color

Frame rate: 30fps@VGA, QVGA

Video resolution: 160x120, 320x240, 640x480, 1280x1024

System Hardware

LAN Connector: One RJ-45 port to connect to 10/100Mbps Ethernet

Wireless: IEEE 802.11b/g (*Wireless Model Only)

LED Indicator: LAN LED (Green), WLAN LED (Amber), Power LED (Blue)

HTTP/Utility

Includes easy-to-use Viewer & Recorder utility

Provides Admin utility & WEB browser Management

View multiple cameras simultaneously - Up to 4 cameras at a time

Manual/Schedule Record, Video Playback/Stop/Forward/Pause

Supports four additional user accounts for viewing camera

Auto sending Snap Shot by E-mail or FTP

Support DDNS and UPnP functions

Supports Windows 2000/XP/Vista/7

Firmware Upgradeable

EMI & Safety

FCC, CE

EDIMAX NETWORKING PEOPLE TOGETHER

EDIMAX Technology Co., Ltd.

www.edimax.com
